Ace Magician TK11-A0评测。高效的迷你PC，带有Thunderbolt 4和其他有用的功能

我们已经详细了解了Minipc联盟。王牌魔术师AMR5并留下了相当积极的印象。通过Ace Magician TK11-A0，Minipc Union在其产品组合中提供了一个额外的紧凑型计算机。然而，作为一款办公电脑，Ace Magician TK11-A0的目标用户群与Ace Magician AMR5不同，后者被宣传为一款小型游戏电脑。

Minipc联盟的王牌魔术师TK11-A0使用一个英特尔酷睿i5-1135G716GB的工作内存和512GB的固态硬盘作为存储解决方案。在图形解决方案方面，用户应该高兴地看到英特尔Iris Xe Graphics G7，它相当能够跟上AMD APU的性能。Ace Magician TK11-A0的价格为560欧元（约合562美元），与配置相当的其他迷你电脑的价格处于类似水平。但我们的测试装置也能以集成的扬声器和指纹传感器来得分。

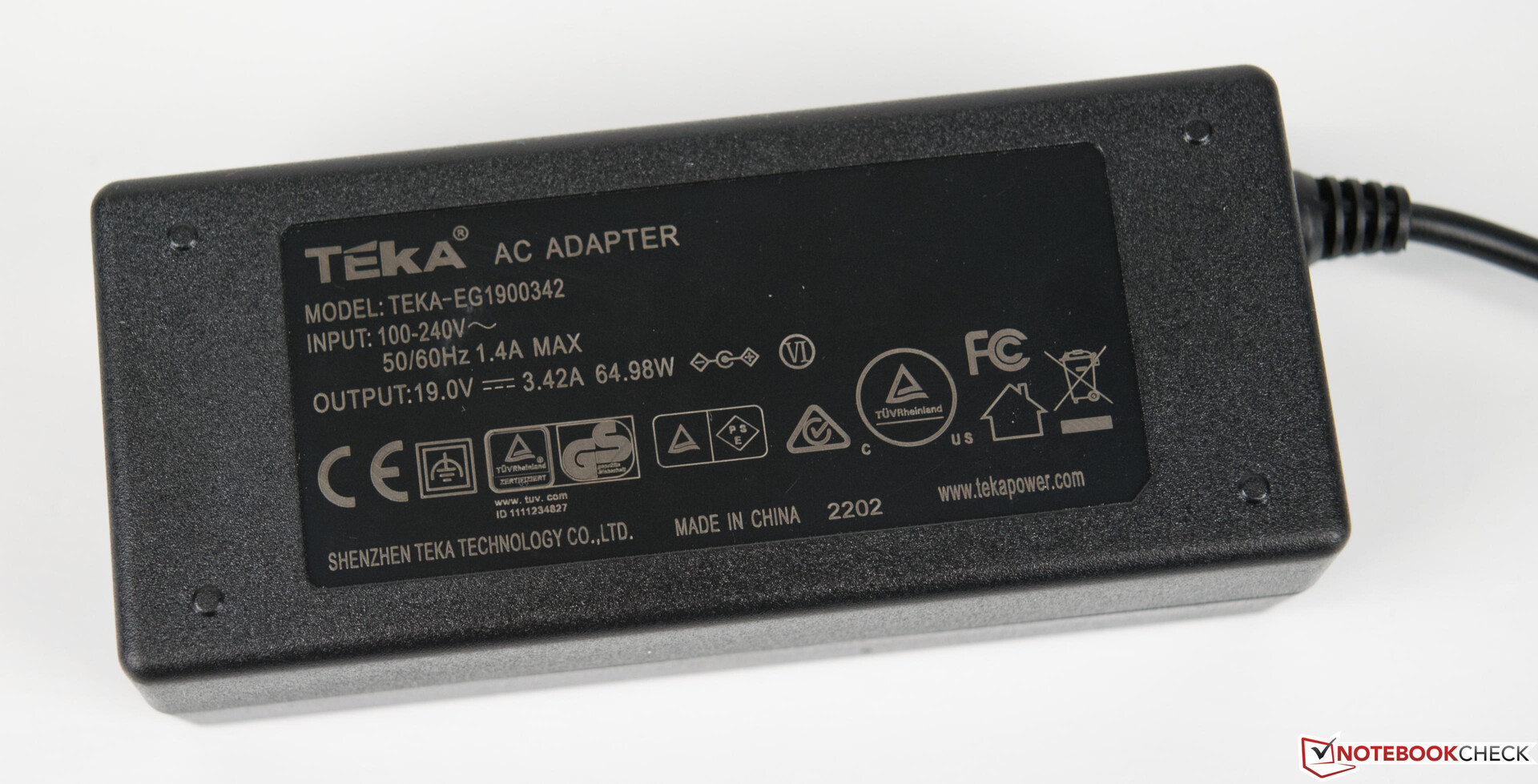

这款迷你电脑装在一个小盒子里，还有一个65瓦的电源和一个Vesa安装夹具，允许你将设备安装在显示器上。

Rating	Date	Model	Weight	Height
v7 ^(old)	09 / 2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v ^(old)	01 / 2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
v ^(old)	01 / 2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
v ^(old)	06 / 2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
v ^(old)	02 / 2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
v ^(old)	09 / 2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
v ^(old)	08 / 2022	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	1.3 kg	40 mm
v ^(old)	12 / 2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
v ^(old)	12 / 2021	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	638 g	39 mm

Minipc联合王牌魔术师TK11-A0的详细资料

案例

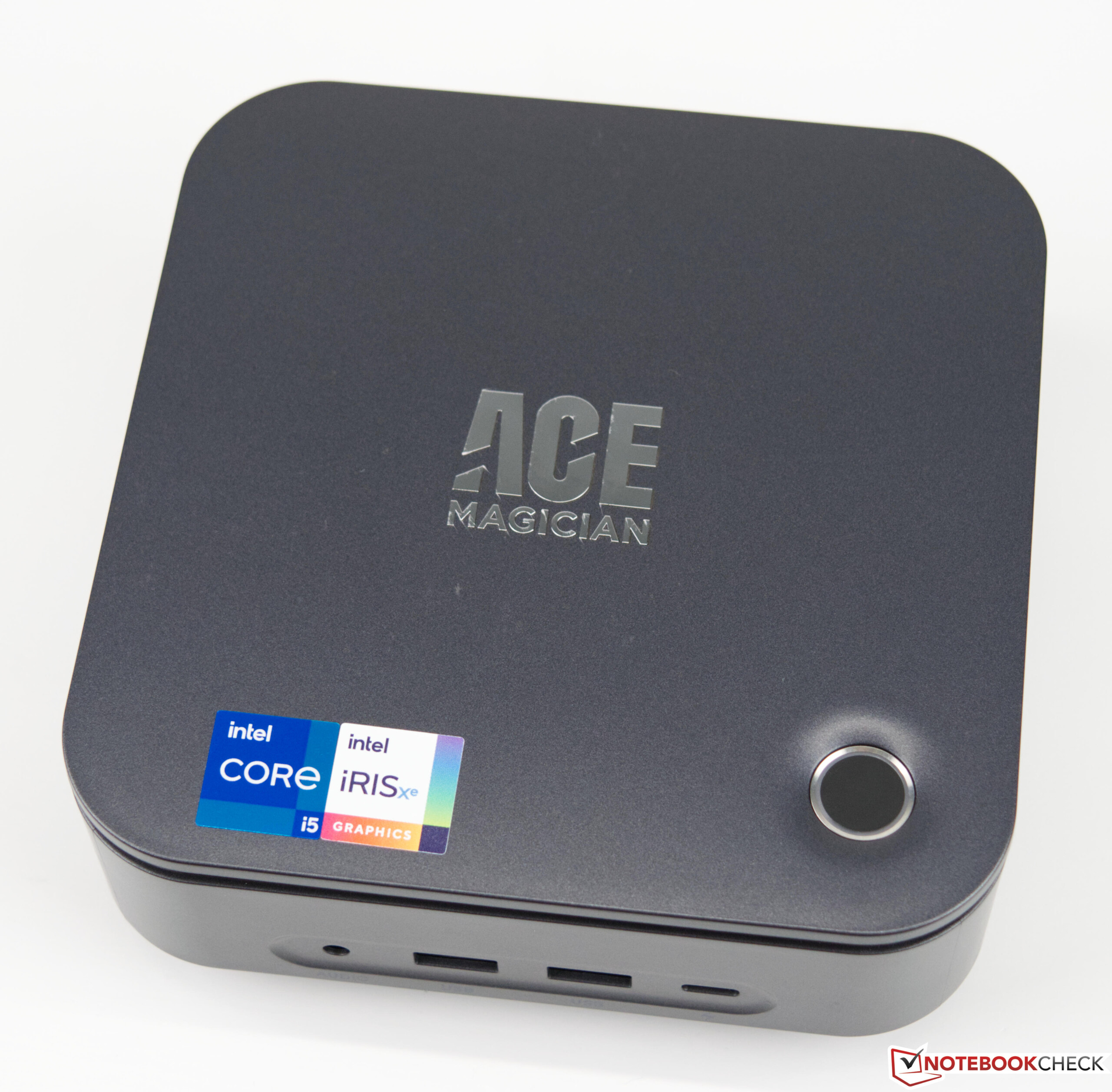

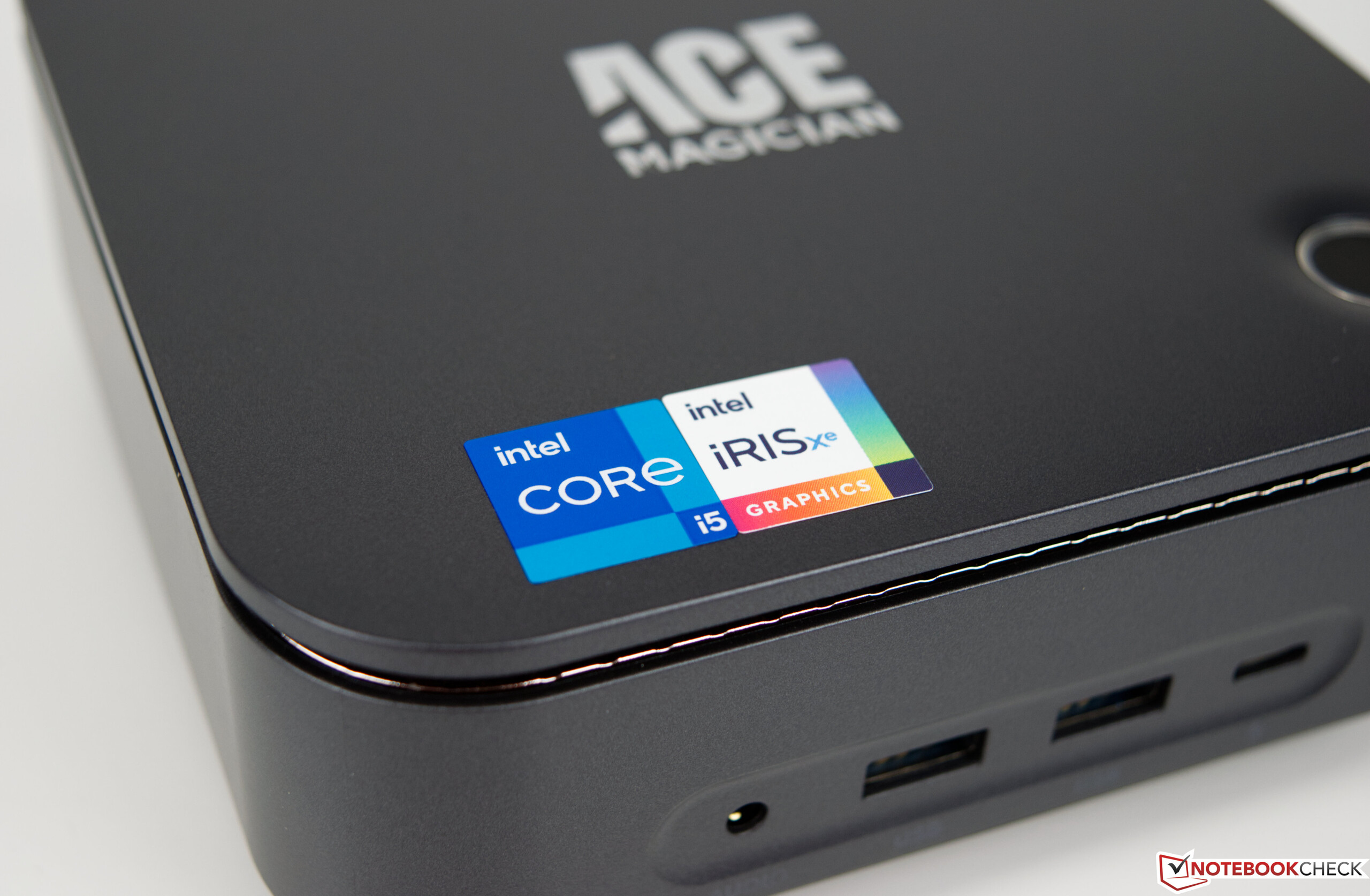

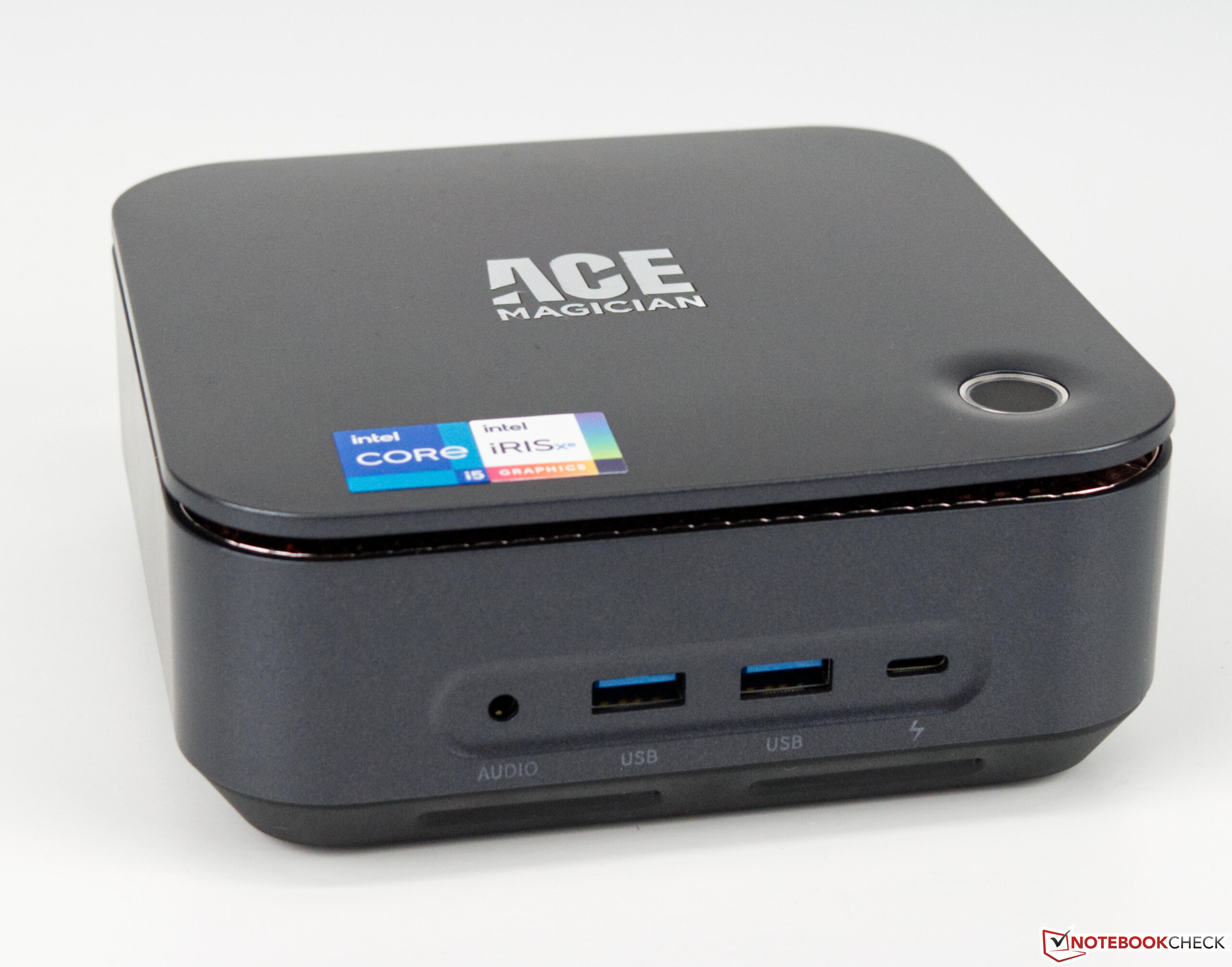

从外观上看，Ace Magician TK11-A0是一款经典的迷你PC，占地面积只有约14 x 14厘米（约5.5 x 5.5英寸）。同时，这台小型PC的高度为5厘米（约2英寸），比竞争对手略高。该机箱主要由塑料制成。在颜色设计方面，制造商使用灰色，并带有轻微的蓝色光泽。虽然没有铝，但机箱的稳定性很好。 586克（约20.7盎司），这台小电脑比我们这里测试的对比设备要轻。

尺寸比较

Minisforum EliteMini B550 Newsmay Neosmay S2-B560TPM Beelink GTI 11 Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Morefine S500+ DIN A4 ❌

设备

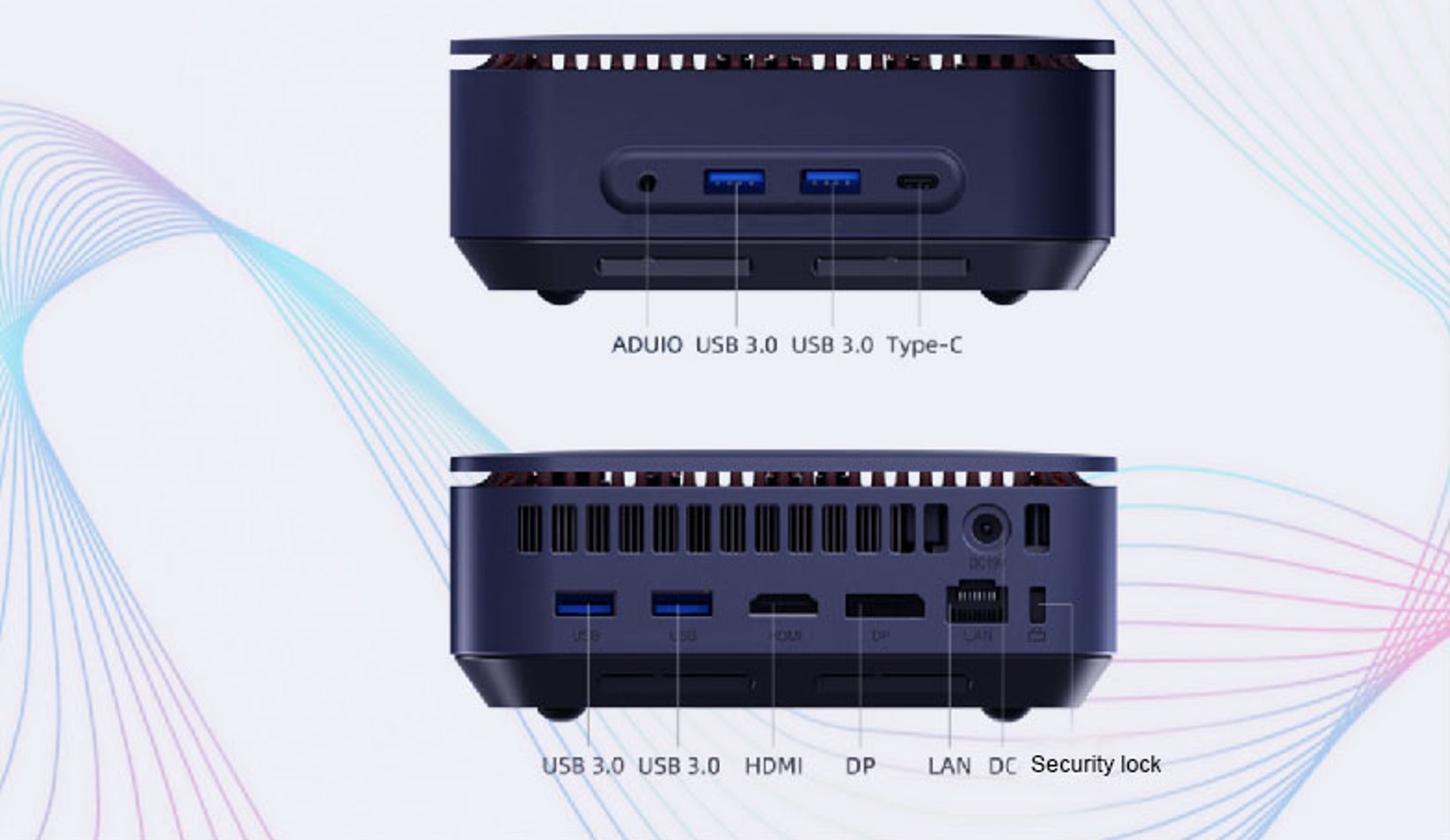

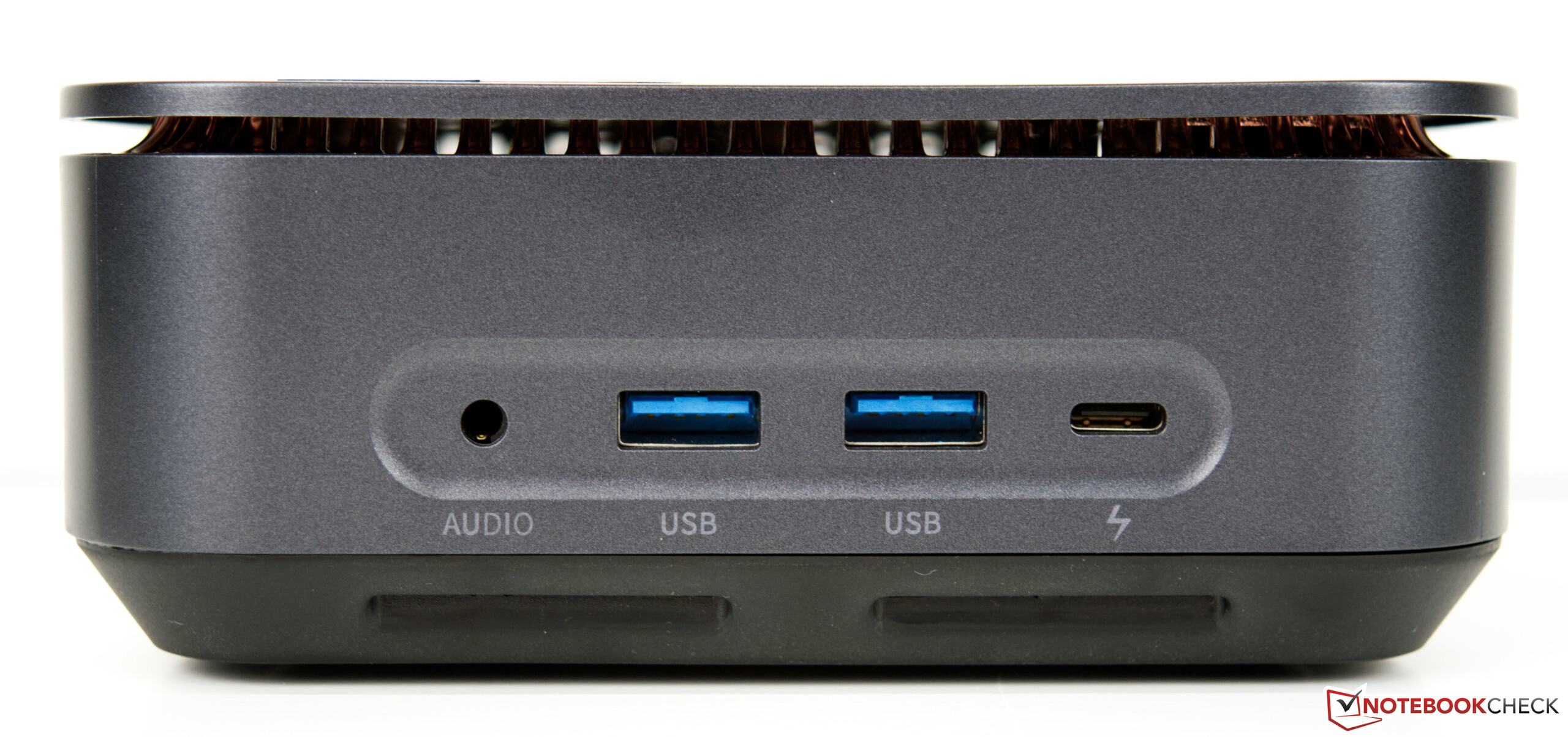

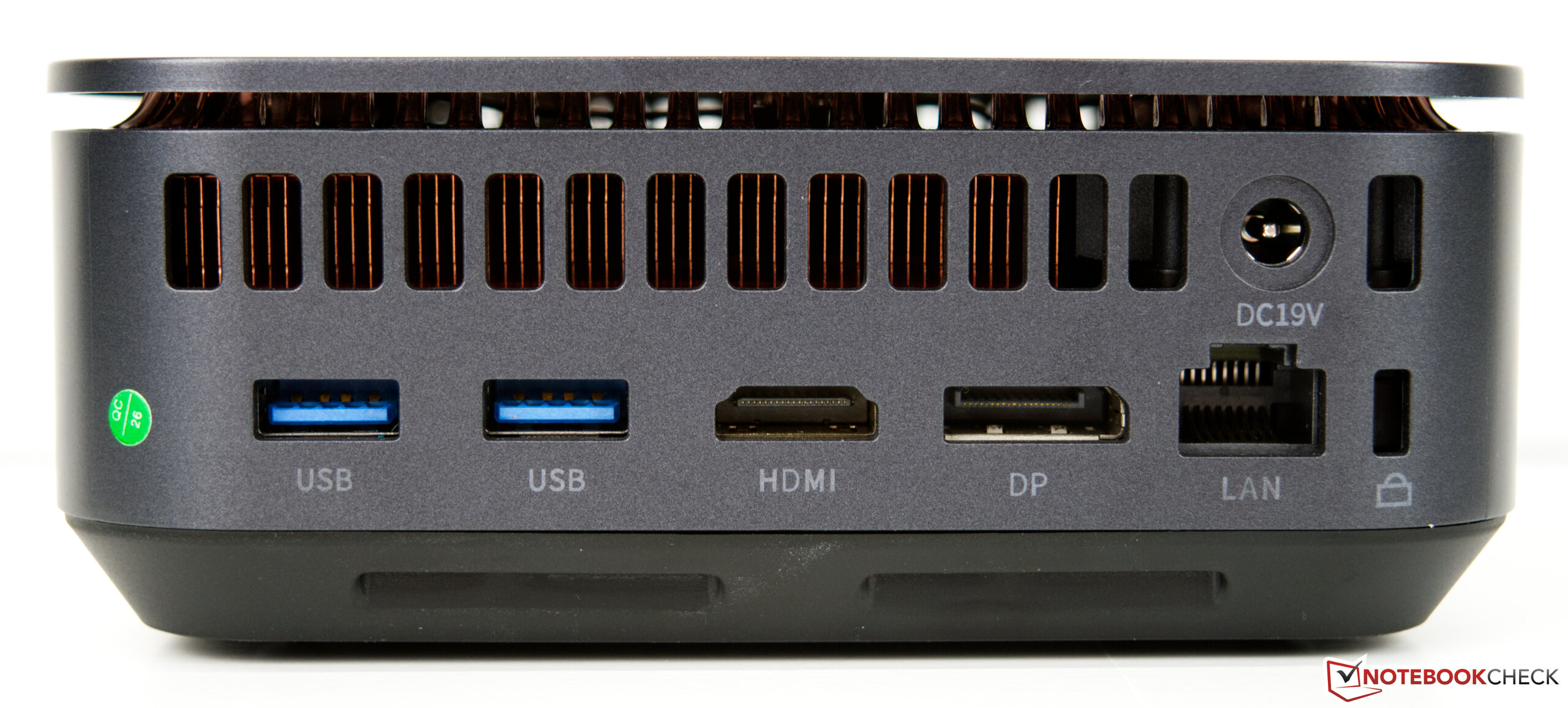

王牌魔术师TK11-A0能够以良好的外部连接端口选择得分，这些端口分布在前面和后面。虽然总共有5个USB端口是好的，但也不应该少，因为其中两个已经为鼠标和键盘保留了大部分时间。Type-C端口提供Thunderbolt支持，极大地扩展了可用的外部设备的范围。比如王牌魔术师AMR5一样，TK11-A0能够同时运行3台外部显示器。不幸的是，这里也没有SD卡阅读器。

沟通

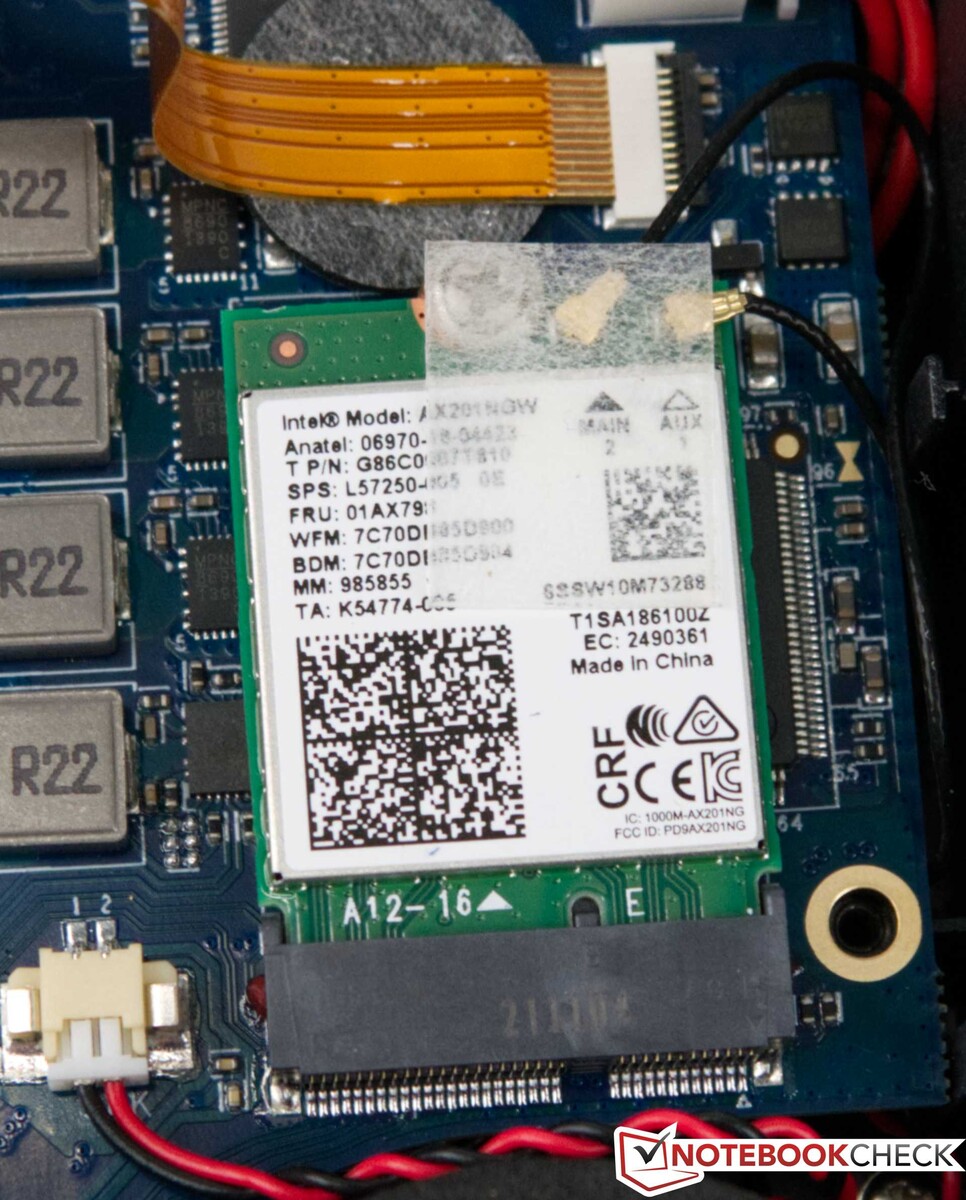

Minipc Union在Ace Magician TK11-A0中使用了Intel Wi-Fi 6 AX201 WLAN模块。不幸的是，正如我们的测量结果显示的那样，Wi-Fi模块的全部性能并不存在。在发送和接收时测得的传输速率，我们的测试装置与MINISFORUM EliteMini B550竞争。我们使用我们的华硕ROG Rapture GT-AXE11000路由器进行这项测试。作为无线连接的替代品，也有一个额外的选项，即用RJ45端口进行网络连接。不幸的是，这只能提供最大的1 Gbit/s。一些竞争对手在这方面做得更好，而 Minisforum EliteMini TH50甚至提供两个2.5G端口。

Networking
iperf3 receive AXE11000 6GHz
Average of class Mini PC (684 - 1771, n=55, last 2 years)	1380 MBit/s +254%
Average Intel Wi-Fi 6 AX201 (390 - 1670, n=3)	993 MBit/s +155%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s +132%
Minisforum EliteMini TH50 MediaTek MT7921	776 (482^min - 881^max) MBit/s +99%
Minisforum EliteMini B550 MediaTek RZ608	430 (379^min - 451^max) MBit/s +10%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s
iperf3 transmit AXE11000 6GHz
Average of class Mini PC (394 - 1800, n=55, last 2 years)	1330 MBit/s +79%
Average Intel Wi-Fi 6 AX201 (745 - 1252, n=3)	993 MBit/s +33%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +30%
Minisforum EliteMini TH50 MediaTek MT7921	866 (502^min - 950^max) MBit/s +16%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s
Minisforum EliteMini B550 MediaTek RZ608	572 (532^min - 680^max) MBit/s -23%

Minipc Union Ace Magician TK11-A0; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø733 (381-876)

Minipc Union Ace Magician TK11-A0; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø389 (322-478)

安全问题

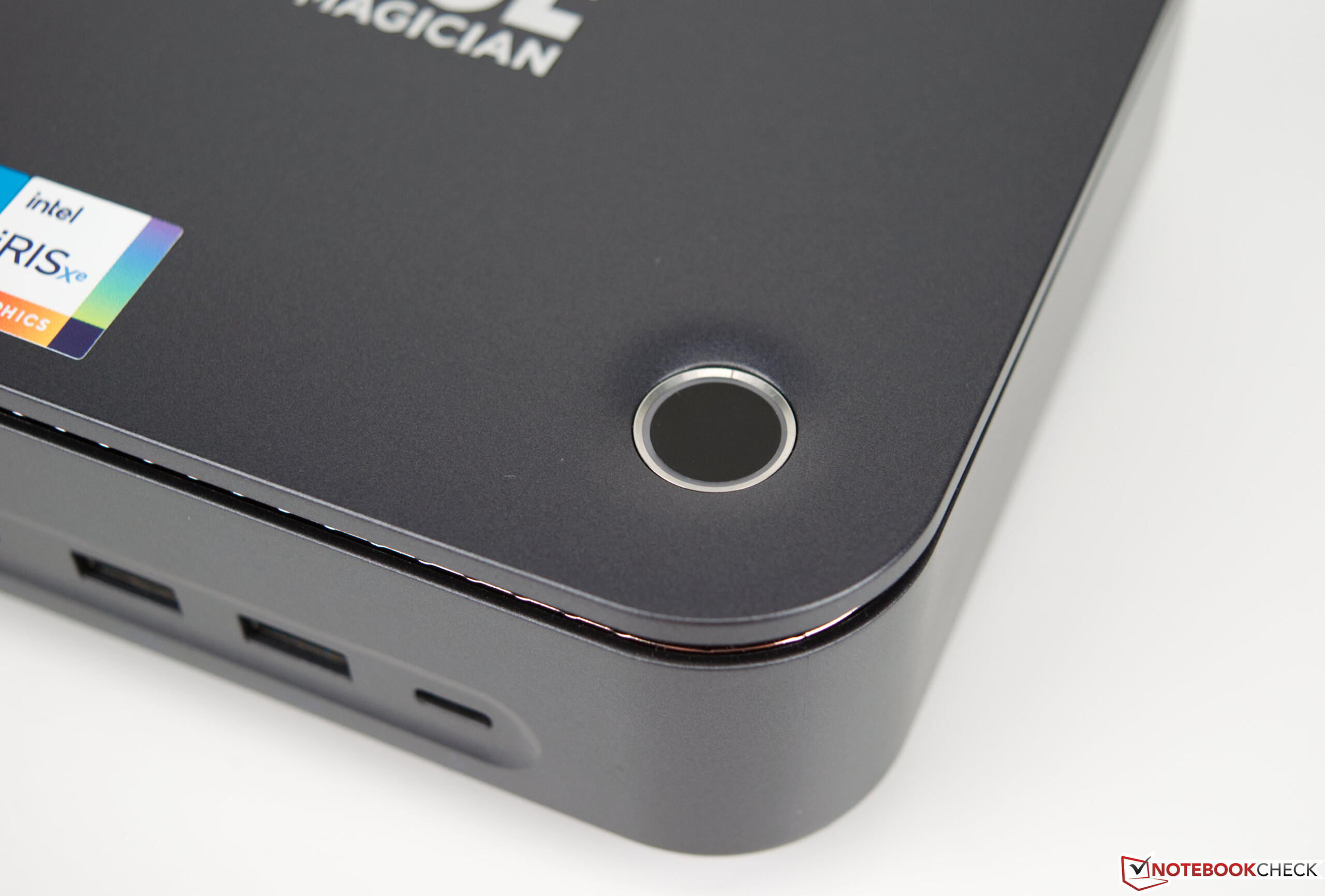

作为一项特殊功能，Ace Magician TK11-A0配备了一个指纹扫描仪。来自Mikroarray Technology的传感器被放置在机箱的顶部。它还支持Windows Hello，经过简单的设置，你可以直接用手指登录。我们在测试中没有遇到任何问题，使用它登录到操作系统的速度非常快。

维护

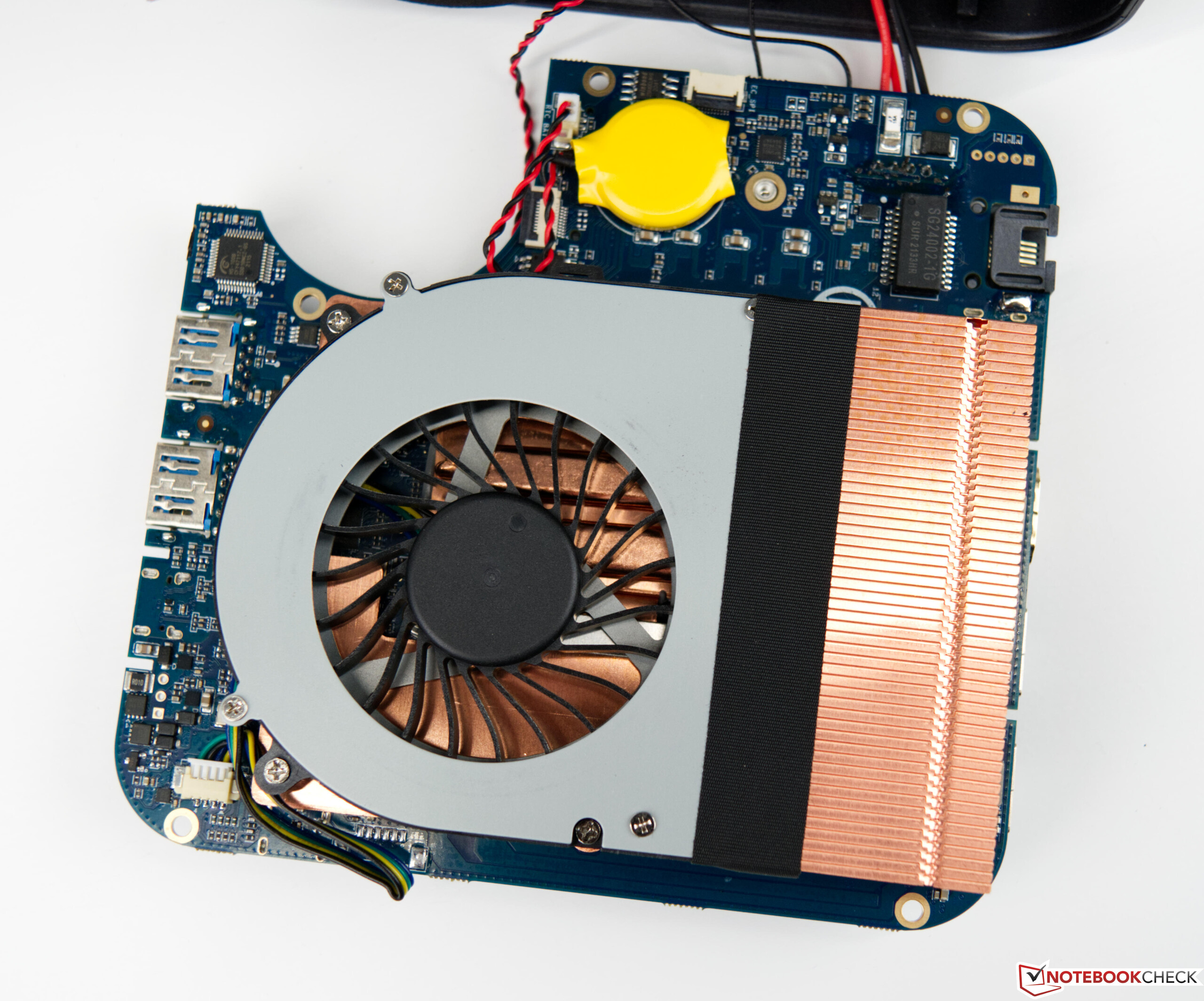

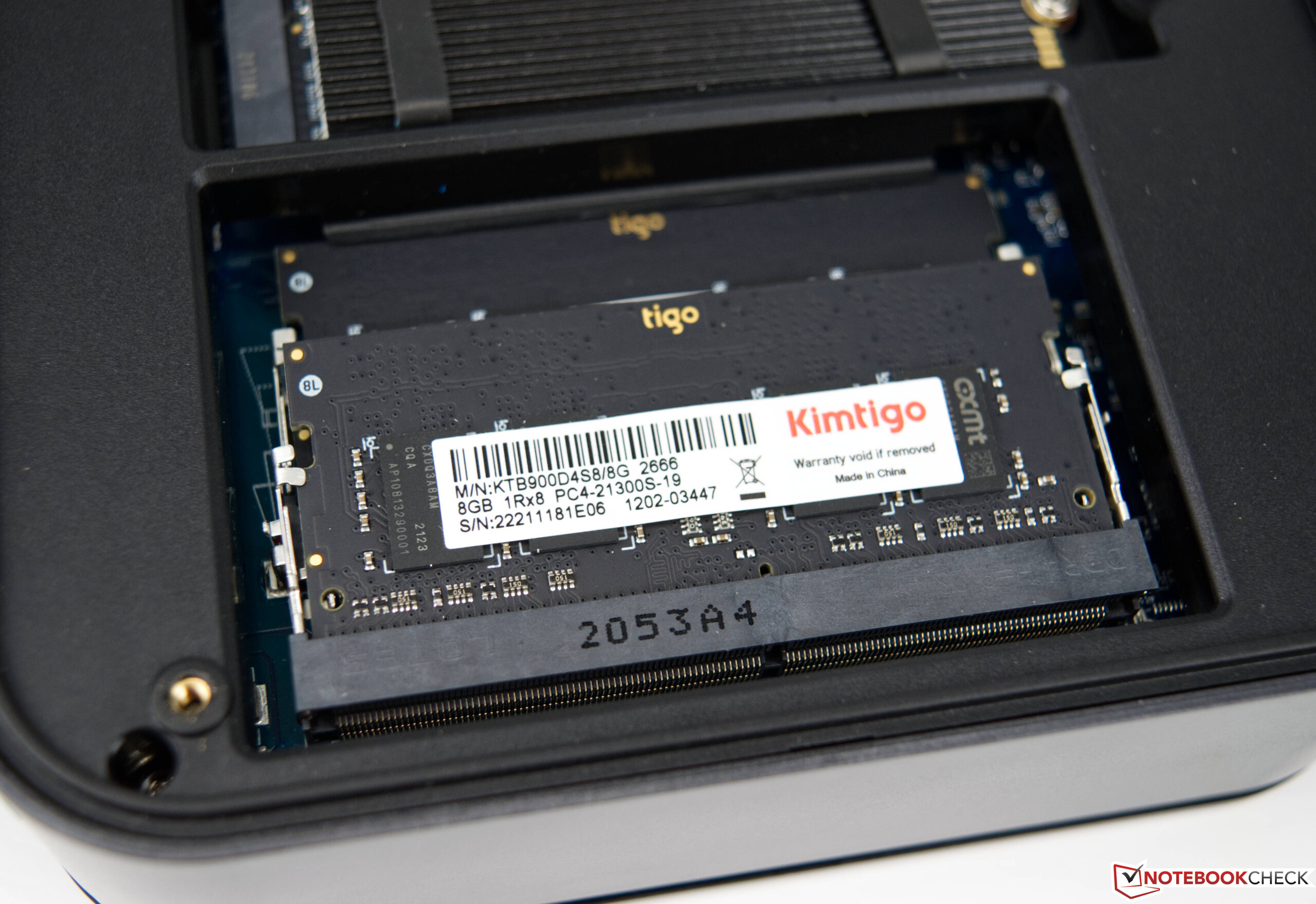

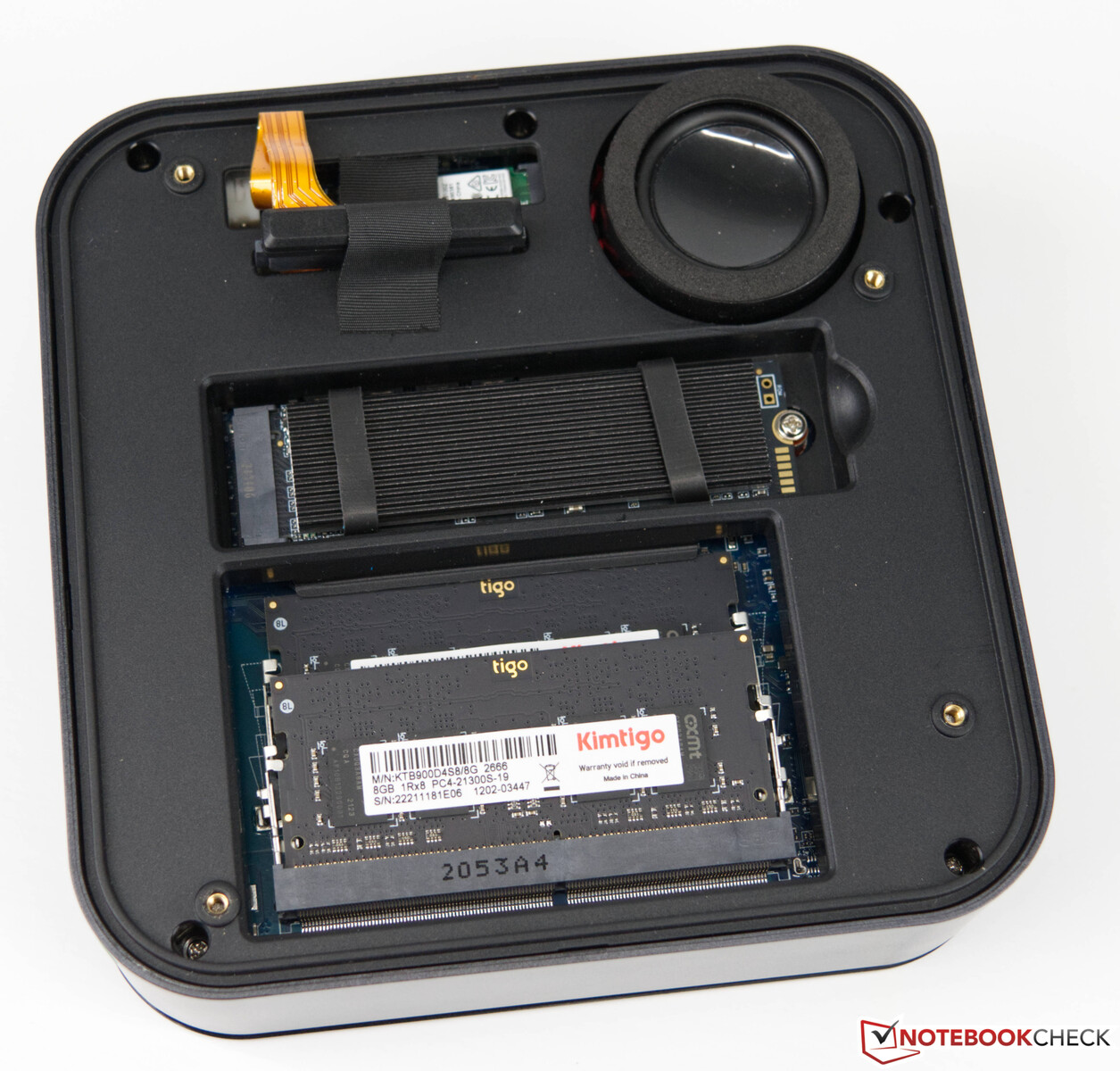

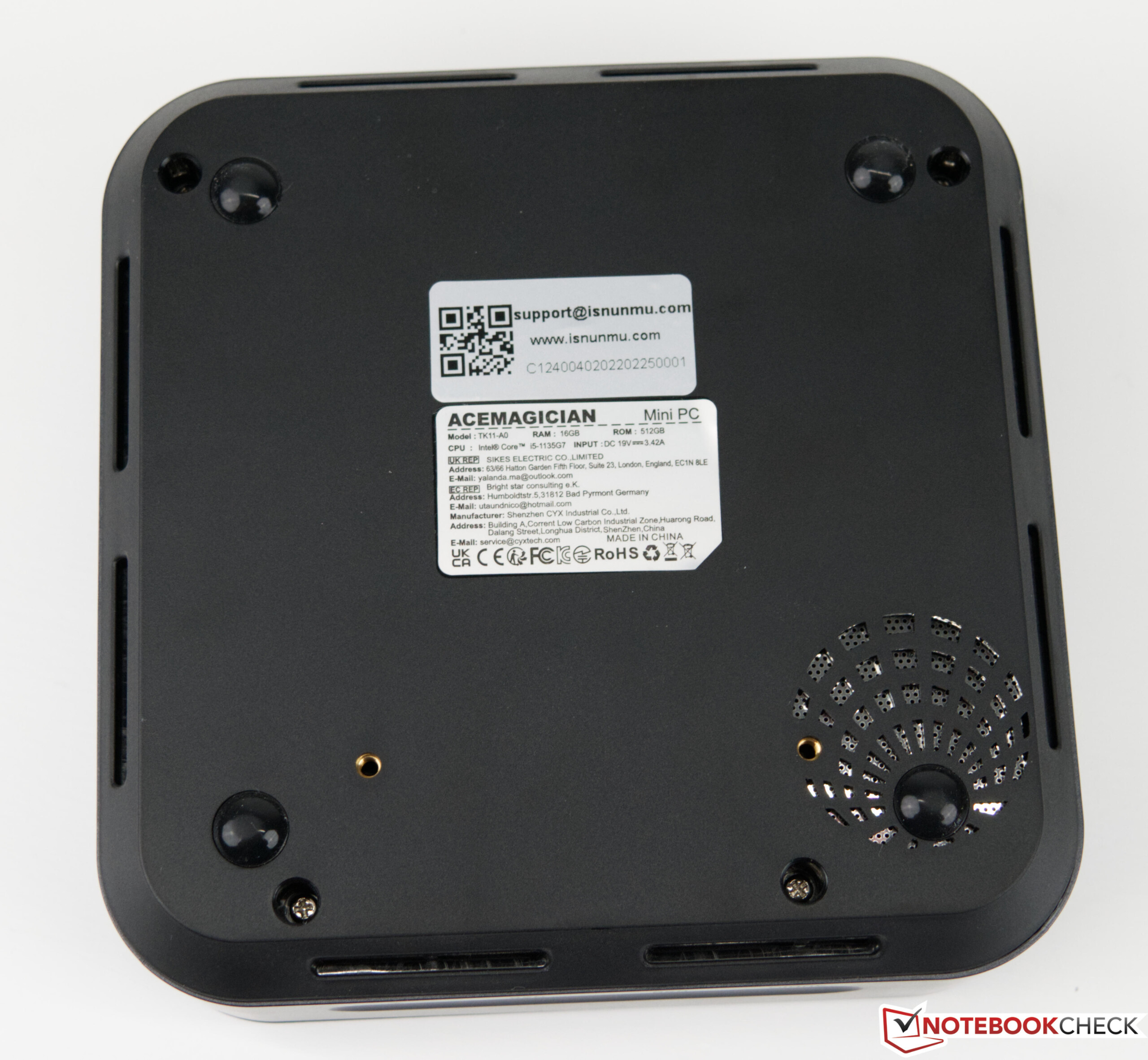

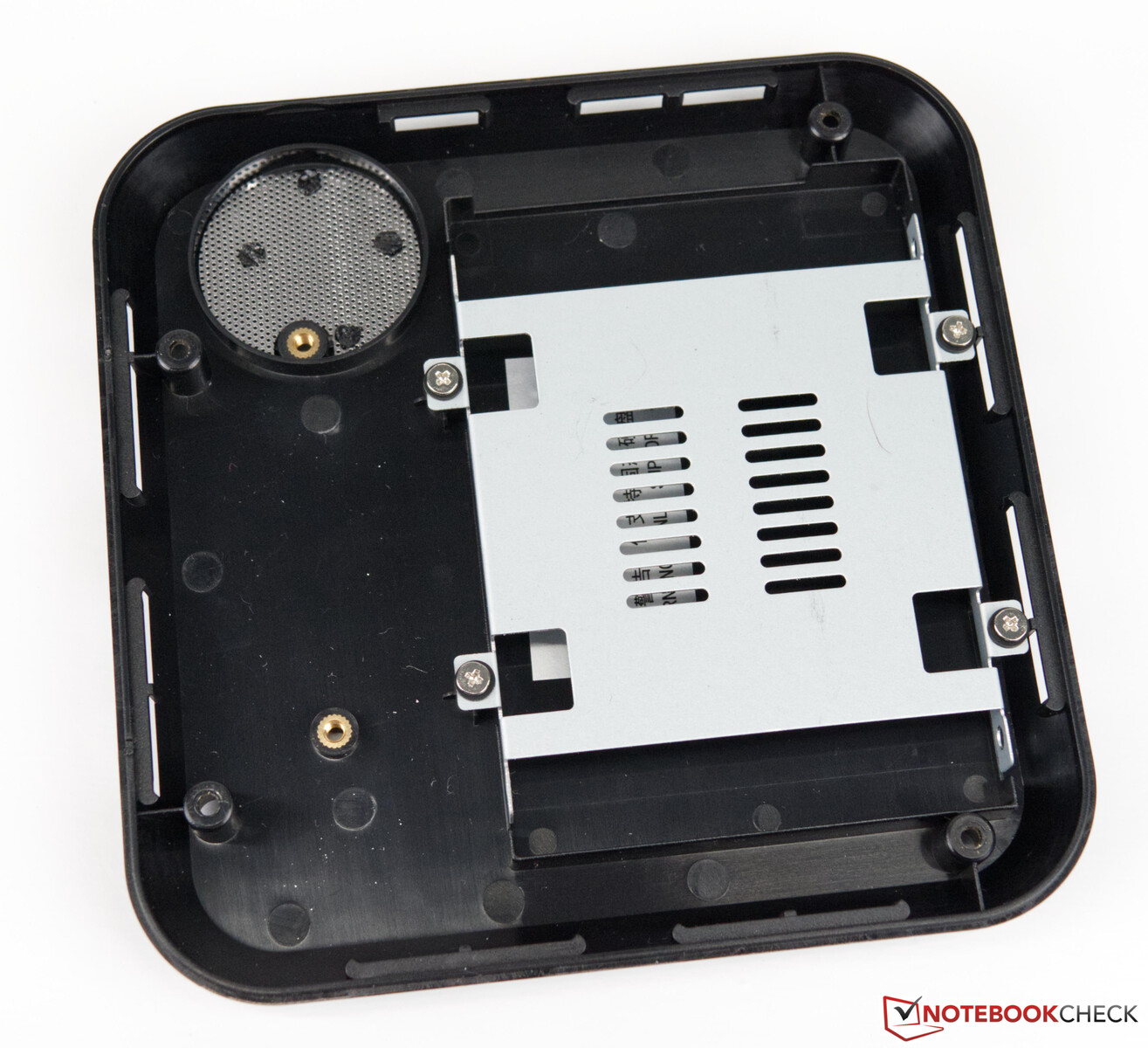

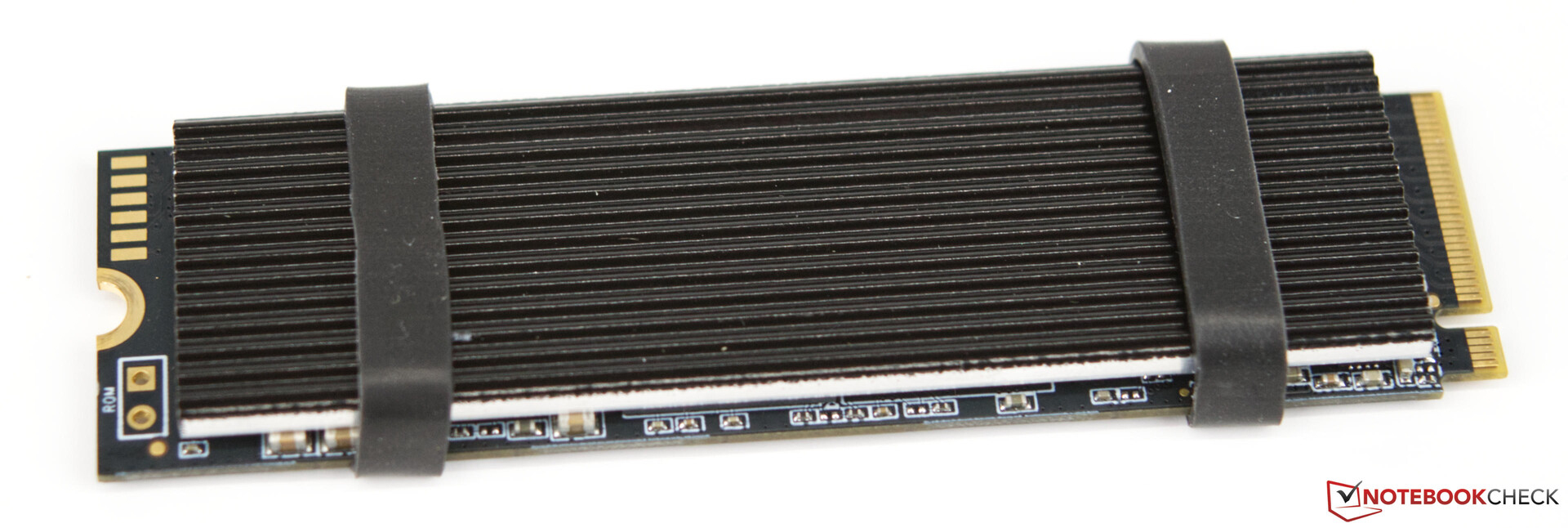

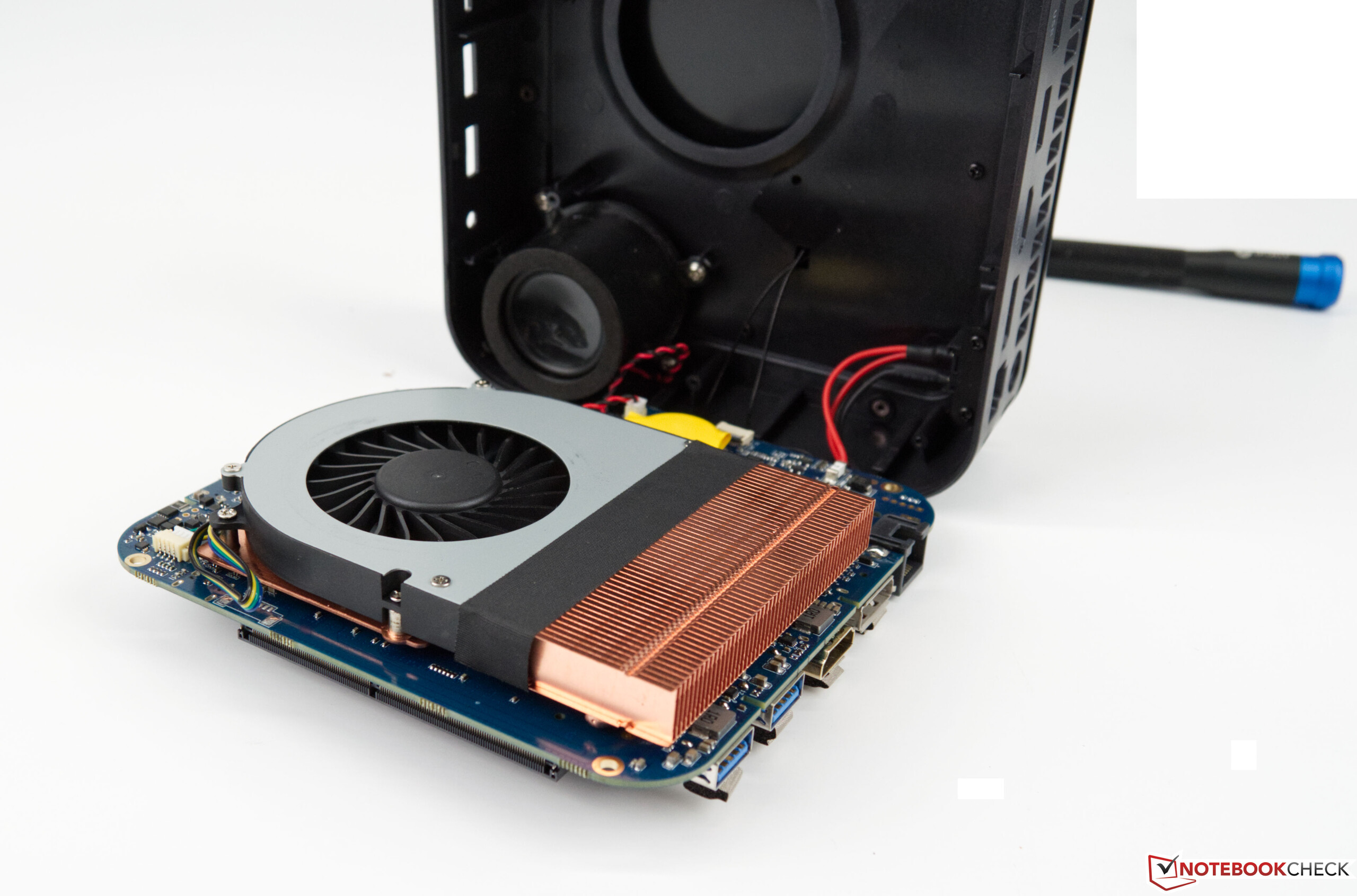

那些想升级王牌魔术师TK11-A0的人可以很容易地访问SSD或RAM。机箱的底部可以非常容易地被拆下。那些还想进入CPU冷却系统的人将不得不进行一些额外的拆卸，这在第一眼看来是相当令人生畏的。然而，这在实践中并没有成为太大的障碍。Ace Magician TK11-A0可以配备两个存储解决方案，安装2.5英寸格式的额外存储驱动器的连接线已经预装。

业绩

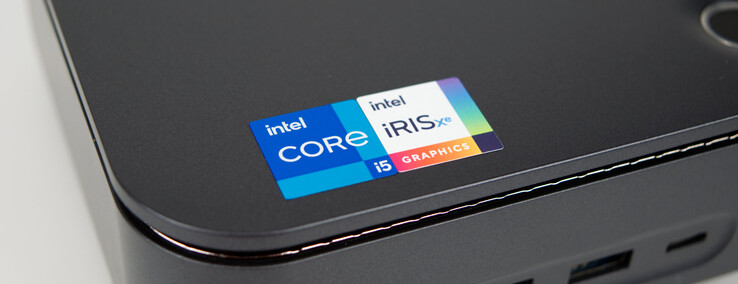

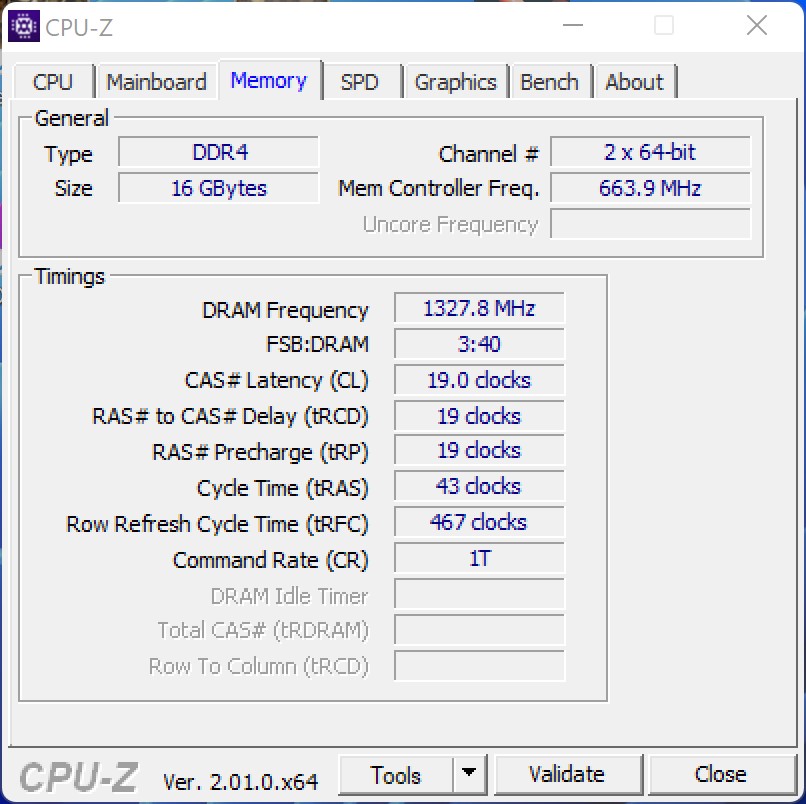

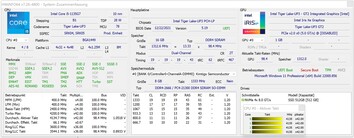

一个英特尔酷睿i5-1135G7构成了Ace Magician TK11-A0的计算单元。在我们的设备版本中，原生的四核SoC伴随着16GB的工作内存，这对于日常工作来说是绰绰有余的。简单的办公应用对它来说没有问题，高效的SoC也适用于苛刻的任务。如果有必要，工作内存可以扩展到64GB。另一方面，所有型号的SoC都是一样的，Ace Magician TK11-A0没有其他基础。

测试条件

我们用最高性能的电源模式进行所有的性能测试，以反映Ace Magician TK11-A0的最高性能。其他省电模式只用于测量耗电量和扬声器音量。你可以找到更多关于我们测试标准的细节这里.

处理器

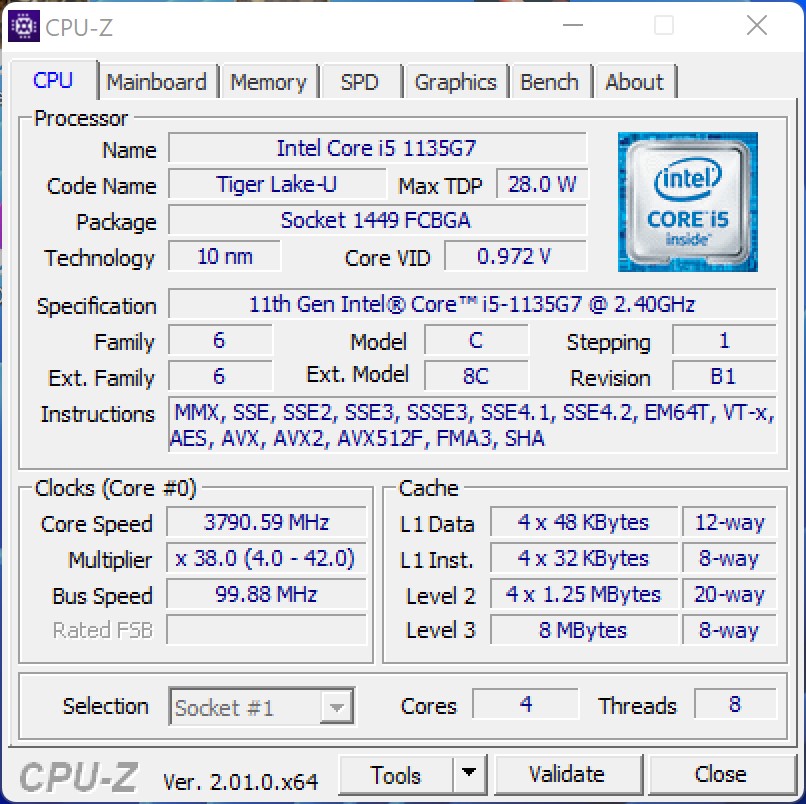

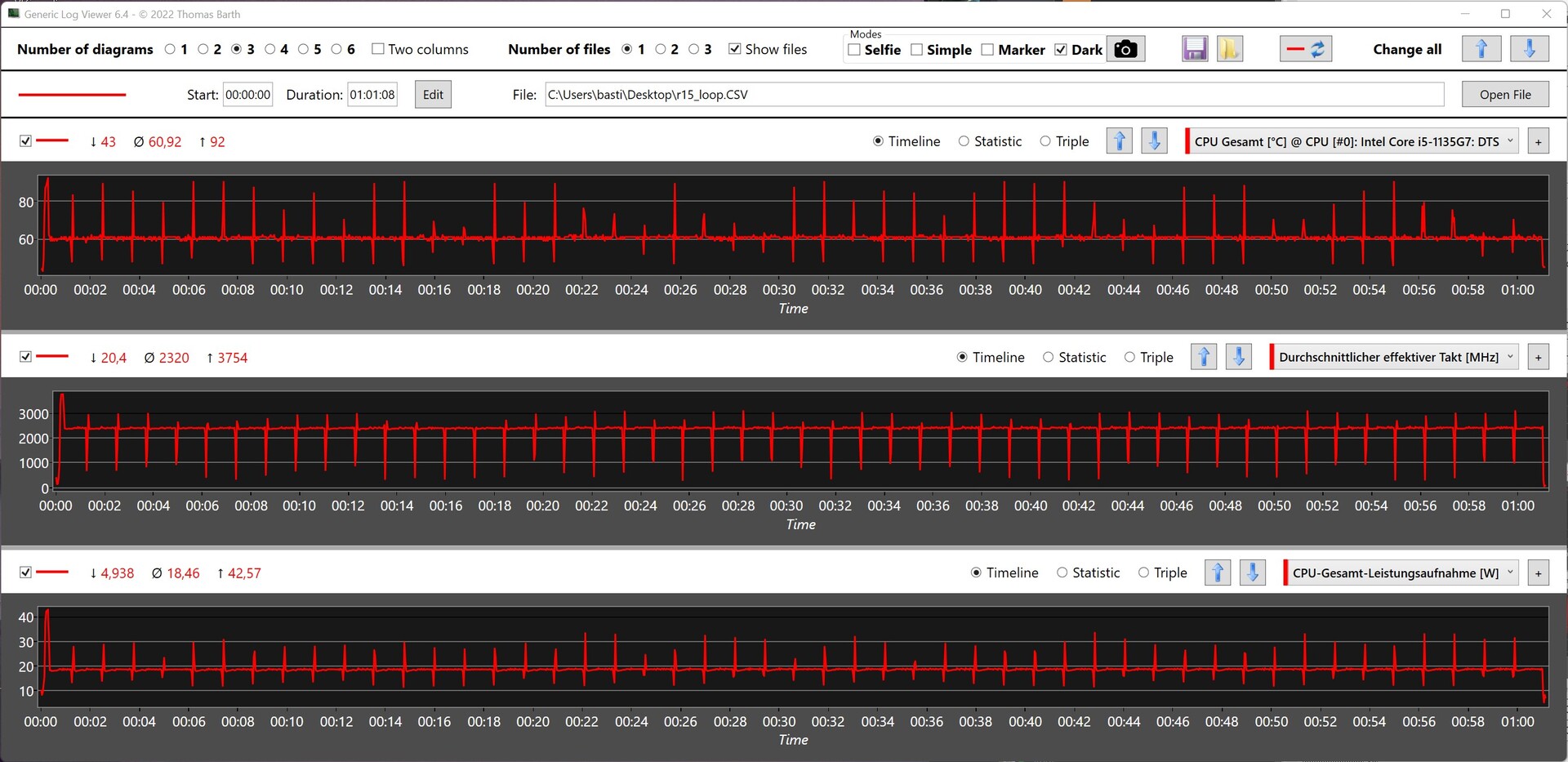

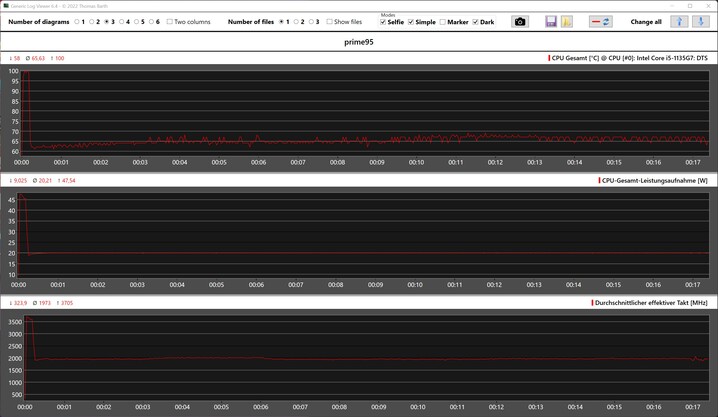

ǞǞǞ英特尔酷睿i5-1135G7提供四个原生计算核心，基于英特尔的Tiger Lake 架构。该SoC的功耗为20瓦，相当保守，这也反映在基准测试中。即使它也可以在短暂的时间内使用高达48瓦的功率，但这不足以在我们的比较中击败竞争对手。Ace Magician TK11-A0只能够超过 Newsmay Neosmay S2-B560TPM在我们的竞争中。

你可以找到更多关于处理器的基准测试这里.

Performance Rating - Percent
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.3 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	43.2 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	40 pt
Average Intel Core i5-1135G7	36.6 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt
Newsmay Neosmay S2-B560TPM ^-2! Intel Core i5-11400T, 1300 MHz	34.2 pt

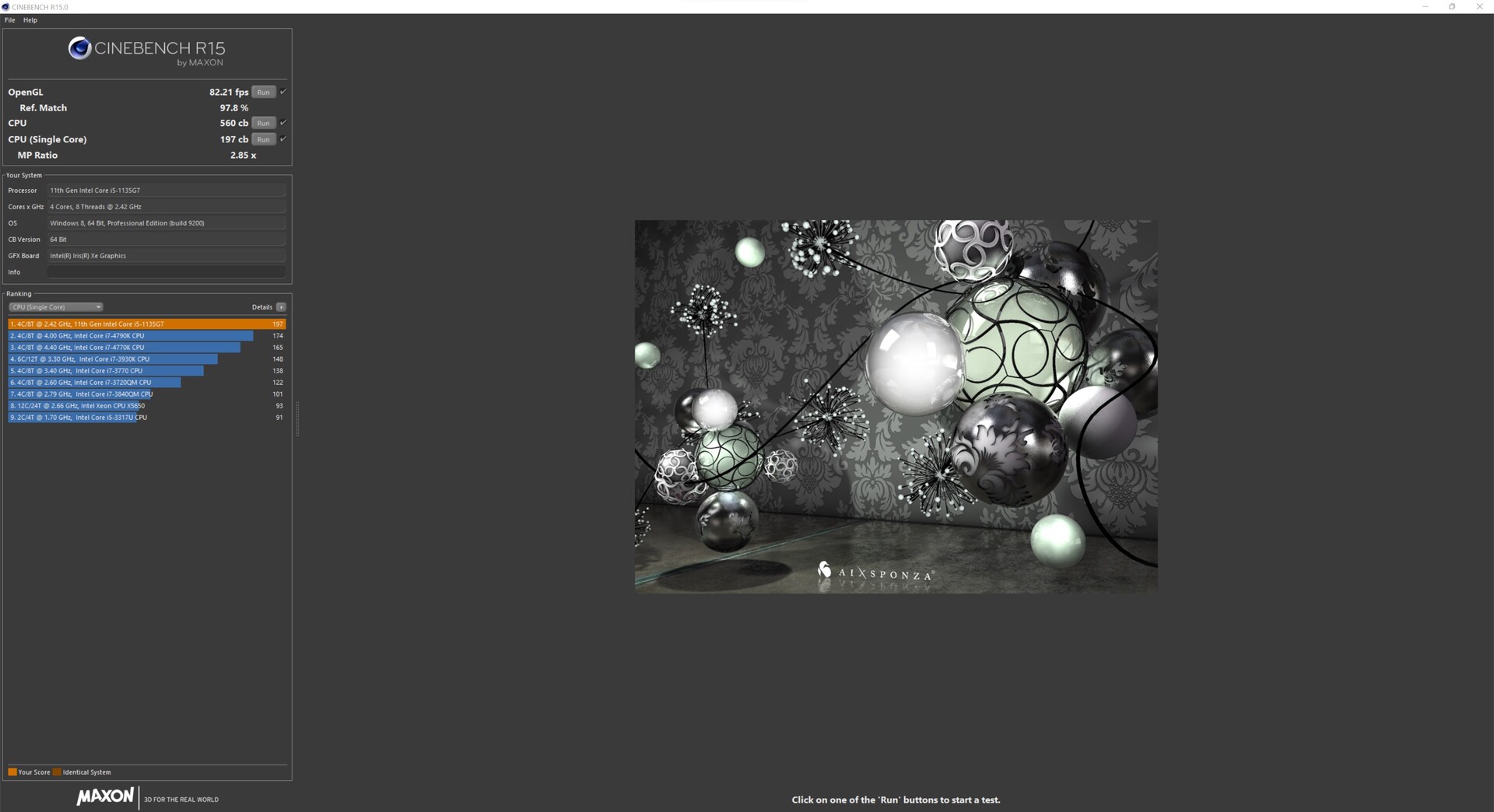

Cinebench R15
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points +22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points +13%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points
Average Intel Core i5-1135G7 (141.4 - 205, n=61)	194.4 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	153 Points -22%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +297%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points +254%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points +251%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points +243%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points +126%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points +70%
Average Intel Core i5-1135G7 (431 - 941, n=65)	792 Points +41%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	642 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points

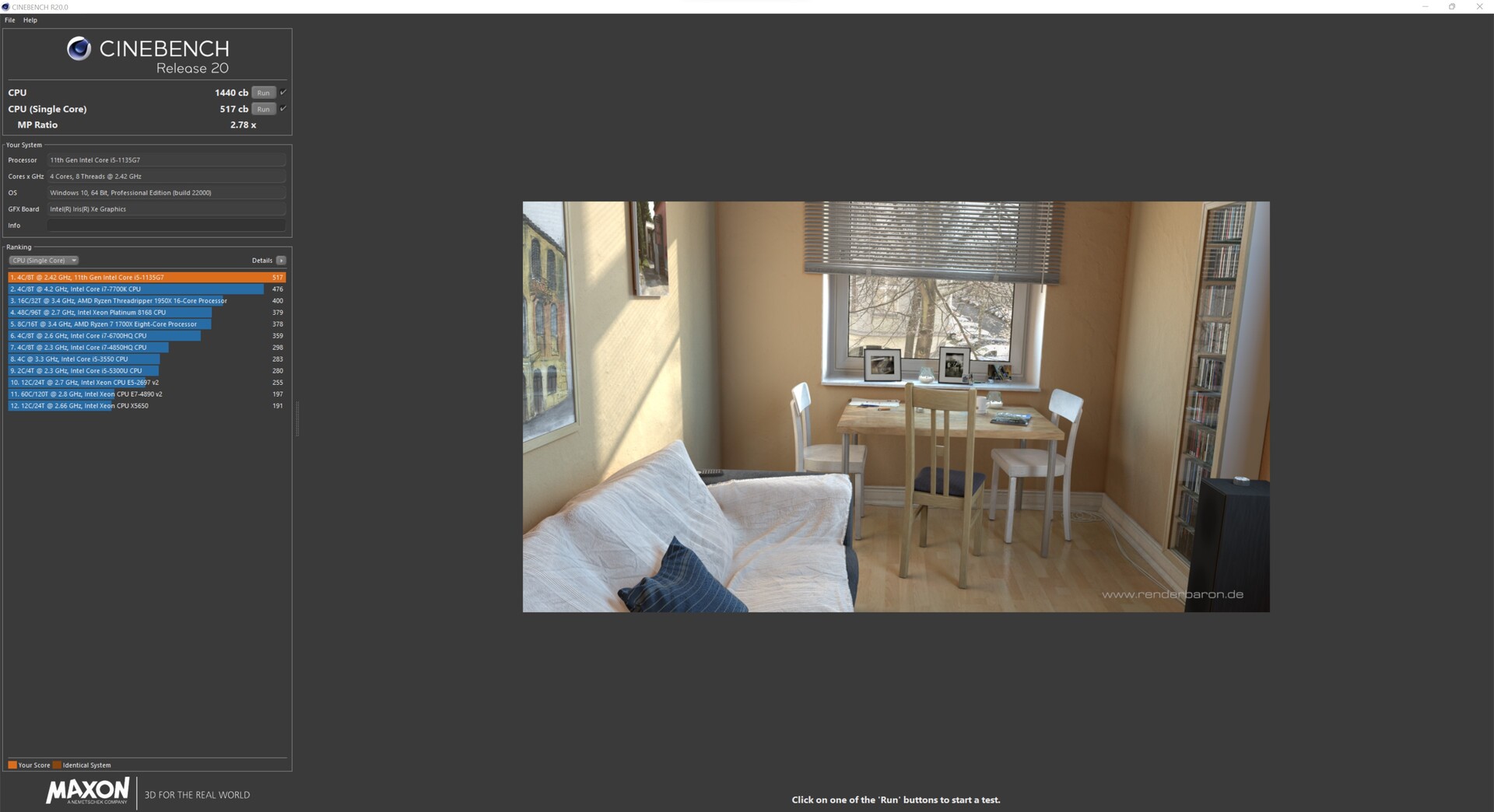

Cinebench R20
CPU (Single Core)
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points +13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points
Average Intel Core i5-1135G7 (375 - 527, n=62)	507 Points -2%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	378 Points -27%
CPU (Multi Core)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +260%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points +224%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points +218%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points +212%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points +107%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points +61%
Average Intel Core i5-1135G7 (979 - 2382, n=62)	1827 Points +27%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1500 Points +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points

Cinebench R11.5
CPU Single 64Bit
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points +24%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points +21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points +9%
Average Intel Core i5-1135G7 (2.31 - 2.36, n=3)	2.33 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points -3%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1.79 Points -23%
CPU Multi 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +302%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points +262%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points +258%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points +245%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points +132%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points +69%
Average Intel Core i5-1135G7 (6.37 - 9.72, n=3)	8.46 Points +33%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.3 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points +17%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points +17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points +14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points +10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points +7%
Average Intel Core i5-1135G7 (10395 - 10515, n=2)	10455 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	8290 Points -20%
Rendering Multiple CPUs 64Bit
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points +198%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points +170%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points +167%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points +163%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points +85%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points +73%
Average Intel Core i5-1135G7 (24499 - 37000, n=2)	30750 Points +26%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	25835 Points +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	704 Seconds * +6%
Average Intel Core i5-1135G7 (499 - 1044, n=60)	662 Seconds * +12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * +47%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +65%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +66%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +67%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +69%

wPrime 2.10
32m
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7.804 s * -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s *
Average Intel Core i5-1135G7 (6.53 - 6.8, n=2)	6.66 s * +2%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * +13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * +21%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * +47%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +51%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +53%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s *
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	261.299 s * +9%
Average Intel Core i5-1135G7 (231 - 287, n=2)	259 s * +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * +33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +45%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +63%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +66%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +68%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +71%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +67%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +64%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +59%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps +41%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps +30%
Average Intel Core i5-1135G7 (165.6 - 199.5, n=2)	182.5 fps +10%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	154.5 (154.4^min - 155.1^max) fps -7%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +249%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps +218%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps +205%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps +202%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps +107%
Average Intel Core i5-1135G7 (36.7 - 46.1, n=2)	41.4 fps +13%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	40 (40^min - 40.1^max) fps +9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps

WinRAR - Result
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s +85%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s +66%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s +64%
Average Intel Core i5-1135G7 (4185 - 9377, n=3)	6282 KB/s +50%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s +31%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4409 KB/s +5%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s +3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s

TrueCrypt
AES Mean 100MB
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +104%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s +45%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s +43%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s +40%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s +40%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s
Average Intel Core i5-1135G7 (4.2 - 5.3, n=3)	4.9 GB/s -8%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4.2 GB/s -21%
Twofish Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s +165%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +165%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s +112%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s +99%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s +46%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s +22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s
Average Intel Core i5-1135G7 (0.593 - 0.774, n=3)	0.707 GB/s -6%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.648 GB/s -14%
Serpent Mean 100MB
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +168%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +168%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +146%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +146%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s +56%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s +17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s
Average Intel Core i5-1135G7 (0.384 - 0.449, n=3)	0.427 GB/s -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.414 GB/s -8%

Geekbench 5.5
Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points +61%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points +60%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points +60%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points
Average Intel Core i5-1135G7 (3475 - 5472, n=58)	4663 Points -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3510 Points -28%
Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points +12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points +12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points +11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points
Average Intel Core i5-1135G7 (1147 - 1428, n=58)	1373 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1146 Points -18%

Geekbench 5.0
5.0 Multi-Core
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points +62%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points +62%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points +61%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points +57%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points +16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points
Average Intel Core i5-1135G7 (3937 - 5268, n=14)	4752 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	3495 Points -28%
5.0 Single-Core
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points 0%
Average Intel Core i5-1135G7 (1156 - 1407, n=14)	1365 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	1130 Points -18%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points +10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points +8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points +6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points
Average Intel Core i5-1135G7 (5194 - 6081, n=13)	5874 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -1%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4855 Points -18%
64 Bit Multi-Core Score
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points +68%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points +65%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points +64%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points +27%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points +14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points
Average Intel Core i5-1135G7 (16405 - 20747, n=13)	18945 Points -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	17082 Points -11%

3DMark 11 - 1280x720 Performance Physics
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points +115%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points +83%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points +79%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points +62%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points +50%
Average Intel Core i5-1135G7 (6423 - 11623, n=58)	9300 Points +19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	7319 Points -6%

7-Zip 18.03
7z b 4
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +226%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +212%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +212%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS +178%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS +122%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS +52%
Average Intel Core i5-1135G7 (14745 - 24873, n=62)	21407 MIPS +21%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	19699 MIPS +12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS
7z b 4 -mmt1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS +23%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS +21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS +20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS -1%
Average Intel Core i5-1135G7 (3924 - 4921, n=62)	4674 MIPS -2%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	4157 MIPS -13%

HWBOT x265 Benchmark v2.2 - 4k Preset
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +202%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +181%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +176%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps +145%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps +92%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps +49%
Average Intel Core i5-1135G7 (3.57 - 7.6, n=57)	5.93 fps +13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	5.24 fps 0%

R Benchmark 2.5 - Overall mean
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	0.792 sec * -24%
Average Intel Core i5-1135G7 (0.619 - 0.727, n=59)	0.642 sec * -0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * +10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * +22%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * +22%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * +23%

LibreOffice - 20 Documents To PDF
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * -27%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	62.4 s * -20%
Average Intel Core i5-1135G7 (44.2 - 62.9, n=60)	52.8 s * -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s *
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * +2%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * +2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * +3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * +5%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * +6%

WebXPRT 3 - Overall
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points +20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points +18%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points -4%
Average Intel Core i5-1135G7 (151 - 244, n=52)	226 Points -4%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	208 Points -12%

Mozilla Kraken 1.1 - Total
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	887 ms * -23%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * -6%
Average Intel Core i5-1135G7 (710 - 1273, n=58)	739 ms * -2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms *
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * +7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * +17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * +17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * +17%

3DMark
3840x2160 Fire Strike Ultra Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +150%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +143%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +140%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points +99%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points +84%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points +44%
Average Intel Core i5-1135G7 (6277 - 13088, n=14)	10975 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points
1920x1080 Fire Strike Physics
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +169%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +158%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +156%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points +120%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points +47%
Average Intel Core i5-1135G7 (1015 - 13480, n=61)	11403 Points +22%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, 1300 MHz	10064 Points +8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points
2560x1440 Time Spy CPU
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points +186%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points +147%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points +143%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points +128%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points +90%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points +82%
Average Intel Core i5-1135G7 (2664 - 5262, n=60)	3871 Points +35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points

* ... smaller is better

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.6 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	83.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.2 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.1 pt
Average of class Mini PC	74.9 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	58.2 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50.6 pt
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	49 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.1 pt
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	35.5 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +181%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +168%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +143%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +140%
Average of class Mini PC (646 - 51004, n=119, last 2 years)	12878 KRay/s +129%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s +62%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s +36%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s +33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	5279 KRay/s -6%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +316%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +260%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +253%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +233%
Average of class Mini PC (3857 - 214250, n=119, last 2 years)	64921 Points +169%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +138%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points +31%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31613 Points +31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	23312 Points -3%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +109%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +79%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +77%
Average of class Mini PC (260 - 9399, n=119, last 2 years)	2856 MB/s +73%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +60%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	2171 MB/s +32%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s +27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s +20%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	1522 MB/s -8%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +125%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +118%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +109%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +103%
Average of class Mini PC (8172 - 184747, n=119, last 2 years)	80187 Points +72%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points +44%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55222 Points +18%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points +13%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46657 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +265%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +223%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +208%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +201%
Average of class Mini PC (408 - 29064, n=119, last 2 years)	8812 Points +122%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +109%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points +26%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	4442 Points +12%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	4059 Points +2%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +272%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +219%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +215%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +183%
Average of class Mini PC (1987 - 113499, n=119, last 2 years)	33863 Points +127%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +111%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points +26%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	18635 Points +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	13839 Points -7%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +130%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +103%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +96%
Average of class Mini PC (3691 - 325960, n=119, last 2 years)	88382 MB/s +50%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s +33%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s +30%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s +28%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	67937 MB/s +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	55995 MB/s -5%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +229%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +221%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +192%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +182%
Average of class Mini PC (74.9 - 2039, n=119, last 2 years)	740 MB/s +179%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s +91%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s +55%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	370 MB/s +40%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	294 MB/s +11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +181%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +175%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +140%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +140%
Average of class Mini PC (350 - 26952, n=119, last 2 years)	6881 KRay/s +130%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s +55%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s +34%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	3864 KRay/s +29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	2866 KRay/s -4%

AIDA64 / CPU PhotoWorxx
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31708 MPixel/s +18%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +14%
Average of class Mini PC (4408 - 50500, n=119, last 2 years)	28301 MPixel/s +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -26%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s -27%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -28%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -44%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -45%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	12524 MPixel/s -54%

王牌魔术师TK11-A0在Cinebench-R15多循环中的表现

在Cinebench-R15恒定循环测试中，我们对内置冷却系统的效率有了初步印象。在第一次运行后，性能下降了大约5%，这可以追溯到一开始较高的Turbo时钟速度。然而，继续测试，英特尔酷睿i5-1135G7的性能就会下降。英特尔酷睿i5-1135G7仍然非常稳定。

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Ryzen 7 5700G: Ø1980 (1960.21-1996.81)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel Core i5-11400T: Ø664 (657.83-681.7)

Minisforum HM90 AMD Ryzen 9 4900H, AMD Ryzen 9 4900H: Ø1880 (1846.13-1987.28)

Beelink GTI 11 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø829 (822.06-915.5)

系统性能

该SoC大约两年前的事实在基准测试中变得很明显。这款酷睿i5-1135G7无法跟上更现代的六核或八核处理器的步伐。然而，这些结果并不反映Ace Magician TK11-A0的主观性能印象，因为这比你想象的要好得多。该系统很快就可以使用了，在工作时，几乎没有任何延迟，可能会让你觉得你是在一个缓慢的系统上工作。

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	99.8 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	96.9 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	96.8 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	94 pt
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	84.5 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	79.3 pt
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	78 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	72.5 pt
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	66.7 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +44%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +39%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points +37%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points +27%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points +23%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points +13%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	4952 Points +10%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	3975 Points -12%
Essentials
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points +17%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points +16%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points +14%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points +13%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	9893 Points +11%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points +7%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points +1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	8679 Points -3%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +60%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +56%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +55%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +50%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +30%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points +7%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	6400 Points +1%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	5656 Points -11%

Performance Rating | CrossMark

Performance Rating - Percent
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	100 pt
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	96.9 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	92.7 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	89 pt
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	80.5 pt

CrossMark
Responsiveness
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points +4%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points +3%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points +3%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1113 Points -9%
Creativity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points +21%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points +16%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points +4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1094 Points -8%
Productivity
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points +11%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points +8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points +5%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1160 Points -11%
Overall
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points +14%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points +10%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points +4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1125 Points -10%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +37%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	48357 MB/s +37%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s +18%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	40994 MB/s +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s +7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s +6%
Average Intel Core i5-1135G7 (17443 - 63889, n=45)	36640 MB/s +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -1%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s -11%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	19209 MB/s -46%

AIDA64 / Memory Read
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	49177 MB/s +22%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46916 MB/s +16%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s +16%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s +8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s +7%
Average Intel Core i5-1135G7 (19716 - 63705, n=45)	40897 MB/s +1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -5%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s -6%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	20405 MB/s -49%

AIDA64 / Memory Write
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52856 MB/s +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +29%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46366 MB/s +18%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s +7%
Average Intel Core i5-1135G7 (18722 - 66778, n=45)	41742 MB/s +7%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -4%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -10%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s -10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -10%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	18659 MB/s -52%

AIDA64 / Memory Latency
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * -39%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	92.1 ns * -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * -32%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * -31%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * -15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * -8%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * -7%
Average Intel Core i5-1135G7 (68.3 - 107, n=51)	72.5 ns * -5%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, UHD Graphics 730	69.7 ns * -1%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns *
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	68.3 ns * +1%

* ... smaller is better

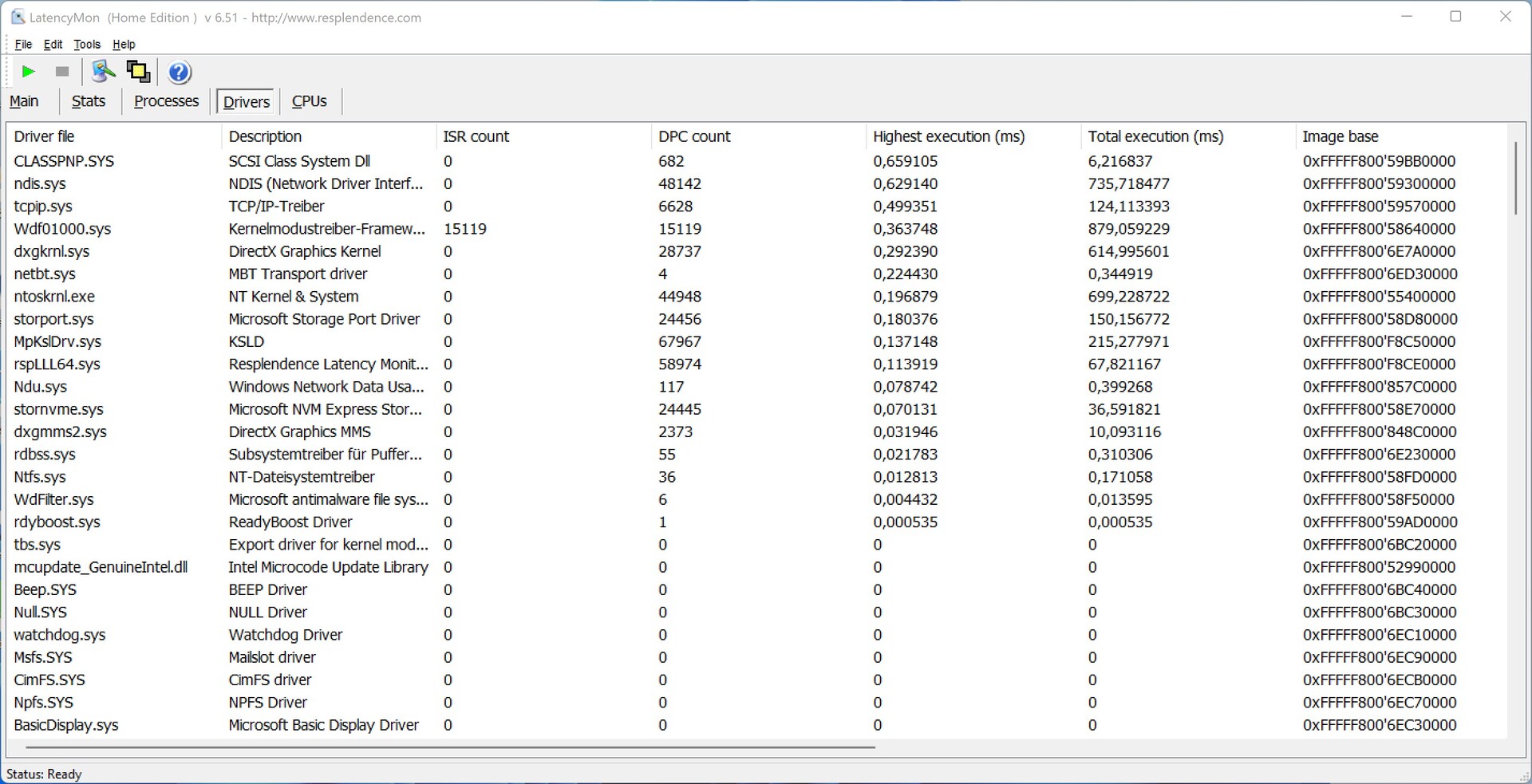

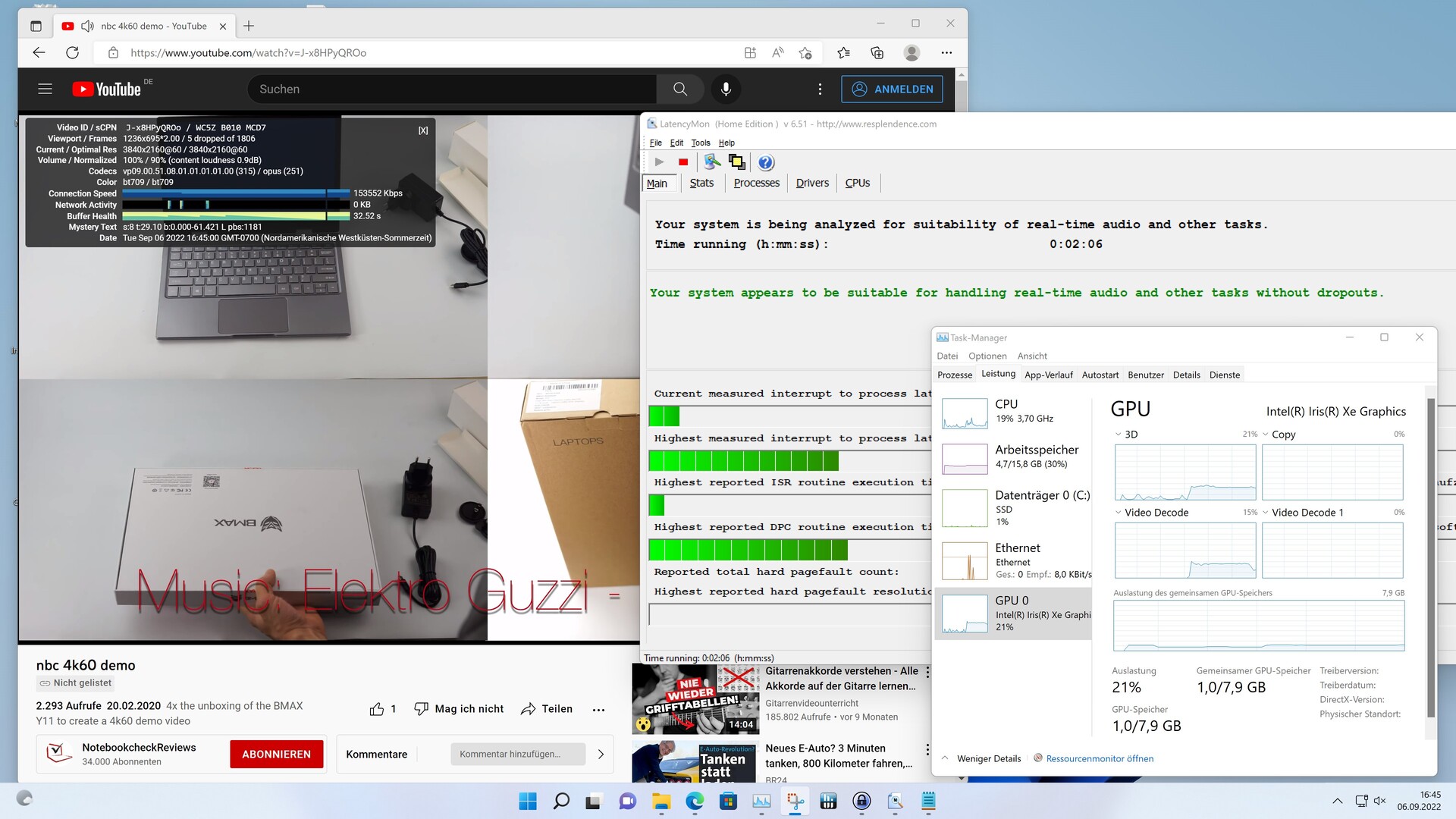

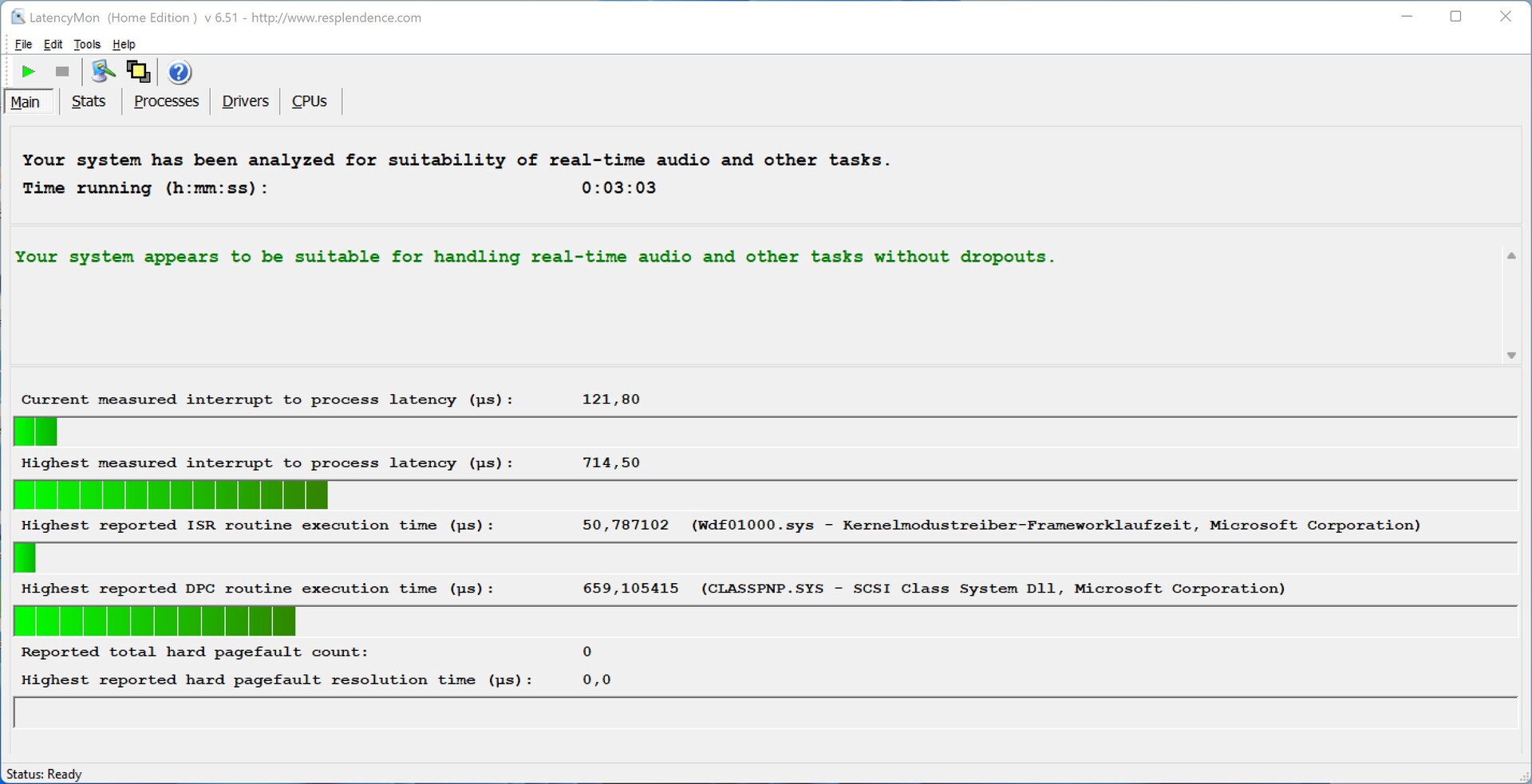

DPC延迟

王牌魔术师TK11-A0在任何时候都不存在任何延迟问题。无论你打开几个浏览器标签，播放4K YouTube视频，还是在Prime95的负载下，都没有任何延迟增加。当播放我们的4K测试视频时，iGPU的英特尔酷睿i5-1135G7被加载到大约20%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -183%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -147%
Newsmay Neosmay S2-B560TPM, Intel Core i5-11400T Intel UHD Graphics 730 (Rocket Lake), Lexar NM610 500GB	1232.3 μs * -87%
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * -68%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * -68%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	765 μs * -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs *
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +47%
Beelink GTI 11, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Kingston SA2000M8500G	278.2 μs * +58%

* ... smaller is better

存储解决方案

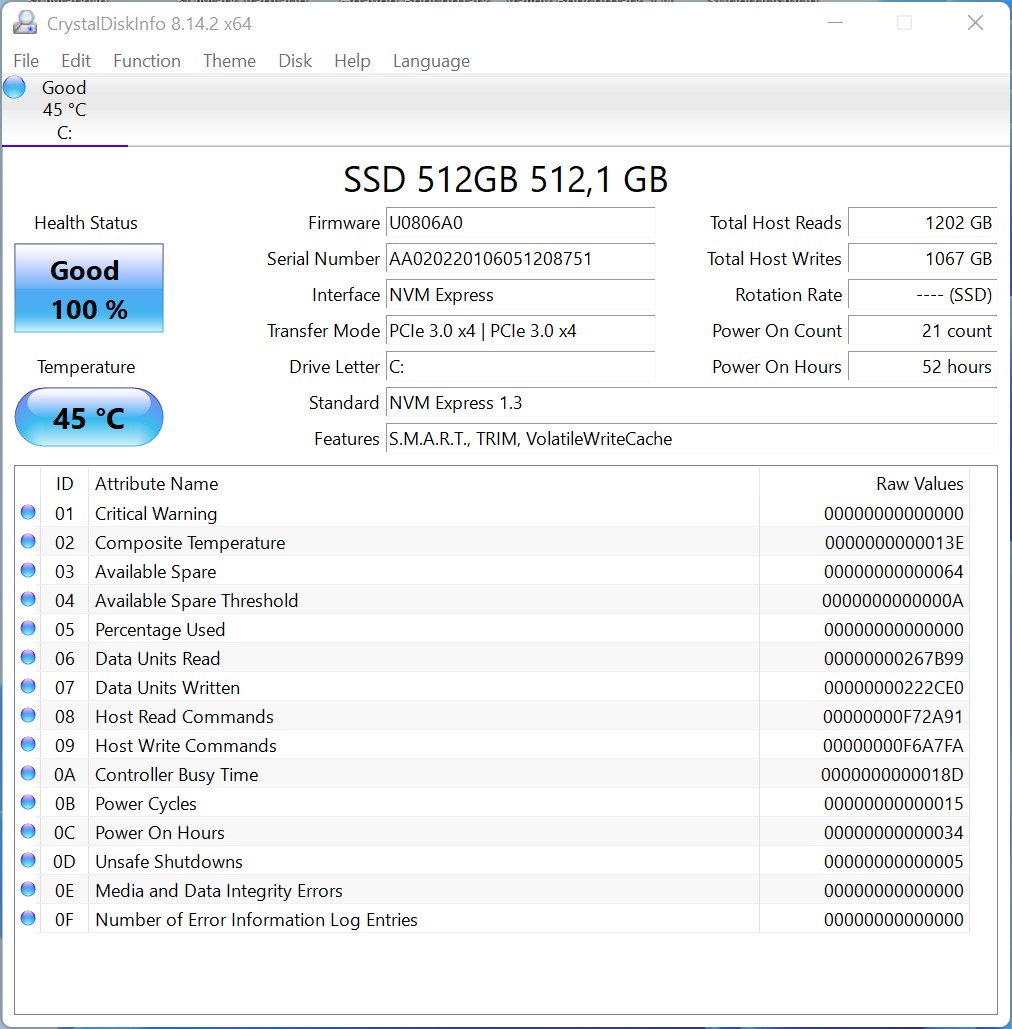

Minipc Union为Ace Magician TK11-A0配备了一块512GB的SSD。我们已经在Ace Magician AMR5中看到了Future Path的相同型号，它使用PCIe连接。总的来说，我们在这里看到了同样的优点和缺点。被动冷却不足以确保在恒定负载下也有稳定的数值。512GB的型号对于常规的办公室使用来说已经足够大了。然而，那些需要更多存储空间的人可以很容易地安装第二个固态硬盘，而不需要太多努力。然而，你必须注意外形因素，因为机箱底部只允许安装一个2.5英寸的模型。

你可以在我们的比较图中找到更多的比较和基准。比较表.

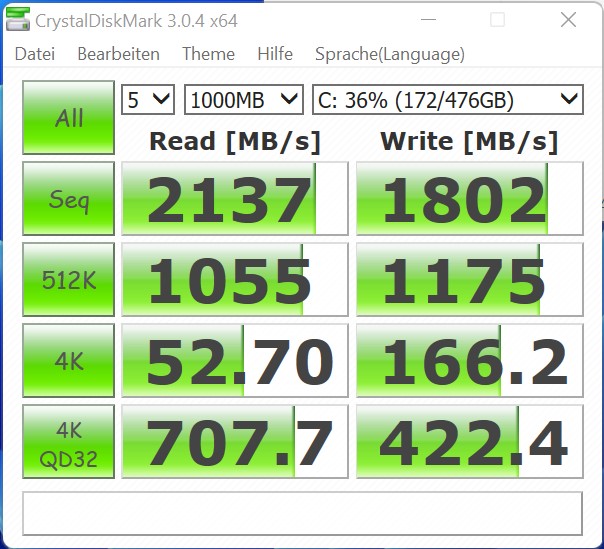

CrystalDiskMark 3.0

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Future Path FPE220M8SSD512G

Sequential Read: 2137 MB/s

Sequential Write: 1802 MB/s

512K Read: 1055 MB/s

512K Write: 1175 MB/s

4K Read: 52.7 MB/s

4K Write: 166.2 MB/s

4K QD32 Read: 707.7 MB/s

4K QD32 Write: 422.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Average of class Mini PC	89.2 pt
Beelink GTI 11 Kingston SA2000M8500G	72.2 pt
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	68.9 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	67.2 pt
Average Future Path FPE220M8SSD512G	66.1 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	66 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	64 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	55.9 pt
Minisforum HM90 ^-11! Kingston OM8PDP3256B	52.6 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	51.8 pt
Minisforum EliteMini TH50 ^-11! Kingston OM8PDP3512B-AI1	51.5 pt

DiskSpd
seq read
Average of class Mini PC (277 - 4357, n=119, last 2 years)	2333 MB/s +7%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s
Average Future Path FPE220M8SSD512G (2014 - 2184, n=3)	2093 MB/s -4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s -5%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -7%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -22%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	1530 (1518.03^min - 1529.75^max) MB/s -30%
Minisforum HM90 Kingston OM8PDP3256B	1445 (1382.19^min - 1445.15^max) MB/s -34%
Beelink GTI 11 Kingston SA2000M8500G	1392 (1389.99^min - 1391.88^max) MB/s -36%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -40%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	802 (778.67^min - 802.37^max) MB/s -63%
seq write
Average of class Mini PC (229 - 5595, n=119, last 2 years)	2509 MB/s +40%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2380 (607.54^min - 2380.06^max) MB/s +33%
Beelink GTI 11 Kingston SA2000M8500G	1810 (1639.55^min - 1810.32^max) MB/s +1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s
Average Future Path FPE220M8SSD512G (1598 - 1792, n=3)	1727 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -29%
Minisforum HM90 Kingston OM8PDP3256B	1211 (1193.91^min - 1211.31^max) MB/s -32%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -34%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	551 (548.61^min - 551.34^max) MB/s -69%
seq q8 t1 read
Average of class Mini PC (236 - 8430, n=119, last 2 years)	3790 MB/s +50%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s
Average Future Path FPE220M8SSD512G (2399 - 2525, n=3)	2456 MB/s -3%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2453 (2244.5^min - 2453.25^max) MB/s -3%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s -3%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -6%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	2353 (1911.6^min - 2353.12^max) MB/s -7%
Minisforum HM90 Kingston OM8PDP3256B	2177 (1922.11^min - 2177.05^max) MB/s -14%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -14%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -22%
Beelink GTI 11 Kingston SA2000M8500G	1699 (1607.68^min - 1699.07^max) MB/s -33%
seq q8 t1 write
Average of class Mini PC (239 - 6669, n=119, last 2 years)	2810 MB/s +57%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2378 (615.51^min - 2377.75^max) MB/s +33%
Beelink GTI 11 Kingston SA2000M8500G	1873 (1713.16^min - 1872.55^max) MB/s +5%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s -1%
Average Future Path FPE220M8SSD512G (1602 - 1790, n=3)	1720 MB/s -4%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -26%
Minisforum HM90 Kingston OM8PDP3256B	1245 (1229.98^min - 1245.08^max) MB/s -30%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -33%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -45%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	553 (493.25^min - 553.44^max) MB/s -69%
4k q1 t1 read
Beelink GTI 11 Kingston SA2000M8500G	66 (65.66^min - 66.02^max) MB/s +46%
Average of class Mini PC (6.85 - 86.6, n=119, last 2 years)	55.3 MB/s +23%
Average Future Path FPE220M8SSD512G (45.1 - 55, n=3)	49.4 MB/s +10%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s +7%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s +5%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -2%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	42.1 (41.43^min - 42.13^max) MB/s -7%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	38.2 (38.04^min - 38.15^max) MB/s -15%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -35%
Minisforum HM90 Kingston OM8PDP3256B	27.1 (26.54^min - 27.09^max) MB/s -40%
4k q1 t1 write
Beelink GTI 11 Kingston SA2000M8500G	223 (200.71^min - 223.16^max) MB/s +14%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	218 (213.18^min - 217.95^max) MB/s +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +7%
Average Future Path FPE220M8SSD512G (194.7 - 210, n=3)	200 MB/s +2%
Average of class Mini PC (30.4 - 435, n=119, last 2 years)	196.9 MB/s 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	195.3 (151.02^min - 195.34^max) MB/s -1%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -15%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -18%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -30%
Minisforum HM90 Kingston OM8PDP3256B	125 (123.91^min - 124.78^max) MB/s -36%
4k q32 t16 read
Average of class Mini PC (26.1 - 4158, n=119, last 2 years)	1411 MB/s +40%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s +6%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s
Average Future Path FPE220M8SSD512G (985 - 1005, n=3)	994 MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s -1%
Beelink GTI 11 Kingston SA2000M8500G	813 (810.85^min - 813.32^max) MB/s -19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -20%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	672 (664.88^min - 671.89^max) MB/s -33%
Minisforum HM90 Kingston OM8PDP3256B	589 (585.51^min - 588.52^max) MB/s -41%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	509 (301.38^min - 508.59^max) MB/s -49%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -69%
4k q32 t16 write
Average of class Mini PC (32.6 - 4288, n=119, last 2 years)	1332 MB/s +72%
Beelink GTI 11 Kingston SA2000M8500G	1089 (1047.09^min - 1088.53^max) MB/s +41%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s +33%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +26%
Minisforum HM90 Kingston OM8PDP3256B	932 (920.96^min - 931.78^max) MB/s +20%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s +15%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s -15%
Average Future Path FPE220M8SSD512G (499 - 774, n=3)	644 MB/s -17%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	590 (520.84^min - 590.29^max) MB/s -24%
Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1	528 (477.23^min - 527.86^max) MB/s -32%

AS SSD
Score Total
Average of class Mini PC (211 - 10021, n=117, last 2 years)	4244 Points +47%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	3347 Points +16%
Beelink GTI 11 Kingston SA2000M8500G	3013 Points +4%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points
Average Future Path FPE220M8SSD512G (2797 - 2887, n=2)	2842 Points -2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points -3%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -6%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -22%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -24%
Score Read
Average of class Mini PC (76 - 3741, n=117, last 2 years)	1578 Points +37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +1%
Average Future Path FPE220M8SSD512G (1152 - 1162, n=2)	1157 Points 0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1068 Points -7%
Beelink GTI 11 Kingston SA2000M8500G	1001 Points -13%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -13%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -26%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -39%
Score Write
Average of class Mini PC (88 - 4371, n=117, last 2 years)	1902 Points +63%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1717 Points +47%
Beelink GTI 11 Kingston SA2000M8500G	1486 Points +27%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points +7%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points -1%
Average Future Path FPE220M8SSD512G (1059 - 1169, n=2)	1114 Points -5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points -9%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -15%
Seq Read
Average of class Mini PC (291 - 6620, n=117, last 2 years)	3231 MB/s +47%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s +5%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s +3%
Average Future Path FPE220M8SSD512G (2204 - 2260, n=2)	2232 MB/s +1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2203.6 MB/s 0%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -7%
Beelink GTI 11 Kingston SA2000M8500G	2006 MB/s -9%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -19%
Seq Write
Average of class Mini PC (242 - 5783, n=117, last 2 years)	2292 MB/s +43%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	2189.3 MB/s +37%
Beelink GTI 11 Kingston SA2000M8500G	1904 MB/s +19%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +3%
Average Future Path FPE220M8SSD512G (1603 - 1644, n=2)	1624 MB/s +1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -22%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -29%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -42%
4K Read
Beelink GTI 11 Kingston SA2000M8500G	60.9 MB/s +53%
Average of class Mini PC (21.4 - 104.3, n=117, last 2 years)	59.7 MB/s +50%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s +46%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	56.28 MB/s +42%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +37%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +32%
Average Future Path FPE220M8SSD512G (39.7 - 52.5, n=2)	46.1 MB/s +16%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -30%
4K Write
Beelink GTI 11 Kingston SA2000M8500G	203.7 MB/s +10%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s
Average of class Mini PC (30.9 - 366, n=117, last 2 years)	177.5 MB/s -4%
Average Future Path FPE220M8SSD512G (144.1 - 185.3, n=2)	164.7 MB/s -11%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -18%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s -22%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -23%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -35%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	119.31 MB/s -36%
4K-64 Read
Average of class Mini PC (23.4 - 3220, n=117, last 2 years)	1195 MB/s +34%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s
Average Future Path FPE220M8SSD512G (883 - 892, n=2)	887 MB/s -1%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s -1%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	791.75 MB/s -11%
Beelink GTI 11 Kingston SA2000M8500G	740 MB/s -17%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -20%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -30%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -48%
4K-64 Write
Average of class Mini PC (32.8 - 3731, n=117, last 2 years)	1495 MB/s +82%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	1378.5 MB/s +67%
Beelink GTI 11 Kingston SA2000M8500G	1092 MB/s +33%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s +20%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s
Average Future Path FPE220M8SSD512G (750 - 824, n=2)	787 MB/s -4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s -9%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -10%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -157%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -75%
Average of class Mini PC (0.022 - 0.489, n=117, last 2 years)	0.09579 ms * -60%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -35%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * -25%
Average Future Path FPE220M8SSD512G (0.06 - 0.075, n=2)	0.0675 ms * -13%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms *
Beelink GTI 11 Kingston SA2000M8500G	0.047 ms * +22%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.035 ms * +42%
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=117, last 2 years)	0.1133 ms * -10%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -0%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms *
Average Future Path FPE220M8SSD512G (0.102 - 0.103, n=2)	0.1025 ms * -0%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * +1%
Newsmay Neosmay S2-B560TPM Lexar NM610 500GB	0.1 ms * +3%
Beelink GTI 11 Kingston SA2000M8500G	0.083 ms * +19%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +72%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +77%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)

Newsmay Neosmay S2-B560TPM Lexar NM610 500GB: Ø2450 (2230.26-2457.44)

图形卡

英特尔Iris Xe图形G7具有96个EUs的集成图形单元。英特尔酷睿i5-1135G7.但总的来说，不能完全发挥iGPU的全部性能。我们的测试装置在这里也远远落后于装备类似的Beelink GTI 11。

那些仍然需要更多3D性能的人可以通过Thunderbolt连接来连接外部显卡。我们用Razer Core X和一个NvidiaGeForce RTX 3060 Ti并将这些数值插入到图表中。

你可以找到关于英特尔Iris Xe Graphics G7的其他基准测试这里.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	81.7 pt
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	18.6 pt
Average Intel Iris Xe Graphics G7 96EUs	17.1 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	16.4 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	16.3 pt
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	15.1 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	14.9 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	14.7 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	14.1 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	13.7 pt
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	6.8 pt

3DMark 11 - 1280x720 Performance GPU
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	37941 Points +582%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +486%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +28%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points +17%
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=202)	6353 Points +14%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points +13%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points +4%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points +1%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points 0%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5566 Points 0%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	2551 Points -54%

3DMark
1280x720 Cloud Gate Standard Graphics
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	153968 Points +654%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +451%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +61%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +42%
Average Intel Iris Xe Graphics G7 96EUs (13162 - 38578, n=180)	26508 Points +30%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +28%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points +28%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	25008 Points +22%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	23739 Points +16%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points +15%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	11485 Points -44%
1920x1080 Fire Strike Graphics
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, AMD Ryzen 9 5950X	28145 Points +656%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +549%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6482, n=215)	4920 Points +32%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points +27%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points +17%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4010 Points +8%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points +1%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -4%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points -8%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -9%
Newsmay Neosmay S2-B560TPM Intel UHD Graphics 730 (Rocket Lake), Intel Core i5-11400T	1768 Points -53%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | Unigine Superposition

Performance Rating - Percent
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	62.3 pt
Average Intel Iris Xe Graphics G7 96EUs	12.9 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	12.7 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.4 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.4 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	9.8 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	9.8 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.6 pt
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.9 pt
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	5.2 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	172.3 (11.4^min - 371.5^max) fps +896%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +721%
Average Intel Iris Xe Graphics G7 96EUs (17.3 - 31.2, n=21)	23.3 fps +35%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps +34%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps +13%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -6%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -14%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	13.5 fps -22%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	9.5 fps -45%
Extreme Preset DX11
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	188.6 (43.6^min - 434.5^max) fps +966%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +664%
Average Intel Iris Xe Graphics G7 96EUs (17.7 - 31.9, n=21)	23.9 fps +35%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps +32%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps +21%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -3%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -5%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	15.4 fps -13%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	9.5 fps -46%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	153.2 (48.2^min - 297.9^max) fps +1232%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +714%
Average Intel Iris Xe Graphics G7 96EUs (11.3 - 20, n=19)	15 fps +30%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +30%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps +23%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps +1%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -2%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -8%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	10 fps -13%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	5.9 fps -49%
1920x1080 Extreme HD Preset OpenGL AA:x8
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	132.9 (48.3^min - 236.1^max) fps +870%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +569%
Average Intel Iris Xe Graphics G7 96EUs (11.7 - 21.7, n=19)	16.6 fps +21%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +16%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps -7%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -16%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -22%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -33%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.8 fps -36%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	7.3 fps -47%

Unigine Superposition
1280x720 720p Low
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	38414 Points +767%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	14192 Points +220%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	7768 Points +75%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	6430 Points +45%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	6189 Points +40%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	5998 Points +35%
Average Intel Iris Xe Graphics G7 96EUs (4088 - 8223, n=16)	5965 Points +35%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	5566 Points +26%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	5361 Points +21%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	4433 Points
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	2704 Points -39%
1920x1080 1080p High
NVIDIA GeForce RTX 3060 Ti Founders Edition NVIDIA GeForce RTX 3060 Ti, R9 5950X	15479 Points +912%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	8142 Points +432%
Average Intel Iris Xe Graphics G7 96EUs (1522 - 2744, n=16)	2103 Points +37%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points +30%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points +26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points +11%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points +3%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1487 Points -3%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	1459 Points -5%
Newsmay Neosmay S2-B560TPM UHD Graphics 730, i5-11400T, Lexar NM610 500GB	700 Points -54%

游戏性能

Intel Iris Xe Graphics G7在目前的游戏中被过度消耗了。即使是老游戏，也往往只能在720p的分辨率和最低的细节水平下流畅地玩。在最好的情况下，iGPU只能在原始分辨率下处理最简单的休闲游戏。我们的测试装置也被配备了Ace Magician AMR5的 AMD Radeon RX Vega 7.

你可以在我们的 GPU游戏列表.

然而，由于有雷电连接，王牌魔术师TK11-A0仍然有一张王牌在手。由于我们在测试期间也有Razer Core X在测试期间，我们简单地将迷你电脑与外部的NvidiaGeForce RTX 3060 Ti.尽管显卡无法以其牛逼的带宽运行，但性能并没有因此受到多大伤害。我们的GPU测试系统的劣势仍然在限制范围内，而且额外的价值是明显可见的。

GTA V
1024x768 Lowest Settings possible
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	136 (6.37^min, 90.9^P1) fps +99%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +70%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +67%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	113.4 (25.6^min, 76.9^P1) fps +66%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	99.2 (25.1^min, 58.8^P1) fps +45%
Average Intel Iris Xe Graphics G7 96EUs (52 - 166.4, n=162)	98.5 fps +44%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	95.1 (21.9^min, 55.6^P1) fps +39%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	92.8 (13.8^min, 62.5^P1) fps +36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	51.9 (7.44^min, 31.3^P1) fps -24%
1366x768 Normal/Off AF:4x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	123 (11.6^min, 76.9^P1) fps +124%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +90%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.1 (31.8^min, 66.7^P1) fps +79%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps +72%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	85.3 (9.78^min, 50^P1) fps +56%
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 149.3, n=165)	83.1 fps +52%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.4 (12.9^min, 50^P1) fps +50%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	79.5 (21.5^min, 50^P1) fps +45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps

The Witcher 3
1024x768 Low Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps +36%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps +28%
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=186)	84 fps +27%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	77.1 (44^min) fps +17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -6%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	61.6 (30.7^min, 37.2^P0.1, 46.5^P1) fps -7%
1366x768 Medium Graphics & Postprocessing
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	56.5 (23.4^min, 24.6^P0.1, 31.8^P1) fps +33%
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184)	53.6 fps +26%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.4 (32.2^min, 36.1^P0.1, 43.2^P1) fps +23%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	46.6 (41^min) fps +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.5 (31^min, 32.6^P0.1, 36.6^P1) fps +4%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	42.6 (10.6^min, 28.7^P0.1, 33.9^P1) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 (1.9^min, 2.75^P0.1, 29.8^P1) fps -4%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.5 (21.6^min, 25.4^P0.1, 31.8^P1) fps -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.4 (20.2^min, 22.2^P0.1, 30.4^P1) fps -8%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (57^min) fps +148%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	55 (48^min) fps +120%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps +92%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47 (39^min) fps +88%
Average Intel Iris Xe Graphics G7 96EUs (23 - 75, n=92)	46.5 fps +86%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46 (41^min) fps +84%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (19^min) fps +76%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps +76%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	19 (7^min) fps -24%
1920x1080 Medium Preset AA:T
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +71%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (25^min) fps +71%
Average Intel Iris Xe Graphics G7 96EUs (14 - 39, n=90)	25.5 fps +50%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23 (21^min) fps +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps +29%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps +24%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps +24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	9 (8^min) fps -47%

Far Cry New Dawn
1280x720 Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (43^min) fps +93%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	48 (30^min) fps +66%
Average Intel Iris Xe Graphics G7 96EUs (29 - 69, n=19)	47.2 fps +63%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps +52%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (33^min) fps +45%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41 (31^min) fps +41%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps +38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	19 (14^min) fps -34%
1920x1080 Medium Preset
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +81%
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28 (23^min) fps +75%
Average Intel Iris Xe Graphics G7 96EUs (16 - 38, n=19)	27.2 fps +70%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps +38%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (17^min) fps +31%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (5^min) fps +25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps +25%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	10 (8^min) fps -37%

F1 2020
1280x720 Ultra Low Preset
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	114 (101^min) fps +89%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps +57%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	93.1 (80^min) fps +54%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps +50%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.9 (78^min) fps +49%
Average Intel Iris Xe Graphics G7 96EUs (49 - 109.6, n=34)	82 fps +36%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.7 (65^min) fps +32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	35.2 (28^min) fps -42%
1920x1080 Medium Preset AF:16x
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.9 (44^min) fps +62%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.7 (40^min) fps +46%
Average Intel Iris Xe Graphics G7 96EUs (23.1 - 57.5, n=34)	42.8 fps +31%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps +26%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 (35^min) fps +26%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.6 (32^min) fps +18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	16.3 (13^min) fps -50%

Dota 2 Reborn
1280x720 min (0/3) fastest
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	137.4 (117.3^min) fps +74%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	127 (111.3^min) fps +61%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	125.3 (113.2^min) fps +58%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124.2 (110.5^min) fps +57%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	123 (107.9^min) fps +55%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	111 (97.1^min) fps +40%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.5 (88.7^min) fps +27%
Average Intel Iris Xe Graphics G7 96EUs (36 - 148, n=215)	100.3 fps +27%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	90.8 (81.7^min) fps +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	79.1 (53.9^min) fps
1366x768 med (1/3)
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	106.9 (88.3^min) fps +50%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	96.3 (79.3^min) fps +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.2 (80.1^min) fps +32%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.3 (69.5^min) fps +26%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	90 (68^min) fps +26%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	81 (68.5^min) fps +13%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.4 (69^min) fps +13%
Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=215)	75.7 fps +6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	71.4 (52.5^min) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	59 (53.4^min) fps -17%

Strange Brigade
1280x720 lowest AF:1
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100 (79.6^min, 85.5^P1) fps +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps +20%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.5 (19.1^min, 33.8^P1) fps +20%
Average Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=168)	84.8 fps +16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.7 (46^min, 70^P1) fps +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps +10%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	76.5 (17.1^min, 23^P1) fps +5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.6 (43.7^min, 64.9^P1) fps 0%
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	33.1 (7.6^min, 9.05^P1) fps -55%
1920x1080 medium AA:medium AF:4
Morefine S500+ AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 (26.5^min, 33.7^P1) fps +35%
Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 (19^min, 21.3^P1) fps +32%
Average Intel Iris Xe Graphics G7 96EUs (18.2 - 51.4, n=166)	36.5 fps +29%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps +18%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.4 (20.6^min, 27.8^P1) fps +11%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	30.8 (9.7^min, 16.6^P1) fps +9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps +7%
Minisforum HM90 AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.1 (23.3^min, 25.9^P1) fps +3%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps
Newsmay Neosmay S2-B560TPM Intel Core i5-11400T, Intel UHD Graphics 730 (Rocket Lake)	13.5 (5^min, 5.16^P1) fps -52%

Ace Magician TK11-A0 + iGPU

	low	med.	high	ultra
GTA V (2015)	68.3	54.8	16.4	7.73
The Witcher 3 (2015)	65.9	42.6	23.7	12.5
Dota 2 Reborn (2015)	79.1	71.4	43.4	39
Final Fantasy XV Benchmark (2018)	31.7	17.8	13.8
X-Plane 11.11 (2018)	25.7	30.5	31.1
Far Cry 5 (2018)	25	17	16	15
Strange Brigade (2018)	72.9	28.3	23.2	19
Far Cry New Dawn (2019)	29	16	15	14
Borderlands 3 (2019)	33.9	15.8	10.5	7.97
F1 2020 (2020)	60.4	32.6	24.8	15.6

Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

	low	med.	high	ultra	QHD	4K
GTA V (2015)	140.8	125.8	96.1	56.1	51.2	25.7
The Witcher 3 (2015)	219	168.3	117	60.8		45
Dota 2 Reborn (2015)	115.5	97.6	94.8	92.8		93.2
Final Fantasy XV Benchmark (2018)	104.7	97.9	79		70	47.2
X-Plane 11.11 (2018)	72.8	66.9	58.9			53.2
Far Cry 5 (2018)	79	67	65	60	54	38
Strange Brigade (2018)	152.4	117.7	116.8	114.7	92.8	52.4
Far Cry New Dawn (2019)	72	61	58	54	50	35
Borderlands 3 (2019)	97.1	86.6	81	71.3	60.1	37.1
F1 2020 (2020)	154.1	94	97.8	81.5	67.7	39.2
F1 2021 (2021)	161.6	138.4	105.6	65.4	58.9	32.4

排放 - 安静和高效

由于考虑周全的冷却系统，负载下的噪音水平很容易承受，最大37.1 dB(A)，明显比这次比较中的其他一些竞争对手安静。然而，Ace Magician TK11-A0仍然没有达到 Minisforum EliteMini HX90.虽然风扇在空闲运行时仍然保持运转，但在31至33 dB(A)时，噪音负荷非常低，几乎无法察觉。

Noise Level

Idle		31.82 / 32.27 / 33.17 dB(A)
Load		35.82 / 37.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.28 dB(A)

温度

王牌魔术师TK11-A0的机箱升温是非常有限的。然而，当SoC使用最大的48瓦时，冷却装置仍然略微过度消耗了。在这种情况下，SoC在片刻之后就已经达到了100°C（212°F），导致需要节制速度。继续进行负载测试，PL1的功率为20瓦，因此温度平均为65℃（149°F），没有理由担心。

演讲者

作为一个额外的功能，Minipc Union为Ace Magician配备了一个小型扬声器。这适用于音乐和声音的再现。小扬声器给人留下了良好的印象，由于它的尺寸，高音和中音听起来不会太压抑。低音只是暗示，但不会完全消失。

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Minipc Union Ace Magician TK11-A0 audio analysis

(±) | speaker loudness is average but good (80.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.4% lower than median
(±) | linearity of bass is average (10.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.3% higher than median
(±) | linearity of mids is average (10.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.7% higher than median
(±) | linearity of highs is average (8.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20.4% difference to median)
Compared to same class
» 27% of all tested devices in this class were better, 13% similar, 60% worse
» The best had a delta of 14%, average was 27%, worst was 64%
Compared to all devices tested
» 50% of all tested devices were better, 8% similar, 42% worse
» The best had a delta of 4%, average was 25%, worst was 134%

消耗功率

在功耗方面，与竞争对手相比，Ace Magician TK11-A0的表现非常好。我们看到，在空闲操作和低负载下，差异最大。然而，它在负载下有时仍能消耗高达68瓦的电量。但由于只在几秒钟内达到最大值，65瓦的充电器能够处理这个问题。

Power Consumption

Off / Standby	0.42 / 2.1 Watt
Idle	3.4 / 5.7 / 7 Watt
Load	36.5 / 68 Watt


Key: min: , med: , max: Metrahit Energy

	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		-104%	-47%	-292%	-149%	-37%	-104%
Idle Minimum *	3.4	8.9 -162%	8.4 -147%	23.7 -597%	15.2 -347%	5.34 ?(2.2 - 46.5, n=193) -57%	9.69 ?(1.9 - 45.7, n=121, last 2 years) -185%
Idle Average *	5.7	9.6 -68%	8.7 -53%	23.7 -316%	16 -181%	8.55 ?(3.8 - 63, n=193) -50%	11.9 ?(1.9 - 47.5, n=119, last 2 years) -109%
Idle Maximum *	7	11.8 -69%	9.3 -33%	40.8 -483%	16 -129%	10.8 ?(5.8 - 68.9, n=193) -54%	15.2 ?(2.6 - 57.1, n=121, last 2 years) -117%
Load Average *	36.5	98.9 -171%	46.4 -27%	55.8 -53%	48.6 -33%	45.3 ?(12.5 - 87.3, n=193) -24%	59 ?(11.3 - 170.6, n=121, last 2 years) -62%
Load Maximum *	68	101.8 -50%	52 24%	74.5 -10%	104.3 -53%	67.5 ?(30.1 - 123.3, n=193) 1%	100.5 ?(18.1 - 423, n=121, last 2 years) -48%
Witcher 3 ultra *					53.8

* ... smaller is better

结论 - 有用的功能，但SoC很慢

Minipc Union Ace Magician TK11-A0是一款标准的紧凑型迷你电脑。然而，由于采用了英特尔酷睿i5-1135G7，该迷你电脑并不是基于最新的处理器型号。因此，王牌魔术师TK11-A0无法跟上拥有六核或八核处理器的更现代的竞争对手。此外，制造商降低了功率限制，这也对性能造成了损害。另一方面，Ace Magician TK11-A0能够以非常好的排放值给人留下深刻印象。功耗和噪音负荷都很低，从长远来看，对你的钱包很容易。再加上16GB的工作内存和512GB的固态硬盘，在我们测试的配置中，你可以得到一台适合日常工作的办公电脑。

外壳很坚固，可以毫无困难地打开，以更换工作存储器或存储解决方案，例如。对于连接的数量可能有不同的意见，但基本上所有重要的端口都在那里，而且还包括Thunderbolt。另一方面，竞争对手往往提供更多的连接，在网络支持方面，我们本来期望有2.5G的连接。

王牌魔术师TK11-A0是一款适合工作的设备，具有一些很好的功能。然而，如果采用更先进的SoC，这款迷你电脑将明显更具竞争力。

总的来说，Ace Magician TK11-A0在执行日常任务时有很好的速度，这比基准测试所显示的要好。然而，英特尔Iris Xe Graphics G7在3D性能方面无法跟上AMD Radeon RX Vega 7。另一方面，Thunderbolt连接使你能够通过使用外部GPU底座轻松而快速地提高3D性能，使Ace Magician TK11-A0甚至能够处理当前的游戏。

我们认为指纹扫描仪是另一个有用的功能。许多人从笔记本电脑上知道这个功能，现在Ace Magician TK11-A0的用户也有这个功能。对于内置扬声器的实用性，你可以有不同的意见，但其质量是好的。从主观上讲，该扬声器的声音比许多内置在显示器中的型号要好。

价格和可用性

我们测试的王牌魔术师TK11-A0的配置目前在亚马逊上出售，价格为449美元.奇怪的是，配备较小的固态硬盘的型号价格为659美元，高出。.

Ace Magician TK11-A0评测。高效的迷你PC，带有Thunderbolt 4和其他有用的功能

具有实用功能的办公电脑!

潜在的竞争对手比较

Minipc联合王牌魔术师TK11-A0的详细资料

案例

尺寸比较

设备

沟通

安全问题

维护

业绩

测试条件

处理器

王牌魔术师TK11-A0在Cinebench-R15多循环中的表现

系统性能

DPC延迟

存储解决方案

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

Ace Magician TK11-A0 + iGPU

Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti (Razer Core X via Thunderbolt)

排放 - 安静和高效

温度

演讲者

Minipc Union Ace Magician TK11-A0 audio analysis

消耗功率

Power Consumption with an External Monitor

Pros

Cons

结论 - 有用的功能，但SoC很慢

价格和可用性

More articles related to this device

3DMark 05 Standard		24543 points
3DMark 06 Standard Score		17626 points
3DMark Vantage P Result		16744 points
3DMark 11 Performance		5618 points
3DMark Ice Storm Standard Score		55514 points
3DMark Cloud Gate Standard Score		13596 points
3DMark Fire Strike Score		3305 points
3DMark Fire Strike Extreme Score		1690 points
3DMark Time Spy Score		1221 points
Help

	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Newsmay Neosmay S2-B560TPM i5-11400T, UHD Graphics 730	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs
Noise		3%	-5%	6%	-0%	-13%	-0%	-10%
off / environment *	30.28	30.8 -2%	30.1 1%	30.2 -0%	30.2 -0%	30.5 -1%	30.2 -0%	25.7 15%
Idle Minimum *	31.82			30.5 4%	30.8 3%	31.5 1%	31.8 -0%	28.4 11%
Idle Average *	32.27	31.6 2%	33.15 -3%	30.5 5%	32.1 1%	32.6 -1%	32.7 -1%	32 1%
Idle Maximum *	33.17			30.5 8%	32.9 1%	33.8 -2%	33.1 -0%	37.7 -14%
Load Average *	35.82			31.2 13%	33.9 5%	49.3 -38%	35.8 -0%	44.2 -23%
Load Maximum *	37.1	33.4 10%	41.63 -12%	35.1 5%	41.4 -12%	50.9 -37%	37.1 -0%	56 -51%
Witcher 3 ultra *								44.5
