Acer Aspire S 13 S5-371 笔记本电脑简短评测

纤薄与快速。 刚刚发布就到达了我们的测试实验室:全新的Acer Aspire S13继续了前代S系列超薄笔记本电脑机型的步伐。我们希望在这篇文章中分享初步的测试结果。最后更新:五月四日14:30。
Ultrabook Laptop / Notebook Windows Skylake
Acer Aspire S 13 S5-371-71QZ (Aspire S 13 Series)
Processor
Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake
Graphics adapter
Intel HD Graphics 520
Memory
8 GB
Display
13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, AUO B133HAN04.1, IPS, glossy: no
Mainboard
Intel Skylake-U Premium PCH
Storage
LiteOn CV1-8B512, 512 GB
Soundcard
Intel Skylake-U/Y PCH - High Definition Audio
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, Audio Connections: 3.5毫米耳机接口, Card Reader: SD 读卡器
Networking
Qualcomm Atheros QC61x4 Wireless Network Adapter (n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 14.6 x 327 x 228
Battery
45 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 高清摄像头
Additional features
Keyboard Light: yes, 24 Months Warranty
Weight
1.27 kg, Power Supply: 110 g
Price
999 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

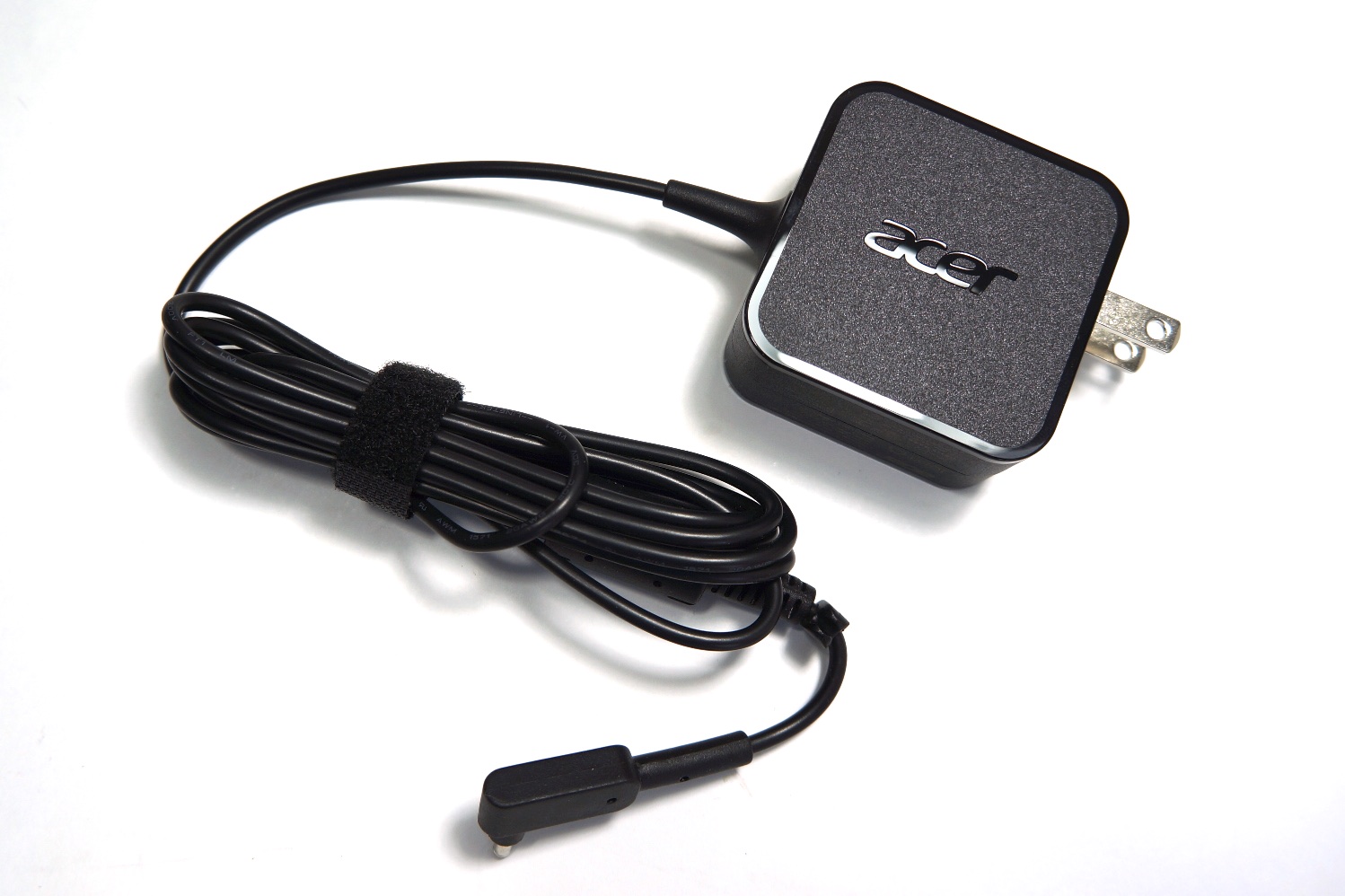

US power adapter

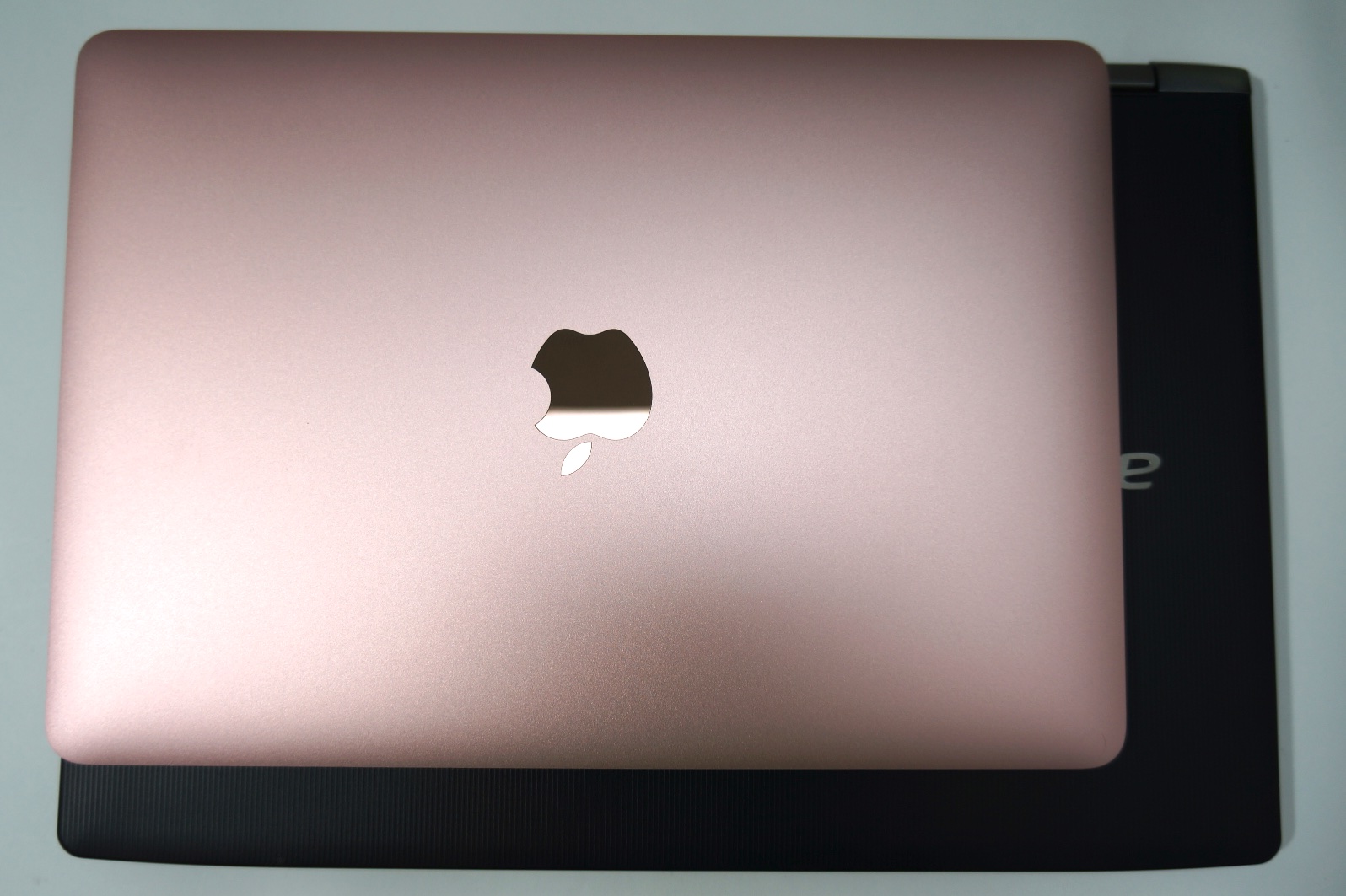

Size comparison with the MacBook 12 2016
Size comparison with the MacBook 12 2016

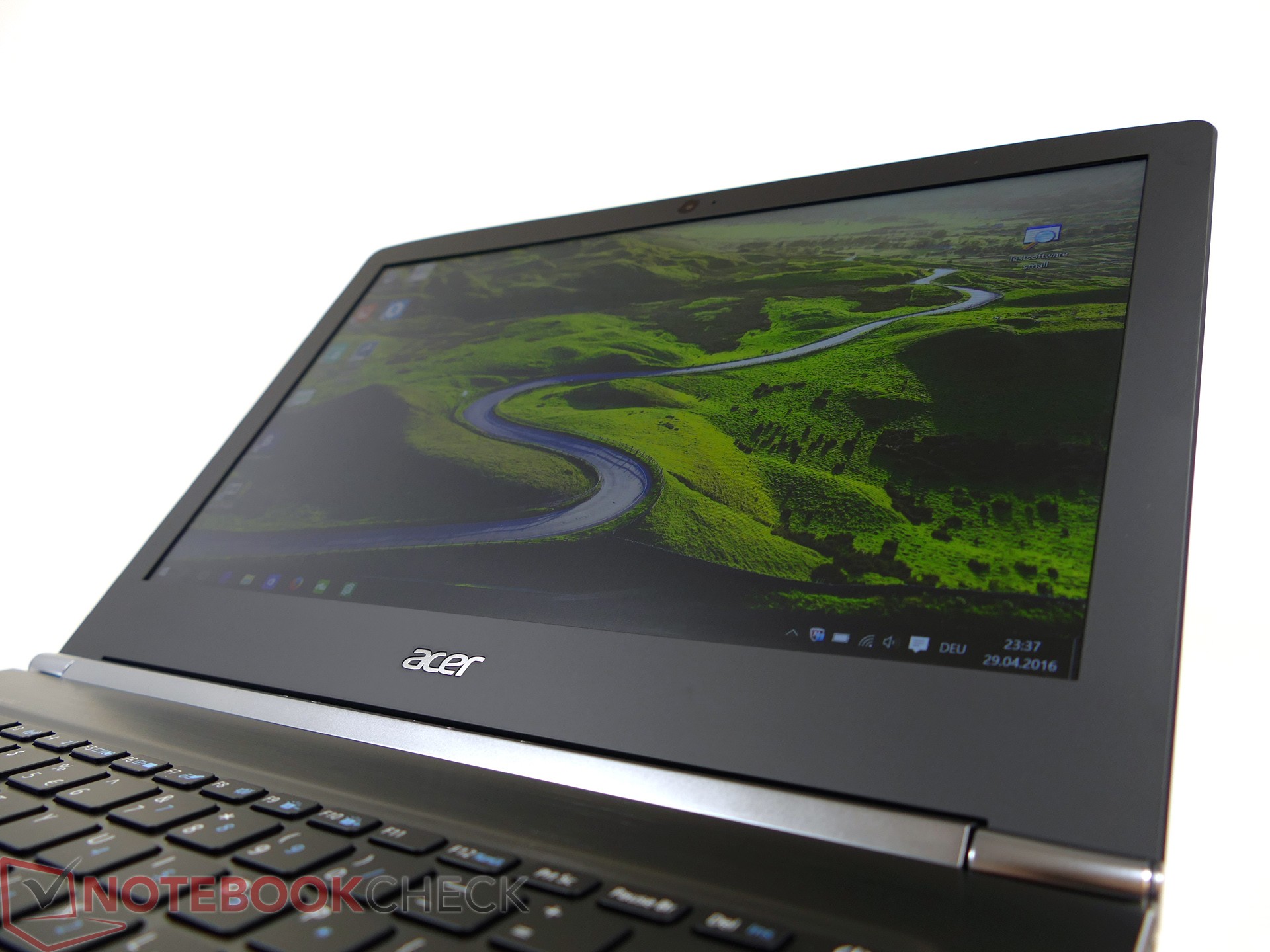

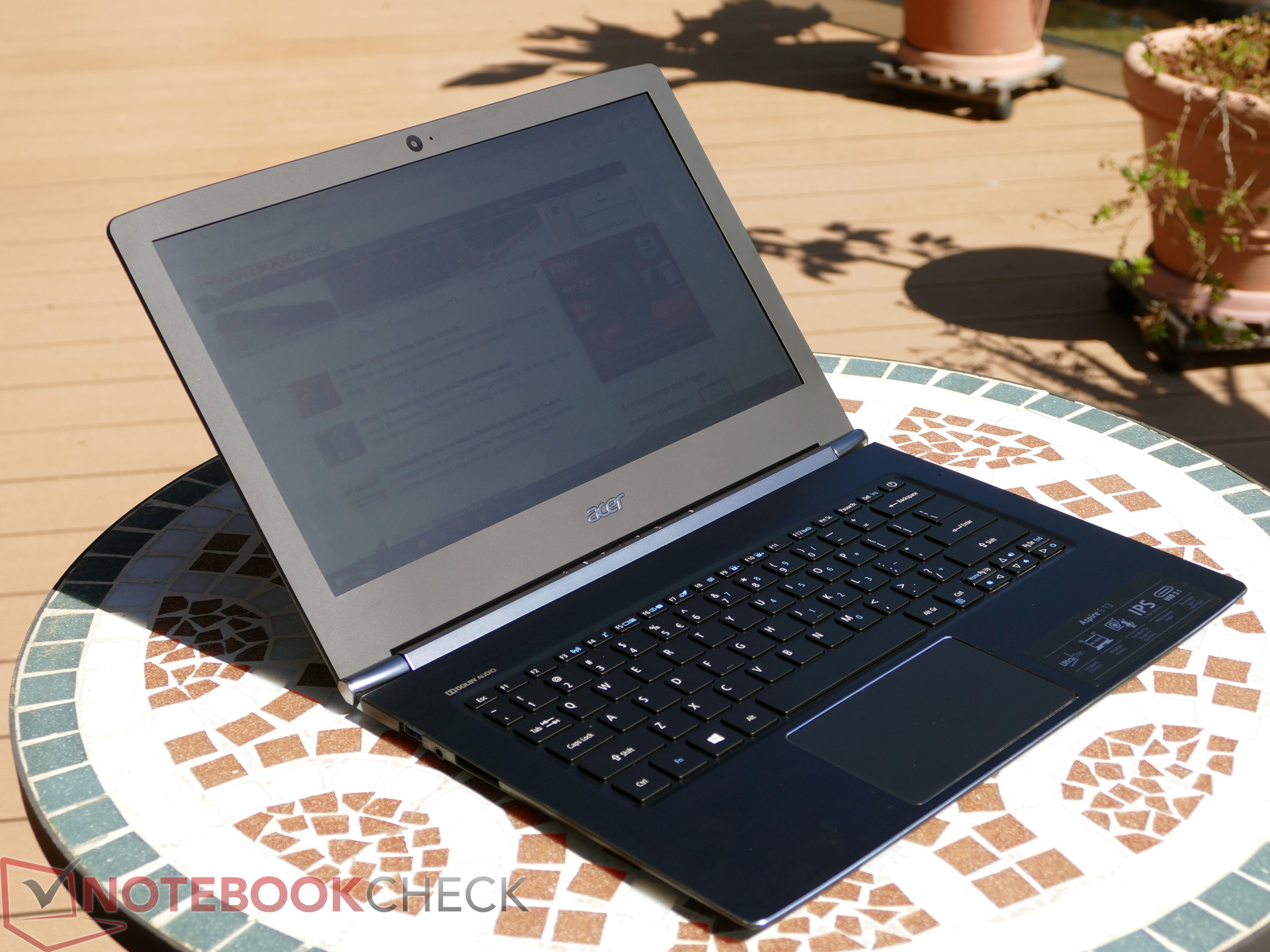

Viewing-angle stable IPS panel

Size Comparison

327 mm 228 mm 19.65 mm 1.5 kg323 mm 230 mm 19.3 mm 1.5 kg327 mm 228 mm 14.6 mm 1.3 kg326.5 mm 226 mm 12.6 mm 1.4 kg324 mm 226 mm 12 mm 1.5 kg316 mm 227 mm 17.9 mm 1.2 kg304 mm 200 mm 18.5 mm 1.2 kg297 mm 210 mm 1 mm 5.7 g

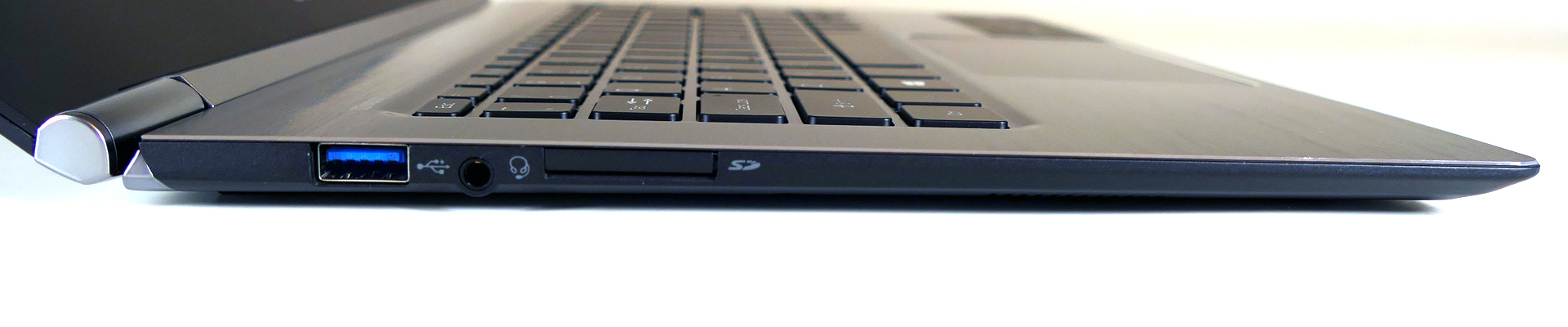

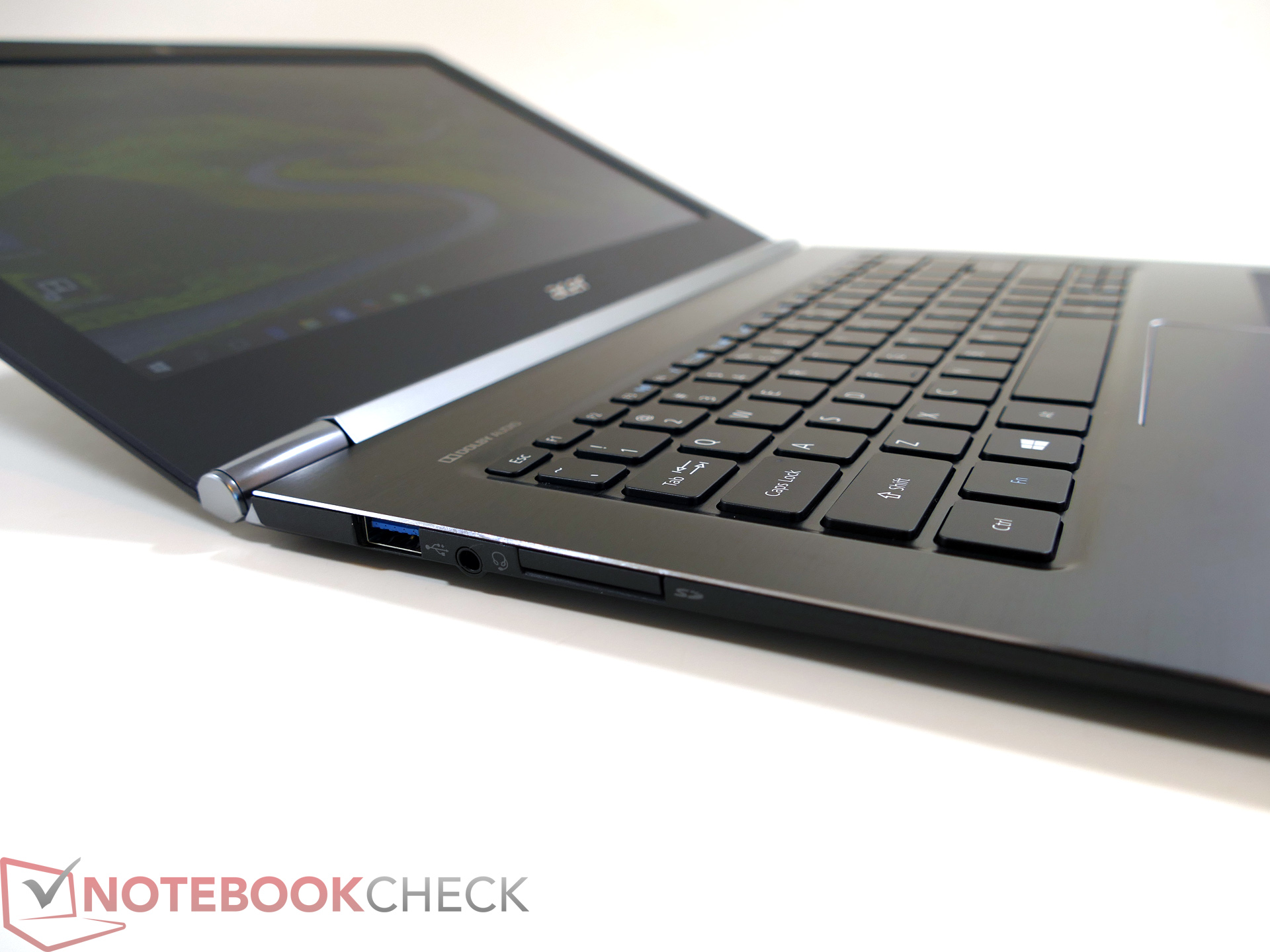

Left: USB 3.0, headset, SD-card reader
Left: USB 3.0, headset, SD-card reader

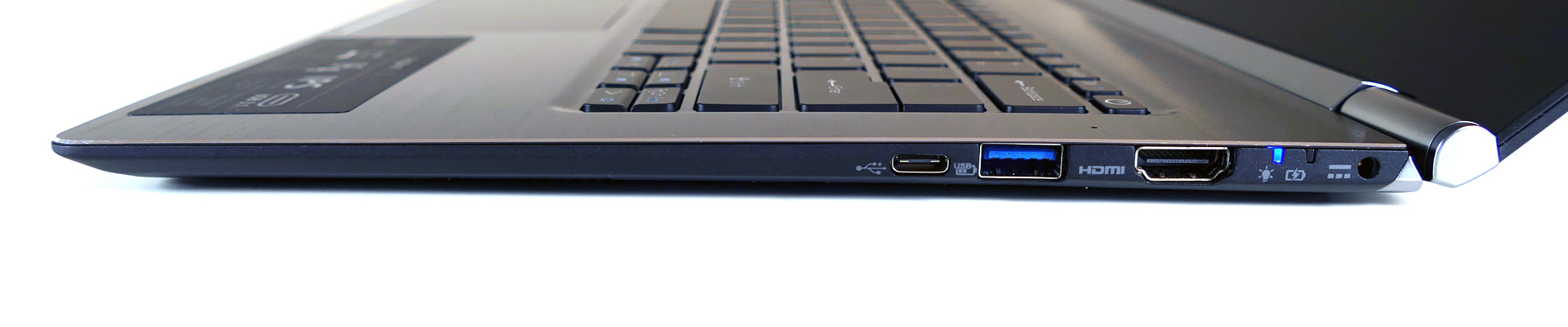

Right: USB-C Gen.1 (5 Gbit/s), USB 3.0 (with sleep and charge), HDMI 1.4a, indicator LEDs, power-in
Right: USB-C Gen.1 (5 Gbit/s), USB 3.0 (with sleep and charge), HDMI 1.4a, indicator LEDs, power-in
Networking
iperf3 receive AX12
Apple MacBook Pro Retina 13 inch 2013-10 (Klaus I211)
762 MBit/s
Lenovo ThinkPad T460s-20FA003GGE
637 MBit/s
iperf3 transmit AX12
Apple MacBook Pro Retina 13 inch 2013-10 (Klaus I211)
768 MBit/s
Lenovo ThinkPad T460s-20FA003GGE
534 MBit/s
iperf Server (receive) TCP 1 m 512KB
Lenovo ThinkPad T460s-20FA003GGE
672 MBit/s
Dell Latitude 13 7370
634 MBit/s
Toshiba Tecra Z40-C-106
601 MBit/s
Dell Latitude 12 E5270
561 MBit/s
Lenovo ThinkPad 13-20GKS01100
520 MBit/s
iperf Client (transmit) TCP 1 m 512KB
Lenovo ThinkPad T460s-20FA003GGE
515 MBit/s
Dell Latitude 13 7370
466 MBit/s
Dell Latitude 12 E5270
463 MBit/s
Lenovo ThinkPad 13-20GKS01100
401 MBit/s
Toshiba Tecra Z40-C-106
389 MBit/s
iperf Server (receive) TCP 1 m
Apple MacBook Pro Retina 13 inch 2013-10
735 MBit/s +130%
Apple MacBook 12 (Early 2016) 1.1 GHz
570 MBit/s +78%
Acer Aspire S 13 S5-371-71QZ
320 MBit/s
MSI GE72 965M Ti
183 MBit/s -43%
iperf Client (transmit) TCP 1 m
Apple MacBook Pro Retina 13 inch 2013-10 (Hinum)
510 MBit/s +96%
Apple MacBook 12 (Early 2016) 1.1 GHz
397 MBit/s +53%
MSI GE72 965M Ti
304 MBit/s +17%
Acer Aspire S 13 S5-371-71QZ
260 MBit/s
Chuwi Hi12
43 MBit/s -83%

Legend


Acer Aspire S 13 S5-371-71QZ Intel Core i7-6500U, Intel HD Graphics 520, LiteOn CV1-8B512

Lenovo ThinkPad 13-20GKS01100 Intel Core i5-6200U, Intel HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP

Toshiba Tecra Z40-C-106 Intel Core i5-6200U, Intel HD Graphics 520, Toshiba HG6 THNSNJ256G8NY

Dell Latitude 12 E5270 Intel Core i5-6300U, Intel HD Graphics 520, Seagate ST500LM021-1KJ15

Apple MacBook 12 (Early 2016) 1.1 GHz Intel Core m3-6Y30, Intel HD Graphics 515, Apple SSD AP0256

Chuwi Hi12 Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), Hynix HCG8E 64 GB

Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

Dell Latitude 13 7370 Intel Core m5-6Y57, Intel HD Graphics 515, Toshiba NVMe THNSN5256GPU7

MSI GE72 965M Ti Intel Core i7-6700HQ, NVIDIA GeForce GTX 965M,

Apple MacBook Pro Retina 13 inch 2013-10 Intel Core i5-4258U, Intel Iris Graphics 5100, Apple SSD SM0256F
385
cd/m²
371
cd/m²
367
cd/m²
349
cd/m²
375
cd/m²
354
cd/m²
342
cd/m²
334
cd/m²
346
cd/m²
Distribution of brightness
AUO B133HAN04.1 tested with X-Rite i1Pro 2
Maximum: 385 cd/m² (Nits) Average: 358.1 cd/m² Minimum: 32 cd/m²
Brightness Distribution: 87 %
Center on Battery: 375 cd/m²
Contrast: 962:1 (Black: 0.39 cd/m²)
ΔE Color 4.6 | 0.5-29.43 Ø4.92
ΔE Greyscale 4 | 0.5-98 Ø5.2
92.2% sRGB (Calman 2D)
88.7% sRGB (Argyll 1.6.3 3D)
57.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
Gamma: 2.34

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

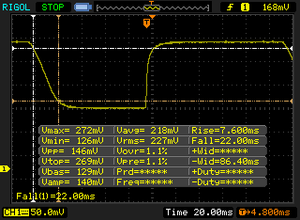

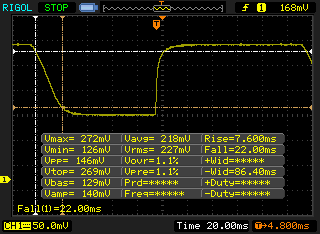

       Response Time Black to White
29.6 ms ... rise ↗ and fall ↘ combined↗ 7.6 ms rise
↘ 22 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 77 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

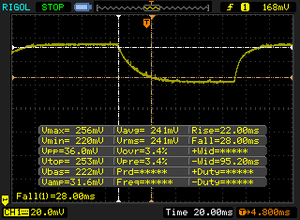

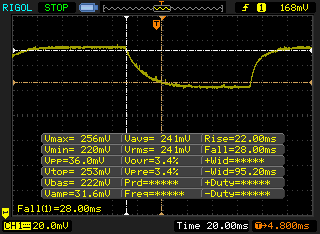

       Response Time 50% Grey to 80% Grey
50 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 28 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

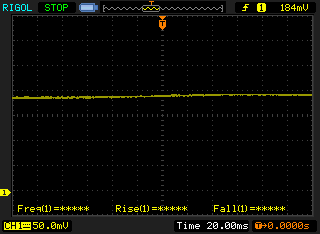

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
129 Points
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
128 Points -1%
Asus Zenbook UX303UB-DH74T
GeForce 940M, 6500U, CUK Cyclone SSD 1TB
127 Points -2%
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
123 Points -5%
Razer Blade Stealth UHD i7-6500U
HD Graphics 520, 6500U, Samsung PM951 NVMe MZ-VLV256D
115 Points -11%
Acer Aspire R13 R7-372T-746N
HD Graphics 520, 6500U, Lite-On CV1-8B256
104 Points -19%
CPU Multi 64Bit
Acer Aspire R13 R7-372T-746N
HD Graphics 520, 6500U, Lite-On CV1-8B256
321 Points +10%
Asus Zenbook UX305UA-FC040T
HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)
312 Points +6%
Lenovo ThinkPad X1 Carbon 20FB003RGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
310 Points +6%
Razer Blade Stealth UHD i7-6500U
HD Graphics 520, 6500U, Samsung PM951 NVMe MZ-VLV256D
293 Points 0%
Acer Aspire S 13 S5-371-71QZ
HD Graphics 520, 6500U, LiteOn CV1-8B512
293 Points
Asus Zenbook UX303UB-DH74T
GeForce 940M, 6500U, CUK Cyclone SSD 1TB
286 Points -2%
Cinebench R11.5 CPU Single 64Bit
1.47 Points
Cinebench R11.5 CPU Multi 64Bit
3.56 Points
Cinebench R11.5 OpenGL 64Bit
39.5 fps
Cinebench R15 CPU Single 64Bit
129 Points
Cinebench R15 CPU Multi 64Bit
293 Points
Cinebench R15 OpenGL 64Bit
42.86 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
PCMark 8 Home Score Accelerated v2
3386 points
PCMark 8 Work Score Accelerated v2
4316 points
Help
LiteOn CV1-8B512
Sequential Read: 502 MB/s
Sequential Write: 418.9 MB/s
512K Read: 341.3 MB/s
512K Write: 389.7 MB/s
4K Read: 29.69 MB/s
4K Write: 86.8 MB/s
4K QD32 Read: 301.3 MB/s
4K QD32 Write: 211.2 MB/s
3DMark 2001SE Standard
27228 points
3DMark 03 Standard
20522 points
3DMark 05 Standard
15357 points
3DMark 06 Standard Score
9959 points
3DMark Vantage P Result
5884 points
3DMark 11 Performance
1600 points
3DMark Fire Strike Score
869 points
Help
lowmed.highultra
BioShock Infinite (2013) 57.9 30.8 25.5 7.6
GTA V (2015) 34 27.1 7
The Witcher 3 (2015) 14.1
World of Warships (2015) 71 46.1 22.3 16.1
Just Cause 3 (2015) 0 game wont start
The Division (2016) 21.1
3DMark 2001SE Standard
27228 points
3DMark 03 Standard
20522 points
3DMark 05 Standard
15357 points
3DMark 06 Standard Score
9959 points
3DMark Vantage P Result
5884 points
3DMark 11 Performance
1600 points
3DMark Fire Strike Score
869 points
Help

Noise Level

Idle
31.2 / 31.2 / 31.5 dB(A)
Load
35.7 / 35.8 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 31.2 dB(A)
Max. Load
 31.9 °C29 °C38.5 °C
 26.6 °C34.2 °C30.7 °C
 25.3 °C25.9 °C26.9 °C
Maximum: 38.5 °C
Average: 29.9 °C
35.9 °C47.7 °C35.7 °C
31.4 °C35 °C27.6 °C
27.9 °C37.5 °C26.6 °C
Maximum: 47.7 °C
Average: 33.9 °C
Power Supply (max.)  39.2 °C | Room Temperature 22 °C | Firt 550 Pocket
(+) The average temperature for the upper side under maximal load is 29.9 °C / 86 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 38.5 °C / 101 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(-) The bottom heats up to a maximum of 47.7 °C / 118 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25.8 °C / 78 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26.9 °C / 80.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+1.4 °C / 2.5 F).
Power Consumption
Off / Standbydarklight 0.3 / 0.2 Watt
Idledarkmidlight 4.1 / 6.7 / 7.4 Watt
Load midlight 32.4 / 32.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime
Idle (without WLAN, min brightness)
17h 08min
WiFi Websurfing
7h 52min
Load (maximum brightness)
1h 39min

Pros

+ 高端机身材质
+ 优秀的输入设备
+ 明亮的磨砂屏幕
+ 屏幕在校对后表现优秀
+ 优秀的系统性能
+ 优秀的电池续航

Cons

- 掌托相对容易沾染指纹
- USB-C型接口仅支持第一代标准
- 高频风扇噪音
- 在低负载下风扇噪音也很大
- 机身温度在负载下较高

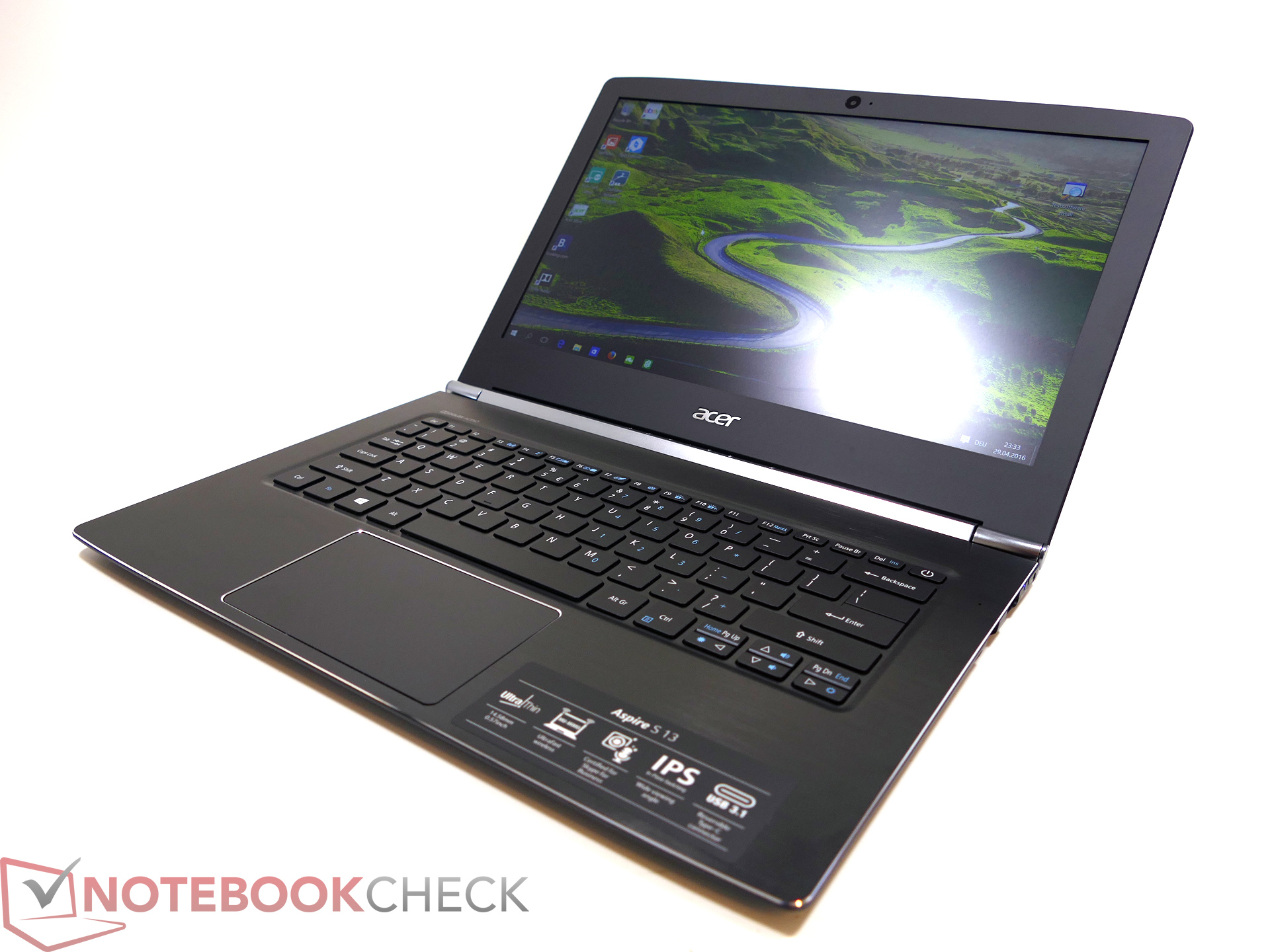

Slim subnotebook with bright and matte IPS display
Slim subnotebook with bright and matte IPS display

我们对Acer Aspire S 13的第一印象十分不错,而在测试中这也得到了证实。我们很喜欢它的机身,输入设备和屏幕。尽管出厂状态的色彩准确度有待改进(在校对后十分优秀),但磨砂表面与高亮度的结合十分值得赞扬。

我们不太满意这台测试机的风扇表现,它的旋转频率有些烦人。这个问题需要等待它得到BIOS更新,因为在低负载下由于温度较低并不需要风扇散热。根据Acer的说法,他们已经在着手通过更新修正这个问题。这将会明显改进它在系统噪音方面得到的分数,而它的总分也将会提高一分。

高速的系统,明亮的磨砂IPS屏幕以及优秀的实际使用电池续航时间——Acer为便携用户带来了全面的Aspire S 13。

Aspire S 13的其他优势还有优秀的性能和超过7小时的实际使用电池续航。另外它的输入设备在测试中也让我们十分满意。华硕Zenbook包括被动散热的UX305CA和配置相似的UX303UA都和Acer Aspire S13定位相当。AcerAspire R13 R7-372T是一款值得考虑的二合一产品。目前戴尔 XPS 13也是一款十分成功的13寸设备,搭配i5处理器和全高清屏幕的机型售价也与之相近。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。
