Acer Nitro 5 with RTX 3060 in review:配备最新英特尔阿尔德湖CPU的快速游戏笔记本电脑
宏碁一直有廉价的游戏笔记本电脑，几年来一直以 "Nitro "的假名销售。宏碁目前的型号也不例外，仍然忠实于该公司的理念。目前的宏碁Nitro 5 AN517-55-738R结合了一个英特尔酷睿i7-12700H和一个 NvidiaGeForce RTX 3060笔记本GPU在一个17英寸的基础上。该显示器还以其144赫兹和快速响应时间面向游戏玩家。我们审查配置中的设备目前在各在线零售商处的售价为1449欧元（1450美元）。然而，制造商的零售价为1699欧元（1700美元），明显高于这个价格。
宏碁Nitro AN517-55也可以使用更强大的 NvidiaGeForce RTX 3070 Ti笔记本GPU。然而，与我们的审查配置相比，这需要额外支付300欧元（300美元）。
装备类似的设备被用作比较设备。这些设备的清单可以在下表中找到。
Acer Nitro 5 AN517-55-738R (Nitro 5 AN517 Series)
Processor
Intel Core i7-12700H 14 x 1.7 - 4.7 GHz, 115 W PL2 / Short Burst, 80 W PL1 / Sustained, Alder Lake-H
Graphics adapter

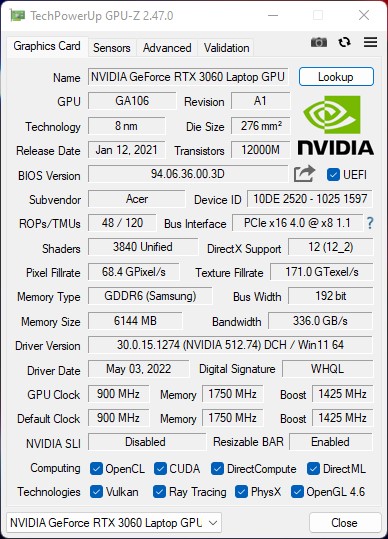

NVIDIA GeForce RTX 3060 Laptop GPU - 6 GB VRAM, Core: 1425 MHz, RAM: 1750 MHz, 80 W TDP, GDDR6, Nvidia 512.74

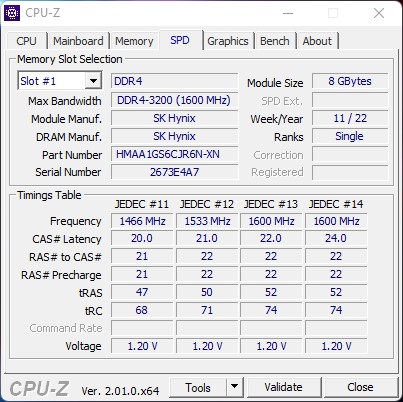

Memory
16 GB
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, B173HAN04.0, IPS, 144 Hz
Mainboard
Intel Alder Lake-P PCH

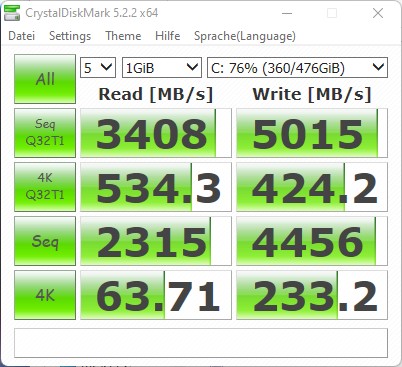

Storage

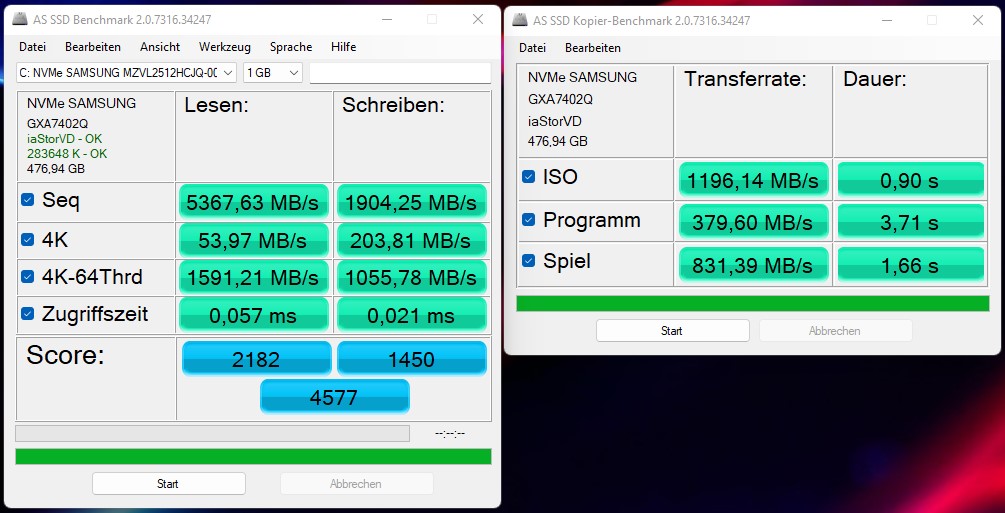

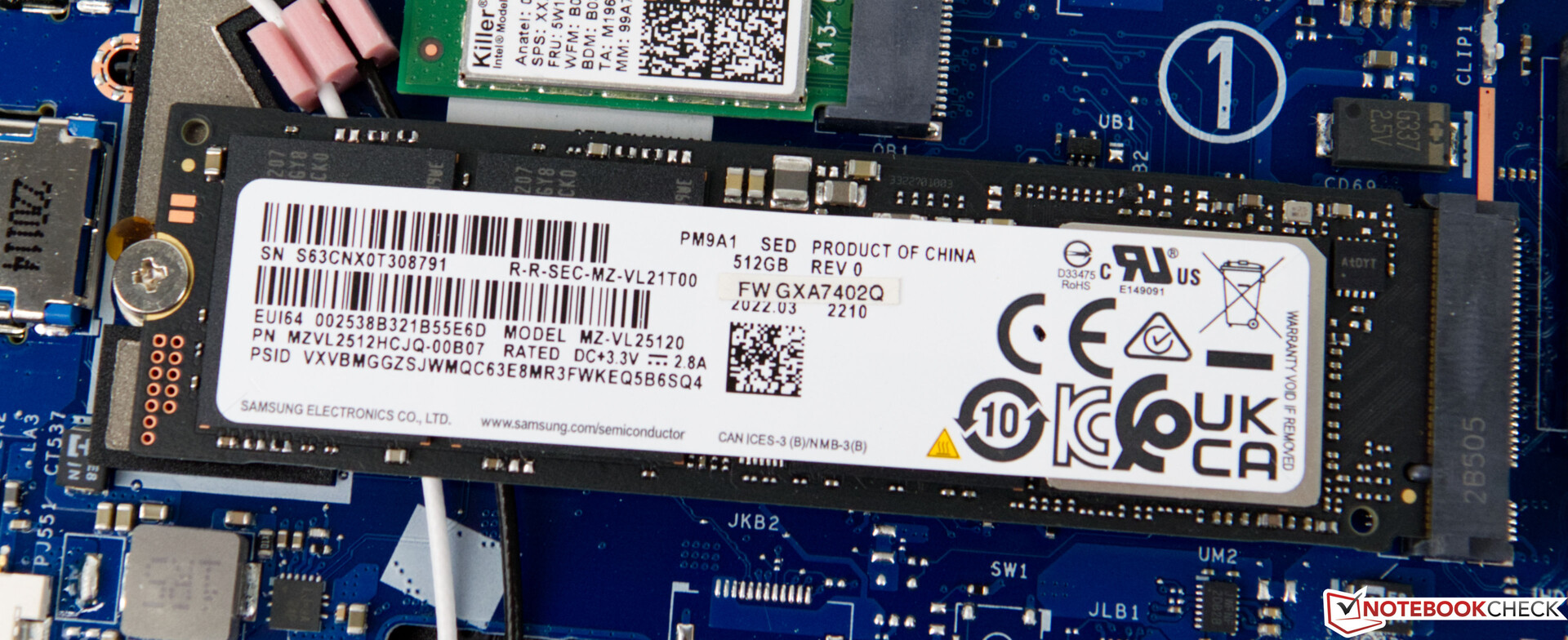

Samsung PM9A1 MZVL2512HCJQ, 512 GB
, M.2-2280 NVMe, 440 GB free
Weight
3.062 kg, Power Supply: 787 g
Price
1699 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
潜在的竞争对手比较
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 83.9 % v7 (old) | 08 / 2022 | Acer Nitro 5 AN517-55-738R i7-12700H, GeForce RTX 3060 Laptop GPU | 3.1 kg | 28.6 mm | 17.30" | 1920x1080 | |
| 85.2 % v7 (old) | 02 / 2022 | Lenovo Legion 5 17ACH6H-82JY0003GE R5 5600H, GeForce RTX 3060 Laptop GPU | 3.1 kg | 24.3 mm | 17.30" | 1920x1080 | |
| 84.1 % v7 (old) | 04 / 2022 | Asus TUF Gaming F17 FX707Z-HX011W i7-12700H, GeForce RTX 3060 Laptop GPU | 2.5 kg | 25 mm | 17.30" | 1920x1080 | |
| 81.3 % v7 (old) | 09 / 2021 | Acer Nitro 5 AN517-41-R5Z7 R7 5800H, GeForce RTX 3070 Laptop GPU | 2.7 kg | 24.9 mm | 17.30" | 1920x1080 | |
| 83.9 % v7 (old) | SCHENKER XMG Core 17 (Early 2021) i7-10870H, GeForce RTX 3060 Laptop GPU | 2.5 kg | 30.05 mm | 17.30" | 2560x1440 | ||
| 80.4 % v7 (old) | 09 / 2021 | MSI Katana GF76 11UE i7-11800H, GeForce RTX 3060 Laptop GPU | 2.7 kg | 25.2 mm | 17.30" | 1920x1080 |
案例 - 没什么特别的

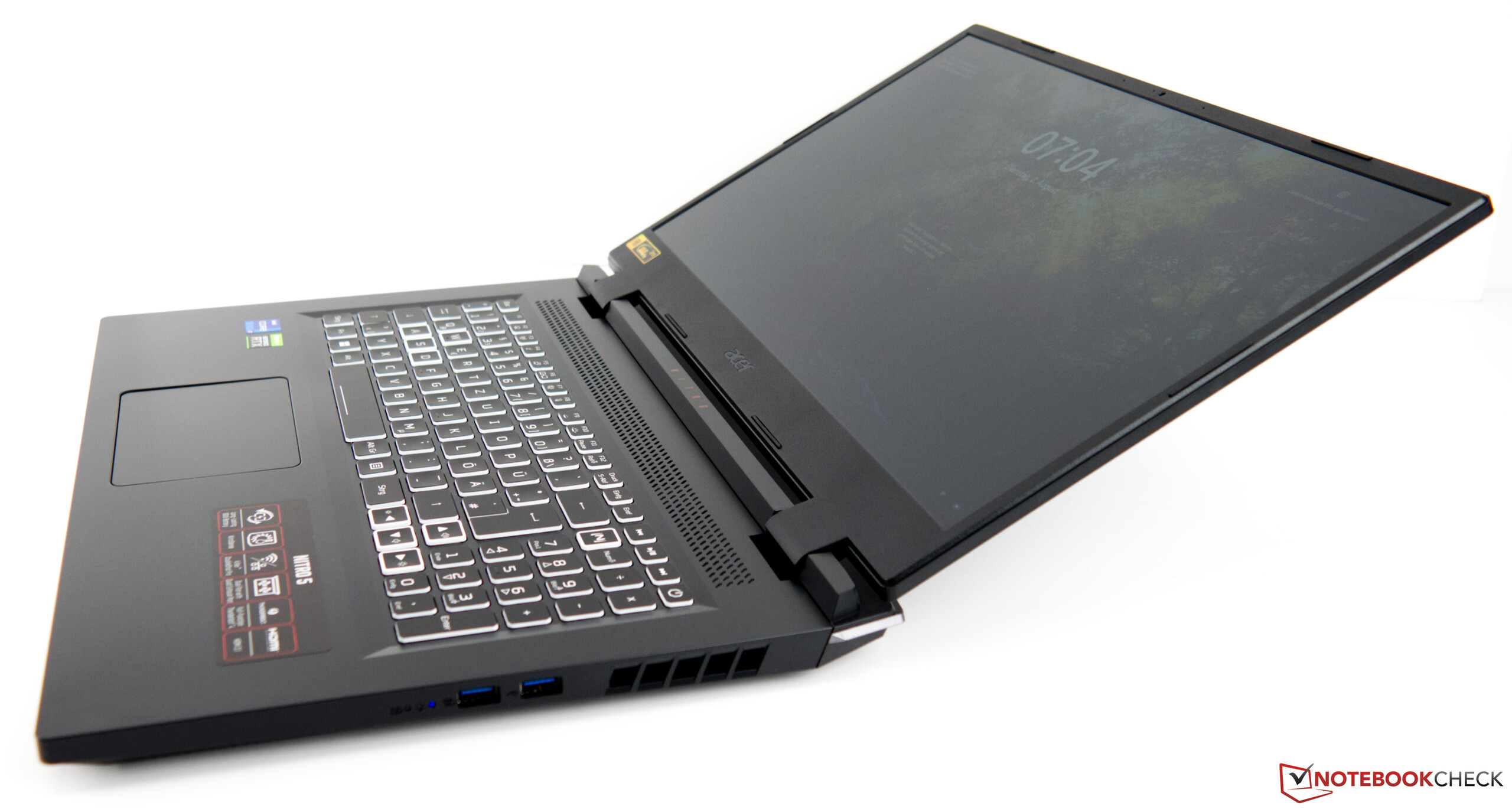

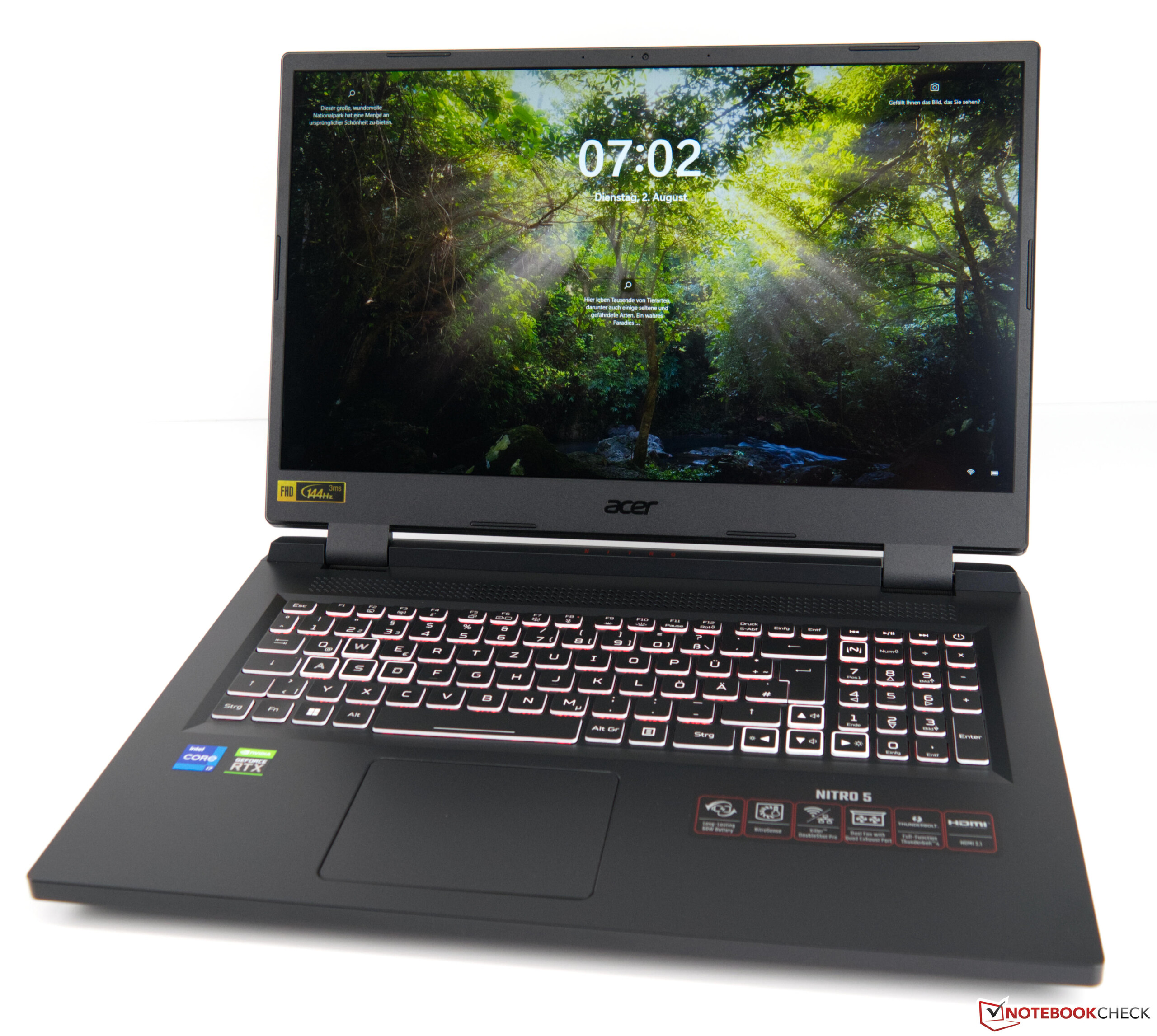

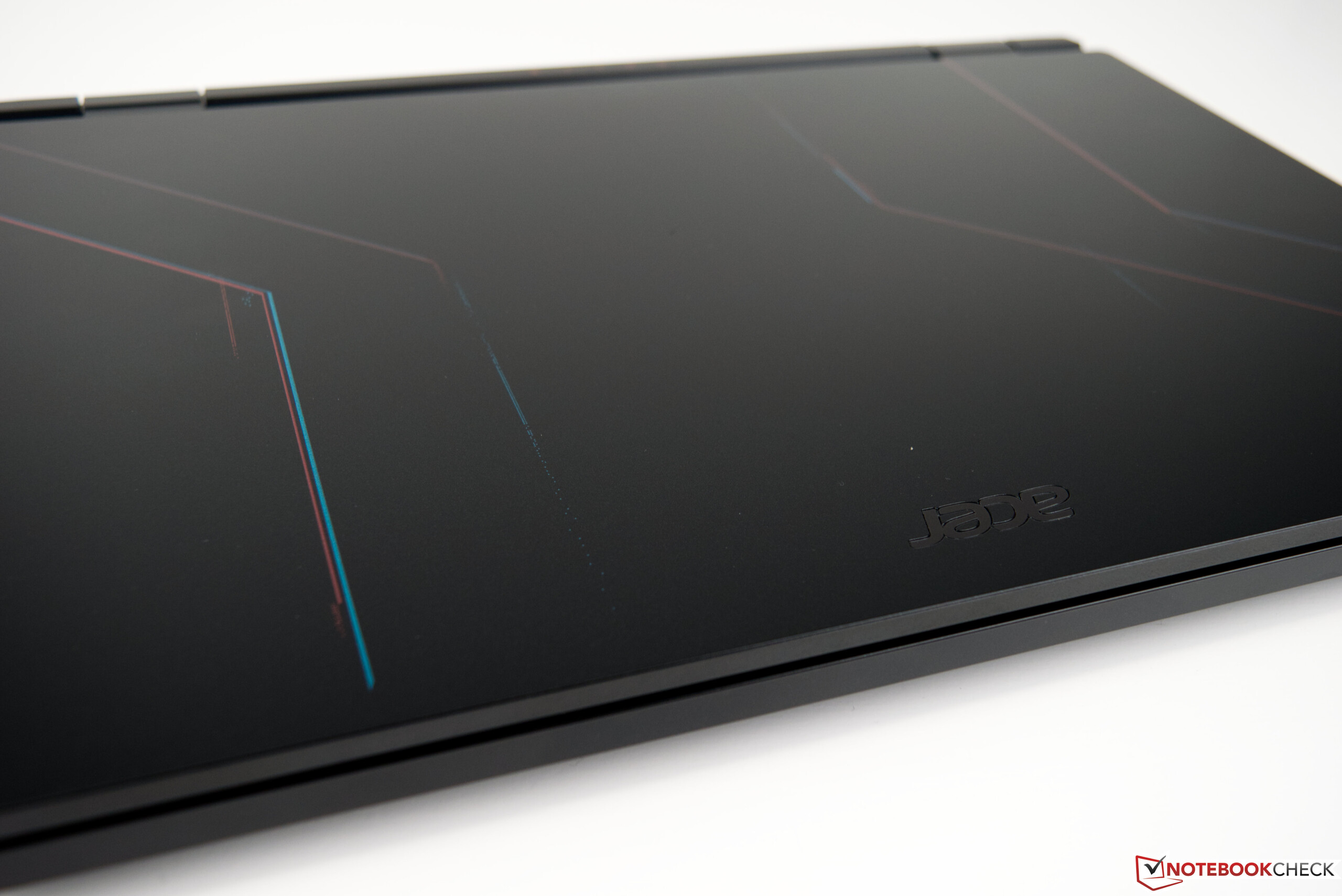

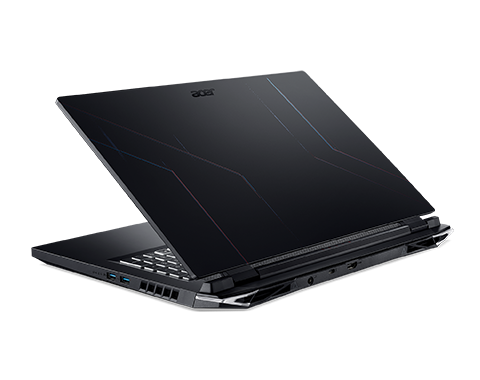

Acer Nitro 5 AN517可以清楚地识别为游戏笔记本，尽管制造商根本没有使用RGB。该设备只在显示屏盖上以彩色点缀的形式提供视觉亮点，使本来完全黑色的外壳变得严肃起来。由于它的尺寸，底座的稳定性很好，即使它在选择性的压力下屈服。显示屏的盖子也可以做得更硬一点，但其他17英寸的笔记本也很容易被扭曲，这是由它们的尺寸决定的。选择性的力的冲击被很好地吸收了。显示器的开启角度并没有完全达到180°，但这并不是抱怨的原因。两个铰链运行平稳，所以单手打开不是问题。然而，相对来说，大量的摇晃是无法防止的。
尺寸比较
Acer Nitro 5 AN517的重量为3.1公斤，属于同类产品中较重的代表。然而，对于一个17英寸的机器来说，这个重量是可以接受的。由于笨重的底座，它的尺寸不是很紧凑，与联想Legion 5 17的水平相似。扁平的，但强大的230瓦的电源在天平上又增加了800克的重量。
装备--略显不足

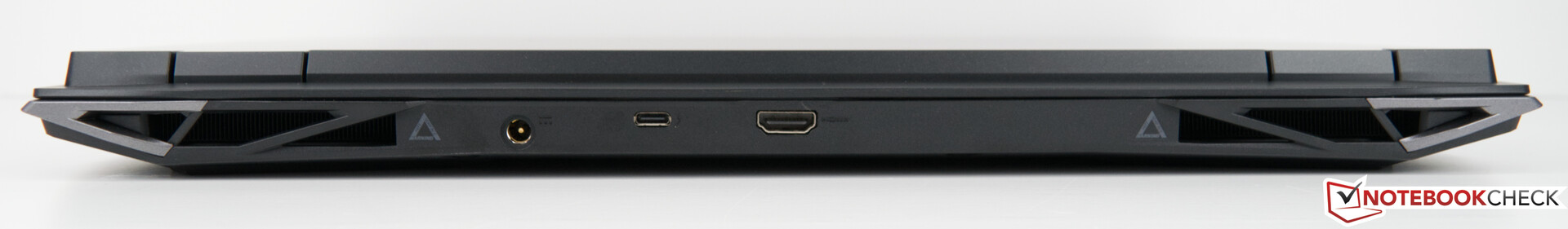

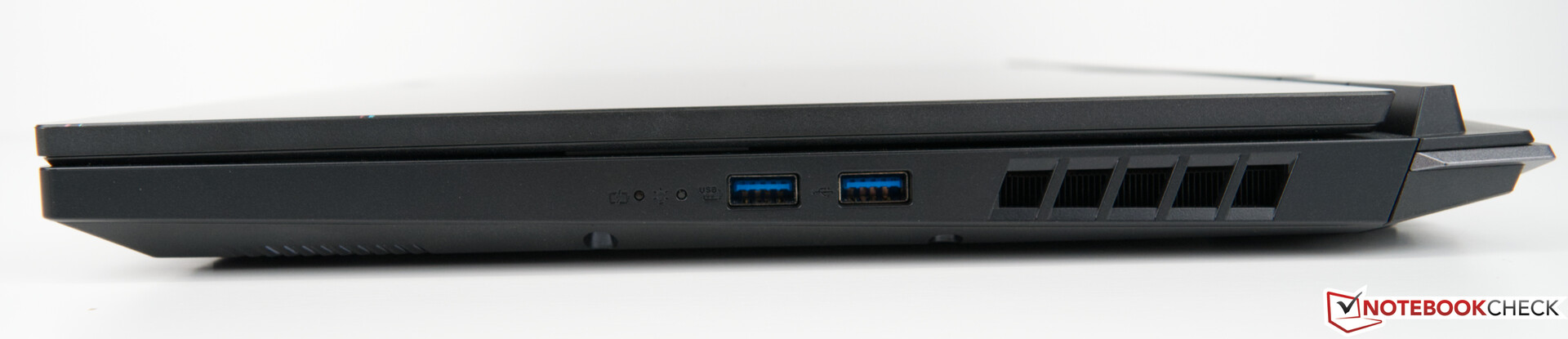

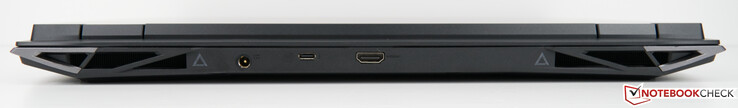

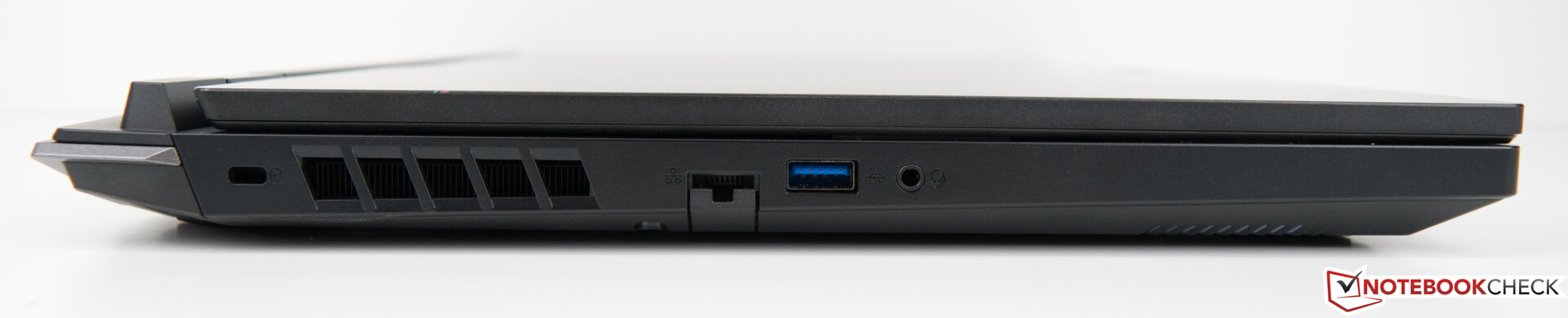

宏碁Nitro 5 AN517提供了一系列良好的标准外部端口，包括Thunderbolt 4。然而，只有3个USB Type-A，这对于17英寸的设备来说只是平均水平，这一事实应该被严格看待。当然会有足够的空间容纳更多的端口。一个SD卡读卡器也没有。虽然端口的分布很好，但考虑到端口的数量和可用空间，这很难让人称赞。
沟通
宏碁Nitro 5 AN517配备了一个杀手级的Wi-Fi 6 AX1650i无线局域网模块。在测试中，我们的审查样本在发送和接收数据时都取得了良好的传输速率。因此，宏碁Nitro 5 AN517可以与以下产品相媲美申克XMG核心17相提并论，后者提供了几乎相同的速率。作为一种选择，你也可以使用GBit LAN连接。在测试过程中，这两种网络连接都工作得很完美。
| Networking | |
| iperf3 transmit AX12 | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE | |
| Average Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW) (758 - 1514, n=10) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| iperf3 receive AX12 | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Average Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW) (887 - 1670, n=10) | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| iperf3 receive AXE11000 6GHz | |
| Acer Nitro 5 AN517-55-738R | |
| Average Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW) (1572 - 1703, n=2) | |
| Average of class Gaming (853 - 1788, n=71, last 2 years) | |
| iperf3 transmit AXE11000 6GHz | |
| Average Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW) (1473 - 1511, n=2) | |
| Acer Nitro 5 AN517-55-738R | |
| Average of class Gaming (648 - 1878, n=71, last 2 years) | |
Acer Nitro 5 AN517-55-738R Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW); iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1473 (1248-1597)
Acer Nitro 5 AN517-55-738R Killer Wi-Fi 6 AX1650i 160MHz Wireless Network Adapter (201NGW); iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1702 (1668-1724)
Lenovo Legion 5 17ACH6H-82JY0003GE RealTek Semiconductor RTL8852AE; iperf3 receive AX12; iperf 3.1.3: Ø650 (595-706)
Asus TUF Gaming F17 FX707Z-HX011W Intel Wi-Fi 6 AX201; iperf3 receive AX12: Ø422 (403-429)
Lenovo Legion 5 17ACH6H-82JY0003GE RealTek Semiconductor RTL8852AE; iperf3 transmit AX12; iperf 3.1.3: Ø892 (836-935)
Asus TUF Gaming F17 FX707Z-HX011W Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø441 (211-459)

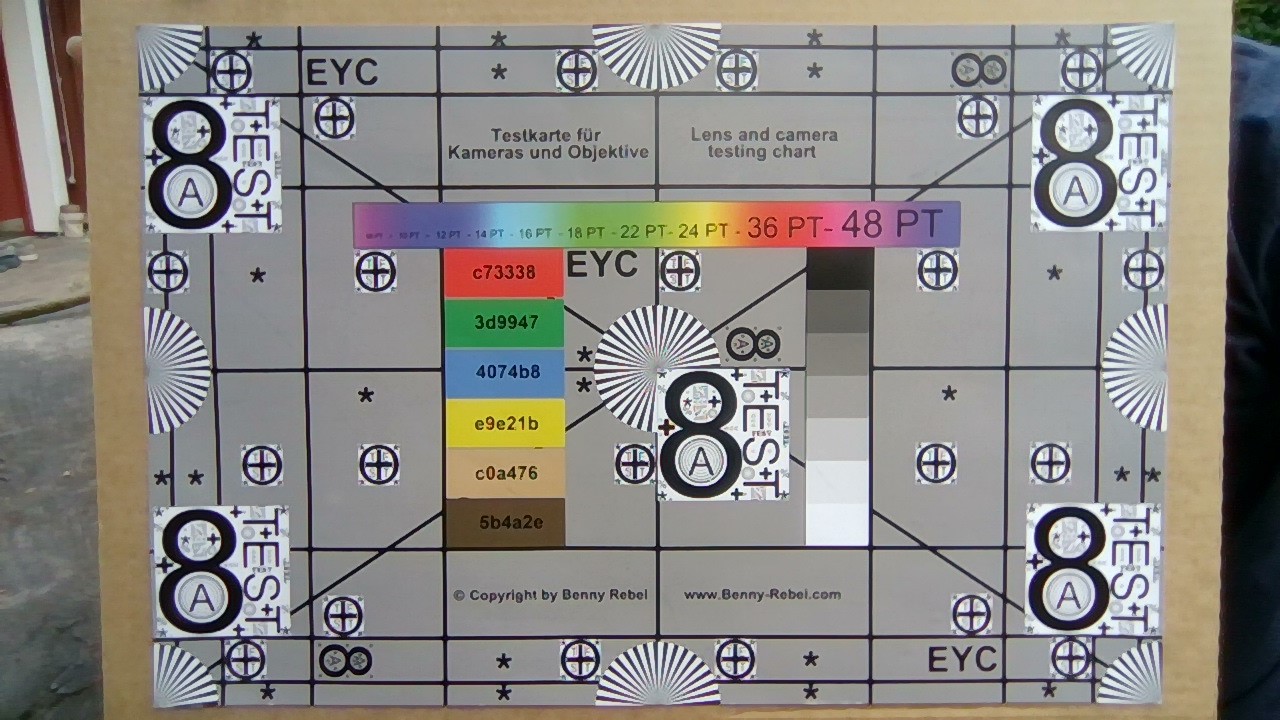

网络摄像头

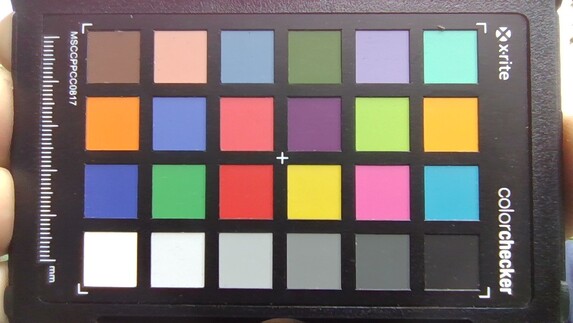

几乎没有任何游戏笔记本电脑提供良好的网络摄像头质量。这对宏碁Nitro 5 AN517来说也是如此，尽管它的Delta-E偏差在比较中是最低的。然而，图像清晰度与对比设备的图像清晰度一样差。
16.6 ∆E
12.1 ∆E
17.7 ∆E
17.9 ∆E
18.1 ∆E
14.3 ∆E
10.7 ∆E
20.2 ∆E
13.8 ∆E
14.5 ∆E
12.1 ∆E
11.5 ∆E
15 ∆E
13.1 ∆E
15.6 ∆E
6.1 ∆E
16.8 ∆E
19.7 ∆E
2.3 ∆E
11.1 ∆E
12.5 ∆E
13.4 ∆E
13.2 ∆E
5.3 ∆E
辅料

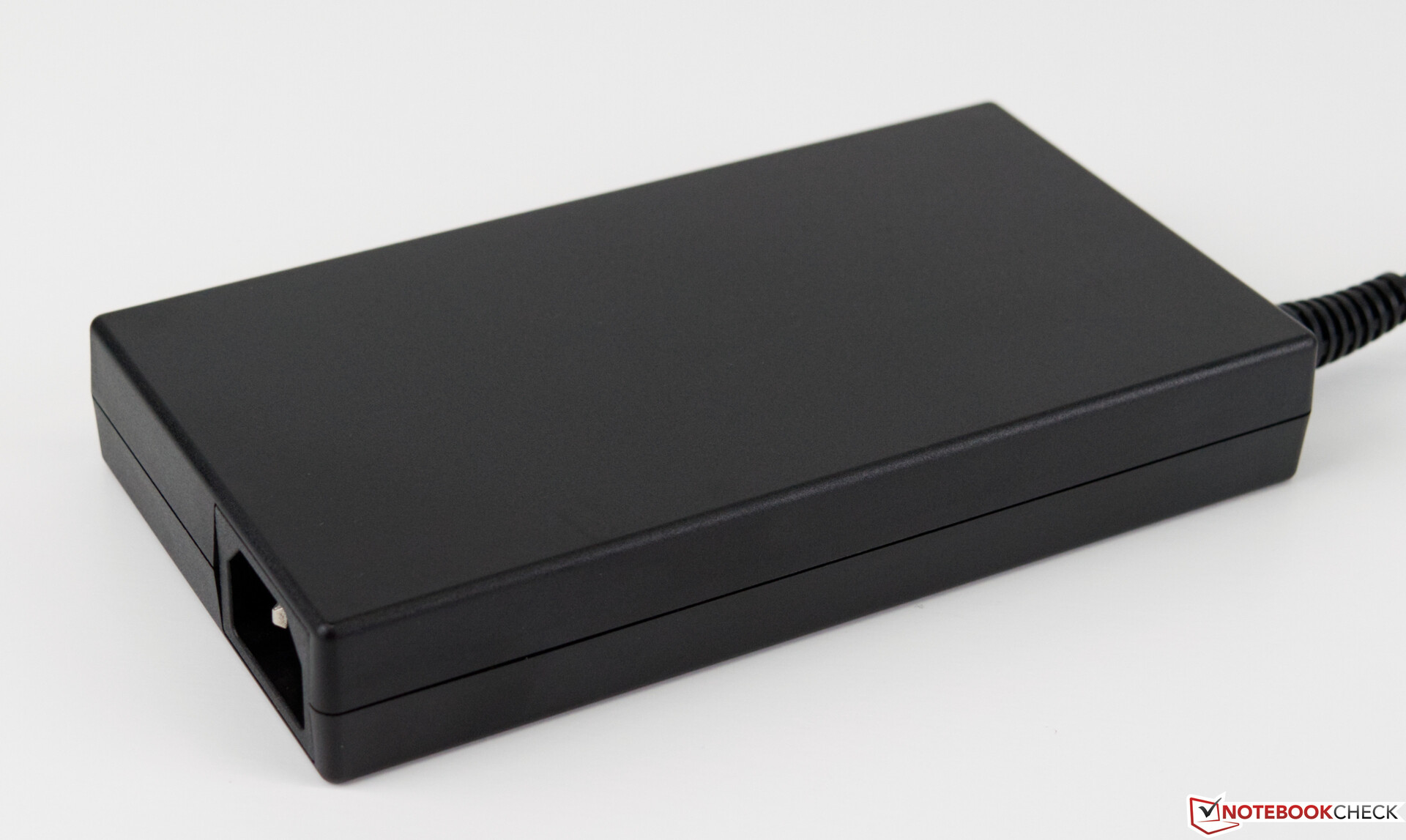

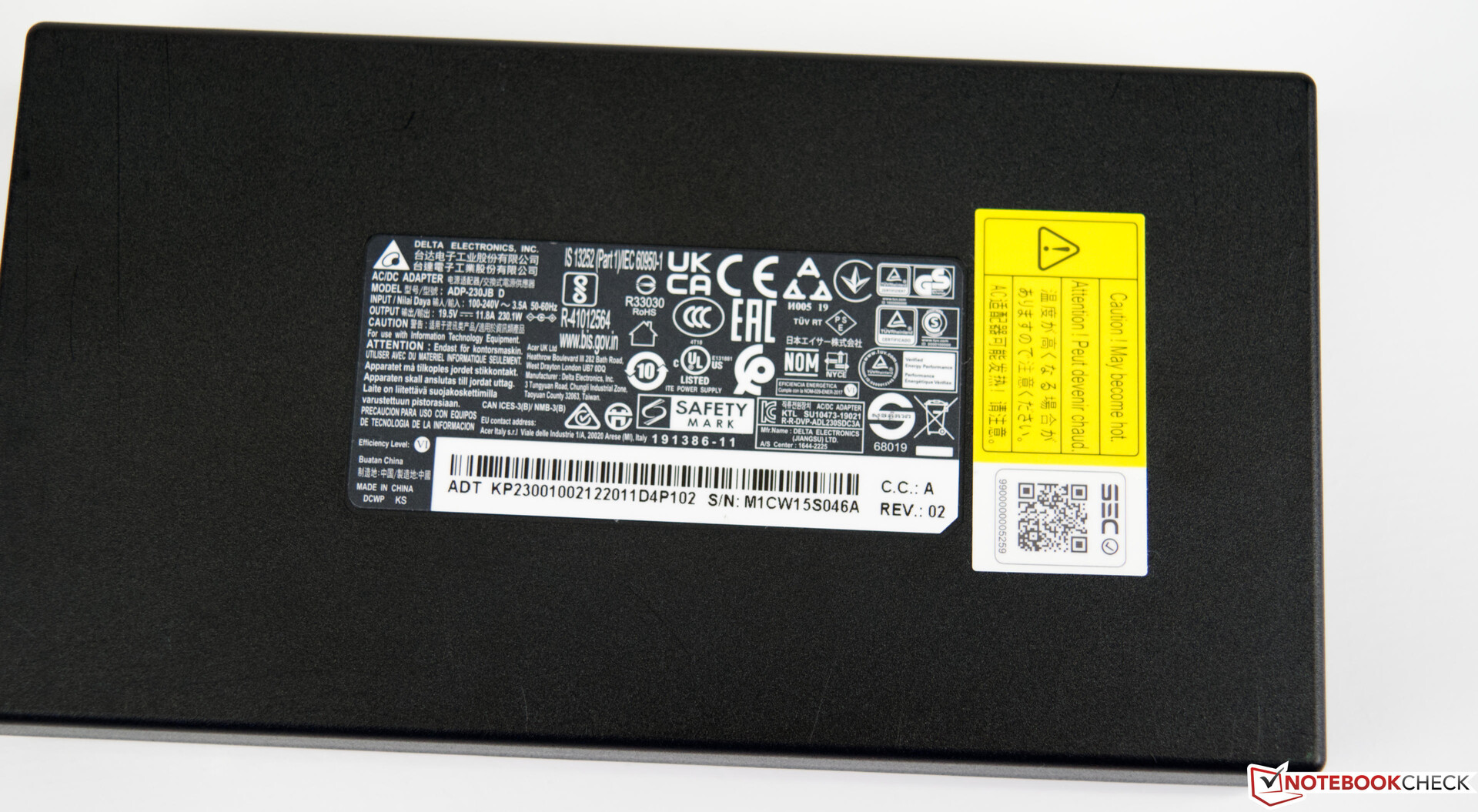

除了笔记本之外，买家还收到一个近800克重的230瓦电源适配器以及一些信息小册子。

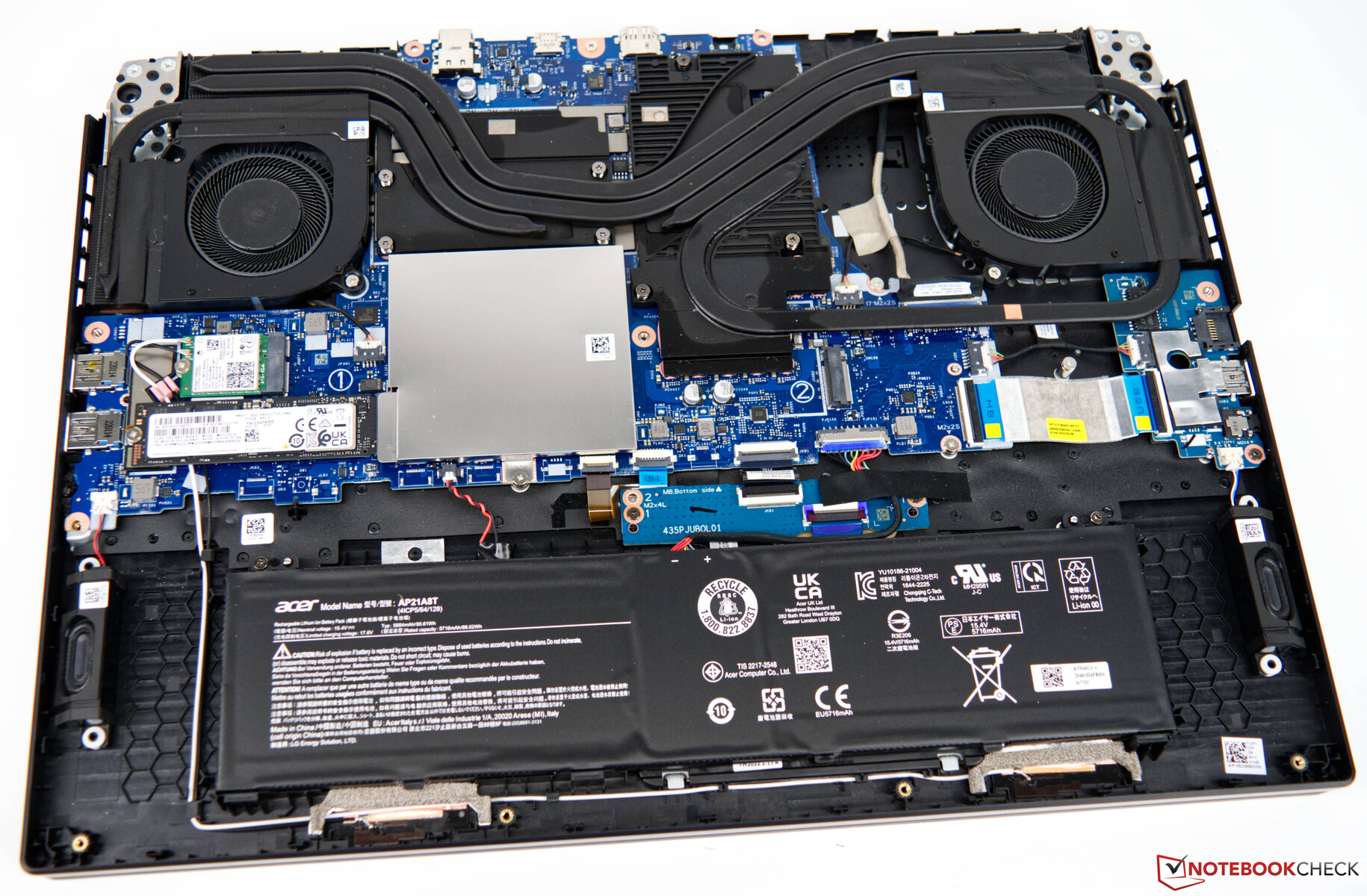

维护

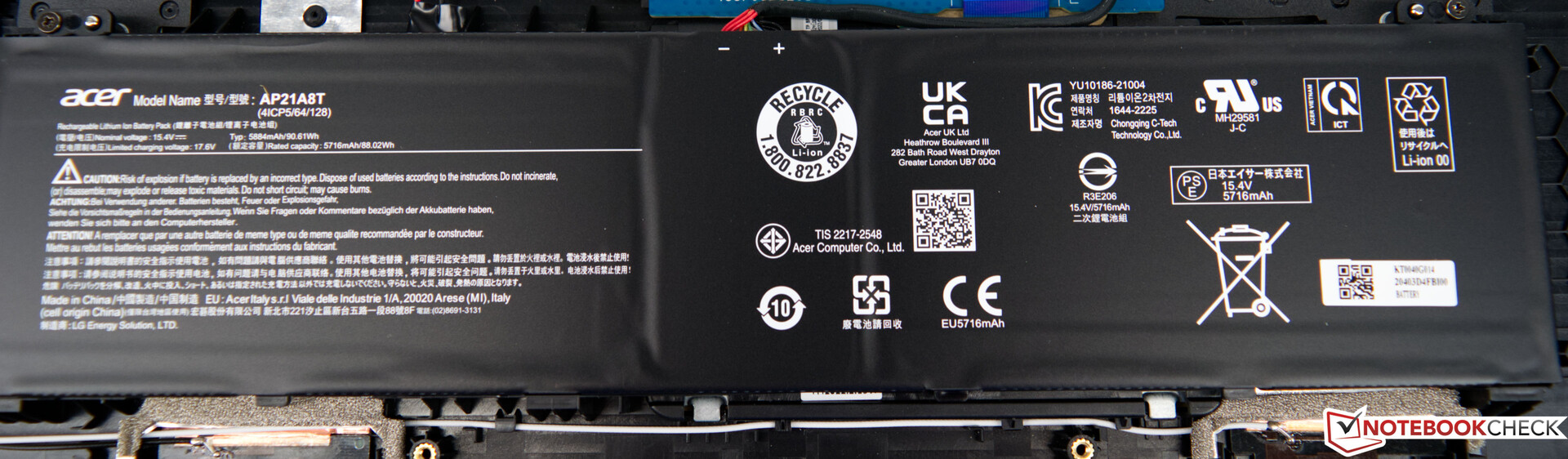

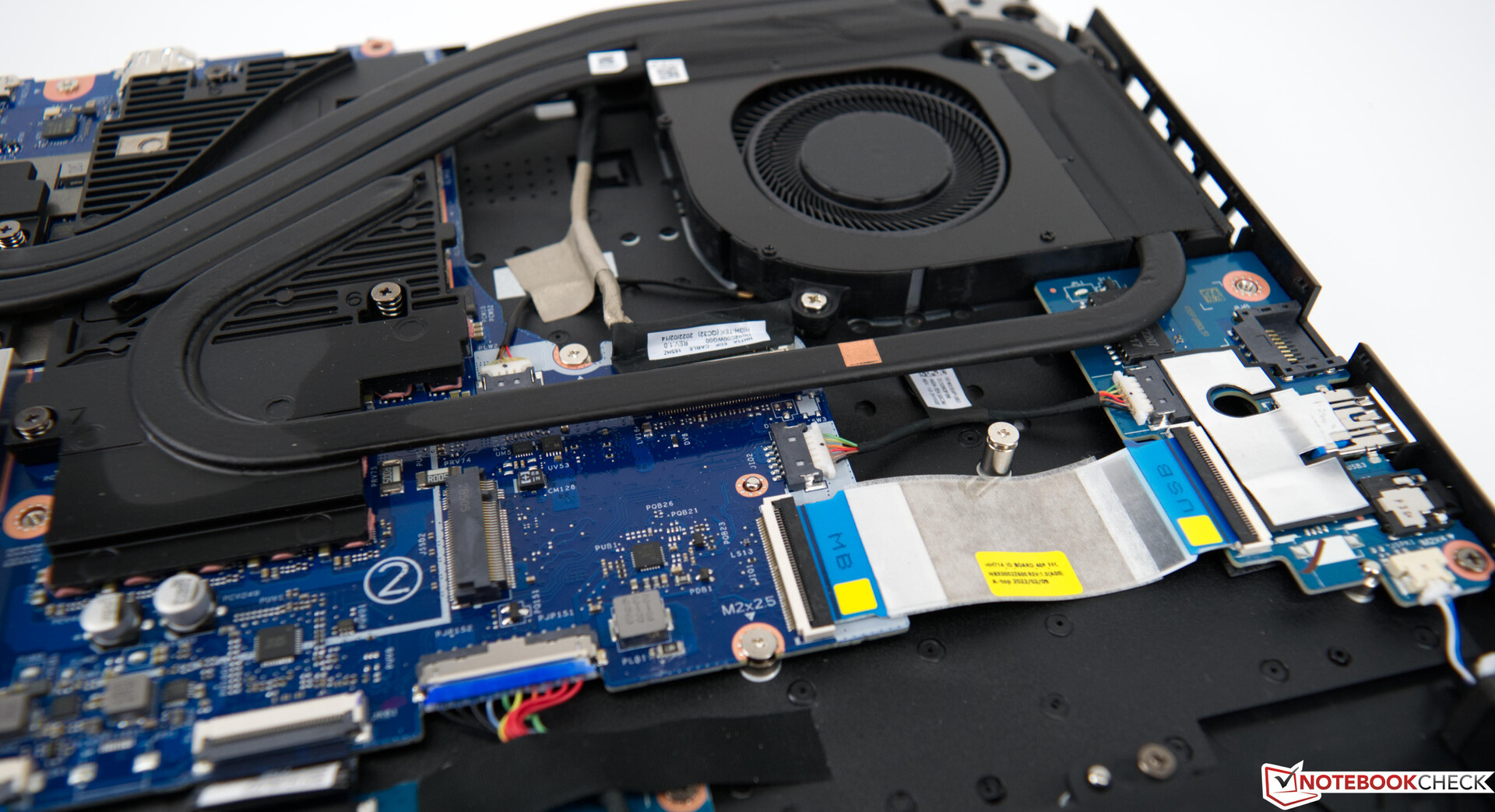

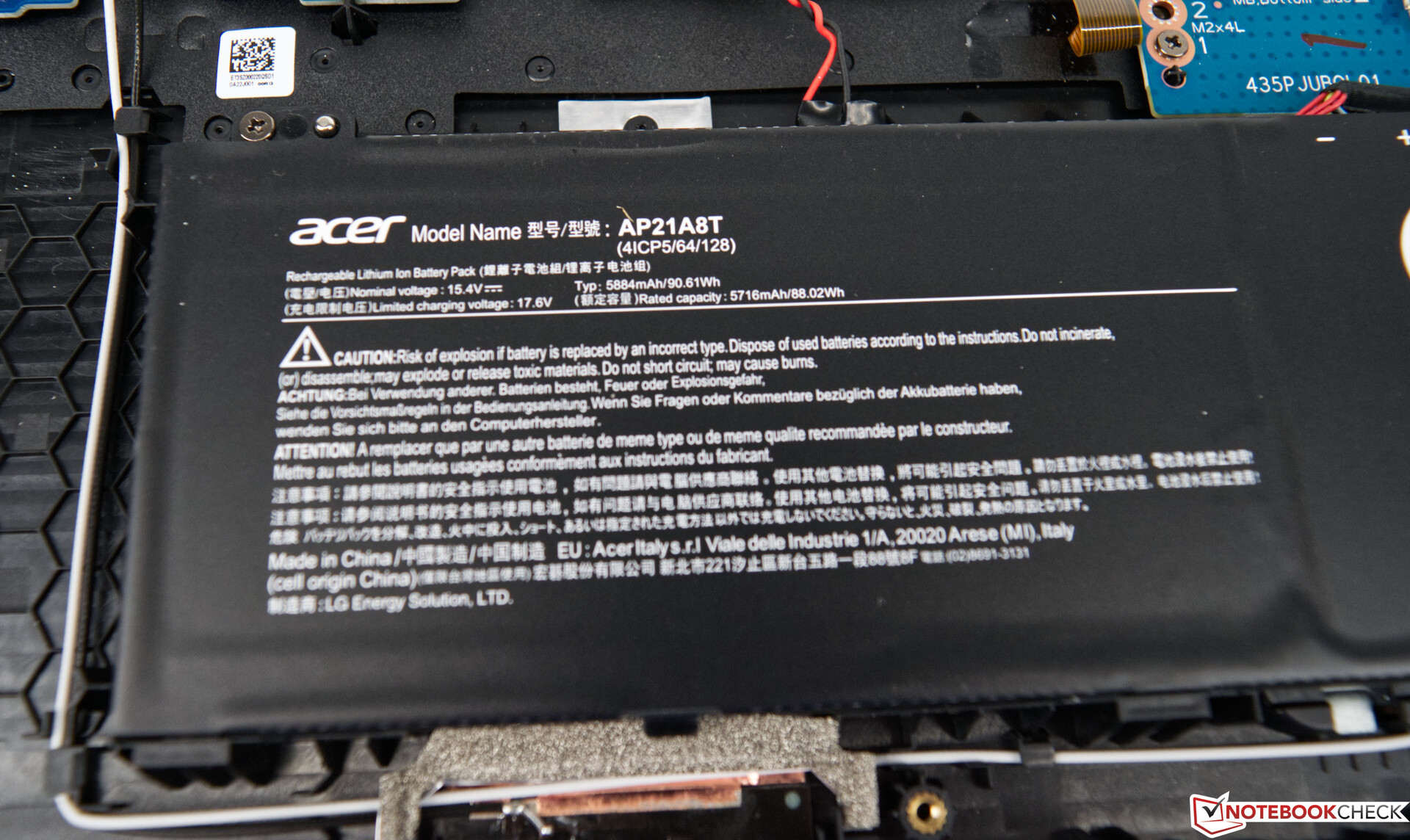

在拆开底板后，更换内部硬件是很容易进行的。然而，你在这样做的时候应该小心--许多小夹子将盖子固定住，甚至在所有螺丝都被拆下之后。我们的样品设备中的缝隙也非常小，所以我们很难用iFixit工具包撬开它。在内部，可以非常容易地接触到已安装的组件，而无需进一步拆卸。
担保
在德国，联想为客户提供24个月的保修，包括送入/退回服务。这可能因地区而异，购买前请务必向您的供应商查询。
输入设备 - 相当可用

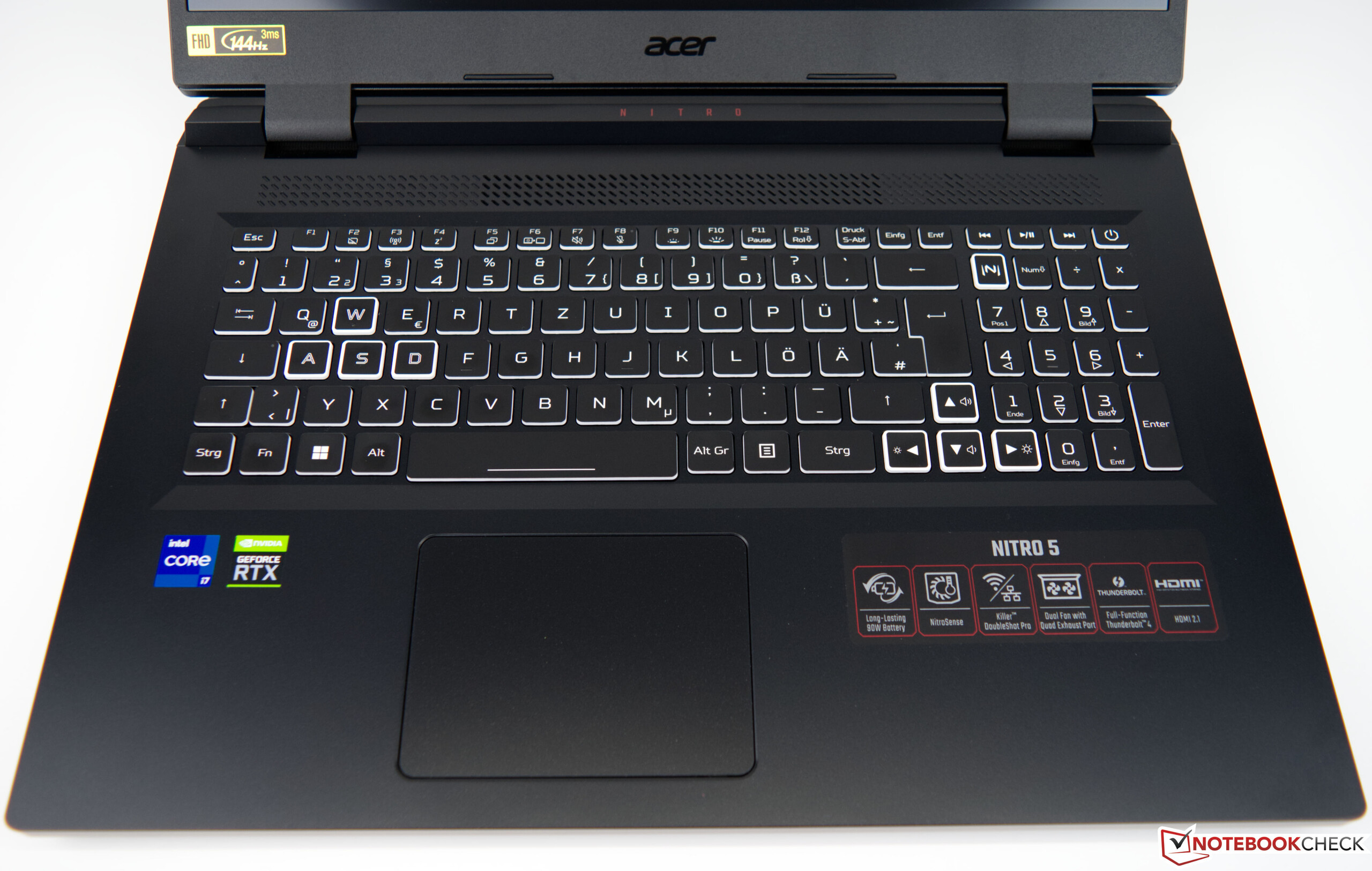

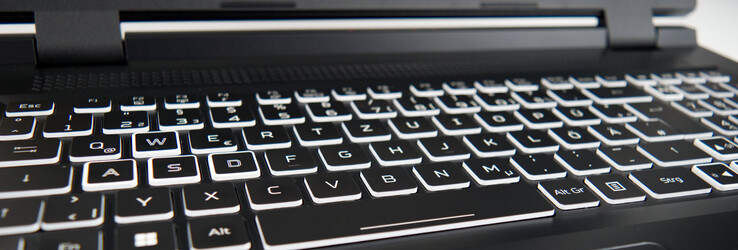

键盘

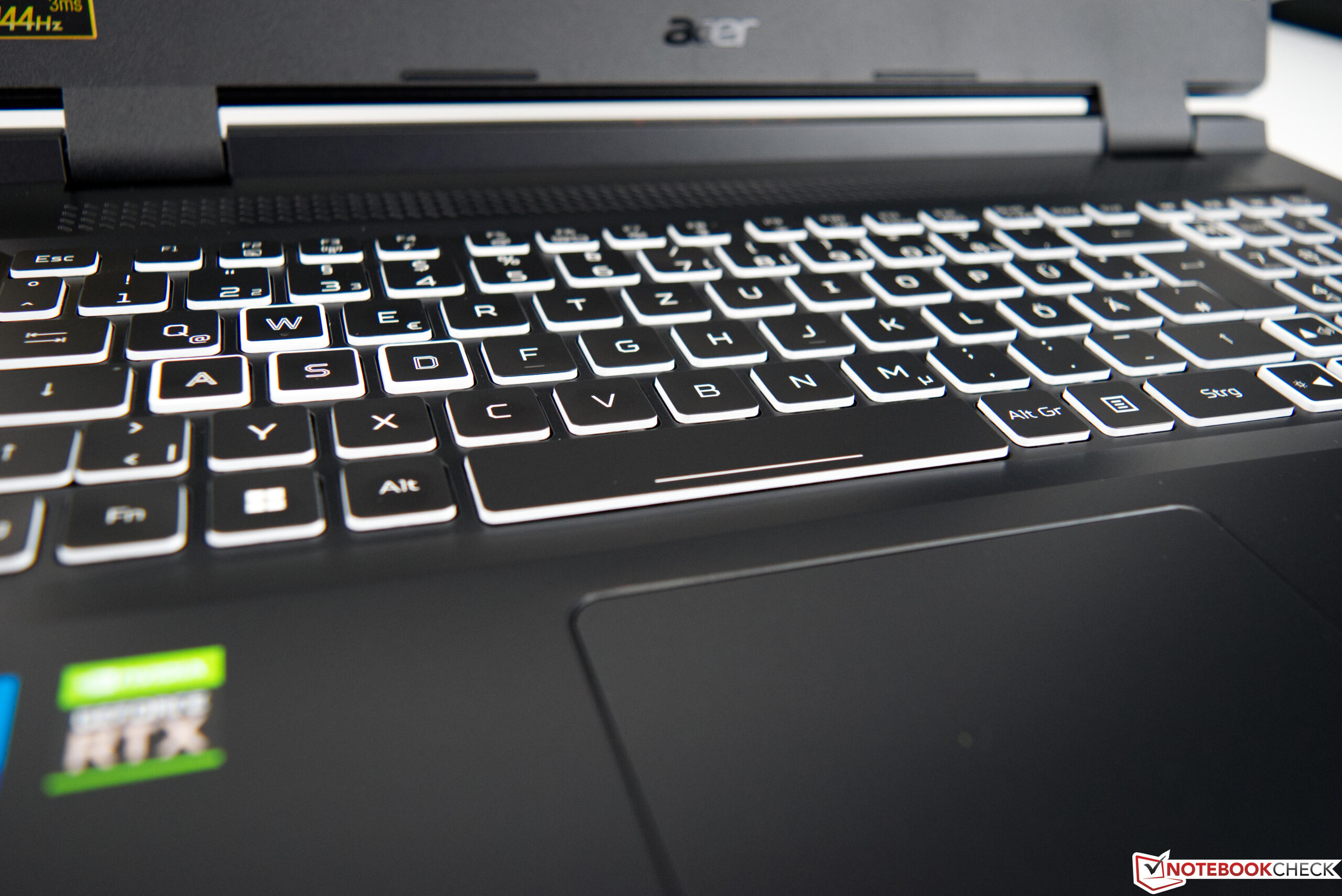

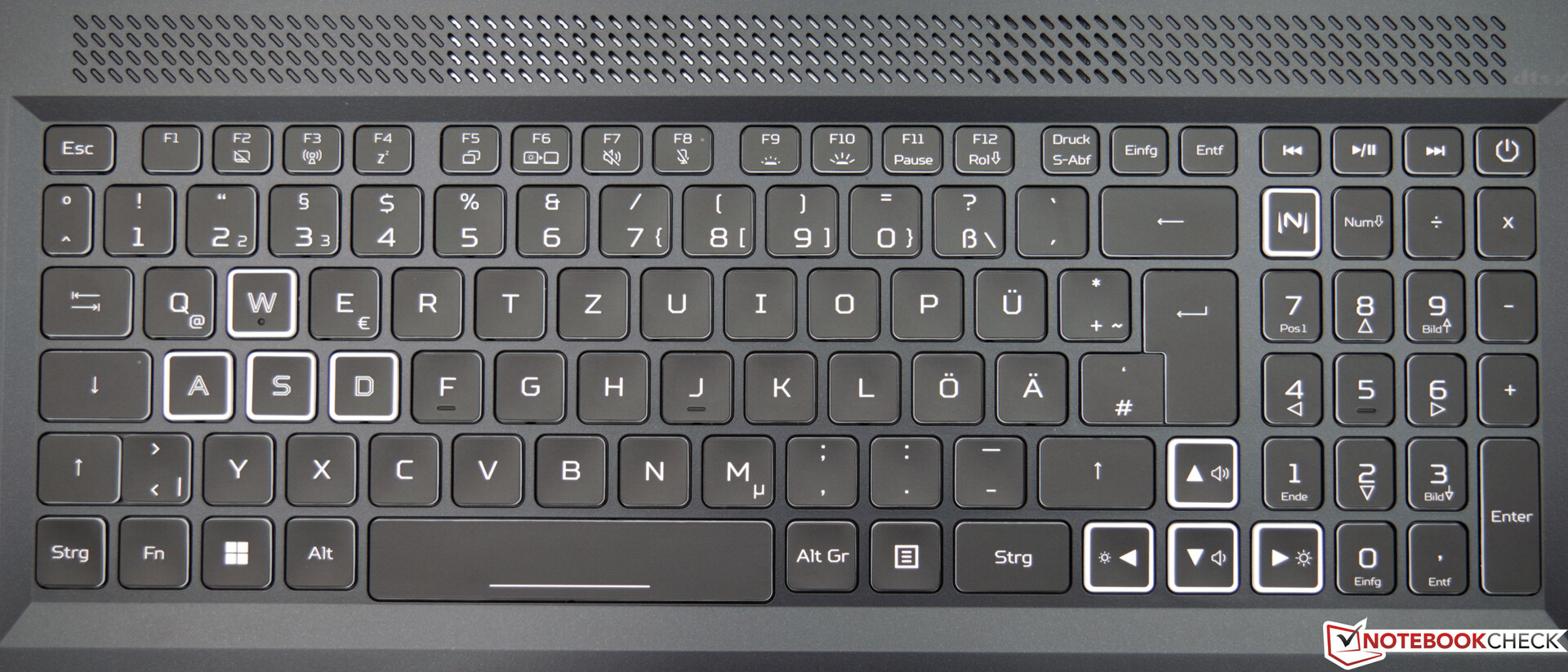

宏碁Nitro 5 AN517的6行小键盘还不错，打字时反馈良好。虽然击键时略显闷热，但这并不会导致打字时的海绵感。在15x15毫米的尺寸中，各个按键的大小令人满意。功能键和数字键盘略小，但这在实际使用中不会造成任何问题。RGB背光可以通过Nitro Sense进行控制和调整，最多可分为4个区域。

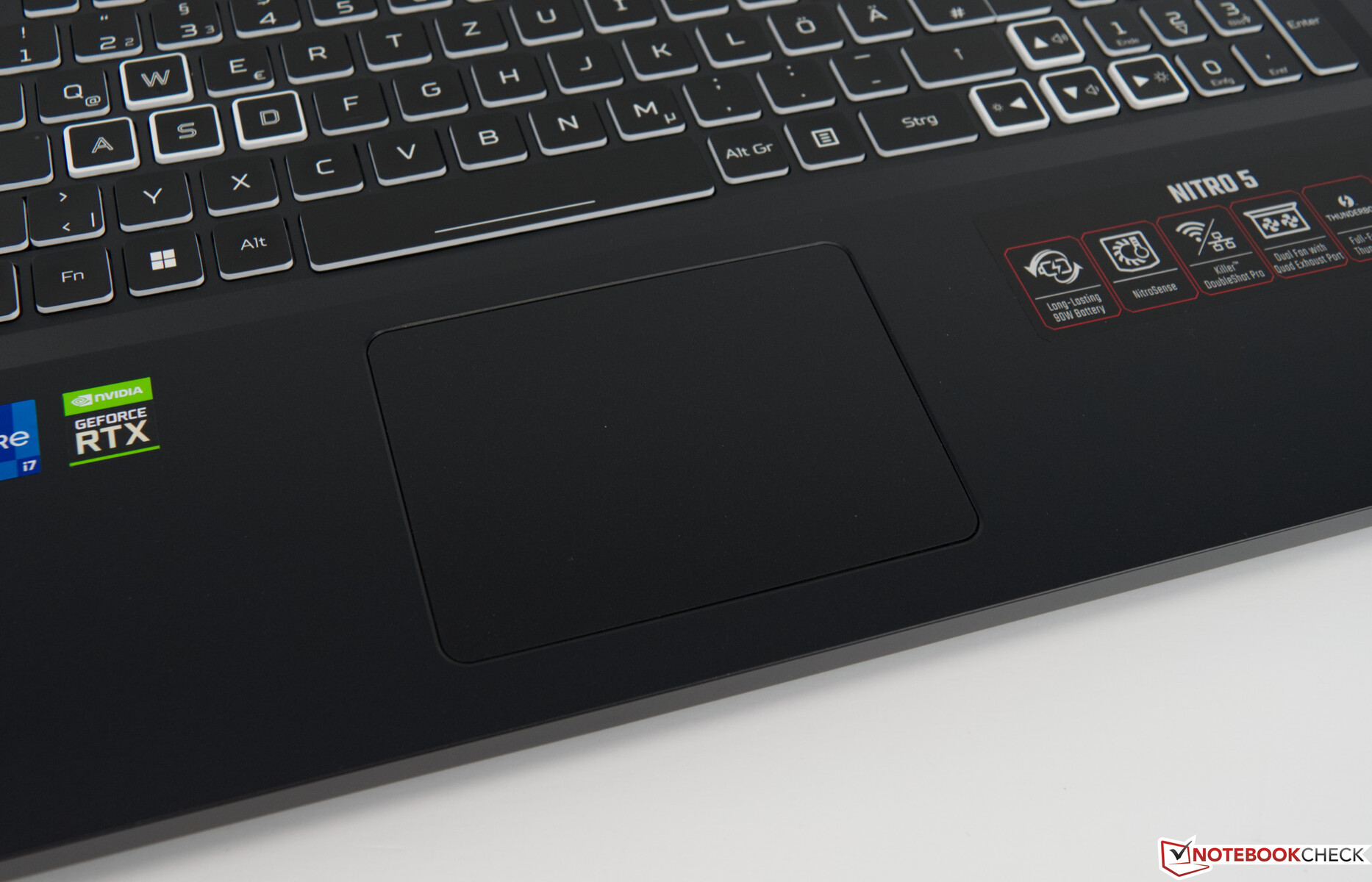

触摸板
内置的触摸板尺寸为10.6x7.8厘米，很好地利用了现有空间。鼠标的更换在整个输入表面上都是有反应的。光滑的表面在视觉上与整体概念非常匹配。从触觉上看，输入表面很光滑，而且由于其大小，也很适合做多点触摸手势。两个输入键位于下部区域，按下时以安静的点击声提供反馈。
显示 - 快速和144赫兹
宏碁Nitro 5 AN517配备了良好的全高清面板，其144赫兹和低响应时间应能满足大多数游戏玩家的需求。然而，我们的评测样本的平均亮度稍显薄弱。我们只测得278cd/m²，与其他竞争设备直接比较，这不是最差的结果。

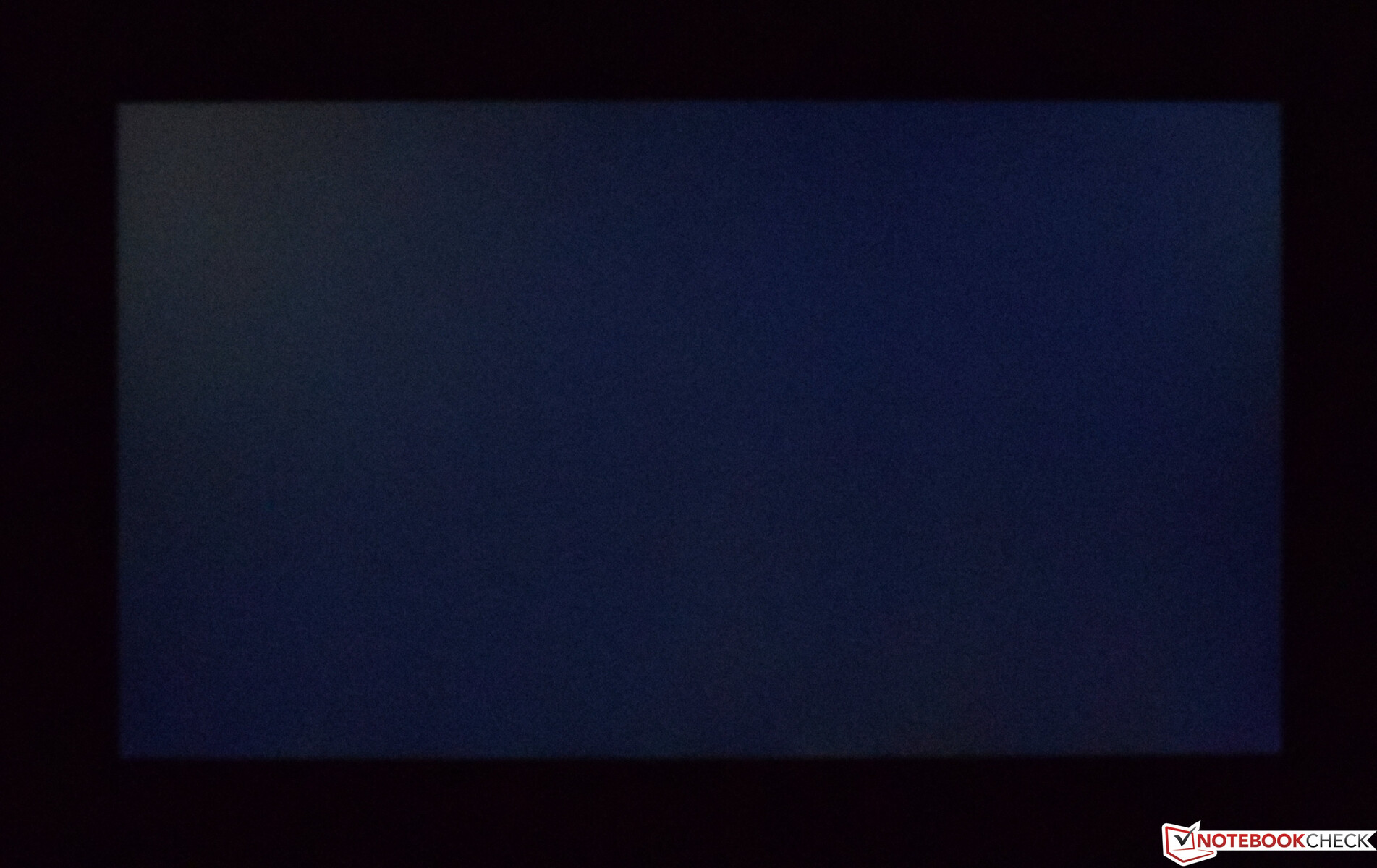

由于轻微的光晕，宏碁Nitro 5 AN517在总分上也失去了重要的分数。另一方面，我们没有发现任何PWN，这可以防止长时间使用时的疲劳。
其他显示选项，如QHD或4K面板，并不适用宏碁Nitro 5 AN517。
| |||||||||||||||||||||||||
B173HAN04.0 tested with X-Rite i1Pro 2
Maximum: 289 cd/m² (Nits) Average: 277.7 cd/m² Minimum: 19.6 cd/m²Brightness Distribution: 89 %
Center on Battery: 297 cd/m²
Contrast: 894:1 (Black: 0.32 cd/m²)

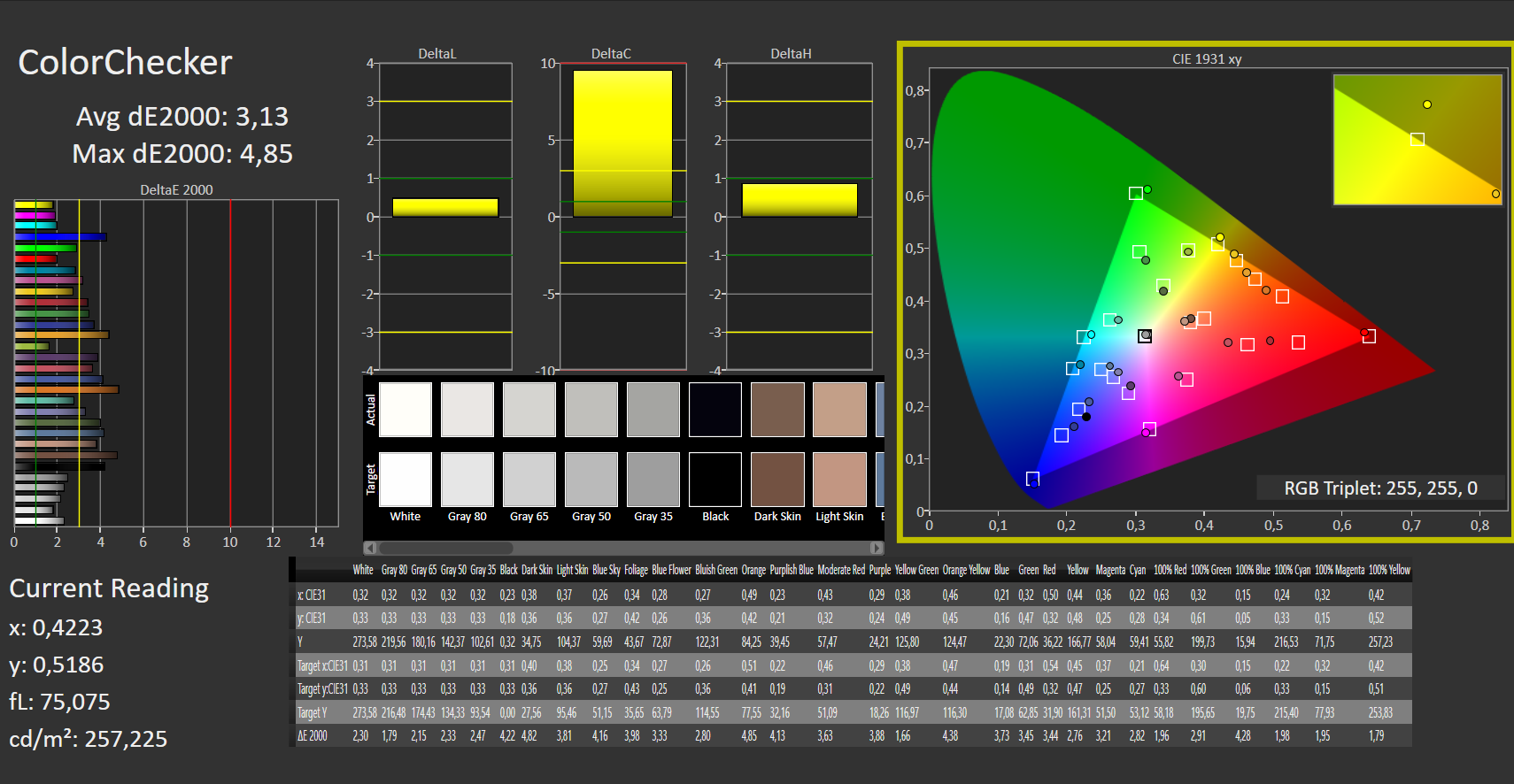

ΔE Color 3.05 | 0.5-29.43 Ø4.92, calibrated: 3.13
ΔE Greyscale 3.17 | 0.5-98 Ø5.2

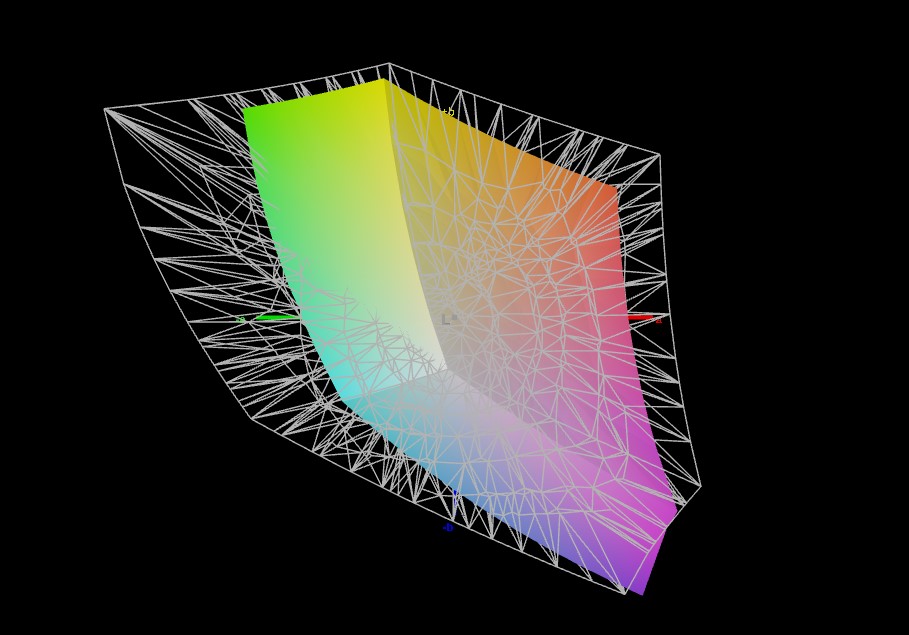

60.5% AdobeRGB 1998 (Argyll 2.2.0 3D)

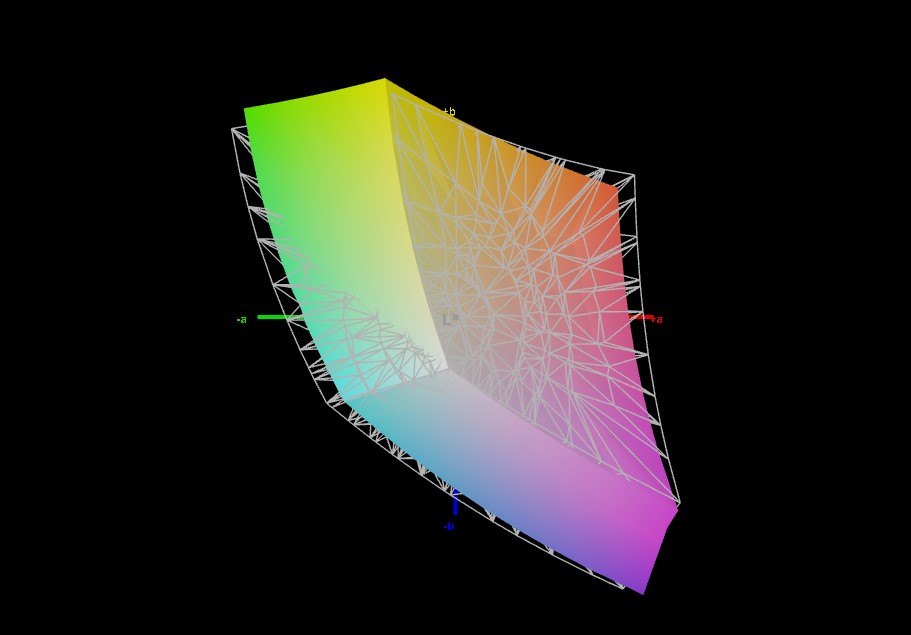

86.4% sRGB (Argyll 2.2.0 3D)
58.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.29
| Acer Nitro 5 AN517-55-738R B173HAN04.0, IPS, 1920x1080, 17.3" | Lenovo Legion 5 17ACH6H-82JY0003GE LEN173FHD, IPS, 1920x1080, 17.3" | Asus TUF Gaming F17 FX707Z-HX011W AU Optronics B173HAN04.9 (AUO4B9D), IPS, 1920x1080, 17.3" | Acer Nitro 5 AN517-41-R5Z7 BOE NV173FHM-NX4, IPS, 1920x1080, 17.3" | SCHENKER XMG Core 17 (Early 2021) BOE CQ NE173QHM-NY2, IPS, 2560x1440, 17.3" | MSI Katana GF76 11UE AU Optronics B173HAN04.9, IPS, 1920x1080, 17.3" | |
|---|---|---|---|---|---|---|
| Display | 11% | -31% | -37% | 15% | -32% | |
| Display P3 Coverage | 58.9 | 64.8 10% | 40.2 -32% | 36.7 -38% | 68.1 16% | 39.8 -32% |
| sRGB Coverage | 86.4 | 97.2 13% | 59.7 -31% | 55.3 -36% | 98.5 14% | 59.5 -31% |
| AdobeRGB 1998 Coverage | 60.5 | 66.7 10% | 41.5 -31% | 37.9 -37% | 69.3 15% | 41.12 -32% |
| Response Times | -82% | -412% | -138% | -103% | -369% | |
| Response Time Grey 50% / Grey 80% * | 6 ? | 15 ? -150% | 39.2 ? -553% | 18 ? -200% | 16.8 ? -180% | 36.8 ? -513% |
| Response Time Black / White * | 8 ? | 9 ? -13% | 29.6 ? -270% | 14 ? -75% | 10 ? -25% | 26 ? -225% |
| PWM Frequency | ||||||
| Screen | 26% | -9% | -28% | 7% | -27% | |
| Brightness middle | 286 | 323 13% | 287 0% | 282 -1% | 370 29% | 260 -9% |
| Brightness | 278 | 305 10% | 268 -4% | 255 -8% | 333 20% | 251 -10% |
| Brightness Distribution | 89 | 89 0% | 89 0% | 85 -4% | 84 -6% | 85 -4% |
| Black Level * | 0.32 | 0.25 22% | 0.17 47% | 0.24 25% | 0.38 -19% | 0.26 19% |
| Contrast | 894 | 1292 45% | 1688 89% | 1175 31% | 974 9% | 1000 12% |
| Colorchecker dE 2000 * | 3.05 | 1.87 39% | 5.1 -67% | 5.91 -94% | 2.41 21% | 3.9 -28% |
| Colorchecker dE 2000 max. * | 5.83 | 4.84 17% | 8.72 -50% | 10.98 -88% | 7.32 -26% | 20.64 -254% |
| Colorchecker dE 2000 calibrated * | 3.13 | 0.92 71% | 5.1 -63% | 1.19 62% | 3.71 -19% | |
| Greyscale dE 2000 * | 3.17 | 2.57 19% | 4.24 -34% | 5.85 -85% | 3.9 -23% | 1.6 50% |
| Gamma | 2.29 96% | 2.42 91% | 2.44 90% | 2.32 95% | 2.287 96% | 2.068 106% |
| CCT | 6916 94% | 7012 93% | 6008 108% | 7372 88% | 7302 89% | 6511 100% |
| Color Space (Percent of AdobeRGB 1998) | 35 | 69 | ||||
| Color Space (Percent of sRGB) | 55 | 93 | ||||
| Total Average (Program / Settings) | -15% /
8% | -151% /
-71% | -68% /
-47% | -27% /
-7% | -143% /
-77% |
* ... smaller is better

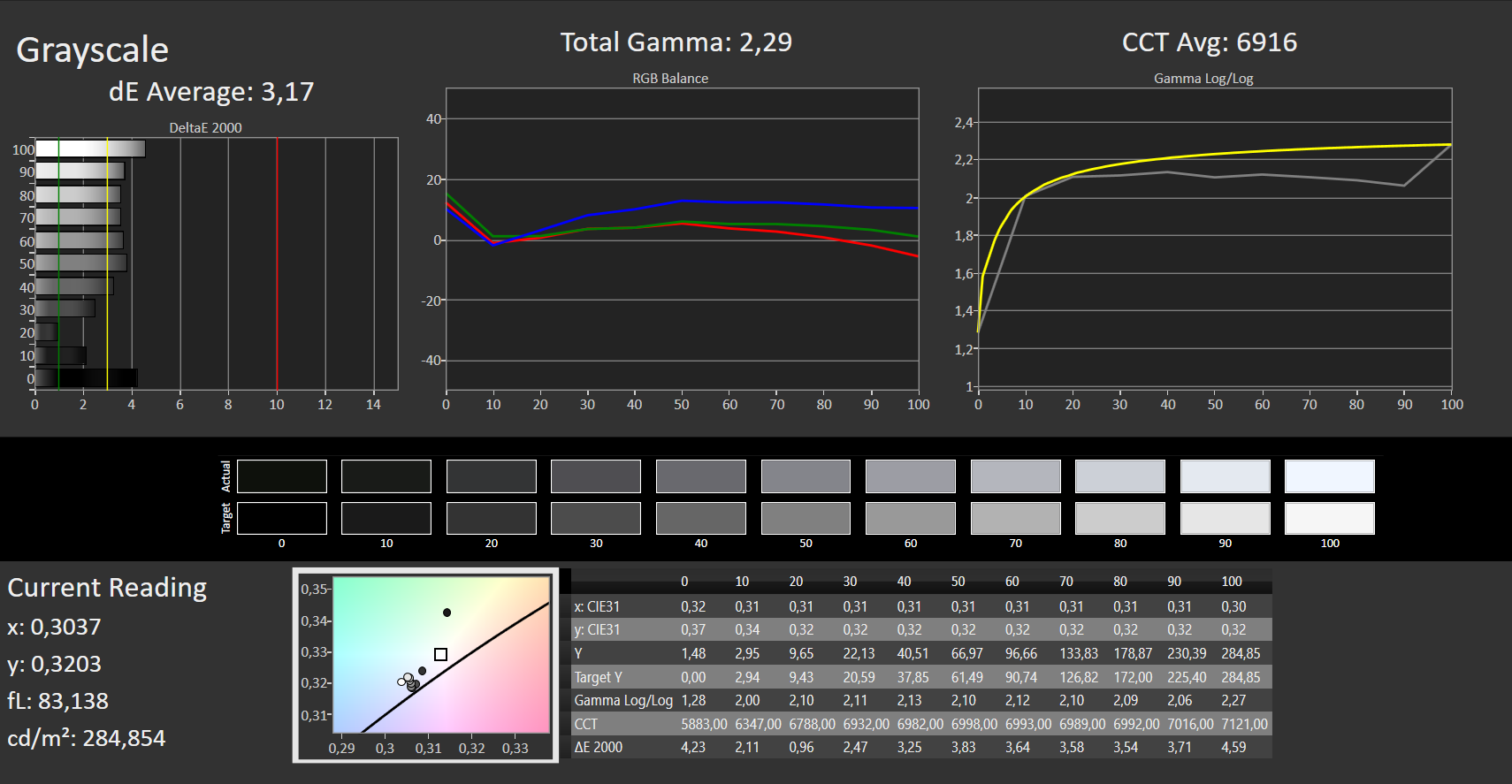

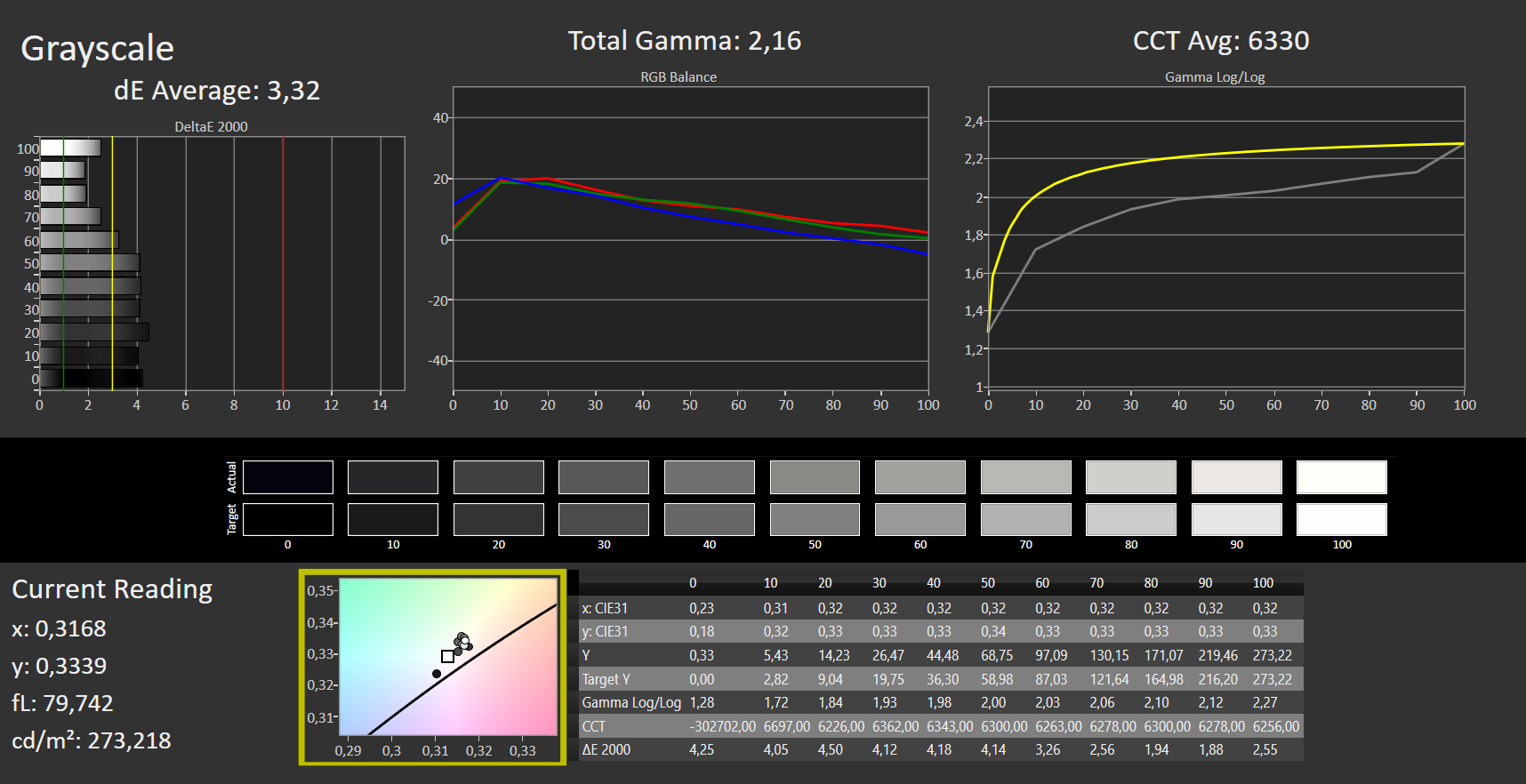

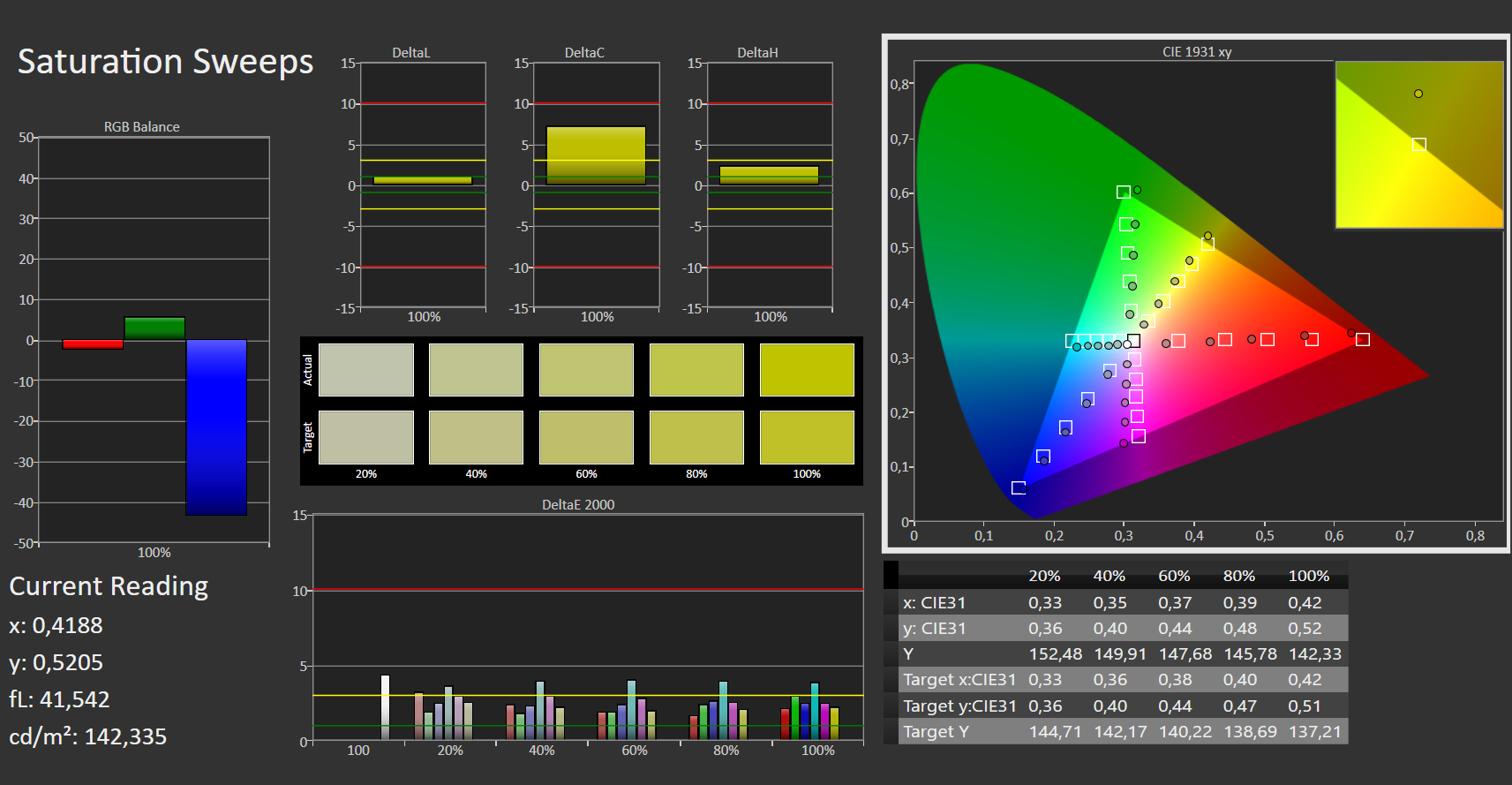

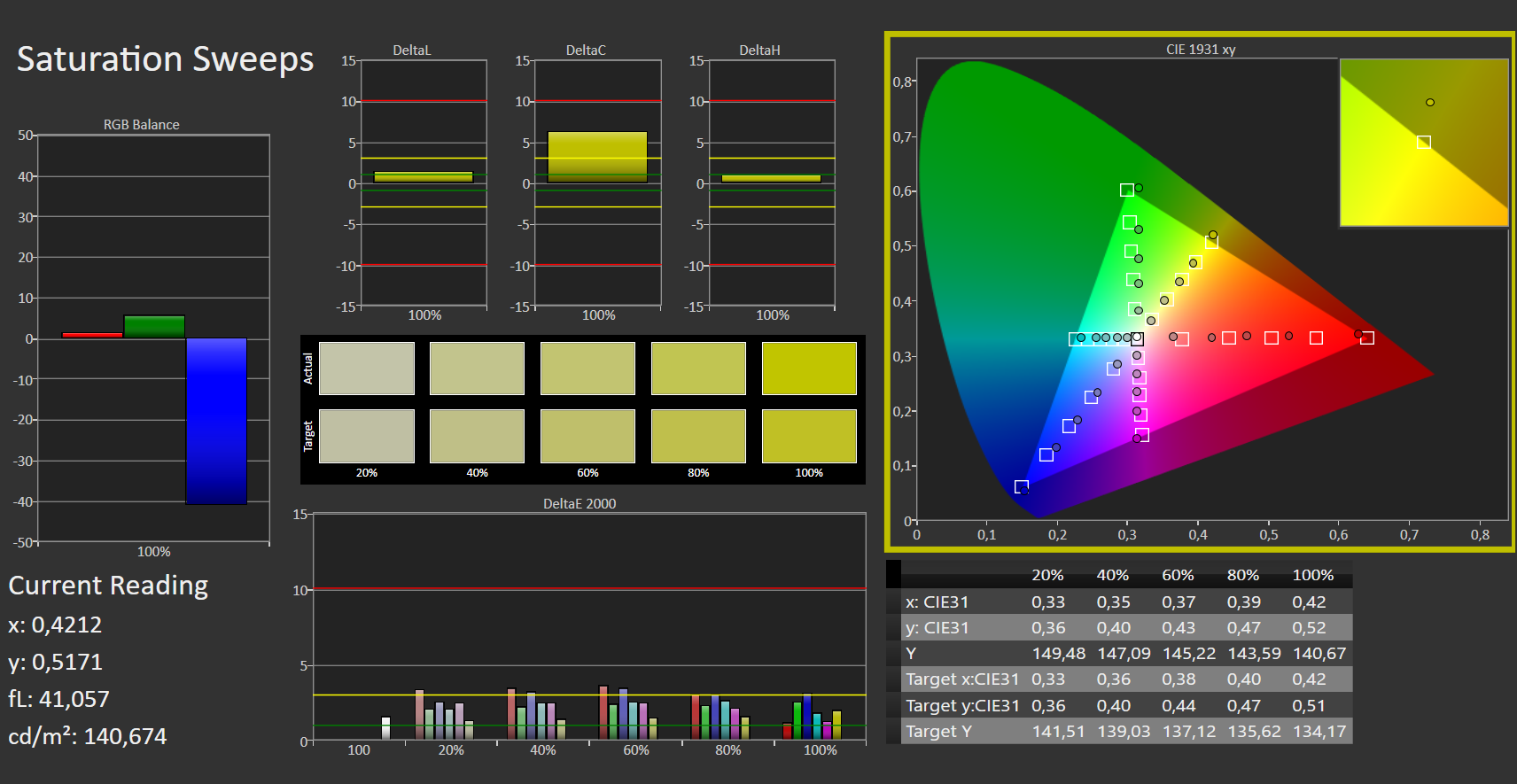

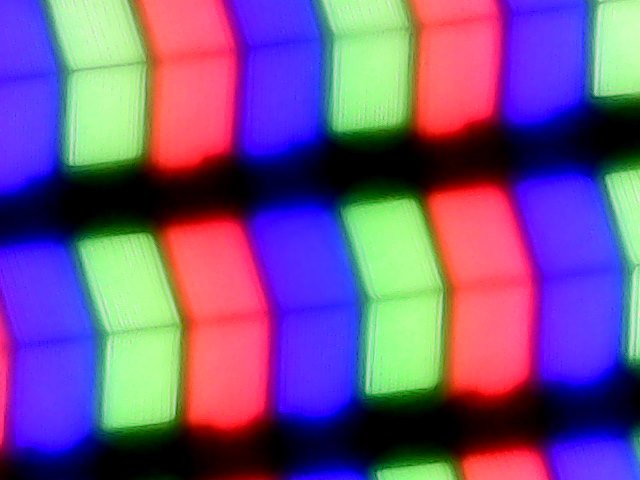

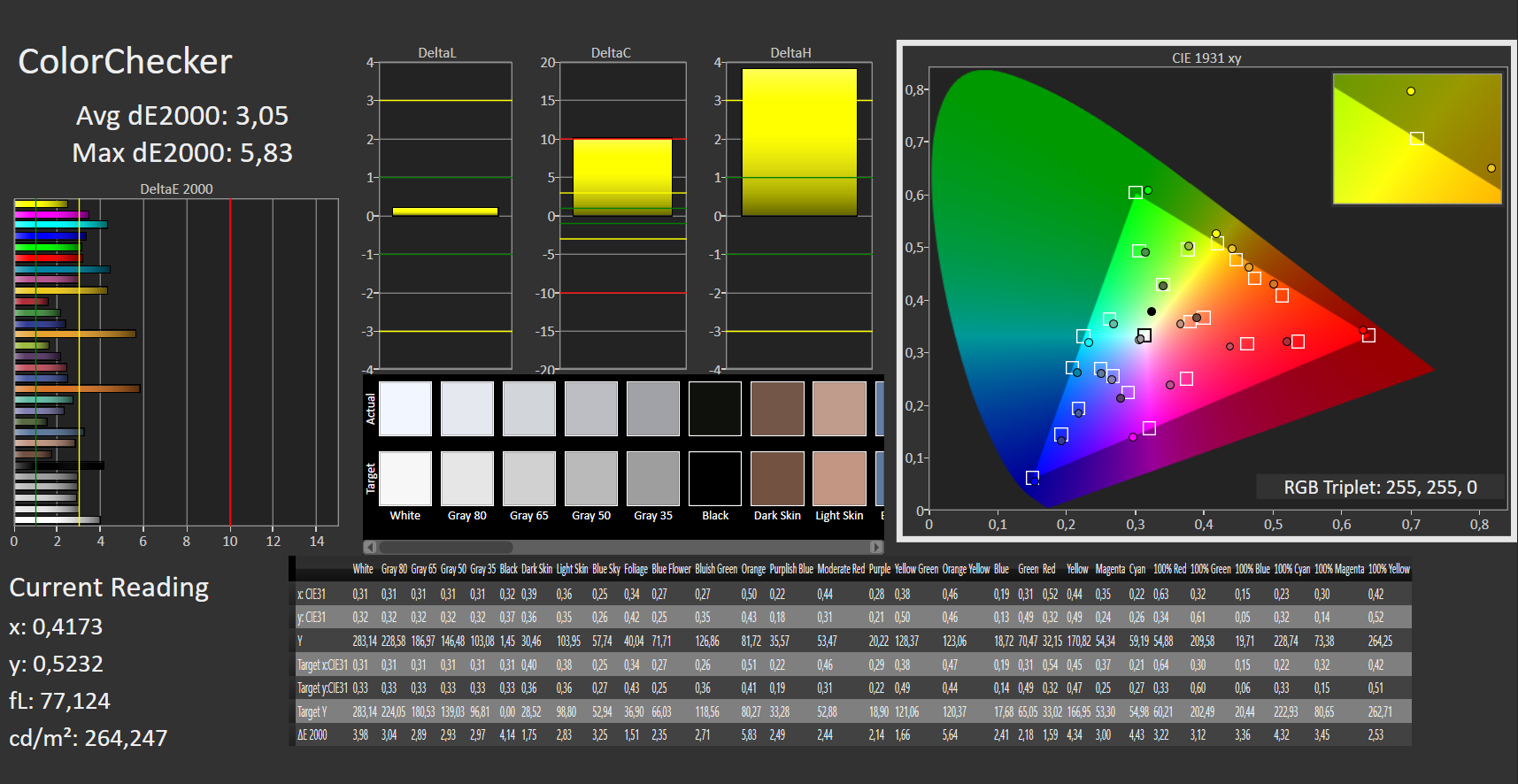

内置屏幕的显示质量主观上是好的，尽管是哑光表面，但没有明显的纹理。总的来说，与交付状态下的sRGB色彩空间相比，测得的灰度和色彩的DeltaE-2000值相对接近目标值3。然而，比赛证明，在这里可以做得更好。我们无法通过手动校准带来任何严重的改进。只有轻微的偏蓝被减少了一点。

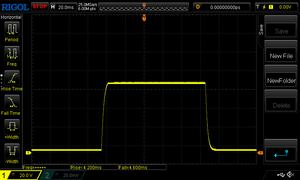

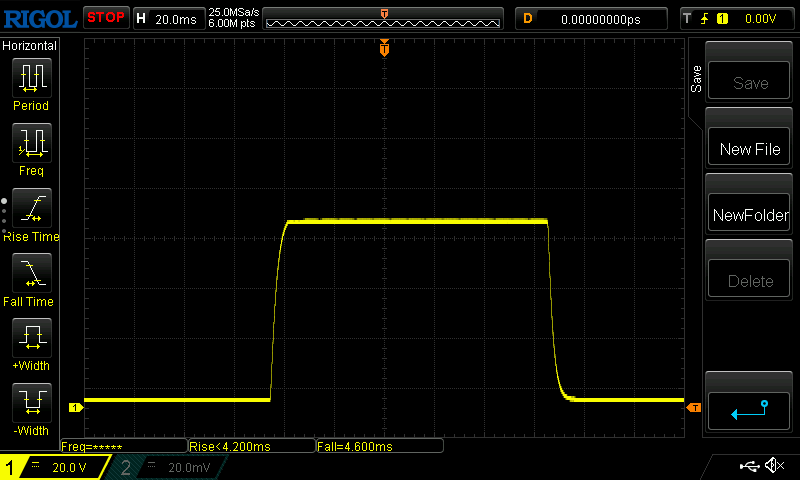

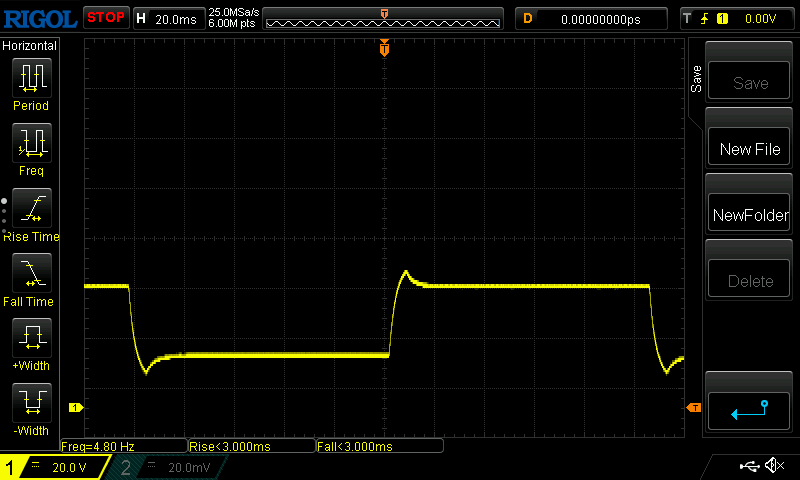

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 8 ms ... rise ↗ and fall ↘ combined | ↗ 4 ms rise |  |
| ↘ 4 ms fall | ||
| The screen shows fast response rates in our tests and should be suited for gaming. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 18 % of all devices are better. This means that the measured response time is better than the average of all tested devices (21 ms). | ||
| ↔ Response Time 50% Grey to 80% Grey | ||
| 6 ms ... rise ↗ and fall ↘ combined | ↗ 3 ms rise |  |
| ↘ 3 ms fall | ||
| The screen shows very fast response rates in our tests and should be very well suited for fast-paced gaming. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 15 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.9 ms). | ||

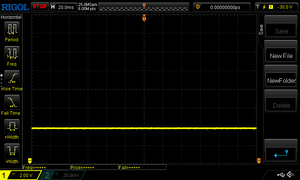

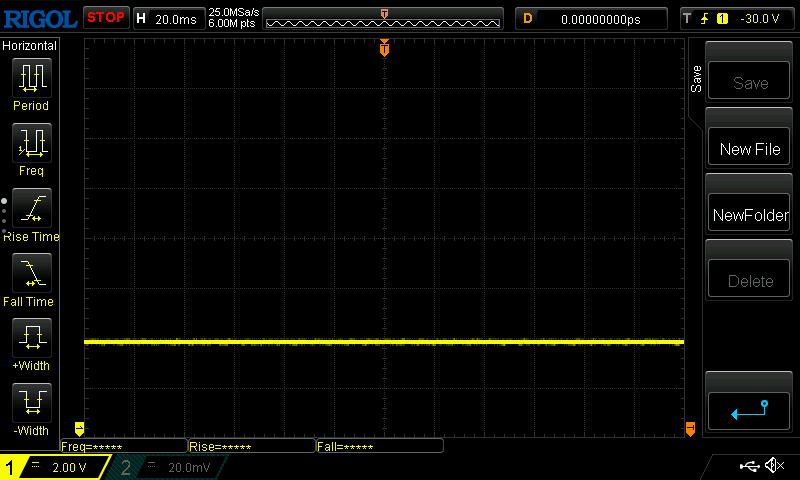

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8743 (minimum: 5 - maximum: 343500) Hz was measured. | |||

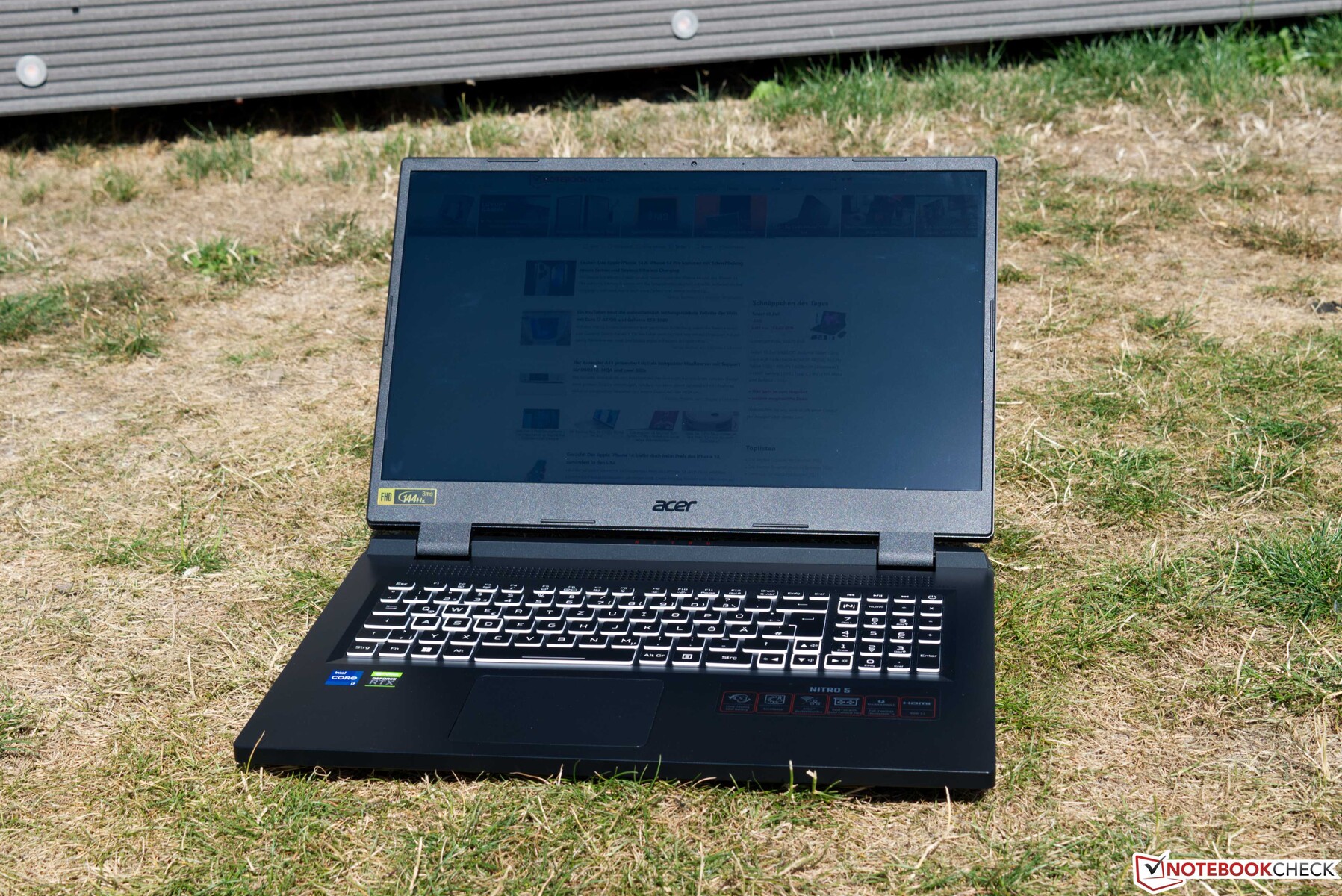

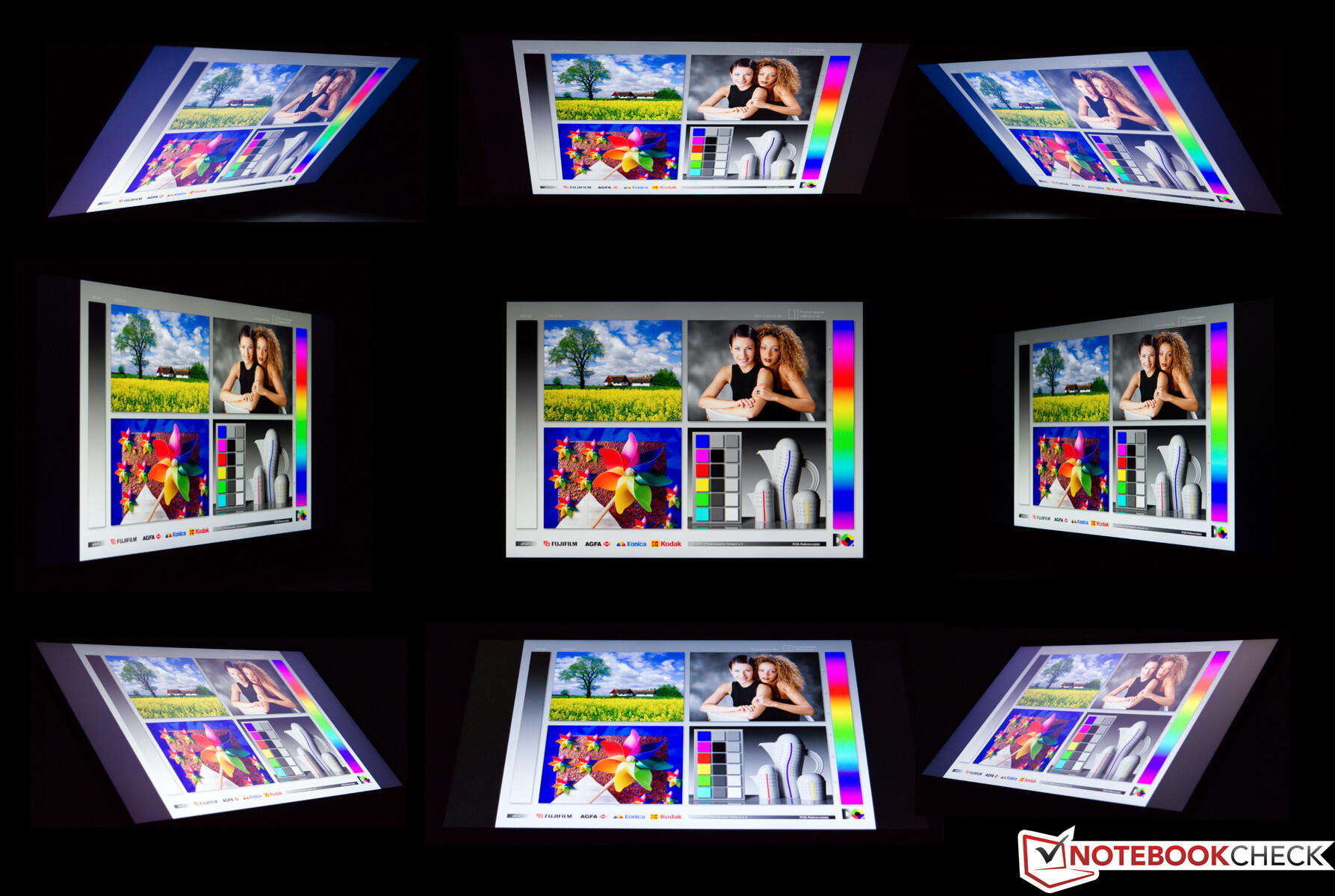

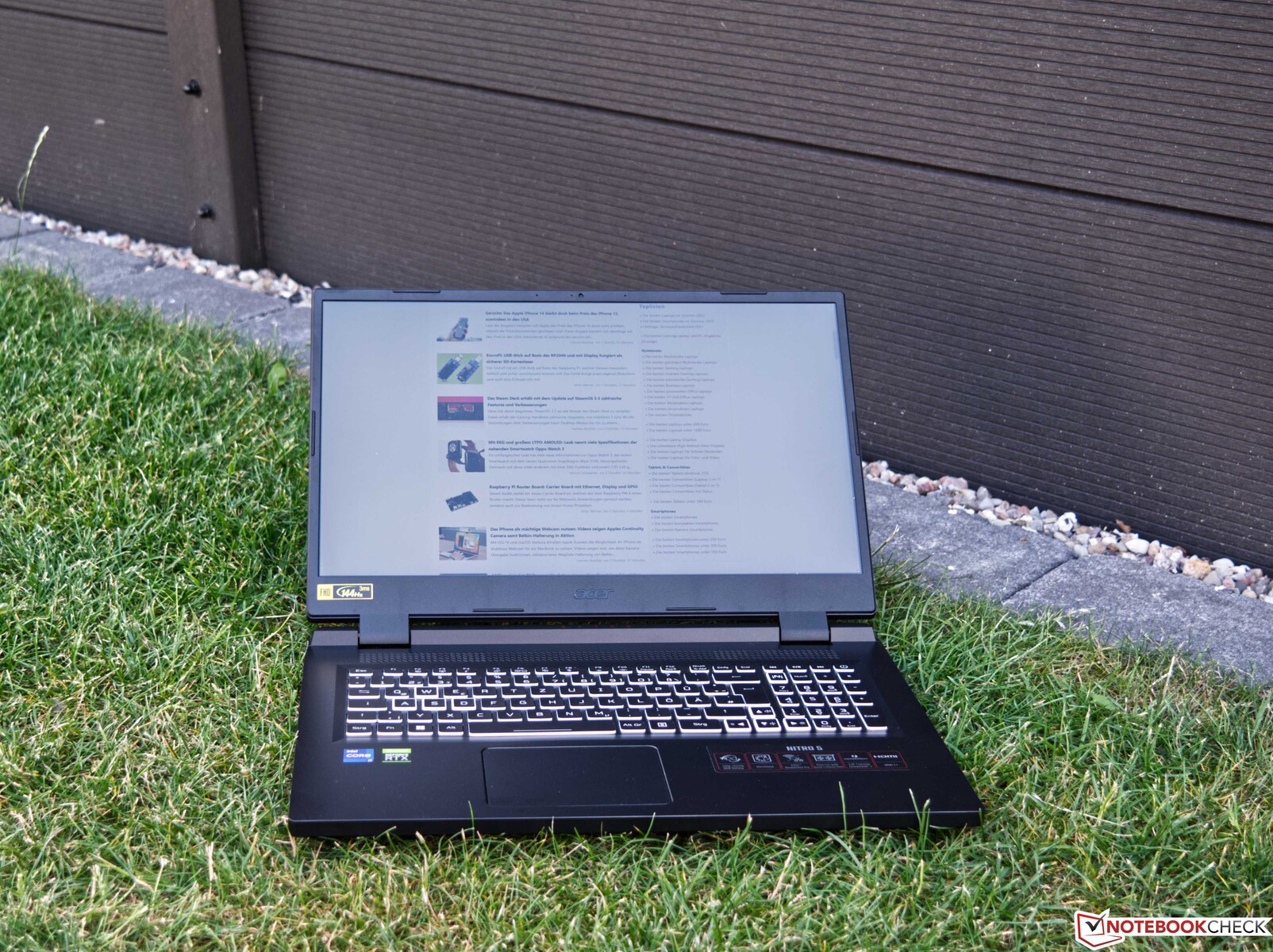

由于显示亮度低，我们不建议在户外使用。如果不能避免，你肯定应该寻找一个阴凉的地方。幸运的是，哑光的显示表面可以防止恼人的反射。对于可视角度测试，我们观察到一个典型的IPS面板的结果。在四个角落的图像中可以观察到轻微的颜色变化，但这并不太明显，在正常使用中也看不出来。
性能 - 尽管有温度限制，但还是足够快

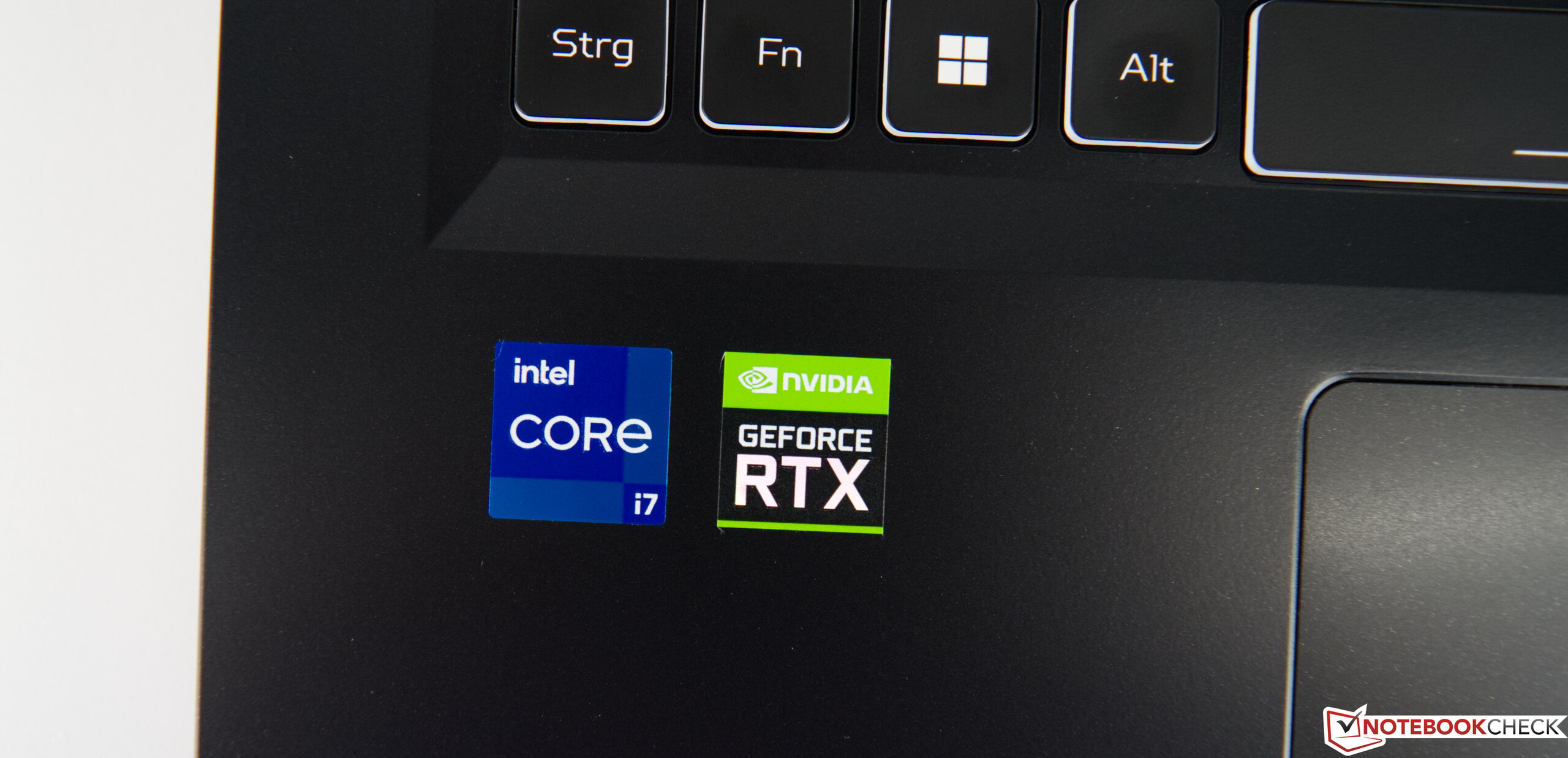

由于设备等级的原因，CPU和GPU的性能是决定性的。芯片的相互作用英特尔酷睿i7-12700H和 NvidiaGeForce RTX 3060笔记本GPU是很好的，对于原生显示分辨率来说完全足够。16GB DDR4内存也很好，不会太小气，所以在测试中没有问题。然而，批评延伸到安装的固态硬盘，因为512GB成为由于当前游戏所要求的空间，很快就满了。这里还可以更多。
测试条件
可以通过 "Nitro Sense "工具选择 "安静"、"标准 "和 "性能 "配置文件。我们在 "标准 "配置文件中进行了所有的CPU和GPU测试，因为这个配置文件在性能和噪音排放方面代表了最佳选择。关于我们为什么选择这个的更多细节可以在体积测量部分找到。处理器的TDP没有受到限制，尽管冷却系统在这里设定了限制。我们记录的最大功耗约为100瓦，为NvidiaGeForce RTX 3060笔记本GPU.这使该模型稍微落后于最大可能的130瓦的功率。
基金会

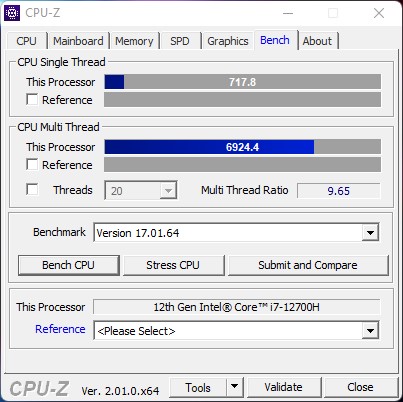

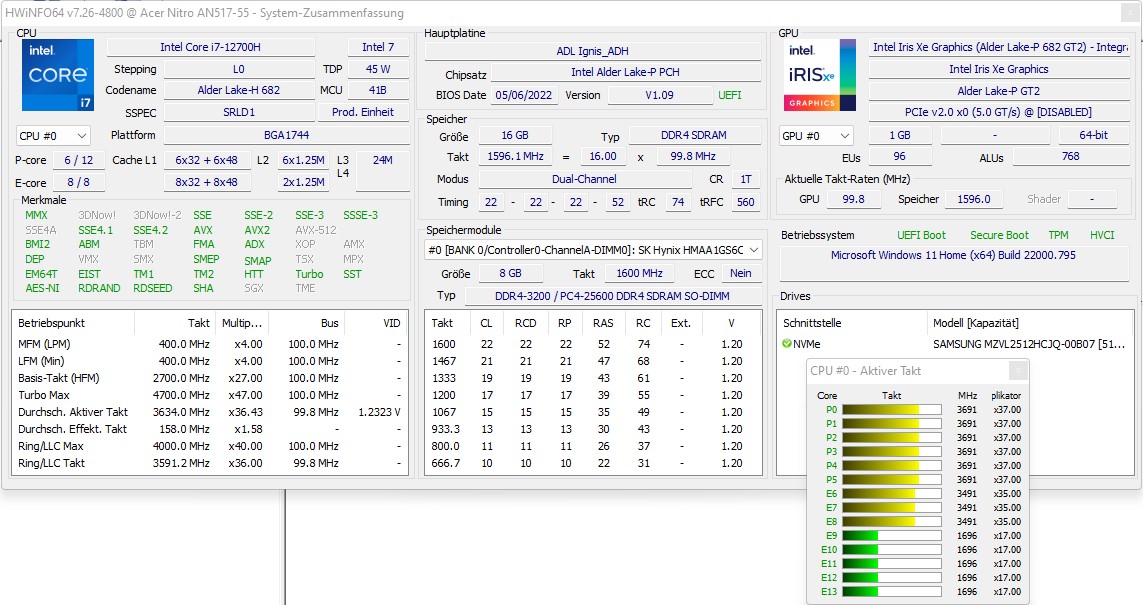

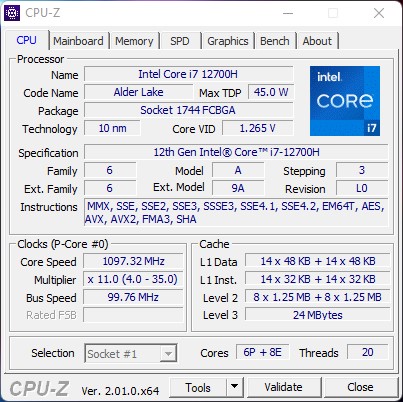

内置的英特尔酷睿i7-12700H属于英特尔的Alder-Lake-S架构，结合了P和E核心。因此，这个45瓦的SoC提供了总共20个线程，分为6个带超线程的P核和8个E核。由于性能核心的时钟速率高达4.7GHz，该SoC提供了真正令人印象深刻的性能值。与类似的装备相比 华硕TUT游戏机F17相比，我们的评测样品在CPU测试中以微弱优势获胜。即使是基于AMD的对手在这里也无法跟上。

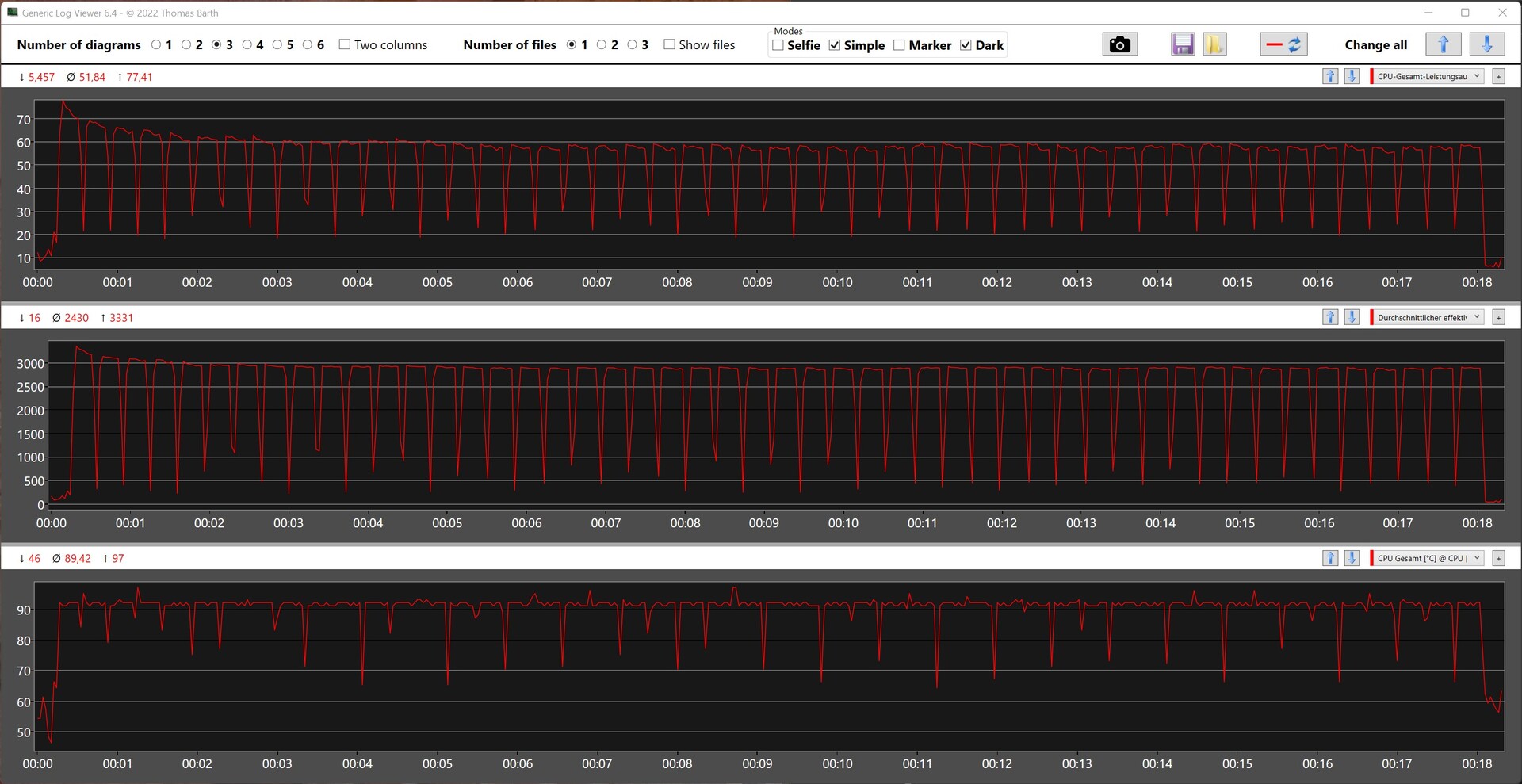

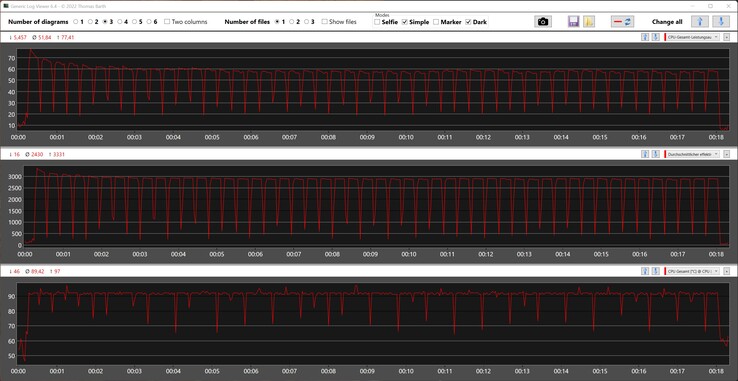

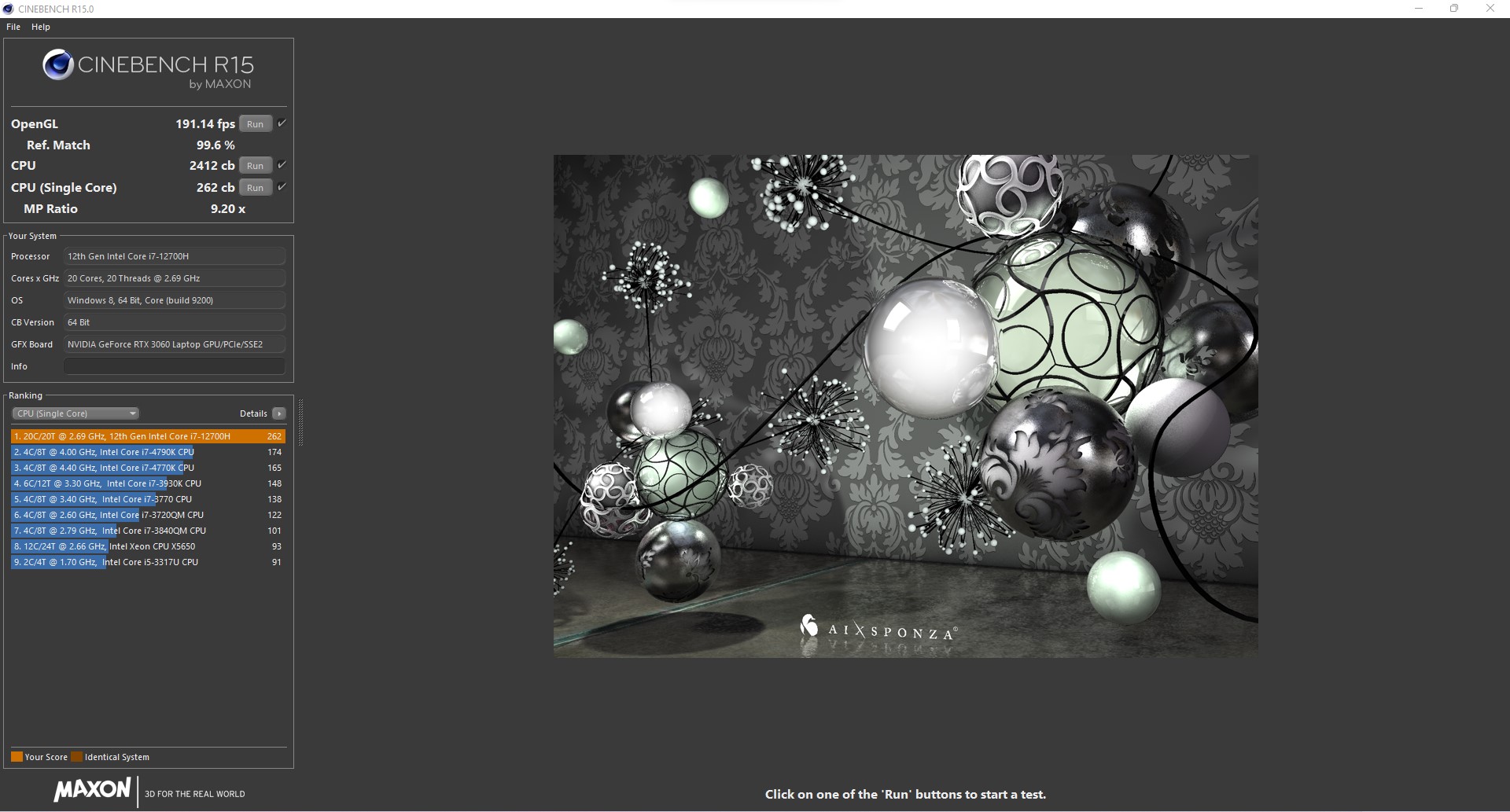

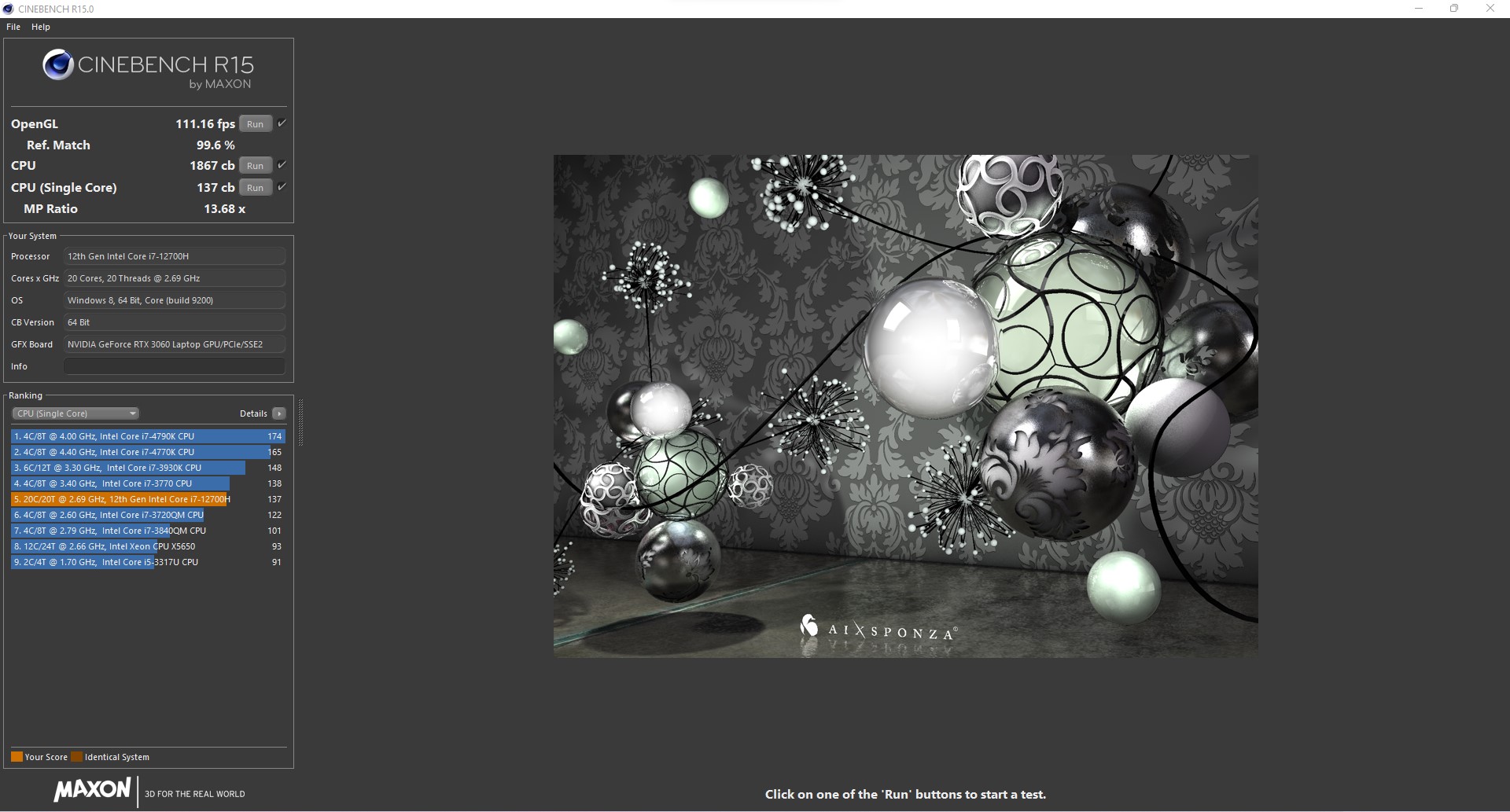

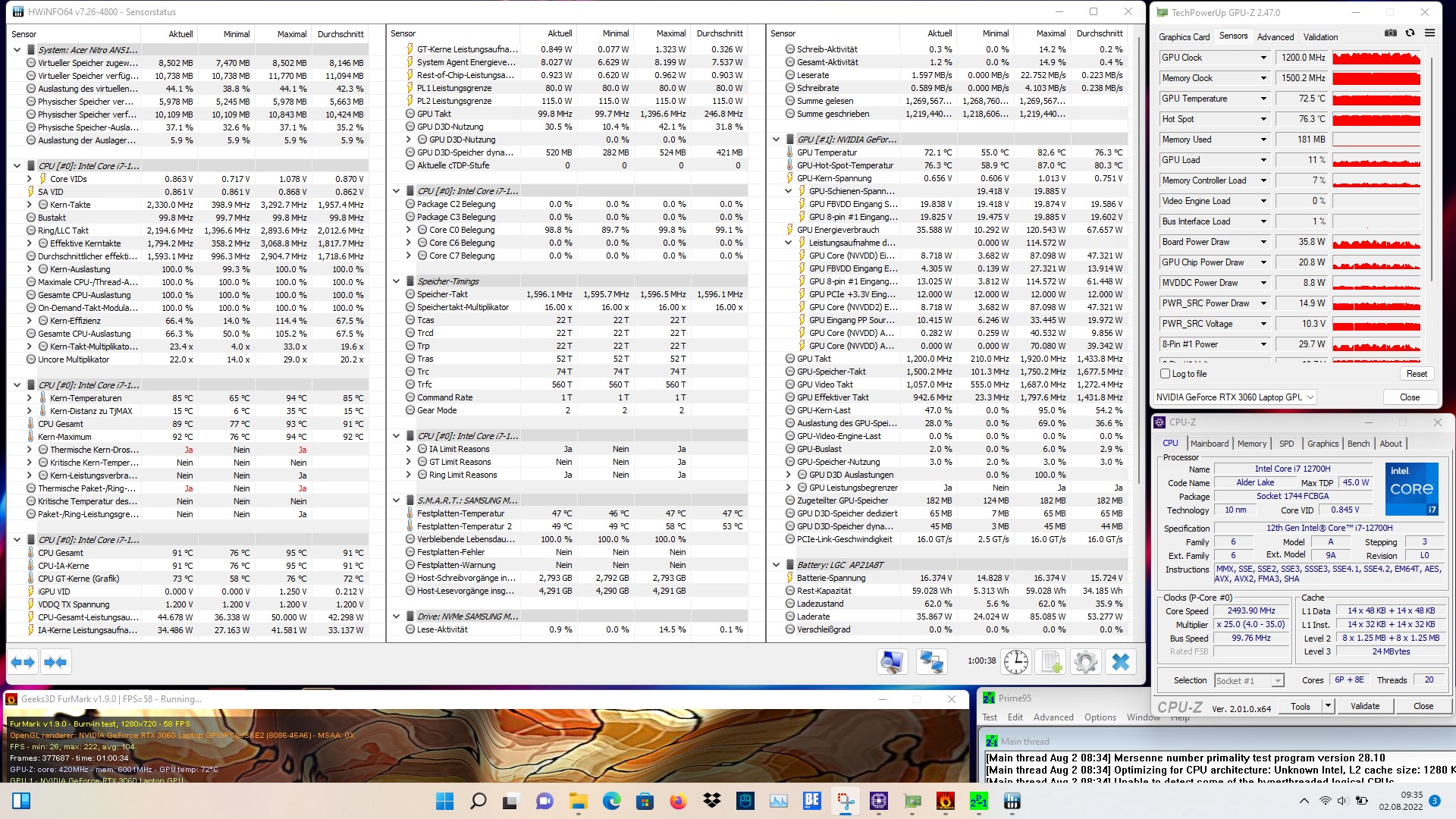

我们的宏碁Nitro 5 AN517在压力测试中的表现相对较好，该测试采用Cinebench R15多循环运行。性能保持相对稳定，在50次运行中定格在2,176分。
对于进一步的比较和基准测试，我们参考我们的CPU比较表。
Cinebench R15 Multi Sustained Load
Acer Nitro 5 AN517-55-738R Intel Core i7-12700H: Ø2176 (2139.15-2407.46)
Lenovo Legion 5 17ACH6H-82JY0003GE AMD Ryzen 5 5600H: Ø1697 (1651.6-1708.01)
Asus TUF Gaming F17 FX707Z-HX011W Intel Core i7-12700H: Ø1955 (1902.5-2820.28)
Acer Nitro 5 AN517-41-R5Z7 AMD Ryzen 7 5800H: Ø2006 (1963-2025.09)
SCHENKER XMG Core 17 (Early 2021) Intel Core i7-10870H: Ø1367 (1316.83-1382.98)
MSI Katana GF76 11UE Intel Core i7-11800H: Ø1681 (1645.14-1822.57)
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core

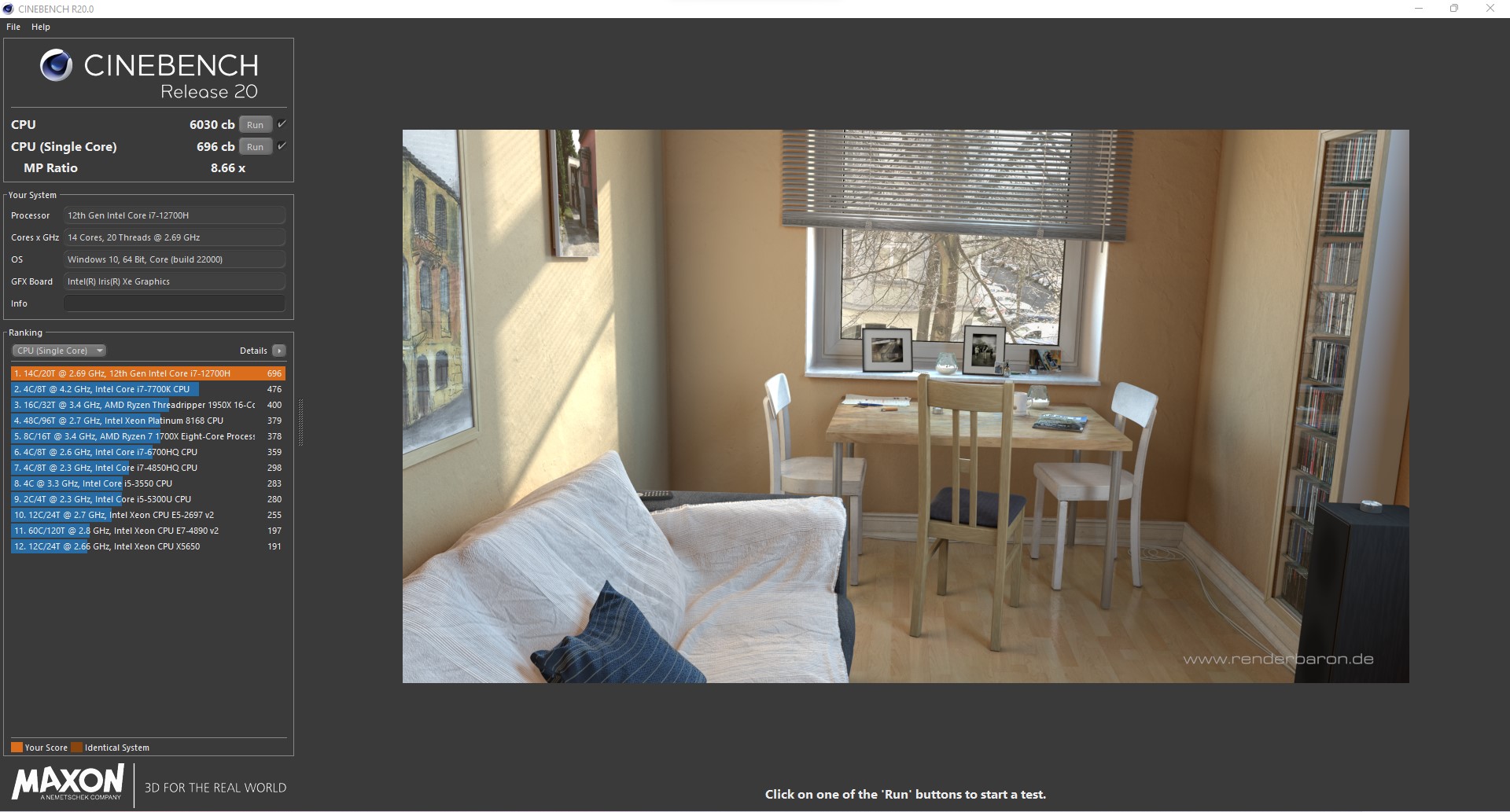

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Average of class Gaming | |
| Average Intel Core i7-12700H | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Cinebench R23 / Multi Core | |
| Average of class Gaming (5668 - 36249, n=192, last 2 years) | |
| Average Intel Core i7-12700H (4032 - 19330, n=63) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Cinebench R23 / Single Core | |
| Average of class Gaming (1088 - 2235, n=190, last 2 years) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H (778 - 1826, n=62) | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Cinebench R20 / CPU (Multi Core) | |
| Average of class Gaming (2179 - 13832, n=190, last 2 years) | |
| Acer Nitro 5 AN517-55-738R | |
| Average Intel Core i7-12700H (1576 - 7407, n=63) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Cinebench R20 / CPU (Single Core) | |
| Average of class Gaming (427 - 856, n=190, last 2 years) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H (300 - 704, n=63) | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Cinebench R15 / CPU Multi 64Bit | |
| Average of class Gaming (905 - 5663, n=197, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H (1379 - 2916, n=69) | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Cinebench R15 / CPU Single 64Bit | |
| Average of class Gaming (176.6 - 318, n=194, last 2 years) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H (113 - 263, n=64) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Blender / v2.79 BMW27 CPU | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
| Average Intel Core i7-12700H (168 - 732, n=62) | |
| Average of class Gaming (87 - 555, n=185, last 2 years) | |
| 7-Zip 18.03 / 7z b 4 | |
| Average of class Gaming (23795 - 140932, n=189, last 2 years) | |
| Average Intel Core i7-12700H (22844 - 73067, n=62) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Acer Nitro 5 AN517-55-738R | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| MSI Katana GF76 11UE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Average of class Gaming (4168 - 7581, n=189, last 2 years) | |
| Acer Nitro 5 AN517-55-738R | |
| Average Intel Core i7-12700H (2743 - 5972, n=62) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| MSI Katana GF76 11UE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Geekbench 5.5 / Multi-Core | |
| Average of class Gaming (4557 - 23194, n=190, last 2 years) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H (5144 - 13745, n=63) | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Geekbench 5.5 / Single-Core | |
| Average of class Gaming (986 - 2210, n=190, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H (803 - 1851, n=63) | |
| Acer Nitro 5 AN517-55-738R | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Average of class Gaming (6.72 - 38.9, n=189, last 2 years) | |
| Average Intel Core i7-12700H (4.67 - 21.8, n=63) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-55-738R | |
| LibreOffice / 20 Documents To PDF | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-55-738R | |
| MSI Katana GF76 11UE | |
| Average of class Gaming (31.4 - 96.6, n=186, last 2 years) | |
| Average Intel Core i7-12700H (34.2 - 95.3, n=62) | |
| R Benchmark 2.5 / Overall mean | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average Intel Core i7-12700H (0.4441 - 1.052, n=62) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average of class Gaming (0.3609 - 0.759, n=190, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Gaming | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average Intel Core i7-12700H | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE -9! | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Gaming (4986 - 60169, n=186, last 2 years) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Average Intel Core i7-12700H (2585 - 17957, n=62) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| AIDA64 / FPU Julia | |
| Average of class Gaming (25360 - 252486, n=186, last 2 years) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Average Intel Core i7-12700H (12439 - 90760, n=62) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| AIDA64 / CPU SHA3 | |
| Average of class Gaming (1339 - 10389, n=186, last 2 years) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average Intel Core i7-12700H (833 - 4242, n=62) | |
| Acer Nitro 5 AN517-55-738R | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| AIDA64 / CPU Queen | |
| Average of class Gaming (50699 - 200651, n=186, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average Intel Core i7-12700H (57923 - 103202, n=62) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| AIDA64 / FPU SinJulia | |
| Average of class Gaming (4800 - 32988, n=186, last 2 years) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-55-738R | |
| Average Intel Core i7-12700H (3249 - 9939, n=62) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| AIDA64 / FPU Mandel | |
| Average of class Gaming (12321 - 134044, n=186, last 2 years) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Average Intel Core i7-12700H (7135 - 44760, n=62) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| AIDA64 / CPU AES | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average of class Gaming (19065 - 328679, n=186, last 2 years) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Average Intel Core i7-12700H (31839 - 144360, n=62) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| SCHENKER XMG Core 17 (Early 2021) | |
| AIDA64 / CPU ZLib | |
| Average of class Gaming (373 - 2409, n=186, last 2 years) | |
| Average Intel Core i7-12700H (305 - 1171, n=62) | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Gaming (2540 - 31796, n=186, last 2 years) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Average Intel Core i7-12700H (1437 - 9692, n=62) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-55-738R | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Gaming (10805 - 60161, n=187, last 2 years) | |
| Average Intel Core i7-12700H (12863 - 52207, n=62) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-55-738R | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
系统性能
在系统性能方面，宏碁Nitro 5 AN517延续了其在CPU基准测试中的稳定表现，并在PCMark 10中以微弱优势获得第二名。总的来说，宏碁Nitro 5 AN517在很大程度上代表了所有测试的游戏笔记本的平均水平。从主观上讲，给定的性能值也与安装的硬件相对应。
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Gaming (5776 - 9852, n=167, last 2 years) | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU (5986 - 8156, n=12) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Acer Nitro 5 AN517-55-738R | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| MSI Katana GF76 11UE | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| SCHENKER XMG Core 17 (Early 2021) | |
| PCMark 10 / Essentials | |
| Average of class Gaming (9057 - 12334, n=166, last 2 years) | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU (9289 - 12144, n=12) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Acer Nitro 5 AN517-55-738R | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| SCHENKER XMG Core 17 (Early 2021) | |
| PCMark 10 / Productivity | |
| Average of class Gaming (6662 - 14612, n=166, last 2 years) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU (6161 - 10362, n=12) | |
| Acer Nitro 5 AN517-55-738R | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| MSI Katana GF76 11UE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| PCMark 10 / Digital Content Creation | |
| Average of class Gaming (6703 - 18475, n=166, last 2 years) | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU (8950 - 12554, n=12) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| MSI Katana GF76 11UE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| CrossMark / Overall | |
| Average of class Gaming (1247 - 2344, n=150, last 2 years) | |
| Acer Nitro 5 AN517-55-738R | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU (1649 - 2017, n=11) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| CrossMark / Productivity | |
| Average of class Gaming (1299 - 2204, n=150, last 2 years) | |
| Acer Nitro 5 AN517-55-738R | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU (1536 - 1958, n=11) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| CrossMark / Creativity | |
| Average of class Gaming (1275 - 2660, n=150, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU (1816 - 2084, n=11) | |
| Acer Nitro 5 AN517-55-738R | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| CrossMark / Responsiveness | |
| Acer Nitro 5 AN517-55-738R | |
| Average of class Gaming (1030 - 2330, n=150, last 2 years) | |
| Average Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU (1210 - 2207, n=11) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| PCMark 10 Score | 6651 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Average of class Gaming (21842 - 94222, n=186, last 2 years) | |
| Average Intel Core i7-12700H (25615 - 80511, n=62) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| SCHENKER XMG Core 17 (Early 2021) | |
| AIDA64 / Memory Read | |
| Average of class Gaming (23681 - 99713, n=186, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H (25586 - 79442, n=62) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Acer Nitro 5 AN517-55-738R | |
| SCHENKER XMG Core 17 (Early 2021) | |
| AIDA64 / Memory Write | |
| Average of class Gaming (22986 - 108954, n=186, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average Intel Core i7-12700H (23679 - 88660, n=62) | |
| Acer Nitro 5 AN517-55-738R | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| AIDA64 / Memory Latency | |
| Average of class Gaming (59.5 - 259, n=186, last 2 years) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average Intel Core i7-12700H (76.2 - 133.9, n=60) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
* ... smaller is better

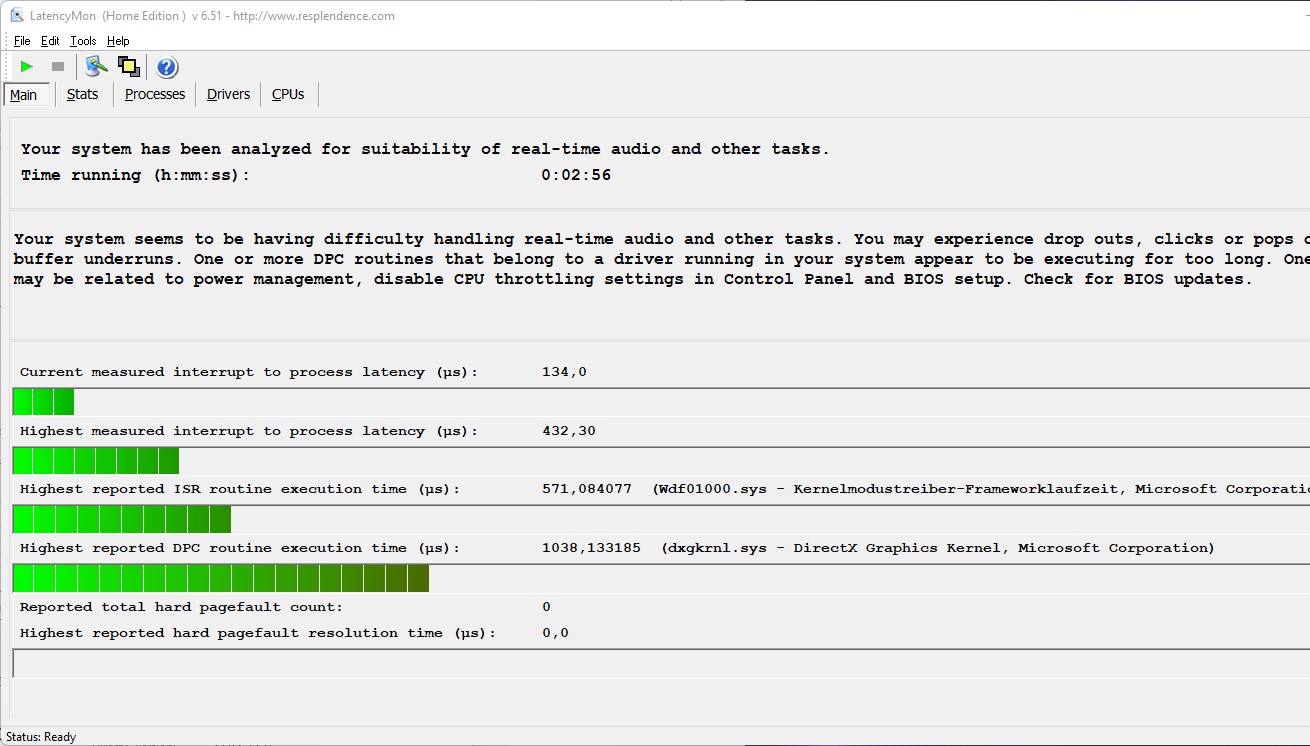

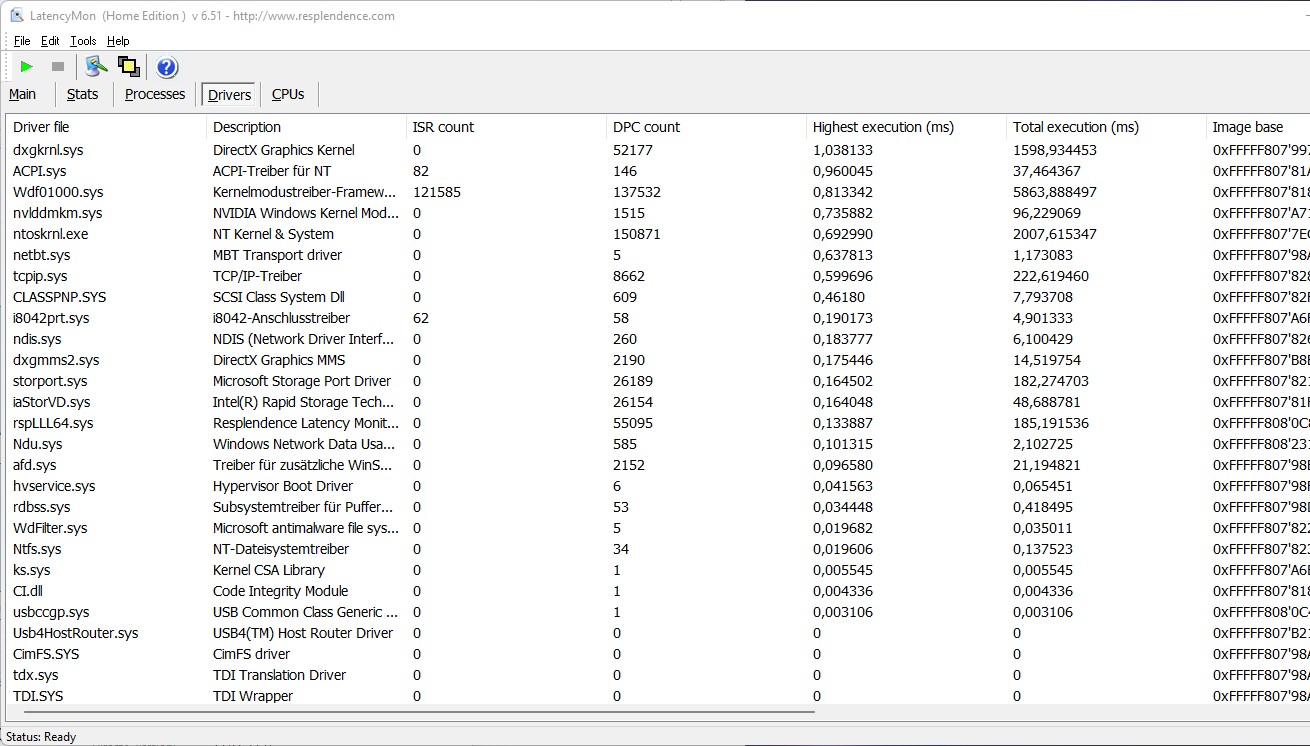

DPC延时

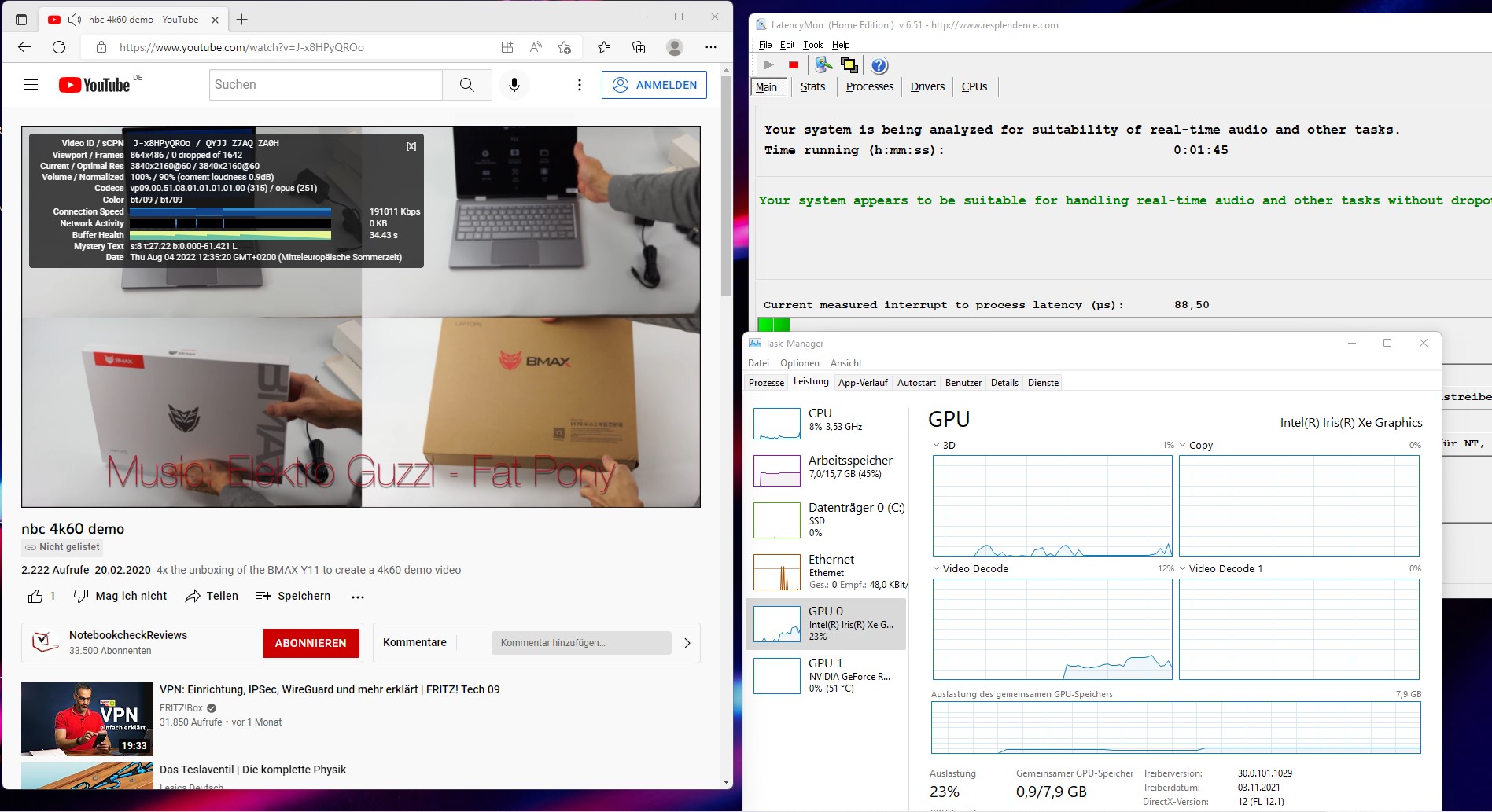

宏碁在Nitro 5 AN517中很好地控制了DPC延迟。在Prime95压力测试中，它们只是略有增加。在4K YouTube视频播放过程中，没有问题或跳帧。在播放过程中，SoC的iGPU使用率约为25%。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| MSI Katana GF76 11UE | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Acer Nitro 5 AN517-55-738R | |
| SCHENKER XMG Core 17 (Early 2021) | |
* ... smaller is better

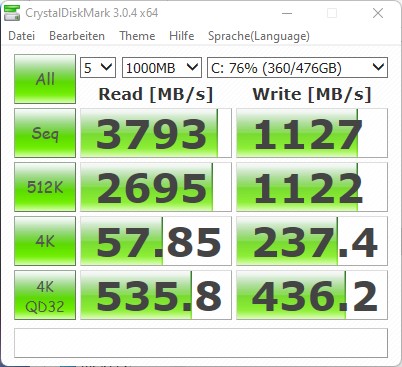

存储设备

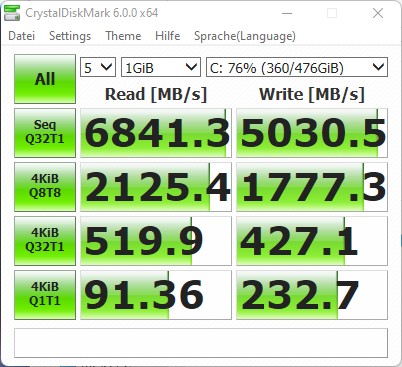

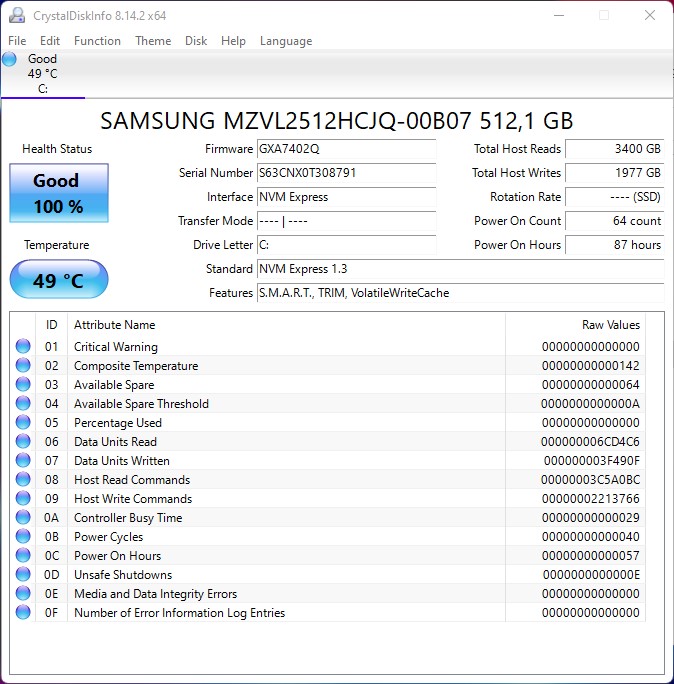

宏碁Nitro 5 AN517使用的固态硬盘是三星的型号，它支持PCIe 4.0，因此在测试中给出了非常好的性能值。考虑到应用领域（游戏），只有存储规模有点太小。一个至少有1TB的模型会更好。幸运的是，一个免费的M.2插槽仍然可用。
对于进一步的比较和基准，我们可以参考我们的 比较图.
Samsung PM9A1 MZVL2512HCJQ
Sequential Read:
3793 MB/s
Sequential Write:
1127 MB/s
512K Read:
2695 MB/s
512K Write:
1122 MB/s
4K Read:
57.85 MB/s
4K Write:
237.4 MB/s
4K QD32 Read:
535.8 MB/s
4K QD32 Write:
436.2 MB/s
| Drive Performance Rating - Percent | |
| Average of class Gaming | |
| Acer Nitro 5 AN517-55-738R | |
| Average Samsung PM9A1 MZVL2512HCJQ | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-41-R5Z7 -1! | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| MSI Katana GF76 11UE | |
* ... smaller is better
Sustained Performance Read: DiskSpd Read Loop, Queue Depth 8
Acer Nitro 5 AN517-55-738R Samsung PM9A1 MZVL2512HCJQ: Ø4996 (4611.63-5004.01)
Lenovo Legion 5 17ACH6H-82JY0003GE Samsung PM991a MZALQ512HBLU: Ø2624 (2493.3-2639.69)
Asus TUF Gaming F17 FX707Z-HX011W SK Hynix HFM001TD3JX013N: Ø2388 (1541.68-3529.86)
Asus TUF Gaming F17 FX707Z-HX011W SK Hynix HFM001TD3JX013N: Ø2388 (1541.68-3529.86)
图形卡

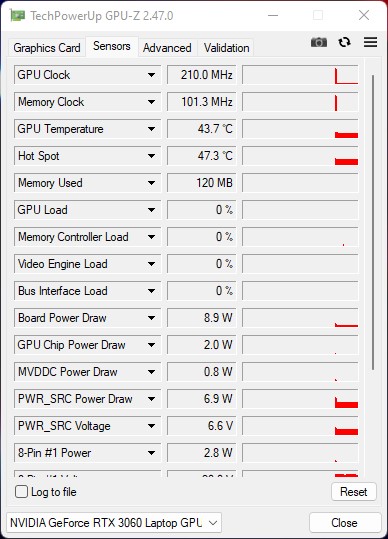

一个NvidiaGeForce RTX 3060笔记本GPU被用作显卡，在宏碁Nitro 5 AN517中提供了坚实的性能，并介于两者之间。 华硕TUF游戏F17和 申科XMG Core17在我们的图表中。由于可配置的TDP使性能跨度从80瓦到130瓦不等，这里偶尔会出现明显的性能差异。在负载下，我们登记的宏碁Nitro 5 AN517的专用显卡的功率略低于100瓦。由于该笔记本还有一个iGPU，系统在2D模式下可以节省大量的能量。在两个图形适配器之间的切换工作无懈可击。
| 3DMark Performance Rating - Percent | |
| Average of class Gaming | |
| Lenovo Legion 5 17ACH6H-82JY0003GE -1! | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-41-R5Z7 | |

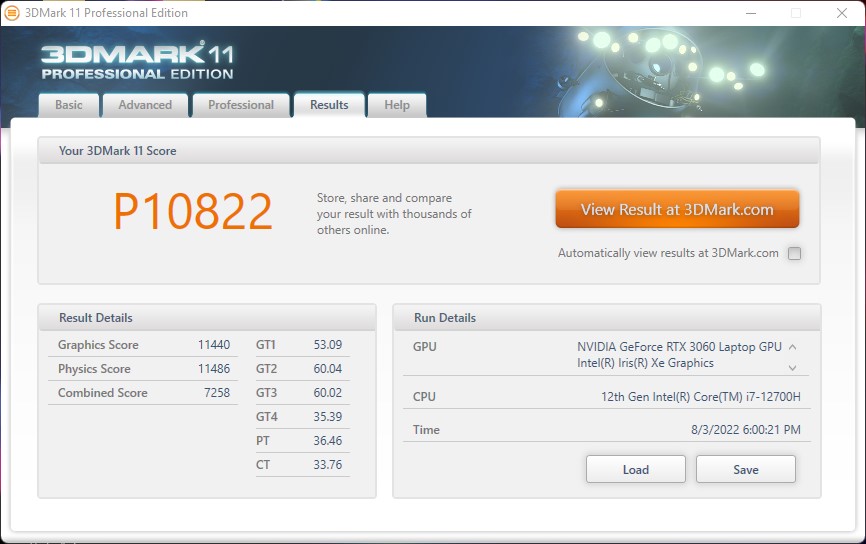

| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Gaming (1029 - 72178, n=185, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (13799 - 30772, n=43) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Average of class Gaming (15902 - 193851, n=100, last 2 years) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| MSI Katana GF76 11UE | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-55-738R | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (33126 - 136826, n=38) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| 1920x1080 Fire Strike Graphics | |
| Average of class Gaming (781 - 53059, n=195, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (16354 - 23109, n=49) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE | |
| 2560x1440 Time Spy Graphics | |
| Average of class Gaming (224 - 22717, n=190, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-55-738R | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (6285 - 9235, n=49) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| SCHENKER XMG Core 17 (Early 2021) | |
| MSI Katana GF76 11UE | |
| 3DMark 05 Standard | 48758 points | |
| 3DMark 06 Standard Score | 48609 points | |
| 3DMark Vantage P Result | 57333 points | |
| 3DMark 11 Performance | 20105 points | |
| 3DMark Ice Storm Standard Score | 119349 points | |
| 3DMark Cloud Gate Standard Score | 34496 points | |
| 3DMark Fire Strike Score | 17369 points | |
| 3DMark Fire Strike Extreme Score | 9418 points | |
| 3DMark Time Spy Score | 7847 points | |
Help | ||
游戏性能
在游戏性能方面，宏碁Nitro 5 AN517的排名落后于 华硕TUF游戏机F17.但这一差距随着负载的增加而缩小，例如在《Witcher 3 》中，所以这两台设备最后的性能值大致相同。我们的评测样本能够在当前的游戏中表现良好，大部分时间都能运行在60帧以上。
The Witcher 3 | GTA V | F1 2020 | F1 2021 | Final Fantasy XV Benchmark | Dota 2 Reborn | X-Plane 11.11
| The Witcher 3 | |
| 1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) | |
| Average of class Gaming (35.6 - 449, n=124, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (81 - 186.8, n=41) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| 1920x1080 Ultra Graphics & Postprocessing (HBAO+) | |
| Average of class Gaming (18.4 - 216, n=167, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-55-738R | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (58.2 - 91.5, n=48) | |
| MSI Katana GF76 11UE | |
| GTA V | |
| 1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x | |
| Average of class Gaming (24.2 - 187.1, n=145, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (120 - 179.4, n=42) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Average of class Gaming (12.1 - 167.7, n=170, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (69.2 - 109.8, n=46) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Acer Nitro 5 AN517-55-738R | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| MSI Katana GF76 11UE | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| F1 2021 | |
| 1920x1080 High Preset AA:T AF:16x | |
| Average of class Gaming (65.1 - 470, n=17, last 2 years) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (119 - 227, n=9) | |
| Acer Nitro 5 AN517-55-738R | |
| 1920x1080 Ultra High Preset + Raytracing AA:T AF:16x | |
| Average of class Gaming (27.6 - 271, n=17, last 2 years) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-55-738R | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (67 - 112.8, n=9) | |
| Final Fantasy XV Benchmark | |
| 1920x1080 High Quality | |
| Average of class Gaming (19.2 - 201, n=183, last 2 years) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (55 - 100.9, n=42) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Acer Nitro 5 AN517-55-738R | |
| MSI Katana GF76 11UE | |
| 1920x1080 Standard Quality | |
| Average of class Gaming (33.5 - 230, n=145, last 2 years) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (70.4 - 133.5, n=37) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| Acer Nitro 5 AN517-55-738R | |
| MSI Katana GF76 11UE | |
| Dota 2 Reborn | |
| 1920x1080 high (2/3) | |
| Acer Nitro 5 AN517-55-738R | |
| Average of class Gaming (31.6 - 244, n=188, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| MSI Katana GF76 11UE | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (98.9 - 169.2, n=49) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| 1920x1080 ultra (3/3) best looking | |
| Acer Nitro 5 AN517-55-738R | |
| Average of class Gaming (30.8 - 220, n=189, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| MSI Katana GF76 11UE | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (90.7 - 154.8, n=49) | |
| SCHENKER XMG Core 17 (Early 2021) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| X-Plane 11.11 | |
| 1920x1080 med (fps_test=2) | |
| Average of class Gaming (36.5 - 193.1, n=188, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-55-738R | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (73 - 138.3, n=48) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| SCHENKER XMG Core 17 (Early 2021) | |
| 1920x1080 high (fps_test=3) | |
| Average of class Gaming (31.5 - 166.2, n=195, last 2 years) | |
| Asus TUF Gaming F17 FX707Z-HX011W | |
| MSI Katana GF76 11UE | |
| Acer Nitro 5 AN517-55-738R | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (61.9 - 109.3, n=48) | |
| Lenovo Legion 5 17ACH6H-82JY0003GE | |
| Acer Nitro 5 AN517-41-R5Z7 | |
| SCHENKER XMG Core 17 (Early 2021) | |
在压力测试中，我们在Ultra设置下运行《Witcher 3 》，没有显示任何性能下降。因此，在长时间的游戏过程中，无法播放的帧率是不可能的。
Witcher 3 FPS Chart
Acer Nitro 5 AN517-55-738R i7-12700H, GeForce RTX 3060 Laptop GPU: Ø78.8 (76-82)
Asus TUF Gaming F17 FX707Z-HX011W i7-12700H, GeForce RTX 3060 Laptop GPU: Ø77.6 (73-84)
Acer Nitro 5 AN517-41-R5Z7 R7 5800H, GeForce RTX 3070 Laptop GPU: Ø78.2 (75-81)
SCHENKER XMG Core 17 (Early 2021) i7-10870H, GeForce RTX 3060 Laptop GPU: Ø88.8 (83-97)
MSI Katana GF76 11UE i7-11800H, GeForce RTX 3060 Laptop GPU: Ø70.7 (67-74)
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 181.4 | 174.1 | 135.1 | 82.5 |
| The Witcher 3 (2015) | 297 | 233 | 154 | 83 |
| Dota 2 Reborn (2015) | 203.9 | 177.4 | 169.2 | 154.7 |
| Final Fantasy XV Benchmark (2018) | 122.5 | 99.6 | 75.7 | |
| X-Plane 11.11 (2018) | 120.1 | 100.9 | 83.5 | |
| Far Cry 5 (2018) | 128 | 102 | 95 | 94 |
| Strange Brigade (2018) | 328 | 204 | 165.5 | 142.9 |
| Far Cry New Dawn (2019) | 115 | 91 | 89 | 82 |
| Metro Exodus (2019) | 154.3 | 96.3 | 74.5 | 59.4 |
| Borderlands 3 (2019) | 133.7 | 107.4 | 84.4 | 69.3 |
| F1 2020 (2020) | 253 | 150 | 144.4 | 132.7 |
| F1 2021 (2021) | 206 | 155.2 | 142.5 | 95.5 |
排放--声音大、温度高，但电池运行时间好
系统噪音
我们已经习惯了响亮的游戏笔记本电脑，并经常指出，非常强大的设备也可能非常响亮。虽然宏碁Nitro 5 AN517在空转时很安静，但当笔记本通过它的步伐时，这种情况很快就会改变。我们在平均负荷下测得52.6 dB(A)，在峰值负荷下甚至测得68.2 dB(A)，这显然是太多了。这些数值是通过 "性能 "配置文件确定的，这使我们选择了 "标准模式"，以允许合理的可容忍的噪音排放。即使使用耳机，巨大的风扇噪音也不能总是被抑制。因此，我们在实践中根本无法推荐性能配置文件。宏碁Nitro 5 AN517是迄今为止同类产品中最吵的设备。
Noise Level
| Idle |
| 25.5 / 25.5 / 27 dB(A) |
| Load |
| 52.6 / 68.2 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25.5 dB(A) | ||
| Acer Nitro 5 AN517-55-738R GeForce RTX 3060 Laptop GPU, i7-12700H, Samsung PM9A1 MZVL2512HCJQ | Lenovo Legion 5 17ACH6H-82JY0003GE GeForce RTX 3060 Laptop GPU, R5 5600H, Samsung PM991a MZALQ512HBLU | Asus TUF Gaming F17 FX707Z-HX011W GeForce RTX 3060 Laptop GPU, i7-12700H, SK Hynix HFM001TD3JX013N | Acer Nitro 5 AN517-41-R5Z7 GeForce RTX 3070 Laptop GPU, R7 5800H, SK Hynix BC711 1TB HFM001TD3JX016N | SCHENKER XMG Core 17 (Early 2021) GeForce RTX 3060 Laptop GPU, i7-10870H, Samsung SSD 970 EVO Plus 1TB | MSI Katana GF76 11UE GeForce RTX 3060 Laptop GPU, i7-11800H, Kingston OM8PCP3512F-AB | |
|---|---|---|---|---|---|---|
| Noise | 8% | 13% | -3% | -9% | -13% | |
| off / environment * | 25.5 | 25 2% | 24 6% | 26 -2% | 25 2% | 25 2% |
| Idle Minimum * | 25.5 | 25 2% | 24 6% | 26 -2% | 30 -18% | 33 -29% |
| Idle Average * | 25.5 | 25 2% | 24 6% | 33.1 -30% | 32 -25% | 34 -33% |
| Idle Maximum * | 27 | 30.5 -13% | 24 11% | 31.3 -16% | 36 -33% | 35 -30% |
| Load Average * | 52.6 | 37.5 29% | 42.6 19% | 49.8 5% | 53 -1% | 53 -1% |
| Load Maximum * | 68.2 | 51 25% | 46.84 31% | 49.6 27% | 54 21% | 57 16% |
| Witcher 3 ultra * | 46.84 | 51 | 49 |
* ... smaller is better

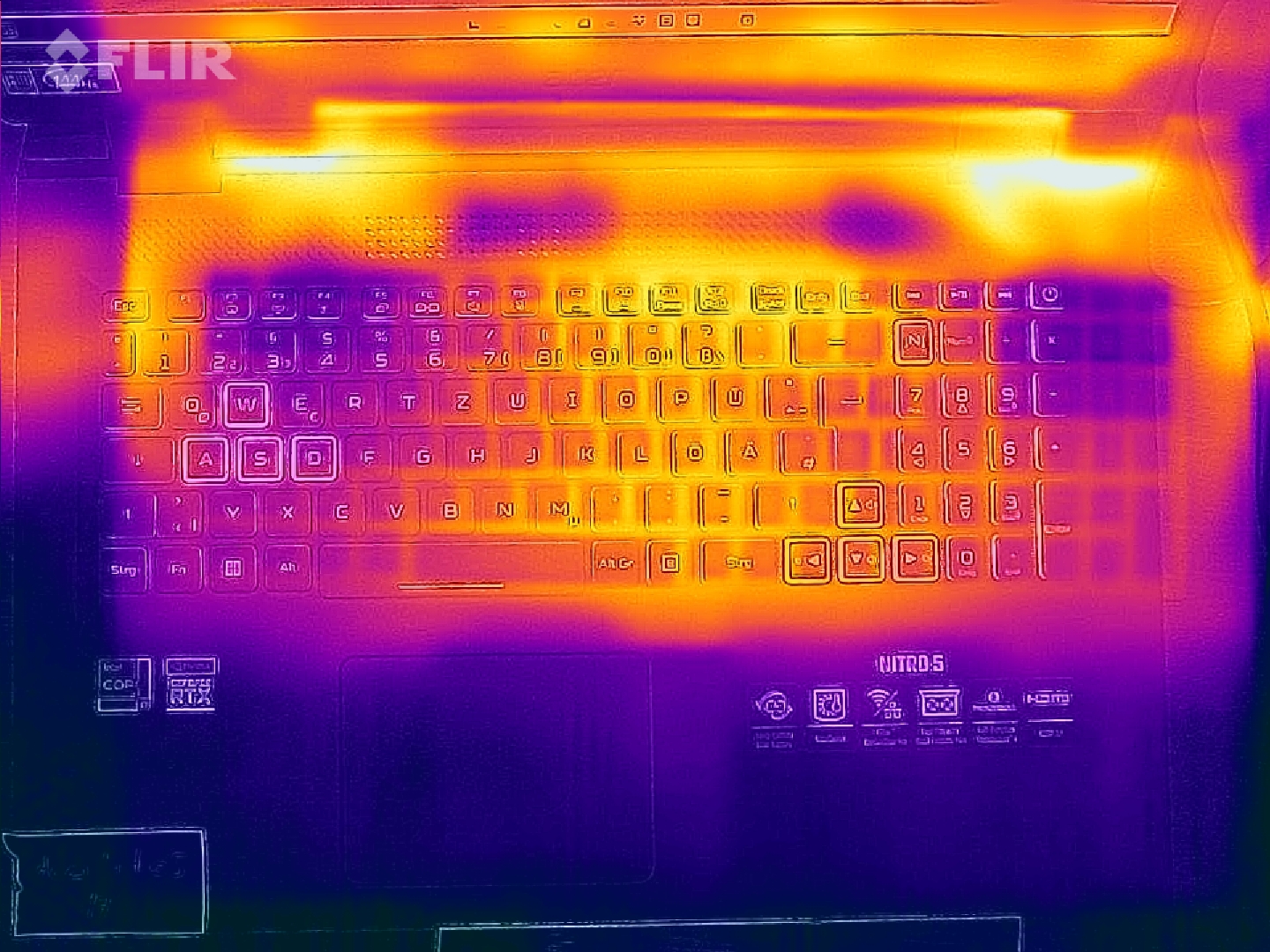

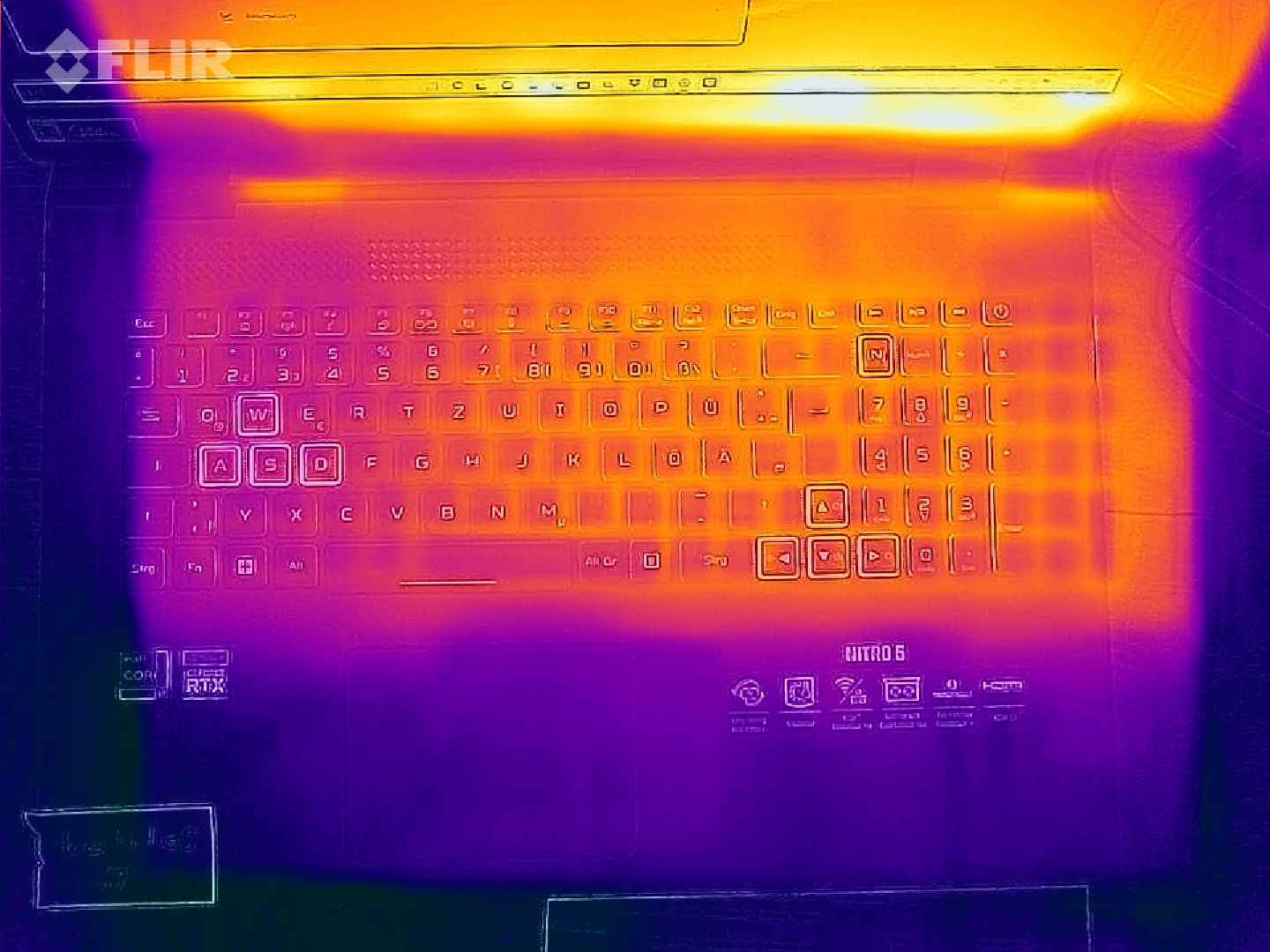

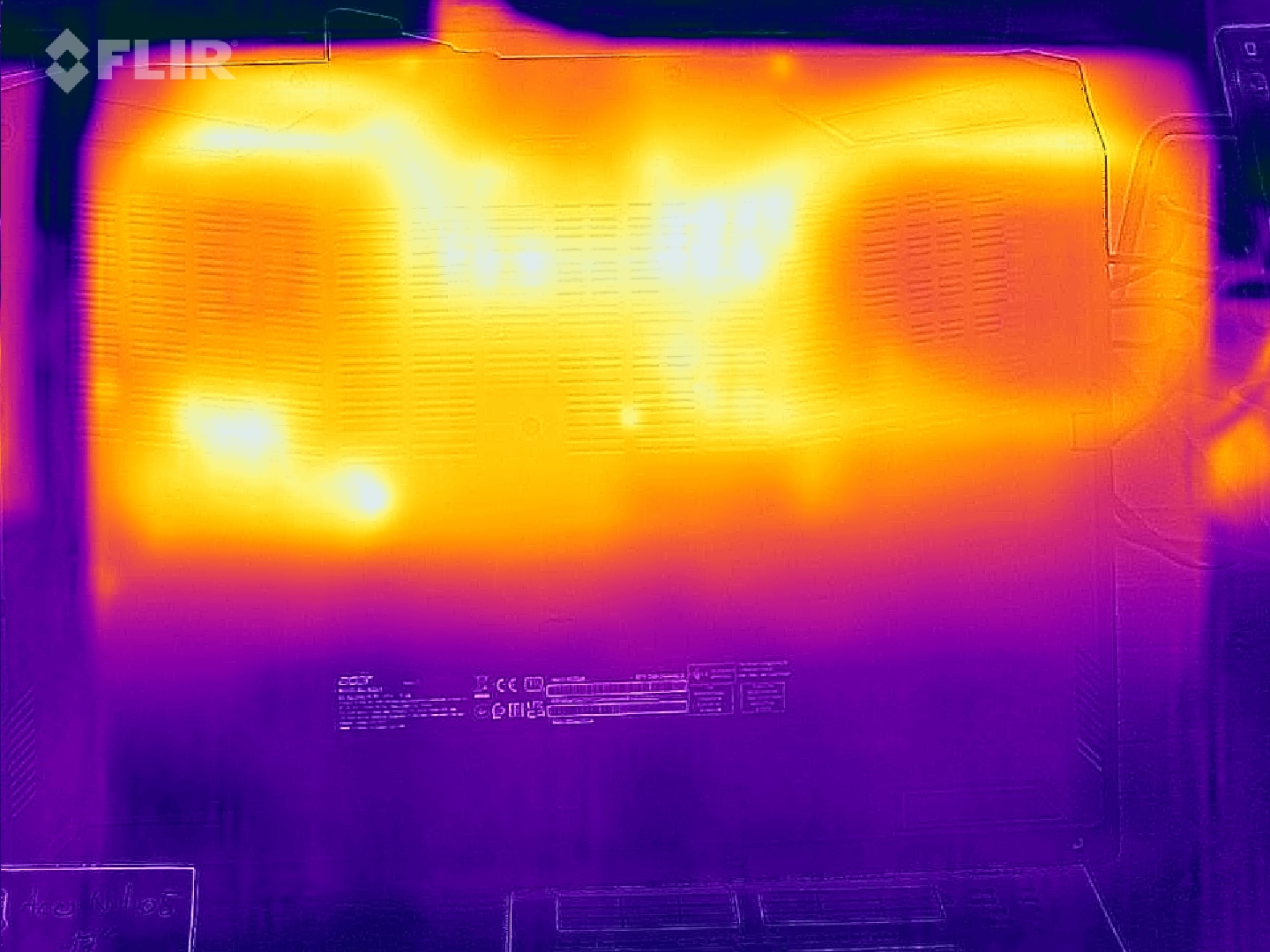

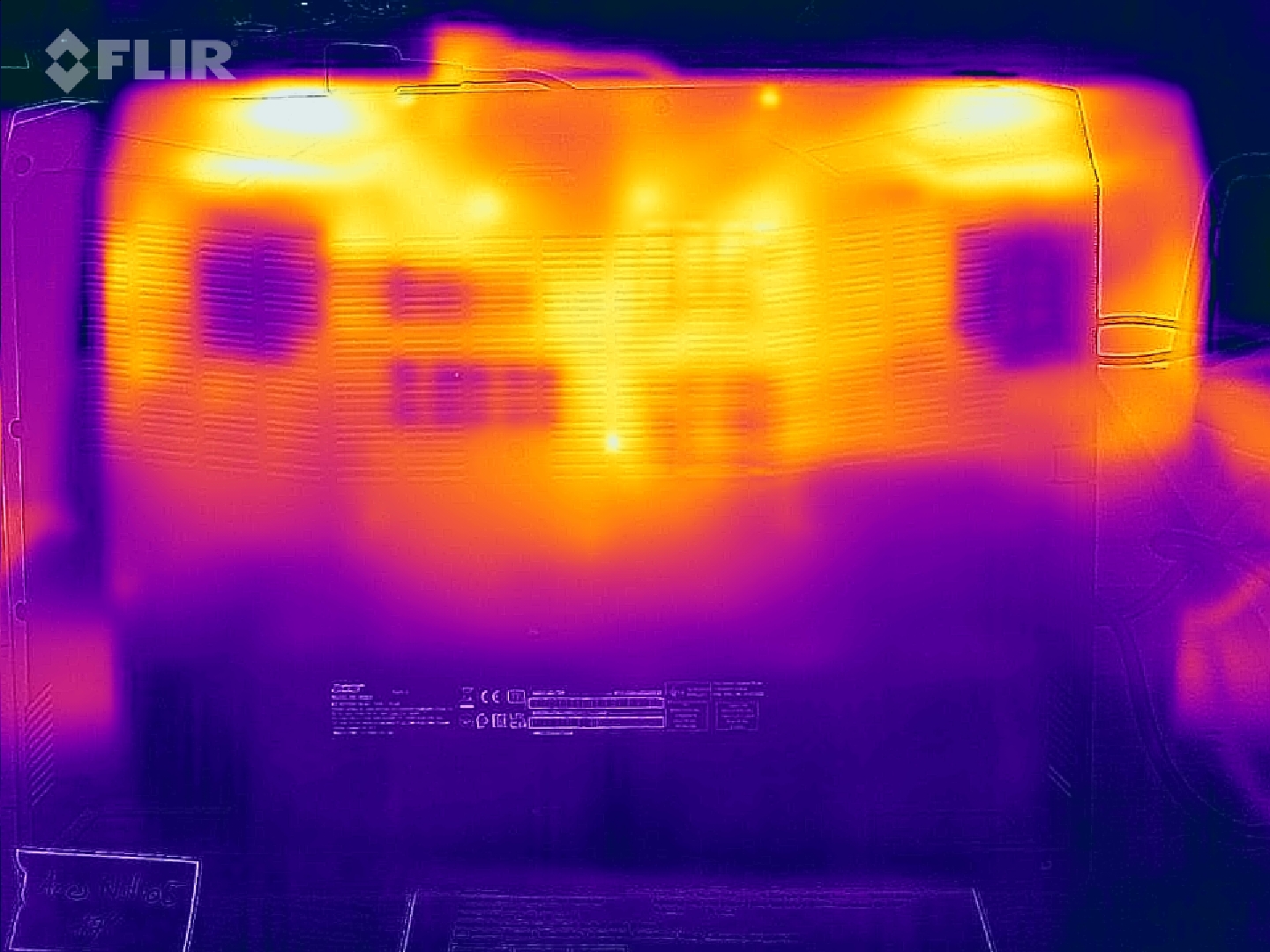

温度

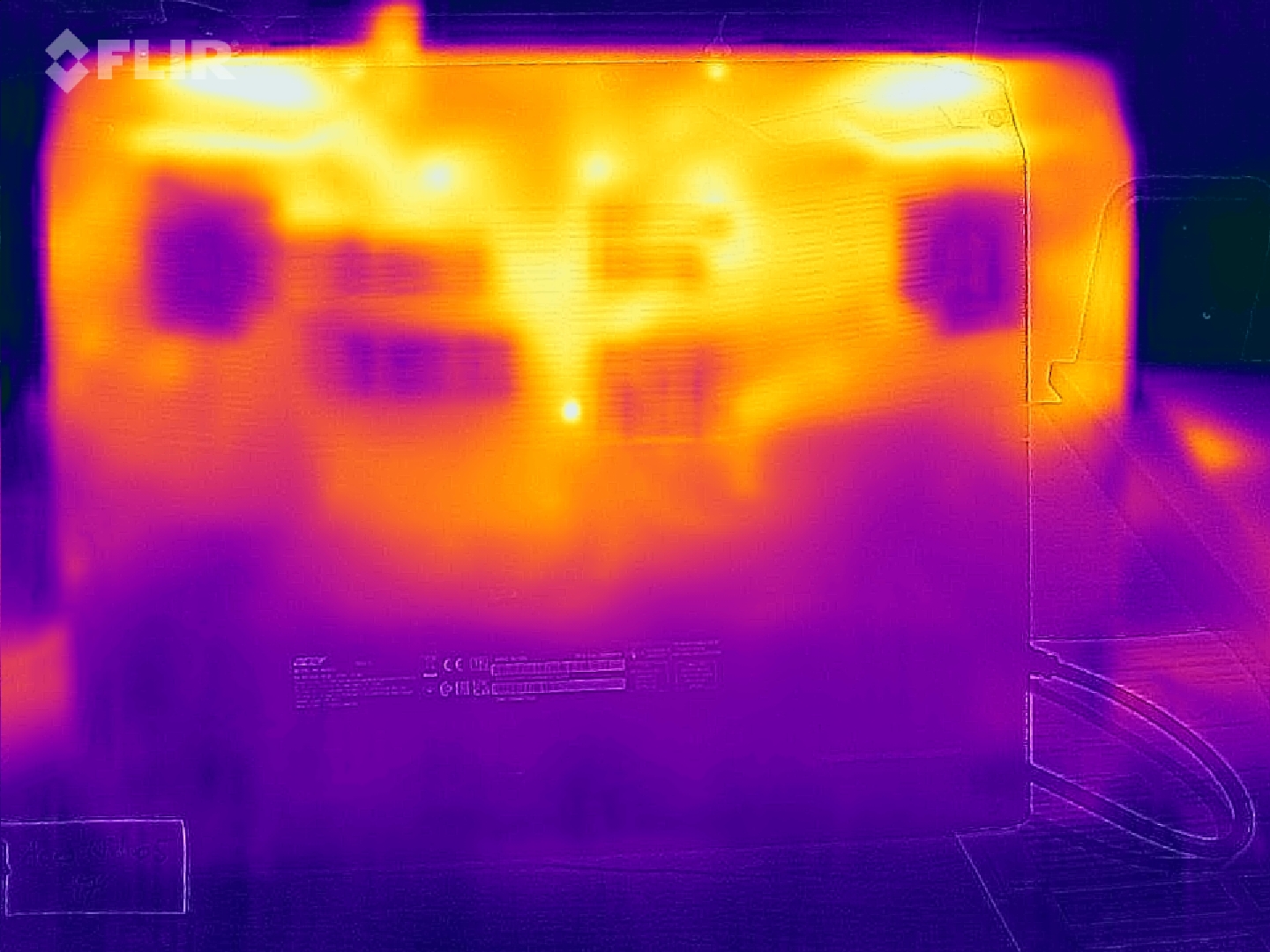

外壳温度没有留下太多的批评空间。在负载下没有超过50℃。闲置时，宏碁Nitro 5 AN517的表现与竞争对手直接相比略差，但这不是什么大问题。
(±) The average temperature for the upper side under maximal load is 35.6 °C / 96 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 48.3 °C / 119 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 52 °C / 126 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 33.9 °C / 93 F.

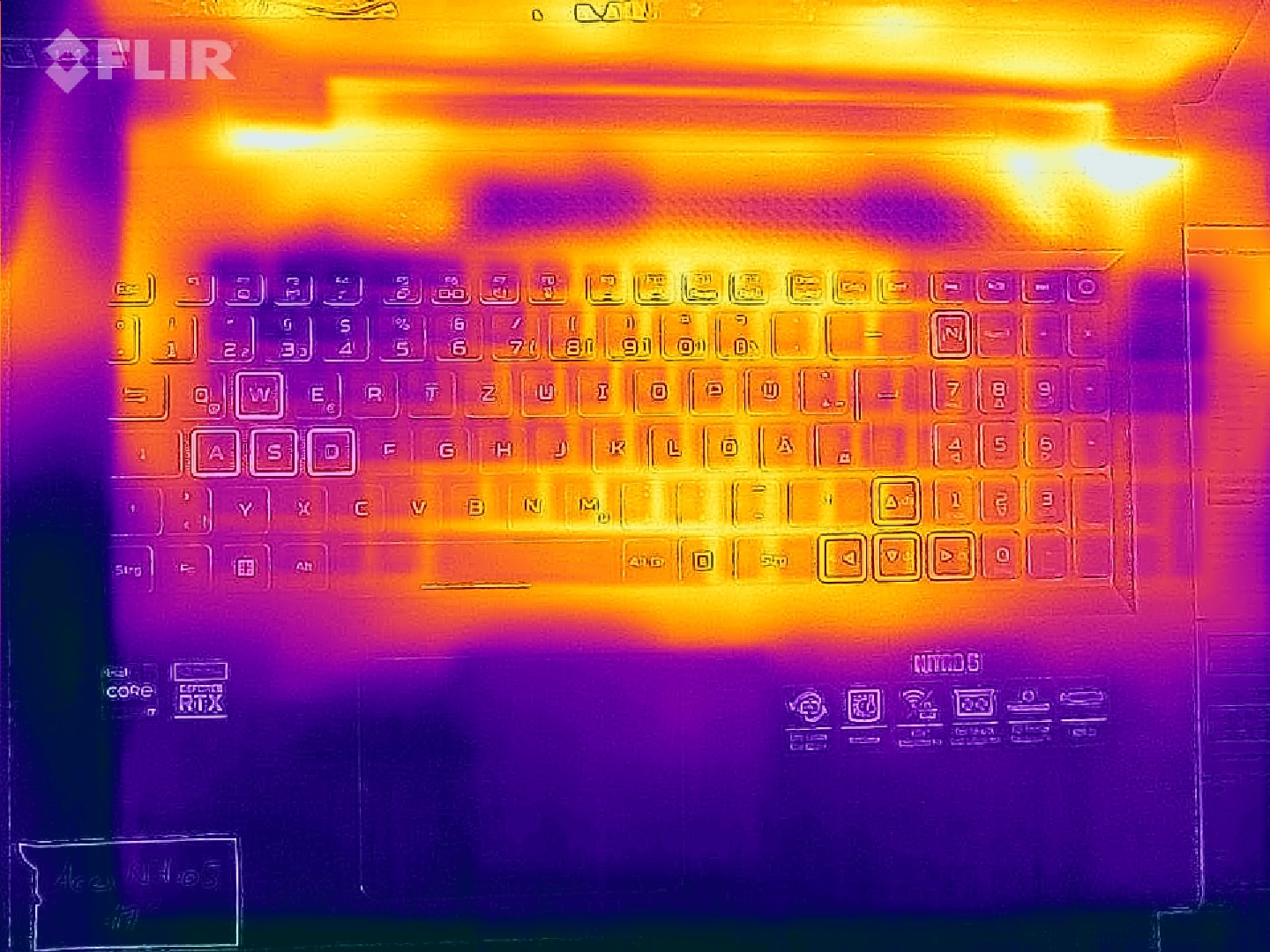

(±) Playing The Witcher 3, the average temperature for the upper side is 32.9 °C / 91 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.9 °C / 84 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (0 °C / 0 F).
(-) The maximum temperature on the upper side is 48.3 °C / 119 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 52 °C / 126 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 29.1 °C / 84 F, compared to the device average of 33.9 °C / 93 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 32.9 °C / 91 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.9 °C / 84 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (0 °C / 0 F).
| Acer Nitro 5 AN517-55-738R Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU | Lenovo Legion 5 17ACH6H-82JY0003GE AMD Ryzen 5 5600H, NVIDIA GeForce RTX 3060 Laptop GPU | Asus TUF Gaming F17 FX707Z-HX011W Intel Core i7-12700H, NVIDIA GeForce RTX 3060 Laptop GPU | Acer Nitro 5 AN517-41-R5Z7 AMD Ryzen 7 5800H, NVIDIA GeForce RTX 3070 Laptop GPU | SCHENKER XMG Core 17 (Early 2021) Intel Core i7-10870H, NVIDIA GeForce RTX 3060 Laptop GPU | MSI Katana GF76 11UE Intel Core i7-11800H, NVIDIA GeForce RTX 3060 Laptop GPU | |
|---|---|---|---|---|---|---|
| Heat | 7% | 6% | 6% | 6% | 5% | |
| Maximum Upper Side * | 48.3 | 42.2 13% | 52 -8% | 44 9% | 44 9% | 51 -6% |
| Maximum Bottom * | 52 | 50.9 2% | 47 10% | 52.7 -1% | 50 4% | 52 -0% |
| Idle Upper Side * | 34.5 | 34.3 1% | 31 10% | 32.6 6% | 30 13% | 32 7% |
| Idle Bottom * | 35.8 | 32 11% | 31 13% | 32.1 10% | 36 -1% | 29 19% |
* ... smaller is better
压力测试
压力测试再次在 "标准 "模式下进行。在这里我们可以看到，冷却装置根本就是超负荷运转，而且SoC在任何时候都不会达到PL1和PL2的数值，因为热限制会启动以防止崩溃。在用Prime95和FurMark进行的一小时压力测试中，SoC的时钟频率在2GHz左右，多次超过90℃而没有问题。
相比之下，GPU没有任何问题。压力测试后的基准测试与冷启动相比并没有显示出更差的结果。
我们还在 "性能 "模式下对该设备进行了简短的测试：启动几秒钟后，SoC加热到101℃并被节流。这基本上意味着可用的功率更小，这是该设置的一个淘汰标准。
发言人
内置的扬声器只是有条件地适合播放音乐。同样，如果你不使用外部播放设备，游戏也没有什么乐趣。两个扬声器的方向朝下，不提供任何低音。高音和中音显然占主导地位。音量太小，根本无法产生更好的声音。从这张图片中可以看出，肯定会有足够的空间放置更好的扬声器。宏碁也可以很容易地集成一个小型低音炮。内部也有足够的空间，但却没有使用。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Acer Nitro 5 AN517-55-738R audio analysis
(±) | speaker loudness is average but good (79.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 20.7% lower than median
(-) | bass is not linear (16.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.6% away from median
(+) | mids are linear (6.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.5% away from median
(+) | highs are linear (6.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.6% difference to median)
Compared to same class
» 48% of all tested devices in this class were better, 11% similar, 41% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 31% of all tested devices were better, 8% similar, 61% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Lenovo Legion 5 17ACH6H-82JY0003GE audio analysis
(±) | speaker loudness is average but good (78.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 19.1% lower than median
(±) | linearity of bass is average (13.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3% away from median
(+) | mids are linear (5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (6.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.8% difference to median)
Compared to same class
» 35% of all tested devices in this class were better, 7% similar, 58% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 21% of all tested devices were better, 5% similar, 74% worse
» The best had a delta of 4%, average was 25%, worst was 134%
能源管理
消耗功率
宏碁Nitro 5 AN517不能说是节能的，尽管空转时的确定值相对较好，有时明显优于竞争对手。然而，在负载情况下，我们记录的平均功率为166瓦，最高峰时可达235瓦。因此，我们的审查样本明显高于同类产品的平均水平。
Power Consumption
| Off / Standby | 0.15 / 0.2 Watt |
| Idle | 9.7 / 14.6 / 16.7 Watt |
| Load |
166 / 235 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Acer Nitro 5 AN517-55-738R i7-12700H, GeForce RTX 3060 Laptop GPU, Samsung PM9A1 MZVL2512HCJQ, IPS, 1920x1080, 17.3" | Lenovo Legion 5 17ACH6H-82JY0003GE R5 5600H, GeForce RTX 3060 Laptop GPU, Samsung PM991a MZALQ512HBLU, IPS, 1920x1080, 17.3" | Asus TUF Gaming F17 FX707Z-HX011W i7-12700H, GeForce RTX 3060 Laptop GPU, SK Hynix HFM001TD3JX013N, IPS, 1920x1080, 17.3" | Acer Nitro 5 AN517-41-R5Z7 R7 5800H, GeForce RTX 3070 Laptop GPU, SK Hynix BC711 1TB HFM001TD3JX016N, IPS, 1920x1080, 17.3" | SCHENKER XMG Core 17 (Early 2021) i7-10870H, GeForce RTX 3060 Laptop GPU, Samsung SSD 970 EVO Plus 1TB, IPS, 2560x1440, 17.3" | MSI Katana GF76 11UE i7-11800H, GeForce RTX 3060 Laptop GPU, Kingston OM8PCP3512F-AB, IPS, 1920x1080, 17.3" | Average NVIDIA GeForce RTX 3060 Laptop GPU | Average of class Gaming | |
|---|---|---|---|---|---|---|---|---|
| Power Consumption | -19% | 28% | -29% | -14% | 11% | 2% | -20% | |
| Idle Minimum * | 9.7 | 15.6 -61% | 6.6 32% | 18.7 -93% | 13 -34% | 9 7% | 10.4 ? -7% | 13.5 ? -39% |
| Idle Average * | 14.6 | 20.7 -42% | 8.3 43% | 22 -51% | 16 -10% | 13 11% | 14.5 ? 1% | 18.9 ? -29% |
| Idle Maximum * | 16.7 | 22.9 -37% | 11.8 29% | 25.2 -51% | 29 -74% | 20 -20% | 21.4 ? -28% | 26.8 ? -60% |
| Load Average * | 166 | 134 19% | 119 28% | 134.7 19% | 100 40% | 102 39% | 109.3 ? 34% | 106.7 ? 36% |
| Load Maximum * | 235 | 170 28% | 222 6% | 157 33% | 213 9% | 187 20% | 206 ? 12% | 249 ? -6% |
| Witcher 3 ultra * | 135 | 169 | 135 | 173 | 149 |
* ... smaller is better
Power consumption Witcher 3 / Stresstest
Acer Nitro 5 AN517-55-738R: Ø209 (157.2-243)
Power consumption with an external monitor
Acer Nitro 5 AN517-55-738R; Prime95 V2810 Stress (external Monitor): Ø156.1 (150.7-158.9)
Acer Nitro 5 AN517-55-738R; Cinebench R15 Multi (external Monitor): Ø142.3 (81.1-153.2)
Acer Nitro 5 AN517-55-738R; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø149.2 (132.8-183.7)
Acer Nitro 5 AN517-55-738R; 1920x1080 The Witcher 3 ultra (external Monitor): Ø148.7 (91.7-187.1)
Acer Nitro 5 AN517-55-738R; Idle 1min (external Monitor): Ø19.2 (18.2-30.6)
电池寿命

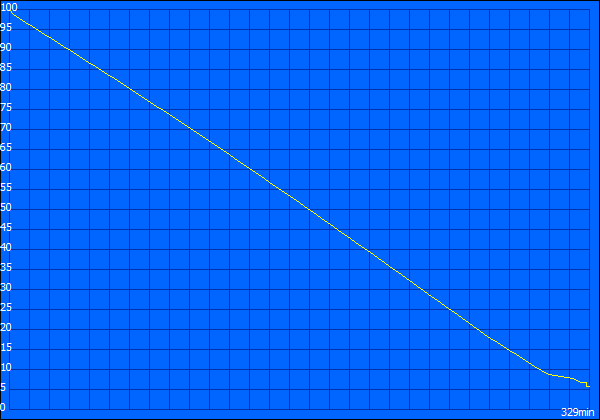

宏碁Nitro 5 AN517在WLAN测试中使用永久安装的90Wh电池运行了近6.5小时。这对游戏笔记本来说是一个很好的价值，只有华硕的TUF游戏机F17可以做到这一点。华硕TUF游戏机F17.
还需要注意的是，在电池模式下，CPU和GPU的性能会受到一定程度的限制。在这方面，宏碁Nitro 5 AN517并不孤单，因为其他制造商也采取了类似的路线。
| Acer Nitro 5 AN517-55-738R i7-12700H, GeForce RTX 3060 Laptop GPU, 90.61 Wh | Lenovo Legion 5 17ACH6H-82JY0003GE R5 5600H, GeForce RTX 3060 Laptop GPU, 80 Wh | Asus TUF Gaming F17 FX707Z-HX011W i7-12700H, GeForce RTX 3060 Laptop GPU, 90 Wh | Acer Nitro 5 AN517-41-R5Z7 R7 5800H, GeForce RTX 3070 Laptop GPU, 57.5 Wh | SCHENKER XMG Core 17 (Early 2021) i7-10870H, GeForce RTX 3060 Laptop GPU, 62 Wh | MSI Katana GF76 11UE i7-11800H, GeForce RTX 3060 Laptop GPU, 53 Wh | Average of class Gaming | |
|---|---|---|---|---|---|---|---|
| Battery Runtime | -30% | 35% | -5% | -24% | -39% | -4% | |

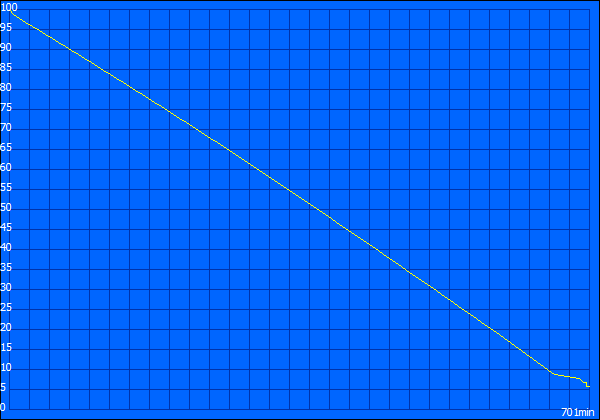

| Reader / Idle | 701 | 331 -53% | 608 -13% | 462 -34% | 286 -59% | 565 ? -19% | |

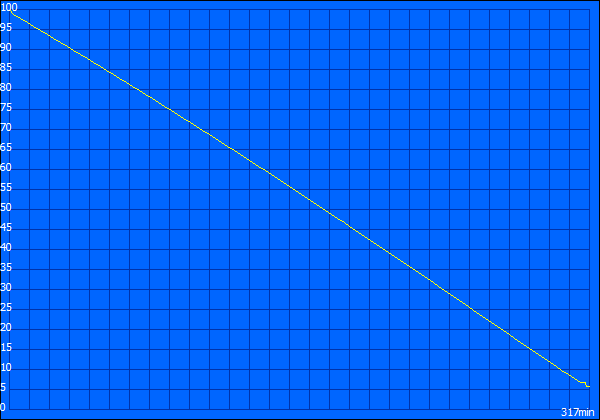

| H.264 | 317 | 212 -33% | 462 46% | 420 32% | 283 -11% | 232 -27% | 408 ? 29% |

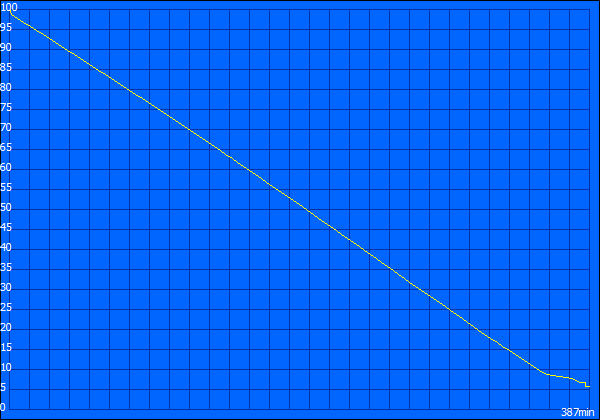

| WiFi v1.3 | 387 | 263 -32% | 519 34% | 334 -14% | 293 -24% | 220 -43% | 375 ? -3% |

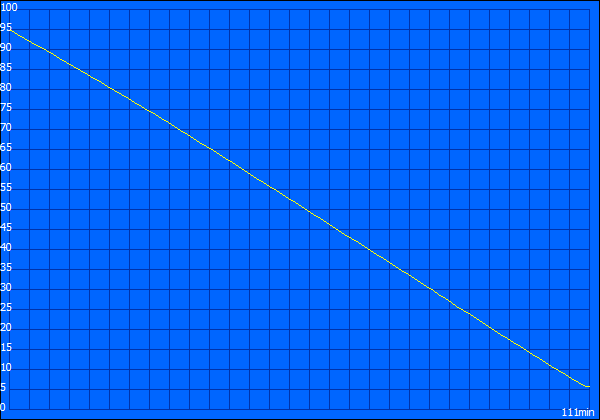

| Load | 111 | 111 0% | 138 24% | 86 -23% | 80 -28% | 80 -28% | 85.4 ? -23% |
| Witcher 3 ultra | 50 | 78.3 ? |
Pros
+ 良好的游戏性能
+ 快速的144赫兹IPS显示屏
+ 可接受的电池运行时间
+ 快速的SSD
+ 霹雳火4
+ 良好的输入设备
+ 背光键盘
+ 快速的WLAN
Cons
- 负载下声音太大
- 冷却系统很快就会过度消耗
- 只有512GB的存储空间
- 外部连接很少
结论 -- 强势的开始和弱势的结束

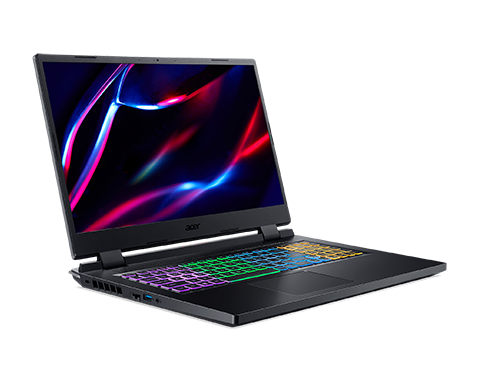

宏碁Nitro 5 AN517是一款拥有最新Alder Lake CPU和可用显卡的游戏笔记本电脑。该 英特尔酷睿i7-12700H是一个不错的选择，提供了大量的多线程性能，但它是有代价的。因此，在功率限制方面，SoC没有进一步的限制。一方面，这是好的，同时也是坏的，因为在需要性能的时候，冷却系统很快就达到了极限。宏碁在NvidiaGeForce RTX 3060笔记本GPU方面做得稍好一些。性能水平足以流畅地运行当前所有的游戏。这是最重要的，宏碁Nitro 5 AN517正是这样做的。
否则，如果直接忽略内部Nitro Sense工具中的性能配置文件 "性能"，用户可以用该设备很好地进行日常工作。负载下的最大体积达到了不能容忍的极端值。但我们很清楚，功能强大的设备经常会出现噪音。
宏碁Nitro 5 AN517是一款现代游戏笔记本，拥有快速的CPU和GPU配置。然而，排放值可能是它的败笔。
积极的方面是显示器的低响应时间和144赫兹，这可能会满足大多数游戏玩家的需求。在连接方面，Thunderbolt 4是一个现代接口，也是面向未来的。然而，宏碁本可以在这里提供更多的东西，因为三个传统的USB端口对于一个17英寸的笔记本来说并不算多。空间不足不可能是这里的原因。从外观上看，该设备看起来很优质，但由于其尺寸，不得不与已知的底座和显示屏盖子轻微弯曲的问题作斗争。然而，这个问题也存在于其他17英寸笔记本中，所以宏碁Nitro 5 AN517并不孤单。
价格和可用性
我们审查的机型（AN517-55-738R）具有特定区域的键盘布局，主要面向德语市场，目前的建议零售价约为1500美元。虽然具有相同硬件配置的15英寸机型在世界各地广泛销售，但我们无法在德国以外找到任何17英寸机型。因此，建议有兴趣的买家定期通过亚马逊或适当的经销商在线查询。
Acer Nitro 5 AN517-55-738R
- 10/20/2022 v7 (old)
Sebastian Bade
Gaming - Weighted Average
Price comparison
