Acer TravelMate P257-M-56AX 笔记本电脑简短评测

完美散热。 不管在什么情况下,Acer的这款新产品始终可以保持最高的设计频率——甚至是在使用电池时也是一样。这台TravelMate在散热和噪音控制上几乎无可挑剔。它的屏幕和输入设备可以达到同样的水准吗?
Broadwell Laptop / Notebook Windows

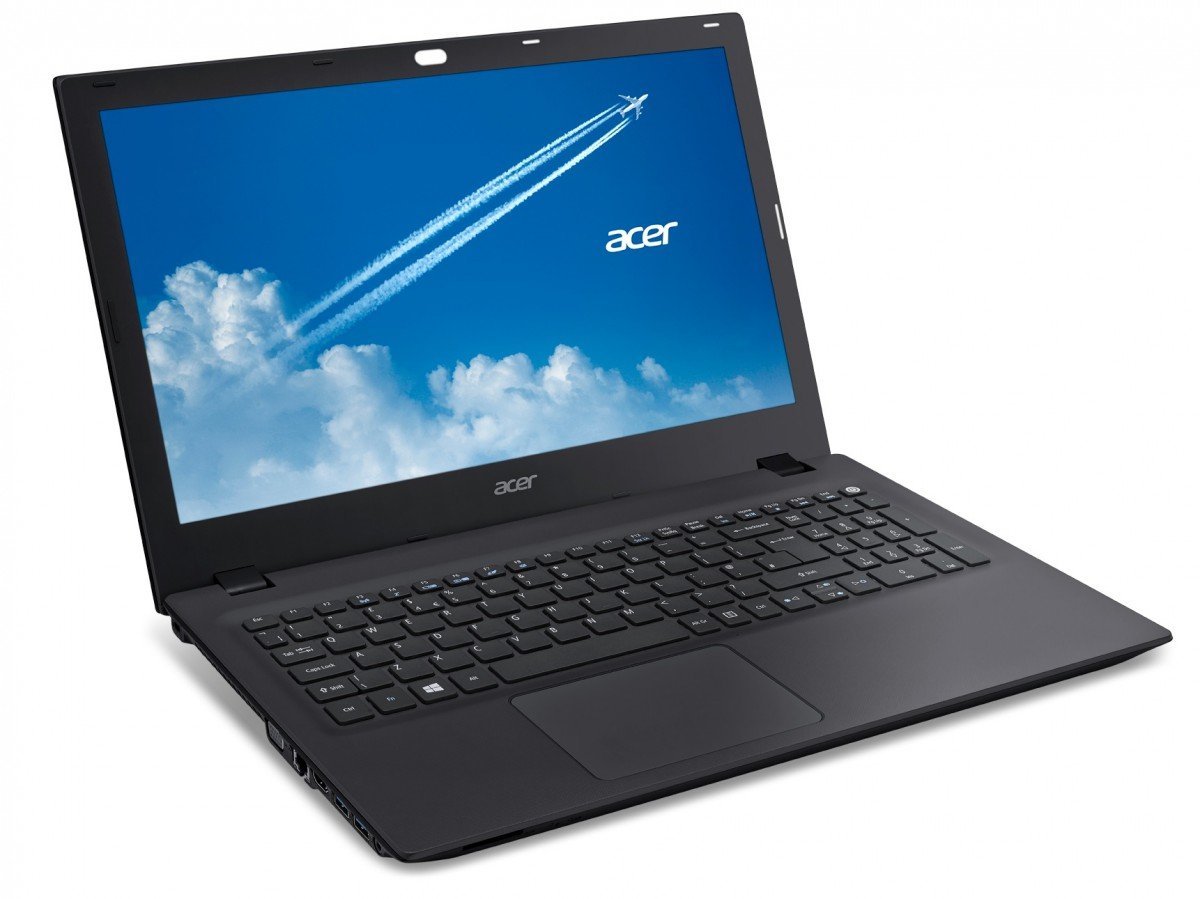

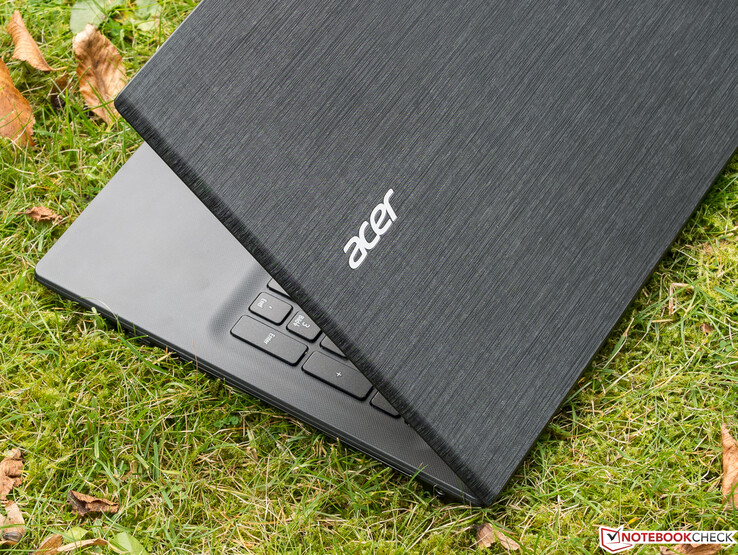

Acer TravelMate P257-M-56AX

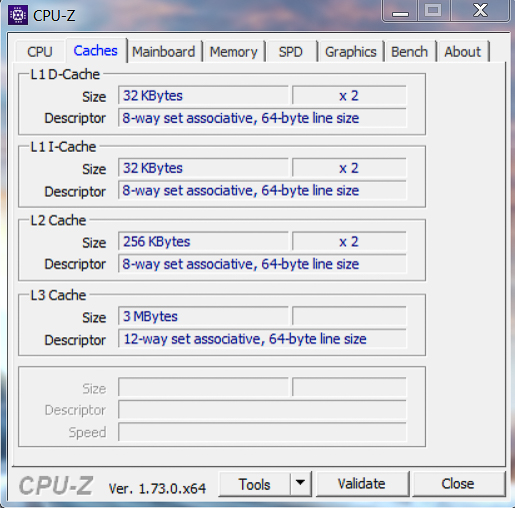

Processor

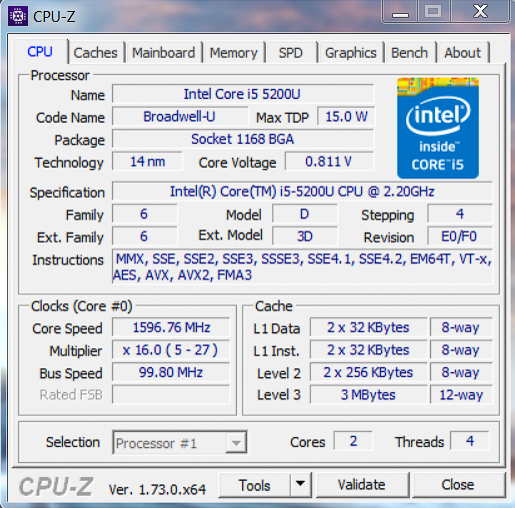

Intel Core i5-5200U 2 x 2.2 - 2.7 GHz, Broadwell
Graphics adapter
Intel HD Graphics 5500, Core: 900 MHz, RAM: 1600 MHz, DDR3, 10.18.14.4170

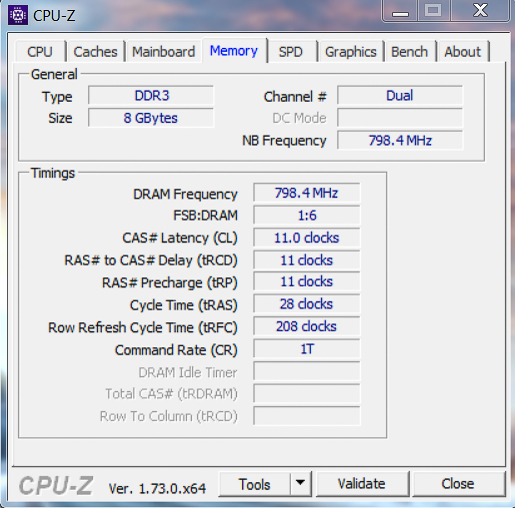

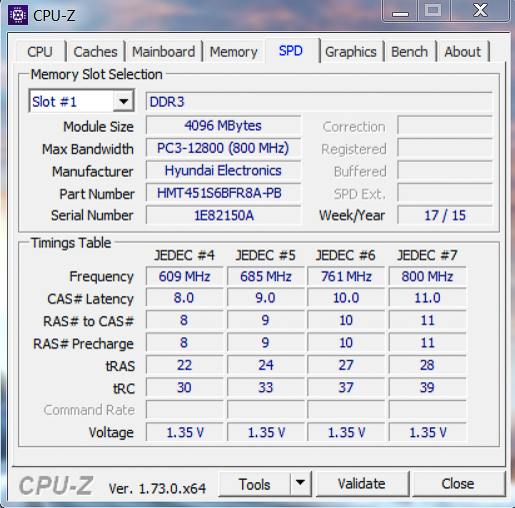

Memory
8 GB
, DDR3L 1600, 双通道,4个内存槽,2个已占用
Display
15.60 inch 16:9, 1920 x 1080 pixel, AU Optronics AUO38ED, TN LED, glossy: no

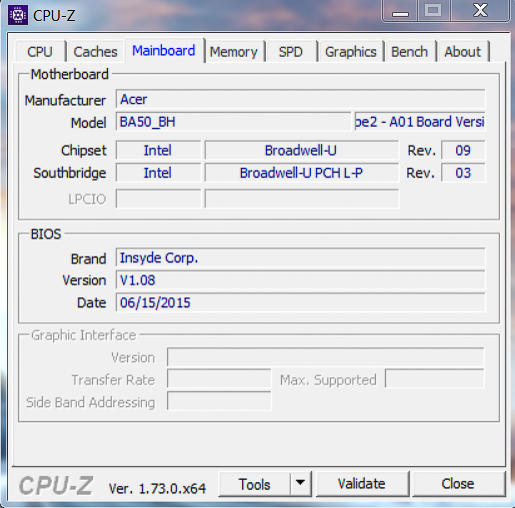

Mainboard
Intel Broadwell-U PCH-LP (Premium)
Storage
Kingston RBU-SC150S37256GD, 256 GB
Soundcard
Intel Broadwell PCH-LP - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米整合音频输入输出插口, Card Reader: SD/SDHC/SDXC
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optical drive
SlimtypeDVD A DA8A6SH
Size
height x width x depth (in mm): 25 x 382 x 256
Battery
37 Wh Lithium-Ion, 2520 mAh
Operating System
Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)
Camera
Webcam: 高清
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no, Acer: ControlCenter, ePower Management, Launch Manager, Office Manager Agent, Updater, McAfee Internet Security trial, ProShield, 24 Months Warranty
Weight
2.4 kg, Power Supply: 148 g
Price
899 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
Acer TravelMate P257-M-56AX
227
cd/m²
230
cd/m²
207
cd/m²
226
cd/m²
205
cd/m²
190
cd/m²
238
cd/m²
193
cd/m²
170
cd/m²
Distribution of brightness
AU Optronics AUO38ED tested with X-Rite i1Pro 2
Maximum: 238 cd/m² (Nits) Average: 209.6 cd/m²
Brightness Distribution: 71 %
Center on Battery: 212 cd/m²
Contrast: 513:1 (Black: 0.4 cd/m²)
ΔE Color 9.76 | 0.5-29.43 Ø4.92
ΔE Greyscale 10.47 | 0.5-98 Ø5.2
57% sRGB (Argyll 1.6.3 3D)
36% AdobeRGB 1998 (Argyll 1.6.3 3D)
39.04% AdobeRGB 1998 (Argyll 2.2.0 3D)
56.8% sRGB (Argyll 2.2.0 3D)
37.78% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.56

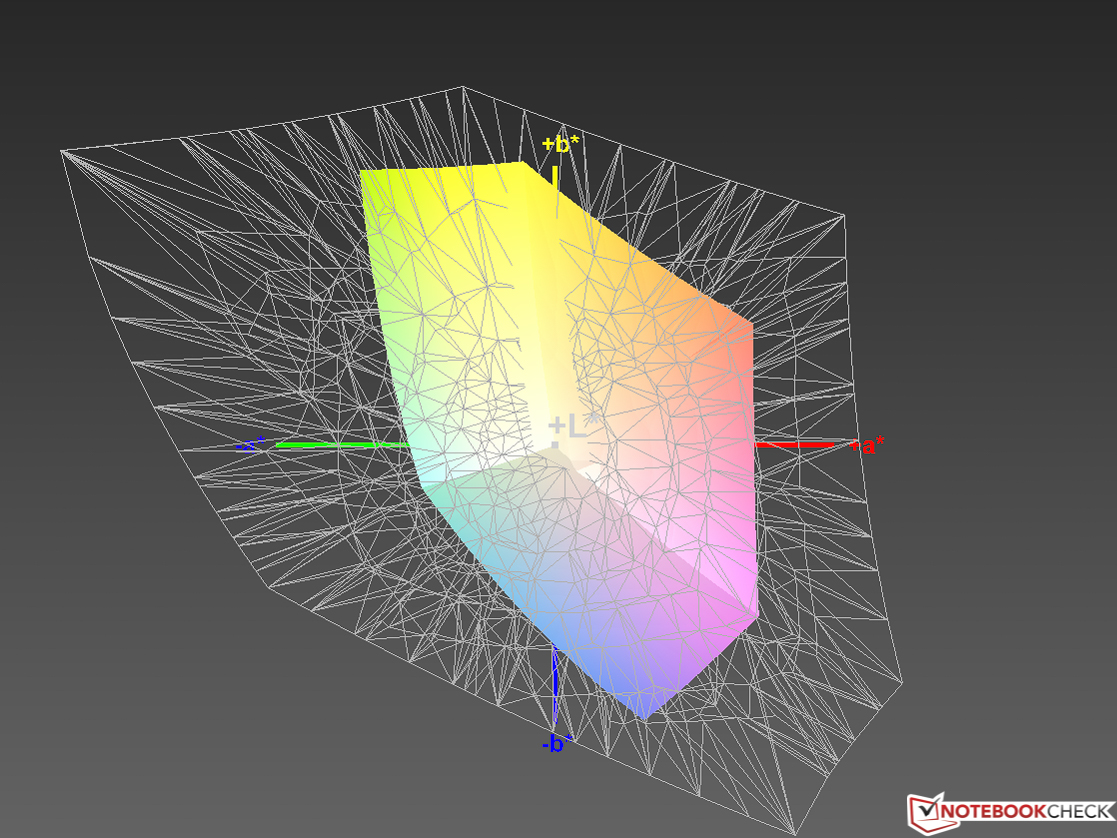

Acer TravelMate 257-M-56AX vs. AdobeRGB
Acer TravelMate P257-M-56AX vs. AdobeRGB

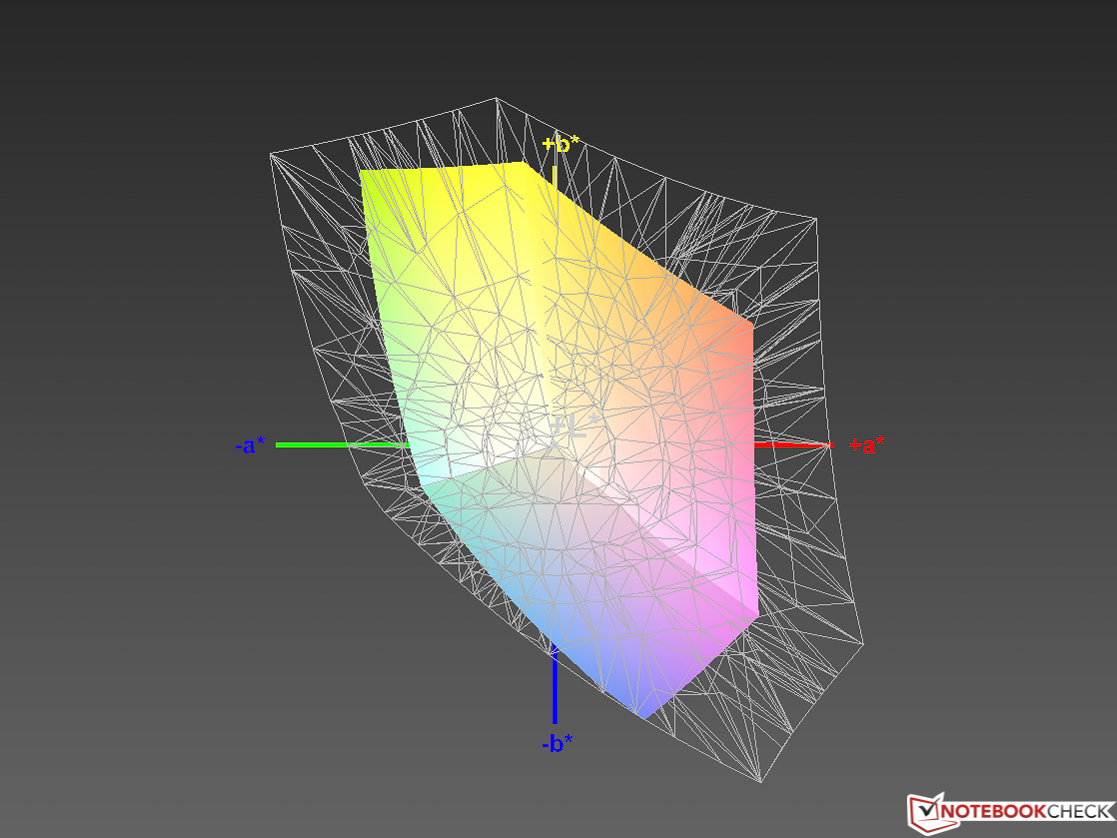

Acer TravelMate P257-M-56AX vs. sRGB
Acer TravelMate P257-M-56AX vs. sRGB
Acer TravelMate P257-M-56AXToshiba Tecra A50-C1510W10Fujitsu Lifebook A555Lenovo Z51-70
Display
5%
10%
4%
Display P3 Coverage
37.78
39.84
5%
41.72
10%
39.33
4%
sRGB Coverage
56.8
59.8
5%
62.8
11%
58.9
4%
AdobeRGB 1998 Coverage
39.04
41.17
5%
43.1
10%
40.65
4%
Screen
1%
-6%
2%
Brightness middle
205
194.1
-5%
180
-12%
229
12%
Brightness
210
198
-6%
174
-17%
214
2%
Brightness Distribution
71
82
15%
87
23%
85
20%
Black Level *
0.4
0.539
-35%
0.52
-30%
0.45
-13%
Contrast
513
360
-30%
346
-33%
509
-1%
Colorchecker dE 2000 *
9.76
7.35
25%
10.11
-4%
10.51
-8%
Greyscale dE 2000 *
10.47
6.88
34%
10.92
-4%
11.32
-8%
Gamma
2.56 86%
2.11 104%
2.27 97%
2.47 89%
CCT
12103 54%
8885 73%
12639 51%
12795 51%
Color Space (Percent of AdobeRGB 1998)
36
37.9
5%
39.8
11%
38
6%
Color Space (Percent of sRGB)
57
59.5
4%
62.9
10%
59
4%
Total Average (Program / Settings)
3% / 2%
2% / -2%
3% / 2%

* ... smaller is better

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Acer TravelMate P257-M-56AX
Intel Core i5-5200U
2.85 Points
Toshiba Tecra A50-C1510W10
Intel Core i5-5200U
2.83 Points -1%
Fujitsu Lifebook A555
Intel Core i5-5200U
2.82 Points -1%
Lenovo Z51-70
Intel Core i5-5200U
2.84 Points 0%
CPU Single 64Bit (sort by value)
Acer TravelMate P257-M-56AX
Intel Core i5-5200U
1.24 Points
Toshiba Tecra A50-C1510W10
Intel Core i5-5200U
1.03 Points -17%
Fujitsu Lifebook A555
Intel Core i5-5200U
1.23 Points -1%
Lenovo Z51-70
Intel Core i5-5200U
1.13 Points -9%
Cinebench R15
CPU Multi 64Bit (sort by value)
Acer TravelMate P257-M-56AX
Intel Core i5-5200U
260 Points
Toshiba Tecra A50-C1510W10
Intel Core i5-5200U
257 Points -1%
Fujitsu Lifebook A555
Intel Core i5-5200U
255 Points -2%
Lenovo Z51-70
Intel Core i5-5200U
259 Points 0%
CPU Single 64Bit (sort by value)
Acer TravelMate P257-M-56AX
Intel Core i5-5200U
109 Points
Toshiba Tecra A50-C1510W10
Intel Core i5-5200U
91 Points -17%
Fujitsu Lifebook A555
Intel Core i5-5200U
105 Points -4%
Lenovo Z51-70
Intel Core i5-5200U
96 Points -12%
Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Acer TravelMate P257-M-56AX
Intel Core i5-5200U
8689 Points
Toshiba Tecra A50-C1510W10
Intel Core i5-5200U
6550 Points -25%
Fujitsu Lifebook A555
Intel Core i5-5200U
8426 Points -3%
Lenovo Z51-70
Intel Core i5-5200U
8509 Points -2%
Rendering Single 32Bit (sort by value)
Acer TravelMate P257-M-56AX
Intel Core i5-5200U
4103 Points
Toshiba Tecra A50-C1510W10
Intel Core i5-5200U
4168 Points +2%
Fujitsu Lifebook A555
Intel Core i5-5200U
3975 Points -3%
Lenovo Z51-70
Intel Core i5-5200U
4176 Points +2%
Cinebench R10 Rendering Single 32Bit
4103
Cinebench R10 Rendering Multiple CPUs 32Bit
8689
Cinebench R11.5 CPU Single 64Bit
1.24 Points
Cinebench R11.5 CPU Multi 64Bit
2.85 Points
Cinebench R15 CPU Single 64Bit
109 Points
Cinebench R15 CPU Multi 64Bit
260 Points
Help
PCMark 7
Score (sort by value)
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
4293 Points
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
2956 Points -31%
Fujitsu Lifebook A555
HD Graphics 5500, 5200U, Toshiba HG6 THNSNJ128GCSU
4147 Points -3%
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
5071 Points +18%
Lightweight (sort by value)
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
4750 Points
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
2142 Points -55%
Fujitsu Lifebook A555
HD Graphics 5500, 5200U, Toshiba HG6 THNSNJ128GCSU
4942 Points +4%
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
5037 Points +6%
Productivity (sort by value)
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
3618 Points
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
1599 Points -56%
Fujitsu Lifebook A555
HD Graphics 5500, 5200U, Toshiba HG6 THNSNJ128GCSU
3839 Points +6%
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
4021 Points +11%
PCMark 8
Home Score Accelerated v2 (sort by value)
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
3090 Points
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
2909 Points -6%
Fujitsu Lifebook A555
HD Graphics 5500, 5200U, Toshiba HG6 THNSNJ128GCSU
3035 Points -2%
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
3612 Points +17%
Work Score Accelerated v2 (sort by value)
Acer TravelMate P257-M-56AX
HD Graphics 5500, 5200U, Kingston RBU-SC150S37256GD
3979 Points
Toshiba Tecra A50-C1510W10
HD Graphics 5500, 5200U, Hitachi Travelstar Z7K500 HTS725050A7E630
3860 Points -3%
Fujitsu Lifebook A555
HD Graphics 5500, 5200U, Toshiba HG6 THNSNJ128GCSU
4202 Points +6%
Lenovo Z51-70
Radeon R9 M375, 5200U, Samsung PM871 MZYLN256HCHP
4274 Points +7%
PCMark 7 Score
4293 points
PCMark 8 Home Score Accelerated v2
3090 points
PCMark 8 Work Score Accelerated v2
3979 points
Help
AS SSD
Seq Read (sort by value)
Acer TravelMate P257-M-56AX
Kingston RBU-SC150S37256GD
490.6 MB/s
Fujitsu Lifebook A555
Toshiba HG6 THNSNJ128GCSU
497.2 MB/s +1%
Lenovo Z51-70
Samsung PM871 MZYLN256HCHP
507 MB/s +3%
4K Read (sort by value)
Acer TravelMate P257-M-56AX
Kingston RBU-SC150S37256GD
35.9 MB/s
Fujitsu Lifebook A555
Toshiba HG6 THNSNJ128GCSU
19.5 MB/s -46%
Lenovo Z51-70
Samsung PM871 MZYLN256HCHP
34.01 MB/s -5%
4K-64 Read (sort by value)
Acer TravelMate P257-M-56AX
Kingston RBU-SC150S37256GD
192.7 MB/s
Fujitsu Lifebook A555
Toshiba HG6 THNSNJ128GCSU
299.5 MB/s +55%
Lenovo Z51-70
Samsung PM871 MZYLN256HCHP
378.6 MB/s +96%
Score Write (sort by value)
Acer TravelMate P257-M-56AX
Kingston RBU-SC150S37256GD
296 Points
Fujitsu Lifebook A555
Toshiba HG6 THNSNJ128GCSU
284 Points -4%
Lenovo Z51-70
Samsung PM871 MZYLN256HCHP
339 Points +15%
CrystalDiskMark 3.0
Read Seq (sort by value)
Acer TravelMate P257-M-56AX
Kingston RBU-SC150S37256GD
507 MB/s
Toshiba Tecra A50-C1510W10
Hitachi Travelstar Z7K500 HTS725050A7E630
128.5 MB/s -75%
Fujitsu Lifebook A555
Toshiba HG6 THNSNJ128GCSU
515 MB/s +2%
Lenovo Z51-70
Samsung PM871 MZYLN256HCHP
515 MB/s +2%
Read 4k (sort by value)
Acer TravelMate P257-M-56AX
Kingston RBU-SC150S37256GD
29.37 MB/s
Toshiba Tecra A50-C1510W10
Hitachi Travelstar Z7K500 HTS725050A7E630
0.576 MB/s -98%
Fujitsu Lifebook A555
Toshiba HG6 THNSNJ128GCSU
21.42 MB/s -27%
Lenovo Z51-70
Samsung PM871 MZYLN256HCHP
37.61 MB/s +28%
Read 4k QD32 (sort by value)
Acer TravelMate P257-M-56AX
Kingston RBU-SC150S37256GD
103.8 MB/s
Toshiba Tecra A50-C1510W10
Hitachi Travelstar Z7K500 HTS725050A7E630
0.562 MB/s -99%
Fujitsu Lifebook A555
Toshiba HG6 THNSNJ128GCSU
216.2 MB/s +108%
Lenovo Z51-70
Samsung PM871 MZYLN256HCHP
398.4 MB/s +284%
Kingston RBU-SC150S37256GD
Sequential Read: 507 MB/s
Sequential Write: 337.5 MB/s
512K Read: 325 MB/s
512K Write: 346.8 MB/s
4K Read: 29.37 MB/s
4K Write: 93.9 MB/s
4K QD32 Read: 103.8 MB/s
4K QD32 Write: 217.7 MB/s
3DMark 11 - 1280x720 Performance GPU (sort by value)
Acer TravelMate P257-M-56AX
Intel HD Graphics 5500
1147 Points
Toshiba Tecra A50-C1510W10
Intel HD Graphics 5500
1082 Points -6%
Fujitsu Lifebook A555
Intel HD Graphics 5500
901 Points -21%
Lenovo Z51-70
AMD Radeon R9 M375
3314 Points +189%
3DMark
1280x720 Ice Storm Standard Graphics (sort by value)
Acer TravelMate P257-M-56AX
Intel HD Graphics 5500
59661 Points
Toshiba Tecra A50-C1510W10
Intel HD Graphics 5500
48482 Points -19%
Fujitsu Lifebook A555
Intel HD Graphics 5500
42502 Points -29%
1280x720 Cloud Gate Standard Graphics (sort by value)
Acer TravelMate P257-M-56AX
Intel HD Graphics 5500
6590 Points
Toshiba Tecra A50-C1510W10
Intel HD Graphics 5500
5415 Points -18%
Fujitsu Lifebook A555
Intel HD Graphics 5500
5416 Points -18%
Lenovo Z51-70
AMD Radeon R9 M375
8466 Points +28%
3DMark 11 Performance
1290 points
3DMark Ice Storm Standard Score
51123 points
3DMark Cloud Gate Standard Score
5179 points
Help
lowmed.highultra
Tomb Raider (2013) 62.2 31.3 19.4
BioShock Infinite (2013) 44.6 24.1
Dirt Rally (2015) 99 22.6

Noise Level

Idle
31.8 / 31.8 / 31.8 dB(A)
HDD
32 dB(A)
DVD
39.7 / dB(A)
Load
35 / 37.6 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)
 25.9 °C26 °C24.9 °C
 26.4 °C26.7 °C25.1 °C
 26.3 °C26.1 °C26.2 °C
Maximum: 26.7 °C
Average: 26 °C
25 °C26.2 °C26 °C
24.9 °C29.2 °C27.2 °C
25.8 °C25.7 °C26.6 °C
Maximum: 29.2 °C
Average: 26.3 °C
Power Supply (max.)  33.4 °C | Room Temperature 23.8 °C | Voltcraft IR-360
(+) The average temperature for the upper side under maximal load is 30.8 °C / 87 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 34.3 °C / 94 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 42.1 °C / 108 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.4 °C / 90.3 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.7 °C / -8.4 F).
Power Consumption
Off / Standbydarklight 0 / 0.3 Watt
Idledarkmidlight 3.2 / 5.5 / 6.4 Watt
Load midlight 31.8 / 33 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Acer TravelMate P257-M-56AXToshiba Tecra A50-C1510W10Fujitsu Lifebook A555Lenovo Z51-70
Battery Runtime
3%
13%
-10%
Reader / Idle
703
607
-14%
571
-19%
WiFi v1.3
321
294
-8%
340
6%
289
-10%
Load
83
109
31%
127
53%
75
-10%
H.264
391
Battery Runtime
Idle (without WLAN, min brightness)
11h 43min
WiFi Websurfing
5h 21min
DVD
4h 01min
Load (maximum brightness)
1h 23min

Pros

+ 众多的机型配置选择
+ 坚固,高品质的机身
+ 个人品味:大量纹理图案
+ 双频Wi-Fi ac标准
+ 不错的输入设备
+ 性能无妥协,运行流畅
+ 256 GB固态硬盘
+ 非常安静清凉
+ 待机模式下非常节能
+ 尽管电池容量小,续航时间十分不错

Cons

- 容易沾染指纹...
- ...且不易清理
- DVD光驱呈一定角度
- 不拆机无法更换升级部件
- 所有的接口都在机身前面
- 无背光键盘
- 平庸的TN屏幕
- 不适合游戏
In review: Acer TravelMate P257-M-56AX. Test model courtesy of cyberport.de
In review: Acer TravelMate P257-M-56AX. Test model courtesy of cyberport.de

实际上Acer的TravelMate P257-M-56AX只需稍少降低一些售价就会十分值得推荐。我们认为,720欧元(约4940人民币)是个可以接受的价位,它的售价在未来几个月中应该会降低到这个水平。

在测试中,我们看到的是一款中规中矩,坚固耐用但在技术层面并不出彩的办公设备。它唯一的弱点是平庸的屏幕。

除了近乎完美的散热控制,这台测试机拥有大气的外观,坚固的高品质机身,十分优秀的输入设备,安静清凉的运行,充足的电池续航时间以及足够使用的性能。希望玩一些游戏的用户可以选择例如联想Z51-70或售价更高的搭配的GeForce 940MP2机型。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Acer TravelMate P257-M-56AX - 10/27/2015 v4 (old)
Sven Kloevekorn

Chassis
75 / 98 → 77%
Keyboard
75%
Pointing Device
90%
Connectivity
65 / 80 → 81%
Weight
60 / 20-67 → 85%
Battery
84%
Display
78%
Games Performance
74 / 68 → 100%
Application Performance
81 / 92 → 88%
Temperature
92%
Noise
92%
Audio
68%
Average
78%
81%
Office - Weighted Average

Price comparison

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Acer TravelMate P257-M-56AX 笔记本电脑简短评测
Sven Kloevekorn, 2015-11- 4 (Update: 2015-11-14)
