Aorus X3 Plus v3 笔记本电脑简短评测

Name: Aorus X3 Plus v3
Brand: Aorus

尺寸不是问题。 它可能不足14英寸，不过Aorus X3仍然与现在许多更大尺寸的游戏本性能相当。对于这台搭配3200x1800 QHD+屏幕，3硬盘RAID0，与GTX 970M显卡的设备，用户需要接受什么妥协吗？

Allen Ngo (translated by Yuchen Wang), Published 05/22/2015 🇺🇸 🇵🇱 ...

Gaming Haswell Laptop / Notebook Windows

Test device courtesy of Aorus

Download your licensed rating image as PNG / SVG

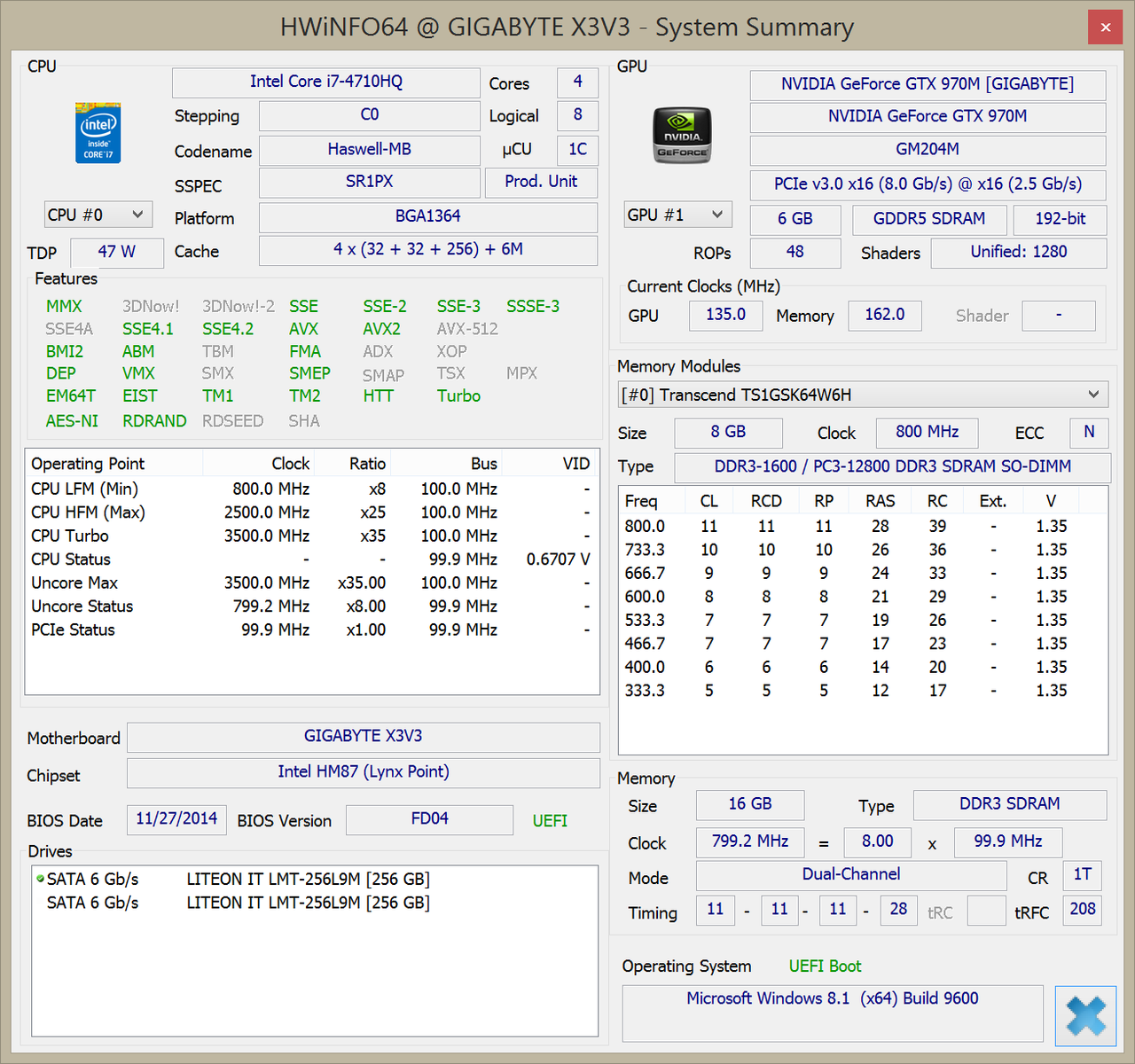

Aorus X3 Plus v3 (X3 Series)

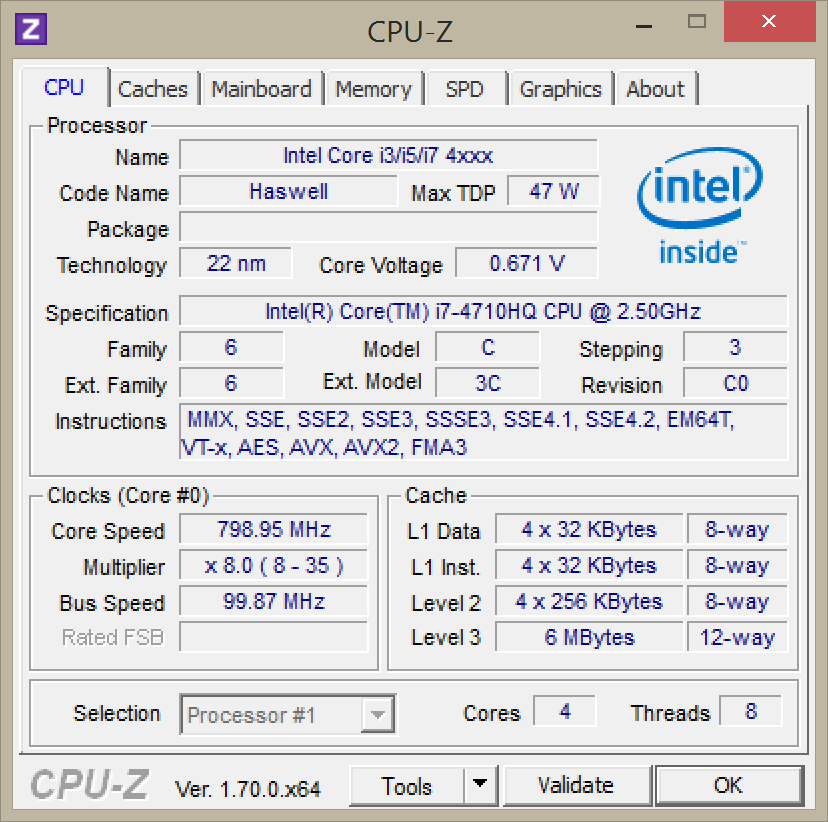

Processor

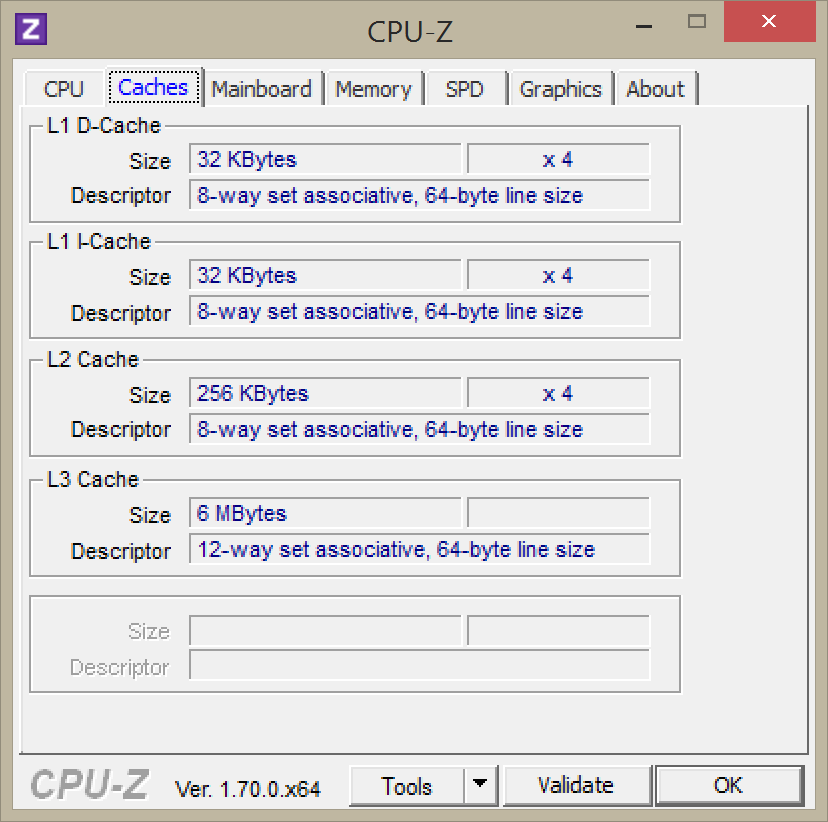

Intel Core i7-4710HQ 4 x 2.5 - 3.5 GHz, Haswell

Graphics adapter

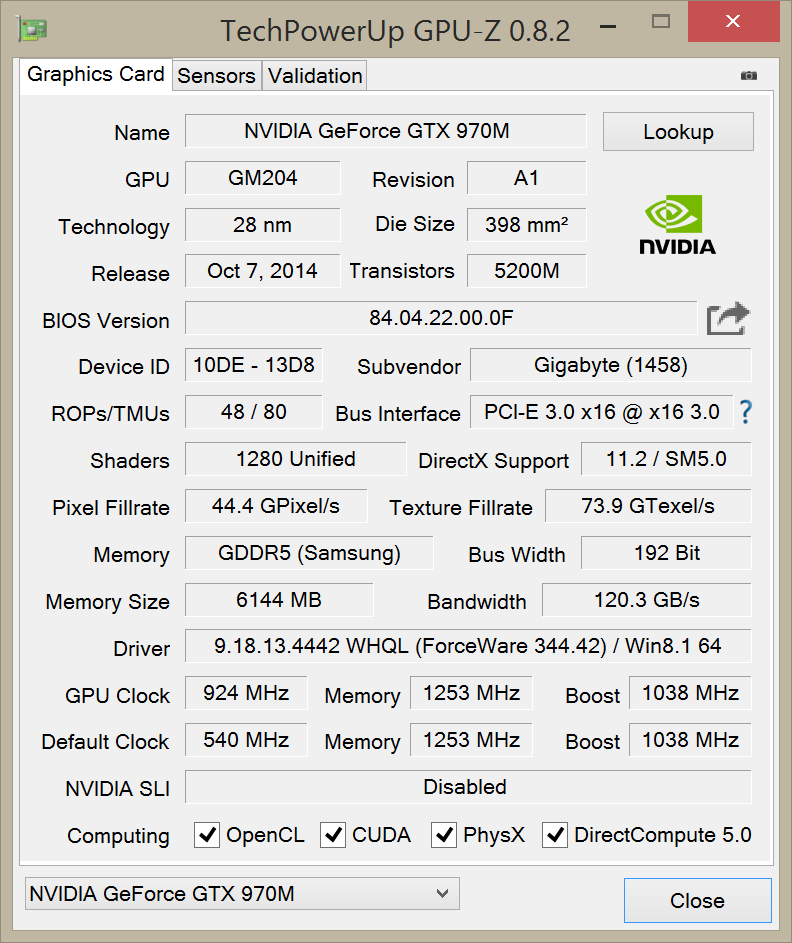

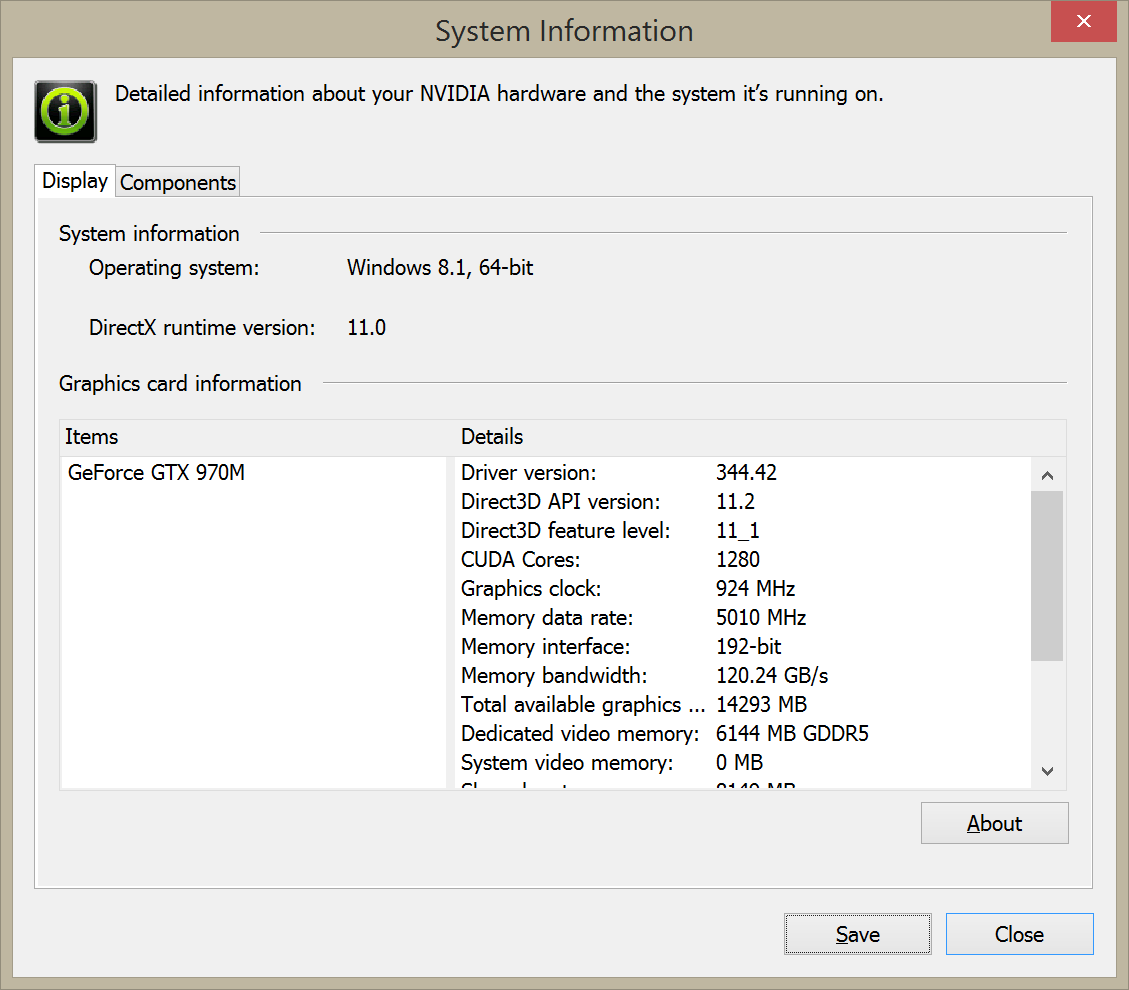

NVIDIA GeForce GTX 970M - 6 GB VRAM, Core: 924 MHz, RAM: 5010 MHz, 344.42, Optimus

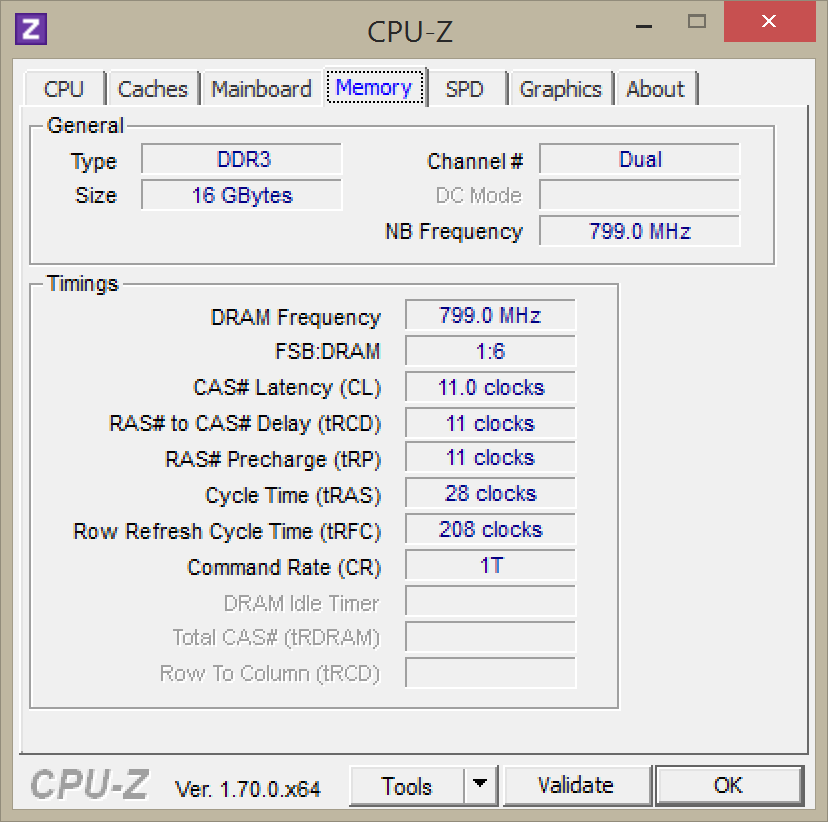

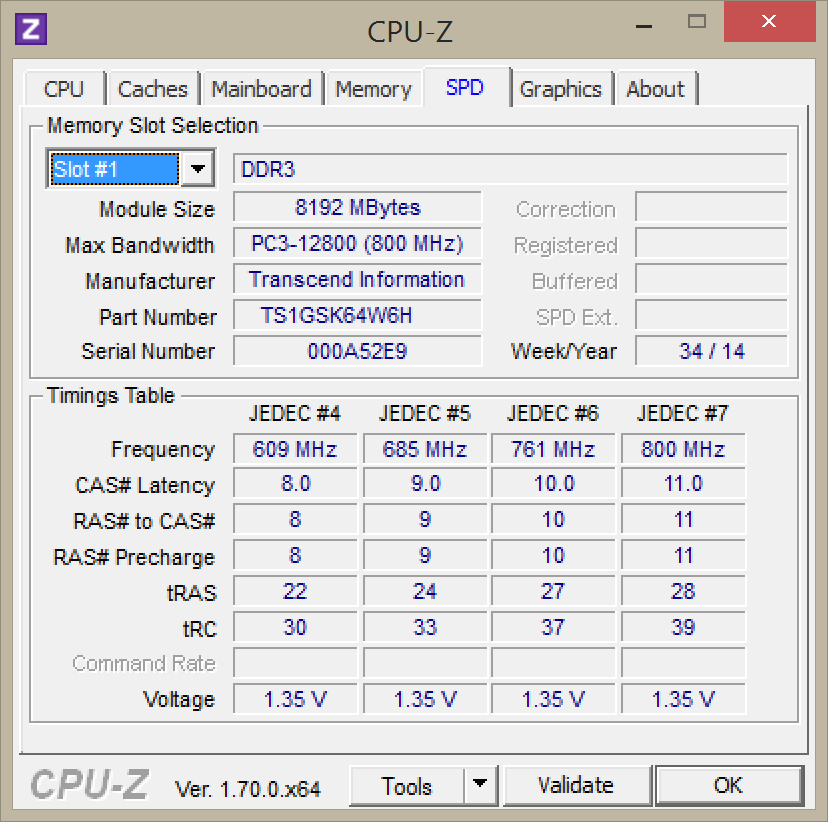

Memory

16 GB

, 800 MHz, 11-11-11-28, 双通道

Display

13.90 inch 16:9, 3200 x 1800 pixel, IPS, 生产商: 夏普, ID: SHP1401, 代码: LQ140Z1JW01, glossy: no

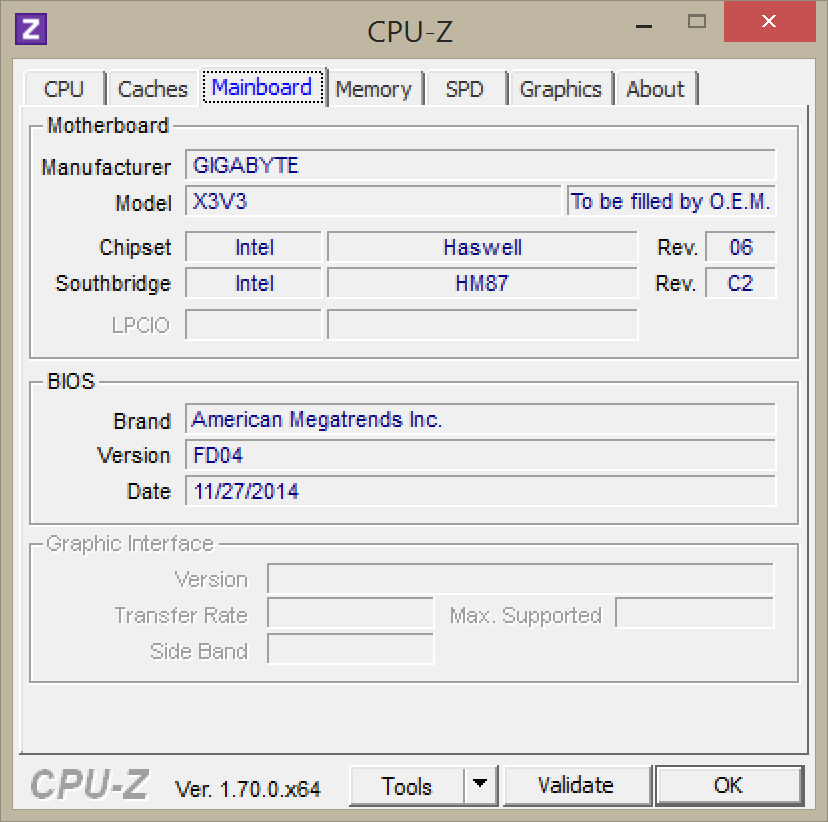

Mainboard

Intel HM87 (Lynx Point)

Storage

2x Lite-On LMT-256L9M (RAID 0) , 512 GB

Soundcard

Intel Lynx Point PCH - High Definition Audio Controller

Connections

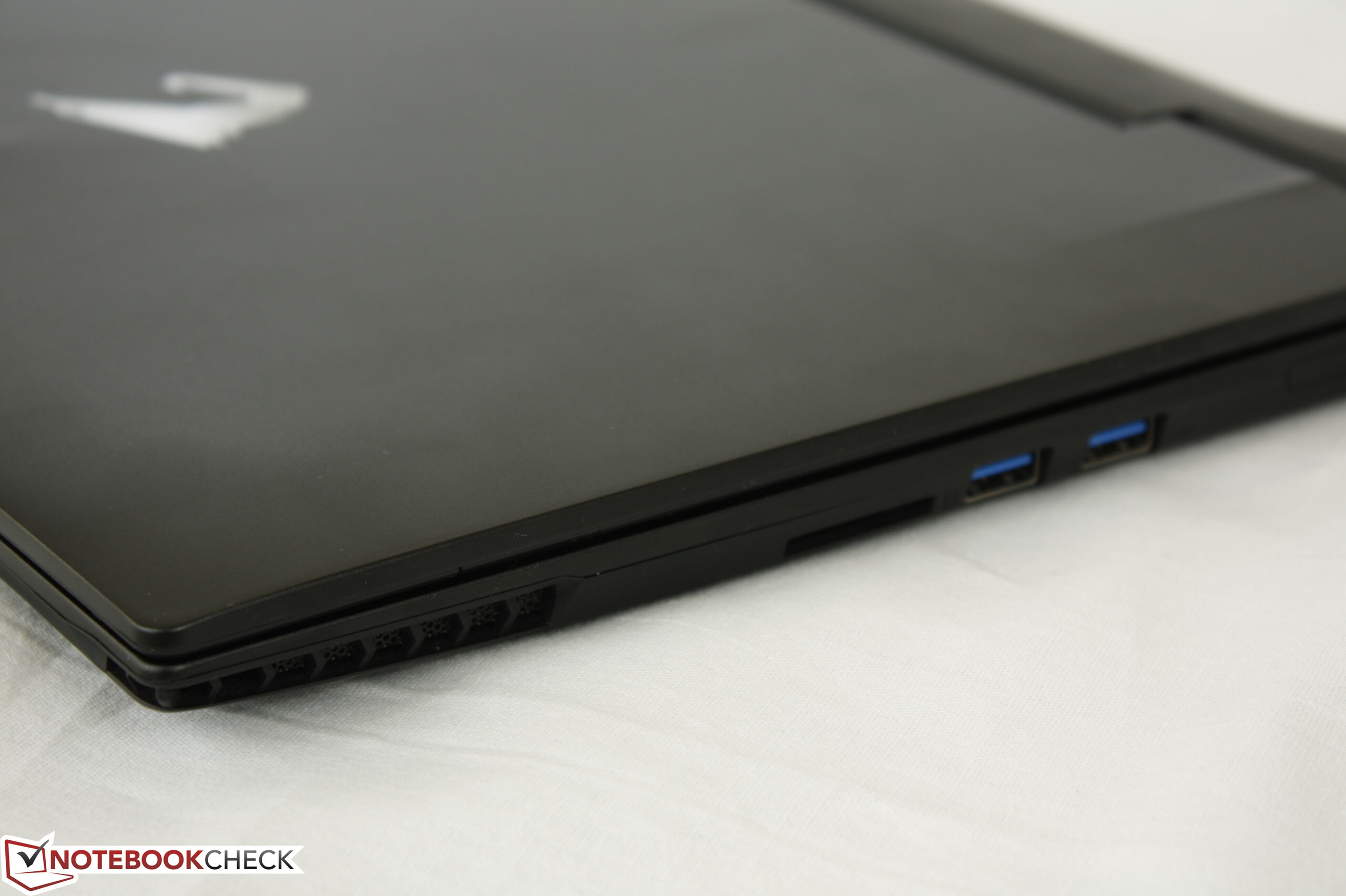

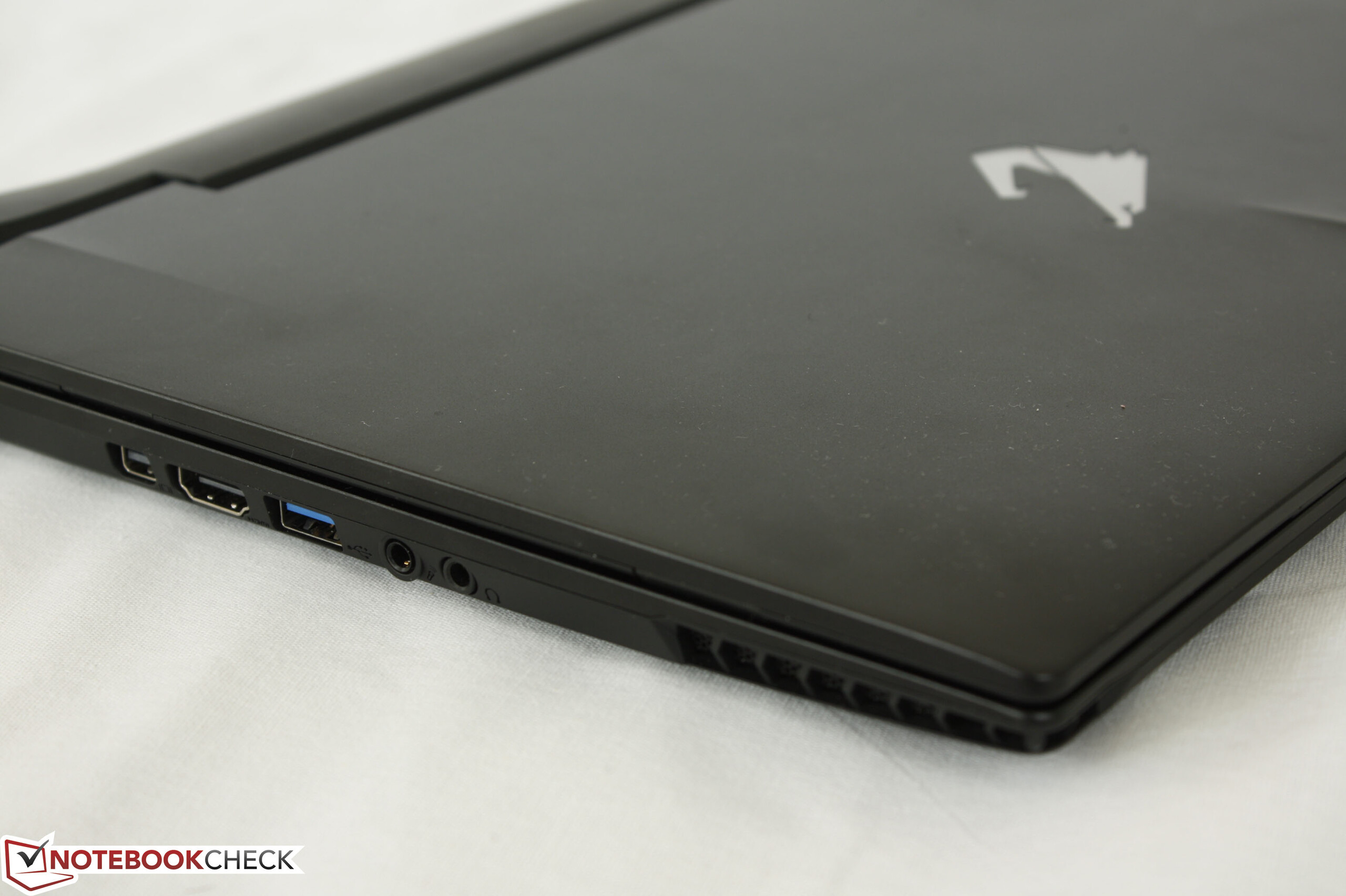

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, Audio Connections: 3.5毫米麦克风接口，3.5毫米耳机接口, Card Reader: SD 读卡器

Networking

Qualcomm Killer e2200 PCI-E Gigabit Ethernet Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Size

height x width x depth (in mm): 22.9 x 330 x 263.5

Battery

73 Wh Lithium-Polymer

Operating System

Microsoft Windows 8.1 64 Bit

Camera

Webcam: 高清摄像头

Additional features

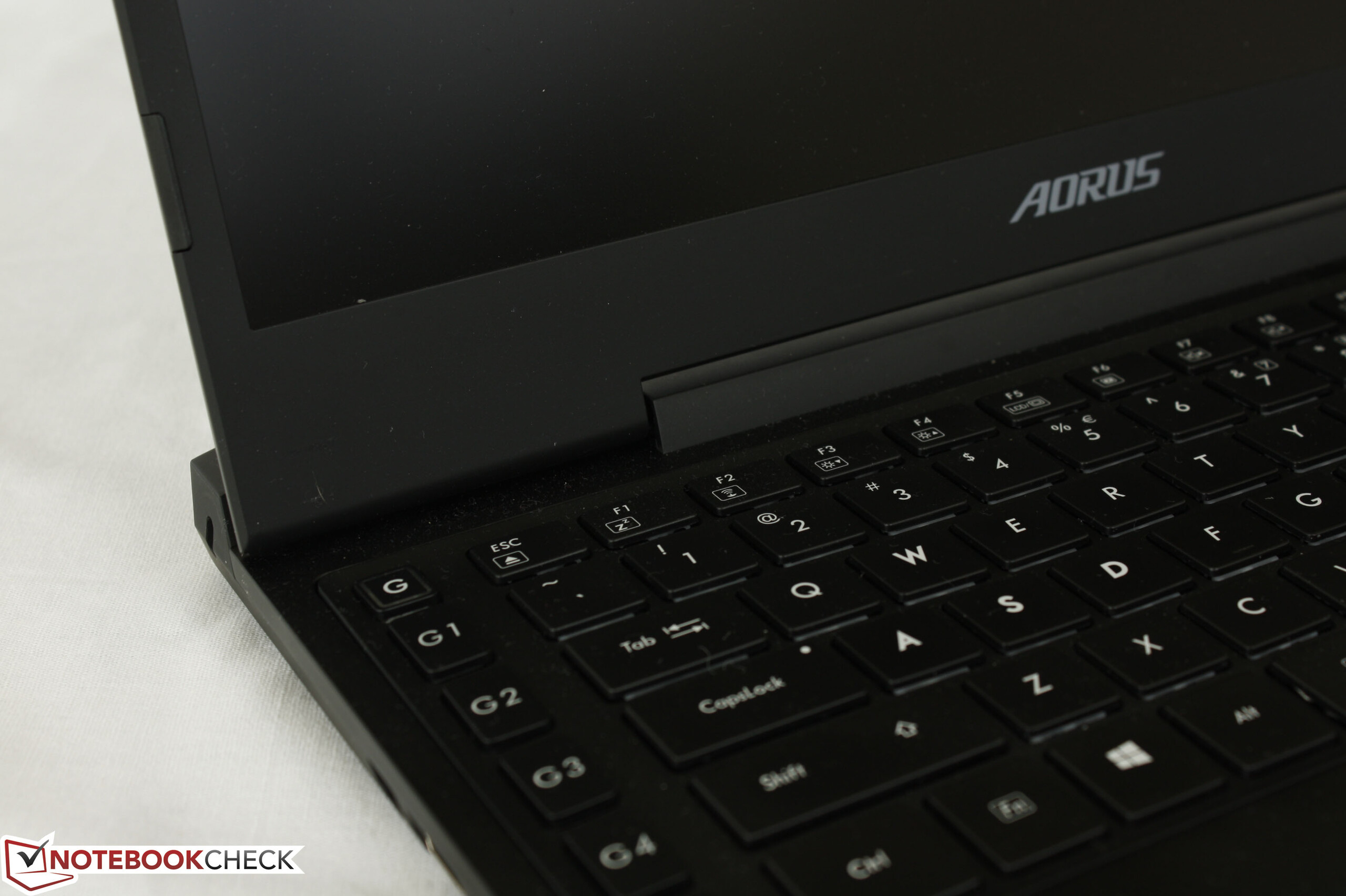

Speakers: 2 瓦立体声, Keyboard: Chiclet, Keyboard Light: yes, MacroHub, Command & Control, Power Switch, 24 Months Warranty

Weight

1.8 kg, Power Supply: 560 g

Price

2400 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Lenovo Y40-59423035 Asus G46VW-BHI5N43 Razer Blade 14 2015 SCHENKER XMG C405 Gigabyte P34W V3 Lenovo ThinkPad Yoga 14 Aorus X3 Plus v3 DIN A4 ❌


319 cd/m²	319.3 cd/m²	306.4 cd/m²
308.2 cd/m²	312.4 cd/m²	302.2 cd/m²
308.2 cd/m²	290.1 cd/m²	291.2 cd/m²

Distribution of brightness

tested with X-Rite i1Pro Basic 2

Maximum: 319.3 cd/m² (Nits) Average: 306.3 cd/m²
Brightness Distribution: 91 %
Center on Battery: 312.4 cd/m²
Contrast: 620:1 (Black: 0.504 cd/m²)
ΔE Color 4.17 | 0.5-29.43 Ø4.92
ΔE Greyscale 4.4 | 0.5-98 Ø5.2
62% AdobeRGB 1998 (Argyll 1.6.3 3D)
69% AdobeRGB 1998 (Argyll 2.2.0 3D)
93.2% sRGB (Argyll 2.2.0 3D)
67.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.26

Download ICC File (X-Rite i1Display 2)

	Aorus X3 Plus v3	Lenovo Y40-59423035	Razer Blade 14 2015	Gigabyte P34W V3	SCHENKER XMG C405
Display		-42%	4%	0%	-3%
Display P3 Coverage	67.6	37.92 -44%	70.3 4%	69.4 3%	66.8 -1%
sRGB Coverage	93.2	55.7 -40%	97.1 4%	92.6 -1%	89.6 -4%
AdobeRGB 1998 Coverage	69	39.23 -43%	71.1 3%	67.4 -2%	65.6 -5%
Screen		-77%	3%	-1%	-1%
Brightness middle	312.4	211.5 -32%	318.4 2%	305.4 -2%	280 -10%
Brightness	306	195 -36%	311 2%	277 -9%	267 -13%
Brightness Distribution	91	78 -14%	78 -14%	84 -8%	85 -7%
Black Level *	0.504	0.815 -62%	0.416 17%	0.72 -43%	0.32 37%
Contrast	620	260 -58%	765 23%	424 -32%	875 41%
Colorchecker dE 2000 *	4.17	11.81 -183%	3.67 12%	2.81 33%	4.75 -14%
Greyscale dE 2000 *	4.4	12.73 -189%	5.41 -23%	1.92 56%	5.91 -34%
Gamma	2.26 ^97%	2.17 ^101%	2.26 ^97%	2.21 ^100%	2.52 ^87%
CCT	6925 ^94%	17141 ^38%	7118 ^91%	6384 ^102%	5742 ^113%
Color Space (Percent of AdobeRGB 1998)	62	35.29 -43%	64.64 4%	60.4 -3%	59 -5%
Total Average (Program / Settings)		-60% / -68%	4% / 3%	-1% / -1%	-2% / -1%

* ... smaller is better

Cinebench R10 Shading 64Bit

6510 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

24459 Points

Cinebench R10 Rendering Single CPUs 64Bit

6610 Points

Cinebench R10 Shading 32Bit

6631

Cinebench R10 Rendering Multiple CPUs 32Bit

18911

Cinebench R10 Rendering Single 32Bit

5014

Cinebench R11.5 OpenGL 64Bit

59 fps

Cinebench R11.5 CPU Multi 64Bit

6.73 Points

Cinebench R11.5 CPU Single 64Bit

1.55 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

93.3 fps

Cinebench R15 CPU Multi 64Bit

608 Points

Cinebench R15 CPU Single 64Bit

135 Points

Help

... in comparison

Cinebench R11.5 | Cinebench R15 | Cinebench R10 | wPrime 2.10 | Super Pi Mod 1.5 XS 32M

Cinebench R11.5
CPU Single 64Bit (sort by value)
Aorus X3 Plus v3	1.55 Points
Gigabyte P34W V3	1.47 Points -5%
Lenovo IdeaPad Y50	1.46 Points -6%
Eurocom X8	1.77 Points +14%
CPU Multi 64Bit (sort by value)
Aorus X3 Plus v3	6.73 Points
Gigabyte P34W V3	6 Points -11%
Lenovo IdeaPad Y50	5.29 Points -21%
Eurocom X8	7.64 Points +14%
OpenGL 64Bit (sort by value)
Aorus X3 Plus v3	59 fps
Gigabyte P34W V3	59.6 fps +1%
Lenovo IdeaPad Y50	56 fps -5%
Eurocom X8	74.9 fps +27%

Cinebench R15
CPU Single 64Bit (sort by value)
Aorus X3 Plus v3	135 Points
Gigabyte P34W V3	130 Points -4%
Lenovo IdeaPad Y50	125 Points -7%
Eurocom X8	157 Points +16%
CPU Multi 64Bit (sort by value)
Aorus X3 Plus v3	608 Points
Gigabyte P34W V3	636 Points +5%
Lenovo IdeaPad Y50	490 Points -19%
Eurocom X8	708 Points +16%
Ref. Match 64Bit (sort by value)
Aorus X3 Plus v3	99.6 %
Gigabyte P34W V3	99.6 % 0%
Lenovo IdeaPad Y50	99.6 % 0%
Eurocom X8	99.6 % 0%
OpenGL 64Bit (sort by value)
Aorus X3 Plus v3	93.3 fps
Gigabyte P34W V3	110.2 fps +18%
Lenovo IdeaPad Y50	95.6 fps +2%
Eurocom X8	128.9 fps +38%

Cinebench R10
Shading 64Bit (sort by value)
Aorus X3 Plus v3	6510 Points
Gigabyte P34W V3	6849 Points +5%
Lenovo IdeaPad Y50	6759 Points +4%
Eurocom X8	12173 Points +87%
Rendering Multiple CPUs 64Bit (sort by value)
Aorus X3 Plus v3	24459 Points
Gigabyte P34W V3	25825 Points +6%
Lenovo IdeaPad Y50	18887 Points -23%
Eurocom X8	26547 Points +9%
Rendering Single CPUs 64Bit (sort by value)
Aorus X3 Plus v3	6610 Points
Gigabyte P34W V3	6611 Points 0%
Lenovo IdeaPad Y50	6493 Points -2%
Eurocom X8	7696 Points +16%
Shading 32Bit (sort by value)
Aorus X3 Plus v3	6631 Points
Gigabyte P34W V3	6848 Points +3%
Lenovo IdeaPad Y50	6738 Points +2%
Eurocom X8	11857 Points +79%
Rendering Multiple CPUs 32Bit (sort by value)
Aorus X3 Plus v3	18911 Points
Gigabyte P34W V3	19447 Points +3%
Lenovo IdeaPad Y50	14329 Points -24%
Eurocom X8	21022 Points +11%
Rendering Single 32Bit (sort by value)
Aorus X3 Plus v3	5014 Points
Gigabyte P34W V3	5080 Points +1%
Lenovo IdeaPad Y50	4999 Points 0%
Eurocom X8	5853 Points +17%

wPrime 2.10
1024m (sort by value)
Aorus X3 Plus v3	246 s *
Gigabyte P34W V3	238.4 s * +3%
Lenovo IdeaPad Y50	323 s * -31%
Eurocom X8	218.6 s * +11%
32m (sort by value)
Aorus X3 Plus v3	7.533 s *
Gigabyte P34W V3	7.206 s * +4%
Lenovo IdeaPad Y50	7.813 s * -4%
Eurocom X8	7.004 s * +7%

Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Aorus X3 Plus v3	576 s *
Gigabyte P34W V3	564 s * +2%
Lenovo IdeaPad Y50	569 s * +1%
Eurocom X8	491.5 s * +15%

Legend

Aorus X3 Plus v3 Intel Core i7-4710HQ, NVIDIA GeForce GTX 970M, 2x Lite-On LMT-256L9M (RAID 0)

Gigabyte P34W V3 Intel Core i7-4720HQ, NVIDIA GeForce GTX 970M, Lite-On LMT-128L9M

Lenovo IdeaPad Y50 Intel Core i7-4700HQ, NVIDIA GeForce GTX 860M, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache

Eurocom X8 Intel Core i7-4940MX, NVIDIA GeForce GTX 980M SLI, Samsung SSD 840 EVO 120GB mSATA

* ... smaller is better

PCMark 7 Score		6078 points
Help

... in comparison

HD Tune

CrystalDiskMark 3.0

AS SSD

2x Lite-On LMT-256L9M (RAID 0)

Transfer Rate Minimum: 694 MB/s

Transfer Rate Maximum: 994 MB/s

Transfer Rate Average: 964 MB/s

Access Time: 0.1 ms

Burst Rate: 1695 MB/s

CPU Usage: 8.1 %

3DMark 06 Standard Score		26947 points
3DMark 11 Performance		9203 points
3DMark Ice Storm Standard Score		76306 points
3DMark Cloud Gate Standard Score		18084 points
3DMark Fire Strike Score		6514 points
3DMark Fire Strike Extreme Score		3315 points
Help

... in comparison

	high	ultra
Sleeping Dogs (2012)	133.2	45.1
Guild Wars 2 (2012)	60.6	51.7
Tomb Raider (2013)	186.1	79.3
StarCraft II: Heart of the Swarm (2013)	116.6	79.3
BioShock Infinite (2013)	154.7	72
Metro: Last Light (2013)	93.6	52.6
Thief (2014)	67.9	47.4
Middle-earth: Shadow of Mordor (2014)	65.7	52.5
Ryse: Son of Rome (2014)	48.8	45.3
F1 2014 (2014)	111	97

Sleeping Dogs
1920x1080 Extreme Preset AA:Extreme (sort by value)
Aorus X3 Plus v3	45.1 fps
Razer Blade Pro 17 inch 2015	24.3 fps -46%
Lenovo Y70 DU004HUS	20 fps -56%
Eurocom P5 Pro Extreme	56.5 fps +25%
1366x768 High Preset AA:High (sort by value)
Aorus X3 Plus v3	133.2 fps
Razer Blade Pro 17 inch 2015	93.1 fps -30%
Lenovo Y70 DU004HUS	70 fps -47%
Eurocom P5 Pro Extreme	162.3 fps +22%

Guild Wars 2
1920x1080 All Maximum / On AA:FX (sort by value)
Aorus X3 Plus v3	51.7 fps
Razer Blade Pro 17 inch 2015	36 fps -30%
Lenovo Y70 DU004HUS	34 fps -34%
Eurocom P5 Pro Extreme	68.4 fps +32%
1366x768 Best Appearance Preset AA:FX (sort by value)
Aorus X3 Plus v3	60.6 fps
Razer Blade Pro 17 inch 2015	62.6 fps +3%
Lenovo Y70 DU004HUS	48 fps -21%
Eurocom P5 Pro Extreme	81.7 fps +35%

Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Aorus X3 Plus v3	79.3 fps
Razer Blade Pro 17 inch 2015	50.8 fps -36%
Lenovo Y70 DU004HUS	44 fps -45%
Eurocom P5 Pro Extreme	102.6 fps +29%
1366x768 High Preset AA:FX AF:8x (sort by value)
Aorus X3 Plus v3	186.1 fps
Razer Blade Pro 17 inch 2015	113.2 fps -39%
Lenovo Y70 DU004HUS	97 fps -48%
Eurocom P5 Pro Extreme	241.8 fps +30%

StarCraft II: Heart of the Swarm
1920x1080 Ultra / Extreme AA:on (sort by value)
Aorus X3 Plus v3	79.3 fps
Razer Blade Pro 17 inch 2015	55.1 fps -31%
Lenovo Y70 DU004HUS	56 fps -29%
Eurocom P5 Pro Extreme	101.5 fps +28%
1366x768 High AA:on (sort by value)
Aorus X3 Plus v3	116.6 fps
Razer Blade Pro 17 inch 2015	127.8 fps +10%
Lenovo Y70 DU004HUS	97 fps -17%
Eurocom P5 Pro Extreme	123 fps +5%

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Aorus X3 Plus v3	72 fps
Razer Blade Pro 17 inch 2015	46.8 fps -35%
Lenovo Y70 DU004HUS	41 fps -43%
Eurocom P5 Pro Extreme	85.8 fps +19%
1366x768 High Preset (sort by value)
Aorus X3 Plus v3	154.7 fps
Razer Blade Pro 17 inch 2015	120 fps -22%
Lenovo Y70 DU004HUS	102 fps -34%
Eurocom P5 Pro Extreme	217.8 fps +41%

Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Aorus X3 Plus v3	52.6 fps
Razer Blade Pro 17 inch 2015	32.2 fps -39%
Lenovo Y70 DU004HUS	28 fps -47%
Eurocom P5 Pro Extreme	65 fps +24%
1366x768 High (DX11) AF:16x (sort by value)
Aorus X3 Plus v3	93.6 fps
Razer Blade Pro 17 inch 2015	61.9 fps -34%
Lenovo Y70 DU004HUS	52 fps -44%
Eurocom P5 Pro Extreme	117.5 fps +26%

Thief
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Aorus X3 Plus v3	47.4 fps
Razer Blade Pro 17 inch 2015	28.3 fps -40%
Lenovo Y70 DU004HUS	24 fps -49%
Eurocom P5 Pro Extreme	62.5 fps +32%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Aorus X3 Plus v3	67.9 fps
Razer Blade Pro 17 inch 2015	54.1 fps -20%
Lenovo Y70 DU004HUS	43 fps -37%
Eurocom P5 Pro Extreme	101 fps +49%

Middle-earth: Shadow of Mordor
1920x1080 Ultra Preset (HD Package) (sort by value)
Aorus X3 Plus v3	52.5 fps
Razer Blade Pro 17 inch 2015	31 fps -41%
Eurocom P5 Pro Extreme	66.6 fps +27%
1920x1080 High Preset (sort by value)
Aorus X3 Plus v3	65.7 fps
Razer Blade Pro 17 inch 2015	40.1 fps -39%
Eurocom P5 Pro Extreme	90.7 fps +38%

Ryse: Son of Rome
1920x1080 Very High Texture Res. + High Graphics Quality (Motion Blur & Temporal AA On, Rest Off/Disabled) AF:8x (sort by value)
Aorus X3 Plus v3	45.3 fps
Razer Blade Pro 17 inch 2015	28.2 fps -38%
Eurocom P5 Pro Extreme	56.6 fps +25%
1920x1080 High Texture Res. + High Graphics Quality (Rest Off/Disabled) AF:8x (sort by value)
Aorus X3 Plus v3	48.8 fps
Razer Blade Pro 17 inch 2015	30.5 fps -37%
Lenovo Y70 DU004HUS	23 fps -53%
Eurocom P5 Pro Extreme	58 fps +19%
1366x768 Medium Texture Res. + Normal Graphics Quality (Rest Off/Disabled) AF:4x (sort by value)
Lenovo Y70 DU004HUS	47 fps

F1 2014
1920x1080 Ultra Preset AA:4x MS (sort by value)
Aorus X3 Plus v3	97 fps
Razer Blade Pro 17 inch 2015	94 fps -3%
Lenovo Y70 DU004HUS	77 fps -21%
Eurocom P5 Pro Extreme	116 fps +20%
1920x1080 High Preset (sort by value)
Aorus X3 Plus v3	111 fps
Razer Blade Pro 17 inch 2015	113 fps +2%
Lenovo Y70 DU004HUS	96 fps -14%
Eurocom P5 Pro Extreme	118 fps +6%

Legend

Aorus X3 Plus v3 Intel Core i7-4710HQ, NVIDIA GeForce GTX 970M, 2x Lite-On LMT-256L9M (RAID 0)

Razer Blade Pro 17 inch 2015 Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Samsung PM851 Series MZMTE256HMHP

Lenovo Y70 DU004HUS Intel Core i7-4710HQ, NVIDIA GeForce GTX 860M, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache

Eurocom P5 Pro Extreme Intel Core i7-4790K, NVIDIA GeForce GTX 980M, 2x Micron M600 MTFDDAV128MBF (RAID 0)

Noise Level

Idle		30.9 / 31 / 31.1 dB(A)
Load		36.7 / 60 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: BK Precision 732A (15 cm distance)

Max. Load

Idle


28.8 °C	44.4 °C	36.2 °C
31.4 °C	45.2 °C	40 °C
30.8 °C	29.6 °C	33.8 °C

Maximum: 45.2 °C
Average: 35.6 °C


32.2 °C	53.2 °C	35 °C
39.4 °C	49.2 °C	36.2 °C
34.8 °C	34.6 °C	33.2 °C

Maximum: 53.2 °C
Average: 38.6 °C

Power Supply (max.) 53.4 °C | Room Temperature 22 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 35.6 °C / 96 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 45.2 °C / 113 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 53.2 °C / 128 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 28.8 °C / 84 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.8 °C / 92.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-4.9 °C / -8.8 F).

Battery Runtime

Idle (without WLAN, min brightness)		7h 03min
WiFi Websurfing		4h 18min
Load (maximum brightness)		1h 36min

	Aorus X3 Plus v3	Lenovo Y40-59423035	Razer Blade 14 2015	Gigabyte P34W V3	SCHENKER C404
Battery Runtime		49%	-18%	4%	-15%
Reader / Idle	423	800 89%	380 -10%	522 23%	326 -23%
WiFi v1.3	258		222 -14%
Load	96	105 9%	66 -31%	82 -15%	90 -6%
WiFi		513		284	248

Pros

+ 出色的设计

+ 全铝合金机身和坚固的底座

+ 高质量QHD IPS屏幕

+ 易用的Aorus软件，便于系统控制

+ 强劲的处理器和显卡性能，无降频问题

+ 双视频输出接口

+ 便于维护内部硬件

+ 3个mSATA接口支持RAID 0

Cons

- 屏幕转轴较为脆弱

- 屏幕上盖不够坚固

- 较差的触控板响应

- 游戏时风扇很吵

- 无2.5寸SATA插槽

- 使用电池时性能降低

- 键盘尺寸较小

- 不可拆卸的电池

- 售价高昂

In review: Aorus X3 Plus v3. Test model provided by Aorus

在17寸游戏本产品市场中，用户有很多的选择，在成功产品如华硕ROG或Alienware机型的光环下，我们很难推荐Aorus X7 Pro。而在较小也冷清很多的14寸游戏本市场中，X3 Plus就获得了更加有利的地位。它的设计十分独特，但并不怪异，磨砂QHD+屏幕的品质很高，而全铝合金机身的底座也十分坚固，它的性能在运行游戏时不会过热下降。三个mSATA插槽可能有些夸张，我们可能更希望得到一个标准2.5寸SATA插槽来储存更多游戏安装文件。不论如何，X3 Plus相比Razer Blade 14提供了更丰富的接口，和更方便的系统控制，不过没有采用最新的玻璃触屏。

需要提到的弱点包括较高的风扇噪音和表面温度，和一般的扬声器。不过，说实话——希望一台 14寸以下的超薄笔记本能够有低噪音低发热量，出色扬声器，以及高端GTX 970M显卡的用户需要继续寻找了。至少，它的风扇设定可以让用户根据负载进行手动控制。

… X3 Plus相比Razer Blade 14提供了更丰富的接口，和更方便的系统控制…

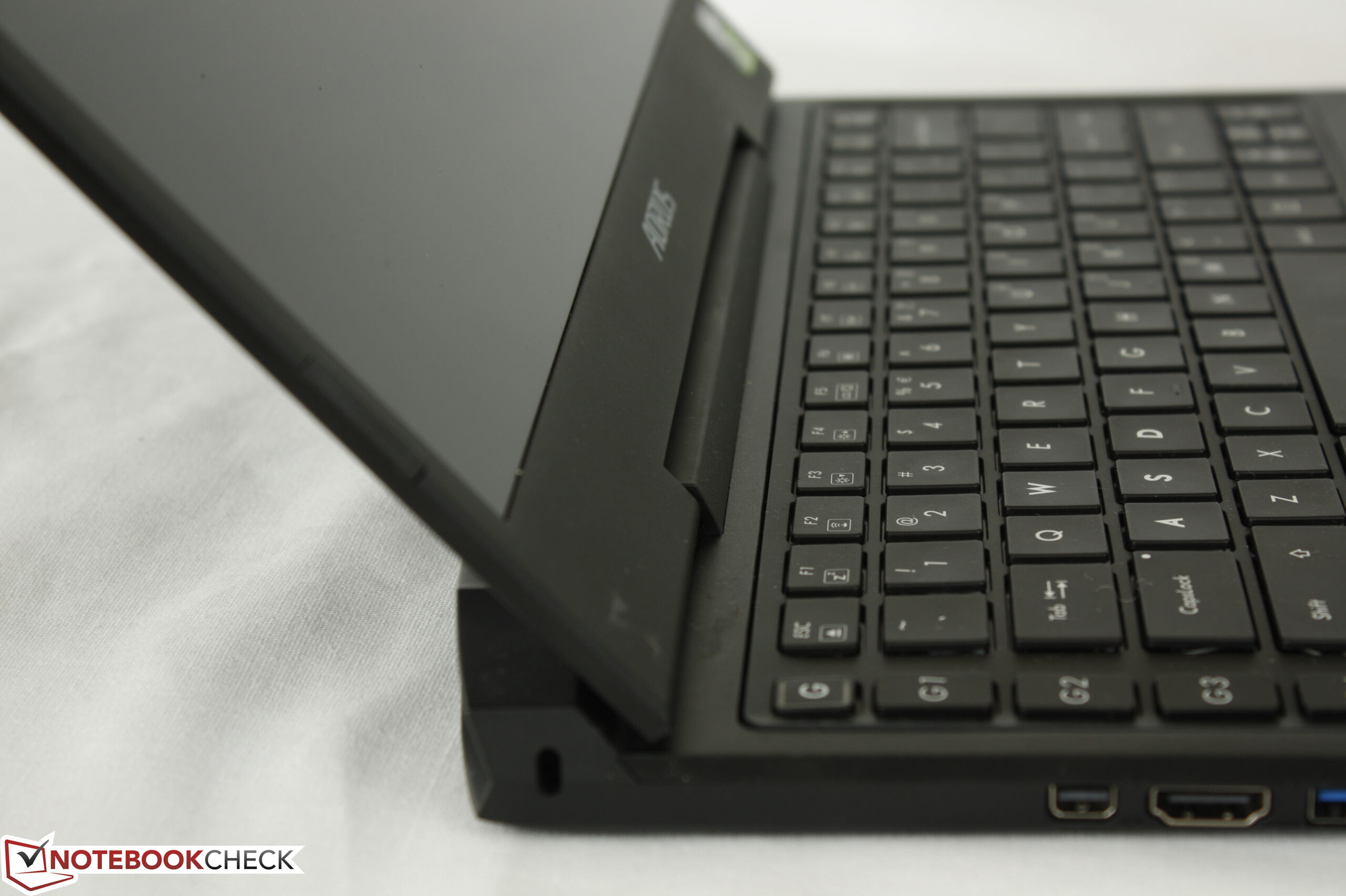

它的屏幕上盖较为脆弱，相比Blade 14，甚至技嘉P34W都更加容易弯折。它的底座相比就显得更加坚固了，不过在屏幕转轴的地方仍然让人有些担心。较薄的一体式机身设计让Blade 14相比Aorus在机身质量上占据了先机。它的镜面触控版设计也有些问题，在实际使用中并不方便。如果生产商可以在以后的版本中改进X3 Plus的这些问题的话，那么Aorus将会成为14寸游戏本中的最佳选择。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Aorus X3 Plus v3 - 2015-05-18 05/18/2015 v4 ^(old)
Allen Ngo

Chassis

78 / 98 → 80%

Keyboard

84%

Pointing Device

76%

Connectivity

66 / 81 → 81%

Weight

65 / 10-66 → 98%

Battery

84%

Display

86%

Games Performance

95%

Application Performance

94%

Temperature

84 / 95 → 88%

Noise

74 / 90 → 82%

Audio

78%

Average

80%

85%

Gaming - Weighted Average

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5240 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Aorus X3 Plus v3 笔记本电脑简短评测

Allen Ngo, 2015-05-22 (Update: 2024-11- 4)
