Aorus X5S v5 笔记本电脑简短评测

一大于二。 更新后的X5向我们证明了一个更强劲的单芯片显卡可以优于较弱显卡的双芯片SLI模式。
Gaming Geforce Windows Skylake Laptop / Notebook

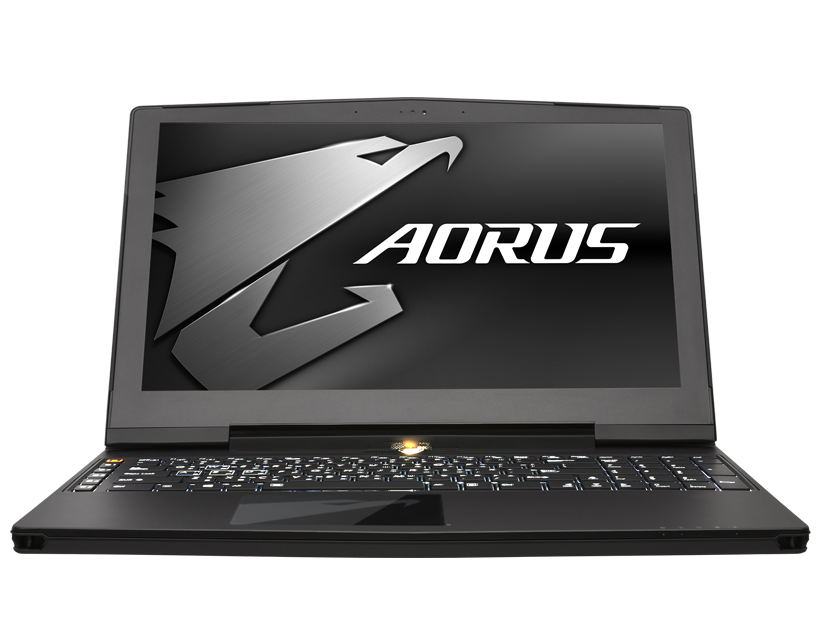

Aorus X5S v5 (X5 Series)

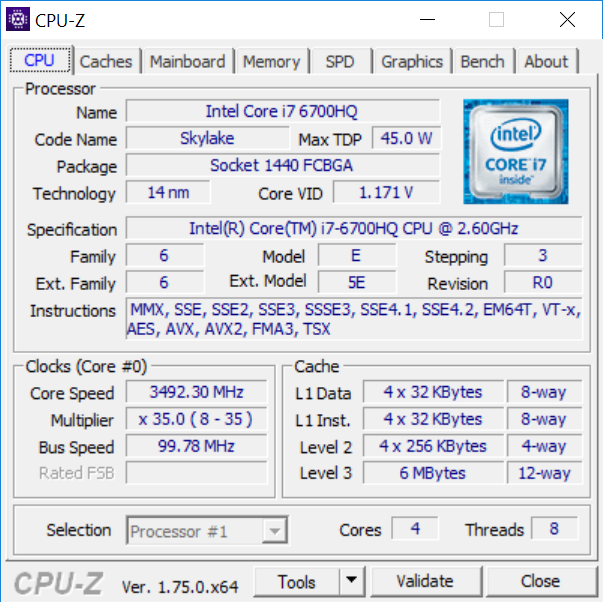

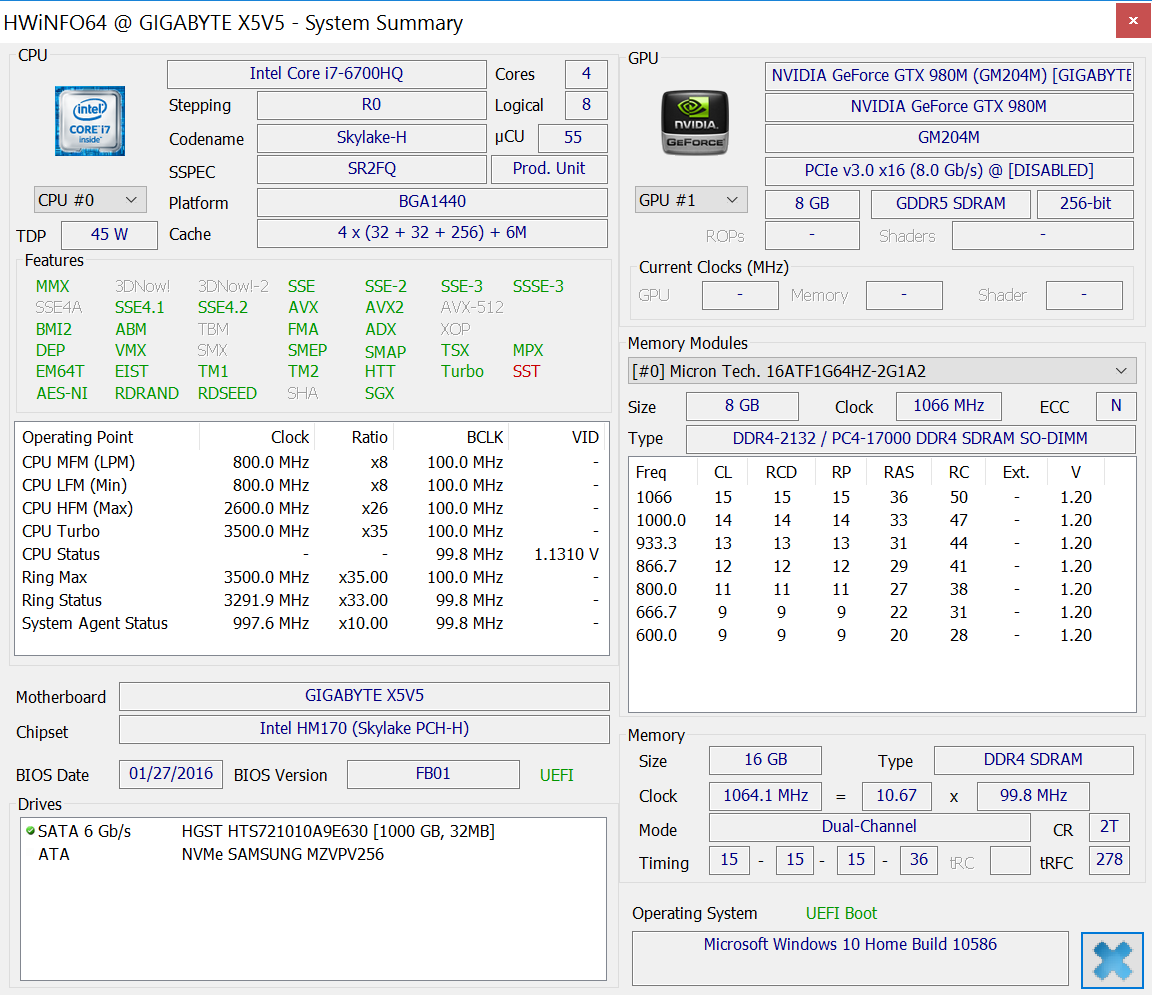

Processor
Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

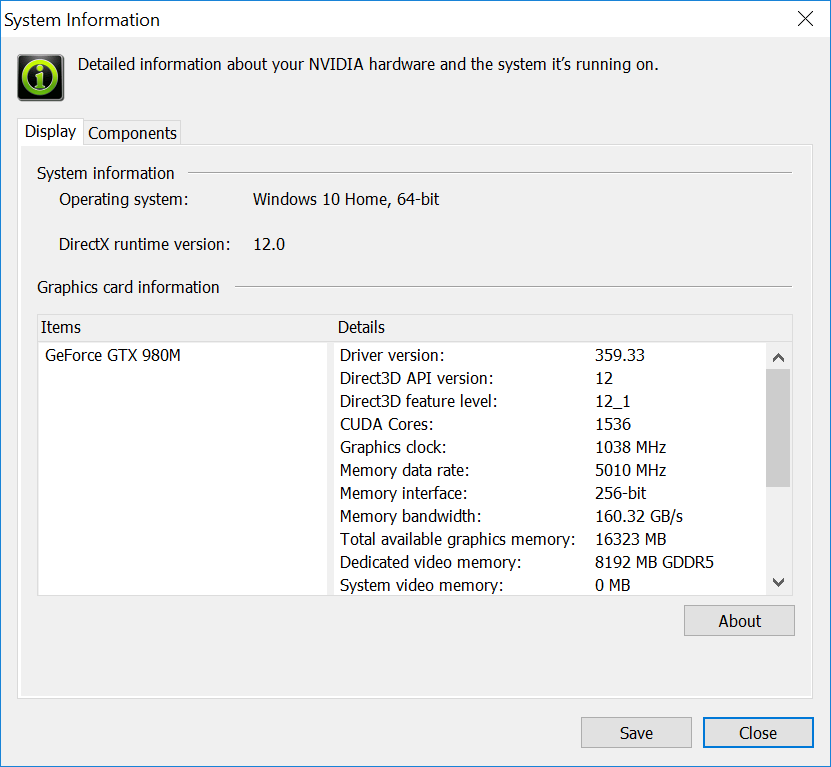

Graphics adapter

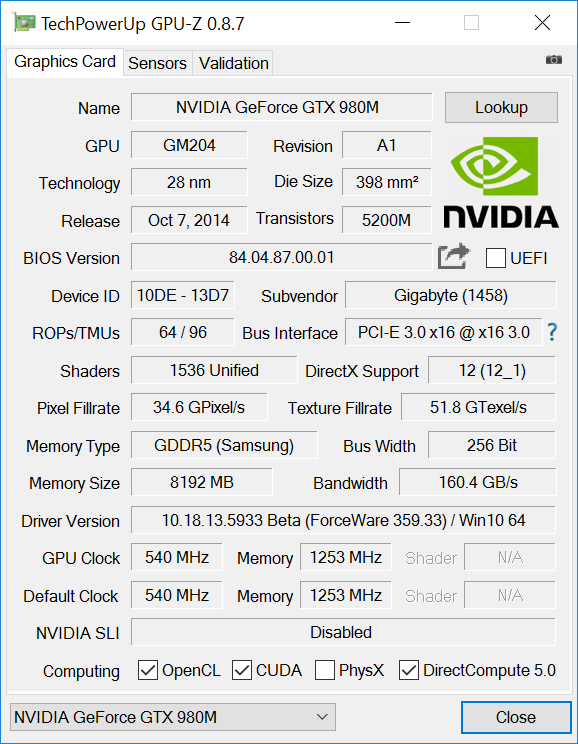

NVIDIA GeForce GTX 980M - 8 GB VRAM, Core: 1038 MHz, RAM: 5010 MHz, 359.33, Optimus

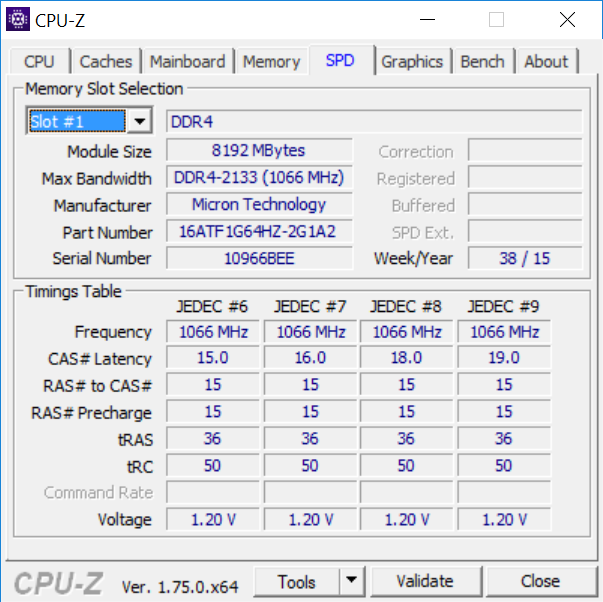

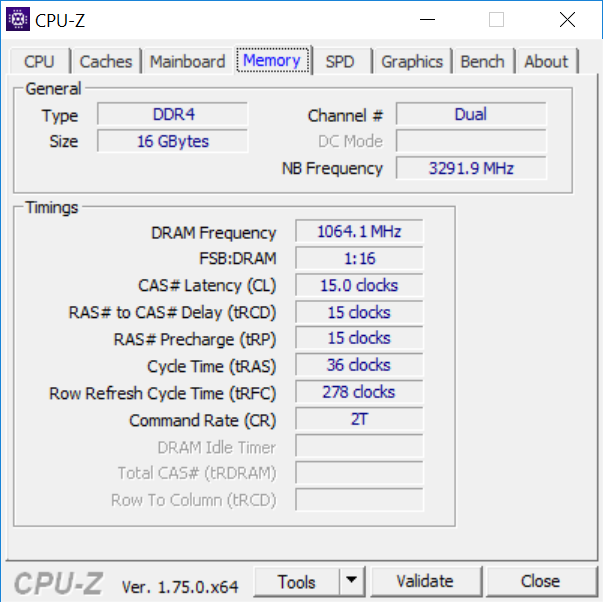

Memory
16 GB
, 1300 MHz, 15-15-15-36, 双通道, DDR4, PC4-17000
Display
15.60 inch 16:9, 3840 x 2160 pixel 282 PPI, IPS, Name: Sharp LQ156D1JW04, ID: SHP1436, glossy: no

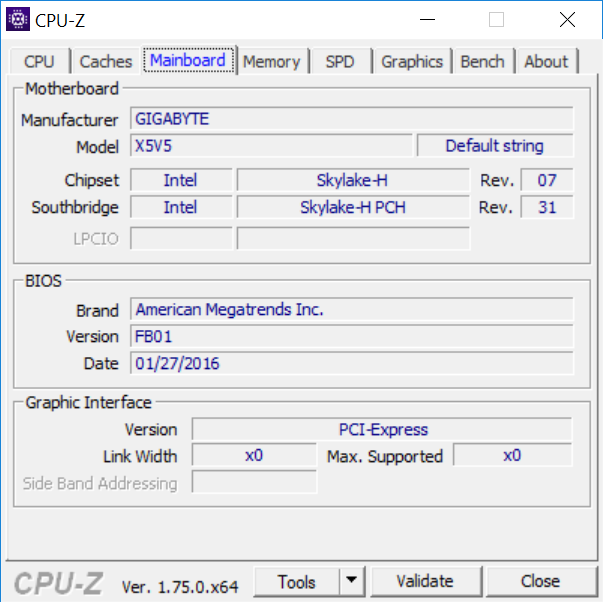

Mainboard
Intel HM170 (Skylake PCH-H)
Storage
Samsung SM951 MZVPV256 m.2, 256 GB
, Secondary: HGST HTS721010A9E630
Soundcard
Intel Skylake PCH-H High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米耳机和麦克风接口, Card Reader: SD, Brightness Sensor
Networking
Qualcomm Killer e2200 PCI-E Gigabit Ethernet Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1 + LE
Size
height x width x depth (in mm): 22.9 x 390 x 272
Battery
73.26 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 高清
Additional features
Speakers: 1.5 W 立体声扬声器 + 2 W 低音炮, Keyboard: 孤岛式, Keyboard Light: yes, 清洁布，USB闪存（以及驱动程序），质保卡，快速开始说明, 12 Months Warranty
Weight
2.532 kg, Power Supply: 825 g
Price
2300 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



❌
380 mm 269 mm 34 mm 2.6 kg390 mm 262.8 mm 23.9 mm 2.3 kg390 mm 272 mm 22.9 mm 2.5 kg386 mm 264 mm 26 mm 2.6 kg390 mm 266 mm 20 mm 2 kg385 mm 255 mm 22 mm 2.3 kg380 mm 258 mm 22 mm 2.1 kg357 mm 235 mm 17 mm 2 kg297 mm 210 mm 1 mm 5.7 g

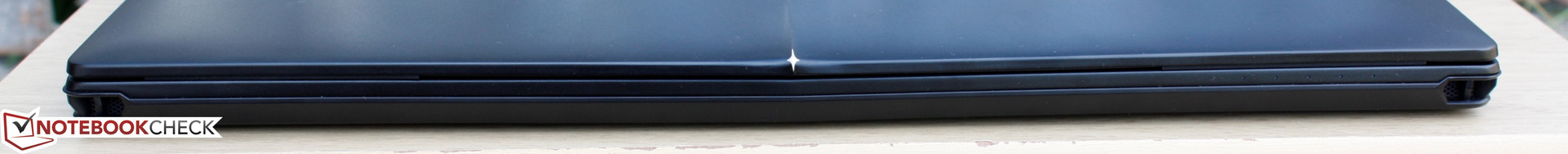

Front: No connectivity
Front: No connectivity

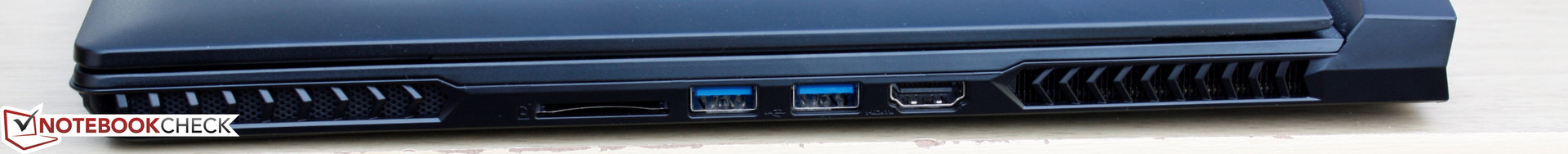

Right: SD reader, 2x USB 3.0, 1x HDMI 2.0
Right: SD reader, 2x USB 3.0, 1x HDMI 2.0

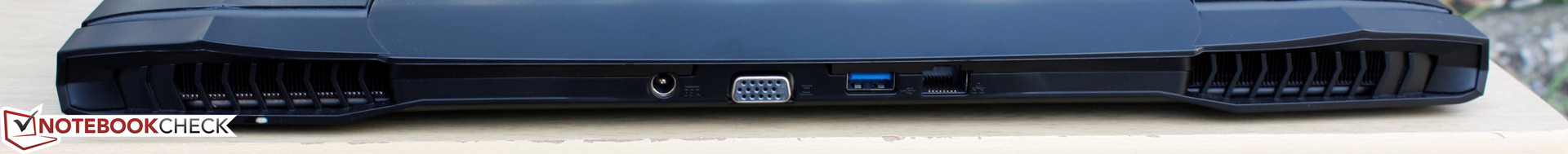

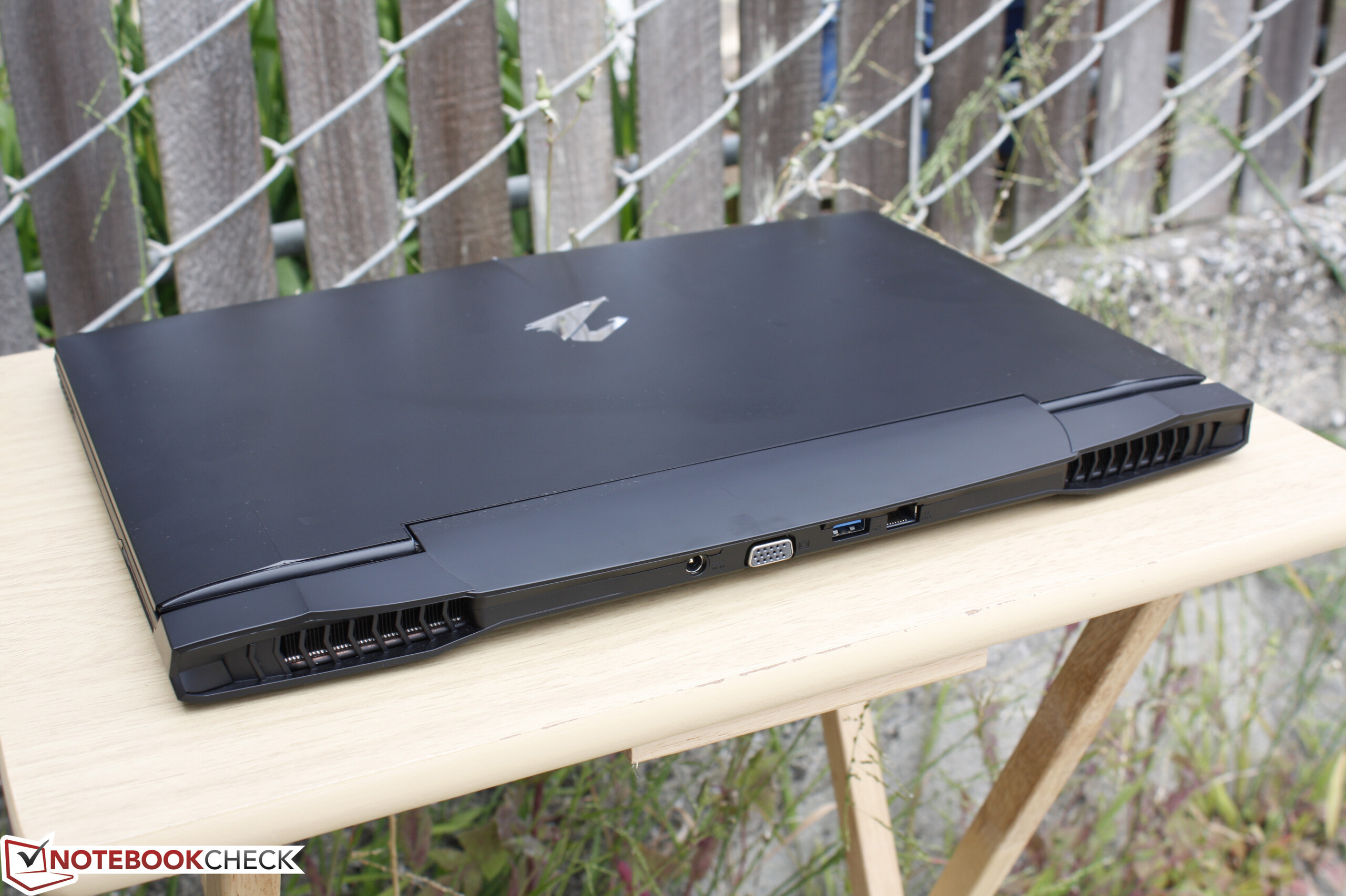

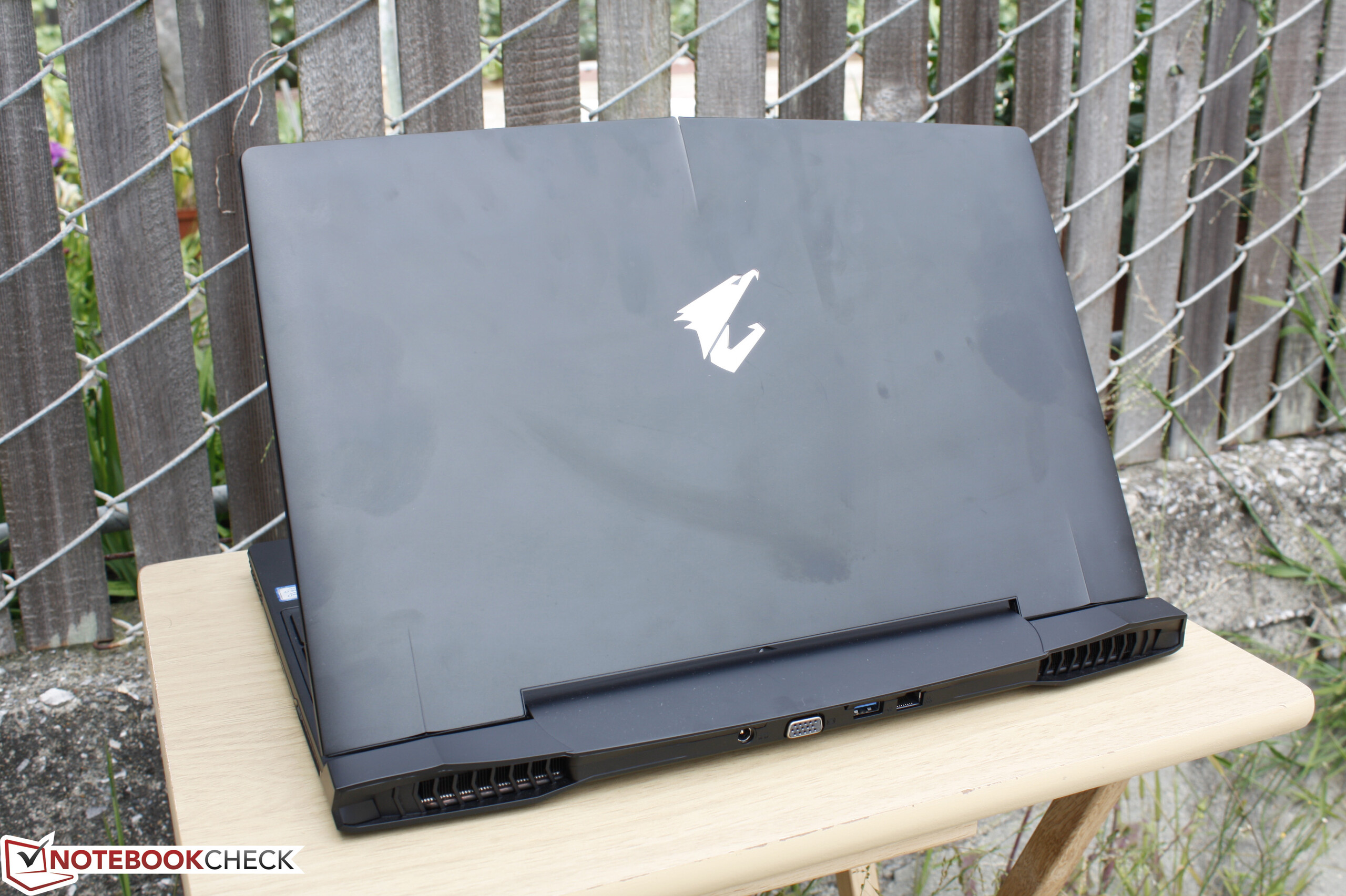

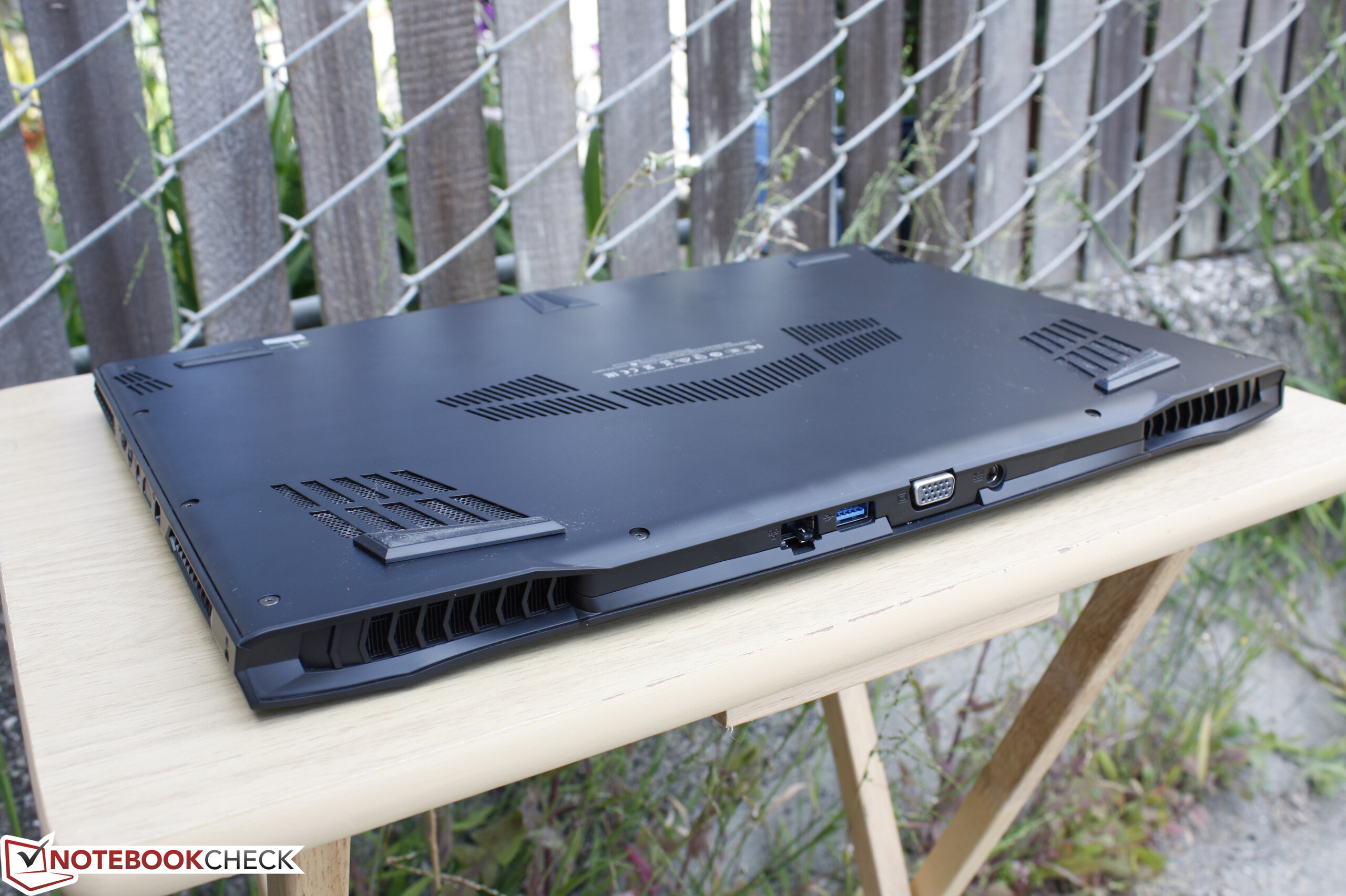

Rear: AC adapter, VGA-out, 1x USB 3.0, Gigabit Ethernet
Rear: AC adapter, VGA-out, 1x USB 3.0, Gigabit Ethernet

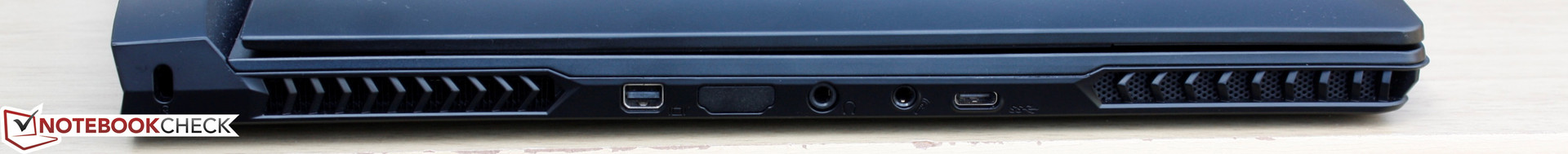

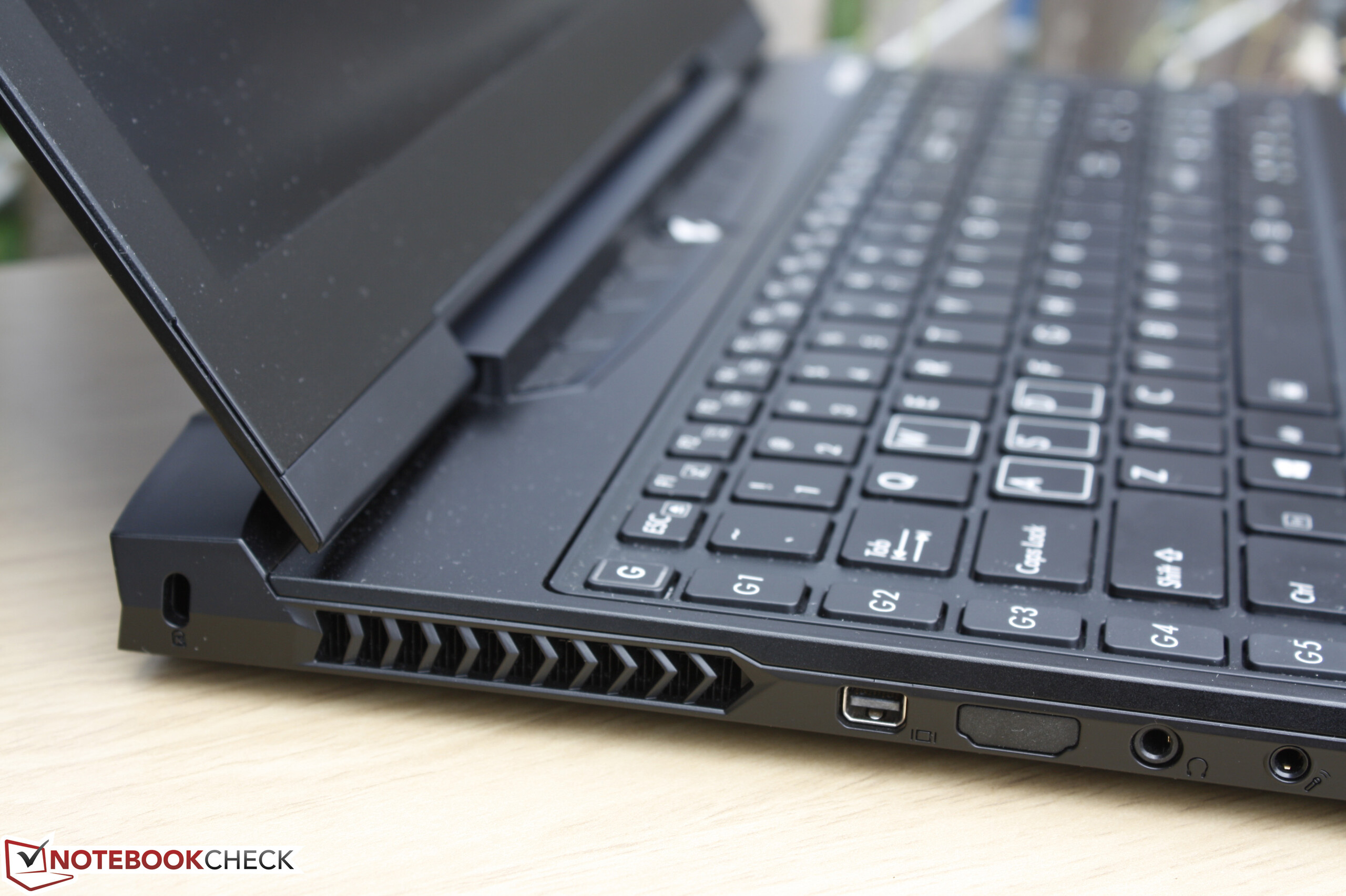

Left: 1x mDP, 1x HDMI (covered), 1x 3.5 mm headphones, 1x 3.5 mm microphone, 1x USB 3.1 Type-C Gen. 2
Left: 1x mDP, 1x HDMI (covered), 1x 3.5 mm headphones, 1x 3.5 mm microphone, 1x USB 3.1 Type-C Gen. 2
318.8
cd/m²		342.6
cd/m²		320.3
cd/m²
317
cd/m²		324.7
cd/m²		315.6
cd/m²
335
cd/m²		309.4
cd/m²		335.3
cd/m²
Distribution of brightness
tested with X-Rite i1Pro Basic 2
Maximum: 342.6 cd/m² (Nits) Average: 324.3 cd/m² Minimum: 10.642 cd/m²
Brightness Distribution: 90 %
Center on Battery: 324.7 cd/m²
Contrast: 806:1 (Black: 0.403 cd/m²)
ΔE Color 2.62 | 0.5-29.43 Ø4.93
ΔE Greyscale 2.55 | 0.5-98 Ø5.2
92.3% sRGB (Argyll 1.6.3 3D)
59.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
65% AdobeRGB 1998 (Argyll 2.2.0 3D)
92.7% sRGB (Argyll 2.2.0 3D)
63.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.11
Aorus X5S v5
15.6", 3840x2160		Aorus X5
15.6", 2880x1620		HP ZBook 15 G3
15.6", 1920x1080		MSI GS60-6QE4K16H21
15.6", 3840x2160		Dell XPS 15-9550 i7
15.6", 3840x2160
Display
-5%
5%
-15%
33%
Display P3 Coverage
63.5
61.5
-3%
66.8
5%
53.1
-16%
87.8
38%
sRGB Coverage
92.7
85.7
-8%
95.5
3%
80
-14%
100
8%
AdobeRGB 1998 Coverage
65
61.8
-5%
69
6%
54.8
-16%
99.4
53%
Response Times
-10%
199%
-19%
Response Time Grey 50% / Grey 80% *
41.2 ?(20, 21.2)
54 ?(24.4, 29.6)
-31%
40 ?(12, 28)
3%
58 ?(21, 37)
-41%
Response Time Black / White *
36 ?(17.2, 18.8)
35.6 ?(11.6, 24)
1%
26 ?(8, 18)
28%
35 ?(12, 23)
3%
PWM Frequency
198 ?(20)
198 ?(95)
0%
1316 ?(20)
565%
Screen
-16%
-39%
-54%
-11%
Brightness middle
324.7
324.3
0%
306
-6%
212
-35%
361
11%
Brightness
324
317
-2%
289
-11%
197
-39%
344
6%
Brightness Distribution
90
87
-3%
85
-6%
78
-13%
90
0%
Black Level *
0.403
0.553
-37%
0.34
16%
0.49
-22%
0.38
6%
Contrast
806
586
-27%
900
12%
433
-46%
950
18%
Colorchecker dE 2000 *
2.62
3.53
-35%
5.1
-95%
7.8
-198%
5.34
-104%
Colorchecker dE 2000 max. *
4.59
9.9
-116%
Greyscale dE 2000 *
2.55
3.12
-22%
7.4
-190%
5.23
-105%
4.84
-90%
Gamma
2.11 104%
2.28 96%
2.37 93%
3.05 72%
2.21 100%
CCT
7000 93%
6600 98%
7263 89%
6693 97%
7395 88%
Color Space (Percent of AdobeRGB 1998)
59.4
55.4
-7%
63
6%
50
-16%
89
50%
Color Space (Percent of sRGB)
92.3
85.2
-8%
95
3%
80
-13%
100
8%
Total Average (Program / Settings)
-11% / -13%
-15% / -25%
43% / 4%
1% / -2%

* ... smaller is better

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

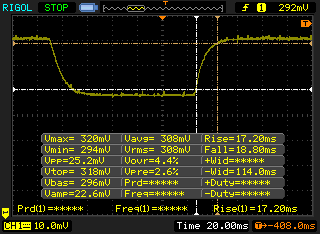

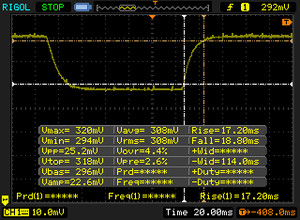

   ↔    Response Time Black to White
36 ms ... rise ↗ and fall ↘ combined↗ 17.2 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

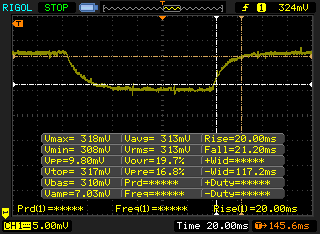

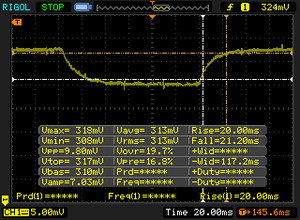

   ↔    Response Time 50% Grey to 80% Grey
41.2 ms ... rise ↗ and fall ↘ combined↗ 20 ms rise
↘ 21.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 63 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

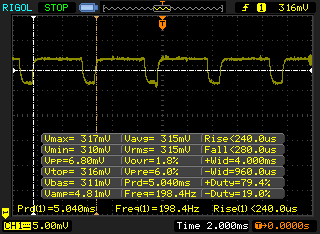

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 198 Hz ≤ 20 % brightness setting

The display backlight flickers at 198 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 20 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 198 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10 | Super Pi Mod 1.5 XS 32M
Cinebench R15
CPU Single 64Bit (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
138 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
166 Points +20%
MSI GT72S 6QE-071PL
GeForce GTX 980M, 6820HK, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0)
154 Points +12%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
144 Points +4%
Clevo P150SM-A
GeForce GTX 870M, 4700MQ, Crucial MX100 256 GB
135 Points -2%
CPU Multi 64Bit (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
681 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
865 Points +27%
MSI GT72S 6QE-071PL
GeForce GTX 980M, 6820HK, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0)
710 Points +4%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
719 Points +6%
Clevo P150SM-A
GeForce GTX 870M, 4700MQ, Crucial MX100 256 GB
644 Points -5%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
1.64 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
1.91 Points +16%
MSI GT72S 6QE-071PL
GeForce GTX 980M, 6820HK, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0)
1.74 Points +6%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
1.68 Points +2%
Clevo P150SM-A
GeForce GTX 870M, 4700MQ, Crucial MX100 256 GB
1.5 Points -9%
CPU Multi 64Bit (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
7.47 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
9.56 Points +28%
MSI GT72S 6QE-071PL
GeForce GTX 980M, 6820HK, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0)
7.74 Points +4%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
7.96 Points +7%
Clevo P150SM-A
GeForce GTX 870M, 4700MQ, Crucial MX100 256 GB
6.99 Points -6%
Cinebench R10
Rendering Multiple CPUs 32Bit (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
20324 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
26150 Points +29%
MSI GT72S 6QE-071PL
GeForce GTX 980M, 6820HK, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0)
21181 Points +4%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
21681 Points +7%
Clevo P150SM-A
GeForce GTX 870M, 4700MQ, Crucial MX100 256 GB
19019 Points -6%
Rendering Single 32Bit (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
5432 Points
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
6487 Points +19%
MSI GT72S 6QE-071PL
GeForce GTX 980M, 6820HK, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0)
5648 Points +4%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
5567 Points +2%
Clevo P150SM-A
GeForce GTX 870M, 4700MQ, Crucial MX100 256 GB
5007 Points -8%
wPrime 2.10 - 1024m (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
229.5 s *
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
178.5 s * +22%
MSI GT72S 6QE-071PL
GeForce GTX 980M, 6820HK, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0)
222.7 s * +3%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
206.3 s * +10%
Clevo P150SM-A
GeForce GTX 870M, 4700MQ, Crucial MX100 256 GB
240.1 s * -5%
Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
565 s *
DogHouse Systems Mobius SS
GeForce GTX 980M, 6700K, Samsung SSD 850 EVO 1TB
498.3 s * +12%
MSI GT72S 6QE-071PL
GeForce GTX 980M, 6820HK, 2x Toshiba HG6 THNSNJ128G8NU (RAID 0)
543 s * +4%
MSI GE62 2QC-468XPL
GeForce GTX 960M, 5700HQ, Samsung SSD PM851 256 GB MZNTE256HMHP
574 s * -2%
Clevo P150SM-A
GeForce GTX 870M, 4700MQ, Crucial MX100 256 GB
565 s * -0%

* ... smaller is better

Cinebench R10 Shading 32Bit
6840
Cinebench R10 Rendering Multiple CPUs 32Bit
20324
Cinebench R10 Rendering Single 32Bit
5432
Cinebench R11.5 OpenGL 64Bit
61.4 fps
Cinebench R11.5 CPU Multi 64Bit
7.47 Points
Cinebench R11.5 CPU Single 64Bit
1.64 Points
Cinebench R15 Ref. Match 64Bit
99.6 %
Cinebench R15 OpenGL 64Bit
99.5 fps
Cinebench R15 CPU Multi 64Bit
681 Points
Cinebench R15 CPU Single 64Bit
138 Points
Help
PCMark 8
Home Score Accelerated v2 (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
3260 Points
Asus G752VY-RH71
GeForce GTX 980M, 6700HQ, Samsung SSD 950 Pro 512GB m.2 NVMe
5026 Points +54%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
4317 Points +32%
Alienware 15 R2 (Skylake)
GeForce GTX 980M, 6700HQ, Samsung PM951 NVMe MZ-VLV256D
3822 Points +17%
Gigabyte P35X v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e
3301 Points +1%
MSI GS60-6QE4K16H21
GeForce GTX 970M, 6700HQ, Hynix HFS256G3MND
3134 Points -4%
Work Score Accelerated v2 (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
3937 Points
Asus G752VY-RH71
GeForce GTX 980M, 6700HQ, Samsung SSD 950 Pro 512GB m.2 NVMe
5535 Points +41%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
4578 Points +16%
Alienware 15 R2 (Skylake)
GeForce GTX 980M, 6700HQ, Samsung PM951 NVMe MZ-VLV256D
5011 Points +27%
Gigabyte P35X v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e
3999 Points +2%
Creative Score Accelerated v2 (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
4747 Points
Asus G752VY-RH71
GeForce GTX 980M, 6700HQ, Samsung SSD 950 Pro 512GB m.2 NVMe
7127 Points +50%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
5270 Points +11%
Alienware 15 R2 (Skylake)
GeForce GTX 980M, 6700HQ, Samsung PM951 NVMe MZ-VLV256D
4541 Points -4%
PCMark 8 Home Score Accelerated v2
3260 points
PCMark 8 Creative Score Accelerated v2
4747 points
PCMark 8 Work Score Accelerated v2
3937 points
Help
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2		Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)		HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e		MSI GS60-6QE4K16H21
GeForce GTX 970M, 6700HQ, Hynix HFS256G3MND		Acer Predator 15 G9-591-74ZV
GeForce GTX 980M, 6700HQ, Lite-On CV1-8B256
AS SSD
-16%
19%
-71%
-53%
Copy Game MB/s
688
705
2%
1023
49%
348.4
-49%
Copy Program MB/s
357.9
327.5
-8%
585
63%
243.6
-32%
Copy ISO MB/s
1319
894
-32%
1494
13%
391.3
-70%
Score Total
2433
1618
-33%
2495
3%
998
-59%
826
-66%
Score Write
509
730
43%
548
8%
352
-31%
316
-38%
Score Read
1298
584
-55%
1302
0%
425
-67%
337
-74%
Access Time Write *
0.032
0.046
-44%
0.024
25%
0.112
-250%
0.05
-56%
Access Time Read *
0.049
0.051
-4%
0.031
37%
0.089
-82%
0.063
-29%
4K-64 Write
290.8
565
94%
257
-12%
232.2
-20%
212.3
-27%
4K-64 Read
1059
457.8
-57%
1066
1%
344.7
-67%
257.4
-76%
4K Write
115.9
79.7
-31%
173.1
49%
80.9
-30%
71.5
-38%
4K Read
45.81
32.68
-29%
52.5
15%
28.77
-37%
28.16
-39%
Seq Write
1019
857
-16%
1181
16%
389.3
-62%
324.1
-68%
Seq Read
1925
932
-52%
1841
-4%
516
-73%
513
-73%

* ... smaller is better

HD Tune
CrystalDiskMark 3.0
hddimg
Samsung SM951 MZVPV256 m.2
Transfer Rate Minimum: 73 MB/s
Transfer Rate Maximum: 151.6 MB/s
Transfer Rate Average: 118.9 MB/s
Access Time: 15.4 ms
Burst Rate: 174.9 MB/s
CPU Usage: 4.1 %
3DMark 11 | 3DMark
3DMark 11
1280x720 Performance (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
11055 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
15273 Points +38%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
11638 Points +5%
Gigabyte P57W
GeForce GTX 970M, 6700HQ, Lite-On IT L8T-256L9G
9363 Points -15%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
7943 Points -28%
1280x720 Performance GPU (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
12197 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
17109 Points +40%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
14428 Points +18%
Gigabyte P57W
GeForce GTX 970M, 6700HQ, Lite-On IT L8T-256L9G
9713 Points -20%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
8234 Points -32%
3DMark
1920x1080 Fire Strike Score (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
8179 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
11183 Points +37%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
7815 Points -4%
Gigabyte P57W
GeForce GTX 970M, 6700HQ, Lite-On IT L8T-256L9G
6619 Points -19%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
5727 Points -30%
3840x2160 Fire Strike Ultra Graphics (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
2212 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
3046 Points +38%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
1494 Points -32%
Fire Strike Extreme Graphics (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
4426 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
6109 Points +38%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
4892 Points +11%
1920x1080 Fire Strike Graphics (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
9441 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
12977 Points +37%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
10207 Points +8%
Gigabyte P57W
GeForce GTX 970M, 6700HQ, Lite-On IT L8T-256L9G
7489 Points -21%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
6414 Points -32%
Fire Strike Extreme Combined (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
1987 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
2693 Points +36%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
1646 Points -17%
Fire Strike Extreme Score (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
4248 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
5829 Points +37%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
4366 Points +3%
1920x1080 Fire Strike Combined (sort by value)
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
3675 Points
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
5008 Points +36%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
2520 Points -31%
Gigabyte P57W
GeForce GTX 970M, 6700HQ, Lite-On IT L8T-256L9G
2807 Points -24%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
2434 Points -34%
3DMark 11 Performance
11055 points
3DMark Ice Storm Standard Score
52105 points
3DMark Cloud Gate Standard Score
18711 points
3DMark Fire Strike Score
8179 points
3DMark Fire Strike Extreme Score
4248 points
Help
Thief | Sleeping Dogs | BioShock Infinite | Metro: Last Light | Batman: Arkham Knight | Fallout 4 | Rise of the Tomb Raider
Thief - 1920x1080 Very High Preset AA:FXAA & High SS AF:8x
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
86.5 fps +39%
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
62.1 fps
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
60.1 fps -3%
Aorus X3 Plus v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
46.5 fps -25%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
32.2 fps -48%
Sleeping Dogs - 1920x1080 Extreme Preset AA:Extreme
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
82.5 fps +41%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
62.8 fps +7%
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
58.6 fps
Aorus X3 Plus v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
45 fps -23%
BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
124.4 fps +43%
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
93.1 fps +7%
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
87 fps
Aorus X3 Plus v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
71.8 fps -17%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
65.4 fps -25%
Metro: Last Light - 1920x1080 Very High (DX11) AF:16x
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
66.5 fps
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
56.9 fps -14%
Aorus X3 Plus v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
53.6 fps -19%
Alienware 15 (R9 M295X)
Radeon R9 M295X, 4710HQ, WDC Scorpio Blue WD10JPVX-75JC3T0
42.6 fps -36%
Batman: Arkham Knight
1920x1080 High / On AA:SM AF:16x
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
69 fps +44%
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
48 fps
Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)
27 fps -44%
3840x2160 High / On (Interactive Smoke & Paper Debris Off) AA:SM AF:8x
Eurocom Sky DLX7
GeForce GTX 980 (Laptop), 6700K, Samsung SM951 MZVPV512HDGL m.2 PCI-e
31 fps +63%
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
19 fps
Fallout 4
1920x1080 Ultra Preset AA:T AF:16x
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
55.3 fps
Aorus X3 Plus v5
GeForce GTX 970M, 6700HQ, Samsung SM951 MZVPV512HDGL m.2 PCI-e
42.4 fps -23%
3840x2160 High Preset AA:T AF:16x
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
23.5 fps
Rise of the Tomb Raider
1920x1080 Very High Preset AA:FX AF:16x
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
47.1 fps
3840x2160 High Preset AA:FX AF:4x
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2
22.4 fps
lowmed.highultra4K
Sleeping Dogs (2012) 136.5 58.6
BioShock Infinite (2013) 156.6 87
Metro: Last Light (2013) 109.9 66.5
Thief (2014) 91.2 62.1
Batman: Arkham Knight (2015) 75 48 19
Metal Gear Solid V (2015) 60 60 33.4
Fallout 4 (2015) 58.8 55.3 23.5
Rise of the Tomb Raider (2016) 58.2 47.1 22.4
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2		Aorus X5
GeForce GTX 965M SLI, 5700HQ, 2x Lite-On IT L8T-256L9G (RAID 0)		HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e		MSI GS60-6QE4K16H21
GeForce GTX 970M, 6700HQ, Hynix HFS256G3MND		Acer Predator 15 G9-591-74ZV
GeForce GTX 980M, 6700HQ, Lite-On CV1-8B256
Noise
3%
8%
2%
2%
off / environment *
28.3
30
-6%
Idle Minimum *
34.3
32.5
5%
30
13%
35
-2%
31
10%
Idle Average *
34.4
32.6
5%
30
13%
36
-5%
32
7%
Idle Maximum *
34.4
34.4
-0%
30
13%
37
-8%
42
-22%
Load Average *
50
44
12%
45.3
9%
40
20%
47
6%
Load Maximum *
54
56.8
-5%
49.7
8%
50
7%
48
11%

* ... smaller is better

Noise Level

Idle
34.3 / 34.4 / 34.4 dB(A)
Load
50 / 54 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)   environment noise: 28.3 dB(A)
Max. Load
 45 °C57.6 °C38.8 °C
 42.2 °C44 °C34.8 °C
 34.4 °C30.2 °C31.2 °C
Maximum: 57.6 °C
Average: 39.8 °C
44.2 °C46.8 °C53 °C
39.6 °C46.2 °C46.8 °C
35.8 °C39 °C39.2 °C
Maximum: 53 °C
Average: 43.4 °C
Power Supply (max.)  52.2 °C | Room Temperature 23 °C | Fluke 62 Mini IR Thermometer
(-) The average temperature for the upper side under maximal load is 39.8 °C / 104 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 57.6 °C / 136 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(-) The bottom heats up to a maximum of 53 °C / 127 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 28 °C / 82 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.4 °C / 93.9 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (-5.5 °C / -9.9 F).
Aorus X5S v5
GeForce GTX 980M, 6700HQ, Samsung SM951 MZVPV256 m.2		HP ZBook 15 G3
Quadro M2000M, E3-1505M v5, Samsung SM951 MZVPV512HDGL m.2 PCI-e		MSI GS60-6QE4K16H21
GeForce GTX 970M, 6700HQ, Hynix HFS256G3MND		Dell XPS 15-9550 i7
GeForce GTX 960M, 6700HQ, Samsung PM951 NVMe 512 GB		Acer Predator 15 G9-591-74ZV
GeForce GTX 980M, 6700HQ, Lite-On CV1-8B256		Alienware 15 R2 (Skylake)
GeForce GTX 980M, 6700HQ, Samsung PM951 NVMe MZ-VLV256D
Power Consumption
54%
27%
38%
36%
34%
Idle Minimum *
27.4
5.7
79%
17
38%
12.5
54%
12
56%
11.4
58%
Idle Average *
30.7
12.2
60%
22
28%
19.6
36%
16
48%
16.5
46%
Idle Maximum *
31.2
12.6
60%
28
10%
22.8
27%
22
29%
22
29%
Load Average *
130.4
83.1
36%
91
30%
102
22%
100
23%
94.2
28%
Load Maximum *
216.6
138.2
36%
149
31%
107
51%
162
25%
192.2
11%

* ... smaller is better

Power Consumption
Off / Standbydarklight 9.35 / 9.48 Watt
Idledarkmidlight 27.4 / 30.7 / 31.2 Watt
Load midlight 130.4 / 216.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Aorus X5S v5
73 Wh		Aorus X5
73 Wh		HP ZBook 15 G3
90 Wh		MSI GS60-6QE4K16H21
47 Wh		Dell XPS 15 2016 9550
56 Wh		Acer Predator 15 G9-591-74ZV
90 Wh
Battery Runtime
-29%
90%
-29%
65%
76%
Reader / Idle
313
165
-47%
822
163%
213
-32%
544
74%
670
114%
WiFi v1.3
223
112
-50%
386
73%
157
-30%
332
49%
Load
82
91
11%
110
34%
61
-26%
140
71%
113
38%
Battery Runtime
Idle (without WLAN, min brightness)
5h 13min
WiFi Websurfing
3h 43min
Load (maximum brightness)
1h 22min

Pros

+ DDR4, HDMI 2.0, NVMe SSD, USB C型接口第二代
+ 高品质磨砂屏幕，色彩准确，sRGB色域高覆盖率
+ 负载下性能强劲，无降频问题
+ 改进的磨砂触控屏幕，操作更流畅
+ 支持硬盘RAID（需更新BIOS）
+ 支持Nvidia Optimus
+ 独特而前卫的设计
+ 独立可编程按键
+ 四个硬盘槽

Cons

- 待机和睡眠时功耗高
- 在低亮度时屏幕使用闪烁亮度控制
- HDMI和USB A型接口相比X5更少
- 风扇在待机和游戏时噪音都较大
- 核心和表面温度高
- 触控板表现时好时坏
- 仅提供4K UHD屏幕配置
- 不再支持G-Sync功能
In review: Aorus X5S v5. Test model provided by Aorus.
In review: Aorus X5S v5. Test model provided by Aorus.

Aorus X5S是在X5之后迈出的一大步，但其中也不乏一些小退步。它包括DDR4，NVMe，USB-C，从GTX 965M SLI到GTX 980M的诸多更新无疑值得称赞。而显卡的表现更是证明了如果能够使用强劲的单显卡配置则无须考虑较弱显卡的SLI。从这点出发X5面对X5S几乎毫无胜场。

由于显卡的改变，它的电池续航得到了延长而表面温度有所降低；不过风扇噪音没有得到改善，在游戏中依然十分吵人。考虑到GTX 980M显卡的性能，如果它能够提供搭配2K或者3K屏幕，支持G-Sync的机型应该更合理。我们希望以后可以看到它的键盘和触控板得到改进，同时需要调整的还有机身坚固度，屏幕漏光，响应时间和系统噪音等方面。



将GTX 980M装进一个轻薄15.6寸机身难免会带来一些妥协，如更吵闹的风扇和更脆弱的外壳。不想考虑更笨重的游戏本的用户如果可以接受Aorus X5S的缺点的话，应该会对它爱不释手。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Aorus X5S v5 - 05/04/2016 v5.1 (old)
Allen Ngo

Chassis
78 / 98 → 79%
Keyboard
83%
Pointing Device
72%
Connectivity
53 / 81 → 65%
Weight
60 / 10-66 → 89%
Battery
73%
Display
91%
Games Performance
91%
Application Performance
91%
Temperature
84 / 95 → 88%
Noise
62 / 90 → 69%
Audio
80%
Camera
50 / 85 → 59%
Average
74%
82%
Gaming - Weighted Average

Price comparison

Please share our article, every link counts!
> Notebookcheck中文版（NBC中国） > 评测 > Aorus X5S v5 笔记本电脑简短评测
Allen Ngo, 2016-05- 7 (Update: 2020-06- 8)
