Apple MacBook Pro 13 (2016年末, 2 GHz i5, 无Touch Bar) 笔记本电脑简短评测

实时评测 // 无触控也同样超凡? 全新的MacBook Pro笔记本电脑来了。它最独特的新功能是代替传统功能键的Touch Bar。Apple依然同时销售这个没有新触控功能条的机型，作为面向“入门”市场的设备，售价为1699欧元（1499美元，约10324人民币）。我们编辑部得到了一台这个系列的机型，我们将在接下来的实时评测中与大家分享一些测试成绩。

J. Simon Leitner, Klaus A. Hinum (translated by Yuchen Wang), Published 11/20/2016 🇺🇸 🇩🇪 ...

Apple MacBook Skylake Laptop / Notebook

Apple MacBook Pro 13 2016 (MacBook Pro 13 Series)

Processor

Intel Core i5-6360U 2 x 2 - 3.1 GHz, Skylake

Graphics adapter

Intel Iris Graphics 540, Core: 900 MHz, RAM: 933 MHz

Memory

8 GB

, LPDDR3

Display

13.30 inch, 2560 x 1600 pixel 227 PPI, APPA034, glossy: yes

Mainboard

Intel Skylake-U Premium PCH

Storage

Apple SSD AP0256, 256 GB

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

2 USB 3.1 Gen2, 2 Thunderbolt, Audio Connections: 3.5毫米耳机接口, Brightness Sensor

Networking

802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 15 x 304 x 212

Battery

54 Wh Lithium-Polymer

Operating System

Apple macOS 10.12 Sierra

Camera

Primary Camera: 0.8 MPix

Additional features

Speakers: 立体声扬声器, Keyboard: 孤岛式（Butterfly第二代）, Keyboard Light: yes, 12 Months Warranty

Weight

1.37 kg

Price

1699 Euro

Links

Apple homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

Apple MacBook Pro 15 2016 (2.6 GHz, 450) Apple MacBook Air 13 inch 2015-03 Apple MacBook Pro Retina 13 inch 2015-03 Apple MacBook Pro 13 2016 Apple MacBook 12 (Early 2016) 1.3 GHz DIN A4 ❌

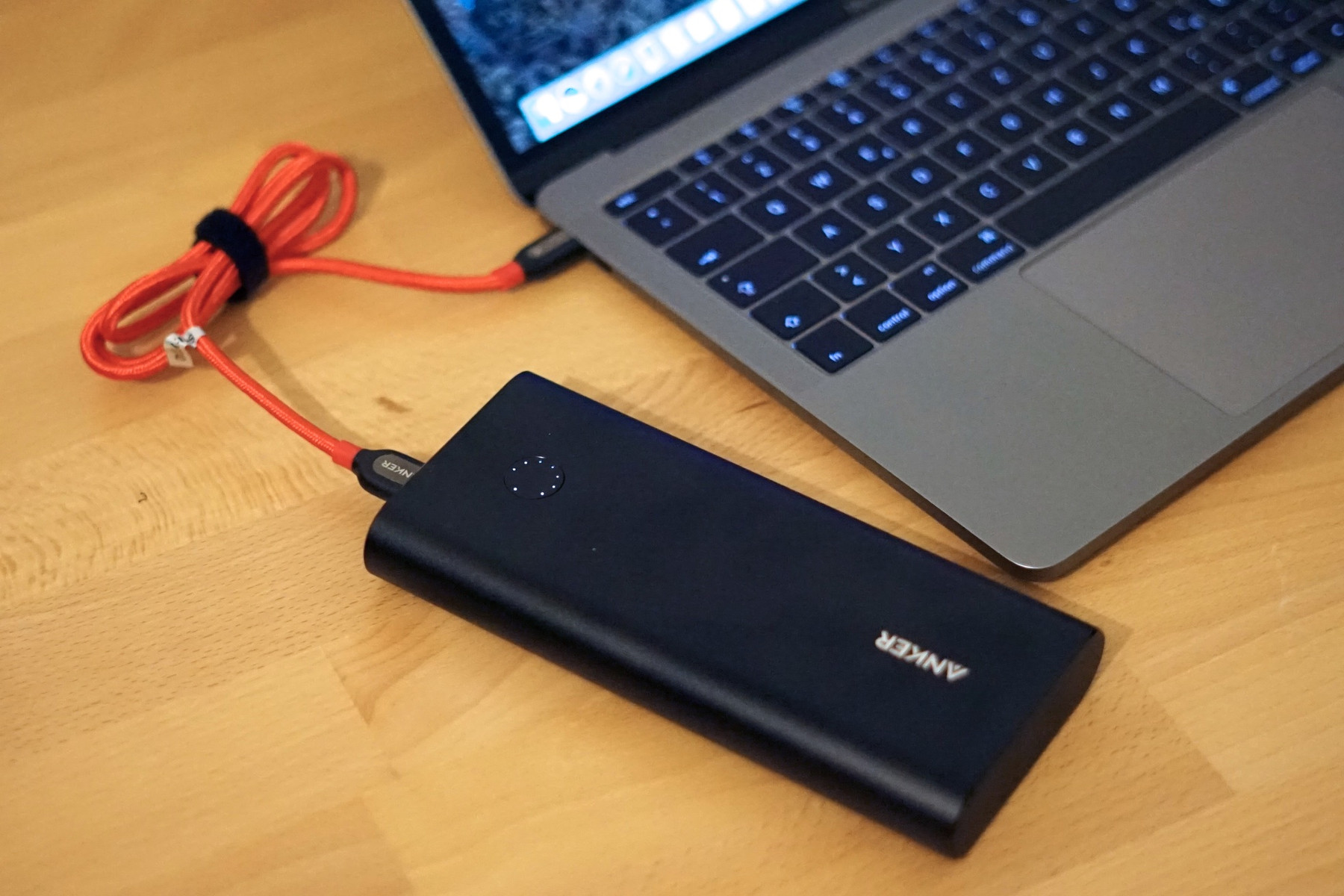

Thanks to power delivery you can use external batteries easily (here the Anker PowerCore+)

Networking
iperf3 transmit AX12
Apple MacBook Pro Retina 13 inch 2013-10 Broadcom 802.11ac (Klaus I211)	768 MBit/s +18%
Apple MacBook Pro 13 2016 802.11 a/b/g/n/ac (Klaus I211)	653 MBit/s
Acer Spin 7 SP714-51-M09D Atheros/Qualcomm QCA6174 (jseb)	596 MBit/s -9%
Microsoft Surface Pro 4, Core i5, 128GB Marvell AVASTAR Wireless-AC Network Controller (Klaus I211)	593 MBit/s -9%
Dell XPS 13 9360 QHD+ i7 Killer Wireless-n/a/ac 1535 Wireless Network Adapter	587 MBit/s -10%
Intel NUC5i5RYH Intel Dual Band Wireless-AC 7265 (Klaus I211)	549 MBit/s -16%
Lenovo ThinkPad T460s-20FA003GGE Intel Dual Band Wireless-AC 8260	534 MBit/s -18%
iperf3 receive AX12
Apple MacBook Pro Retina 13 inch 2013-10 Broadcom 802.11ac (Klaus I211)	762 MBit/s +12%
Apple MacBook Pro 13 2016 802.11 a/b/g/n/ac (Klaus I211)	682 MBit/s
Dell XPS 13 9360 QHD+ i7 Killer Wireless-n/a/ac 1535 Wireless Network Adapter	674 MBit/s -1%
Lenovo ThinkPad T460s-20FA003GGE Intel Dual Band Wireless-AC 8260	637 MBit/s -7%
Acer Spin 7 SP714-51-M09D Atheros/Qualcomm QCA6174 (jseb)	482 MBit/s -29%
Microsoft Surface Pro 4, Core i5, 128GB Marvell AVASTAR Wireless-AC Network Controller (Klaus I211)	459 MBit/s -33%
Intel NUC5i5RYH Intel Dual Band Wireless-AC 7265 (Klaus I211)	443 MBit/s -35%


575 cd/m²	590 cd/m²	542 cd/m²
588 cd/m²	600 cd/m²	554 cd/m²
545 cd/m²	546 cd/m²	532 cd/m²

Distribution of brightness

APPA034 tested with X-Rite i1Pro 2

Maximum: 600 cd/m² (Nits) Average: 563.6 cd/m² Minimum: 6.8 cd/m²
Brightness Distribution: 89 %
Center on Battery: 600 cd/m²
Contrast: 1053:1 (Black: 0.57 cd/m²)
ΔE Color 1.5 | 0.5-29.43 Ø4.91
ΔE Greyscale 2 | 0.5-98 Ø5.2
92% sRGB (Argyll 1.6.3 3D)
77% AdobeRGB 1998 (Argyll 1.6.3 3D)
86.7% AdobeRGB 1998 (Argyll 2.2.0 3D)
99.8% sRGB (Argyll 2.2.0 3D)
97.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.27

Download ICC File (X-Rite i1Pro 2)

	Apple MacBook Pro 13 2016 APPA034, , 2560x1600, 13.3"	Apple MacBook Pro Retina 13 inch 2015-03 APPA02A, , 2560x1600, 13.3"	Dell XPS 13 9360 QHD+ i7 Sharp SHP144A, , 3200x1800, 13.3"	Razer Blade Stealth QHD i7-7500U Sharp SHP142F (LQ125T1JW02), , 2560x1440, 12.5"	Apple MacBook Air 13 inch 2015-03 Apple APP9CF0, , 1440x900, 13.3"	Apple MacBook 12 (Early 2016) 1.1 GHz APPA027, , 2304x1440, 12"
Display		-19%	-23%	-17%	-50%	-19%
Display P3 Coverage	97.1	65.9 -32%	62.8 -35%	68.7 -29%	40.1 -59%	66.8 -31%
sRGB Coverage	99.8	97 -3%	89.4 -10%	95.8 -4%	59.8 -40%	95.4 -4%
AdobeRGB 1998 Coverage	86.7	67.4 -22%	64.6 -25%	69.9 -19%	41.51 -52%	68 -22%
Response Times			26%	29%		27%
Response Time Grey 50% / Grey 80% *	47.2 ?(21.6, 25.6)		43.6 ?(13.6, 30) 8%	37 ?(19, 18) 22%		41.2 ?(15.6, 25.6) 13%
Response Time Black / White *	51.6 ?(8.4, 43.2)		29.2 ?(9.2, 20) 43%	33.4 ?(13.2, 20.2) 35%		30.4 ?(6.8, 23.6) 41%
PWM Frequency				200 ?(30)
Screen		-9%	-44%	-49%	-58%	-10%
Brightness middle	600	361 -40%	396.2 -34%	402 -33%	329 -45%	387 -35%
Brightness	564	342 -39%	357 -37%	382 -32%	310 -45%	358 -37%
Brightness Distribution	89	81 -9%	84 -6%	88 -1%	82 -8%	88 -1%
Black Level *	0.57	0.361 37%	0.266 53%	0.45 21%	0.405 29%	0.47 18%
Contrast	1053	1000 -5%	1489 41%	893 -15%	812 -23%	823 -22%
Colorchecker dE 2000 *	1.5	1.82 -21%	3.9 -160%	3.6 -140%	3.96 -164%	1.6 -7%
Colorchecker dE 2000 max. *	2.9	3.26 -12%	7.58 -161%	7.5 -159%	7.51 -159%	4 -38%
Greyscale dE 2000 *	2	1.8 10%	4.16 -108%	4.3 -115%	3.51 -76%	1 50%
Gamma	2.27 ^97%	2.49 ^88%	2.31 ^95%	2.1 ^105%	3.83 ^57%	2.26 ^97%
CCT	6855 ^95%	6417 ^101%	6514 ^100%	6572 ^99%	6711 ^97%	6680 ^97%
Color Space (Percent of AdobeRGB 1998)	77	61.9 -20%	57.5 -25%	62.3 -19%	38.4 -50%	61.6 -20%
Color Space (Percent of sRGB)	92	96.9 5%	88.7 -4%	95.7 4%	59.8 -35%	82.2 -11%
Total Average (Program / Settings)		-14% / -12%	-14% / -31%	-12% / -32%	-54% / -56%	-1% / -7%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

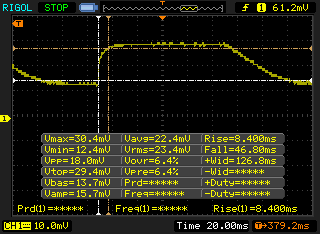

↔ Response Time Black to White
51.6 ms ... rise ↗ and fall ↘ combined	↗ 8.4 ms rise
51.6 ms ... rise ↗ and fall ↘ combined	↘ 43.2 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 99 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

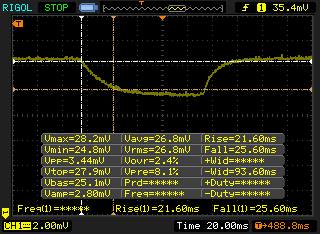

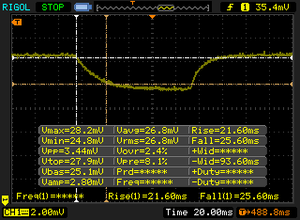

↔ Response Time 50% Grey to 80% Grey
47.2 ms ... rise ↗ and fall ↘ combined	↗ 21.6 ms rise
47.2 ms ... rise ↗ and fall ↘ combined	↘ 25.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 80 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

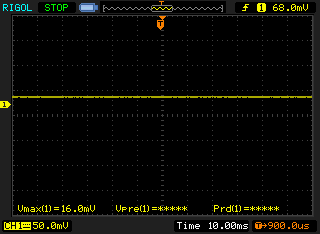

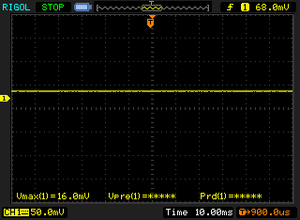

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit
Razer Blade Stealth QHD i7-7500U Intel Core i7-7500U	139 Points +10%
Acer Aspire V3-372-57CW Intel Core i5-6267U	138 Points +10%
Dell XPS 13 2016 9350 (FHD, i7-6560U) Intel Core i7-6560U	133 Points +6%
Apple MacBook Pro Retina 13 inch 2015-03 Intel Core i5-5257U	126 Points 0%
Apple MacBook Pro 13 2016 Intel Core i5-6360U	126 Points
Apple MacBook Pro 13 2016 Intel Core i5-6360U	124 Points -2%
Xiaomi Mi Notebook Air 13.3 2016 Intel Core i5-6200U	118 Points -6%
Dell XPS 13 9360 QHD+ i5 Intel Core i5-7200U	117 Points -7%
CPU Multi 64Bit
Razer Blade Stealth QHD i7-7500U Intel Core i7-7500U	348 Points +13%
Acer Aspire V3-372-57CW Intel Core i5-6267U	339 Points +10%
Apple MacBook Pro Retina 13 inch 2015-03 Intel Core i5-5257U	321 Points +4%
Dell XPS 13 2016 9350 (FHD, i7-6560U) Intel Core i7-6560U	314 Points +2%
Apple MacBook Pro 13 2016 Intel Core i5-6360U	309 Points
Apple MacBook Pro 13 2016 Intel Core i5-6360U	309 Points 0%
Dell XPS 13 9360 QHD+ i5 Intel Core i5-7200U	300 Points -3%
Xiaomi Mi Notebook Air 13.3 2016 Intel Core i5-6200U	294 Points -5%

Cinebench R10 Shading 32Bit

9225

Cinebench R10 Rendering Single 32Bit

4846

Cinebench R10 Rendering Multiple CPUs 32Bit

10525

Cinebench R11.5 CPU Multi 64Bit

3.45 Points

Cinebench R11.5 CPU Single 64Bit

1.36 Points

Cinebench R11.5 OpenGL 64Bit

50.6 fps

Cinebench R15 CPU Single 64Bit

124 Points

Cinebench R15 CPU Multi 64Bit

309 Points

Cinebench R15 Ref. Match 64Bit

99.3 %

Cinebench R15 OpenGL 64Bit

35.34 fps

Help

... in comparison

PCMark 8
Home Score Accelerated v2
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	3579 Points +9%
Dell XPS 13 2016 9350 (FHD, i7-6560U) Iris Graphics 540, 6560U, Samsung PM951 NVMe MZ-VLV256D	3479 Points +6%
Apple MacBook Pro Retina 13 inch 2015-03 Iris Graphics 6100, 5257U, Apple SSD SM0128G	3363 Points +3%
Razer Blade Stealth QHD i7-7500U HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV256	3362 Points +3%
Apple MacBook Pro 13 2016 Iris Graphics 540, 6360U, Apple SSD AP0256	3280 Points
Dell XPS 13 9360 QHD+ i7 HD Graphics 620, i7-7500U, Toshiba NVMe THNSN5256GPUK	2855 Points -13%
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	2550 Points -22%
Work Score Accelerated v2
Apple MacBook Air 13 inch 2015-03 HD Graphics 6000, 5650U, Apple SSD SD0256F	4367 Points +13%
Dell XPS 13 2016 9350 (FHD, i7-6560U) Iris Graphics 540, 6560U, Samsung PM951 NVMe MZ-VLV256D	4213 Points +9%
Dell XPS 13 9360 QHD+ i7 HD Graphics 620, i7-7500U, Toshiba NVMe THNSN5256GPUK	4176 Points +8%
Apple MacBook Pro Retina 13 inch 2015-03 Iris Graphics 6100, 5257U, Apple SSD SM0128G	4105 Points +7%
Apple MacBook Pro 13 2016 Iris Graphics 540, 6360U, Apple SSD AP0256	3853 Points
Apple MacBook 12 (Early 2016) 1.1 GHz HD Graphics 515, 6Y30, Apple SSD AP0256	3550 Points -8%

PCMark 8 Home Score Accelerated v2		3280 points
PCMark 8 Creative Score Accelerated v2		4205 points
PCMark 8 Work Score Accelerated v2		3853 points
Help

	Apple MacBook Pro 13 2016 Apple SSD AP0256	Apple MacBook Pro Retina 13 inch 2015-03 Apple SSD SM0128G	Apple MacBook Air 13 inch 2015-03 Apple SSD SD0256F	Dell XPS 13 9360 QHD+ i7 Toshiba NVMe THNSN5256GPUK	Razer Blade Stealth QHD i7-7500U Samsung PM951 NVMe MZVLV256	Apple MacBook 12 (Early 2016) 1.1 GHz Apple SSD AP0256	Dell XPS 13 2016 9350 (FHD, i7-6560U) Samsung PM951 NVMe MZ-VLV256D
CrystalDiskMark 3.0		-1%	9%	117%	140%	-21%	112%
Read Seq	1345	1403 4%	1352 1%	1214 -10%	1178 -12%	754 -44%	1131 -16%
Write Seq	1320	657 -50%	1111 -16%	655 -50%	305.4 -77%	638 -52%	311.4 -76%
Read 512	831	810 -3%	880 6%	1019 23%	638 -23%	616 -26%	685 -18%
Write 512	1486	648 -56%	1023 -31%	445.7 -70%	305.7 -79%	678 -54%	276.3 -81%
Read 4k	31.68	20.95 -34%	21.93 -31%	35.55 12%	38.54 22%	14.6 -54%	39.63 25%
Write 4k	11.02	32.43 194%	30.94 181%	130 1080%	153.4 1292%	20.5 86%	133.9 1115%
Read 4k QD32	533	343.6 -36%	339.5 -36%	537 1%	614 15%	464 -13%	399.7 -25%
Write 4k QD32	362	254.4 -30%	342.9 -5%	173.8 -52%	302.7 -16%	315 -13%	245.6 -32%
AS SSD		7%	10%	80%	116%	-12%	92%
Seq Read	2275	1233 -46%	1212 -47%	1346 -41%	1332 -41%	1056 -54%	1323 -42%
Seq Write	1435	616 -57%	1001 -30%	586 -59%	283.6 -80%	651 -55%	235.3 -84%
4K Read	13.3	20.6 55%	19.16 44%	31.64 138%	35.2 165%	16.4 23%	35.4 166%
4K Write	15.4	30.2 96%	23.73 54%	95.6 521%	127.2 726%	22.1 44%	108.3 603%
4K-64 Read	904	891 -1%	1140 26%	655 -28%	891 -1%	509 -44%	767 -15%
4K-64 Write	417	221.2 -47%	338.9 -19%	205.6 -51%	256.9 -38%	283 -32%	186.3 -55%
Access Time Read *	0.288	0.141 51%	0.171 41%	0.065 77%	0.06 79%	0.186 35%	0.088 69%
Access Time Write *		0.123	0.155	0.033	0.03		0.035
Total Average (Program / Settings)		3% / 3%	10% / 9%	99% / 99%	128% / 129%	-17% / -17%	102% / 102%

* ... smaller is better

CrystalDiskMark 3.0

AS SSD

Apple SSD AP0256

Sequential Read: 1345 MB/s

Sequential Write: 1320 MB/s

512K Read: 831 MB/s

512K Write: 1486 MB/s

4K Read: 31.68 MB/s

4K Write: 11.02 MB/s

4K QD32 Read: 533 MB/s

4K QD32 Write: 362 MB/s

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X, Intel Core i7-4870HQ	3593 Points +50%
Acer Aspire V3-372-57CW Intel Iris Graphics 550, Intel Core i5-6267U	2524 Points +5%
Microsoft Surface Pro 4 Core i7 Intel Iris Graphics 540, Intel Core i7-6650U	2450 Points +2%
Apple MacBook Pro 13 2016 Intel Iris Graphics 540, Intel Core i5-6360U	2401 Points
Dell XPS 13 2016 9350 (FHD, i7-6560U) Intel Iris Graphics 540, Intel Core i7-6560U	1947 Points -19%
Apple MacBook Pro Retina 13 inch 2015-03 Intel Iris Graphics 6100, Intel Core i5-5257U	1706 Points -29%
Dell XPS 13 9360 QHD+ i7 Intel HD Graphics 620, Intel Core i7-7500U	1610 Points -33%
Dell XPS 13 9360 QHD+ i5 Intel HD Graphics 620, Intel Core i5-7200U	1541 Points -36%
Apple MacBook 12 (Early 2016) 1.3 GHz Intel HD Graphics 515, Intel Core m7-6Y75	1202 Points -50%

3DMark - 1280x720 Cloud Gate Standard Graphics
Apple MacBook Pro Retina 15 inch 2015-05 AMD Radeon R9 M370X, Intel Core i7-4870HQ	15500 Points +39%
Acer Aspire V3-372-57CW Intel Iris Graphics 550, Intel Core i5-6267U	12812 Points +15%
Microsoft Surface Pro 4 Core i7 Intel Iris Graphics 540, Intel Core i7-6650U	11650 Points +5%
Apple MacBook Pro 13 2016 Intel Iris Graphics 540, Intel Core i5-6360U	11123 Points
Dell XPS 13 2016 9350 (FHD, i7-6560U) Intel Iris Graphics 540, Intel Core i7-6560U	9788 Points -12%
Dell XPS 13 9360 QHD+ i7 Intel HD Graphics 620, Intel Core i7-7500U	7896 Points -29%
Apple MacBook Pro Retina 13 inch 2015-03 Intel Iris Graphics 6100, Intel Core i5-5257U	7894 Points -29%
Dell XPS 13 9360 QHD+ i5 Intel HD Graphics 620, Intel Core i5-7200U	7684 Points -31%
Apple MacBook 12 (Early 2016) 1.3 GHz Intel HD Graphics 515, Intel Core m7-6Y75	6497 Points -42%

The Witcher 3 - 1024x768 Low Graphics & Postprocessing
Apple MacBook Pro 13 2016 Iris Graphics 540, 6360U, Apple SSD AP0256	20.5 (13^min - 27^max) fps
Acer Aspire V3-372-57CW Iris Graphics 550, 6267U, Kingston RBU-SNS8152S3256GG2	19.6 fps -4%
Lenovo IdeaPad 710S-13ISK Iris Graphics 540, 6560U, Samsung PM951 NVMe MZVLV256	17.8 fps -13%
Dell XPS 13 2016 9350 (FHD, i7-6560U) Iris Graphics 540, 6560U, Samsung PM951 NVMe MZ-VLV256D	16.5 fps -20%
Dell XPS 13 9360 QHD+ i7 HD Graphics 620, i7-7500U, Toshiba NVMe THNSN5256GPUK	15.7 (11^min - 22^max) fps -23%
Razer Blade Stealth QHD i7-7500U HD Graphics 620, i7-7500U, Samsung PM951 NVMe MZVLV256	13.92 fps -32%
Asus Zenbook UX360UA-C4159T HD Graphics 520, 6500U, SK Hynix Canvas SC300 512GB M.2 (HFS512G39MND)	13.6 fps -34%

	low	med.	high	ultra
BioShock Infinite (2013)			40.3	11.6
Metro: Last Light (2013)	42	35.4	22.1
Dirt Rally (2015)	149	36.8	18.7
The Witcher 3 (2015)	20.5
Dota 2 Reborn (2015)	59.8	46.9	29.2	34.6
World of Warships (2015)		73.3	33.5
Fallout 4 (2015)	23.2
Rise of the Tomb Raider (2016)	24 small graphical problems (wrong clouds)	16 small graphical problems (wrong clouds)
Far Cry Primal (2016)	23	12
Ashes of the Singularity (2016)	13.3
Doom (2016)	31.5
Overwatch (2016)	68	47.6	21.3
Mirror's Edge Catalyst (2016)	35	20.5
Deus Ex Mankind Divided (2016)	16.7
FIFA 17 (2016)	61 small graphical problems	72 small graphical problems	0 small graphical problems
Mafia 3 (2016)	11.3
Battlefield 1 (2016)	43.4	25.3	12.6
Farming Simulator 17 (2016)	112	76	30.6	19.1
Titanfall 2 (2016)	55.3	38.6	14.3
Call of Duty Infinite Warfare (2016)	30	27.3
Dishonored 2 (2016)	17.3

Max. Load

Idle


36 °C	42 °C	41 °C
35 °C	39 °C	36 °C
29 °C	31 °C	31 °C

Maximum: 42 °C
Average: 35.6 °C


40 °C	41 °C	37 °C
36 °C	38 °C	32 °C
32 °C	33 °C	31 °C

Maximum: 41 °C
Average: 35.6 °C

Power Supply (max.) 44 °C | Room Temperature 20 °C | Fluke 62 Mini

(±) The average temperature for the upper side under maximal load is 35.6 °C / 96 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 41 °C / 106 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 24.8 °C / 77 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.7 °C / -4.9 F).

Apple MacBook Pro 13 2016 audio analysis

(+) | speakers can play relatively loud (83.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 8.4% lower than median
(-) | bass is not linear (16.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.1% away from median
(+) | highs are linear (2.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (9.8% difference to median)
Compared to same class
» 5% of all tested devices in this class were better, 2% similar, 93% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 3% of all tested devices were better, 1% similar, 96% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	0.17 / 0.6 Watt
Idle	3 / 8.9 / 8.9 Watt
Load	43.4 / 42.1 Watt


Key: min: , med: , max: Metrahit Energy

Battery Runtime

Idle (without WLAN, min brightness)		42h 37min
WiFi Websurfing		11h 26min
Big Buck Bunny H.264 1080p		10h 20min
Load (maximum brightness)		1h 41min

	Apple MacBook Pro 13 2016 6360U, Iris Graphics 540, 54 Wh	Apple MacBook Air 13 inch 2015-03 5650U, HD Graphics 6000, 54 Wh	Apple MacBook 12 (Early 2016) 1.3 GHz 6Y75, HD Graphics 515, 41.4 Wh	Dell XPS 13 9360 QHD+ i5 i5-7200U, HD Graphics 620, 60 Wh	Microsoft Surface Pro 4 Core i7 6650U, Iris Graphics 540, 38 Wh	Microsoft Surface Pro 4, Core i5, 128GB 6300U, HD Graphics 520, 38 Wh	Lenovo ThinkPad T460s-20FA003GGE 6600U, HD Graphics 520, 49 Wh
Battery Runtime		-18%	29%	0%	-51%	-31%	-48%
Reader / Idle	2557	1572 -39%			654 -74%	899 -65%	833 -67%
H.264	620		619 0%	547 -12%			397 -36%
WiFi v1.3	686	620 -10%	554 -19%	526 -23%	293 -57%	427 -38%	340 -50%
Load	101	97 -4%	208 106%	137 36%	79 -22%	111 10%	62 -39%

Pros

+ 出色的机身和工艺品质

+ 超大触控版——仍然领先于同类产品

+ 除高负载外均能够保持安静

+ 非常安静的扬声器

+ 高速无线网络模组

+ 非常优秀的屏幕和完美的缩放比例（mac OS的一贯特点）

Cons

- 2.4 GHz无线网和USB-C设备的连接性问题

- 我们的测试机风扇略有残缺

- 仅三个接口

- 非常昂贵——特别是自定义升级

- 较弱的摄像头

Verdict

In review: Apple MacBook Pro 13 Late 2016 (without Touch Bar)

在我们上手Apple饱受赞誉的Touch Bar之前，不妨先测试一下新一代MacBook Pro 13的入门机型，它已经可以通过零售渠道购买了。同时，它将会逐渐替代售价较低的Air机型的位置。不过，它1699欧元（约12391人民币）的定价绝不算便宜，不过在硬件配置上它确实得到了一定提升，这是我们在一些初步测试之后的感受。

它的屏幕亮度达到了前所未有的水平，在测试中表现出色。在硬件性能上它并没有从15瓦Skylake架构处理器升级中得到太多改进，不过我们仍然需要等待它在能耗和显卡表现的测试结果才能定论。和我们预想相近的是，Apple为MacBook Pro 13也带来了MacBook 12的顶级扬声器音响效果。

到现在为止我们没有发现任何问题。不过如果它的风扇没有不均匀噪音的话，我们对它的评价将会更高。目前我们猜测这可能是这台测试机在运输过程中收到撞击造成的个别现象。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1707 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Apple MacBook Pro 13 (2016年末, 2 GHz i5, 无Touch Bar) 笔记本电脑简短评测

J. Simon Leitner, Klaus A. Hinum, 2016-11-20 (Update: 2024-11- 4)
