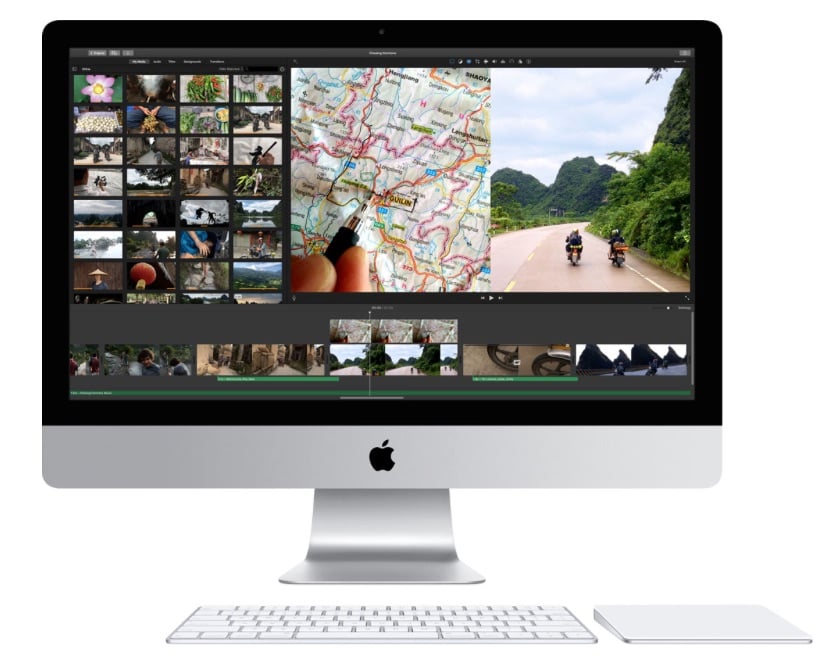

Apple iMac Retina 5K 27-inch M390 (Late 2015) Retina 评测

5K第二代。 Apple为全新的iMac Retina 5K更换了新的Skylake架构处理器,以及来自AMD的全新显卡和全新输入设备。精致的工艺和强劲的性能让它足以征服用户,不过它也并不完美。
Apple Desktop Skylake AMD
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Processor
Intel Core i5-6500 4 x 3.2 - 3.6 GHz, Skylake

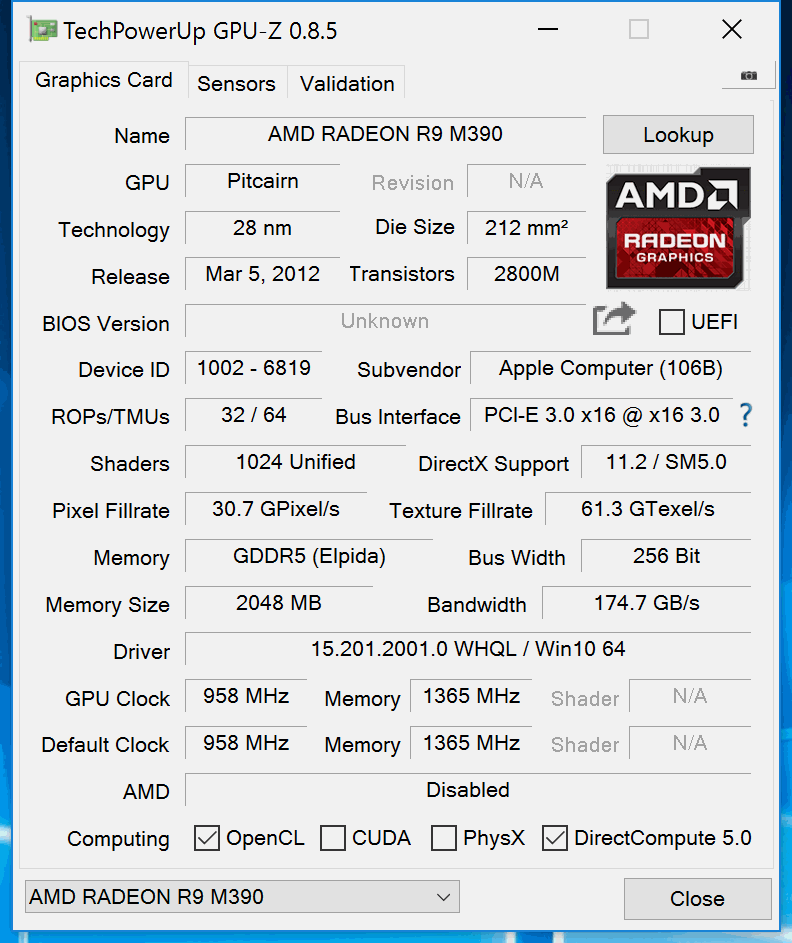

Graphics adapter
AMD Radeon R9 M390 - 2048 MB VRAM, Core: 958 MHz, RAM: 1365 MHz, GDDR5

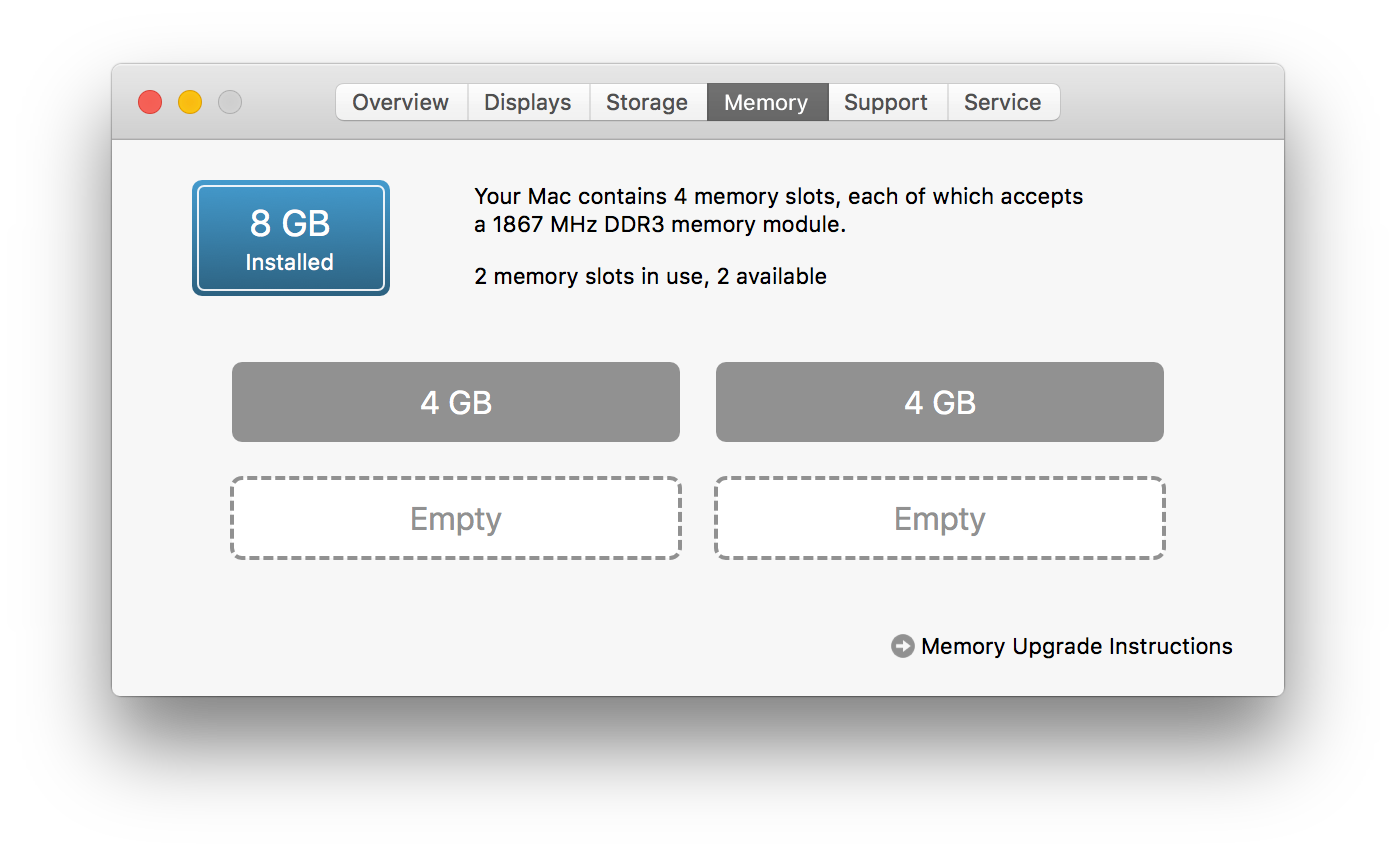

Memory
8 GB
, DDR3-1867
Display
27.00 inch 16:10, 5120 x 2880 pixel, glossy: yes
Mainboard
Intel Sunrise Point Z170
Storage
Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD), 1024 GB
Soundcard
Cirrus Logic CS4206B
Connections
4 USB 3.0 / 3.1 Gen1, 2 Thunderbolt, 2 DisplayPort, 1 Kensington Lock, Audio Connections: Headset, Card Reader: SD, Sensors: 亮度传感器
Networking
Broadcom NetXtreme Gigabit Ethernet (10/100/1000MBit/s), Broadcom 802.11ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Operating System
Apple OS X 10.11 El Capitan
Camera
Webcam: 720p FaceTime HD
Additional features
Speakers: 立体声扬声器, Keyboard: 孤岛式, Keyboard Light: no, 12 Months Warranty
Weight
9.54 kg
Price
2299 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



There is enough space on the big 5K screen.
Ports are only at the rear

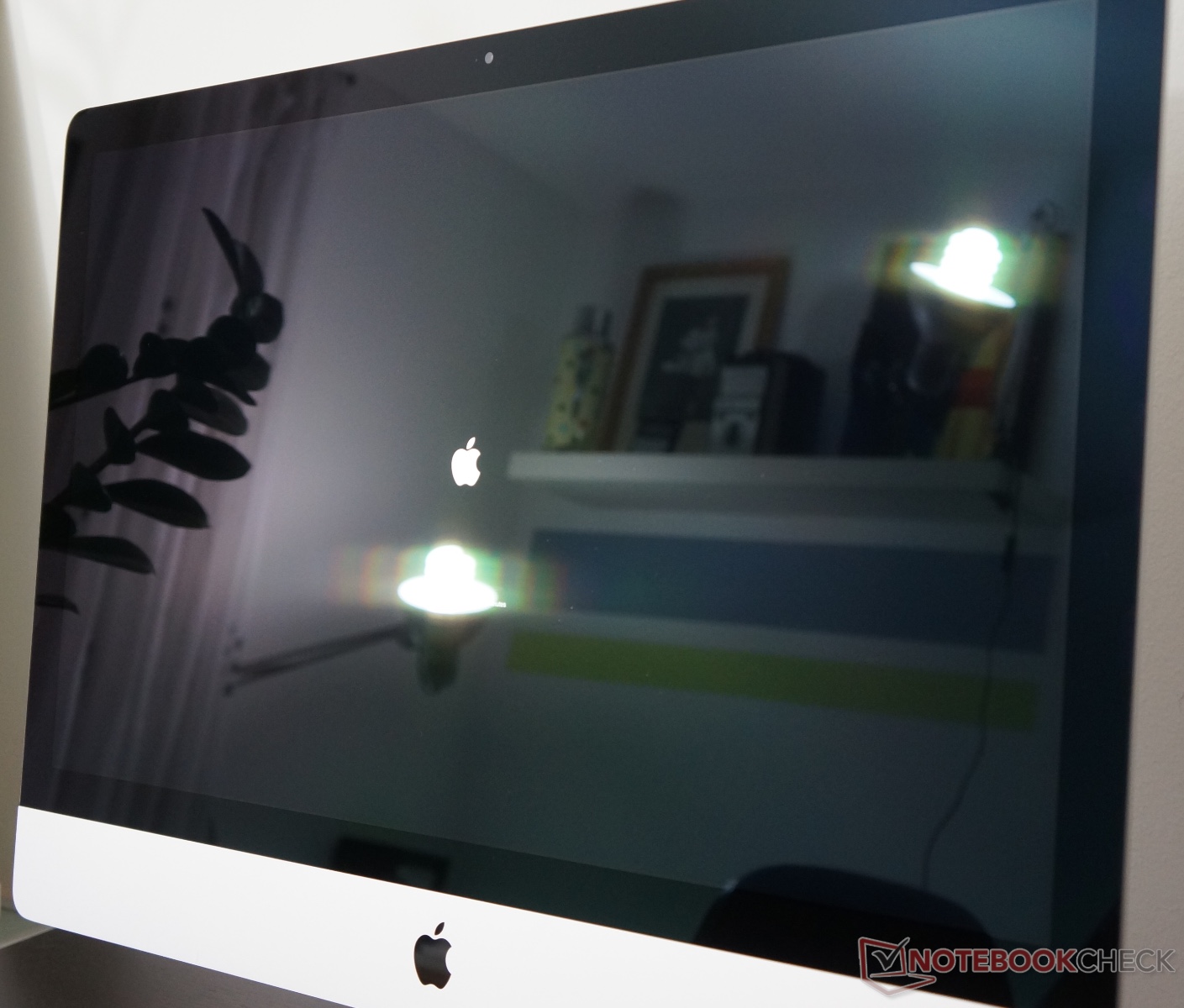

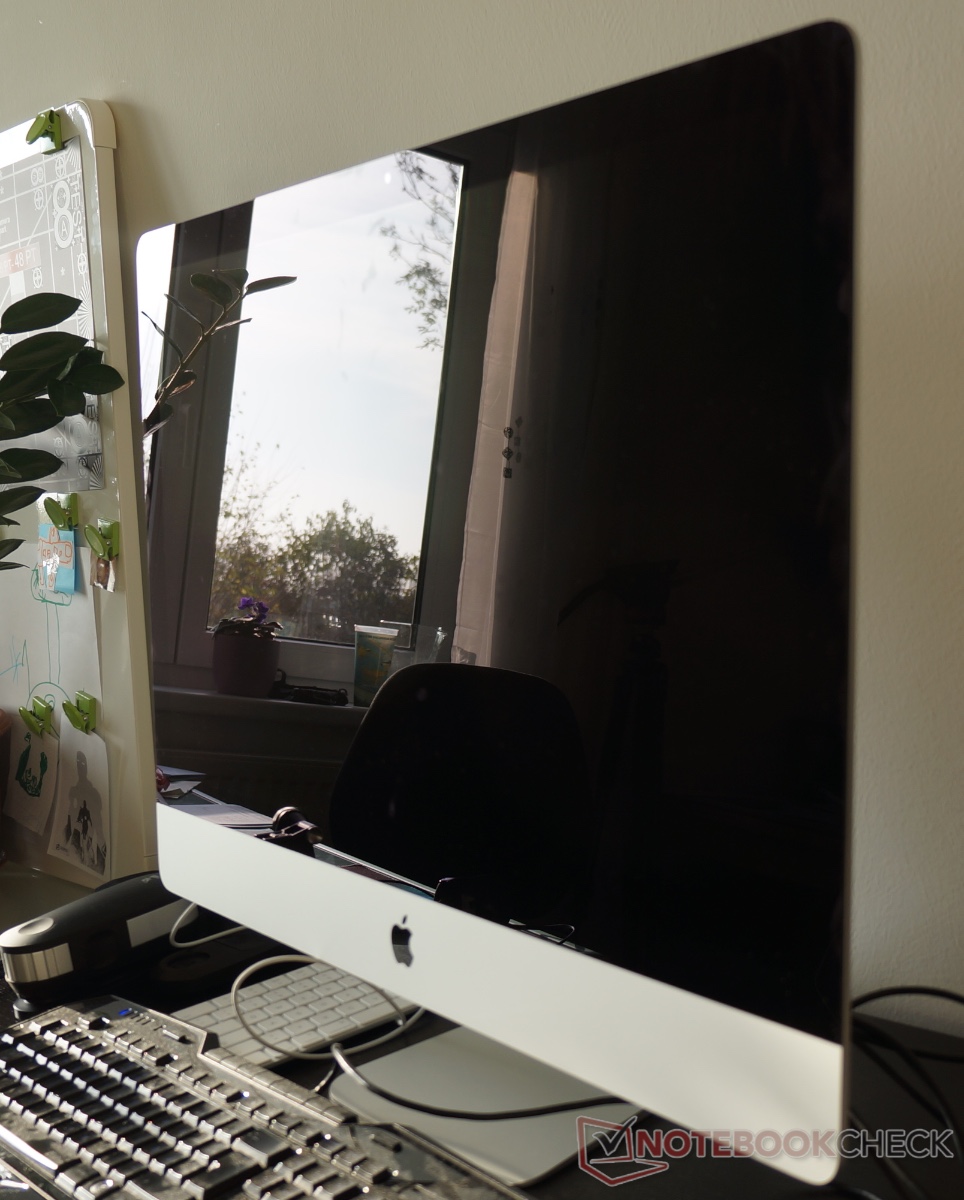

Display with anti-reflective coating

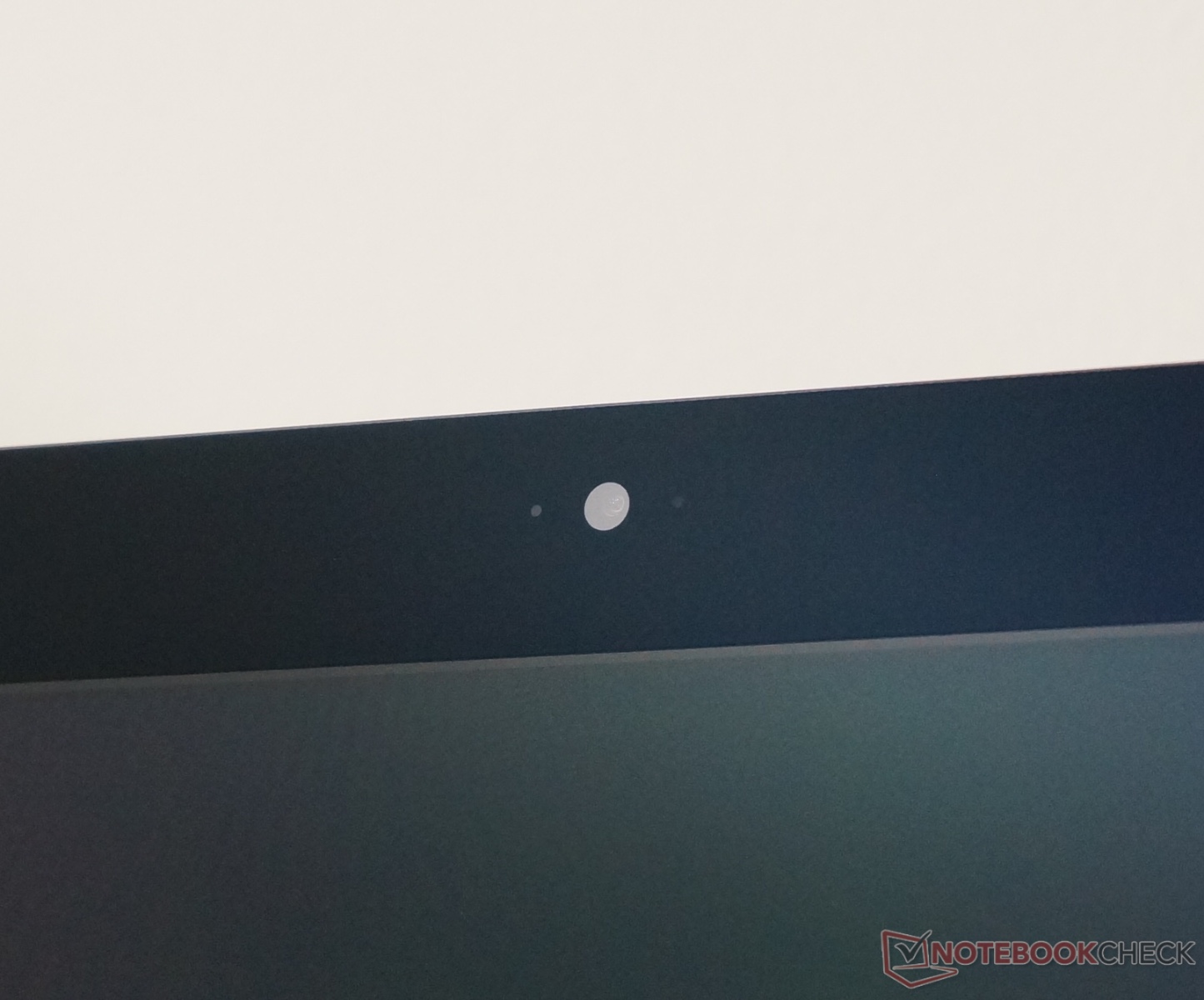

FaceTime HD camera with 720p
glossy panel

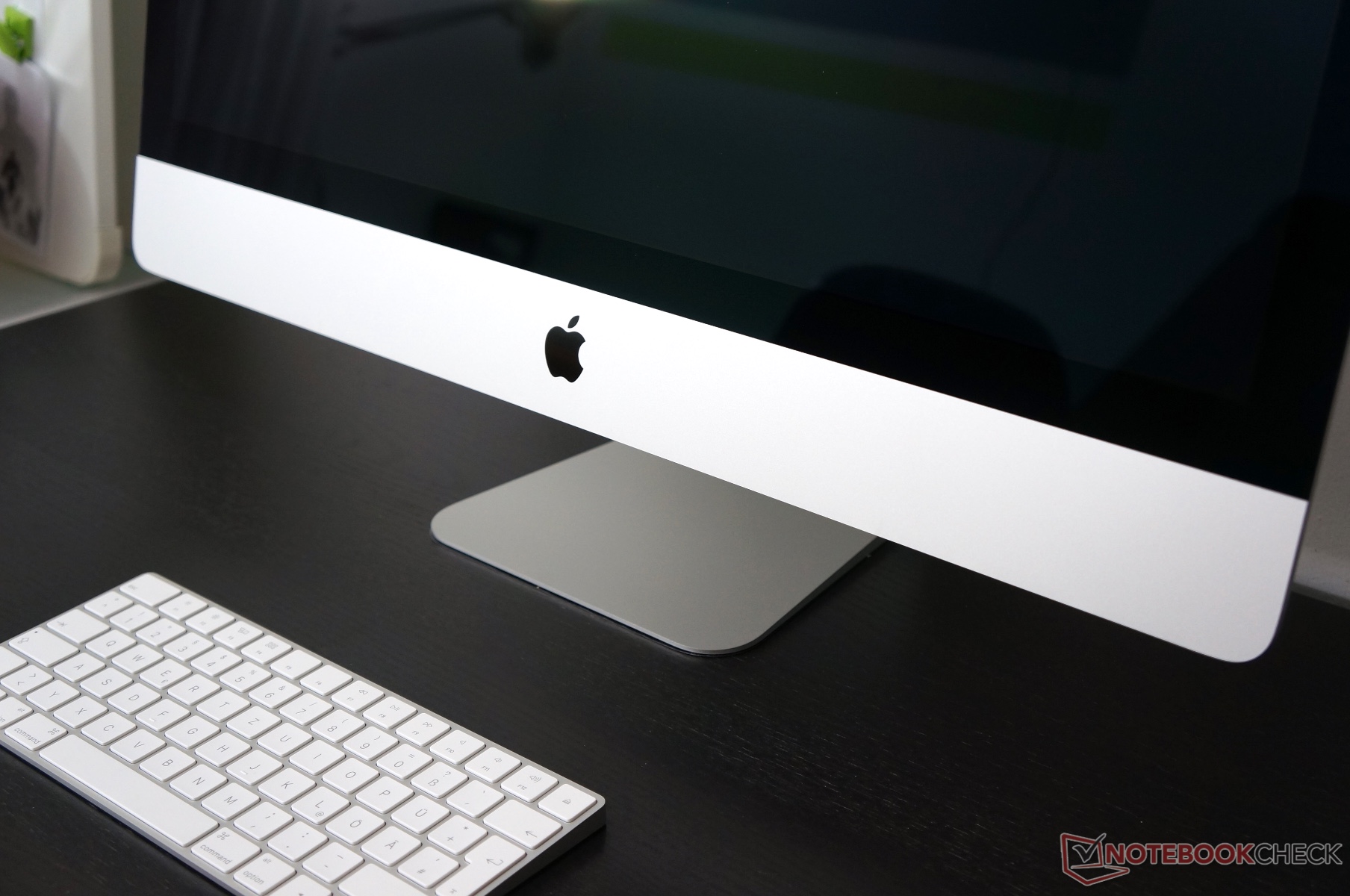

classic and elegant design
slim construction

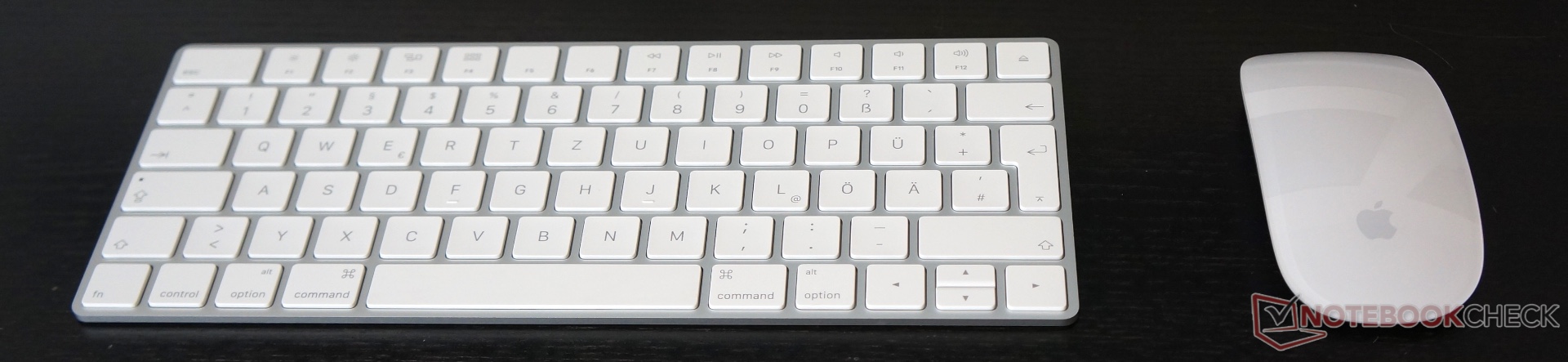

The new input devices in review
Heat dissipation underneath the display

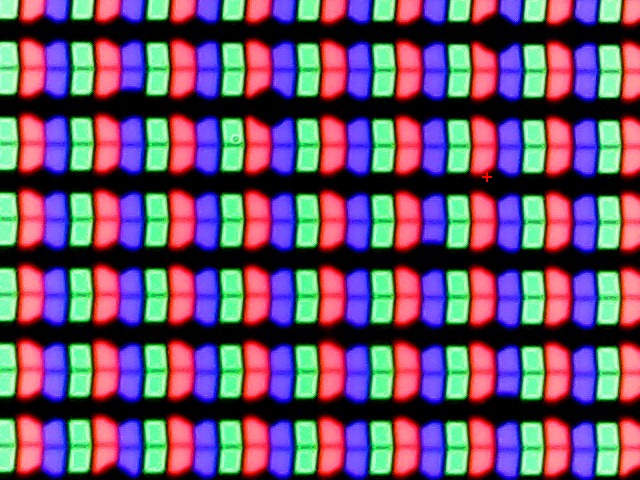

Subpixel array
Subpixel array

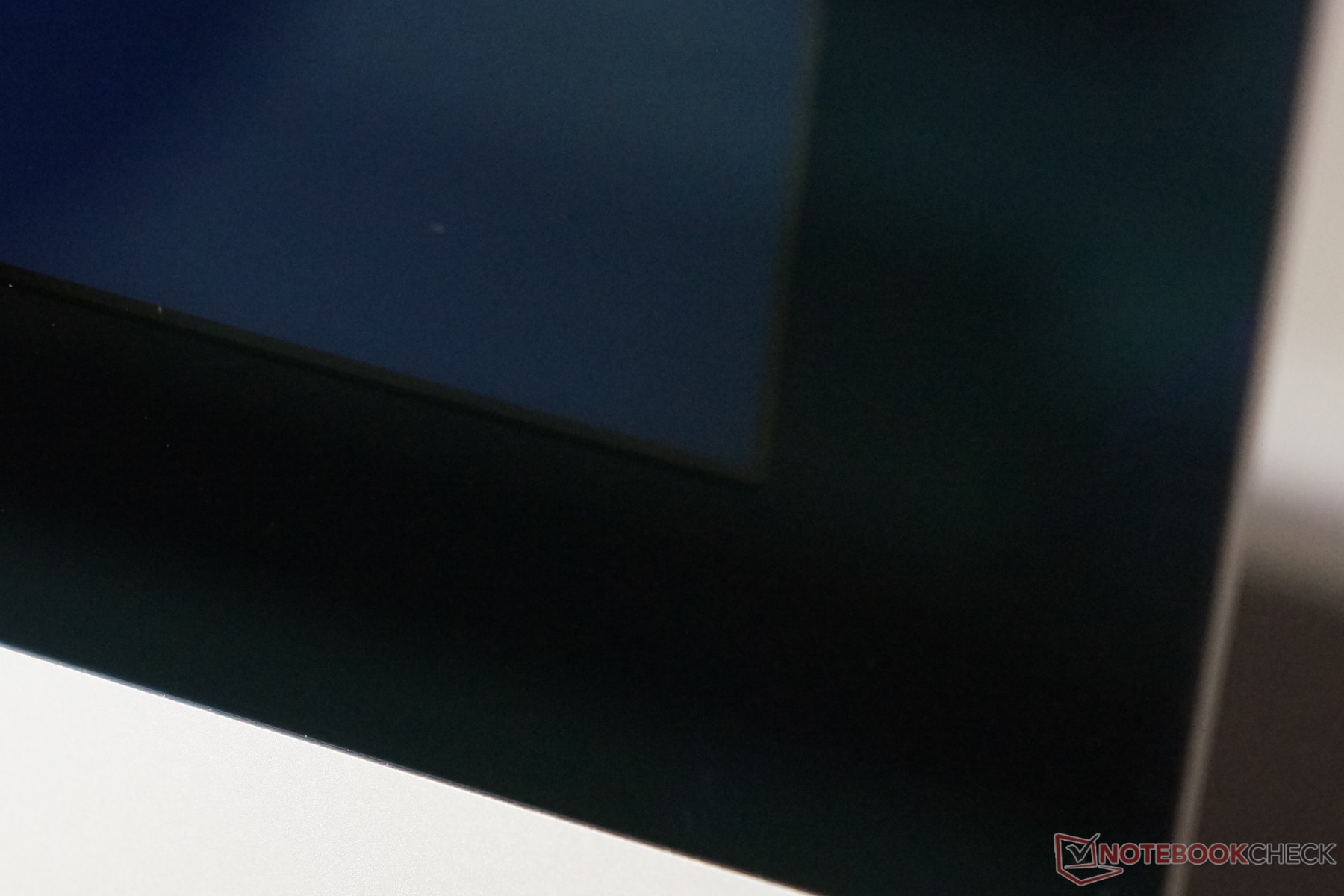

small distance between display panel ...
small distance between display panel ...
... and the case
... and the case

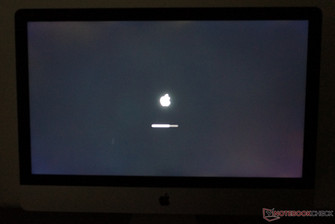

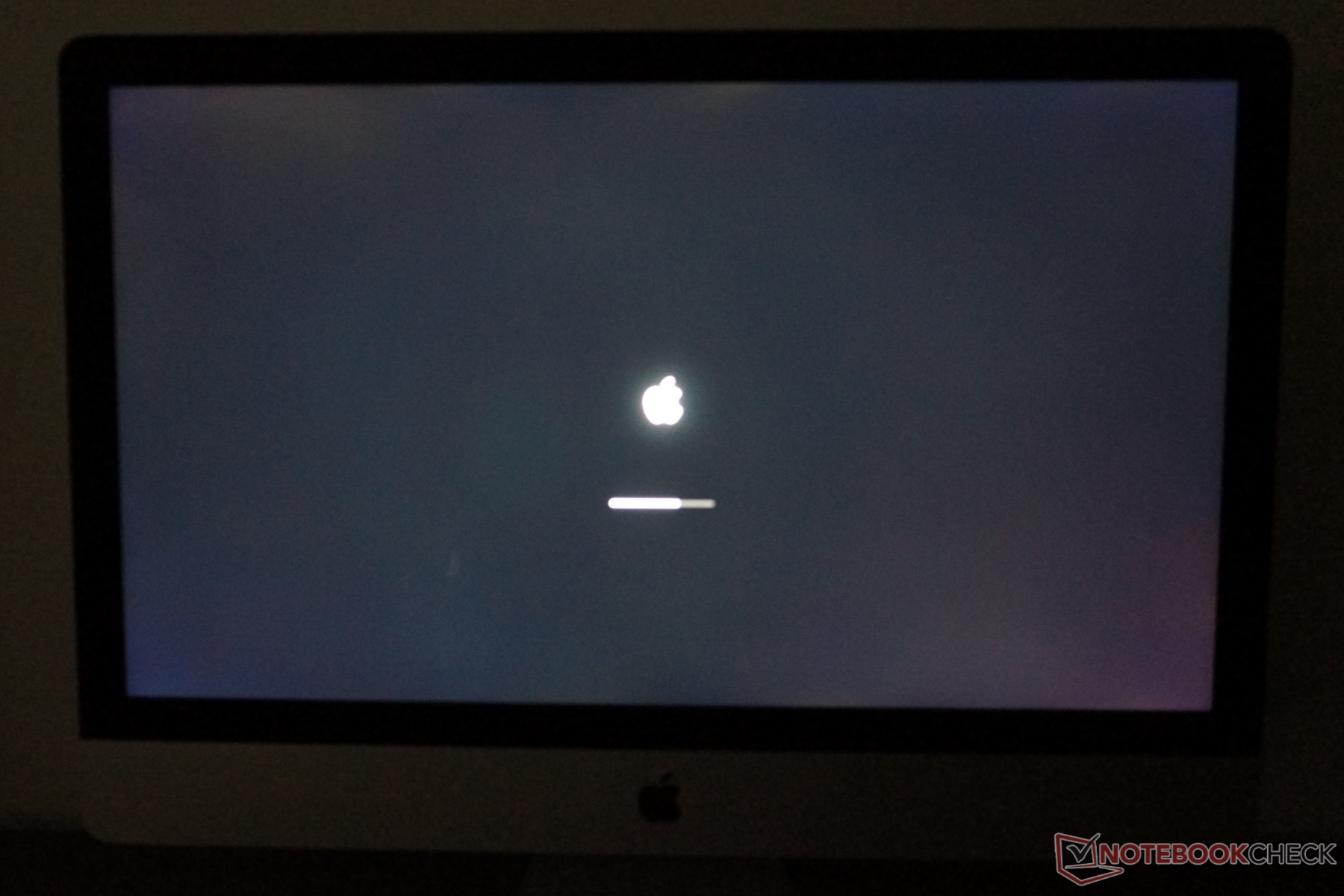

Screen bleeding iMac 5K 2015
Screen bleeding iMac 5K 2015

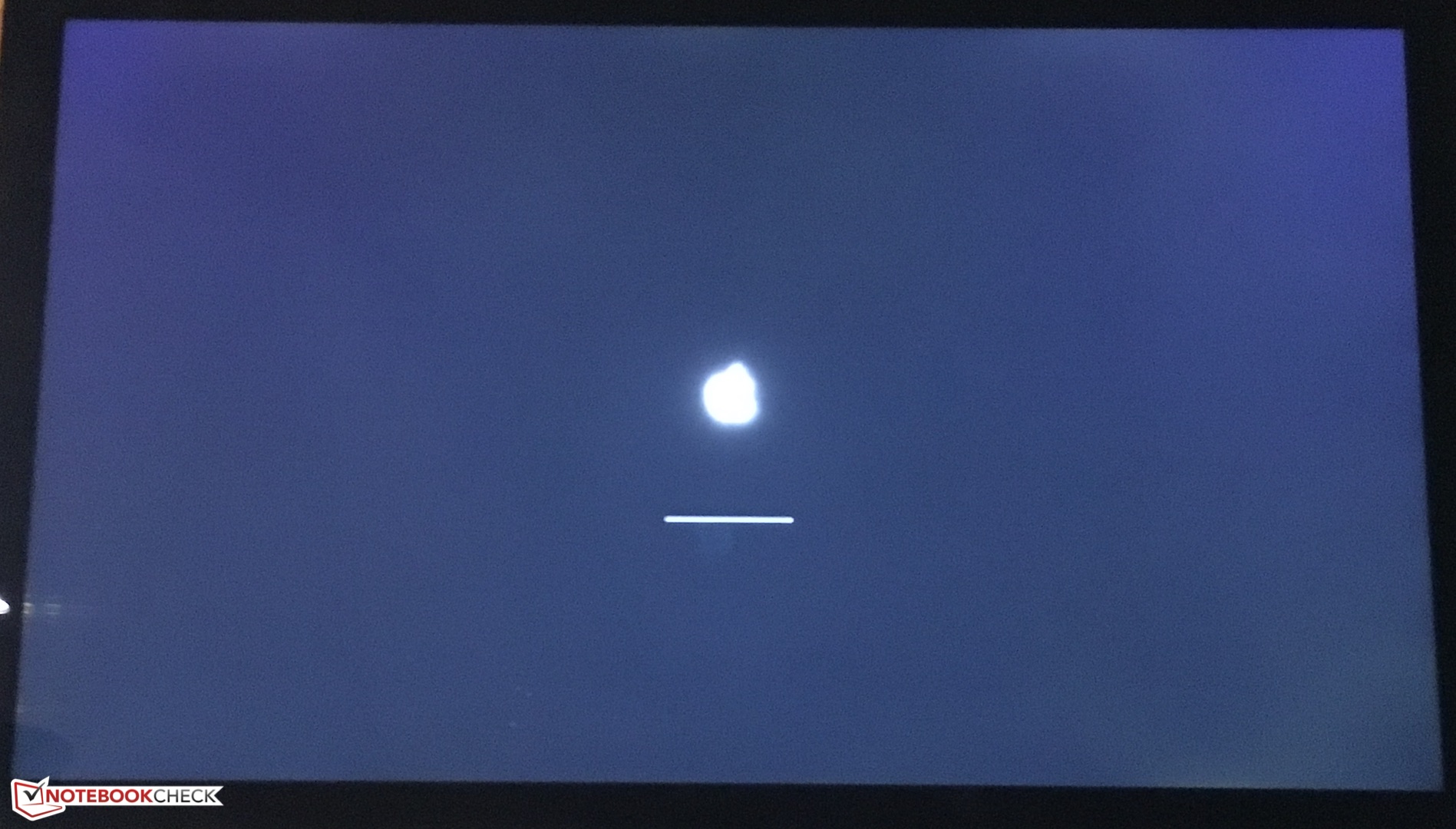

Screen bleeding iMac 5K 2014
Screen bleeding iMac 5K 2014
419
cd/m²
419
cd/m²
422
cd/m²
434
cd/m²
429
cd/m²
432
cd/m²
418
cd/m²
428
cd/m²
412
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2 // Gossen Mavo-Monitor
Maximum: 434 cd/m² (Nits) Average: 423.7 cd/m²
Brightness Distribution: 95 %
Contrast: 740:1 (Black: 0.58 cd/m²)
ΔE Color 2.8 | 0.5-29.43 Ø4.92
ΔE Greyscale 1.97 | 0.5-98 Ø5.2
99.97% sRGB (Argyll 1.6.3 3D)
79% AdobeRGB 1998 (Argyll 1.6.3 3D)
88.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
99.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.13

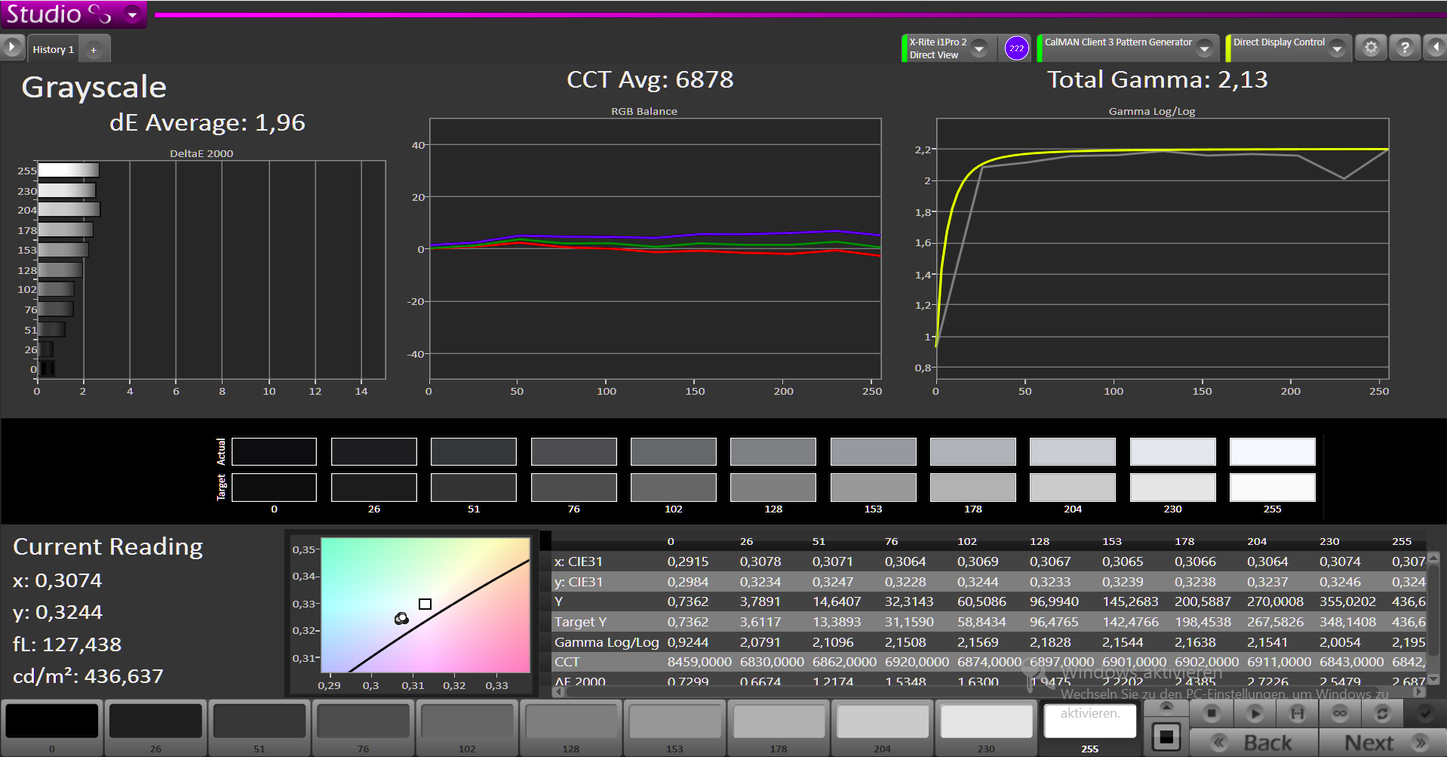

Grayscale: frontal measurement with a distance of 9 cm
Grayscale: frontal measurement with a distance of 9 cm

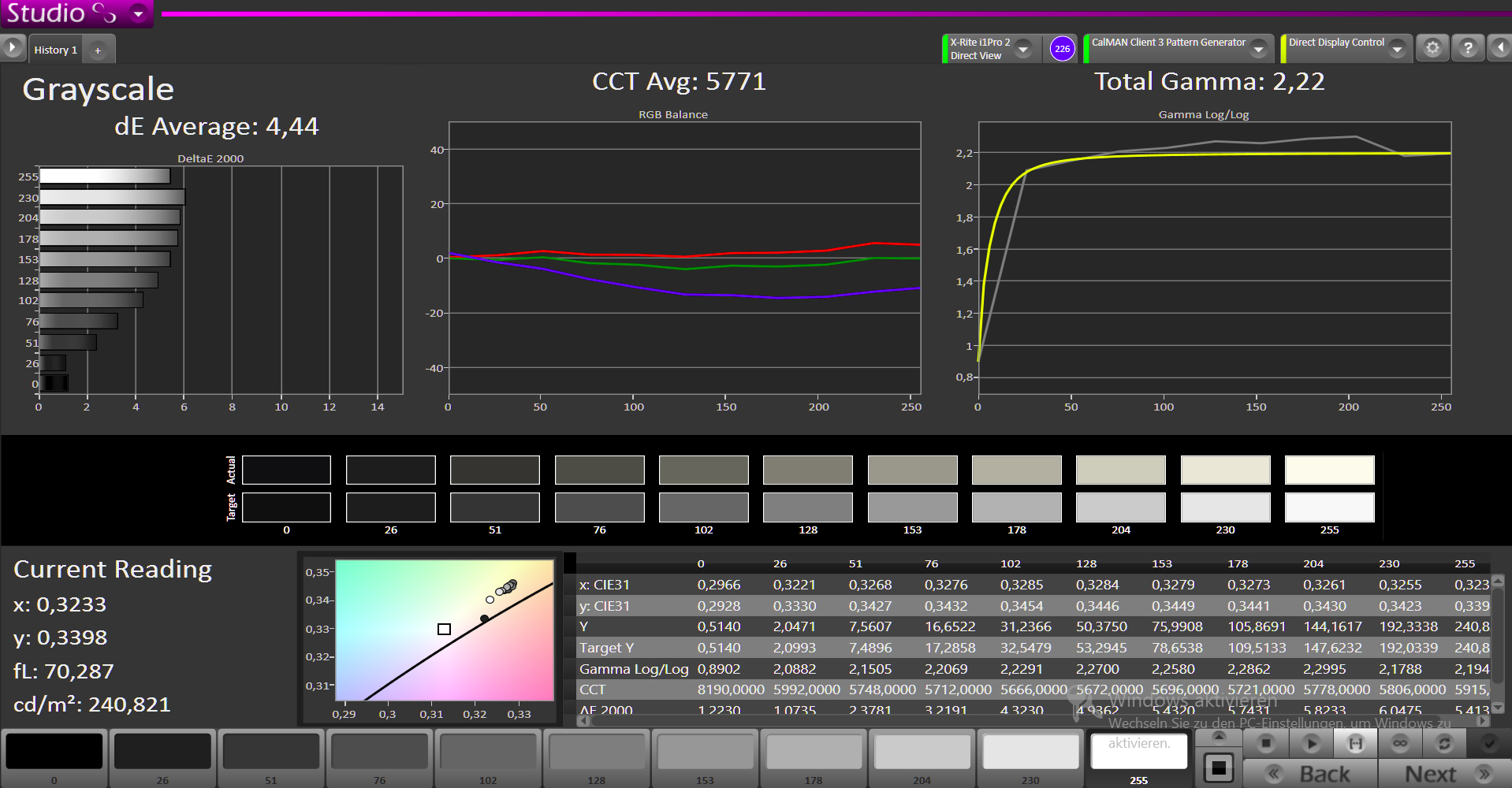

Grayscale: frontal measurement with a distance of 9 cm at an angle of 45 degrees
Grayscale: frontal measurement with a distance of 9 cm at an angle of 45 degrees

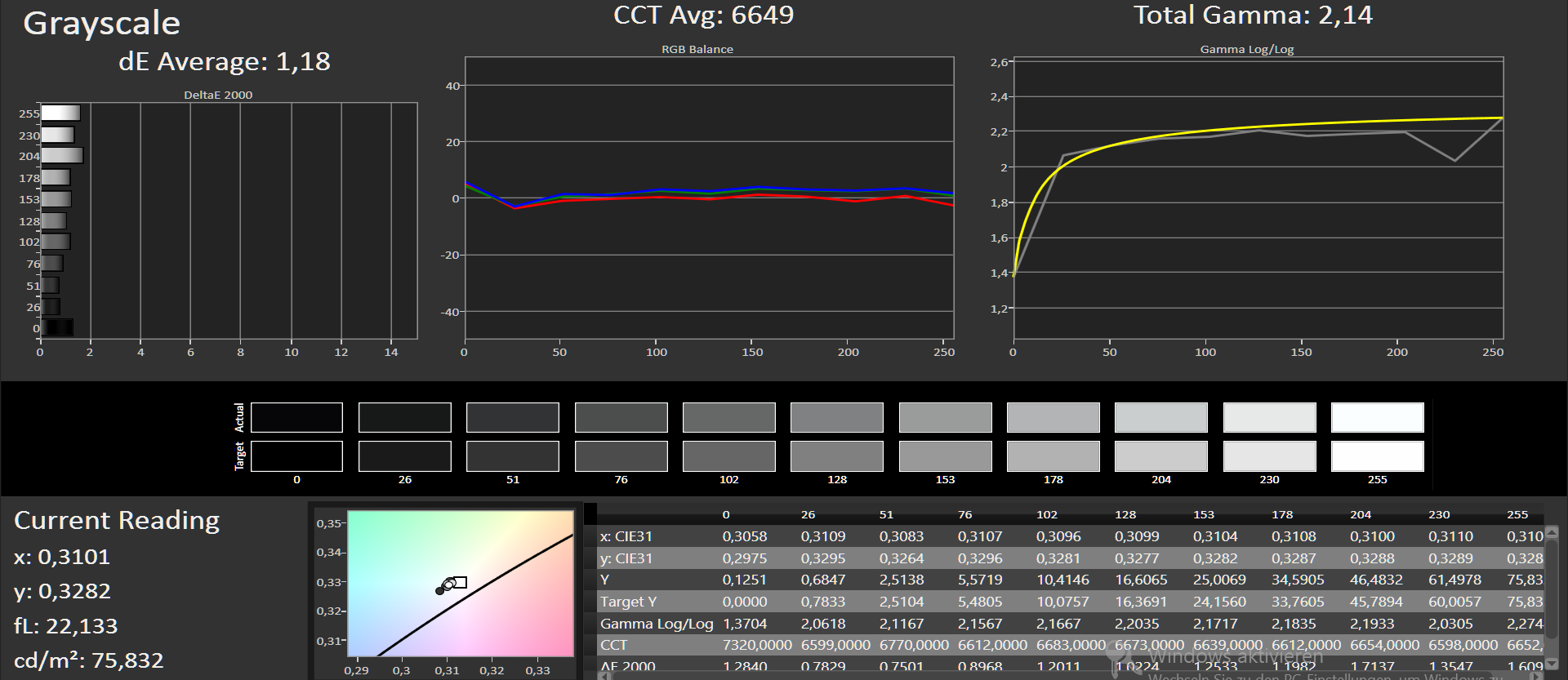

Grayscale: pre-calibration with automatic brightness control
Grayscale: pre-calibration with automatic brightness control

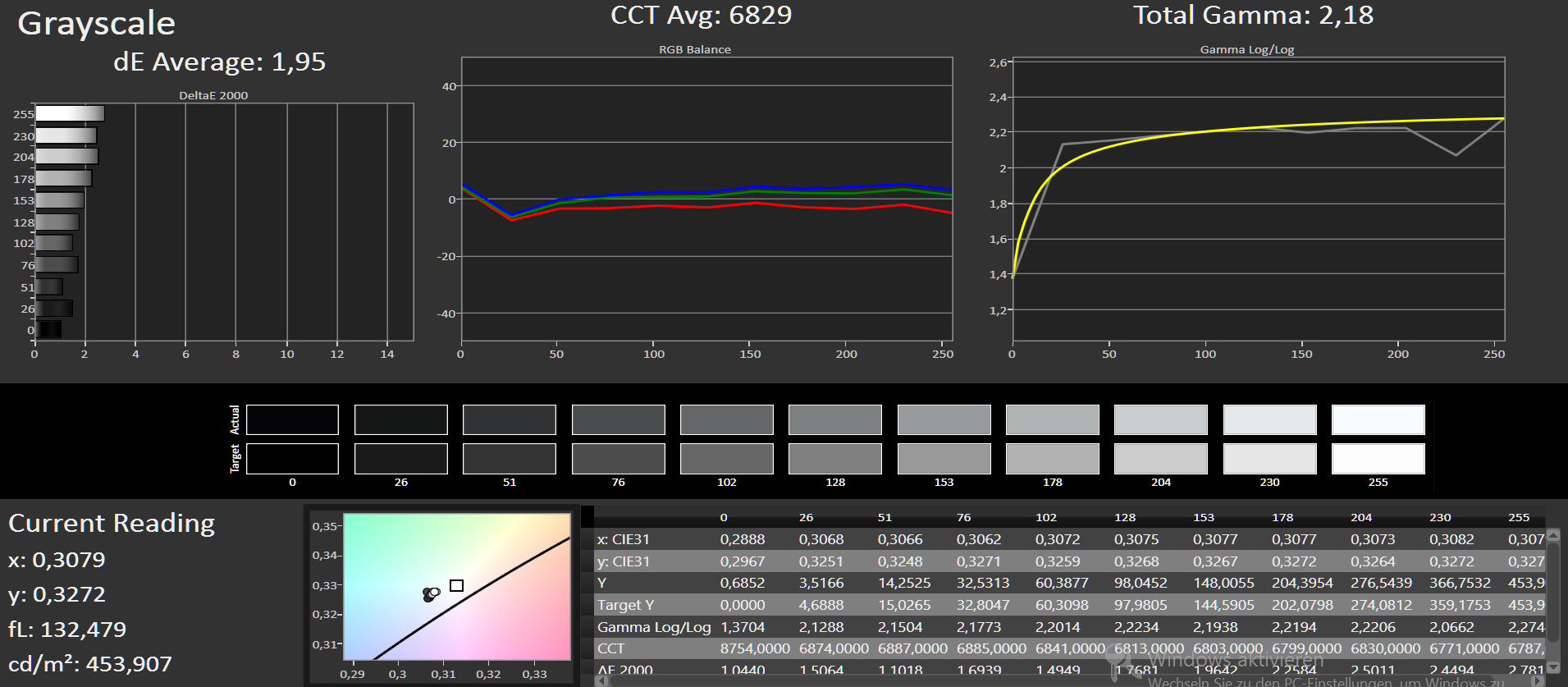

Grayscale: maximum brightness
Grayscale: maximum brightness

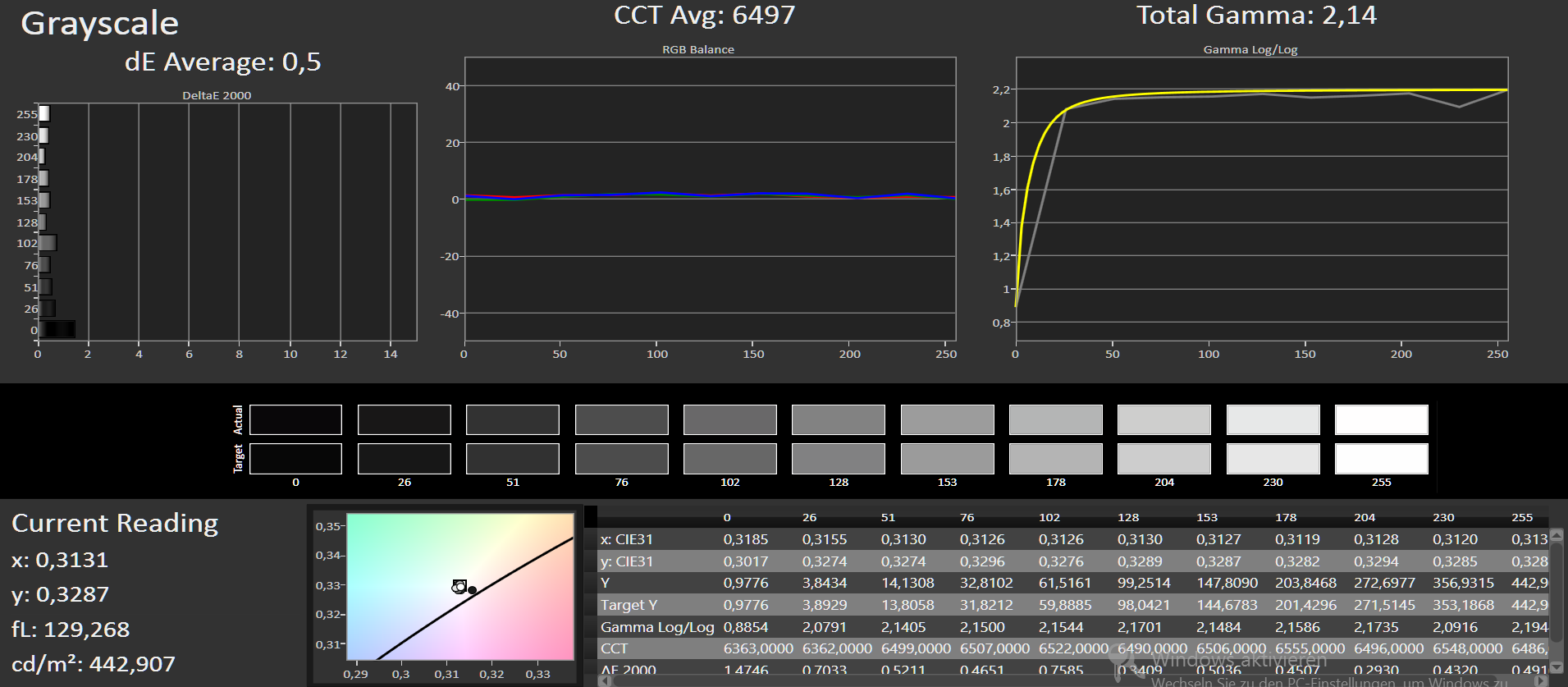

Grayscale: calibrated
Grayscale: calibrated

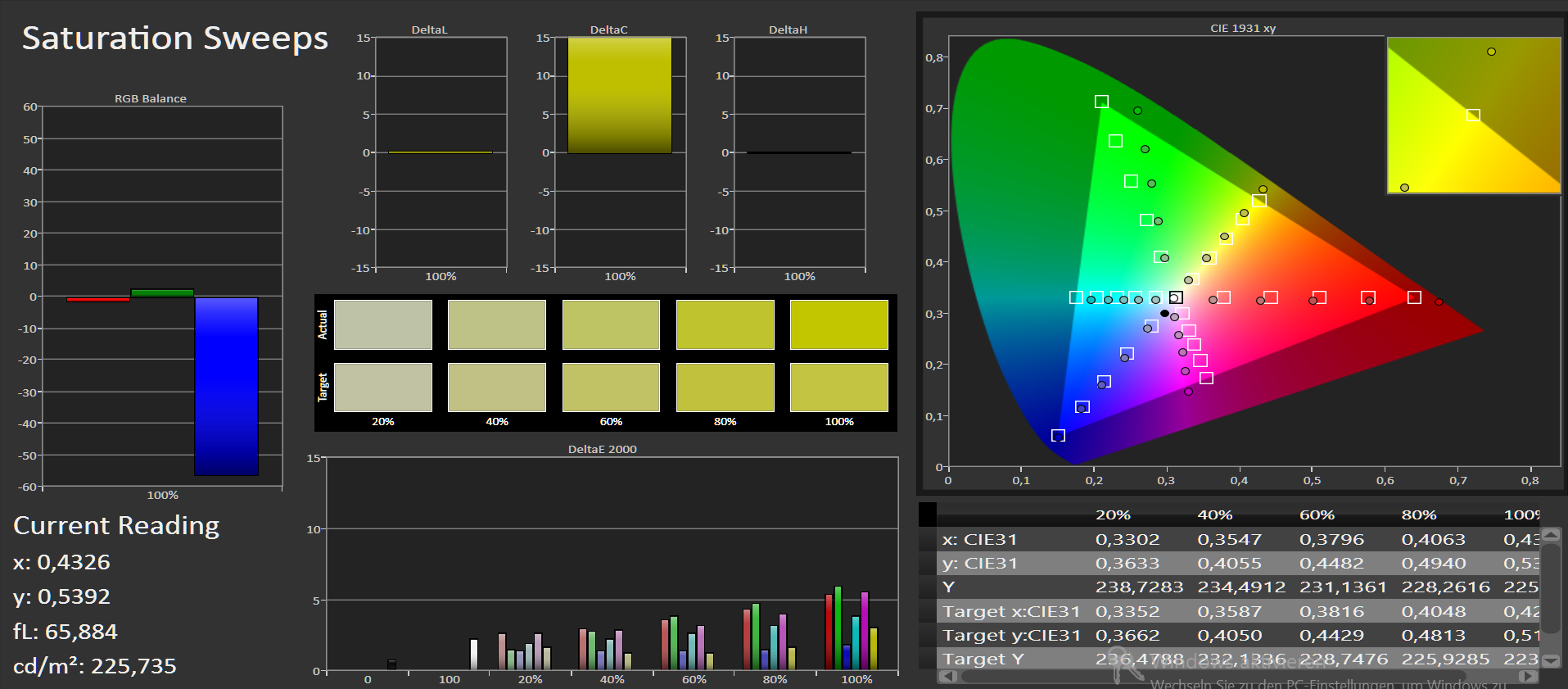

Saturation Sweeps: vs. the AdobeRGB color space and the system's AdobeRGB profile
Saturation Sweeps: vs. the AdobeRGB color space and the system's AdobeRGB profile

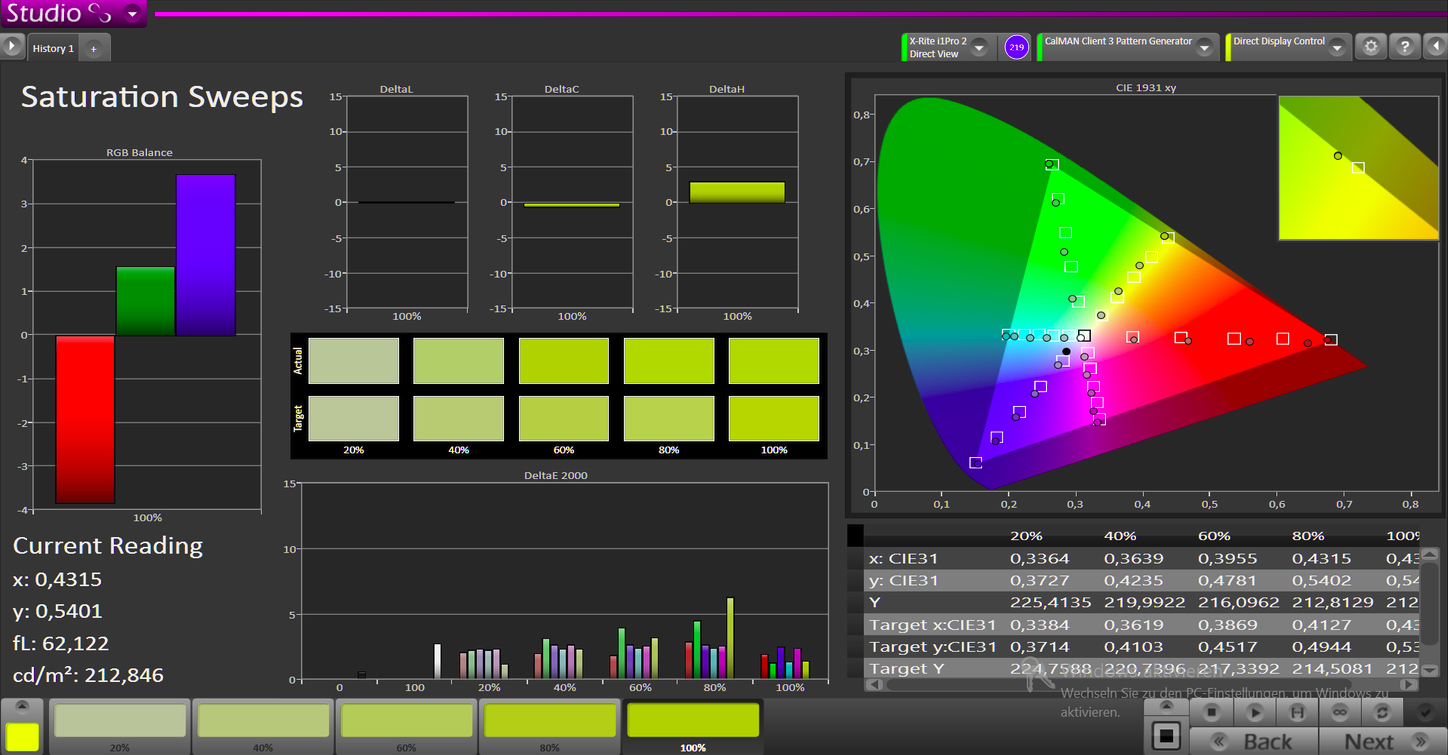

Saturation Sweeps: with a distance of 9 cm
Saturation Sweeps: with a distance of 9 cm
Saturation Sweeps: frontal measurement with a distance of 15 cm at an angle of 45 degrees - from below
Saturation Sweeps: frontal measurement with a distance of 15 cm at an angle of 45 degrees - from below
ColorChecker: vs. the sRGB color space and the system's sRGB profile
ColorChecker: vs. the sRGB color space and the system's sRGB profile

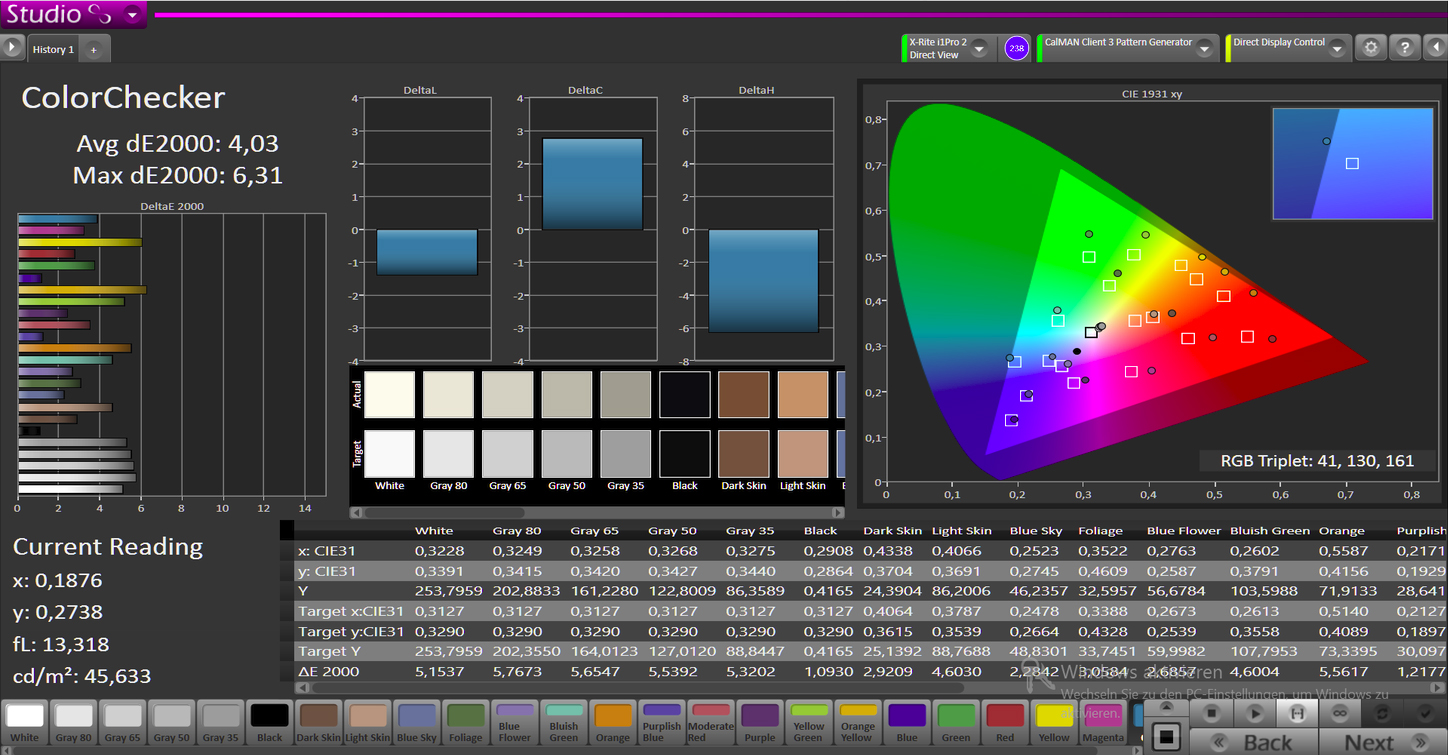

ColorChecker: At an angle of 45 degrees
ColorChecker: At an angle of 45 degrees
ColorChecker: At an angle of 45 degrees - from below
ColorChecker: At an angle of 45 degrees - from below
ColorChecker: Analysis
ColorChecker: Analysis

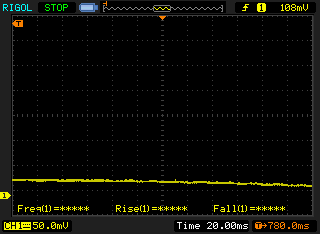

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8747 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

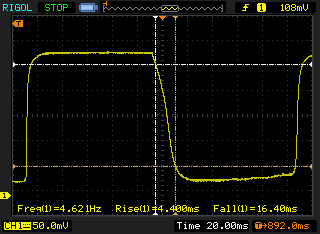

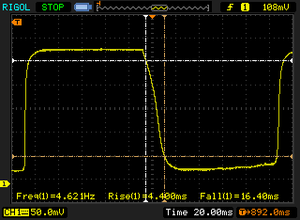

       Response Time Black to White
20.8 ms ... rise ↗ and fall ↘ combined↗ 4.4 ms rise
↘ 16.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21 ms).

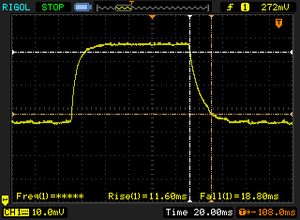

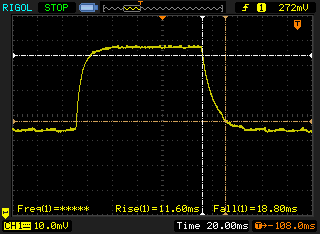

       Response Time 50% Grey to 80% Grey
30.4 ms ... rise ↗ and fall ↘ combined↗ 11.6 ms rise
↘ 18.8 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 37 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (32.9 ms).
Cinebench R15 CPU Single 64Bit
151 Points
Cinebench R15 CPU Multi 64Bit
548 Points
Cinebench R15 OpenGL 64Bit
91.2 fps
Cinebench R15 Ref. Match 64Bit
99.5 %
Help
PCMark 8
Home Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K, Apple SSD SM0128F
4746 Points
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
3568 Points
Creative Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
4828 Points
Work Score Accelerated v2 (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K, Apple SSD SM0128F
4918 Points
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
3887 Points
Apple Fusion Drive 1TB (24 GB SSD + 1 TB HDD)
Sequential Read: 152 MB/s
Sequential Write: 139 MB/s
512K Read: 38 MB/s
512K Write: 61 MB/s
4K Read: 0.41 MB/s
4K Write: 0.8 MB/s
4K QD32 Read: 0.9 MB/s
4K QD32 Write: 0.75 MB/s
Unigine Valley 1.0 - 1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390
22.2 fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X
28.6 fps +29%
Apple iMac 27 2015 M395X
Radeon R9 M395X
28 fps +26%
Apple iMac 27 2015 M395
Radeon R9 M395
27.3 fps +23%
Apple iMac 27 5K 2014 M290X i5-4690
Radeon R9 M290X
25.5 fps +15%
Apple MacBook Pro Retina 13 inch 2013-10
Iris Graphics 5100
5.8 fps -74%
3DMark 11 - 1280x720 Performance (sort by value)
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X
9516 Points
SCHENKER XMG C405
GeForce GTX 965M
7291 Points
Medion Erazer X7615-MD99293
GeForce GTX 965M
7099 Points
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390
6838 Points
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M
5709 Points
SCHENKER XMG A706
GeForce GTX 960M
5602 Points
Alien: Isolation - 1920x1080 Ultra, On, Shadow Map 2048, HDAO AA:2x SM AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
56 fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
67 fps
SCHENKER XMG A505
GeForce GTX 960M, 4720HQ
46.6 fps
SCHENKER XMG P705
GeForce GTX 965M, 4720HQ
54.8 fps
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
55.2 fps
Crysis 3 - 1920x1080 Very High Preset AA:2xSM AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
22.7 (19min - 30max) fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
33.9 fps
SCHENKER XMG A505
GeForce GTX 960M, 4720HQ
20.6 fps
SCHENKER XMG P705
GeForce GTX 965M, 4720HQ
23.9 fps
Anno 2205 - 1920x1080 High Preset AA:4x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
31.5 (28min - 34max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
24.6 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
26.1 (23min) fps
Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
33.8 (9min - 72max) fps
SCHENKER XMG A505
GeForce GTX 960M, 4720HQ
31.9 fps
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
32.3 fps
SCHENKER XMG P705
GeForce GTX 965M, 4720HQ
38.7 fps
1366x768 High (DX11) AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
67 (10min - 126max) fps
SCHENKER XMG A505
GeForce GTX 960M, 4720HQ
59.9 fps
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
59.5 fps
SCHENKER XMG P705
GeForce GTX 965M, 4720HQ
74.4 fps
The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
11.5 (10min - 13max) fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
9.7 (7min) fps
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
17.8 (14min - 22max) fps
Nexoc G515 II
GeForce GTX 960M, 6700HQ
14.4 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
13.7 (11min) fps
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
16.8 fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
31.1 (26min - 36max) fps
Nexoc G515 II
GeForce GTX 960M, 6700HQ
26.6 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
27.1 (21min) fps
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
29.2 fps
Call of Duty: Black Ops 3
3840x2160 High / On AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
13.4 (10min - 17max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
10.4 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
10.4 (5min) fps
1920x1080 Extra / On AA:T2x SM (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
29.5 (18min - 43max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
31.5 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
29.3 (23min) fps
1920x1080 High / On AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
40.5 (30min - 50max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
36.2 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
34 (24min) fps
World of Warships
3840 x 2160 Very High Preset AA:High FX AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
24.1 (15min - 36max) fps
1920x1080 Very High Preset AA:High FX AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
74 (55min - 100max) fps
SCHENKER XMG A706
GeForce GTX 960M, 6700HQ
69 fps
1920x1080 High Preset AF:8x (sort by value)
SCHENKER XMG A706
GeForce GTX 960M, 6700HQ
98.1 fps
Dragon Age: Inquisition
1920x1080 Ultra Graphics Quality AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
27.1 (22.2min) fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
35.2 fps
SCHENKER XMG A505
GeForce GTX 960M, 4720HQ
22.5 fps
Nexoc G515 II
GeForce GTX 960M, 6700HQ
22.3 fps
SCHENKER XMG P705
GeForce GTX 965M, 4720HQ
27.1 fps
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
26.9 fps
1920x1080 High Graphics Quality (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
39.4 (28.5min) fps
Apple iMac Retina 5K 27 Late 2014 i7-4790K M295X
Radeon R9 M295X, 4790K
51 fps
SCHENKER XMG A505
GeForce GTX 960M, 4720HQ
33.5 fps
Nexoc G515 II
GeForce GTX 960M, 6700HQ
33.4 fps
SCHENKER XMG P705
GeForce GTX 965M, 4720HQ
39.2 fps
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
38.7 fps
1366x768 Medium Graphics Quality (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
71.5 (35.5min) fps
SCHENKER XMG A505
GeForce GTX 960M, 4720HQ
59.9 fps
Nexoc G515 II
GeForce GTX 960M, 6700HQ
93.7 fps
SCHENKER XMG P705
GeForce GTX 965M, 4720HQ
71.7 fps
Medion Erazer X7615-MD99293
GeForce GTX 965M, 4720HQ
70.9 fps
Fallout 4
3840x2160 High Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
13.8 (10min - 17max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
10 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
10.1 (8min) fps
1920x1080 Ultra Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
30.3 (24min - 38max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
24.7 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
25.3 (20min) fps
1920x1080 High Preset AA:T AF:16x (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
38.5 (30min - 47max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
31.9 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
31.4 (26min) fps
FIFA 16
3840x2160 High Preset AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
54 (51min - 58max) fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
44.5 (42min) fps
1920x1080 High Preset AA:4x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
111 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
108.1 (95min) fps
1366x768 High Preset AA:2x MS (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
190 (164min - 208max) fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
161.8 (148min) fps
Metal Gear Solid V
3840x2160 High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
21.6 (19min - 25max) fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
15.5 (13min) fps
1920x1080 Extra High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
39.6 (35min - 43max) fps
SCHENKER XMG A706
GeForce GTX 960M, 6700HQ
37.6 fps
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
38.1 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
36.4 (34min) fps
1920x1080 High / On (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
60 (59min - 60max) fps
SCHENKER XMG A706
GeForce GTX 960M, 6700HQ
56.3 fps
Eurocom Shark 4
GeForce GTX 960M, 4720HQ
58.4 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
54.2 (53min) fps
Star Wars Battlefront
3840x2160 High Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
14.9 (12min - 18max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
11.8 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
11.6 (9min) fps
1920x1080 Ultra Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
45.4 (37min - 54max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
34.4 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
34.4 (28min) fps
1920x1080 High Preset AA:FX (sort by value)
Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A
Radeon R9 M390, 6500
54 (45min - 62max) fps
Dell Inspiron 15 7559
GeForce GTX 960M, 6700HQ
41.1 fps
Schenker XMG A505
GeForce GTX 960M, 4720HQ
40.9 (33min) fps
lowmed.highultra4K
Crysis 3 (2013) 62 22.7
Tomb Raider (2013) 195 150 64
BioShock Infinite (2013) 213 147 130 49.5
Metro: Last Light (2013) 100 91 67 33.8
Battlefield 4 (2013) 168 121 91 37.6 19.5
X-Plane 10.25 (2013) 84 52.5 24.7 19.8
Thief (2014) 93 72 63 30.9
Sims 4 (2014) 82
Middle-earth: Shadow of Mordor (2014) 154 92 53 39
Alien: Isolation (2014) 56
Dragon Age: Inquisition (2014) 80.5 71.5 39.4 27.1
Battlefield Hardline (2015) 161 138 56 36.8
GTA V (2015) 54.2 12.8
The Witcher 3 (2015) 82 31.1 17.8 11.5
Metal Gear Solid V (2015) 60 60 60 39.6 21.6
Mad Max (2015) 111 57 48.8 17.6
World of Warships (2015) 74 24.1
FIFA 16 (2015) 233 190 111 54
Anno 2205 (2015) 103 31.5 12 12
Call of Duty: Black Ops 3 (2015) 123 82 40.5 29.5 13.4
Fallout 4 (2015) 38.5 30.3 13.8
Star Wars Battlefront (2015) 161 107 54 45.4 14.9
Assassin's Creed Syndicate (2015) 52 41.2 29.2

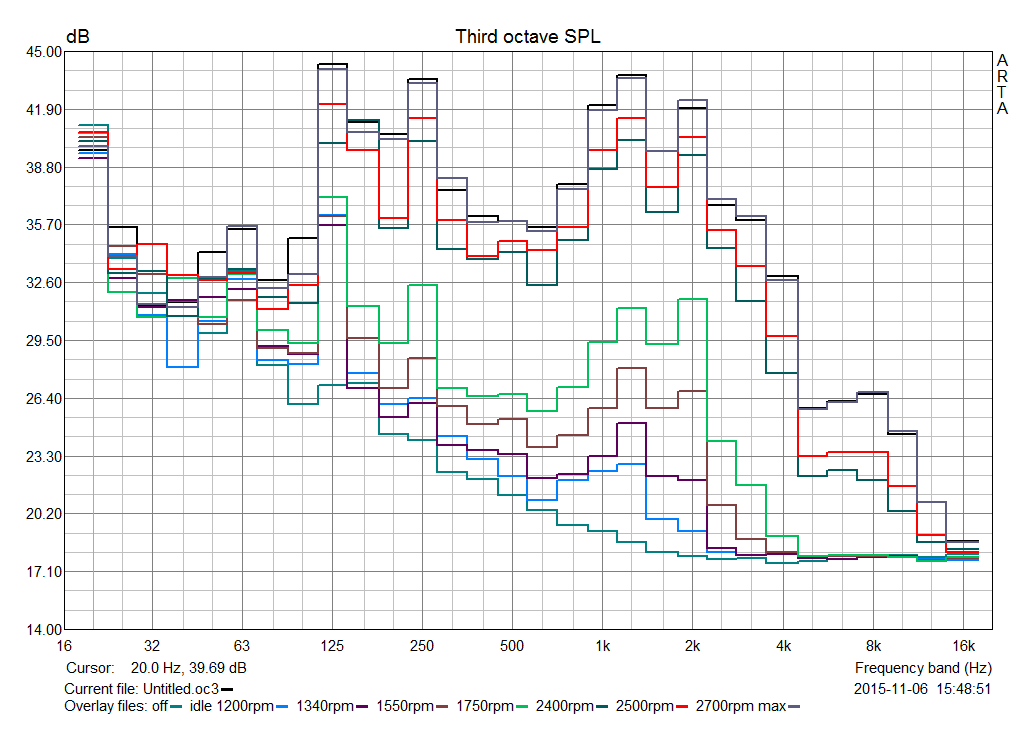

Frequency diagram of the system noise. You can already see the integrated HDD while idling (blue curve). The cooling system is audible when the fan hits 1340 rpm, but is still restrained.
Frequency diagram of the system noise. You can already see the integrated HDD while idling (blue curve). The cooling system is audible when the fan hits 1340 rpm, but is still restrained.

Noise Level

Idle
32.5 / 32.5 / 32.5 dB(A)
HDD
32.5 dB(A)
Load
39 / 48.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Arta / Audix TM1 (15 cm distance)   environment noise: 30 dB(A)

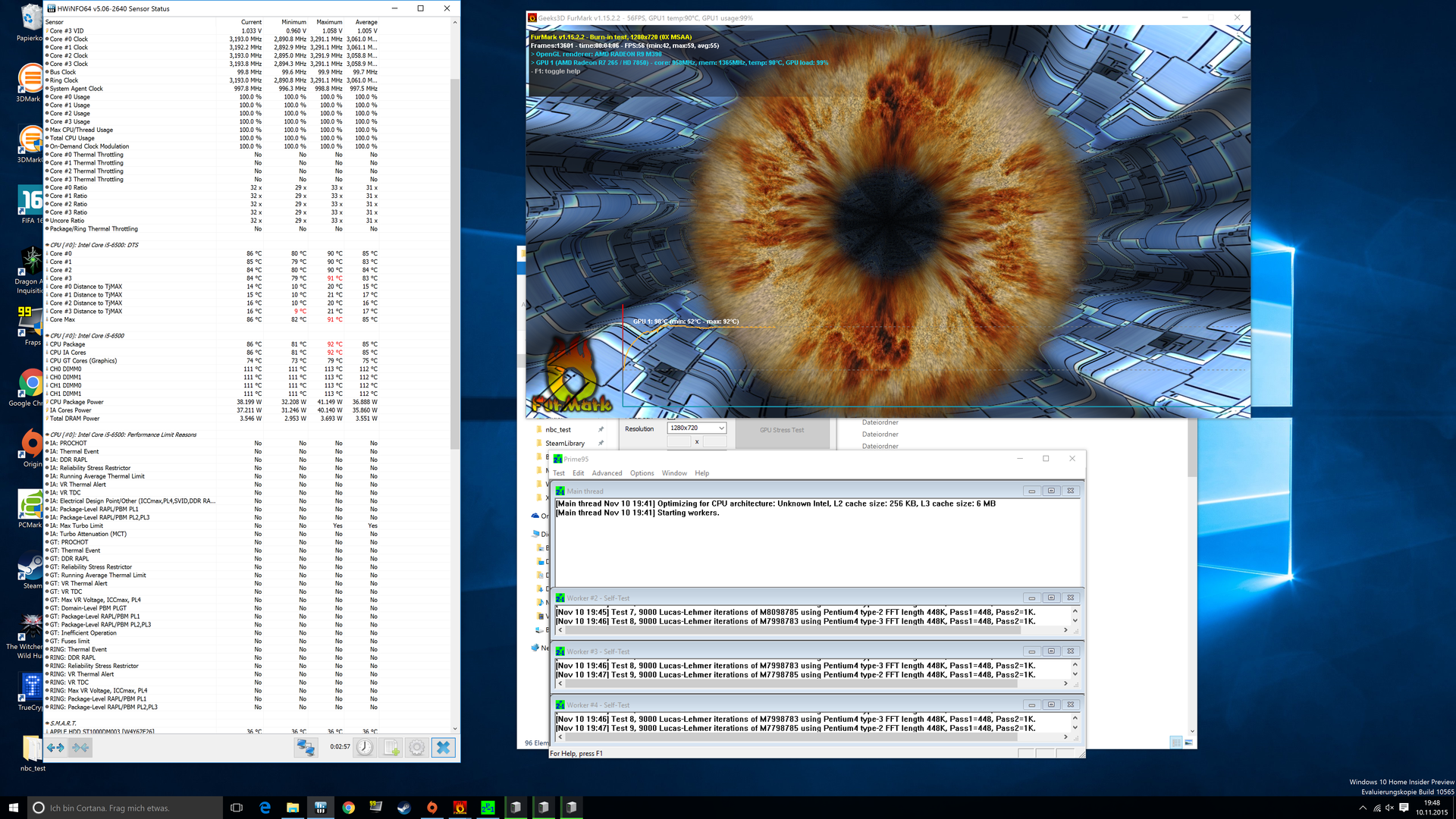

Stress test
Stress test

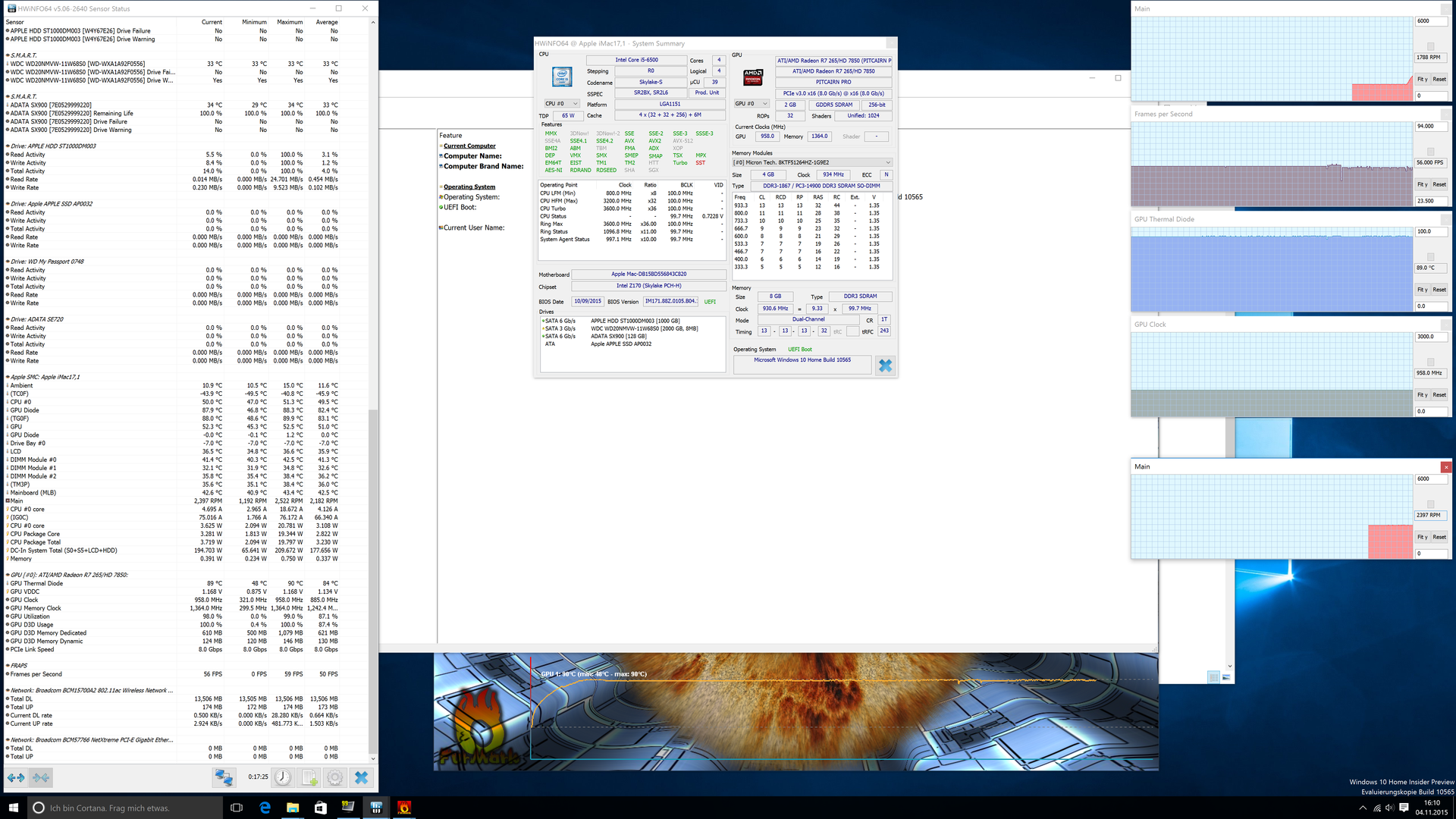

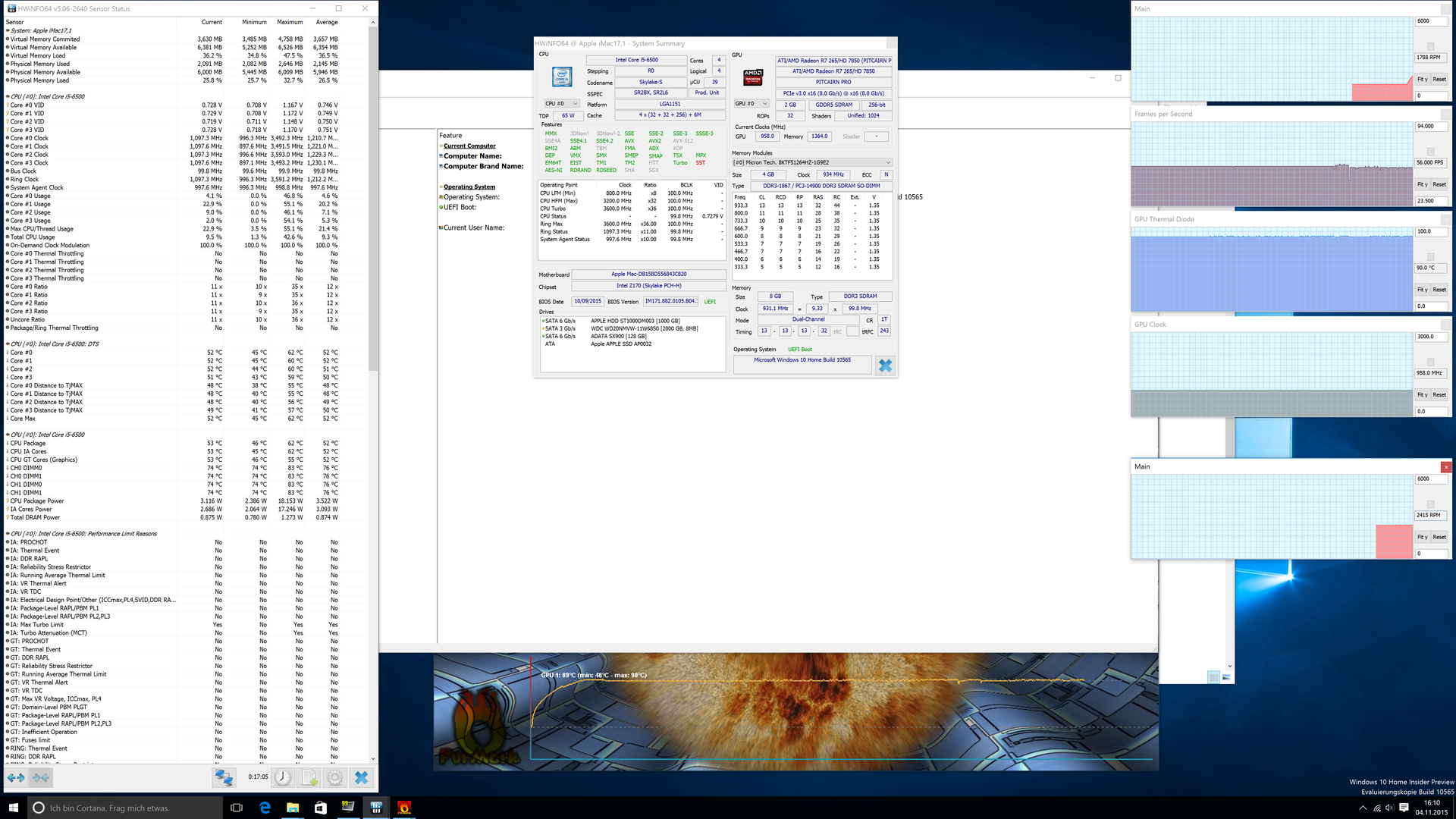

FurMark requires...
FurMark requires...
... the maximum performance of the graphics card.
... the maximum performance of the graphics card.
Max. Load
 30 °C33 °C33 °C
 30 °C32 °C33 °C
 27 °C33 °C31 °C
Maximum: 33 °C
Average: 31.3 °C
31 °C32 °C29 °C
33 °C38 °C31 °C
34 °C39 °C32 °C
Maximum: 39 °C
Average: 33.2 °C
Room Temperature 21 °C | Fluke 62 Mini
(+) The average temperature for the upper side under maximal load is 31.3 °C / 88 F, compared to the average of 29.7 °C / 85 F for the devices in the class Desktop.
(+) The maximum temperature on the upper side is 33 °C / 91 F, compared to the average of 34.4 °C / 94 F, ranging from 25 to 47 °C for the class Desktop.
(+) The bottom heats up to a maximum of 39 °C / 102 F, compared to the average of 34 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 26.9 °C / 80 F, compared to the device average of 29.7 °C / 85 F.
Power Consumption
Off / Standbydarklight 0.044 / 0.05 Watt
Idledarkmidlight 29.5 / 59.2 / 68 Watt
Load midlight 126 / 231 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Pros

+ 设计
+ 纤薄机身
+ 工艺和材料品质
+ Mac OS X系统性能
+ 高分辨率5K屏幕
+ 可充电输入设备

Cons

- 可维护性
- 接口易用性
- 不支持USB-C
- 不支持Thunderbolt 3
- FusionDrive的固态硬盘容量小
- Magic Mouse 2的充电方式

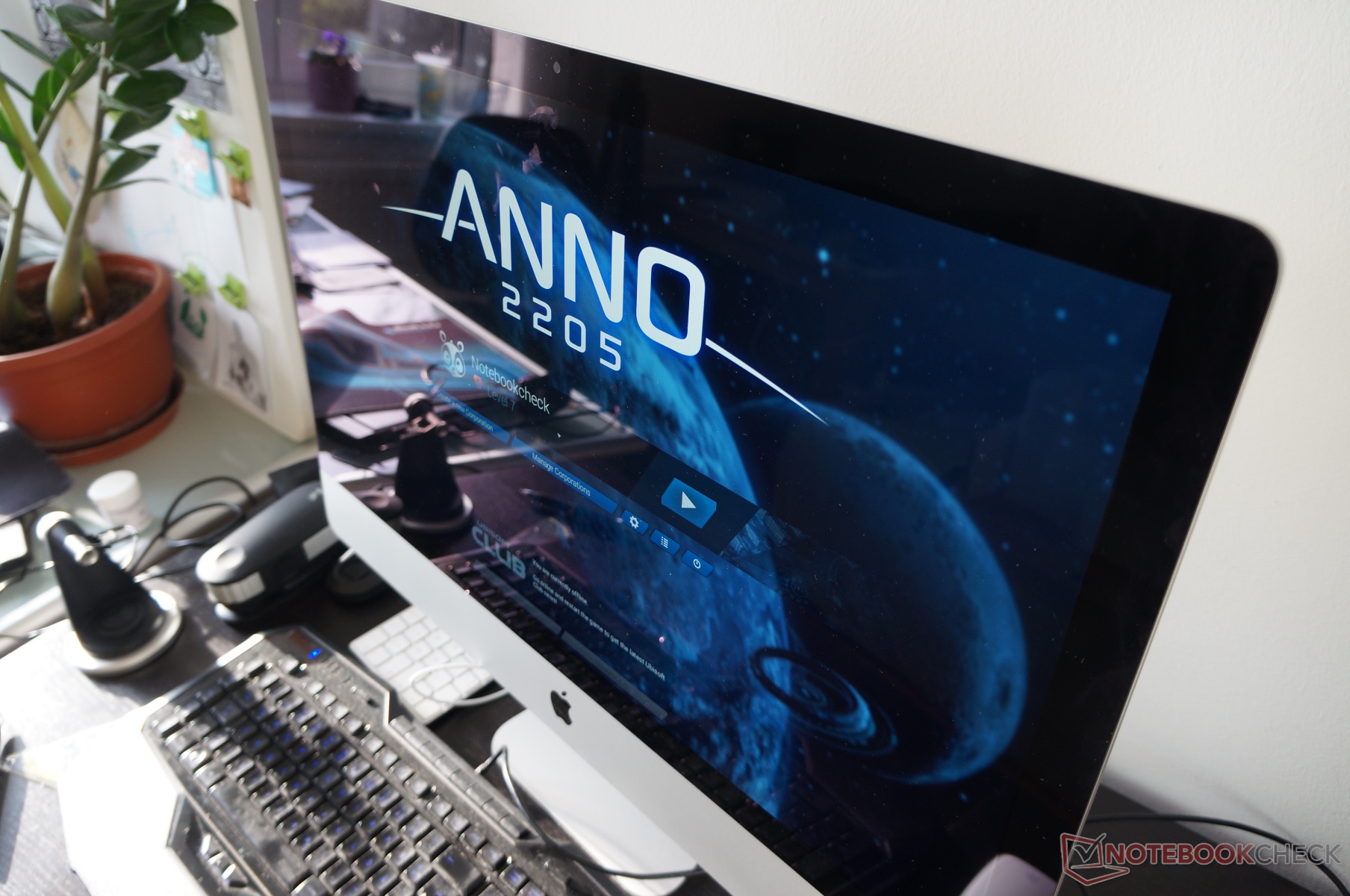

In review: Apple iMac retina 5K. Test model courtesy of edustore.
In review: Apple iMac retina 5K. Test model courtesy of edustore.

Apple的Retina 5 K再一次给我们带来了非常好的整体印象。生产商推出了一款搭配高品质机身和优雅外观的设备。它的全新输入设备也终于采用了可充电电池。不过,最吸引人的还是超高分辨率的屏幕。我们在它绚丽的色彩和宽阔的色域前几近哑口无言。

在机身之中,它混合了台式和笔记本电脑硬件,这保证了不错的系统性能。遗憾的是,Apple将Fusion Drive的固态硬盘容量从128 GB降低到了24 GB。它的处理器性能十分不错,而显卡也足够应付最新游戏,不过对这款较老芯片的利用率让人略微失望。如果你打算用iMac来玩游戏的话,那么就不如选择售价更低且更快的设备。

在发热量和噪音控制的方面它表现中规中矩。在通常任务中它的风扇经常处于静止状态。

如果已经有了上一代的5K Retina iMac,那么并没有什么升级的必要。它们的处理器和显卡性能十分接近,而较广的色域覆盖也只对很少一部分用户有意义。

Apple的iMac 5K Retina是一款优秀的产品,不过售价较高。

入门级版本的2100欧元(约14886人民币),如果选择较高配置的话很容易就会超过4000欧元(约28355人民币)。我们的测试机售价2299欧元(约16297人民币);学生可以享受2150.60欧元的优惠价(约15245人民币)。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Apple iMac Retina 5K 27 Late 2015 3.2 GHz M390 MK472D/A - 11/28/2015 v4 (old)
Klaus Hinum, Nino Ricchizzi

Chassis
92 / 98 → 94%
Keyboard
79%
Pointing Device
92%
Connectivity
77 / 81 → 95%
Weight
0%
Display
89%
Games Performance
89%
Application Performance
93%
Temperature
92%
Noise
85%
Audio
90%
Camera
63 / 85 → 74%
Average
86%
89%
Desktop - Weighted Average

Price comparison

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > Apple iMac Retina 5K 27-inch M390 (Late 2015) Retina 评测
Klaus Hinum, Nino Ricchizzi, 2015-12-20 (Update: 2015-12-30)
