欧乐风Armor 5智能手机评测

户外刘海屏。

据欧乐风所说,Armor 5的刘海将其与其他的专业户外手机区分了开来。而我们的测评也表明这个刘海基本上是Armor 5与同类型产品唯一的不同点。
Android ARM Smartphone Smartphone Touchscreen

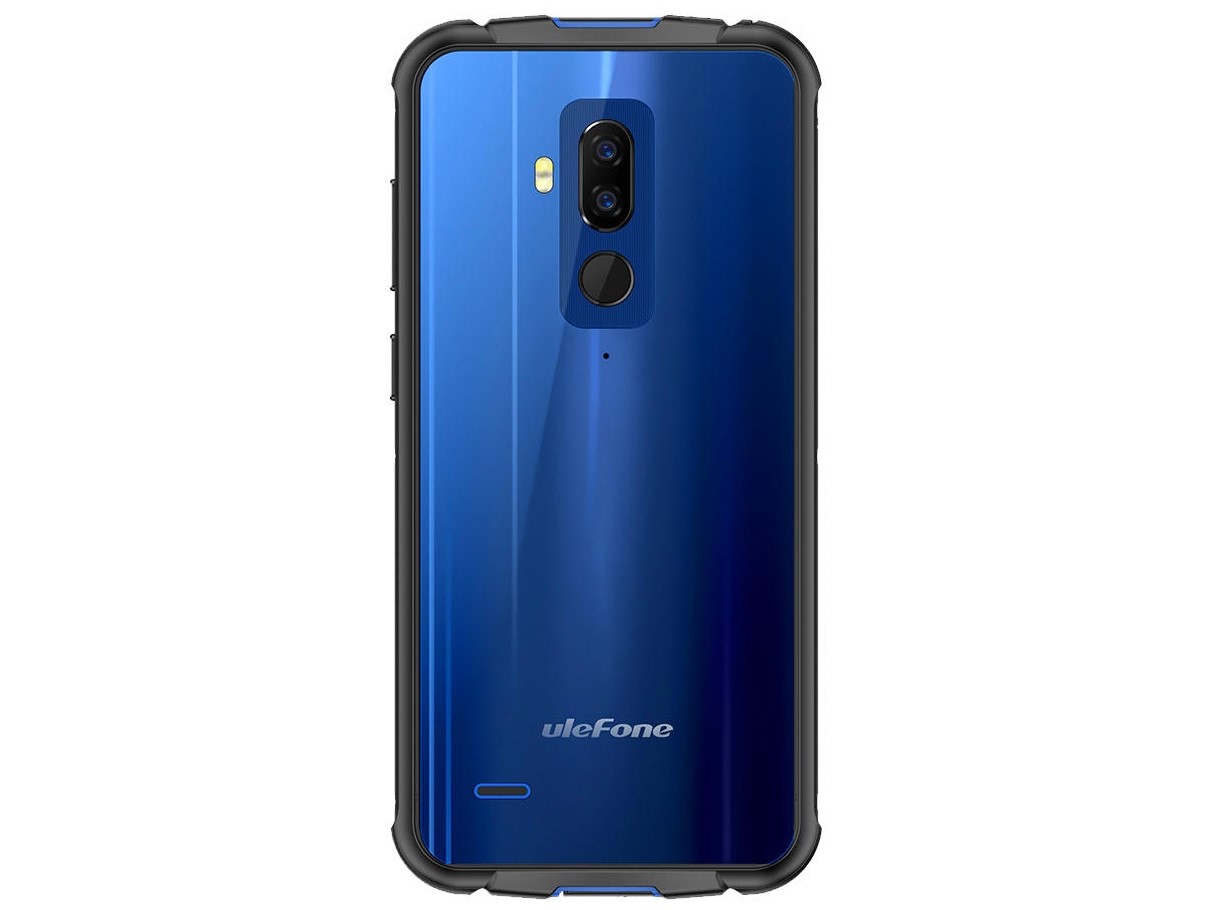

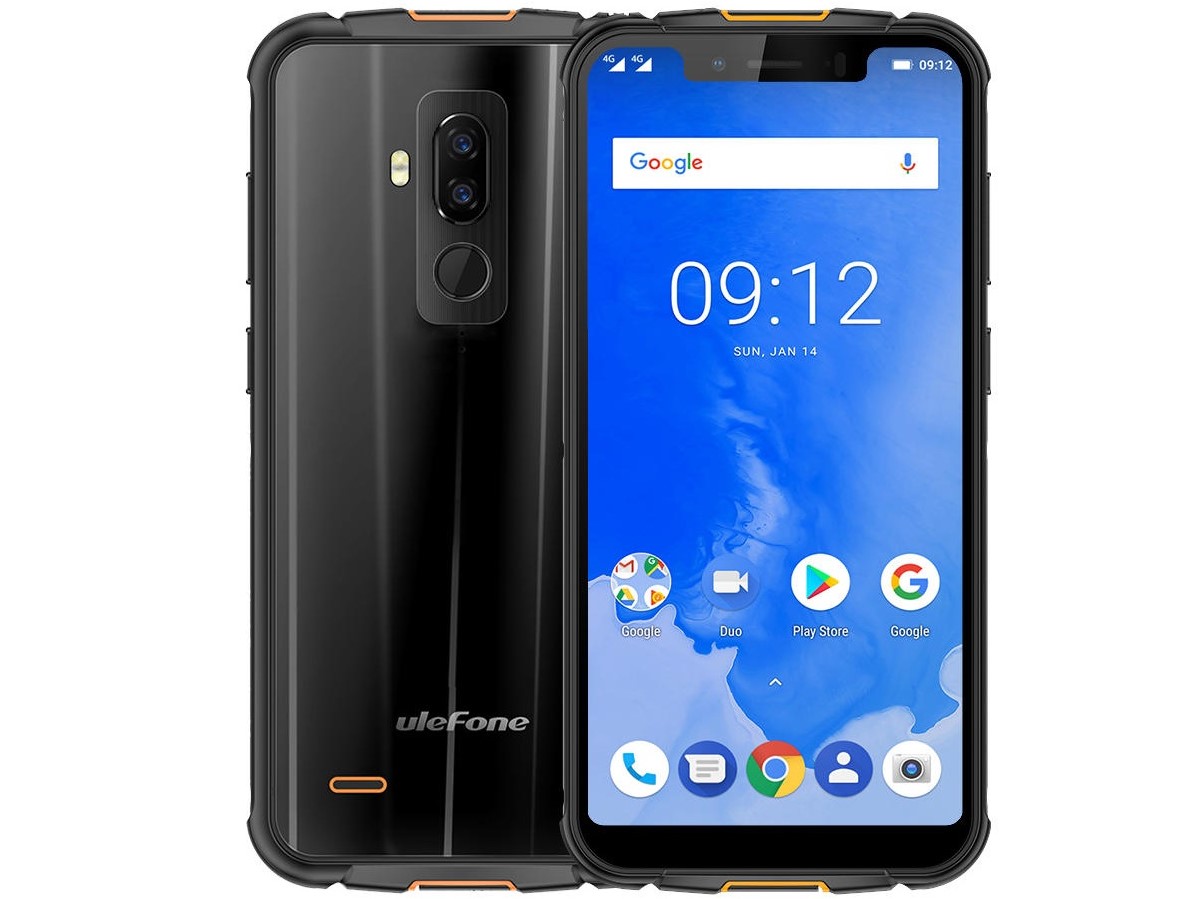

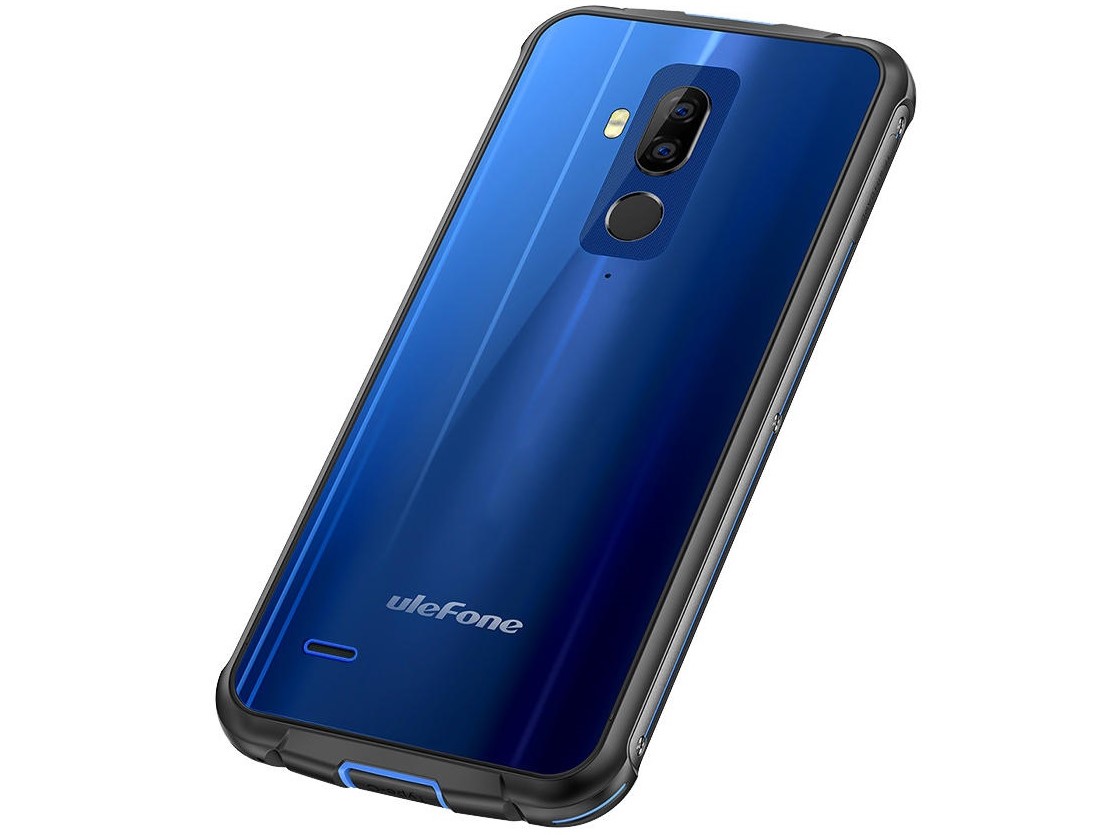

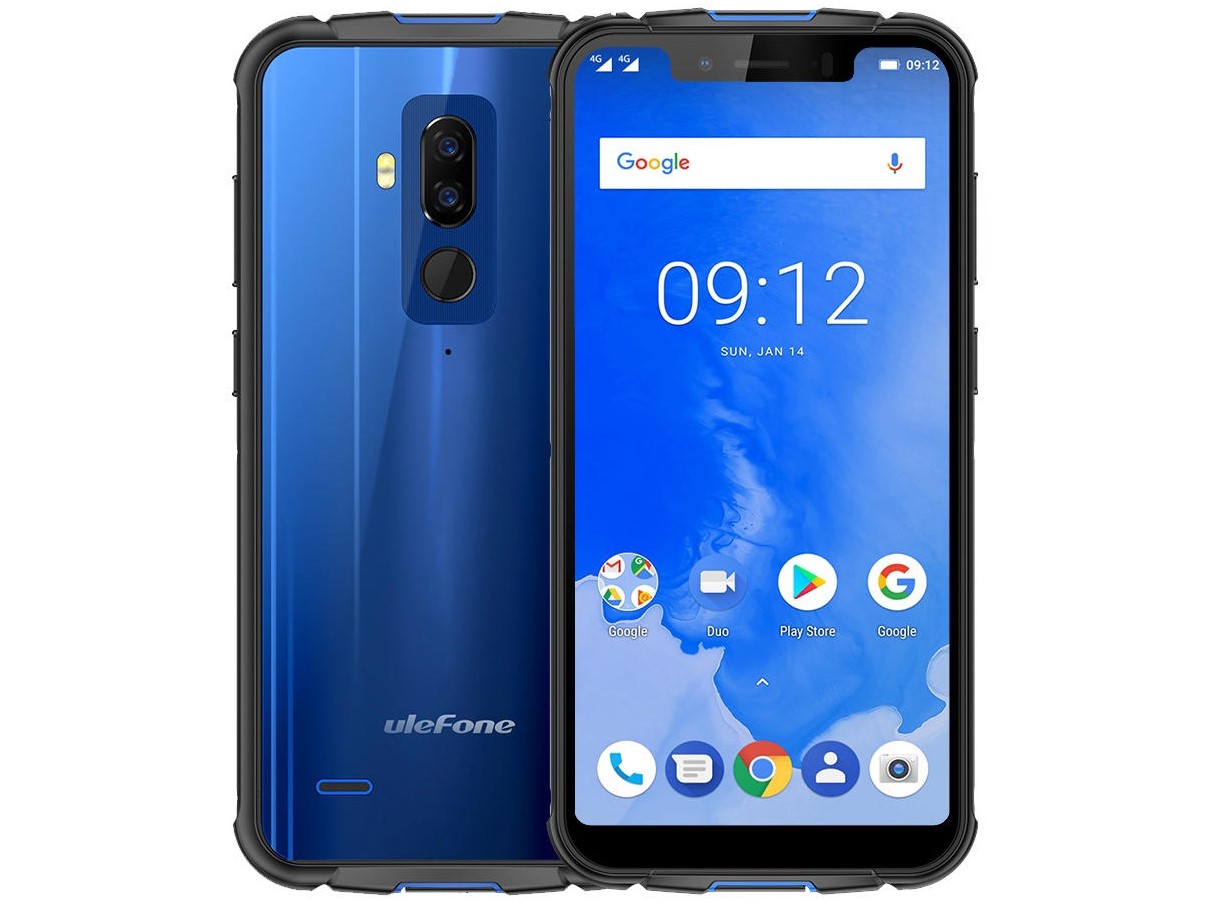

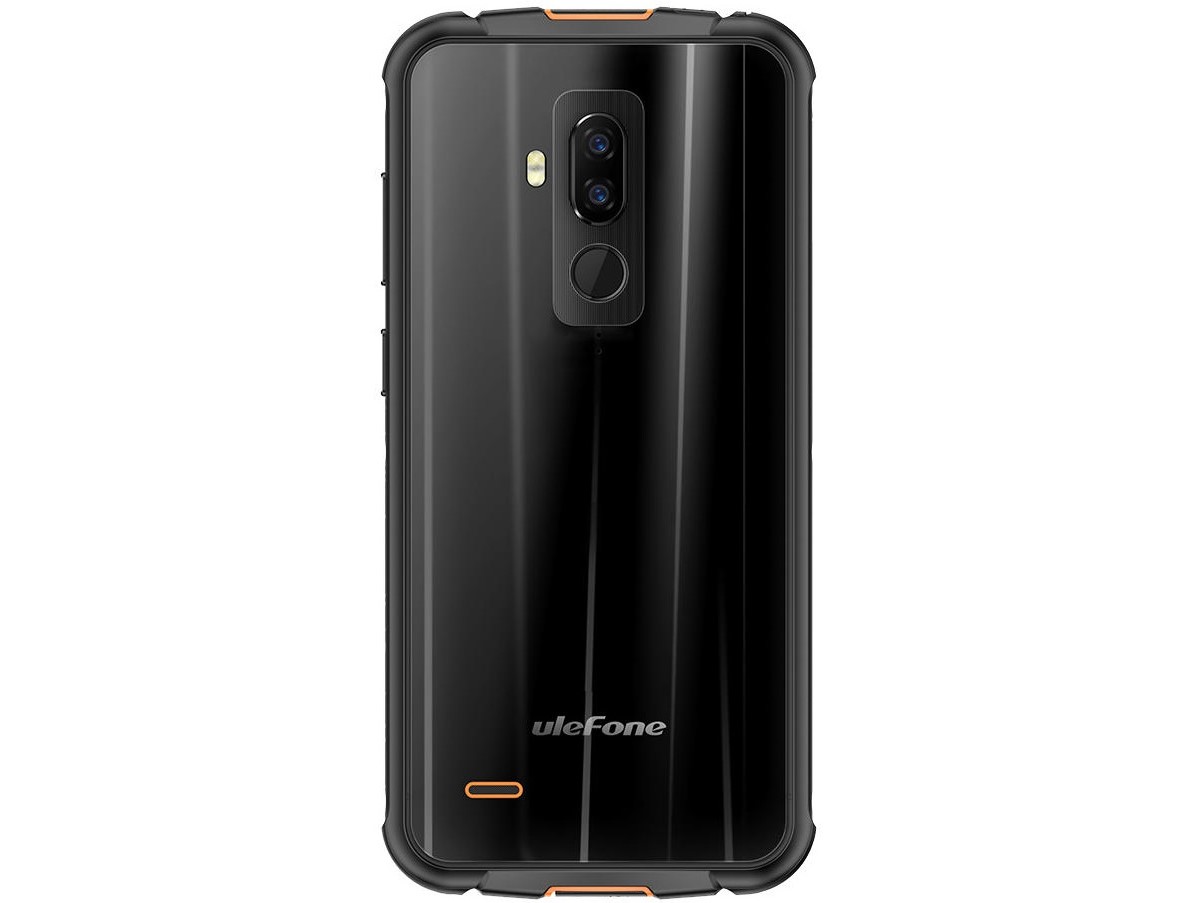

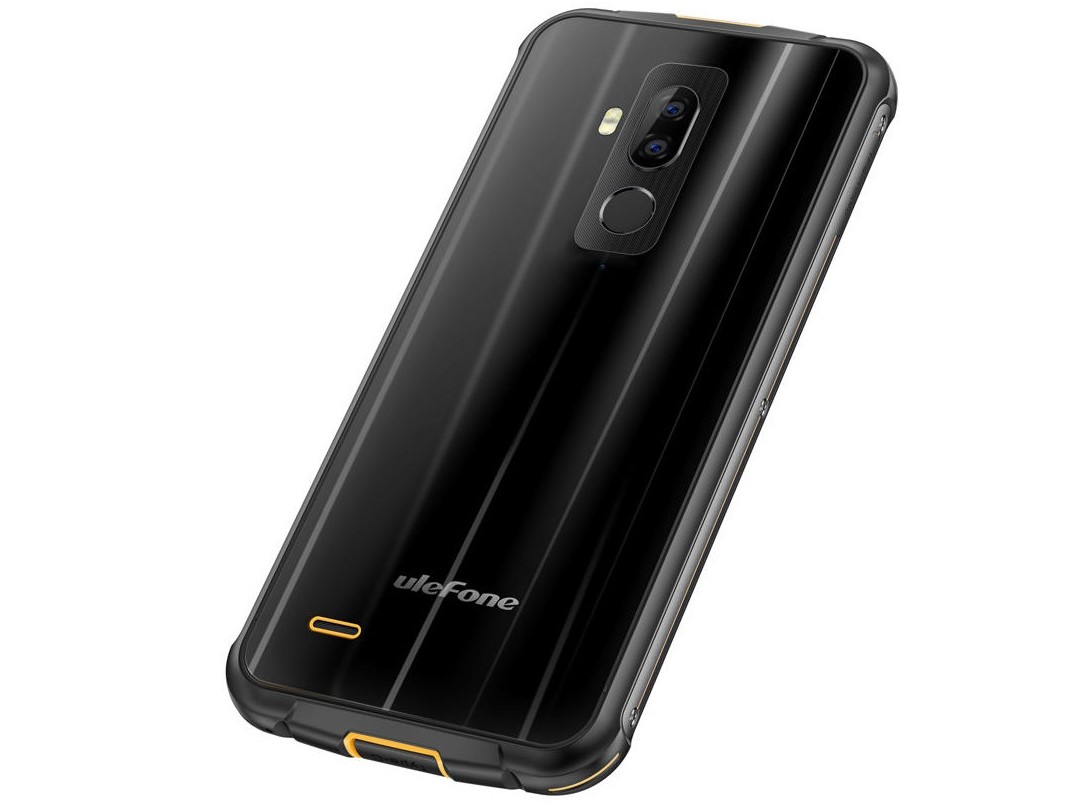

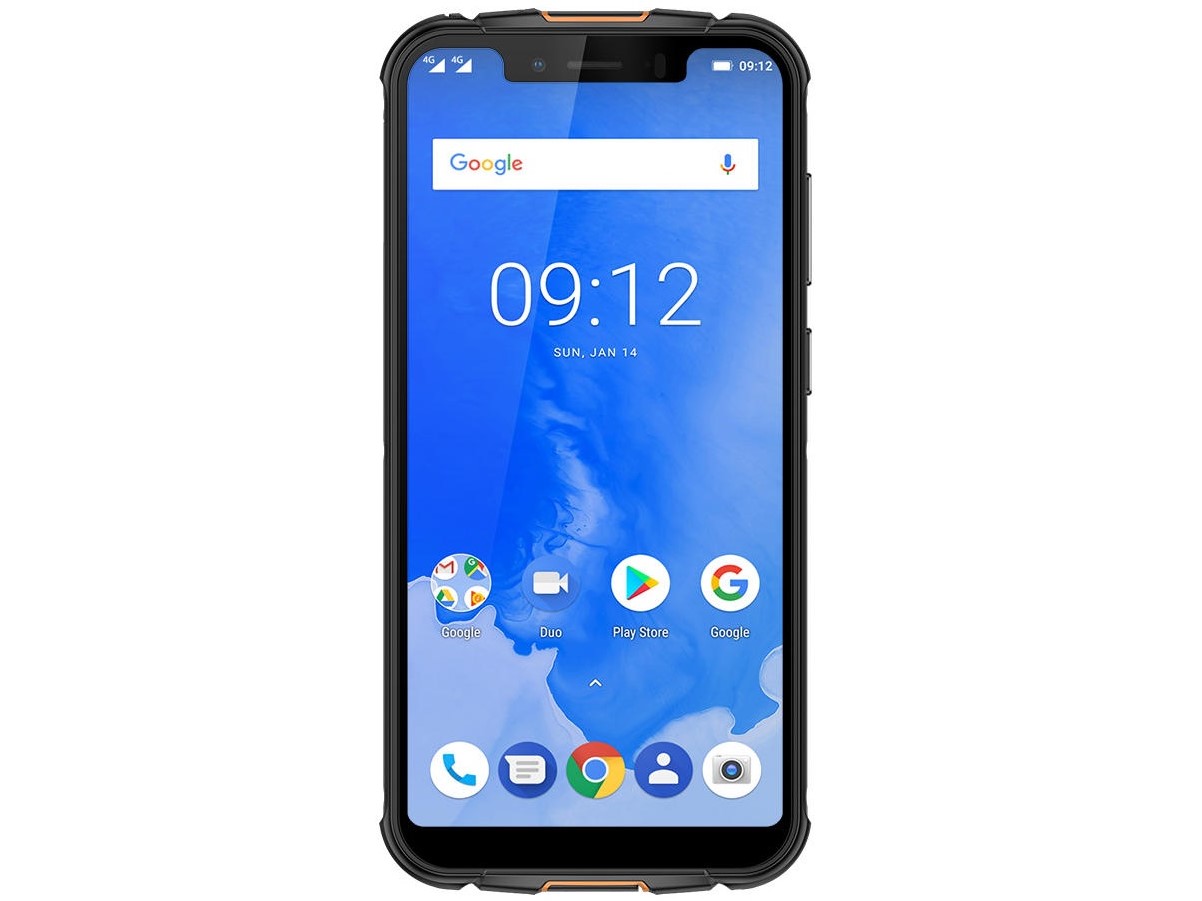

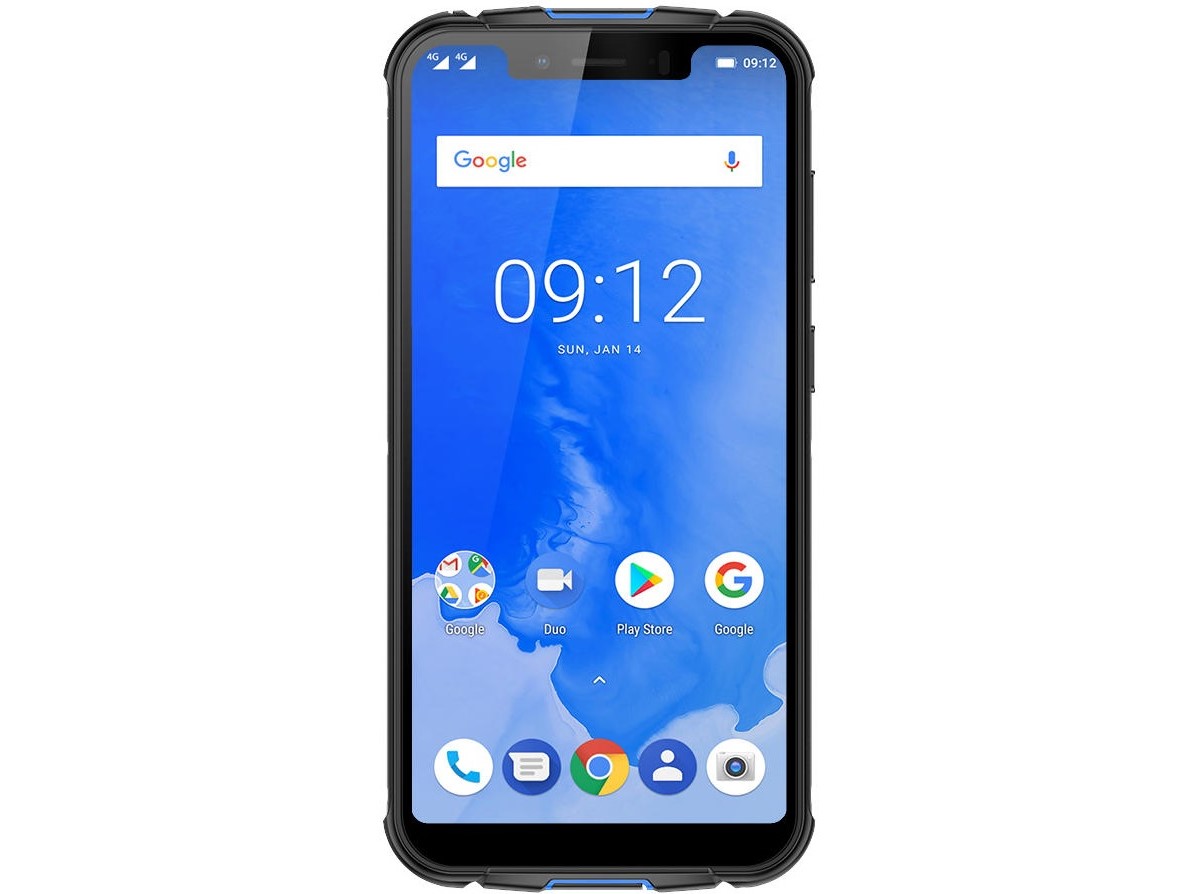

Ulefone Armor 5 (Armor Series)
Processor
Mediatek Helio P23 MT6763T 8 x 2.3 - 2.5 GHz, Cortex-A53
Graphics adapter
ARM Mali-G71 MP2
Memory
4 GB
Display
5.85 inch 18.9:9, 1512 x 720 pixel 286 PPI, 电容屏, IPS, glossy: yes
Storage
64 GB eMMC Flash, 64 GB
, 55 GB free
Connections
1 USB 2.0, Audio Connections: 3.5 mm audio port, Card Reader: microSD (FAT, FAT32), 1 Fingerprint Reader, NFC, Brightness Sensor, Sensors: gravitation sensor, proximity sensor, position sensor, gyroscope, compass, charging gauge
Networking
802.11a/b/g/n (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0, GSM (1900/1800/850/900), 3G WCDMA (2100/850/900), 4G LTE FDD (B1/3/7/8/20), Dual SIM, LTE, GPS
Size
height x width x depth (in mm): 12.6 x 158.3 x 76
Battery
5000 mAh Lithium-Polymer, Talk time 2G (according to manufacturer): 18 h, Talk time 3G (according to manufacturer): 440 h
Operating System
Android 8.1 Oreo
Camera
Primary Camera: 13 MPix 13 MP (interpolated to 16 MP, f/2.2) + 5 MP
Secondary Camera: 8 MPix (interpolated to 13 MP, f/2.4)
Additional features
Speakers: 1 speaker, Keyboard: virtual, Keyboard Light: yes, USB charger, USB Type-C cable, SIM tool, screen cover, tool to open the connection covers, USB OTG adapter, USB Type-C to micro-USB adapter, 12 Months Warranty, fanless, ruggedized
Weight
228 g, Power Supply: 65 g
Price
250 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Ulefone Armor 5
Ulefone Armor 5
Ulefone Armor 5
Ulefone Armor 5
Ulefone Armor 5
Ulefone Armor 5
Ulefone Armor 5
Ulefone Armor 5

Size Comparison

168.8 mm 85.6 mm 15.9 mm 334 g162 mm 78 mm 14.15 mm 265 g156.9 mm 78.5 mm 15.5 mm 222 g158.3 mm 76 mm 12.6 mm 228 g152.5 mm 79 mm 12.5 mm 213 g146.2 mm 73.3 mm 9.7 mm 172 g148 mm 105 mm 1 mm 1.5 g
Networking
iperf3 transmit AX12
Crosscall Action-X3
Adreno 505, 430, 32 GB eMMC Flash
201 MBit/s +97%
Doogee S55
Mali-T860 MP2, MT6750, 64 GB eMMC Flash
107 MBit/s +5%
Ulefone Armor 5
Mali-G71 MP2, Helio P23 MT6763T, 64 GB eMMC Flash
102 (42min - 118max) MBit/s
Blackview BV5800 Pro
PowerVR GE8100, MT6739, 16 GB eMMC Flash
92.9 MBit/s -9%
Poptel P9000 Max
Mali-T860 MP2, Helio P10 MT6755, 64 GB eMMC Flash
83.2 MBit/s -18%
Samsung Galaxy XCover 4
Mali-T720, Exynos 7570, 16 GB eMMC Flash
37.9 MBit/s -63%
iperf3 receive AX12
Crosscall Action-X3
Adreno 505, 430, 32 GB eMMC Flash
199 MBit/s +93%
Doogee S55
Mali-T860 MP2, MT6750, 64 GB eMMC Flash
105 MBit/s +2%
Ulefone Armor 5
Mali-G71 MP2, Helio P23 MT6763T, 64 GB eMMC Flash
103 (37min - 120max) MBit/s
Blackview BV5800 Pro
PowerVR GE8100, MT6739, 16 GB eMMC Flash
94 MBit/s -9%
Poptel P9000 Max
Mali-T860 MP2, Helio P10 MT6755, 64 GB eMMC Flash
71.6 MBit/s -30%
Samsung Galaxy XCover 4
Mali-T720, Exynos 7570, 16 GB eMMC Flash
49.2 MBit/s -52%
0102030405060708090100110120Tooltip
Ulefone Armor 5; iperf3 receive AX12; iperf 3.1.3: Ø100.9 (37-120)
Ulefone Armor 5; iperf3 transmit AX12; iperf 3.1.3: Ø102.2 (42-118)

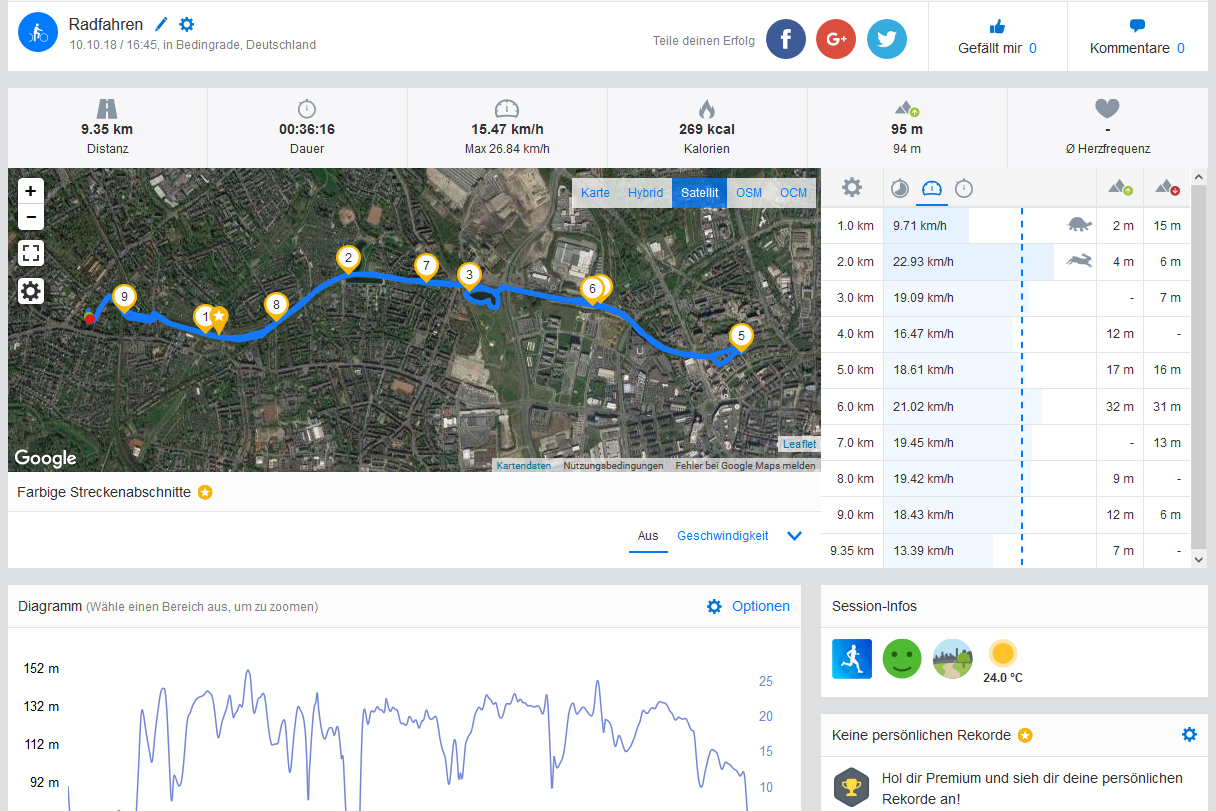

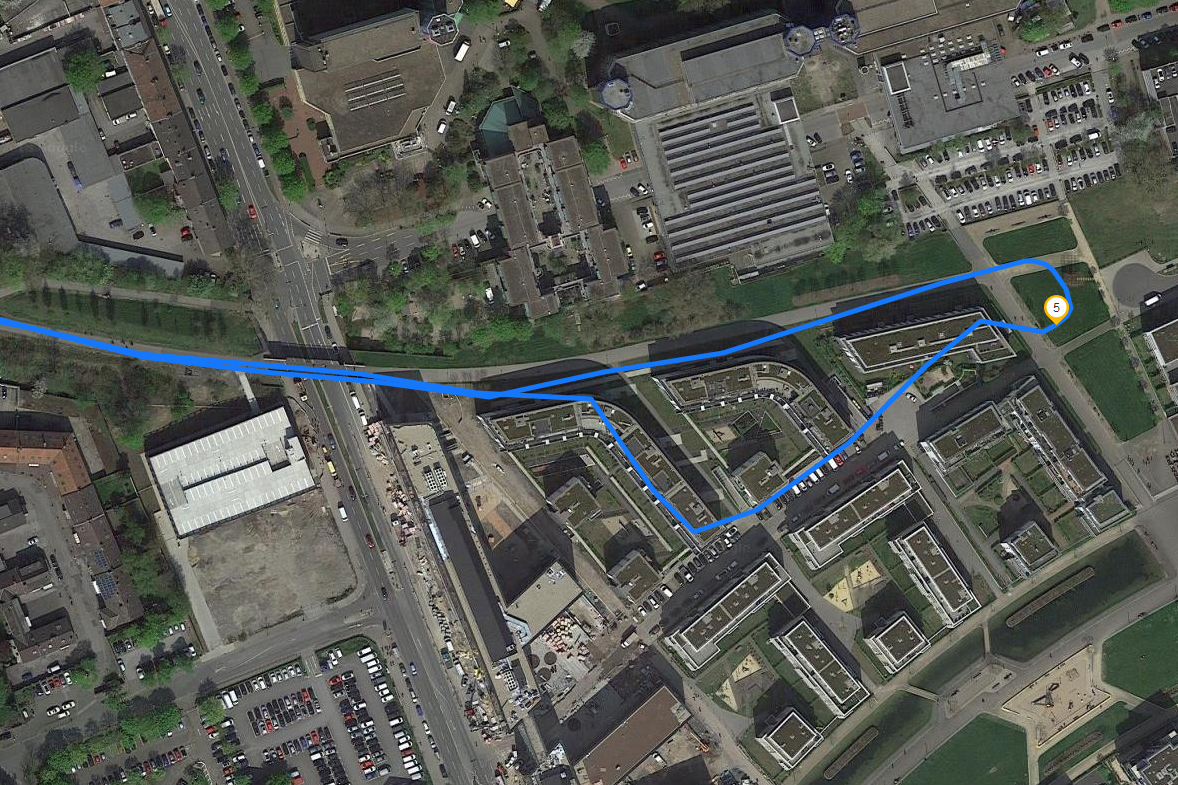

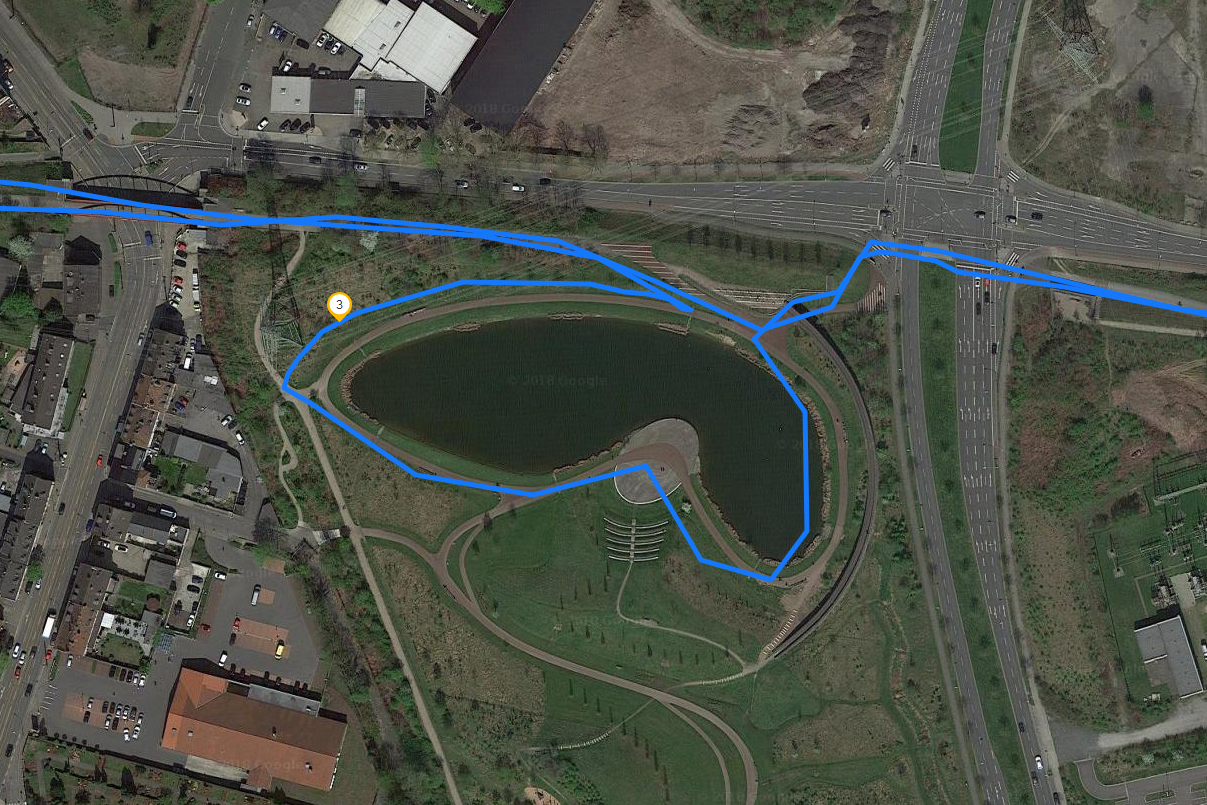

GPS Ulefone Armor 5
GPS Ulefone Armor 5
GPS Ulefone Armor 5
GPS Ulefone Armor 5
GPS Ulefone Armor 5
GPS Ulefone Armor 5

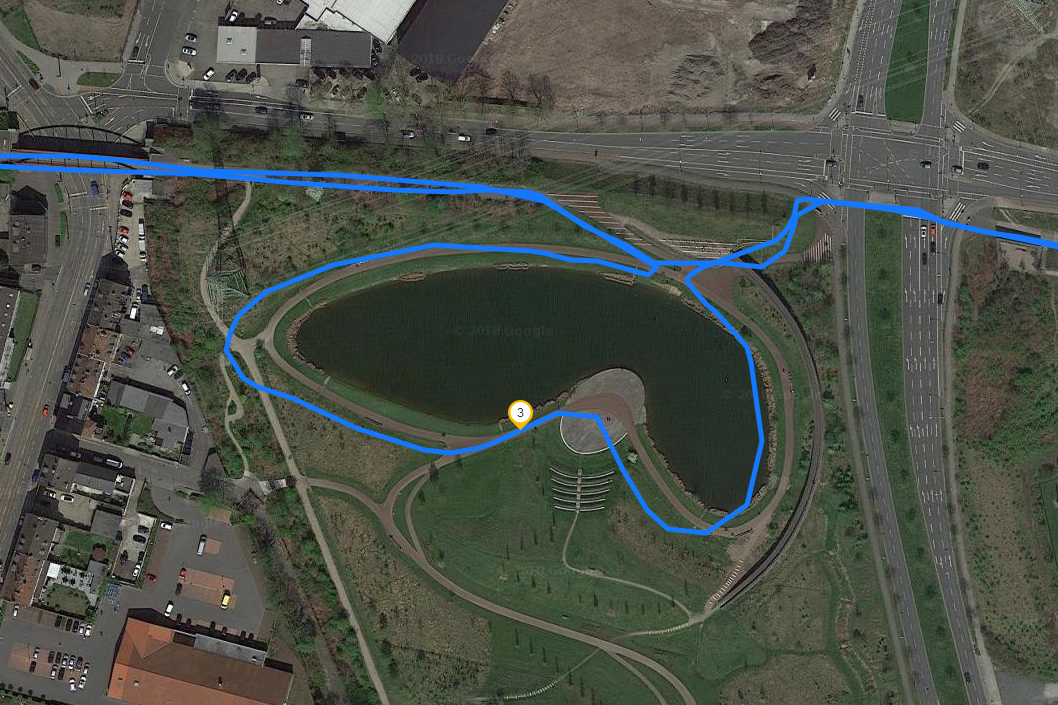

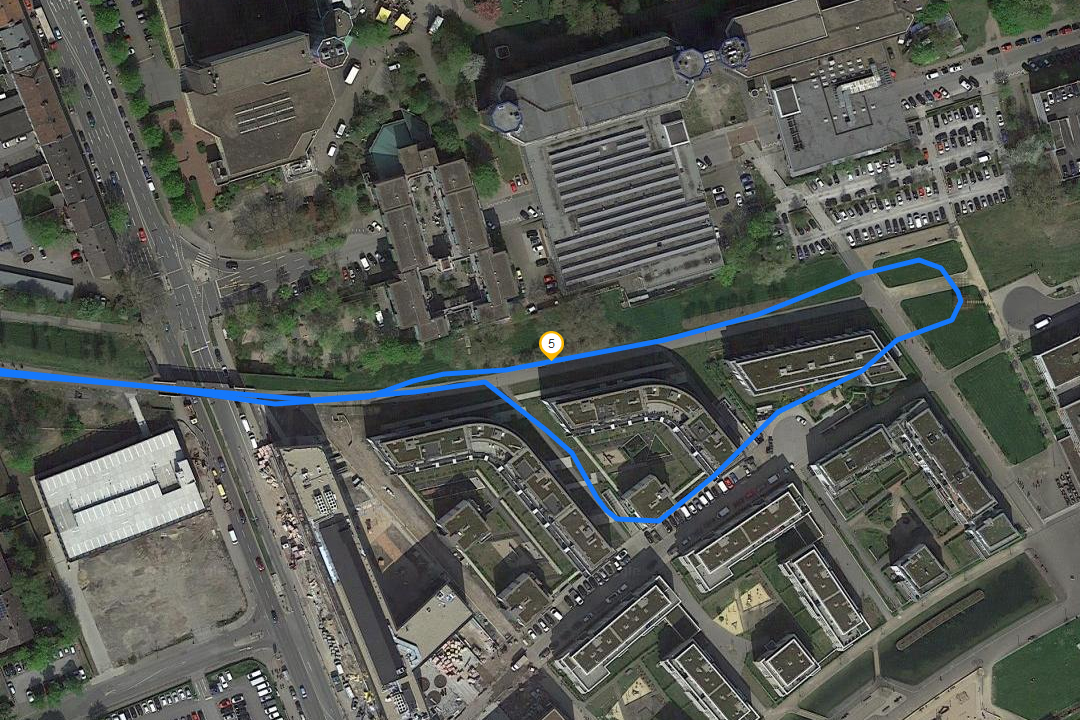

GPS Garmin Edge 500
GPS Garmin Edge 500
GPS Garmin Edge 500
GPS Garmin Edge 500
GPS Garmin Edge 500
GPS Garmin Edge 500

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
orginal image
click to load images
Ulefone Armor 5 test chart

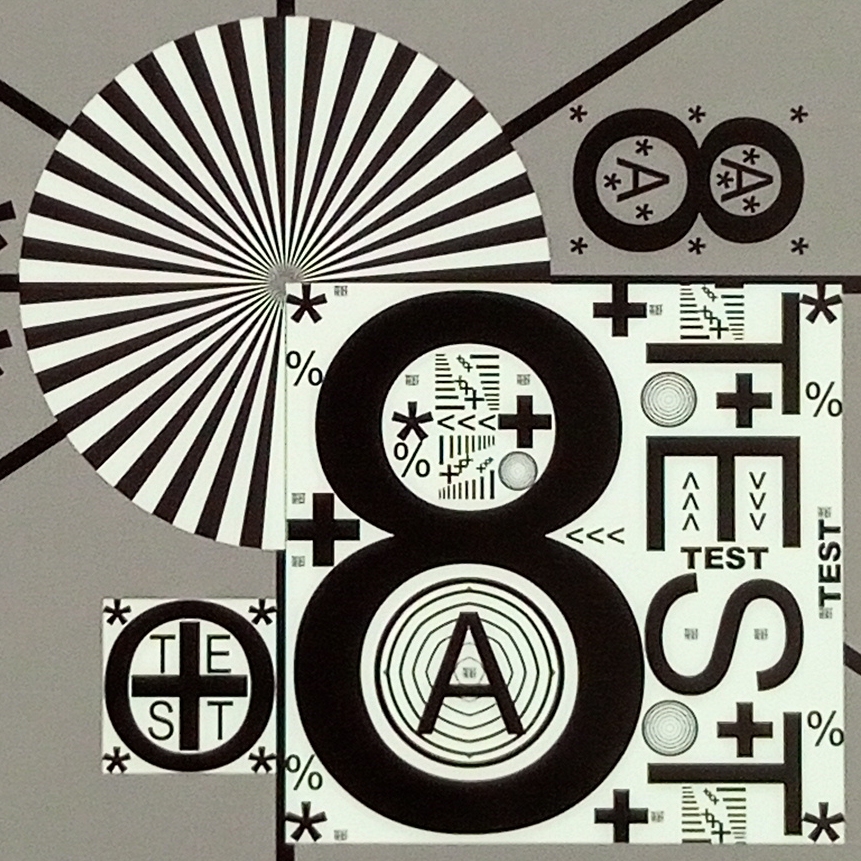

Ulefone Armor 5 test chart (detail)
451
cd/m²
484
cd/m²
484
cd/m²
452
cd/m²
487
cd/m²
485
cd/m²
450
cd/m²
466
cd/m²
485
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 487 cd/m² (Nits) Average: 471.6 cd/m² Minimum: 28.05 cd/m²
Brightness Distribution: 92 %
Center on Battery: 487 cd/m²
Contrast: 706:1 (Black: 0.69 cd/m²)
ΔE Color 7.1 | 0.5-29.43 Ø4.86
ΔE Greyscale 9.7 | 0.5-98 Ø5.1
92% sRGB (Calman 2D)
Gamma: 2.26
Ulefone Armor 5
IPS, 1512x720, 5.9"
Blackview BV5800 Pro
IPS, 1440x720, 5.5"
Poptel P9000 Max
LCD IPS, 1920x1080, 5.5"
Doogee S55
IPS, 1440x720, 5.5"
Crosscall Action-X3
IPS, 1280x800, 5"
Samsung Galaxy XCover 4
IPS, 1280x720, 5"
Screen
21%
12%
6%
26%
6%
Brightness middle
487
587
21%
406
-17%
573
18%
417
-14%
445
-9%
Brightness
472
571
21%
397
-16%
568
20%
425
-10%
437
-7%
Brightness Distribution
92
90
-2%
90
-2%
85
-8%
91
-1%
88
-4%
Black Level *
0.69
0.33
52%
0.38
45%
0.91
-32%
0.29
58%
0.67
3%
Contrast
706
1779
152%
1068
51%
630
-11%
1438
104%
664
-6%
Colorchecker dE 2000 *
7.1
9.3
-31%
6.7
6%
6.96
2%
7.12
-0%
6.5
8%
Colorchecker dE 2000 max. *
15.8
17.9
-13%
13.8
13%
12.14
23%
10.19
36%
10.6
33%
Greyscale dE 2000 *
9.7
12.6
-30%
8.5
12%
6.3
35%
6.1
37%
7.2
26%
Gamma
2.26 97%
2.14 103%
2.21 100%
1.87 118%
2.687 82%
2.53 87%
CCT
8096 80%
11049 59%
8858 73%
7606 85%
7687 85%
8274 79%

* ... smaller is better

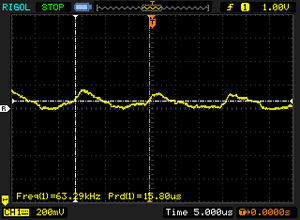

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

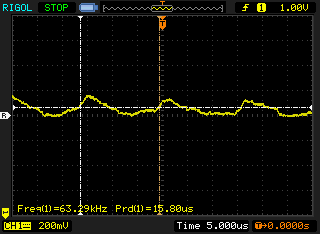

Screen flickering / PWM detected 63.3 Hz ≤ 1 % brightness setting

The display backlight flickers at 63.3 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 1 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 63.3 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8456 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

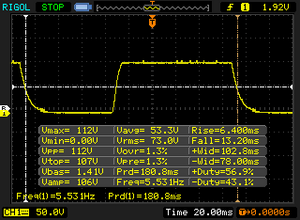

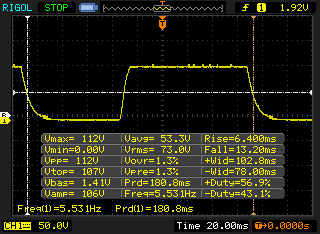

       Response Time Black to White
19.6 ms ... rise ↗ and fall ↘ combined↗ 6.4 ms rise
↘ 13.2 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 40 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (20.7 ms).

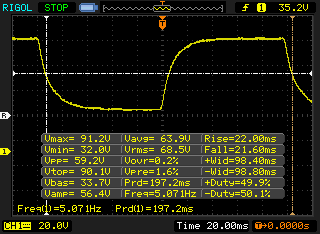

       Response Time 50% Grey to 80% Grey
43.6 ms ... rise ↗ and fall ↘ combined↗ 22 ms rise
↘ 21.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 71 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.4 ms).
Geekbench 4.4
64 Bit Single-Core Score (sort by value)
Ulefone Armor 5
829 Points
Blackview BV5800 Pro
653 Points -21%
Poptel P9000 Max
616 Points -26%
Doogee S55
682 Points -18%
Crosscall Action-X3
634 Points -24%
Samsung Galaxy XCover 4
629 Points -24%
Average Mediatek Helio P23 MT6763T (787 - 920, n=5)
841 Points +1%
Average of class Smartphone (844 - 9592, n=79, last 2 years)
5623 Points +578%
64 Bit Multi-Core Score (sort by value)
Ulefone Armor 5
3504 Points
Blackview BV5800 Pro
1838 Points -48%
Poptel P9000 Max
2628 Points -25%
Doogee S55
2765 Points -21%
Crosscall Action-X3
2360 Points -33%
Samsung Galaxy XCover 4
1855 Points -47%
Average Mediatek Helio P23 MT6763T (3504 - 4262, n=5)
3808 Points +9%
Average of class Smartphone (4134 - 34246, n=79, last 2 years)
16245 Points +364%
Compute RenderScript Score (sort by value)
Ulefone Armor 5
2707 Points
Blackview BV5800 Pro
1449 Points -46%
Poptel P9000 Max
1758 Points -35%
Doogee S55
1888 Points -30%
Crosscall Action-X3
2045 Points -24%
Average Mediatek Helio P23 MT6763T (2707 - 3246, n=4)
2957 Points +9%
Average of class Smartphone (5364 - 28121, n=57, last 2 years)
13258 Points +390%

Legend


Ulefone Armor 5 Mediatek Helio P23 MT6763T, ARM Mali-G71 MP2, 64 GB eMMC Flash

Blackview BV5800 Pro Mediatek MT6739, PowerVR GE8100, 16 GB eMMC Flash

Poptel P9000 Max Mediatek Helio P10 MT6755, ARM Mali-T860 MP2, 64 GB eMMC Flash

Doogee S55 Mediatek MT6750, ARM Mali-T860 MP2, 64 GB eMMC Flash

Crosscall Action-X3 Qualcomm Snapdragon 430 (MSM8937), Qualcomm Adreno 505, 32 GB eMMC Flash

Samsung Galaxy XCover 4 Samsung Exynos 7570 Quad, ARM Mali-T720, 16 GB eMMC Flash
JetStream 1.1 - Total Score
Ulefone Armor 5 (Chrome 70)
23.07 Points
Average Mediatek Helio P23 MT6763T (17.9 - 25.9, n=7)
22 Points -5%
Samsung Galaxy XCover 4 (Chrome 58)
20.99 Points -9%
Poptel P9000 Max (Chrome 68)
18.86 Points -18%
Doogee S55 (Chrome 67)
18.72 Points -19%
Crosscall Action-X3 (Chrome 68)
18.05 Points -22%
Blackview BV5800 Pro
16.9 Points -27%

* ... smaller is better

Ulefone Armor 5Blackview BV5800 ProPoptel P9000 MaxDoogee S55Crosscall Action-X3Samsung Galaxy XCover 4Average 64 GB eMMC FlashAverage of class Smartphone
AndroBench 3-5
-49%
-29%
-41%
-25%
-42%
1%
771%
Sequential Read 256KB
296.5
236
-20%
269.4
-9%
268.1
-10%
264.7
-11%
181.6
-39%
Sequential Write 256KB
245.8
86.6
-65%
129.6
-47%
97.1
-60%
139.3
-43%
73.6
-70%
177.3 ?(40 - 274, n=206)
-28%
Random Read 4KB
60.9
13.97
-77%
35.1
-42%
28.86
-53%
47
-23%
21.8
-64%
Random Write 4KB
19.81
9.43
-52%
11.23
-43%
13.17
-34%
8.4
-58%
11.9
-40%
Sequential Read 256KB SDCard
80.1 ?(Toshiba Exceria Pro M401)
80.6 ?(Toshiba Exceria SD-CX32UHS1)
1%
72.9 ?(Toshiba Exceria Pro M401)
-9%
73.7
-8%
84.1 ?(Toshiba Exceria Pro M501)
5%
69 ?(Toshiba Exceria Pro M401)
-14%
Sequential Write 256KB SDCard
71.7 ?(Toshiba Exceria Pro M401)
14.67 ?(Toshiba Exceria SD-CX32UHS1)
-80%
53.2 ?(Toshiba Exceria Pro M401)
-26%
14.11
-80%
56.2 ?(Toshiba Exceria Pro M501)
-22%
55.7 ?(Toshiba Exceria Pro M401)
-22%
Max. Load
 34.1 °C33.9 °C37.7 °C
 31.7 °C31.8 °C37.4 °C
 32.2 °C30.6 °C33.6 °C
Maximum: 37.7 °C
Average: 33.7 °C
30.3 °C31.2 °C33.5 °C
29.8 °C30.1 °C34.3 °C
29.2 °C30.3 °C32 °C
Maximum: 34.3 °C
Average: 31.2 °C
Power Supply (max.)  40.3 °C | Room Temperature 20 °C | Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 33.7 °C / 93 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 37.7 °C / 100 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.7 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 34.3 °C / 94 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 28.6 °C / 83 F, compared to the device average of 32.8 °C / 91 F.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2034.937.22529.430.73129.2254023.525.65030.933.36325.422.9802422.110020.823.212519.922.316017.63320017.737.125015.646.83151752.740016.15750015.262.863014.667.180015.369.2100014.870.5125014.271.9160013.270.1200014.871.725001476.5315013.776.2400014.677.1500014.380.2630014.483800014.774.51000014.867.4125001563.11600014.959SPL26.788.1N0.870.8median 14.8median 69.2Delta0.710.338.137.937.634.835.930.328.128.328.629.327.826.429.824.330.424.722.220.823.922202919.434.217.240.216.45016.553.915.159.615.165.614.666.414.464.413.766.512.365.212.161.811.861.311.759.911.759.911.660.411.657.911.557.611.558.511.656.957.971.366.356.725.974.811.324.316.810.40.832.5median 14.4median 58.5median 41.6median 33.6median 13.3median 53.65.211.824.723.212.621.2hearing rangehide median Pink NoiseUlefone Armor 5Crosscall Action-X3
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Ulefone Armor 5 audio analysis

(+) | speakers can play relatively loud (88.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 33.4% lower than median
(±) | linearity of bass is average (9.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.5% away from median
(+) | mids are linear (5.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 7.7% higher than median
(±) | linearity of highs is average (7.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (23.5% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 8% similar, 41% worse
» The best had a delta of 12%, average was 36%, worst was 134%
Compared to all devices tested
» 68% of all tested devices were better, 7% similar, 25% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Crosscall Action-X3 audio analysis

(±) | speaker loudness is average but good (74.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 30% lower than median
(±) | linearity of bass is average (8.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.2% higher than median
(±) | linearity of mids is average (8.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.7% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.7% difference to median)
Compared to same class
» 62% of all tested devices in this class were better, 7% similar, 31% worse
» The best had a delta of 12%, average was 36%, worst was 134%
Compared to all devices tested
» 77% of all tested devices were better, 5% similar, 18% worse
» The best had a delta of 4%, average was 24%, worst was 134%

Power Consumption
Off / Standbydarklight 0.02 / 0.27 Watt
Idledarkmidlight 1.08 / 2.51 / 2.53 Watt
Load midlight 4.28 / 6.73 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Ulefone Armor 5
5000 mAh
Blackview BV5800 Pro
5580 mAh
Poptel P9000 Max
9000 mAh
Doogee S55
5500 mAh
Crosscall Action-X3
3500 mAh
Samsung Galaxy XCover 4
2800 mAh
Average Mediatek Helio P23 MT6763T

Average of class Smartphone

Power Consumption
-5%
27%
-91%
-6%
25%
15%
-4%
Idle Minimum *
1.08
0.87
19%
0.92
15%
2.3
-113%
1.1
-2%
0.56
48%
0.873 ?(0.63 - 1.08, n=8)
19%
Idle Average *
2.51
1.64
35%
1.9
24%
3.5
-39%
1.9
24%
1.57
37%
Idle Maximum *
2.53
1.68
34%
2.19
13%
5.9
-133%
2.9
-15%
1.68
34%
Load Average *
4.28
5.79
-35%
3.1
28%
8.7
-103%
4.8
-12%
4.6
-7%
Load Maximum *
6.73
11.85
-76%
3.12
54%
11.2
-66%
8.4
-25%
5.92
12%

* ... smaller is better

Battery Runtime
WiFi Websurfing
10h 03min
Ulefone Armor 5
5000 mAh
Blackview BV5800 Pro
5580 mAh
Poptel P9000 Max
9000 mAh
Doogee S55
5500 mAh
Crosscall Action-X3
3500 mAh
Samsung Galaxy XCover 4
2800 mAh
Battery Runtime
WiFi v1.3
603
780
29%
1346
123%
844
40%
843
40%
668
11%

Pros

+ 优秀且可靠的外壳
+ 防水外壳覆盖了接口
+ 配件齐全
+ 系统性能优秀

Cons

- 续航不如预期
- 只支持USB 2.0
- 机身厚重

总结-一台坚固耐用的专业户外手机:

Testing the Ulefone Armor 5. Test unit provided by Ulefone Germany.
Testing the Ulefone Armor 5. Test unit provided by Ulefone Germany.

欧乐风Armor 5在我们的测试中表现不错,是一台强大的户外智能手机。它的相机只适合在有良好光照的环境下拍几张快照,尽管如此,它的相机水平还是高于同类竞品。其引人注目的外形设计注定了它不是一台商务手机。

“作为一台手机,欧乐风Armor 5更适合那些能够欣赏它的外观且需要其承受恶劣的工作环境的买家。”

IP68认证证明了这台手机防水防尘外壳的实力,它在恶劣环境下的可靠性给我们留下了深刻的印象。不过,买家千万不要被它5000毫安的大电池所迷惑,它的表现可能不如你的预期。尽管如此,这台手机的续航还是好于同类平均的,并且未来的软件更新可能会完善这一点。

Ulefone Armor 5 - 10/29/2018 v6 (old)
Mike Wobker

Chassis
86%
Keyboard
65 / 75 → 87%
Pointing Device
82%
Connectivity
40 / 60 → 67%
Weight
88%
Battery
93%
Display
80%
Games Performance
26 / 63 → 42%
Application Performance
50 / 70 → 71%
Temperature
92%
Noise
100%
Audio
67 / 91 → 74%
Camera
52%
Average
71%
79%
Smartphone - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 欧乐风Armor 5智能手机评测
Mike Wobker, 2018-11-25 (Update: 2018-11-25)
