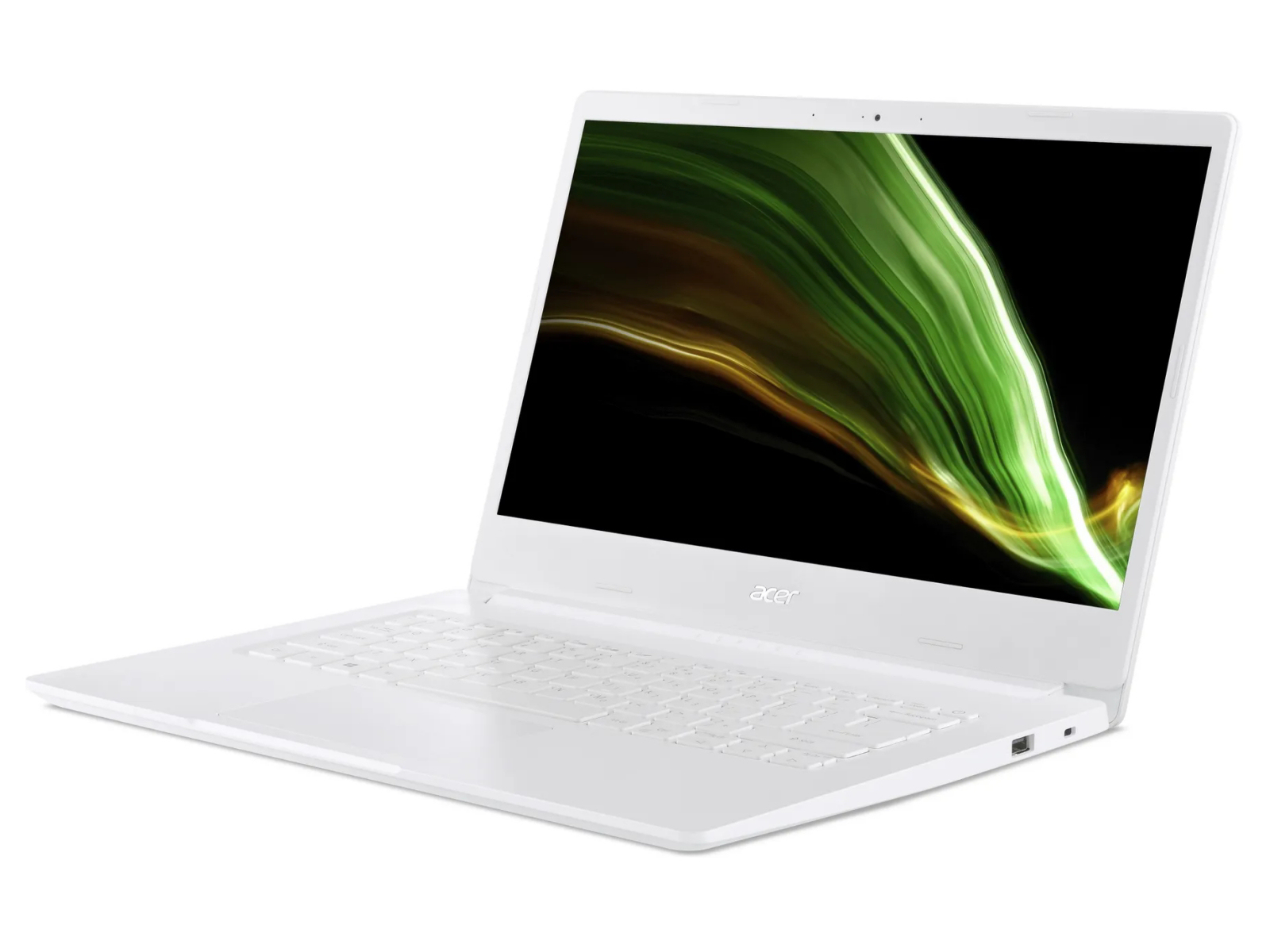

宏碁Aspire 1 A114-61评论。具有强大电池寿命的ARM笔记本电脑
宏碁Aspire 1是一款简单的14英寸笔记本，采用了 高通Snapdragon 7c.操作系统采用ARM版本的Windows。竞争设备包括 三星Galaxy Book Go，Medion Akoya E14307，以及 Acer Swift 1 SF114-34.
Acer Aspire 1 A114-61-S58J (Aspire 1 A114 Series)
Processor
Qualcomm Snapdragon 7c 8 x 2.4 GHz, Cortex-A76 / A55 (Kryo 468)
Graphics adapter
Memory
4 GB
, LPDDR4X
Display
14.00 inch 16:9, 1920 x 1080 pixel 157 PPI, Chi Mei N140HCA-EAC, IPS, glossy: no, 60 Hz
Storage
64 GB eMMC Flash, 64 GB
, 34.2 GB free
Weight
1.5 kg, Power Supply: 262 g
Price
349 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
Likely Competitors
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 77.6 % v7 (old) | 12 / 2021 | Acer Aspire 1 A114-61-S58J SD 7c, Adreno 618 | 1.5 kg | 18.9 mm | 14.00" | 1920x1080 | |
| 81.5 % v7 (old) | 12 / 2021 | Acer Swift 1 SF114-34-P6U1 Pentium N6000, UHD Graphics (Jasper Lake 32 EU) | 1.3 kg | 14.95 mm | 14.00" | 1920x1080 | |
| 78.4 % v7 (old) | Medion Akoya E14307 3020e, Vega 3 | 1.5 kg | 18 mm | 14.00" | 1920x1080 | ||
| 79.3 % v7 (old) | 09 / 2021 | Samsung Galaxy Book Go SD 7c Gen 2, Adreno 618 | 1.4 kg | 15 mm | 14.00" | 1920x1080 |

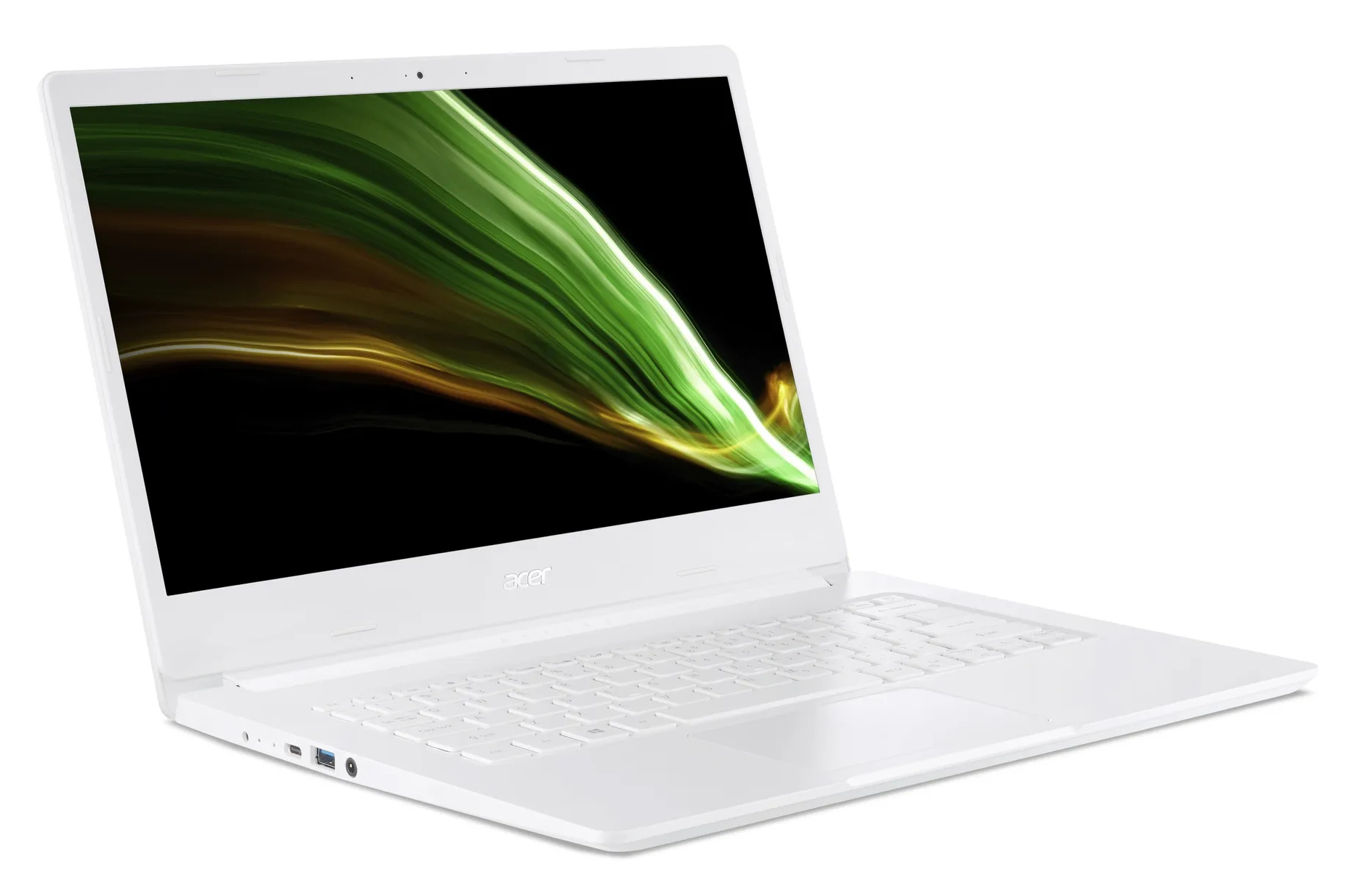

机箱和连接性 - Aspire 1，无电力传输

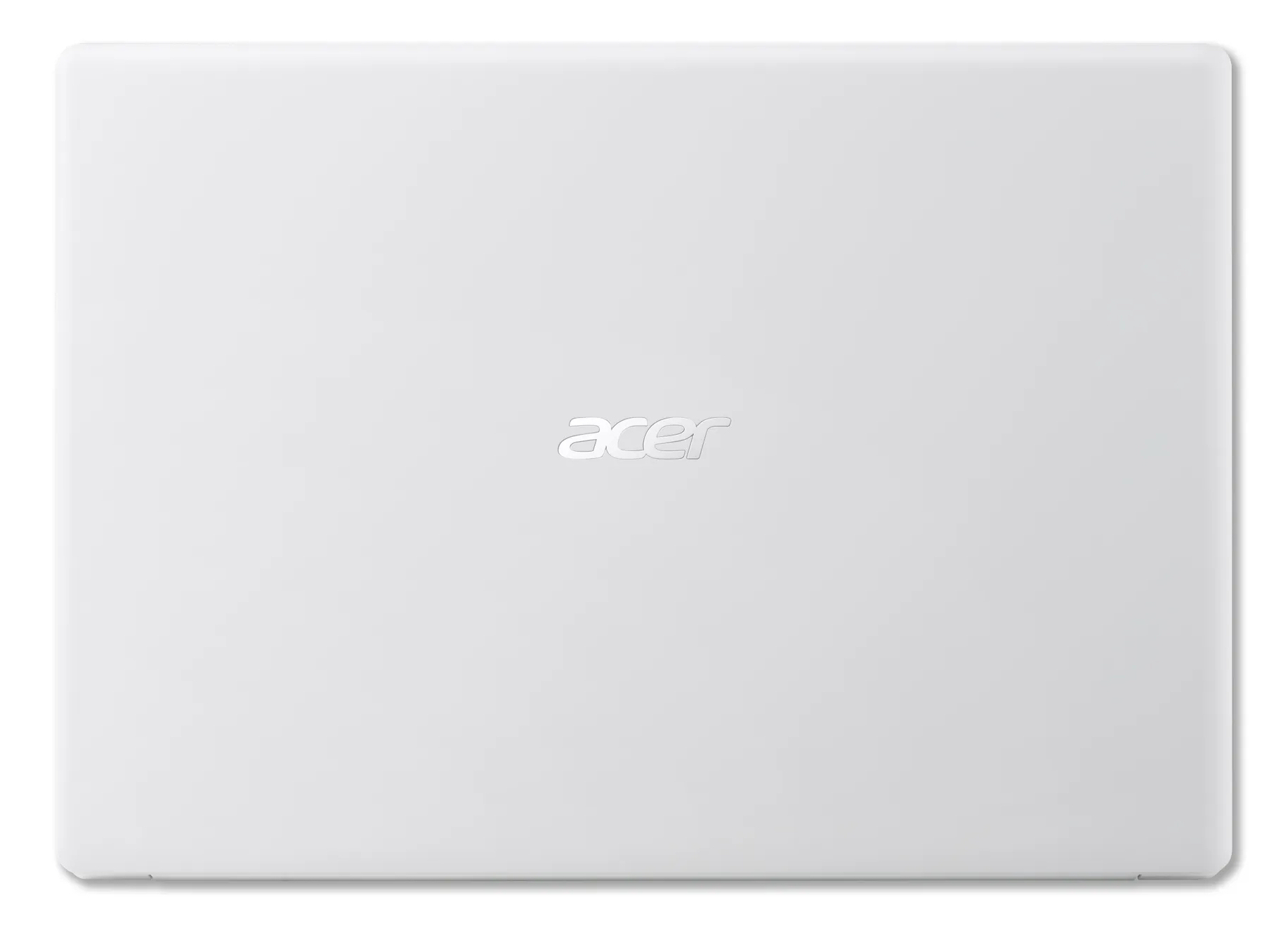

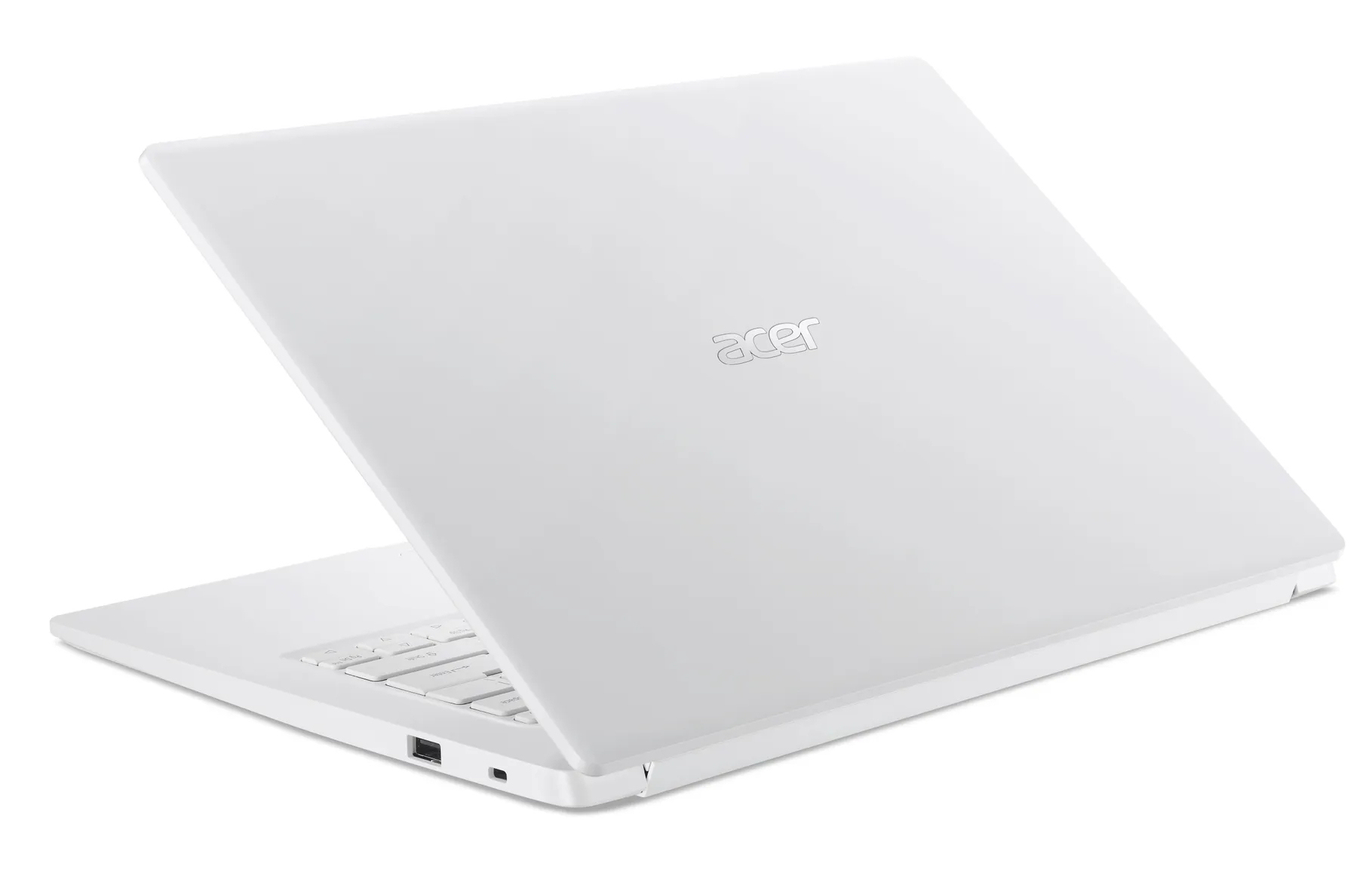

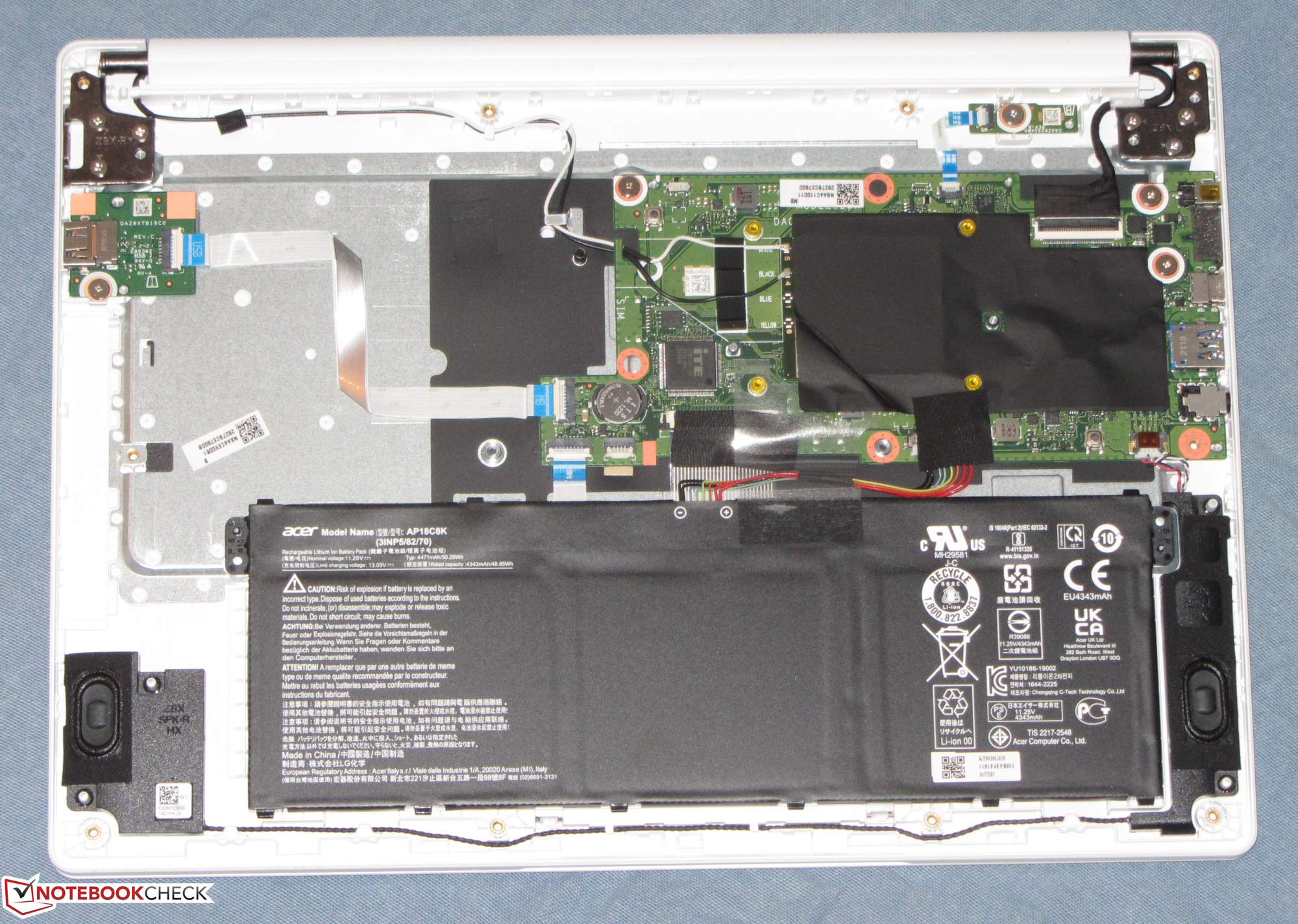

宏碁笔记本电脑的外壳是由白色塑料制成的，具有光滑的哑光表面。没有任何缝隙或缝隙或任何其他缺陷。机箱和显示器盖子有一些弯曲。电池是不可更换的。为了接触到内部组件，用户必须取下底盖。

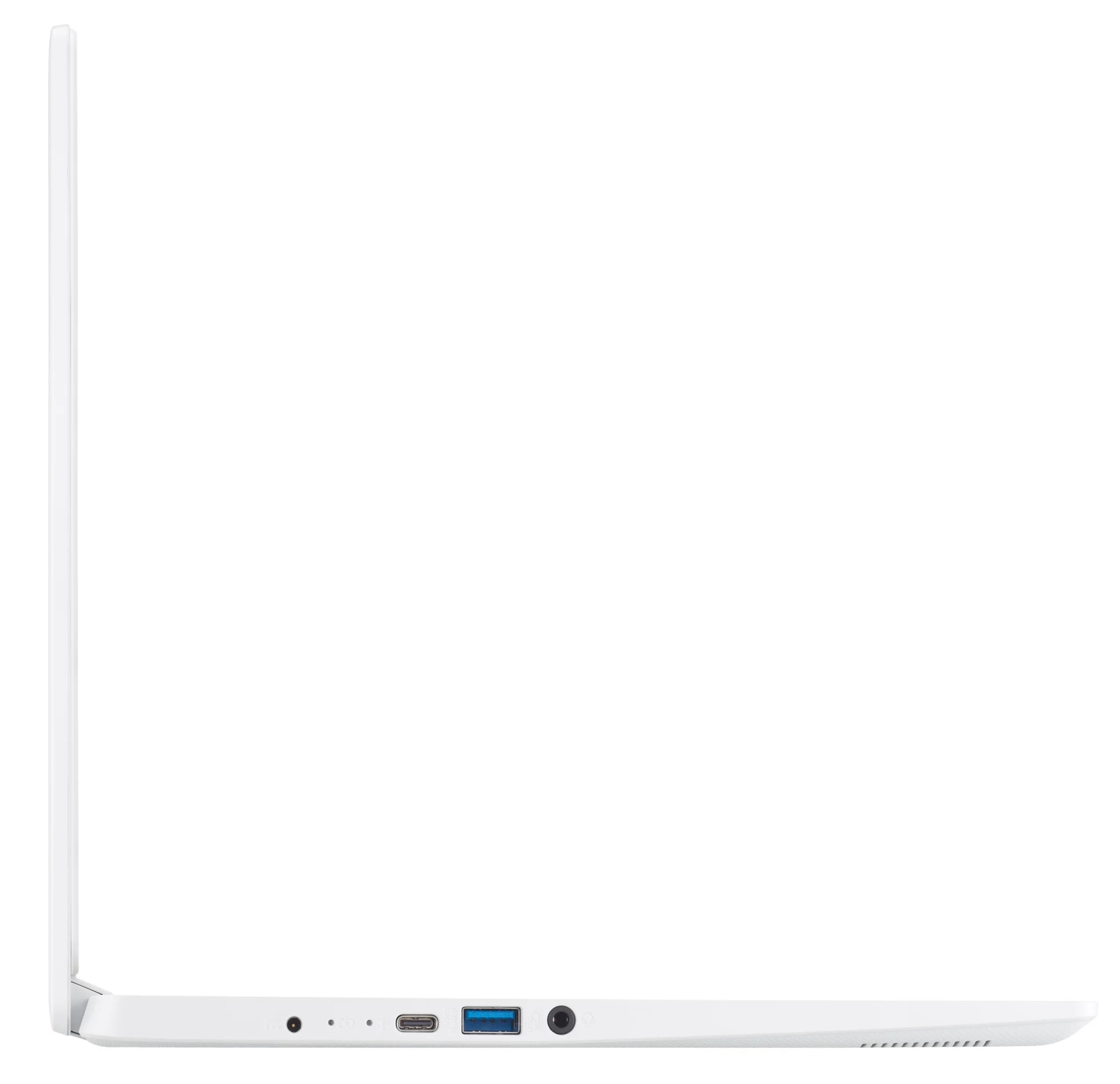

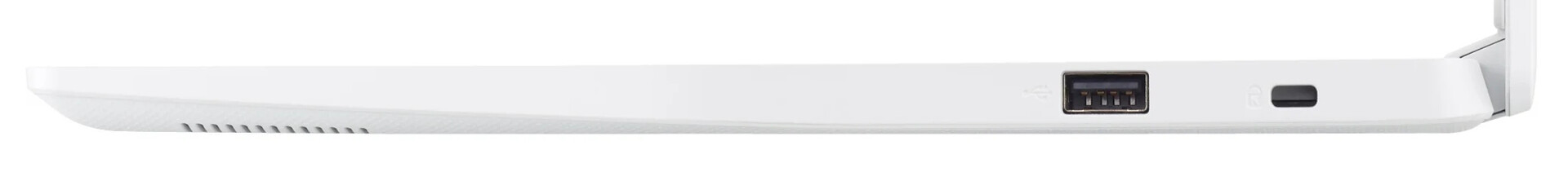

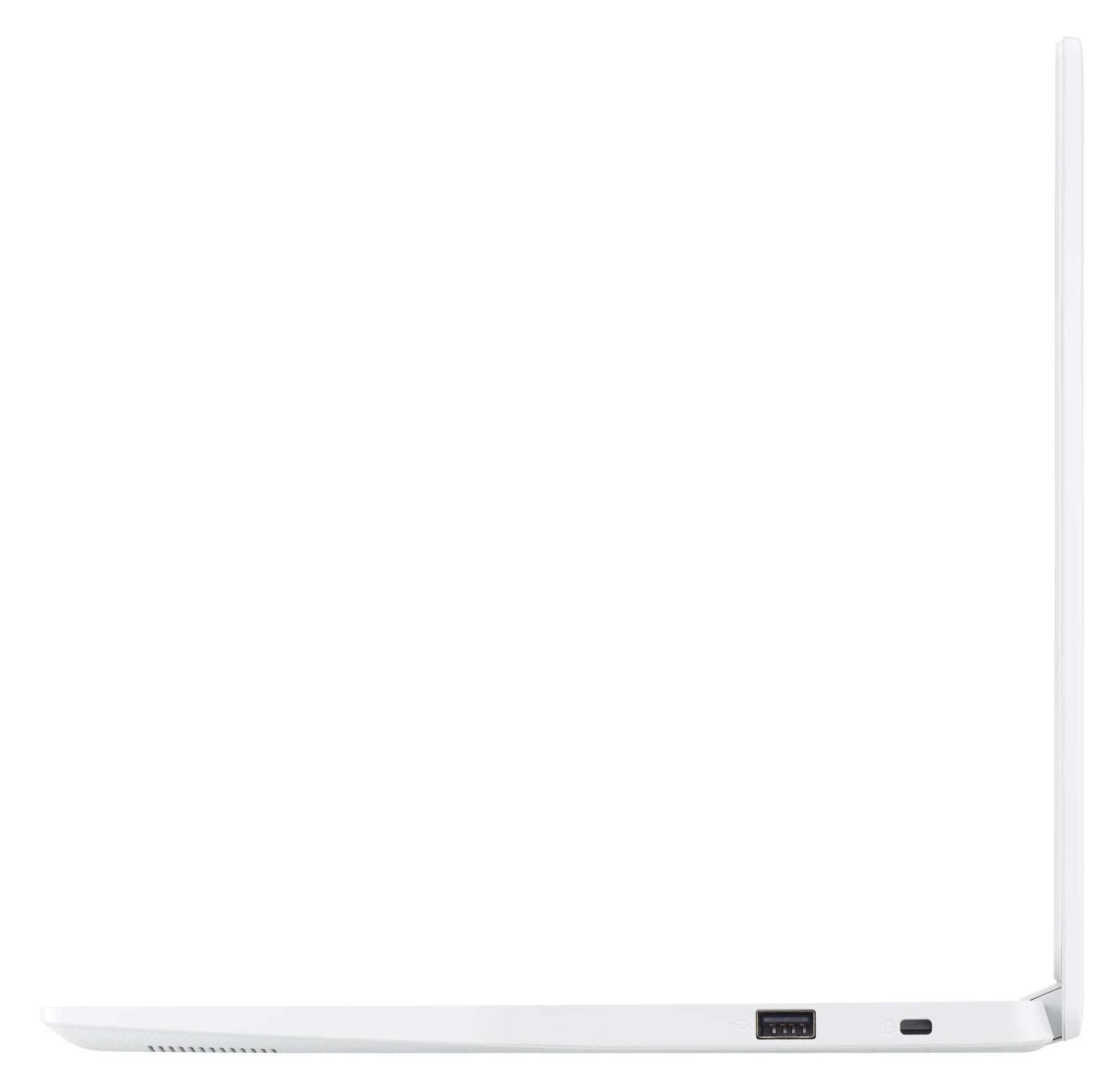

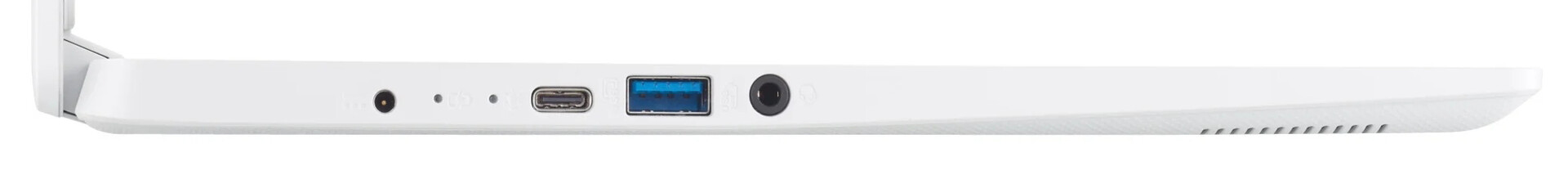

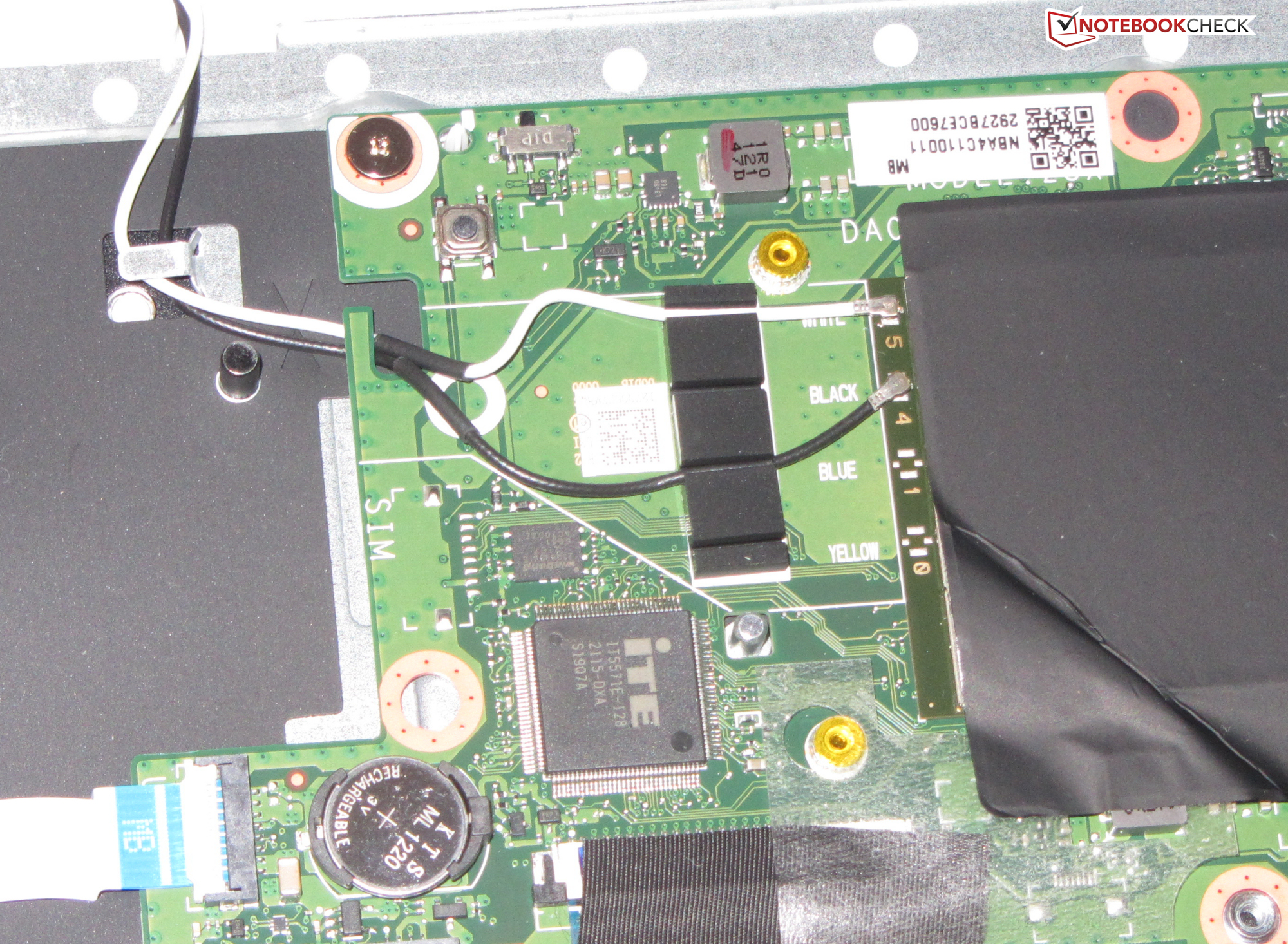

Aspire笔记本电脑有两个USB-A端口（1个USB 3.2 Gen 1，1个USB 2.0）和一个USB-C端口（USB 3.2 Gen 1）。USB-C端口可以输出一个DisplayPort信号。然而，它不能用于充电。没有SD卡读卡器。高通SoC支持Wi-Fi 5（802.11ac），提供高达866 Mb/s的数据传输速度。蜂窝调制解调器被永久禁用。
Windows 10 Home S作为操作系统。有一个免费的Windows 10 Home的常规版本的更新，我们安装了它。在这之后，我们能够升级到Windows 11，没有任何问题。
重要的是要知道。ARM上的Windows只支持32位x86应用程序（通过仿真）和专门为ARM构建的应用程序。在未来，将支持64位x86仿真（仅在Windows 11上）。这意味着在承诺购买之前，用户应该检查相关应用程序的兼容性。我们常用的许多基准测试工具都不工作。例如，Cinebench R15没有启动，PCMark 10和PCMark 8的某些部分未能完成。
7.6 ∆E
13.8 ∆E
16 ∆E
15.1 ∆E
17.9 ∆E
16.7 ∆E
12.2 ∆E
18.5 ∆E
14.5 ∆E
9.1 ∆E
15.2 ∆E
14.4 ∆E
11 ∆E
14.5 ∆E
19.6 ∆E
13.2 ∆E
16.3 ∆E
20.6 ∆E
2 ∆E
11.4 ∆E
15 ∆E
12.3 ∆E
10.5 ∆E
4.2 ∆E

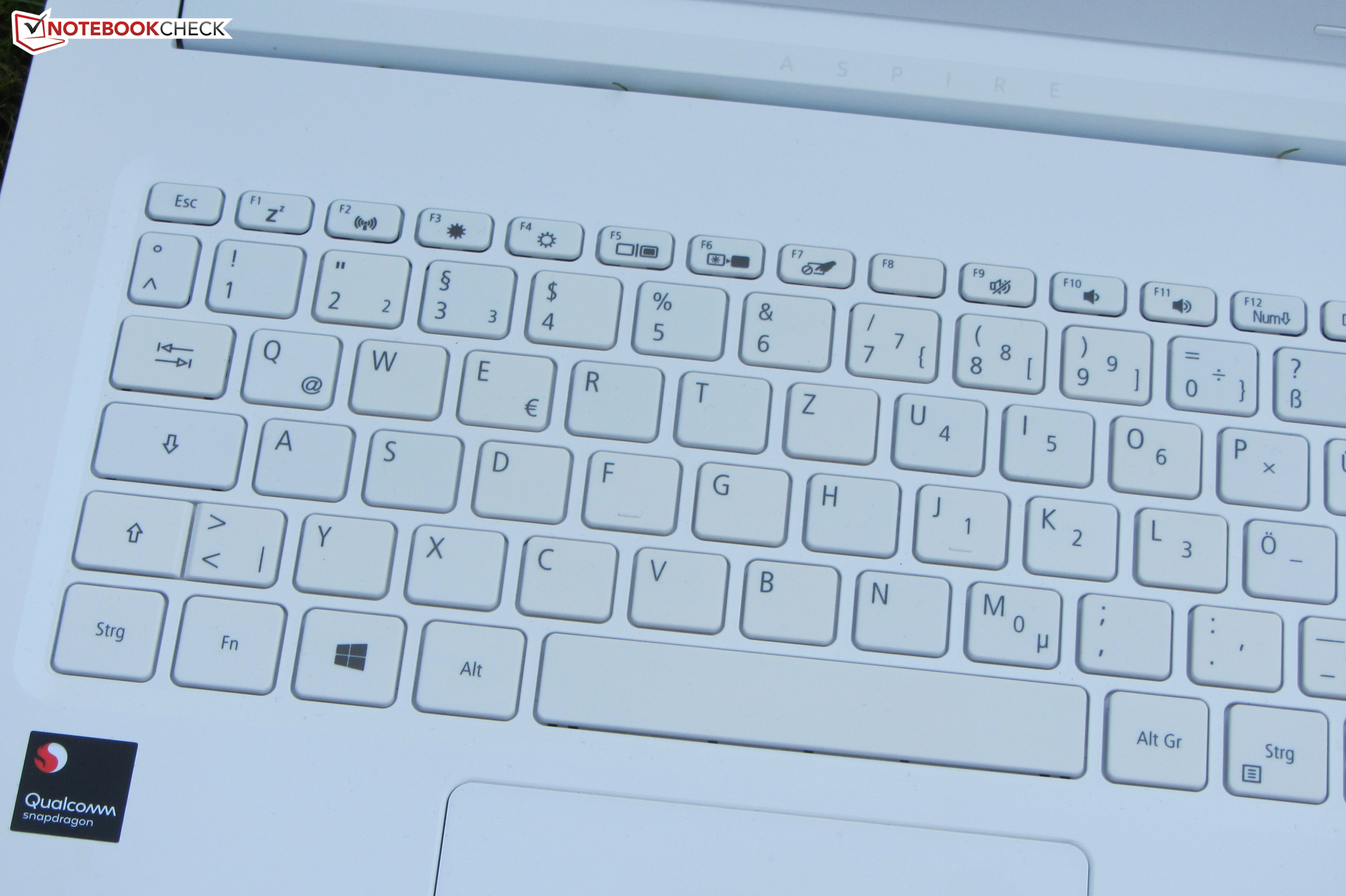

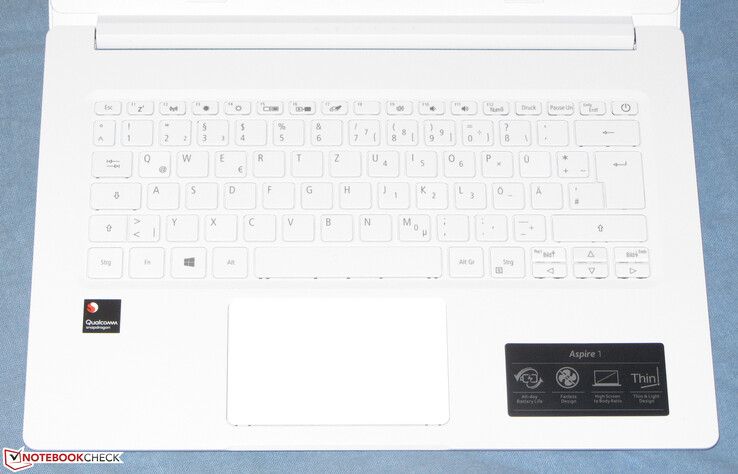

输入设备 - Acer Aspire 1 A114-61不具备键盘背光功能
扁平的、略显粗糙的、未被点亮的小册子式键盘提供了一个清晰的启动点和短的移动距离。键盘感觉有点糊。打字时，键盘甲板表现出一些弯曲。总而言之，Aspire 1有一个体面的键盘。

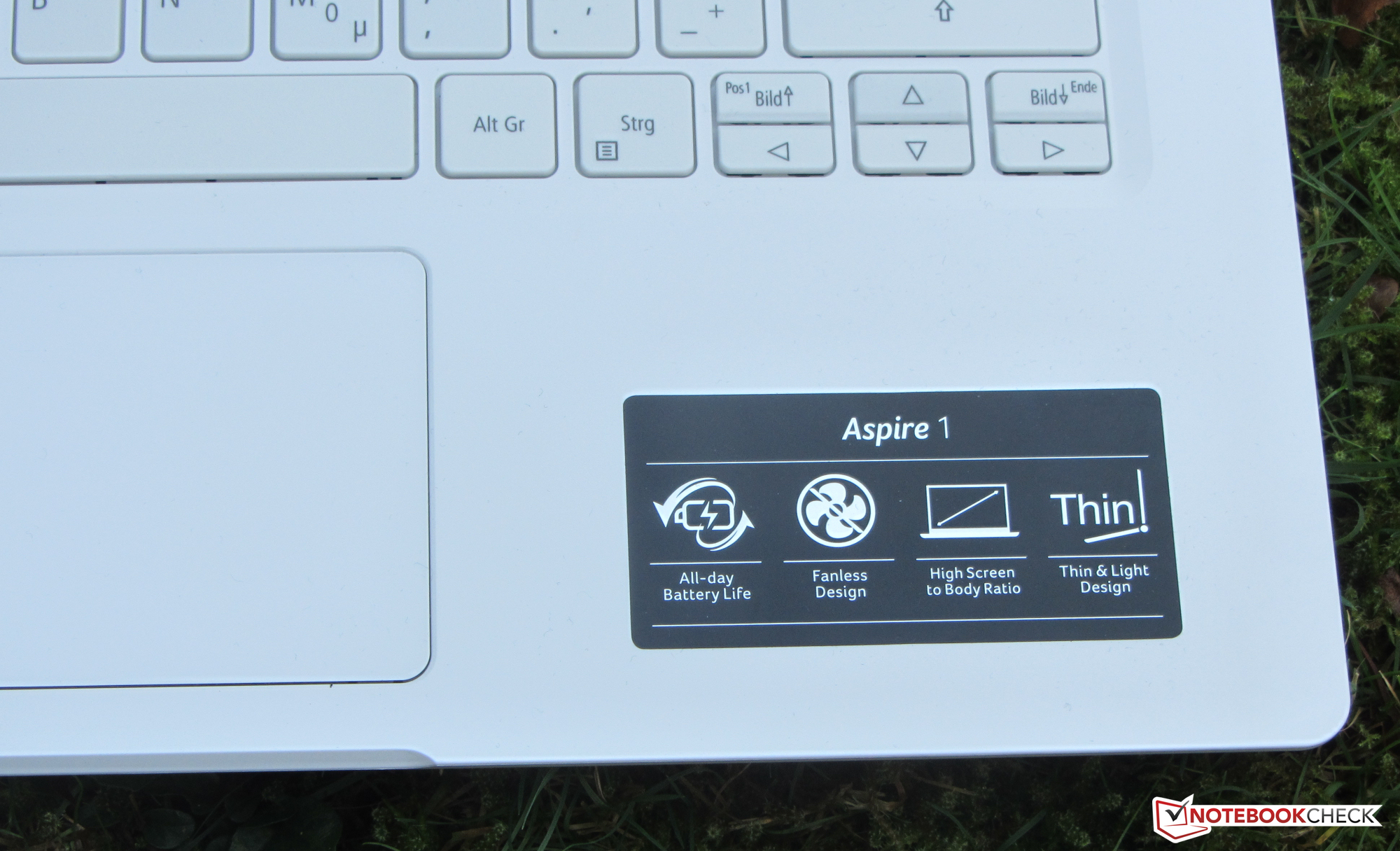

一个多点触控点击板（10.5x6.5厘米/4.13x2.55英寸）可作为鼠标的替代品。它的表面光滑，移动距离短，启动点清晰。即使是在角落里，该触摸板也能顺利登记输入。

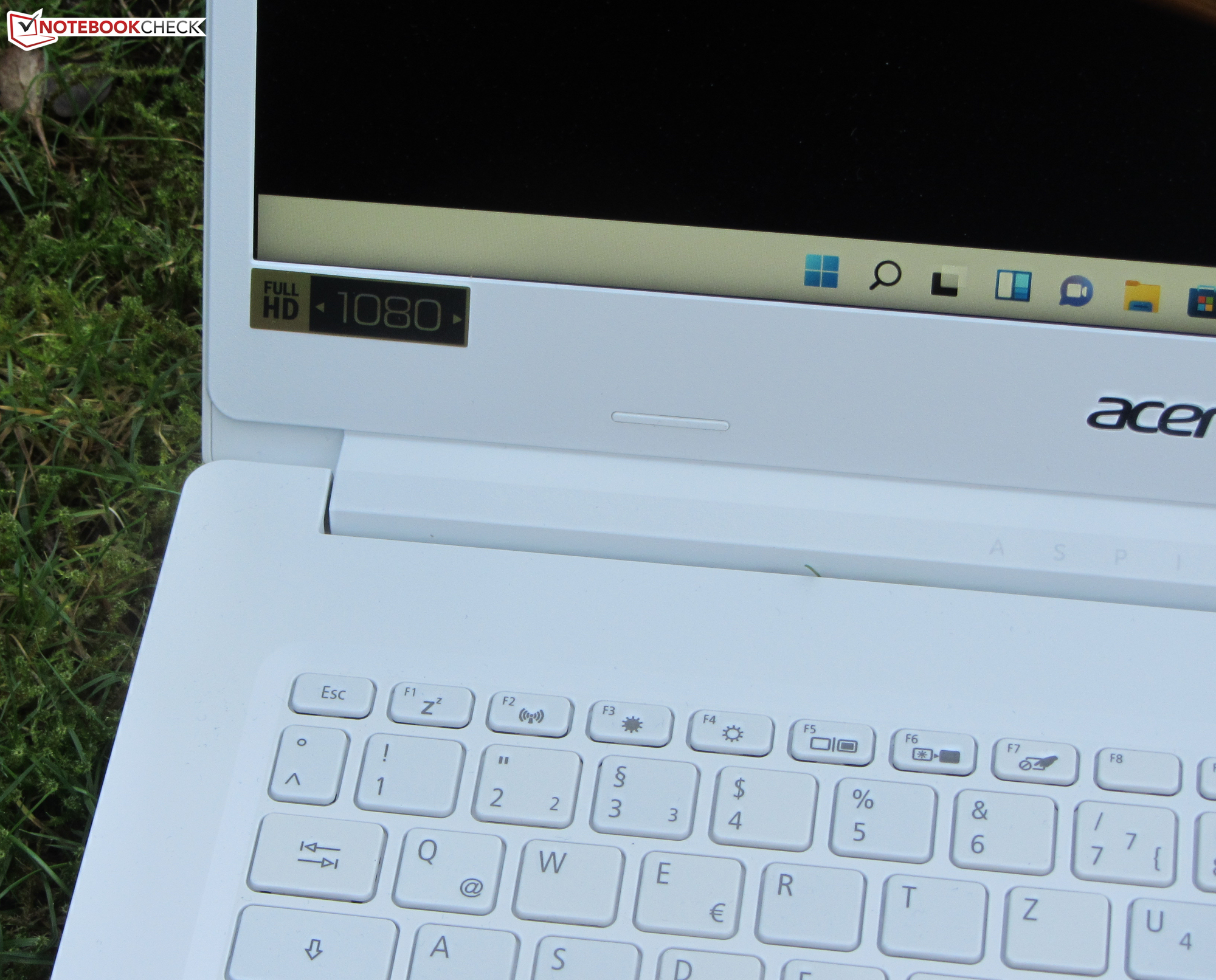

显示屏 - 宏碁笔记本电脑采用IPS面板
亮度（264.8 cd/m²）和对比度（952:1）并不令人印象深刻，但对于这样的设备来说还不错。我们认为300cd/m²的亮度和至少1000:1的对比度是好的。在10%的亮度及以下，屏幕会以25000赫兹的频率闪烁。这种闪烁是无法察觉的。由于频率如此之高，即使是敏感的人也不应该出现头痛或眼睛疲劳。
| |||||||||||||||||||||||||
Chi Mei N140HCA-EAC tested with X-Rite i1Pro 2
Maximum: 246 cd/m² (Nits) Average: 220.2 cd/m² Minimum: 5 cd/m²Brightness Distribution: 83 %
Center on Battery: 246 cd/m²
Contrast: 745:1 (Black: 0.33 cd/m²)
ΔE Color 5.31 | 0.5-29.43 Ø4.91
ΔE Greyscale 3.94 | 0.5-98 Ø5.2
43.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
63% sRGB (Argyll 2.2.0 3D)
42% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.21
| Acer Aspire 1 A114-61-S58J Chi Mei N140HCA-EAC, IPS, 1920x1080, 14" | Acer Swift 1 SF114-34-P6U1 Chi Mei N140HCA-EAC, IPS, 1920x1080, 14" | Medion Akoya E14307 LG Philips LP140WFA-SPD1, IPS, 1920x1080, 14" | Samsung Galaxy Book Go AUO203D, TN, 1920x1080, 14" | |
|---|---|---|---|---|
| Display | -1% | -11% | ||
| Display P3 Coverage | 42 | 41.4 -1% | 37.3 -11% | |
| sRGB Coverage | 63 | 61.8 -2% | 55.8 -11% | |
| AdobeRGB 1998 Coverage | 43.4 | 42.9 -1% | 38.59 -11% | |
| Response Times | 8% | 5% | -23% | |
| Response Time Grey 50% / Grey 80% * | 33 ? | 29 ? 12% | 33 ? -0% | 40 ? -21% |
| Response Time Black / White * | 23 ? | 20 ? 13% | 21 ? 9% | 11 ? 52% |
| PWM Frequency | 25000 ? | 25000 ? 0% | 200 ? -99% | |
| Screen | 15% | 23% | -61% | |
| Brightness middle | 246 | 295 20% | 297 21% | 230 -7% |
| Brightness | 220 | 265 20% | 267 21% | 201 -9% |
| Brightness Distribution | 83 | 85 2% | 86 4% | 80 -4% |
| Black Level * | 0.33 | 0.31 6% | 0.23 30% | 0.36 -9% |
| Contrast | 745 | 952 28% | 1291 73% | 639 -14% |
| Colorchecker dE 2000 * | 5.31 | 5.43 -2% | 5.92 -11% | 12.23 -130% |
| Colorchecker dE 2000 max. * | 18.2 | 9.51 48% | 8.39 54% | 23.26 -28% |
| Greyscale dE 2000 * | 3.94 | 4.19 -6% | 4.41 -12% | 15.28 -288% |
| Gamma | 2.21 100% | 2.11 104% | 2.71 81% | 2.55 86% |
| CCT | 6356 102% | 7084 92% | 7244 90% | 18403 35% |
| Colorchecker dE 2000 calibrated * | 5.07 | |||
| Color Space (Percent of AdobeRGB 1998) | 35 | |||
| Color Space (Percent of sRGB) | 56 | |||
| Total Average (Program / Settings) | 7% /
10% | 6% /
12% | -42% /
-51% |
* ... smaller is better

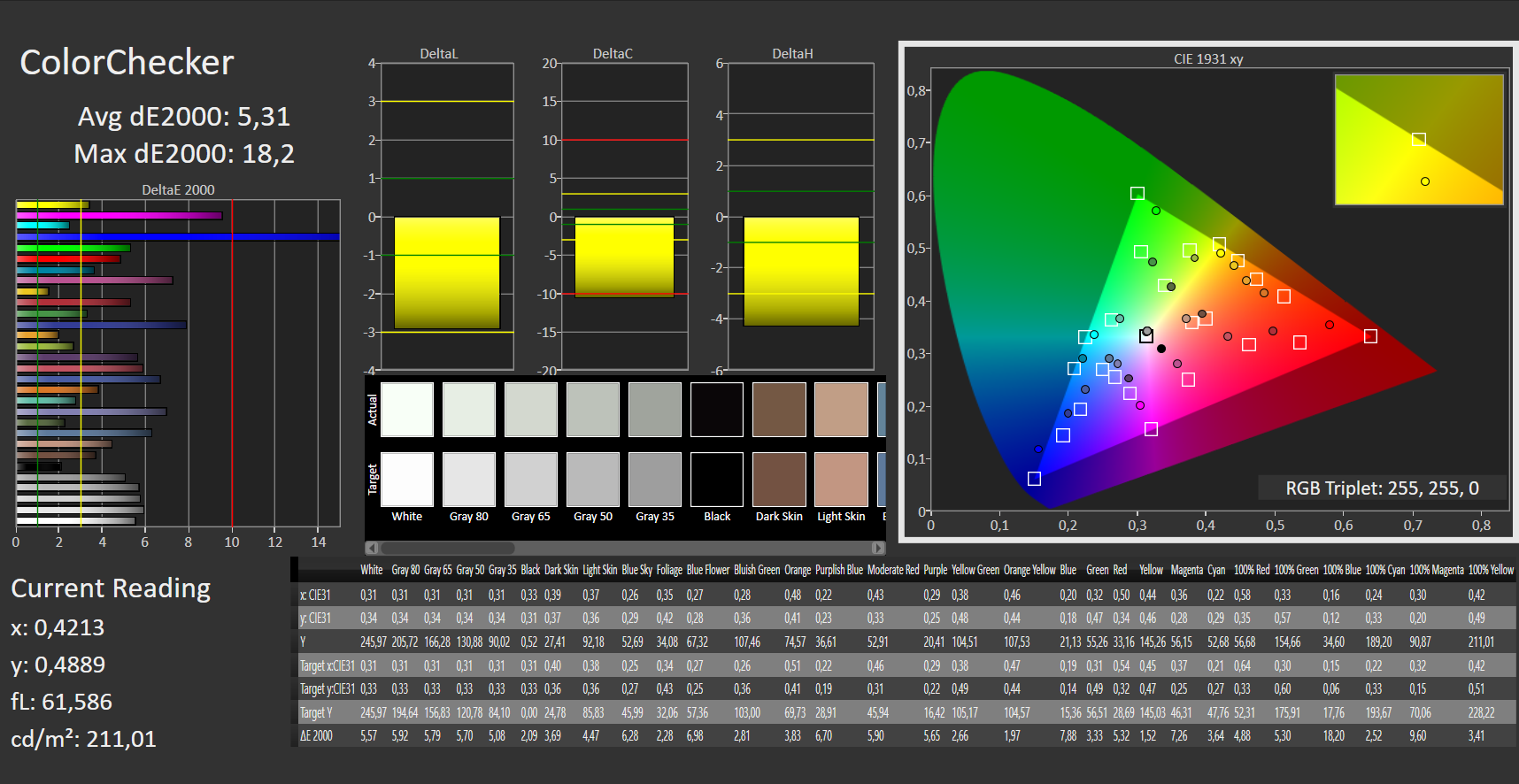

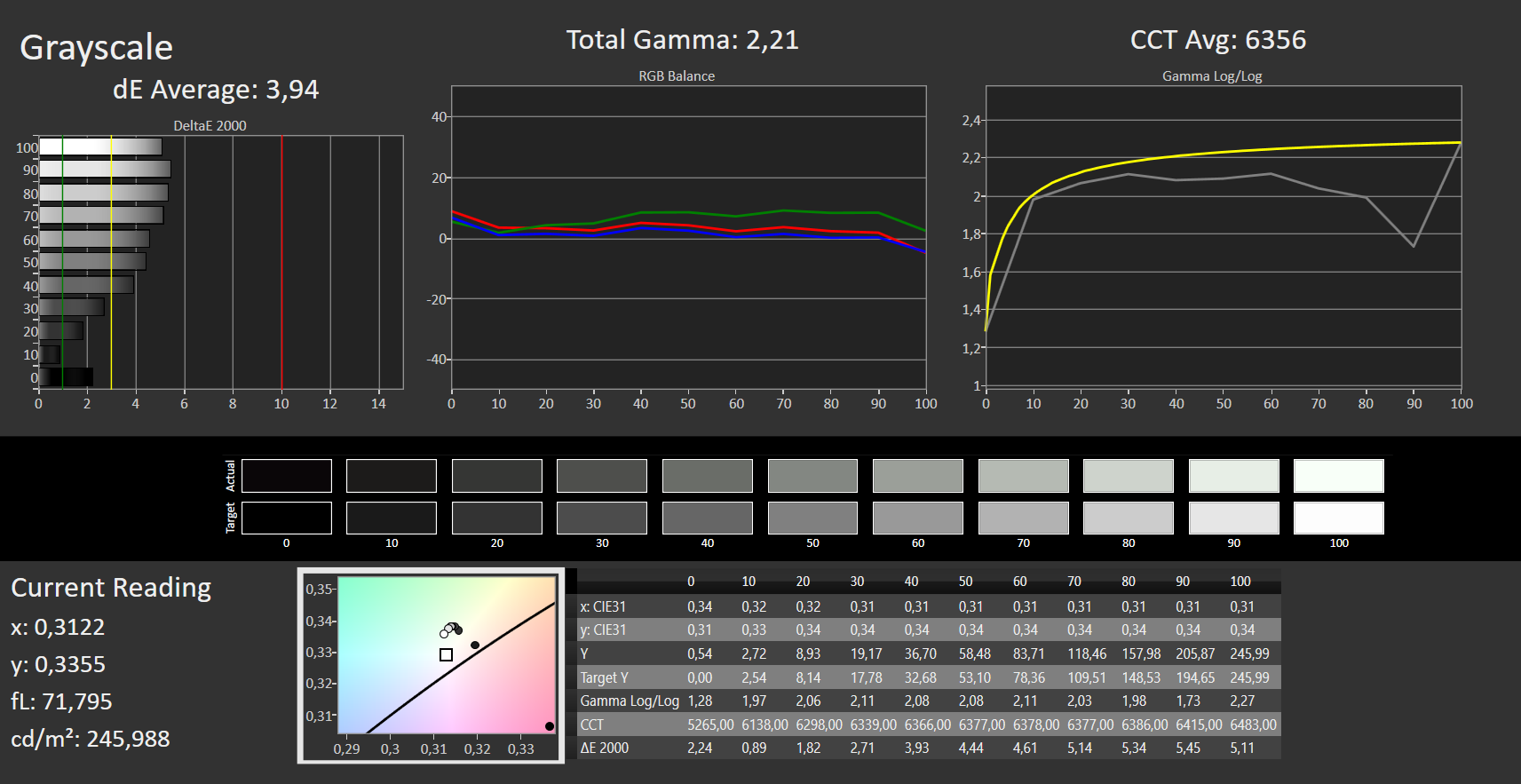

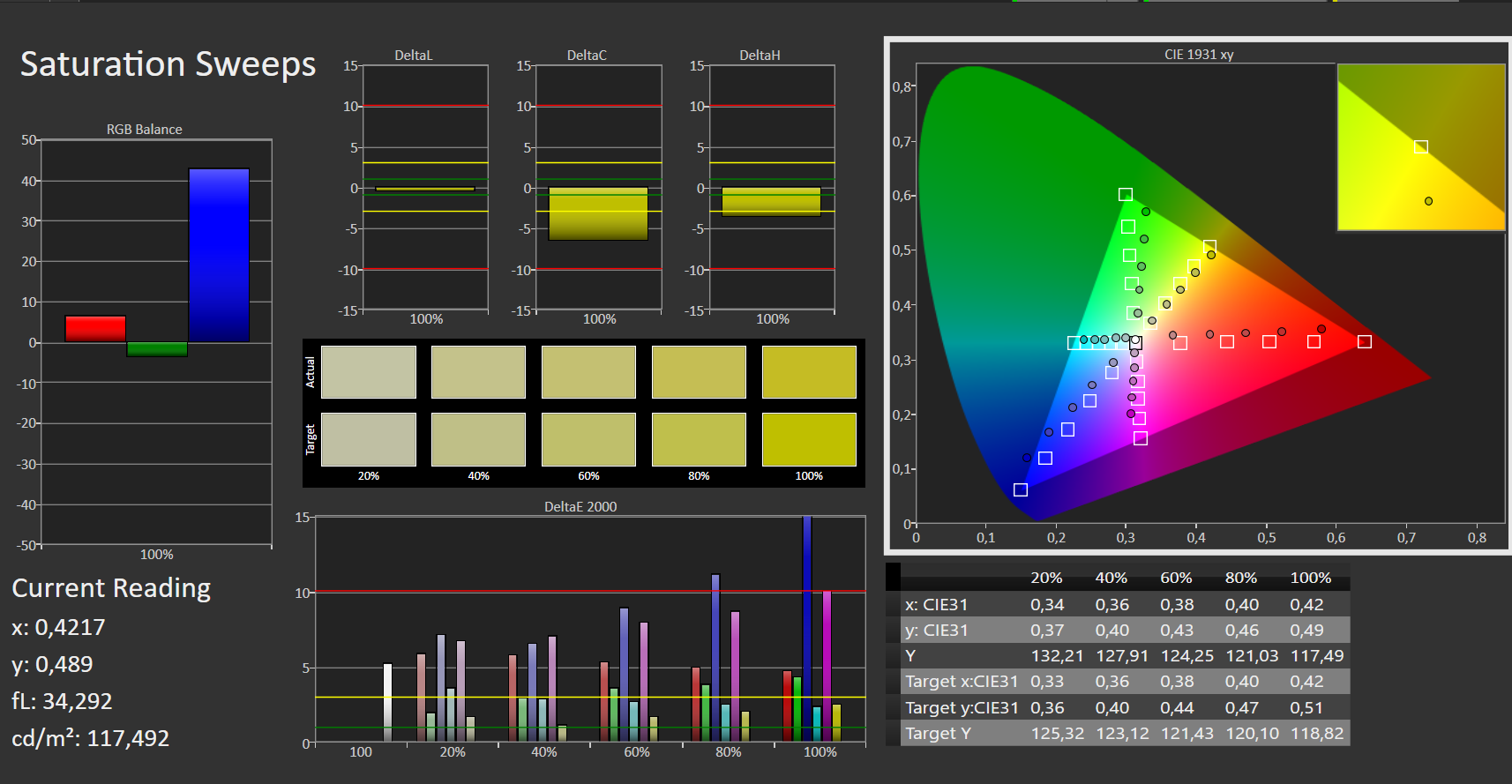

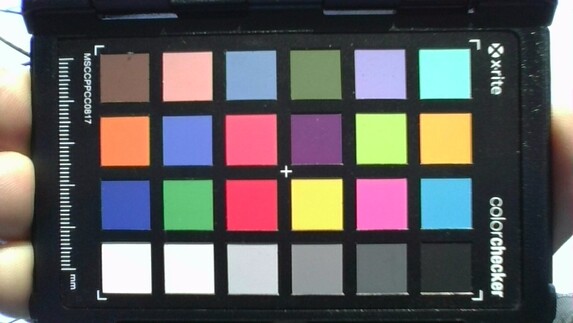

开箱后，色彩准确度达到了可接受的水平。屏幕不存在偏蓝的问题。色彩空间覆盖率很差（AdobeRGB：43%；sRGB：63%；DCI-P3：42%）。

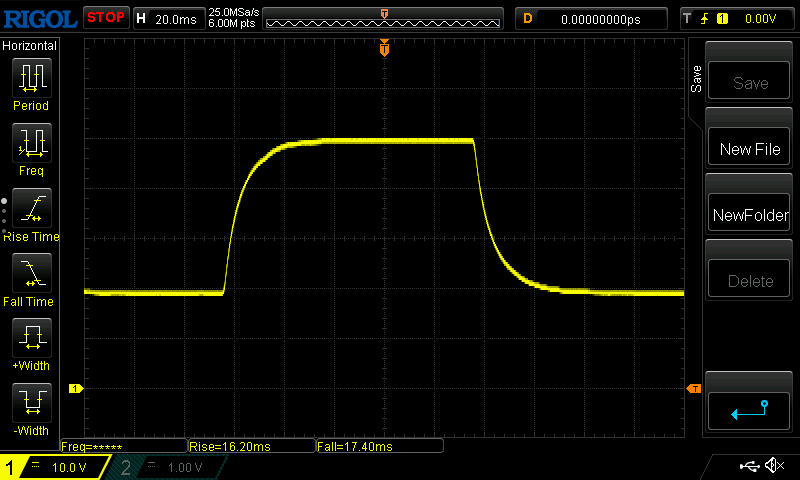

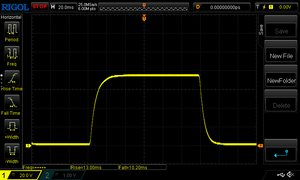

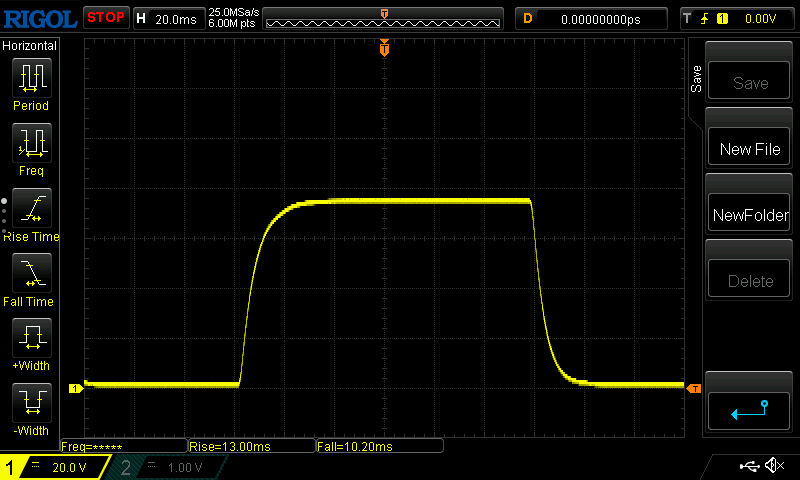

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 23 ms ... rise ↗ and fall ↘ combined | ↗ 13 ms rise |  |
| ↘ 10 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 48 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

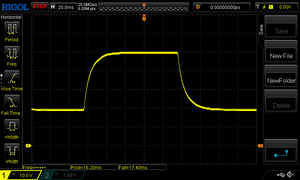

| ↔ Response Time 50% Grey to 80% Grey | ||
| 33 ms ... rise ↗ and fall ↘ combined | ↗ 16 ms rise |  |
| ↘ 17 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 41 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (32.8 ms). | ||

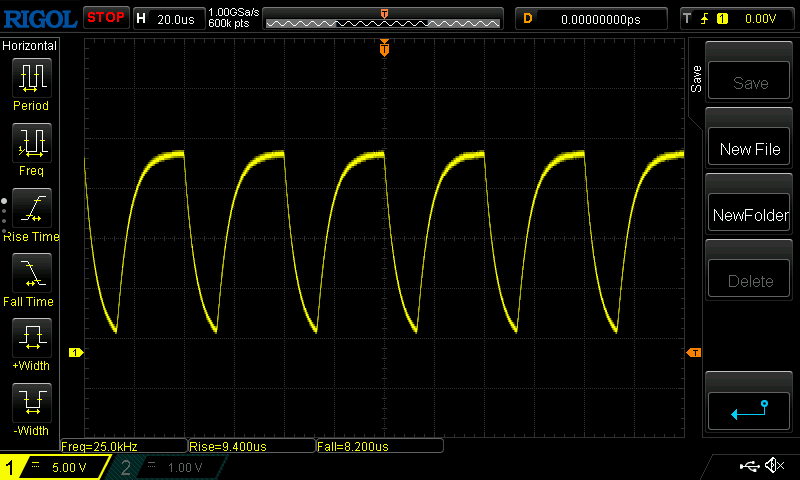

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 25000 Hz | ≤ 10 % brightness setting |  |
The display backlight flickers at 25000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 10 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 25000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured. | |||

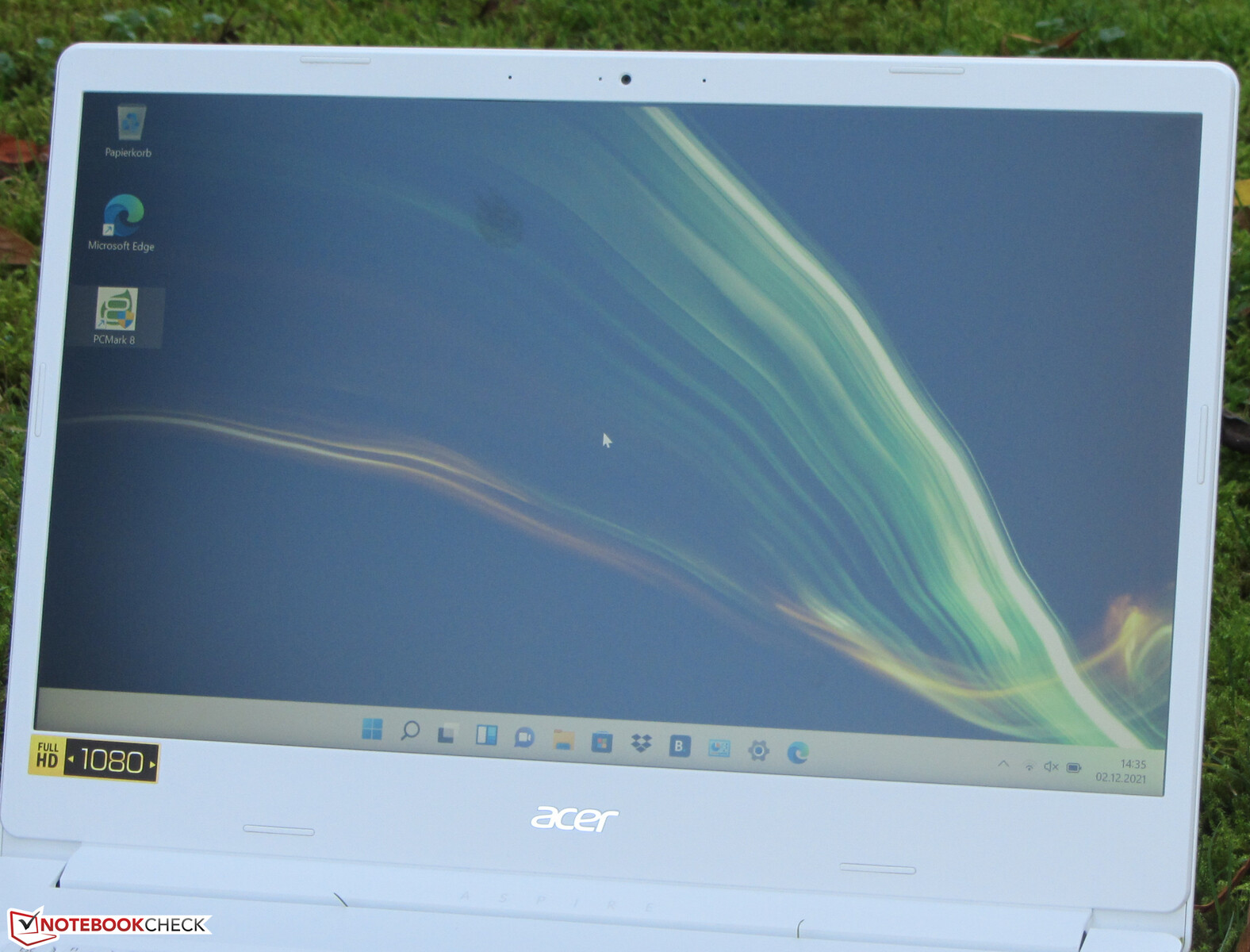

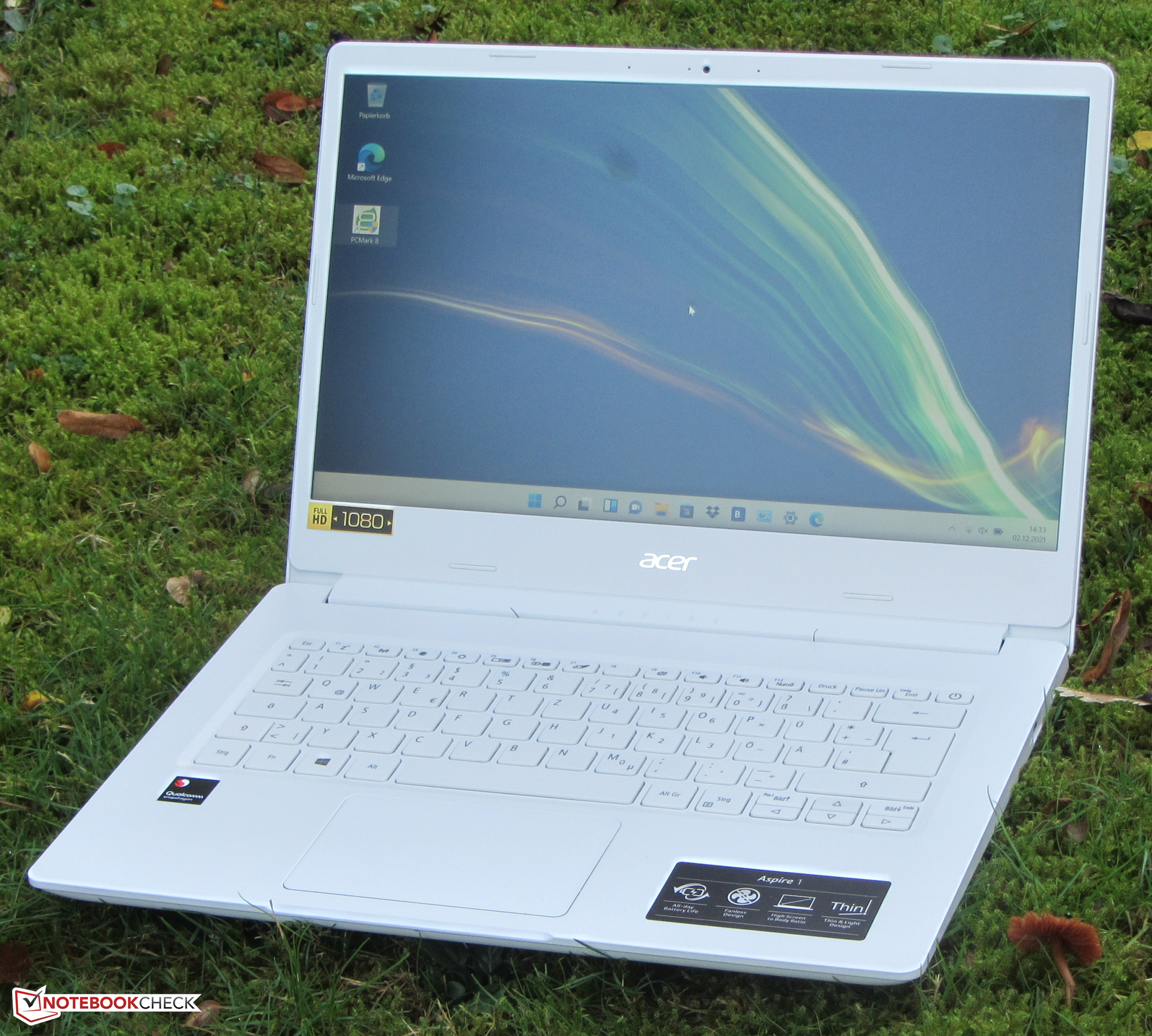

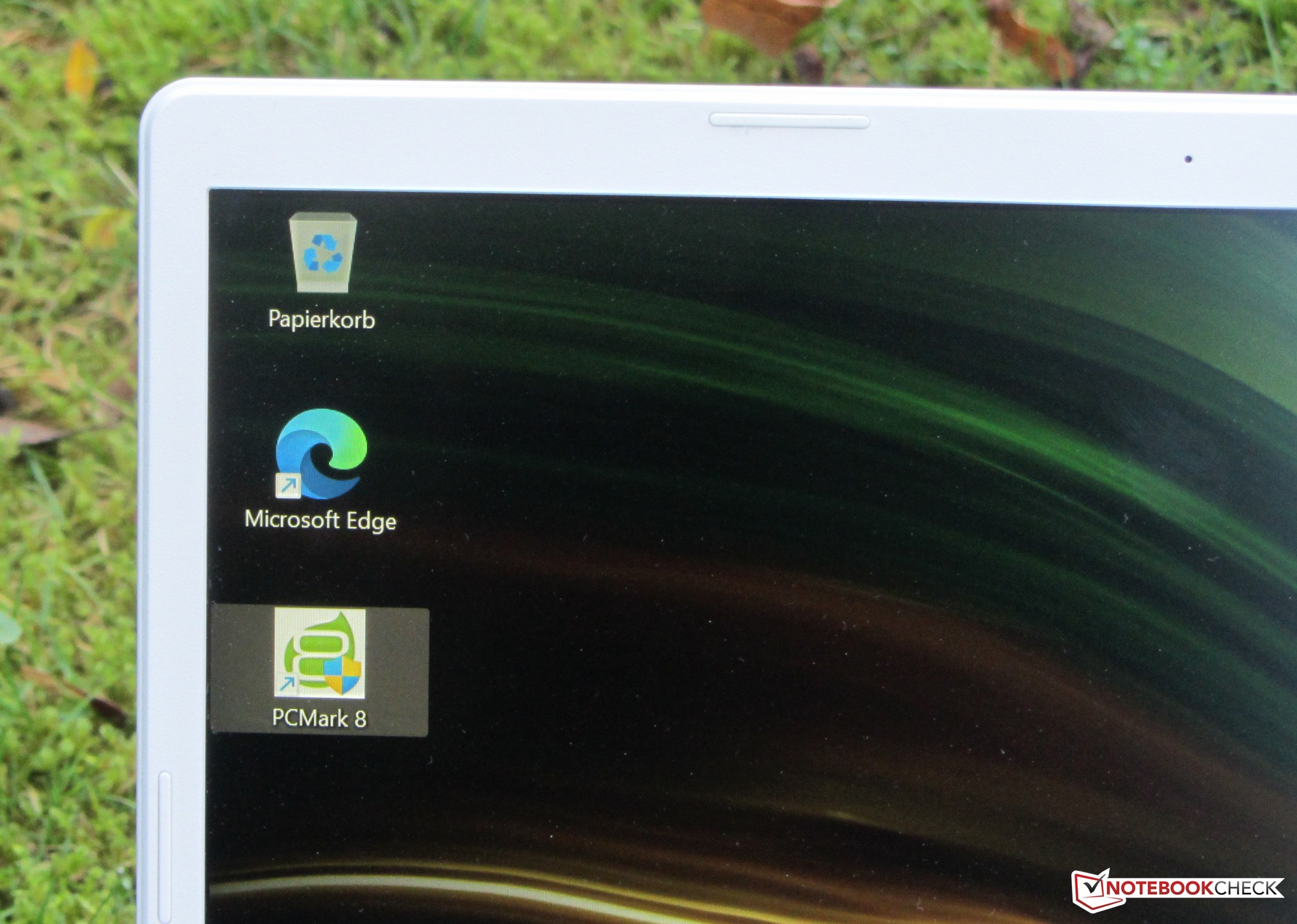

IPS面板提供了非常好的可视角度。在户外，只有在阳光不太强烈的情况下才能阅读屏幕。
性能 - 配备ARM CPU的宏碁笔记本电脑
宏碁Aspire 1 A114-61是一款14英寸的笔记本，可以处理办公和基于网络的应用。

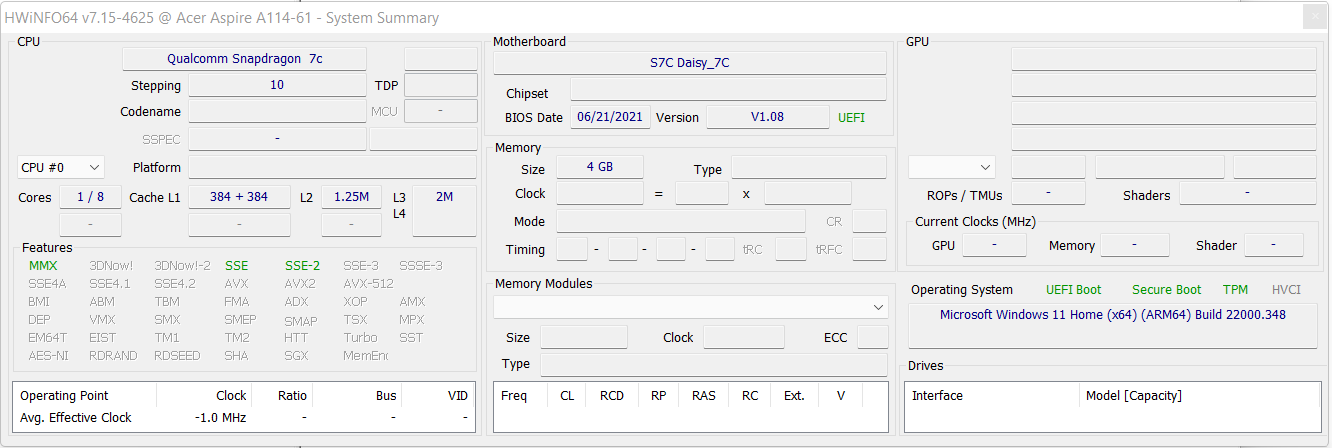

系统设置
制造商没有为Swift 1提供任何自定义配置文件。使用的是标准的Windows配置文件。基准测试是使用 "平衡 "电源计划进行的，这是唯一可用的电源计划。
处理器

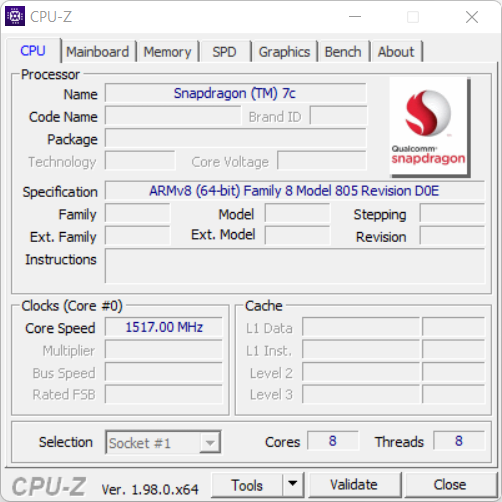

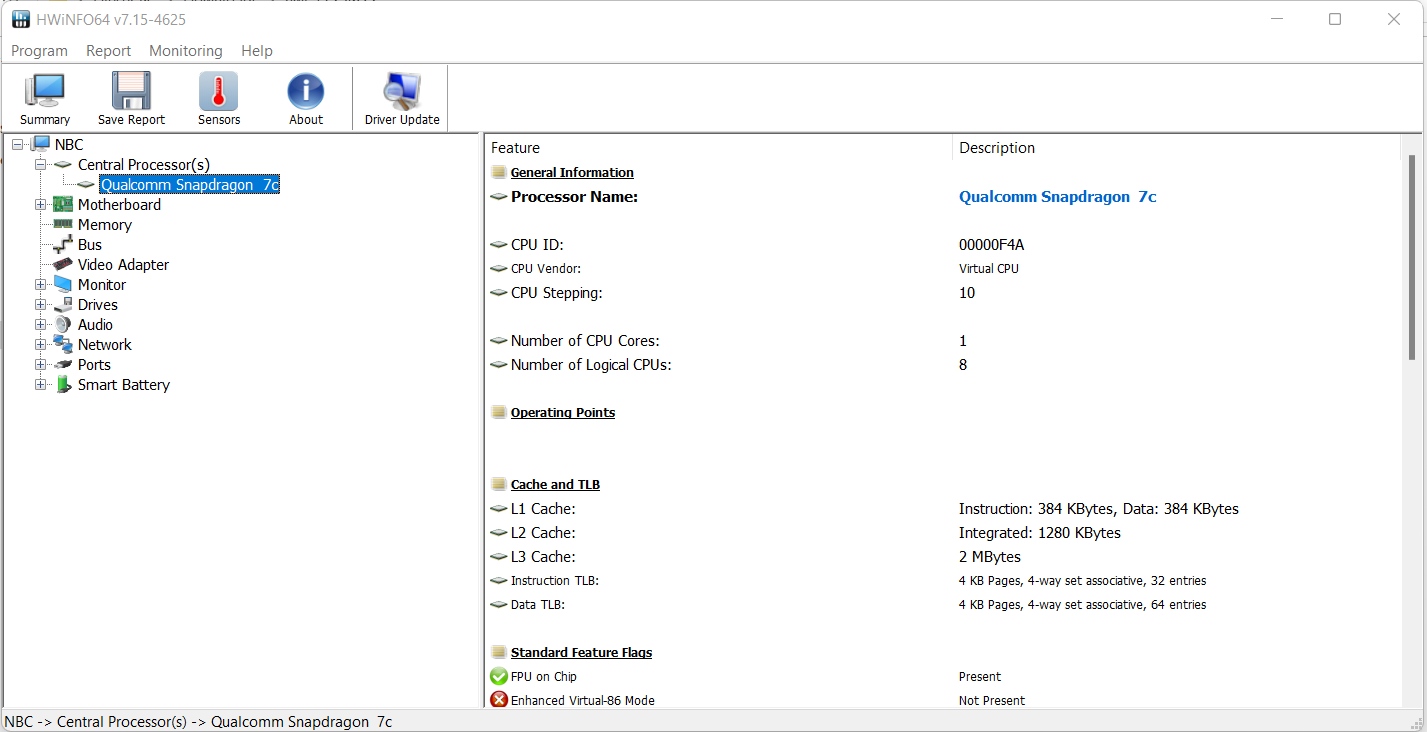

Aspire 1采用了高通公司的 Snapdragon 7c.该SoC具有八个内核（两个Cortex A76内核和六个Cortex A55内核）。该CPU建立在ARM big.LITTLE计算架构之上。
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R11.5 | Cinebench R10 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5 | Mozilla Kraken 1.1 | Octane V2 | JetStream 1.1 | Jetstream 2
| CPU Performance Rating - Percent | |
| Average of class Office | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 -5! | |
| Samsung Galaxy Book Go -10! | |
| Acer Aspire 1 A114-61-S58J | |
| Acer Aspire 1 A114-32-P0K1 -13! | |
| Average Qualcomm Snapdragon 7c | |
| Cinebench R23 | |
| Single Core | |
| Average of class Office (618 - 1995, n=93, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Multi Core | |
| Average of class Office (1577 - 15743, n=93, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Cinebench R20 | |
| CPU (Single Core) | |
| Average of class Office (229 - 766, n=92, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-32-P0K1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=92, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-32-P0K1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Blender - v2.79 BMW27 CPU | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Average of class Office (208 - 1956, n=94, last 2 years) | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Average of class Office (7532 - 65460, n=95, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Medion Akoya E14307 | |
| 7z b 4 -mmt1 | |
| Average of class Office (2972 - 6687, n=94, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Office (1.72 - 18.7, n=92, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| LibreOffice - 20 Documents To PDF | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average of class Office (31.3 - 129.6, n=92, last 2 years) | |
| R Benchmark 2.5 - Overall mean | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average of class Office (0.4244 - 1.135, n=91, last 2 years) | |
| Mozilla Kraken 1.1 - Total | |
| Acer Aspire 1 A114-32-P0K1 | |
| Average Qualcomm Snapdragon 7c (1792 - 2050, n=3) | |
| Samsung Galaxy Book Go | |
| Acer Aspire 1 A114-61-S58J | |
| Medion Akoya E14307 | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average of class Office (404 - 1966, n=94, last 2 years) | |
| JetStream 1.1 - Total Score | |
| Average of class Office (294 - 544, n=13, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Acer Aspire 1 A114-32-P0K1 | |
| Medion Akoya E14307 | |
| Samsung Galaxy Book Go | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=93, last 2 years) | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=93, last 2 years) | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=93, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 115197, n=93, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 14288, n=93, last 2 years) | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=93, last 2 years) | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / CPU AES | |
| Average of class Office (7254 - 155900, n=93, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=93, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Medion Akoya E14307 | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=93, last 2 years) | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=93, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
系统性能
ARM SoC为办公和基于网络的应用提供了足够的性能。该系统感觉反应不是很灵敏。打开一个新窗口或启动一个新的应用程序可能需要一些时间。打开太多的标签或后台应用程序会使系统的速度大大降低。这里，我们只能提供PCMark 8 Home基准测试的结果，因为其他PCMark基准测试未能完成。
| PCMark 8 Home Score Accelerated v2 | 1275 points | |
Help | ||
| PCMark 8 / Home Score Accelerated v2 | |
| Average of class Office (4252 - 4830, n=7, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c, Qualcomm Adreno 618 () | |
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=94, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 127282, n=94, last 2 years) | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=94, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| AIDA64 / Memory Latency | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Snapdragon 7c () | |
| Medion Akoya E14307 | |
| Average of class Office (6.9 - 185.2, n=93, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
* ... smaller is better
存储设备
宏碁笔记本电脑配备了一个64GB的eMMC模块。34GB被系统占用。在安装最新的Windows更新后，44GB被占用。没有办法扩大存储容量。eMMC模块实现了我们期望从这样一个存储设备中看到的各种速度。从总体上看，传输率相当低。
64 GB eMMC Flash
CDM 5/6 Read Seq Q32T1:
199.8 MB/s
CDM 5/6 Write Seq Q32T1:
162.9 MB/s
CDM 5/6 Read 4K Q32T1:
50.9 MB/s
CDM 5/6 Write 4K Q32T1:
20.85 MB/s
CDM 5 Read Seq:
238.8 MB/s
CDM 5 Write Seq:
209 MB/s
CDM 5/6 Read 4K:
9.914 MB/s
CDM 5/6 Write 4K:
13.31 MB/s
| Drive Performance Rating - Percent | |
| Average of class Office | |
| Samsung Galaxy Book Go -8! | |
| Medion Akoya E14307 | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average 64 GB eMMC Flash | |
* ... smaller is better
Continuous Read Rate: DiskSpd Read Loop, Queue Depth 8
Acer Aspire 1 A114-61-S58J 64 GB eMMC Flash: Ø229 (141.07-248.51)
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash: Ø252 (128.77-269.18)
图形卡

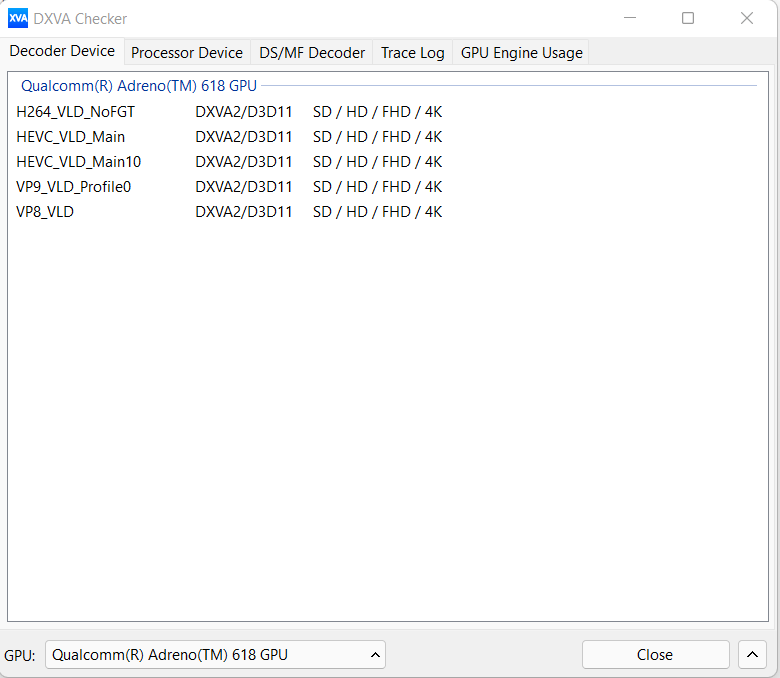

ǞǞǞ 阿德雷诺618负责图像渲染。它只能处理用户可以在微软商店找到的休闲游戏。有一个集成的视频解码器，支持以下编解码器。H.264、H.265/HEVC和VP9。
| 3DMark 11 Performance | 648 points | |
Help | ||
| 3DMark Performance Rating - Percent | |
| Average of class Office | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Adreno 618 | |
| Samsung Galaxy Book Go -1! | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1468 - 13132, n=89, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Medion Akoya E14307 | |
| Samsung Galaxy Book Go | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Adreno 618 (572 - 599, n=3) | |
| 3DMark - Night Raid Graphics Score | |
| Average of class Office (10113 - 15138, n=2, last 2 years) | |
| Acer Swift 1 SF114-34-P6U1 | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Adreno 618 () | |
| Medion Akoya E14307 | |
| BioShock Infinite - 1280x720 Very Low Preset | |
| Acer Swift 1 SF114-34-P91A | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Adreno 618 () | |
| Diablo III - 1024x768 Low / off | |
| Acer Swift 1 SF114-34-P91A | |
| Acer Aspire 1 A114-61-S58J | |
| Average Qualcomm Adreno 618 () | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| Diablo III (2012) | 20.7 | 20 | 17.2 | 12 |
| BioShock Infinite (2013) | 23 | 17.6 | 16.9 |
排放与能源 - 宏碁笔记本电脑拥有出色的电池寿命
系统噪音
因为宏碁Aspire 1没有风扇或硬盘盘，所以它总是很安静。
温度

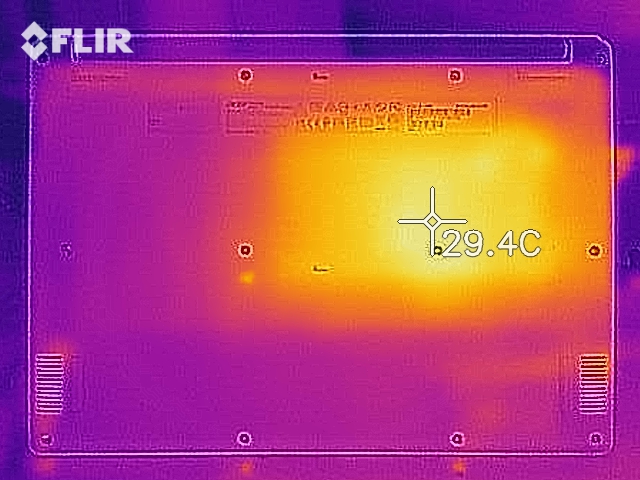

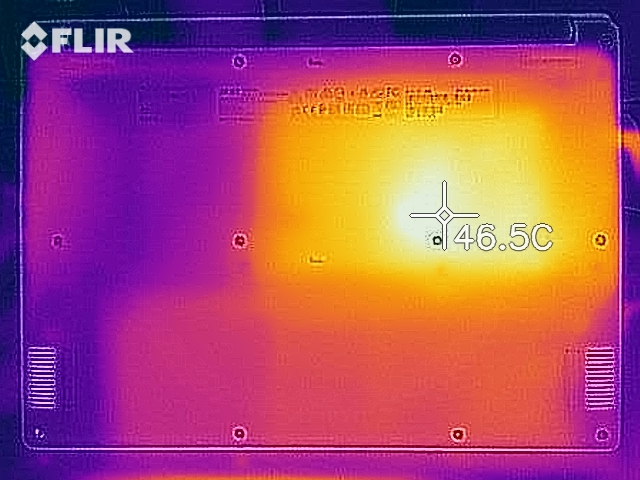

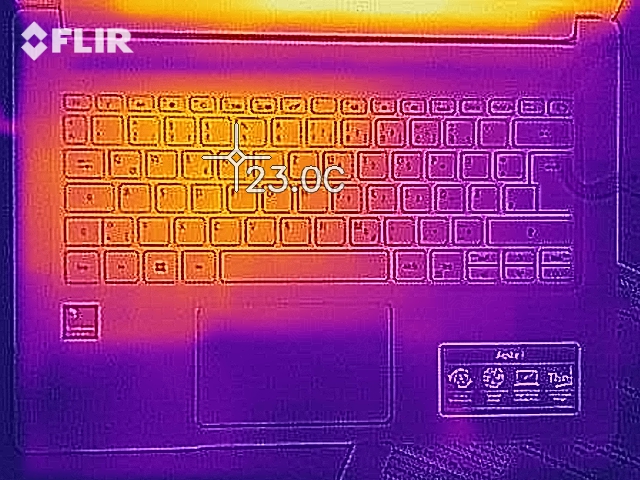

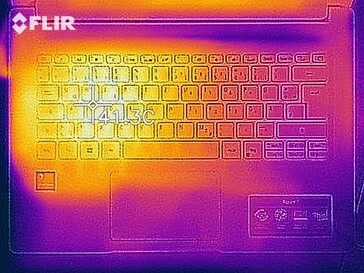

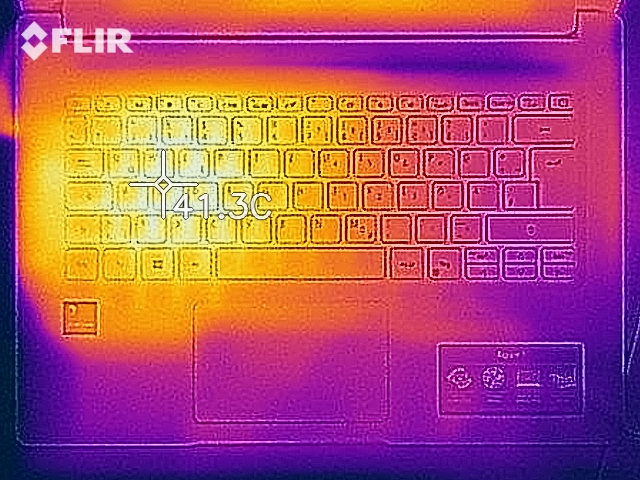

ARM笔记本电脑并没有变得过分热。在压力测试期间（Prime95和FurMark连续运行至少一个小时），机箱温度在某些时候达到了46.5℃（115.7°F）的峰值。然而，大部分的外壳从未感觉到太热。在日常使用中，外部温度总是在合理范围内。我们无法测量CPU温度和CPU时钟速率，因为我们的软件无法收集这些数据。
(+) The average temperature for the upper side under maximal load is 30.8 °C / 87 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 38.6 °C / 101 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.6 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.4 °C / -0.7 F).
(+) The maximum temperature on the upper side is 38.6 °C / 101 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 39.9 °C / 104 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.6 °C / 74 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.4 °C / -0.7 F).
| Acer Aspire 1 A114-61-S58J Qualcomm Snapdragon 7c, Qualcomm Adreno 618 | Acer Swift 1 SF114-34-P6U1 Intel Pentium Silver N6000, Intel UHD Graphics (Jasper Lake 32 EU) | Medion Akoya E14307 AMD 3020e, AMD Radeon RX Vega 3 | Samsung Galaxy Book Go Qualcomm Snapdragon 7c Gen 2, Qualcomm Adreno 618 | |
|---|---|---|---|---|
| Heat | -9% | 4% | -0% | |
| Maximum Upper Side * | 38.6 | 38.9 -1% | 36.1 6% | 35.4 8% |
| Maximum Bottom * | 39.9 | 43.3 -9% | 37.4 6% | 41.6 -4% |
| Idle Upper Side * | 25.6 | 28.5 -11% | 25.5 -0% | 25.6 -0% |
| Idle Bottom * | 26.3 | 29.6 -13% | 24.9 5% | 27.6 -5% |
* ... smaller is better
发言人
立体声扬声器的声音可以接受。然而，低音非常少。
能源消耗
这款14英寸的笔记本电脑非常节能。在负载（压力测试）下，耗电峰值为8.7W。不过，电源适配器的额定输出达到45W。
Power Consumption
| Off / Standby |   0.45 / 0.5 Watt |
| Idle |  2.25 / 4.2 / 4.8 Watt |
| Load |
8.2 / 8.7 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
电池寿命
在我们的Wi-Fi测试中，笔记本的电池运行时间达到了17小时30分，该测试模拟了上网时可能出现的负载。
| Battery Runtime - WiFi Websurfing | |
| Acer Aspire 1 A114-61-S58J | |
| Samsung Galaxy Book Go | |
| Acer Swift 1 SF114-34-P6U1 | |
| Average of class Office (230 - 1349, n=93, last 2 years) | |
| Medion Akoya E14307 | |
Pros
+ 哑光IPS屏幕
+ 无声操作
+ 出色的电池寿命
+ 通过USB-C显示端口
+ 两年的保修期
+ 微软365个人版（1年许可证）
Cons
- 显示屏昏暗，对比度差
- 系统性能差
- 存储空间非常小
- 内存不能更换或升级
- 禁用LTE调制解调器
- 没有SD卡读卡器
- 没有通过USB的电源传输
- 不是所有的Windows应用程序都可以使用
结论 - Aspire 1 A114-61持续时间长，但成本不高
它的 骁龙7c，4GB的内存和64GB的eMMC内存应该足以运行办公和基于网络的应用程序。该设备的功能不是很强大，但它运行起来很安静。
ARM处理器和ARM上的Windows仍有很长的路要走。
由于ARM芯片的巨大能效，宏碁笔记本电脑在我们的Wi-Fi测试中持续了17小时以上。不过，ARM SoC的另一个优势没有被使用。集成的LTE调制解调器被禁用，购买后无法重新启用。
IPS屏幕并不令人印象深刻，但对于这个价格范围内的设备来说，它处于一个正常水平。USB-C接口不支持Power Delivery。键盘是可用的。Aspire 1的价格不错（低于300欧元/~339美元），并附带一年的微软365个人版许可。
用户在购买ARM笔记本时应该小心，因为这类设备有很多兼容性问题。目前，Windows on ARM只支持32位x86应用程序（通过仿真）和专门为ARM编译的应用程序。在未来，将支持64位x86模拟（但仅在Windows 11上）。
Acer Aspire 1 A114-61的一个很好的替代品是 三星Galaxy Book Go.Galaxy Book Go有一个LTE调制解调器，部分由金属制成，并支持通过USB-C的Power Delivery。然而，Galaxy Book的TN屏幕相当糟糕。另外，电池寿命也相当差。
价格和可用性
在我们的审查配置中，宏碁Aspire 1 A114-61可以从宏碁的网站上购买。购买，价格为329美元。
Acer Aspire 1 A114-61-S58J
- 12/21/2021 v7 (old)
Sascha Mölck
Office - Weighted Average
Price comparison
