宏碁 Aspire ES1-332-P91H 笔记本电脑简短评测

实惠13.3寸笔记本电脑。 宏碁的13.3寸笔记本电脑提供了优秀的电池续航，不错的键盘和磨砂屏幕。英特尔的最新Apollo Lake平台为它带来了相比前代平台明显的性能提升。最大的优势：提供了维护底盖。
Laptop / Notebook Windows
Acer Aspire ES1-332-P91H (Aspire ES1 Series)
Processor
Intel Pentium N4200 4 x 1.1 - 2.5 GHz, Apollo Lake
Graphics adapter
Intel HD Graphics 505, Core: 750 MHz, 单通道, 21.20.16.4542
Memory
4 GB
, DDR3-1600, 单通道, 一个内存槽（已占用）
Display
13.30 inch 16:9, 1366 x 768 pixel 118 PPI, Chi Mei N133BGE-EAB, TN LED, glossy: no
Storage
WDC Slim WD10SPCX-21KHST0, 1000 GB
, 5400 rpm, 900 GB free
Soundcard
Realtek ALC255 @ Intel Apollo Lake SoC - High Definition Audio Controller
Connections
2 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, Audio Connections: 整合音频接口, Card Reader: SD, TPM 2.0
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3168 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 20.7 x 327 x 228
Battery
36 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 高清
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no, McAfee LiveSafe (试用版), MS Office 365 (试用版), 24 Months Warranty
Weight
1.5 kg, Power Supply: 274 g
Price
449 Euro
Links
Acer homepage
Acer notebook section
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Size Comparison

❌
351 mm 233 mm 20 mm 1.5 kg333.2 mm 229 mm 19.5 mm 1.5 kg327 mm 228 mm 21 mm 1.6 kg327 mm 228 mm 20.7 mm 1.5 kg320 mm 230 mm 21.5 mm 1.6 kg297 mm 210 mm 1 mm 5.7 g

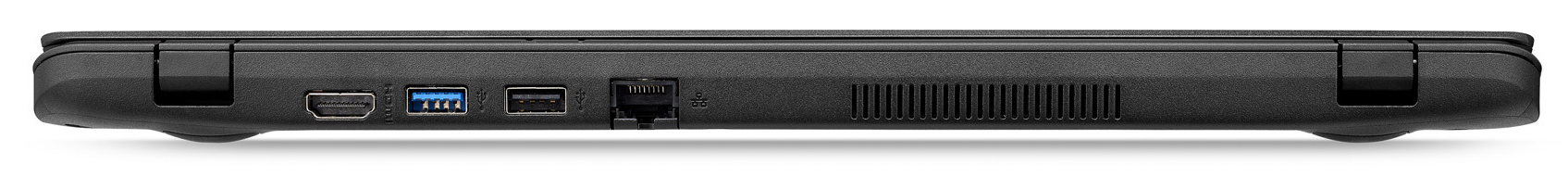

Connectivity

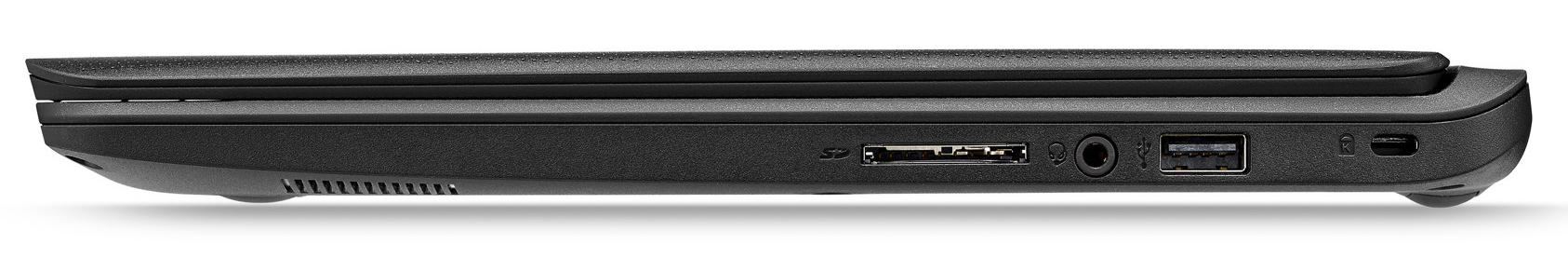

right: SD card reader, audio combo, USB 2.0 (Type A), lock slot
right: SD card reader, audio combo, USB 2.0 (Type A), lock slot

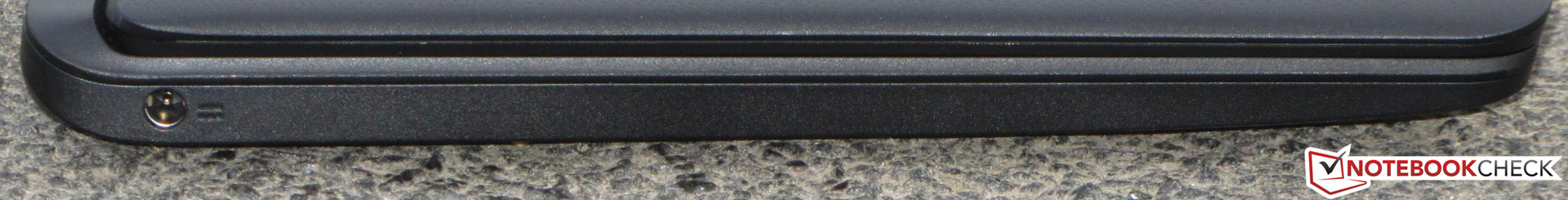

left: power-in
left: power-in
SD Card Reader
average JPG Copy Test (av. of 3 runs)
HP Stream 13-c102ng

21 MB/s +10%
Acer Aspire ES1-332-P91H

19.1 MB/s
Lenovo E31-70 80KX015RGE

10.3 MB/s -46%
Chiligreen Mobilitas c14w

MB/s -100%
maximum AS SSD Seq Read Test (1GB)
Acer Aspire ES1-331-C5KL

84.1 MB/s +127%
Acer Aspire ES1-332-P91H

37 MB/s
Lenovo E31-70 80KX015RGE

29.93 MB/s -19%
HP Stream 13-c102ng

27 MB/s -27%
Chiligreen Mobilitas c14w

MB/s -100%
Networking
iperf Server (receive) TCP 1 m
Acer Aspire ES1-332-P91H
Intel Dual Band Wireless-AC 3168 (jseb)
216 MBit/s
Chiligreen Mobilitas c14w
Realtek RTL8723BS
43.9 MBit/s -80%
iperf Client (transmit) TCP 1 m
Acer Aspire ES1-332-P91H
Intel Dual Band Wireless-AC 3168 (jseb)
314 MBit/s
Chiligreen Mobilitas c14w
Realtek RTL8723BS
63.8 MBit/s -80%
226
cd/m²		232
cd/m²		230
cd/m²
242
cd/m²		255
cd/m²		247
cd/m²
209
cd/m²		215
cd/m²		230
cd/m²
Distribution of brightness
Chi Mei N133BGE-EAB tested with X-Rite i1Pro 2
Maximum: 255 cd/m² (Nits) Average: 231.8 cd/m² Minimum: 14.3 cd/m²
Brightness Distribution: 82 %
Center on Battery: 255 cd/m²
Contrast: 490:1 (Black: 0.52 cd/m²)
ΔE Color 13.12 | 0.5-29.43 Ø4.93
ΔE Greyscale 15.01 | 0.5-98 Ø5.2
68% sRGB (Argyll 1.6.3 3D)
43% AdobeRGB 1998 (Argyll 1.6.3 3D)
46.2% AdobeRGB 1998 (Argyll 2.2.0 3D)
67.3% sRGB (Argyll 2.2.0 3D)
44.72% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.41
Acer Aspire ES1-332-P91H
Chi Mei N133BGE-EAB, , 1366x768, 13.3"		Acer Aspire ES1-331-C5KL
Chi Mei N133BGE-EAB, , 1366x768, 13.3"		HP Stream 13-c102ng
AU Optronics B133XW03, , 1366x768, 13.3"		Chiligreen Mobilitas c14w
HP140WX1_501, , 1366x768, 14.1"		Lenovo E31-70 80KX015RGE
InfoVision M133NWN1 R4, , 1366x768, 13.3"
Display
2%
-9%
10%
Display P3 Coverage
44.72
45.56
2%
40.68
-9%
49.25
10%
sRGB Coverage
67.3
68
1%
59.8
-11%
73.5
9%
AdobeRGB 1998 Coverage
46.2
47.12
2%
42.32
-8%
50.9
10%
Response Times
-26%
3%
-21%
Response Time Grey 50% / Grey 80% *
39 ?(20, 19)
45 ?(21, 24)
-15%
34 ?(18, 16, displayflackern)
13%
44.4 ?(22.8, 21.6)
-14%
Response Time Black / White *
30 ?(12, 18)
25 ?(7, 18)
17%
7.4 ?(3.4, 4, displayflackern)
75%
20.4 ?(14, 6.4)
32%
PWM Frequency
1000 ?(90)
201 ?(30)
-80%
200 ?(99)
-80%
200 ?(90)
-80%
Screen
2%
5%
-12%
3%
Brightness middle
255
289
13%
190
-25%
202
-21%
206
-19%
Brightness
232
266
15%
179
-23%
192
-17%
200
-14%
Brightness Distribution
82
87
6%
85
4%
89
9%
84
2%
Black Level *
0.52
0.68
-31%
0.33
37%
0.6
-15%
0.6
-15%
Contrast
490
425
-13%
576
18%
337
-31%
343
-30%
Colorchecker dE 2000 *
13.12
10.9
17%
9.84
25%
14.5
-11%
9.2
30%
Colorchecker dE 2000 max. *
22.98
24.22
-5%
14.8
36%
Greyscale dE 2000 *
15.01
12.65
16%
10.32
31%
16.04
-7%
10.94
27%
Gamma
2.41 91%
2.11 104%
2.48 89%
2.47 89%
2.76 80%
CCT
24382 27%
14520 45%
11884 55%
22686 29%
13282 49%
Color Space (Percent of AdobeRGB 1998)
43
42
-2%
38
-12%
46.92
9%
Color Space (Percent of sRGB)
68
67.9
0%
60
-12%
73.36
8%
Total Average (Program / Settings)
2% / 2%
-10% / -4%
-5% / -8%
-3% / 0%

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

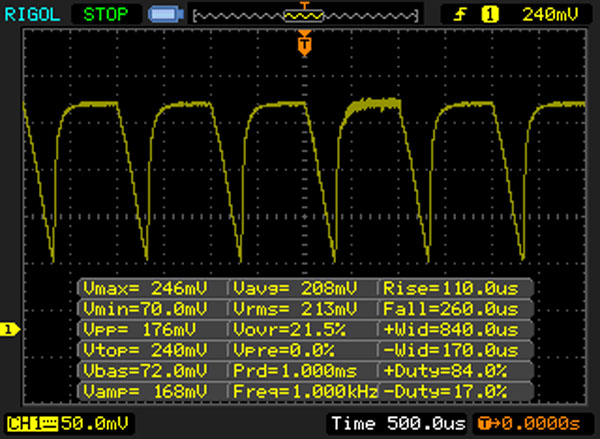

Screen flickering / PWM detected 1000 Hz ≤ 90 % brightness setting

The display backlight flickers at 1000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

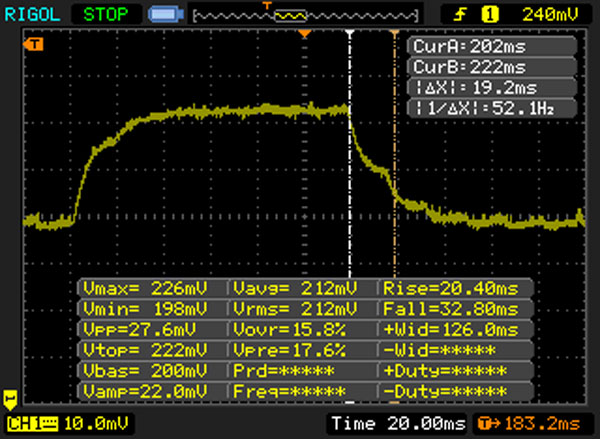

Display Response Times

ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

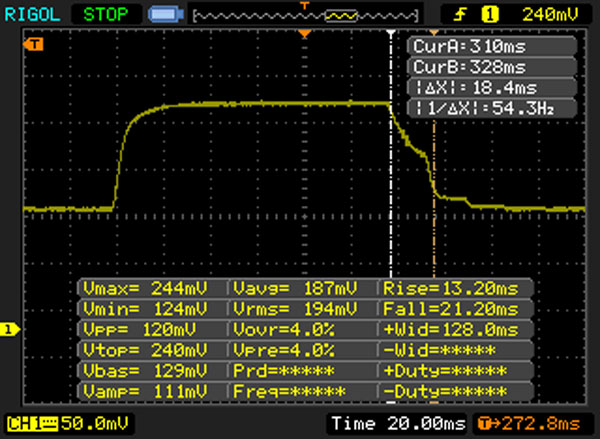

   ↔    Response Time Black to White
30 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 78 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).
   ↔    Response Time 50% Grey to 80% Grey
39 ms ... rise ↗ and fall ↘ combined↗ 20 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 55 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).
Cinebench R10 Shading 32Bit
3208
Cinebench R10 Rendering Multiple CPUs 32Bit
5284
Cinebench R10 Rendering Single 32Bit
1677
Cinebench R11.5 OpenGL 64Bit
12.83 fps
Cinebench R11.5 CPU Multi 64Bit
2.09 Points
Cinebench R11.5 CPU Single 64Bit
0.66 Points
Cinebench R15 Ref. Match 64Bit
97.7 %
Cinebench R15 OpenGL 64Bit
16.4 fps
Cinebench R15 CPU Multi 64Bit
165 Points
Cinebench R15 CPU Single 64Bit
53 Points
Help
Cinebench R15 | Cinebench R10 | Geekbench 3 | Geekbench 4.0 | JetStream 1.1
Cinebench R15
CPU Single 64Bit
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
83 Points +57%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
53 Points
Acer TravelMate B117-M-P16Q
Intel Pentium N3710
42 Points -21%
Chiligreen Mobilitas SF2600
Intel Pentium N3710
41 Points -23%
Medion Akoya S4219
Intel Pentium N3700
37 Points -30%
HP Stream 13-c102ng
Intel Celeron N3050
33 Points -38%
Acer Aspire ES1-331-C5KL
Intel Celeron N3150
32 Points -40%
CPU Multi 64Bit
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
209 Points +27%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
165 Points
Acer TravelMate B117-M-P16Q
Intel Pentium N3710
150 Points -9%
Medion Akoya S4219
Intel Pentium N3700
141 Points -15%
Chiligreen Mobilitas SF2600
Intel Pentium N3710
141 Points -15%
Acer Aspire ES1-331-C5KL
Intel Celeron N3150
118 Points -28%
HP Stream 13-c102ng
Intel Celeron N3050
62 Points -62%
Cinebench R10
Rendering Single 32Bit
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
3144 Points +87%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1677 Points
Chiligreen Mobilitas SF2600
Intel Pentium N3710
1340 Points -20%
Acer TravelMate B117-M-P16Q
Intel Pentium N3710
1238 Points -26%
Medion Akoya S4219
Intel Pentium N3700
1200 Points -28%
Acer Aspire ES1-331-C5KL
Intel Celeron N3150
1085 Points -35%
HP Stream 13-c102ng
Intel Celeron N3050
1025 Points -39%
Chiligreen Mobilitas c14w
Intel Atom x5-Z8300
942 Points -44%
Rendering Multiple CPUs 32Bit
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
7048 Points +33%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
5284 Points
Chiligreen Mobilitas SF2600
Intel Pentium N3710
4657 Points -12%
Acer TravelMate B117-M-P16Q
Intel Pentium N3710
4649 Points -12%
Medion Akoya S4219
Intel Pentium N3700
4375 Points -17%
Acer Aspire ES1-331-C5KL
Intel Celeron N3150
3624 Points -31%
Chiligreen Mobilitas c14w
Intel Atom x5-Z8300
2975 Points -44%
HP Stream 13-c102ng
Intel Celeron N3050
1272 Points -76%
Geekbench 3
32 Bit Single-Core Score
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1362 Points
Acer TravelMate B117-M-P16Q
Intel Pentium N3710
1023 Points -25%
Chiligreen Mobilitas SF2600
Intel Pentium N3710
1012 Points -26%
Acer Aspire ES1-331-C5KL
Intel Celeron N3150
850 Points -38%
32 Bit Multi-Core Score
Acer Aspire ES1-332-P91H
Intel Pentium N4200
4425 Points
Acer TravelMate B117-M-P16Q
Intel Pentium N3710
3553 Points -20%
Chiligreen Mobilitas SF2600
Intel Pentium N3710
3382 Points -24%
Acer Aspire ES1-331-C5KL
Intel Celeron N3150
2824 Points -36%
Geekbench 4.0
64 Bit Single-Core Score
Acer Aspire ES1-332-P91H
Intel Pentium N4200
1555 Points
64 Bit Multi-Core Score
Acer Aspire ES1-332-P91H
Intel Pentium N4200
4162 Points
JetStream 1.1 - Total Score
Lenovo E31-70 80KX015RGE
Intel Core i3-5005U
106.9 Points +20%
Acer Aspire ES1-332-P91H
Intel Pentium N4200
89.1 Points
Medion Akoya S4219
Intel Pentium N3700
59.3 Points -33%
Acer TravelMate B117-M-P16Q
Intel Pentium N3710
36.78 Points -59%
PCMark 7 Score
2441 points
PCMark 8 Home Score Accelerated v2
2073 points
PCMark 8 Creative Score Accelerated v2
2336 points
PCMark 8 Work Score Accelerated v2
2801 points
Help
PCMark 8
Home Score Accelerated v2
Lenovo E31-70 80KX015RGE
HD Graphics 5500, 5005U, Seagate ST500LM000 Solid State Hybrid Drive
2782 Points +34%
Acer Aspire ES1-332-P91H
HD Graphics 505, Pentium N4200, WDC Slim WD10SPCX-21KHST0
2073 Points
Acer TravelMate B117-M-P16Q
HD Graphics 405 (Braswell), N3710, Liteonit CV3-8D256
1999 Points -4%
Medion Akoya S4219
HD Graphics (Braswell), N3700, 128 GB eMMC Flash
1645 Points -21%
Acer Aspire ES1-331-C5KL
HD Graphics (Braswell), N3150, Seagate Momentus Thin ST500LT012-1DG142
1640 Points -21%
HP Stream 13-c102ng
HD Graphics (Braswell), N3050, 32 GB eMMC Flash
1568 Points -24%
Chiligreen Mobilitas c14w
HD Graphics (Cherry Trail), Z8300, 32 GB eMMC Flash
1355 Points -35%
Creative Score Accelerated v2
Acer Aspire ES1-332-P91H
HD Graphics 505, Pentium N4200, WDC Slim WD10SPCX-21KHST0
2336 Points
Acer TravelMate B117-M-P16Q
HD Graphics 405 (Braswell), N3710, Liteonit CV3-8D256
1936 Points -17%
Acer Aspire ES1-331-C5KL
HD Graphics (Braswell), N3150, Seagate Momentus Thin ST500LT012-1DG142
1747 Points -25%
Work Score Accelerated v2
Acer Aspire ES1-332-P91H
HD Graphics 505, Pentium N4200, WDC Slim WD10SPCX-21KHST0
2801 Points
Acer TravelMate B117-M-P16Q
HD Graphics 405 (Braswell), N3710, Liteonit CV3-8D256
1594 Points -43%
HP Stream 13-c102ng
HD Graphics (Braswell), N3050, 32 GB eMMC Flash
1331 Points -52%
Acer Aspire ES1-331-C5KL
HD Graphics (Braswell), N3150, Seagate Momentus Thin ST500LT012-1DG142
1283 Points -54%
HD Tune
CrystalDiskMark 3.0
hddimg
WDC Slim WD10SPCX-21KHST0
Transfer Rate Minimum: 47.2 MB/s
Transfer Rate Maximum: 114.2 MB/s
Transfer Rate Average: 87.3 MB/s
Access Time: 18.5 ms
Burst Rate: 78.7 MB/s
CPU Usage: 5.4 %
Acer Aspire ES1-332-P91H
WDC Slim WD10SPCX-21KHST0		Acer Aspire ES1-331-C5KL
Seagate Momentus Thin ST500LT012-1DG142		HP Stream 13-c102ng
32 GB eMMC Flash		Chiligreen Mobilitas c14w
32 GB eMMC Flash		Lenovo E31-70 80KX015RGE
Seagate ST500LM000 Solid State Hybrid Drive		Medion Akoya S4219
128 GB eMMC Flash
CrystalDiskMark 3.0
-30%
1387%
526%
45%
1199%
Read Seq
105.1
90.1
-14%
152.8
45%
127
21%
116.4
11%
151.2
44%
Write Seq
103.1
85.4
-17%
76.9
-25%
41.61
-60%
120.7
17%
55.7
-46%
Read 512
33.89
19.85
-41%
167
393%
126.5
273%
37.01
9%
156.6
362%
Write 512
49.7
34.12
-31%
22.79
-54%
35.32
-29%
73.1
47%
46.9
-6%
Read 4k
0.386
0.322
-17%
18.28
4636%
10.49
2618%
0.507
31%
16.29
4120%
Write 4k
1.095
0.596
-46%
16.78
1432%
1.73
58%
4.156
280%
16.5
1407%
Read 4k QD32
0.91
0.661
-27%
31.59
3371%
12.47
1270%
0.967
6%
20.62
2166%
Write 4k QD32
1.149
0.61
-47%
16.08
1299%
1.82
58%
0.652
-43%
18.86
1541%
3DMark 06 Standard Score
3721 points
3DMark Vantage P Result
1957 points
3DMark 11 Performance
642 points
3DMark Ice Storm Standard Score
24851 points
3DMark Cloud Gate Standard Score
2411 points
3DMark Fire Strike Score
324 points
3DMark Fire Strike Extreme Score
142 points
3DMark Time Spy Score
87 points
Help
3DMark 11 - 1280x720 Performance GPU
Lenovo E31-70 80KX015RGE
Intel HD Graphics 5500, Intel Core i3-5005U
887 Points +52%
Acer Aspire ES1-332-P91H
Intel HD Graphics 505, Intel Pentium N4200
583 Points
Acer TravelMate B117-M-P16Q
Intel HD Graphics 405 (Braswell), Intel Pentium N3710
473 Points -19%
Medion Akoya S4219
Intel HD Graphics (Braswell), Intel Pentium N3700
468 Points -20%
Acer Aspire ES1-331-C5KL
Intel HD Graphics (Braswell), Intel Celeron N3150
411 Points -30%
Chiligreen Mobilitas c14w
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8300
297 Points -49%
HP Stream 13-c102ng
Intel HD Graphics (Braswell), Intel Celeron N3050
275 Points -53%
3DMark
1280x720 Ice Storm Standard Score
Acer TravelMate B117-M-P16Q
Intel HD Graphics 405 (Braswell), Intel Pentium N3710
26768 Points +8%
Acer Aspire ES1-332-P91H
Intel HD Graphics 505, Intel Pentium N4200
24851 Points
Acer Aspire ES1-331-C5KL
Intel HD Graphics (Braswell), Intel Celeron N3150
21443 Points -14%
HP Stream 13-c102ng
Intel HD Graphics (Braswell), Intel Celeron N3050
15693 Points -37%
1280x720 Ice Storm Standard Graphics
Acer TravelMate B117-M-P16Q
Intel HD Graphics 405 (Braswell), Intel Pentium N3710
30182 Points +2%
Acer Aspire ES1-332-P91H
Intel HD Graphics 505, Intel Pentium N4200
29561 Points
Acer Aspire ES1-331-C5KL
Intel HD Graphics (Braswell), Intel Celeron N3150
24155 Points -18%
HP Stream 13-c102ng
Intel HD Graphics (Braswell), Intel Celeron N3050
20067 Points -32%
lowmed.highultra
Dirt 3 (2011) 47.2 25.2 15.7
Deus Ex Human Revolution (2011) 31.3 18.9
The Elder Scrolls V: Skyrim (2011) 21.1 11.6 7.1
Diablo III (2012) 30.1 19.6 17
Counter-Strike: GO (2012) 36.7 30.9 21.2
Dead Space 3 (2013) 34.6 16.9 13.5
Tomb Raider (2013) 31.2 17.4 11.2
BioShock Infinite (2013) 22.2 13.3 11.3
Thief (2014) 7.8 5.1
GRID: Autosport (2014) 51.5 19
Sims 4 (2014) 75.2 18.4
Alien: Isolation (2014) 18.3 14.1
F1 2014 (2014) 28 14
Dragon Age: Inquisition (2014) 10.6 7.5
Battlefield Hardline (2015) 7.3 6.9
Dirt Rally (2015) 36.5 12.7
Metal Gear Solid V (2015) 20.7 13.8
World of Warships (2015) 25.2 16.4
Anno 2205 (2015) 11.8 6.5
Star Wars Battlefront (2015) 10.9 6.3
Rainbow Six Siege (2015) 15 8.9
Just Cause 3 (2015) 6.6 4.1
Rise of the Tomb Raider (2016) 6.2 4.1
The Division (2016) 5.2 3.1
BioShock Infinite | Tomb Raider | Diablo III
BioShock Infinite - 1280x720 Very Low Preset
Lenovo E31-70 80KX015RGE
Intel HD Graphics 5500, Intel Core i3-5005U
27.9 fps +26%
Acer TravelMate B117-M-P16Q
Intel HD Graphics 405 (Braswell), Intel Pentium N3710
22.2 fps 0%
Acer Aspire ES1-332-P91H
Intel HD Graphics 505, Intel Pentium N4200
22.2 fps
Medion Akoya S4219
Intel HD Graphics (Braswell), Intel Pentium N3700
17.7 fps -20%
Tomb Raider - 1024x768 Low Preset
Acer Aspire ES1-332-P91H
Intel HD Graphics 505, Intel Pentium N4200
31.2 fps
Acer TravelMate B117-M-P16Q
Intel HD Graphics 405 (Braswell), Intel Pentium N3710
27.8 fps -11%
Acer Aspire ES1-731-P4A6
Intel HD Graphics (Braswell), Intel Pentium N3700
23.7 fps -24%
Acer Aspire ES1-331-C5KL
Intel HD Graphics (Braswell), Intel Celeron N3150
19.4 fps -38%
Diablo III - 1024x768 Low / off
Acer TravelMate B117-M-P16Q
Intel HD Graphics 405 (Braswell), Intel Pentium N3710
32 fps +6%
Acer Aspire ES1-332-P91H
Intel HD Graphics 505, Intel Pentium N4200
30.1 fps

Noise Level

Idle
31.3 / 31.6 / 33.1 dB(A)
HDD
32 dB(A)
Load
36.7 / 39.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30.5 dB(A)
Max. Load
 26.1 °C32.6 °C35.8 °C
 25.3 °C28.4 °C34.8 °C
 21.6 °C23.4 °C25.5 °C
Maximum: 35.8 °C
Average: 28.2 °C
40.4 °C29.7 °C28.5 °C
35.4 °C30.4 °C28 °C
26.2 °C25 °C23.1 °C
Maximum: 40.4 °C
Average: 29.6 °C
Power Supply (max.)  37.1 °C | Room Temperature 20.7 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 28.2 °C / 83 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 35.8 °C / 96 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 40.4 °C / 105 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 25.5 °C / 77.9 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+2.2 °C / 4 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2039.134.639.12539.239.639.23142.739.942.74036.935.236.95037.632.337.66334.328.234.38029.12629.110031.42631.412530.425.430.416028.223.328.220029.623.829.625033.422.733.431549.721.649.740059.920.259.95005919.6596305918.65980067.618.667.6100071.51871.5125068.417.468.4160064.417.964.4200064.517.564.5250064.417.864.4315067.517.967.5400066.51866.5500064.818.364.8630065.318.465.3800064.618.464.61000059.918.459.91250056.518.256.51600057.918.457.9SPL78.130.578.1N40.81.440.8median 59.9median 18.4median 59.9Delta9.31.19.335.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAcer Aspire ES1-332-P91HApple MacBook 12 (Early 2016) 1.1 GHz
Acer Aspire ES1-332-P91H audio analysis

(-) | not very loud speakers (70 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.1% lower than median
(±) | linearity of bass is average (10.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.8% away from median
(±) | linearity of mids is average (9.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.8% away from median
(+) | highs are linear (4.1% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (26.2% difference to median)
Compared to same class
» 78% of all tested devices in this class were better, 7% similar, 15% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 78% of all tested devices were better, 4% similar, 18% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.29 / 0.4 Watt
Idledarkmidlight 4.5 / 7.6 / 8.5 Watt
Load midlight 17.4 / 17.6 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime
WiFi Websurfing (Edge 38)
6h 05min
Battery Runtime - WiFi Websurfing
Acer Aspire ES1-331-C5KL
N3150, HD Graphics (Braswell), 37 Wh
395 min +8%
HP Stream 13-c102ng
N3050, HD Graphics (Braswell), 37 Wh
370 min +1%
Acer Aspire ES1-332-P91H
Pentium N4200, HD Graphics 505, 36 Wh
365 min
Medion Akoya S4219
N3700, HD Graphics (Braswell), 35 Wh
318 min -13%
Lenovo E31-70 80KX015RGE
5005U, HD Graphics 5500, 35 Wh
254 min -30%
Chiligreen Mobilitas c14w
Z8300, HD Graphics (Cherry Trail),  Wh
228 min -38%

Pros

+ 磨砂屏幕
+ 大容量存储空间
+ 维护底盖
+ 优秀的电池续航
+ 两年质保

Cons

- 昏暗，低对比度的屏幕
- 无USB-C接口
In review: Acer Aspire ES1-332-P91H; Test model provided by Notebook.de
In review: Acer Aspire ES1-332-P91H; Test model provided by Notebook.de

宏碁设计了一台十分简洁的13.3寸办公笔记本电脑，Aspire ES1-332-P91H，它的售价目前约400欧元（约2954人民币）。不论是办公软件还是上网浏览，它都可以提供足够的处理器性能。除此之外，它也十分适合用来观赏视频。英特尔的最新Apollo Lake平台表现十分优秀，对于日常使用来说至关重要的处理器和集成显卡的性能都显著超过前代架构。在运行中系统的响应也相比前代处理器更加流畅。不过，Apollo Lake仍然无法与英特尔酷睿i架构相媲美。

Aspire ES1-332是宏碁带来的一台实惠便携设备，可以适合文字处理和上网浏览需要，可能会吸引不少中学或大学学生的目光。

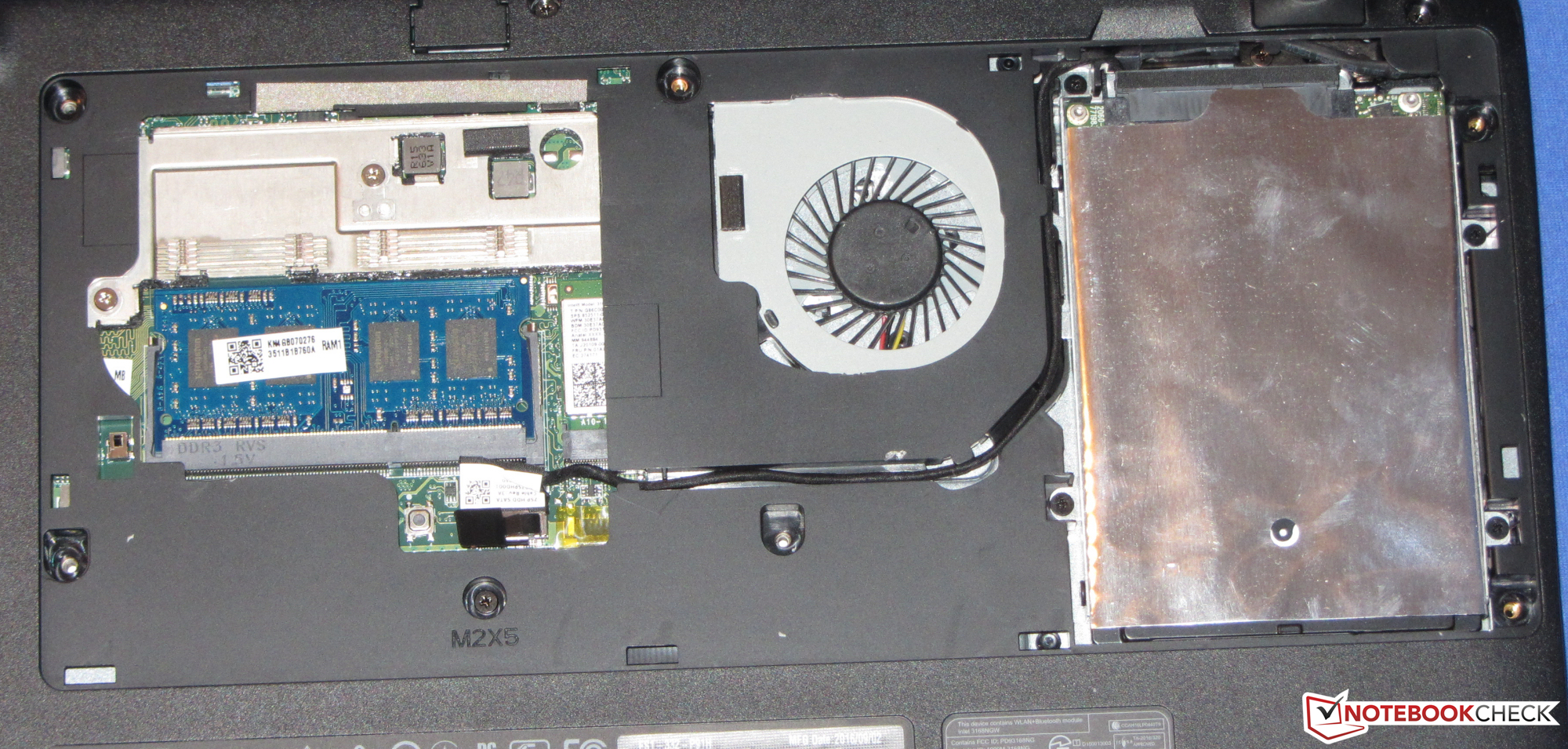

在日常使用中，这台设备十分安静且几乎不会变热。由于搭配了1TB硬盘，你几乎不用担心存储空间的问题。而一个维护底盖也可以帮助用户更容易地升级固态硬盘。内存也是如此，如果4GB对你来说太小的话，可以自行升级8GB内存。它的磨砂屏幕的测试结果并不出色。不过，在同价位产品中并不算差。同时它搭配的键盘也不算最好的，不过可以满足日常使用的需要。它其他的优势还包括了优秀的电池续航和两年质保。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Acer Aspire ES1-332-P91H - 12/01/2016 v5.1 (old)
Sascha Mölck

Chassis
77 / 98 → 79%
Keyboard
74%
Pointing Device
83%
Connectivity
47 / 80 → 58%
Weight
69 / 20-67 → 100%
Battery
88%
Display
75%
Games Performance
47 / 68 → 69%
Application Performance
56 / 92 → 61%
Temperature
94%
Noise
89%
Audio
50%
Camera
40 / 85 → 47%
Average
68%
79%
Office - Weighted Average

Price comparison

Please share our article, every link counts!
> Notebookcheck中文版（NBC中国） > 评测 > 宏碁 Aspire ES1-332-P91H 笔记本电脑简短评测
Sascha Mölck, 2016-12- 6 (Update: 2016-12- 7)
