宏碁 Aspire Switch One 10 SW1-011-14UQ 笔记本电脑简短评测

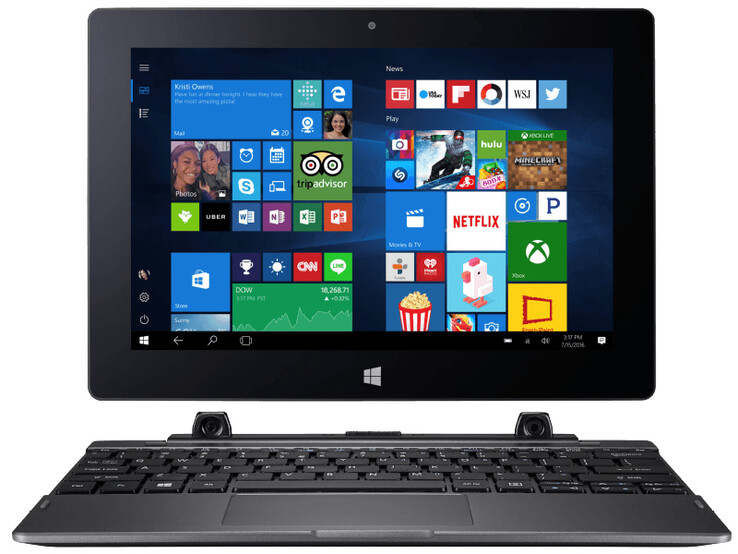

Name: Acer Switch One 10 SW1-011-14UQ
Brand: Acer

家用变形本。 宏碁推出约250欧元（约合265美元）的全新10.1英寸变形本——the Switch One。几百欧元就可以购得这款无噪声的，电池续航长而且拥有颜色亮丽的高对比度IPS显示屏的笔记本电脑。

Sascha Mölck, ✓ Stefanie Voigt (translated by Kangfei Zheng), Published 02/27/2017 🇺🇸 🇩🇪 ...

Convertible / 2-in-1 Touchscreen Windows

Test device courtesy of notebook.de

Download your licensed rating image as PNG / SVG

Acer Switch One 10 SW1-011-14UQ (Aspire Switch Series)

Processor

Intel Atom x5-Z8300 4 x 1.4 - 1.8 GHz, Cherry Trail

Graphics adapter

Intel HD Graphics (Cherry Trail), Core: 500 MHz, 单通道, 20.19.15.4352

Memory

2048 MB

, DDR3, 单通道, 内存焊接

Display

10.10 inch 16:10, 1280 x 800 pixel 149 PPI, 电容式, 10点触控, 支持触控笔, MS_9001, IPS, glossy: no, detachable screen

Storage

64 GB eMMC Flash, 64 GB

, 47 GB free

Connections

2 USB 2.0, 1 HDMI, Audio Connections: 耳麦合一, Card Reader: MicroSD, Sensors: 加速度传感器, TPM 2.0

Networking

Realtek RTL8723BS (b/g/n = Wi-Fi 4/), Bluetooth 4.0

Size

height x width x depth (in mm): 20.7 x 259 x 192.6

Battery

8200 mAh Lithium-Polymer

Operating System

Microsoft Windows 10 Home 32 Bit

Camera

Webcam: HD
Primary Camera: 2 MPix HD
Secondary Camera: 2 MPix

Additional features

Speakers: 立体声, Keyboard: 巧克力键盘, Keyboard Light: no, 12 Months Warranty, fanless

Weight

1.26 kg, Power Supply: 112 g

Price

259 Euro

Links

Acer homepage
Acer notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

HP x2 210 G1 Acer Switch V 10 SW5-017-196Q Acer Switch One 10 SW1-011-14UQ Lenovo IdeaPad MIIX 310-10ICR DIN A4 ❌

Connectivity

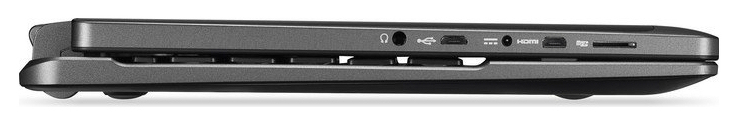

Left side: Audio combo, Micro-USB, Power connection Micro-HDMI, Memory card reader (MicroSD)

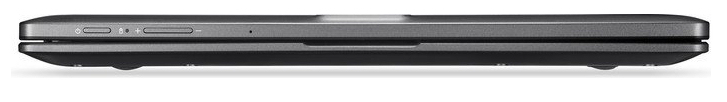

The top side of the tablet component houses the power button and volume rocker.


303 cd/m²	343 cd/m²	298 cd/m²
280 cd/m²	315 cd/m²	333 cd/m²
301 cd/m²	321 cd/m²	305 cd/m²

Distribution of brightness

MS_9001 tested with X-Rite i1Pro 2

Maximum: 343 cd/m² (Nits) Average: 311 cd/m² Minimum: 28.9 cd/m²
Brightness Distribution: 82 %
Center on Battery: 271 cd/m²
Contrast: 1086:1 (Black: 0.29 cd/m²)
ΔE Color 6.78 | 0.5-29.43 Ø4.91
ΔE Greyscale 7.7 | 0.5-98 Ø5.2
77.9% sRGB (Argyll 1.6.3 3D)
49.9% AdobeRGB 1998 (Argyll 1.6.3 3D)
54.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
77.8% sRGB (Argyll 2.2.0 3D)
52.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23

Download ICC File (X-Rite i1Pro 2)

	Acer Switch One 10 SW1-011-14UQ IPS, 1280x800, 10.1"	Acer Switch V 10 SW5-017-196Q IPS, 1280x800, 10.1"	Lenovo IdeaPad MIIX 310-10ICR IPS, 1280x800, 10.1"	HP x2 210 G1 IPS, 1280x800, 10.1"
Display		-1%	-3%	-19%
Display P3 Coverage	52.6	52.5 0%	51.1 -3%	42.77 -19%
sRGB Coverage	77.8	76.3 -2%	75.2 -3%	63.7 -18%
AdobeRGB 1998 Coverage	54.3	54.1 0%	52.7 -3%	44.22 -19%
Response Times		533%	13%	-9%
Response Time Grey 50% / Grey 80% *	39 ?(17, 22)	29 ?(8, 21) 26%	31.6 ?(13.6, 18) 19%	43 ?(21, 22) -10%
Response Time Black / White *	22 ?(5, 17)	25 ?(9, 16) -14%	24.8 ?(6, 28.8) -13%	25 ?(10, 15) -14%
PWM Frequency	52 ?(70)	877 ?(90) 1587%	69.4 33%	50 ?(60) -4%
Screen		12%	-8%	1%
Brightness middle	315	270 -14%	251.9 -20%	313 -1%
Brightness	311	239 -23%	233 -25%	295 -5%
Brightness Distribution	82	82 0%	83 1%	84 2%
Black Level *	0.29	0.21 28%	0.348 -20%	0.21 28%
Contrast	1086	1286 18%	724 -33%	1490 37%
Colorchecker dE 2000 *	6.78	3.01 56%	6.35 6%	6.79 -0%
Colorchecker dE 2000 max. *	11.61	4.63 60%	11.15 4%	14.11 -22%
Greyscale dE 2000 *	7.7	7.66 1%	7.09 8%	6.78 12%
Gamma	2.23 ^99%	1.45 ^152%	2.02 ^109%	2.26 ^97%
CCT	8676 ^75%	6665 ^98%	8590 ^76%	6708 ^97%
Color Space (Percent of AdobeRGB 1998)	49.9	49 -2%	52.69 6%	41 -18%
Color Space (Percent of sRGB)	77.9	76 -2%		63 -19%
Total Average (Program / Settings)		181% / 107%	1% / -3%	-9% / -4%

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

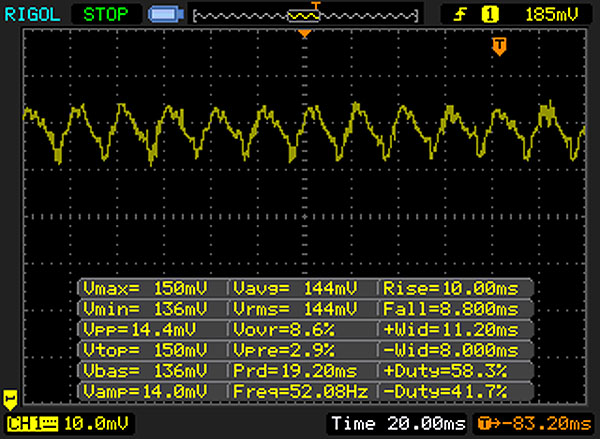

Screen flickering / PWM detected

52 Hz

≤ 70 % brightness setting

The display backlight flickers at 52 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 70 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 52 Hz is very low, so the flickering may cause eyestrain and headaches after extended use.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

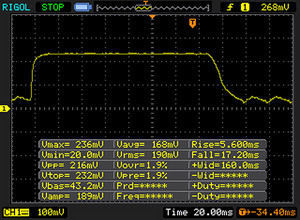

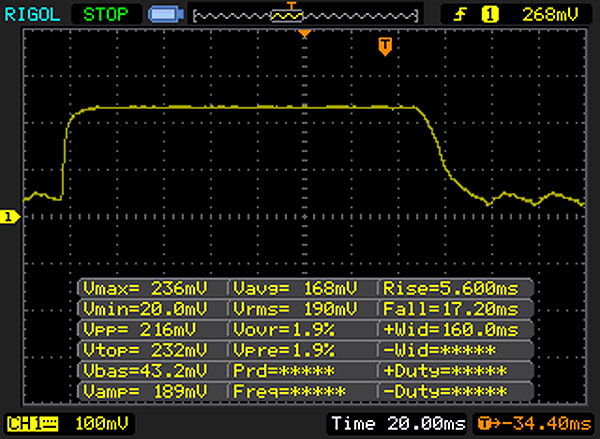

↔ Response Time Black to White
22 ms ... rise ↗ and fall ↘ combined	↗ 5 ms rise
22 ms ... rise ↗ and fall ↘ combined	↘ 17 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (20.9 ms).

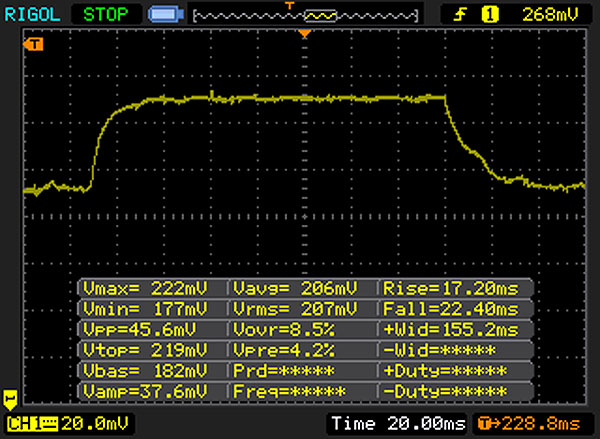

↔ Response Time 50% Grey to 80% Grey
39 ms ... rise ↗ and fall ↘ combined	↗ 17 ms rise
39 ms ... rise ↗ and fall ↘ combined	↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 55 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

Cinebench R10 Rendering Single 32Bit

910

Cinebench R10 Rendering Multiple CPUs 32Bit

2933

Cinebench R10 Shading 32Bit

1877

Help

... in comparison

Cinebench R10 | Geekbench 3 | JetStream 1.1 | Octane V2 | Mozilla Kraken 1.1

Cinebench R10
Rendering Multiple CPUs 32Bit
Acer Switch V 10 SW5-017-196Q Intel Atom x5-Z8350	3130 Points +7%
Acer Switch One 10 SW1-011-14UQ Intel Atom x5-Z8300	2933 Points
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	2575 Points -12%
HP x2 210 G1 Intel Atom x5-Z8300	2135 Points -27%
Rendering Single 32Bit
Acer Switch V 10 SW5-017-196Q Intel Atom x5-Z8350	999 Points +10%
Acer Switch One 10 SW1-011-14UQ Intel Atom x5-Z8300	910 Points
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	884 Points -3%
HP x2 210 G1 Intel Atom x5-Z8300	855 Points -6%

Geekbench 3
32 Bit Single-Core Score
Acer Switch V 10 SW5-017-196Q Intel Atom x5-Z8350	796 Points +7%
Acer Switch One 10 SW1-011-14UQ Intel Atom x5-Z8300	745 Points
32 Bit Multi-Core Score
Acer Switch V 10 SW5-017-196Q Intel Atom x5-Z8350	2332 Points +8%
Acer Switch One 10 SW1-011-14UQ Intel Atom x5-Z8300	2157 Points

JetStream 1.1 - Total Score
Acer Switch V 10 SW5-017-196Q Intel Atom x5-Z8350	45.77 Points +12%
HP x2 210 G1 Intel Atom x5-Z8300	44.02 Points +7%
Acer Switch One 10 SW1-011-14UQ Intel Atom x5-Z8300	41.01 Points

Octane V2 - Total Score
Acer Switch One 10 SW1-011-14UQ Intel Atom x5-Z8300	6531 Points
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	6343 Points -3%

Mozilla Kraken 1.1 - Total
Lenovo IdeaPad MIIX 310-10ICR Intel Atom x5-Z8350	6122 ms * -6%
Acer Switch One 10 SW1-011-14UQ Intel Atom x5-Z8300	5769 ms *

* ... smaller is better

PCMark 8 Home Score Accelerated v2		1315 points
Help

PCMark 8 - Home Score Accelerated v2
Acer Switch V 10 SW5-017-196Q HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1520 Points +16%
Lenovo IdeaPad MIIX 310-10ICR HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash	1419 Points +8%
HP x2 210 G1 HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	1391 Points +6%
Acer Switch One 10 SW1-011-14UQ HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash	1315 Points

CrystalDiskMark 3.0

64 GB eMMC Flash

Sequential Read: 169 MB/s

Sequential Write: 109.8 MB/s

512K Read: 163.2 MB/s

512K Write: 105.6 MB/s

4K Read: 18.95 MB/s

4K Write: 23.33 MB/s

4K QD32 Read: 29.17 MB/s

4K QD32 Write: 37.32 MB/s

	Acer Switch One 10 SW1-011-14UQ 64 GB eMMC Flash	Acer Switch V 10 SW5-017-196Q 64 GB eMMC Flash	Lenovo IdeaPad MIIX 310-10ICR 64 GB eMMC Flash	HP x2 210 G1 64 GB eMMC Flash
CrystalDiskMark 3.0		-19%	-31%	-32%
Read Seq	169	153.9 -9%	151.9 -10%	134.1 -21%
Write Seq	109.8	101.1 -8%	87.3 -20%	66.1 -40%
Read 512	163.2	136.2 -17%	144.5 -11%	112.9 -31%
Write 512	105.6	91.5 -13%	58 -45%	57.7 -45%
Read 4k	18.95	12.58 -34%	9.35 -51%	15.79 -17%
Write 4k	23.33	12.38 -47%	12.26 -47%	10.06 -57%
Read 4k QD32	29.17	23.81 -18%	29 -1%	35.31 21%
Write 4k QD32	37.32	33.93 -9%	13.18 -65%	11.84 -68%

3DMark 11 Performance		338 points
Help

... in comparison

3DMark 11 - 1280x720 Performance GPU
Acer Switch V 10 SW5-017-196Q Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350	358 Points +20%
Lenovo IdeaPad MIIX 310-10ICR Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350	298 Points 0%
Acer Switch One 10 SW1-011-14UQ Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8300	298 Points
HP x2 210 G1 Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8300	291 Points -2%

	low	med.	high	ultra
Trackmania Nations Forever (2008)	96.1		22.9

Max. Load

Idle


37.3 °C	33.1 °C	38.4 °C
31.5 °C	30.2 °C	37 °C
29.5 °C	29.3 °C	29.1 °C

Maximum: 38.4 °C
Average: 32.8 °C


30.1 °C	33 °C	44.3 °C
30 °C	31 °C	31.5 °C
29 °C	30 °C	30.2 °C

Maximum: 44.3 °C
Average: 32.1 °C

Power Supply (max.) 36 °C | Room Temperature 22 °C | FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 32.8 °C / 91 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 38.4 °C / 101 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(±) The bottom heats up to a maximum of 44.3 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 29.7 °C / 85 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.4 °C / 88.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-3.4 °C / -6.1 F).

Acer Switch One 10 SW1-011-14UQ audio analysis

(-) | not very loud speakers (70 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 12.7% lower than median
(+) | bass is linear (4.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.8% higher than median
(±) | linearity of mids is average (13.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 10.2% higher than median
(-) | highs are not linear (15.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (30.4% difference to median)
Compared to same class
» 88% of all tested devices in this class were better, 3% similar, 9% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 87% of all tested devices were better, 3% similar, 10% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	0.06 / 0.36 Watt
Idle	3.1 / 5.1 / 5.5 Watt
Load	10.4 / 10.5 Watt


Key: min: , med: , max: Metrahit Energy

Battery Runtime


WiFi Websurfing (Edge 38)		8h 53min

Battery Runtime - WiFi Websurfing
Lenovo IdeaPad MIIX 310-10ICR Z8350, HD Graphics (Cherry Trail), 33 Wh	643 min +21%
HP x2 210 G1 Z8300, HD Graphics (Cherry Trail), 33 Wh	550 min +3%
Acer Switch One 10 SW1-011-14UQ Z8300, HD Graphics (Cherry Trail), Wh	533 min
Acer Switch V 10 SW5-017-196Q Z8350, HD Graphics (Cherry Trail), 28.2 Wh	493 min -8%

Pros

+ 明亮，高对比度的IPS显示屏

+ 运行时低噪声

+ 64GB存储

Cons

- 非常不稳定的键盘底座

- 只有一年保修

- 无USB Type-C接口

- 无局域网支持

In review: Acer Aspire Switch One 10 SW1-011-14UQ. Test model courtesy of Notebook.de

该宏碁10.1英寸变形本搭载了一个Cherry Trail处理器，致力于运行简单的办公和互联网相关的程序。集成到显卡中的解码器减轻了处理器的负载，使得计算机可以运行主流格式的视频。该机运行安静，几乎不发烫。优点之一：我们的测试设备配备了64 GB eMMC模块。市面上，宏碁还有其他机型——只有32 GB的存储空间。我们不推荐后者，无论它来自哪个制造商。32 GB对于Windows 10系统来说太少了。在Switch One的64 GB中，用户仍然可以自由使用大约47 GB。混合型笔记本电脑键盘适合家庭使用。该机具有良好的电池续航。其IPS显示屏能提供稳定的视角，高亮度和丰富的对比度。在这个价格范围内，这些都是十足的优点。
