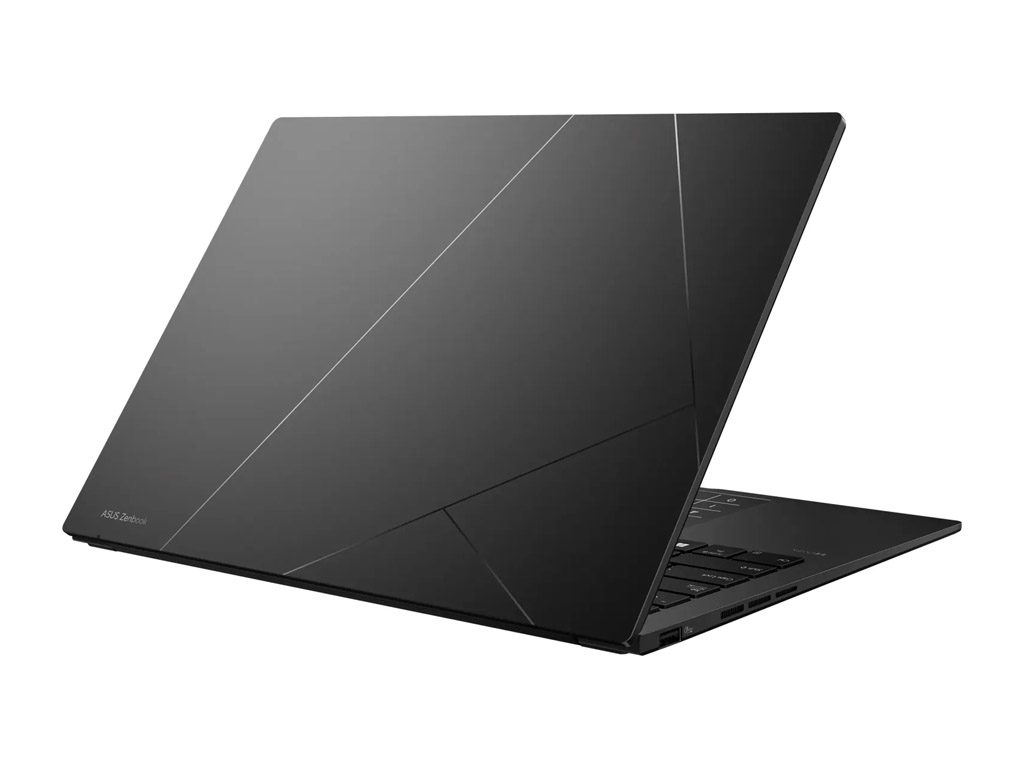

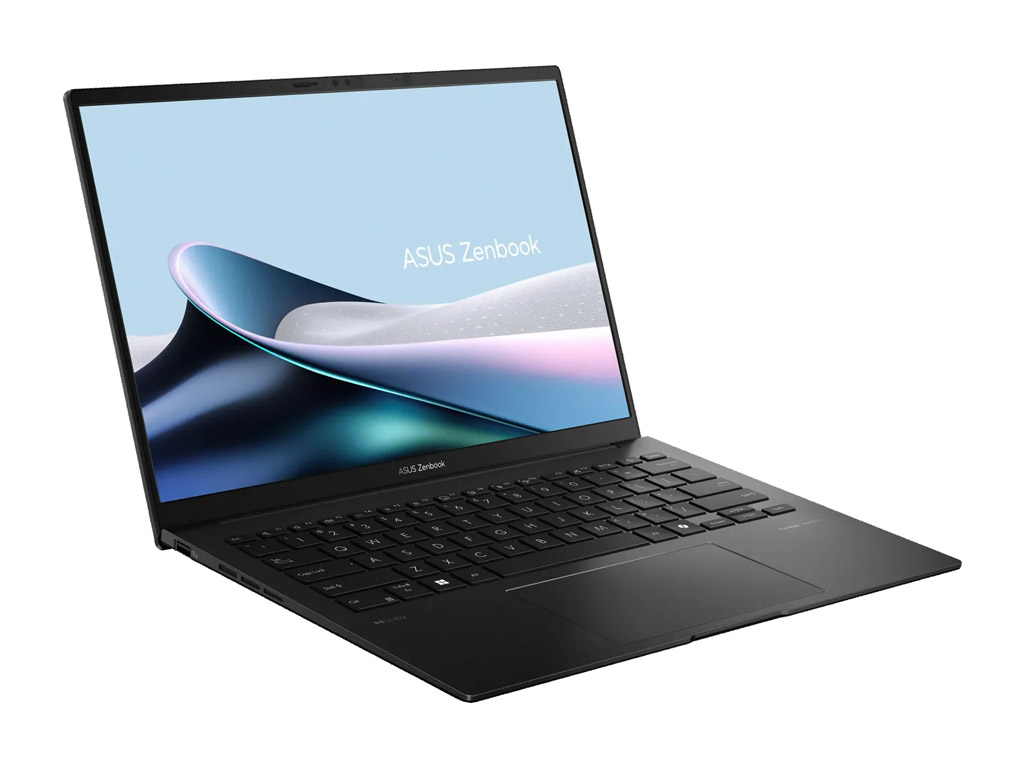

Asus Zenbook 14 OLED UM3406KA

Specifications

Asus Zenbook 14 OLED UM3406KA
Asus Zenbook 14 OLED UM3406KA (ZenBook 14 UM3000 Series)
Processor
AMD Ryzen AI 7 350 8 x 2 - 5 GHz, Krackan Point (Zen 5)
Graphics adapter
Memory
32 GB
, DDR5
Display
14.00 inch 16:10, 1920 x 1200 pixel 162 PPI, OLED, glossy: yes, 60 Hz
Storage
M.2 PCIe
Connections
1 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 USB 4.0 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, Audio Connections: 3.5mm
Networking
802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.3
Size
height x width x depth (in mm): 14.9 x 312.4 x 220.1
Battery
75 Wh Lithium-Ion, 4-cell
Operating System
Microsoft Windows 11 Home
Camera
Webcam: IR
Primary Camera: 2 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes
Weight
1.2 kg
Price
1300 Euro



Price comparison

Reviews for the Asus Zenbook 14 OLED UM3406KA

ASUS Zenbook 14 OLED (UM3406) Review: el equilibrio perfecto entre diseño y rendimiento
Source: Noticias 3D Spanish ES→zh-CN
Single Review, online available, Very Long, Date: 03/10/2025

Comment

AMD Radeon 860M: 这是一款功能相当强大的 RDNA 3.5 架构 iGPU,于 2025 年初亮相,是 Radeon 760M 的直接后继产品。其 8 个 CU/WGP(512 个统一着色器)的运行频率高达 3 GHz。它支持 DX12 Ultimate、光线追踪、AI 图像生成和其他现代功能,以及许多流行的视频编解码器,其中首先包括 AVC、HEVC、VP9 和 AV1。其游戏性能足以在低图形设置下玩 2024 款游戏。



» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Ryzen AI 7 350: 一款功能相对强大的 Strix Point 系列处理器,于 2024 年 10 月首次亮相。这款混合架构 APU 拥有 8 个 CPU 内核(Zen 5 和 Zen 5c 内核的混合),运行频率高达 5.0 GHz,同时还配备了 Radeon 880M 图形适配器和 50 TOPS XDNA 2 神经引擎。此外,还搭载了 AMD 安全处理器(简而言之就是内置 ARM 协处理器)以及 AMD-Vi 等其他一些高端功能。其他主要功能包括 PCIe 4、USB 4 和最高 LPDDR5x-8000 内存支持,包括 ECC 内存。长期 TDP 功耗目标可高达 55 W。» Further information can be found in our Comparison of Mobile Processsors.


14.00":

大体上,这个屏幕尺寸常见于亚笔记本电脑,超极本和变形本中。对这三类产品来说这个尺寸都较大。亚笔记本中尺寸最大的机型是采用这个屏幕尺寸。

大尺寸可以让屏幕有更高的分辨率。因而例如字体等的细节将会更丰富。不过另一方面,小屏幕的功耗会较低,而设备也会更轻盈小巧,售价更低。

» To find out how fine a display is, see our DPI List.


1.2 kg: 这是10到11寸大尺寸平板电脑,小型亚笔记本,超极本和变形本的常见重量。


» Further information can be found in our Notebook Purchase Guide.
