联想 B 智能手机简短评测

一款联想入门级智能手机。 售价不足100欧元的联想B已经上市。它的定焦相机和TN屏幕可能会让一些用户不太满意,不过至少它支持LTE和可更换电池。我们将通过测试考量这台设备能否与其他低价设备竞争。
Android ARM Touchscreen Smartphone

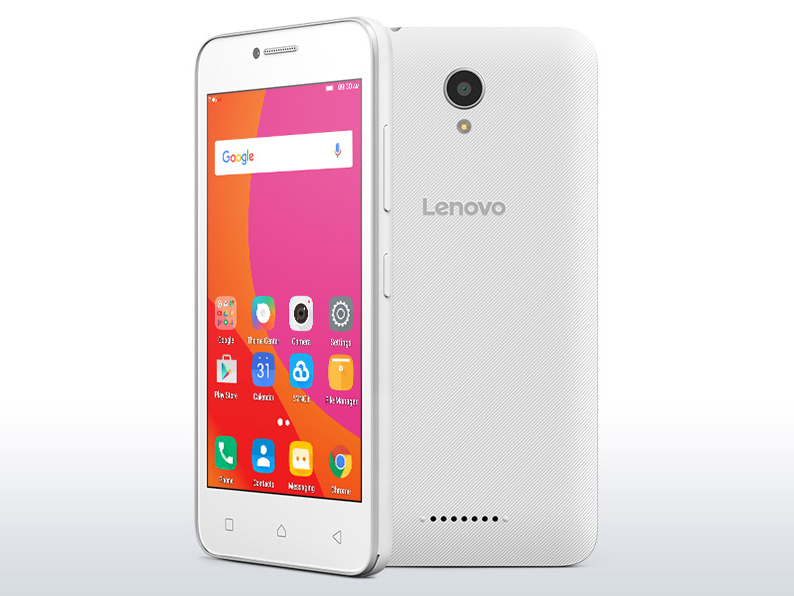

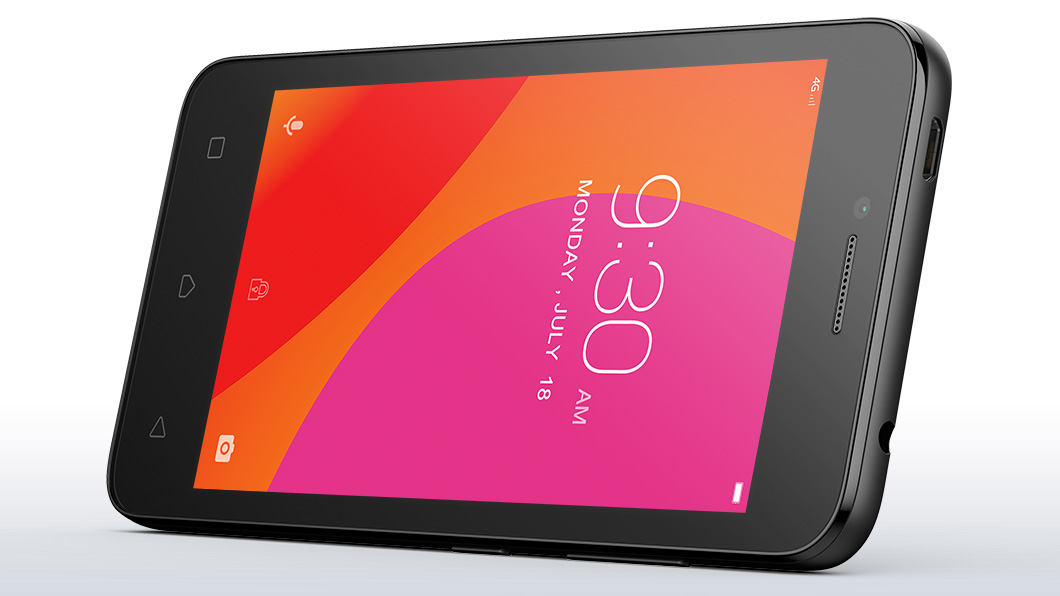

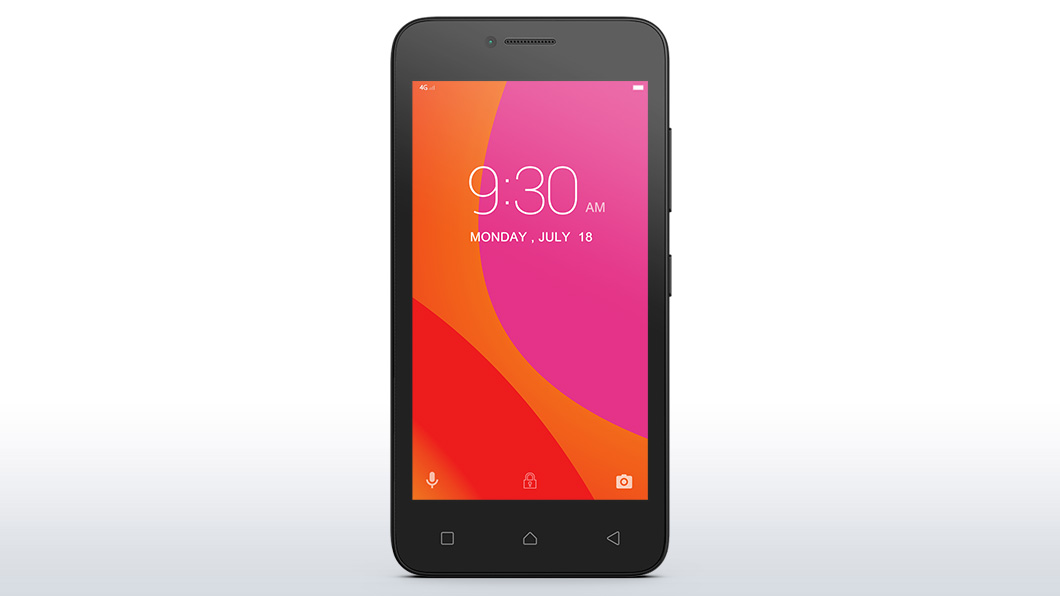

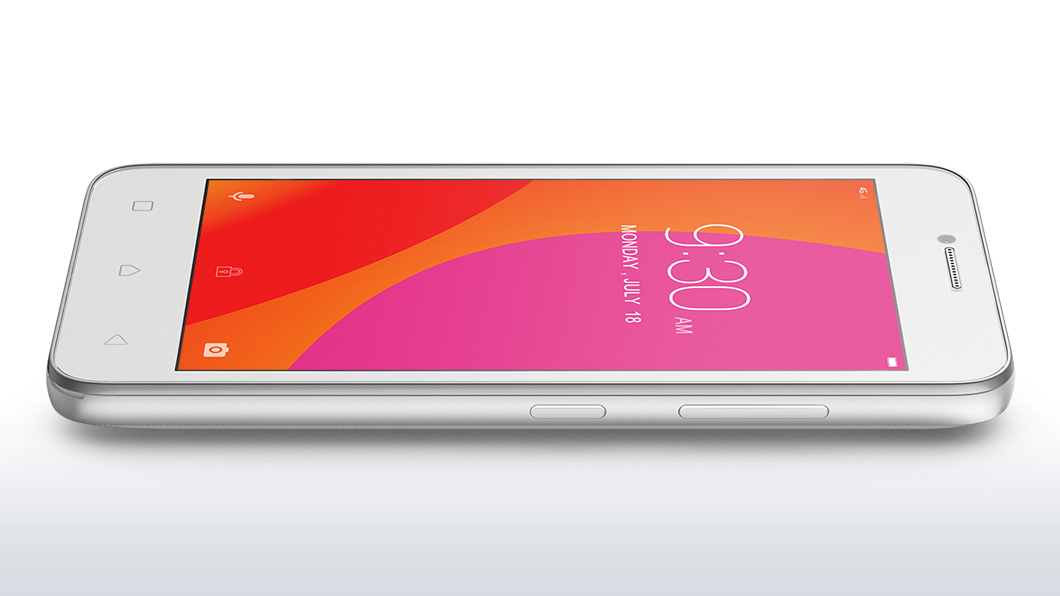

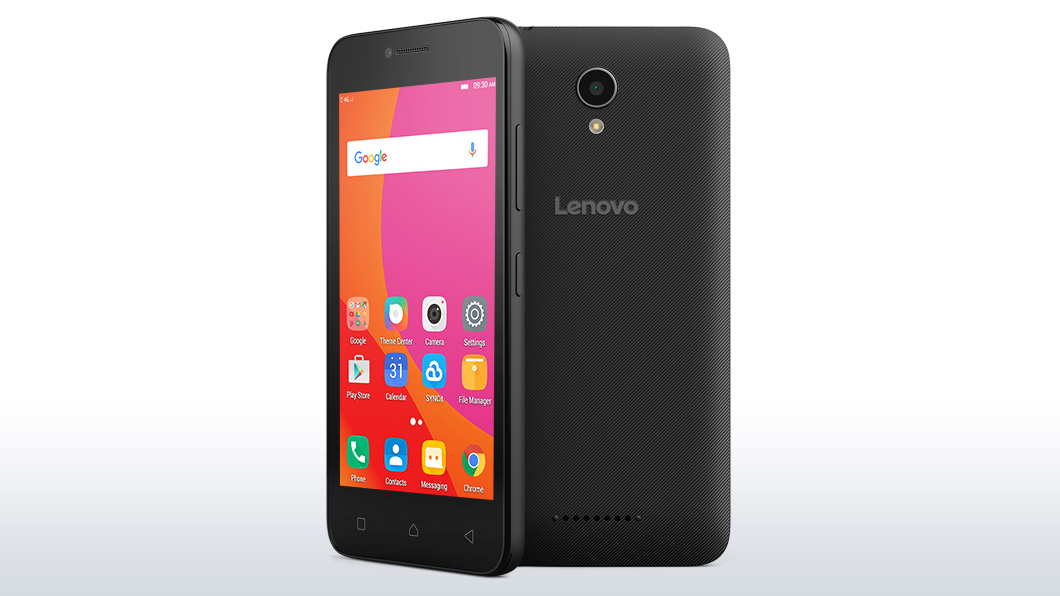

Lenovo B (Vibe Series)
Processor
Mediatek MT6735M 4 x 1 GHz, Cortex-A53
Graphics adapter
ARM Mali-T720
Memory
1024 MB
Display
4.50 inch 16:9, 854 x 480 pixel 218 PPI, 电容式2点触控屏幕, TN LED, glossy: yes
Storage
8 GB eMMC Flash, 8 GB
, 3.75 GB free
Connections
1 USB 2.0, Audio Connections: 3.5毫米耳机接口, Card Reader: Micro SD读卡器, 最高支持32 GB , Sensors: 加速感应器
Networking
802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0, GSM (850/​900/​1800/​1900), UMTS (850/​900/​1900/​2100), LTE (B1/​B3/​B5/​B7/​B8/​B20/​B38/​B40/​B41); Bandwidth (download/​upload): 150Mbps/​50Mbps (LTE), 21Mbps/​5,76Mbps (UMTS); SAR-rate: 1,557 W/kg (Head), 1,714 W/kg, Dual SIM, LTE, GPS
Size
height x width x depth (in mm): 9.9 x 132.5 x 66
Battery
7.6 Wh, 2000 mAh Lithium-Ion, removeable, Talk time 3G (according to manufacturer): 11.3 h, Standby 3G (according to manufacturer): 170 h
Operating System
Android 6.0 Marshmallow
Camera

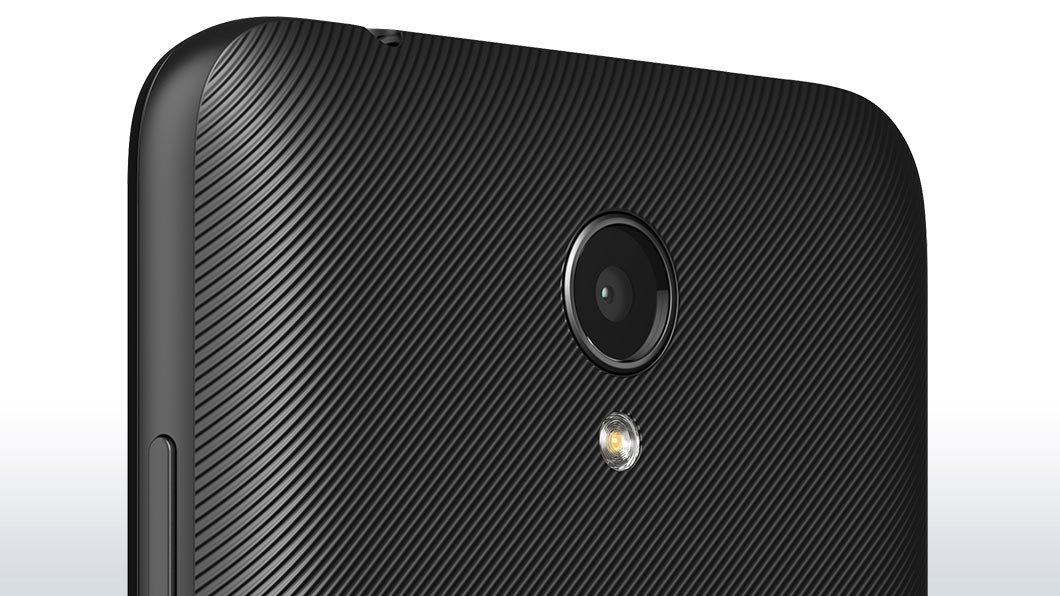

Primary Camera: 5 MPix LED闪光灯, 定焦镜头
Secondary Camera: 2 MPix 定焦镜头
Additional features
Speakers: 后置单声道扬声器, Keyboard: 触控, 电源适配器,USB数据线, Android 6, 24 Months Warranty, FM收音机, fanless
Weight
144 g, Power Supply: 70 g
Price
100 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Networking
iperf3 transmit AX12
Lenovo C2
Mali-T720 MP2, MT6735, 8 GB eMMC Flash
53.3 MBit/s +12%
Lenovo Moto E3
Mali-T720, MT6735P, 8 GB eMMC Flash
49.3 MBit/s +3%
Lenovo B
Mali-T720, MT6735M, 8 GB eMMC Flash
47.7 MBit/s
iperf3 receive AX12
Lenovo C2
Mali-T720 MP2, MT6735, 8 GB eMMC Flash
50.5 MBit/s +28%
Lenovo Moto E3
Mali-T720, MT6735P, 8 GB eMMC Flash
47 MBit/s +19%
Lenovo B
Mali-T720, MT6735M, 8 GB eMMC Flash
39.5 MBit/s
GPS Lenovo B: overview
GPS Lenovo B: overview

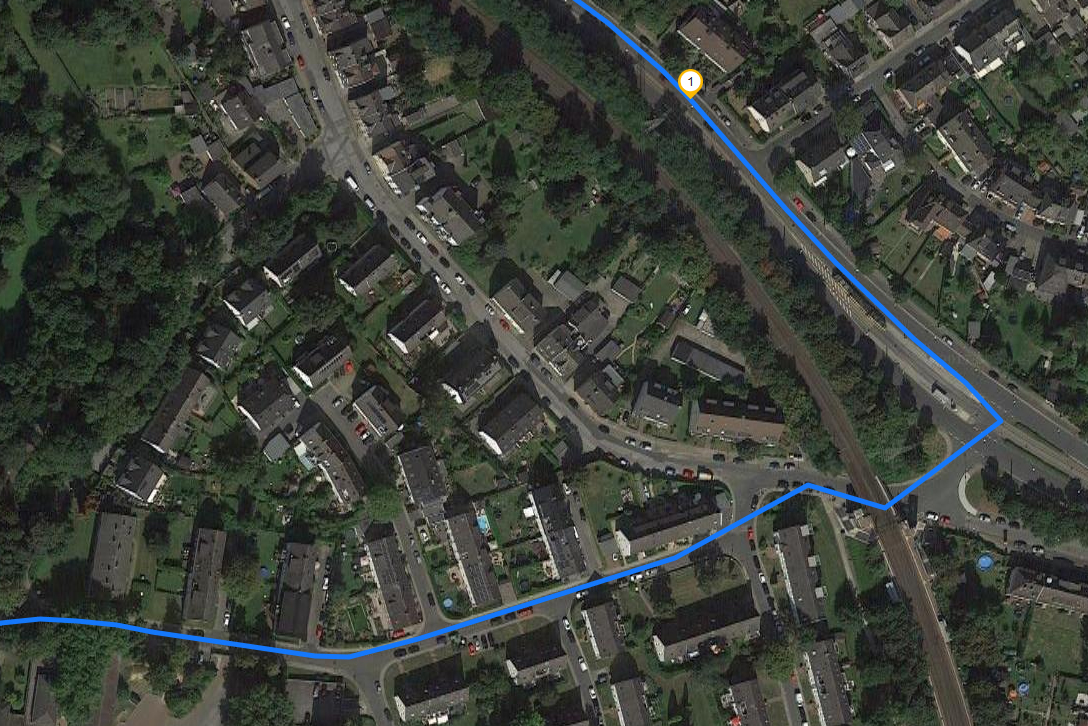

GPS Lenovo B: junction
GPS Lenovo B: junction

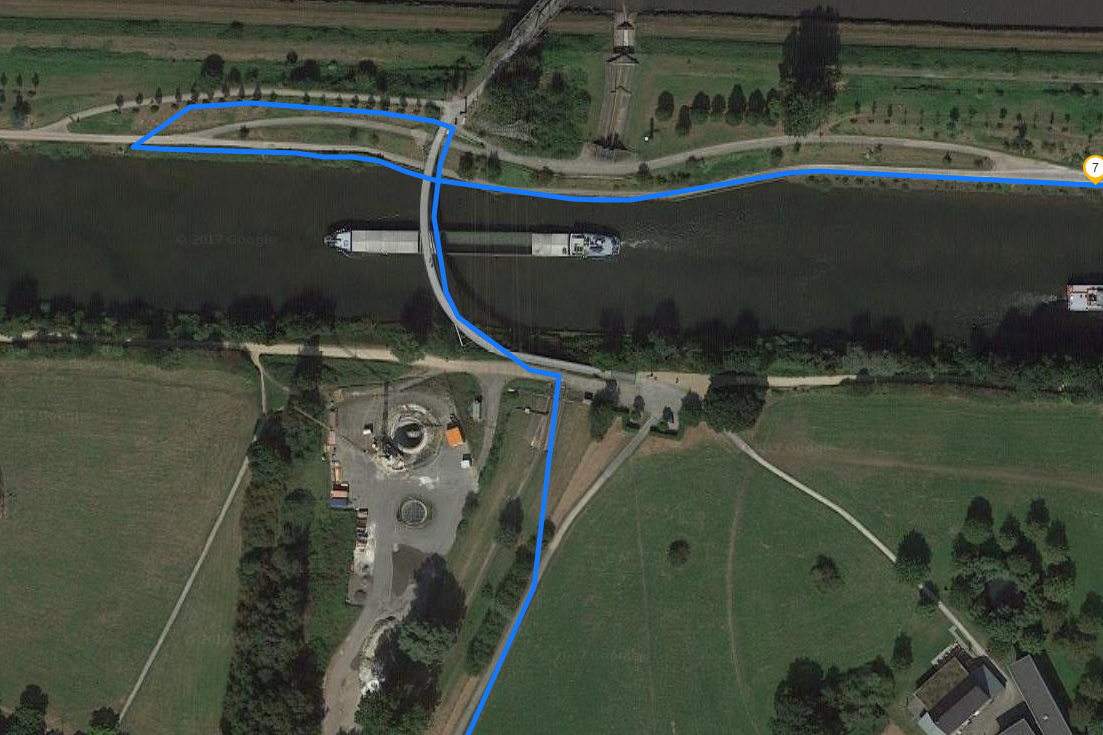

GPS Lenovo B: riverbank
GPS Lenovo B: riverbank

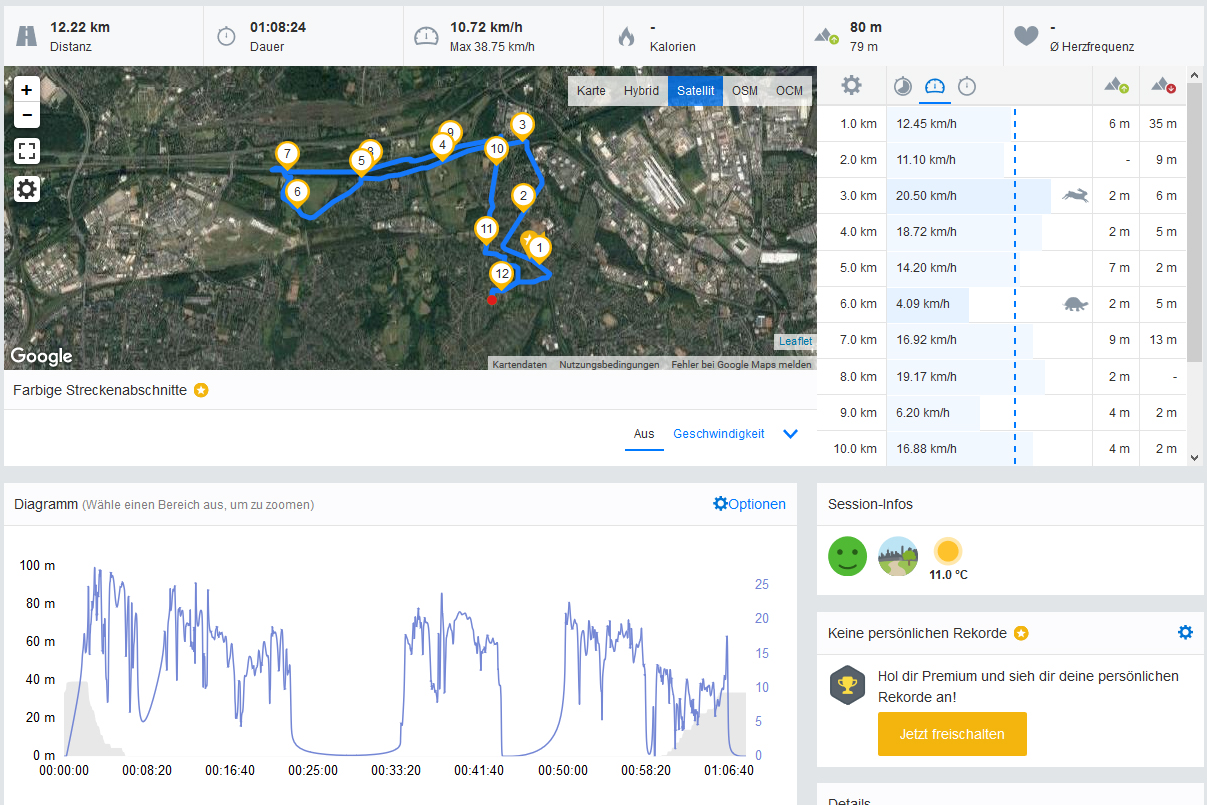

GPS Garmin Edge 500: overview
GPS Garmin Edge 500: overview

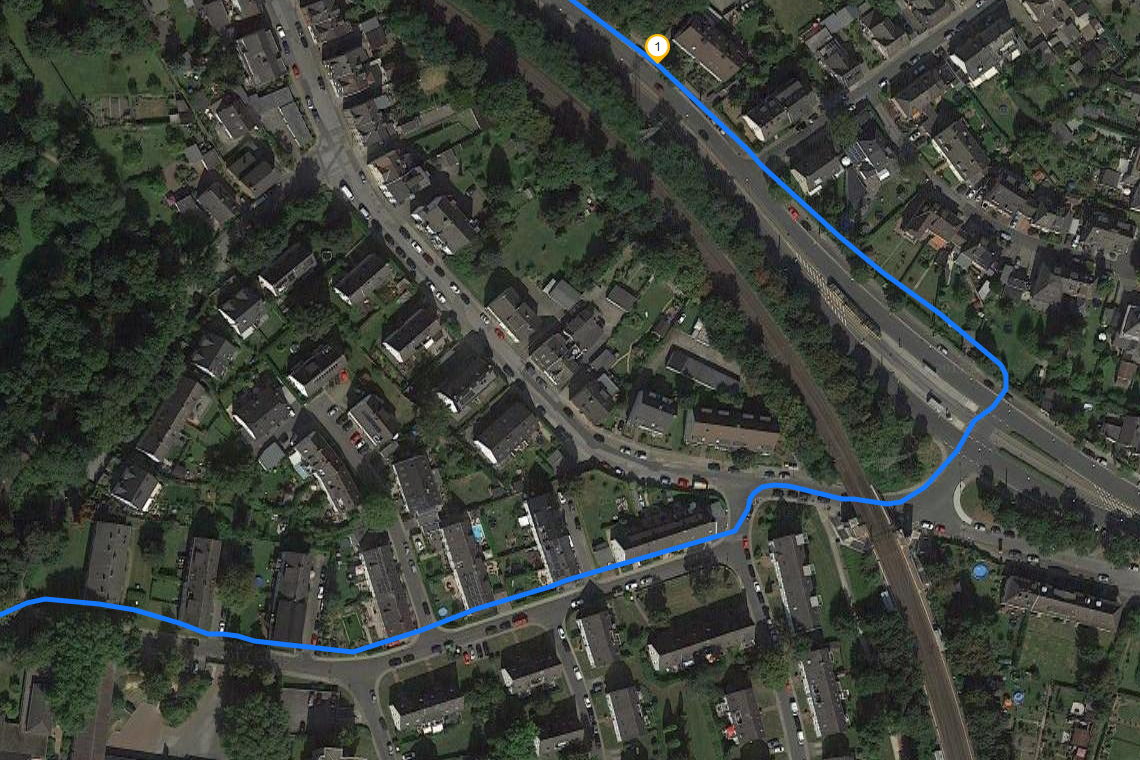

GPS Garmin Edge 500: junction
GPS Garmin Edge 500: junction

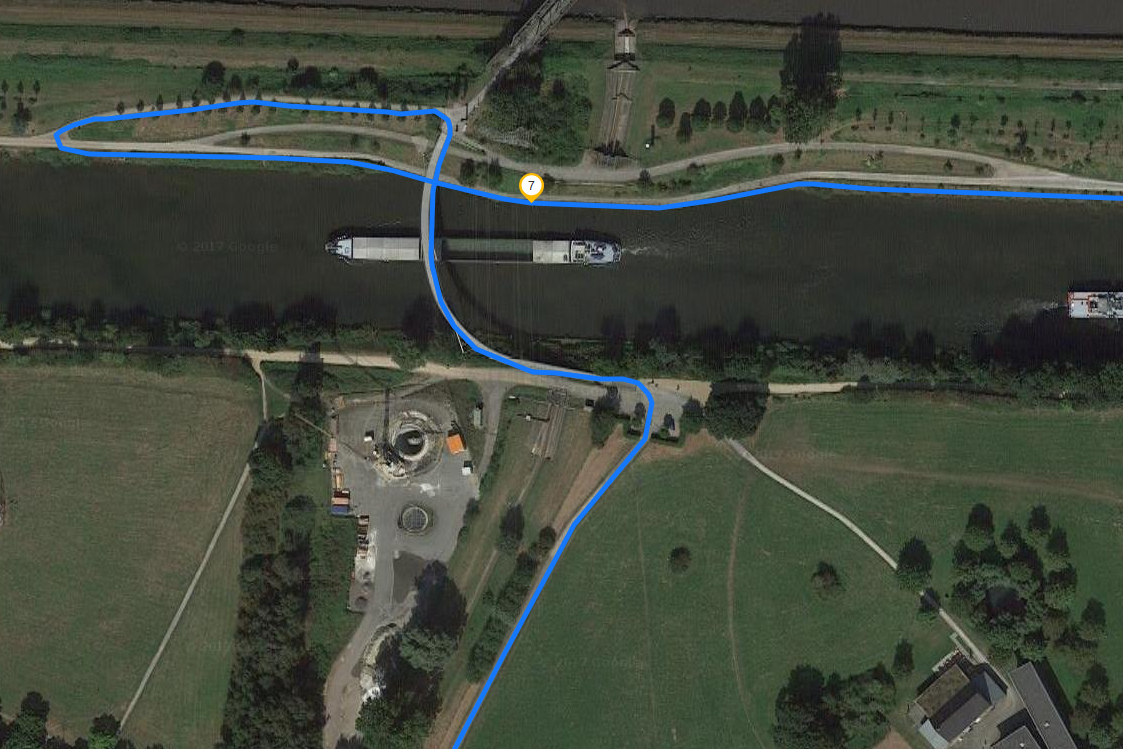

GPS Garmin Edge 500: riverbank
GPS Garmin Edge 500: riverbank

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
orginal image
click to load images
297
cd/m²
299
cd/m²
299
cd/m²
300
cd/m²
309
cd/m²
302
cd/m²
302
cd/m²
310
cd/m²
297
cd/m²
Distribution of brightness
tested with X-Rite i1Pro 2
Maximum: 310 cd/m² (Nits) Average: 301.7 cd/m² Minimum: 14.76 cd/m²
Brightness Distribution: 96 %
Center on Battery: 309 cd/m²
Contrast: 672:1 (Black: 0.46 cd/m²)
ΔE Color 9.8 | 0.5-29.43 Ø4.92
ΔE Greyscale 11.5 | 0.5-98 Ø5.2
Gamma: 2.33
Lenovo B
TN LED, 854x480, 4.5"
Archos 50 Platinum 4G
IPS, 1280x720, 5"
Huawei Y5 II
IPS, 1280x720, 5"
LG K4
TN-TFT, 854x480, 4.5"
Wiko Jerry
IPS, 854x480, 5"
Screen
12%
7%
2%
21%
Brightness middle
309
344
11%
465
50%
337
9%
432
40%
Brightness
302
349
16%
443
47%
342
13%
436
44%
Brightness Distribution
96
89
-7%
90
-6%
92
-4%
91
-5%
Black Level *
0.46
0.65
-41%
0.84
-83%
0.44
4%
0.57
-24%
Contrast
672
529
-21%
554
-18%
766
14%
758
13%
Colorchecker dE 2000 *
9.8
5.8
41%
7.8
20%
11.4
-16%
7
29%
Colorchecker dE 2000 max. *
19.7
10.7
46%
15.7
20%
22
-12%
12.4
37%
Greyscale dE 2000 *
11.5
5.7
50%
8.4
27%
11
4%
7.6
34%
Gamma
2.33 94%
2.1 105%
2.07 106%
2.19 100%
2.1 105%
CCT
12460 52%
7792 83%
8438 77%
9372 69%
8368 78%

* ... smaller is better

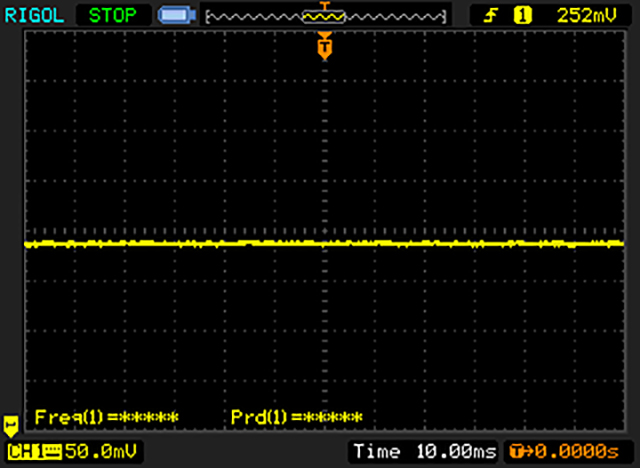

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
32 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

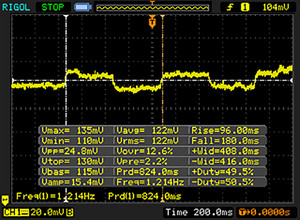

       Response Time 50% Grey to 80% Grey
276 ms ... rise ↗ and fall ↘ combined↗ ms rise
↘ ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 100 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).
AnTuTu v6 - Total Score (sort by value)
Lenovo B
23464 Points
Archos 50 Platinum 4G
23657 Points +1%
Huawei Y5 II
23795 Points +1%
LG K4
22998 Points -2%
Wiko Jerry
15185 Points -35%
Geekbench 4.0
64 Bit Single-Core Score (sort by value)
Lenovo B
431 Points
Archos 50 Platinum 4G
428 Points -1%
Huawei Y5 II
561 Points +30%
64 Bit Multi-Core Score (sort by value)
Lenovo B
1209 Points
Archos 50 Platinum 4G
1206 Points 0%
Huawei Y5 II
1573 Points +30%
3DMark
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Lenovo B
2640 Points
Archos 50 Platinum 4G
3103 Points +18%
Huawei Y5 II
Points -100%
LG K4
2565 Points -3%
Wiko Jerry
2922 Points +11%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Lenovo B
2239 Points
Archos 50 Platinum 4G
2681 Points +20%
Huawei Y5 II
Points -100%
LG K4
2171 Points -3%
Wiko Jerry
2481 Points +11%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Lenovo B
7072 Points
Archos 50 Platinum 4G
6902 Points -2%
Huawei Y5 II
Points -100%
LG K4
7018 Points -1%
Wiko Jerry
7748 Points +10%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Lenovo B
11 fps
Archos 50 Platinum 4G
4.9 fps -55%
Huawei Y5 II
15 fps +36%
LG K4
11 fps 0%
Wiko Jerry
11 fps 0%
1920x1080 T-Rex Offscreen (sort by value)
Lenovo B
4.1 fps
Archos 50 Platinum 4G
8.7 fps +112%
Huawei Y5 II
8.4 fps +105%
LG K4
4.1 fps 0%
Wiko Jerry
4.4 fps +7%
GFXBench 3.0
on screen Manhattan Onscreen OGL (sort by value)
Lenovo B
5.5 fps
Archos 50 Platinum 4G
1.2 fps -78%
Huawei Y5 II
6.1 fps +11%
LG K4
5.8 fps +5%
1920x1080 1080p Manhattan Offscreen (sort by value)
Lenovo B
1.5 fps
Archos 50 Platinum 4G
3.6 fps +140%
Huawei Y5 II
fps -100%
LG K4
1.4 fps -7%
GFXBench 3.1
on screen Manhattan ES 3.1 Onscreen (sort by value)
Lenovo B
4.2 fps
Archos 50 Platinum 4G
1.2 fps -71%
Huawei Y5 II
fps -100%
LG K4
4.1 fps -2%
1920x1080 Manhattan ES 3.1 Offscreen (sort by value)
Lenovo B
1 fps
Archos 50 Platinum 4G
2.7 fps +170%
Huawei Y5 II
fps -100%
PCMark for Android - Work performance score (sort by value)
Lenovo B
2125 Points
Archos 50 Platinum 4G
2807 Points +32%
Huawei Y5 II
3237 Points +52%
LG K4
2644 Points +24%
Wiko Jerry
2636 Points +24%
BaseMark OS II
Overall (sort by value)
Lenovo B
136 Points
Archos 50 Platinum 4G
148 Points +9%
Huawei Y5 II
183 Points +35%
LG K4
304 Points +124%
Wiko Jerry
379 Points +179%
System (sort by value)
Lenovo B
799 Points
Archos 50 Platinum 4G
838 Points +5%
Huawei Y5 II
1094 Points +37%
LG K4
816 Points +2%
Wiko Jerry
966 Points +21%
Memory (sort by value)
Lenovo B
311 Points
Archos 50 Platinum 4G
354 Points +14%
Huawei Y5 II
375 Points +21%
LG K4
139 Points -55%
Wiko Jerry
290 Points -7%
Graphics (sort by value)
Lenovo B
145 Points
Archos 50 Platinum 4G
175 Points +21%
Huawei Y5 II
283 Points +95%
LG K4
141 Points -3%
Wiko Jerry
139 Points -4%
Web (sort by value)
Lenovo B
9 Points
Archos 50 Platinum 4G
9 Points 0%
Huawei Y5 II
10 Points +11%
LG K4
536 Points +5856%
Wiko Jerry
530 Points +5789%

Legend


Lenovo B Mediatek MT6735M, ARM Mali-T720, 8 GB eMMC Flash

Archos 50 Platinum 4G Mediatek MT6735, ARM Mali-T720, 8 GB eMMC Flash

Huawei Y5 II Mediatek MT6735, ARM Mali-T720 MP2, 8 GB eMMC Flash

LG K4 Mediatek MT6735, ARM Mali-T720, 8 GB eMMC Flash

Wiko Jerry Mediatek MT6580M, ARM Mali-400 MP2, 16 GB eMMC Flash
Mozilla Kraken 1.1 - Total (sort by value)
Lenovo B
18130 ms *
Archos 50 Platinum 4G
19092 ms * -5%
Huawei Y5 II
12505 ms * +31%
LG K4
18214 ms * -0%
Wiko Jerry
14923 ms * +18%
Octane V2 - Total Score (sort by value)
Lenovo B
1929 Points
Archos 50 Platinum 4G
2122 Points +10%
Huawei Y5 II
2707 Points +40%
LG K4
2049 Points +6%
Wiko Jerry
2075 Points +8%
JetStream 1.1 - Total Score (sort by value)
Lenovo B
12.64 Points
Archos 50 Platinum 4G
12.76 Points +1%
Huawei Y5 II
18.47 Points +46%
LG K4
13 Points +3%
Wiko Jerry
14 Points +11%

* ... smaller is better

AndroBench 3-5
Sequential Read 256KB (sort by value)
Lenovo B
115.6 MB/s
Archos 50 Platinum 4G
125.4 MB/s +8%
Huawei Y5 II
173.3 MB/s +50%
LG K4
120.8 MB/s +4%
Wiko Jerry
132.8 MB/s +15%
Sequential Write 256KB (sort by value)
Lenovo B
8.1 MB/s
Archos 50 Platinum 4G
7.56 MB/s -7%
Huawei Y5 II
21.6 MB/s +167%
LG K4
8.07 MB/s 0%
Wiko Jerry
12.11 MB/s +50%
Random Read 4KB (sort by value)
Lenovo B
12.4 MB/s
Archos 50 Platinum 4G
14.31 MB/s +15%
Huawei Y5 II
27.3 MB/s +120%
LG K4
16.05 MB/s +29%
Wiko Jerry
14.97 MB/s +21%
Random Write 4KB (sort by value)
Lenovo B
4.2 MB/s
Archos 50 Platinum 4G
4.35 MB/s +4%
Huawei Y5 II
6 MB/s +43%
LG K4
4.97 MB/s +18%
Wiko Jerry
6.4 MB/s +52%
Sequential Read 256KB SDCard (sort by value)
Lenovo B
24.16 MB/s
Archos 50 Platinum 4G
31.85 MB/s +32%
Huawei Y5 II
29.47 MB/s +22%
LG K4
28.52 MB/s +18%
Wiko Jerry
40.91 MB/s +69%
Sequential Write 256KB SDCard (sort by value)
Lenovo B
16.8 MB/s
Archos 50 Platinum 4G
15.58 MB/s -7%
Huawei Y5 II
18.03 MB/s +7%
LG K4
18.7 MB/s +11%
Wiko Jerry
19.12 MB/s +14%
Asphalt 8: Airborne
 SettingsValue
 high10 fps
Temple Run 2
 SettingsValue
 default59 fps
Max. Load
 35.3 °C35.6 °C33.9 °C
 35 °C34.5 °C38.5 °C
 34.3 °C34.4 °C36.3 °C
Maximum: 38.5 °C
Average: 35.3 °C
33.6 °C35.3 °C36.3 °C
33.6 °C34.9 °C36.6 °C
30.7 °C34.5 °C35.9 °C
Maximum: 36.6 °C
Average: 34.6 °C
Power Supply (max.)  29.4 °C | Room Temperature 21.4 °C | Voltcraft IR-260
(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 38.5 °C / 101 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.2 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 36.6 °C / 98 F, compared to the average of 33.9 °C / 93 F
(±) In idle usage, the average temperature for the upper side is 32.7 °C / 91 F, compared to the device average of 32.8 °C / 91 F.
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.638.42525.438.63125.333.24032.9315033.6386331.6338028.432.71002727.312520.826.51602225.720021.331.225020.836.431521.246.840019.45550019.561.163017.764.780017.968100017.873.4125017.375.2160017.474.2200016.773.8250017.270.9315018.267.8400017.966.2500017.663.6630017.762.6800017.859.41000017.955.61250018.153.31600018.244.2SPL3082.3N1.346.4median 17.9median 61.1Delta1.411.832.433.931.330.231.731.82632.939.440.236.235.328.629.825.428.321.33223.327.822.530.422.437.221.342.318.446.217.555.417.557.317.262.416.867.517.368.317.467.416.676.617.375.617.675.217.679.517.779.817.477.417.772.917.967.918.158.118.140.429.8871.359.8median 17.7median 62.41.716.6hearing rangehide median Pink NoiseLenovo BHuawei Y5 II
Lenovo B audio analysis

(+) | speakers can play relatively loud (82.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.8% lower than median
(±) | linearity of bass is average (10.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 8.6% higher than median
(±) | linearity of mids is average (8.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.7% away from median
(+) | highs are linear (6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (31% difference to median)
Compared to same class
» 78% of all tested devices in this class were better, 4% similar, 19% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 88% of all tested devices were better, 3% similar, 9% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Huawei Y5 II audio analysis

(+) | speakers can play relatively loud (87 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.4% lower than median
(±) | linearity of bass is average (9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.3% higher than median
(±) | linearity of mids is average (10.1% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 13% higher than median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (34% difference to median)
Compared to same class
» 82% of all tested devices in this class were better, 1% similar, 16% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 92% of all tested devices were better, 1% similar, 7% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.05 / 0.12 Watt
Idledarkmidlight 0.64 / 0.96 / 1.33 Watt
Load midlight 4.59 / 4.63 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo B
2000 mAh
Archos 50 Platinum 4G
2200 mAh
Huawei Y5 II
2200 mAh
LG K4
1940 mAh
Wiko Jerry
2000 mAh
Power Consumption
-17%
-10%
-25%
-46%
Idle Minimum *
0.64
0.59
8%
0.54
16%
1.15
-80%
0.8
-25%
Idle Average *
0.96
1.68
-75%
1.58
-65%
1.76
-83%
2.02
-110%
Idle Maximum *
1.33
1.79
-35%
1.7
-28%
1.82
-37%
2.19
-65%
Load Average *
4.59
4.22
8%
2.98
35%
2.71
41%
5.02
-9%
Load Maximum *
4.63
4.26
8%
4.98
-8%
3.15
32%
5.52
-19%

* ... smaller is better

Battery Runtime
WiFi Websurfing
7h 22min
Lenovo B
2000 mAh
Archos 50 Platinum 4G
2200 mAh
Huawei Y5 II
2200 mAh
LG K4
1940 mAh
Wiko Jerry
2000 mAh
Battery Runtime
-13%
14%
2%
7%
WiFi v1.3
442
384
-13%
503
14%
452
2%
475
7%
Reader / Idle
1102
Load
253

Pros

+ 符合人体工学设计的机身
+ 可更换电池
+ 不错的扬声器
+ 可以接受的通话音质
+ 响应迅速的GPS模组
+ 支持LTE

Cons

- 色彩偏蓝的低品质TN屏幕
- 有限的可视角度范围
- 较差的相机
- 性能较低
- 充电用时长

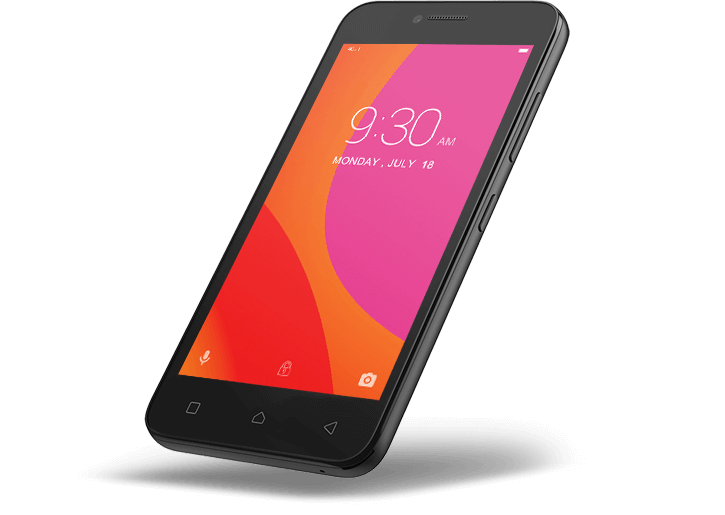

Lenovo B smartphone. Test device made available by Notebooksbilliger.de
Lenovo B smartphone. Test device made available by Notebooksbilliger.de

这款设备拿在手上不久你就会意识到它不足100欧元(约734人民币)的低廉手机没有给联想多少为它搭配高品质部件的空间。不过,选择一块色彩偏蓝的低对比度TN屏幕和拍摄效果模糊的相机让我们感觉十分难以接受,即使是实惠型设备也不应如此差。联想B的性能表现和同类设备十分相近,电池续航也中规中矩,不过它的电池可以方便地更换。但是它的较长充电用时也不能算是个优势。

尽管对于入门级设备的期待和需求都比较低,但是市场上一些其他设备却提供了更高的性价比:更大容量的闪存,更好的相机和屏幕。联想B的小巧尺寸可能会让它适合青少年。尽管它的表现中规中矩,但在同类产品中无法脱颖而出。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Lenovo B - 03/18/2017 v6 (old)
Florian Wimmer

Chassis
71%
Keyboard
61 / 75 → 82%
Pointing Device
79%
Connectivity
30 / 60 → 49%
Weight
93%
Battery
90%
Display
77%
Games Performance
4 / 63 → 6%
Application Performance
18 / 70 → 25%
Temperature
89%
Noise
100%
Audio
60 / 91 → 66%
Camera
35%
Average
62%
73%
Smartphone - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 联想 B 智能手机简短评测
Florian Wimmer, 2017-04- 1 (Update: 2017-04- 1)
