惠普 EliteBook 745 G3 (FHD) 笔记本电脑简短评测
HP EliteBook 745 G3 (EliteBook 700 Series)

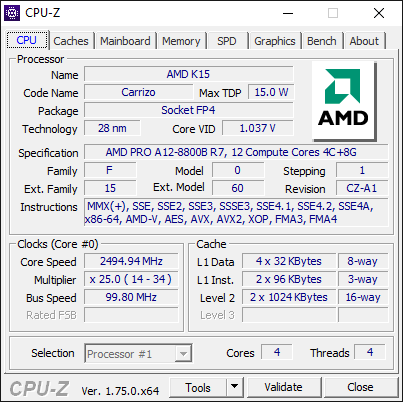

Processor
AMD Pro A12-8800B 4 x 2.1 - 3.4 GHz, Carrizo
Graphics adapter
AMD Radeon R7 (Carrizo), Core: 800 MHz, 15.201.1001.1005

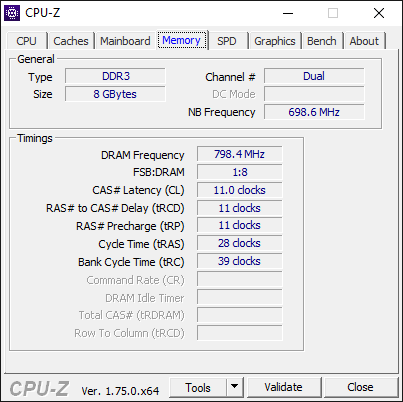

Memory
8 GB
, DDR3-1600
Display
14.00 inch 16:9, 1920 x 1080 pixel, 非触控, CMN14C0, TN LED, glossy: no

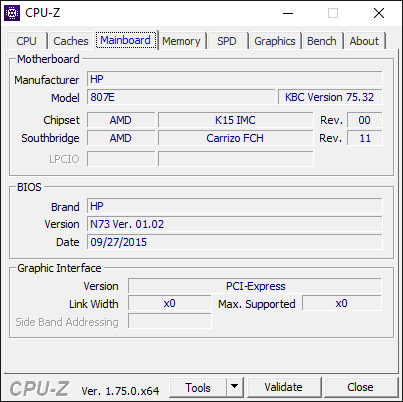

Mainboard
AMD KernCZ
Storage
SanDisk X300s SD7TN3Q-256G-1006, 256 GB
Weight

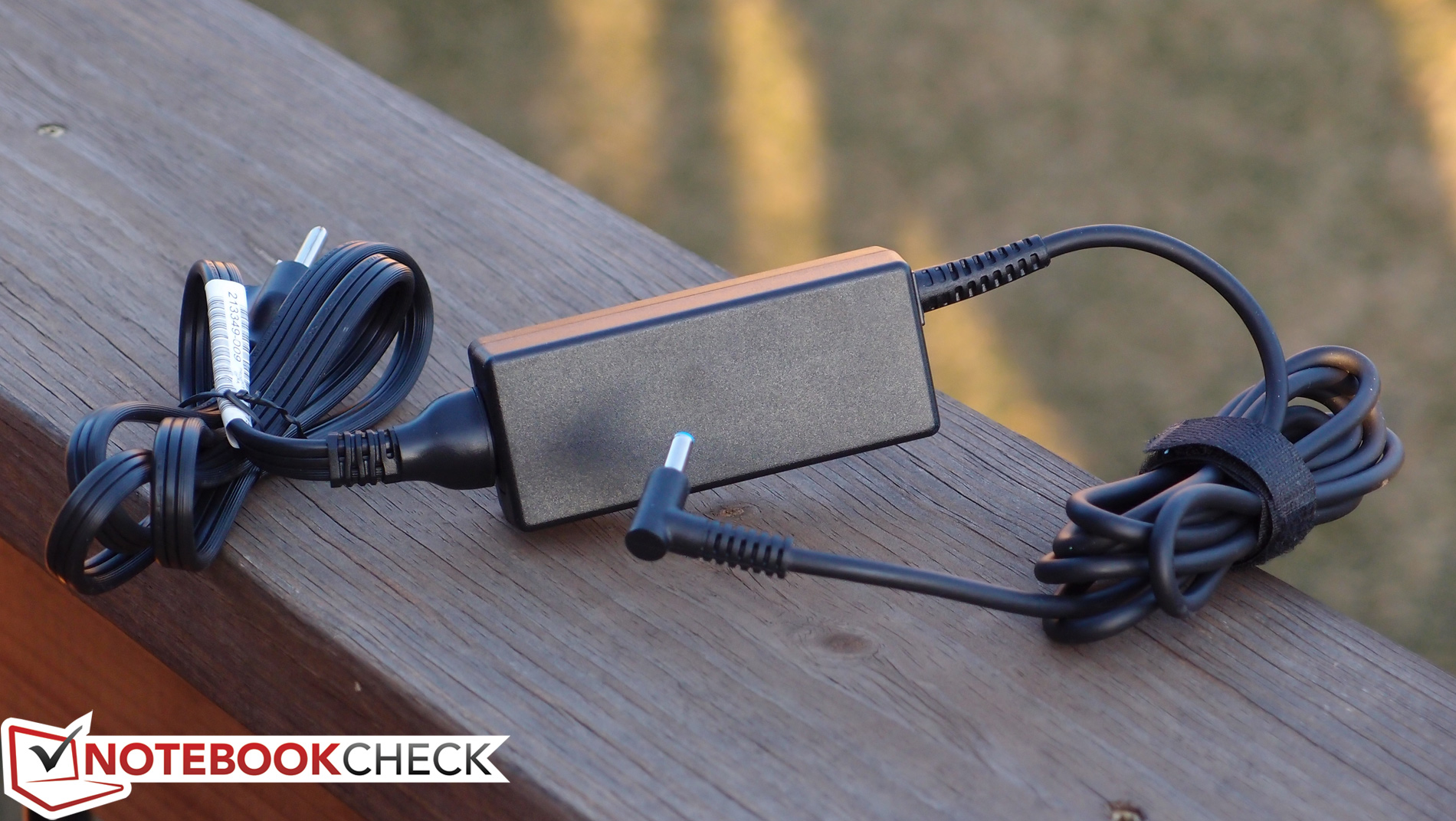

1.55 kg, Power Supply: 292 g
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
CMN14C0 tested with X-Rite i1Basic Pro 2
Maximum: 366.2 cd/m² (Nits) Average: 343.1 cd/m²Brightness Distribution: 89 %
Center on Battery: 366.2 cd/m²
Contrast: 513:1 (Black: 0.714 cd/m²)
ΔE Color 9.15 | 0.5-29.43 Ø4.91
ΔE Greyscale 9.57 | 0.5-98 Ø5.2
77.28% sRGB (Argyll 1.6.3 3D)
49.03% AdobeRGB 1998 (Argyll 1.6.3 3D)
52.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
76.7% sRGB (Argyll 2.2.0 3D)
50.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.19
| HP EliteBook 745 G3 14", 1920x1080 | HP EliteBook 745 G3 14", 2560x1440 | Dell Latitude E7450 14", 1920x1080 | Lenovo ThinkPad T450s-20BWS1UT00 14", 1920x1080 | Toshiba Portege Z30t-B1320W10 13.3", 1920x1080 | |
|---|---|---|---|---|---|
| Display | 39% | 27% | 17% | 30% | |
| Display P3 Coverage | 50.9 | 75.7 49% | 66.6 31% | 64.8 27% | 67.1 32% |
| sRGB Coverage | 76.7 | 95.8 25% | 92.4 20% | 83.8 9% | 96.8 26% |
| AdobeRGB 1998 Coverage | 52.6 | 74.5 42% | 67.7 29% | 61.2 16% | 68.9 31% |
| Response Times | 19% | -18% | |||
| Response Time Grey 50% / Grey 80% * | 54 ? | 46.8 ? 13% | 59.2 ? -10% | ||
| Response Time Black / White * | 33 ? | 25.2 ? 24% | 50.4 ? -53% | ||
| PWM Frequency | 200 ? | 215.5 8% | |||
| Screen | 27% | 27% | 31% | 35% | |
| Brightness middle | 366.2 | 319 -13% | 280 -24% | 288 -21% | 296.1 -19% |
| Brightness | 343 | 301 -12% | 257 -25% | 281 -18% | 284 -17% |
| Brightness Distribution | 89 | 74 -17% | 75 -16% | 94 6% | 90 1% |
| Black Level * | 0.714 | 0.29 59% | 0.3 58% | 0.286 60% | 0.308 57% |
| Contrast | 513 | 1100 114% | 933 82% | 1007 96% | 961 87% |
| Colorchecker dE 2000 * | 9.15 | 7.23 21% | 3.45 62% | 4.35 52% | 3 67% |
| Colorchecker dE 2000 max. * | 15.11 | ||||
| Greyscale dE 2000 * | 9.57 | 6 37% | 3.35 65% | 3.7 61% | 1.61 83% |
| Gamma | 2.19 100% | 2.14 103% | 2.37 93% | 2.68 82% | 2.18 101% |
| CCT | 11114 58% | 6904 94% | 6940 94% | 6076 107% | 6716 97% |
| Color Space (Percent of AdobeRGB 1998) | 49.03 | 65.8 34% | 60 22% | 54.7 12% | 62.37 27% |
| Color Space (Percent of sRGB) | 77.28 | 95.3 23% | 92 19% | 96.57 25% | |
| Total Average (Program / Settings) | 28% /
29% | 27% /
27% | 24% /
27% | 16% /
23% |
* ... smaller is better
Display Response Times
ℹ

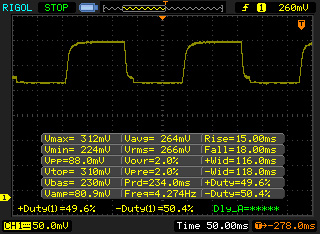

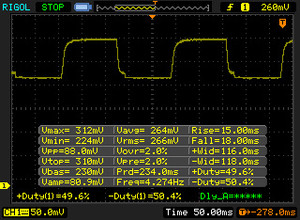

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 33 ms ... rise ↗ and fall ↘ combined | ↗ 15 ms rise |  |
| ↘ 18 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 88 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

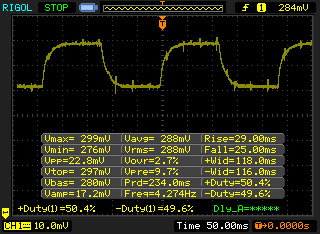

| ↔ Response Time 50% Grey to 80% Grey | ||
| 54 ms ... rise ↗ and fall ↘ combined | ↗ 29 ms rise |  |
| ↘ 25 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 90 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

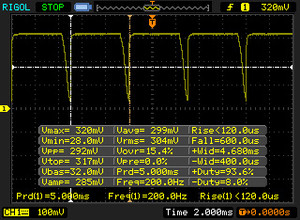

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ

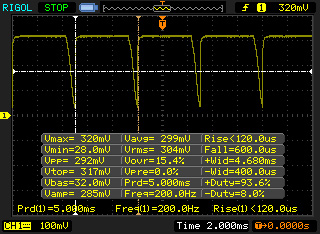

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM detected | 200 Hz | ≤ 90 % brightness setting |  |
| ≤ 343 cd/m² brightness | |||
The display backlight flickers at 200 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % (343 cd/m²) and below. There should be no flickering or PWM above this brightness setting. The frequency of 200 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. Flickering occurs even at high brightness setting and may have an effect on the user during everyday use. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||
| Cinebench R10 | |
| Rendering Single CPUs 64Bit (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| Rendering Multiple CPUs 64Bit (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| PCMark 7 - Score (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| PCMark 7 Score | 4729 points | |
| PCMark 8 Home Score Accelerated v2 | 2978 points | |
| PCMark 8 Creative Score Accelerated v2 | 3717 points | |
| PCMark 8 Work Score Accelerated v2 | 3824 points | |
Help | ||

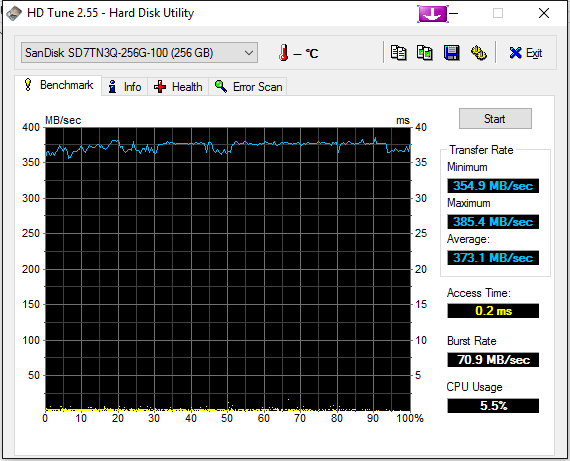

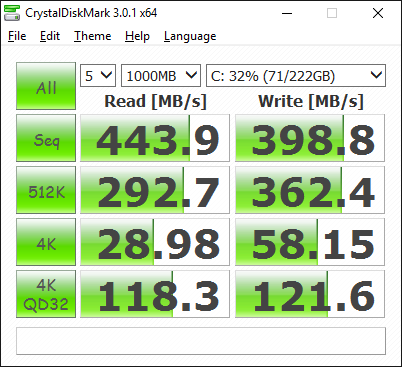

SanDisk X300s SD7TN3Q-256G-1006
Transfer Rate Minimum:
354.9 MB/s
Transfer Rate Maximum:
385.4 MB/s
Transfer Rate Average:
373.1 MB/s
Access Time:
0.2 ms
Burst Rate:
70.9 MB/s
CPU Usage:
5.5 %
| 3DMark 11 - 1280x720 Performance (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| 3DMark | |
| 1920x1080 Fire Strike Score (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| 1280x720 Cloud Gate Standard Score (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| 1280x720 Ice Storm Standard Score (sort by value) | |
| HP EliteBook 745 G3 | |
| HP EliteBook 745 G3 | |
| Dell Latitude E7450 | |
| Lenovo ThinkPad T450s-20BWS1UT00 | |
| Toshiba Portege Z30t-B1320W10 | |
| 3DMark 06 Standard Score | 7857 points | |
| 3DMark 11 Performance | 2020 points | |
| 3DMark Ice Storm Standard Score | 45140 points | |
| 3DMark Cloud Gate Standard Score | 5005 points | |
| 3DMark Fire Strike Score | 1170 points | |
| 3DMark Fire Strike Extreme Score | 540 points | |
Help | ||
| HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, SanDisk X300s SD7TN3Q-256G-1006 | HP EliteBook 745 G3 Radeon R7 (Carrizo), Pro A12-8800B, Samsung SSD PM851 256 GB MZNTE256HMHP | Dell Latitude E7450 HD Graphics 5500, 5300U, Samsung SSD PM851 mSATA 128 GB | Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP | Toshiba Portege Z30t-B1320W10 HD Graphics 5500, 5600U, Toshiba THNSNJ256GMCU | |
|---|---|---|---|---|---|
| Noise | -8% | -9% | -4% | -11% | |
| Idle Minimum * | 28.5 | 29 -2% | 29.1 -2% | 29.1 -2% | 30.2 -6% |
| Idle Average * | 28.6 | 29 -1% | 29.1 -2% | 29.1 -2% | 30.3 -6% |
| Idle Maximum * | 28.6 | 31.1 -9% | 30 -5% | 29.1 -2% | 32.2 -13% |
| Load Average * | 30.5 | 35.6 -17% | 36.4 -19% | 33.1 -9% | 35.6 -17% |
| Load Maximum * | 32.6 | 35.6 -9% | 37.8 -16% | 34.3 -5% | 37.6 -15% |
* ... smaller is better
Noise Level
| Idle |
| 28.5 / 28.6 / 28.6 dB(A) |
| Load |
| 30.5 / 32.6 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  BK Precision 732A (15 cm distance) | ||
(+) The average temperature for the upper side under maximal load is 29.6 °C / 85 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 36.8 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.8 °C / 111 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+1.6 °C / 2.9 F).
(+) The maximum temperature on the upper side is 36.8 °C / 98 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.8 °C / 111 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26 °C / 79 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 26 °C / 78.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (+1.6 °C / 2.9 F).
Pros

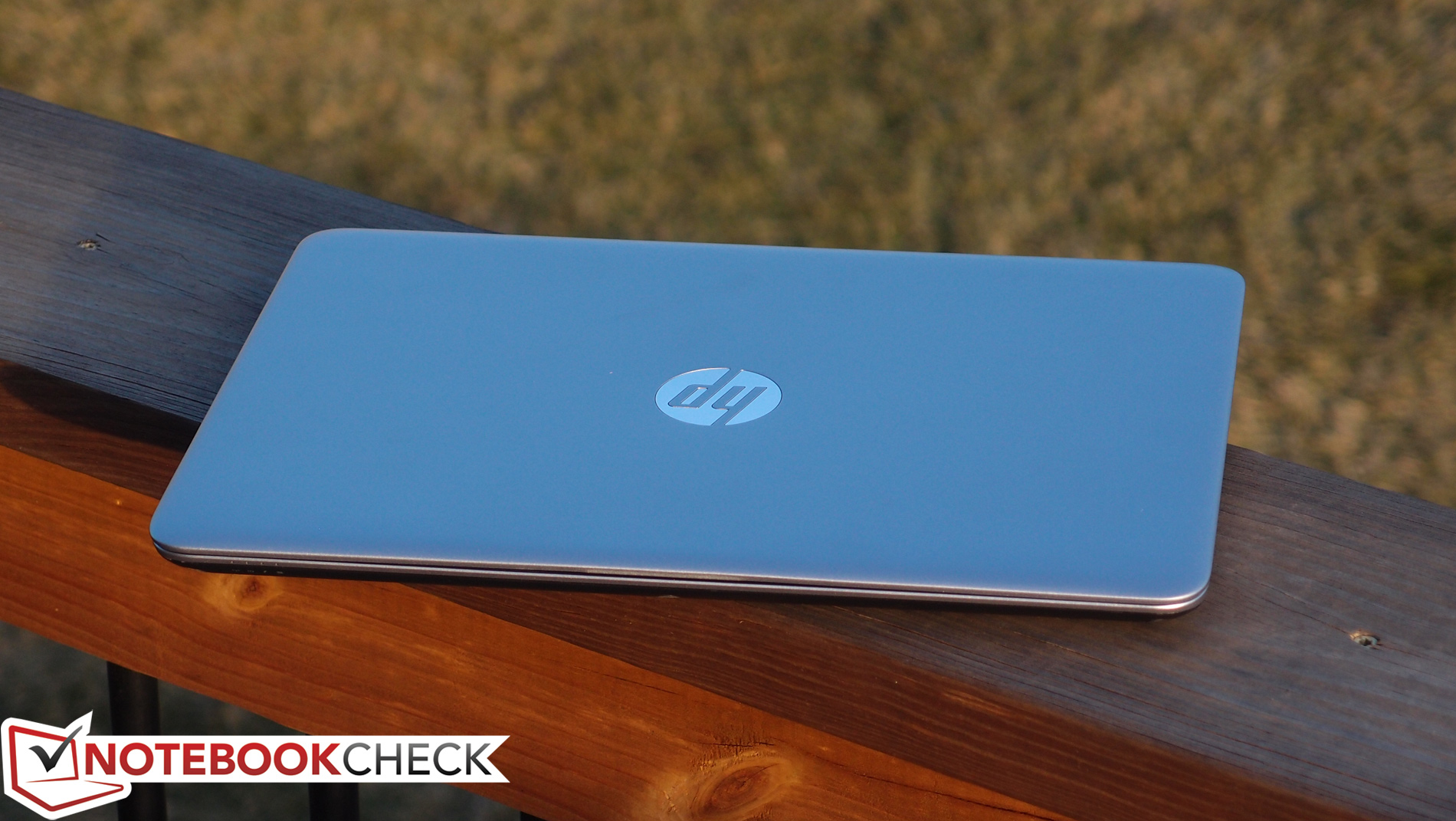

+ 相对坚固的金属机身

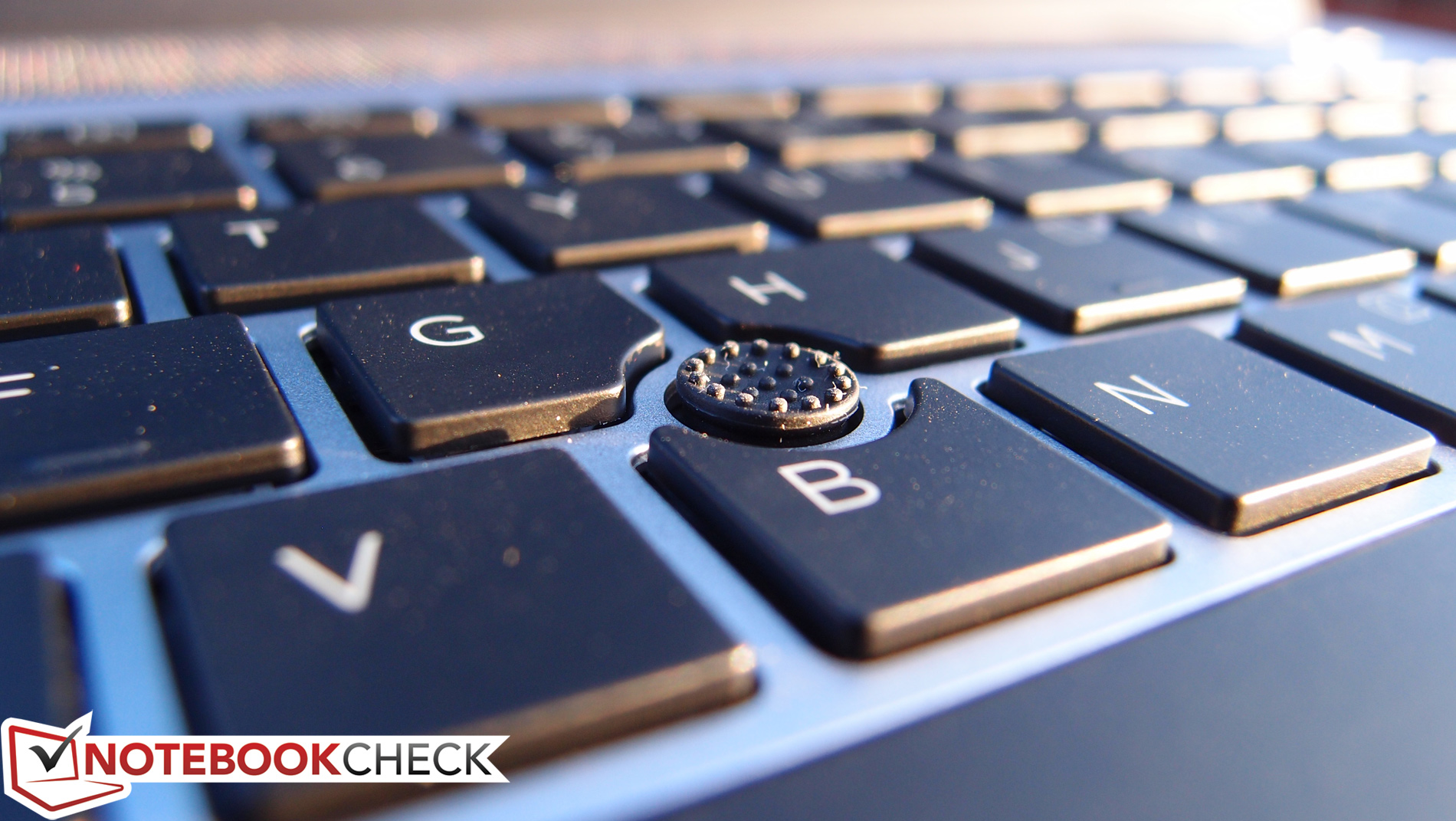

+ 出色的键盘

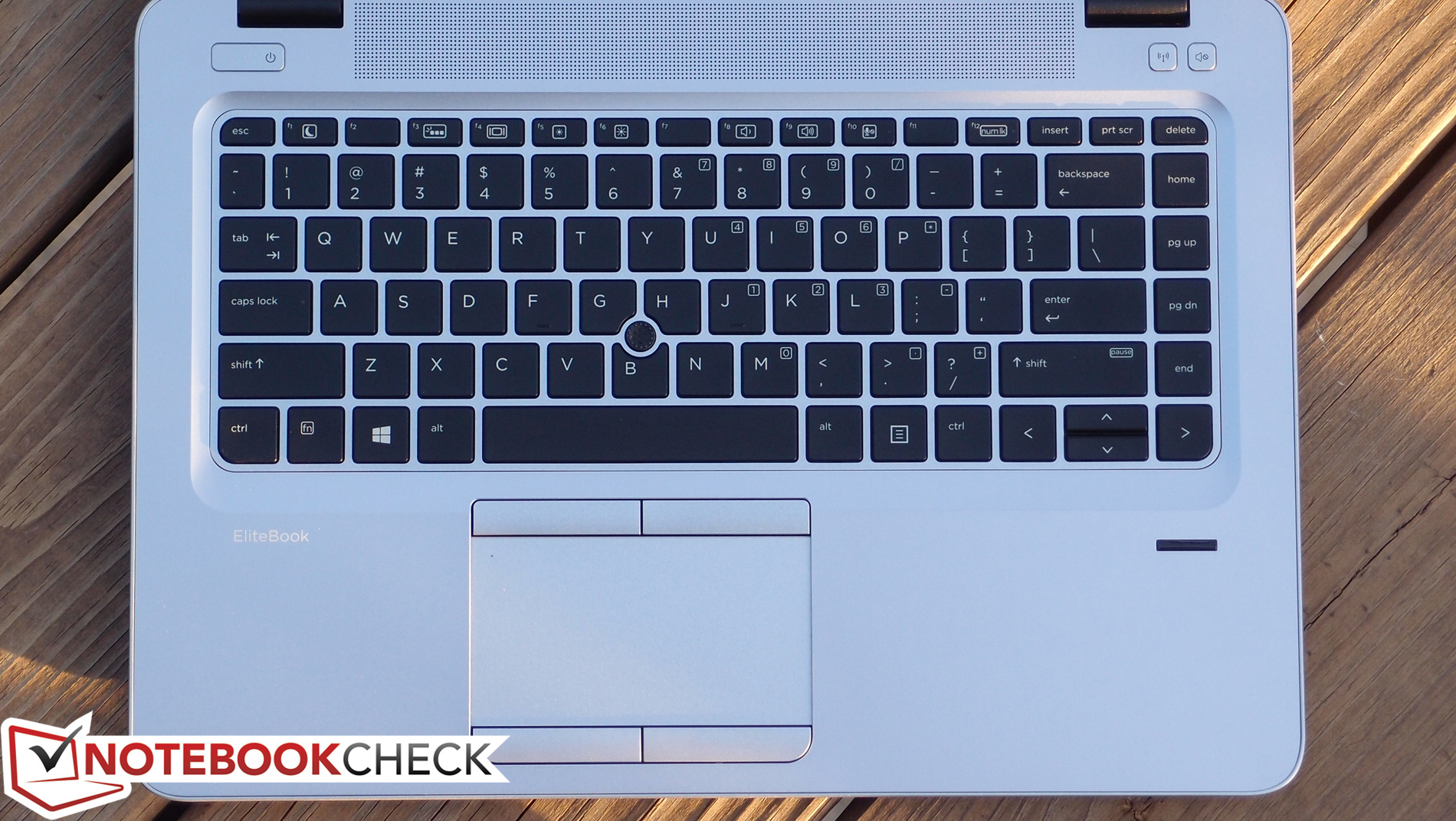

+ 舒适准确的触控版
+ 高速固态硬盘
+ 非常优秀的整体系统性能

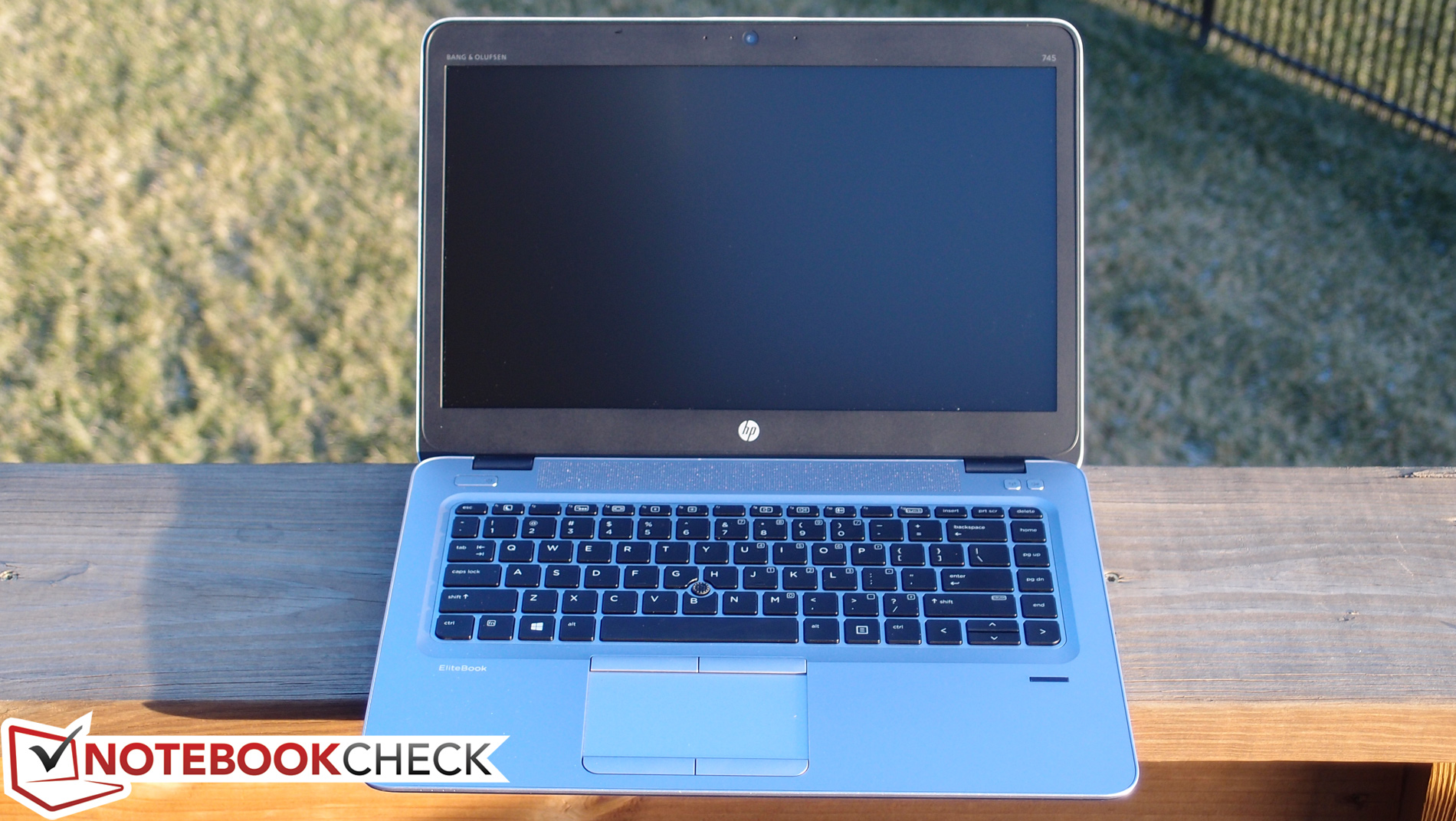

+ 明亮的磨砂1080p屏幕
+ 有竞争力的价格
+ 舒适的机身温度
+ 清晰响亮的扬声器

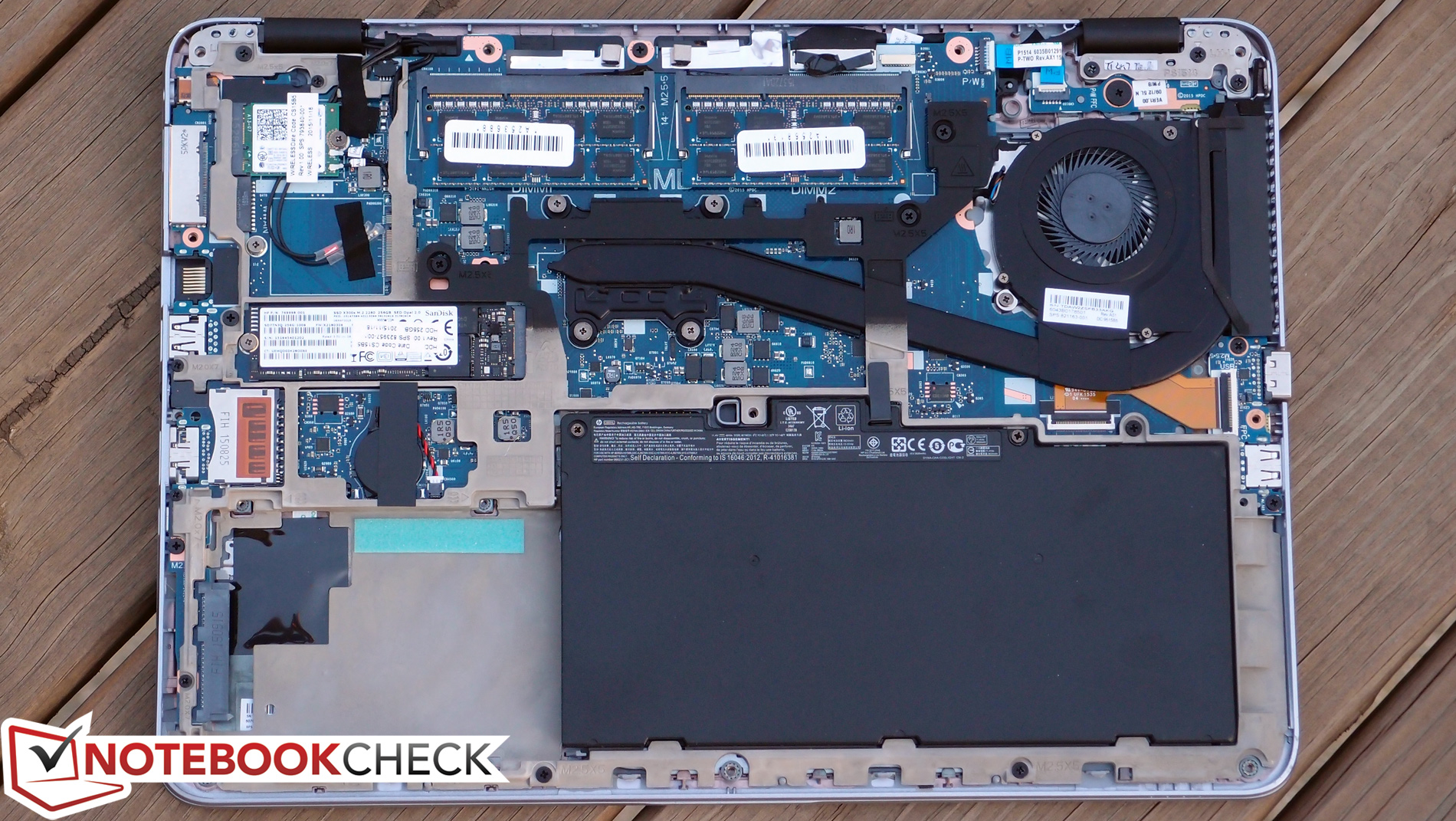

+ M.2机型有空余2.5寸硬盘槽
Cons
- 不易于维护升级
- 色彩还原差，对比度一半
- 除最高亮度外均使用了闪烁亮度控制
- 处理器／显卡受到温控影响大
- 处理器噪音大
- 低于平均水平的电池续航
上周的惠普 EliteBook 745 G3评测引起了很多关于低价位高端商务笔记本电脑的讨论。由于延续了EliteBook 800系列的大部分设计亮点，745 G3具备与高端产品竞争的必要特质。不过，搭配AMD Pro硬件而非英特尔处理器，它的成本低于同类产品。今天的测试机将这个概念更进一步，采用了较为低价的屏幕面板，从而将整体售价降低到了1049美元（约6898人民币）。除此之外，EliteBook 745 G3依然搭配了出色的键盘和触控版，诱人的坚固机身，高性能，可维护升级空间和出色的质保方案。
EliteBook 745 G3的最大优势依然是牺牲一部分运算性能和电池续航——还有屏幕品质——而保证其它的重要商务特质，最终降低整机的售价。
它的最大缺点仍然是来自性能和电池续航。采用28纳米制程技术，AMD的最新APU——尽管在显卡性能上有了大幅提高同时十分有竞争力——仍然无法和高效的英特尔芯片相抗衡。不过对于一般商务用户这到底会不会造成问题又是另一码事了。对于那些每天大部分时间都连接电源使用，而主要使用普通办公软件的用户来说，EliteBook 745 G3可能是个合理的选择。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
