惠普 EliteBook 840 G3 笔记本电脑简短评测

Name: HP EliteBook 840 G3 T9X59ET#ABD
Brand: HP

差之毫厘。 惠普希望凭借第三代的EliteBook 840系列和最优秀的轻薄商务笔记本电脑竞争。不过它仍然延续了同系列产品的一个常见缺点。

Sebastian Jentsch, ✓ Tanja Hinum (translated by Yuchen Wang), Published 04/23/2016 🇺🇸 🇩🇪 ...

Business Laptop / Notebook Skylake Windows

Test device courtesy of HP Deutschland

Download your licensed rating image as PNG / SVG

T9X59ET (EliteBook 840 Series)

Processor

Intel Core i7-6500U 2 x 2.5 - 3.1 GHz, Skylake

Graphics adapter

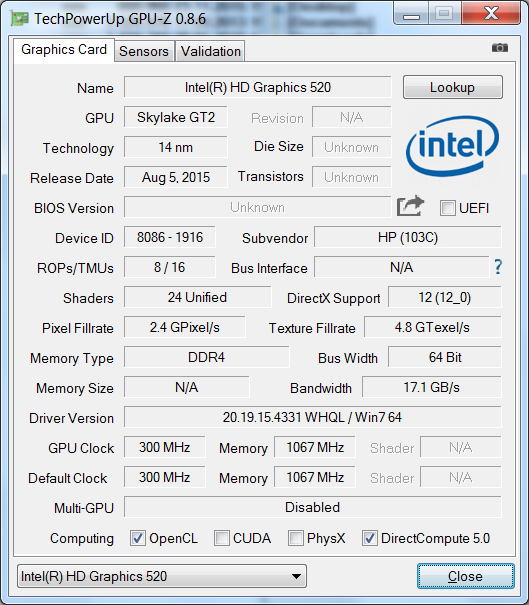

Intel HD Graphics 520, Core: 1050 MHz, 共享内存, 20.19.15.4331

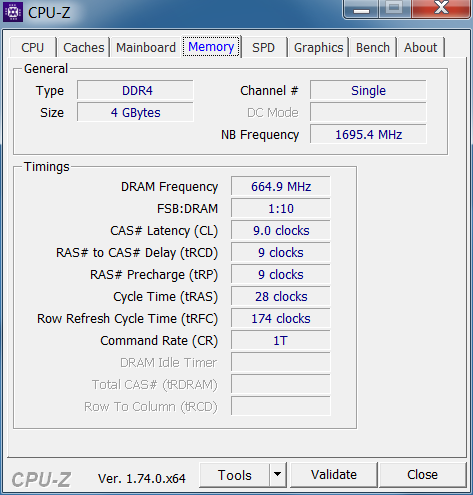

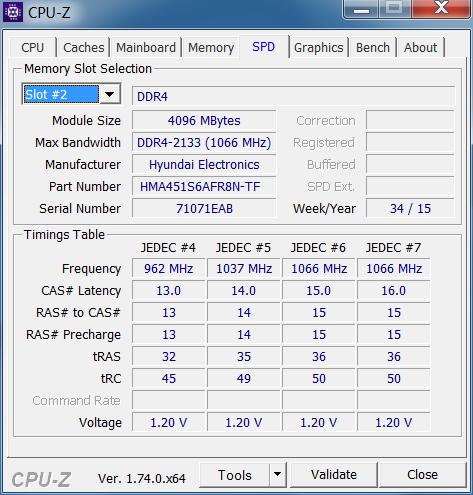

Memory

8 GB

, DDR4, 2133 MHz, 双通道, 两个内存槽均已占用

Display

14.00 inch 16:9, 1920 x 1080 pixel, Chi Mei CMN14C0, TN LED, glossy: no

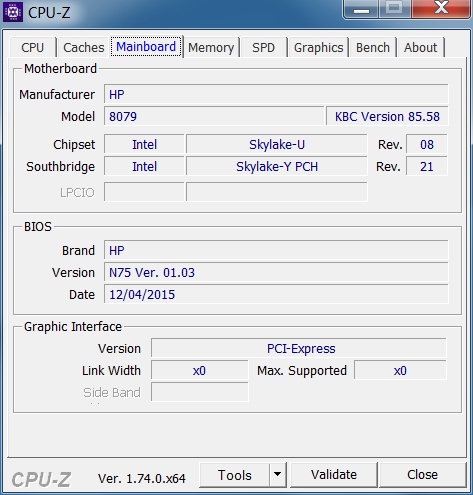

Mainboard

Intel Skylake-U Premium PCH

Storage

Samsung SSD PM851 256 GB MZNTE256HMHP, 256 GB

, 164 GB free

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米整合耳机／麦克风接口, Card Reader: SD, SDHC, SDXC, 1 SmartCard, 1 Fingerprint Reader, Sensors: 加速传感器

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Size

height x width x depth (in mm): 18.9 x 338 x 237

Battery

46 Wh Lithium-Polymer

Operating System

Microsoft Windows 7 Professional 64 Bit

Camera

Webcam: 720p

Additional features

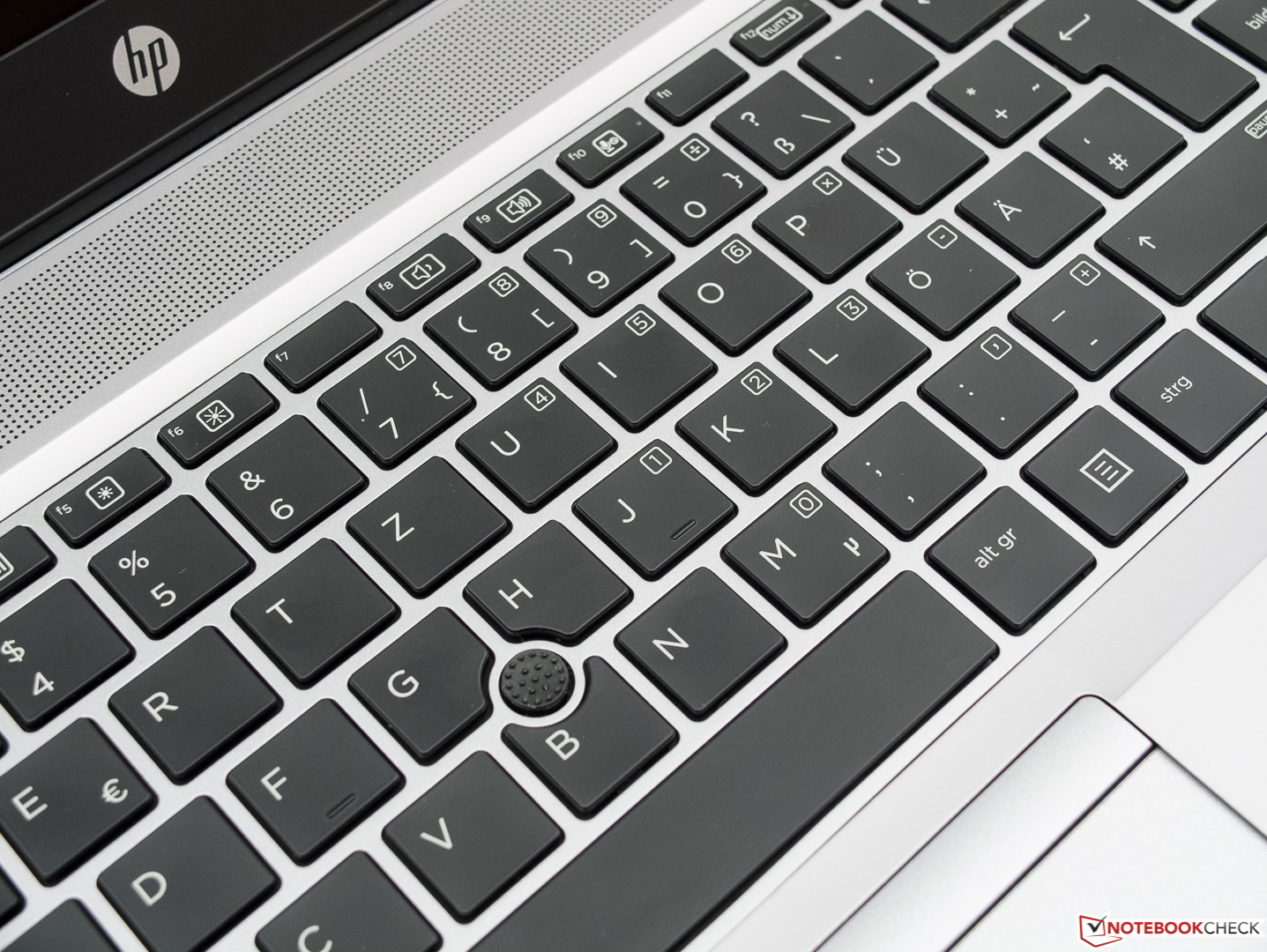

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, MS Office (试用版), Skype, Foxit PhantomPDF, CyberLink PowerDVD 12, 一些惠普工具软件, 36 Months Warranty

Weight

1.58 kg, Power Supply: 164 g

Price

1695 €

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Lenovo ThinkPad T450s-20BWS1UT00 HP EliteBook 840 G3 T9X59ET#ABD Dell Latitude 14 7000 Series E7470 HP EliteBook Folio 1040 G3 Acer TravelMate P645-S-58HK DIN A4 ❌

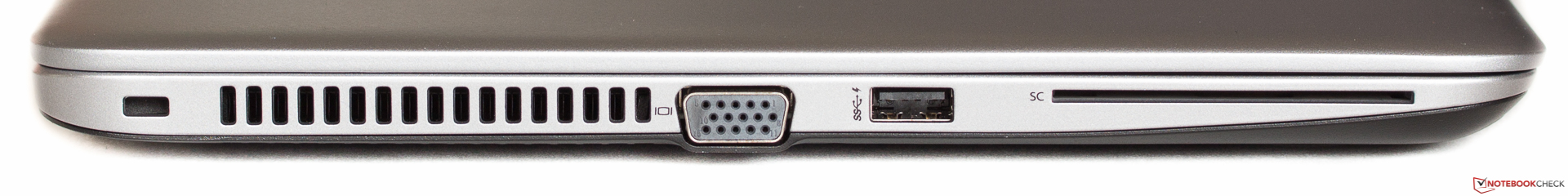

left side: Kensington, fan exhaust, VGA, USB 3.0, SmartCard

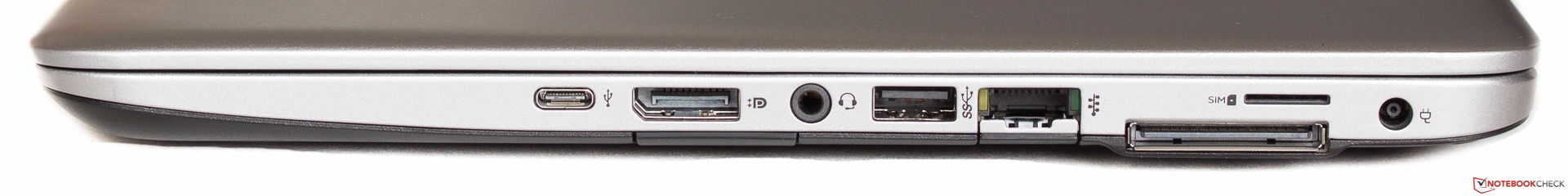

right side: USB 3.1 Type-C, DisplayPort, audio in/out, USB 3.0, Ethernet, docking port (bottom), SIM slot


326 cd/m²	337 cd/m²	320 cd/m²
328 cd/m²	366 cd/m²	326 cd/m²
338 cd/m²	338 cd/m²	344 cd/m²

Distribution of brightness

Chi Mei CMN14C0 tested with X-Rite i1Pro 2

Maximum: 366 cd/m² (Nits) Average: 335.9 cd/m²
Brightness Distribution: 87 %
Center on Battery: 346 cd/m²
Contrast: 563:1 (Black: 0.65 cd/m²)
ΔE Color 10.26 | 0.5-29.43 Ø4.91
ΔE Greyscale 11.51 | 0.5-98 Ø5.2

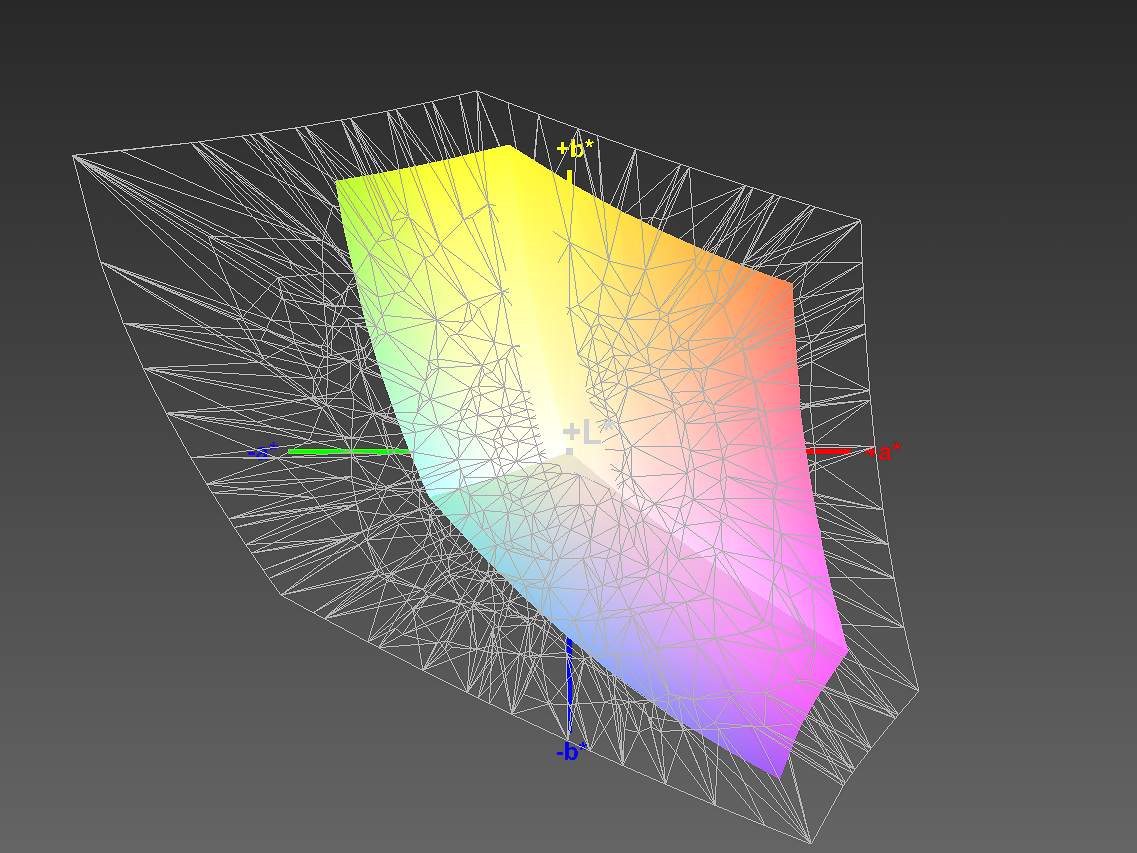

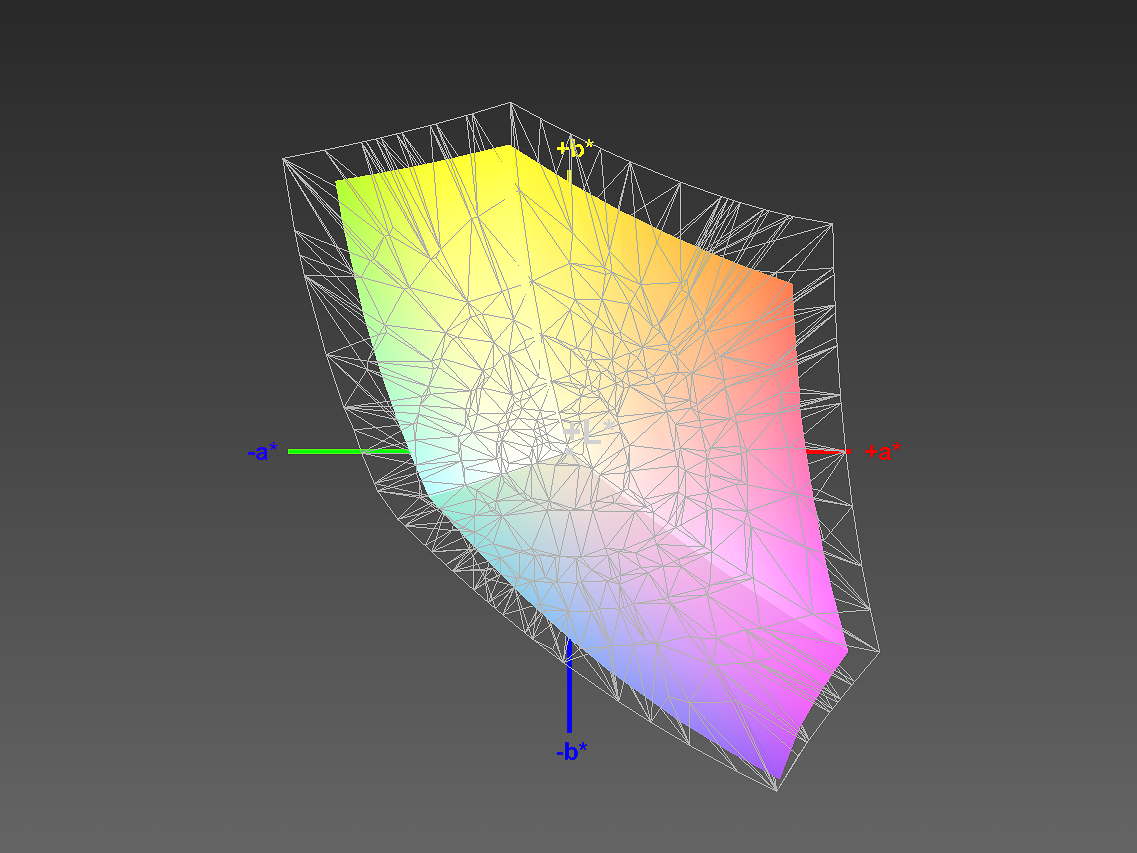

74% sRGB (Argyll 1.6.3 3D)
47% AdobeRGB 1998 (Argyll 1.6.3 3D)
50.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
73.7% sRGB (Argyll 2.2.0 3D)
48.93% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.4

Download ICC File (X-Rite i1Pro 2)

	HP EliteBook 840 G3 T9X59ET#ABD FHD 1920x1080 TN	Dell Latitude 14 7000 Series E7470 WQHD 2560x1440 IPS Touch	Lenovo ThinkPad T460s-20F9003SGE FHD 1920x1080 IPS	Lenovo ThinkPad T460s-20FA003GGE WQHD 2560x1440 IPS	HP EliteBook Folio 1040 G3 WQHD 2560x1440 IPS	Acer TravelMate P645-S-58HK FHD 1920x1080 IPS
Display		35%	-15%	37%	36%	30%
Display P3 Coverage	48.93	67.2 37%	41.65 -15%	68.7 40%	67.9 39%	66.7 36%
sRGB Coverage	73.7	95.9 30%	61.6 -16%	98.1 33%	96.8 31%	90.8 23%
AdobeRGB 1998 Coverage	50.5	69.3 37%	43.14 -15%	70.4 39%	70 39%	66.5 32%
Response Times		-10%	-8%	3%	-7%
Response Time Grey 50% / Grey 80% *	43 ?(20, 23)	48 ?(15, 33) -12%	42 ?(19.6, 22.4) 2%	35.6 ?(17.2, 18.4) 17%	46.4 ?(16.4, 30) -8%
Response Time Black / White *	25 ?(9, 16)	27 ?(7, 20) -8%	29.2 ?(16, 13.2) -17%	29.2 ?(14.4, 14.8) -17%	26.4 ?(6.8, 19.6) -6%
PWM Frequency	204 ?(90)			220 ?(90) 8%
Screen		46%	14%	29%	31%	25%
Brightness middle	366	380 4%	226 -38%	257 -30%	327 -11%	331 -10%
Brightness	336	354 5%	211 -37%	248 -26%	316 -6%	309 -8%
Brightness Distribution	87	81 -7%	89 2%	94 8%	87 0%	82 -6%
Black Level *	0.65	0.26 60%	0.22 66%	0.26 60%	0.35 46%	0.4 38%
Contrast	563	1462 160%	1027 82%	988 75%	934 66%	828 47%
Colorchecker dE 2000 *	10.26	3.11 70%	6.44 37%	4.59 55%	4.39 57%	4.07 60%
Greyscale dE 2000 *	11.51	4.35 62%	5.87 49%	6.38 45%	4.69 59%	4.86 58%
Gamma	2.4 ^92%	2.37 ^93%	2.37 ^93%	2.51 ^88%	2.15 ^102%	2.49 ^88%
CCT	12725 ^51%	6771 ^96%	6856 ^95%	6238 ^104%	7101 ^92%	6109 ^106%
Color Space (Percent of AdobeRGB 1998)	47	62 32%	39.58 -16%	65 38%	62.52 33%	59 26%
Color Space (Percent of sRGB)	74	96 30%	61.15 -17%	98 32%	96.71 31%	90.6 22%
Colorchecker dE 2000 max. *		6.73	17.18	9.72	7.27
Total Average (Program / Settings)		24% / 36%	-3% / 5%	23% / 25%	20% / 26%	28% / 27%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

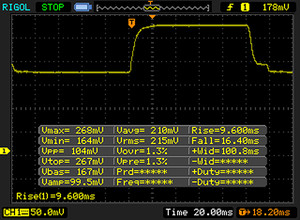

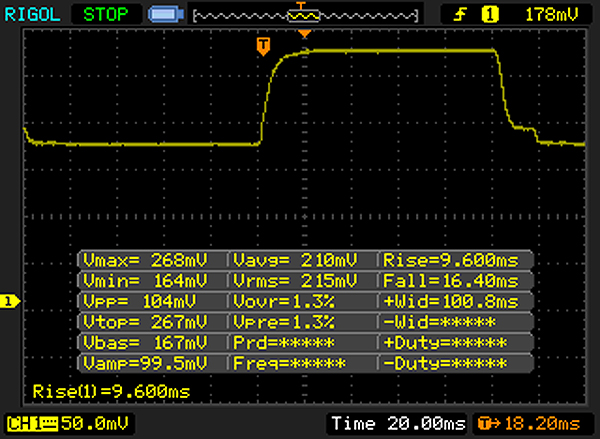

↔ Response Time Black to White
25 ms ... rise ↗ and fall ↘ combined	↗ 9 ms rise
25 ms ... rise ↗ and fall ↘ combined	↘ 16 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 55 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

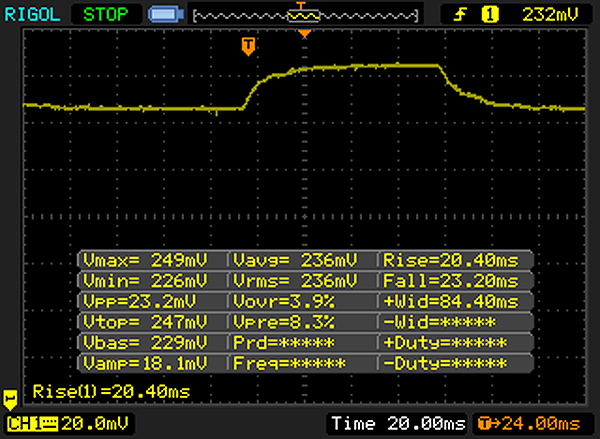

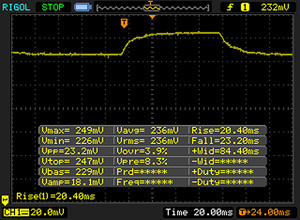

↔ Response Time 50% Grey to 80% Grey
43 ms ... rise ↗ and fall ↘ combined	↗ 20 ms rise
43 ms ... rise ↗ and fall ↘ combined	↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 68 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

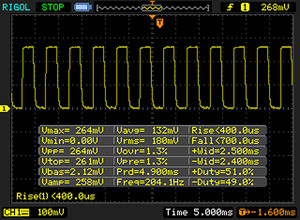

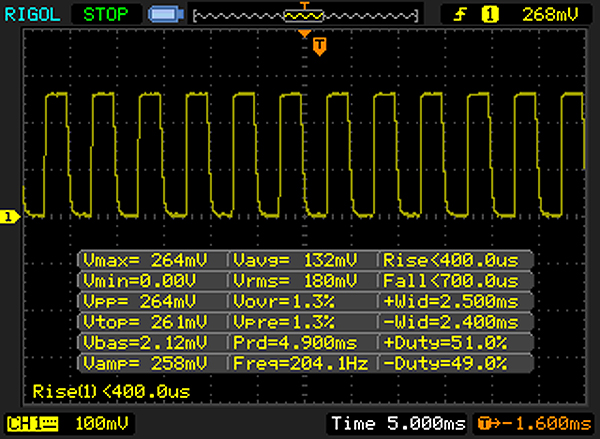

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

204 Hz

≤ 90 % brightness setting

The display backlight flickers at 204 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 204 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Single 64Bit (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	119 Points
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	142 Points +19%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	141 Points +18%
HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	124 Points +4%
Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD	91 Points -24%
CPU Multi 64Bit (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	322 Points
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	334 Points +4%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	347 Points +8%
HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	303 Points -6%
Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD	250 Points -22%

Cinebench R15 CPU Single 64Bit

119 Points

Cinebench R15 CPU Multi 64Bit

322 Points

Cinebench R15 OpenGL 64Bit

36.1 fps

Cinebench R15 Ref. Match 64Bit

97.9 %

Help

... in comparison

PCMark 8
Work Score Accelerated v2 (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	4275 Points
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	4543 Points +6%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	4442 Points +4%
HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	4241 Points -1%
Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD	3698 Points -13%
Home Score Accelerated v2 (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	3231 Points
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	3344 Points +3%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	3542 Points +10%
HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	3305 Points +2%
Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD	2919 Points -10%

PCMark 8 Home Score Accelerated v2		3231 points
PCMark 8 Work Score Accelerated v2		4275 points
Help

	HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
CrystalDiskMark 3.0		18%	285%	246%	10%
Read Seq	497.8	518 4%	1778 257%	1649 231%	506 2%
Write Seq	241.4	300.7 25%	1530 534%	1265 424%	343.2 42%
Read 4k	27.02	36.32 34%	51.3 90%	53.3 97%	28.73 6%
Write 4k	82.6	110.9 34%	139.3 69%	159.9 94%	66.4 -20%
Read 512	396	470.8 19%	1339 238%	1252 216%	336.8 -15%
Write 512	241.8	214 -11%	1506 523%	1244 414%	346.8 43%
AS SSD		7%	202%	223%	-2%
Seq Read	505	495.5 -2%	2039 304%	1839 264%	502 -1%
Seq Write	231.6	283.7 22%	1407 508%	1190 414%	324.6 40%
4K Read	25.24	30.91 22%	45.41 80%	47.72 89%	31.82 26%
4K Write	72.4	85.1 18%	114.4 58%	126.6 75%	58 -20%
4K-64 Read	362	336.1 -7%	968 167%	1858 413%	194.7 -46%
4K-64 Write	190.6	170 -11%	366 92%	344.3 81%	169.2 -11%
Total Average (Program / Settings)		13% / 12%	244% / 243%	235% / 234%	4% / 4%

CrystalDiskMark 3.0

AS SSD

Samsung SSD PM851 256 GB MZNTE256HMHP

Sequential Read: 497.8 MB/s

Sequential Write: 241.4 MB/s

512K Read: 396 MB/s

512K Write: 241.8 MB/s

4K Read: 27.02 MB/s

4K Write: 82.6 MB/s

4K QD32 Read: 388.5 MB/s

4K QD32 Write: 242.8 MB/s

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	1468 Points
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	1418 Points -3%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	1600 Points +9%
Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP	2380 Points +62%
HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	1539 Points +5%
Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD	1183 Points -19%

3DMark - 1280x720 Cloud Gate Standard Score (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	5346 Points
Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	5173 Points -3%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	6097 Points +14%
Lenovo ThinkPad T450s-20BWS1UT00 GeForce 940M, 5200U, Samsung SSD PM871 MZ7LN256HCHP	6134 Points +15%
HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	5471 Points +2%
Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD	5000 Points -6%

3DMark 11 Performance		1468 points
3DMark Cloud Gate Standard Score		5346 points
3DMark Fire Strike Score		751 points
Help

... in comparison

BioShock Infinite | The Witcher 3 | Rise of the Tomb Raider

BioShock Infinite - 1280x720 Very Low Preset (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	44 fps
HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	47.6 fps +8%
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	55.7 fps +27%
Dell XPS 13 2016 i7 256GB QHD HD Graphics 520, 6500U, Samsung PM951 NVMe MZ-VLV256D	51.4 fps +17%
Dell Latitude 14 E5470 HD Graphics 520, 6300U, Liteon L8H-256V2G	36.4 fps -17%

The Witcher 3 - 1024x768 Low Graphics & Postprocessing (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	8.3 fps
HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	9.7 fps +17%

Rise of the Tomb Raider - 1024x768 Lowest Preset (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	10.9 fps
Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	14.1 fps +29%
Dell Latitude 14 E5470 HD Graphics 520, 6300U, Liteon L8H-256V2G	13 fps +19%

	low	med.	high
BioShock Infinite (2013)	44	22.6	18.5
The Witcher 3 (2015)	8.3	6.1
Rise of the Tomb Raider (2016)	10.9	8

	HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
Noise		6%	6%	8%	6%
off / environment *	31.2	31.2 -0%	29.2 6%	29.1 7%
Idle Minimum *	31.2	31.2 -0%	29.2 6%	29.1 7%	29.6 5%
Idle Average *	32.1	31.2 3%	29.2 9%	29.1 9%	29.6 8%
Idle Maximum *	33.1	31.2 6%	29.2 12%	29.1 12%	30.2 9%
Load Average *	36.2	31.9 12%	33.7 7%	32.6 10%	35.6 2%
Load Maximum *	37.8	31.9 16%	38.5 -2%	37.8 -0%	35.9 5%

* ... smaller is better

Noise Level

Idle		31.2 / 32.1 / 33.1 dB(A)
DVD		0 / dB(A)
Load		36.2 / 37.8 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1 Arta (15 cm distance) environment noise: 31.2 dB(A)

	HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
Heat		1%	-9%	-21%	-12%
Maximum Upper Side *	37	38.2 -3%	40.8 -10%	43.2 -17%	41.6 -12%
Maximum Bottom *	37.1	36.5 2%	40.3 -9%	47.1 -27%	41.7 -12%
Idle Upper Side *	25.3	25.1 1%	27.6 -9%	30.5 -21%	30.6 -21%
Idle Bottom *	26.6	25.8 3%	28.7 -8%	31.5 -18%	27.5 -3%

* ... smaller is better

Max. Load

Idle


24 °C	24.7 °C	25.3 °C
23.7 °C	24.8 °C	25.2 °C
23.5 °C	23.6 °C	24.7 °C

Maximum: 25.3 °C
Average: 24.4 °C


26.6 °C	26 °C	25.1 °C
26.1 °C	26 °C	24.8 °C
25.2 °C	24.9 °C	24.2 °C

Maximum: 26.6 °C
Average: 25.4 °C

Power Supply (max.) 30.2 °C | Room Temperature 21.4 °C | FIRT 550-Pocket

(+) The average temperature for the upper side under maximal load is 31.3 °C / 88 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 37 °C / 99 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 37.1 °C / 99 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 24.4 °C / 76 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.2 °C / -0.3 F).

	HP EliteBook 840 G3 T9X59ET#ABD HD Graphics 520, 6500U, Samsung SSD PM851 256 GB MZNTE256HMHP	Dell Latitude 14 7000 Series E7470 HD Graphics 520, 6600U, Samsung SSD PM851 M.2 2280 256GB	Lenovo ThinkPad T460s-20FA003GGE HD Graphics 520, 6600U, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)	HP EliteBook Folio 1040 G3 HD Graphics 520, 6300U, Samsung SM951 MZVPV256HDGL m.2 PCI-e	Acer TravelMate P645-S-58HK HD Graphics 5500, 5200U, Kingston RBU-SNS8100S3256GD
Power Consumption		-26%	-19%	-47%	-1%
Idle Minimum *	3.8	5.1 -34%	3.8 -0%	6.3 -66%	3.2 16%
Idle Average *	6.3	8.5 -35%	7.1 -13%	9.4 -49%	6.3 -0%
Idle Maximum *	6.8	10.1 -49%	7.8 -15%	10.1 -49%	8.6 -26%
Load Average *	34.4	35.2 -2%	36.3 -6%	33.3 3%	30.3 12%
Load Maximum *	28.3	31 -10%	46 -63%	49.5 -75%	30.4 -7%

* ... smaller is better

Power Consumption

Off / Standby	0.36 / 0.6 Watt
Idle	3.8 / 6.3 / 6.8 Watt
Load	34.4 / 28.3 Watt


Key: min: , med: , max: Metrahit Energy

Battery Runtime
Reader / Idle (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD	1020 min
Lenovo ThinkPad T460s-20FA003GGE	833 min
HP EliteBook Folio 1040 G3	530 min
Acer TravelMate P645-S-58HK	1143 min
WiFi v1.3 (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD	453 min
Dell Latitude 14 7000 Series E7470	346 min
Lenovo ThinkPad T460s-20FA003GGE	340 min
HP EliteBook Folio 1040 G3	309 min
Acer TravelMate P645-S-58HK	535 min
Load (sort by value)
HP EliteBook 840 G3 T9X59ET#ABD	146 min
Dell Latitude 14 7000 Series E7470	112 min
Lenovo ThinkPad T460s-20FA003GGE	62 min
HP EliteBook Folio 1040 G3	131 min
Acer TravelMate P645-S-58HK	113 min

Legend

HP EliteBook 840 G3 T9X59ET#ABD Intel Core i7-6500U, Intel HD Graphics 520, Samsung SSD PM851 256 GB MZNTE256HMHP

Dell Latitude 14 7000 Series E7470 Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD PM851 M.2 2280 256GB

Lenovo ThinkPad T460s-20FA003GGE Intel Core i7-6600U, Intel HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512)

HP EliteBook Folio 1040 G3 Intel Core i5-6300U, Intel HD Graphics 520, Samsung SM951 MZVPV256HDGL m.2 PCI-e

Acer TravelMate P645-S-58HK Intel Core i5-5200U, Intel HD Graphics 5500, Kingston RBU-SNS8100S3256GD

Battery Runtime

Idle (without WLAN, min brightness)		17h 00min
WiFi Websurfing		7h 33min
Load (maximum brightness)		2h 26min

Pros

+ 坚固的机身

+ 优秀的工艺

+ 出色的输入设备

+ 优秀的应用程序性能

+ 长电池续航

+ 空余M.2插槽

+ 可支持LTE/3G模组

+ 三年质保

Cons

- 屏幕对比度低，可视角度范围有限

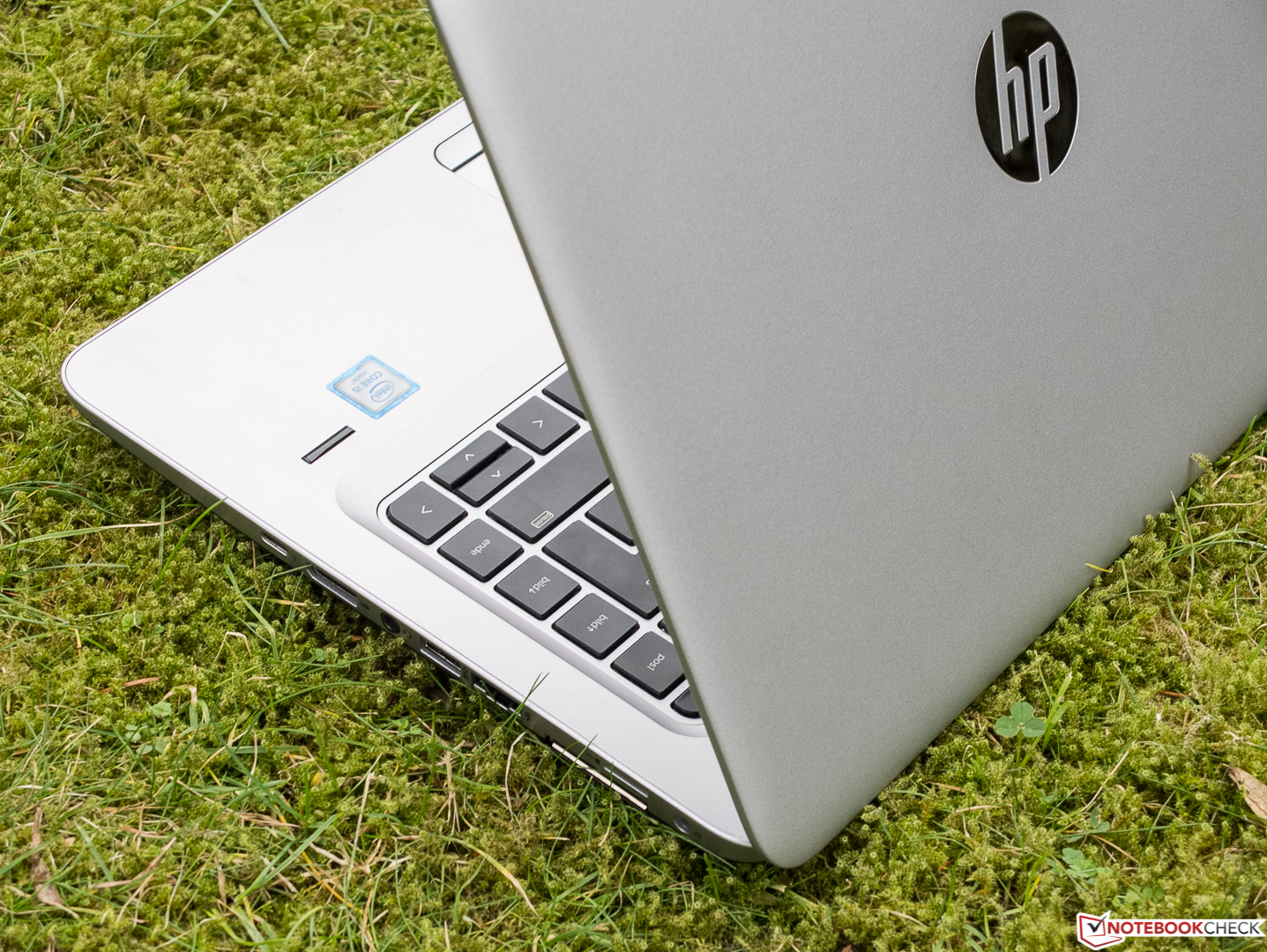

In review: HP EliteBook 840 G3. Test model courtesy of HP Germany

遗憾的是，惠普没有带来一台与价码相称的全面产品。它野心十足，但我们认为它TN面板的有限可视角度范围、较低的对比度和色彩准确度都不太符合这个价位，这也影响了它的得分。尽管采用了镜面触控屏幕，Latitude E7470得到了86%的分数，而惠普840 G3只有82%。它的摄像头表现也一般，连接性也不算出色。这都是840 G3作为商务设备没有得到很好的分数，排名落后于Latitude E7470的原因。

这台EliteBook当然不算差，从我们列出的它的优势中就可以看到。电池续航，可选拓展坞，升级维护空间，优秀的输入设备和充足的性能——这台14寸设备的优点数不胜数。搭配2560x1440像素屏幕的3K版本840 G3有可能得到更好的分数，因为生产商为它搭配了非触控的IPS屏幕。

它的最大对手是售价相当的Latitude 14 7000 Series E7470（得分89%）和ThinkPad T460s（得分91%）。这两款14寸设备都可以自定义配置。戴尔和联想已经为全高清机型搭配了IPS面板，相比840 G3这是很大的一个优势。Latitude E7470和ThinkPad T460s没有提供2.5寸SATA硬盘槽，而840 G3是唯一同时提供了SATA硬盘槽和M.2固态硬盘的设备。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

HP EliteBook 840 G3 T9X59ET#ABD - 04/18/2016 v5.1 ^(old)
Sebastian Jentsch

Chassis

94 / 98 → 96%

Keyboard

89%

Pointing Device

88%

Connectivity

66 / 80 → 83%

Weight

68 / 20-67 → 100%
