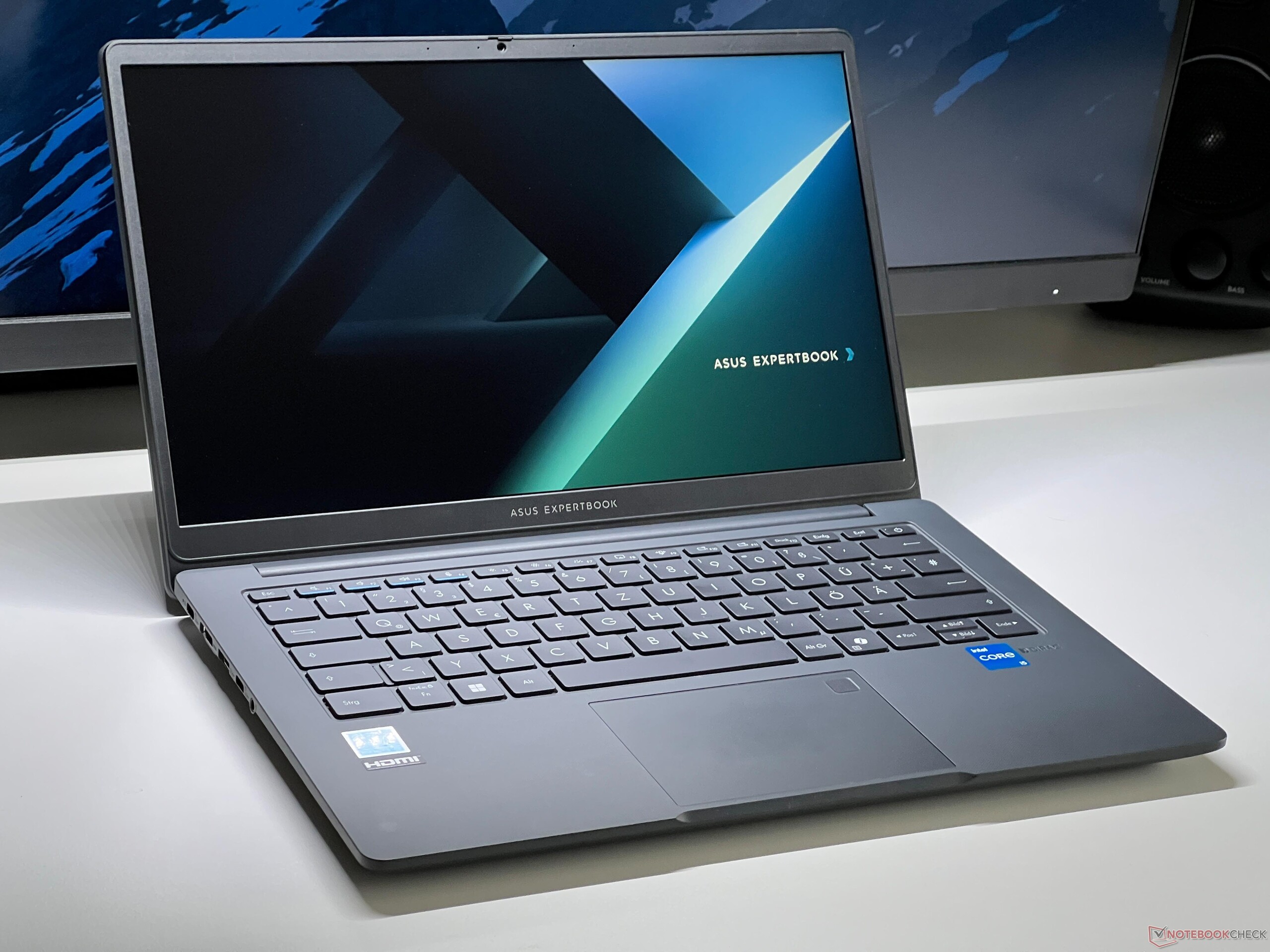

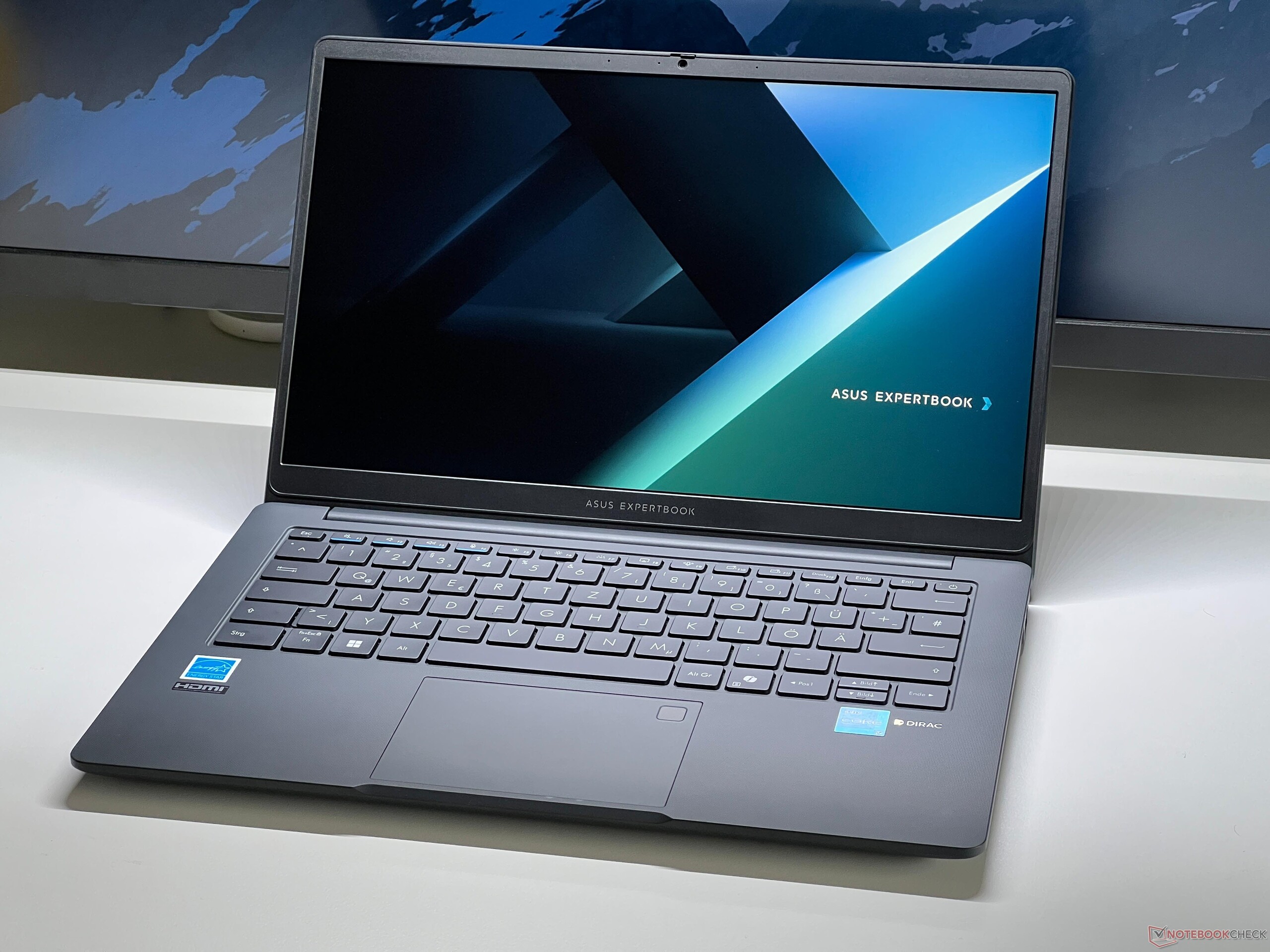

华硕 ExpertBook B1 评论--配备 Win 11 Pro 和 3 年保修的 14 英寸办公笔记本电脑，售价 700 美元
键盘坚固，耐力不足。
华硕新推出的 ExpertBook B1 是一款经济实惠的 14 英寸办公笔记本电脑，配备英特尔酷睿 i5 处理器和可升级内存。它还包括 Win 11 Pro 和 3 年保修服务，但在运行时间方面需要做出一些妥协。Andreas Osthoff, 👁 Andreas Osthoff (translated by DeepL / Ninh Duy) Published 🇺🇸 🇩🇪 ...
结论 - ExpertBook B1 14 是一款简单的办公笔记本电脑
新款 14 英寸 ExpertBook B1 是一款简单的办公笔记本电脑，可满足所有基本要求。其中包括足够的 CPU 性能、快速固态硬盘和 16 GB 内存（可轻松扩展）。此外，它还配备了足够多的连接接口，但你不得不放弃现代接口。它的哑光 IPS 显示屏总体上适合工作，但只能覆盖不到 60% 的小 sRGB 色彩空间，因此色彩显得有些苍白。不过，由于笔记本电脑在办公环境中可能会经常与外接显示器一起使用，这也是可以接受的。它的背光键盘也给我们留下了深刻的印象。
即使在执行简单任务时，该设备的单风扇也会很快启动，6-7 小时的电池续航时间也不是很长。它的扬声器也不是特别好。另一方面，该笔记本电脑的三年保修和 Windows 11 Pro 绝对是一大优势。
Pros
Cons
可能的替代品比较
Image | Model / Review | Price | Weight | Height | Display |
|---|---|---|---|---|---|
1. 80.9%  | Asus ExpertBook B1 B1403CVA Intel Core i5-13420H ⎘ Intel UHD Graphics Xe G4 48EUs ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $25.99 65W 45W Charger Fit for Asus... 2. $15.98 Puccy 2 Pack Film Protector,... 3. $20.98 Vaxson 2-Pack Clear Protecto... List Price: 700€ | 1.5 kg | 19.7 mm | 14.00" 1920x1080 157 PPI IPS |
2. 85.3%  | Lenovo ThinkPad L14 G5 21L50014GE AMD Ryzen 5 7535U ⎘ AMD Radeon 660M ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $849.98 Lenovo ThinkPad L14 14" FHD ... 2. $629.99 Lenovo Thinkpad E14 G6 Busin... 3. $749.99 Lenovo ThinkPad L14 Gen 3 To... List Price: 1019 Euro | 1.6 kg | 23 mm | 14.00" 1920x1200 162 PPI IPS LED |
3. 82% v7 (old)  | SCHENKER Work 14 Base Intel Core i5-1235U ⎘ Intel Iris Xe Graphics G7 80EUs ⎘ 16 GB Memory, 500 GB SSD | Amazon: 1. $12.99 Vaxson 2-Pack Protector Film... 2. $15.99 Vaxson 2-Pack Film Protector... 3. $15.98 Puccy 2 Pack Film Protector,... List Price: 720€ | 1.3 kg | 20.2 mm | 14.00" 1920x1080 157 PPI IPS |
4. 84.8%  | Acer Swift Go 14 AI Qualcomm Snapdragon X Plus X1P-42-100 ⎘ Qualcomm SD X Adreno X1-45 1.7 TFLOPS ⎘ 16 GB Memory, 512 GB SSD | Amazon: 1. $682.00 Acer Swift Go 14 Intel Evo T... 2. $799.99 Acer Swift Go 14 AI Copilot+... 3. $849.99 Acer Swift Go 14 Intel Evo T... List Price: 1149 Euro | 1.3 kg | 16.55 mm | 14.50" 2560x1600 208 PPI IPS |
5. 84%  | Lenovo ThinkPad E14 Gen 6 21M3002KGE AMD Ryzen 7 7735HS ⎘ AMD Radeon 680M ⎘ 32 GB Memory, 1024 GB SSD | Amazon: $789.99 List Price: 1015 Euro | 1.6 kg | 21.5 mm | 14.00" 1920x1200 162 PPI IPS LED |
华硕的 ExpertBook B1 系列是经济实惠的办公笔记本电脑，可满足所有基本办公需求。它们提供三年保修和 Windows 11 Pro 操作系统。今天，我们测试的是 14 英寸的 ExpertBook B1 B1403CVA 机型，售价约 700 美元，配备哑光 IPS 显示屏、 英特尔酷睿 i5-13420H(猛禽湖）、16 GB 内存和 512 GB 固态硬盘。不久将对配备 AMD Ryzen 处理器的 15 英寸大机型进行评测。
规格

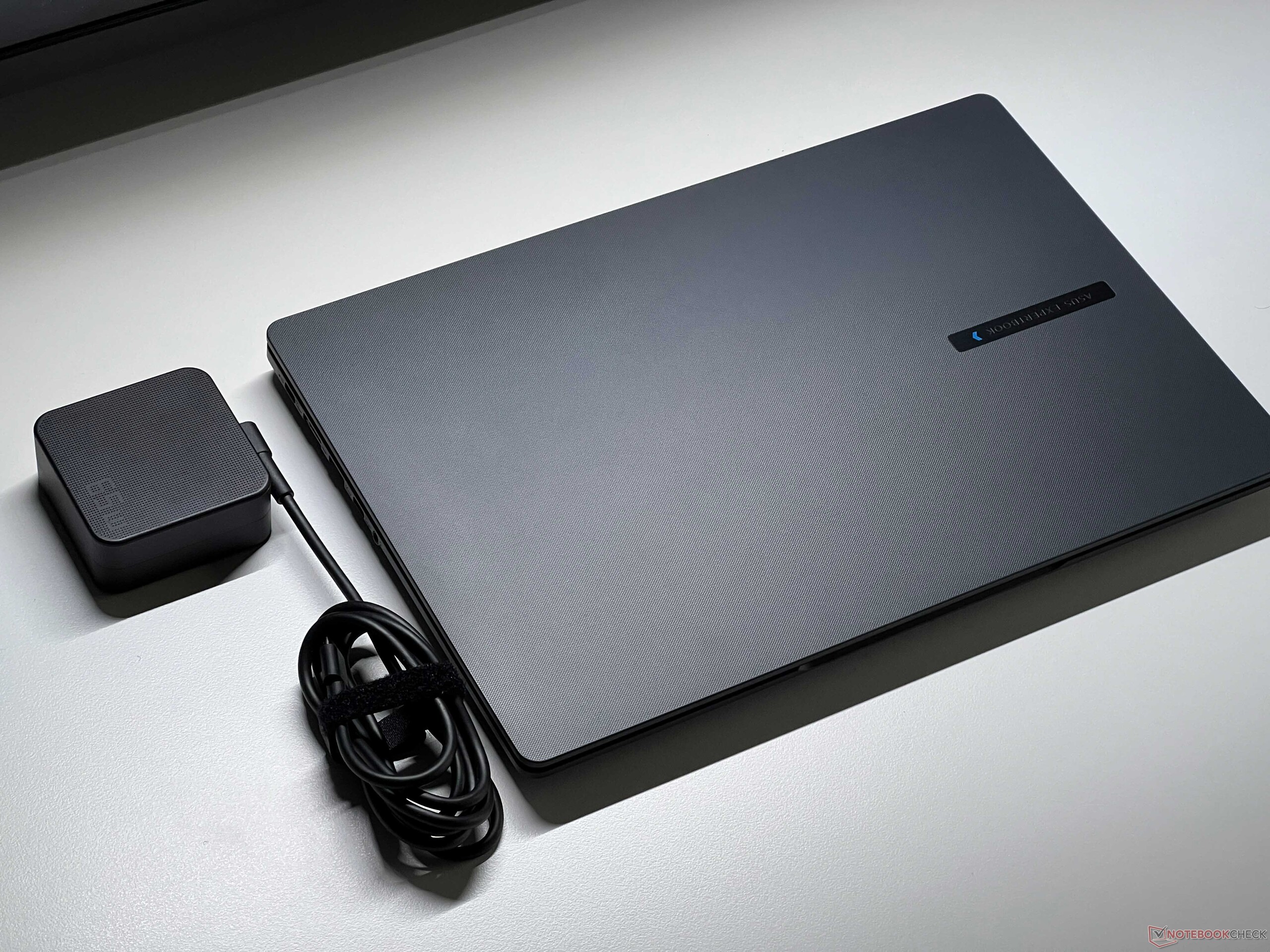

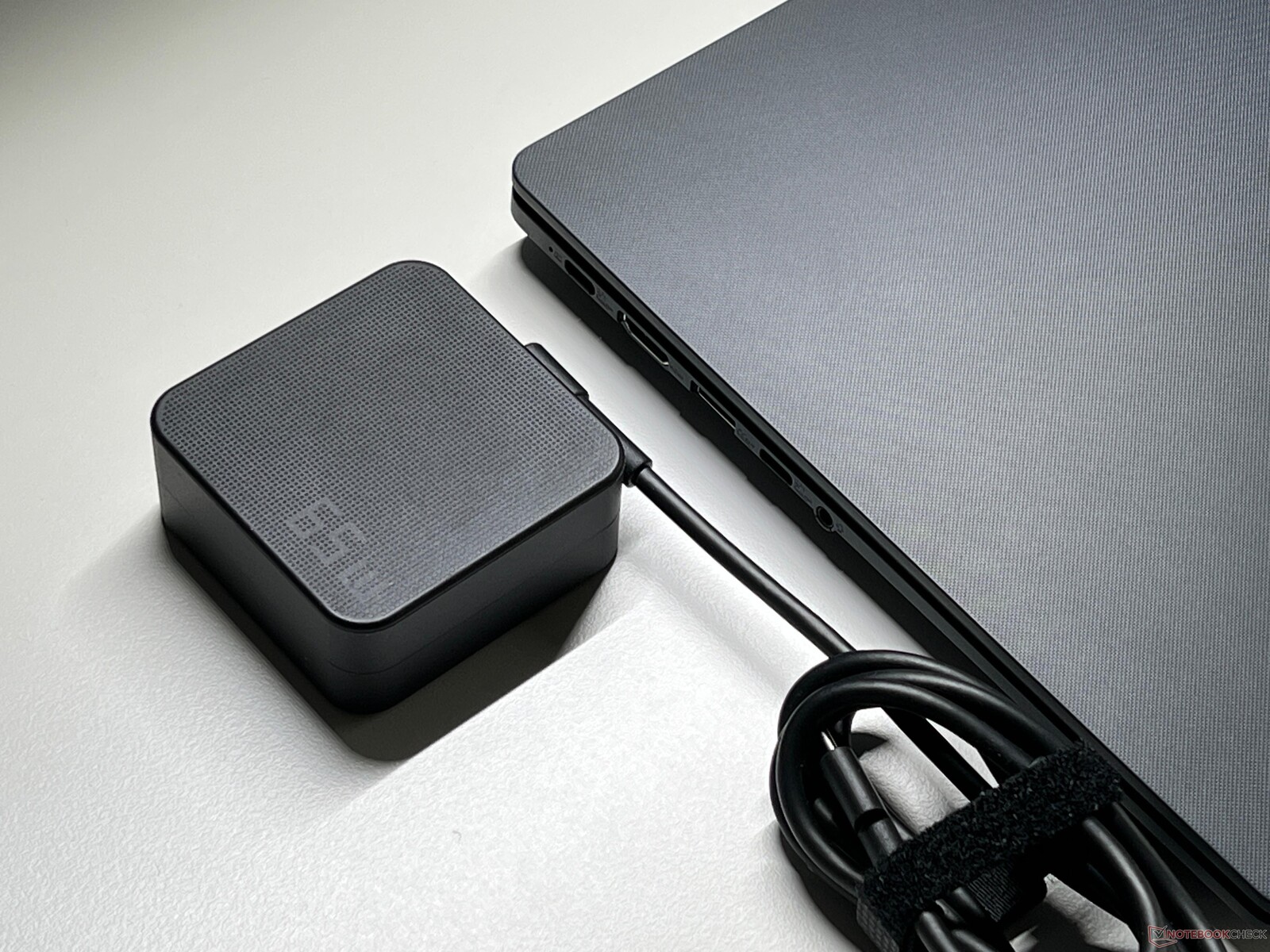

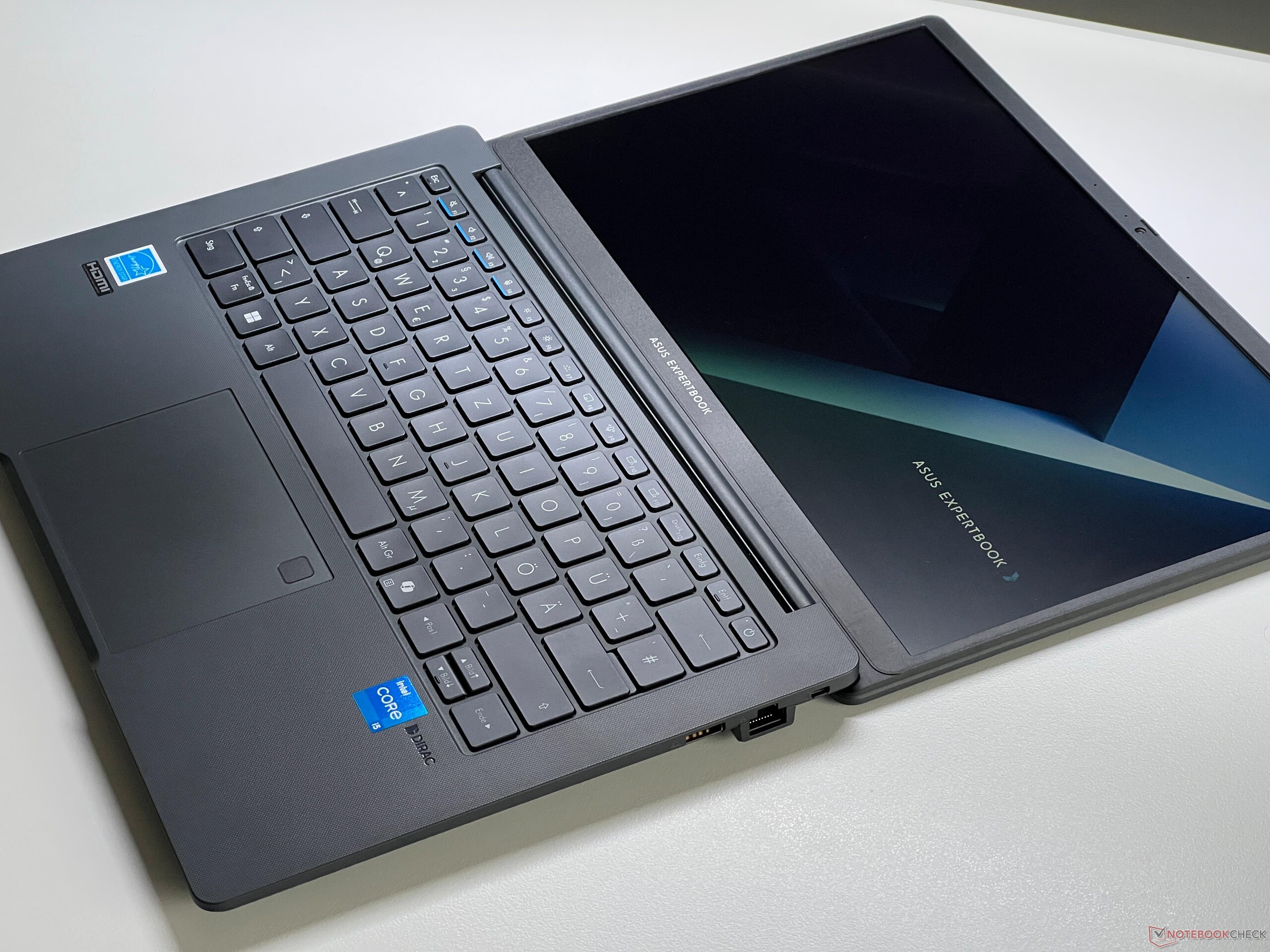

外壳和连接

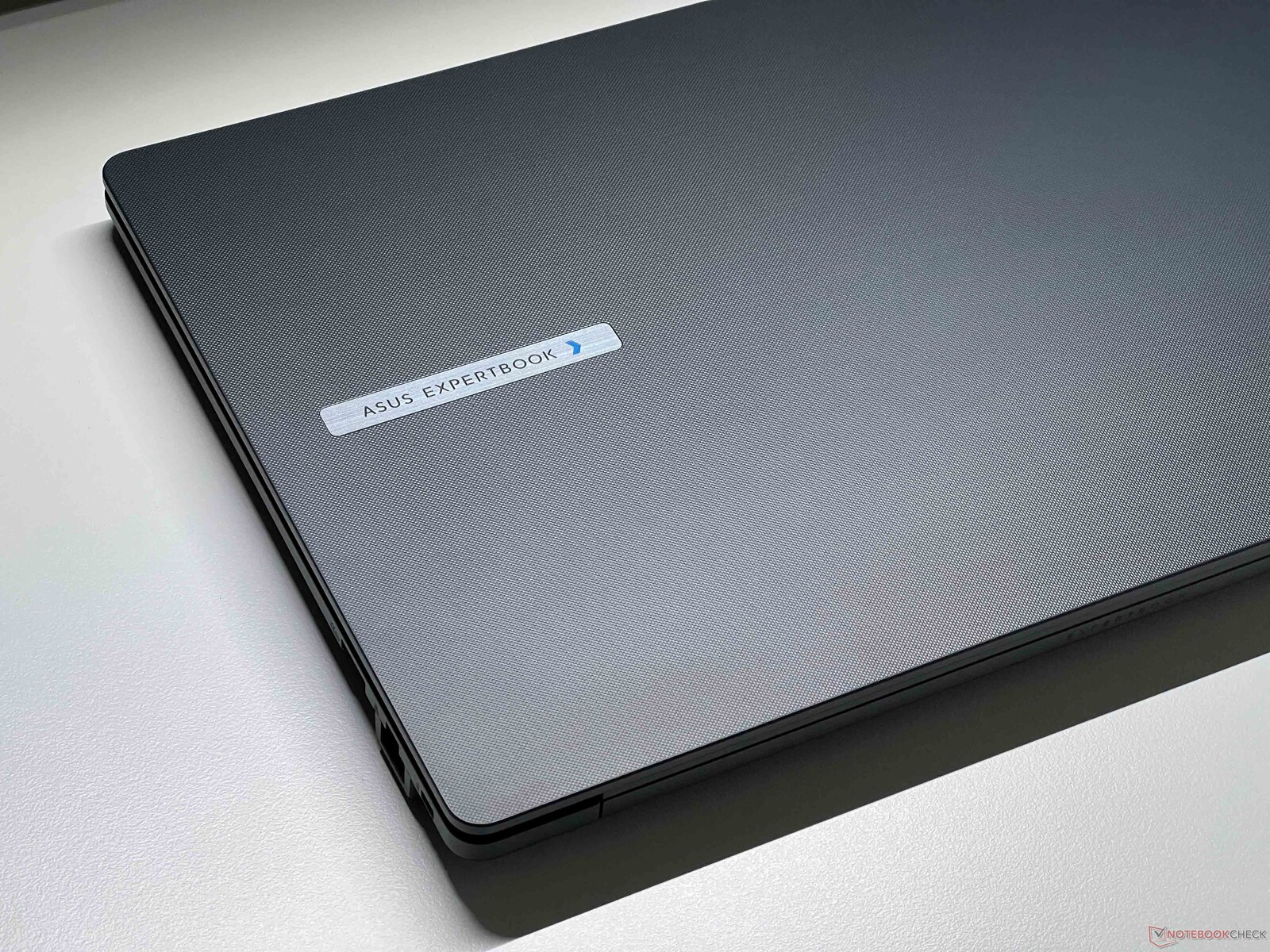

这款笔记本电脑的外壳设计非常实用，深灰色的配色整体非常低调。不过，由于该设备仅使用了略微粗糙的塑料，其低廉的价格也让人眼前一亮。这也导致其表面很难清洁。ExpertBook 厚度接近 2 厘米，并不算特别薄，但其圆润的底部至少使设备看起来相当纤薄。它的表面处理还算不错，但稳定性却很一般。尤其是中间的键盘区域会有明显的凹陷，底座也很容易扭曲。屏幕盖相当稳定，我们只有在施加很大压力时才能造成图像错误。铰链有点太紧，单手无法打开屏幕盖，但在调整屏幕角度时仍会有轻微反弹。其最大开启角度为 180 度。

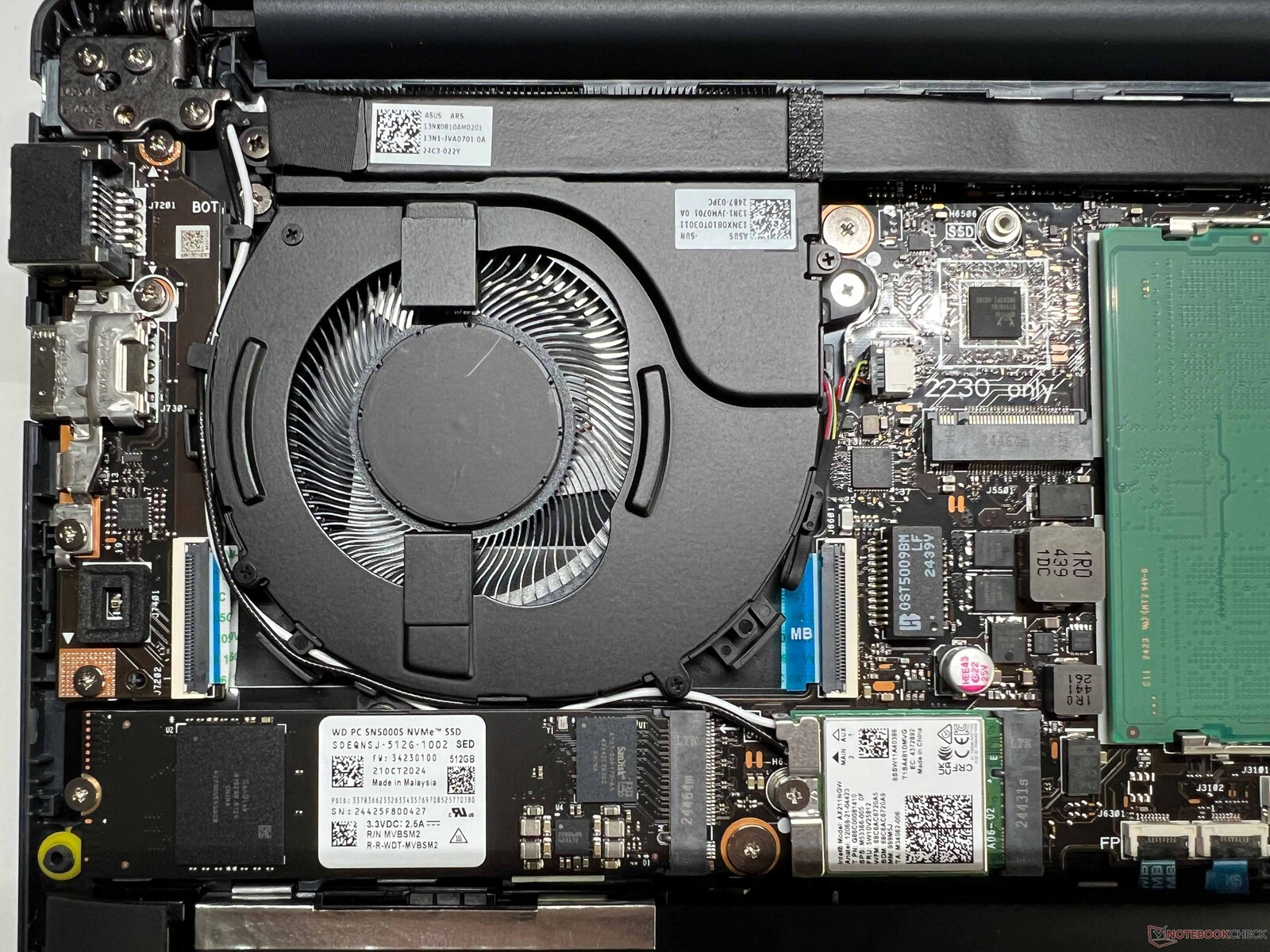

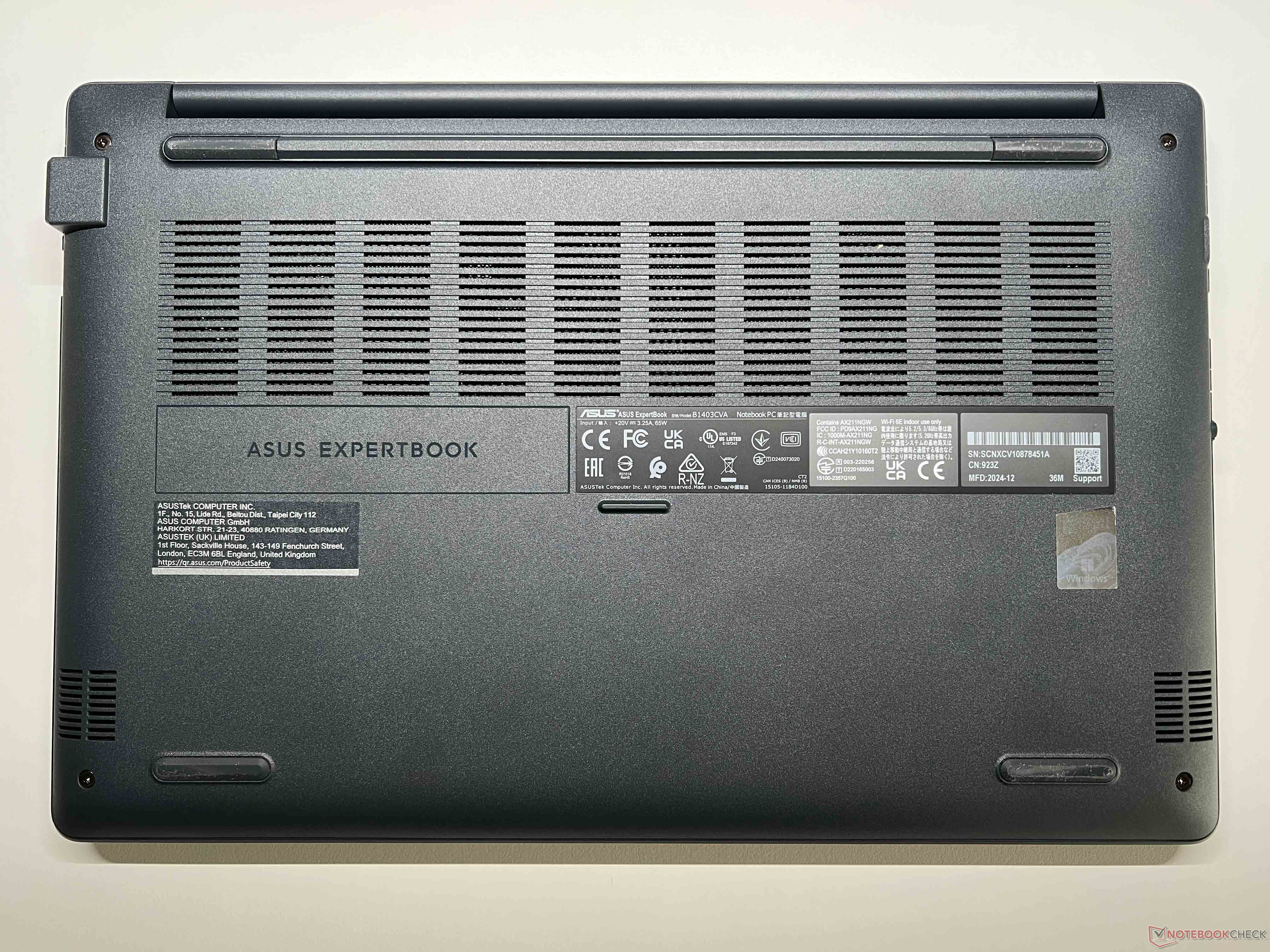

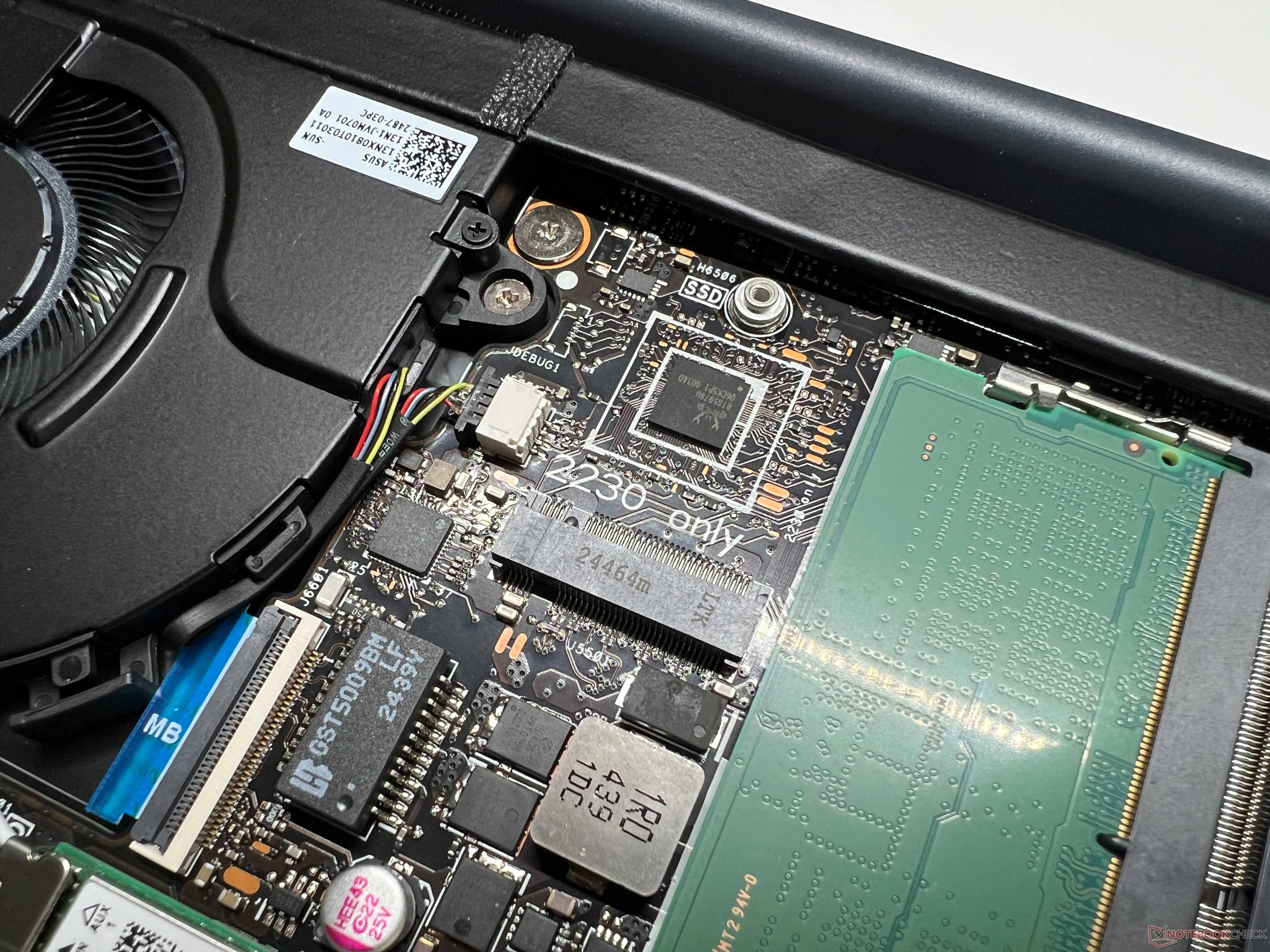

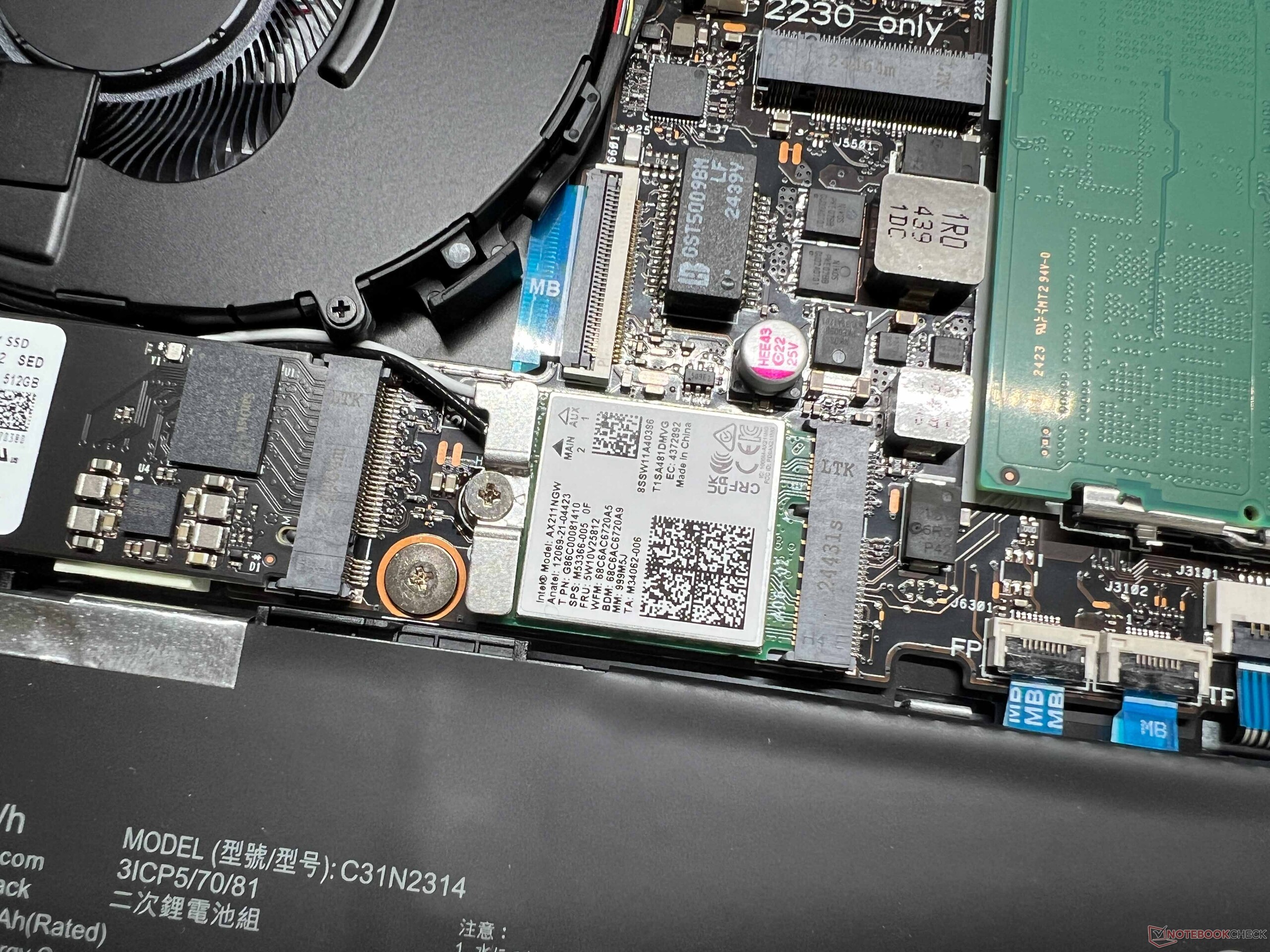

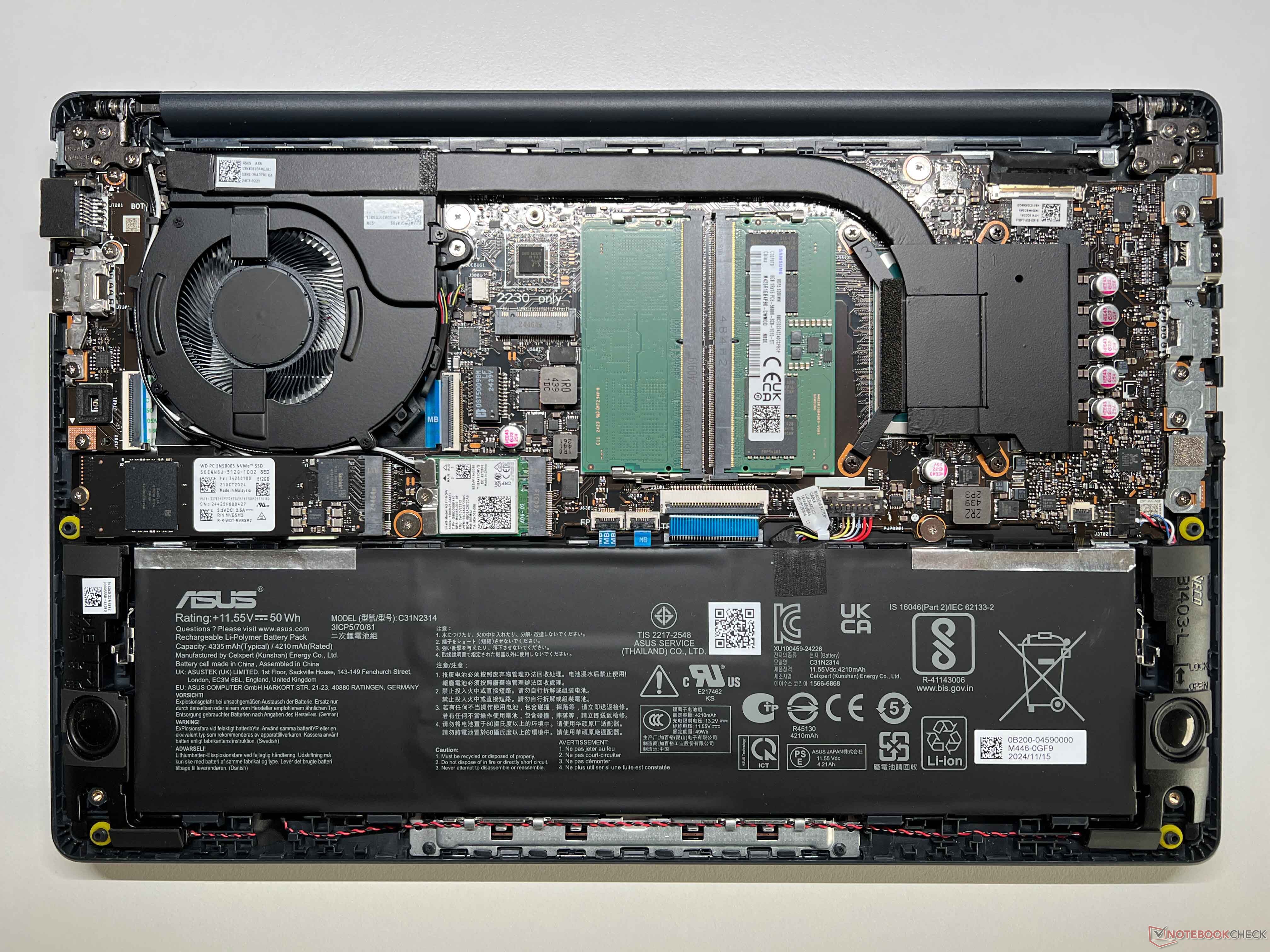

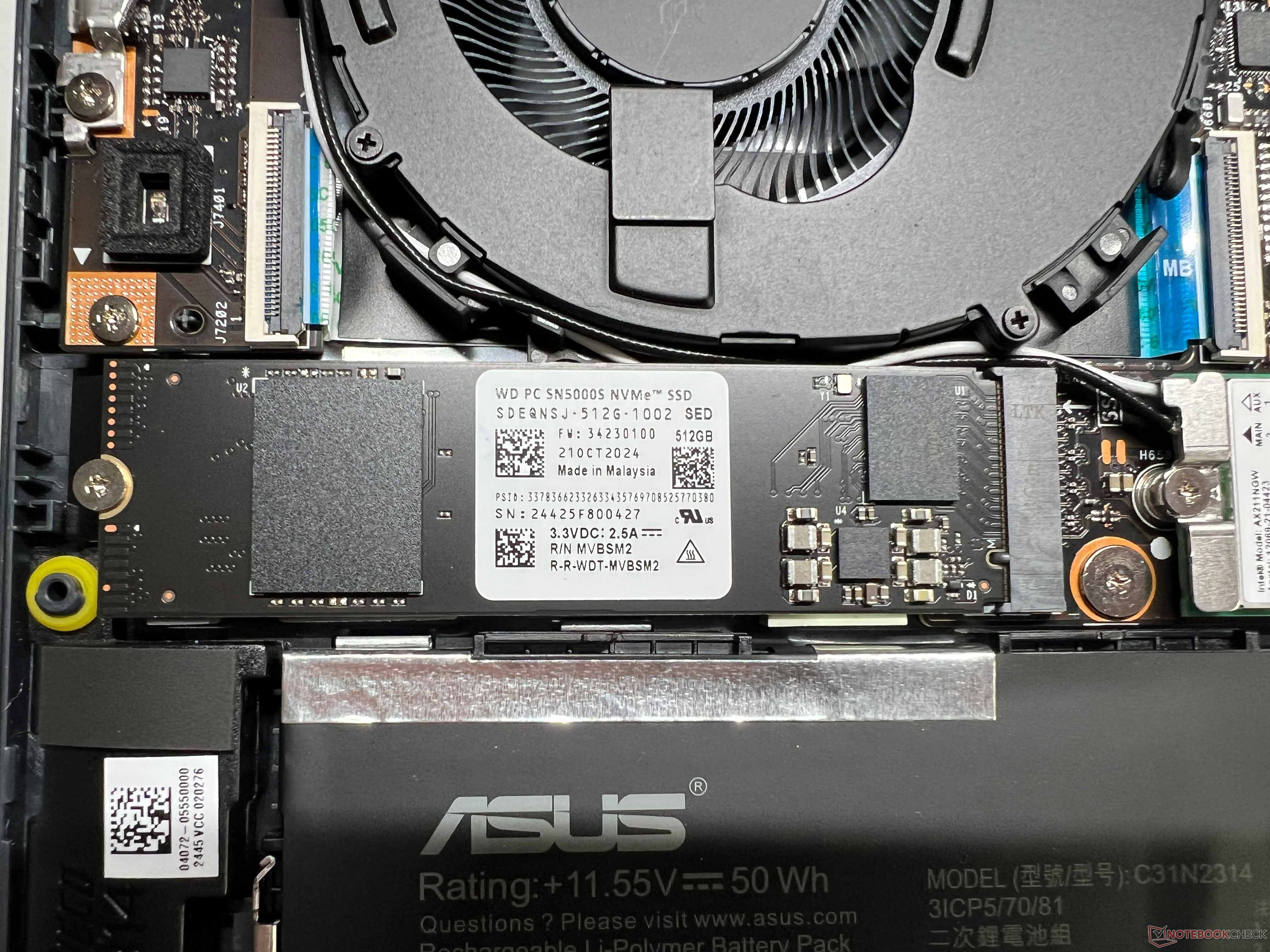

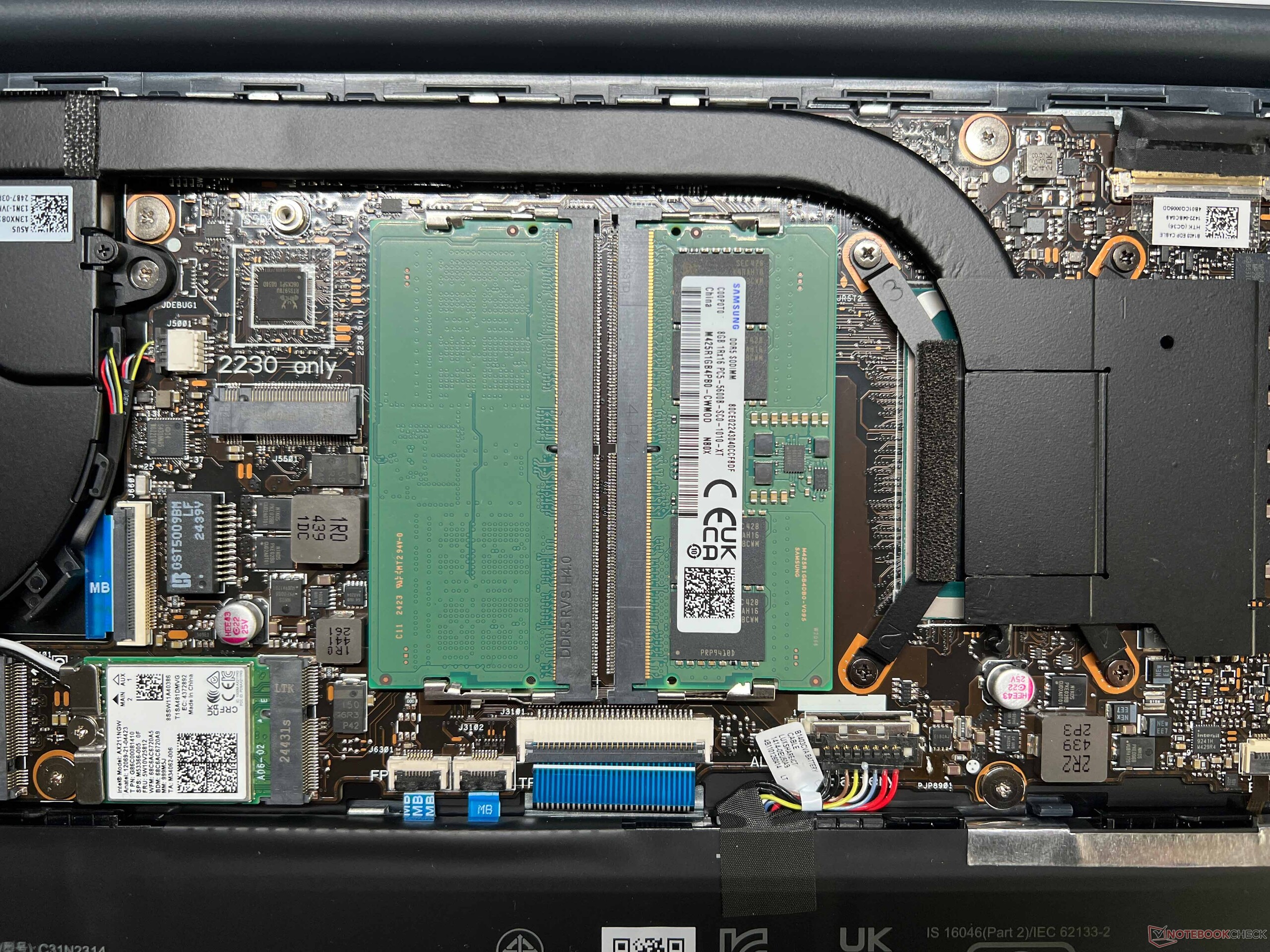

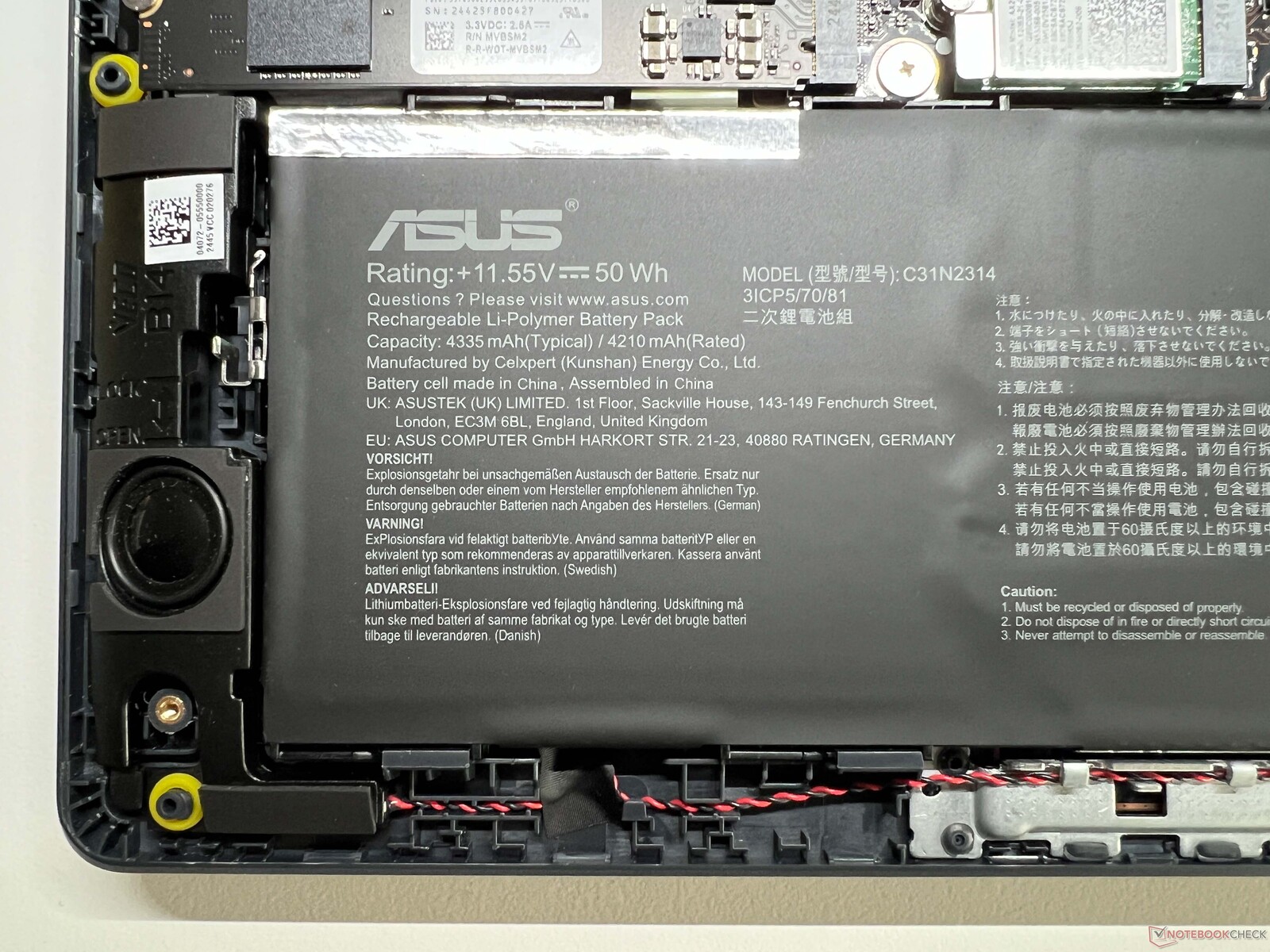

下机箱盖可以轻松拆卸，总的来说，由于只有处理器是焊接上去的，因此笔记本电脑的维护选项非常好。所有其他组件（内存、固态硬盘、无线局域网模块、电池）都可以在必要时更换。除了主要的 M.2 2280 固态硬盘外，还有一个紧凑型 M.2 2230 固态硬盘插槽。

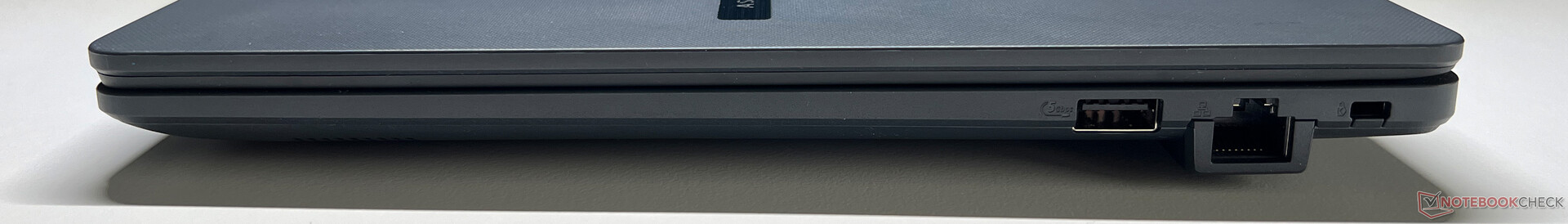

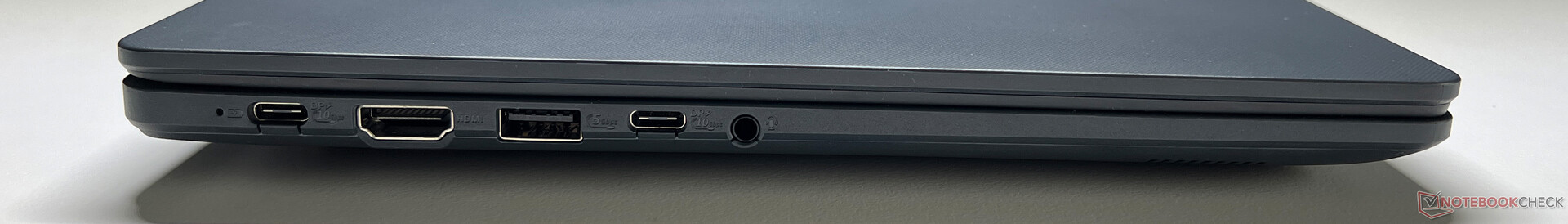

所有重要的连接都在机身上，包括 USB-C、USB-A、HDMI 和千兆以太网，但缺少 USB 4.0 或 Thunderbolt 等现代标准。安装的英特尔 Wi-Fi 模块（AX211）支持 Wi-Fi 6E 标准，性能良好，但 1080p 网络摄像头（带机械快门）的拍照效果不是特别好，而且不支持 Windows Studio 特效。它不是 Copilot+ 笔记本电脑，但仍可提供实时字幕。
| Networking | |
| Asus ExpertBook B1 B1403CVA | |
| iperf3 transmit AXE11000 | |
| iperf3 receive AXE11000 | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| iperf3 transmit AXE11000 | |
| iperf3 receive AXE11000 | |
| iperf3 transmit AXE11000 6GHz | |
| iperf3 receive AXE11000 6GHz | |
| SCHENKER Work 14 Base | |
| iperf3 transmit AXE11000 | |
| iperf3 receive AXE11000 | |
| Acer Swift Go 14 AI | |
| iperf3 transmit AXE11000 6GHz | |
| iperf3 receive AXE11000 6GHz | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| iperf3 transmit AXE11000 | |
| iperf3 receive AXE11000 | |
| iperf3 transmit AXE11000 6GHz | |
| iperf3 receive AXE11000 6GHz | |
可持续性
华硕没有提供任何有关其环保标准、再生材料使用情况或笔记本电脑生产过程中二氧化碳排放量的信息。华硕笔记本电脑的包装由 95% 的纸板组成，使用了 90% 的可回收材料，其本身也是 100% 可回收的。

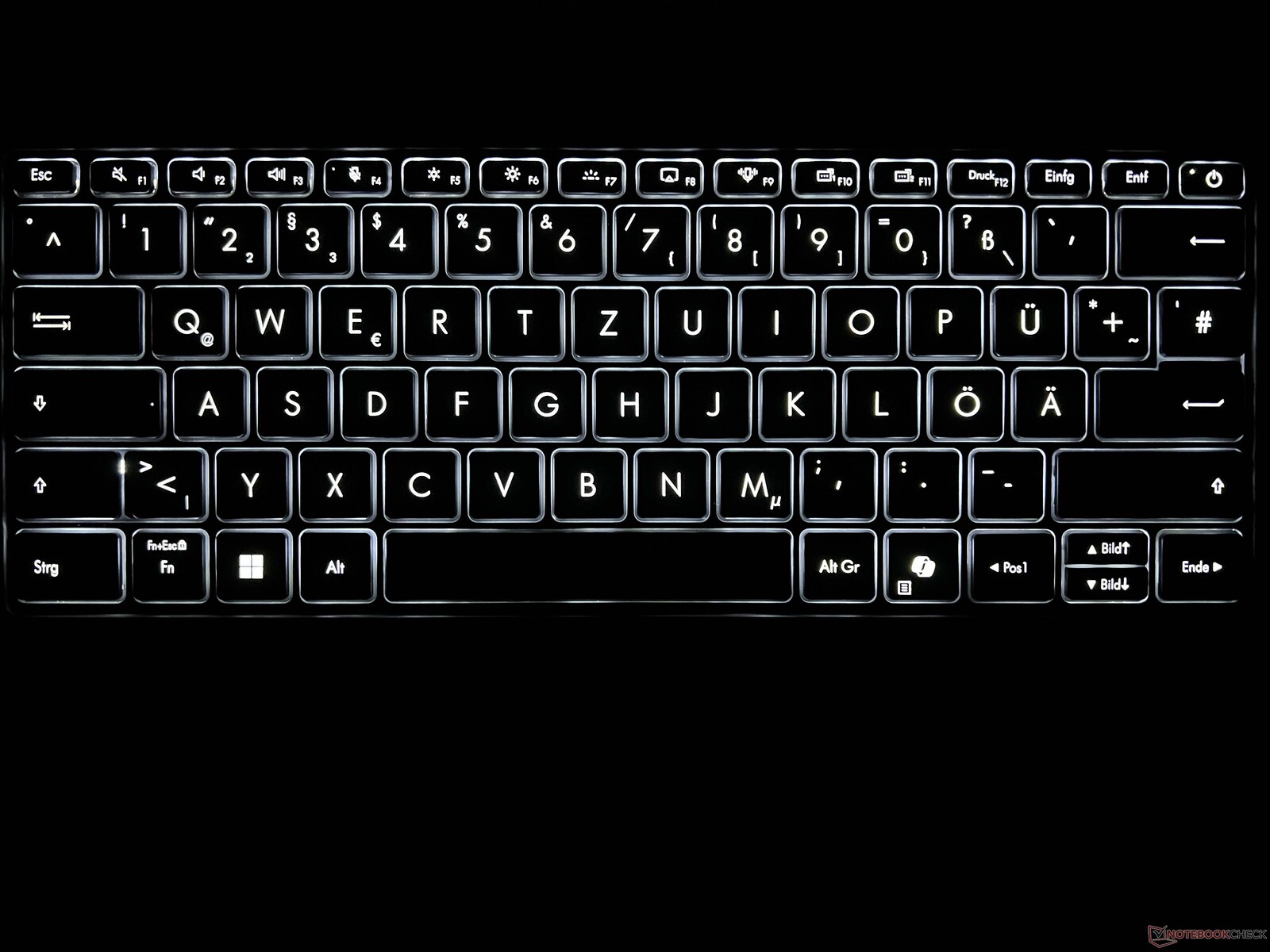

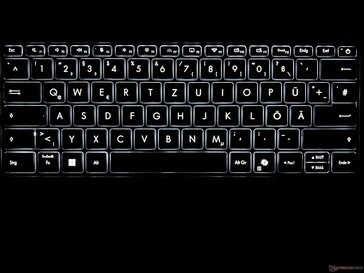

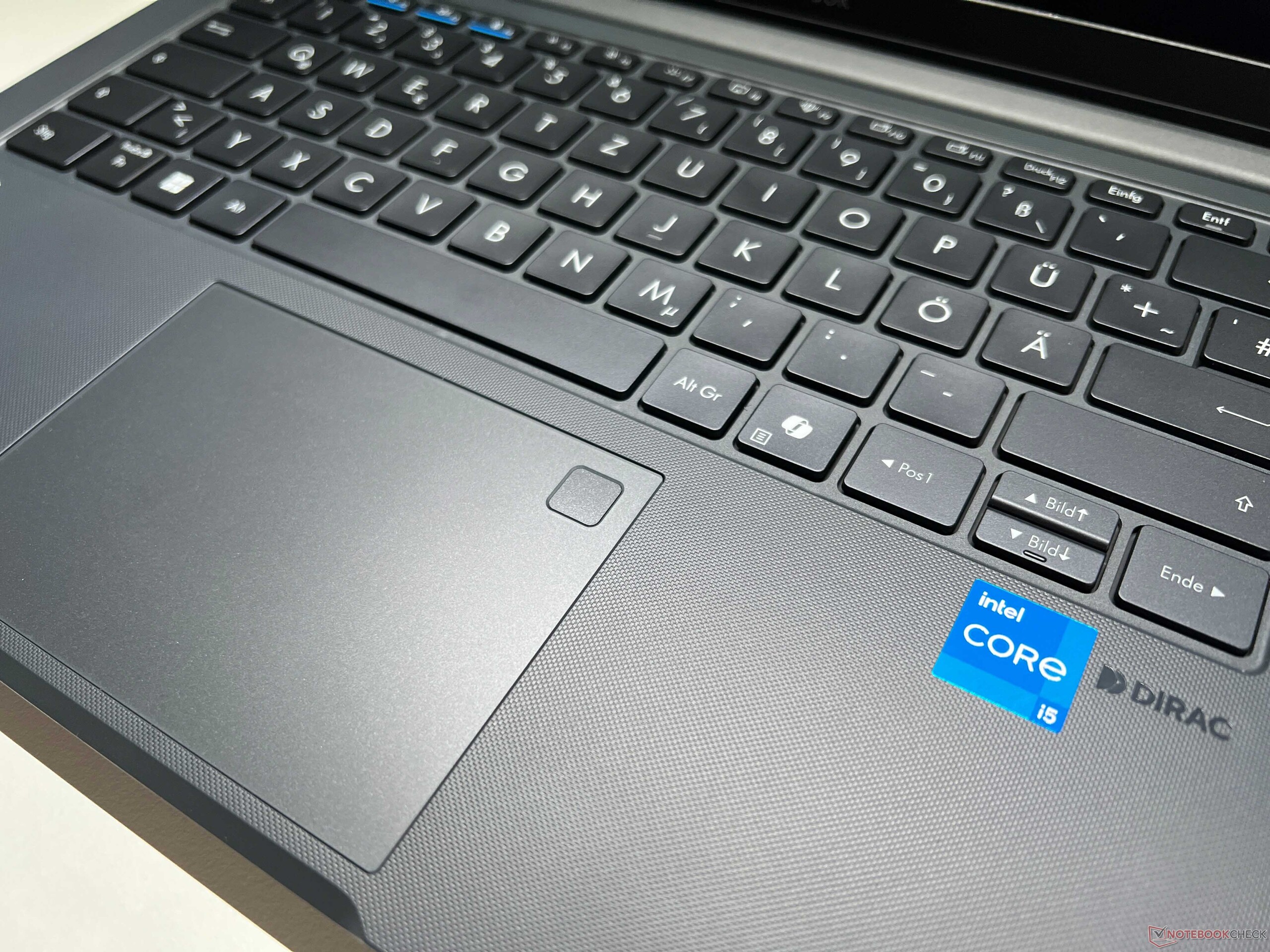

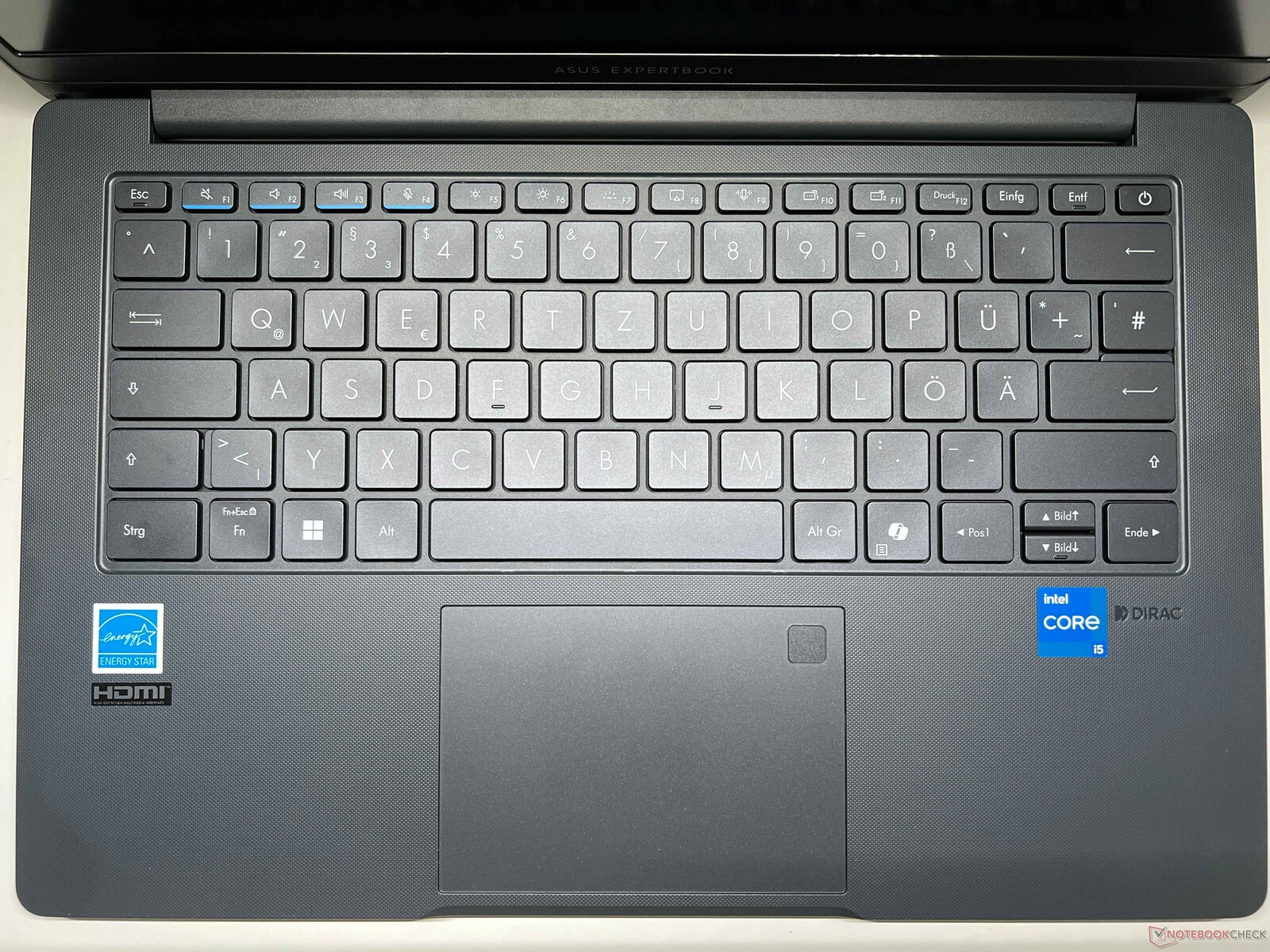

输入设备 - 背光键盘
黑色键盘上的白色字体清晰易读，在环境光线较暗的情况下可使用三级白色背光，但不能自动激活。键盘的键程足够大，总体感觉打字舒适。按键也不会发出响声，只有空格键的声音比较大。总而言之，这是一款性能稳定的键盘。ClickPad 相对较小，只有 10.5 x 7.4 厘米，指纹扫描仪集成在右上角。尽管如此，它的手感还是不错的，而且很顺滑，我们在指针控制方面没有遇到任何问题，但机械点击的声音很大，感觉很廉价。

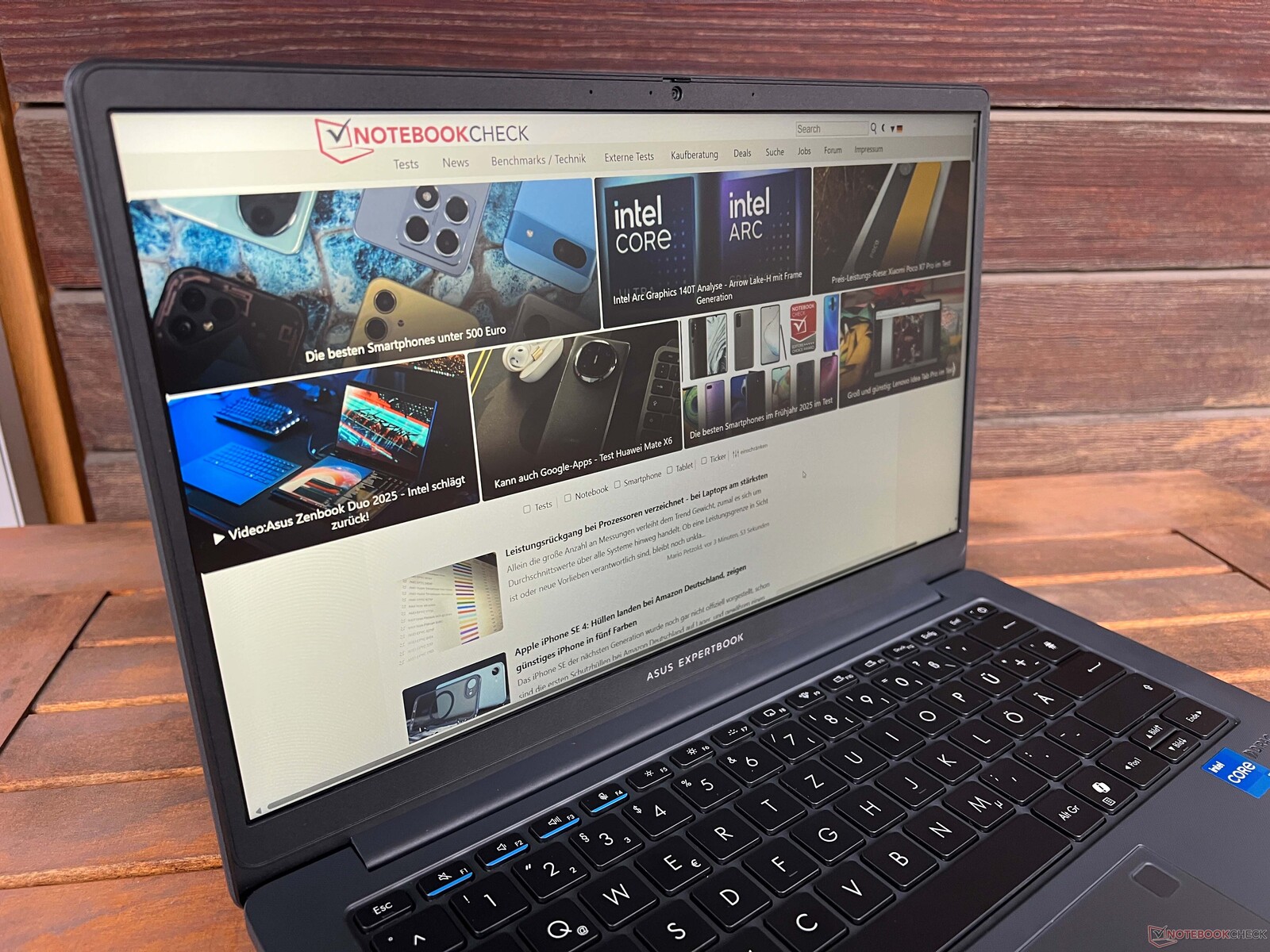

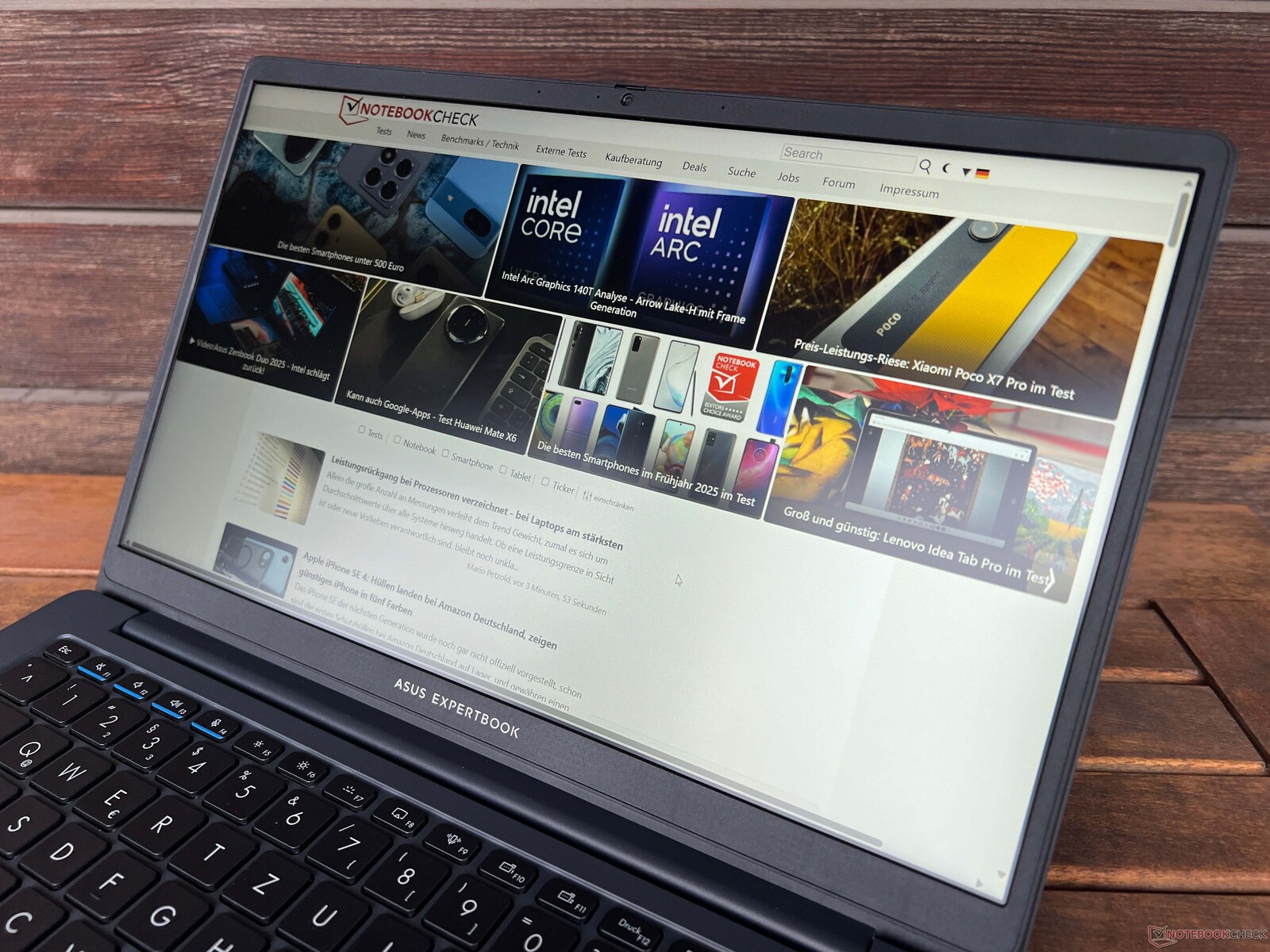

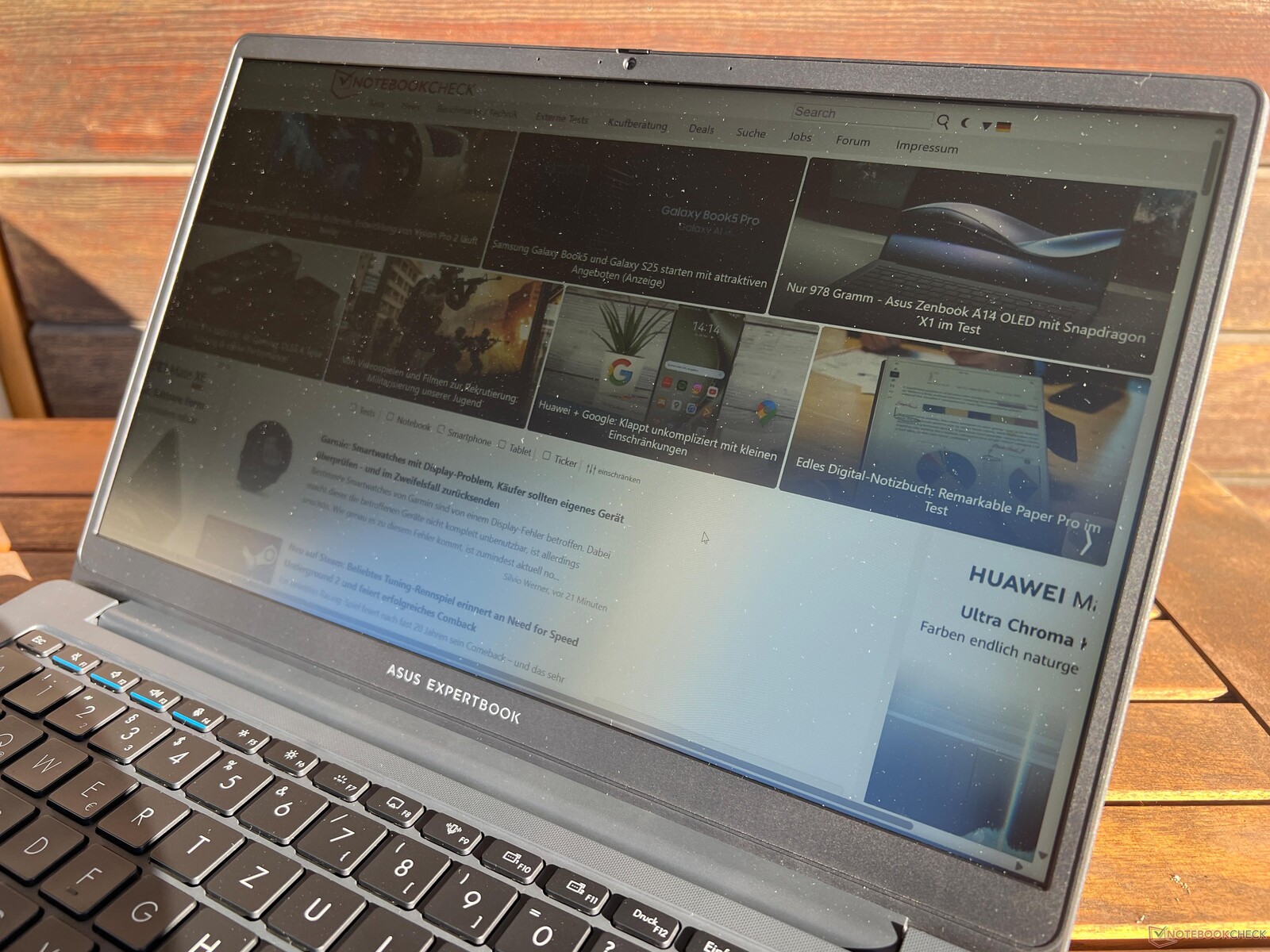

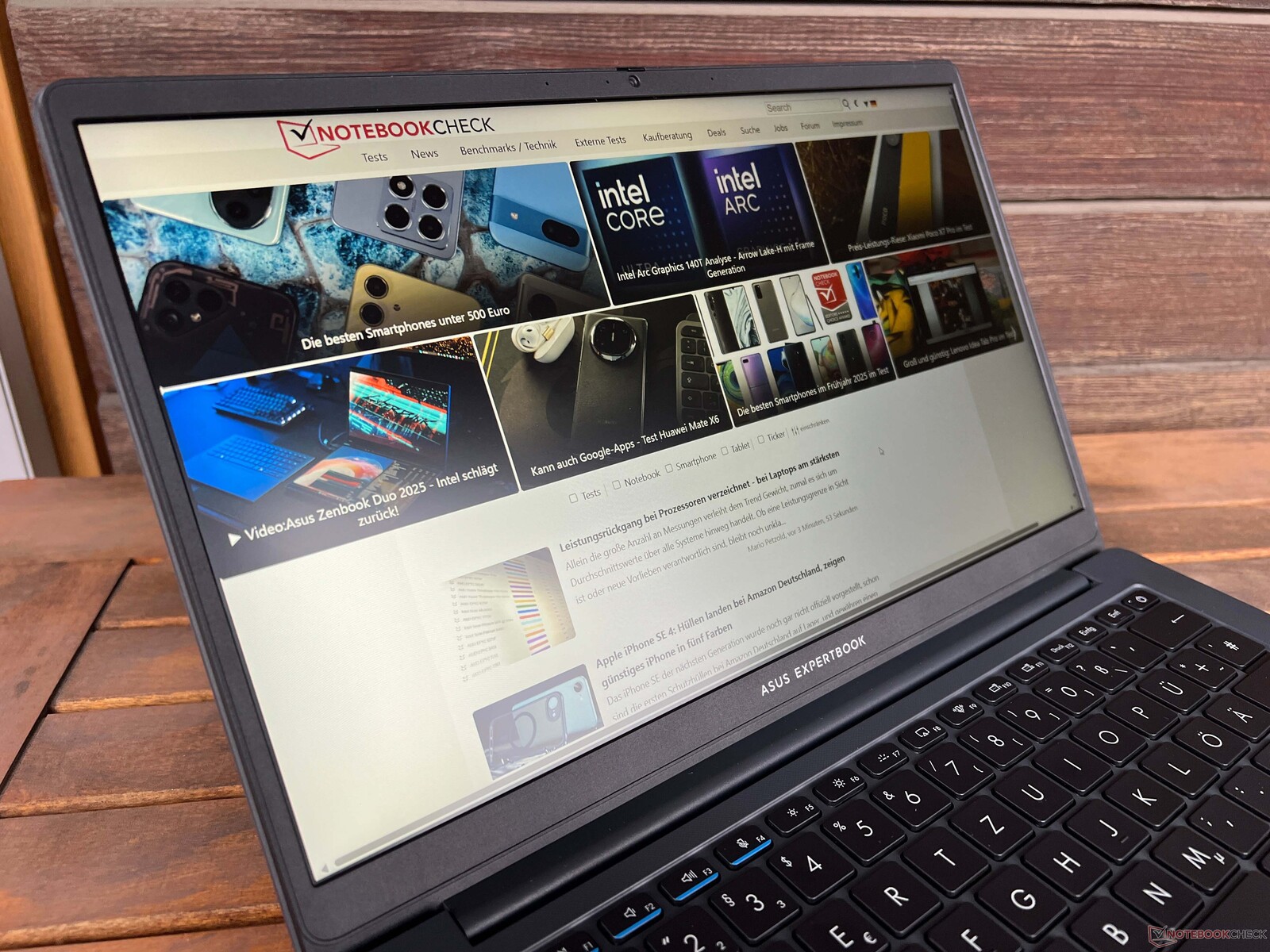

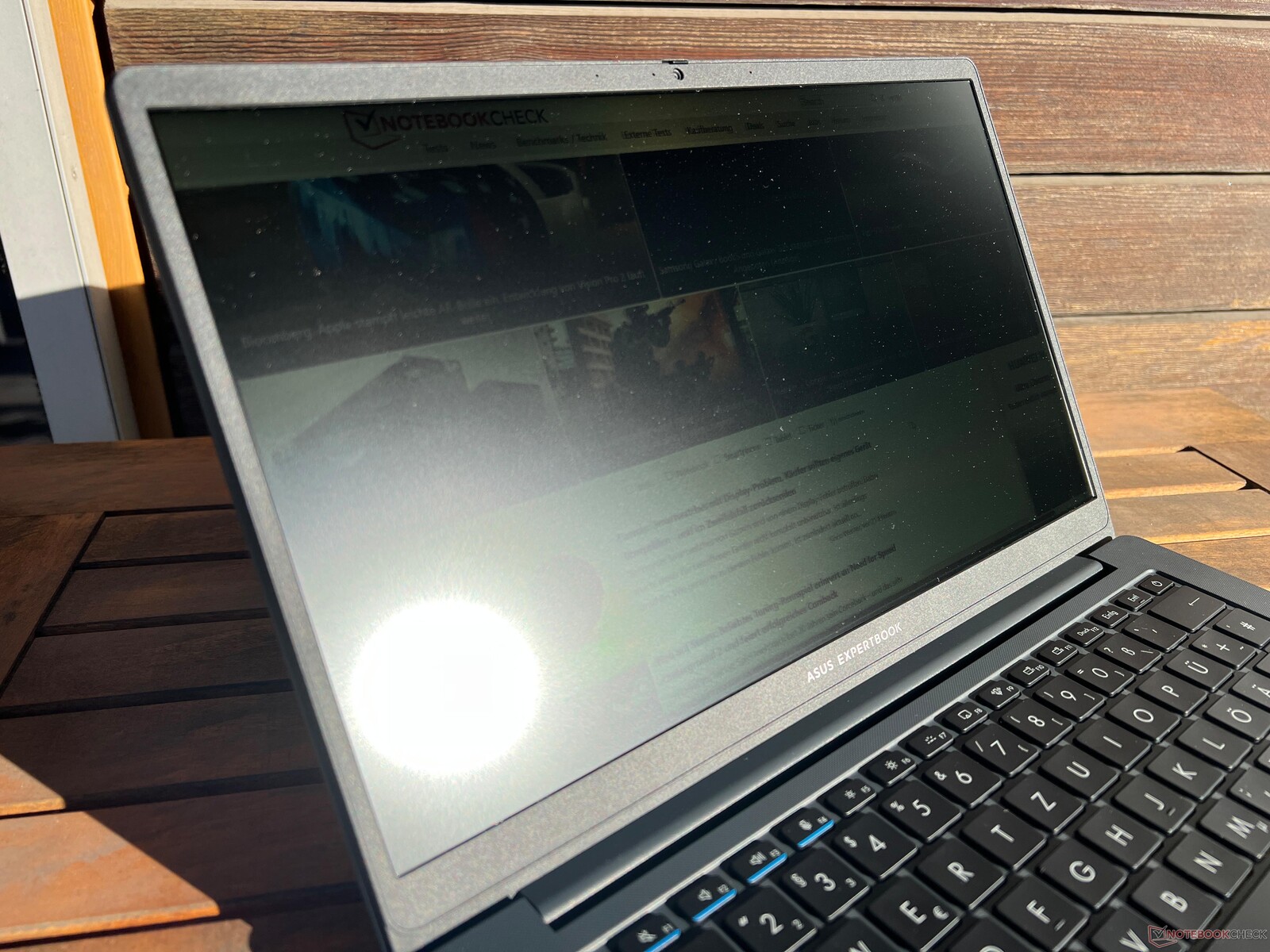

显示屏 - 雾面 IPS 面板

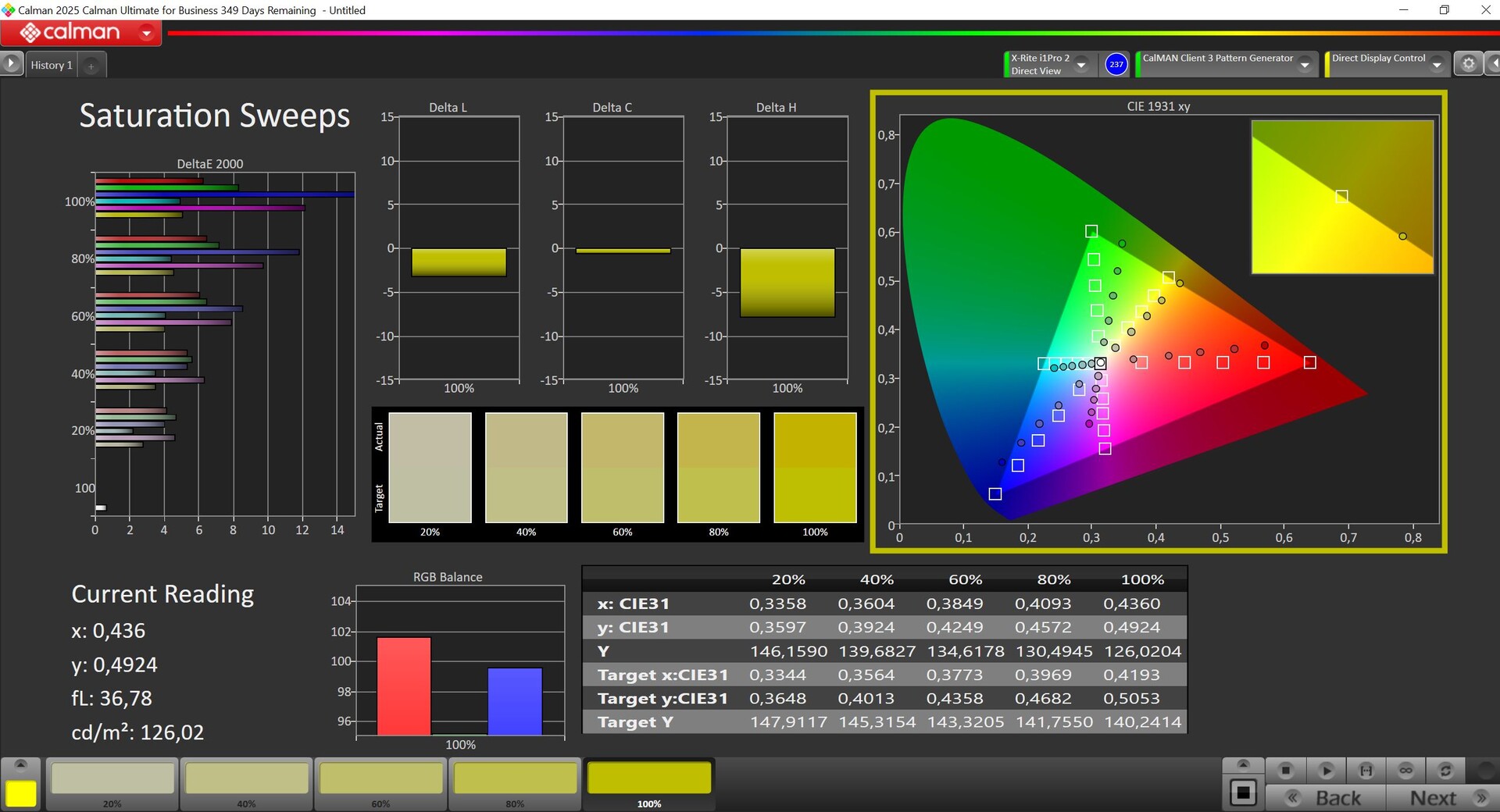

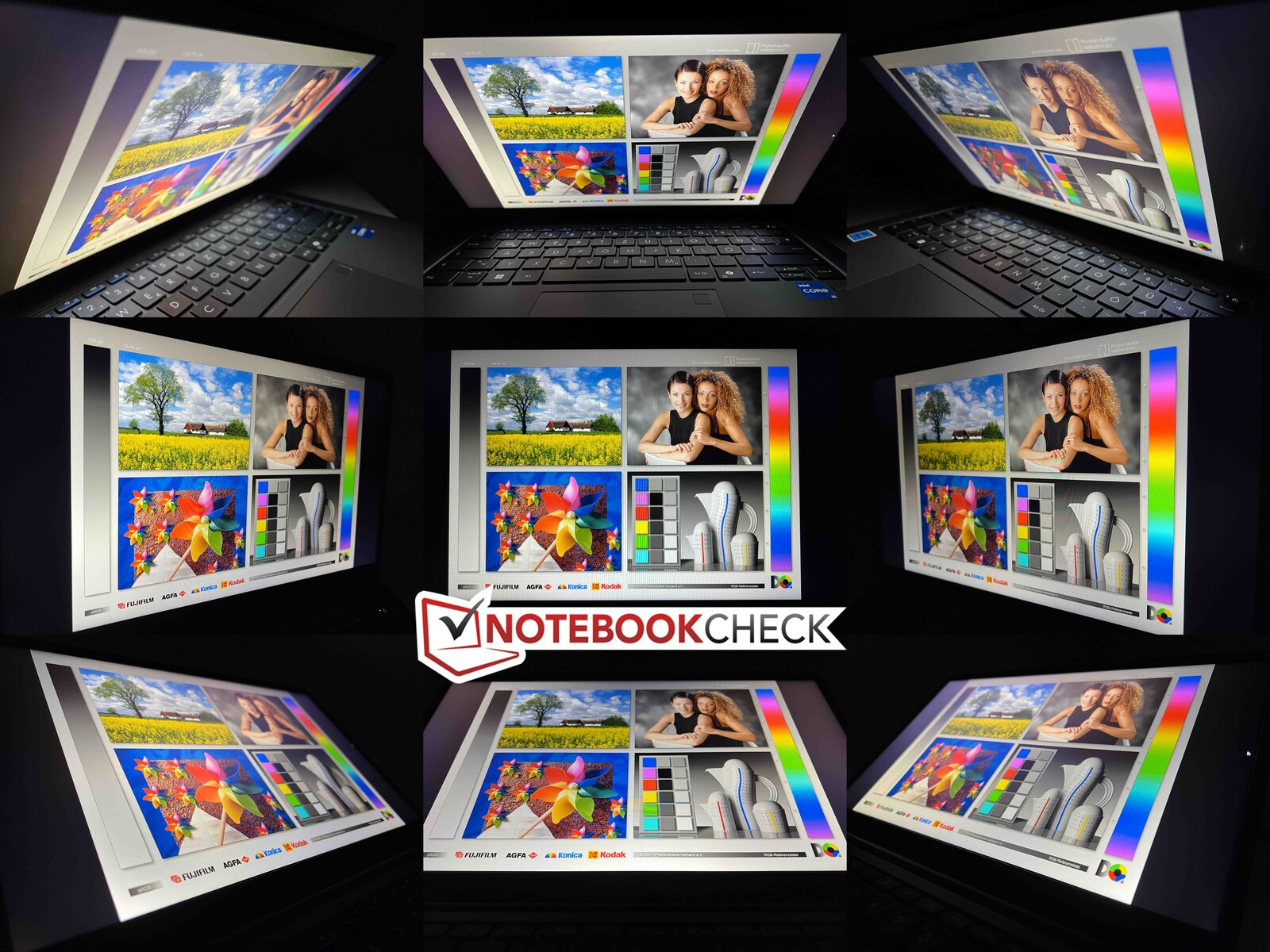

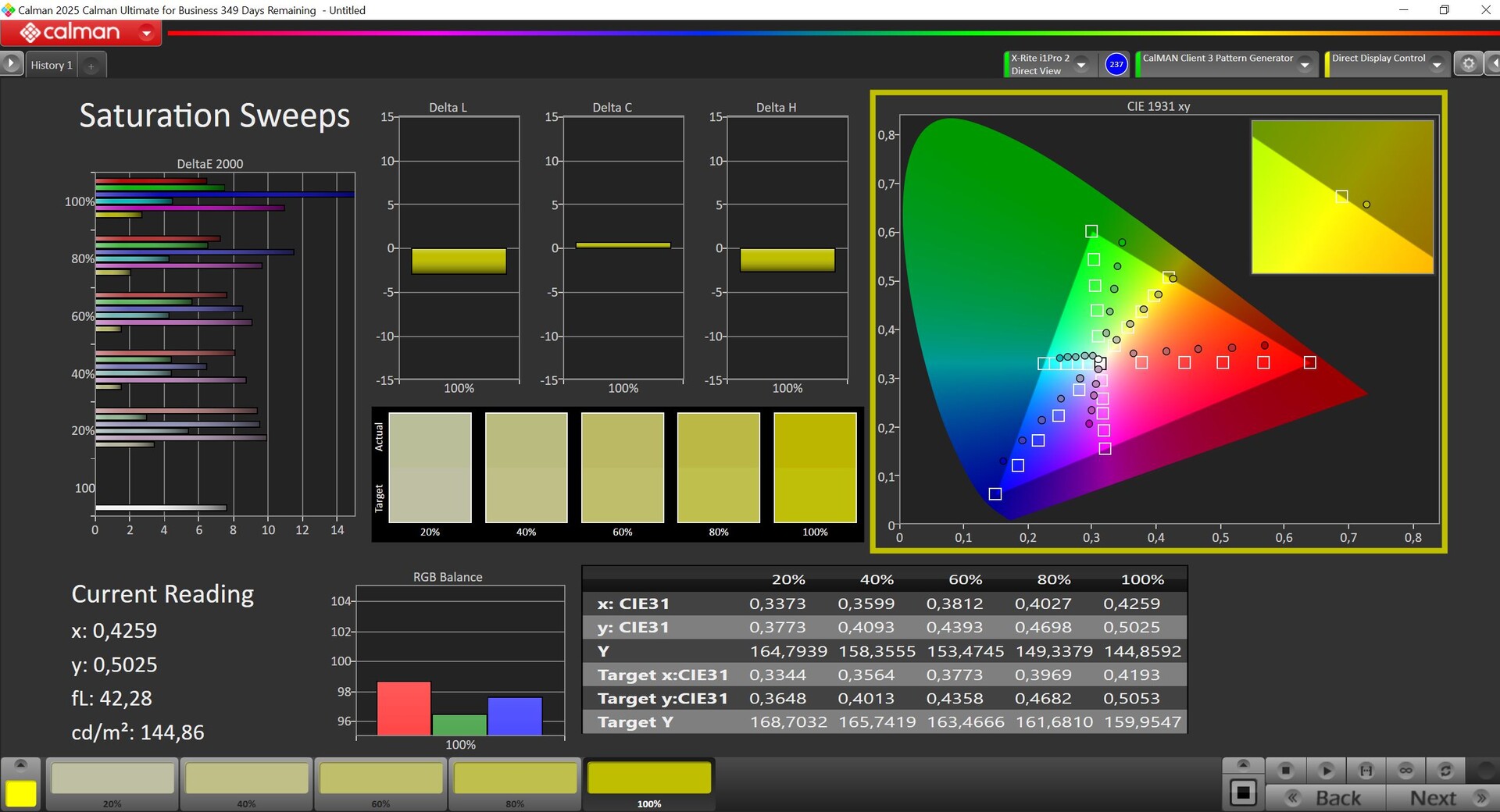

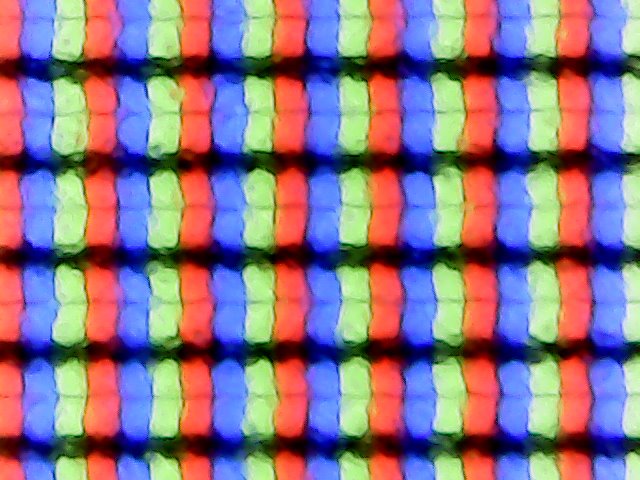

华硕为其 ExpertBook 配备了哑光全高清面板（1920 x 1080 像素，60 Hz），采用旧式 16:9 格式。主观而言，其画质总体尚可，内容显示足够清晰，白色内容也不会出现颗粒感。由于只覆盖了 60% 的 sRGB 色彩空间，色彩显得有些苍白。由于没有使用 PWM，其响应时间还不错（没有重影），但在暗背景下会有轻微的背光渗出。视角稳定性尚可。

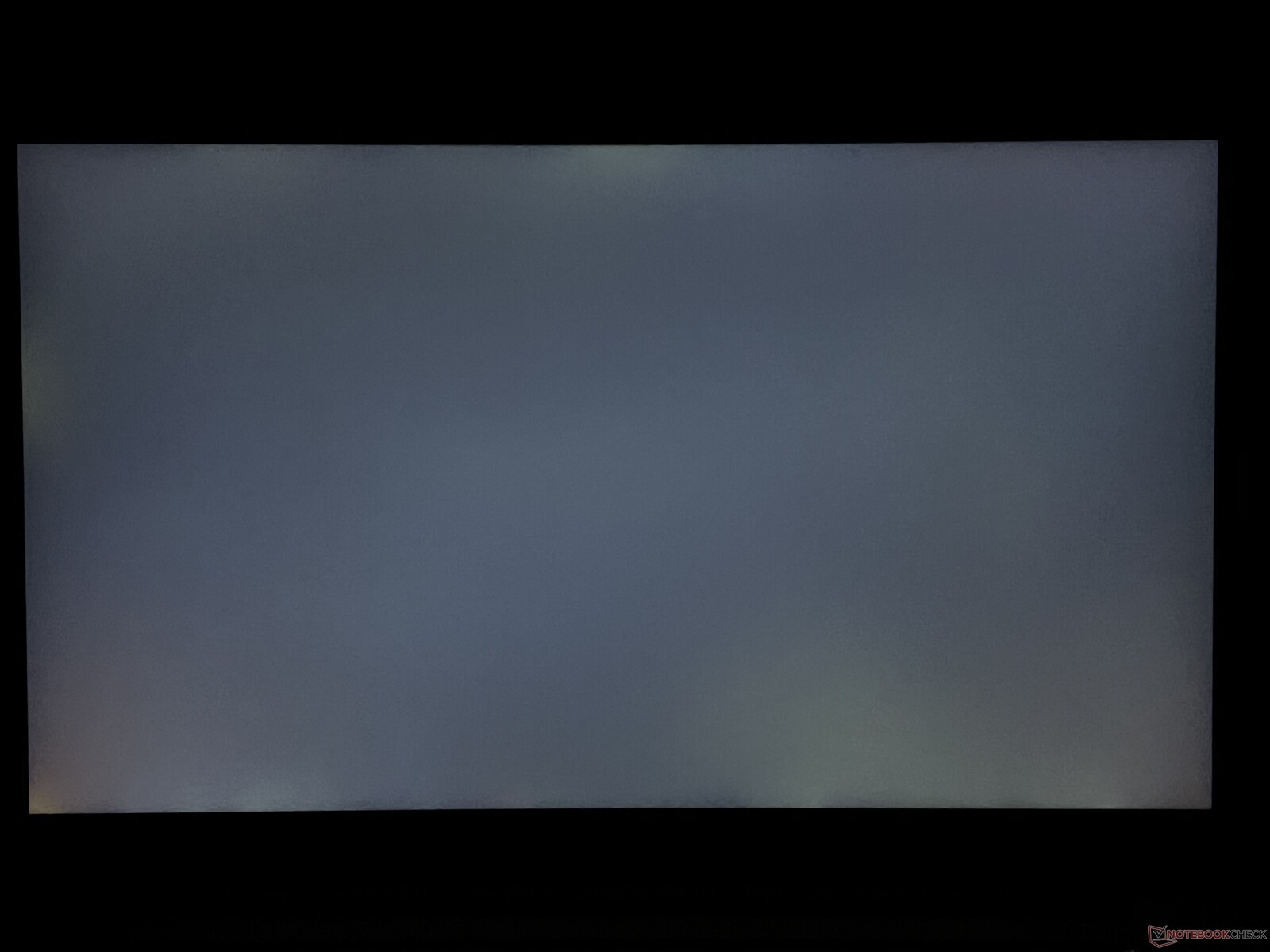

华硕规定的亮度为 300 cd/m²，我们的测试设备很容易就达到了，平均亮度为 331 cd/m²。加上其较低的黑色值，对比度非常不错，但这还不足以确保在阳光充足的环境下舒适地工作。我们使用专业的 CalMAN 软件对其进行了出厂校准，结果显示出轻微的绿色偏色。它的色彩准确度也很差，我们的校准也无法改变太多。这就是廉价 IPS 面板的极限所在，它并不适合编辑图像。
| |||||||||||||||||||||||||
Brightness Distribution: 91 %
Center on Battery: 331 cd/m²
Contrast: 1439:1 (Black: 0.23 cd/m²)
ΔE Color 6.8 | 0.5-29.43 Ø4.89, calibrated: 4.9
ΔE Greyscale 6.2 | 0.5-98 Ø5.1

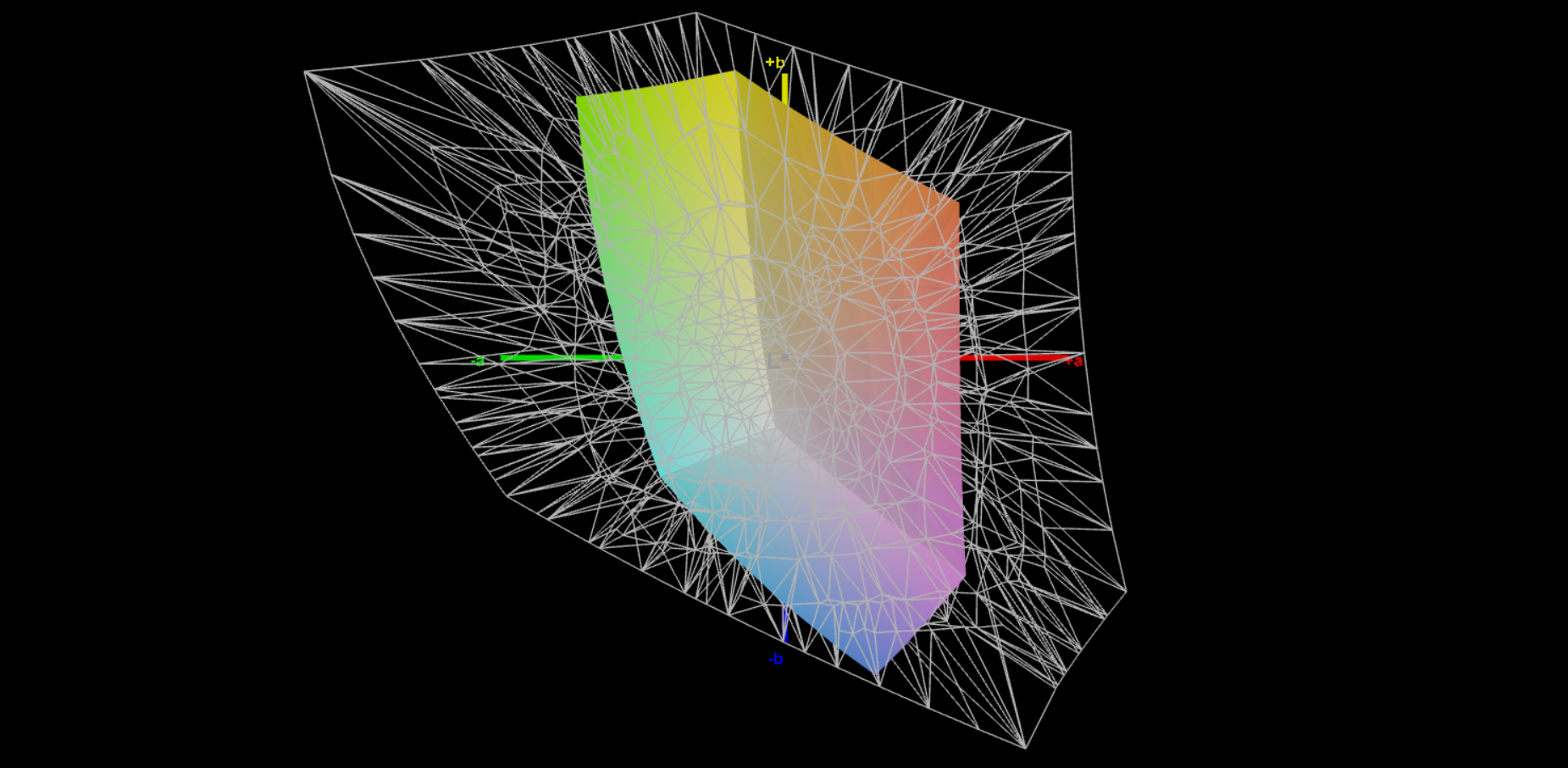

40.9% AdobeRGB 1998 (Argyll 2.2.0 3D)

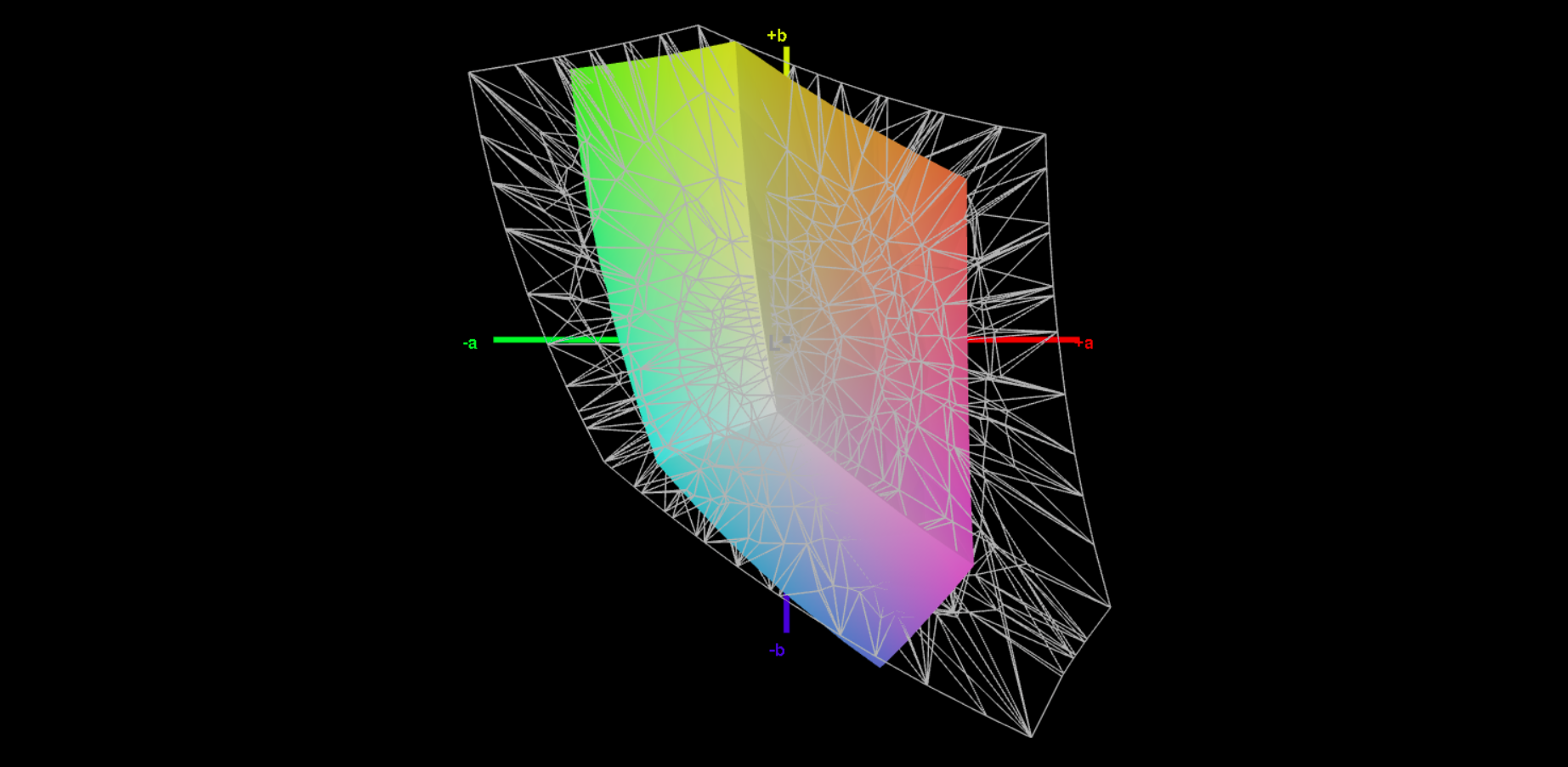

58.9% sRGB (Argyll 2.2.0 3D)

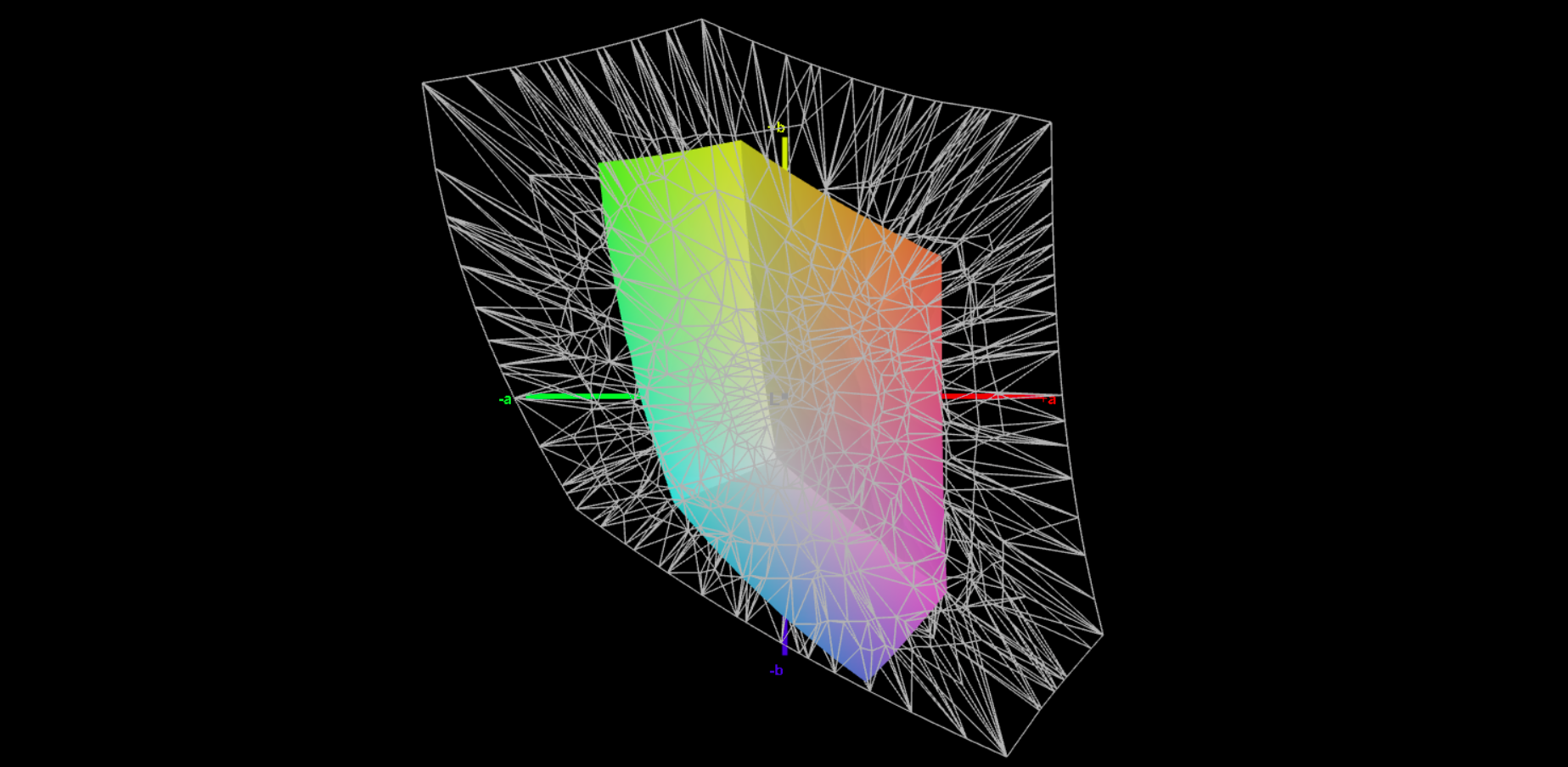

39.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
| Asus ExpertBook B1 B1403CVA MNE001BS1-4, IPS, 1920x1080, 14", 60 Hz | Lenovo ThinkPad L14 G5 21L50014GE NV140WUM-N49, IPS LED, 1920x1200, 14", Hz | SCHENKER Work 14 Base B140HAN06.8, IPS, 1920x1080, 14", 60 Hz | Acer Swift Go 14 AI MNE507QS2-2 CSOT T9, IPS, 2560x1600, 14.5", 120 Hz | Lenovo ThinkPad E14 Gen 6 21M3002KGE MNE007QS3-2, IPS LED, 1920x1200, 14", 60 Hz | |
|---|---|---|---|---|---|
| Display | -5% | 77% | 76% | -3% | |
| Display P3 Coverage | 39.6 | 37.7 -5% | 72.4 83% | 71.2 80% | 38.4 -3% |
| sRGB Coverage | 58.9 | 56.1 -5% | 99.8 69% | 99 68% | 56.7 -4% |
| AdobeRGB 1998 Coverage | 40.9 | 39 -5% | 73.8 80% | 73.3 79% | 39.7 -3% |
| Response Times | -5% | -126% | -17% | 5% | |
| Response Time Grey 50% / Grey 80% * | 26.6 ? | 23.5 ? 12% | 60 ? -126% | 32 ? -20% | 24.1 ? 9% |
| Response Time Black / White * | 15.4 ? | 18.8 ? -22% | 34.7 ? -125% | 17.5 ? -14% | 15.4 ? -0% |
| PWM Frequency | |||||
| Screen | -5% | 46% | 20% | -18% | |
| Brightness middle | 331 | 419 27% | 402 21% | 357.5 8% | 346 5% |
| Brightness | 331 | 399 21% | 404 22% | 341 3% | 343 4% |
| Brightness Distribution | 91 | 89 -2% | 89 -2% | 93 2% | 91 0% |
| Black Level * | 0.23 | 0.31 -35% | 0.16 30% | 0.3 -30% | 0.32 -39% |
| Contrast | 1439 | 1352 -6% | 2513 75% | 1192 -17% | 1081 -25% |
| Colorchecker dE 2000 * | 6.8 | 7.5 -10% | 2.2 68% | 3.27 52% | 8.8 -29% |
| Colorchecker dE 2000 max. * | 19.9 | 28.3 -42% | 4.2 79% | 6.83 66% | 23.1 -16% |
| Colorchecker dE 2000 calibrated * | 4.9 | 6.2 -27% | 1.3 73% | 0.95 81% | 5.8 -18% |
| Greyscale dE 2000 * | 6.2 | 4.6 26% | 3 52% | 5.14 17% | 9.2 -48% |
| Gamma | 2.22 99% | 2.02 109% | 2.18 101% | 2.44 90% | 2.16 102% |
| CCT | 6387 102% | 6057 107% | 6801 96% | 6026 108% | 5979 109% |
| Total Average (Program / Settings) | -5% /
-5% | -1% /
29% | 26% /
27% | -5% /
-12% |
* ... smaller is better

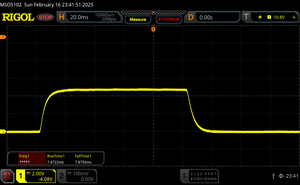

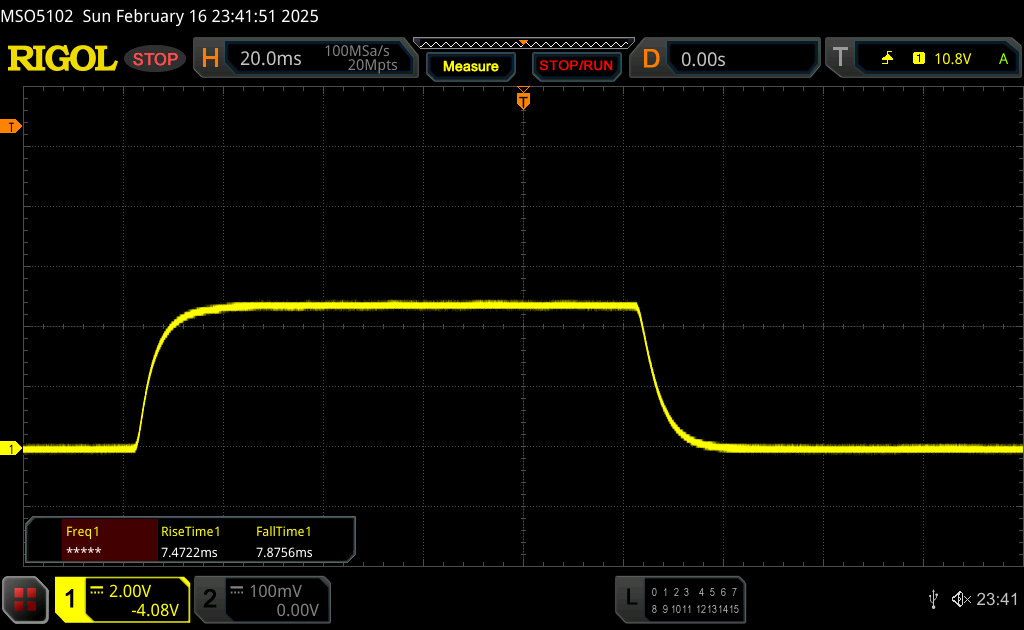

Display Response Times
| ↔ Response Time Black to White | ||
|---|---|---|
| 15.4 ms ... rise ↗ and fall ↘ combined | ↗ 7.5 ms rise |  |
| ↘ 7.9 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 33 % of all devices are better. This means that the measured response time is better than the average of all tested devices (20.9 ms). | ||

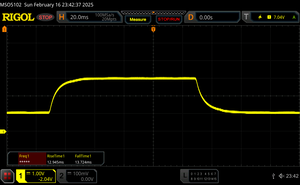

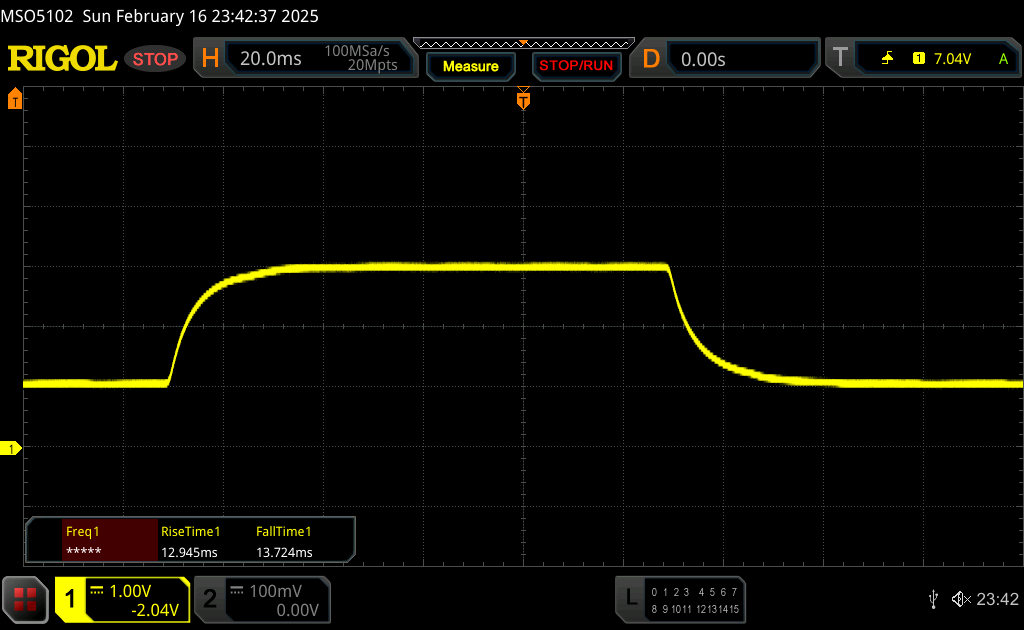

| ↔ Response Time 50% Grey to 80% Grey | ||
| 26.6 ms ... rise ↗ and fall ↘ combined | ↗ 12.9 ms rise |  |
| ↘ 13.7 ms fall | ||
| The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 33 % of all devices are better. This means that the measured response time is better than the average of all tested devices (32.7 ms). | ||

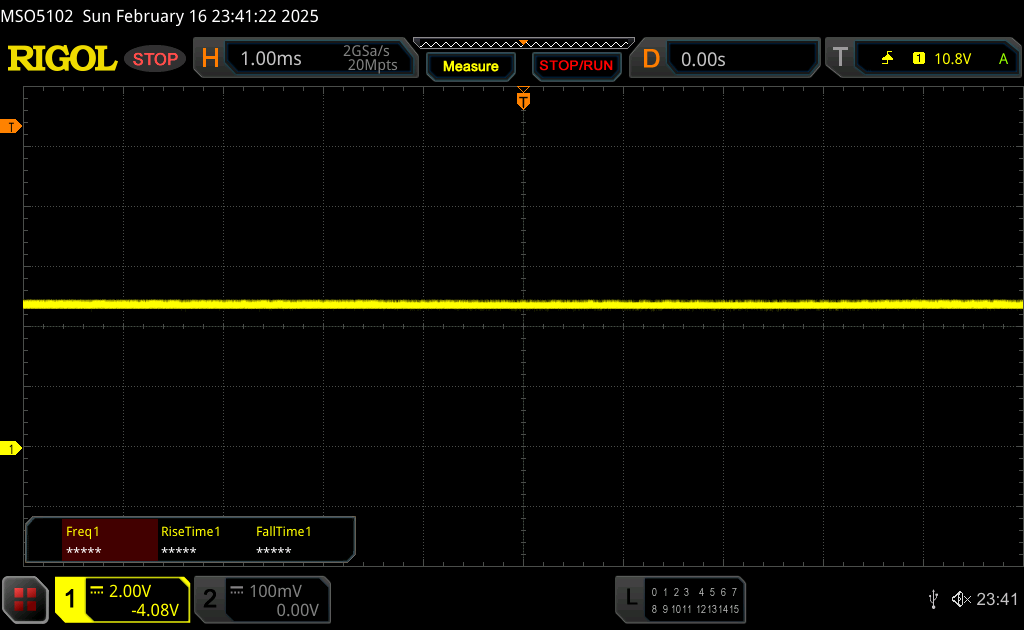

Screen Flickering / PWM (Pulse-Width Modulation)
| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8611 (minimum: 5 - maximum: 343500) Hz was measured. | |||
性能 - Intel Raptor Lake-H
测试条件
MyAsus 软件中提供了各种能量曲线。我们使用预设的标准模式进行了以下基准测试和测量。

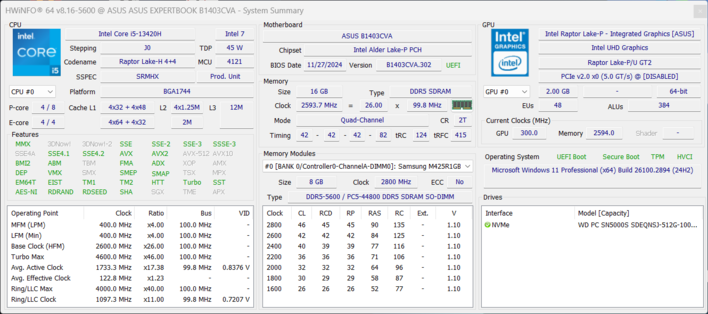

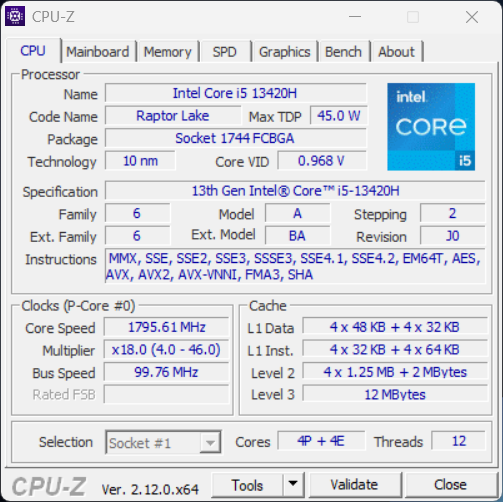

处理器 - 英特尔酷睿 i5-13420H

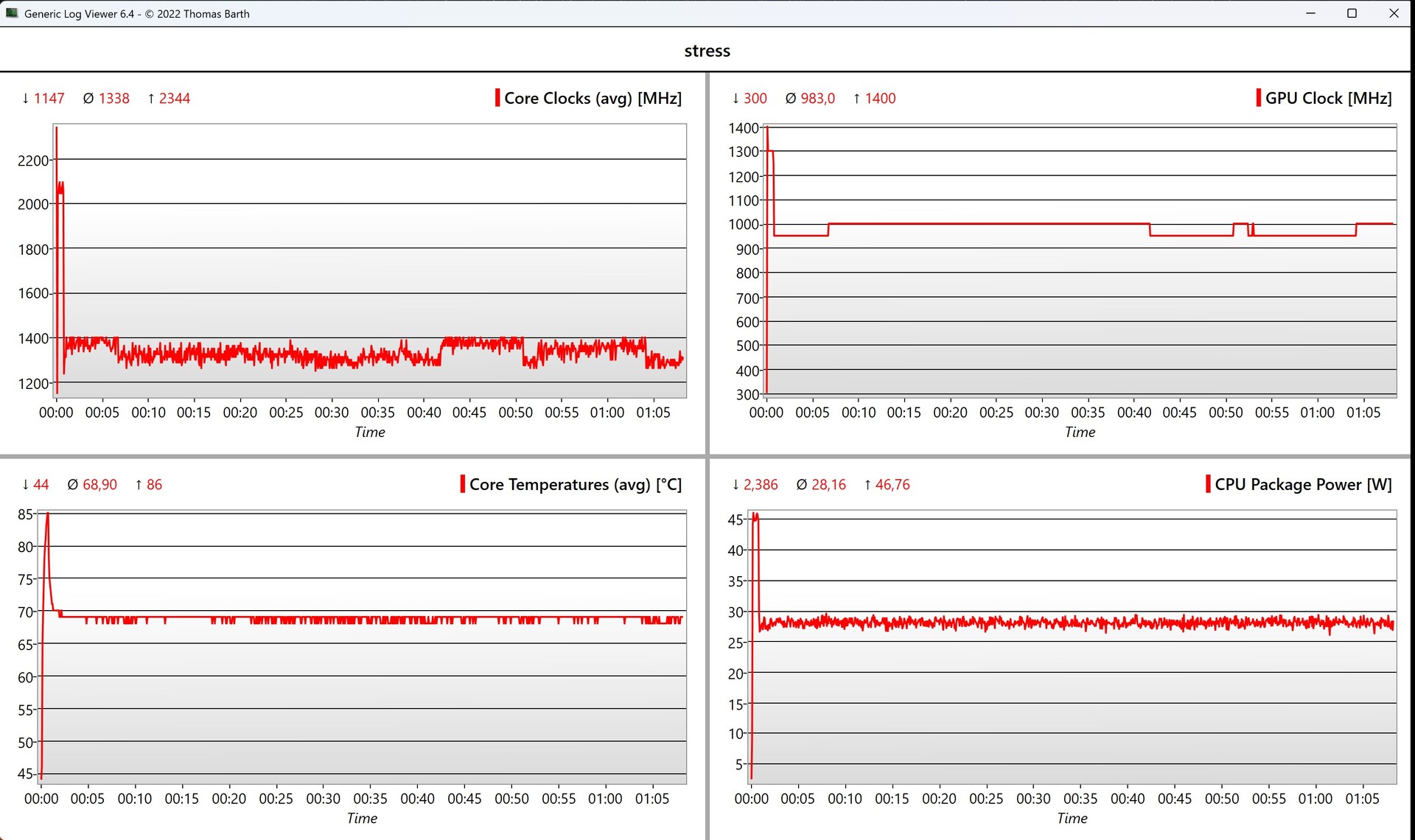

英特尔 英特尔酷睿 i5-13420H共有 8 个内核（12 个线程），在 ExpertBook 中运行约 40 秒的功耗为 45 瓦，之后功耗降至 28 瓦。在对比组中，该处理器的性能表现尚可，完全可以胜任简单的办公任务。在电池模式下，芯片的最大功耗为 32/28 瓦，因此性能略低（-10%）。
Cinebench R15 Multi continuous test
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
| CPU Performance Rating | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H | |
| Average of class Office | |
| Asus ExpertBook B1 B1403CVA | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| Cinebench R23 / Multi Core | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H (8691 - 11871, n=3) | |
| Average of class Office (1577 - 20399, n=87, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| SCHENKER Work 14 Base | |
| Cinebench R23 / Single Core | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H (1673 - 1705, n=3) | |
| SCHENKER Work 14 Base | |
| Average of class Office (618 - 1995, n=87, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| Cinebench R20 / CPU (Multi Core) | |
| Average Intel Core i5-13420H (3329 - 4524, n=3) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (590 - 8086, n=86, last 2 years) | |
| Asus ExpertBook B1 B1403CVA | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| SCHENKER Work 14 Base | |
| Cinebench R20 / CPU (Single Core) | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H (641 - 655, n=3) | |
| SCHENKER Work 14 Base | |
| Average of class Office (229 - 766, n=86, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| Cinebench R15 / CPU Multi 64Bit | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H (1492 - 1815, n=3) | |
| Average of class Office (246 - 3132, n=89, last 2 years) | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
| Cinebench R15 / CPU Single 64Bit | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H (237 - 244, n=3) | |
| Average of class Office (98 - 284, n=87, last 2 years) | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| Blender / v2.79 BMW27 CPU | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (163 - 1956, n=88, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average Intel Core i5-13420H (289 - 403, n=3) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| 7-Zip 18.03 / 7z b 4 | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (7532 - 76886, n=89, last 2 years) | |
| Average Intel Core i5-13420H (35680 - 44970, n=3) | |
| Asus ExpertBook B1 B1403CVA | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| SCHENKER Work 14 Base | |
| 7-Zip 18.03 / 7z b 4 -mmt1 | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (2972 - 6687, n=88, last 2 years) | |
| Average Intel Core i5-13420H (5203 - 5331, n=3) | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| Geekbench 6.3 / Multi-Core | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (662 - 14767, n=77, last 2 years) | |
| Average Intel Core i5-13420H (7216 - 9262, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
| Geekbench 6.3 / Single-Core | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H (2254 - 2365, n=3) | |
| Average of class Office (457 - 2812, n=76, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Geekbench 5.5 / Multi-Core | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (1018 - 13557, n=87, last 2 years) | |
| Average Intel Core i5-13420H (6895 - 8336, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| Geekbench 5.5 / Single-Core | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H (1606 - 1669, n=3) | |
| SCHENKER Work 14 Base | |
| Average of class Office (510 - 1995, n=88, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| HWBOT x265 Benchmark v2.2 / 4k Preset | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H (8.75 - 13.3, n=3) | |
| Average of class Office (1.72 - 20.8, n=86, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| LibreOffice / 20 Documents To PDF | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H (46.5 - 62.2, n=3) | |
| Average of class Office (31.3 - 129.6, n=86, last 2 years) | |
| SCHENKER Work 14 Base | |
| R Benchmark 2.5 / Overall mean | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average of class Office (0.4244 - 1.135, n=85, last 2 years) | |
| SCHENKER Work 14 Base | |
| Average Intel Core i5-13420H (0.501 - 0.522, n=3) | |
| Asus ExpertBook B1 B1403CVA | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
* ... smaller is better
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office | |
| Average Intel Core i5-13420H | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| SCHENKER Work 14 Base | |
| AIDA64 / FP32 Ray-Trace | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (763 - 31245, n=87, last 2 years) | |
| Average Intel Core i5-13420H (7922 - 11106, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| SCHENKER Work 14 Base | |
| AIDA64 / FPU Julia | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average Intel Core i5-13420H (40587 - 59715, n=3) | |
| Average of class Office (4113 - 125394, n=87, last 2 years) | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| AIDA64 / CPU SHA3 | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (287 - 5398, n=87, last 2 years) | |
| Average Intel Core i5-13420H (1724 - 2634, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| AIDA64 / CPU Queen | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H (70001 - 74956, n=3) | |
| Average of class Office (8185 - 115197, n=87, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| SCHENKER Work 14 Base | |
| AIDA64 / FPU SinJulia | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average of class Office (404 - 18321, n=87, last 2 years) | |
| Average Intel Core i5-13420H (5485 - 6625, n=3) | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| AIDA64 / FPU Mandel | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average of class Office (2075 - 66922, n=87, last 2 years) | |
| Average Intel Core i5-13420H (19684 - 27607, n=3) | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| AIDA64 / CPU AES | |
| Average Intel Core i5-13420H (35531 - 93100, n=3) | |
| Average of class Office (7254 - 155900, n=87, last 2 years) | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| AIDA64 / CPU ZLib | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H (509 - 744, n=3) | |
| Average of class Office (78 - 1366, n=87, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| AIDA64 / FP64 Ray-Trace | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (432 - 17834, n=87, last 2 years) | |
| Average Intel Core i5-13420H (4283 - 5831, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| AIDA64 / CPU PhotoWorxx | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| Average of class Office (4814 - 54971, n=87, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| SCHENKER Work 14 Base | |
| Average Intel Core i5-13420H (12330 - 37044, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
系统性能
在日常使用过程中，ExpertBook 对输入的响应速度很快，主观感觉性能良好。它在合成测试中的成绩也很一般。在测试过程中，稳定性没有问题。
CrossMark: Overall | Productivity | Creativity | Responsiveness
WebXPRT 3: Overall
WebXPRT 4: Overall
Mozilla Kraken 1.1: Total
| PCMark 10 / Score | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (2463 - 7578, n=79, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (5117 - 5406, n=2) | |
| SCHENKER Work 14 Base | |
| PCMark 10 / Essentials | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (5575 - 20841, n=79, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (8802 - 10385, n=2) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
| PCMark 10 / Productivity | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (3041 - 10415, n=79, last 2 years) | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (6848 - 7121, n=2) | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| PCMark 10 / Digital Content Creation | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (2049 - 11108, n=79, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (5803 - 6030, n=2) | |
| SCHENKER Work 14 Base | |
| CrossMark / Overall | |
| Asus ExpertBook B1 B1403CVA | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (1470 - 1538, n=2) | |
| Acer Swift Go 14 AI | |
| Average of class Office (348 - 1891, n=83, last 2 years) | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| CrossMark / Productivity | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (1498 - 1518, n=2) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (393 - 1870, n=83, last 2 years) | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| CrossMark / Creativity | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (1436 - 1658, n=2) | |
| Average of class Office (340 - 1982, n=83, last 2 years) | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| CrossMark / Responsiveness | |
| Acer Swift Go 14 AI | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (1331 - 1434, n=2) | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (258 - 2017, n=83, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| WebXPRT 3 / Overall | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (121 - 455, n=80, last 2 years) | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (254 - 267, n=2) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
| WebXPRT 4 / Overall | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (237 - 251, n=2) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (80 - 328, n=81, last 2 years) | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Mozilla Kraken 1.1 / Total | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average of class Office (399 - 1966, n=89, last 2 years) | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs (546 - 557, n=2) | |
| Asus ExpertBook B1 B1403CVA | |
* ... smaller is better
| PCMark 10 Score | 5406 points | |
Help | ||
| AIDA64 / Memory Copy | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (7158 - 108783, n=88, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| SCHENKER Work 14 Base | |
| Average Intel Core i5-13420H (22003 - 59609, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| AIDA64 / Memory Read | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (7325 - 127282, n=88, last 2 years) | |
| SCHENKER Work 14 Base | |
| Average Intel Core i5-13420H (23759 - 68085, n=3) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| AIDA64 / Memory Write | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (7579 - 117935, n=88, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| Average Intel Core i5-13420H (21429 - 62529, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| AIDA64 / Memory Latency | |
| Average of class Office (7.6 - 185.2, n=86, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Asus ExpertBook B1 B1403CVA | |
| Average Intel Core i5-13420H (90.2 - 96.4, n=3) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
* ... smaller is better

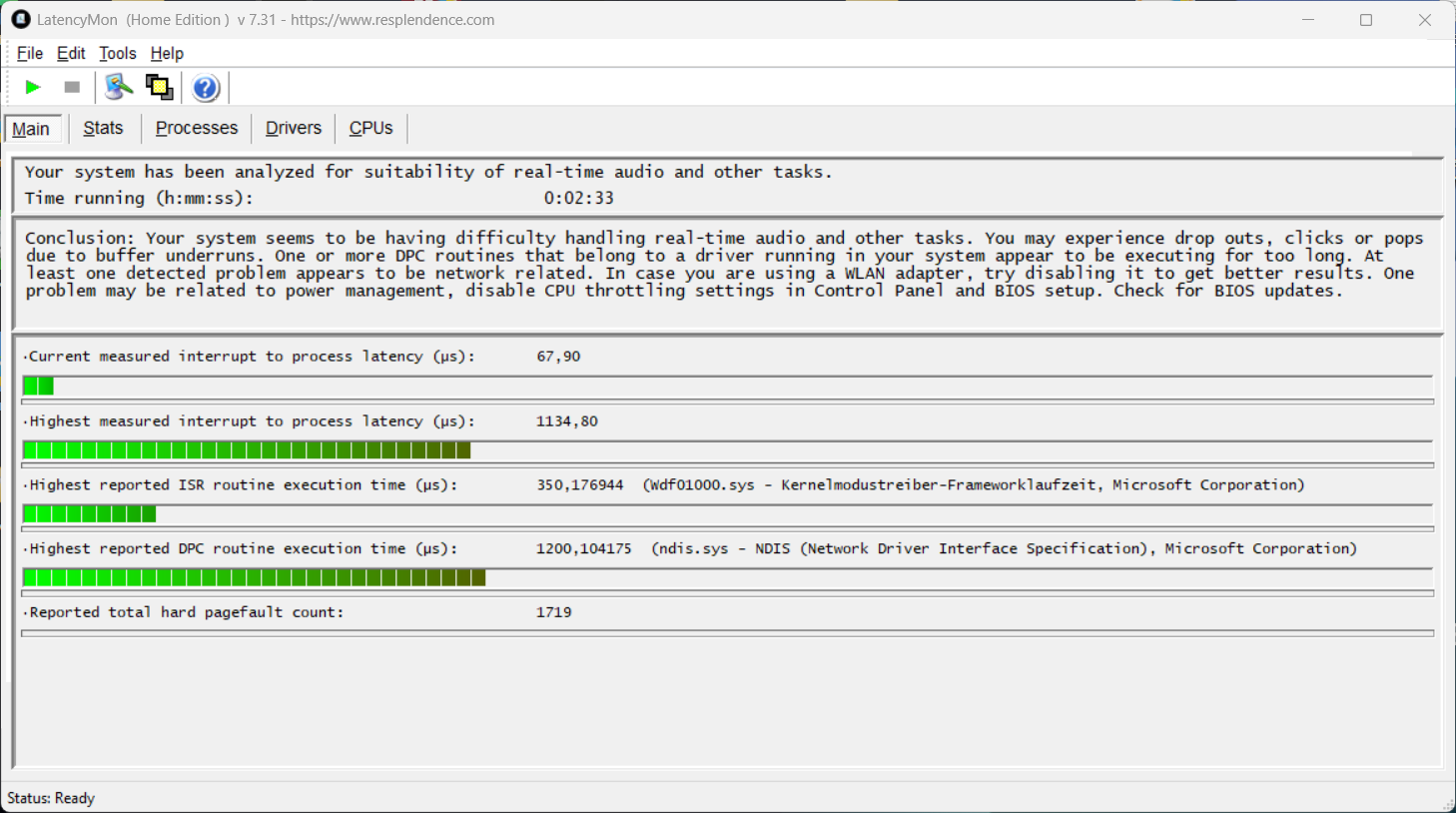

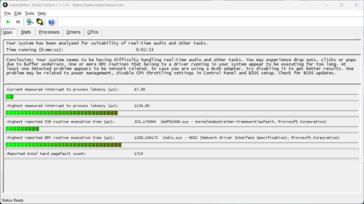

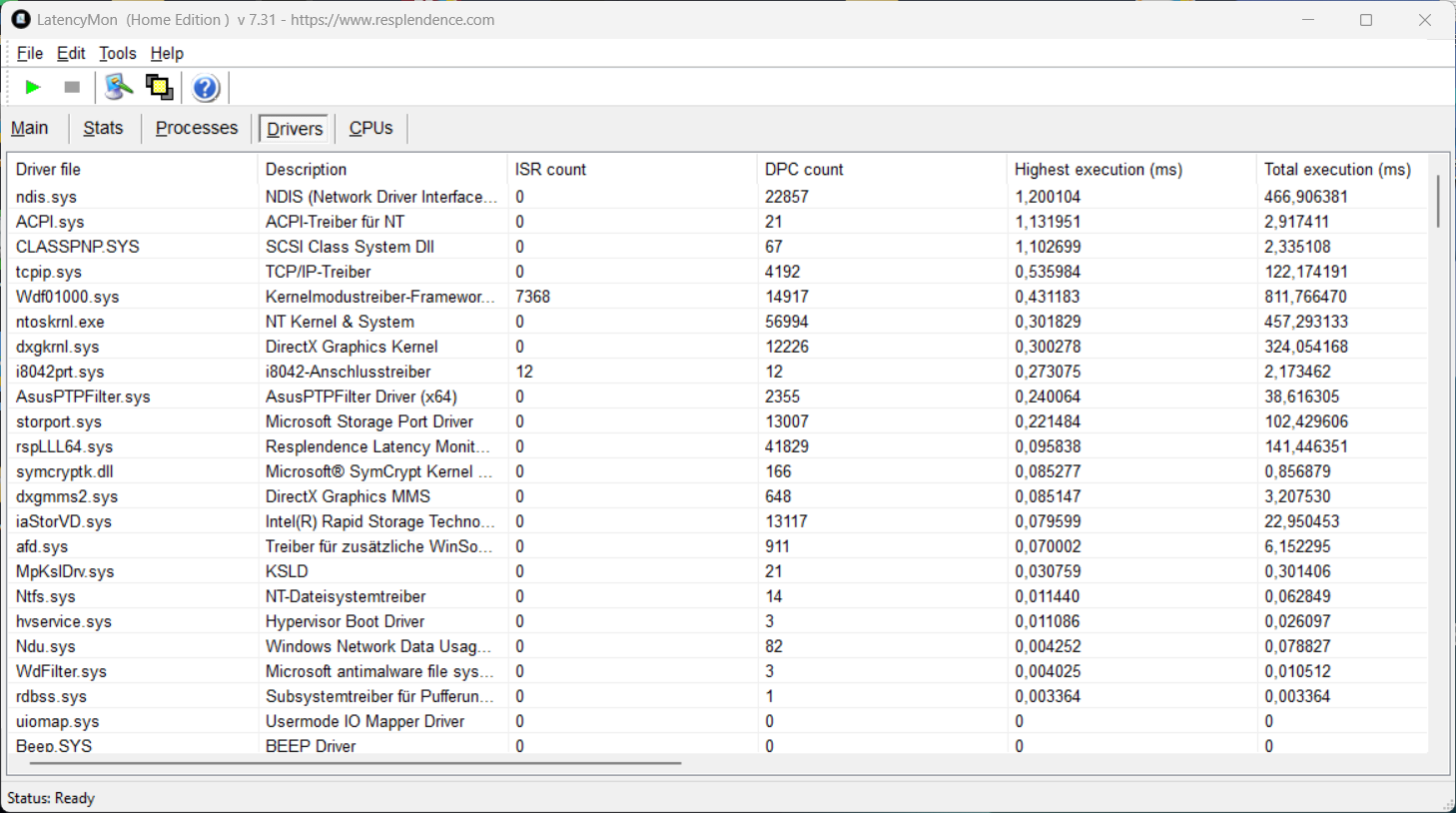

DPC 延迟
在我们的标准化延迟测试（网上冲浪、4K YouTube 播放、CPU 负载）中，使用当前 BIOS 版本的测试设备在使用实时音频应用程序时显示出轻微的限制。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| SCHENKER Work 14 Base | |
| Asus ExpertBook B1 B1403CVA | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
* ... smaller is better
存储设备
我们测试设备中的 512 GB SSD（M.2-2280，PCIe 4.0，417 GB 可用容量）来自西部数据，即使在持续负载的情况下也能提供非常出色的传输速率。由于有空闲的 M.2-2230 插槽，笔记本的存储容量可以轻松扩展。
* ... smaller is better
Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

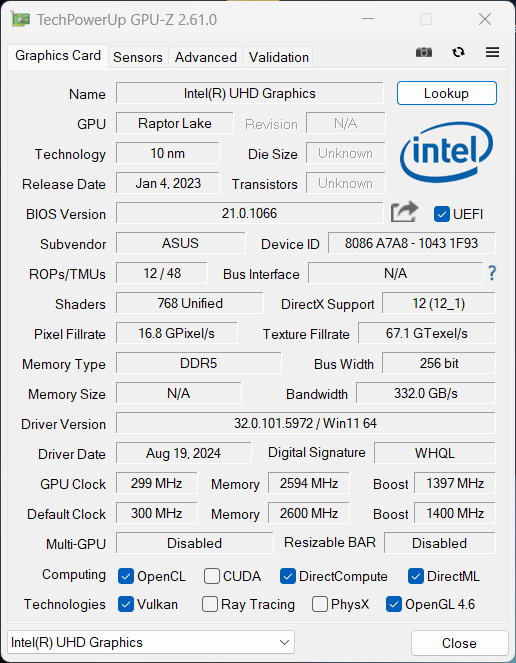

图形卡
集成的 UHD Graphics Xe G4显卡可以胜任一般的办公任务，在播放高分辨率视频时也没有问题，但你不应该期望更多。在玩游戏时，iGPU 很快就会达到极限，因此即使在运行老游戏或要求不高的游戏时，也应降低分辨率和细节。第二个内存模块可以在一定程度上提高 GPU 性能，但其性能水平仍然较低。在持续负载和电池模式下，GPU 的性能保持稳定。
| 3DMark 11 Performance | 5147 points | |
| 3DMark Fire Strike Score | 3378 points | |
| 3DMark Time Spy Score | 1167 points | |
| 3DMark Steel Nomad Light Score | 754 points | |
Help | ||
| Blender / v3.3 Classroom HIP/AMD | |
| Average of class Office (296 - 1133, n=14, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Blender / v3.3 Classroom CPU | |
| Average Intel UHD Graphics Xe G4 48EUs (719 - 2408, n=6) | |
| SCHENKER Work 14 Base | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Average of class Office (245 - 3964, n=84, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
* ... smaller is better
| Performance Rating - Percent | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE -1! | |
| Average of class Office | |
| Acer Swift Go 14 AI -1! | |
| Asus ExpertBook B1 B1403CVA -1! | |
| Lenovo ThinkPad L14 G5 21L50014GE -1! | |
| SCHENKER Work 14 Base -2! | |
| Cyberpunk 2077 2.2 Phantom Liberty - 1920x1080 Ultra Preset (FSR off) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (6.65 - 26.8, n=30, last 2 years) | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| Baldur's Gate 3 - 1920x1080 Ultra Preset | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (7.96 - 28.9, n=26, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| Asus ExpertBook B1 B1403CVA | |
| GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Acer Swift Go 14 AI | |
| Average of class Office (3.98 - 47.8, n=74, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| Final Fantasy XV Benchmark - 1920x1080 High Quality | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (4.18 - 35.7, n=82, last 2 years) | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Acer Swift Go 14 AI | |
| Strange Brigade - 1920x1080 ultra AA:ultra AF:16 | |
| Average of class Office (9.6 - 56.5, n=66, last 2 years) | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| SCHENKER Work 14 Base | |
| Dota 2 Reborn - 1920x1080 ultra (3/3) best looking | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (13.4 - 121.2, n=89, last 2 years) | |
| Asus ExpertBook B1 B1403CVA | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
| X-Plane 11.11 - 1920x1080 high (fps_test=3) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| Average of class Office (8.88 - 92.6, n=81, last 2 years) | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| SCHENKER Work 14 Base | |
Cyberpunk 2077 ultra FPS diagram
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 91 | 18.1 | 7.89 | |
| Dota 2 Reborn (2015) | 108.6 | 51.2 | 53.1 | 49.3 |
| Final Fantasy XV Benchmark (2018) | 32.5 | 17 | 12.6 | |
| X-Plane 11.11 (2018) | 0 game wont start | |||
| Strange Brigade (2018) | 74.1 | 30.3 | 23.9 | 19.4 |
| Baldur's Gate 3 (2023) | 13.5 | 10.7 | 9.5 | 9.2 |
| Cyberpunk 2077 2.2 Phantom Liberty (2023) | 12.2 | 9.5 | 8.21 | 7.08 |
排放与能源
噪音排放
ExpertBook 只有一个风扇，这与其 45 瓦的功率限制有很大关系。虽然设备在闲置时基本保持静音，但即使在上网等简单操作时，风扇也会迅速启动（约 28-29 dB(A)）。一旦处理器的负载增加，风扇就会迅速达到 34-41 dB(A) 的范围。测试设备上没有其他电子噪音。
Noise Level
| Idle |
| 23.6 / 23.6 / 23.7 dB(A) |
| Load |
| 28.7 / 41.4 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 23.6 dB(A) | ||
| Asus ExpertBook B1 B1403CVA UHD Graphics Xe G4 48EUs, i5-13420H, Western Digital PC SN5000S SDEQNSJ-512G-1002 | Lenovo ThinkPad L14 G5 21L50014GE Radeon 660M, R5 7535U, Lenovo UMIS AM6A0 RPETJ512MKP1QDQ | SCHENKER Work 14 Base Iris Xe G7 80EUs, i5-1235U, Samsung SSD 980 500GB (MZ-V8V500BW) | Acer Swift Go 14 AI Adreno X1-45 1.7 TFLOPS, SD X Plus X1P-42-100, Micron 2550 MTFDKBA512TGE | Lenovo ThinkPad E14 Gen 6 21M3002KGE Radeon 680M, R7 7735HS, Samsung PM9C1a MZAL81T0HDLB | |
|---|---|---|---|---|---|
| Noise | -10% | -5% | 6% | 3% | |
| off / environment * | 23.6 | 24.5 -4% | 23.6 -0% | 23 3% | 23.5 -0% |
| Idle Minimum * | 23.6 | 24.5 -4% | 23.6 -0% | 23 3% | 23.5 -0% |
| Idle Average * | 23.6 | 24.5 -4% | 23.6 -0% | 23 3% | 23.5 -0% |
| Idle Maximum * | 23.7 | 24.5 -3% | 24.8 -5% | 23 3% | 23.5 1% |
| Load Average * | 28.7 | 38 -32% | 34.2 -19% | 24.5 15% | |
| Cyberpunk 2077 ultra * | 34.3 | 41.4 -21% | 28.13 18% | 37.6 -10% | |
| Load Maximum * | 41.4 | 41.5 -0% | 42.9 -4% | 39.14 5% | 34.5 17% |
| Witcher 3 ultra * | 34.2 |
* ... smaller is better
温度

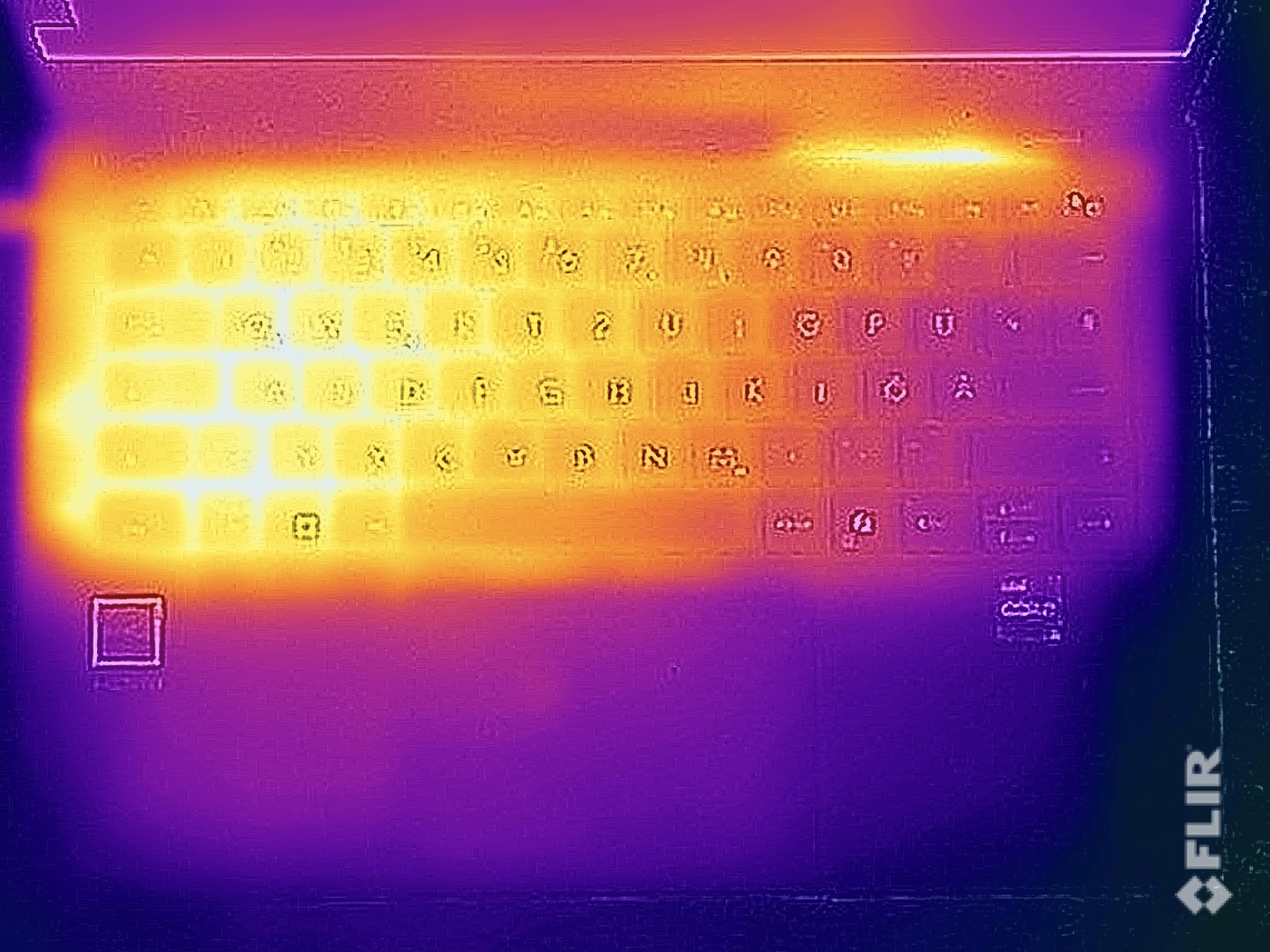

在执行简单任务时，机箱温度非常低，即使在压力测试中，我们测得的温度也仅略高于 40 °C。机箱的左上半部分尤其容易发热，但在使用过程中不会造成任何限制。在压力测试中，CPU 再次迅速稳定在 28 瓦，并保持在这一水平。
(±) The maximum temperature on the upper side is 41.2 °C / 106 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.

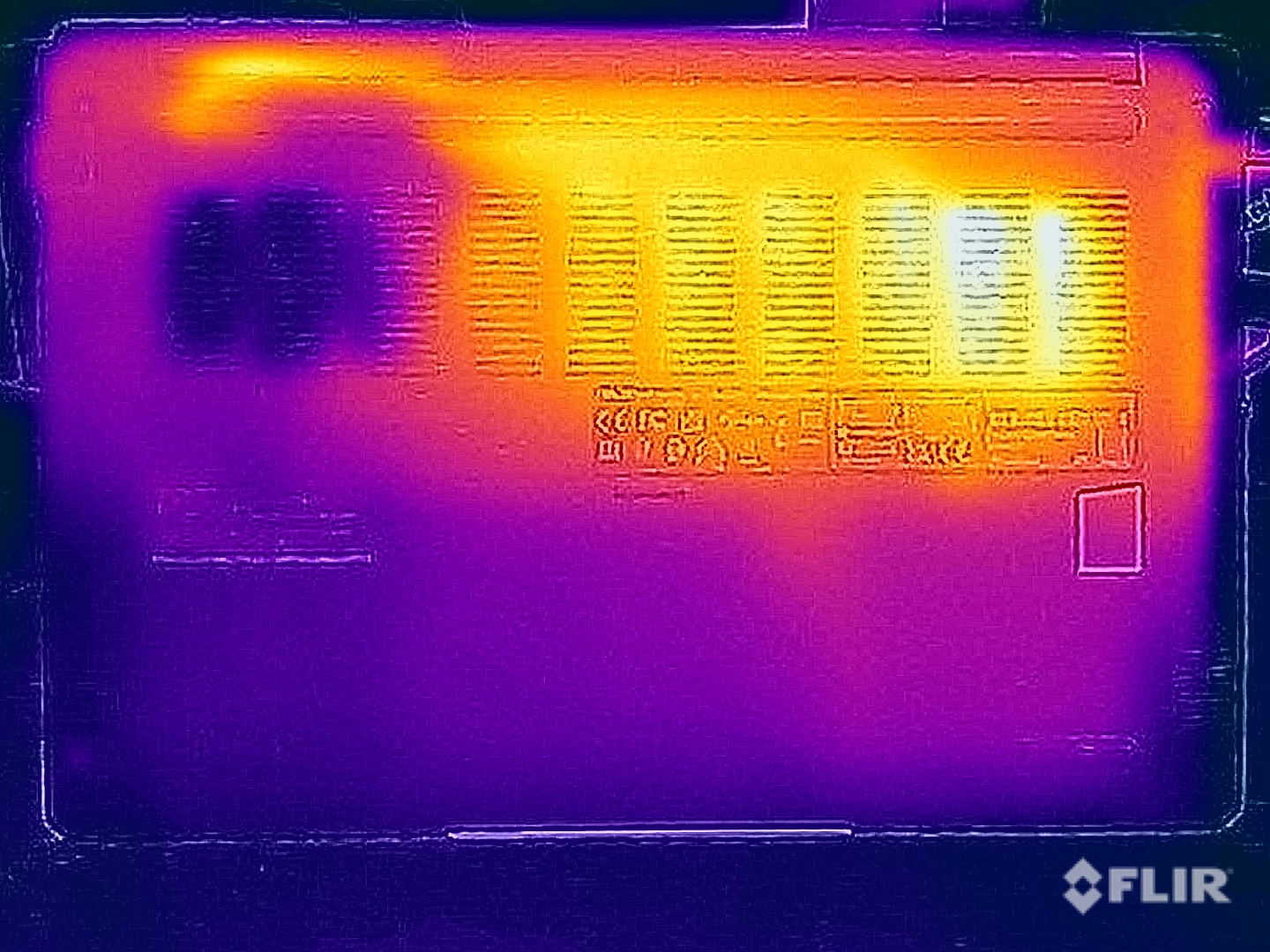

(±) The bottom heats up to a maximum of 44.4 °C / 112 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.4 °C / 78 F, compared to the device average of 29.5 °C / 85 F.
(±) 3: The average temperature for the upper side is 34.3 °C / 94 F, compared to the average of 29.5 °C / 85 F for the class Office.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.8 °C / 82 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.6 °C / 81.7 F (-0.2 °C / -0.3 F).
| Asus ExpertBook B1 B1403CVA Intel Core i5-13420H, Intel UHD Graphics Xe G4 48EUs | Lenovo ThinkPad L14 G5 21L50014GE AMD Ryzen 5 7535U, AMD Radeon 660M | SCHENKER Work 14 Base Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs | Acer Swift Go 14 AI Qualcomm Snapdragon X Plus X1P-42-100, Qualcomm SD X Adreno X1-45 1.7 TFLOPS | Lenovo ThinkPad E14 Gen 6 21M3002KGE AMD Ryzen 7 7735HS, AMD Radeon 680M | |
|---|---|---|---|---|---|
| Heat | -3% | 7% | 6% | -12% | |
| Maximum Upper Side * | 41.2 | 43.1 -5% | 39.2 5% | 39 5% | 43.4 -5% |
| Maximum Bottom * | 44.4 | 45.7 -3% | 40.4 9% | 45 -1% | 47.1 -6% |
| Idle Upper Side * | 26.7 | 27.9 -4% | 25.3 5% | 24 10% | 31.5 -18% |
| Idle Bottom * | 28 | 28.3 -1% | 25.8 8% | 25 11% | 33.7 -20% |
* ... smaller is better
发言人
笔记本电脑的扬声器整体上并不特别出色。至少高音还原得很干净，这有利于语音播放。然而，音乐或电影的声音却非常微弱。
Asus ExpertBook B1 B1403CVA audio analysis
(±) | speaker loudness is average but good (75.9 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.4% lower than median
(±) | linearity of bass is average (9.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5% higher than median
(±) | linearity of mids is average (8.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.5% away from median
(+) | highs are linear (5.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.9% difference to median)
Compared to same class
» 38% of all tested devices in this class were better, 9% similar, 53% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 48% of all tested devices were better, 7% similar, 45% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Lenovo ThinkPad L14 G5 21L50014GE audio analysis
(±) | speaker loudness is average but good (80.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 16.5% lower than median
(±) | linearity of bass is average (11.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.3% away from median
(+) | mids are linear (3.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(+) | highs are linear (5.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.6% difference to median)
Compared to same class
» 14% of all tested devices in this class were better, 4% similar, 82% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 21% of all tested devices were better, 4% similar, 75% worse
» The best had a delta of 4%, average was 24%, worst was 134%
SCHENKER Work 14 Base audio analysis
(+) | speakers can play relatively loud (84.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 22.8% lower than median
(±) | linearity of bass is average (8.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.7% higher than median
(±) | linearity of mids is average (11.7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.6% away from median
(±) | linearity of highs is average (8.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.9% difference to median)
Compared to same class
» 78% of all tested devices in this class were better, 8% similar, 15% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 78% of all tested devices were better, 4% similar, 18% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Acer Swift Go 14 AI audio analysis
(±) | speaker loudness is average but good (80.86 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.6% lower than median
(±) | linearity of bass is average (13% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.8% higher than median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (3.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.9% difference to median)
Compared to same class
» 20% of all tested devices in this class were better, 6% similar, 73% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 27% of all tested devices were better, 7% similar, 66% worse
» The best had a delta of 4%, average was 24%, worst was 134%
Lenovo ThinkPad E14 Gen 6 21M3002KGE audio analysis
(±) | speaker loudness is average but good (81.5 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.9% lower than median
(±) | linearity of bass is average (11.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.8% higher than median
(±) | linearity of mids is average (7% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.8% away from median
(+) | highs are linear (3.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.3% difference to median)
Compared to same class
» 16% of all tested devices in this class were better, 6% similar, 78% worse
» The best had a delta of 7%, average was 21%, worst was 53%
Compared to all devices tested
» 24% of all tested devices were better, 5% similar, 71% worse
» The best had a delta of 4%, average was 24%, worst was 134%
耗电量
我们的功耗测量结果并无意外。在空闲模式下，我们注意到最大功耗为 8.6 瓦，而在压力测试中，功耗曾一度达到 63 瓦，但当处理器的功耗上限稳定在 28 瓦时，功耗又降至 43 瓦左右。因此，65 瓦的电源装置在尺寸上已经足够。0.82 瓦的待机功耗有些高。
| Off / Standby | 0.42 / 0.84 Watt |
| Idle | 3.7 / 8.3 / 8.6 Watt |
| Load |
52.5 / 63.2 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power consumption Cyberpunk / stress test
Power consumption with external monitor
运行时间

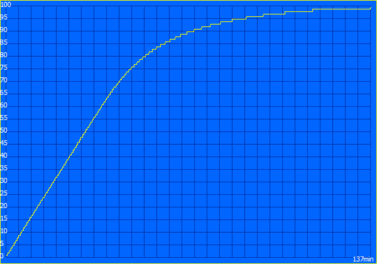

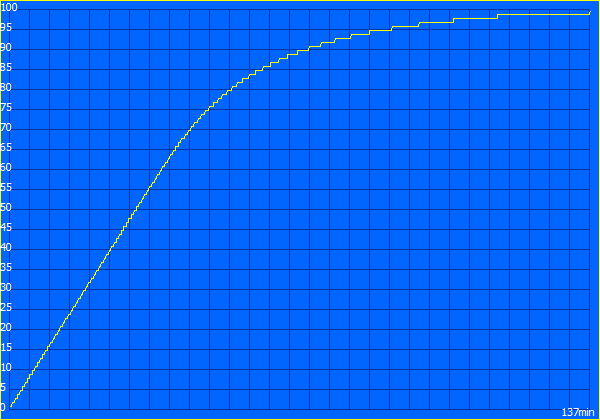

由于采用了 50 瓦时电池，该笔记本电脑的运行时间最终低于平均水平，而竞争对手在我们的测试中表现得更好（尤其是采用 Snapdragon CPU 的宏碁）。在 150 cd/m²（我们测试设备最大亮度的 82%）的条件下，它在 WLAN 测试中只能运行 7 小时，在全亮度条件下不到 6 小时。充满一次电需要 137 分钟（52 分钟后达到 80%）。
| Battery Runtime / WiFi Websurfing | |
| Acer Swift Go 14 AI | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average of class Office (230 - 1614, n=88, last 2 years) | |
| Lenovo ThinkPad E14 Gen 6 21M3002KGE | |
| SCHENKER Work 14 Base | |
| Asus ExpertBook B1 B1403CVA | |
| Battery Runtime / WiFi Websurfing max. Brightness | |
| Lenovo ThinkPad L14 G5 21L50014GE | |
| Average of class Office (291 - 720, n=44, last 2 years) | |
| Asus ExpertBook B1 B1403CVA | |
| SCHENKER Work 14 Base | |
Notebookcheck 总评分
Asus ExpertBook B1 B1403CVA
- 02/19/2025 v8
Andreas Osthoff
Total Sustainability Score: Transparency
The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.
This is how Notebookcheck is testing
Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
