华硕 F756UX-T7013T 笔记本电脑简短评测

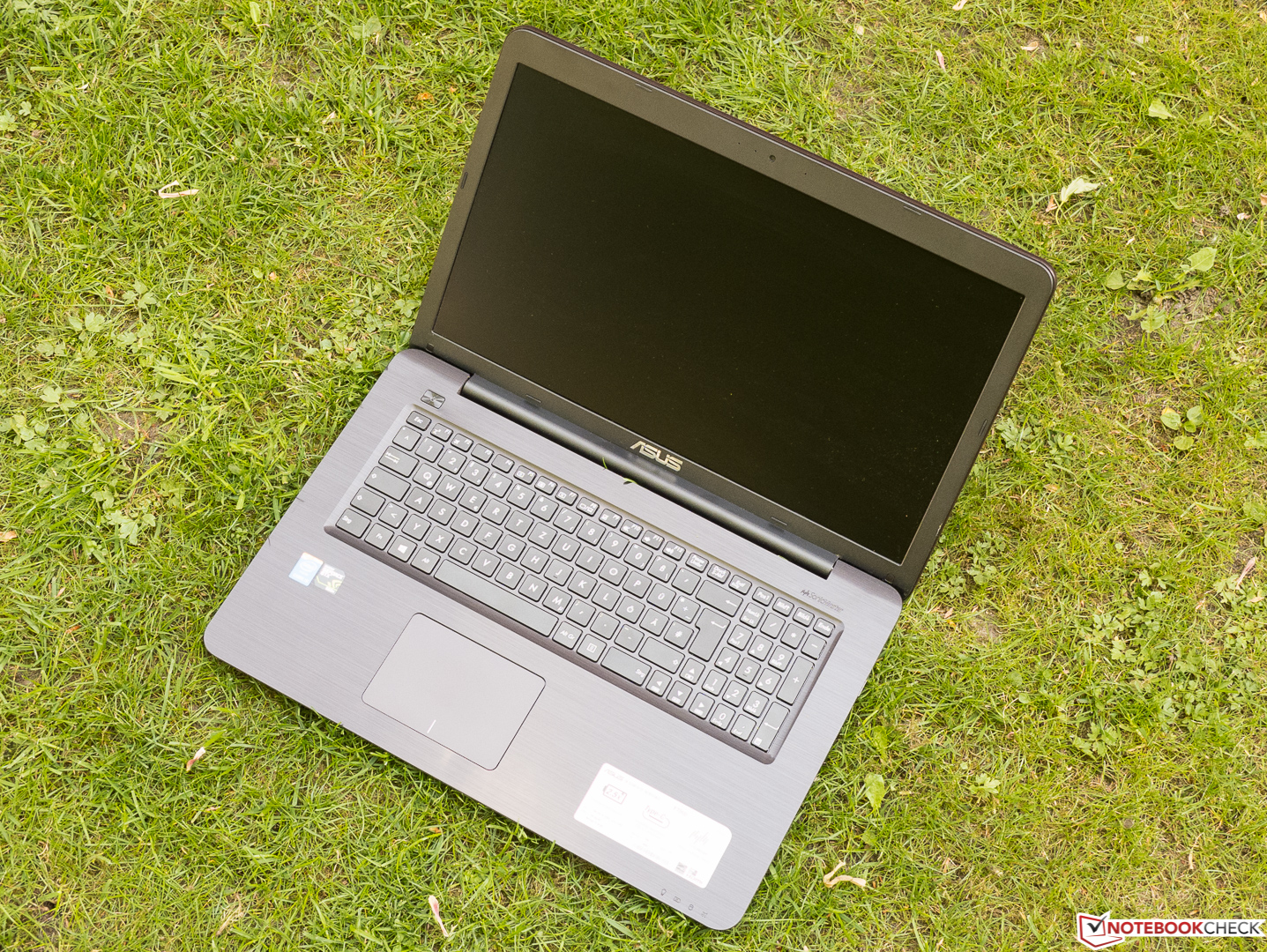

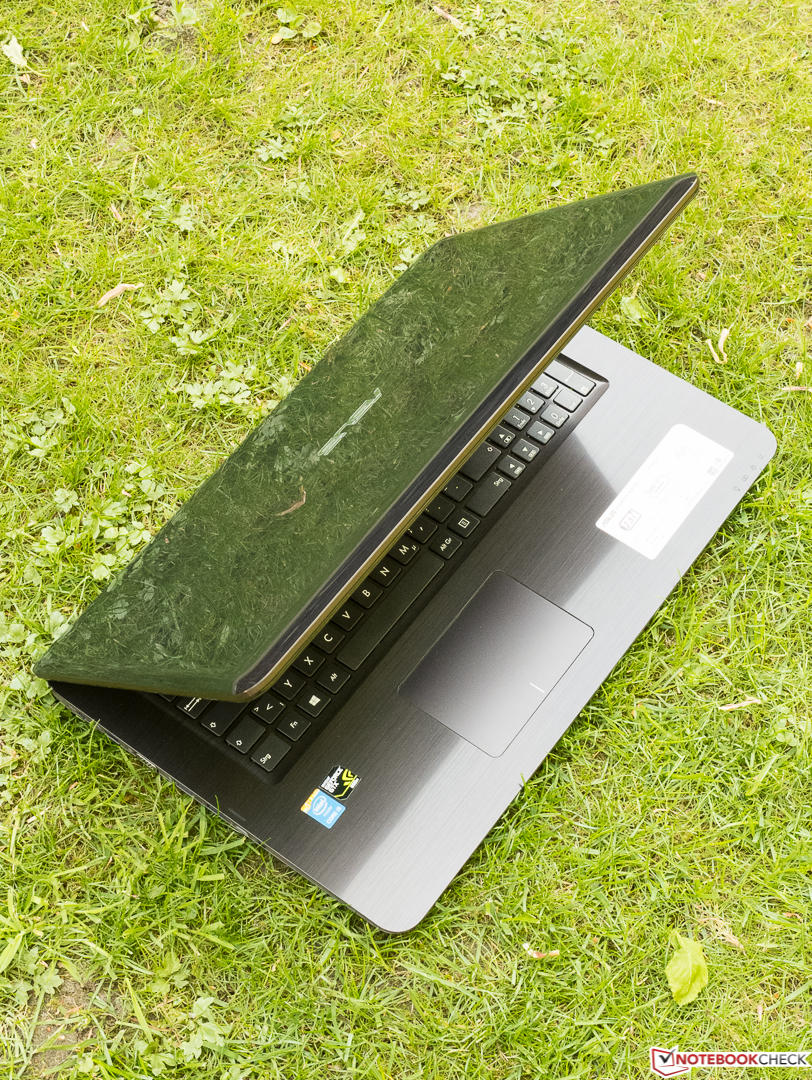

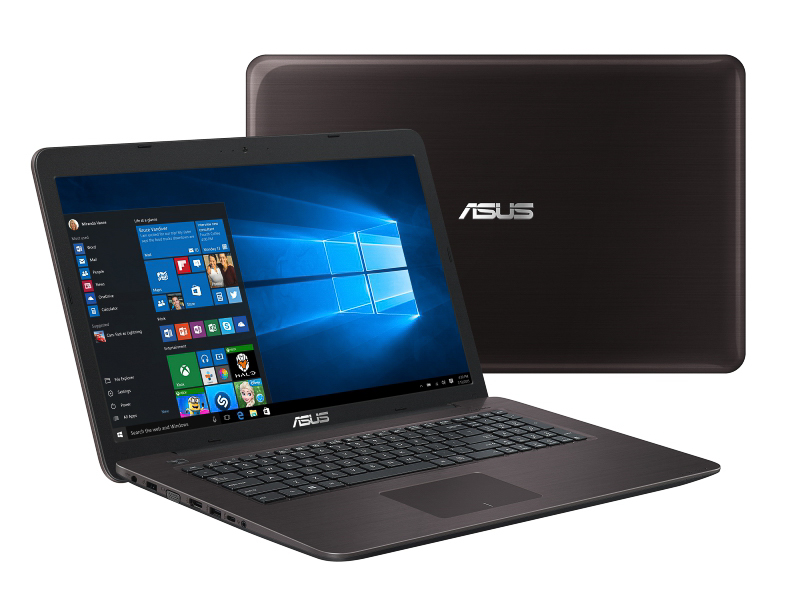

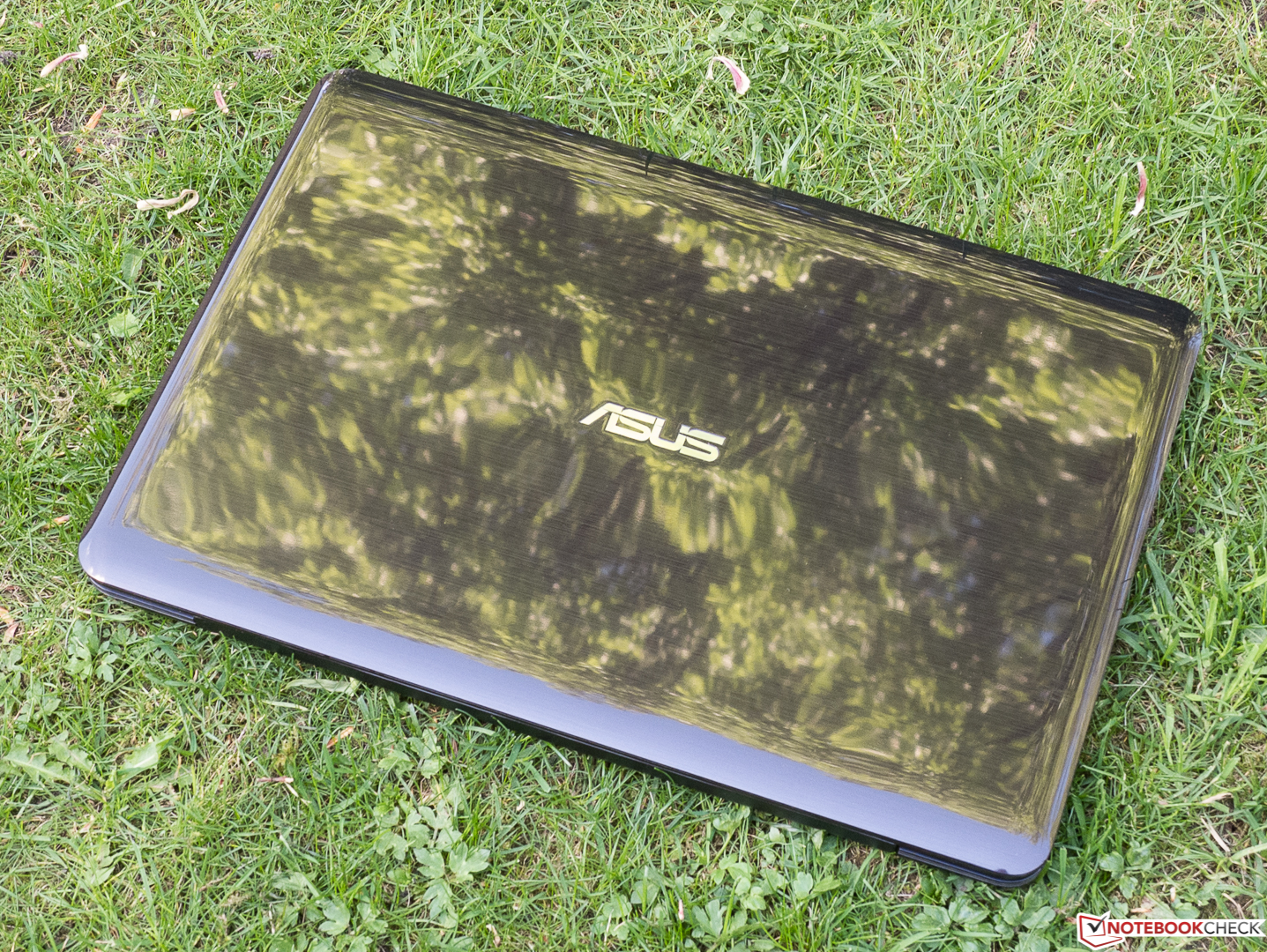

镜面多媒体。 华硕最新17寸桌面式笔记本电脑中的科技隐藏在了钢琴漆表面之下。由于这台多媒体笔记本电脑已经上市,起售价770欧元(约5656人民币),我们对它的屏幕和输入设备期待并不高。不过我们总是欢迎有一些惊喜的。
Geforce Laptop / Notebook Skylake Windows
Asus F756UX-T7013T (F756 Series)
Processor

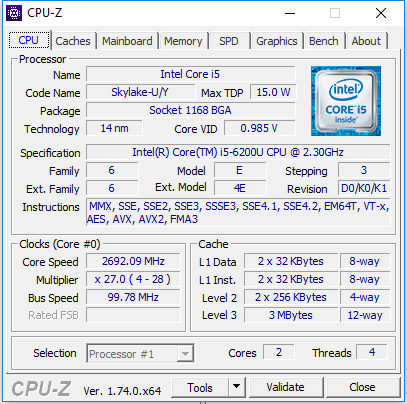

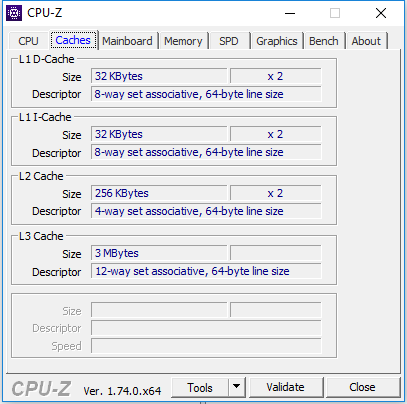

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Graphics adapter

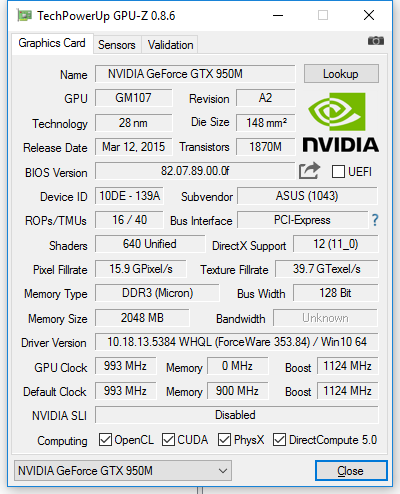

NVIDIA GeForce GTX 950M - 2048 MB VRAM, Core: 1124 MHz, RAM: 1800 MHz, DDR3, ForceWare 353.84, Nvidia Optimus

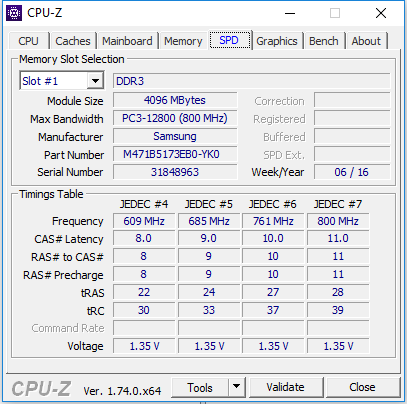

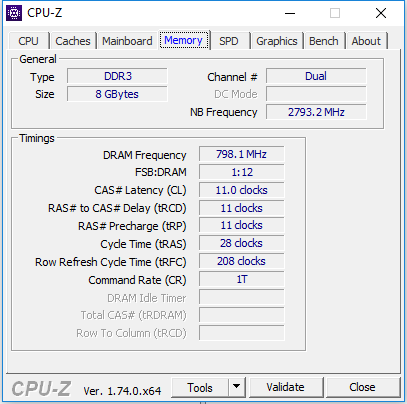

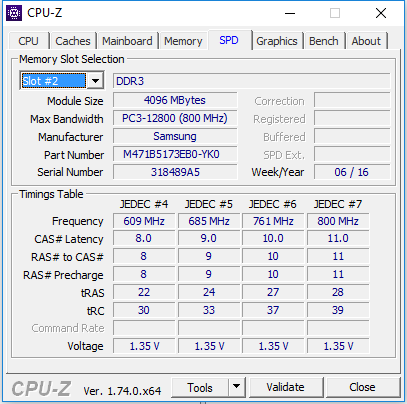

Memory
8 GB
, DDR3L, 1600 MHz, 双通道, 两个内存槽均已占用
Display
17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, Chi Mei CMN1735 / N173HGE-E11, TN LED, glossy: no

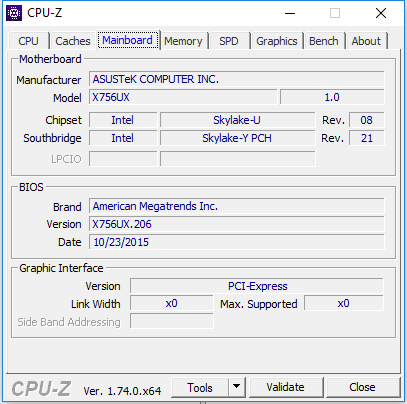

Mainboard
Intel Skylake-U Premium PCH
Storage
HGST Travelstar 5K1000 HTS541010A9E680, 1000 GB
, 5400 rpm
Soundcard
Intel Skylake-U/Y PCH - High Definition Audio
Connections

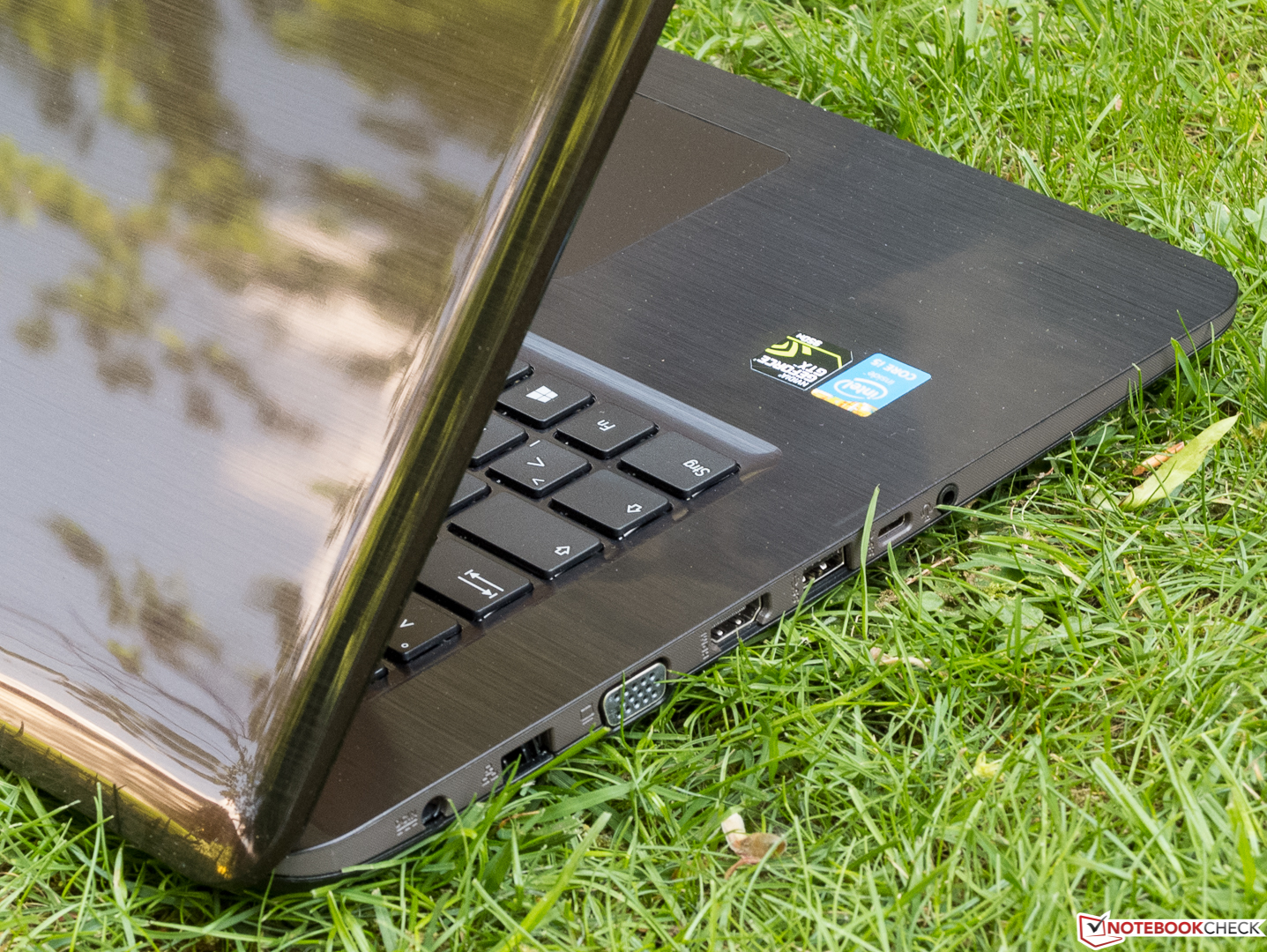

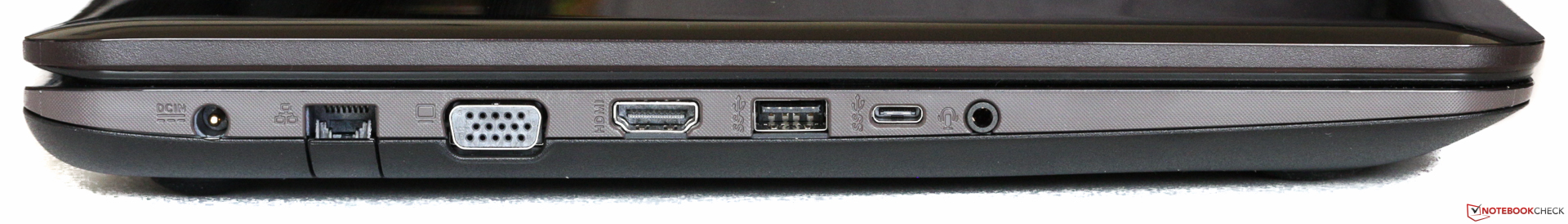

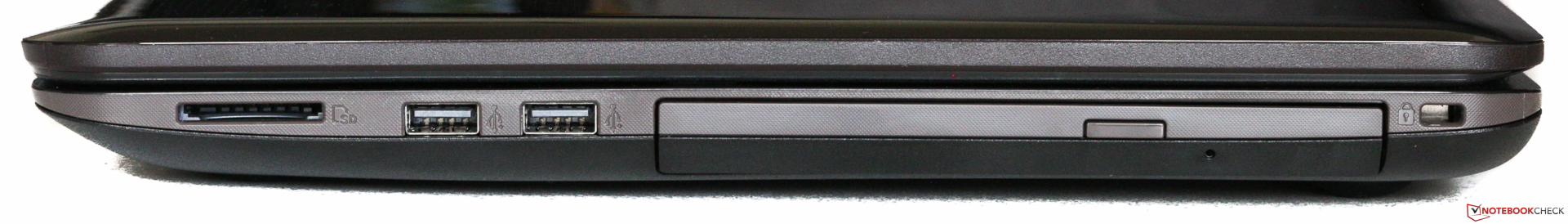

2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米整合音频输入输出接口, Card Reader: SD/SDHC/SDXC, Brightness Sensor
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Atheros Communications AR9565 Wireless Network Adapter (b/g/n = Wi-Fi 4/), Bluetooth 4.0, GPS
Optical drive
HL-DT-ST DVDRAM GUE1N
Size
height x width x depth (in mm): 35.5 x 415 x 272
Battery
38 Wh Lithium-Ion, removeable, 2 芯
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 高清
Additional features

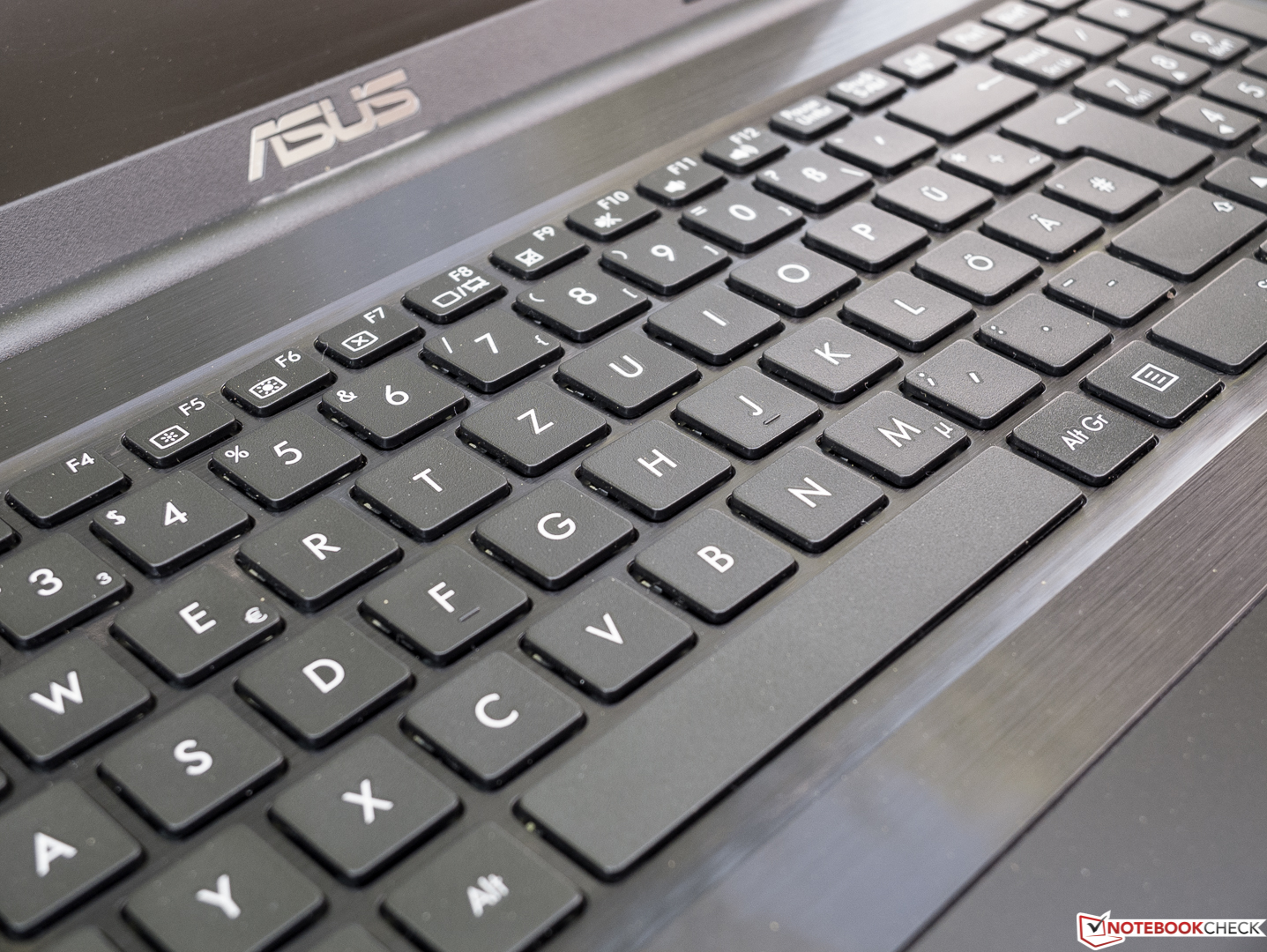

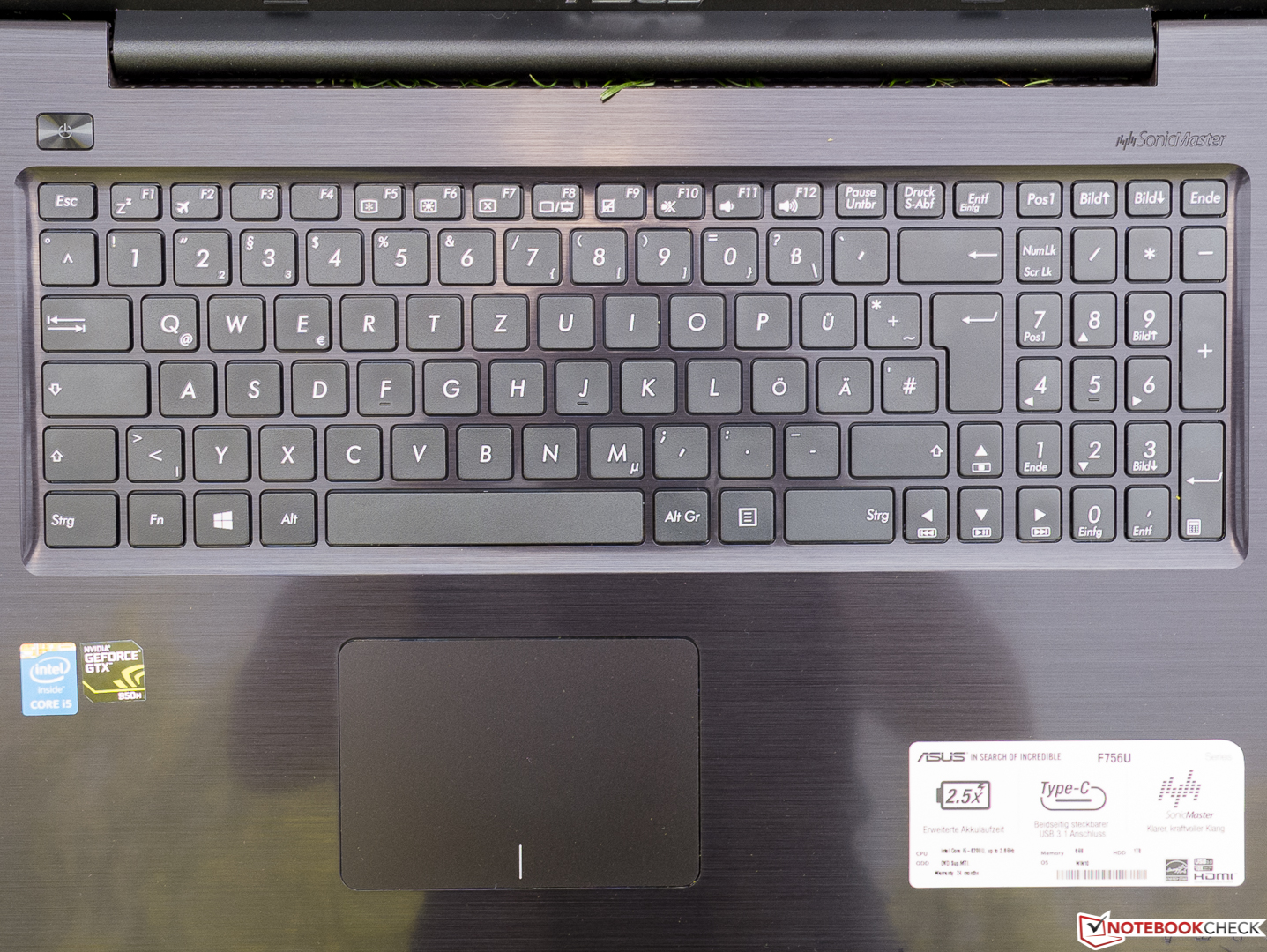

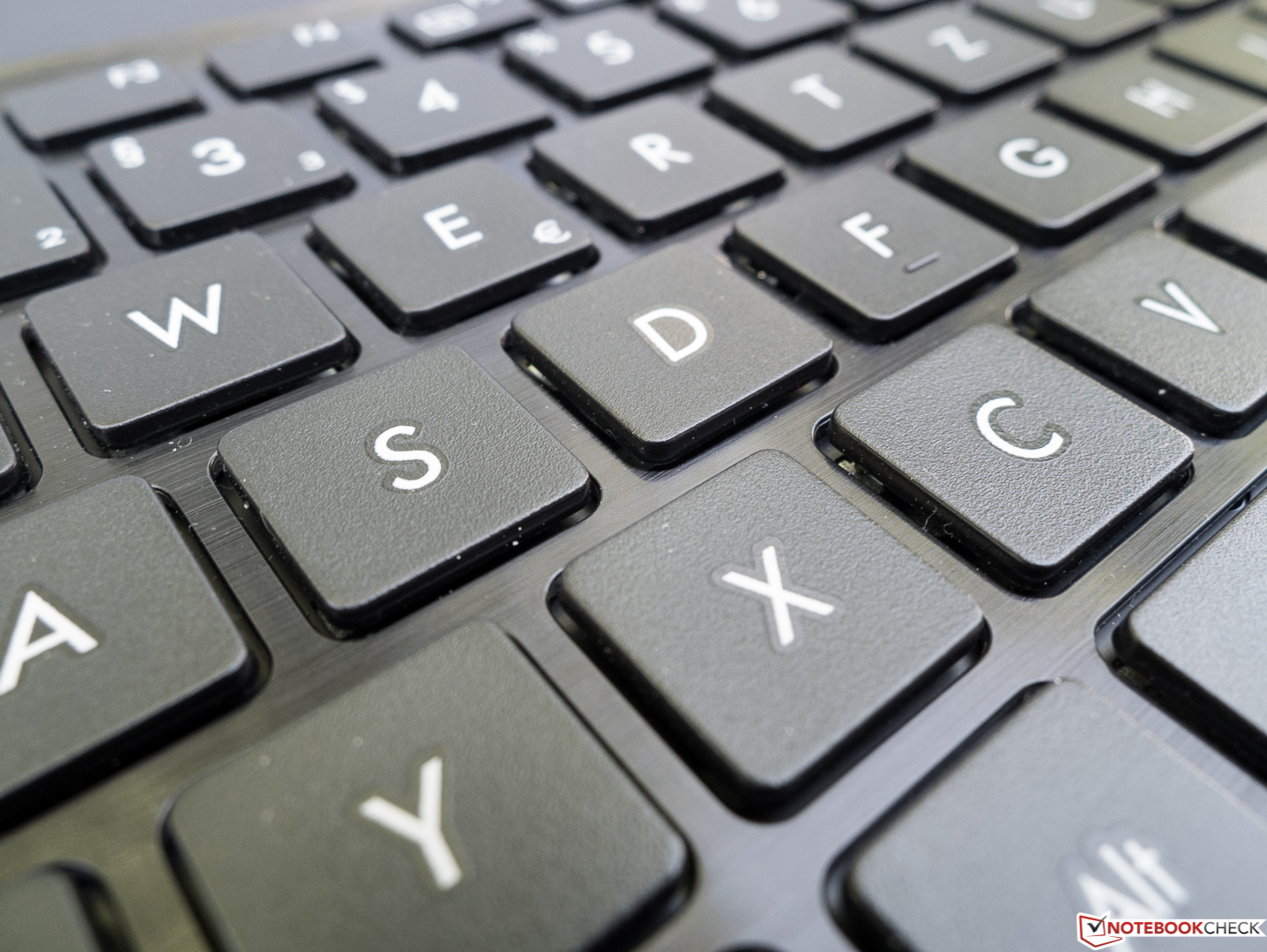

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no, 24 Months Warranty
Weight
2.7 kg, Power Supply: 261 g
Price
799 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
Asus F756UX-T7013T
273
cd/m²
249
cd/m²
245
cd/m²
253
cd/m²
268
cd/m²
227
cd/m²
270
cd/m²
267
cd/m²
240
cd/m²
Distribution of brightness
Chi Mei CMN1735 / N173HGE-E11 tested with X-Rite i1Pro 2
Maximum: 273 cd/m² (Nits) Average: 254.7 cd/m² Minimum: 15 cd/m²
Brightness Distribution: 83 %
Center on Battery: 265 cd/m²
Contrast: 1576:1 (Black: 0.17 cd/m²)
ΔE Color 7.18 | 0.5-29.43 Ø4.92
ΔE Greyscale 7.97 | 0.5-98 Ø5.2
94% sRGB (Argyll 1.6.3 3D)
59% AdobeRGB 1998 (Argyll 1.6.3 3D)
64.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
93.7% sRGB (Argyll 2.2.0 3D)
63.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34

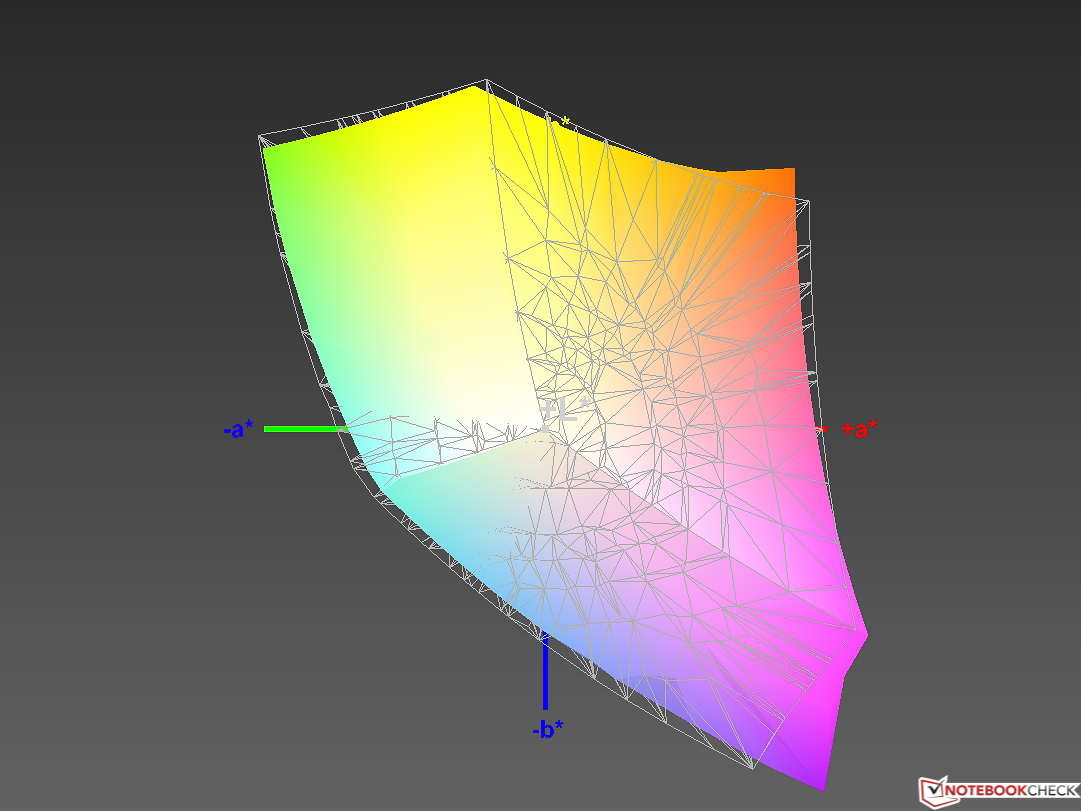

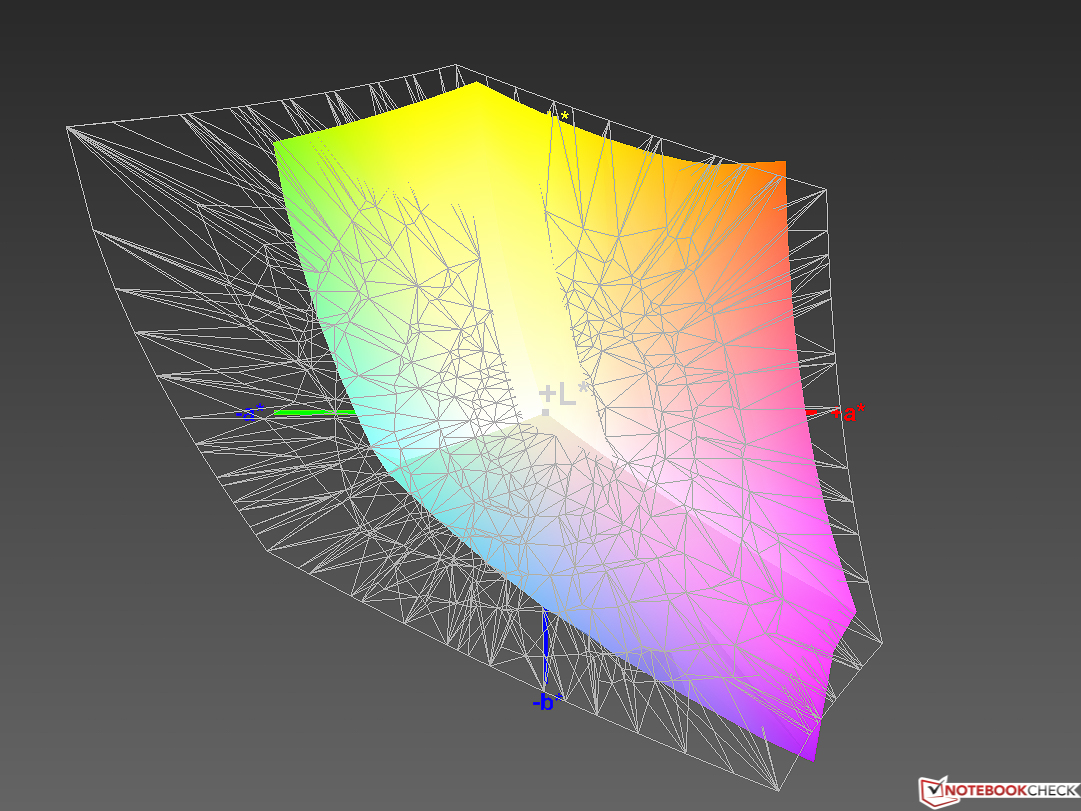

Asus F756UX-T7013T vs. AdobeRGB
Asus F756UX-T7013T vs. AdobeRGB
Asus F756UX-T7013T vs. sRGB
Asus F756UX-T7013T vs. sRGB

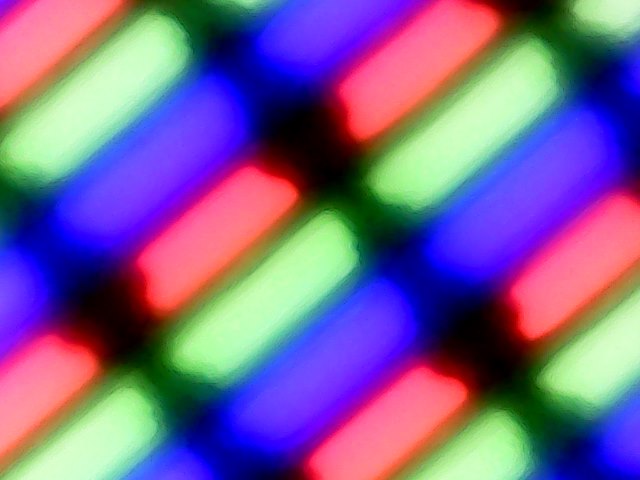

Pixel grid
Pixel grid
Asus F756UX-T7013TMedion Erazer P7644HP ProBook 470 G3HP Pavilion 17-g120ng
Display
-2%
1%
4%
Display P3 Coverage
63.9
63.4
-1%
65.1
2%
65.7
3%
sRGB Coverage
93.7
90.3
-4%
92
-2%
97.6
4%
AdobeRGB 1998 Coverage
64.6
64.5
0%
66.5
3%
67.7
5%
Response Times
-60%
2%
-89%
Response Time Grey 50% / Grey 80% *
42 ?(20, 22)
48 ?(30, 18)
-14%
35 ?(17.6, 17.2)
17%
70 ?(32, 38)
-67%
Response Time Black / White *
21 ?(6, 15)
36 ?(22, 14)
-71%
24 ?(6.4, 17.2)
-14%
46 ?(16, 30)
-119%
PWM Frequency
1000 ?(90)
50 ?(90)
-95%
200 ?(50)
-80%
Screen
-17%
2%
3%
Brightness middle
268
296
10%
314
17%
309
15%
Brightness
255
280
10%
291
14%
292
15%
Brightness Distribution
83
87
5%
88
6%
86
4%
Black Level *
0.17
0.48
-182%
0.32
-88%
0.27
-59%
Contrast
1576
617
-61%
981
-38%
1144
-27%
Colorchecker dE 2000 *
7.18
4.71
34%
3.43
52%
4.53
37%
Colorchecker dE 2000 max. *
11.67
Greyscale dE 2000 *
7.97
5.17
35%
3.72
53%
5.66
29%
Gamma
2.34 94%
2.33 94%
2.39 92%
2.62 84%
CCT
8541 76%
7613 85%
6764 96%
7893 82%
Color Space (Percent of AdobeRGB 1998)
59
59
0%
59.8
1%
62
5%
Color Space (Percent of sRGB)
94
90
-4%
92
-2%
98
4%
Total Average (Program / Settings)
-26% / -23%
2% / 2%
-27% / -15%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

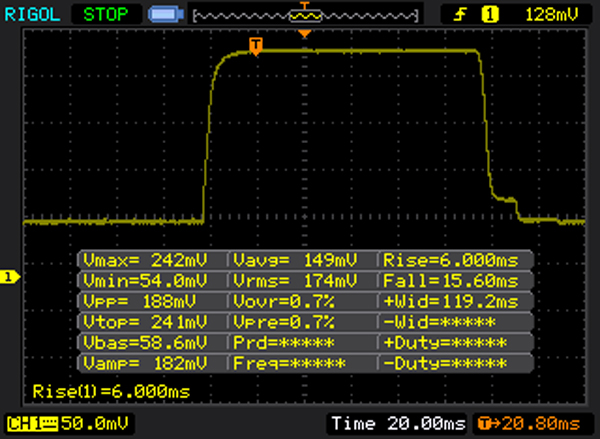

       Response Time Black to White
21 ms ... rise ↗ and fall ↘ combined↗ 6 ms rise
↘ 15 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 42 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (21 ms).

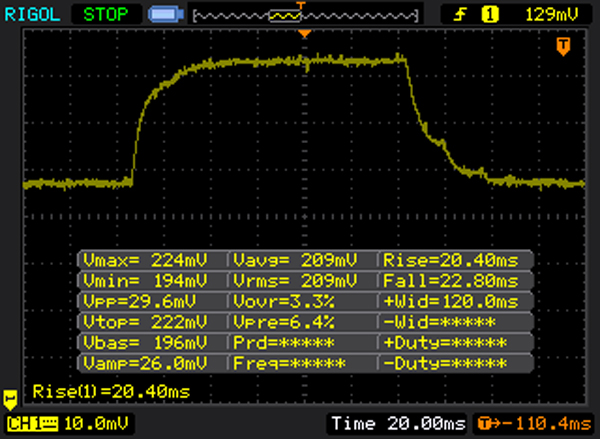

       Response Time 50% Grey to 80% Grey
42 ms ... rise ↗ and fall ↘ combined↗ 20 ms rise
↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 64 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).

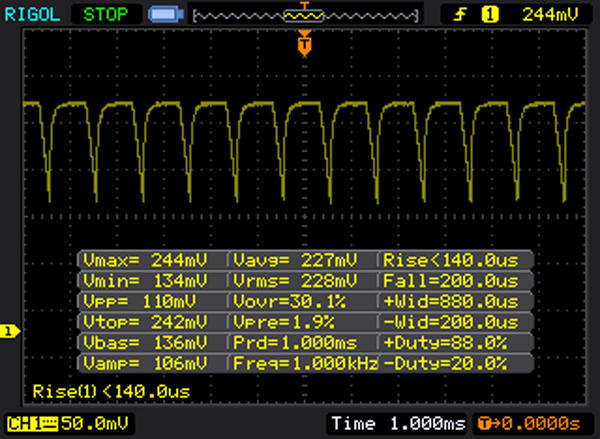

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 1000 Hz ≤ 90 % brightness setting

The display backlight flickers at 1000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 1000 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Cinebench R15
CPU Multi 64Bit
HP ProBook 470 G3
Intel Core i7-6500U
323 Points +12%
Medion Erazer P7644
Intel Core i7-6500U
319 Points +10%
HP Pavilion 17-g120ng
Intel Core i7-6500U
316 Points +9%
Asus F756UX-T7013T
Intel Core i5-6200U
289 Points
CPU Single 64Bit
HP ProBook 470 G3
Intel Core i7-6500U
125 Points +8%
Medion Erazer P7644
Intel Core i7-6500U
125 Points +8%
HP Pavilion 17-g120ng
Intel Core i7-6500U
123 Points +6%
Asus F756UX-T7013T
Intel Core i5-6200U
116 Points
Cinebench R10 Rendering Single 32Bit
4357
Cinebench R10 Rendering Multiple CPUs 32Bit
9881
Cinebench R11.5 CPU Single 64Bit
1.33 Points
Cinebench R11.5 CPU Multi 64Bit
3.2 Points
Cinebench R15 CPU Single 64Bit
116 Points
Cinebench R15 CPU Multi 64Bit
289 Points
Help
PCMark 8
Home Score Accelerated v2
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H
3751 Points +19%
HP ProBook 470 G3
Radeon R7 M340, 6500U, WDC Scorpio Blue WD10JPVX-75JC3T0
3399 Points +7%
Medion Erazer P7644
GeForce GTX 950M, 6500U, Phison 256GB PC3110-S10C
3240 Points +2%
Asus F756UX-T7013T
GeForce GTX 950M, 6200U, HGST Travelstar 5K1000 HTS541010A9E680
3162 Points
Work Score Accelerated v2
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
GeForce GTX 960M, 6700HQ, Toshiba MQ02ABD100H
4660 Points +17%
Medion Erazer P7644
GeForce GTX 950M, 6500U, Phison 256GB PC3110-S10C
4494 Points +13%
HP ProBook 470 G3
Radeon R7 M340, 6500U, WDC Scorpio Blue WD10JPVX-75JC3T0
4177 Points +5%
Asus F756UX-T7013T
GeForce GTX 950M, 6200U, HGST Travelstar 5K1000 HTS541010A9E680
3969 Points
PCMark 8 Home Score Accelerated v2
3162 points
PCMark 8 Work Score Accelerated v2
3969 points
Help
Asus F756UX-T7013T
HGST Travelstar 5K1000 HTS541010A9E680
Medion Erazer P7644
Phison 256GB PC3110-S10C
HP ProBook 470 G3
WDC Scorpio Blue WD10JPVX-75JC3T0
HP Pavilion 17-g120ng
Toshiba MQ01ABD100
CrystalDiskMark 3.0
15221%
16%
-10%
Read Seq
105.8
511
383%
111.4
5%
104.6
-1%
Read 4k
0.413
32.35
7733%
0.434
5%
0.358
-13%
Read 4k QD32
0.812
305.7
37548%
1.126
39%
0.679
-16%
HGST Travelstar 5K1000 HTS541010A9E680
Transfer Rate Minimum: 33.1 MB/s
Transfer Rate Maximum: 104.6 MB/s
Transfer Rate Average: 81.3 MB/s
Access Time: 19.5 ms
Burst Rate: 256.5 MB/s
CPU Usage: 10.9 %
3DMark 11 - 1280x720 Performance GPU
Acer Aspire V Nitro Black Edition VN7-792G-74Q4
NVIDIA GeForce GTX 960M
5400 Points +32%
Medion Erazer P7644
NVIDIA GeForce GTX 950M
4209 Points +3%
Asus F756UX-T7013T
NVIDIA GeForce GTX 950M
4083 Points
HP Pavilion 17-g120ng
NVIDIA GeForce 940M
2389 Points -41%
HP ProBook 470 G3
AMD Radeon R7 M340
2151 Points -47%
3DMark 11 Performance
3846 points
3DMark Cloud Gate Standard Score
8906 points
3DMark Fire Strike Score
2541 points
Help
lowmed.highultra
BioShock Infinite (2013) 122 82.8 69.7 24.9
The Witcher 3 (2015) 55.1 33 17.5
XCOM 2 (2016) 50.2 19.8 13.3
The Division (2016) 50.3 37 18 13.6
Hitman 2016 (2016) 38.2 34.6 20.9 19.7

Noise Level

Idle
32.4 / 32.6 / 32.6 dB(A)
HDD
32.7 dB(A)
DVD
37.4 / dB(A)
Load
42 / 45.2 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 31.2 dB(A)
Max. Load
 42 °C41.8 °C35 °C
 40.3 °C42 °C25.7 °C
 29.9 °C27 °C28 °C
Maximum: 42 °C
Average: 34.6 °C
40.6 °C50.5 °C40.3 °C
27.3 °C42.8 °C38.6 °C
26.7 °C26.7 °C25 °C
Maximum: 50.5 °C
Average: 35.4 °C
Power Supply (max.)  42.5 °C | Room Temperature 21.9 °C | FIRT 550-Pocket
(±) The average temperature for the upper side under maximal load is 34.6 °C / 94 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 42 °C / 108 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(-) The bottom heats up to a maximum of 50.5 °C / 123 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 25 °C / 77 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.9 °C / 85.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-1.1 °C / -2 F).
Power Consumption
Off / Standbydarklight 0 / 1 Watt
Idledarkmidlight 5.8 / 11.2 / 11.9 Watt
Load midlight 54 / 84 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Asus F756UX-T7013TMedion Erazer P7644HP ProBook 470 G3HP Pavilion 17-g120ng
Battery Runtime
32%
12%
18%
Reader / Idle
491
490
0%
WiFi v1.3
217
287
32%
277
28%
256
18%
Load
75
81
8%
H.264
270
Battery Runtime
Idle (without WLAN, min brightness)
8h 11min
WiFi Websurfing
3h 37min
DVD
2h 25min
Load (maximum brightness)
1h 15min

Pros

+ USB 3.1 C型接口
+ 存储设备有维护底盖
+ 可开启底盖(螺丝)
+ 优秀的触控板
+ 不错的TN屏幕,同价位中对比度出色
+ 无屏幕闪烁
+ 不错的音响系统
+ 表面温度不算过热

Cons

- 机身在一些位置不够稳定
- 打开屏幕上盖需要两只手
- 两个USB 2.0
- 不支持5 GHz无线网络
- 读卡器较慢
- 电池无法直接更换
- 硬盘噪音几乎一直可以听到
In review: Asus F756UX-T7013T. Test model courtesy of Notebooksbilliger.de
In review: Asus F756UX-T7013T. Test model courtesy of Notebooksbilliger.de

这台电池续航相对较短的笨重桌面式笔记本电脑可能会吸引喜欢反光表面的用户。它搭配了绚丽的高对比度屏幕,同时没有什么技术上的弱点。

用户可能会感觉售价相对较低(770欧元,约5656人民币)的华硕F756UX-T7013T物超所值。

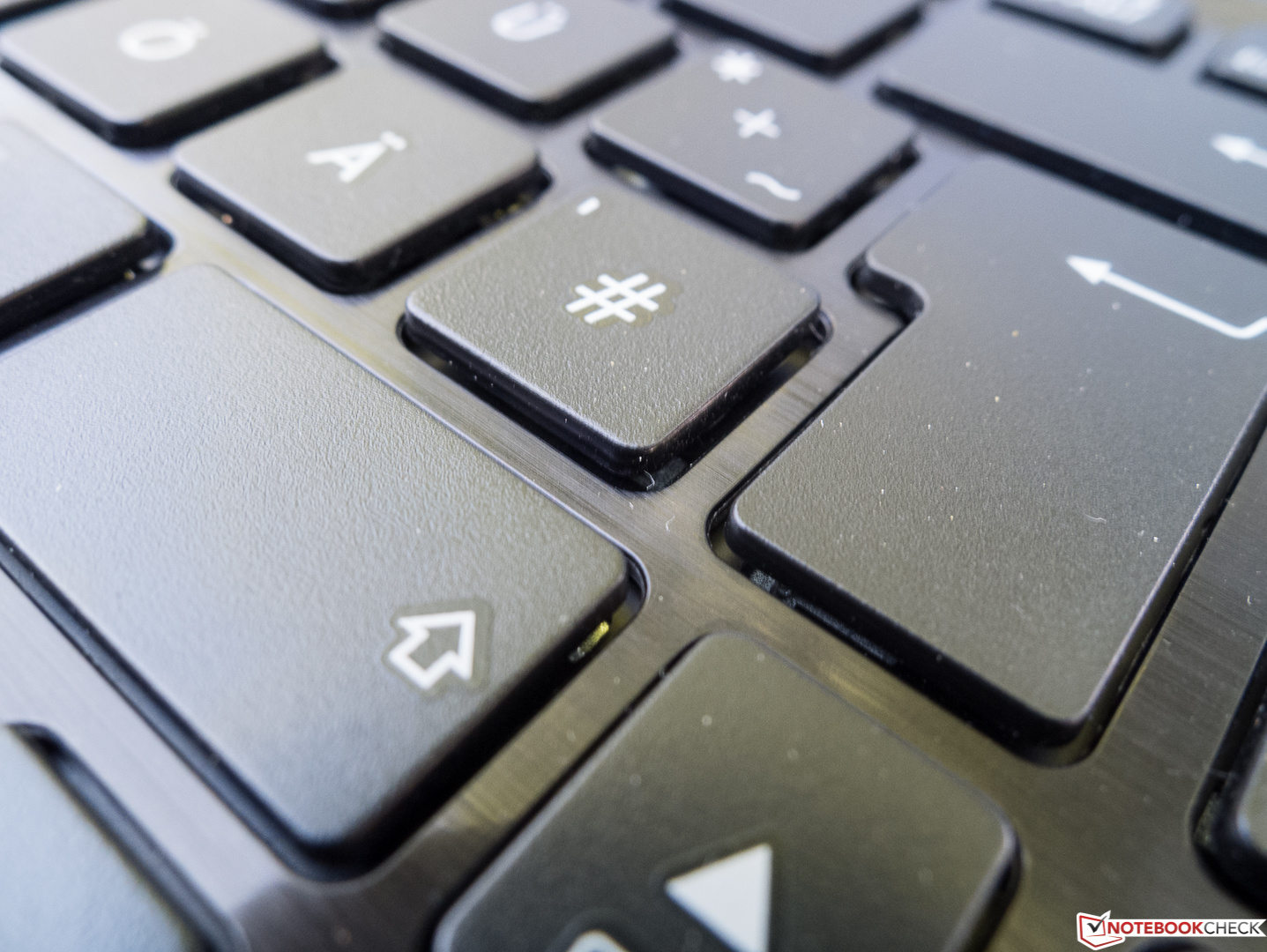

它的键盘不是特别适合办公。而机身也在一些地方不够坚固,这可能在桌面使用中很难察觉到。它的弱点在于除了VGA和USB-C型接口之外的接口数量和无线技术。较弱的无线模组让人很难满意,对于许多使用5 GHz频段的用户来说会成为一个问题。

因此,F756UX可能适合要求不是很高的游戏玩家和多媒体爱好者。喜欢这台设备的基本概念的用户可以考虑选择它售价稍高的固态硬盘幸好。我们感觉升级i7-6500U处理器的必要性不大,因为它的显卡会明显成为系统的瓶颈。同类产品在测试中都得到了80%或81%的分数,不过我们测试的机型售价也都更高。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Asus F756UX-T7013T - 05/12/2016 v5.1 (old)
Sven Kloevekorn

Chassis
71 / 98 → 73%
Keyboard
76%
Pointing Device
79%
Connectivity
43 / 81 → 53%
Weight
58 / 20-67 → 81%
Battery
73%
Display
82%
Games Performance
72 / 85 → 85%
Application Performance
71 / 92 → 77%
Temperature
90%
Noise
77 / 95 → 81%
Audio
78%
Camera
61 / 85 → 71%
Average
72%
78%
Multimedia - Weighted Average
