华硕 GL552JX 笔记本电脑简短评测

Name: Asus GL552JX-CN154H
Brand: Asus

游戏有极限。 华硕的最新15寸ROG系列的广告语是“游戏无极限”，很遗憾在这台设备上受到GeForce GTX 950M的限制而无法实现。如果它有限的性能可以满足你的需要的话，你可以得到一台搭配固态硬盘，出色输入设备和高品质屏幕的均衡多媒体笔记本电脑，售价1200欧元（约8640人民币），不过它也并不是毫无缺点。

Sven Kloevekorn, ✓ Tanja Hinum (translated by Yuchen Wang), Published 09/03/2015 🇺🇸 🇩🇪 ...

Gaming Geforce Haswell Laptop / Notebook Windows

Test device courtesy of notebooksbilliger.de

Download your licensed rating image as PNG / SVG

Asus GL552JX-CN154H (GL552 Series)

Processor

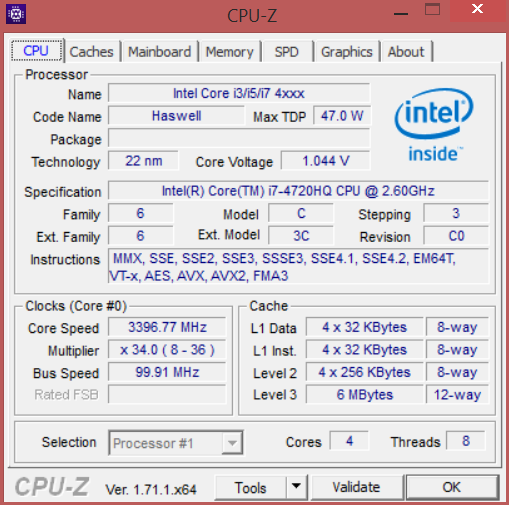

Intel Core i7-4720HQ 4 x 2.6 - 3.6 GHz, Haswell

Graphics adapter

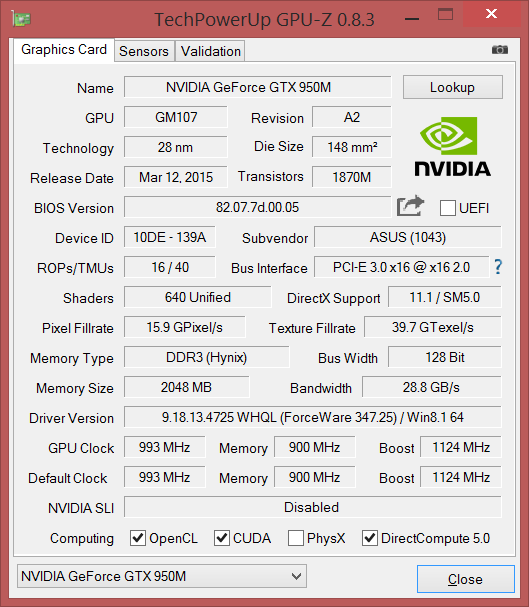

NVIDIA GeForce GTX 950M - 2048 MB VRAM, Core: 1124 MHz, RAM: 1800 MHz, DDR3, ForceWare 347.25, Nvidia Optimus

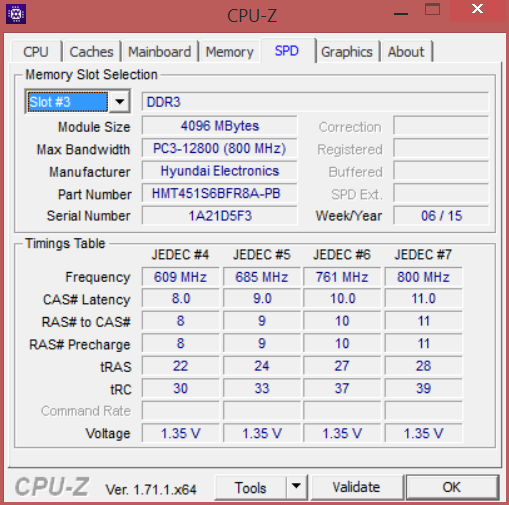

Memory

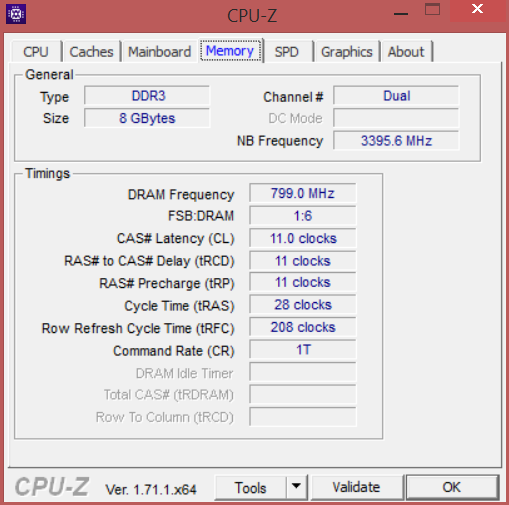

8 GB

, DDR3, 1600 MHz, 双通道, 两个内存槽, 均已占用

Display

15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, Samsung 156HL01-102, IPS, glossy: no

Mainboard

Intel HM86 (Lynx Point)

Storage

Micron M600 MTFDDAV128MBF, 128 GB

, + 1 x HGST HTS541010A9E680 1 TB

Soundcard

Intel Lynx Point PCH - High Definition Audio Controller

Connections

1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: 3.5毫米耳机插口，3.5毫米麦克风插口, Card Reader: SD/SDHC/SDXC

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

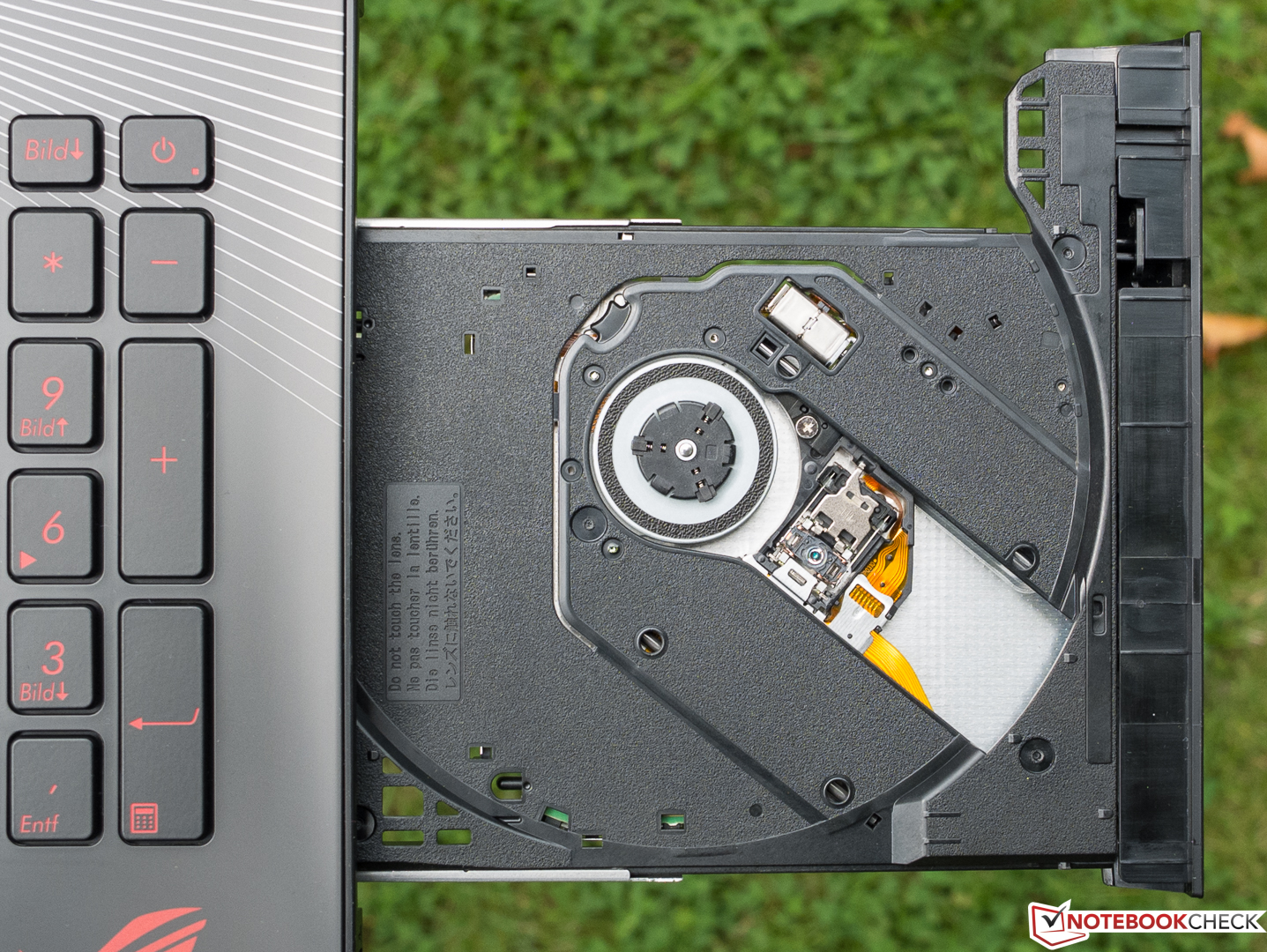

Matshita DVDRAM UJ8G6

Size

height x width x depth (in mm): 33 x 385 x 255

Battery

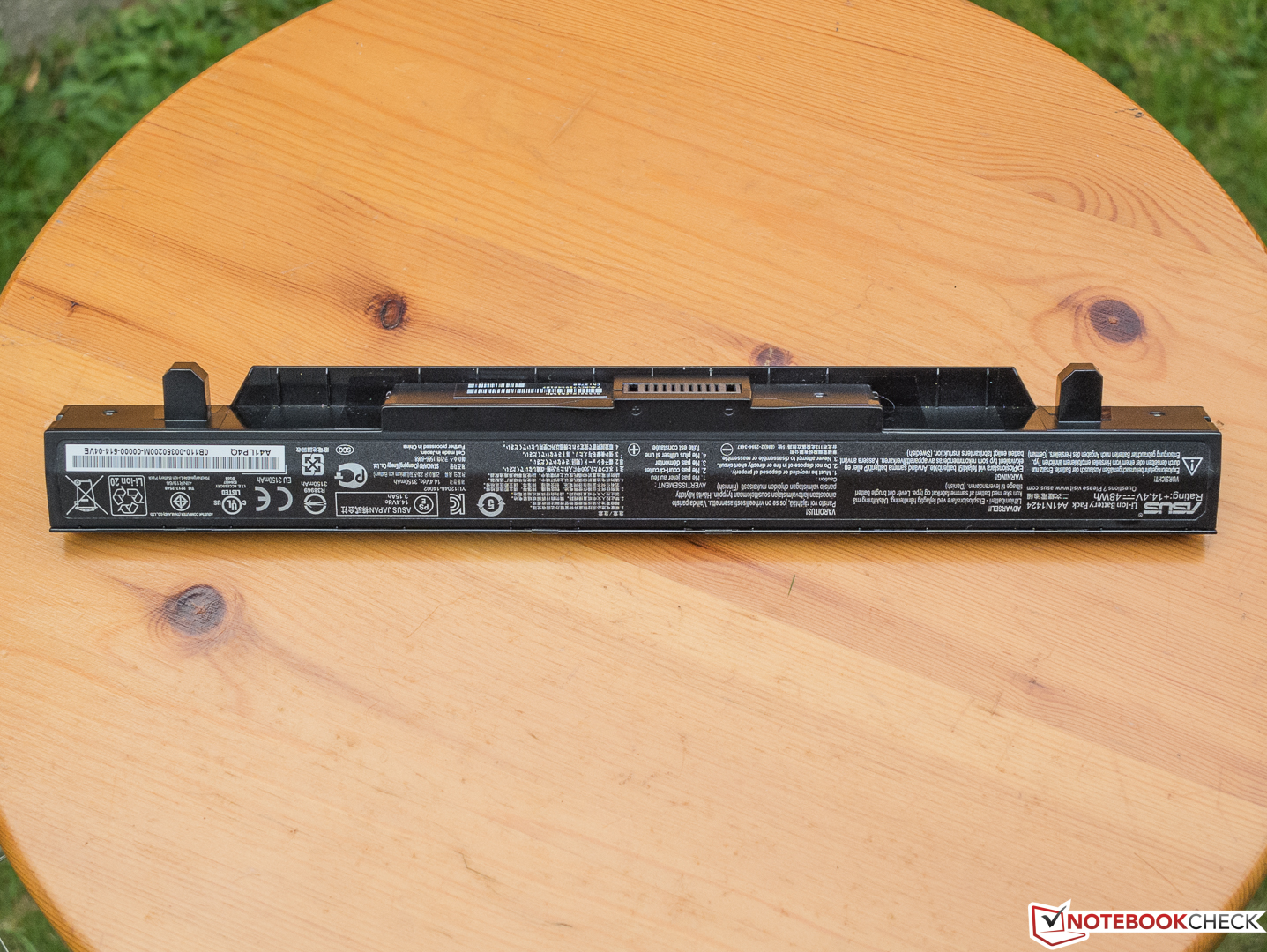

48 Wh Lithium-Ion

Operating System

Microsoft Windows 8.1 64 Bit

Camera

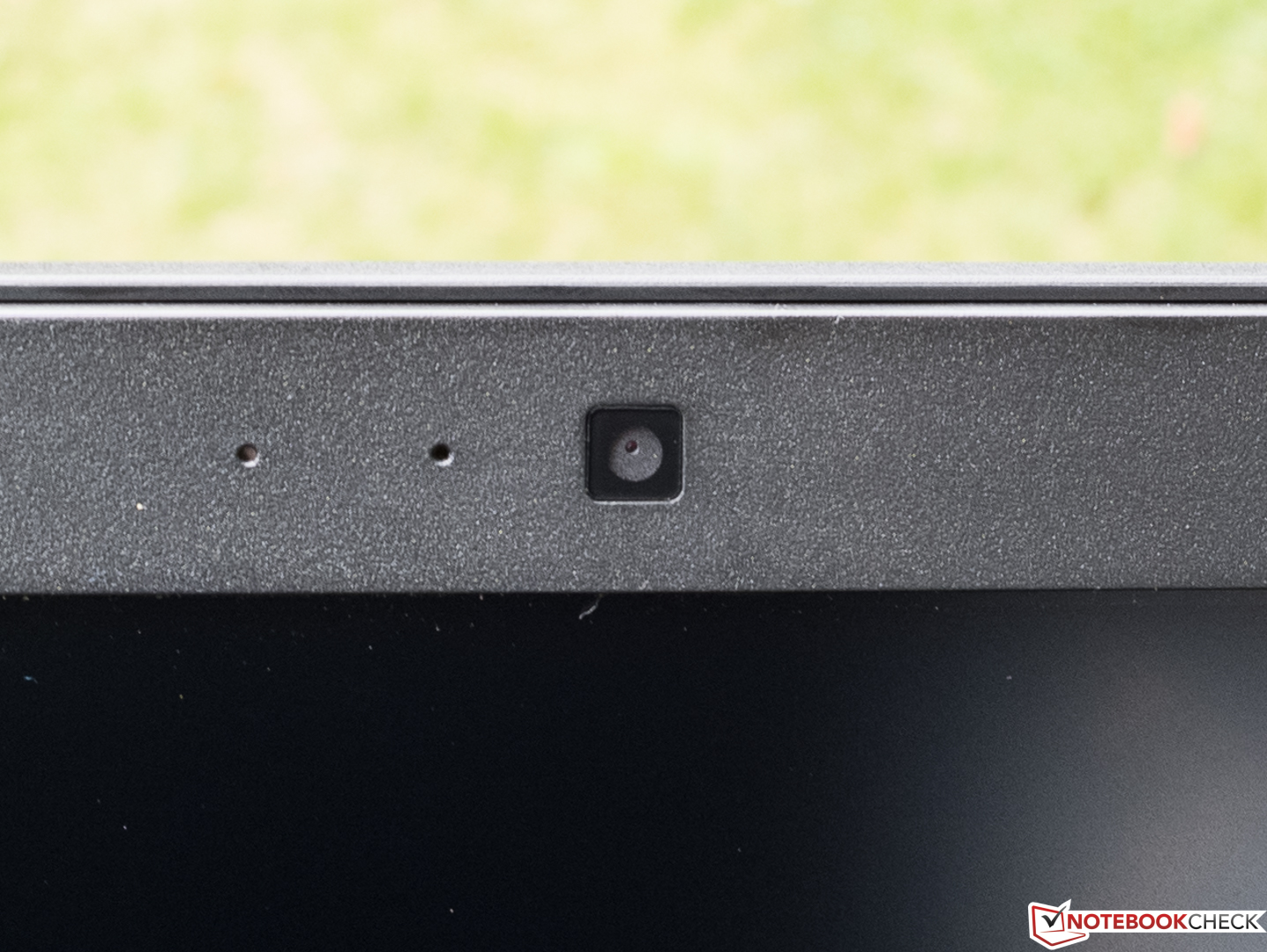

Webcam: 高清

Additional features

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 绑线带，屏幕布, 24 Months Warranty

Weight

2.6 kg, Power Supply: 449 g

Price

1400 Euro

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

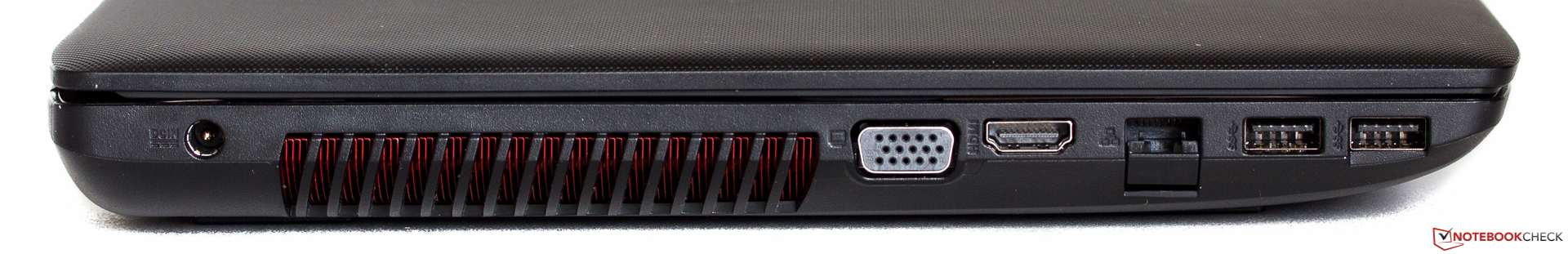

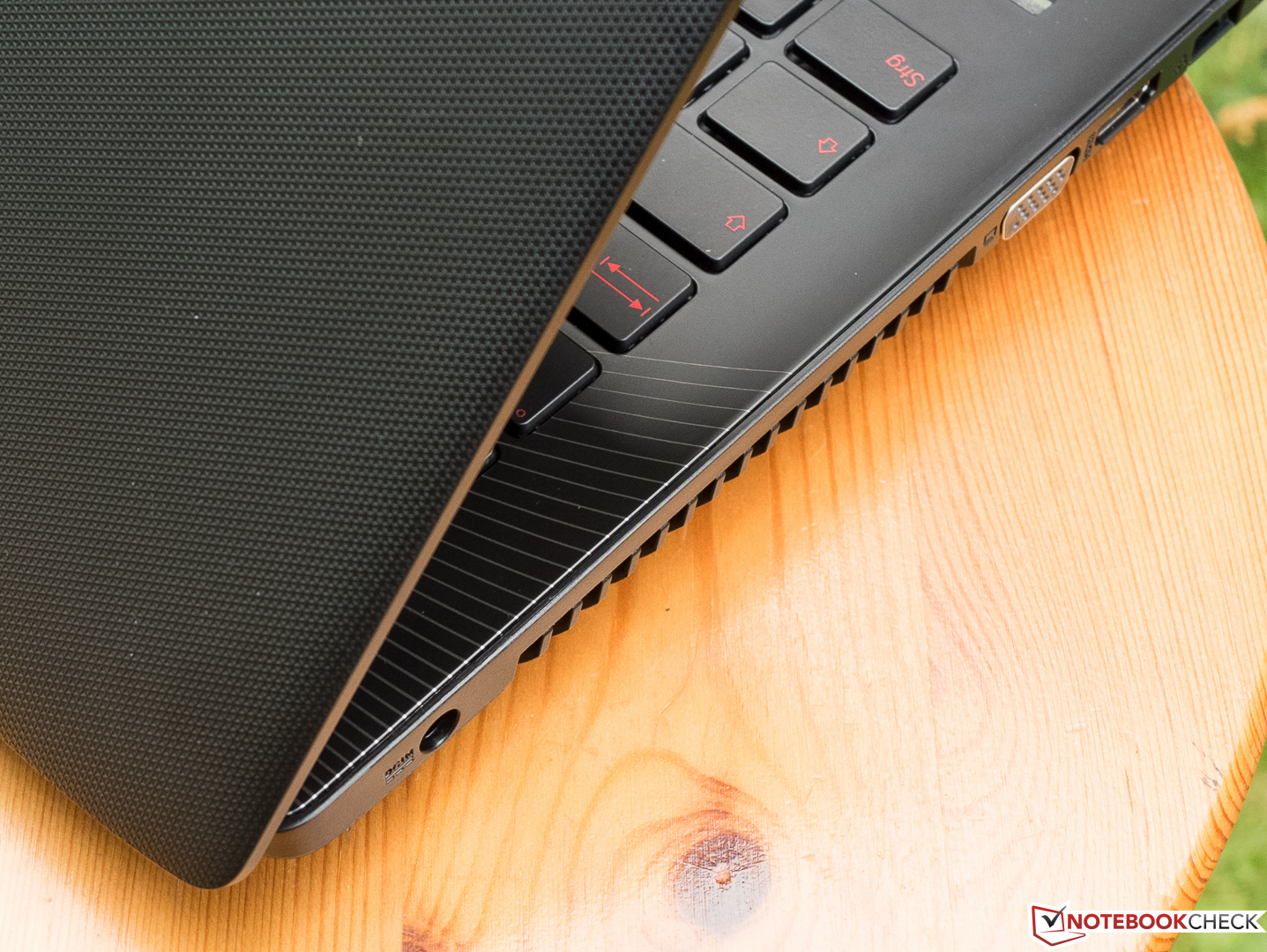

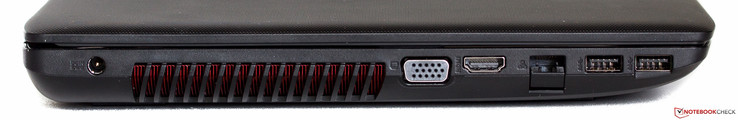

Left side: Power, fan exhaust, VGA, HDMI, Ethernet, 2x USB 3.0

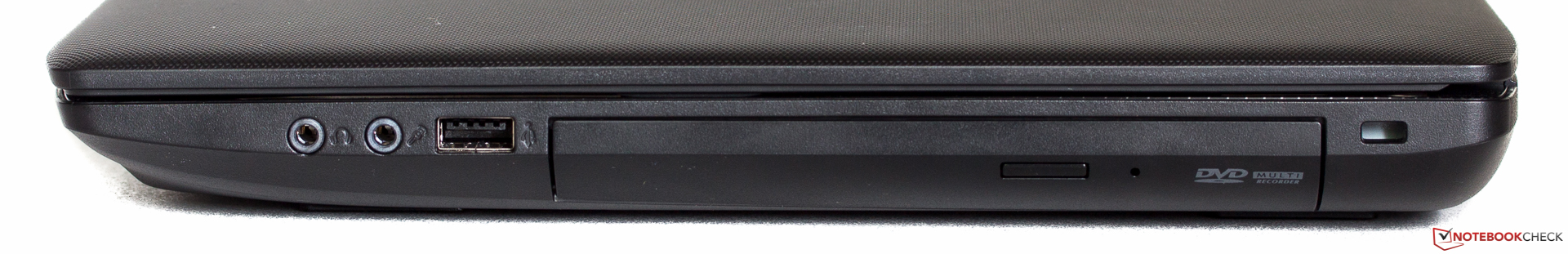

Right side: Audio-in, audio-out, USB 2.0, DVD, Kensington


321 cd/m²	331 cd/m²	322 cd/m²
326 cd/m²	326 cd/m²	312 cd/m²
316 cd/m²	300 cd/m²	303 cd/m²

Distribution of brightness

Samsung 156HL01-102 tested with X-Rite i1Pro 2

Maximum: 331 cd/m² (Nits) Average: 317.4 cd/m²
Brightness Distribution: 91 %
Contrast: 1052:1 (Black: 0.31 cd/m²)
ΔE Color 4.14 | 0.5-29.43 Ø4.93
ΔE Greyscale 5.46 | 0.5-98 Ø5.2
97% sRGB (Argyll 1.6.3 3D)
64% AdobeRGB 1998 (Argyll 1.6.3 3D)
70% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.5% sRGB (Argyll 2.2.0 3D)
67.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.44

Download ICC File (X-Rite i1Pro 2)

	Asus GL552JX-CN154H	Lenovo IdeaPad Y50-70-59441229	HP Envy 15-k203ng
Display		-41%	-19%
Display P3 Coverage	67.8	39.51 -42%	55.1 -19%
sRGB Coverage	97.5	59.4 -39%	79 -19%
AdobeRGB 1998 Coverage	70	40.82 -42%	57 -19%
Screen		-15%	-69%
Brightness middle	326	214 -34%	297 -9%
Brightness	317	227 -28%	286 -10%
Brightness Distribution	91	79 -13%	85 -7%
Black Level *	0.31	0.23 26%	0.78 -152%
Contrast	1052	930 -12%	381 -64%
Colorchecker dE 2000 *	4.14	4.9 -18%	11.14 -169%
Greyscale dE 2000 *	5.46	4.13 24%	12.16 -123%
Gamma	2.44 ^90%	2.44 ^90%	3.13 ^70%
CCT	7574 ^86%	7239 ^90%	12217 ^53%
Color Space (Percent of AdobeRGB 1998)	64	38 -41%	51.2 -20%
Color Space (Percent of sRGB)	97	59 -39%
Total Average (Program / Settings)		-28% / -22%	-44% / -56%

* ... smaller is better

Cinebench R15 | Cinebench R11.5

Cinebench R15
CPU Multi 64Bit (sort by value)
Asus GL552JX-CN154H Intel Core i7-4720HQ	669 Points
Lenovo IdeaPad Y50-70-59441229 Intel Core i7-4710HQ	502 Points -25%
HP Envy 15-k203ng Intel Core i7-5500U	289 Points -57%
CPU Single 64Bit (sort by value)
Asus GL552JX-CN154H Intel Core i7-4720HQ	133 Points
Lenovo IdeaPad Y50-70-59441229 Intel Core i7-4710HQ	117 Points -12%
HP Envy 15-k203ng Intel Core i7-5500U	120 Points -10%

Cinebench R11.5
CPU Multi 64Bit (sort by value)
Asus GL552JX-CN154H Intel Core i7-4720HQ	7.35 Points
Lenovo IdeaPad Y50-70-59441229 Intel Core i7-4710HQ	5.44 Points -26%
CPU Single 64Bit (sort by value)
Asus GL552JX-CN154H Intel Core i7-4720HQ	1.54 Points
Lenovo IdeaPad Y50-70-59441229 Intel Core i7-4710HQ	1.35 Points -12%

Cinebench R10 Rendering Single 32Bit

5104

Cinebench R10 Rendering Multiple CPUs 32Bit

19276

Cinebench R11.5 CPU Single 64Bit

1.54 Points

Cinebench R11.5 CPU Multi 64Bit

7.35 Points

Cinebench R15 CPU Single 64Bit

133 Points

Cinebench R15 CPU Multi 64Bit

669 Points

Help

... in comparison

PCMark 7 | PCMark 8

PCMark 7
Score (sort by value)
Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	5829 Points
Lenovo IdeaPad Y50-70-59441229 GeForce GTX 960M, 4710HQ, Samsung SSD PM851 256 GB MZ7TE256HMHP	4622 Points -21%
Productivity (sort by value)
Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	5180 Points
Lenovo IdeaPad Y50-70-59441229 GeForce GTX 960M, 4710HQ, Samsung SSD PM851 256 GB MZ7TE256HMHP	4280 Points -17%
Creativity (sort by value)
Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	10382 Points
Lenovo IdeaPad Y50-70-59441229 GeForce GTX 960M, 4710HQ, Samsung SSD PM851 256 GB MZ7TE256HMHP	8324 Points -20%

PCMark 8
Home Score Accelerated v2 (sort by value)
Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	3637 Points
HP Envy 15-k203ng GeForce GTX 850M, 5500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	3130 Points -14%
Work Score Accelerated v2 (sort by value)
Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	4972 Points
HP Envy 15-k203ng GeForce GTX 850M, 5500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	4153 Points -16%

PCMark 7 Score		5829 points
PCMark 8 Home Score Accelerated v2		3637 points
PCMark 8 Work Score Accelerated v2		4972 points
Help

... in comparison

AS SSD | CrystalDiskMark 3.0

AS SSD
Seq Read (sort by value)
Asus GL552JX-CN154H Micron M600 MTFDDAV128MBF	518 MB/s
Lenovo IdeaPad Y50-70-59441229 Samsung SSD PM851 256 GB MZ7TE256HMHP	501 MB/s -3%
4K Read (sort by value)
Asus GL552JX-CN154H Micron M600 MTFDDAV128MBF	29.5 MB/s
Lenovo IdeaPad Y50-70-59441229 Samsung SSD PM851 256 GB MZ7TE256HMHP	28.36 MB/s -4%
4K-64 Read (sort by value)
Asus GL552JX-CN154H Micron M600 MTFDDAV128MBF	334.7 MB/s
Lenovo IdeaPad Y50-70-59441229 Samsung SSD PM851 256 GB MZ7TE256HMHP	341.5 MB/s +2%
Score Write (sort by value)
Asus GL552JX-CN154H Micron M600 MTFDDAV128MBF	386 Points
Lenovo IdeaPad Y50-70-59441229 Samsung SSD PM851 256 GB MZ7TE256HMHP	185 Points -52%

CrystalDiskMark 3.0
Read Seq (sort by value)
Asus GL552JX-CN154H Micron M600 MTFDDAV128MBF	507 MB/s
Lenovo IdeaPad Y50-70-59441229 Samsung SSD PM851 256 GB MZ7TE256HMHP	518 MB/s +2%
HP Envy 15-k203ng Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	96.1 MB/s -81%
Read 4k (sort by value)
Asus GL552JX-CN154H Micron M600 MTFDDAV128MBF	30.09 MB/s
Lenovo IdeaPad Y50-70-59441229 Samsung SSD PM851 256 GB MZ7TE256HMHP	32.29 MB/s +7%
HP Envy 15-k203ng Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	0.327 MB/s -99%
Read 4k QD32 (sort by value)
Asus GL552JX-CN154H Micron M600 MTFDDAV128MBF	328.4 MB/s
Lenovo IdeaPad Y50-70-59441229 Samsung SSD PM851 256 GB MZ7TE256HMHP	341.2 MB/s +4%
HP Envy 15-k203ng Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	0.487 MB/s -100%

CrystalDiskMark 3.0

AS SSD

Micron M600 MTFDDAV128MBF

Sequential Read: 507 MB/s

Sequential Write: 455.2 MB/s

512K Read: 465.5 MB/s

512K Write: 158.9 MB/s

4K Read: 30.09 MB/s

4K Write: 106.2 MB/s

4K QD32 Read: 328.4 MB/s

4K QD32 Write: 158.4 MB/s

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance (sort by value)
Asus GL552JX-CN154H NVIDIA GeForce GTX 950M	4488 Points
Lenovo IdeaPad Y50-70-59441229 NVIDIA GeForce GTX 960M	5444 Points +21%
HP Envy 15-k203ng NVIDIA GeForce GTX 850M	3961 Points -12%
1280x720 Performance GPU (sort by value)
Asus GL552JX-CN154H NVIDIA GeForce GTX 950M	4296 Points
Lenovo IdeaPad Y50-70-59441229 NVIDIA GeForce GTX 960M	5277 Points +23%
HP Envy 15-k203ng NVIDIA GeForce GTX 850M	4036 Points -6%

3DMark
1280x720 Cloud Gate Standard Graphics (sort by value)
Asus GL552JX-CN154H NVIDIA GeForce GTX 950M	20550 Points
Lenovo IdeaPad Y50-70-59441229 NVIDIA GeForce GTX 960M	31158 Points +52%
HP Envy 15-k203ng NVIDIA GeForce GTX 850M	19204 Points -7%
1920x1080 Fire Strike Graphics (sort by value)
Asus GL552JX-CN154H NVIDIA GeForce GTX 950M	3017 Points
Lenovo IdeaPad Y50-70-59441229 NVIDIA GeForce GTX 960M	4287 Points +42%
HP Envy 15-k203ng NVIDIA GeForce GTX 850M	2957 Points -2%

3DMark 11 Performance		4488 points
3DMark Cloud Gate Standard Score		14081 points
3DMark Fire Strike Score		2726 points
Help

... in comparison

	low	med.	high	ultra
Crysis 3 (2013)	76.9	45.8	33.1	12.1
Tomb Raider (2013)		118.4	64.4	31.4
BioShock Infinite (2013)		96.2	78.2	26.9
Metro: Last Light (2013)	85.5	67.8	31.3	20.6
Dota 2 (2013)		116.7		66.8
Battlefield 4 (2013)	110.9	77.6	55	20.8
Thief (2014)	75.4	48.1	39	19
GRID: Autosport (2014)		116	67	32
Fifa 15 (2014)				88
Middle-earth: Shadow of Mordor (2014)	76.3	49.8	25.6	18.7
Alien: Isolation (2014)		87	44.8	32
F1 2014 (2014)			81	65
Civilization: Beyond Earth (2014)		55.3	37.8	30.7
Call of Duty: Advanced Warfare (2014)		57.8	31.4	16.7
Assassin's Creed Unity (2014)	49.5	31.5	18.9
Far Cry 4 (2014)	68.6	55.8	24.8	19.8
Dragon Age: Inquisition (2014)	45.9	39.5	22.3	15.5
Evolve (2015)	66.2	47.9	25.3
Battlefield Hardline (2015)	89.9		19.5
Dirt Rally (2015)		106.4	52.2	22.2
The Witcher 3 (2015)	58.3	35.6	18.6
Batman: Arkham Knight (2015)	0 game wont start	0 game wont start	0 game wont start	0 game wont start

Noise Level

Idle		30 / 30 / 31.3 dB(A)
DVD		34.6 / dB(A)
Load		36.9 / 44.7 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


40.1 °C	46.3 °C	29.9 °C
45 °C	40.4 °C	30.5 °C
32.2 °C	35.8 °C	30.1 °C

Maximum: 46.3 °C
Average: 36.7 °C


27.9 °C	37.3 °C	40.7 °C
27.7 °C	33.4 °C	41.5 °C
29.1 °C	29.1 °C	30.2 °C

Maximum: 41.5 °C
Average: 33 °C

Room Temperature 25.9 °C | Voltcraft IR-360

(±) The average temperature for the upper side under maximal load is 36.7 °C / 98 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 46.3 °C / 115 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 41.5 °C / 107 F, compared to the average of 39.2 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 30.3 °C / 87 F, compared to the device average of 31.3 °C / 88 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35.8 °C / 96.4 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-7 °C / -12.6 F).

Power Consumption

Off / Standby	0.1 / 0.3 Watt
Idle	6.2 / 10.3 / 12.2 Watt
Load	77 / 105 Watt


Key: min: , med: , max: Voltcraft VC 940

Battery Runtime - WiFi v1.3 (sort by value)
Asus GL552JX-CN154H GeForce GTX 950M, 4720HQ, Micron M600 MTFDDAV128MBF	221 min
Lenovo IdeaPad Y50-70-59441229 GeForce GTX 960M, 4710HQ, Samsung SSD PM851 256 GB MZ7TE256HMHP	254 min
HP Envy 15-k203ng GeForce GTX 850M, 5500U, Seagate Momentus SpinPoint M8 ST1000LM024 HN-M101MBB	289 min

Battery Runtime

Idle (without WLAN, min brightness)		3h 43min
WiFi Websurfing		3h 41min
DVD		2h 48min
Load (maximum brightness)		1h 40min

Pros

+ 机身品质高

+ 优秀的外观设计，易于使用

+ 坚固的塑料机身

+ 紧凑的多媒体游戏笔记本

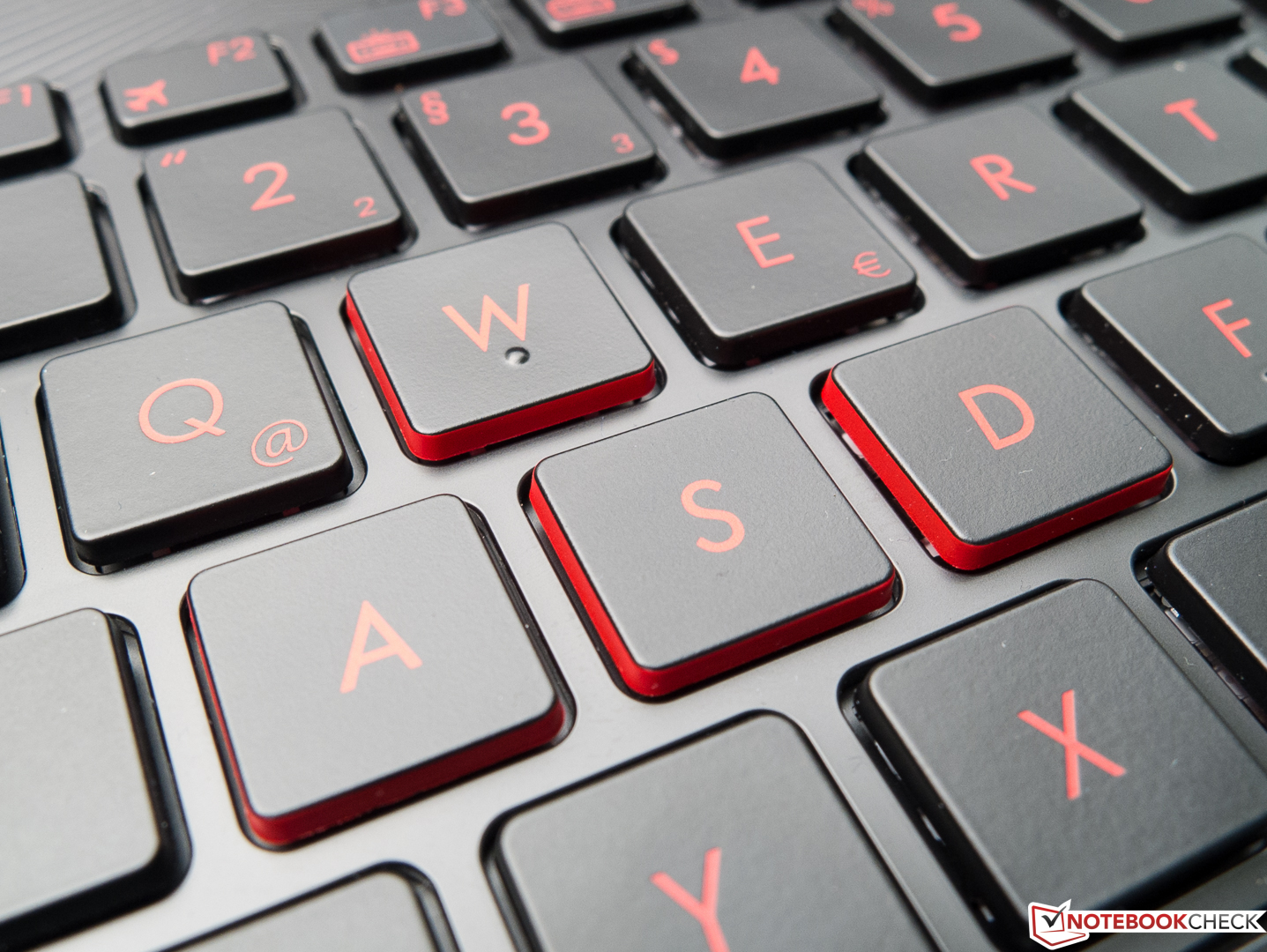

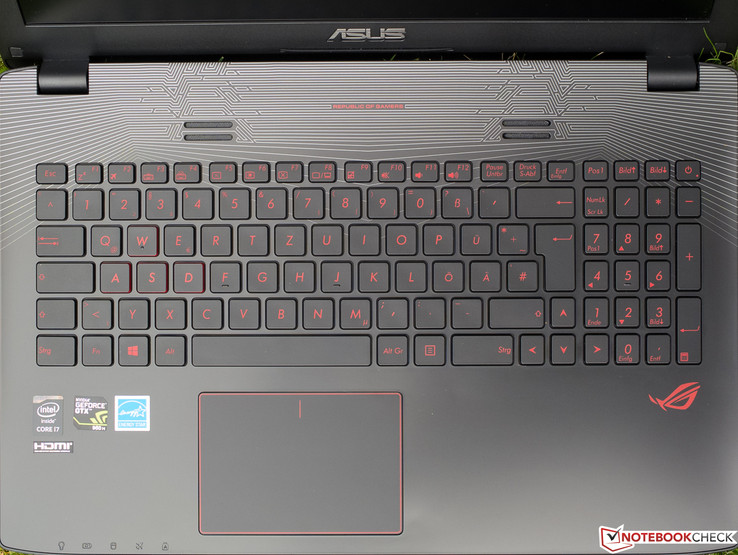

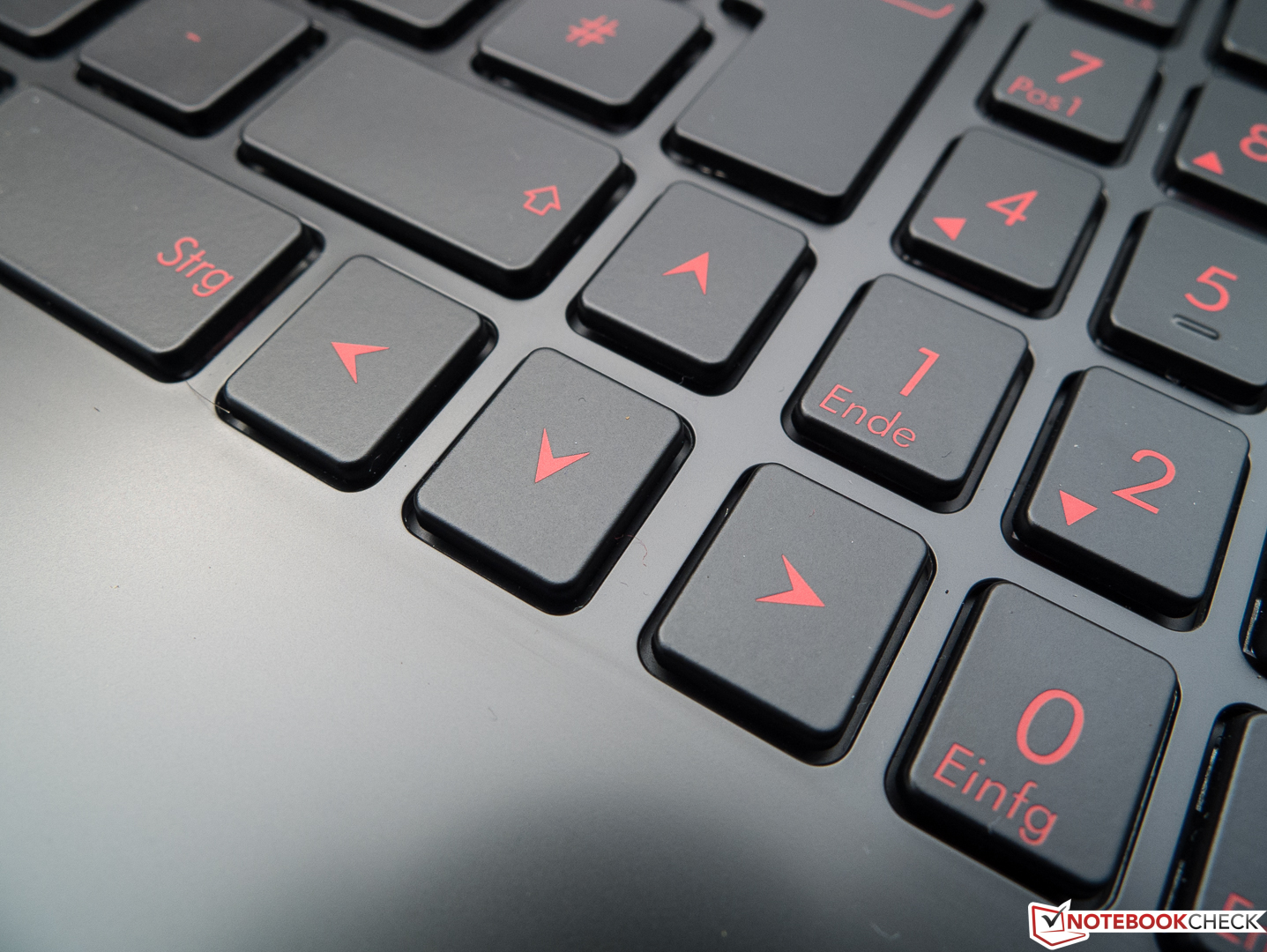

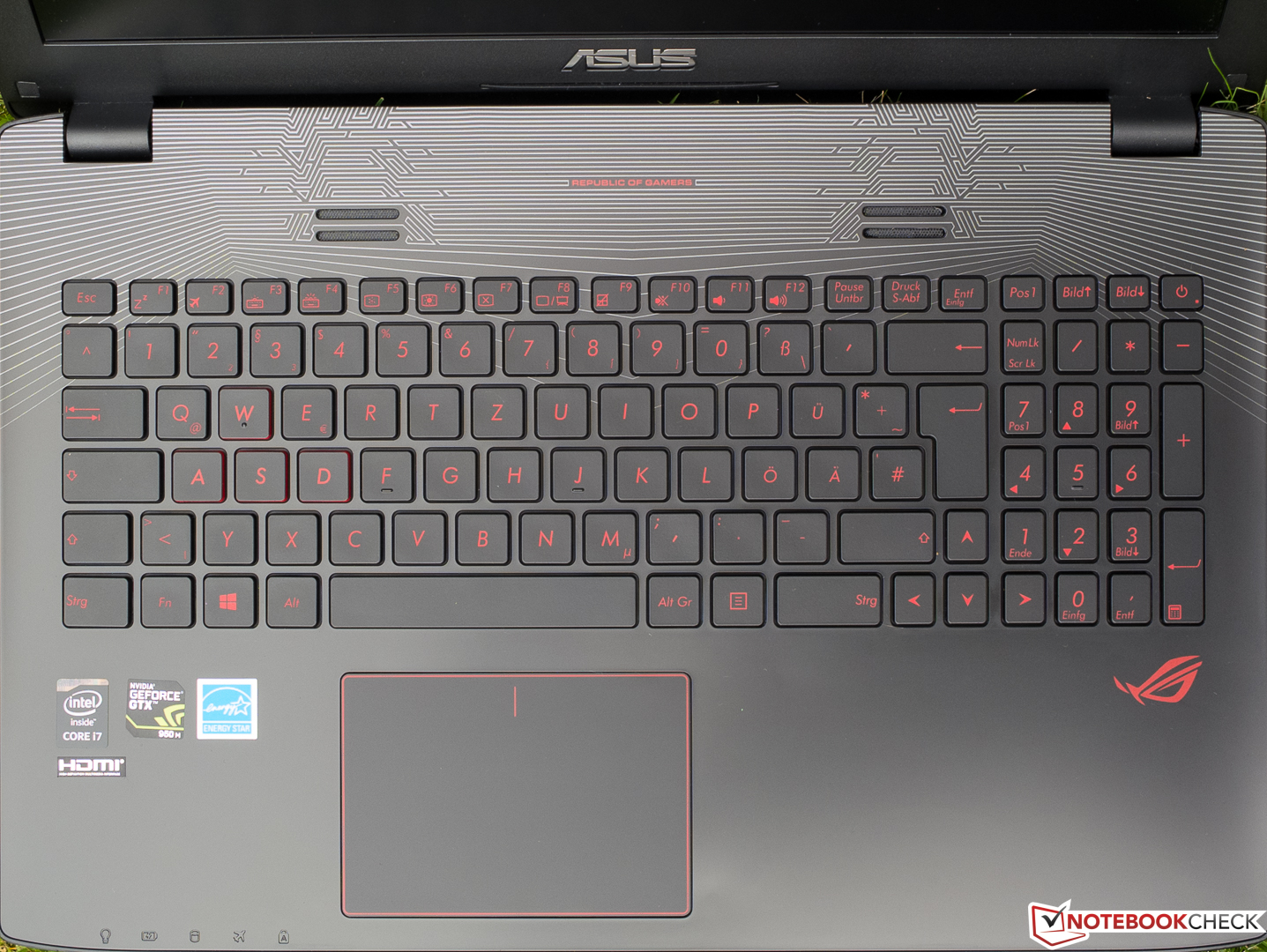

+ 出色的键盘搭配了舒适的背光

+ 出色的触控板

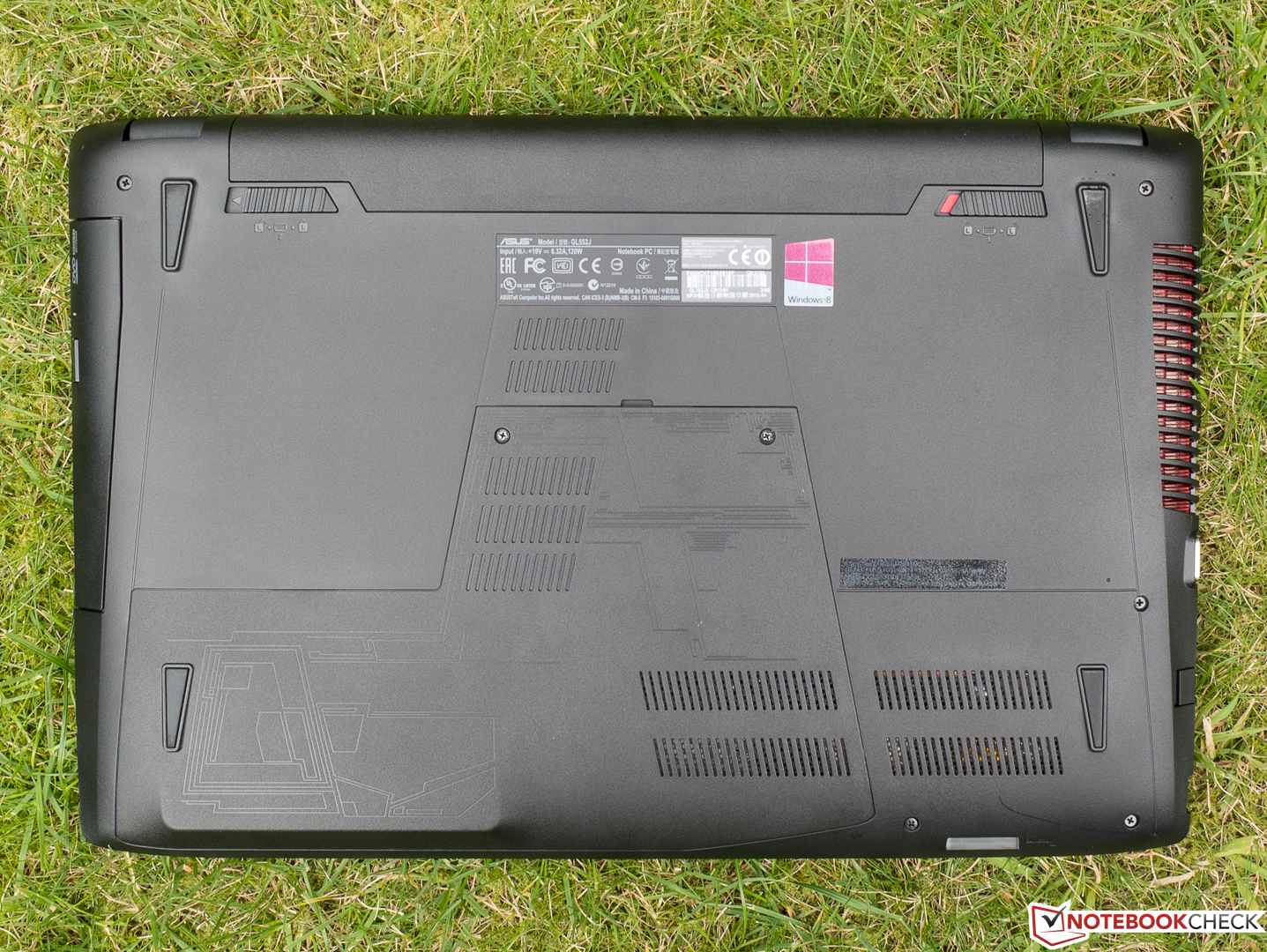

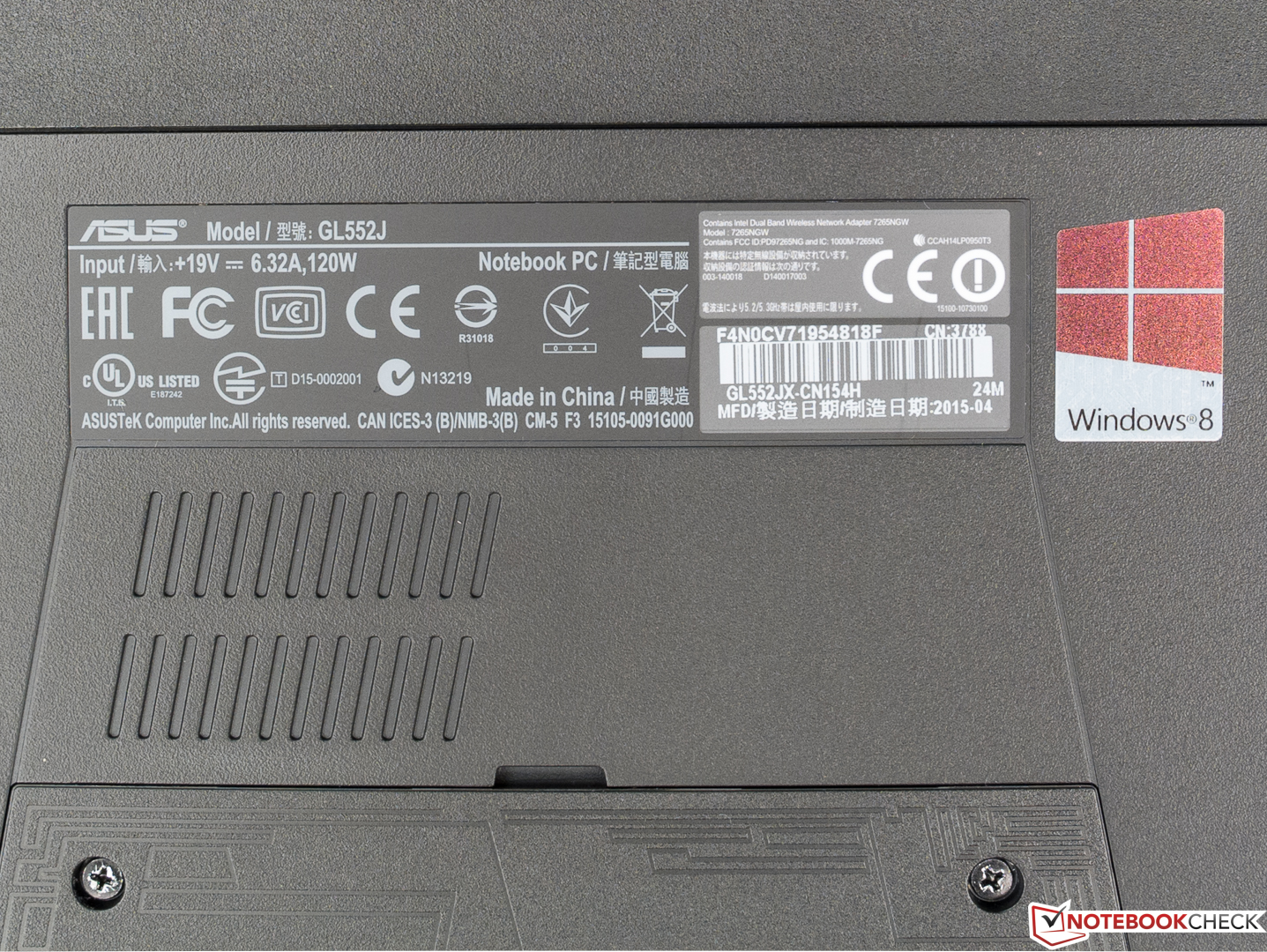

+ 维护底盖，可更换电池

+ 高对比度屏幕，色彩准确

+ 可视角度范围广

+ 四核处理器

+ 处理器加速利用率高

+ 固态硬盘结合传统硬盘

+ 相比性能来说十分冷静节能

Cons

- 机身工艺有小缺陷

- 稳定性不完美

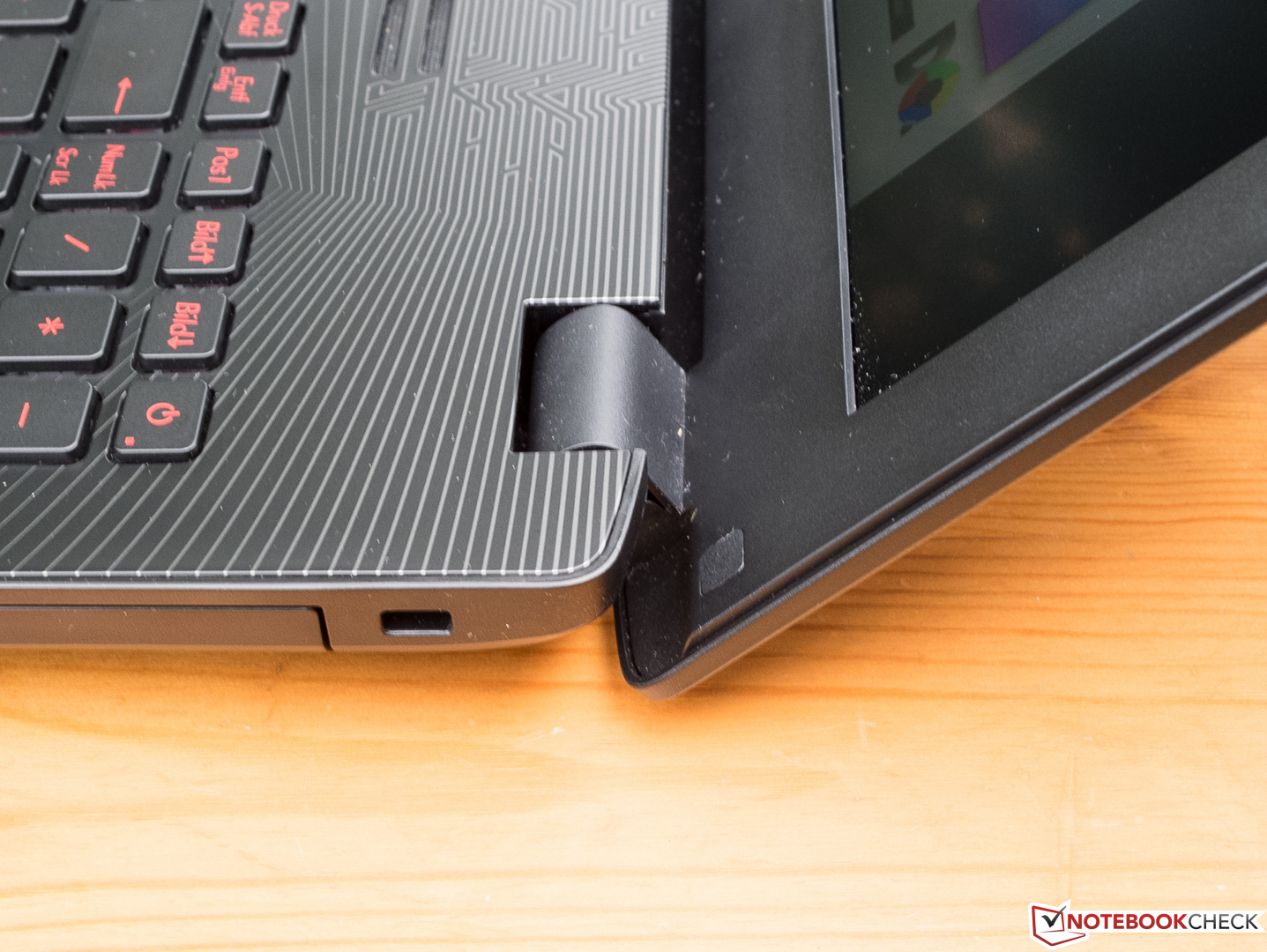

- 屏幕上盖易摇晃

- 容易沾染指纹

- 数字键盘较小

- 接口位于机身前方

- 无法通过维护底盖接触到风扇

- 950M显卡是搭配DDR3（1800 MHz）显存的版本

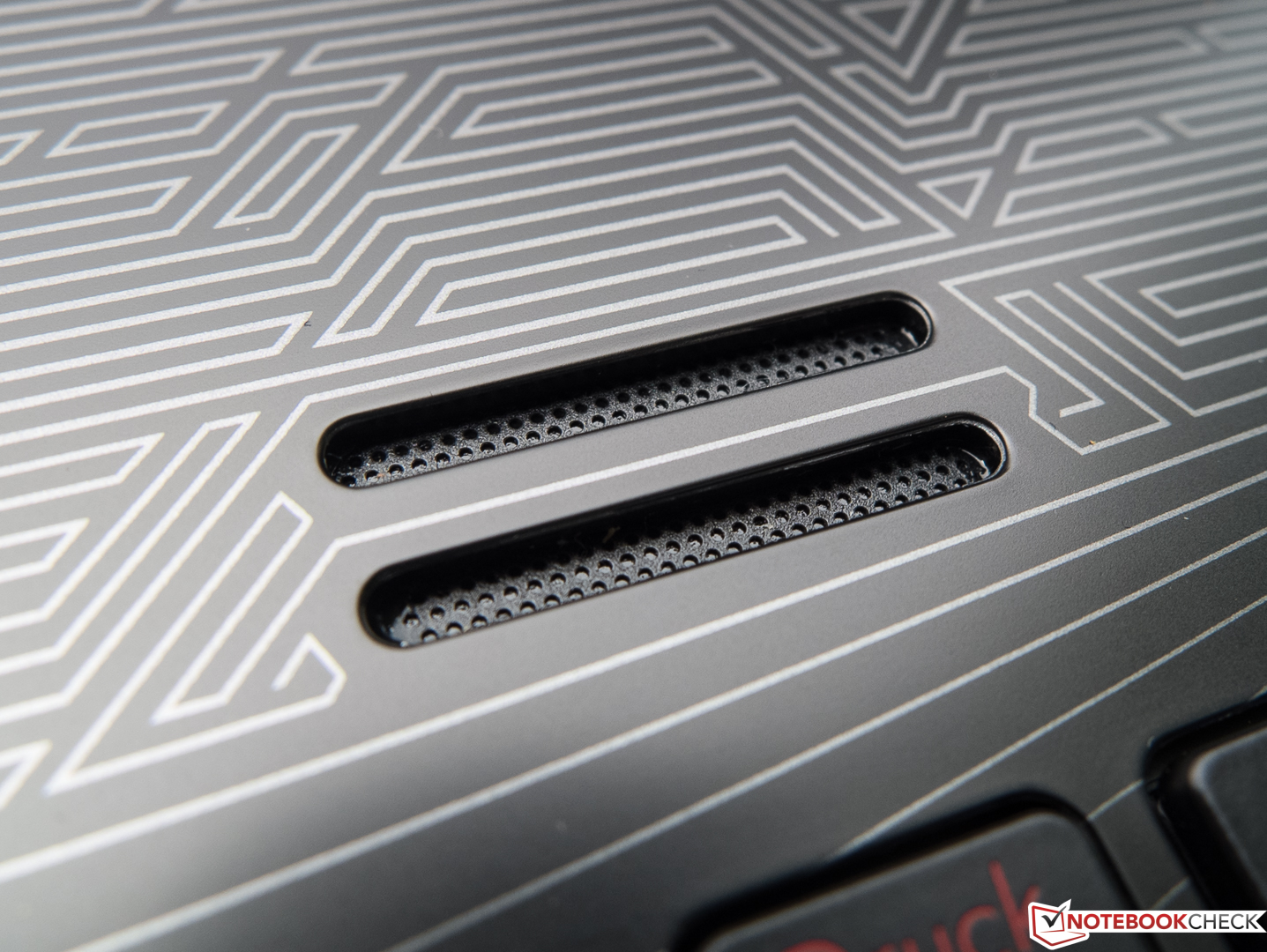

- 扬声器很难达到多媒体设备的水准

In Review: Asus GL552JX. Test model courtesy of Notebooksbilliger.de

生产商在散热和噪音控制上做得十分不错，因此在处理器加速利用率上它毫无问题。固态硬盘盒传统硬盘的结合应该被更多的笔记本电脑采纳，因为这种设计可以同时保证流畅的用户体验与大容量的存储空间。

对于所采用的硬件配置，它的售价并不算高。你需要接受它塑料机身的一些小缺陷，不过它在工艺上十分精致。相比几乎完全无法升级的同类产品如惠普Omen，华硕GL552JX凭借维护底盖提供的便利而得到了不少加分。它的电池续航表现较弱，我们也无法找到原因所在。这可能是因为我们的测试机存在硬件问题，因此我们没有因此为它减分。华硕GL552JX的性价比十分优秀。

整体上，我们十分喜欢华硕的全新多媒体游戏笔记本电脑。它给我们留下的好印象中一大部分来自于出色的屏幕，高品质的输入设备和优秀的性能。

更有趣的可能是：如果我们将华硕GL552JX作为游戏本进行评分的话，它会得到同样的85%总分。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Asus GL552JX-CN154H - 2016-02-24 02/24/2016 v5 ^(old)
Sven Kloevekorn

Chassis

75 / 98 → 77%

Keyboard

81%

Pointing Device

85%

Connectivity

47 / 81 → 58%

Weight

59 / 20-67 → 83%

Battery

73%

Display

89%

Games Performance

74 / 85 → 87%

Application Performance

89 / 92 → 97%

Temperature

89%

Noise

87 / 95 → 92%

Audio

64%

Average

76%

82%

Multimedia - Weighted Average

Read about the changes in the new rating version 5

Price comparison

Editor of the original article: Andreas Osthoff - Managing Editor Business Laptops - 1692 articles published on Notebookcheck since 2013

contact me via: LinkedIn

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 华硕 GL552JX 笔记本电脑简短评测

Sven Kloevekorn, 2015-09- 3 (Update: 2015-09-15)
