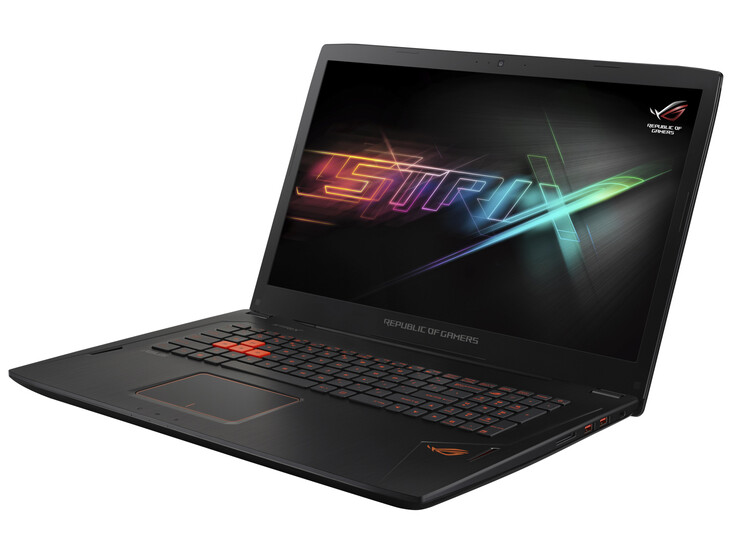

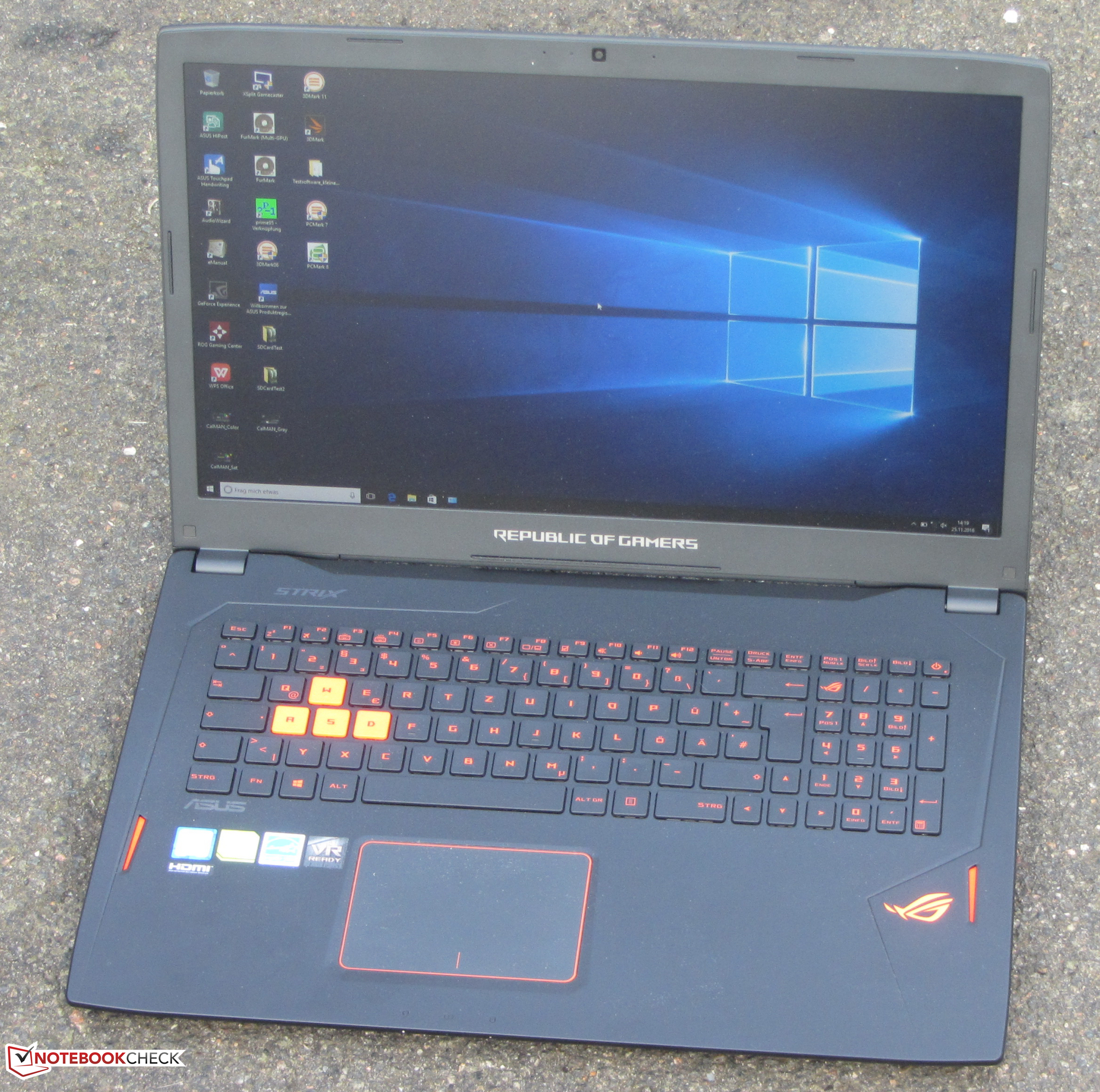

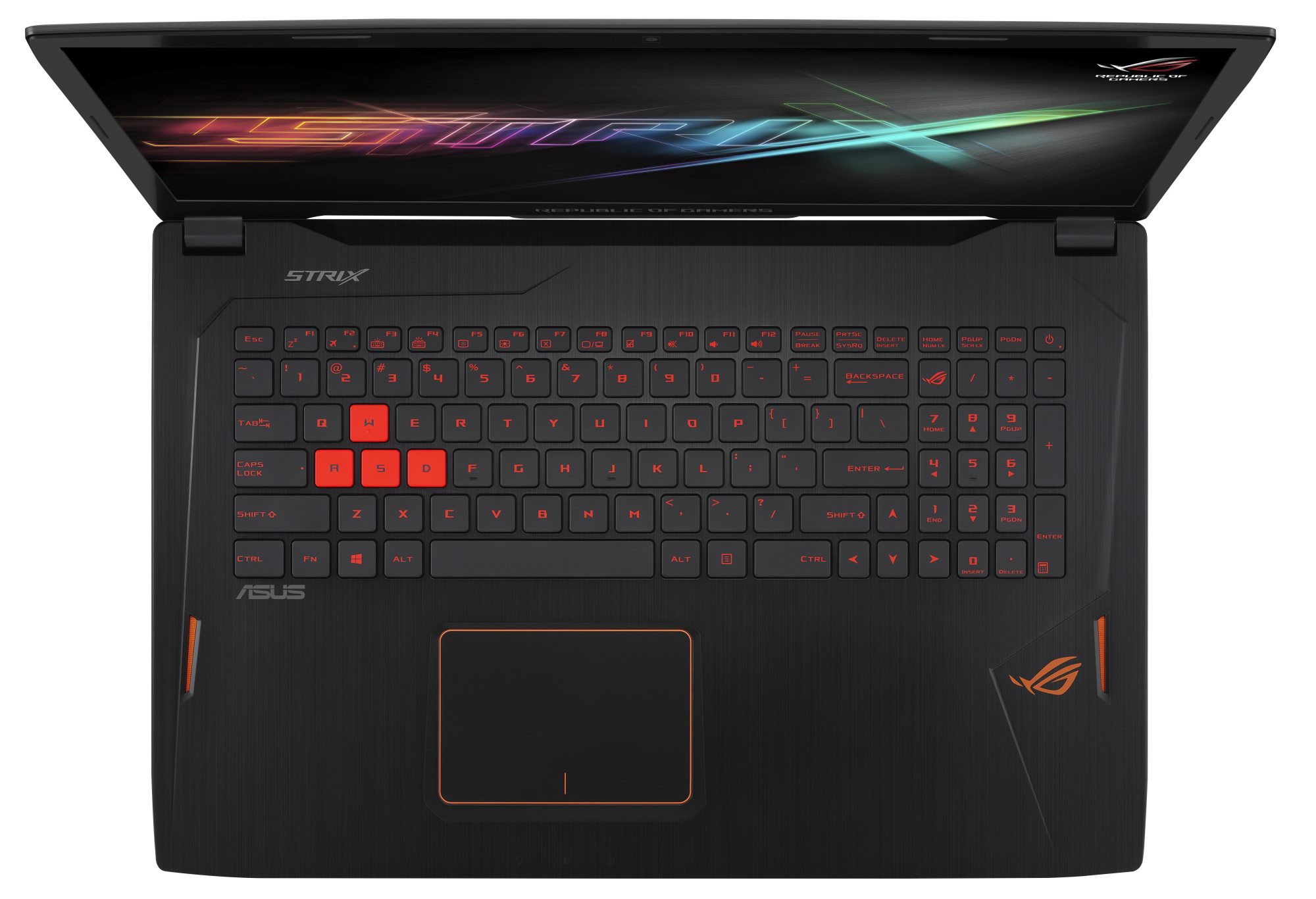

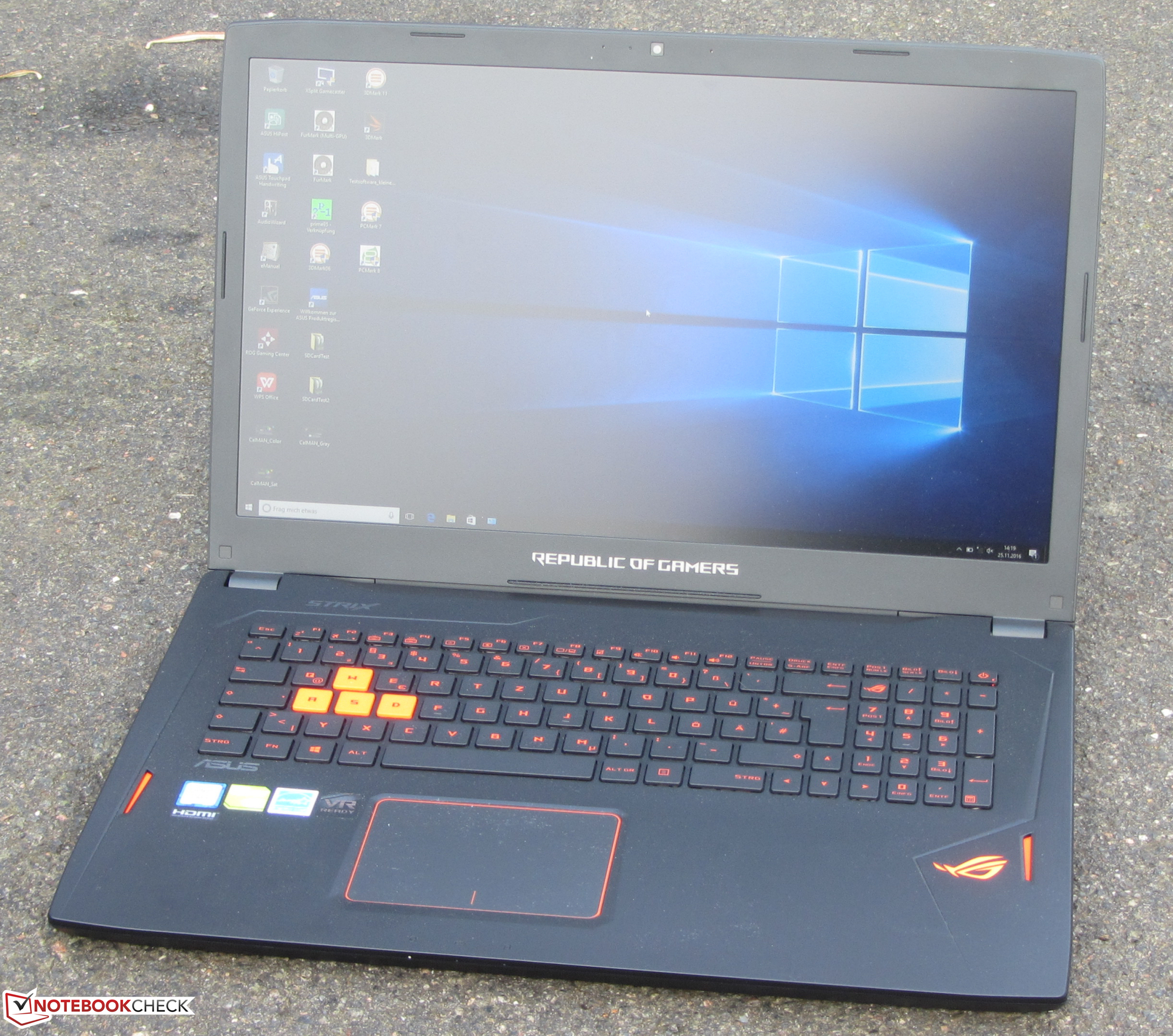

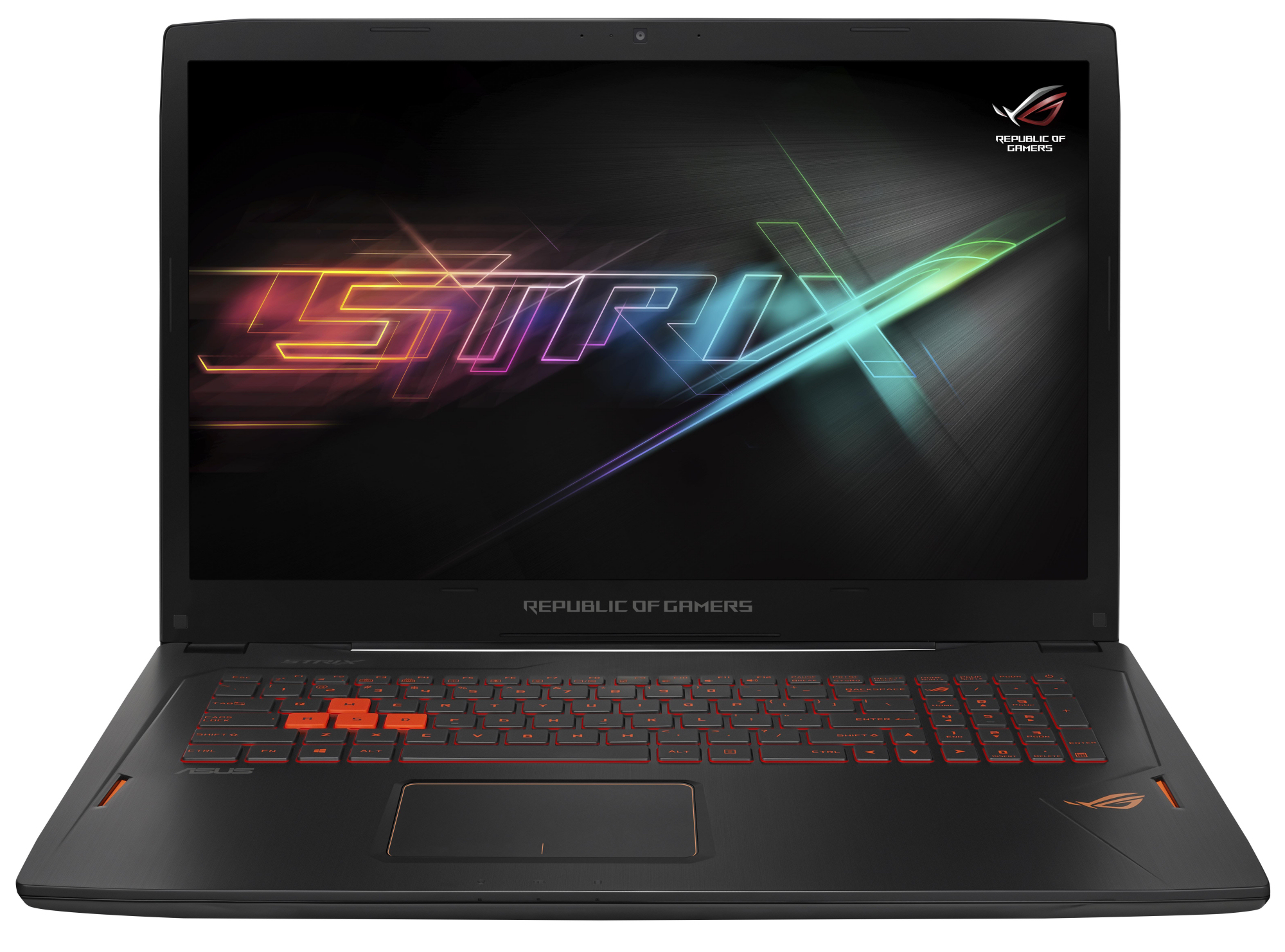

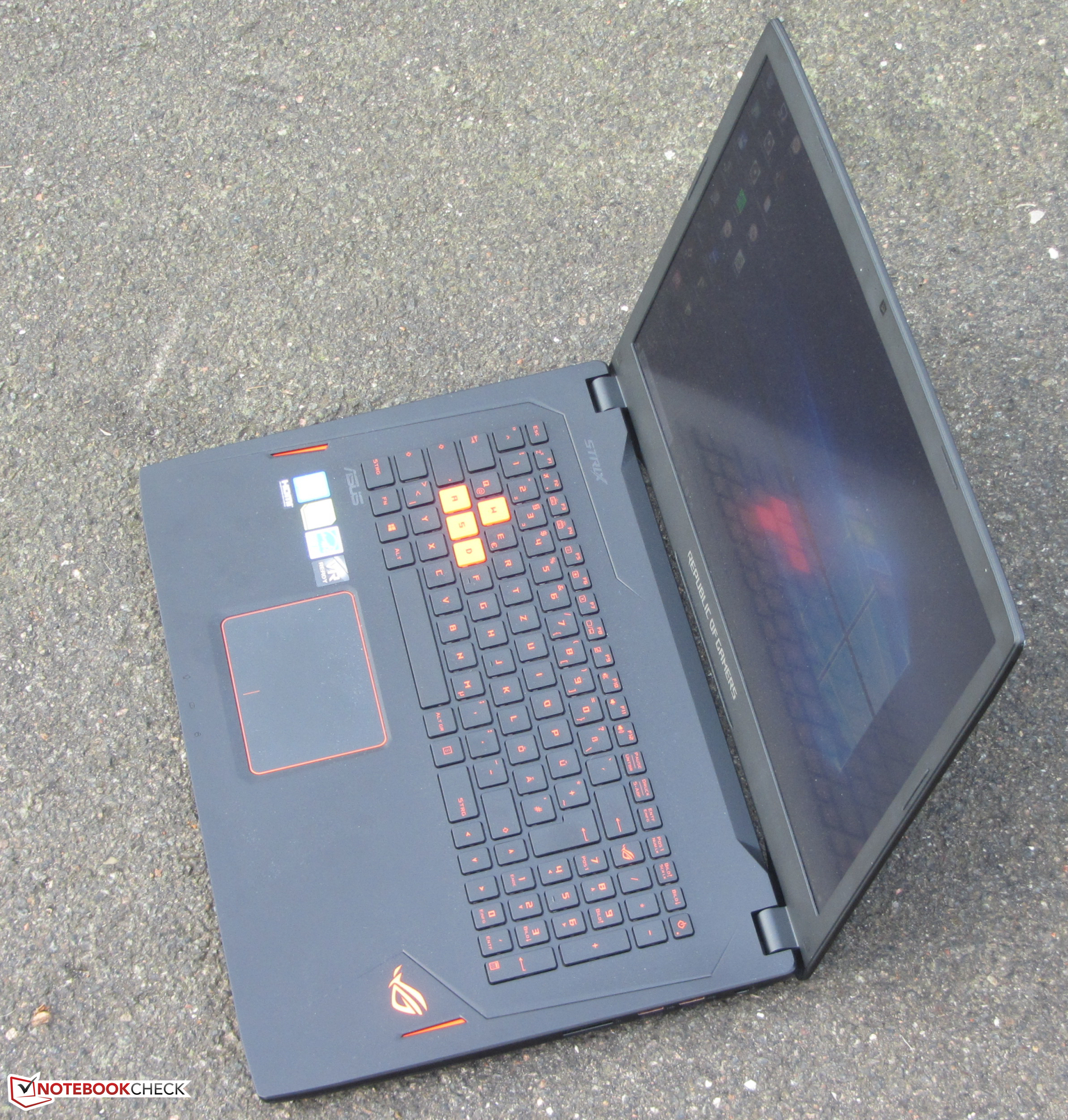

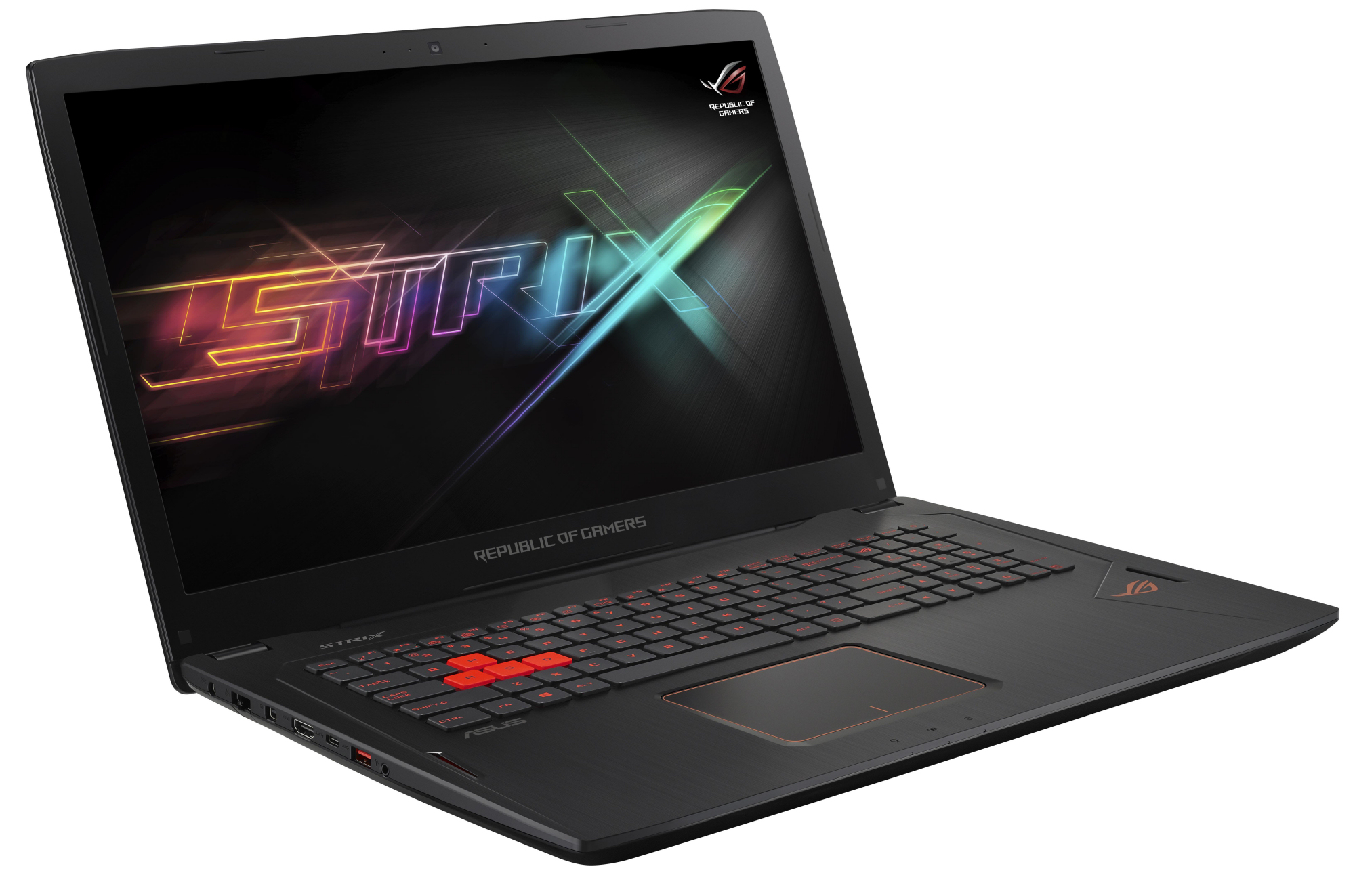

华硕 GL702VM-GC102D 笔记本电脑简短评测

Name: Asus GL702VM-GC102D
Brand: Asus

纤薄游戏笔记本。 华硕为这台17.3寸轻薄笔记本电脑中注入了澎湃的游戏性能。不过，这台设备并不会太吵或过热。由于禁用了集成显卡，它在待机时的功耗较高。

Sascha Mölck, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 12/10/2016 🇺🇸 🇩🇪 ...

Gaming Geforce Laptop / Notebook Skylake

Test device courtesy of notebook.de

Download your licensed rating image as PNG / SVG

Asus GL702VM-GC102D (GL702 Series)

Processor

Intel Core i7-6700HQ 4 x 2.6 - 3.5 GHz, Skylake

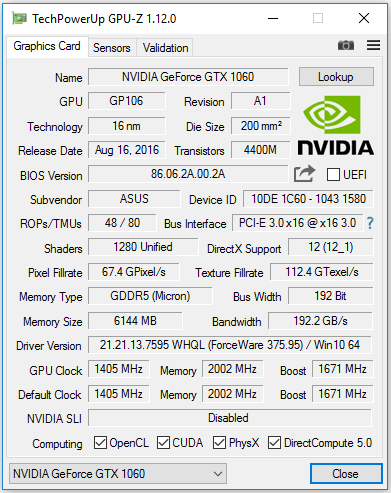

Graphics adapter

NVIDIA GeForce GTX 1060 Mobile - 6 GB VRAM, Core: 1886 MHz, RAM: 2002 MHz, GDDR5, 192位界面, ForceWare 375.95

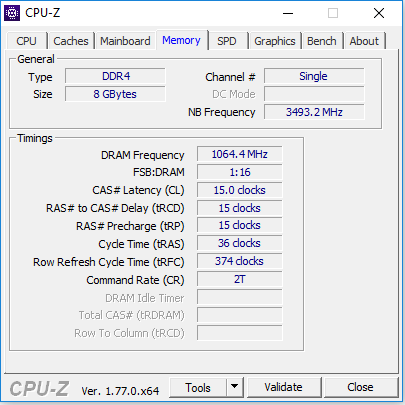

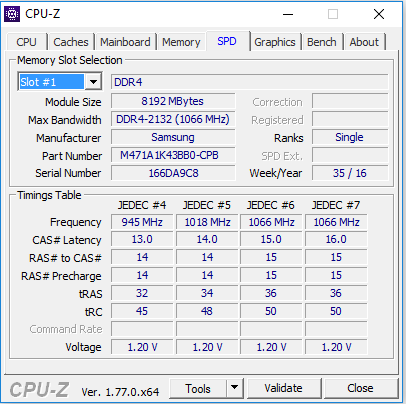

Memory

8 GB

, DDR4-2132, 单通道, 两个内存槽 (一个已占用)

Display

17.30 inch 16:9, 1920 x 1080 pixel 127 PPI, LG Philips LP173WF4-SPF3, IPS, Nvidia G-Sync, glossy: no

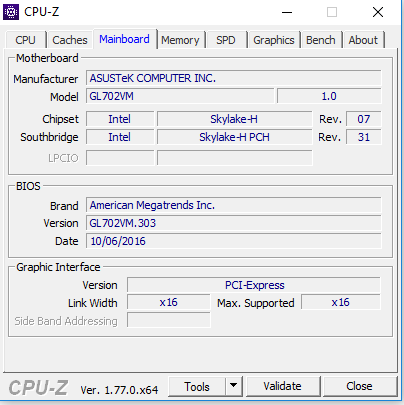

Mainboard

Intel HM170 (Skylake PCH-H)

Storage

HGST Travelstar 7K1000 HTS721010A9E630, 1000 GB

, 7200 rpm, 930 GB free

Soundcard

Realtek ALC255 @ Intel Sunrise Point PCH - High Definition Audio Controller

Connections

3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: 整合音频接口, Card Reader: SD, TPM 2.0

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wireless-AC 7265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Size

height x width x depth (in mm): 24 x 415 x 280

Battery

76 Wh Lithium-Ion

Operating System

FreeDos

Camera

Webcam: 高清

Additional features

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 驱动盘，USB鼠标, 24 Months Warranty

Weight

2.7 kg, Power Supply: 688 g

Price

1399 Euro

Links

Asus homepage
Asus notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

SD Card Reader
average JPG Copy Test (av. of 3 runs)
SCHENKER XMG P507	77 MB/s +6%
Gigabyte P57X v6	76.4 MB/s +5%
HP Omen 17-w110ng	76 MB/s +5%
Asus GL702VM-GC102D	72.6 MB/s
MSI GS73VR 6RF	23.8 MB/s -67%
maximum AS SSD Seq Read Test (1GB)
Gigabyte P57X v6	89.9 MB/s +6%
HP Omen 17-w110ng	87 MB/s +3%
SCHENKER XMG P507	86 MB/s +2%
Asus GL702VM-GC102D	84.6 MB/s
MSI GS73VR 6RF	27.6 MB/s -67%

Networking
iperf Server (receive) TCP 1 m
HP Omen 17-w110ng Intel Dual Band Wireless-AC 7265	676 MBit/s +2%
Asus GL702VM-GC102D Intel Wireless-AC 7265 (jseb)	665 MBit/s
SCHENKER XMG P507 Intel Dual Band Wireless-AC 8260	642 MBit/s -3%
MSI GS73VR 6RF Killer Wireless-n/a/ac 1535 Wireless Network Adapter	512 MBit/s -23%
iperf Client (transmit) TCP 1 m
Asus GL702VM-GC102D Intel Wireless-AC 7265 (jseb)	538 MBit/s
MSI GS73VR 6RF Killer Wireless-n/a/ac 1535 Wireless Network Adapter	536 MBit/s 0%
HP Omen 17-w110ng Intel Dual Band Wireless-AC 7265	529 MBit/s -2%
SCHENKER XMG P507 Intel Dual Band Wireless-AC 8260	456 MBit/s -15%


318 cd/m²	315 cd/m²	314 cd/m²
317 cd/m²	326 cd/m²	315 cd/m²
303 cd/m²	303 cd/m²	296 cd/m²

Distribution of brightness

LG Philips LP173WF4-SPF3 tested with X-Rite i1Pro 2

Maximum: 326 cd/m² (Nits) Average: 311.9 cd/m² Minimum: 36 cd/m²
Brightness Distribution: 91 %
Center on Battery: 326 cd/m²
Contrast: 652:1 (Black: 0.5 cd/m²)
ΔE Color 6.3 | 0.5-29.43 Ø4.91
ΔE Greyscale 7.37 | 0.5-98 Ø5.2
83% sRGB (Argyll 1.6.3 3D)
55% AdobeRGB 1998 (Argyll 1.6.3 3D)
61.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
83.5% sRGB (Argyll 2.2.0 3D)
65.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.37

Download ICC File (X-Rite i1Pro 2)

	Asus GL702VM-GC102D IPS, 1920x1080, 17.3"	HP Omen 17-w110ng IPS, 1920x1080, 17.3"	Gigabyte P57X v6 IPS, 1920x1080, 17.3"	MSI GS73VR 6RF TN LED, 1920x1080, 17.3"	SCHENKER XMG P507 IPS, 60 Hz, 1920x1080, 15.6"
Display		1%	5%	32%	-0%
Display P3 Coverage	65.1	66.6 2%	68 4%	90 38%	64.5 -1%
sRGB Coverage	83.5	84.1 1%	87.5 5%	99.9 20%	83.4 0%
AdobeRGB 1998 Coverage	61.1	61.5 1%	64 5%	83.6 37%	61 0%
Response Times		-1%	1%	42%	3%
Response Time Grey 50% / Grey 80% *	38 ?(12, 26)	37 ?(13, 24) 3%	33.6 ?(14, 19.6) 12%	28 ?(13.2, 14.8) 26%	36 ?(12, 24) 5%
Response Time Black / White *	23 ?(5, 18)	24 ?(4, 20) -4%	25.6 ?(5.2, 20.4) -11%	9.6 ?(5.2, 4.4) 58%	23 ?(5, 18) -0%
PWM Frequency
Screen		24%	17%	33%	14%
Brightness middle	326	362 11%	329.2 1%	337.2 3%	288 -12%
Brightness	312	342 10%	321 3%	315 1%	292 -6%
Brightness Distribution	91	87 -4%	93 2%	86 -5%	87 -4%
Black Level *	0.5	0.31 38%	0.267 47%	0.308 38%	0.3 40%
Contrast	652	1168 79%	1233 89%	1095 68%	960 47%
Colorchecker dE 2000 *	6.3	4.5 29%	5.93 6%	2.96 53%	5.1 19%
Colorchecker dE 2000 max. *	11.69	9.31 20%	11.07 5%	5.45 53%	9.44 19%
Greyscale dE 2000 *	7.37	3.48 53%	6.72 9%	2.57 65%	4.43 40%
Gamma	2.37 ^93%	2.23 ^99%	2.12 ^104%	2.25 ^98%	2.46 ^89%
CCT	7116 ^91%	6144 ^106%	7611 ^85%	7114 ^91%	6687 ^97%
Color Space (Percent of AdobeRGB 1998)	55	55 0%	57 4%	74.3 35%	55 0%
Color Space (Percent of sRGB)	83	84 1%	87 5%	100 20%	83 0%
Total Average (Program / Settings)		8% / 16%	8% / 12%	36% / 34%	6% / 10%

* ... smaller is better

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8715 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

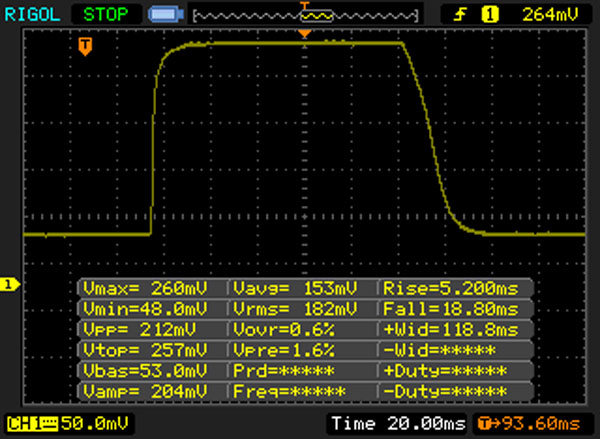

↔ Response Time Black to White
23 ms ... rise ↗ and fall ↘ combined	↗ 5 ms rise
23 ms ... rise ↗ and fall ↘ combined	↘ 18 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 48 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms).

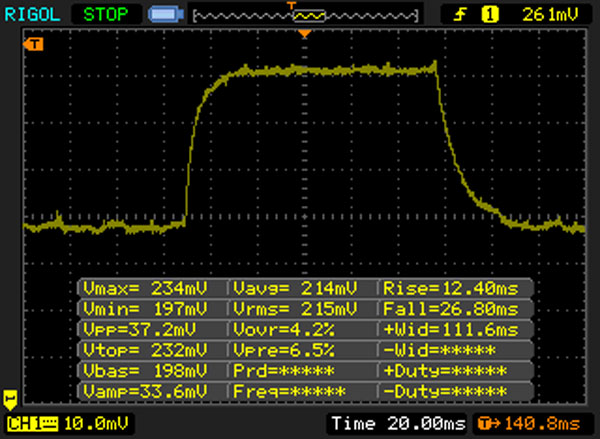

↔ Response Time 50% Grey to 80% Grey
38 ms ... rise ↗ and fall ↘ combined	↗ 12 ms rise
38 ms ... rise ↗ and fall ↘ combined	↘ 26 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 51 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms).

Cinebench R10 Rendering Single 32Bit

5126

Cinebench R10 Rendering Multiple CPUs 32Bit

20111

Cinebench R10 Shading 32Bit

8238

Cinebench R11.5 CPU Single 64Bit

1.5 Points

Cinebench R11.5 CPU Multi 64Bit

7.47 Points

Cinebench R11.5 OpenGL 64Bit

61 fps

Cinebench R15 CPU Single 64Bit

134 Points

Cinebench R15 CPU Multi 64Bit

678 Points

Cinebench R15 OpenGL 64Bit

74 fps

Help

... in comparison

Cinebench R15 | Cinebench R10 | Geekbench 3 | Geekbench 4.0 | JetStream 1.1

Cinebench R15
CPU Single 64Bit
SCHENKER XMG P507 Intel Core i7-6700HQ	148 Points +10%
HP Omen 17-w110ng Intel Core i7-6700HQ	148 Points +10%
MSI GP72-2QEi781 Intel Core i7-5700HQ	142 Points +6%
Gigabyte P57X v6 Intel Core i7-6700HQ	140 Points +4%
MSI GS73VR 6RF Intel Core i7-6700HQ	134 Points 0%
Asus GL702VM-GC102D Intel Core i7-6700HQ	134 Points
CPU Multi 64Bit
MSI GP72-2QEi781 Intel Core i7-5700HQ	694 Points +2%
SCHENKER XMG P507 Intel Core i7-6700HQ	682 Points +1%
HP Omen 17-w110ng Intel Core i7-6700HQ	679 Points 0%
Asus GL702VM-GC102D Intel Core i7-6700HQ	678 Points
MSI GS73VR 6RF Intel Core i7-6700HQ	671 Points -1%
Gigabyte P57X v6 Intel Core i7-6700HQ	635 Points -6%

Cinebench R10
Rendering Multiple CPUs 32Bit
HP Omen 17-w110ng Intel Core i7-6700HQ	20283 Points +1%
Asus GL702VM-GC102D Intel Core i7-6700HQ	20111 Points
MSI GS73VR 6RF Intel Core i7-6700HQ	20090 Points 0%
Rendering Single 32Bit
HP Omen 17-w110ng Intel Core i7-6700HQ	5484 Points +7%
Asus GL702VM-GC102D Intel Core i7-6700HQ	5126 Points
MSI GS73VR 6RF Intel Core i7-6700HQ	4926 Points -4%

Geekbench 3
32 Bit Single-Core Score
Asus GL702VM-GC102D Intel Core i7-6700HQ	2926 Points
32 Bit Multi-Core Score
Asus GL702VM-GC102D Intel Core i7-6700HQ	11903 Points

Geekbench 4.0
64 Bit Single-Core Score
Asus GL702VM-GC102D Intel Core i7-6700HQ	3663 Points
64 Bit Multi-Core Score
Asus GL702VM-GC102D Intel Core i7-6700HQ	11033 Points

JetStream 1.1 - Total Score
HP Omen 17-w110ng Intel Core i7-6700HQ	269.2 Points +16%
Gigabyte P57X v6 Intel Core i7-6700HQ	252 Points +8%
Asus GL702VM-GC102D Intel Core i7-6700HQ	232.4 Points
MSI GS73VR 6RF Intel Core i7-6700HQ	230.8 Points -1%

PCMark 7 Score		4114 points
PCMark 8 Home Score Accelerated v2		4670 points
PCMark 8 Creative Score Accelerated v2		6361 points
PCMark 8 Work Score Accelerated v2		4809 points
Help

... in comparison

PCMark 8
Home Score Accelerated v2
HP Omen 17-w110ng GeForce GTX 1070 Mobile, 6700HQ, Samsung PM951 NVMe MZVLV256	4833 Points +3%
Asus GL702VM-GC102D GeForce GTX 1060 Mobile, 6700HQ, HGST Travelstar 7K1000 HTS721010A9E630	4670 Points
Gigabyte P57X v6 GeForce GTX 1070 Mobile, 6700HQ, Transcend MTS800 256GB M.2 (TS256GMTS800)	4206 Points -10%
MSI GS73VR 6RF GeForce GTX 1060 Mobile, 6700HQ, SanDisk SD8SN8U1T001122	4012 Points -14%
Work Score Accelerated v2
HP Omen 17-w110ng GeForce GTX 1070 Mobile, 6700HQ, Samsung PM951 NVMe MZVLV256	5394 Points +12%
Gigabyte P57X v6 GeForce GTX 1070 Mobile, 6700HQ, Transcend MTS800 256GB M.2 (TS256GMTS800)	5014 Points +4%
Asus GL702VM-GC102D GeForce GTX 1060 Mobile, 6700HQ, HGST Travelstar 7K1000 HTS721010A9E630	4809 Points
MSI GS73VR 6RF GeForce GTX 1060 Mobile, 6700HQ, SanDisk SD8SN8U1T001122	4774 Points -1%

HD Tune

CrystalDiskMark 3.0

HGST Travelstar 7K1000 HTS721010A9E630

Transfer Rate Minimum: 52.7 MB/s

Transfer Rate Maximum: 137.9 MB/s

Transfer Rate Average: 104.7 MB/s

Access Time: 17.4 ms

Burst Rate: 92.8 MB/s

CPU Usage: 2.6 %

	Asus GL702VM-GC102D HGST Travelstar 7K1000 HTS721010A9E630	MSI CX72-7QLi581 WDC Scorpio Blue WD10JPVX-22JC3T0	HP Omen 17-w110ng Samsung PM951 NVMe MZVLV256	Gigabyte P57X v6 Transcend MTS800 256GB M.2 (TS256GMTS800)	MSI GS73VR 6RF SanDisk SD8SN8U1T001122
CrystalDiskMark 3.0		-20%	12718%	7576%	5569%
Read Seq	134.6	102.8 -24%	1156 759%	481.7 258%	334.3 148%
Write Seq	130.6	100.2 -23%	294.9 126%	315.4 142%	319 144%
Read 512	44.85	34.83 -22%	616 1273%	303.1 576%	242.3 440%
Write 512	63.3	46.87 -26%	294.7 366%	314.4 397%	254.4 302%
Read 4k	0.602	0.422 -30%	42.7 6993%	25.93 4207%	20.3 3272%
Write 4k	1.146	1.063 -7%	153.3 13277%	84.6 7282%	42.51 3609%
Read 4k QD32	1.106	0.918 -17%	600 54150%	273.9 24665%	251.6 22649%
Write 4k QD32	1.186	1.064 -10%	295.3 24799%	274.9 23079%	167.1 13989%

3DMark 06 Standard Score		19244 points
3DMark 11 Performance		11159 points
3DMark Ice Storm Standard Score		113032 points
3DMark Cloud Gate Standard Score		22619 points
3DMark Fire Strike Score		9432 points
3DMark Fire Strike Extreme Score		5067 points
3DMark Time Spy Score		3536 points
Help

... in comparison

3DMark 11 - 1280x720 Performance GPU
Gigabyte P57X v6 NVIDIA GeForce GTX 1070 Mobile, Intel Core i7-6700HQ	23356 Points +63%
HP Omen 17-w110ng NVIDIA GeForce GTX 1070 Mobile, Intel Core i7-6700HQ	20656 Points +44%
MSI RX 470 Gaming X 4GB AMD Radeon RX 470 (Desktop), Intel Core i7-4790K	17738 Points +24%
MSI GS73VR 6RF NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	14904 Points +4%
XMG P723 Pro AMD Radeon HD 8970M Crossfire, Intel Core i7-4800MQ	14696 Points +3%
Asus GL702VM-GC102D NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	14317 Points
SCHENKER XMG P507 NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	14222 Points -1%
XFX RX-460P4DFG5 Double Dissipation 4 GB AMD Radeon RX 460 (Desktop), Intel Core i7-4790K	8597 Points -40%
MSI GL72 6QF NVIDIA GeForce GTX 960M, Intel Core i7-6700HQ	5825 Points -59%

3DMark
1280x720 Cloud Gate Standard Graphics
HP Omen 17-w110ng NVIDIA GeForce GTX 1070 Mobile, Intel Core i7-6700HQ	86780 Points +10%
Gigabyte P57X v6 NVIDIA GeForce GTX 1070 Mobile, Intel Core i7-6700HQ	79578 Points +1%
Asus GL702VM-GC102D NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	79107 Points
XMG P723 Pro AMD Radeon HD 8970M Crossfire, Intel Core i7-4800MQ	77275 Points -2%
SCHENKER XMG P507 NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	69834 Points -12%
MSI GS73VR 6RF NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	67791 Points -14%
MSI RX 470 Gaming X 4GB AMD Radeon RX 470 (Desktop), Intel Core i7-4790K	66398 Points -16%
XFX RX-460P4DFG5 Double Dissipation 4 GB AMD Radeon RX 460 (Desktop), Intel Core i7-4790K	34892 Points -56%
MSI GL72 6QF NVIDIA GeForce GTX 960M, Intel Core i7-6700HQ	33474 Points -58%
1920x1080 Fire Strike Graphics
HP Omen 17-w110ng NVIDIA GeForce GTX 1070 Mobile, Intel Core i7-6700HQ	15806 Points +40%
MSI RX 470 Gaming X 4GB AMD Radeon RX 470 (Desktop), Intel Core i7-4790K	11869 Points +5%
MSI GS73VR 6RF NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	11506 Points +2%
Asus GL702VM-GC102D NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	11311 Points
XMG P723 Pro AMD Radeon HD 8970M Crossfire, Intel Core i7-4800MQ	11296 Points 0%
SCHENKER XMG P507 NVIDIA GeForce GTX 1060 Mobile, Intel Core i7-6700HQ	11045 Points -2%
XFX RX-460P4DFG5 Double Dissipation 4 GB AMD Radeon RX 460 (Desktop), Intel Core i7-4790K	5701 Points -50%
MSI GL72 6QF NVIDIA GeForce GTX 960M, Intel Core i7-6700HQ	4705 Points -58%

	low	med.	high	ultra
Tomb Raider (2013)	344.9	325.4	286.2	138.4
BioShock Infinite (2013)	195.1	177.3	166.4	98.9
Battlefield 4 (2013)	180.1	167.2	151.4	99.1
X-Plane 10.25 (2013)	81.8	46.6	24.5	24.5
Middle-earth: Shadow of Mordor (2014)	147.5	130.9	109	85.7
GTA V (2015)	122.3	117.7	90.3	48.2
Ashes of the Singularity (2016)	51.2	49.1	47.5
Deus Ex Mankind Divided (2016)	65	61.9	48.7	27.3
FIFA 17 (2016)	232.7	216.2	198.6	197.9
Mafia 3 (2016)	51.3	47.1	40.1
Battlefield 1 (2016)	116.4	104.9	87.4	79
Farming Simulator 17 (2016)	209.3	179.6	165.1	153.9
Titanfall 2 (2016)	143.4	143	89.3	80.2

BioShock Infinite | Tomb Raider | Battlefield 4

BioShock Infinite - 1920x1080 Ultra Preset, DX11 (DDOF)
Gigabyte P57X v6 GeForce GTX 1070 Mobile, 6700HQ, Transcend MTS800 256GB M.2 (TS256GMTS800)	123.8 fps +25%
HP Omen 17-w110ng GeForce GTX 1070 Mobile, 6700HQ, Samsung PM951 NVMe MZVLV256	103.8 (19.8^min - 180.2^max) fps +5%
MSI GS73VR 6RF GeForce GTX 1060 Mobile, 6700HQ, SanDisk SD8SN8U1T001122	100 fps +1%
Asus GL702VM-GC102D GeForce GTX 1060 Mobile, 6700HQ, HGST Travelstar 7K1000 HTS721010A9E630	98.9 fps
SCHENKER XMG P507 GeForce GTX 1060 Mobile, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e	98.1 fps -1%

Tomb Raider - 1920x1080 Ultra Preset AA:FX AF:16x
Asus GL702VM-GC102D GeForce GTX 1060 Mobile, 6700HQ, HGST Travelstar 7K1000 HTS721010A9E630	138.4 fps

Battlefield 4 - 1920x1080 Ultra Preset AA:4x MS
Asus GL702VM-GC102D GeForce GTX 1060 Mobile, 6700HQ, HGST Travelstar 7K1000 HTS721010A9E630	99.1 fps
SCHENKER XMG P507 GeForce GTX 1060 Mobile, 6700HQ, Samsung SM951 MZVPV256HDGL m.2 PCI-e	92.9 fps -6%

Noise Level

Idle		31.4 / 31.4 / 31.5 dB(A)
HDD		31.5 dB(A)
Load		40.9 / 46.2 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1, Arta (15 cm distance) environment noise: 30.5 dB(A)

	Asus GL702VM-GC102D 6700HQ, GeForce GTX 1060 Mobile	HP Omen 17-w110ng 6700HQ, GeForce GTX 1070 Mobile	Gigabyte P57X v6 6700HQ, GeForce GTX 1070 Mobile	MSI GS73VR 6RF 6700HQ, GeForce GTX 1060 Mobile	SCHENKER XMG P507 6700HQ, GeForce GTX 1060 Mobile
Noise		-8%	-7%	-5%	-6%
off / environment *	30.5	30 2%	29.7 3%	28.4 7%	30 2%
Idle Minimum *	31.4	33 -5%	33.2 -6%	31.9 -2%	31 1%
Idle Average *	31.4	34 -8%	33.2 -6%	32 -2%	32 -2%
Idle Maximum *	31.5	35 -11%	33.2 -5%	34 -8%	38 -21%
Load Average *	40.9	45 -10%	47.5 -16%	47 -15%	46 -12%
Load Maximum *	46.2	52 -13%	52.5 -14%	49.4 -7%	49 -6%

* ... smaller is better

Max. Load

Idle


40.2 °C	53.1 °C	41 °C
27.1 °C	47.2 °C	26 °C
27.9 °C	27.3 °C	27.5 °C

Maximum: 53.1 °C
Average: 35.3 °C


42.2 °C	44.9 °C	44.1 °C
36.3 °C	36.3 °C	30.6 °C
23.5 °C	25.1 °C	28.7 °C

Maximum: 44.9 °C
Average: 34.6 °C

Power Supply (max.) 46.6 °C | Room Temperature 21.5 °C | FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 35.3 °C / 96 F, compared to the average of 33.9 °C / 93 F for the devices in the class Gaming.
(-) The maximum temperature on the upper side is 53.1 °C / 128 F, compared to the average of 40.5 °C / 105 F, ranging from 21.2 to 68.8 °C for the class Gaming.
(±) The bottom heats up to a maximum of 44.9 °C / 113 F, compared to the average of 43.2 °C / 110 F
(+) In idle usage, the average temperature for the upper side is 27.8 °C / 82 F, compared to the device average of 33.9 °C / 93 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.9 °C / 82.2 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.9 °C / 84 F (+1 °C / 1.8 F).

	Asus GL702VM-GC102D 6700HQ, GeForce GTX 1060 Mobile	HP Omen 17-w110ng 6700HQ, GeForce GTX 1070 Mobile	Gigabyte P57X v6 6700HQ, GeForce GTX 1070 Mobile	MSI GS73VR 6RF 6700HQ, GeForce GTX 1060 Mobile	SCHENKER XMG P507 6700HQ, GeForce GTX 1060 Mobile
Heat		5%	-13%	0%	1%
Maximum Upper Side *	53.1	45 15%	59 -11%	50.8 4%	49.3 7%
Maximum Bottom *	44.9	54.3 -21%	66 -47%	60 -34%	52.7 -17%
Idle Upper Side *	32.9	29.6 10%	33.2 -1%	27.4 17%	32.6 1%
Idle Bottom *	33.4	28.6 14%	30.6 8%	28.8 14%	29.5 12%

* ... smaller is better

Asus GL702VM-GC102D audio analysis

(-) | not very loud speakers (64 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.7% lower than median
(±) | linearity of bass is average (14% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.5% away from median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 5.3% lower than median
(±) | linearity of highs is average (9.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (16.7% difference to median)
Compared to same class
» 41% of all tested devices in this class were better, 10% similar, 49% worse
» The best had a delta of 6%, average was 18%, worst was 132%
Compared to all devices tested
» 26% of all tested devices were better, 7% similar, 68% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	0.44 / 0.57 Watt
Idle	15.6 / 20.2 / 21.4 Watt
Load	90 / 147 Watt


Key: min: , med: , max: Metrahit Energy

	Asus GL702VM-GC102D 6700HQ, GeForce GTX 1060 Mobile	HP Omen 17-w110ng 6700HQ, GeForce GTX 1070 Mobile	Gigabyte P57X v6 6700HQ, GeForce GTX 1070 Mobile	MSI GS73VR 6RF 6700HQ, GeForce GTX 1060 Mobile	SCHENKER XMG P507 6700HQ, GeForce GTX 1060 Mobile
Power Consumption		-24%	-39%	-40%	9%
Idle Minimum *	15.6	19 -22%	18.4 -18%	22.6 -45%	11 29%
Idle Average *	20.2	25 -24%	22.8 -13%	32.7 -62%	16 21%
Idle Maximum *	21.4	31 -45%	24 -12%	32.8 -53%	21 2%
Load Average *	90	90 -0%	175.5 -95%	114.7 -27%	80 11%
Load Maximum *	147	193 -31%	229.5 -56%	167.9 -14%	174 -18%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		5h 53min
WiFi Websurfing (Edge 38)		4h 10min
Big Buck Bunny H.264 1080p		4h 22min
Load (maximum brightness)		1h 27min

	Asus GL702VM-GC102D 6700HQ, GeForce GTX 1060 Mobile, 76 Wh	HP Omen 17-w110ng 6700HQ, GeForce GTX 1070 Mobile, 95 Wh	Gigabyte P57X v6 6700HQ, GeForce GTX 1070 Mobile, 75.81 Wh	MSI GS73VR 6RF 6700HQ, GeForce GTX 1060 Mobile, 65 Wh	SCHENKER XMG P507 6700HQ, GeForce GTX 1060 Mobile, 60 Wh
Battery Runtime		11%	5%	-13%	22%
Reader / Idle	353	432 22%	418 18%	353 0%	409 16%
H.264	262	233 -11%
WiFi v1.3	250	247 -1%	201 -20%	213 -15%	274 10%
Load	87	115 32%	103 18%	66 -24%	123 41%

Pros

+ 磨砂IPS屏幕

+ 全高清分辨率

+ G-Sync

+ 大容量存储空间

+ 空余M.2插槽

+ Thunderbolt 3

Cons

- 集成显卡关闭

- 无法发挥全部加速性能

- 在待机时功耗较高

- 点击触控版偶尔失灵

In review: Asus GL702VM-GC102D. Test model provided by Notebook.de

GL702VM是华硕带来的一台相对纤薄的17.3寸游戏本。别被它纤细的小身板骗了，其实它机身内搭配了十分强劲的硬件。一块四核酷睿i7处理器和英伟达GeForce GTX 1060显卡的组合可以在全高清分辨率和高设定下运行绝大部分最新游戏。英伟达的G-Sync技术更保证了画面的流畅。尽管硬件十分强大，它的发热量仍然得到了很好的控制。这台笔记本的噪音也不会让人无法接受。

GL702VM是华硕带来的一台十分优秀的17.3寸游戏笔记本电脑。

归功于1TB的硬盘，它并不会很快在存储空间上捉襟见肘，不过用户也可以自行升级。这需要打开机身底盖，同时用户也可以在它的一个空余M.2插槽中安装固态硬盘（SATA或NVMe）。磨砂的IPS屏幕提供了稳定的可视角度和充足的亮度。它的对比度相比之下略显不足。内置键盘可以满足日常使用的需要。如果你需要大量打字的话，就可能需要考虑别的机型了。由于它禁用了内置显卡，在待机时的功耗相比较高。也因此它的电池续航受到了不必要的负面影响。不过，作为游戏本来说这并不是个致命缺陷。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Asus GL702VM-GC102D - 12/05/2016 v5.1 ^(old)
Sascha Mölck

Chassis

79 / 98 → 81%

Keyboard

81%

Pointing Device

86%

Connectivity

69 / 81 → 85%

Weight

58 / 10-66 → 86%
