GMK NucBox 3回顾。无风扇Windows 11 HTPC

紧凑和安静,但代价是什么?

赛扬J4125可能有点老了,但是它的低功率要求可以使更薄的机箱外形和无风扇设计对HTPC用户有吸引力。不幸的是,即使对于要求不高的HTPC负载,性能也不是我们所希望的。
Desktop Mini PC Chinese Tech

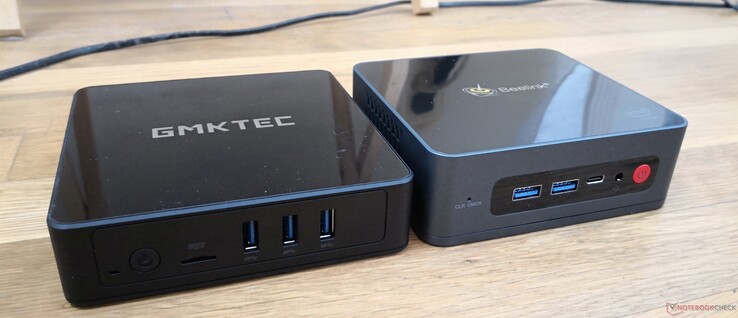

左:GMK NucBox 3,右:Beelink U59。Beelink U59
左:GMK NucBox 3,右:Beelink U59。Beelink U59

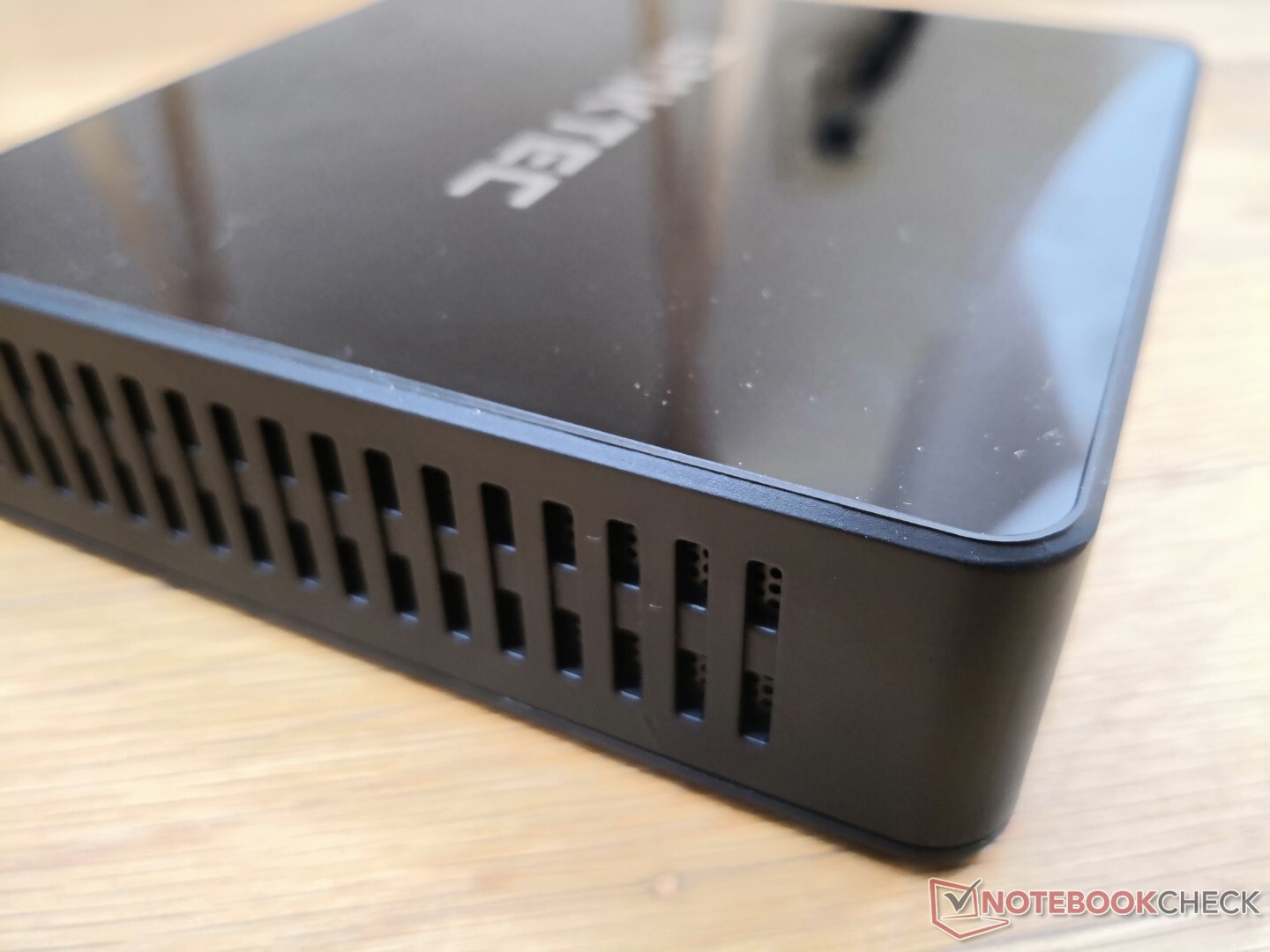

与微小的NucBox 1或更传统的NucBox 2不同,NucBox 3是一个无风扇设计,采用与NucBox 1相同的赛扬J4125处理器。该系统是为HTPC环境和其他低功耗应用而设计的,在这些应用中,静音操作优先于原始性能。

请注意,NucBox 3并不一定比NucBox 2或NucBox 1更好或更快,尽管其命名惯例可能表明。相反,NucBox 3与它的两个兄弟姐妹有不同的优点和缺点,可能会吸引不同的用户。不过,它们可能有类似的材料。

NucBox 3的竞争者包括其他无风扇迷你电脑,如 Zotac CI Nano系列楚威GBox.配备8GB DDR4内存和256GB SSD存储的设备目前在亚马逊上的售价约为 269美元。(或优惠券后219美元)或 制造商提供的309美元。.

更多GMK评论。

GMK NucBox 3
Processor
Intel Celeron J4125 4 x 2 - 2.7 GHz, 25 W PL2 / Short Burst, 10 W PL1 / Sustained, Gemini Lake Refresh
Graphics adapter
Intel UHD Graphics 600, DDR4, 26.20.100.6708
Memory
8 GB
, DDR4-2666, Single-channel only
Storage
Netac S535N8/256GYN, 256 GB
Soundcard
Intel Gemini Lake SoC - High Definition Audio Controller
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, Audio Connections: 3.5 mm earphones, Card Reader: MicroSD
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 32.5 x 128 x 128
Operating System
Microsoft Windows 11 Home
Additional features
12 Months Warranty, fanless

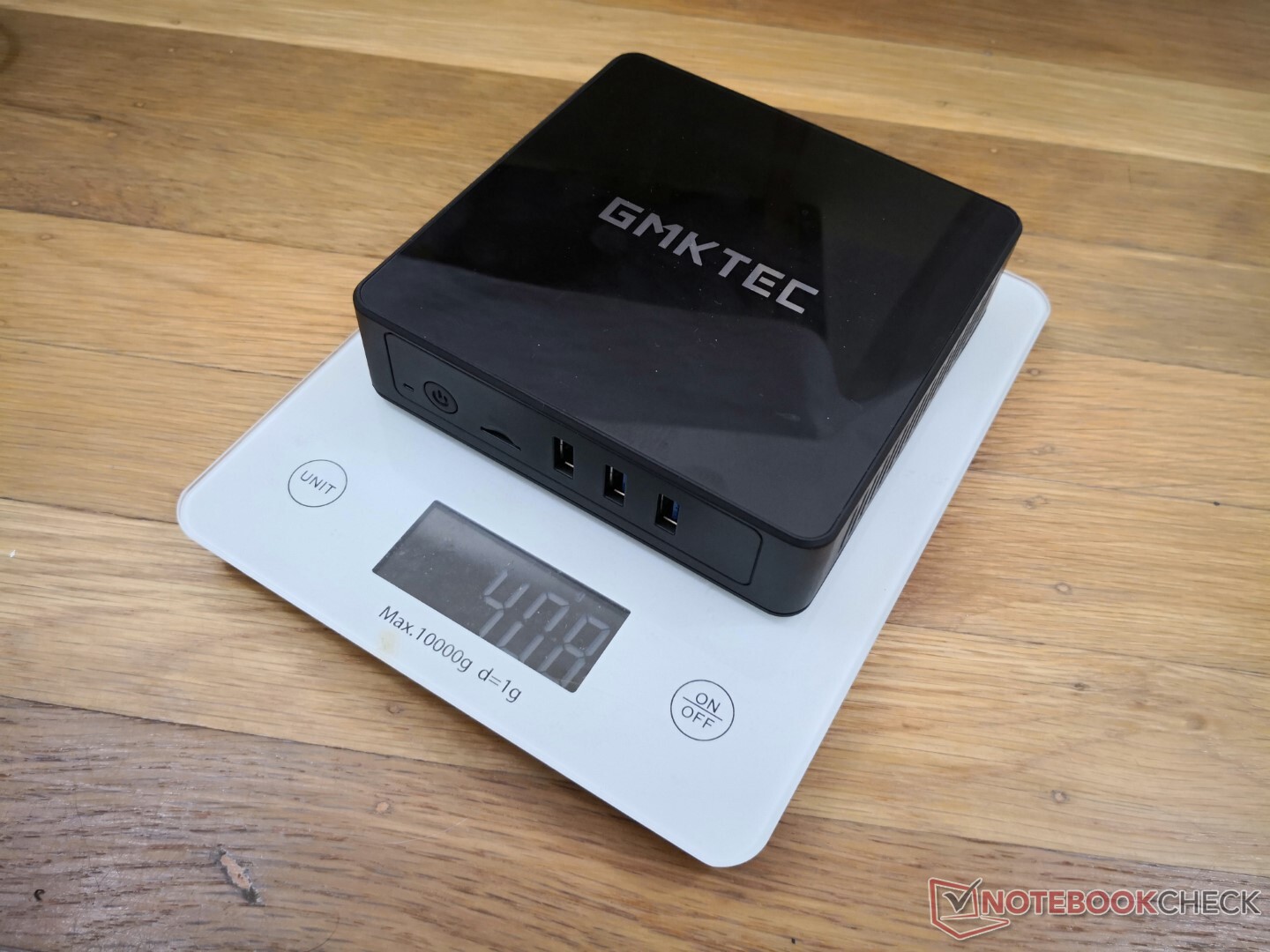

Weight
410 g, Power Supply: 153 g
Price
309 USD
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Potential Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Price

v (old)
02 / 2022
GMK NucBox 3
Celeron J4125, UHD Graphics 600
410 g32.5 mmx

v (old)
Chuwi LarkBox 4K Mini PC
Celeron J4115, UHD Graphics 600
129 g43 mmx

v (old)
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs
504 g37 mmx

v (old)
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655
683 g51 mmx

v (old)
12 / 2021
Beelink GTI 11
i5-1135G7, Iris Xe G7 80EUs
638 g39 mmx

v (old)
11 / 2021
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
329 g42 mmx

Size Comparison

168 mm 120 mm 39 mm 638 g115 mm 111 mm 51 mm 683 g124 mm 113 mm 42 mm 329 g128 mm 128 mm 32.5 mm 410 g117 mm 112 mm 37 mm 504 g61 mm 61 mm 43 mm 129 g210 mm 148 mm 1 mm 2.9 g

连接性

除了缺少一个USB-C端口外,端口选项是可敬的。此外,HDMI 1.4端口被限制在30赫兹的4K,这意味着如果连接4K显示器,强烈建议使用DisplayPort来代替。

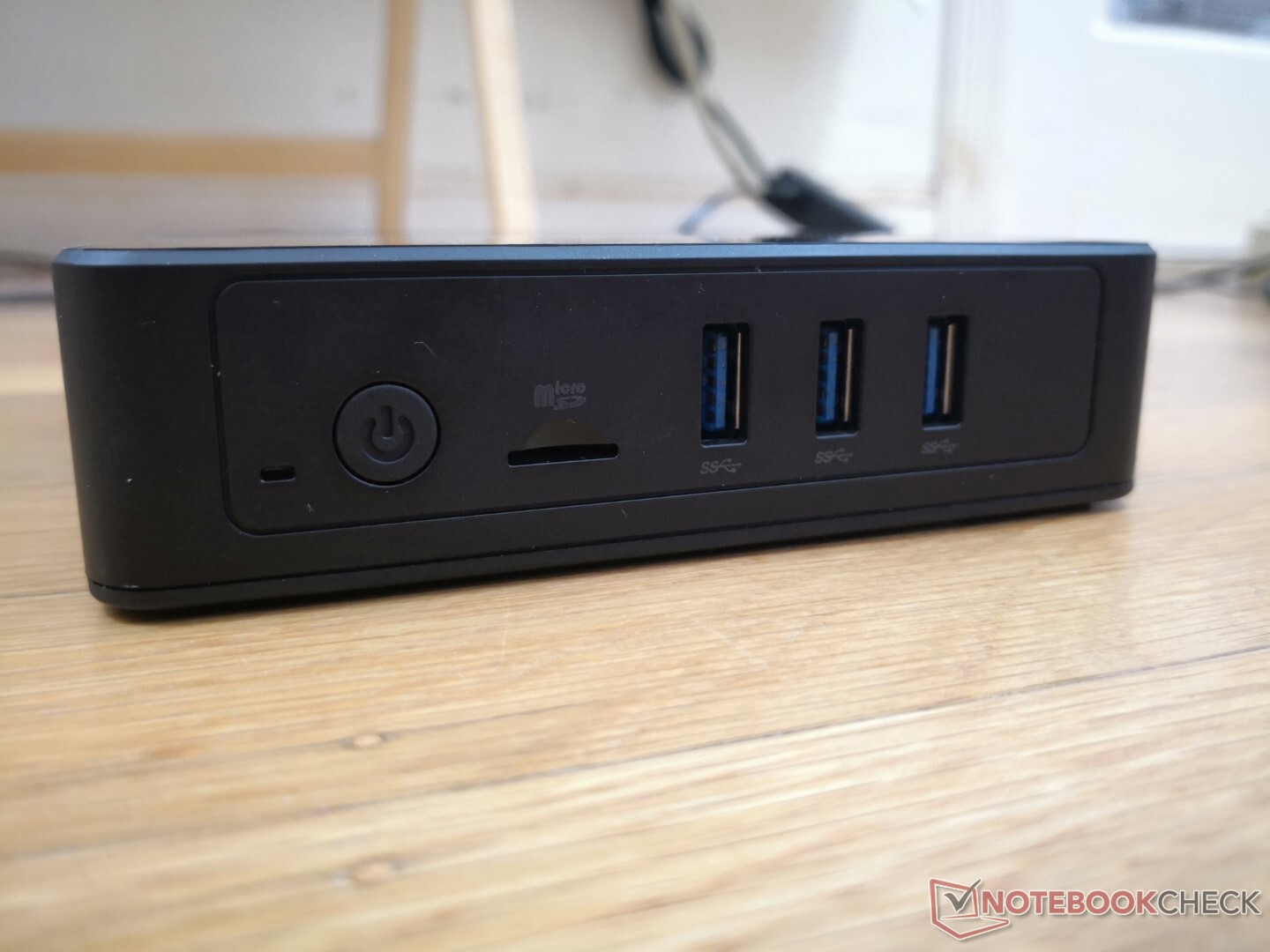

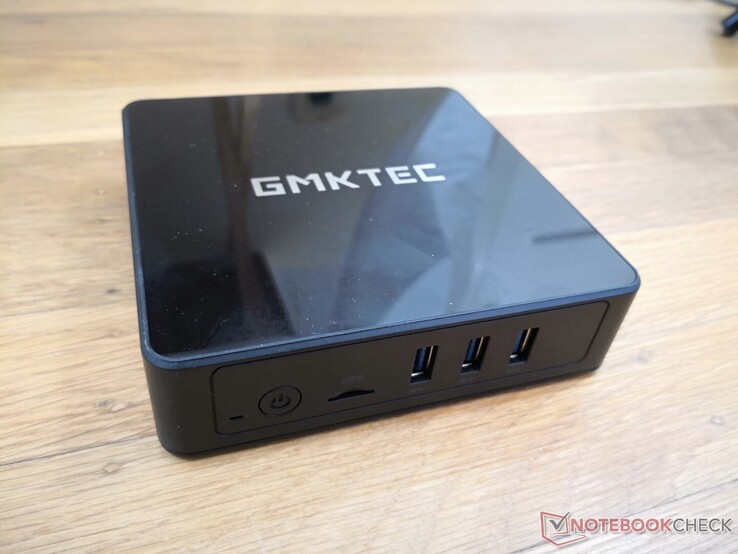

前面。电源按钮,MicroSD读卡器,3x USB-A 3.0
前面。电源按钮,MicroSD读卡器,3x USB-A 3.0

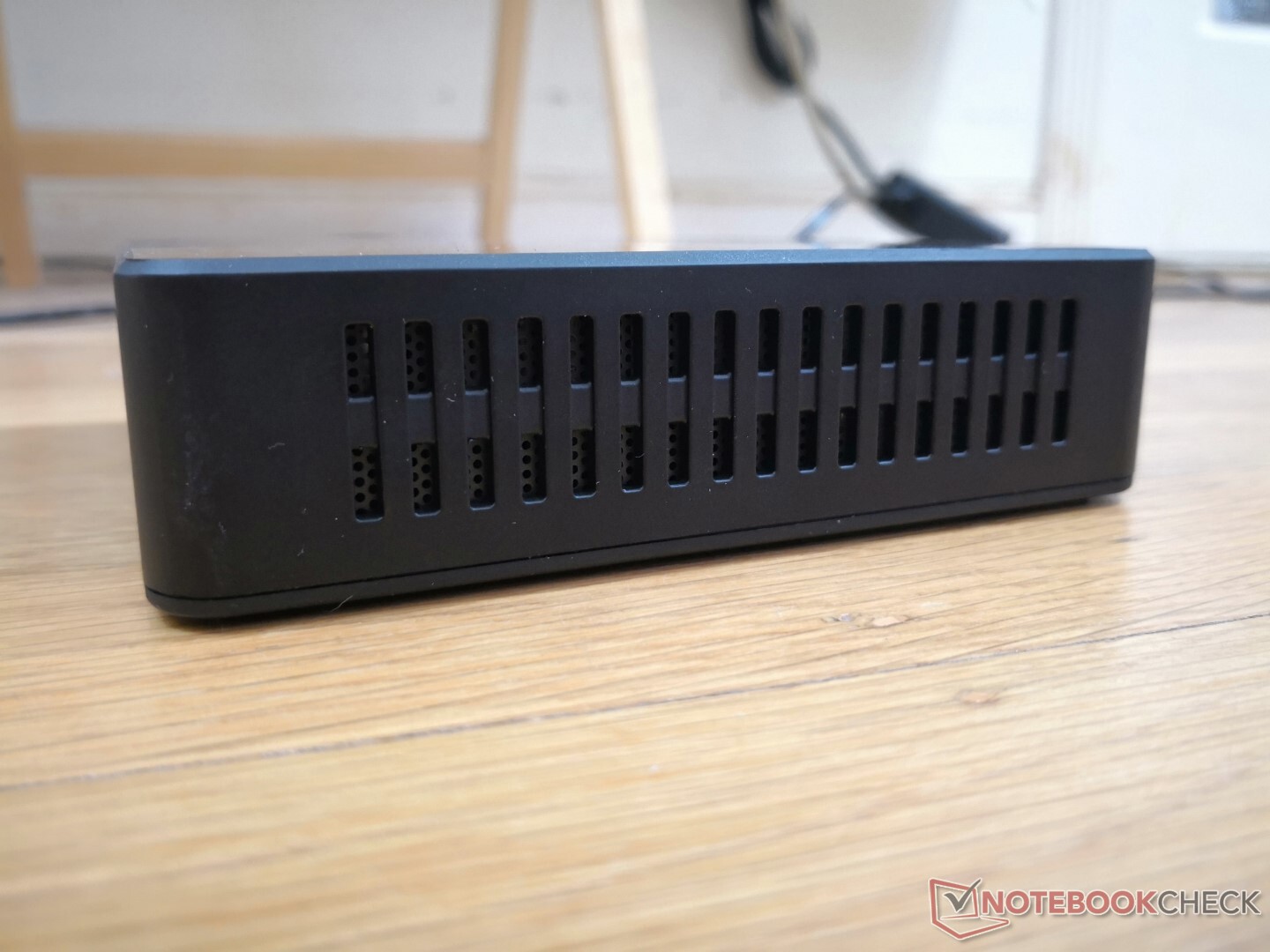

对。没有端口
对。没有端口

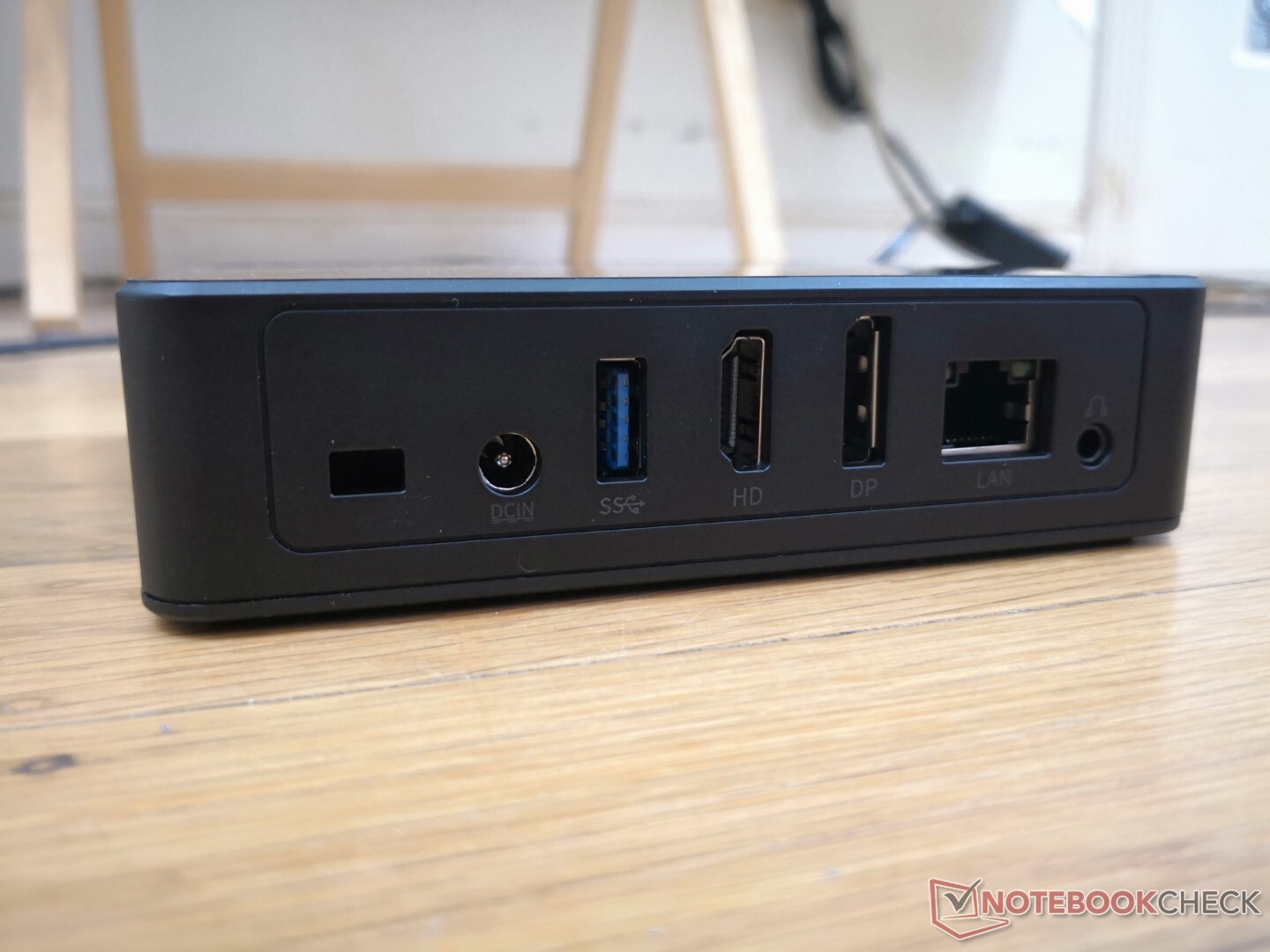

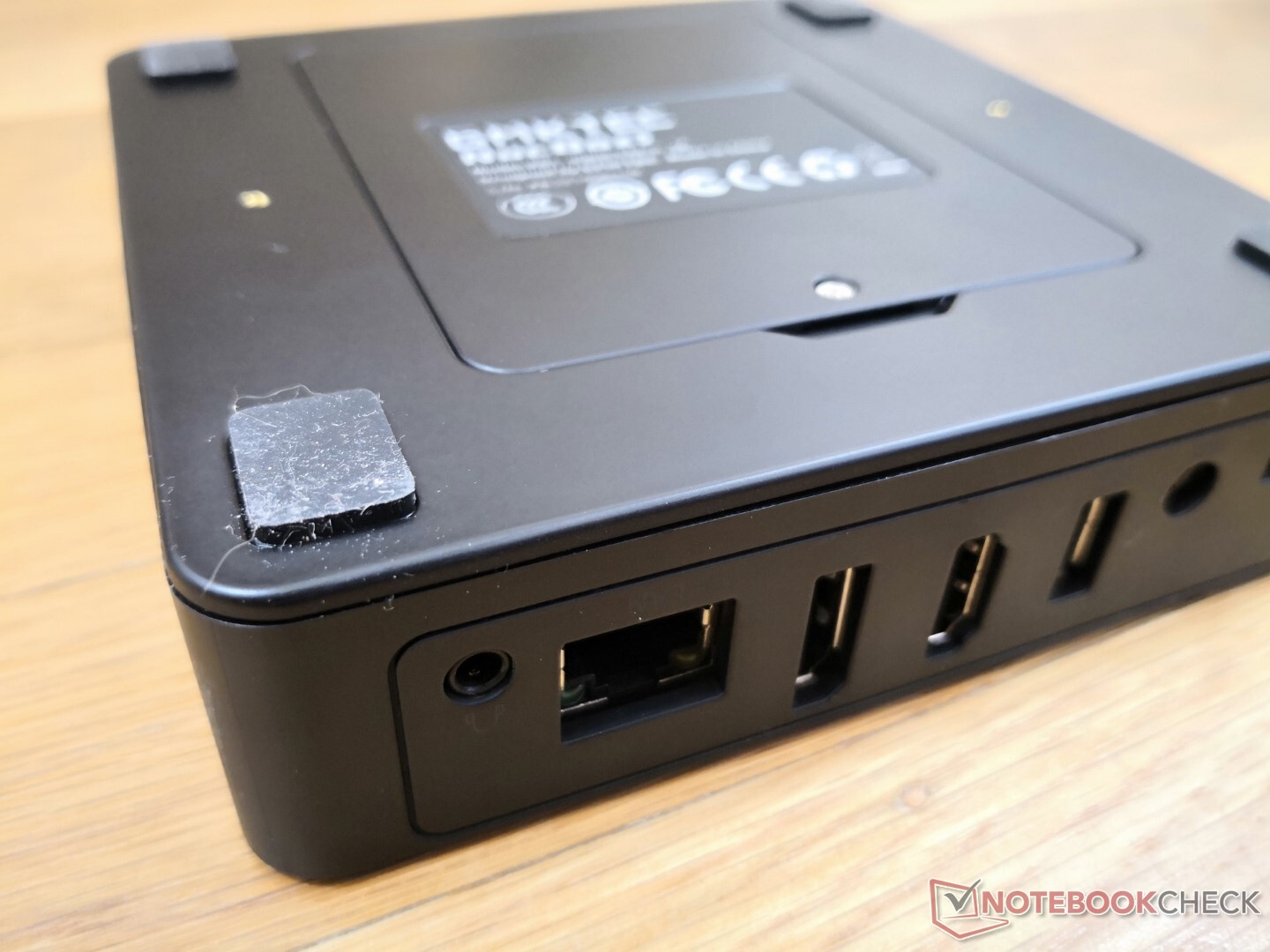

后部。Kensington锁,AC适配器,USB-A 3.0,HDMI 1.4,DisplayPort(4K60),千兆RJ-45,3.5毫米音频插孔
后部。Kensington锁,AC适配器,USB-A 3.0,HDMI 1.4,DisplayPort(4K60),千兆RJ-45,3.5毫米音频插孔

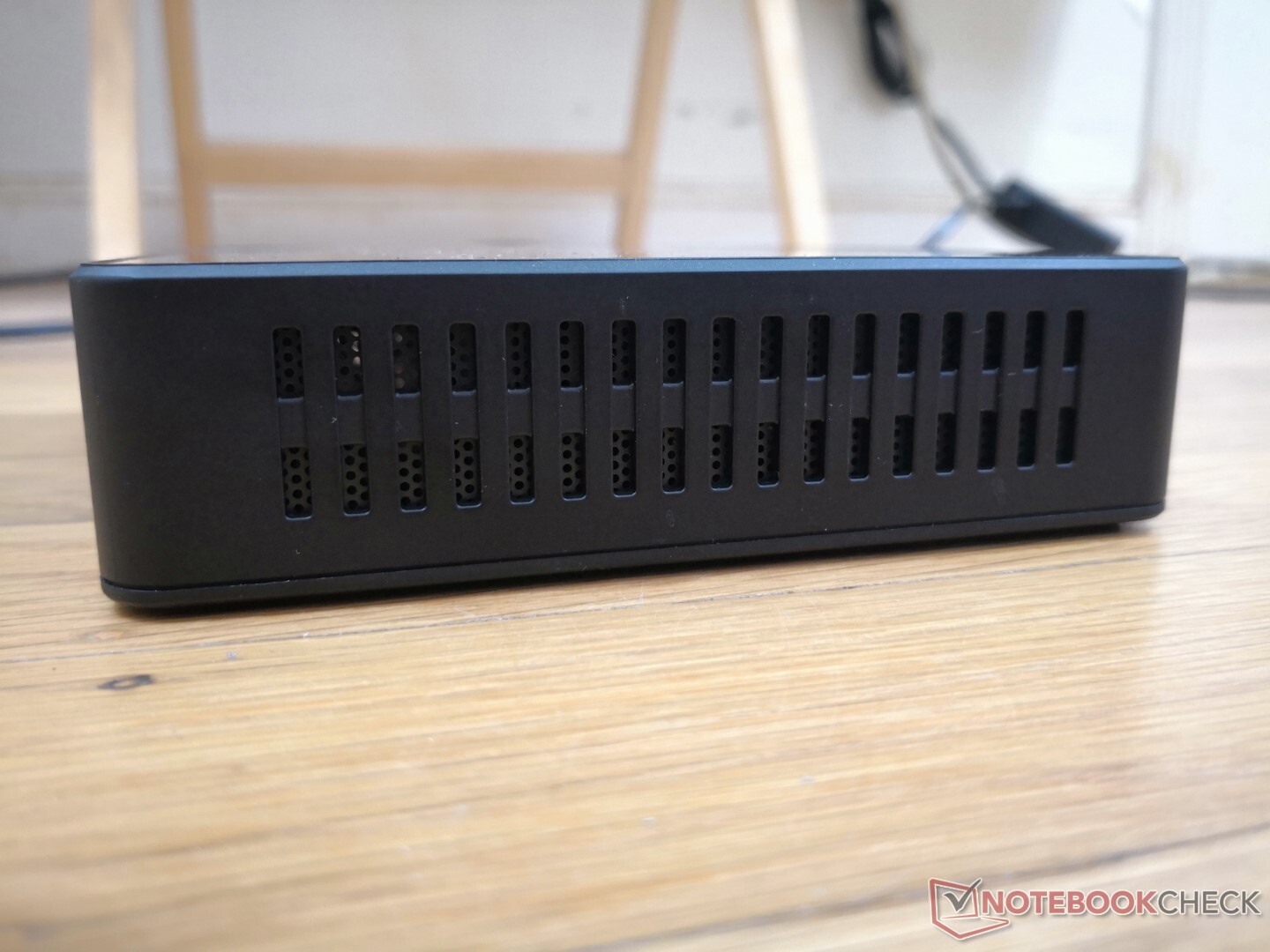

左边:没有端口
左边:没有端口

SD卡阅读器

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Intel NUC8i7BE
Intel Core i7-8559U (Toshiba Exceria Pro M501 UHS-II)
69 MB/s +147%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115 (Toshiba Exceria Pro M501 UHS-II)
66.9 MB/s +140%
GMK NucBox 3
Intel Celeron J4125 (AV Pro V60)
27.9 MB/s
maximum AS SSD Seq Read Test (1GB)
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115 (Toshiba Exceria Pro M501 UHS-II)
85.4 MB/s +3%
Intel NUC8i7BE
Intel Core i7-8559U (Toshiba Exceria Pro M501 UHS-II)
85 MB/s +2%
GMK NucBox 3
Intel Celeron J4125 (AV Pro V60)
83.3 MB/s

沟通

即使是老式的英特尔7265无线局域网模块,其传输速度也比预期的慢。然而,用户更有可能将内容流向该设备,而不是从该设备流出,因此,对于大多数应用来说,较差的传输速度不应该是一个问题。如果需要的话,千兆RJ-45端口可以随时用于提高网络性能。

Networking
iperf3 transmit AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1626 (1386min - 1677max) MBit/s +970%
Beelink GTI 11
Intel Wi-Fi 6 AX201
1228 (1149min - 1287max) MBit/s +708%
Intel NUC8i7BE
Intel Wireless-AC 9560
553 MBit/s +264%
Chuwi LarkBox 4K Mini PC
Wireless AC-9461
339 (302min - 361max) MBit/s +123%
Beelink U59
Intel Dual Band Wireless-AC 3165
180 (157min - 201max) MBit/s +18%
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
152 (106min - 184max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5
Intel Wi-Fi 6 AX201
1524 (1442min - 1571max) MBit/s +127%
Beelink GTI 11
Intel Wi-Fi 6 AX201
1086 (810min - 1317max) MBit/s +62%
GMK NucBox 3
Intel Dual Band Wireless-AC 7265
671 (648min - 684max) MBit/s
Intel NUC8i7BE
Intel Wireless-AC 9560
602 MBit/s -10%
Chuwi LarkBox 4K Mini PC
Wireless AC-9461
352 (344min - 357max) MBit/s -48%
Beelink U59
Intel Dual Band Wireless-AC 3165
346 (336min - 355max) MBit/s -48%
050100150200250300350400450500550600650Tooltip
GMK NucBox 3; iperf3 receive AX12; iperf 3.1.3: Ø670 (648-684)
GMK NucBox 3; iperf3 transmit AX12; iperf 3.1.3: Ø152 (106-184)

维护

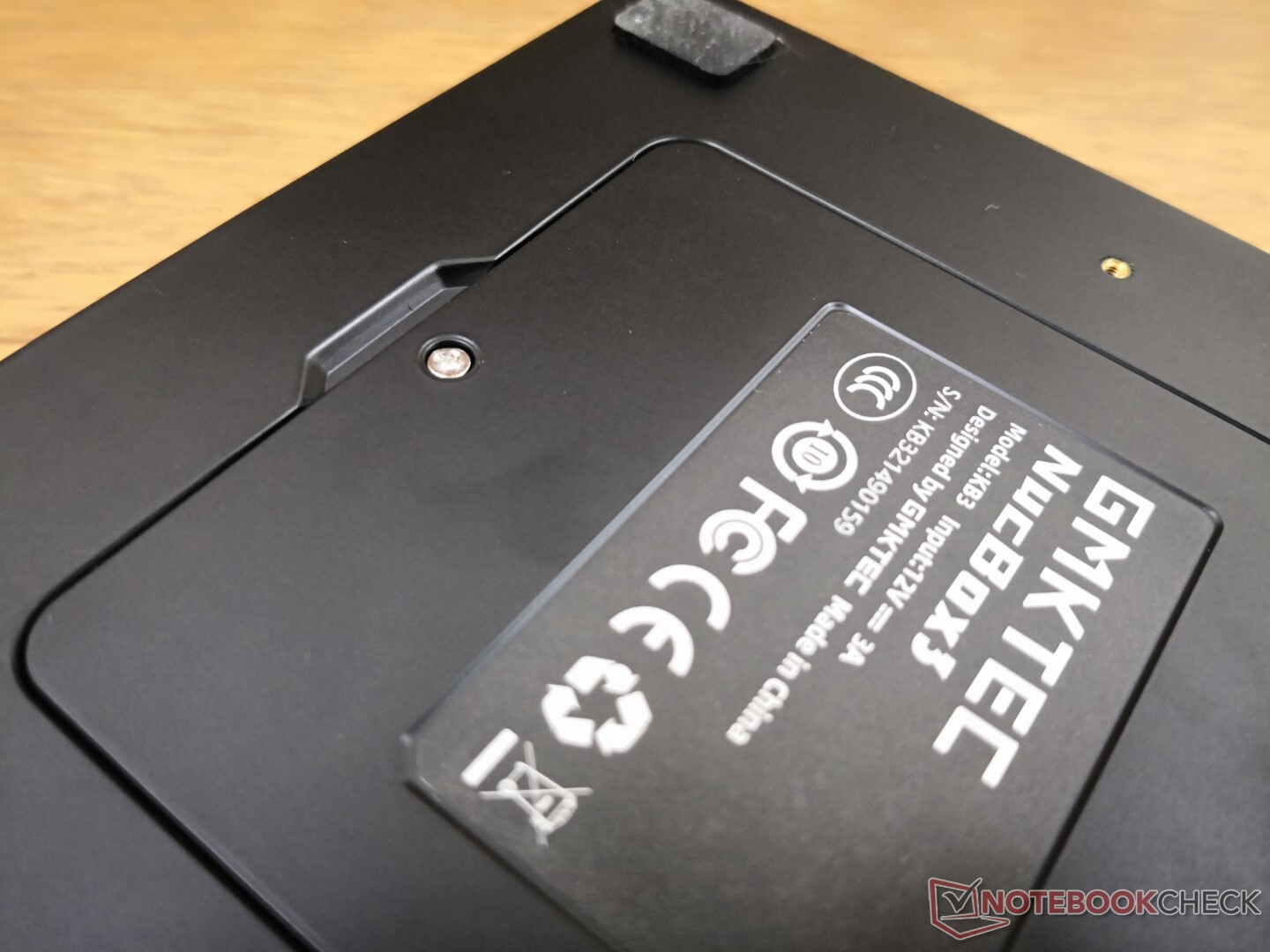

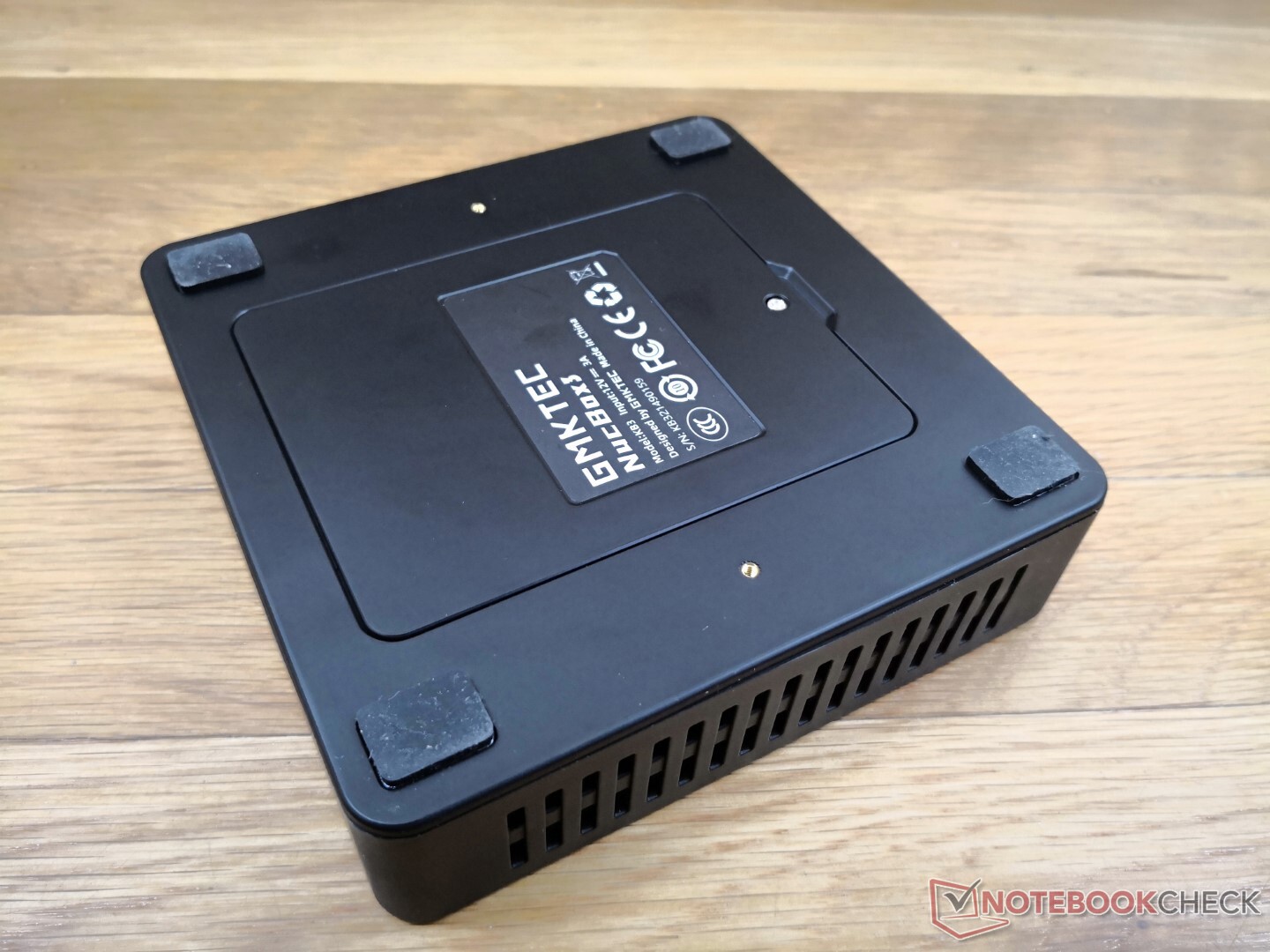

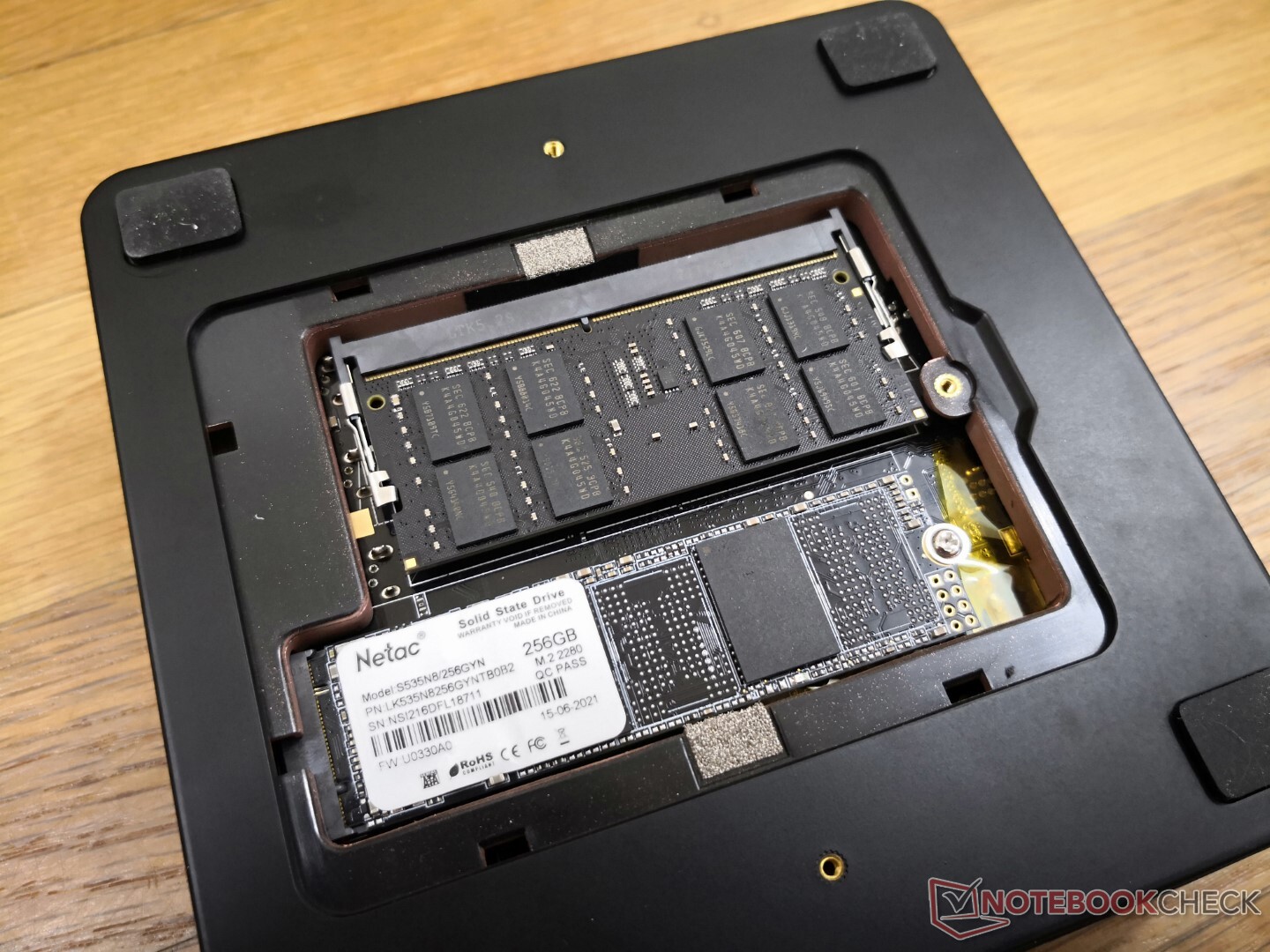

底部面板只用一颗飞利浦螺钉固定,便于访问单个SODIMM插槽和M.2 2280 SATA III插槽。不支持双通道内存。

配件和保修

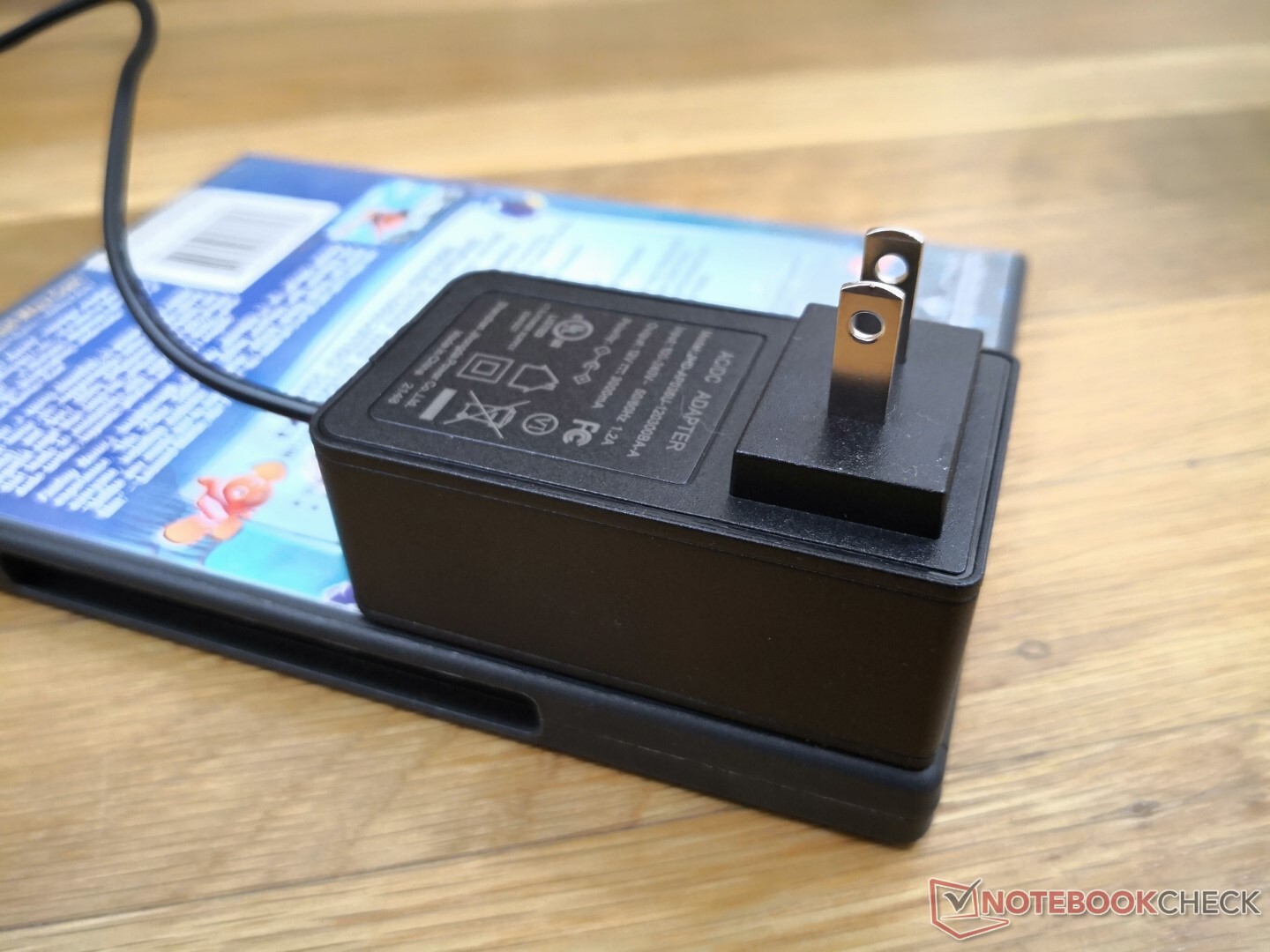

不幸的是,除了交流电适配器和文件以外,盒子里没有其他的东西。例如,安装支架没有包括在内,而这通常是包括Beelink公司在内的竞争性迷你电脑的标准配置。

业绩

测试条件

在运行以下任何基准测试之前,我们的设备被设置为性能模式,以获得可能的最高分数。

处理器

CPU的性能比我们数据库中配备完全相同的PC的平均速度要慢大约10%到15%。 赛扬J4125处理器的普通PC慢了大约10%到15%。幸运的是,该CPU仍然以很大的优势领先于迄今为止的任何Atom CPU。

Cinebench R15 Multi Loop

050100150200250300350400450500550600650700750800850900Tooltip
GMK NucBox 3 Intel Celeron J4125: Ø203 (171.15-207.16)
Chuwi LarkBox 4K Mini PC Intel Celeron J4115: Ø253 (207.57-262.65)
Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)
Intel NUC8i7BE Intel Core i7-8559U: Ø681 (671.37-798.44)
Beelink GTI 11 Intel Core i5-1135G7: Ø829 (822.06-915.5)
Beelink U59 Intel Celeron N5095: Ø377 (375.08-378.57)
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
Cinebench R20 / CPU (Multi Core)
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
2721 Points +533%
Beelink GTI 11
Intel Core i5-1135G7
2163 Points +403%
Intel NUC8i7BE
Intel Core i7-8559U
1691 Points +293%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
1071 Points +149%
Beelink U59
Intel Celeron N5095
844 Points +96%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
590 Points +37%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
546 Points +27%
Chuwi LarkBook CWI509
Intel Celeron N4120
490 Points +14%
Average Intel Celeron J4125
  (304 - 610, n=5)
449 Points +4%
GMK NucBox 3
Intel Celeron J4125
430 Points
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
316 Points -27%
Chuwi LapBook Plus
Intel Atom x7-E3950
272 Points -37%
Cinebench R20 / CPU (Single Core)
Beelink GTI 11
Intel Core i5-1135G7
520 Points +206%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
505 Points +197%
Intel NUC8i7BE
Intel Core i7-8559U
466 Points +174%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
393 Points +131%
Beelink U59
Intel Celeron N5095
239 Points +41%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
175 Points +3%
GMK NucBox 3
Intel Celeron J4125
170 Points
Average Intel Celeron J4125
  (155 - 174, n=5)
166.2 Points -2%
Chuwi LarkBook CWI509
Intel Celeron N4120
166 Points -2%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
156 Points -8%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
155 Points -9%
Chuwi LapBook Plus
Intel Atom x7-E3950
93 Points -45%
Cinebench R23 / Multi Core
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
12370 Points +943%
Beelink GTI 11
Intel Core i5-1135G7
5597 (5425.4min - 5596.59max) Points +372%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
2771 Points +134%
Beelink U59
Intel Celeron N5095
2219 (2211.53min - 2219.25max) Points +87%
Chuwi LarkBook CWI509
Intel Celeron N4120
1253 Points +6%
Average Intel Celeron J4125
  (860 - 1563, n=3)
1203 Points +1%
GMK NucBox 3
Intel Celeron J4125
1186 (1172.17min - 1186.25max) Points
Cinebench R23 / Single Core
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
1534 Points +250%
Beelink GTI 11
Intel Core i5-1135G7
1356 Points +210%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
1319 Points +201%
Beelink U59
Intel Celeron N5095
621 Points +42%
GMK NucBox 3
Intel Celeron J4125
438 Points
Average Intel Celeron J4125
  (392 - 446, n=3)
425 Points -3%
Cinebench R15 / CPU Multi 64Bit
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
1690 (1675min - 1690max) Points +716%
Beelink GTI 11
Intel Core i5-1135G7
916 (822.06min - 915.5max) Points +343%
Intel NUC8i7BE
Intel Core i7-8559U
798 (671.37min - 798.44max) Points +286%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
417 Points +101%
Beelink U59
Intel Celeron N5095
379 (375.08min - 378.57max) Points +83%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
263 (207.57min - 262.65max) Points +27%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
239 Points +15%
Chuwi LarkBook CWI509
Intel Celeron N4120
224 (216.74min - 224.4max) Points +8%
Average Intel Celeron J4125
  (148 - 271, n=5)
223 Points +8%
GMK NucBox 3
Intel Celeron J4125
207 (171.15min - 207.16max) Points
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
144.1 (131.27min - 145.38max) Points -30%
Chuwi LapBook Plus
Intel Atom x7-E3950
125 Points -40%
Cinebench R15 / CPU Single 64Bit
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
209 Points +231%
Beelink GTI 11
Intel Core i5-1135G7
200 Points +217%
Intel NUC8i7BE
Intel Core i7-8559U
188 Points +198%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
137 Points +117%
Beelink U59
Intel Celeron N5095
109 Points +73%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
78.9 Points +25%
Chuwi LarkBook CWI509
Intel Celeron N4120
73.2 Points +16%
Average Intel Celeron J4125
  (63.1 - 79.1, n=5)
72.5 Points +15%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
71.1 Points +13%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
70 Points +11%
GMK NucBox 3
Intel Celeron J4125
63.1 Points
Chuwi LapBook Plus
Intel Atom x7-E3950
41 Points -35%
Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus
Intel Atom x7-E3950
4564 Seconds * -51%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
4064 Seconds * -34%
GMK NucBox 3
Intel Celeron J4125
3032 Seconds *
Average Intel Celeron J4125
  (2198 - 3860, n=5)
2772 Seconds * +9%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
2490 Seconds * +18%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
2380 Seconds * +22%
Beelink U59
Intel Celeron N5095
1516 Seconds * +50%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
1087 Seconds * +64%
Intel NUC8i7BE
Intel Core i7-8559U
682 Seconds * +78%
Intel NUC8i7BE
Intel Core i7-8559U
650 Seconds * +79%
Beelink GTI 11
Intel Core i5-1135G7
551 Seconds * +82%
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
183.3 Seconds * +94%
7-Zip 18.03 / 7z b 4
Intel NUC8i7BE
Intel Core i7-8559U
30570 MIPS +437%
Intel NUC8i7BE
Intel Core i7-8559U
22033 MIPS +287%
Beelink GTI 11
Intel Core i5-1135G7
24655 MIPS +333%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
12793 MIPS +125%
Beelink U59
Intel Celeron N5095
11168 MIPS +96%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
8098 MIPS +42%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
7835 MIPS +38%
Average Intel Celeron J4125
  (5694 - 8399, n=5)
7248 MIPS +27%
Chuwi LarkBook CWI509
Intel Celeron N4120
7184 MIPS +26%
GMK NucBox 3
Intel Celeron J4125
5694 MIPS
Chuwi LapBook Plus
Intel Atom x7-E3950
4569 MIPS -20%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
4498 MIPS -21%
7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC8i7BE
Intel Core i7-8559U
6171 MIPS +176%
Intel NUC8i7BE
Intel Core i7-8559U
4826 MIPS +116%
Beelink GTI 11
Intel Core i5-1135G7
4852 MIPS +117%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
4674 MIPS +109%
Beelink U59
Intel Celeron N5095
3111 MIPS +39%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
2456 MIPS +10%
Average Intel Celeron J4125
  (2237 - 2444, n=5)
2358 MIPS +5%
Chuwi LarkBook CWI509
Intel Celeron N4120
2279 MIPS +2%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
2240 MIPS 0%
GMK NucBox 3
Intel Celeron J4125
2237 MIPS
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
2215 MIPS -1%
Chuwi LapBook Plus
Intel Atom x7-E3950
1454 MIPS -35%
Geekbench 5.5 / Multi-Core
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
12499 Points +943%
Beelink GTI 11
Intel Core i5-1135G7
5059 Points +322%
Intel NUC8i7BE
Intel Core i7-8559U
3660 Points +206%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
2802 Points +134%
Chuwi LarkBook CWI509
Intel Celeron N4120
1505 Points +26%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
1419 Points +18%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
1416 Points +18%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
1410 Points +18%
Average Intel Celeron J4125
  (1198 - 1512, n=5)
1367 Points +14%
GMK NucBox 3
Intel Celeron J4125
1198 Points
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
858 Points -28%
Geekbench 5.5 / Single-Core
Apple MacBook Pro 16 2021 M1 Pro
Apple M1 Pro
1768 Points +283%
Beelink GTI 11
Intel Core i5-1135G7
1415 Points +206%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
1345 Points +191%
Intel NUC8i7BE
Intel Core i7-8559U
723 Points +56%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
475 Points +3%
GMK NucBox 3
Intel Celeron J4125
462 Points
Average Intel Celeron J4125
  (435 - 466, n=5)
454 Points -2%
Chuwi LarkBook CWI509
Intel Celeron N4120
439 Points -5%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
414 Points -10%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
413 Points -11%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
388 Points -16%
HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink GTI 11
Intel Core i5-1135G7
6.98 fps +454%
Intel NUC8i7BE
Intel Core i7-8559U
5.9 fps +368%
Intel NUC8i7BE
Intel Core i7-8559U
5.523 fps +338%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
3.6 fps +186%
Beelink U59
Intel Celeron N5095
2.05 fps +63%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
1.49 fps +18%
Zotac ZBOX EDGE CI341
Intel Celeron N4100
1.41 fps +12%
Average Intel Celeron J4125
  (0.95 - 1.61, n=5)
1.352 fps +7%
Chuwi LarkBook CWI509
Intel Celeron N4120
1.31 fps +4%
GMK NucBox 3
Intel Celeron J4125
1.26 fps
Chuwi LapBook Plus
Intel Atom x7-E3950
0.98 fps -22%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
0.92 fps -27%
LibreOffice / 20 Documents To PDF
GMK NucBox 3
Intel Celeron J4125
159 s *
Zotac ZBOX EDGE CI341
Intel Celeron N4100
158 s * +1%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115
150 s * +6%
Average Intel Celeron J4125
  (124 - 168.4, n=5)
144.1 s * +9%
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
139 s * +13%
Chuwi LarkBook CWI509
Intel Celeron N4120
131 s * +18%
Beelink U59
Intel Celeron N5095
97 s * +39%
Beelink GTI 11
Intel Core i5-1135G7
54.5 s * +66%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
42.8 s * +73%
R Benchmark 2.5 / Overall mean
Zotac ZBOX EDGE CI341
Intel Celeron N4100
1.756 sec * -15%
Chuwi LarkBook CWI509
Intel Celeron N4120
1.642 sec * -8%
Average Intel Celeron J4125
  (1.525 - 1.579, n=5)
1.56 sec * -2%
GMK NucBox 3
Intel Celeron J4125
1.525 sec *
Lenovo IdeaPad Flex 3 11IGL05
Intel Celeron N4020
1.511 sec * +1%
Beelink U59
Intel Celeron N5095
1.168 sec * +23%
Lenovo IdeaPad 3 15ITL05 81X80074GE
Intel Core i3-1115G4
0.643 sec * +58%
Intel NUC8i7BE
Intel Core i7-8559U
0.6275 sec * +59%
Beelink GTI 11
Intel Core i5-1135G7
0.627 sec * +59%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit
207 Points
Cinebench R15 OpenGL 64Bit
8.17 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Cinebench R15 CPU Single 64Bit
63.1 Points
Cinebench R20 CPU (Multi Core)
430 Points
Cinebench R20 CPU (Single Core)
170 Points
Cinebench R23 Multi Core
1186 Points
Cinebench R23 Single Core
438 Points
Help
Performance Rating
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
98.7 pt
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
88.6 pt
Intel NUC8i7BE -1!
Intel Core i7-8559U, Iris Plus Graphics 655
76.7 pt
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
27.6 pt
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
21.9 pt
Average Intel Celeron J4125

20.8 pt
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
18.2 pt
AIDA64 / FP32 Ray-Trace
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
7627 KRay/s +951%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
6699 KRay/s +823%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
5312 KRay/s +632%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1245 KRay/s +71%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
986 KRay/s +36%
Average Intel Celeron J4125
  (726 - 1040, n=4)
906 KRay/s +25%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
726 KRay/s
AIDA64 / FPU Julia
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
31613 Points +654%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
27861 Points +565%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
26770 Points +539%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7466 Points +78%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
6212 Points +48%
Average Intel Celeron J4125
  (4191 - 6611, n=4)
5612 Points +34%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
4191 Points
AIDA64 / CPU SHA3
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
2171 MB/s +624%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
1855 MB/s +518%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
515 MB/s +72%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
388 MB/s +29%
Average Intel Celeron J4125
  (300 - 417, n=4)
361 MB/s +20%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
300 MB/s
AIDA64 / CPU Queen
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
50056 Points +154%
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
46657 Points +136%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
46536 Points +136%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
21959 Points +11%
Average Intel Celeron J4125
  (19745 - 20042, n=4)
19960 Points +1%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
19745 Points
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
18793 Points -5%
AIDA64 / FPU SinJulia
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
4677 Points +322%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
4444 Points +301%
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
4442 Points +301%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
1177 Points +6%
Average Intel Celeron J4125
  (898 - 1263, n=4)
1118 Points +1%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
1107 Points
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1003 Points -9%
AIDA64 / FPU Mandel
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
18635 Points +735%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16937 Points +659%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
13435 Points +502%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3967 Points +78%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
3375 Points +51%
Average Intel Celeron J4125
  (2231 - 3614, n=4)
2972 Points +33%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
2231 Points
AIDA64 / CPU AES
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
67937 MB/s +720%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
66724 MB/s +705%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19099 MB/s +130%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
18649 MB/s +125%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
9864 MB/s +19%
Average Intel Celeron J4125
  (8288 - 10604, n=4)
9722 MB/s +17%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
8288 MB/s
AIDA64 / CPU ZLib
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
373 MB/s +255%
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
370 MB/s +252%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
366 MB/s +249%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
190 MB/s +81%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
136 MB/s +30%
Average Intel Celeron J4125
  (105 - 137, n=4)
126.3 MB/s +20%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
105 MB/s
AIDA64 / FP64 Ray-Trace
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
3864 KRay/s +856%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
3628 KRay/s +798%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
2870 KRay/s +610%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s +67%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
544 KRay/s +35%
Average Intel Celeron J4125
  (404 - 578, n=4)
508 KRay/s +26%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
404 KRay/s
AIDA64 / CPU PhotoWorxx
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
31708 MPixel/s +411%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
20296 MPixel/s +227%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
16877 MPixel/s +172%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9294 MPixel/s +50%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
7204 MPixel/s +16%
Average Intel Celeron J4125
  (6210 - 6778, n=4)
6565 MPixel/s +6%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
6210 MPixel/s

系统性能

Windows 11在NucBox 3上运行非常缓慢。在其他电脑上通常是瞬间完成的简单操作,如打开文件浏览器、小文件,甚至点击Windows开始图标,在NucBox 3上都有明显的延迟。我们发现缓慢的导航对于轻度浏览或文字处理来说是可以忍受的,但对于任何形式的主动多任务处理来说,你会想要更快一些。

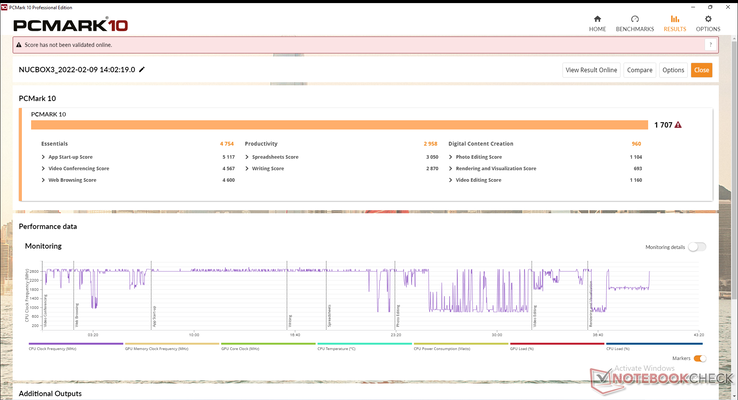

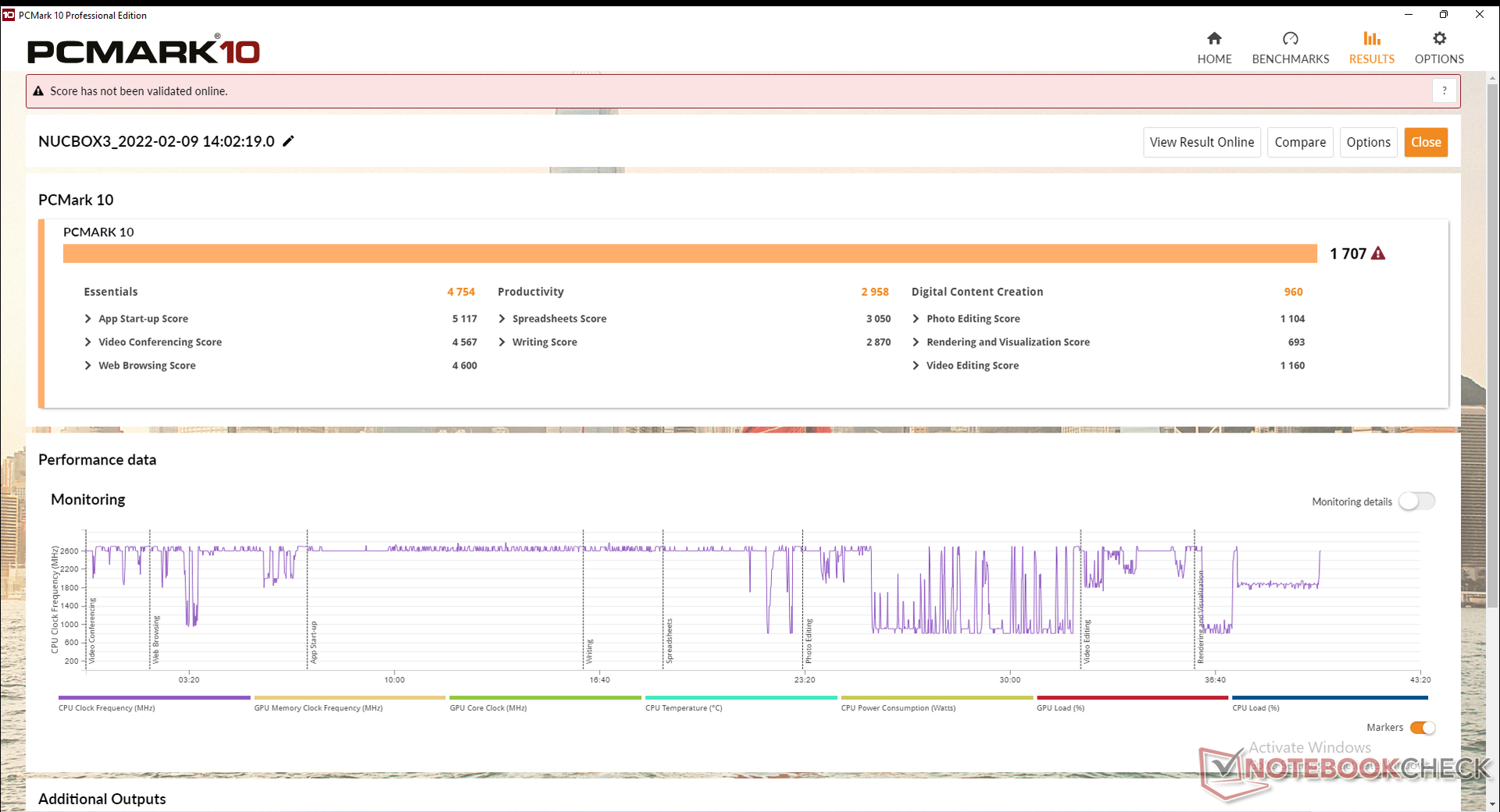

PCMark 10 / Score
Beelink GTI 11
Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G
4952 Points +190%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4580 Points +168%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4512 Points +164%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
2410 Points +41%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
1803 Points +6%
Average Intel Celeron J4125, Intel UHD Graphics 600
  (1461 - 1898, n=5)
1741 Points +2%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1707 Points
PCMark 10 / Essentials
Beelink GTI 11
Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G
9893 Points +108%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
9000 Points +89%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
8994 Points +89%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
5874 Points +24%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
4837 Points +2%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
4754 Points
Average Intel Celeron J4125, Intel UHD Graphics 600
  (3998 - 4993, n=5)
4668 Points -2%
PCMark 10 / Productivity
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
7236 Points +145%
Beelink GTI 11
Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G
6400 Points +116%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
6190 Points +109%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
3623 Points +22%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
2969 Points 0%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
2958 Points
Average Intel Celeron J4125, Intel UHD Graphics 600
  (2697 - 3050, n=5)
2916 Points -1%
PCMark 10 / Digital Content Creation
Beelink GTI 11
Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G
5206 Points +442%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
4474 Points +366%
Intel NUC8i7BE
Iris Plus Graphics 655, i7-8559U
4007 Points +317%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
1787 Points +86%
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
1110 Points +16%
Average Intel Celeron J4125, Intel UHD Graphics 600
  (786 - 1216, n=5)
1056 Points +10%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
960 Points
PCMark 10 Score
1707 points
Help
AIDA64 / Memory Copy
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
65321 MB/s +413%
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
40994 MB/s +222%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
23009 MB/s +81%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
22895 MB/s +80%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
14768 MB/s +16%
Average Intel Celeron J4125
  (12604 - 13833, n=4)
13034 MB/s +2%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
12738 MB/s
AIDA64 / Memory Read
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
46916 MB/s +373%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
45290 MB/s +356%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
24947 MB/s +151%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
16406 MB/s +65%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
11884 MB/s +20%
Average Intel Celeron J4125
  (9928 - 10248, n=4)
10119 MB/s +2%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
9928 MB/s
AIDA64 / Memory Write
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
55236 MB/s +432%
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
46366 MB/s +347%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30499 MB/s +194%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
23454 MB/s +126%
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
10716 MB/s +3%
Average Intel Celeron J4125
  (10347 - 10627, n=4)
10451 MB/s +1%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
10380 MB/s
AIDA64 / Memory Latency
Chuwi LarkBox 4K Mini PC
Intel Celeron J4115, UHD Graphics 600
103 ns * -19%
Intel NUC11TNKi5
Intel Core i5-1135G7, Iris Xe G7 80EUs
87.1 ns * -1%
GMK NucBox 3
Intel Celeron J4125, UHD Graphics 600
86.4 ns *
Average Intel Celeron J4125
  (73.2 - 93.2, n=4)
85.6 ns * +1%
Beelink GTI 11
Intel Core i5-1135G7, Iris Xe G7 80EUs
68.3 ns * +21%
Beelink U59
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
60.2 ns * +30%
Intel NUC8i7BE
Intel Core i7-8559U, Iris Plus Graphics 655
48.9 ns * +43%

* ... smaller is better

DPC延时

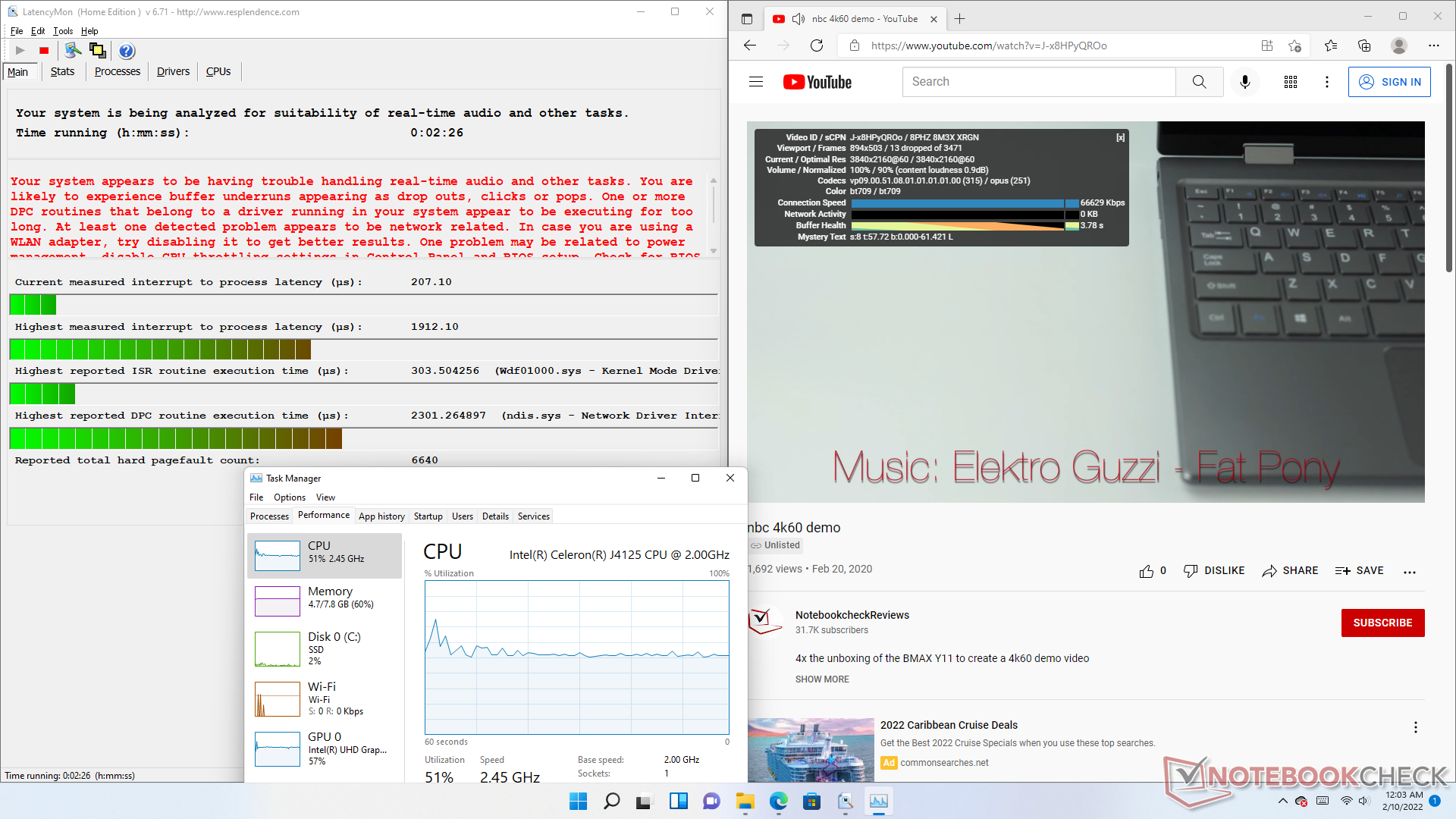

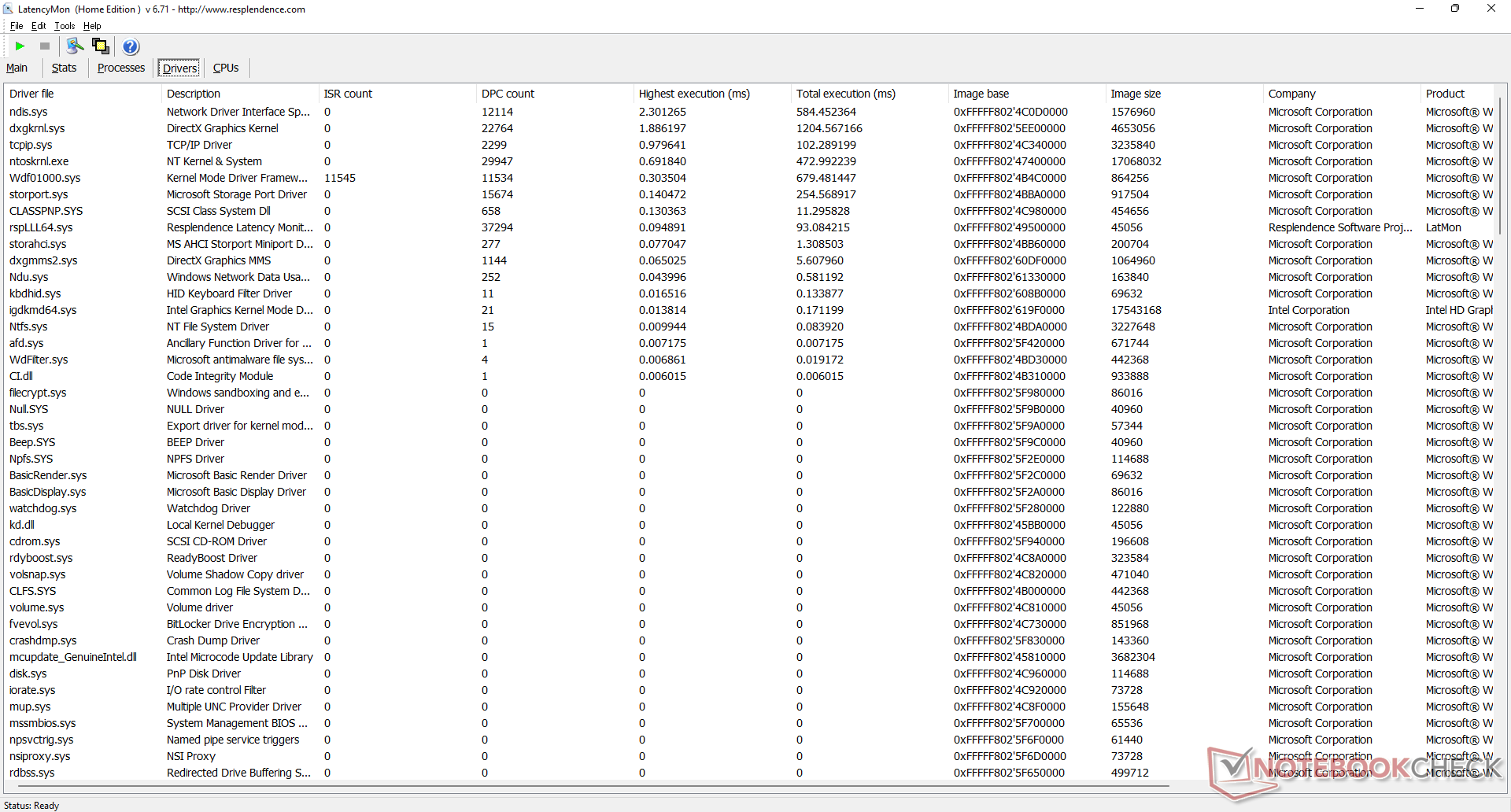

LatencyMon显示在我们的主页上打开多个浏览器标签时存在DPC问题。在60FPS下的4K视频播放一般来说是可以的,但并不完美,因为我们在长达一分钟的视频测试中能够记录到13个丢帧。在这种情况下,CPU和GPU的利用率都徘徊在50%到60%左右。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaPad Flex 3 11IGL05
UHD Graphics 600, Celeron N4020, SanDisk DA4064
2421 μs * -27%
Chuwi LarkBook CWI509
UHD Graphics 600, Celeron N4120, Kingston RBUSNS8180DS3256GJ
2390 μs * -25%
GMK NucBox 3
UHD Graphics 600, Celeron J4125, Netac S535N8/256GYN
1913 μs *
Chuwi LarkBox 4K Mini PC
UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash
766 μs * +60%
Beelink U59
UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428
765 μs * +60%
Intel NUC11TNKi5
Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
525 μs * +73%
Beelink GTI 11
Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G
278.2 μs * +85%

* ... smaller is better

存储设备

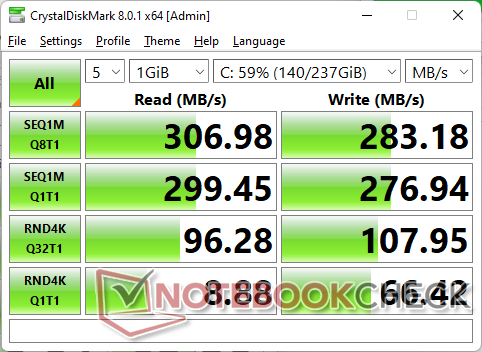

只有一个内部存储槽,而且只兼容M.2 SATA SSD。该 256 GB Netac驱动器在我们的设备上会返回平庸的读写速率,大约为300至500 MB/s。在循环运行DiskSpeed时,该硬盘似乎很难长时间保持其最高性能。

Netac S535N8/256GYN
CDM 5/6 Read Seq Q32T1: 497.6 MB/s
CDM 5/6 Write Seq Q32T1: 289.5 MB/s
CDM 5/6 Read 4K Q32T1: 102.8 MB/s
CDM 5/6 Write 4K Q32T1: 111.2 MB/s
CDM 5 Read Seq: 344.1 MB/s
CDM 5 Write Seq: 284.9 MB/s
CDM 5/6 Read 4K: 16.91 MB/s
CDM 5/6 Write 4K: 62.3 MB/s
Drive Performance Rating - Percent
Beelink GTI 11
Kingston SA2000M8500G
98 pt
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
30.1 pt
Beelink U59
Silicon Motion AZW 512G NV428
22.3 pt
GMK NucBox 3
Netac S535N8/256GYN
15.9 pt
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
8.8 pt
DiskSpd
seq read
Beelink GTI 11
Kingston SA2000M8500G
1392 (1389.99min - 1391.88max) MB/s +593%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
509 (505.62min - 509.19max) MB/s +153%
Beelink U59
Silicon Motion AZW 512G NV428
402 (394.68min - 401.6max) MB/s +100%
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
314 (313.53min - 314.36max) MB/s +56%
GMK NucBox 3
Netac S535N8/256GYN
201 (166.09min - 201.1max) MB/s
seq write
Beelink GTI 11
Kingston SA2000M8500G
1810 (1639.55min - 1810.32max) MB/s +651%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
467 (462min - 467.13max) MB/s +94%
Beelink U59
Silicon Motion AZW 512G NV428
304 (291.46min - 304.28max) MB/s +26%
GMK NucBox 3
Netac S535N8/256GYN
241 (89.76min - 241.17max) MB/s
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
101 (91.46min - 101.08max) MB/s -58%
seq q8 t1 read
Beelink GTI 11
Kingston SA2000M8500G
1699 (1607.68min - 1699.07max) MB/s +251%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
561 (469.24min - 560.5max) MB/s +16%
GMK NucBox 3
Netac S535N8/256GYN
484 (173.85min - 484.23max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
448 (407.08min - 448.01max) MB/s -7%
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
316 (242.57min - 316.25max) MB/s -35%
seq q8 t1 write
Beelink GTI 11
Kingston SA2000M8500G
1873 (1713.16min - 1872.55max) MB/s +697%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
504 (500.38min - 503.53max) MB/s +114%
Beelink U59
Silicon Motion AZW 512G NV428
295 (288.36min - 294.82max) MB/s +26%
GMK NucBox 3
Netac S535N8/256GYN
235 (21.18min - 234.88max) MB/s
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
101 (80.74min - 101.09max) MB/s -57%
4k q1 t1 read
Beelink GTI 11
Kingston SA2000M8500G
66 (65.66min - 66.02max) MB/s +776%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
21.6 (20.05min - 21.62max) MB/s +187%
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
16.1 (15.92min - 16.08max) MB/s +114%
Beelink U59
Silicon Motion AZW 512G NV428
13 (11.34min - 13.03max) MB/s +73%
GMK NucBox 3
Netac S535N8/256GYN
7.53 (4.83min - 7.53max) MB/s
4k q1 t1 write
Beelink GTI 11
Kingston SA2000M8500G
223 (200.71min - 223.16max) MB/s +286%
GMK NucBox 3
Netac S535N8/256GYN
57.7 (45.42min - 57.74max) MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
46.4 (45.57min - 46.37max) MB/s -20%
Beelink U59
Silicon Motion AZW 512G NV428
41.3 (26.85min - 41.32max) MB/s -28%
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
24 (20.68min - 23.95max) MB/s -58%
4k q32 t16 read
Beelink GTI 11
Kingston SA2000M8500G
813 (810.85min - 813.32max) MB/s +823%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285 (283.99min - 284.61max) MB/s +223%
Beelink U59
Silicon Motion AZW 512G NV428
136 (135.53min - 136max) MB/s +54%
GMK NucBox 3
Netac S535N8/256GYN
88.1 (46.77min - 88.09max) MB/s
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
17.2 (17.09min - 17.15max) MB/s -80%
4k q32 t16 write
Beelink GTI 11
Kingston SA2000M8500G
1089 (1047.09min - 1088.53max) MB/s +564%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
330 (329.53min - 329.95max) MB/s +101%
GMK NucBox 3
Netac S535N8/256GYN
164 (0.14min - 163.91max) MB/s
Beelink U59
Silicon Motion AZW 512G NV428
113 (106.48min - 113.38max) MB/s -31%
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
24 (20.16min - 24.01max) MB/s -85%

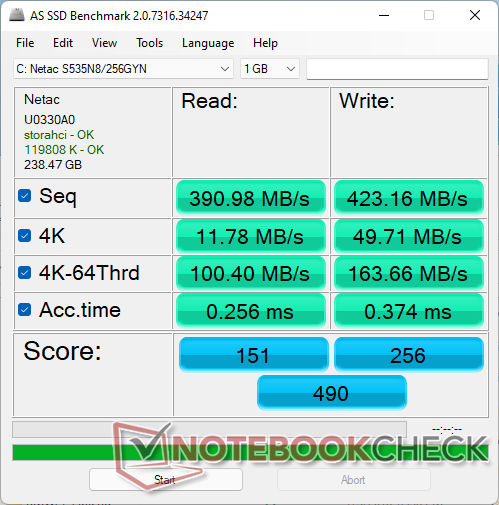

AS SSD
Score Total
Beelink GTI 11
Kingston SA2000M8500G
3013 Points +515%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
839 Points +71%
Beelink U59
Silicon Motion AZW 512G NV428
615 Points +26%
GMK NucBox 3
Netac S535N8/256GYN
490 Points
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
142 Points -71%
Score Read
Beelink GTI 11
Kingston SA2000M8500G
1001 Points +563%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
304 Points +101%
Beelink U59
Silicon Motion AZW 512G NV428
198 Points +31%
GMK NucBox 3
Netac S535N8/256GYN
151 Points
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
61 Points -60%
Score Write
Beelink GTI 11
Kingston SA2000M8500G
1486 Points +480%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
375 Points +46%
Beelink U59
Silicon Motion AZW 512G NV428
321 Points +25%
GMK NucBox 3
Netac S535N8/256GYN
256 Points
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
52 Points -80%
Seq Read
Beelink GTI 11
Kingston SA2000M8500G
2006 MB/s +413%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
527 MB/s +35%
Beelink U59
Silicon Motion AZW 512G NV428
512 MB/s +31%
GMK NucBox 3
Netac S535N8/256GYN
391 MB/s
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
286 MB/s -27%
Seq Write
Beelink GTI 11
Kingston SA2000M8500G
1904 MB/s +350%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
469 MB/s +11%
GMK NucBox 3
Netac S535N8/256GYN
423.2 MB/s
Beelink U59
Silicon Motion AZW 512G NV428
364.5 MB/s -14%
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
106.9 MB/s -75%
4K Read
Beelink GTI 11
Kingston SA2000M8500G
60.9 MB/s +417%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
20.41 MB/s +73%
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
15.22 MB/s +29%
GMK NucBox 3
Netac S535N8/256GYN
11.78 MB/s
Beelink U59
Silicon Motion AZW 512G NV428
10.74 MB/s -9%
4K Write
Beelink GTI 11
Kingston SA2000M8500G
203.7 MB/s +310%
GMK NucBox 3
Netac S535N8/256GYN
49.71 MB/s
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
42.52 MB/s -14%
Beelink U59
Silicon Motion AZW 512G NV428
30.16 MB/s -39%
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
21.59 MB/s -57%
4K-64 Read
Beelink GTI 11
Kingston SA2000M8500G
740 MB/s +637%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
231.4 MB/s +130%
Beelink U59
Silicon Motion AZW 512G NV428
135.7 MB/s +35%
GMK NucBox 3
Netac S535N8/256GYN
100.4 MB/s
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
16.8 MB/s -83%
4K-64 Write
Beelink GTI 11
Kingston SA2000M8500G
1092 MB/s +567%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
285.3 MB/s +74%
Beelink U59
Silicon Motion AZW 512G NV428
254.3 MB/s +55%
GMK NucBox 3
Netac S535N8/256GYN
163.7 MB/s
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
20.03 MB/s -88%
Access Time Read
GMK NucBox 3
Netac S535N8/256GYN
0.256 ms *
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
0.254 ms * +1%
Beelink U59
Silicon Motion AZW 512G NV428
0.173 ms * +32%
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.124 ms * +52%
Beelink GTI 11
Kingston SA2000M8500G
0.047 ms * +82%
Access Time Write
Chuwi LarkBox 4K Mini PC
128 GB eMMC Flash
0.406 ms * -9%
GMK NucBox 3
Netac S535N8/256GYN
0.374 ms *
Intel NUC11TNKi5
Transcend M.2 SSD 430S TS512GMTS430S
0.269 ms * +28%
Beelink U59
Silicon Motion AZW 512G NV428
0.174 ms * +53%
Beelink GTI 11
Kingston SA2000M8500G
0.083 ms * +78%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

0102030405060708090100110120130140150160170Tooltip
GMK NucBox 3: Ø169.8 (126.04-172.6)

GPU性能

图形性能很差,不适合任何形式的游戏,因为 UHD Graphics 600的速度比普通的 UHD Graphics 620.NucBox 3反而更适合于流媒体用途。

Cloud Gate
Cloud Gate
3DMark 11
3DMark 11
Fire Strike
Fire Strike
Time Spy
Time Spy
3DMark 11 - 1280x720 Performance GPU
Beelink GTI 11
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
5566 Points +996%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
3081 Points +506%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1858 Points +266%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
894 Points +76%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
765 Points +51%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Intel Celeron N4120
606 Points +19%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Intel Celeron J4115
605 Points +19%
Zotac ZBOX EDGE CI341
Intel UHD Graphics 600, Intel Celeron N4100
593 Points +17%
Average Intel UHD Graphics 600
  (410 - 854, n=27)
558 Points +10%
Lenovo IdeaPad Flex 3 11IGL05
Intel UHD Graphics 600, Intel Celeron N4020
532 Points +5%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
508 Points
3DMark
1280x720 Cloud Gate Standard Graphics
Beelink GTI 11
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
25008 Points +919%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
16698 Points +581%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
10077 Points +311%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
5212 Points +112%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
3997 Points +63%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Intel Celeron N4120
3932 Points +60%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Intel Celeron J4115
3882 Points +58%
Average Intel UHD Graphics 600
  (2346 - 4958, n=20)
3365 Points +37%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
2453 Points
1920x1080 Fire Strike Graphics
Beelink GTI 11
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4010 Points +961%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
2260 Points +498%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
1283 Points +239%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
679 Points +80%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Intel Celeron N4120
472 Points +25%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Intel Celeron J4115
453 Points +20%
Average Intel UHD Graphics 600
  (307 - 637, n=21)
421 Points +11%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
378 Points
Lenovo IdeaPad Flex 3 11IGL05
Intel UHD Graphics 600, Intel Celeron N4020
372 Points -2%
2560x1440 Time Spy Graphics
Beelink GTI 11
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1281 Points +1156%
Intel NUC8i7BE
Intel Iris Plus Graphics 655, Intel Core i7-8559U
633 Points +521%
Zotac ZBox MI643
Intel UHD Graphics 620, Intel Core i5-10210U
403 Points +295%
Beelink U59
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095
182 Points +78%
Chuwi LapBook Plus
Intel HD Graphics 505, Intel Atom x7-E3950
142 Points +39%
Chuwi LarkBox 4K Mini PC
Intel UHD Graphics 600, Intel Celeron J4115
122 Points +20%
Chuwi LarkBook CWI509
Intel UHD Graphics 600, Intel Celeron N4120
120 Points +18%
Average Intel UHD Graphics 600
  (85 - 124, n=12)
107.5 Points +5%
GMK NucBox 3
Intel UHD Graphics 600, Intel Celeron J4125
102 Points

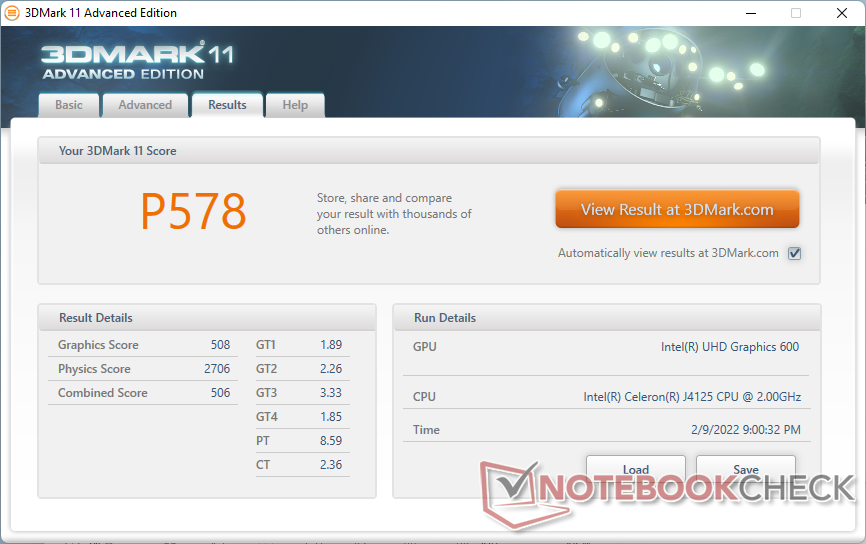

3DMark 11 Performance
578 points

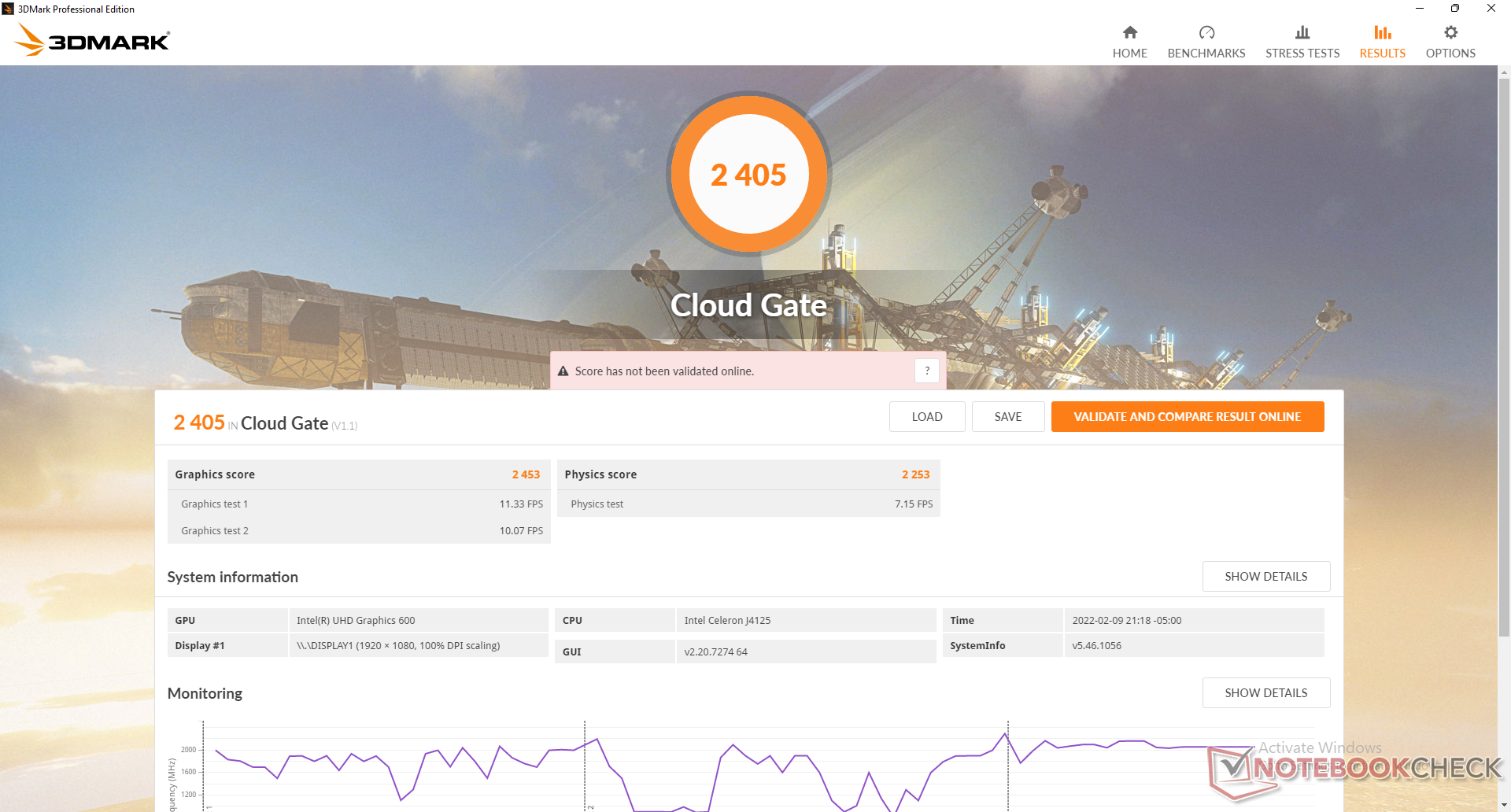

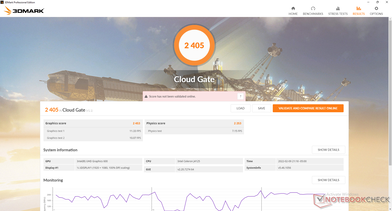

3DMark Cloud Gate Standard Score
2405 points

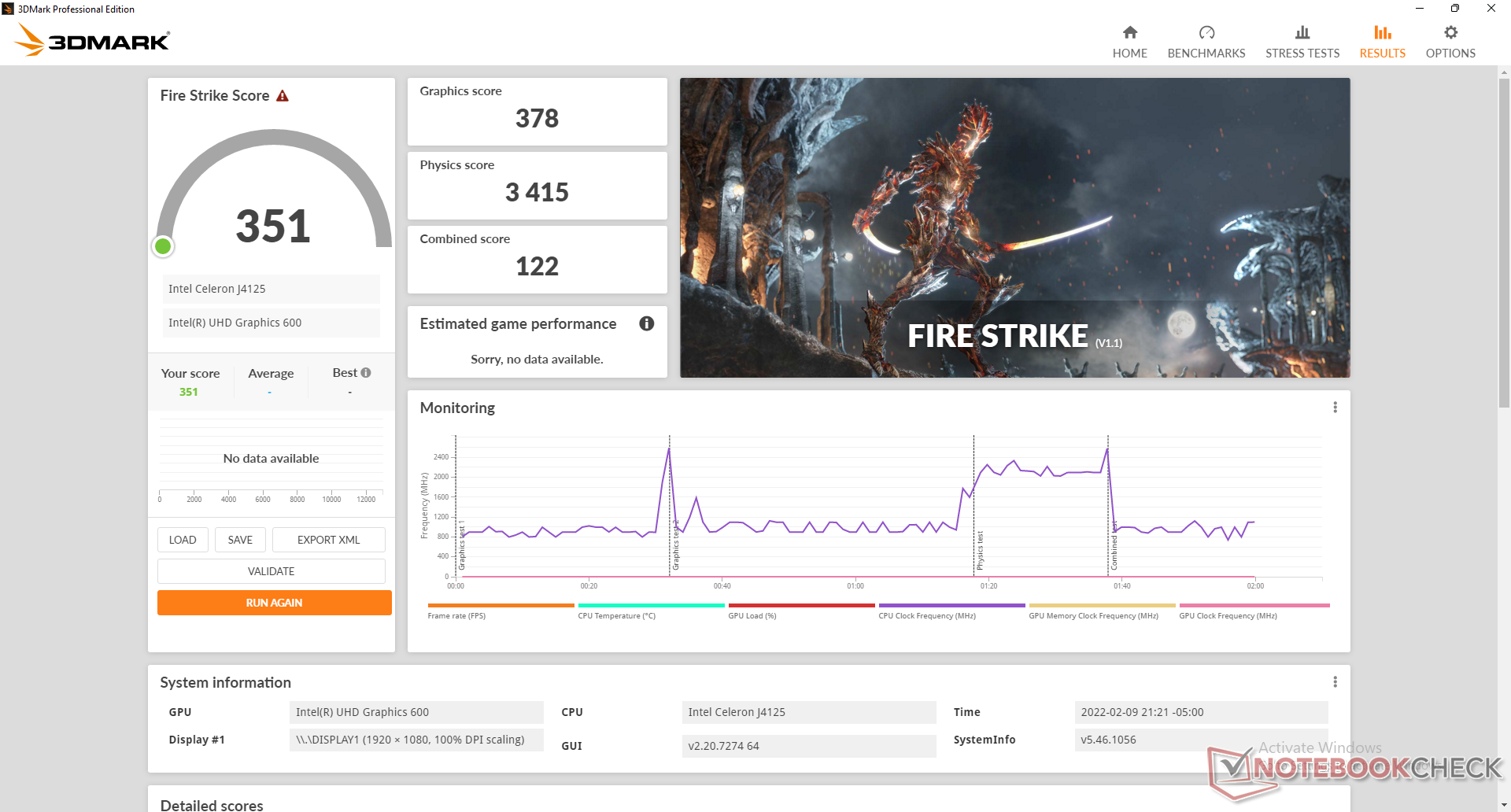

3DMark Fire Strike Score
351 points

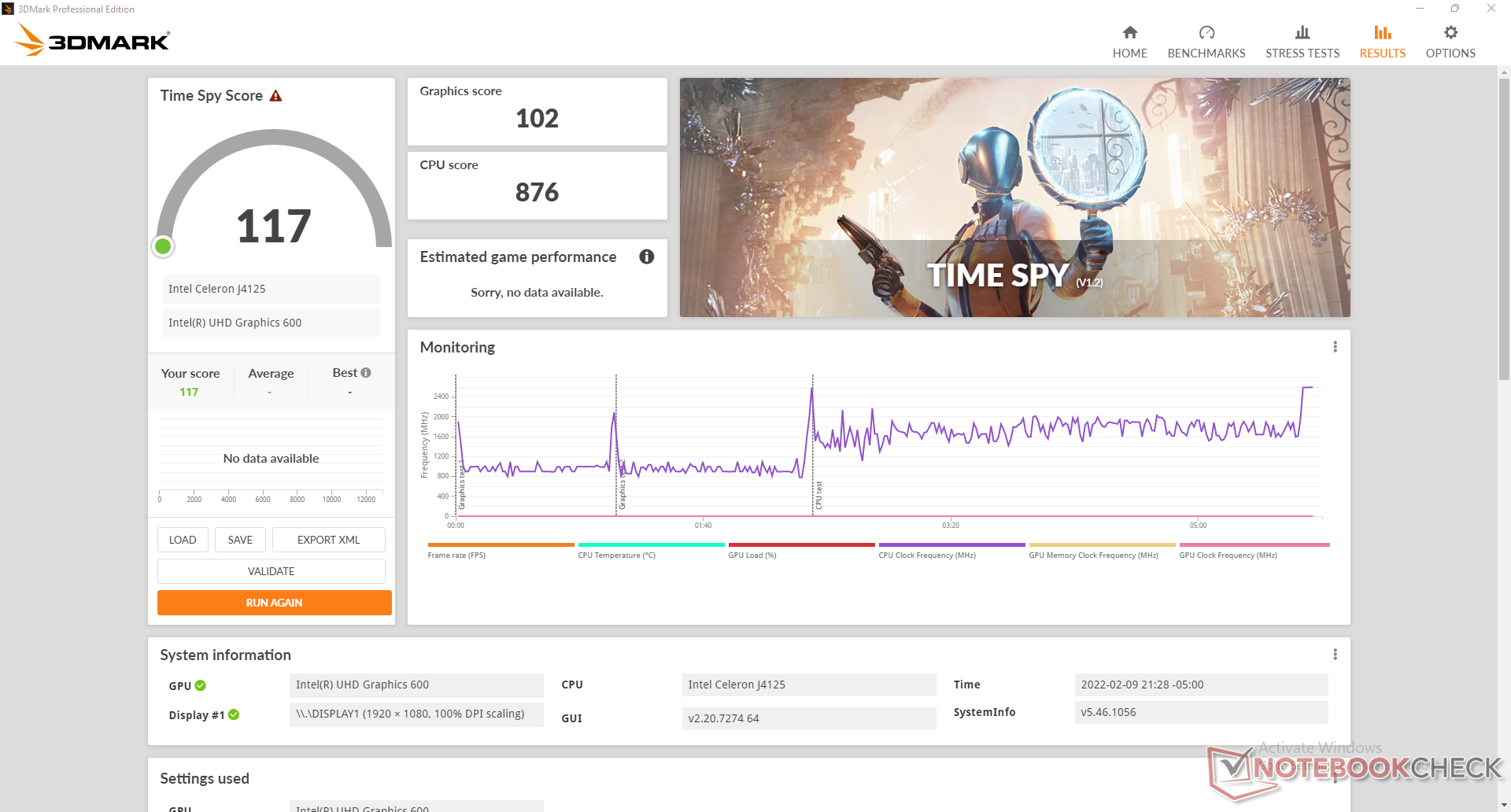

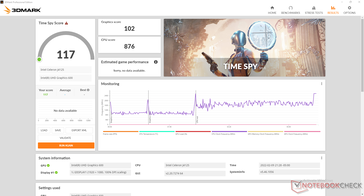

3DMark Time Spy Score
117 points
Help
lowmed.highultra
Dota 2 Reborn (2015) 34.3 14.2 6.8 6.3
Final Fantasy XV Benchmark (2018) 4.13
X-Plane 11.11 (2018) 7.67 4.75 4.5

排放

温度

在CPU使用率达到100%的情况下,一个小时后,AC适配器就会出现问题。
在CPU使用率达到100%的情况下,一个小时后,AC适配器就会出现问题。

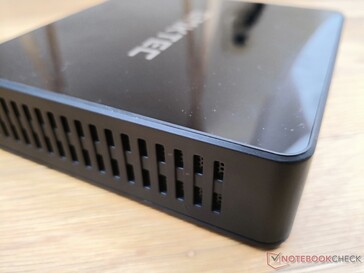

由于NucBox 3没有内部风扇,所以表面温度通常比其他大多数迷你PC的温度高。当长时间运行高负荷时,顶面温度可高达50摄氏度,而NucBox 3只有30摄氏度。 Beelink GTR5.你要注意放置在GMK迷你电脑顶部的任何物品或书籍。

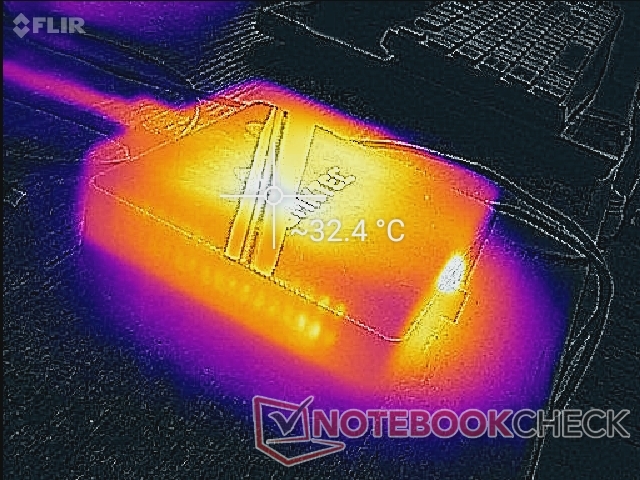

系统空闲(正面)
系统空闲(正面)
系统空闲(背面)
系统空闲(背面)

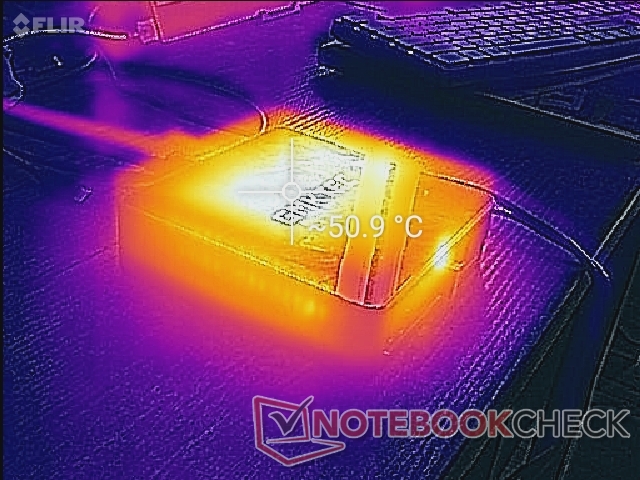

Prime95压力(前)。
Prime95压力(前)。
Prime95压力(背部)
Prime95压力(背部)

压力测试

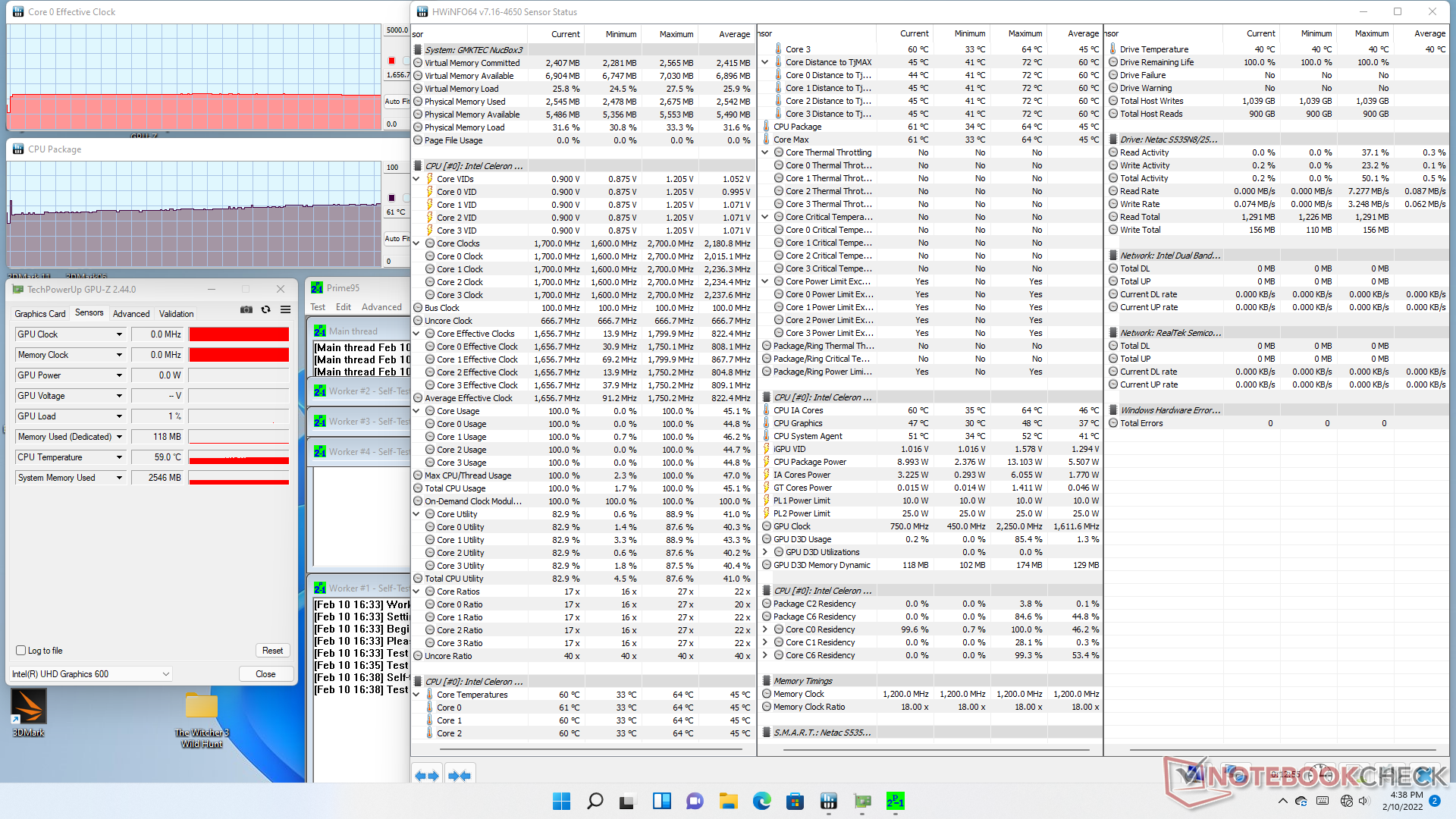

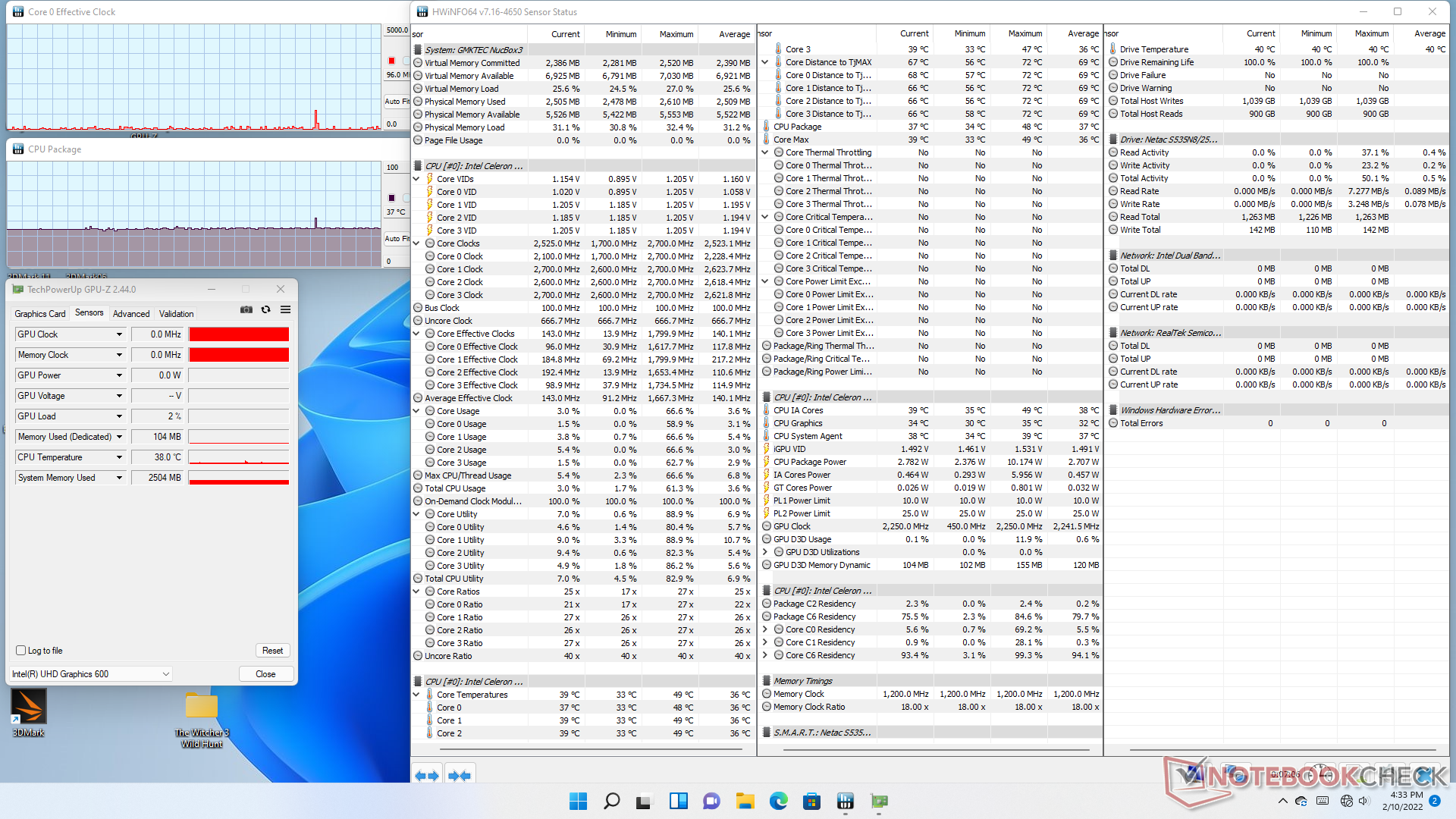

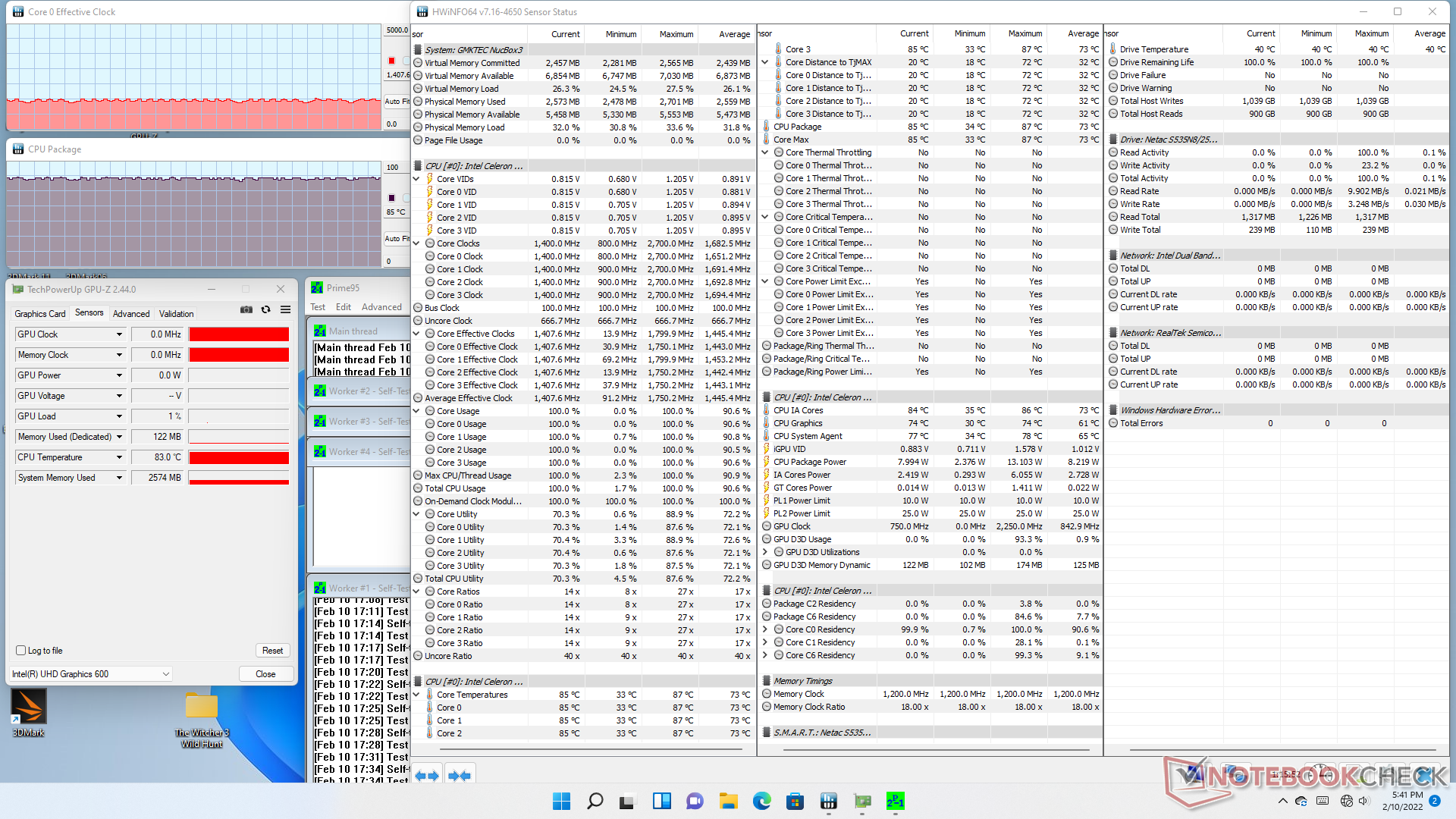

在桌面上闲置,没有运行任何应用程序时,CPU稳定在37 C。当运行Prime95时,CPU的时钟频率会在几分钟内提升到1.7GHz,直到最终稳定在1.4GHz和85C。由于我们的NucBox 3是无风扇的,所以在负载下的核心温度比其他大多数迷你PC要高。高于平均水平的CPU温度也将解释上文提到的高于平均水平的表面温度。

在测试开始时,CPU封装功率将提升到13W,然后迅速稳定在8至9W的范围内。

系统空闲
系统空闲
Prime95压力
Prime95压力
Prime95压力(一小时后)
Prime95压力(一小时后)
CPU时钟(GHz) GPU时钟(MHz) CPU平均温度(°C)
系统空闲 -- -- 37
Prime95压力 1.4 -- 85

能源管理

消耗功率

正如预期的那样,NucBox 3非常省电,比许多替代品(包括Beelink U59或Chuwi LarkBox)要求更低。在桌面上闲置时只需3到4瓦,而更高的负载往往平均在11瓦左右。在极端负载下,消耗量可飙升至25瓦,尽管由于处理器的涡轮增压潜力有限,最多只有几秒钟的时间。

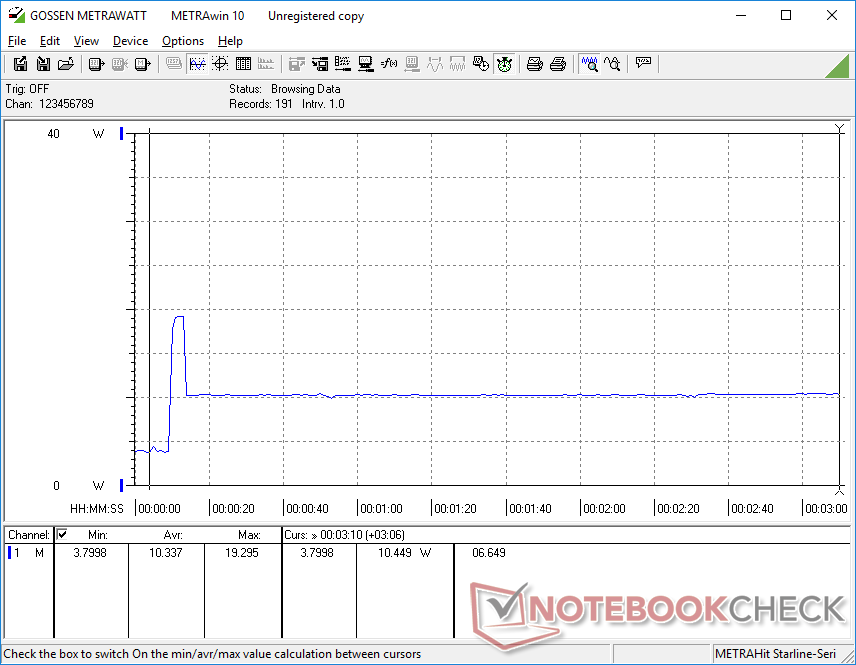

Prime95压力将导致功耗暂时飙升至19.3瓦,然后下降并稳定在10.5瓦。
Prime95压力将导致功耗暂时飙升至19.3瓦,然后下降并稳定在10.5瓦。

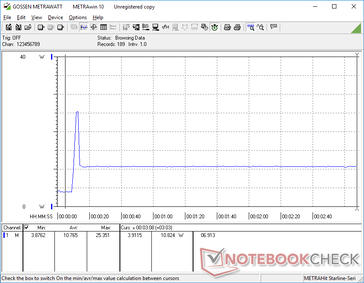

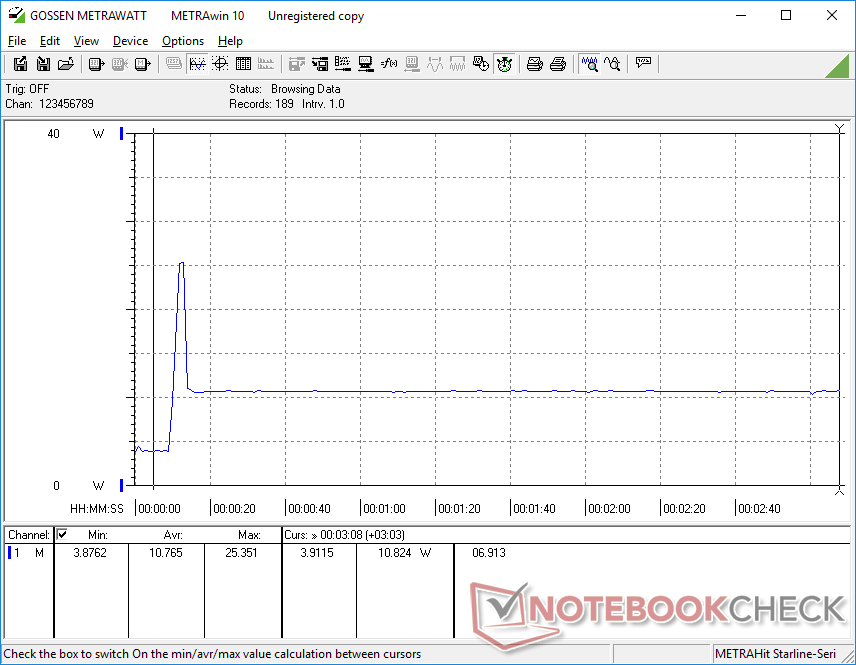

在同时运行Prime95和FurMark时,可记录的最大消耗为25.4W。
在同时运行Prime95和FurMark时,可记录的最大消耗为25.4W。
Power Consumption
Off / Standbydarklight 0.45 / 0.65 Watt
Idledarkmidlight 3 / 3.1 / 3.6 Watt
Load midlight 11.1 / 25.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
GMK NucBox 3
Celeron J4125, UHD Graphics 600, Netac S535N8/256GYN, , x,
Chuwi LarkBox 4K Mini PC
Celeron J4115, UHD Graphics 600, 128 GB eMMC Flash, , x,
Intel NUC11TNKi5
i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Intel NUC8i7BE
i7-8559U, Iris Plus Graphics 655, , , x,
Beelink GTI 11
i5-1135G7, Iris Xe G7 80EUs, Kingston SA2000M8500G, , x,
Beelink U59
Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 512G NV428, , x,
Power Consumption
11%
-259%
-142%
-363%
-78%
Idle Minimum *
3
2.2
27%
11.5
-283%
2.7
10%
15.2
-407%
6.7
-123%
Idle Average *
3.1
2.6
16%
12.4
-300%
3.1
-0%
16
-416%
6.7
-116%
Idle Maximum *
3.6
3
17%
12.9
-258%
6.3
-75%
16
-344%
7.4
-106%
Load Average *
11.1
13.1
-18%
40.7
-267%
59.7
-438%
48.6
-338%
16
-44%
Load Maximum *
25.4
21.9
14%
73.5
-189%
78
-207%
104.3
-311%
25.6
-1%
Witcher 3 ultra *
43.9
47.2
53.8
13.1

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

0510152025Tooltip
GMK NucBox 3: Ø10.9 (10.4-25.4)

Power Consumption external Monitor

012345678910111213141516171819Tooltip
GMK NucBox 3; Prime95 V2810 Stress (external Monitor): Ø10.5 (9.95-19.3)
GMK NucBox 3; Cinebench R15 Multi (external Monitor): Ø9.24 (8.88-15.3)
GMK NucBox 3; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø10.8 (10.3-17.5)

Pros

+ 包括RAM和SSD(没有裸机)。
+ 可访问的内存和M.2 2280托架
+ 非常省电
+ 纤细的设计
+ 无风扇

Cons

- 在60FPS下不完美的4K视频播放
- 顶面会变得很热
- 没有USB-C接口或麦克风
- 没有VESA安装支架
- 系统性能缓慢

判决书

在审查中。GMK NucBox 3.测试装置由GMK提供
在审查中。GMK NucBox 3.测试装置由GMK提供

从纸面上看,一台超薄、廉价、无风扇、具有4K视频播放能力的HTPC应该是几乎所有家庭影院设置的理想选择。无声的NucBox 3确实做到了低价和不显眼的外形,但性能勉强够用,甚至对最基本的HTPC任务来说也是缺乏的。延迟、跳帧和延长的加载时间对于一台无风扇PC来说是艰难的牺牲。然而,对于 "设置并忘记它 "的情况,缓慢的性能将是一个不太重要的问题。

其非常低的价格是NucBox 3最具吸引力的方面。潜在的拥有者应该意识到所带来的整体缓慢的系统性能。

有更快的CPU和性能的无风扇迷你电脑,如Zotac ZBox CI622 Nano,配备第十代英特尔Core i3 CPU。它的价格会高一点,但如果你打算经常使用你的HTPC,可能值得考虑。

价格和可用性

NucBox 3现在可以通过亚马逊广泛购买 ,直接从GMK售价为310美元或更少。

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > GMK NucBox 3回顾。无风扇Windows 11 HTPC
Allen Ngo, 2022-02-12 (Update: 2022-02-12)
