三星 Galaxy Note 5 (SM-N920A) 智能手机简短评测

Name: Samsung Galaxy Note 5 SM-N920A
Brand: Samsung

现代笔墨。 有了Galaxy Note 5谁还会需要记事本和铅笔呢？Note 5可以说是Note 4的成功继任者，不过没有太大的突破。

Allen Ngo (translated by Yuchen Wang), Published 09/10/2015 🇺🇸 🇩🇪 ...

Android Galaxy Note Phablet Smartphone Touchscreen

Download your licensed rating image as PNG / SVG

Samsung Galaxy Note 5 SM-N920A (Galaxy Note Series)

Processor

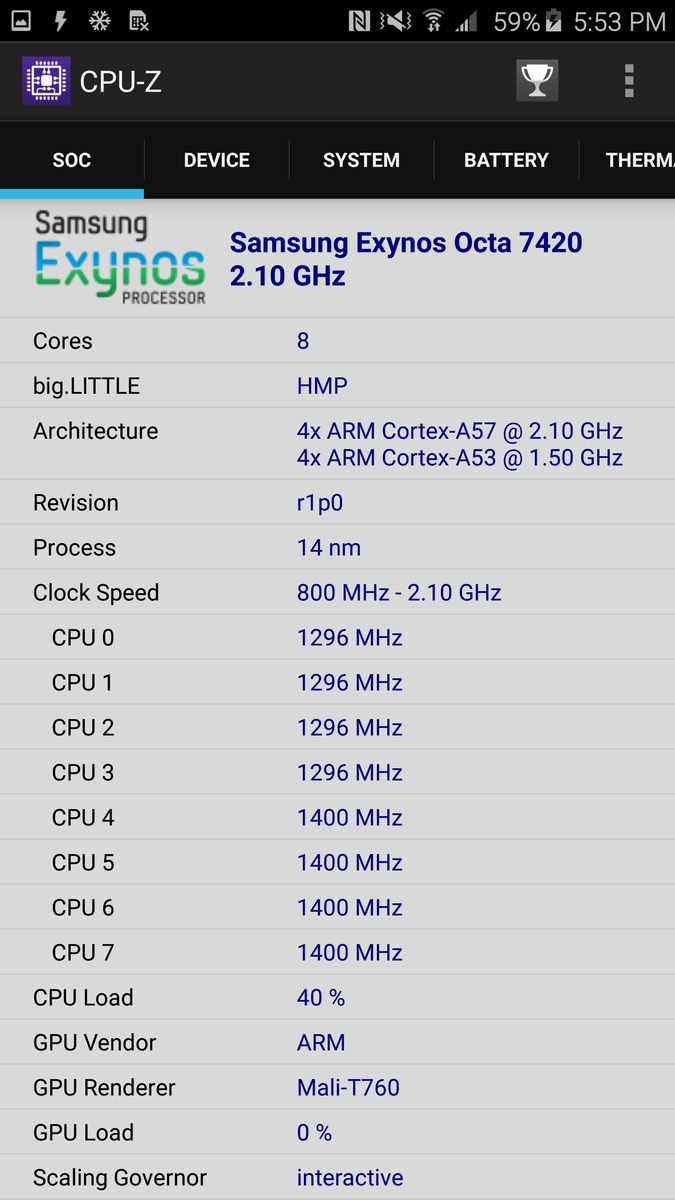

Samsung Exynos 7420 Octa 8 x 2.1 GHz, Cortex-A57/-A53

Graphics adapter

ARM Mali-T760 MP8

Memory

4 GB

, LPDDR4

Display

5.70 inch 16:9, 2560 x 1440 pixel, 10点触控，电容式, Super AMOLED, 10点触控，电容式, glossy: yes

Storage

32 GB UFS 2.0 Flash, 32 GB

Connections

1 USB 2.0, Audio Connections: 3.5毫米整合耳机插口, 1 Fingerprint Reader, Sensors: A-GPS, GLONASS, Beidou, 加速传感器, 陀螺仪, 气压计, 心率计, 指南针, 环境光传感器, NFC, WiFi-Direct, OTG, Qi无线充电

Networking

802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2, GSM (850, 900, 1800, 1900 MHz) 和 UMTS (850, 900, 1900, 2100 MHz), Cat. 6

Size

height x width x depth (in mm): 7.6 x 153.2 x 76.1

Battery

Lithium-Polymer, 3000 mAh

Operating System

Android 5.1 Lollipop

Camera

Webcam: 后置: 1600万像素, f/1.9, 最大支持2160p30视频拍摄, LED闪光灯, 前置: 500万像素, 最大支持1440p30视频拍摄

Additional features

Speakers: 单声道, 快速开始指南，耳机，Micro-USB数据线，电源适配器，Nano-SIM卡槽, 12 Months Warranty

Weight

171 g, Power Supply: 40 g

Price

700 Euro

Links

Samsung notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

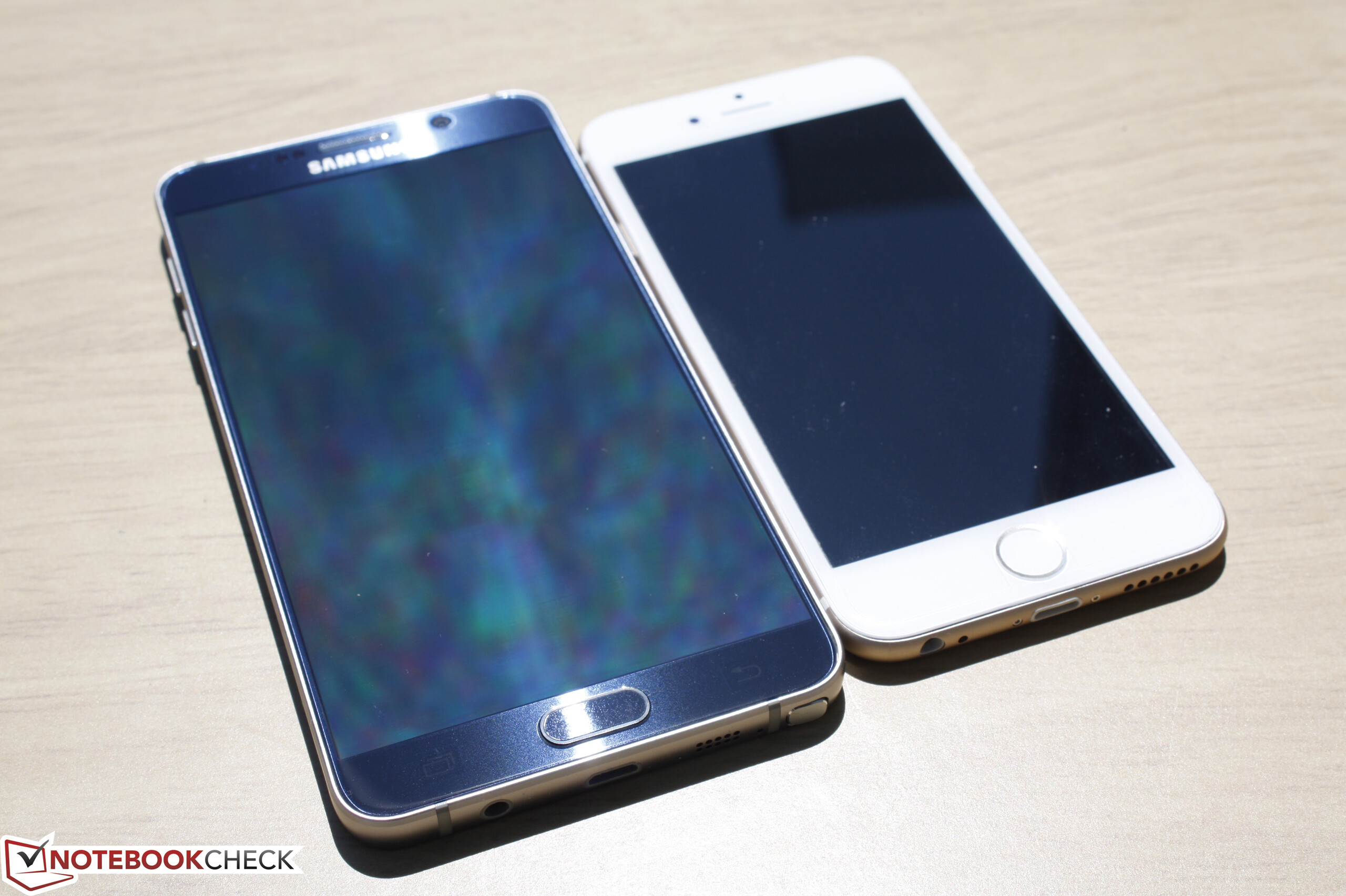

Google Nexus 6 Apple iPhone 6 Plus Samsung Galaxy Note 4 Samsung Galaxy Note 5 SM-N920A LG G Flex 2 HTC One M9 Samsung Galaxy S6 DIN A6 ❌

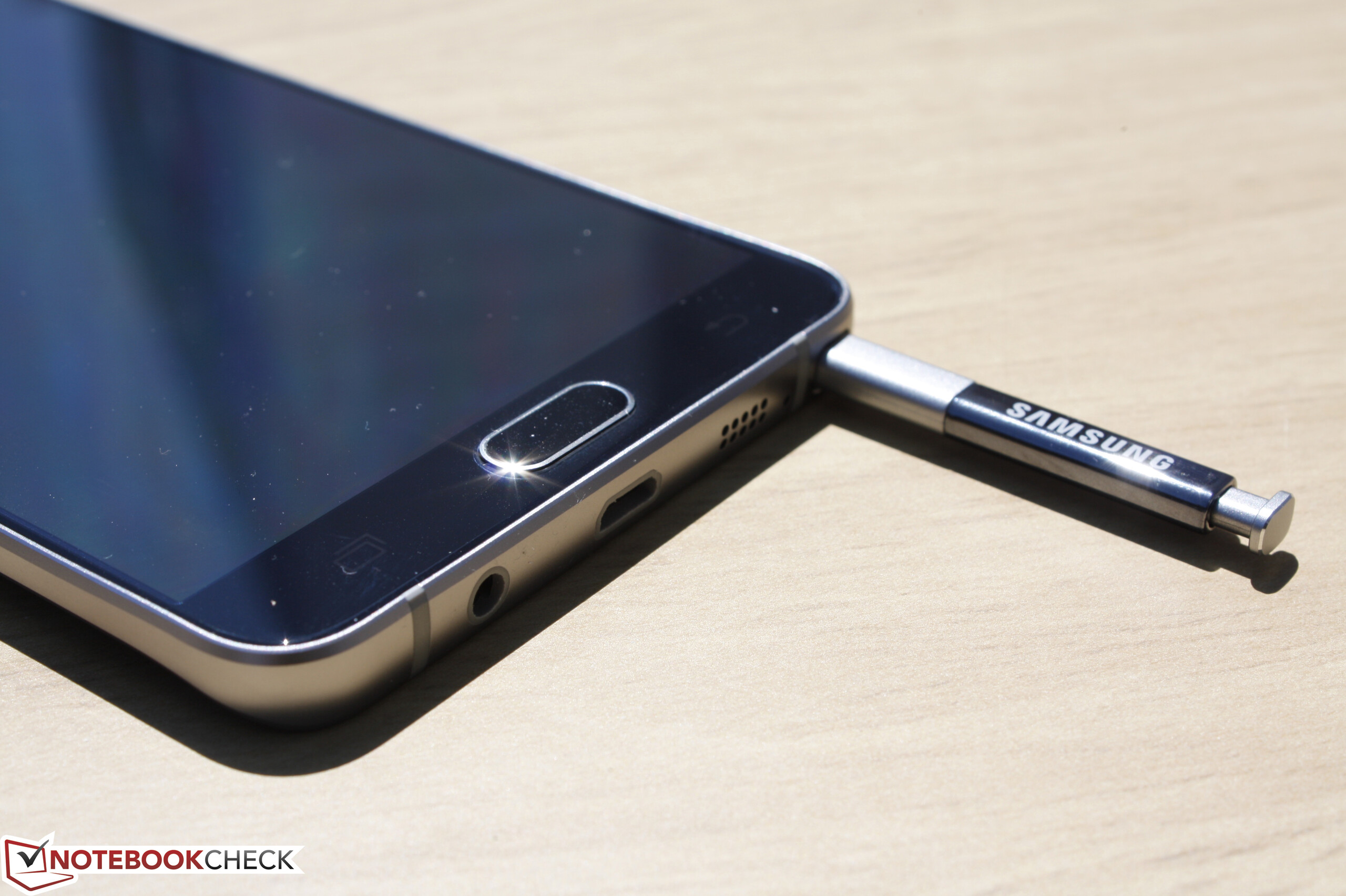

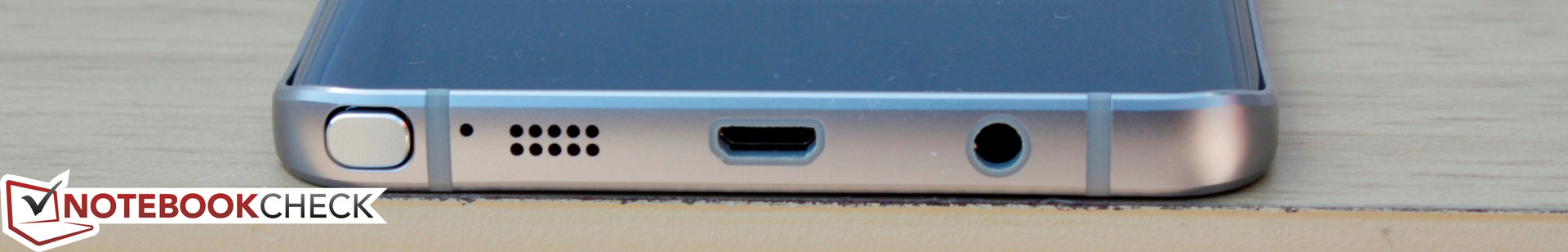

Bottom: S Pen slot, Microphone, Speakerphone, Micro-USB 2.0, 3.5 mm audio


412.8 cd/m²	387.3 cd/m²	378.5 cd/m²
415.7 cd/m²	394.8 cd/m²	382.9 cd/m²
418.1 cd/m²	395.8 cd/m²	383.9 cd/m²

Distribution of brightness

tested with X-Rite i1Pro Basic 2

Maximum: 418.1 cd/m² (Nits) Average: 396.6 cd/m²
Brightness Distribution: 91 %
Center on Battery: 394.8 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 1.49 | 0.5-29.43 Ø4.92
ΔE Greyscale 1.98 | 0.5-98 Ø5.2
Gamma: 2.19

	Samsung Galaxy Note 5 SM-N920A	Apple iPhone 6 Plus	Google Nexus 6	Samsung Galaxy Note 4	LG G Flex 2	HTC One M9
Screen		-36%	-108%	-10%	-146%	-103%
Brightness middle	394.8	519 31%	274 -31%	335 -15%	278 -30%	474 20%
Brightness	397	496 25%	264 -34%	339 -15%	274 -31%	458 15%
Brightness Distribution	91	90 -1%	89 -2%	92 1%	97 7%	85 -7%
Black Level *		0.62				0.4
Colorchecker dE 2000 *	1.49	3.67 -146%	6.99 -369%	1.77 -19%	8.03 -439%	6.32 -324%
Greyscale dE 2000 *	1.98	3.78 -91%	4.01 -103%	2.06 -4%	6.71 -239%	6.36 -221%
Gamma	2.19 ^100%	2.42 ^91%	2.03 ^108%	2.41 ^91%	1.89 ^116%	2.43 ^91%
CCT	6382 ^102%	7327 ^89%	6329 ^103%	6424 ^101%	7750 ^84%	8218 ^79%
Contrast		837				1185
Color Space (Percent of AdobeRGB 1998)				99		58.81

* ... smaller is better

AnTuTu v5 | Geekbench 3 | 3DMark | GFXBench 3.0

AnTuTu v5 - Total Score (sort by value)
Samsung Galaxy Note 5 SM-N920A	56852 Points
Samsung Galaxy S6	60804 Points +7%
HTC One M9	55374 Points -3%
Google Nexus 6	51812 Points -9%
Apple iPhone 6 Plus	50360 Points -11%
LG G4	49941 Points -12%
OnePlus One	47123 Points -17%
Samsung Galaxy Note 4	47172 Points -17%

Geekbench 3
32 Bit Multi-Core Score (sort by value)
Samsung Galaxy S6	5073 Points
HTC One M9	3499 Points
Google Nexus 6	3141 Points
Apple iPhone 6 Plus	2874 Points
LG G4	2952 Points
OnePlus One	2095 Points
Samsung Galaxy Note 4	3239 Points
32 Bit Single-Core Score (sort by value)
Samsung Galaxy S6	1146 Points
HTC One M9	1163 Points
Google Nexus 6	1043 Points
Apple iPhone 6 Plus	1609 Points
LG G4	1022 Points
OnePlus One	878 Points
Samsung Galaxy Note 4	1112 Points
64 Bit Multi-Core Score (sort by value)
Samsung Galaxy Note 5 SM-N920A	4428 Points
HTC One M9	3835 Points -13%
LG G4	3556 Points -20%
64 Bit Single-Core Score (sort by value)
Samsung Galaxy Note 5 SM-N920A	1202 Points
HTC One M9	1275 Points +6%
LG G4	1107 Points -8%

3DMark
2560x1440 Sling Shot Extreme (ES 3.1) Physics (sort by value)
Samsung Galaxy Note 5 SM-N920A	1606 Points
Samsung Galaxy S6	1320 Points -18%
HTC One M9	1132 Points -30%
LG G4	1216 Points -24%
2560x1440 Sling Shot Extreme (ES 3.1) Graphics (sort by value)
Samsung Galaxy Note 5 SM-N920A	1155 Points
Samsung Galaxy S6	1152 Points 0%
HTC One M9	1084 Points -6%
LG G4	440 Points -62%
2560x1440 Sling Shot Extreme (ES 3.1) (sort by value)
Samsung Galaxy Note 5 SM-N920A	1232 Points
Samsung Galaxy S6	1186 Points -4%
HTC One M9	1094 Points -11%
LG G4	513 Points -58%
2560x1440 Sling Shot OpenGL ES 3.0 Physics (sort by value)
Samsung Galaxy Note 5 SM-N920A	1552 Points
Samsung Galaxy S6	1553 Points 0%
HTC One M9	845 Points -46%
LG G4	1115 Points -28%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics (sort by value)
Samsung Galaxy Note 5 SM-N920A	1471 Points
Samsung Galaxy S6	1492 Points +1%
HTC One M9	1892 Points +29%
LG G4	1399 Points -5%
2560x1440 Sling Shot OpenGL ES 3.0 (sort by value)
Samsung Galaxy Note 5 SM-N920A	1488 Points
Samsung Galaxy S6	1505 Points +1%
HTC One M9	1484 Points 0%
LG G4	1324 Points -11%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Samsung Galaxy Note 5 SM-N920A	17380 Points
Samsung Galaxy S6	18649 Points +7%
HTC One M9	10432 (10432^min - 10786^max) Points -40%
Google Nexus 6	18113 Points +4%
Apple iPhone 6 Plus	9473 Points -45%
LG G4	11178 Points -36%
OnePlus One	13167 Points -24%
Samsung Galaxy Note 4	18913 Points +9%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Samsung Galaxy Note 5 SM-N920A	26964 Points
Samsung Galaxy S6	23193 Points -14%
HTC One M9	34429 (34429^min - 34485^max) Points +28%
Google Nexus 6	25480 Points -6%
Apple iPhone 6 Plus	23937 Points -11%
LG G4	23390 Points -13%
OnePlus One	18074 Points -33%
Samsung Galaxy Note 4	20733 Points -23%
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Samsung Galaxy Note 5 SM-N920A	24020 Points
Samsung Galaxy S6	22002 Points -8%
HTC One M9	22783 (22783^min - 23171^max) Points -5%
Google Nexus 6	23368 Points -3%
Apple iPhone 6 Plus	17873 Points -26%
LG G4	18821 Points -22%
OnePlus One	16692 Points -31%
Samsung Galaxy Note 4	20299 Points -15%

GFXBench 3.0
on screen Manhattan Onscreen OGL (sort by value)
Samsung Galaxy Note 5 SM-N920A	11 fps
Samsung Galaxy S6	16 fps +45%
HTC One M9	24 fps +118%
Google Nexus 6	12 fps +9%
Apple iPhone 6 Plus	30.6 fps +178%
LG G4	9.5 fps -14%
OnePlus One	12 fps +9%
Samsung Galaxy Note 4	11 fps 0%
1920x1080 1080p Manhattan Offscreen (sort by value)
Samsung Galaxy Note 5 SM-N920A	18 fps
Samsung Galaxy S6	22 fps +22%
HTC One M9	23 fps +28%
Google Nexus 6	19 fps +6%
Apple iPhone 6 Plus	18.8 fps +4%
LG G4	15 fps -17%
OnePlus One	12 fps -33%
Samsung Galaxy Note 4	17.7 fps -2%

Legend

Samsung Galaxy Note 5 SM-N920A Samsung Exynos 7420 Octa, ARM Mali-T760 MP8, 32 GB UFS 2.0 Flash

Samsung Galaxy S6 Samsung Exynos 7420 Octa, ARM Mali-T760 MP8, 32 GB UFS 2.0 Flash

HTC One M9 Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Google Nexus 6 Qualcomm Snapdragon 805 APQ8084, Qualcomm Adreno 420, 32 GB eMMC Flash

Apple iPhone 6 Plus Apple A8, PowerVR GX6450, 64 GB eMMC Flash

LG G4 Qualcomm Snapdragon 808 MSM8992, Qualcomm Adreno 418, 32 GB eMMC Flash

OnePlus One Qualcomm Snapdragon 801 MSM8974AC, Qualcomm Adreno 330, 64 GB eMMC Flash

Samsung Galaxy Note 4 Qualcomm Snapdragon 805 APQ8084, Qualcomm Adreno 420, 32 GB eMMC Flash

Octane V2 | Sunspider | Browsermark | WebXPRT 2013

Octane V2 - Total Score (sort by value)
Samsung Galaxy Note 5 SM-N920A	7534 Points
Samsung Galaxy S6	8518 Points +13%
LG G4	7832 (6791^min) Points +4%
Apple iPhone 6 Plus	7276 Points -3%
HTC One M9	6493 Points -14%
Google Nexus 6	5271 Points -30%
Samsung Galaxy Note 4	5379 Points -29%

Sunspider
1.0 Total Score (sort by value)
Samsung Galaxy Note 5 SM-N920A	652 ms *
Samsung Galaxy S6	546 ms * +16%
LG G4	719 ms * -10%
Apple iPhone 6 Plus	347.4 ms * +47%
HTC One M9	840 ms * -29%
Google Nexus 6	784 ms * -20%
OnePlus One	2180 ms * -234%
Samsung Galaxy Note 4	956 ms * -47%
0.9.1 Total Score (sort by value)
Samsung Galaxy Note 5 SM-N920A	564 ms *
Apple iPhone 6 Plus	361.8 ms * +36%
HTC One M9	778 ms * -38%
Samsung Galaxy Note 4	901 ms * -60%

Browsermark - 2.1 (sort by value)
Samsung Galaxy Note 5 SM-N920A	1968 points
Samsung Galaxy S6	2472 points +26%
LG G4	1931 points -2%
HTC One M9	1729 points -12%
OnePlus One	1368 points -30%
Samsung Galaxy Note 4	1478 points -25%

WebXPRT 2013
Offline Notes (sort by value)
Samsung Galaxy Note 5 SM-N920A	766 ms *
Apple iPhone 6 Plus	499 ms * +35%
HTC One M9	1132 ms * -48%
Google Nexus 6	1158 ms * -51%
OnePlus One	1799 ms * -135%
Samsung Galaxy Note 4	1253 ms * -64%
Stocks Dashboard (sort by value)
Samsung Galaxy Note 5 SM-N920A	862 ms *
Apple iPhone 6 Plus	338 ms * +61%
HTC One M9	1088 ms * -26%
Google Nexus 6	1231 ms * -43%
OnePlus One	1488 ms * -73%
Samsung Galaxy Note 4	1269 ms * -47%
Face Detection (sort by value)
Samsung Galaxy Note 5 SM-N920A	1512 ms *
Apple iPhone 6 Plus	1463 ms * +3%
HTC One M9	2237 ms * -48%
Google Nexus 6	1736 ms * -15%
OnePlus One	2124 ms * -40%
Samsung Galaxy Note 4	1714 ms * -13%
Photo Effects (sort by value)
Samsung Galaxy Note 5 SM-N920A	1110 ms *
Apple iPhone 6 Plus	905 ms * +18%
HTC One M9	1585 ms * -43%
Google Nexus 6	898 ms * +19%
OnePlus One	946 ms * +15%
Samsung Galaxy Note 4	981 ms * +12%
Overall (sort by value)
Samsung Galaxy Note 5 SM-N920A	405 Points
Samsung Galaxy S6	599 Points +48%
Apple iPhone 6 Plus	604 Points +49%
HTC One M9	287 Points -29%
Google Nexus 6	340 Points -16%
OnePlus One	273 Points -33%
Samsung Galaxy Note 4	326 Points -20%

* ... smaller is better

AndroBench 3-5
Random Write 4KB (sort by value)
Samsung Galaxy Note 5 SM-N920A	20.42 MB/s
Samsung Galaxy S6	19.9 MB/s -3%
LG G4	15 MB/s -27%
HTC One M9	13.91 MB/s -32%
OnePlus One	10.42 MB/s -49%
LG G Flex 2	10 MB/s -51%
Samsung Galaxy Note 4	3.14 MB/s -85%
Google Nexus 6	1.49 MB/s -93%
Random Read 4KB (sort by value)
Samsung Galaxy Note 5 SM-N920A	90.3 MB/s
Samsung Galaxy S6	80 MB/s -11%
LG G4	31.5 MB/s -65%
HTC One M9	20.66 MB/s -77%
OnePlus One	18.27 MB/s -80%
LG G Flex 2	19 MB/s -79%
Samsung Galaxy Note 4	19.87 MB/s -78%
Google Nexus 6	7.85 MB/s -91%
Sequential Write 256KB (sort by value)
Samsung Galaxy Note 5 SM-N920A	150.1 MB/s
Samsung Galaxy S6	138.9 MB/s -7%
LG G4	153 MB/s +2%
HTC One M9	123.8 MB/s -18%
OnePlus One	159.7 MB/s +6%
LG G Flex 2	68 MB/s -55%
Samsung Galaxy Note 4	38.91 MB/s -74%
Google Nexus 6	18.46 MB/s -88%
Sequential Read 256KB (sort by value)
Samsung Galaxy Note 5 SM-N920A	385.4 MB/s
Samsung Galaxy S6	319 MB/s -17%
LG G4	251 MB/s -35%
HTC One M9	235.1 MB/s -39%
OnePlus One	223.6 MB/s -42%
LG G Flex 2	212 MB/s -45%
Samsung Galaxy Note 4	178.8 MB/s -54%
Google Nexus 6	25.78 MB/s -93%

Epic Citadel | Lightmark | Vellamo 3.x | 3DMark

Epic Citadel - Ultra High Quality (sort by value)
Samsung Galaxy Note 5 SM-N920A	48.2 fps
HTC One M9	58.2 fps +21%
OnePlus One	50.1 fps +4%
LG G Flex 2	49.3 fps +2%
LG G4	38.7 fps -20%

Lightmark - 1920x1080 1080p (sort by value)
Samsung Galaxy Note 5 SM-N920A	6.6 fps
HTC One M9	11.56 fps +75%
OnePlus One	5.33 fps -19%
LG G Flex 2	14.41 fps +118%
LG G4	8.74 fps +32%

Vellamo 3.x
Metal (sort by value)
Samsung Galaxy Note 5 SM-N920A	2613 Points
HTC One M9	2280 Points -13%
OnePlus One	1622 Points -38%
LG G Flex 2	2038 Points -22%
LG G4	2242 Points -14%
Google Nexus 6	1579 Points -40%
Multicore Beta (sort by value)
Samsung Galaxy Note 5 SM-N920A	3109 Points
HTC One M9	2298 Points -26%
OnePlus One	1771 Points -43%
LG G Flex 2	2007 Points -35%
LG G4	2419 Points -22%
Google Nexus 6	1701 Points -45%

3DMark
2560x1440 Sling Shot Extreme (ES 3.1) Physics (sort by value)
Samsung Galaxy Note 5 SM-N920A	1606 Points
HTC One M9	1132 Points -30%
Samsung Galaxy S6	1320 Points -18%
LG G4	1216 Points -24%
2560x1440 Sling Shot Extreme (ES 3.1) Graphics (sort by value)
Samsung Galaxy Note 5 SM-N920A	1155 Points
HTC One M9	1084 Points -6%
Samsung Galaxy S6	1152 Points 0%
LG G4	440 Points -62%
2560x1440 Sling Shot Extreme (ES 3.1) (sort by value)
Samsung Galaxy Note 5 SM-N920A	1232 Points
HTC One M9	1094 Points -11%
Samsung Galaxy S6	1186 Points -4%
LG G4	513 Points -58%
2560x1440 Sling Shot OpenGL ES 3.0 Physics (sort by value)
Samsung Galaxy Note 5 SM-N920A	1552 Points
HTC One M9	845 Points -46%
Samsung Galaxy S6	1553 Points 0%
LG G4	1115 Points -28%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics (sort by value)
Samsung Galaxy Note 5 SM-N920A	1471 Points
HTC One M9	1892 Points +29%
Samsung Galaxy S6	1492 Points +1%
LG G4	1399 Points -5%
2560x1440 Sling Shot OpenGL ES 3.0 (sort by value)
Samsung Galaxy Note 5 SM-N920A	1488 Points
HTC One M9	1484 Points 0%
Samsung Galaxy S6	1505 Points +1%
LG G4	1324 Points -11%

Max. Load

Idle


36.4 °C	35.8 °C	33.6 °C
36.4 °C	34.8 °C	33 °C
35.2 °C	33.8 °C	33 °C

Maximum: 36.4 °C
Average: 34.7 °C


32.6 °C	36.4 °C	37.4 °C
32.8 °C	34.8 °C	36 °C
32.8 °C	33.8 °C	35.2 °C

Maximum: 37.4 °C
Average: 34.6 °C

Room Temperature 23.4 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 34.7 °C / 94 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 36.4 °C / 98 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.2 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 37.4 °C / 99 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 31.9 °C / 89 F, compared to the device average of 32.8 °C / 91 F.

Battery Runtime

Idle (without WLAN, min brightness)		29h 35min
WiFi Websurfing		7h 11min
Load (maximum brightness)		5h 22min

	Samsung Galaxy Note 5 SM-N920A 3000 mAh	Apple iPhone 6 Plus 2915 mAh	Google Nexus 6 3220 mAh	Samsung Galaxy Note 4 3220 mAh	LG G Flex 2 3000 mAh	HTC One M9 2840 mAh
Battery Runtime		-29%	-47%	-3%	-12%	-34%
Reader / Idle	1775	1436 -19%	1153 -35%	1668 -6%	1274 -28%	805 -55%
WiFi v1.3	431				641 49%	348 -19%
Load	322	199 -38%	135 -58%	323 0%	143 -56%	236 -27%
WiFi		777	601	744		573

Pros

+ 明亮而更加精确的Super AMOLED 1440p屏幕

+ 相比Galaxy Note 4更加轻薄

+ 按键功能可正常使用

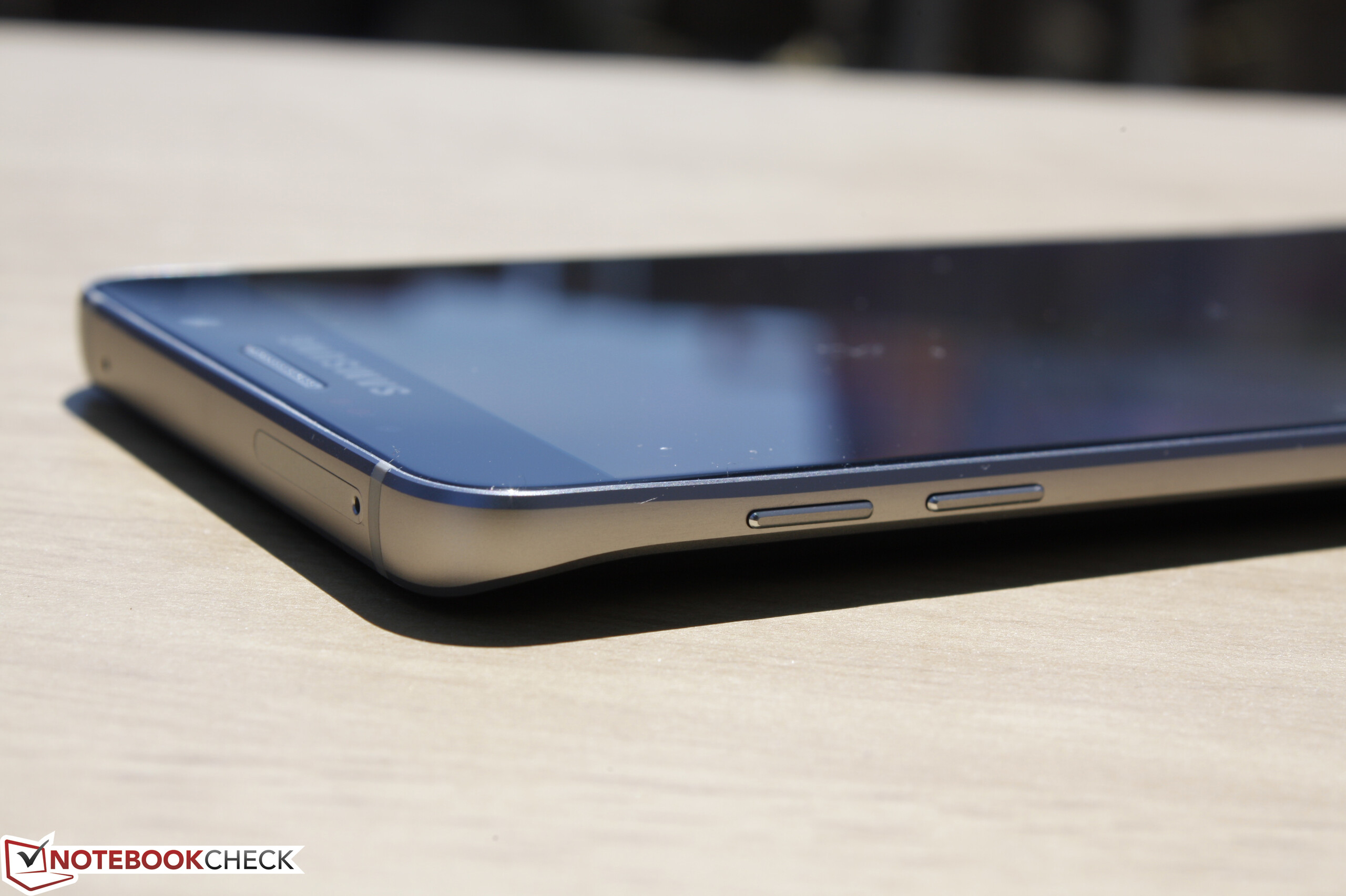

+ 金属边角，坚固机身

+ 高性能Exynos 7420处理器和4 GB内存

+ 优秀的户外实用性，高亮度

+ 出色的固态硬盘性能

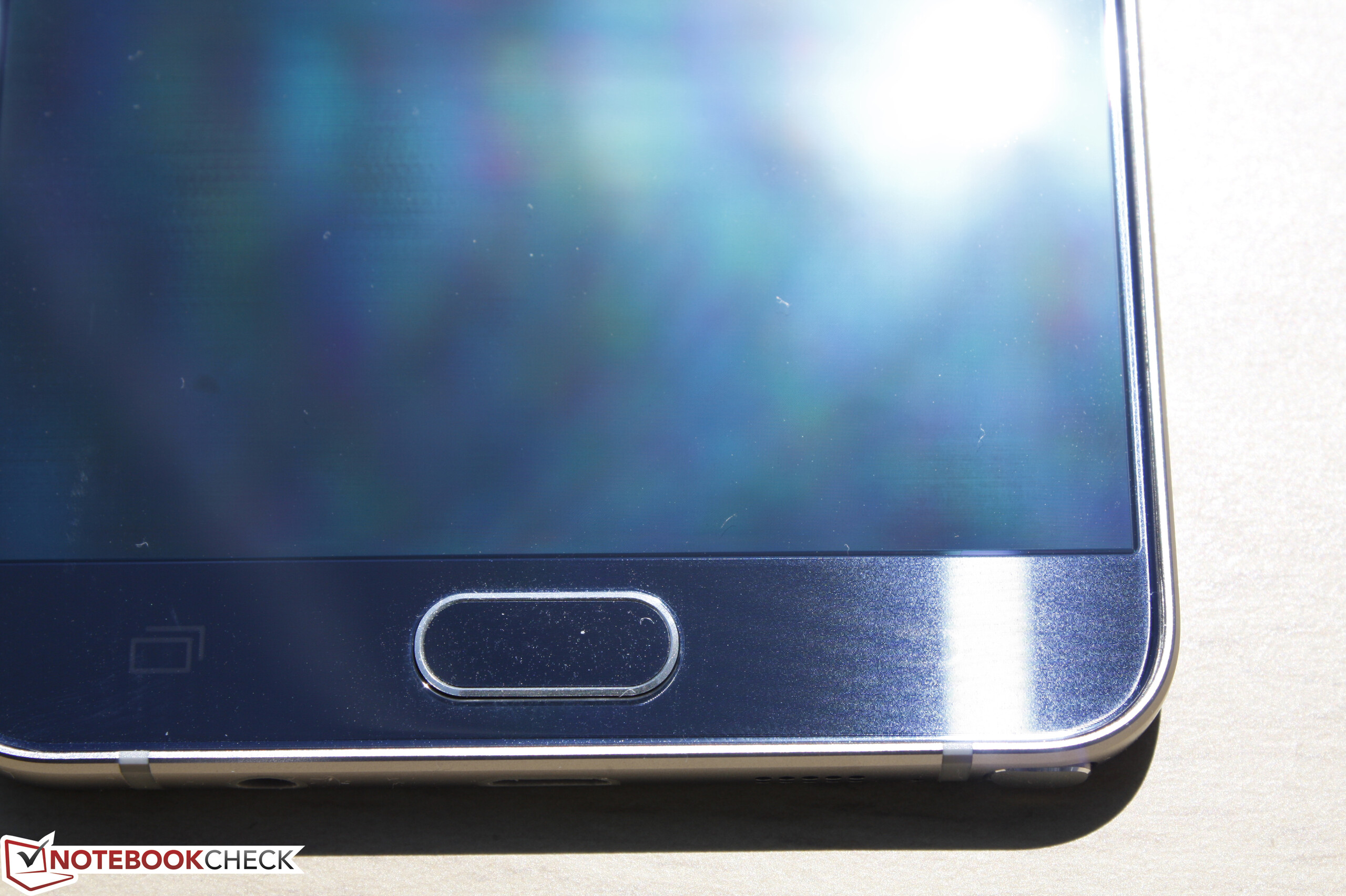

+ 指纹传感器和心率计

+ Wi-Fi通话功能

Cons

- 不可更换电池

- 无双SIM卡功能

- 取消了对红外功能的支持

- 取消了对MHL的支持

- 取消了对MicroSD卡的支持

- 非USB Type-C接口

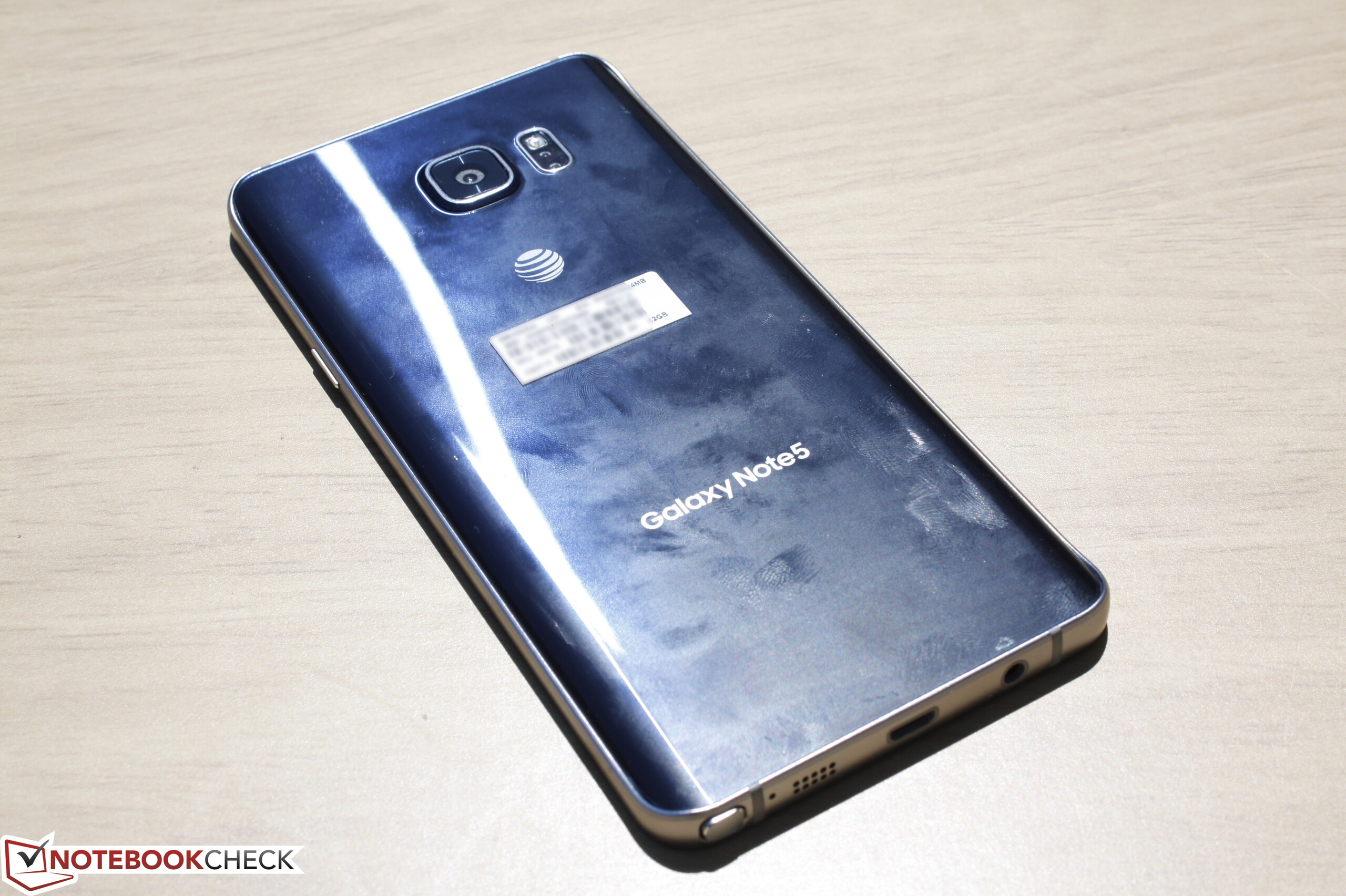

- 塑料后盖

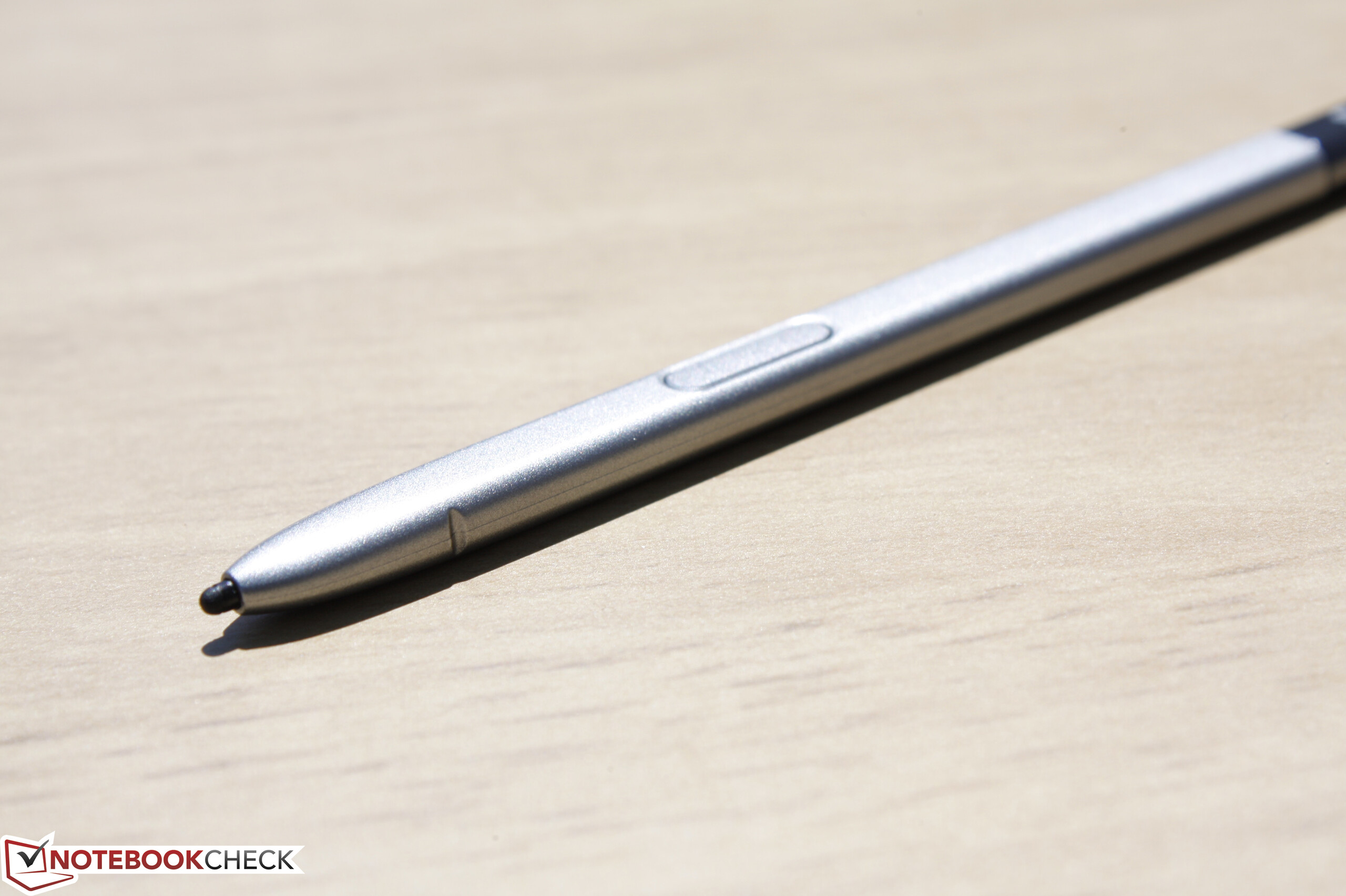

- S Pen在长时间使用时不够顺手

- 和Galaxy Note 4一样的降频问题

- 一般的扬声器

In Review: Samsung Galaxy Note 5 SM-N920A

如果你有了Note 4或者Galaxy S6的话还值不值得换Galaxy Note 5呢？支持按键的S Pen十分符合人体工程学的设计不只是一个新功能，加上更加精确的明亮屏幕很容易吸引骨灰级用户。不过对于已经拥有Note 4的用户来说，Note 5更像是横向走了一步而不是一个升级产品，因为它减少了很多功能（ MHL，红外传输，可更换电池，MicroSD读卡器）而增加了一些新功能（指纹识别，按键S Pen，改进的屏幕，更薄的设计）。同时，S6的用户可能会发现它除了屏幕更大之外其他的配置完全一样。这款机型的更准确命名可以叫“Galaxy Note S6”，由于它相比出色的Note 4并没有任何的实质性突破。

对于其他人来说Galaxy Note 5是一款值得试用一下的设备。它的S Pen对一部分用户来说会让日常使用变的得心应手，而对另外一些用户来说这根手写笔可能尺寸过小而让长时间使用变得不舒服。测试编辑就属于后者之一，不过它绚丽的屏幕和实用的S Pen功能仍然不容忽视。

相比前代产品并无实质性突破，Note 5仍然是一款出色的智能手机产品。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Samsung Galaxy Note 5 SM-N920A - 2016-04-18 04/18/2016 v5 ^(old)
Allen Ngo

Chassis

91%

Keyboard

72 / 75 → 96%

Pointing Device

94%

Connectivity

43 / 60 → 72%

Weight

90%

Battery

89%

Display

89%

Games Performance

54 / 63 → 86%

Application Performance

55 / 70 → 78%

Temperature

91%

Noise

100%

Audio

65 / 91 → 71%

Camera

80%

Average

78%

88%

Smartphone - Weighted Average

Read about the changes in the new rating version 5

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5240 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 三星 Galaxy Note 5 (SM-N920A) 智能手机简短评测

Allen Ngo, 2015-09-10 (Update: 2015-09-20)
