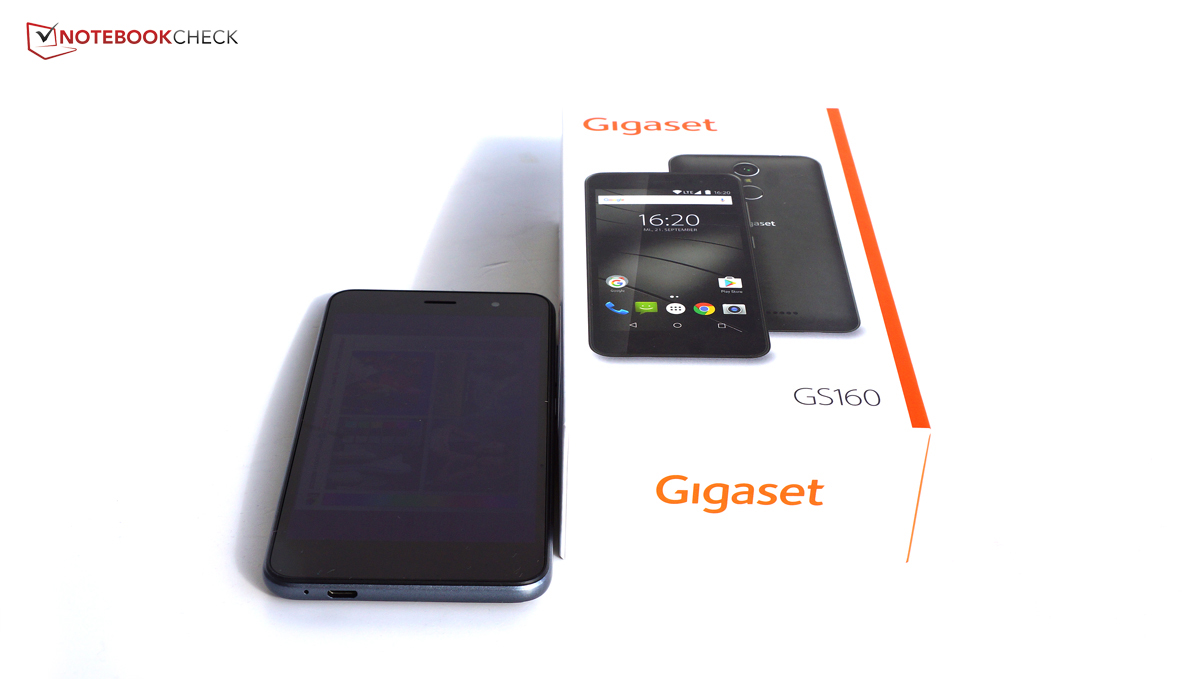

Gigaset GS160 智能手机简短评测

Name: Gigaset GS160
Brand: Gigaset

耐用。 GS160是Gigaset迄今为止最便宜的智能手机。制造商甚至安装了一个指纹扫描部件，而手机价格却低于150欧元（约160美元）。但是，该设备有过人之处，还是仅仅是低价的智能手机？在评测报告中可以找到答案。

Florian Wimmer, ✓ Tanja Hinum (translated by Kangfei Zheng), Published 02/19/2017 🇺🇸 🇩🇪 ...

Smartphone Android ARM Touchscreen

Test device courtesy of Gigaset Deutschland

Download your licensed rating image as PNG / SVG

Gigaset GS160 (GS Series)

Processor

Mediatek MT6737 4 x 1.3 GHz, Cortex-A53

Graphics adapter

ARM Mali-T720 MP2

Memory

1024 MB

, LPDDR3

Display

5.00 inch 16:9, 1280 x 720 pixel 294 PPI, 电容触控, IPS, glossy: yes

Storage

16 GB eMMC Flash, 16 GB

, 10.87 GB free

Connections

1 USB 2.0, Audio Connections: 3.5-毫米, Card Reader: micro-SD 最高 128 GB, 1 Fingerprint Reader, Brightness Sensor, Sensors: 加速度计，接近度计

Networking

802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0, GSM (850/900/1800/1900), UMTS (900/2100), LTE (B1/B3/B7/B20); band width (download/upload): 150Mbps/50Mbps (LTE); SAR rate: 0.408 W/kg (head), 1.450 W/kg (body), Dual SIM, LTE, GPS

Size

height x width x depth (in mm): 9.5 x 144 x 72.3

Battery

9.5 Wh, 2500 mAh Lithium-Ion, removeable, Standby 3G (according to manufacturer): 440 h

Operating System

Android 6.0 Marshmallow

Camera

Primary Camera: 13 MPix 自动对焦 , f2.2, LED 闪光灯
Secondary Camera: 5 MPix

Additional features

Speakers: 后侧扬声器, Keyboard: 虚拟键盘, 适配器, USB线, 24 Months Warranty, fanless

Weight

139 g, Power Supply: 41 g

Price

149 Euro

Links

Gigaset homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

Networking
iperf3 transmit AX12
Lenovo C2 Mali-T720 MP2, MT6735, 8 GB eMMC Flash	53.3 MBit/s +11%
Gigaset GS160 Mali-T720 MP2, MT6737, 16 GB eMMC Flash	48.2 MBit/s
Alcatel Shine Lite Mali-T720 MP2, MT6737, 16 GB eMMC Flash	42.3 MBit/s -12%
iperf3 receive AX12
Lenovo C2 Mali-T720 MP2, MT6735, 8 GB eMMC Flash	50.5 MBit/s +51%
Alcatel Shine Lite Mali-T720 MP2, MT6737, 16 GB eMMC Flash	46.5 MBit/s +39%
Gigaset GS160 Mali-T720 MP2, MT6737, 16 GB eMMC Flash	33.5 MBit/s

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1 Scene 2 Scene 3

click to load images

click to load images

click to load images


466 cd/m²	492 cd/m²	478 cd/m²
469 cd/m²	489 cd/m²	484 cd/m²
475 cd/m²	481 cd/m²	474 cd/m²

Distribution of brightness

tested with X-Rite i1Pro 2

Maximum: 492 cd/m² (Nits) Average: 478.7 cd/m² Minimum: 18.7 cd/m²
Brightness Distribution: 95 %
Center on Battery: 489 cd/m²
Contrast: 889:1 (Black: 0.55 cd/m²)
ΔE Color 8.3 | 0.5-29.43 Ø4.93
ΔE Greyscale 8.7 | 0.5-98 Ø5.2
Gamma: 2.08

	Gigaset GS160 IPS, 1280x720, 5"	Lenovo C2 IPS, 1280x720, 5"	Lenovo Moto G4 Play IPS, 1280x720, 5"	Huawei Y6 II Compact IPS, 1280x720, 5"	Wiko Lenny 3 IPS, 1280x720, 5"
Screen		15%	11%	-4%	1%
Brightness middle	489	458 -6%	412 -16%	491 0%	374 -24%
Brightness	479	449 -6%	414 -14%	487 2%	343 -28%
Brightness Distribution	95	92 -3%	94 -1%	92 -3%	85 -11%
Black Level *	0.55	0.35 36%	0.42 24%	0.9 -64%	0.47 15%
Contrast	889	1309 47%	981 10%	546 -39%	796 -10%
Colorchecker dE 2000 *	8.3	6.5 22%	5.6 33%	6.6 20%	6 28%
Colorchecker dE 2000 max. *	14.4	11.7 19%	9.7 33%	12.9 10%	11.9 17%
Greyscale dE 2000 *	8.7	7.7 11%	6.9 21%	4.9 44%	6.7 23%
Gamma	2.08 ^106%	2.15 ^102%	2.4 ^92%	2.12 ^104%	2.19 ^100%
CCT	9034 ^72%	8518 ^76%	8422 ^77%	7090 ^92%	8073 ^81%

* ... smaller is better

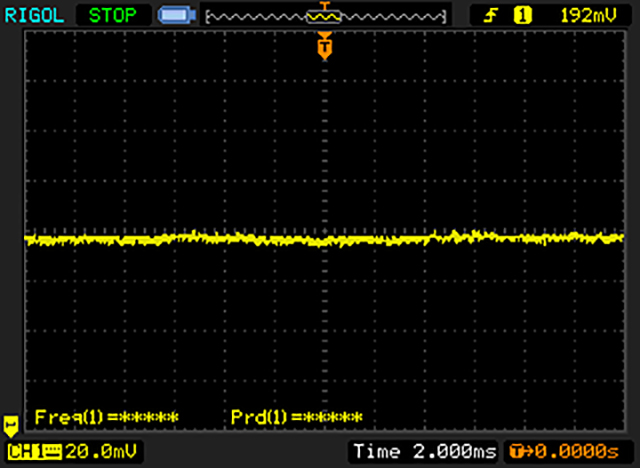

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

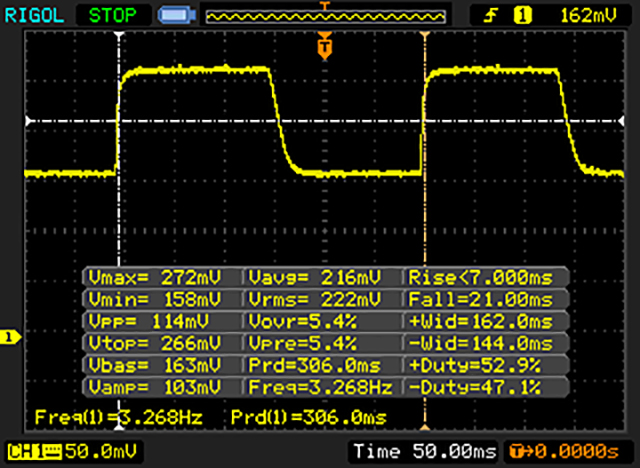

↔ Response Time Black to White
28 ms ... rise ↗ and fall ↘ combined	↗ 7 ms rise
28 ms ... rise ↗ and fall ↘ combined	↘ 21 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 68 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

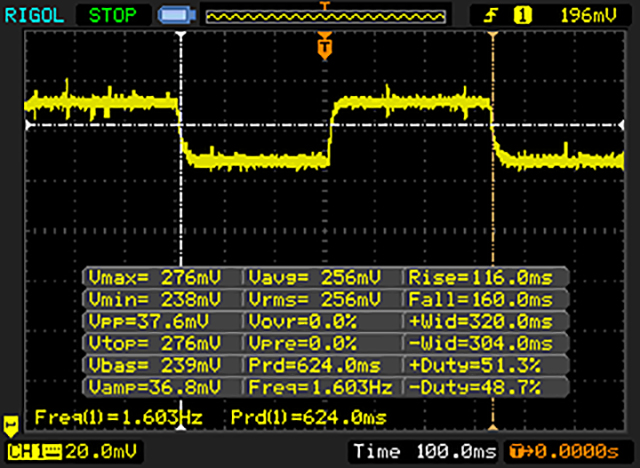

↔ Response Time 50% Grey to 80% Grey
276 ms ... rise ↗ and fall ↘ combined	↗ 116 ms rise
276 ms ... rise ↗ and fall ↘ combined	↘ 160 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 100 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

AnTuTu v6 - Total Score (sort by value)
Gigaset GS160	28459 Points
Lenovo C2	23825 Points -16%
Lenovo Moto G4 Play	28399 Points 0%
Huawei Y6 II Compact	33786 Points +19%
Wiko Lenny 3	25237 Points -11%

Geekbench 4.0
64 Bit Single-Core Score (sort by value)
Gigaset GS160	518 Points
Lenovo C2	424 Points -18%
Huawei Y6 II Compact	549 Points +6%
64 Bit Multi-Core Score (sort by value)
Gigaset GS160	1453 Points
Lenovo C2	1192 Points -18%
Huawei Y6 II Compact	1581 Points +9%

3DMark
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Gigaset GS160	3780 Points
Lenovo C2	Points -100%
Lenovo Moto G4 Play	4432 Points +17%
Huawei Y6 II Compact	4885 Points +29%
Wiko Lenny 3	2920 Points -23%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Gigaset GS160	3291 Points
Lenovo Moto G4 Play	3858 Points +17%
Huawei Y6 II Compact	4296 Points +31%
Wiko Lenny 3	2476 Points -25%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Gigaset GS160	7881 Points
Lenovo Moto G4 Play	9256 Points +17%
Huawei Y6 II Compact	9393 Points +19%
Wiko Lenny 3	7849 Points 0%

GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Gigaset GS160	11 fps
Lenovo C2	8.5 fps -23%
Lenovo Moto G4 Play	9.6 fps -13%
Huawei Y6 II Compact	15 fps +36%
Wiko Lenny 3	8 fps -27%
1920x1080 T-Rex Offscreen (sort by value)
Gigaset GS160	6 fps
Lenovo C2	5 fps -17%
Lenovo Moto G4 Play	5.2 fps -13%
Huawei Y6 II Compact	8.4 fps +40%
Wiko Lenny 3	4.4 fps -27%

GFXBench 3.0
on screen Manhattan Onscreen OGL (sort by value)
Gigaset GS160	4.7 fps
Lenovo C2	3.7 fps -21%
Lenovo Moto G4 Play	4.1 fps -13%
Huawei Y6 II Compact	6.1 fps +30%
Wiko Lenny 3	fps -100%
1920x1080 1080p Manhattan Offscreen (sort by value)
Gigaset GS160	2.1 fps
Lenovo C2	fps -100%
Lenovo Moto G4 Play	1.8 fps -14%
Huawei Y6 II Compact	2.8 fps +33%
Wiko Lenny 3	fps -100%

GFXBench 3.1
on screen Manhattan ES 3.1 Onscreen (sort by value)
Gigaset GS160	3.4 fps
Lenovo C2	2.7 fps -21%
Huawei Y6 II Compact	4.1 fps +21%
Wiko Lenny 3	fps -100%
1920x1080 Manhattan ES 3.1 Offscreen (sort by value)
Gigaset GS160	1.4 fps
Lenovo C2	1.2 fps -14%
Huawei Y6 II Compact	1.7 fps +21%
Wiko Lenny 3	fps -100%

PCMark for Android - Work performance score (sort by value)
Gigaset GS160	2563 Points
Lenovo C2	1908 Points -26%
Lenovo Moto G4 Play	4283 Points +67%
Huawei Y6 II Compact	3400 Points +33%
Wiko Lenny 3	2832 Points +10%

BaseMark OS II
Overall (sort by value)
Gigaset GS160	178 Points
Lenovo C2	147 Points -17%
Lenovo Moto G4 Play	603 Points +239%
Huawei Y6 II Compact	203 Points +14%
Wiko Lenny 3	399 Points +124%
System (sort by value)
Gigaset GS160	1029 Points
Lenovo C2	826 Points -20%
Lenovo Moto G4 Play	1035 Points +1%
Huawei Y6 II Compact	1093 Points +6%
Wiko Lenny 3	988 Points -4%
Memory (sort by value)
Gigaset GS160	497 Points
Lenovo C2	332 Points -33%
Lenovo Moto G4 Play	741 Points +49%
Huawei Y6 II Compact	571 Points +15%
Wiko Lenny 3	293 Points -41%
Graphics (sort by value)
Gigaset GS160	208 Points
Lenovo C2	177 Points -15%
Lenovo Moto G4 Play	313 Points +50%
Huawei Y6 II Compact	283 Points +36%
Wiko Lenny 3	138 Points -34%
Web (sort by value)
Gigaset GS160	9 Points
Lenovo C2	9 Points 0%
Lenovo Moto G4 Play	551 Points +6022%
Huawei Y6 II Compact	10 Points +11%
Wiko Lenny 3	632 Points +6922%

Legend

Gigaset GS160 Mediatek MT6737, ARM Mali-T720 MP2, 16 GB eMMC Flash

Lenovo C2 Mediatek MT6735, ARM Mali-T720 MP2, 8 GB eMMC Flash

Lenovo Moto G4 Play Qualcomm Snapdragon 410 APQ8016, Qualcomm Adreno 306, 16 GB eMMC Flash

Huawei Y6 II Compact Mediatek MT6735, ARM Mali-T720 MP2, 16 GB eMMC Flash

Wiko Lenny 3 Mediatek MT6580M, ARM Mali-400 MP2, 16 GB eMMC Flash

WebXPRT 2015 | JetStream 1.1 | Octane V2 | Mozilla Kraken 1.1

WebXPRT 2015 - Overall (sort by value)
Gigaset GS160	47 Points
Lenovo Moto G4 Play	48 Points +2%
Huawei Y6 II Compact	50 Points +6%

JetStream 1.1 - Total Score (sort by value)
Gigaset GS160	14.43 Points
Lenovo C2	13.5 Points -6%
Lenovo Moto G4 Play	17.09 Points +18%
Huawei Y6 II Compact	18.3 Points +27%
Wiko Lenny 3	14.07 Points -2%

Octane V2 - Total Score (sort by value)
Gigaset GS160	2493 Points
Lenovo C2	2159 Points -13%
Lenovo Moto G4 Play	2773 Points +11%
Huawei Y6 II Compact	2805 Points +13%
Wiko Lenny 3	2133 Points -14%

Mozilla Kraken 1.1 - Total (sort by value)
Gigaset GS160	13907 ms *
Lenovo C2	16585 ms * -19%
Lenovo Moto G4 Play	12953 ms * +7%
Huawei Y6 II Compact	13234 ms * +5%
Wiko Lenny 3	14863 ms * -7%

* ... smaller is better

AndroBench 3-5
Sequential Read 256KB (sort by value)
Gigaset GS160	200.5 MB/s
Lenovo C2	120.7 MB/s -40%
Lenovo Moto G4 Play	144.1 MB/s -28%
Huawei Y6 II Compact	211 MB/s +5%
Wiko Lenny 3	132.5 MB/s -34%
Sequential Write 256KB (sort by value)
Gigaset GS160	46.6 MB/s
Lenovo C2	8 MB/s -83%
Lenovo Moto G4 Play	43.95 MB/s -6%
Huawei Y6 II Compact	75 MB/s +61%
Wiko Lenny 3	11.6 MB/s -75%
Random Read 4KB (sort by value)
Gigaset GS160	18.5 MB/s
Lenovo C2	14.5 MB/s -22%
Lenovo Moto G4 Play	17.9 MB/s -3%
Huawei Y6 II Compact	23 MB/s +24%
Wiko Lenny 3	15.1 MB/s -18%
Random Write 4KB (sort by value)
Gigaset GS160	6.8 MB/s
Lenovo C2	4.7 MB/s -31%
Lenovo Moto G4 Play	28.31 MB/s +316%
Huawei Y6 II Compact	15.5 MB/s +128%
Wiko Lenny 3	6.2 MB/s -9%
Sequential Read 256KB SDCard (sort by value)
Gigaset GS160	30.71 MB/s
Lenovo C2	24.2 MB/s -21%
Lenovo Moto G4 Play	65.5 MB/s +113%
Huawei Y6 II Compact	31.57 MB/s +3%
Wiko Lenny 3	40.59 MB/s +32%
Sequential Write 256KB SDCard (sort by value)
Gigaset GS160	19.19 MB/s
Lenovo C2	16.1 MB/s -16%
Lenovo Moto G4 Play	51.1 MB/s +166%
Huawei Y6 II Compact	17.12 MB/s -11%
Wiko Lenny 3	19.59 MB/s +2%

Dead Trigger 2
	Settings	Value
	high	32 fps

... in comparison

Temple Run 2
	Settings	Value
	default	59 fps

... in comparison

Max. Load

Idle


39.7 °C	39.8 °C	41 °C
40.6 °C	39.2 °C	41.7 °C
40.1 °C	40.5 °C	39.8 °C

Maximum: 41.7 °C
Average: 40.3 °C


34.4 °C	36.2 °C	36.7 °C
34.5 °C	36.7 °C	38.8 °C
35.7 °C	37.3 °C	39.2 °C

Maximum: 39.2 °C
Average: 36.6 °C

Power Supply (max.) 36.6 °C | Room Temperature 21.4 °C | Voltcraft IR-260

(-) The average temperature for the upper side under maximal load is 40.3 °C / 105 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(±) The maximum temperature on the upper side is 41.7 °C / 107 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.2 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 39.2 °C / 103 F, compared to the average of 33.9 °C / 93 F
(±) In idle usage, the average temperature for the upper side is 32.3 °C / 90 F, compared to the device average of 32.8 °C / 91 F.

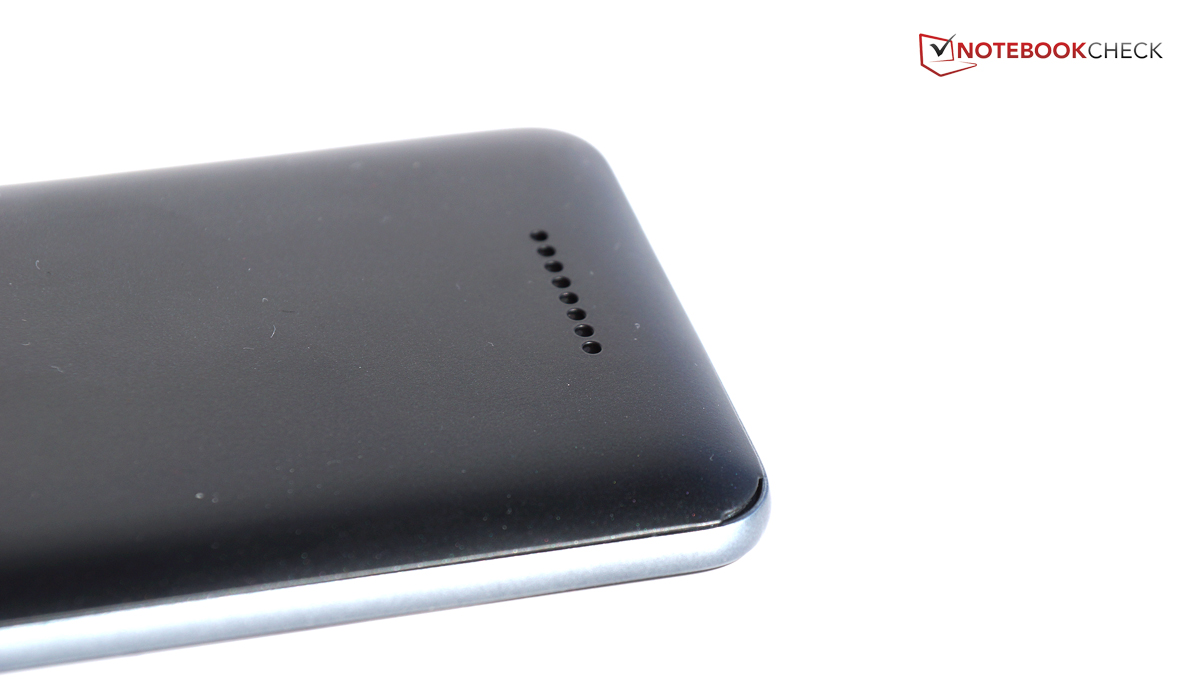

Gigaset GS160 audio analysis

(±) | speaker loudness is average but good (80.7 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.2% lower than median
(±) | linearity of bass is average (12.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.4% higher than median
(±) | linearity of mids is average (8.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3% away from median
(+) | highs are linear (5.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (28.1% difference to median)
Compared to same class
» 70% of all tested devices in this class were better, 5% similar, 25% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 83% of all tested devices were better, 3% similar, 14% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo C2 audio analysis

(±) | speaker loudness is average but good (80.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 34.3% lower than median
(±) | linearity of bass is average (8.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 6% lower than median
(±) | linearity of mids is average (7.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.1% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25.9% difference to median)
Compared to same class
» 61% of all tested devices in this class were better, 7% similar, 32% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 77% of all tested devices were better, 5% similar, 18% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Lenovo Moto G4 Play audio analysis

(-) | not very loud speakers (67.6 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24% lower than median
(±) | linearity of bass is average (10.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5% lower than median
(±) | linearity of mids is average (7.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(+) | highs are linear (3.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (25% difference to median)
Compared to same class
» 57% of all tested devices in this class were better, 7% similar, 36% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 73% of all tested devices were better, 6% similar, 21% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	0 / 0.07 Watt
Idle	0.56 / 1.7 / 1.75 Watt
Load	4.17 / 5.07 Watt


Key: min: , med: , max: Metrahit Energy

	Gigaset GS160 2500 mAh	Lenovo C2 2750 mAh	Lenovo Moto G4 Play 2800 mAh	Huawei Y6 II Compact 2200 mAh	Wiko Lenny 3 2000 mAh
Power Consumption		8%	7%	7%	-23%
Idle Minimum *	0.56	0.71 -27%	0.68 -21%	0.57 -2%	0.76 -36%
Idle Average *	1.7	1.62 5%	1.58 7%	1.53 10%	2.16 -27%
Idle Maximum *	1.75	1.64 6%	1.61 8%	1.6 9%	2.35 -34%
Load Average *	4.17	3.24 22%	3.36 19%	2.82 32%	4.65 -12%
Load Maximum *	5.07	3.36 34%	3.91 23%	5.69 -12%	5.35 -6%

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		22h 06min
WiFi Websurfing		10h 15min
Big Buck Bunny H.264 1080p		11h 42min
Load (maximum brightness)		4h 04min

	Gigaset GS160 2500 mAh	Lenovo C2 2750 mAh	Lenovo Moto G4 Play 2800 mAh	Huawei Y6 II Compact 2200 mAh	Wiko Lenny 3 2000 mAh
Battery Runtime		13%	19%	-6%	-25%
Reader / Idle	1326		1998 51%	1175 -11%	944 -29%
H.264	702		683 -3%	682 -3%
WiFi v1.3	615	662 8%	630 2%	623 1%	549 -11%
Load	244	287 18%	306 25%	222 -9%	155 -36%

Pros

+ 可拆卸电池

+ 双SIM卡 + micro SD

+ 16 GB存储

+ 相对高分辨率的摄像头

+ 非常明亮的屏幕

+ 配件和备件

+ 颜色再现设置

+ 低功耗低负载

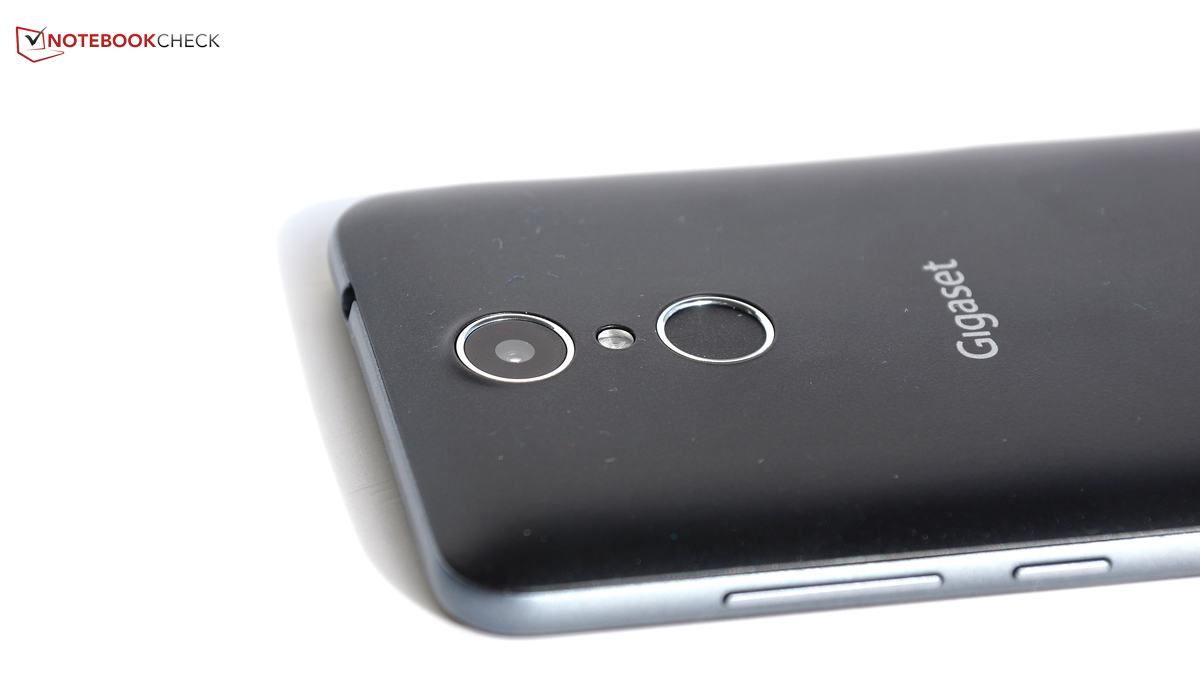

+ 指纹扫描

Cons

- 外壳对压力敏感

- 有限运行内存

- 存在吱吱声

- 屏幕有强烈蓝色色调

- 平庸的通话质量

- 仅两个UMTS频带

- 过时的安全补丁

In review: Gigaset GS160. Review sample courtesy of Gigaset Germany

Gigaset已经聪明地用高品质的智能手机进入市场。因此，消费者会将品牌与高级智能手机联想到一起。Gigaset的GS160将我们带回现实：德国制造商并不能在入门级类别的预算下创造奇迹。因此，它使用显着不起眼，并且也可以更坚固一点的外壳。通话质量，扬声器和性能：这些都处于平均水平，都不算亮点。

Gigaset安装的指纹扫描器在这里是一个例外。这个部件非常独特而且功能准确。有用于再现屏幕上的图像的许多设置方案，显示效果非常明。电池续航良好;这一点同样适用于功率消耗，特别是在低负载期间。有限的内存内存配置是相当严重，它通常会减慢系统运转速度，并在你打开另一个程序时，将在原本后台中的复杂的游戏暂停。游戏的进度可能会丢失，应用程序将重新启动。

Gigaset GS160是不完美的，但它是低预算中最好的。在这个类别中的手机中，几乎找不到的指纹扫描器。这是一个亮点。

我们喜欢Gigaset提供备件和配件，基于它是在一个低成本的智能手机并且在其网上商店销售的事实。我们给这一点和软件中的各种定制选项加分。除了双SIM卡插槽之外，专用的microSD插槽也是一个加分点。可拆卸电池使经常能使在旅途中的用户感到愉悦。虽然Gigaset没有制造出一个出色的智能手机，它是一个综合体，为入门级的设备增加了一些亮点。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Gigaset GS160 - 2017-02-07 02/07/2017 v6 ^(old)
Florian Wimmer

Chassis

79%

Keyboard

70 / 75 → 93%

Pointing Device

85%

Connectivity

38 / 60 → 64%

Weight

93%

Battery

93%

Display

82%

Games Performance

6 / 63 → 9%

Application Performance

24 / 70 → 35%

Temperature

87%

Noise

100%

Audio

54 / 91 → 59%

Camera

65%

Add Points

+1%

Average

63%

80%

Smartphone - Weighted Average

Price comparison

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Gigaset GS160 智能手机简短评测

Florian Wimmer, 2017-02-19 (Update: 2017-02-26)
