Higole PC棒回顾:世界上最小的PC棒有一个英特尔赛扬J4125,8GB内存和128GB固态硬盘

小而无声!

个人电脑并不总是必须是大而笨重的。我们以前测试过的许多迷你电脑都证明了这一点。Higole PC Stick的制造商通过将整个PC的硬件装入一个让人联想到超大U盘的盒子里,进一步实现了这一点。我们仔细观察了该设备以及它的英特尔赛扬J4125的能力。
Mini PC Desktop Intel

该系统的制造商正计划通过Indiegogo平台推出Higole PC棒,作为世界上最小的PC棒。在这篇评论中,我们将看到一个预生产的模型,从设备的设计和构造来看,基本上已经可以看作是最终产品。该PC棒已经可以通过众筹平台购买。我们的测试配置为149美元,价格不算太高。这台迷你电脑有一个 英特尔赛扬J4125,8GB内存和128GB存储。基于Intel Celeron N4000,4GB内存和64GB存储空间的机型售价为98美元,而配备Intel Celeron J4125 ,4GB内存和128GB存储空间的PC棒售价居中,为129美元。尽管如此,在使用微软Windows 11作为操作系统时,我们能够看到配备8GB内存的设备有明显的优势。另外,他们还支持Linux--由于操作系统的要求较低,在4GB内存的机型上也应该表现良好。

Higole PC Stick-J4125
Processor
Intel Celeron J4125 4 x 2 - 2.7 GHz, 25 W PL2 / Short Burst, 10 W PL1 / Sustained, Gemini Lake Refresh
Graphics adapter
Intel UHD Graphics 600, Core: 750 MHz, 31.0.101.2111 DCH
Memory
8 GB
, DDR4-2400 MT/s
Mainboard
Gemini Lake
Storage
128 GB flash drive, 100 GB free
Soundcard
Intel Gemini Lake SoC - High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 HDMI, Card Reader: MicroSD (max. 512 GB)
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek RTL8852BE (b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2
Size
height x width x depth (in mm): 0.99 x 139.9 x 49.7
Operating System
Microsoft Windows 11 Pro
Additional features
36 watt power connector
Weight
108 g, Power Supply: 175 g
Price
136 EUR
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



潜在的竞争对手比较

Rating
Date
Model
Weight
Height
Price
57.2 %
v7 (old)
04 / 2023
Higole PC Stick-J4125
Celeron J4125, UHD Graphics 600
108 g0.99 mm

v (old)
07 / 2022
Zotac ZBOX PI336 pico
Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
293 g20.7 mm

v (old)
08 / 2021
AC6-M Mini-PC
Celeron J4125, UHD Graphics 600
58 mm

v (old)
02 / 2022
Newsmay AC8 N6005
Pentium N6005, UHD Graphics (Jasper Lake 32 EU)
534 g48 mm
65.9 %
v7 (old)
01 / 2023
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
209 g43.5 mm
68.2 %
v7 (old)
03 / 2023
Minipc Union NiPoGi GK3PLUS - N95
N95, UHD Graphics 24EUs (Alder Lake-N)
381 g47 mm

Higole PC棒的细节

Higole PC棒
Higole PC棒
Higole PC棒(交付范围)
Higole PC棒(交付范围)
Higole PC Stick(带HDMI适配器的例子)。
Higole PC棒
Higole PC棒
Higole PC棒
Higole PC棒
Higole PC棒
Higole PC棒
Higole PC棒

案例和特点

Higole PC棒确实很小,这使它在尺寸方面成为明显的赢家。它的重量仅有100克多一点,也非常轻。它的电源适配器在秤上又增加了175克--但相比之下仍然非常轻。在目前的状态下,Higole PC棒的结构很好。尽管在进一步检查时,其表面并不完全均匀。该设备主要由塑料制成。PC的正面和背面都有一个凹槽结构,以提高设备的表面积--这反过来有助于散去SoC的任何热量。

尺寸比较

132 mm 132 mm 47 mm 381 g127 mm 127 mm 48 mm 534 g139.9 mm 49.7 mm 0.99 mm 108 g115 mm 76 mm 20.7 mm 293 g87 mm 87 mm 43.5 mm 209 g210 mm 148 mm 1 mm 2.9 g

连接性

当涉及到外部端口时,Hogole PC Stick明显处于劣势。与竞争对手不同的是,这款迷你电脑的HDMI接口是一个插头,而不是一个插座,这意味着电脑棒可以直接插入显示器的HDMI接口。此外,它确实有一个读卡器,但它只能用于microSD卡。在我们的测试中,该连接只在USB 2.0速度下工作。虽然,对比设备--除了ZotacZBOX PI336--并没有表现得更好。

Higole PC Stick的外部端口(来源:Higole)。
Higole PC Stick的外部端口(来源:Higole)。

SD card reader

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Mini PC
  (15.1 - 214, n=26, last 2 years)
91.7 MB/s +365%
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
24.44 MB/s +24%
Higole PC Stick-J4125
Intel Celeron J4125 (AV Pro SD microSD 128 GB V60)
19.7 MB/s
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
18.46 MB/s -6%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.02 MB/s -14%
maximum AS SSD Seq Read Test (1GB)
Average of class Mini PC
  (18.2 - 221, n=26, last 2 years)
106.6 MB/s +307%
Zotac ZBOX PI336 pico
Intel Celeron N6211 (AV PRO MICROSD V60)
41.45 MB/s +58%
Higole PC Stick-J4125
Intel Celeron J4125 (AV Pro SD microSD 128 GB V60)
26.2 MB/s
AC6-M Mini-PC
Intel Celeron J4125 (AV PRO MICROSD V60)
21.03 MB/s -20%
Newsmay AC8 N6005
Intel Pentium Silver N6005 (AV Pro SD microSD 128 GB V60)
17.7 MB/s -32%

沟通

Higole PC Stick配备了一个Realtek的Wi-Fi模块。在我们的测试中,该无线模块表现良好。然而,根据我们数据库中以前的测试,它并没有完全达到这个模块通常的平均结果。我们使用华硕ROG Rapture GT-AXE11000作为测试路由器来进行这项测试。另外,你也可以通过以太网连接。然后,可以实现高达1GBit/s的速度。

Networking
iperf3 receive AXE11000
Average of class Mini PC
  (192.9 - 1796, n=113, last 2 years)
932 MBit/s +49%
Average Realtek RTL8852BE
  (455 - 984, n=43)
847 MBit/s +36%
Higole PC Stick-J4125
Realtek RTL8852BE
624 (584min - 678max) MBit/s
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
363 (359min - 365max) MBit/s -42%
Minipc Union NiPoGi GK3PLUS - N95
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
358 (180min - 362max) MBit/s -43%
iperf3 transmit AXE11000
Average of class Mini PC
  (184.1 - 1776, n=113, last 2 years)
864 MBit/s +39%
Average Realtek RTL8852BE
  (536 - 925, n=42)
792 MBit/s +28%
Higole PC Stick-J4125
Realtek RTL8852BE
620 (580min - 657max) MBit/s
Minipc Union NiPoGi GK3PLUS - N95
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
269 (136min - 276max) MBit/s -57%
Minipc Union Ace Magician T8Pro
Realtek 8821CE Wireless LAN 802.11ac PCI-E NIC
184.1 (94min - 191max) MBit/s -70%
050100150200250300350400450500550600650Tooltip
Higole PC Stick-J4125; iperf3 receive AXE11000; iperf 3.1.3: Ø624 (584-678)
Higole PC Stick-J4125; iperf3 transmit AXE11000; iperf 3.1.3: Ø620 (580-657)

辅料

这台电脑配有一条USB-C电源线和一个小型HDMI适配器--以防你没有空间将设备直接连接到显示器的HDMI端口。不幸的是,这在我们的测试中被证明不是很好,因为电缆太短了。我们决定使用自己的有两个端口的HDMI适配器,这样我们就可以使用普通的HDMI线。如果PC棒中包含这样的适配器,那肯定是有意义的。

业绩

Higole PC Stick的英特尔赛扬J4125是一个相当经济的SoC,并配备了一个被动冷却系统。这款迷你PC还拥有8GB内存和128GB固态硬盘。

CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z
CPU-Z

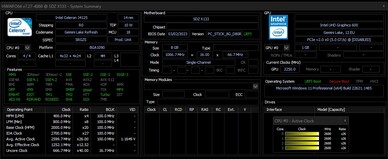

HWiNFO


测试条件

在所有的性能测试中,我们将系统保持在其交付状态。我们没有对SoC的功率限制做任何改变。

处理器

Higole PC Stick是一款相对简单的办公电脑,由于所提供的性能,可以被推荐用于要求不高的日常工作。它的特点是 Intel Celeron J4125然而,该SoC有四个原生处理核心,时钟频率为2GHz,提供了与Zotac ZBOX PI336相同的性能。 Zotac ZBOX PI336.与之相比新闻美的AC6-M相比,我们的测试样本只输了7%。相比之下,我们看到与NiPoGi GK3PLUS相比,差距大得多。

关于进一步的比较和基准,请看我们的 CPU比较表.

Cinebench R15
Cinebench R15
Cinebench R20
Cinebench R20
Cinebench R23
Cinebench R23
Performance Rating - Percent
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
26.8 pt
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
24.7 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
24.4 pt
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
20.7 pt
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
19.3 pt
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
19.2 pt
Cinebench R15
CPU Single 64Bit
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
123 Points +81%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
123 Points +81%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
102 Points +50%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
77 Points +13%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
76 Points +12%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
68 Points
CPU Multi 64Bit
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
408 Points +176%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
359 Points +143%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
319 Points +116%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
248 Points +68%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
148 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
128 Points -14%
Cinebench R20
CPU (Single Core)
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
266 Points +72%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
241 Points +55%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
233 Points +50%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
174 Points +12%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
171 Points +10%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
155 Points
CPU (Multi Core)
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
976 Points +182%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
822 Points +138%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
720 Points +108%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
556 Points +61%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
346 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
285 Points -18%
Cinebench R11.5
CPU Single 64Bit
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
1.49 Points +75%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.47 Points +73%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
1.25 Points +47%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.97 Points +14%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.92 Points +8%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.85 Points
CPU Multi 64Bit
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
5.18 Points +143%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
4.65 Points +118%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
4.14 Points +94%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3.09 Points +45%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2.13 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1.65 Points -23%
Cinebench R10
Rendering Single CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
6562 Points +79%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
6163 Points +68%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
5224 Points +42%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
4120 Points +12%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3711 Points +1%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3669 Points
Rendering Multiple CPUs 64Bit
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
20429 Points +111%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
17278 Points +78%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
15504 Points +60%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
10705 Points +10%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
9697 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
6653 Points -31%
Blender - v2.79 BMW27 CPU
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3860 Seconds *
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3767 Seconds * +2%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 Seconds * +38%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1805 Seconds * +53%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
1547 Seconds * +60%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
1152 Seconds * +70%
wPrime 2.10
32m
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
49.66 s * -187%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
19.202 s * -11%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
17.37 s * -0%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
17.3 s *
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
17.09 s * +1%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
16.449 s * +5%
1024m
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1561.178 s * -139%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
654.159 s *
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
615 s * +6%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
605.375 s * +7%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
566 s * +13%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
535.88 s * +18%
X264 HD Benchmark 4.0
Pass 1
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
145.25 (144.9min - 145.6max) fps +137%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
112.75 (112min - 114.5max) fps +84%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
102 (100min - 118max) fps +66%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
78.9 (77.1min - 81.7max) fps +29%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
61.35 (57min - 82.9max) fps
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
45.25 (44.7min - 45.7max) fps -26%
Pass 2
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
29.65 (29.5min - 29.7max) fps +127%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
24.75 (24.5min - 25max) fps +90%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
21.6 (21.5min - 22.1max) fps +66%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
16.75 (16.7min - 16.9max) fps +28%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
13.05 (11.9min - 15.1max) fps
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
9.995 (9.97min - 10.2max) fps -23%
WinRAR - Result
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
2181 KB/s +114%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
1630 KB/s +60%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1525 KB/s +50%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1140 KB/s +12%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1019 KB/s
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
731 KB/s -28%
TrueCrypt
AES Mean 100MB
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
2.6 GB/s +44%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
2.5 GB/s +39%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
2.4 GB/s +33%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.9 GB/s +6%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.8 GB/s
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.979 GB/s -46%
Twofish Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
0.497 GB/s +154%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
0.403 GB/s +106%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
0.37 GB/s +89%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.266 GB/s +36%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.196 GB/s
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.14 GB/s -29%
Serpent Mean 100MB
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
0.243 GB/s +49%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
0.23 GB/s +41%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
0.198 GB/s +21%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.182 GB/s +12%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.163 GB/s
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.074 GB/s -55%
Geekbench 5.5
Multi-Core
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
2391 Points +94%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
2052 Points +67%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1673 Points +36%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1501 Points +22%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1231 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
844 Points -31%
Single-Core
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
804 Points +77%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
637 Points +41%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
606 Points +34%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
556 Points +23%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
455 Points 0%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
453 Points
Geekbench 5.0
5.0 Multi-Core
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
2382 Points +105%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
2041 Points +75%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1482 Points +27%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1313 Points +13%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1163 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
857 Points -26%
5.0 Single-Core
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
804 Points +78%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
638 Points +41%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
603 Points +34%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
559 Points +24%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
453 Points 0%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
451 Points
Geekbench 4.4
64 Bit Single-Core Score
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
3591 Points +87%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
2858 Points +49%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2585 Points +34%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
2555 Points +33%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1924 Points
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1922 Points 0%
64 Bit Multi-Core Score
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
9662 Points +128%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
7968 Points +88%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
5468 Points +29%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
5399 Points +27%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
4246 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3606 Points -15%
3DMark 11 - 1280x720 Performance Physics
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
5084 Points +117%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
4287 Points +83%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
3659 Points +56%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2794 Points +19%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2348 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1591 Points -32%
7-Zip 18.03
7z b 4
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
11654 MIPS +70%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
10924 MIPS +59%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
9964 MIPS +45%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
7790 MIPS +14%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
6862 MIPS
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
3974 MIPS -42%
7z b 4 -mmt1
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
3515 MIPS +48%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
3121 MIPS +32%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
2935 MIPS +24%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2593 MIPS +9%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2379 MIPS 0%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
2369 MIPS
HWBOT x265 Benchmark v2.2 - 4k Preset
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
3.03 fps +219%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
2.01 fps +112%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.65 fps +74%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.48 fps +56%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
0.95 fps
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
0.88 fps -7%
R Benchmark 2.5 - Overall mean
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.579 sec * -1%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1.565 sec *
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
1.371 sec * +12%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
1.2 sec * +23%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
1.137 sec * +27%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
1.032 sec * +34%
LibreOffice - 20 Documents To PDF
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
168.4 s *
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
144.7 s * +14%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
143 s * +15%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
103.6 s * +38%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
92.9 s * +45%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
80.4 s * +52%
WebXPRT 3 - Overall
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
155.3 Points +72%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
146 Points +62%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
127.2 Points +41%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
90.2 Points
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
89.2 Points -1%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
86.2 Points -4%
3DMark - 1920x1080 Fire Strike Physics
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)
N95,  MHz
5903 Points +268%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)
Celeron N5095, 2000 MHz
5535 Points +246%
Newsmay AC8 N6005, Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)
Pentium N6005, 2000 MHz
4295 Points +168%
AC6-M Mini-PC, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
3885 Points +143%
Zotac ZBOX PI336 pico, Intel Celeron N6211, Intel UHD Graphics (Elkhart Lake 16 EU)
Celeron N6211, 1200 MHz
2195 Points +37%
Higole PC Stick-J4125, Intel Celeron J4125, Intel UHD Graphics 600
Celeron J4125, 2000 MHz
1602 Points

* ... smaller is better

Performance Rating
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
98.3 pt
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
78.8 pt
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
69.9 pt
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
47.3 pt
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
40.1 pt
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
32 pt
AIDA64 / FP32 Ray-Trace
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1242 KRay/s +45%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
999 KRay/s +16%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
858 KRay/s
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
744 KRay/s -13%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
490 KRay/s -43%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
416 KRay/s -52%
AIDA64 / FPU Julia
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
7457 Points +37%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6217 Points +15%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
5427 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
3970 Points -27%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
2932 Points -46%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2401 Points -56%
AIDA64 / CPU SHA3
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
514 MB/s +56%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
396 MB/s +20%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
330 MB/s
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
270 MB/s -18%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
202 MB/s -39%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
167 MB/s -49%
AIDA64 / CPU Queen
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22326 Points +11%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
20038 Points
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
20014 Points 0%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
8820 Points -56%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
8178 Points -59%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
7876 Points -61%
AIDA64 / FPU SinJulia
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
1204 Points +34%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
1002 Points +12%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
898 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
408 Points -55%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
397 Points -56%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
396 Points -56%
AIDA64 / FPU Mandel
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
3961 Points +48%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
3375 Points +26%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
2668 Points
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
1987 Points -26%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
1558 Points -42%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
1264 Points -53%
AIDA64 / CPU AES
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
19350 MB/s +95%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10084 MB/s +2%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
9913 MB/s
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
7954 MB/s -20%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
7653 MB/s -23%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6370 MB/s -36%
AIDA64 / CPU ZLib
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
188.1 MB/s +42%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
132.3 MB/s
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
131 MB/s -1%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
75.2 MB/s -43%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
74.9 MB/s -43%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
60.6 MB/s -54%
AIDA64 / FP64 Ray-Trace
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
676 KRay/s +36%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
553 KRay/s +11%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
497 KRay/s
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
412 KRay/s -17%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
273 KRay/s -45%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
213 KRay/s -57%
AIDA64 / CPU PhotoWorxx
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
9899 MPixel/s +52%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
6778 MPixel/s +4%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
6516 MPixel/s
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
5125 MPixel/s -21%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
4408 MPixel/s -32%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
2501 MPixel/s -62%

在Cinebench R15多重循环中的Higole PC棒

在Cinebench R15循环测试中,被动冷却系统能够很好地控制英特尔赛扬J4125,并提供稳定的性能。然而,仔细观察发现,2GHz的基本时钟速率只在开始时达到。在测试的其余部分,该SoC的时钟频率仅略高于1.15 GHz。

在Cinebench R15循环中的CPU指标
在Cinebench R15循环中的CPU指标
0255075100125150175200225250275300325350375400Tooltip
Higole PC Stick-J4125 Intel Celeron J4125, Intel Celeron J4125: Ø148.3 (140.86-153.19)
Zotac ZBOX PI336 pico Intel Celeron N6211, Intel Celeron N6211: Ø127.4 (121.19-129.05)
AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)
Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)
Minipc Union Ace Magician T8Pro Intel Celeron N5095, Intel Celeron N5095: Ø362 (359.44-363.62)
Minipc Union NiPoGi GK3PLUS - N95 Intel Processor N95, Intel Processor N95: Ø404 (398.46-406.91)

系统性能

安装的SoC的年龄在系统基准测试中变得非常明显。此外,被动冷却系统意味着Intel Celeron J4125并不能发挥出最佳性能。因此,在日常使用中,你不应该对Higole PC Stick要求太多--我们不建议进行多任务处理。尽管如此,该设备的8GB内存是很好的选择。

PCMark 10 / Score
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
2983 Points +104%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2548 Points +74%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
2417 Points +65%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
1806 Points +24%
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
1461 Points
PCMark 10 / Essentials
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
6650 Points +66%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
5866 Points +47%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
5446 Points +36%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
4693 Points +17%
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
3998 Points
PCMark 10 / Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
4524 Points +68%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
3854 Points +43%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
3666 Points +36%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
2928 Points +9%
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
2697 Points
Performance Rating: Percent
CrossMark: Overall | Responsiveness | Creativity | Productivity
Performance Rating
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
100 pt
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
74.5 pt
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
51.1 pt
CrossMark / Overall
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
666 Points +96%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
495 Points +46%
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
340 Points
CrossMark / Responsiveness
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
661 Points +98%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
497 Points +49%
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
333 Points
CrossMark / Creativity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
616 Points +118%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
438 Points +55%
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
282 Points
CrossMark / Productivity
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
721 Points +75%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
558 Points +35%
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
412 Points
AIDA64 / Memory Copy
Average of class Mini PC
  (6481 - 89287, n=119, last 2 years)
47585 MB/s +267%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
22138 MB/s +71%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
15737 MB/s +21%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
13833 MB/s +7%
Average Intel Celeron J4125
  (12604 - 13833, n=4)
13034 MB/s +1%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
12960 MB/s
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6481 MB/s -50%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6308 MB/s -51%
AIDA64 / Memory Read
Average of class Mini PC
  (6914 - 99171, n=119, last 2 years)
48328 MB/s +372%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
15464 MB/s +51%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
10311 MB/s +1%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
10248 MB/s
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10204 MB/s 0%
Average Intel Celeron J4125
  (9928 - 10248, n=4)
10119 MB/s -1%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6914 MB/s -33%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6576 MB/s -36%
AIDA64 / Memory Write
Average of class Mini PC
  (6862 - 98583, n=119, last 2 years)
52056 MB/s +390%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
30843 MB/s +190%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
17031 MB/s +60%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
10627 MB/s
Average Intel Celeron J4125
  (10347 - 10627, n=4)
10451 MB/s -2%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
10449 MB/s -2%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
6866 MB/s -35%
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
6862 MB/s -35%
AIDA64 / Memory Latency
Minipc Union NiPoGi GK3PLUS - N95
Intel Processor N95, UHD Graphics 24EUs (Alder Lake-N)
146 ns * -57%
Newsmay AC8 N6005
Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)
144 ns * -55%
Higole PC Stick-J4125
Intel Celeron J4125, UHD Graphics 600
93.2 ns *
Average of class Mini PC
  (44.9 - 184.8, n=119, last 2 years)
91.9 ns * +1%
AC6-M Mini-PC
Intel Celeron J4125, UHD Graphics 600
89.5 ns * +4%
Average Intel Celeron J4125
  (73.2 - 93.2, n=4)
85.6 ns * +8%
Zotac ZBOX PI336 pico
Intel Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
76.3 ns * +18%
Minipc Union Ace Magician T8Pro
Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
74.1 ns * +20%

* ... smaller is better

DPC延时

在使用Edge浏览器打开几个标签时,我们已经看到延迟增加。在播放4K YouTube测试视频时,这些延迟再次略有增加,我们注意到SoC在播放过程中达到了极限。

打开多个浏览器标签和播放4K视频时的最大延迟。
打开多个浏览器标签和播放4K视频时的最大延迟。
Prime95十秒后的最大延迟
Prime95十秒后的最大延迟
按最长的执行时间排列的驱动程序
按最长的执行时间排列的驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
Intel UHD Graphics (Jasper Lake 16 EU), FPT310M4SSD256G
4075 μs * -113%
AC6-M Mini-PC, Intel Celeron J4125
Intel UHD Graphics 600,
3767 μs * -97%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
Intel UHD Graphics 24EUs (Alder Lake-N), Kimtigo KTB900SM28/512GB
3463 μs * -81%
Newsmay AC8 N6005, Intel Pentium Silver N6005
Intel UHD Graphics (Jasper Lake 32 EU), Lexar 128GB SSD
2635 μs * -38%
Higole PC Stick-J4125, Intel Celeron J4125
Intel UHD Graphics 600,
1914.1 μs *
Zotac ZBOX PI336 pico, Intel Celeron N6211
Intel UHD Graphics (Elkhart Lake 16 EU), SanDisk DF4128
1476.3 μs * +23%

* ... smaller is better

存储设备

我们的审查样本配备了一个未知的存储设备。我们假设安装的128GB是一个EMMC存储。在测试中,这为日常使用提供了足够的性能。然而,Higole PC Stick显然无法像其竞争对手那样表现出色。只有ZotacZBOX PI336,表现稍差。

关于进一步的比较和基准,请看我们的比较表

AS SSD
AS SSD
CDM 3
CDM 3
CDM 5
CDM 5
CDM 6
CDM 6
Sequential Read: 280.5 MB/s
Sequential Write: 231.1 MB/s
512K Read: 242.1 MB/s
512K Write: 185.6 MB/s
4K Read: 29.74 MB/s
4K Write: 21.86 MB/s
4K QD32 Read: 25.11 MB/s
4K QD32 Write: 25.63 MB/s
Drive Performance Rating - Percent
AC6-M Mini-PC

86.9 pt
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
83.6 pt
Newsmay AC8 N6005
Lexar 128GB SSD
79.9 pt
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
78.1 pt
Higole PC Stick-J4125

32.7 pt
Zotac ZBOX PI336 pico
SanDisk DF4128
21.8 pt
DiskSpd
seq read
Newsmay AC8 N6005
Lexar 128GB SSD
511 (502.22min - 510.84max) MB/s +84%
AC6-M Mini-PC

477 (454.59min - 477.1max) MB/s +72%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
472 (470.6min - 472.28max) MB/s +70%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
459 (458.57min - 459.41max) MB/s +66%
Higole PC Stick-J4125

277 (276.06min - 276.9max) MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
250 (248.23min - 249.69max) MB/s -10%
seq write
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
494 (488.92min - 494.36max) MB/s +116%
Newsmay AC8 N6005
Lexar 128GB SSD
491 (445.91min - 491.36max) MB/s +114%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
463 (451.31min - 462.72max) MB/s +102%
AC6-M Mini-PC

428 (412.52min - 427.8max) MB/s +87%
Higole PC Stick-J4125

229 (217.49min - 228.8max) MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
105.7 (97.74min - 105.7max) MB/s -54%
seq q8 t1 read
AC6-M Mini-PC

563 (509.43min - 563.43max) MB/s +105%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
550 (465.68min - 549.87max) MB/s +101%
Newsmay AC8 N6005
Lexar 128GB SSD
548 (494.87min - 547.82max) MB/s +100%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
504 (458.23min - 504.4max) MB/s +84%
Higole PC Stick-J4125

274 (256.79min - 274.02max) MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
254 (201.55min - 254.3max) MB/s -7%
seq q8 t1 write
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
519 (472.8min - 519.47max) MB/s +117%
Newsmay AC8 N6005
Lexar 128GB SSD
515 (500.64min - 515.04max) MB/s +115%
AC6-M Mini-PC

497 (494.3min - 497.29max) MB/s +108%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
466 (442.13min - 465.87max) MB/s +95%
Higole PC Stick-J4125

239 (230.06min - 238.6max) MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
100.9 (42.78min - 100.87max) MB/s -58%
4k q1 t1 read
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
33.9 (33.27min - 33.91max) MB/s +35%
Newsmay AC8 N6005
Lexar 128GB SSD
26.4 (25.68min - 26.38max) MB/s +5%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
25.9 (25.82min - 25.85max) MB/s +3%
Higole PC Stick-J4125

25.1 (24.64min - 25.07max) MB/s
AC6-M Mini-PC

13.9 (11.27min - 13.88max) MB/s -45%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.7 (13.61min - 13.69max) MB/s -45%
4k q1 t1 write
Newsmay AC8 N6005
Lexar 128GB SSD
99.8 (98.72min - 99.78max) MB/s +228%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
96 (93.72min - 96.04max) MB/s +216%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
74.1 (72.55min - 74.09max) MB/s +144%
AC6-M Mini-PC

62 (61.58min - 62.02max) MB/s +104%
Higole PC Stick-J4125

30.4 (29.62min - 30.36max) MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.8 (12.91min - 13.8max) MB/s -55%
4k q32 t16 read
AC6-M Mini-PC

302 (300.2min - 301.59max) MB/s +1057%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
266 (264.89min - 265.82max) MB/s +919%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
260 (259.46min - 259.7max) MB/s +896%
Newsmay AC8 N6005
Lexar 128GB SSD
185 (183.89min - 185.03max) MB/s +609%
Higole PC Stick-J4125

26.1 (25.1min - 26.06max) MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
26 (24.84min - 25.96max) MB/s 0%
4k q32 t16 write
AC6-M Mini-PC

351 (323.82min - 350.53max) MB/s +977%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
319 (315.72min - 318.72max) MB/s +879%
Newsmay AC8 N6005
Lexar 128GB SSD
288 (244.64min - 287.66max) MB/s +783%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
259 (224.2min - 258.97max) MB/s +694%
Higole PC Stick-J4125

32.6 (32.34min - 32.62max) MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.1 (12.24min - 13.12max) MB/s -60%
AS SSD
Score Total
AC6-M Mini-PC

1091 Points +417%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
736 Points +249%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
698 Points +231%
Newsmay AC8 N6005
Lexar 128GB SSD
604 Points +186%
Higole PC Stick-J4125

211 Points
Zotac ZBOX PI336 pico
SanDisk DF4128
136 Points -36%
Score Read
AC6-M Mini-PC

473 Points +522%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
320 Points +321%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
232 Points +205%
Newsmay AC8 N6005
Lexar 128GB SSD
134 Points +76%
Higole PC Stick-J4125

76 Points
Zotac ZBOX PI336 pico
SanDisk DF4128
65 Points -14%
Score Write
Newsmay AC8 N6005
Lexar 128GB SSD
396 Points +350%
AC6-M Mini-PC

374 Points +325%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
373 Points +324%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
208 Points +136%
Higole PC Stick-J4125

88 Points
Zotac ZBOX PI336 pico
SanDisk DF4128
39 Points -56%
Seq Read
Newsmay AC8 N6005
Lexar 128GB SSD
512 MB/s +76%
AC6-M Mini-PC

492 MB/s +69%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
489 MB/s +68%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
470 MB/s +62%
Higole PC Stick-J4125

291 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
264.86 MB/s -9%
Seq Write
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
484 MB/s +100%
AC6-M Mini-PC

450 MB/s +86%
Newsmay AC8 N6005
Lexar 128GB SSD
411.6 MB/s +70%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
344 MB/s +42%
Higole PC Stick-J4125

242 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
117 MB/s -52%
4K Read
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
35.45 MB/s +50%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
27.5 MB/s +17%
Higole PC Stick-J4125

23.6 MB/s
Newsmay AC8 N6005
Lexar 128GB SSD
23.29 MB/s -1%
AC6-M Mini-PC

19.43 MB/s -18%
Zotac ZBOX PI336 pico
SanDisk DF4128
13.21 MB/s -44%
4K Write
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
85.6 MB/s +177%
Newsmay AC8 N6005
Lexar 128GB SSD
83 MB/s +169%
AC6-M Mini-PC

51.4 MB/s +66%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
38 MB/s +23%
Higole PC Stick-J4125

30.9 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.46 MB/s -56%
4K-64 Read
AC6-M Mini-PC

404.1 MB/s +1627%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
235.66 MB/s +907%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
157.7 MB/s +574%
Newsmay AC8 N6005
Lexar 128GB SSD
59.4 MB/s +154%
Zotac ZBOX PI336 pico
SanDisk DF4128
25.74 MB/s +10%
Higole PC Stick-J4125

23.4 MB/s
4K-64 Write
AC6-M Mini-PC

277.8 MB/s +747%
Newsmay AC8 N6005
Lexar 128GB SSD
272.3 MB/s +730%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
239 MB/s +629%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
135.39 MB/s +313%
Higole PC Stick-J4125

32.8 MB/s
Zotac ZBOX PI336 pico
SanDisk DF4128
13.71 MB/s -58%
Access Time Read
Higole PC Stick-J4125

0.489 ms *
Zotac ZBOX PI336 pico
SanDisk DF4128
0.311 ms * +36%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.148 ms * +70%
Newsmay AC8 N6005
Lexar 128GB SSD
0.139 ms * +72%
AC6-M Mini-PC

0.088 ms * +82%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
0.076 ms * +84%
Access Time Write
Zotac ZBOX PI336 pico
SanDisk DF4128
0.942 ms * -23%
Higole PC Stick-J4125

0.765 ms *
Newsmay AC8 N6005
Lexar 128GB SSD
0.145 ms * +81%
Minipc Union Ace Magician T8Pro
FPT310M4SSD256G
0.132 ms * +83%
Minipc Union NiPoGi GK3PLUS - N95
Kimtigo KTB900SM28/512GB
0.127 ms * +83%
AC6-M Mini-PC

0.071 ms * +91%

* ... smaller is better

Reading continuous performance: DiskSpd Read Loop, Queue Depth 8

0125250375500625750875100011251250137515001625175018752000212522502375Tooltip
Higole PC Stick-J4125  : Ø263 (254.59-267.39)
Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G: Ø1878 (827.51-2439.04)
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

图形卡

Higole PC Stick中的集成图形单元是一个 英特尔UHD Graphics 600,它实际上只适合于简单的图像输出。iGPU不适合3D应用。你只能期望从iGPU获得最简单的休闲游戏。

更多关于英特尔UHD Graphics 600的基准测试可以在下面找到 这里.

3DMark 11 - 1280x720 Performance GPU
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
1589 Points +177%
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
 MHz, Intel UHD Graphics 24EUs (Alder Lake-N)
1467 Points +156%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
2000 MHz, Intel UHD Graphics (Jasper Lake 16 EU)
859 Points +50%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
650 Points +13%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
602 Points +5%
Higole PC Stick-J4125, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
574 Points
Average Intel UHD Graphics 600
  (410 - 854, n=27)
558 Points -3%
3DMark
1280x720 Ice Storm Standard Graphics
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
 MHz, Intel UHD Graphics 24EUs (Alder Lake-N)
41340 Points +165%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
2000 MHz, Intel UHD Graphics (Jasper Lake 16 EU)
38682 Points +148%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
25631 Points +64%
Average Intel UHD Graphics 600
  (14412 - 35101, n=10)
23582 Points +51%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
22836 Points +46%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
21465 Points +38%
Higole PC Stick-J4125, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
15594 Points
1920x1080 Ice Storm Extreme Graphics
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
 MHz, Intel UHD Graphics 24EUs (Alder Lake-N)
26628 Points +222%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
2000 MHz, Intel UHD Graphics (Jasper Lake 16 EU)
22189 Points +168%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
20602 Points +149%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
14650 Points +77%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
14360 Points +73%
Average Intel UHD Graphics 600
  (8277 - 19919, n=12)
13725 Points +66%
Higole PC Stick-J4125, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
8277 Points
1920x1080 Fire Strike Graphics
Minipc Union NiPoGi GK3PLUS - N95, Intel Processor N95
 MHz, Intel UHD Graphics 24EUs (Alder Lake-N)
1080 Points +252%
Newsmay AC8 N6005, Intel Pentium Silver N6005
2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)
881 Points +187%
Minipc Union Ace Magician T8Pro, Intel Celeron N5095
2000 MHz, Intel UHD Graphics (Jasper Lake 16 EU)
662 Points +116%
Zotac ZBOX PI336 pico, Intel Celeron N6211
1200 MHz, Intel UHD Graphics (Elkhart Lake 16 EU)
523 Points +70%
AC6-M Mini-PC, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
446 Points +45%
Average Intel UHD Graphics 600
  (307 - 637, n=21)
421 Points +37%
Higole PC Stick-J4125, Intel Celeron J4125
2000 MHz, Intel UHD Graphics 600
307 Points
3DMark 05 Standard
6084 points
3DMark 06 Standard Score
3052 points
3DMark Vantage P Result
1856 points
3DMark 11 Performance
632 points
3DMark Ice Storm Standard Score
13913 points
3DMark Cloud Gate Standard Score
1932 points
3DMark Fire Strike Score
277 points
Help
lowmed.highultra
Dota 2 Reborn (2015) 37.5 9.7 5.5 5.2
X-Plane 11.11 (2018) 6.74 3.44 3.37

排放--无声而温暖

噪声排放

Higole PC Stick配备了一个被动冷却装置,利用机箱的表面来冷却SoC。因此,该设备在任何时候都能安静地运行。

温度

Higole PC Stick的外壳由于其被动冷却方法而明显发热,该方法通过其外壳上的凹槽进行散热。然而,在压力测试期间,仔细观察SoC的温度传感器,发现这种冷却方式在控制SoC方面只起到部分作用。最高温度为104℃,该设备达到了非常高的温度,不得不进行节流以避免热损伤。然而,这种高温只在开始时达到。平均而言,我们注意到86℃的温度要舒服得多。然而,该SoC也只工作在1.4GHz。

压力测试 Prime95独奏
压力测试 Prime95独奏
压力测试FurMark solo
压力测试FurMark solo
压力测试 Prime95 + FurMark
压力测试 Prime95 + FurMark
压力测试中的Higole PC棒(前)。
压力测试中的Higole PC棒(前)。
压力测试中的Higole PC棒(背面)。
压力测试中的Higole PC棒(背面)。

消耗功率

36瓦的电源连接器
36瓦的电源连接器

反过来,该设备最小的冷却性能导致了更低的功耗,因为迷你PC无法以全性能工作。即使在空载时,该设备的功耗也只有1.9-3.2瓦。这使得Higole PC Stick比其竞争对手要经济得多。负载时,其功耗稍高,但峰值只有18.1瓦。平均而言,这台小型PC只用了大约11.3瓦。它的小型电源连接器,能够提供高达36瓦的功率,在任何时候都没有挣扎。

Power Consumption
Off / Standbydarklight 0.6 / 0.5 Watt
Idledarkmidlight 1.9 / 1.9 / 3.2 Watt
Load midlight 11.3 / 18.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Higole PC Stick-J4125
Celeron J4125, UHD Graphics 600
Zotac ZBOX PI336 pico
Celeron N6211, UHD Graphics (Elkhart Lake 16 EU)
Minipc Union Ace Magician T8Pro
Celeron N5095, UHD Graphics (Jasper Lake 16 EU)
Minipc Union NiPoGi GK3PLUS - N95
N95, UHD Graphics 24EUs (Alder Lake-N)
Average Intel UHD Graphics 600

Average of class Mini PC

Power Consumption
-86%
-204%
-151%
-83%
-422%
Idle Minimum *
1.9
5.4
-184%
8.4
-342%
6.1
-221%
3.47 ?(1.9 - 7.1, n=27)
-83%
Idle Average *
1.9
5.5
-189%
8.4
-342%
6.9
-263%
5.61 ?(1.9 - 9.6, n=27)
-195%
Idle Maximum *
3.2
6.2
-94%
11.1
-247%
8.9
-178%
6.6 ?(2.9 - 10.4, n=27)
-106%
Load Average *
11.3
11.3
-0%
16.5
-46%
20
-77%
13.6 ?(7.8 - 19.1, n=27)
-20%
Load Maximum *
18.1
11.8
35%
26.3
-45%
21.1
-17%
20.2 ?(9.5 - 27.8, n=27)
-12%

* ... smaller is better

Power consumption with external monitor

01234567891011121314151617Tooltip
Higole PC Stick-J4125; Prime95 V2810 Stress (external Monitor): Ø7.87 (6.3-15.1)
Higole PC Stick-J4125; Cinebench R15 Multi (external Monitor): Ø11.4 (10.9-12.8)
Higole PC Stick-J4125; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø8.15 (5.49-17.9)
Higole PC Stick-J4125; Idle 1min (external Monitor): Ø3.21 (2.77-7.5)

Pros

+ 非常紧凑
+ 具有所有必要的连接
+ 价格低廉
+ 支持双显示器
+ microSD.读卡器(最大512GB)。
+ 无风扇/无声

Cons

- 冷却能力低
- 过时的SoC
- 英特尔赛扬J4125表现不佳

结论 - 一台非常紧凑的个人电脑,适合简单的日常工作

Higole PC棒回顾--测试设备由Higole提供
Higole PC棒回顾--测试设备由Higole提供

Higole PC Stick是一款非常紧凑的PC,配备了使用英特尔赛扬J4125的四核SoC--非常适合于简单的应用。有了8GB的内存,我们能够看看这个紧凑的计算能力者的最佳配置。即使该SoC没有大的性能储备,我们也欢迎安装8GB内存的步骤。ZotacZBOX PI336I只有4GB的内存,这在日常使用中可能会变得很明显。其紧凑性的优势是显而易见的--尽管其他迷你PC也能提供足够的性能,并且还可以通过VESA支架连接到屏幕上。因此,那些想购买PC棒的人很可能是想把它用于特定的目的。Higole PC棒的功耗也非常低。然而,我们认为它并不适合用于流媒体,因为它的DPC延迟实在太高。这款迷你PC在播放4K内容时也达到了极限,这意味着你将不得不满足于全高清或高清视频。

另一方面,它的连接性很好,但由于其紧凑的尺寸,它的连接性仍然比其竞争对手要有限得多。它的无线连接率也没有创造任何新的记录,但相比之下,Higole PC棒的表现仍然不错。不幸的是,它的固态硬盘被证明是一个有点让人失望的东西,你将不得不接受,因为128GB并不多,而且也不能扩展。有鉴于此,我们会推荐在我们的测试配置中看到的Higole PC Stick。我们对其具有4GB内存和64GB存储空间的替代配置有点批评--特别是如果使用Windows作为操作系统的话。

Higole PC Stick是一款非常紧凑的迷你电脑。缺点包括其薄弱的冷却系统,这导致SoC的性能有些低下。

我们还没有测试过具有相同结构的直接竞争对手。另一个选择是Morefine M1K。它提供了类似的功能,价格与Higole PC Stick相似。Newsmay AC6-M,由于其极其紧凑的设计,也是基于相同SoC的一个很好的选择。

价格和可用性

目前,你只能通过Indiegogo购买Higole PC棒。.我们测试的版本可以用149美元买到。

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Higole PC Stick-J4125 - 04/19/2023 v7 (old)
Sebastian Bade

Chassis
77 / 98 → 78%
Connectivity
42 / 81 → 52%
Weight
96%
Games Performance
15%
Application Performance
57%
Noise
100%
Average
65%
57%
Mini PC - Weighted Average
Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > Higole PC棒回顾:世界上最小的PC棒有一个英特尔赛扬J4125,8GB内存和128GB固态硬盘
Sebastian Bade, 2023-04-21 (Update: 2023-04-21)
