Magyar联想 IdeaPad 500S-13ISK 亚笔记本电脑简短评测
Lenovo IdeaPad 500S-13ISK (Ideapad 500S Series)
Processor
Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake
Graphics adapter
Intel HD Graphics 520, 10.18.15.4279
Memory
8 GB
, DDR3-1600 单通道
Display
13.30 inch 16:9, 1920 x 1080 pixel, LGD048C (LP133WF2-SPL1), IPS, glossy: no
Mainboard
Intel Skylake-U Premium PCH
Storage
Seagate ST500LM000 Solid State Hybrid Drive, 500 GB
, 5400 rpm, 412 GB free
Weight
1.52 kg, Power Supply: 290 g
Price
799 EUR
Links
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
| |||||||||||||||||||||||||
LGD048C (LP133WF2-SPL1) tested with X-Rite i1Pro 2
Maximum: 228 cd/m² (Nits) Average: 211.6 cd/m² Minimum: 1 cd/m²Brightness Distribution: 82 %
Center on Battery: 219 cd/m²
Contrast: 626:1 (Black: 0.35 cd/m²)
ΔE Color 4.95 | 0.5-29.43 Ø4.93
ΔE Greyscale 3.45 | 0.5-98 Ø5.2
58% sRGB (Argyll 1.6.3 3D)
37% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.21% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.5% sRGB (Argyll 2.2.0 3D)
38.91% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.34
| Lenovo IdeaPad 500S-13ISK 1920x1080 px 13.3'' (IPS matt) | Acer Aspire V3-372-50LK 1920x1080 px 13.3'' (IPS matt) | Asus Zenbook UX303UA-FN121T 1366x768 px 13.3'' (TN matt) | HP ProBook 430 G3 P5T00ES 1366x768 px 13.3'' (TN matt) | Lenovo U31-70 80M5003EGE 1920x1080 px 13.3'' (IPS matt) | Acer Aspire E5-473G-59QT 1920x1080 px 14.0'' (TN matt) | |
|---|---|---|---|---|---|---|
| Display | -4% | 6% | -12% | -5% | -7% | |
| Display P3 Coverage | 40.74 38.91 | 39.05 -4% | 43.08 6% | 35.87 -12% | 38.85 -5% | 37.82 -7% |
| sRGB Coverage | 60.6 58.5 | 58.7 -3% | 64.8 7% | 54 -11% | 58.3 -4% | 56.9 -6% |
| AdobeRGB 1998 Coverage | 42.15 40.21 | 40.35 -4% | 44.52 6% | 37.06 -12% | 40.17 -5% | 39.07 -7% |
| Response Times | -5% | 41% | -34% | -27% | ||
| Response Time Grey 50% / Grey 80% * | 46 ? | 46 ? -0% | 23 ? 50% | 54.4 ? -18% | 54 ? -17% | |
| Response Time Black / White * | 22 ? | 24 ? -9% | 15 ? 32% | 32.8 ? -49% | 30 ? -36% | |
| PWM Frequency | 192 ? | 192 ? | ||||
| Screen | 3% | 5% | -66% | 10% | -46% | |
| Brightness middle | 219 | 250 14% | 203 -7% | 212 -3% | 293 34% | 238 9% |
| Brightness | 212 | 247 17% | 193 -9% | 205 -3% | 289 36% | 228 8% |
| Brightness Distribution | 82 | 87 6% | 84 2% | 90 10% | 93 13% | 90 10% |
| Black Level * | 0.35 | 0.43 -23% | 0.49 -40% | 0.71 -103% | 0.36 -3% | 0.54 -54% |
| Contrast | 626 | 581 -7% | 414 -34% | 299 -52% | 814 30% | 441 -30% |
| Colorchecker dE 2000 * | 4.95 | 4.51 9% | 3.2 35% | 12.06 -144% | 4.94 -0% | 10.64 -115% |
| Colorchecker dE 2000 max. * | 11.17 | 4.13 63% | 9.98 11% | |||
| Greyscale dE 2000 * | 3.45 | 3.18 8% | 2.77 20% | 13.41 -289% | 4.11 -19% | 11.74 -240% |
| Gamma | 2.34 94% | 2.43 91% | 2.46 89% | 2.41 91% | 2.48 89% | 2.42 91% |
| CCT | 6815 95% | 6743 96% | 7176 91% | 15382 42% | 7508 87% | 13043 50% |
| Color Space (Percent of AdobeRGB 1998) | 37 | 37 0% | 41 11% | 34.3 -7% | 37 0% | 36 -3% |
| Color Space (Percent of sRGB) | 58 | 58 0% | 65 12% | 54.2 -7% | 58 0% | 57 -2% |
| Total Average (Program / Settings) | -2% /
0% | 17% /
10% | -37% /
-50% | -7% /
2% | -27% /
-36% |
* ... smaller is better

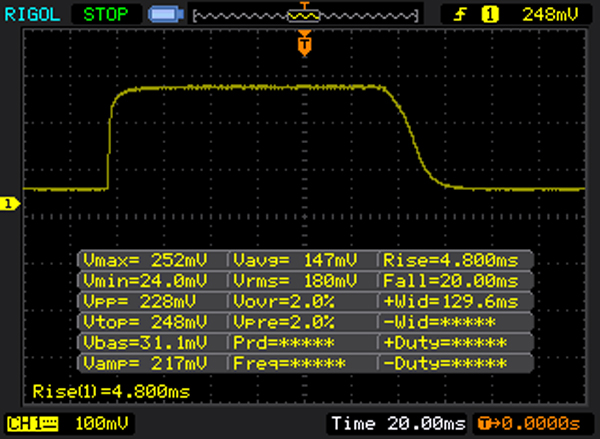

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 22 ms ... rise ↗ and fall ↘ combined | ↗ 4 ms rise |  |
| ↘ 18 ms fall | ||
| The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 44 % of all devices are better. This means that the measured response time is similar to the average of all tested devices (21 ms). | ||

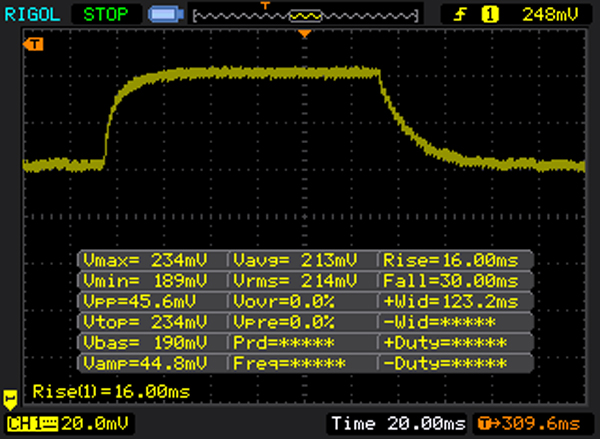

| ↔ Response Time 50% Grey to 80% Grey | ||
| 46 ms ... rise ↗ and fall ↘ combined | ↗ 16 ms rise |  |
| ↘ 30 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 76 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). | ||
Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured. | ||
| Sunspider - 1.0 Total Score (sort by value) | |
| Lenovo IdeaPad 500S-13ISK | |
| Acer Aspire V3-372-50LK | |
| Asus Zenbook UX303UA-FN121T | |
| HP ProBook 430 G3 P5T00ES | |
| Lenovo U31-70 80M5003EGE | |
| Acer Aspire E5-473G-59QT | |
| Mozilla Kraken 1.1 - Total (sort by value) | |
| Lenovo IdeaPad 500S-13ISK | |
| Acer Aspire V3-372-50LK | |
| Asus Zenbook UX303UA-FN121T | |
| HP ProBook 430 G3 P5T00ES | |
| Lenovo U31-70 80M5003EGE | |
| Acer Aspire E5-473G-59QT | |
| Octane V2 - Total Score (sort by value) | |
| Lenovo IdeaPad 500S-13ISK | |
| Acer Aspire V3-372-50LK | |
| Asus Zenbook UX303UA-FN121T | |
| HP ProBook 430 G3 P5T00ES | |
| Lenovo U31-70 80M5003EGE | |
| Acer Aspire E5-473G-59QT | |
* ... smaller is better
| PCMark 7 Score | 3767 points | |
| PCMark 8 Home Score Accelerated v2 | 2802 points | |
| PCMark 8 Creative Score Accelerated v2 | 3556 points | |
| PCMark 8 Work Score Accelerated v2 | 4047 points | |
Help | ||
| PCMark 7 - Score (sort by value) | |
| Lenovo IdeaPad 500S-13ISK | |
| Acer Aspire V3-372-50LK | |
| HP ProBook 430 G3 P5T00ES | |
| Lenovo U31-70 80M5003EGE | |
| Acer Aspire E5-473G-59QT | |
Seagate ST500LM000 Solid State Hybrid Drive
Transfer Rate Minimum:
53.6 MB/s
Transfer Rate Maximum:
110.4 MB/s
Transfer Rate Average:
89.1 MB/s
Access Time:
17.5 ms
Burst Rate:
140.4 MB/s
CPU Usage:
3.5 %
| Lenovo IdeaPad 500S-13ISK Seagate ST500LM000 Solid State Hybrid Drive | Acer Aspire V3-372-50LK Toshiba HG6 THNSNJ256G8NU | Asus Zenbook UX303UA-FN121T Hitachi Travelstar Z5K500 HTS545050A7E680 | HP ProBook 430 G3 P5T00ES Hitachi Travelstar Z7K500 HTS725050A7E63 | Lenovo U31-70 80M5003EGE Western Digital WD10S21X SSHD 1TB 8GB SSD-Cache | Acer Aspire E5-473G-59QT Seagate ST500LM000 Solid State Hybrid Drive | |
|---|---|---|---|---|---|---|
| CrystalDiskMark 3.0 | 8003% | -22% | 3% | -14% | -21% | |
| Write 4k QD32 | 0.673 | 212.9 31534% | 0.871 29% | 1.288 91% | 1.19 77% | 0.738 10% |
| Read 4k QD32 | 1.026 | 248 24072% | 0.792 -23% | 1.151 12% | 1.018 -1% | 0.377 -63% |
| Write 4k | 3.439 | 71.1 1967% | 0.862 -75% | 1.246 -64% | 1.165 -66% | 0.762 -78% |
| Read 4k | 0.48 | 21.1 4296% | 0.379 -21% | 0.57 19% | 0.399 -17% | 0.369 -23% |
| Write 512 | 61.2 | 388 534% | 35.06 -43% | 53.8 -12% | 46.16 -25% | 53.9 -12% |
| Read 512 | 37.68 | 392.3 941% | 31.27 -17% | 39.56 5% | 31.3 -17% | 34.87 -7% |
| Write Seq | 113 | 447.4 296% | 94.5 -16% | 93.5 -17% | 65.6 -42% | 110.1 -3% |
| Read Seq | 108.1 | 522 383% | 97.7 -10% | 94.8 -12% | 87.5 -19% | 113.7 5% |
| 3DMark 11 Performance | 1302 points | |
| 3DMark Ice Storm Standard Score | 42442 points | |
| 3DMark Cloud Gate Standard Score | 4976 points | |
| 3DMark Fire Strike Score | 630 points | |
Help | ||
| 3DMark 11 - 1280x720 Performance (sort by value) | |
| Lenovo IdeaPad 500S-13ISK | |
| Acer Aspire V3-372-50LK | |
| Asus Zenbook UX303UA-FN121T | |
| HP ProBook 430 G3 P5T00ES | |
| Lenovo U31-70 80M5003EGE | |
| Acer Aspire E5-473G-59QT | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| BioShock Infinite (2013) | 37 | 21.1 | 17.2 | 5.5 |
| Dirt Rally (2015) | 72.4 | 21 | 12.5 | |
| Rise of the Tomb Raider (2016) | 0 game wont start (Treiberfehler) | 8 game wont start (Treiberfehler) | 4 game wont start (Treiberfehler) |
Noise Level
| Idle |
| 32 / 32.2 / 32.3 dB(A) |
| HDD |
| 32.1 dB(A) |
| Load |
| 41.7 / 41.3 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Audix TM1 Arta (15 cm distance) environment noise: 31.3 dB(A) | ||
Noise Level
| Idle |
| 31.3 / 31.7 / 31.8 dB(A) |
| Load |
| 36.7 / 39.4 dB(A) |
|
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Audix TM1 Arta (15 cm distance) environment noise: 31.3 dB(A) | ||
(+) The average temperature for the upper side under maximal load is 28.7 °C / 84 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 35.9 °C / 97 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 39.1 °C / 102 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.2 °C / 79 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.2 °C / 82.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.1 °C / 0.1 F).
(+) The maximum temperature on the upper side is 35.9 °C / 97 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 39.1 °C / 102 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.2 °C / 79 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.2 °C / 82.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+0.1 °C / 0.1 F).
| Lenovo IdeaPad 500S-13ISK HD Graphics 520 - 6200U | Acer Aspire V3-372-50LK HD Graphics 520 - 6200U | Asus Zenbook UX303UA-FN121T HD Graphics 520 - 6200U | HP ProBook 430 G3 P5T00ES HD Graphics 520 - 6200U | Lenovo U31-70 80M5003EGE GeForce 920M - 5500U | Acer Aspire E5-473G-59QT GeForce 940M - 5200U | |
|---|---|---|---|---|---|---|
| Heat | -22% | 2% | -14% | -10% | -22% | |
| Maximum Upper Side * | 35.9 | 49.3 -37% | 39.7 -11% | 42.1 -17% | 40.8 -14% | 44.4 -24% |
| Maximum Bottom * | 39.1 | 53.3 -36% | 34.8 11% | 44.1 -13% | 43.8 -12% | 46.7 -19% |
| Idle Upper Side * | 27.8 | 28.2 -1% | 27.4 1% | 31.1 -12% | 29.8 -7% | 36 -29% |
| Idle Bottom * | 29.1 | 32.6 -12% | 27.7 5% | 32.9 -13% | 31.5 -8% | 33.4 -15% |
* ... smaller is better
Power Consumption
| Off / Standby | 0.25 / 0.45 Watt |
| Idle | 5.2 / 6.9 / 7.2 Watt |
| Load |
26.7 / 28.2 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
| Lenovo IdeaPad 500S-13ISK HD Graphics 520 - 6200U | Acer Aspire V3-372-50LK HD Graphics 520 - 6200U | Asus Zenbook UX303UA-FN121T HD Graphics 520 - 6200U | HP ProBook 430 G3 P5T00ES HD Graphics 520 - 6200U | Lenovo U31-70 80M5003EGE GeForce 920M - 5500U | Acer Aspire E5-473G-59QT GeForce 940M - 5200U | |
|---|---|---|---|---|---|---|
| Power Consumption | 0% | 4% | -4% | -20% | -36% | |
| Idle Minimum * | 5.2 | 3.8 27% | 4.2 19% | 4.7 10% | 3.9 25% | 4.6 12% |
| Idle Average * | 6.9 | 5.8 16% | 6.2 10% | 7.2 -4% | 6.8 1% | 6.3 9% |
| Idle Maximum * | 7.2 | 8.1 -13% | 6.4 11% | 8.3 -15% | 7 3% | 8.8 -22% |
| Load Average * | 26.7 | 30.2 -13% | 29 -9% | 26.4 1% | 40 -50% | 43.3 -62% |
| Load Maximum * | 28.2 | 32.4 -15% | 31 -10% | 32 -13% | 51 -81% | 61.5 -118% |
* ... smaller is better
| Lenovo IdeaPad 500S-13ISK 35 Wh Akku | Acer Aspire V3-372-50LK 51 Wh Akku | Asus Zenbook UX303UA-FN121T 50 Wh Akku | HP ProBook 430 G3 P5T00ES 44 Wh Akku | Lenovo U31-70 80M5003EGE 35 Wh Akku | Acer Aspire E5-473G-59QT 37 Wh Akku | |
|---|---|---|---|---|---|---|
| Battery Runtime | 43% | 45% | 13% | -14% | -8% | |
| Reader / Idle | 615 | 906 47% | 449 -27% | 525 -15% | 565 -8% | |
| H.264 | 311 | 337 8% | 273 -12% | 308 -1% | ||
| WiFi v1.3 | 301 | 349 16% | 436 45% | 377 25% | 253 -16% | 280 -7% |
| Load | 81 | 135 67% | 118 46% | 70 -14% | 70 -14% |
Pros
+ 机身的优秀稳定性

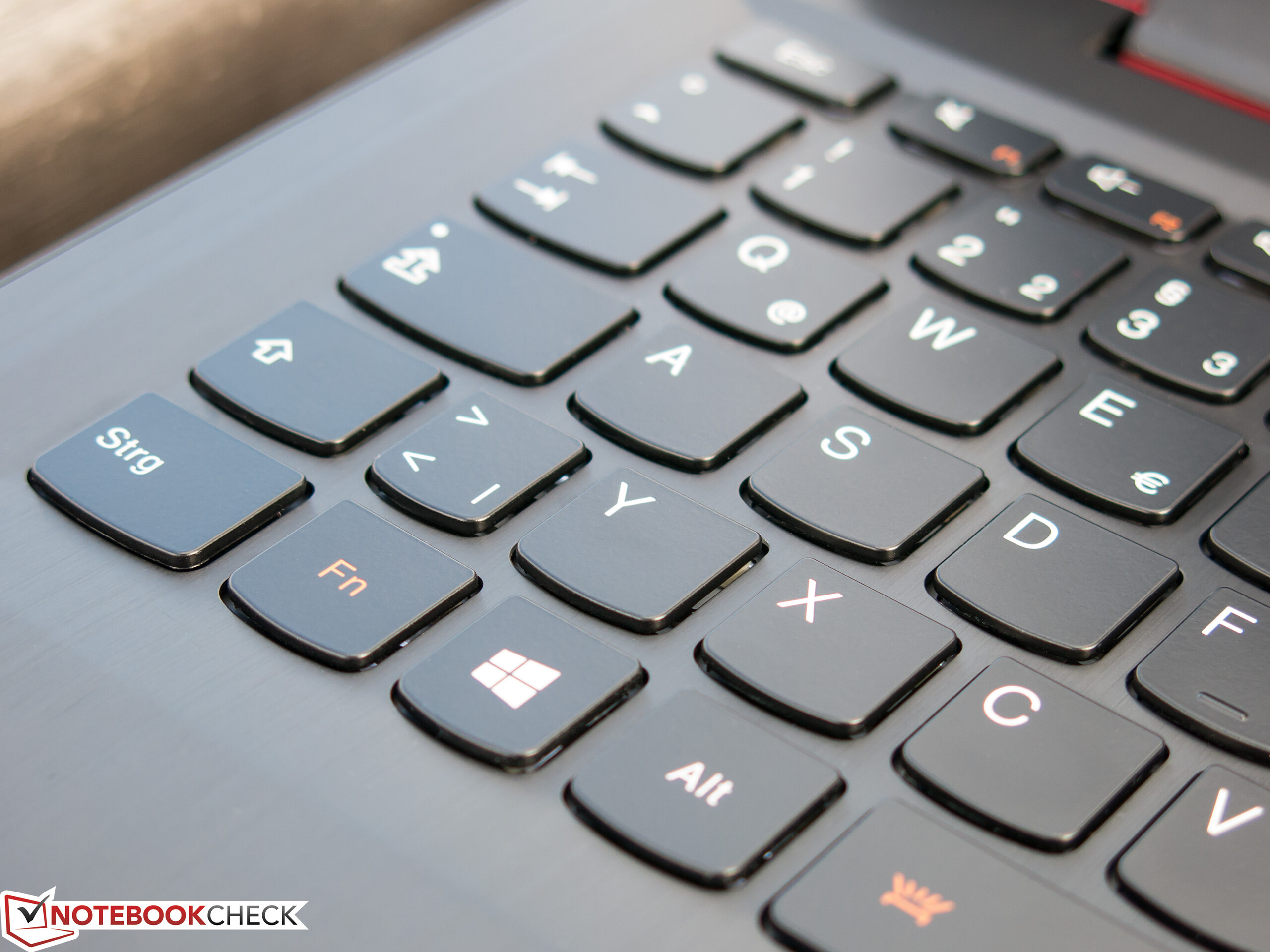

+ 不错的输入设备
+ 全高清IPS屏幕的可视角度范围
+ 无屏幕闪烁
+ 机身清凉
+ 在压力测试下无降频问题
+ 实用的扬声器
+ 无线ac标准
+ 魅力设计
Cons
- 屏幕最大亮度低
- 读卡器速度慢
- 无维护底盖
- 电池不容易拆卸
- 不适合游戏
- 在同类产品中电池续航一般
联想IdeaPad 500S-13ISK需要具备很多核心竞争力，例如实用的输入设备、坚固的机身、不错的屏幕和长续航时间，才能成为理想的移动伴侣。尽管它很好的做到了前两点，但后两点只能算是部分达到标准。它的IPS屏幕在分辨率高的同时也提供了宽广的可视角度范围，无背光闪烁而色彩还原优秀，但是它的较低亮度让人有些失望。不过，屏幕的磨砂表面让户外使用仍然可能。它的电池续航单独来看十分不错，但是一些竞争对手如华硕 ZenBook UX303UA提供了更长的续航时间。除此之外，扬声器不错的效果，表面较低的温度，在负载下也不会降频都是它的优势。尽管无独立显卡的笔记本电脑本来就不是为复杂3D游戏存在的，不过遗憾的是联想没有为它配备双通道内存来最大化显卡的性能。另外，它的系统性能十分优秀。
联想的IdeaPad 500S-13ISK是一款紧凑的亚笔记本电脑，不寻常的外观设计，出色的输入设备和宽视角IPS屏幕会吸引不少消费者。
可以接受较小硬盘空间的用户可以考虑搭配固态硬盘机型，它的售价低约100欧元（约729人民币），应该可以提供更好的整体性能。华硕的UX303系列ZenBook售价相近，是这台测试机的有力竞争对手。不过，用户需要接受相对较差的屏幕。
注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。
