Size Comparison
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Dell XPS 13 9360 FHD i5 | |
Lenovo IdeaPad 710S Plus-13IKB | |
maximum AS SSD Seq Read Test (1GB) | |
Dell XPS 13 9360 FHD i5 | |
Lenovo IdeaPad 710S Plus-13IKB |
Networking | |
iperf3 transmit AX12 | |
Lenovo IdeaPad 710S Plus-13IKB | |
Dell XPS 13 9360 FHD i5 | |
iperf3 receive AX12 | |
Lenovo IdeaPad 710S Plus-13IKB | |
Dell XPS 13 9360 FHD i5 |
|
Brightness Distribution: 81 %
Center on Battery: 343 cd/m²
Contrast: 1143:1 (Black: 0.3 cd/m²)
ΔE Color 4.73 | 0.5-29.43 Ø4.91
ΔE Greyscale 3.29 | 0.5-98 Ø5.2
83% sRGB (Argyll 1.6.3 3D)
54% AdobeRGB 1998 (Argyll 1.6.3 3D)
60.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
82.9% sRGB (Argyll 2.2.0 3D)
65.3% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.36
Lenovo IdeaPad 710S Plus-13IKB LG Philips LP133WF4-SPB1 (LGD04EF), , 1920x1080, 13.3" | Acer Swift 7 SF713-51 Chimei Innolux, N133HCE-GP1, , 1920x1080, 13.3" | HP EliteBook Folio G1 V1C37EA AUO226D, , 1920x1080, 12.5" | Dell XPS 13 9360 FHD i5 Sharp SHP1449 LQ133M1, , 1920x1080, 13.3" | |
---|---|---|---|---|
Display | 4% | -26% | -18% | |
Display P3 Coverage | 65.3 | 64.6 -1% | 44.45 -32% | 48.94 -25% |
sRGB Coverage | 82.9 | 89.1 7% | 65.2 -21% | 73.3 -12% |
AdobeRGB 1998 Coverage | 60.6 | 64.8 7% | 45.96 -24% | 50.5 -17% |
Response Times | 19% | 23% | 7% | |
Response Time Grey 50% / Grey 80% * | 45 ? | 31 ? 31% | 32 ? 29% | 32.8 ? 27% |
Response Time Black / White * | 29 ? | 27 ? 7% | 24 ? 17% | 33.2 ? -14% |
PWM Frequency | ||||
Screen | 3% | -9% | -7% | |
Brightness middle | 343 | 359 5% | 289 -16% | 351.2 2% |
Brightness | 306 | 344 12% | 298 -3% | 325 6% |
Brightness Distribution | 81 | 92 14% | 87 7% | 89 10% |
Black Level * | 0.3 | 0.25 17% | 0.27 10% | 0.195 35% |
Contrast | 1143 | 1436 26% | 1070 -6% | 1801 58% |
Colorchecker dE 2000 * | 4.73 | 4.57 3% | 4.82 -2% | 7.4 -56% |
Colorchecker dE 2000 max. * | 9.05 | 9.25 -2% | 10.73 -19% | 9.08 -0% |
Greyscale dE 2000 * | 3.29 | 5.2 -58% | 3.84 -17% | 6.71 -104% |
Gamma | 2.36 93% | 2.47 89% | 2.41 91% | 2.74 80% |
CCT | 6437 101% | 6887 94% | 6492 100% | 7222 90% |
Color Space (Percent of AdobeRGB 1998) | 54 | 58 7% | 42.03 -22% | 50.48 -7% |
Color Space (Percent of sRGB) | 83 | 89 7% | 64.8 -22% | 73.31 -12% |
Total Average (Program / Settings) | 9% /
5% | -4% /
-8% | -6% /
-7% |
* ... smaller is better
Display Response Times

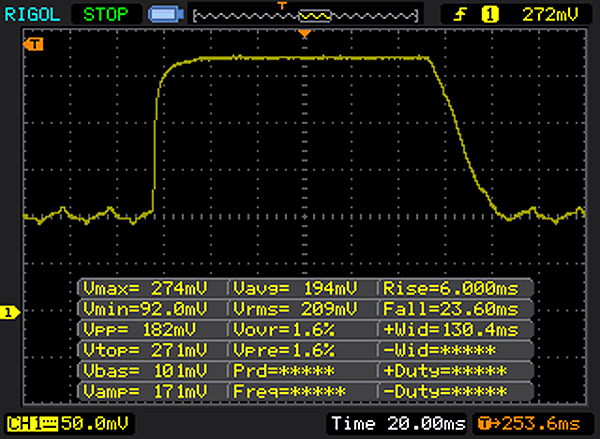

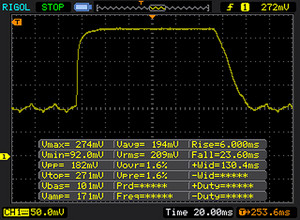

↔ Response Time Black to White | ||
---|---|---|
29 ms ... rise ↗ and fall ↘ combined | ↗ 6 ms rise | |
↘ 23 ms fall | ||
The screen shows relatively slow response rates in our tests and may be too slow for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 75 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||
↔ Response Time 50% Grey to 80% Grey | ||
45 ms ... rise ↗ and fall ↘ combined | ↗ 12 ms rise | |
↘ 33 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 74 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). |
Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM not detected | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. |
PCMark 8 | |
Home Score Accelerated v2 | |
Dell XPS 13 9360 FHD i5 | |
Lenovo IdeaPad 710S Plus-13IKB | |
Acer Swift 7 SF713-51 | |
HP EliteBook Folio G1 V1C37EA | |
Work Score Accelerated v2 | |
Dell XPS 13 9360 FHD i5 | |
Lenovo IdeaPad 710S Plus-13IKB | |
HP EliteBook Folio G1 V1C37EA |
PCMark 8 Home Score Accelerated v2 | 3147 points | |
PCMark 8 Work Score Accelerated v2 | 4184 points | |
Help |
Lenovo IdeaPad 710S Plus-13IKB Samsung PM961 NVMe MZVLW512HMJP | Acer Swift 7 SF713-51 Kingston RBU-SNS4180S3256GG | HP EliteBook Folio G1 V1C37EA Samsung SM951 MZVPV256 m.2 | Dell XPS 13 9360 FHD i5 Toshiba NVMe THNSN5256GPUK | |
---|---|---|---|---|
CrystalDiskMark 3.0 | -48% | -6% | -27% | |
Read Seq | 1577 | 431.2 -73% | 1482 -6% | 1233 -22% |
Write Seq | 1472 | 401 -73% | 1232 -16% | 733 -50% |
Read 512 | 1165 | 283.7 -76% | 1191 2% | 1036 -11% |
Write 512 | 1244 | 313.6 -75% | 1220 -2% | 439.9 -65% |
Read 4k | 54.8 | 36.62 -33% | 46.96 -14% | 29.31 -47% |
Write 4k | 121.5 | 76.1 -37% | 100.7 -17% | 116.9 -4% |
Read 4k QD32 | 407.5 | 329.4 -19% | 464 14% | 479.2 18% |
Write 4k QD32 | 321.4 | 325.6 1% | 292.1 -9% | 218.3 -32% |
3DMark 11 - 1280x720 Performance GPU | |
Lenovo IdeaPad 710S Plus-13IKB | |
Dell XPS 13 9360 FHD i5 | |
HP EliteBook Folio G1 V1C37EA | |
Acer Swift 7 SF713-51 |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Lenovo IdeaPad 710S Plus-13IKB | |
Dell XPS 13 9360 FHD i5 | |
HP EliteBook Folio G1 V1C37EA | |
Acer Swift 7 SF713-51 | |
1920x1080 Fire Strike Graphics | |
Lenovo IdeaPad 710S Plus-13IKB | |
Dell XPS 13 9360 FHD i5 | |
HP EliteBook Folio G1 V1C37EA | |
Acer Swift 7 SF713-51 |
3DMark 11 Performance | 2589 points | |
3DMark Cloud Gate Standard Score | 7123 points | |
3DMark Fire Strike Score | 1794 points | |
Help |
low | med. | high | ultra | |
---|---|---|---|---|
The Witcher 3 (2015) | 38.6 | 22.4 | ||
Far Cry Primal (2016) | 36 | 16 | ||
Farming Simulator 17 (2016) | 94.1 | 40 | 26.8 |
Noise Level
Idle |
| 30.6 / 30.6 / 30.6 dB(A) |
Load |
| 36.2 / 37.2 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Audix TM1, Arta (15 cm distance) environment noise: 30.6 dB(A) |

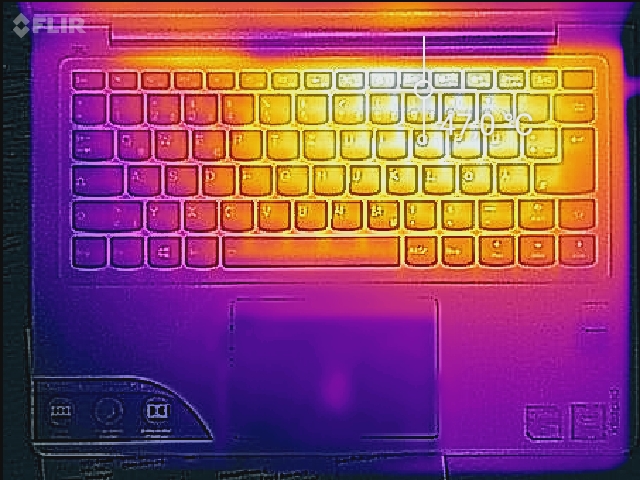

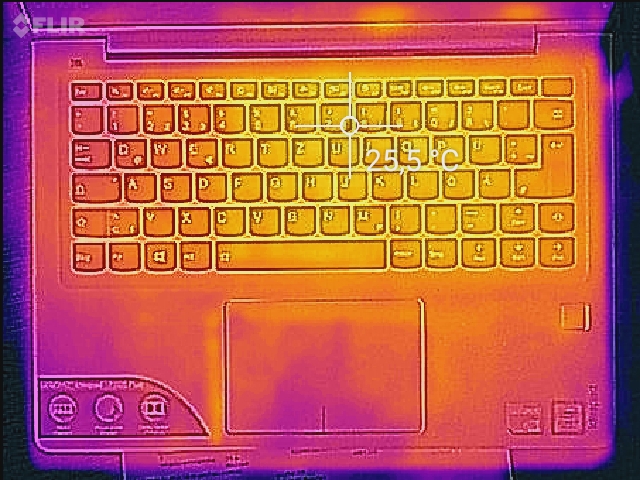

(±) The maximum temperature on the upper side is 43.2 °C / 110 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.

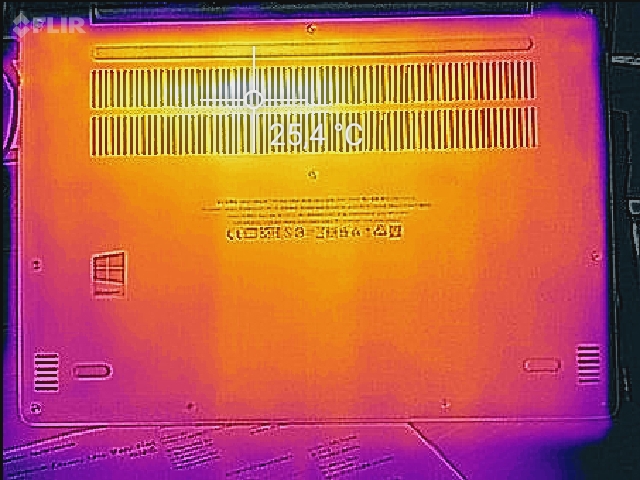

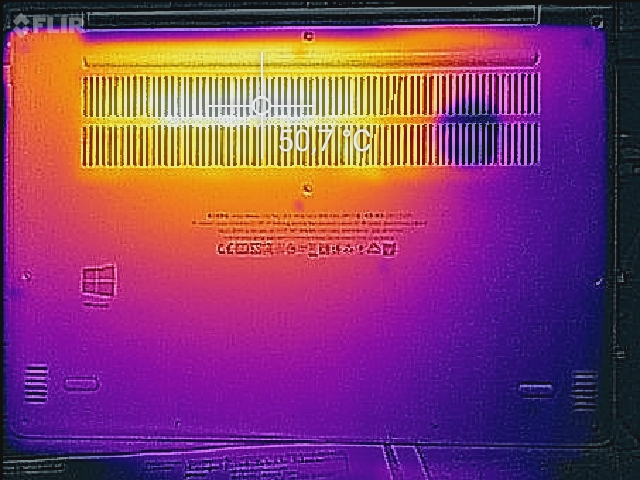

(-) The bottom heats up to a maximum of 45.3 °C / 114 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.4 °C / 86.7 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.1 °C / -3.8 F).
Lenovo IdeaPad 710S Plus-13IKB audio analysis
(±) | speaker loudness is average but good (73 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.4% lower than median
(±) | linearity of bass is average (12.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.7% higher than median
(±) | linearity of mids is average (10.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.4% difference to median)
Compared to same class
» 81% of all tested devices in this class were better, 4% similar, 15% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 71% of all tested devices were better, 6% similar, 23% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Acer Swift 7 SF713-51 audio analysis
(-) | not very loud speakers (68 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.9% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.4% higher than median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(±) | linearity of highs is average (8.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.5% difference to median)
Compared to same class
» 52% of all tested devices in this class were better, 7% similar, 41% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 38% of all tested devices were better, 8% similar, 54% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP EliteBook Folio G1 V1C37EA audio analysis
(+) | speakers can play relatively loud (83.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17% lower than median
(±) | linearity of bass is average (12.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (4.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.4% higher than median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 60% of all tested devices in this class were better, 7% similar, 33% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 47% of all tested devices were better, 7% similar, 46% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell XPS 13 9360 FHD i5 audio analysis
(-) | not very loud speakers (70.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.9% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(±) | linearity of highs is average (10.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.3% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 7% similar, 43% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 36% of all tested devices were better, 8% similar, 56% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Off / Standby | 0.34 / 0.4 Watt |
Idle | 3.6 / 7.4 / 8.7 Watt |
Load |
43 / 42 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Lenovo IdeaPad 710S Plus-13IKB i7-7500U, GeForce 940MX, Samsung PM961 NVMe MZVLW512HMJP, IPS, 1920x1080, 13.3" | Acer Swift 7 SF713-51 i5-7Y54, HD Graphics 615, Kingston RBU-SNS4180S3256GG, IPS, WLED, 1920x1080, 13.3" | HP EliteBook Folio G1 V1C37EA 6Y54, HD Graphics 515, Samsung SM951 MZVPV256 m.2, IPS, 1920x1080, 12.5" | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, Toshiba NVMe THNSN5256GPUK, IPS, 1920x1080, 13.3" | |
---|---|---|---|---|
Power Consumption | 28% | 20% | 30% | |
Idle Minimum * | 3.6 | 4.1 -14% | 4.3 -19% | 4.1 -14% |
Idle Average * | 7.4 | 6.4 14% | 6 19% | 4.2 43% |
Idle Maximum * | 8.7 | 6.8 22% | 6.4 26% | 5.1 41% |
Load Average * | 43 | 16 63% | 22.7 47% | 22.1 49% |
Load Maximum * | 42 | 18.7 55% | 31.2 26% | 29.4 30% |
* ... smaller is better
Lenovo IdeaPad 710S Plus-13IKB i7-7500U, GeForce 940MX, 46 Wh | Acer Swift 7 SF713-51 i5-7Y54, HD Graphics 615, 41.58 Wh | HP EliteBook Folio G1 V1C37EA 6Y54, HD Graphics 515, 38 Wh | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, 60 Wh | |
---|---|---|---|---|
Battery Runtime | 68% | 29% | 118% | |
Reader / Idle | 468 | 792 69% | 526 12% | 1295 177% |
WiFi v1.3 | 338 | 438 30% | 355 5% | 677 100% |
Load | 89 | 182 104% | 152 71% | 157 76% |
H.264 | 410 | 413 |
Pros
Cons

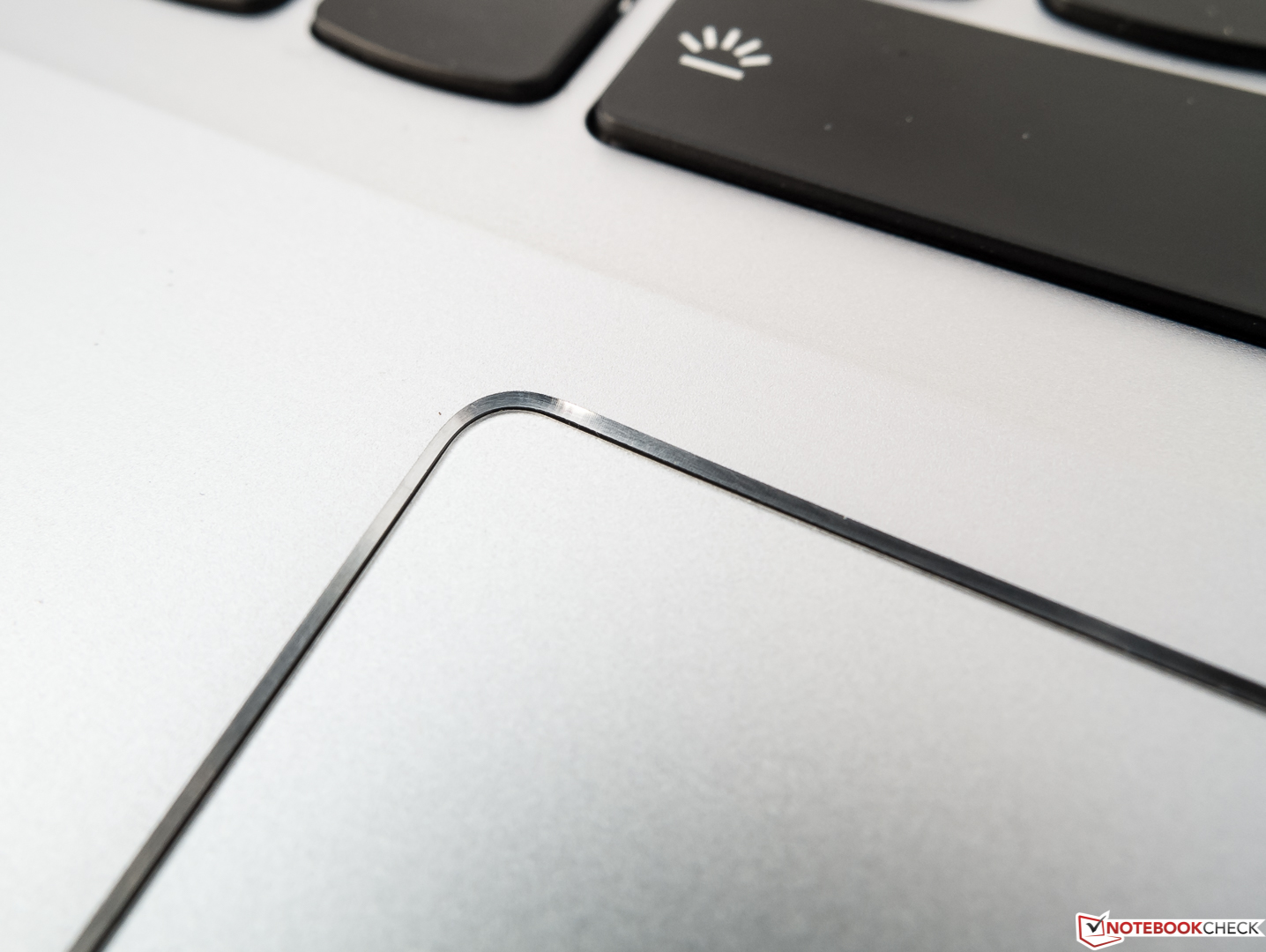

与接近完美的前代机型形成鲜明对比的是,我们在联想最新的Ideapad 710S Plus中寻找到了不少小瑕疵。不过可能只有响应不均匀的触控版会带来比较大的影响。它的屏幕整体上十分出色,雾面表面和宽广的色域覆盖更是锦上添花。即使对于亚笔记本来说接口较少是很常见的情况,但我们认为它还是有空间提供一个小尺寸的视频输出接口如HDMI或DP的。它的电池续航也无法达到便携设备的常见水平。而会影响它是否值得推荐的最大问题是散热风扇的嗡嗡声,不过这在旋转速度较低时并不会出现,同时也可能只是我们测试机的个别情况。
便携和多变是联想Ideapad 710S Plus的最大优势。不过,感兴趣的用户需要小心检查它有没有风扇噪音的问题。

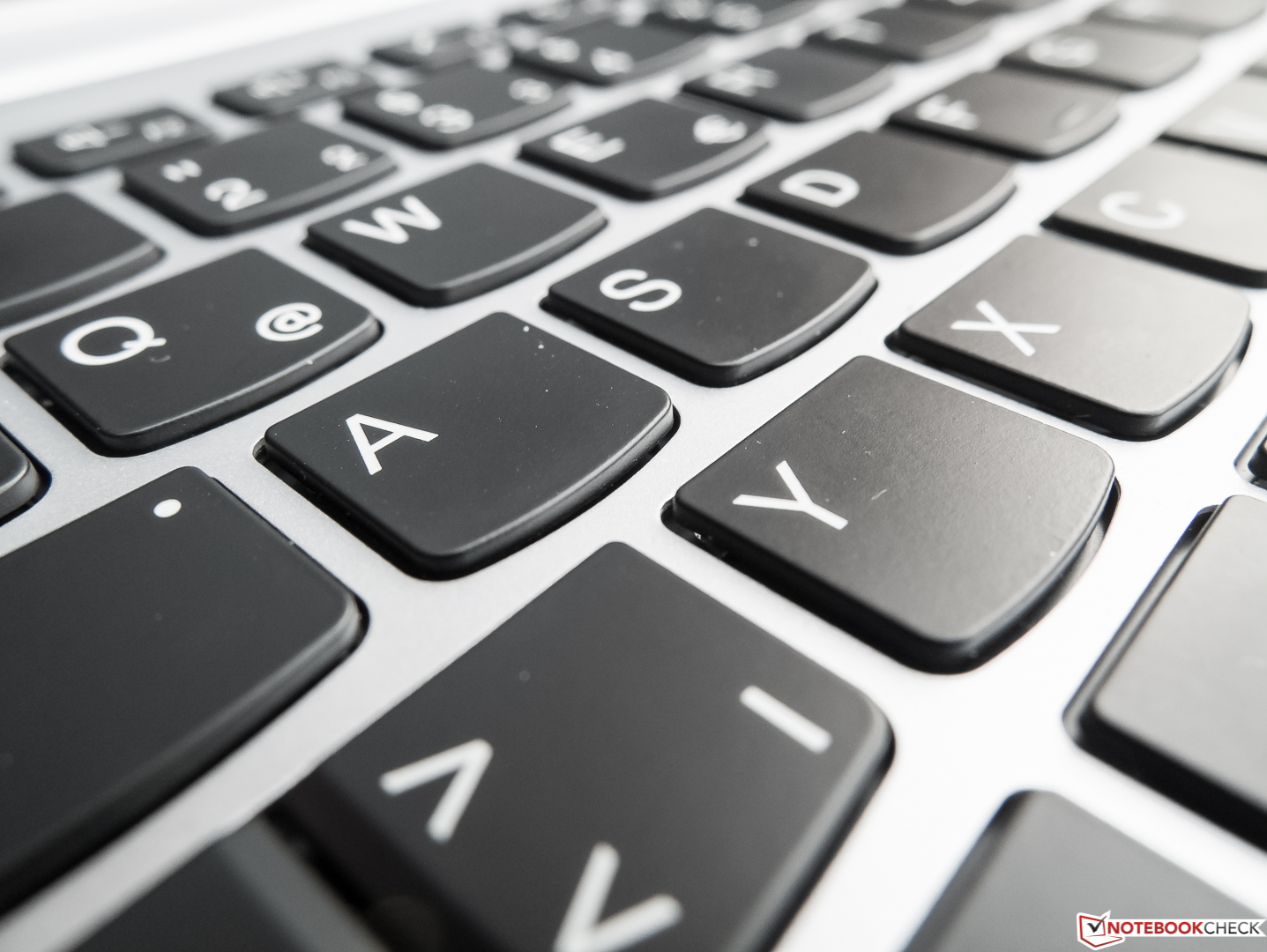

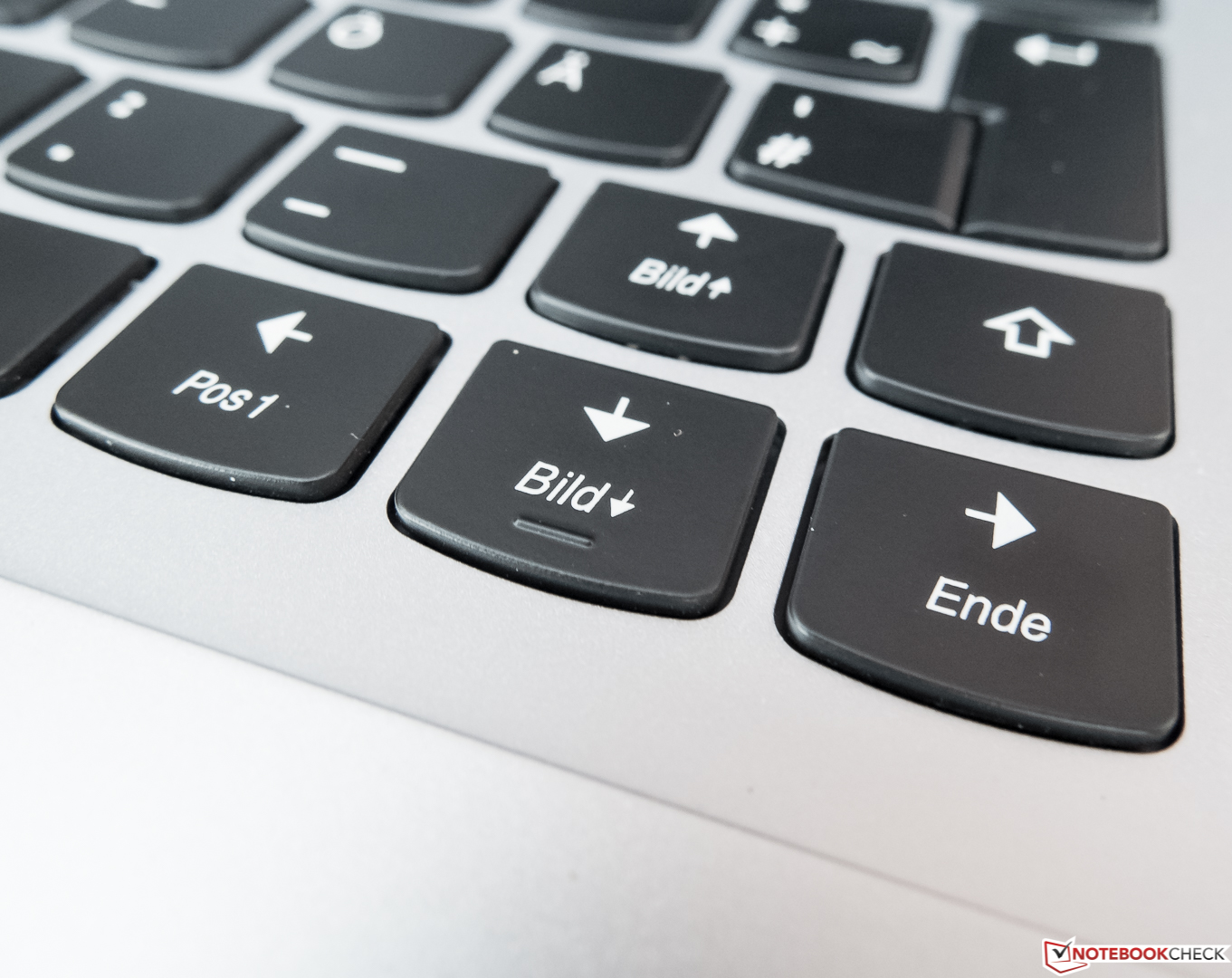

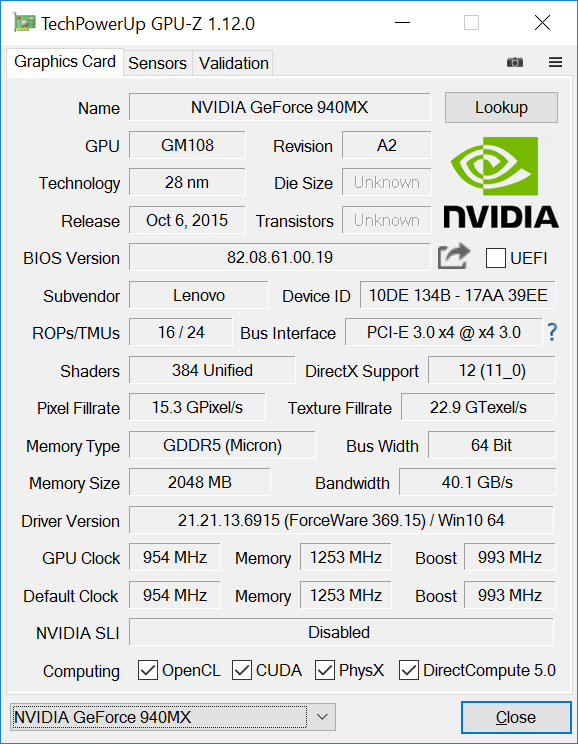

当然,它轻盈而坚固的机身也是一个非常值得赞赏的优势。它的输入设备应该可以满足大部分用户的需要。TPM和指纹识别也可以让需要更高安全性的用户满意,时钟频率略有降低的搭配GDDR5显存的GeForce 940MX应该也可以让偶尔玩游戏的用户十分欣喜。与前代机型不同的是,它的屏幕不再有闪烁,而大尺寸固态硬盘速度也更快,无线网络速度也不再是个弱点了。整体上,我们认为710S十分值得考虑,但是我们建议用户试试它在负载下有没有风扇噪音。不常玩游戏的用户可以考虑搭配i5-7200U处理器的售价更低的机型。
注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。
Lenovo IdeaPad 710S Plus-13IKB
- 02/01/2017 v6 (old)
Sven Kloevekorn
