联想 Ideapad 100S 笔记本电脑简短评测

Name: Lenovo Ideapad 100S 80R2
Brand: Lenovo

Windows 10上网本。 联想证明了不需要特别的变形或接驳设计也可以制作一款优秀的上网本。尽管不少功能需要被削减，但超轻薄的Ideapad 100S凭低于200美元的售价证明了自己的价值。

Allen Ngo (translated by Yuchen Wang), Published 10/21/2015 🇺🇸 🇮🇹 ...

Laptop / Notebook Windows Bay Trail

Test device courtesy of Lenovo USA

Download your licensed rating image as PNG / SVG

100s 11lBY (Ideapad 100s Series)

Processor

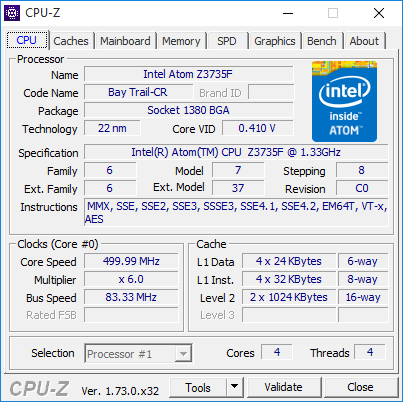

Intel Atom Z3735F 4 x 1.3 - 1.8 GHz, Bay Trail-T

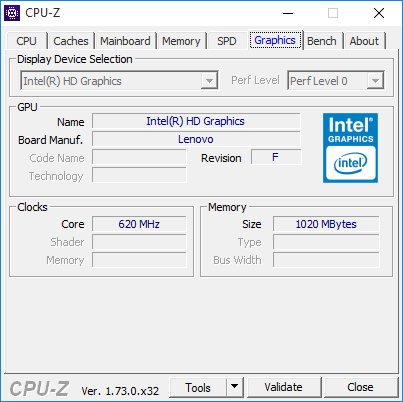

Graphics adapter

Intel HD Graphics (Bay Trail), 10.18.10.4242

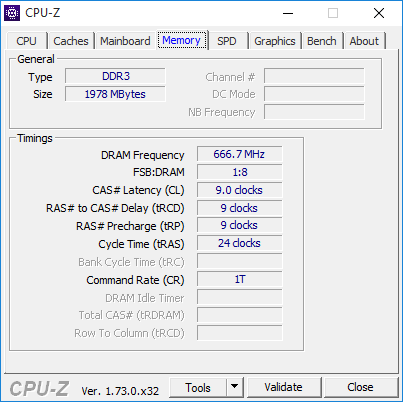

Memory

2048 MB

, DDR3, 单通道, 9-9-9-24

Display

11.60 inch 16:9, 1366 x 768 pixel, TN LED, 型号: BOE0623, NT11621, 戴尔 P/N: RX4T9, glossy: no

Mainboard

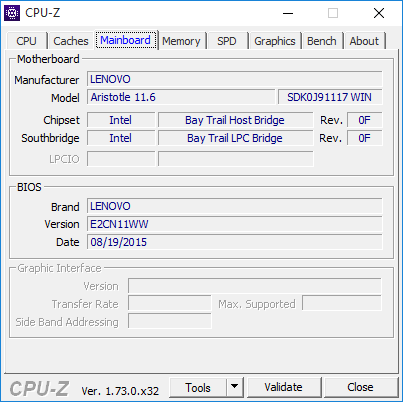

Bay Trail Host Bridge

Storage

32 GB eMMC Flash, 32 GB

Connections

2 USB 2.0, 1 HDMI, Audio Connections: 3.5毫米整合耳机插口, Card Reader: MicroSD

Networking

Realtek RTL8723BS (b/g/n = Wi-Fi 4/), Bluetooth 4.0

Size

height x width x depth (in mm): 18 x 292 x 202

Battery

32 Wh Lithium-Polymer, 2芯

Operating System

Microsoft Windows 10 Home 32 Bit

Camera

Webcam: 30万像素

Additional features

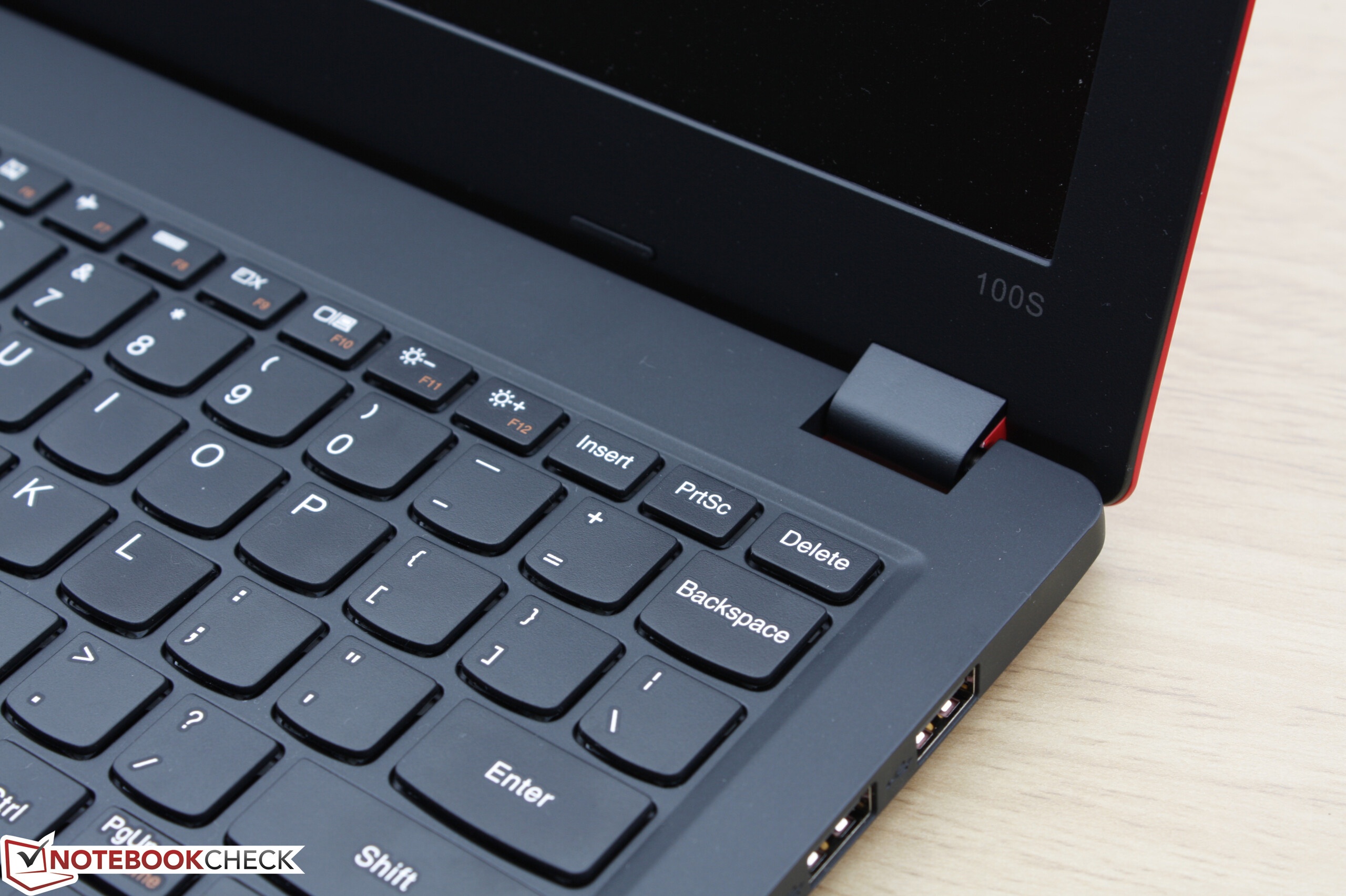

Speakers: 1瓦立体声, Keyboard: 孤岛式, Keyboard Light: no, 快速开始说明, Lenovo Solution Center, 用户说明书, 12 Months Warranty

Weight

998 g, Power Supply: 118 g

Price

200 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

HP Stream 11 X360 Asus X200MA-BING-KX366B Lenovo ThinkPad Yoga 11e 20D9000QGE Asus ASUS Transformer Book Flip TP200SA-DH04T Acer Aspire ES1-131 Lenovo Ideapad 100S 80R2 DIN A4 ❌

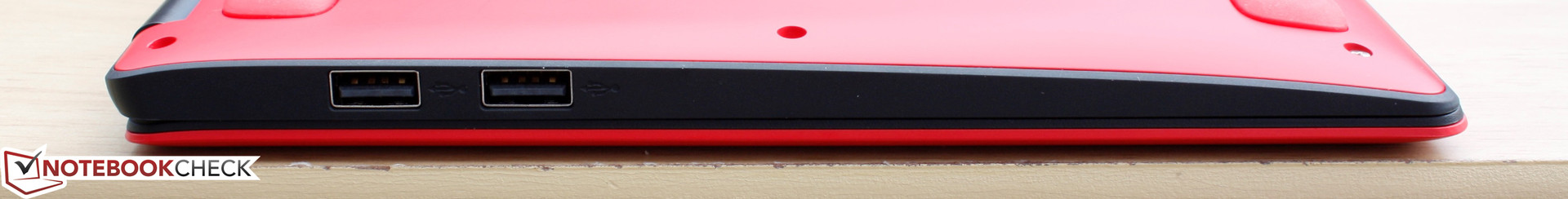

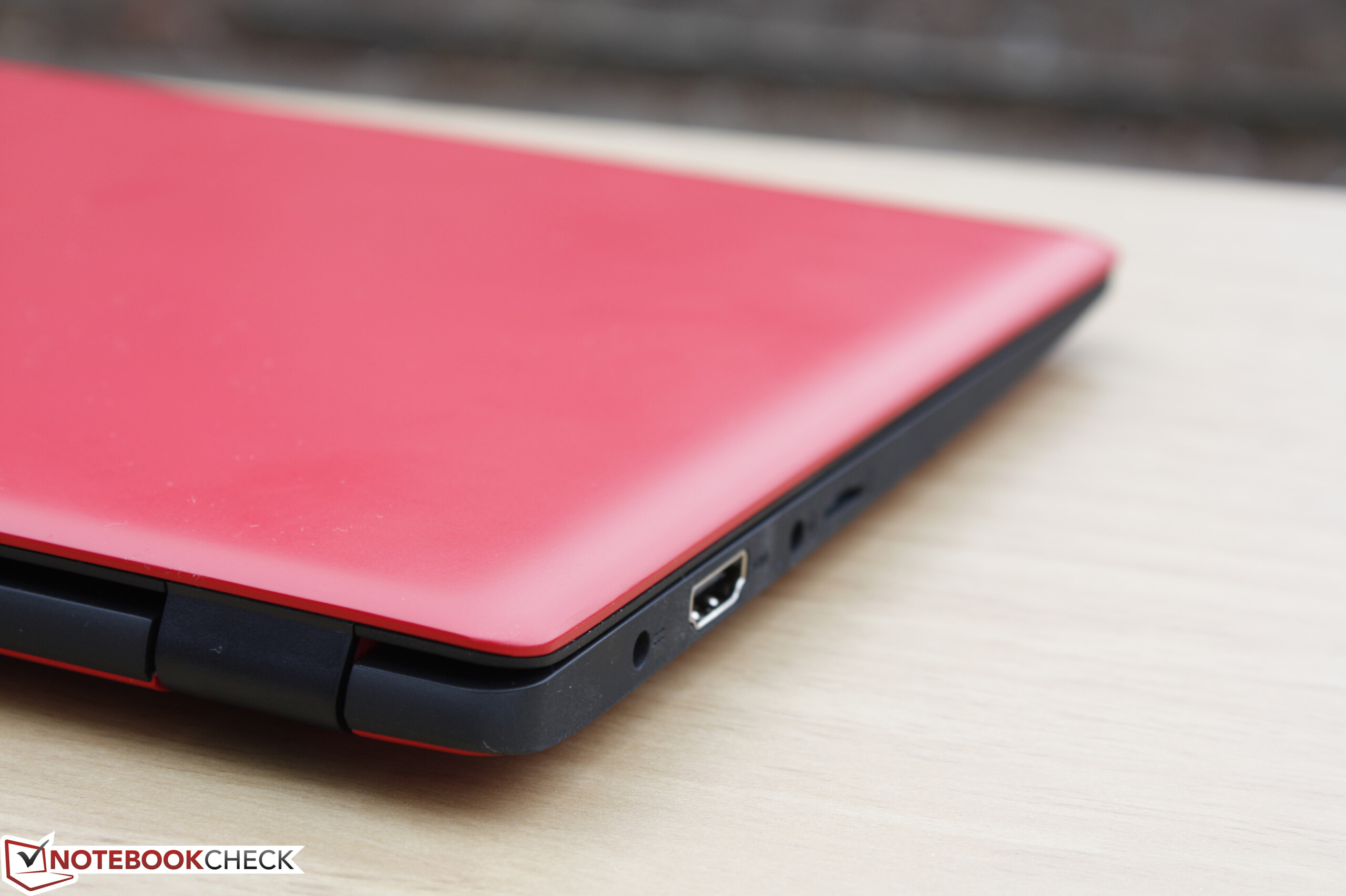

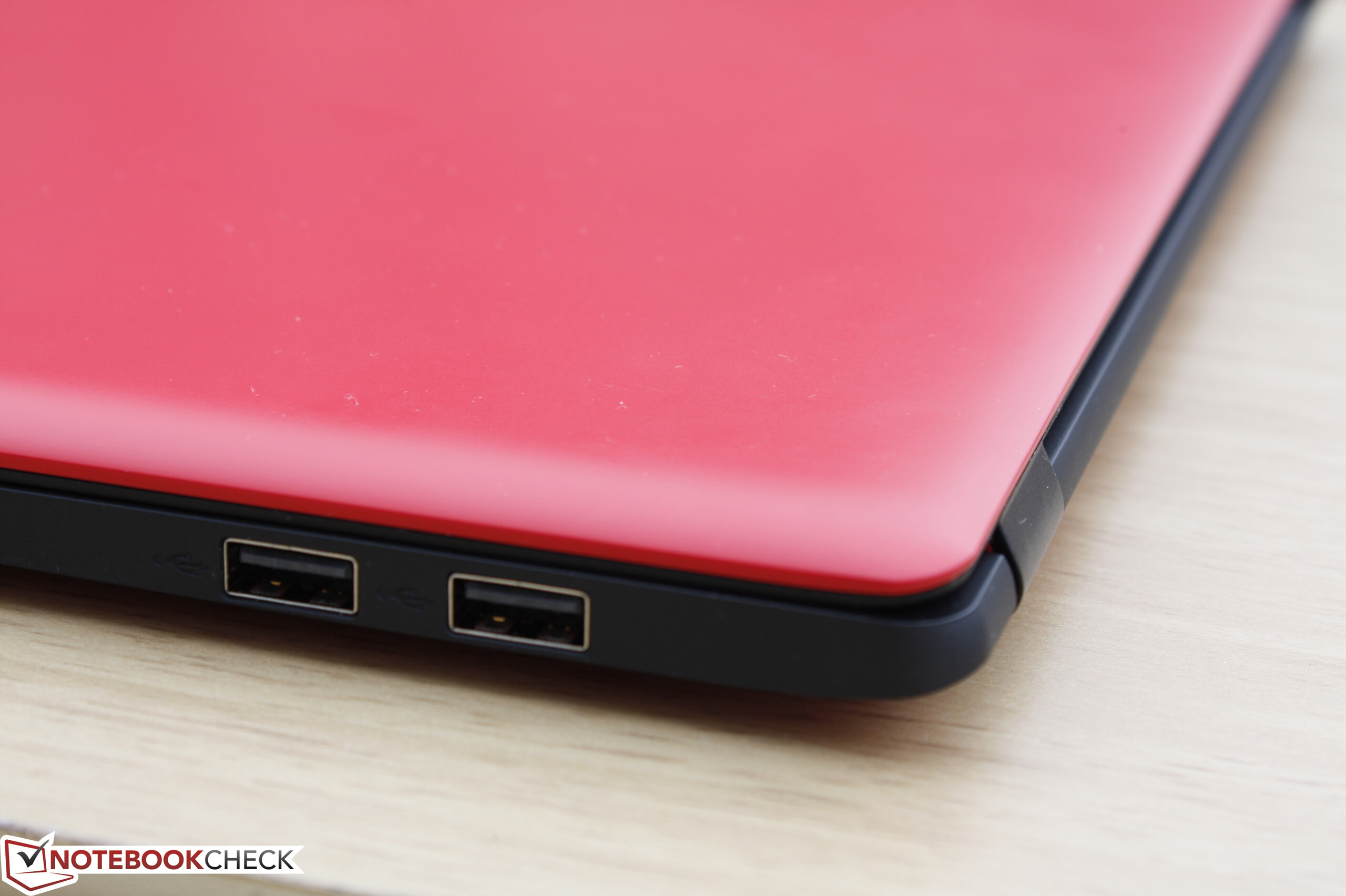

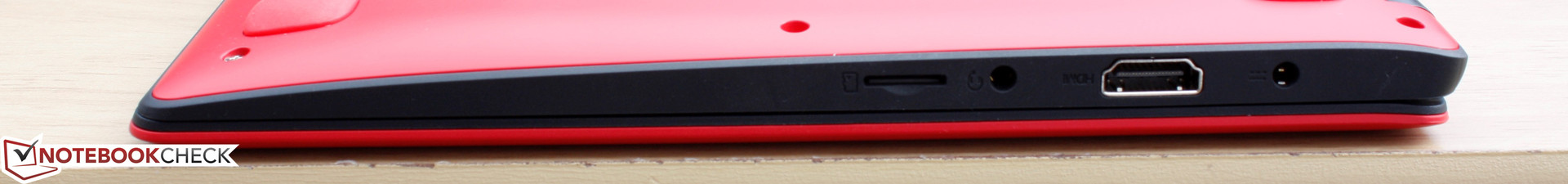

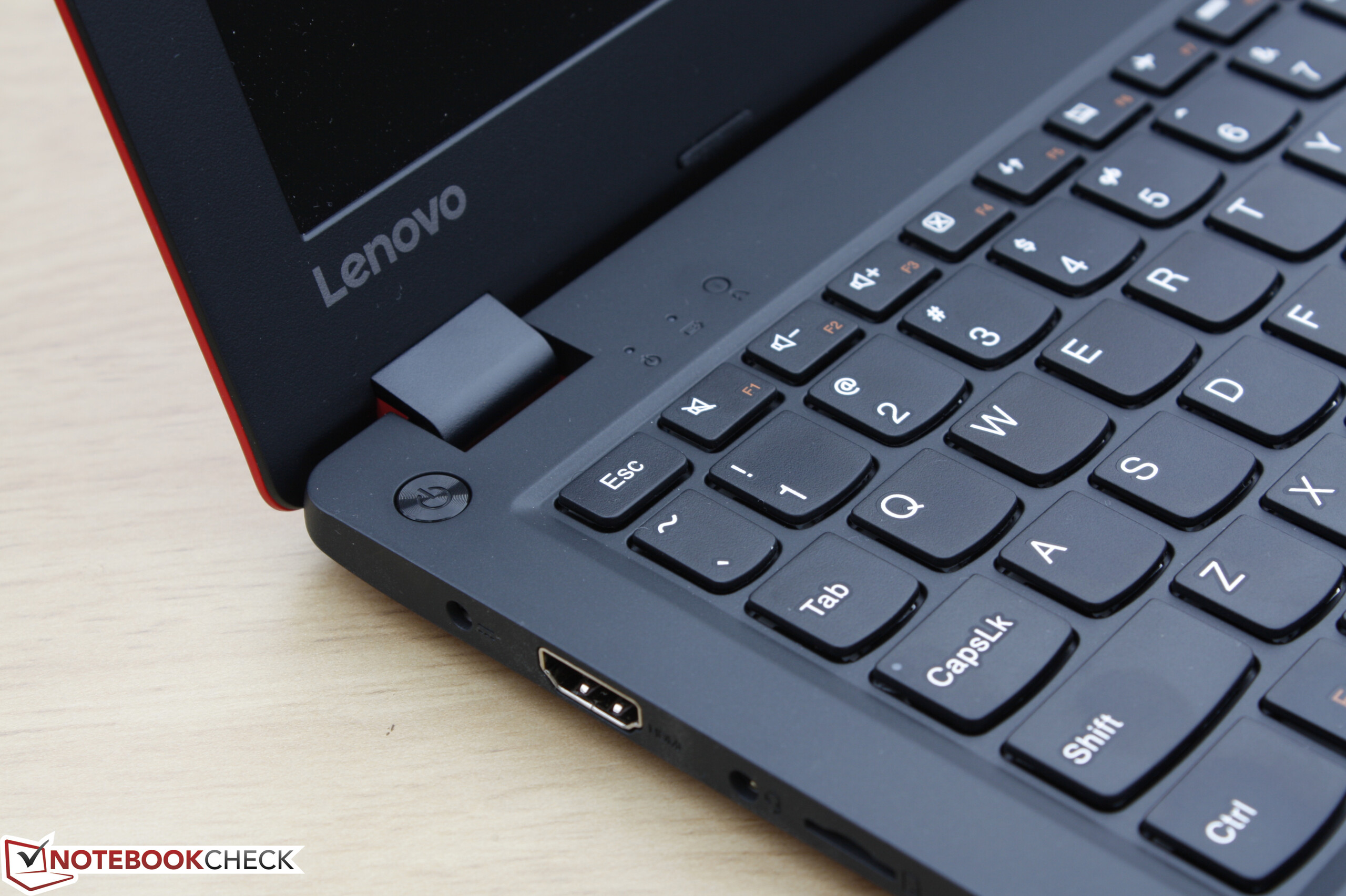

Left: 2x USB 2.0Left: AC adapter, HDMI-out, 3.5 mm audio, MicroSD reader


222.4 cd/m²	218.6 cd/m²	225.3 cd/m²
217.4 cd/m²	226.7 cd/m²	222.2 cd/m²
200.1 cd/m²	210.2 cd/m²	206.7 cd/m²

Distribution of brightness

tested with X-Rite i1Pro Basic 2

Maximum: 226.7 cd/m² (Nits) Average: 216.6 cd/m²
Brightness Distribution: 88 %
Center on Battery: 226.7 cd/m²
Contrast: 277:1 (Black: 0.817 cd/m²)
ΔE Color 11.63 | 0.5-29.43 Ø4.91
ΔE Greyscale 12.24 | 0.5-98 Ø5.2
60% sRGB (Argyll 1.6.3 3D)
38% AdobeRGB 1998 (Argyll 1.6.3 3D)
41.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
60.3% sRGB (Argyll 2.2.0 3D)
40.07% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31

Download ICC File (X-Rite i1Pro Basic 2)

	Lenovo Ideapad 100S 80R2	HP Stream 11 X360	Asus X200MA-BING-KX366B	Lenovo ThinkPad Yoga 11e 20D9000QGE	Asus ASUS Transformer Book Flip TP200SA-DH04T	Acer Aspire ES1-131	HP Pavilion 11-n070eg x360
Display			-1%		7%	-0%
Display P3 Coverage	40.07		39.77 -1%		42.72 7%	39.87 0%
sRGB Coverage	60.3		58.7 -3%		64.4 7%	59.9 -1%
AdobeRGB 1998 Coverage	41.4		41.3 0%		44.14 7%	41.21 0%
Screen		15%	24%	52%	52%	18%	15%
Brightness middle	226.7	197 -13%	187 -18%	285 26%	262.1 16%	304 34%	181 -20%
Brightness	217	189 -13%	181 -17%	285 31%	246 13%	285 31%	161 -26%
Brightness Distribution	88	91 3%	91 3%	88 0%	88 0%	89 1%	83 -6%
Black Level *	0.817	0.4 51%	0.34 58%	0.4 51%	0.301 63%	0.67 18%	0.37 55%
Contrast	277	493 78%	550 99%	713 157%	871 214%	454 64%	489 77%
Colorchecker dE 2000 *	11.63	11.44 2%	6.55 44%	6.39 45%	3.24 72%	10.32 11%	10.11 13%
Greyscale dE 2000 *	12.24	12.54 -2%	5.78 53%	5.41 56%	2.34 81%	11.94 2%	10.72 12%
Gamma	2.31 ^95%	2.45 ^90%	2.71 ^81%	2.76 ^80%	2.24 ^98%	2.37 ^93%	2.7 ^81%
CCT	16057 ^40%	14995 ^43%	7057 ^92%	6082 ^107%	6855 ^95%	13480 ^48%	13522 ^48%
Color Space (Percent of AdobeRGB 1998)	38		38 0%		40.6 7%	38 0%
Color Space (Percent of sRGB)	60		59 -2%		58.8 -2%	60 0%
Total Average (Program / Settings)		15% / 15%	12% / 18%	52% / 52%	30% / 40%	9% / 13%	15% / 15%

* ... smaller is better

Cinebench R10 Rendering Single 32Bit

848

Cinebench R10 Rendering Multiple CPUs 32Bit

2783

Cinebench R10 Shading 32Bit

1766

Help

... in comparison

Cinebench R10 | 3DMark | Super Pi Mod 1.5 XS 32M | wPrime 2.10

Cinebench R10
Rendering Single 32Bit (sort by value)
Lenovo Ideapad 100S 80R2	848 Points
Asus X200MA-BING-KX366B	1169 Points +38%
Lenovo ThinkPad Yoga 11e 20D9000QGE	1130 Points +33%
Asus Transformer Book T100HA-C4-GR	1168 Points +38%
Rendering Multiple CPUs 32Bit (sort by value)
Lenovo Ideapad 100S 80R2	2783 Points
Asus X200MA-BING-KX366B	2316 Points -17%
Lenovo ThinkPad Yoga 11e 20D9000QGE	3898 Points +40%
Asus Transformer Book T100HA-C4-GR	4107 Points +48%
Shading 32Bit (sort by value)
Lenovo Ideapad 100S 80R2	1766 Points
Lenovo ThinkPad Yoga 11e 20D9000QGE	2276 Points +29%
Asus Transformer Book T100HA-C4-GR	2484 Points +41%

3DMark
1280x720 Ice Storm Standard Physics (sort by value)
Lenovo Ideapad 100S 80R2	11887 Points
Asus X200MA-BING-KX366B	10577 Points -11%
Lenovo ThinkPad Yoga 11e 20D9000QGE	17910 Points +51%
Asus ASUS Transformer Book Flip TP200SA-DH04T	9097 Points -23%
1920x1080 Ice Storm Extreme Graphics (sort by value)
Lenovo Ideapad 100S 80R2	8365 Points
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Lenovo Ideapad 100S 80R2	14988 Points
HP Stream 11 X360	17222 Points +15%
1280x720 Cloud Gate Standard Physics (sort by value)
Lenovo Ideapad 100S 80R2	990 Points
Lenovo ThinkPad Yoga 11e 20D9000QGE	1532 Points +55%
Asus ASUS Transformer Book Flip TP200SA-DH04T	738 Points -25%
Asus Transformer Book T100HA-C4-GR	1217 Points +23%

Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Lenovo Ideapad 100S 80R2	1566 s *
Asus ASUS Transformer Book Flip TP200SA-DH04T	1956 s * -25%
Asus Transformer Book T100HA-C4-GR	1873 s * -20%

wPrime 2.10 - 1024m (sort by value)
Lenovo Ideapad 100S 80R2	1079 s *

Legend

Lenovo Ideapad 100S 80R2 Intel Atom Z3735F, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

HP Stream 11 X360 Intel Celeron N2840, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

Asus X200MA-BING-KX366B Intel Celeron N2830, Intel HD Graphics (Bay Trail), Hitachi Travelstar Z5K500 HTS545050A7E680

Lenovo ThinkPad Yoga 11e 20D9000QGE Intel Celeron N2930, Intel HD Graphics (Bay Trail), Toshiba MQ01ACF050

Asus ASUS Transformer Book Flip TP200SA-DH04T Intel Celeron N3050, Intel HD Graphics (Braswell), 64 GB eMMC Flash

Asus Transformer Book T100HA-C4-GR Intel Atom x5-Z8500, Intel HD Graphics (Cherry Trail), Samsung CGND3R eMMC

* ... smaller is better

PCMark 7 Score		2377 points
PCMark 8 Home Score Accelerated v2		1029 points
PCMark 8 Creative Score Accelerated v2		844 points
PCMark 8 Work Score Accelerated v2		1140 points
Help

... in comparison

CrystalDiskMark 3.0

32 GB eMMC Flash

Sequential Read: 179 MB/s

Sequential Write: 39.94 MB/s

512K Read: 150 MB/s

512K Write: 43.16 MB/s

4K Read: 10.13 MB/s

4K Write: 10.58 MB/s

4K QD32 Read: 32.05 MB/s

4K QD32 Write: 10.87 MB/s

3DMark 11 Performance		192 points
3DMark Ice Storm Standard Score		14470 points
3DMark Cloud Gate Standard Score		1133 points
Help

... in comparison

	low	med.	high	ultra
Tomb Raider (2013)	12.5

Max. Load

Idle


44.8 °C	31 °C	28.2 °C
39.8 °C	29.6 °C	27.8 °C
35 °C	27.6 °C	25.8 °C

Maximum: 44.8 °C
Average: 32.2 °C


28.6 °C	32.2 °C	42.8 °C
28.2 °C	31.2 °C	39.6 °C
26.6 °C	27.6 °C	33.2 °C

Maximum: 42.8 °C
Average: 32.2 °C

Power Supply (max.) 37.6 °C | Room Temperature 23.6 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 32.2 °C / 90 F, compared to the average of 29.8 °C / 86 F for the devices in the class Netbook.
(±) The maximum temperature on the upper side is 44.8 °C / 113 F, compared to the average of 33.1 °C / 92 F, ranging from 21.6 to 53.2 °C for the class Netbook.
(±) The bottom heats up to a maximum of 42.8 °C / 109 F, compared to the average of 36.6 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 29.8 °C / 86 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (35 °C / 95 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 29.3 °C / 84.7 F (-5.7 °C / -10.3 F).

Battery Runtime

Idle (without WLAN, min brightness)		12h 03min
WiFi Websurfing		6h 46min
Load (maximum brightness)		4h 07min

	Lenovo Ideapad 100S 80R2 32 Wh	HP Stream 11 X360 44 Wh	Asus X200MA-BING-KX366B 33 Wh	Lenovo ThinkPad Yoga 11e 20D9000QGE 34 Wh	Asus ASUS Transformer Book Flip TP200SA-DH04T 38 Wh	Acer Aspire ES1-131 38 Wh	HP Pavilion 11-n070eg x360 29 Wh
Battery Runtime		0%	-30%	-27%	28%	36%	-45%
Reader / Idle	723	725 0%			1055 46%		337 -53%
WiFi v1.3	406		285 -30%	297 -27%	523 29%	554 36%
Load	247				268 9%		157 -36%
WiFi		396					217

Pros

+ 长电池续航

+ 小巧轻盈

+ 无风扇设计

+ HDMI输出

+ 廉价

+ 优秀的工艺品质

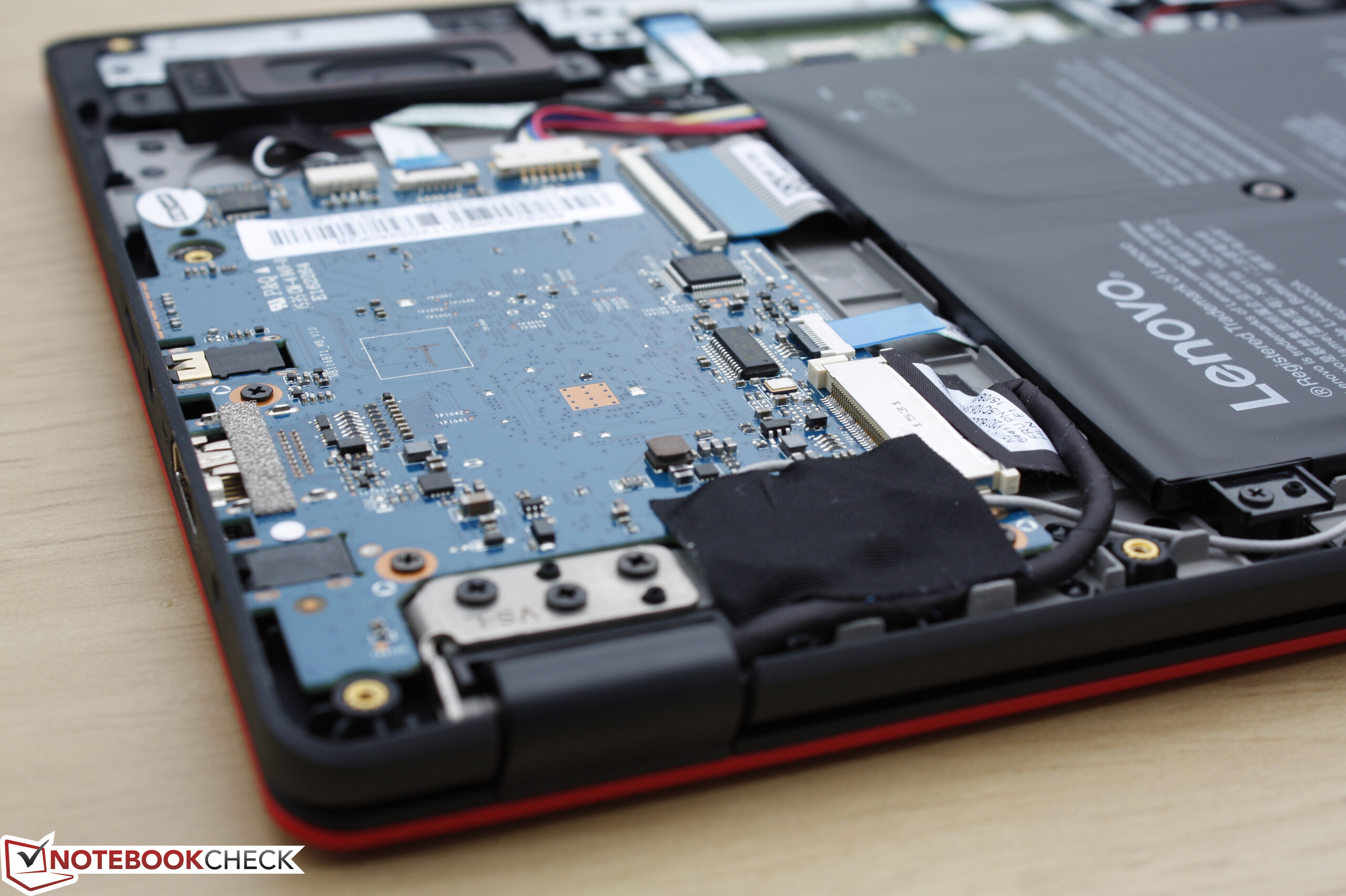

+ 易于维护

Cons

- 不需要较准色温低

- 不支持WWAN，GPS，802.11ac，USB 3.0，触控屏幕，或IPS屏幕

- 无其他处理器，内存，或分辨率选项

- 触控版不支持多点触控

- 背光较暗

- 对比度较低

- 高负载下有降频问题

In review: Lenovo Ideapad 100S. Test model provided by Lenovo US.

IdeaPad 100S设计面向需要在旅行时可以用于简单应用的轻盈小巧笔记本电脑的用户群体。认为可接驳或变形本华而不实的用户可以选择没有这些新颖功能的传统上网本。实际上，100S更轻更薄，相比竞争对手也更加实惠。

用户也需要意识到如此小巧廉价的笔记本电脑中所难以避免的负面因素。它缺少VGA，USB 3.0接口，不支持802.11ac无线标准，电池也不可拆卸，这都说明它是设计用于浏览邮件，处理文档，上网等低负载应用的。过热降频问题让它无法在高帧率下运行流行的游戏如LoL或DOTA，而低对比度的屏幕让它相比同类产品也更加不适合用于视频回放。我们希望未来它可以支持可选的WWAN功能，即使这样会提高它的售价，也会让100S更加适合常常外出的用户。

考虑到价位和尺寸，它可以说是一台极其坚固的笔记本电脑。我们建议用户在购买之后尽快较准屏幕的色彩，活着使用我们的预设来修正色彩上的偏差和偏低的色温。
