联想Legion C530 Cube (i5-8300, GTX 1050 Ti)迷你PC

随时出发。

对于那些只想要一台省心且价格合理的便携式游戏PC主流游戏玩家来说，联想让他们的想法变成可能。即使它缺少一些常见功能，电脑入门玩家也会很喜欢C530。

Allen Ngo, 👁 Allen Ngo (translated by Zewei Shen), Published 12/11/2018 🇺🇸 🇫🇷 ...

Desktop Coffee Lake

Lenovo Legion C530-90JX003AUS

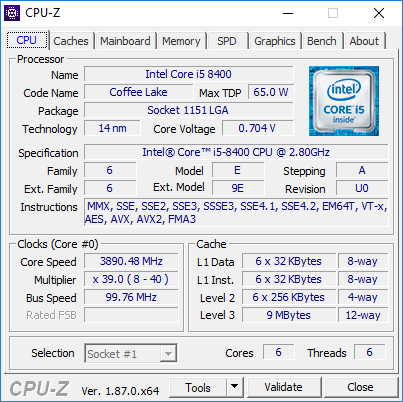

Processor

Intel Core i5-8400 6 x 2.8 - 4 GHz, Coffee Lake-S

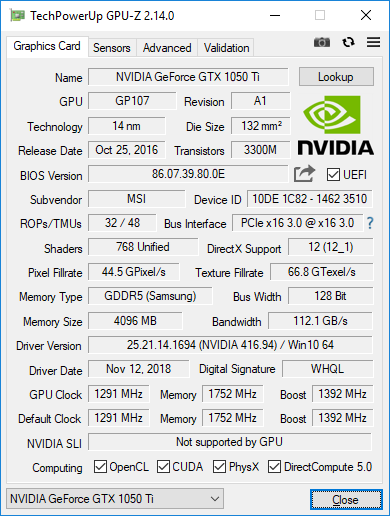

Graphics adapter

NVIDIA GeForce GTX 1050 Ti (Desktop) - 4 GB VRAM, Core: 1290 MHz, RAM: 7008 MHz, GDDR5, 416.94

Memory

8 GB

, DDR4, PC4-21300, 19-19-19-32, 双通道

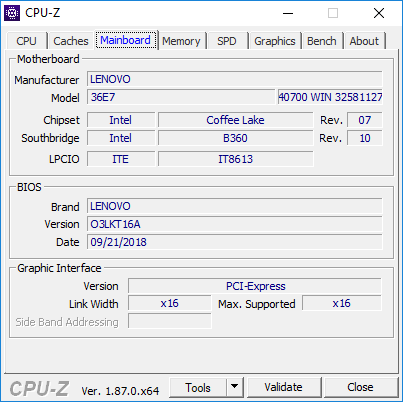

Mainboard

Intel B360 (Cannon Lake-H)

Storage

Seagate Desktop HDD 1TB ST1000DM003, 1024 GB

, 7200 rpm

Soundcard

Nvidia GP107 - High Definition Audio Controller

Networking

Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)

Size

height x width x depth (in mm): 231 x 332 x 242

Operating System

Microsoft Windows 10 Home 64 Bit

Additional features

12 Months Warranty

Weight

8.9 kg

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Lenovo Legion C530-90JX003AUS Zotac ZBOX Magnus EK71080 Intel Hades Canyon NUC8i7HVK DIN A4 ❌

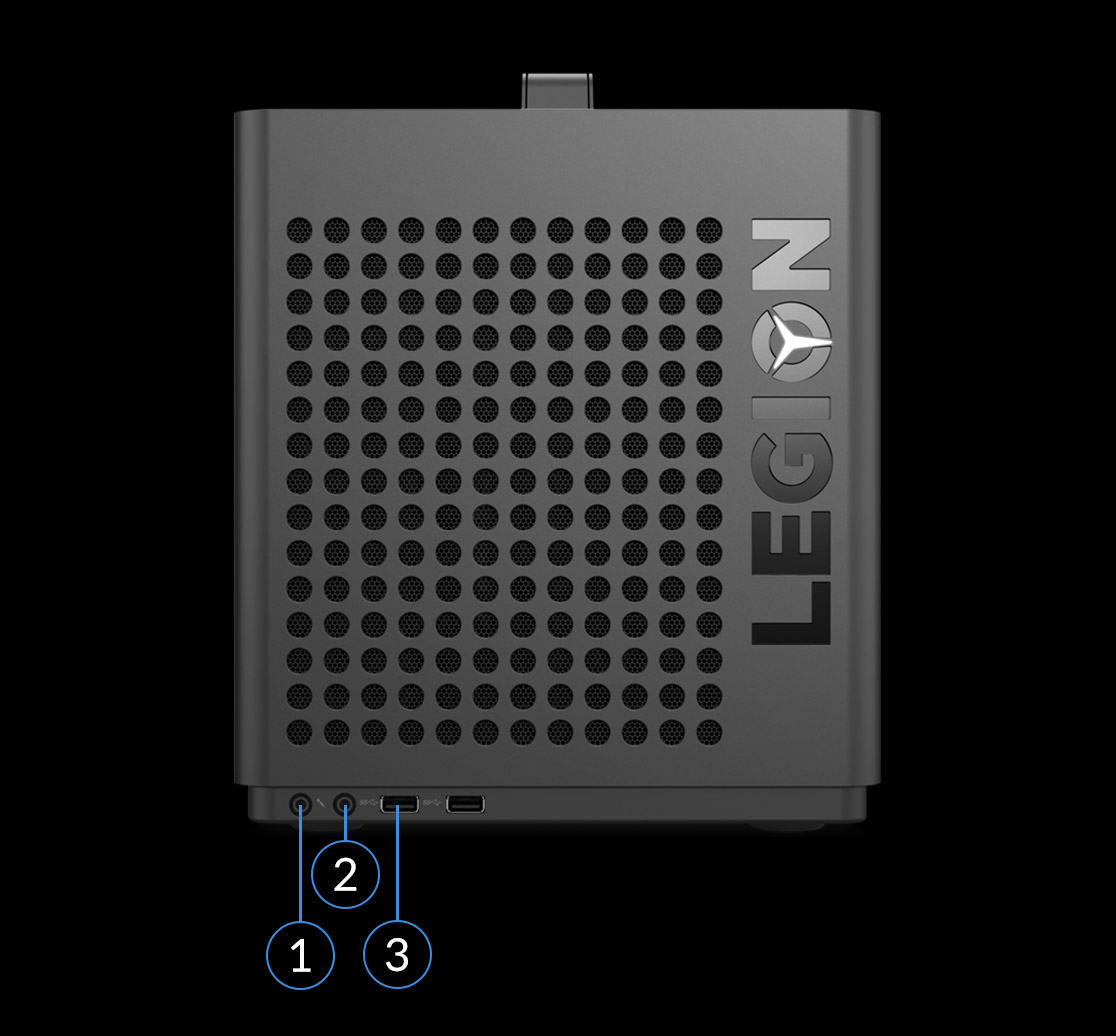

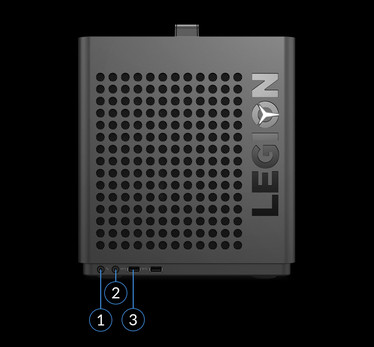

Front: 3.5 mm mic-in, headphone-in, 2x USB 3.0

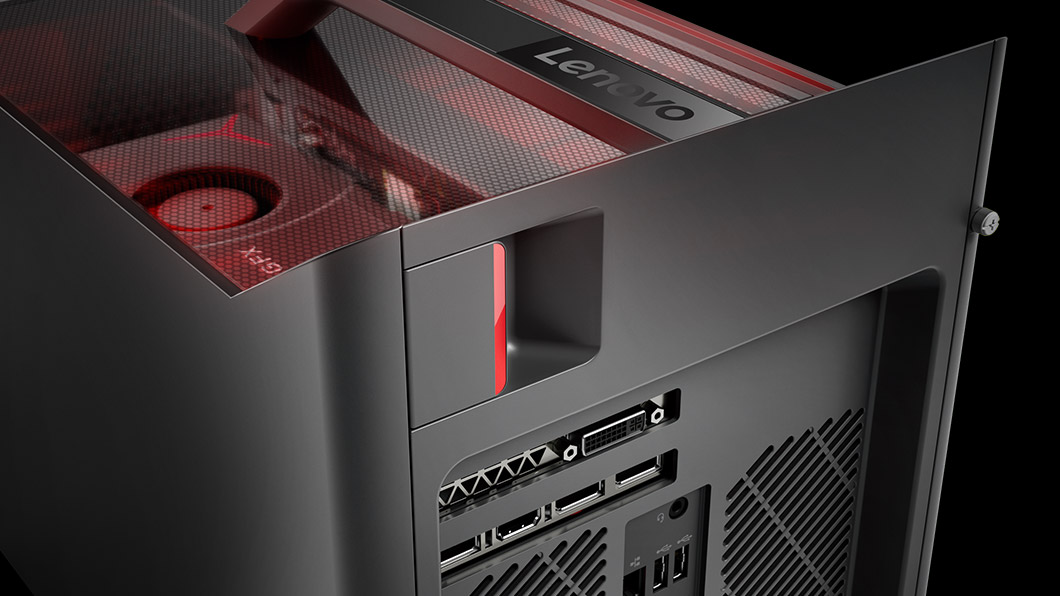

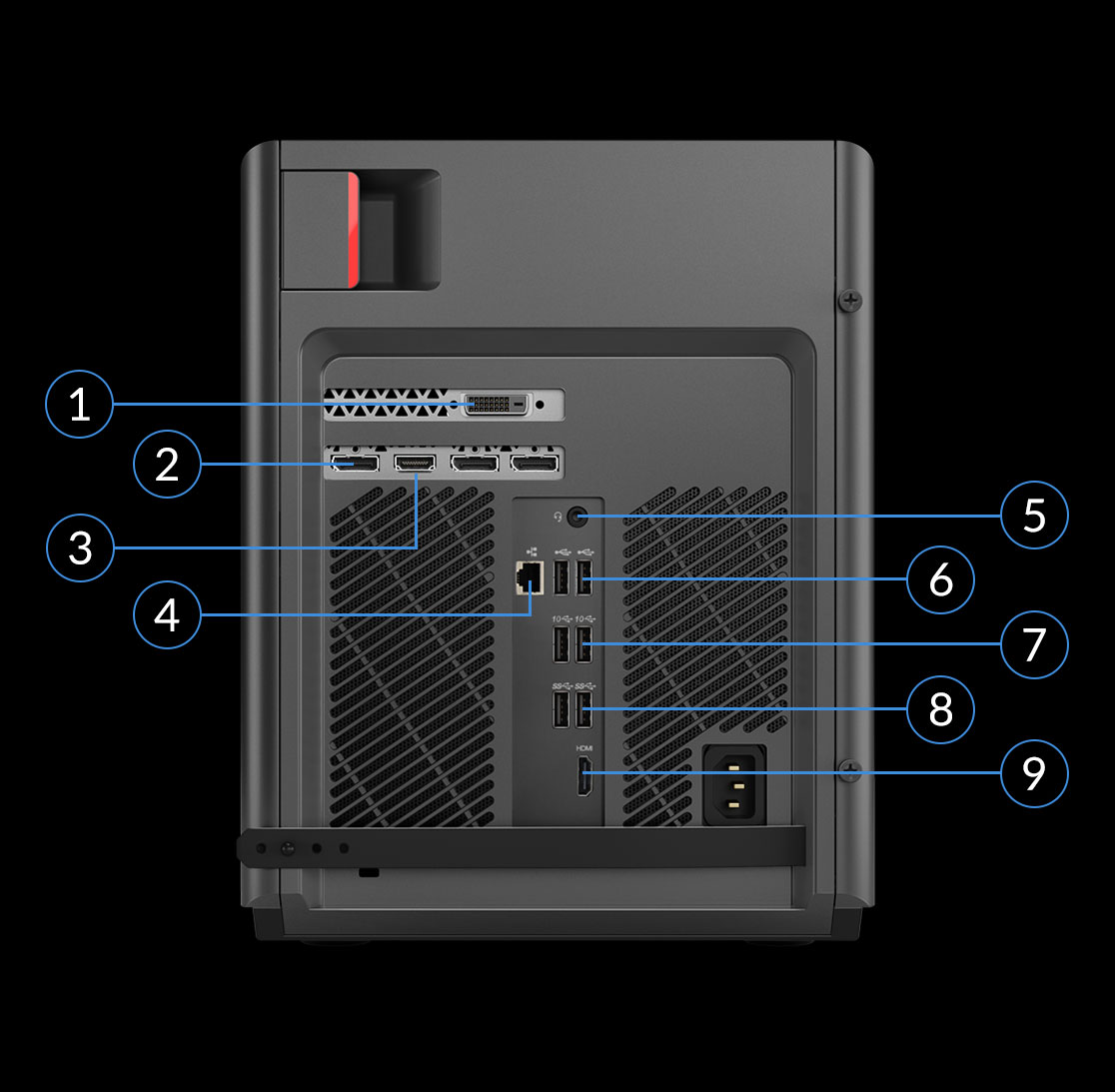

Rear: DVI, DisplayPort, HDMI, 3.5 mm audio out, RJ-45, 2x USB 2.0, 2 x USB 3.1 Gen. 2, 2 x USB 3.1 Gen. 1, AC cable

Networking
iperf3 transmit AX12
Asus ROG Strix GL702ZC-GC204T Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	670 MBit/s +3%
Lenovo Legion C530-90JX003AUS Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	651 MBit/s
Intel NUC8i7BE Intel Wireless-AC 9560	553 MBit/s -15%
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s -42%
iperf3 receive AX12
Asus ROG Strix GL702ZC-GC204T Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	632 MBit/s +9%
Intel NUC8i7BE Intel Wireless-AC 9560	602 MBit/s +4%
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s +2%
Lenovo Legion C530-90JX003AUS Realtek 8822BE Wireless LAN 802.11ac PCI-E NIC	580 MBit/s

Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003; CPU Multi 64Bit: Ø929 (917.45-937.25)

Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G; CPU Multi 64Bit: Ø817 (804.93-829.48)

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

Cinebench R15
CPU Single 64Bit
Eurocom Sky X4C Intel Core i7-8700K	192 Points +12%
SCHENKER XMG Ultra 17 Intel Core i7-8700	190 Points +10%
Intel NUC8i7BE Intel Core i7-8559U	188 Points +9%
Aorus X9 DT Intel Core i9-8950HK	185 Points +8%
SCHENKER XMG Ultra 15 Intel Core i5-8600K	181 Points +5%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points +3%
Lenovo Legion Y730-17ICH, i7-8750H Intel Core i7-8750H	173 Points +1%
Lenovo Legion C530-90JX003AUS Intel Core i5-8400	172 Points
Lenovo Legion Y530-15ICH Intel Core i5-8300H	171 Points -1%
MSI Prestige PS42 8RB-059 Intel Core i7-8550U	162 Points -6%
Lenovo Lenovo Legion Y720 80VR002XGE Intel Core i7-7700HQ	160 Points -7%
Lenovo Legion Y520-15IKBM 80YY001APB Intel Core i5-7300HQ	149 Points -13%
CPU Multi 64Bit
Aorus X9 DT Intel Core i9-8950HK	1391 Points +48%
Eurocom Sky X4C Intel Core i7-8700K	1359 Points +45%
Lenovo Legion Y730-17ICH, i7-8750H Intel Core i7-8750H	1230 Points +31%
SCHENKER XMG Ultra 17 Intel Core i7-8700	1167 Points +24%
SCHENKER XMG Ultra 15 Intel Core i5-8600K	991 Points +6%
Lenovo Legion C530-90JX003AUS Intel Core i5-8400	939 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points -8%
Lenovo Legion Y530-15ICH Intel Core i5-8300H	830 Points -12%
Intel NUC8i7BE Intel Core i7-8559U	798 (671.37^min - 798.44^max) Points -15%
Lenovo Lenovo Legion Y720 80VR002XGE Intel Core i7-7700HQ	737 Points -22%
Lenovo Legion Y520-15IKBM 80YY001APB Intel Core i5-7300HQ	517 Points -45%
MSI Prestige PS42 8RB-059 Intel Core i7-8550U	503 Points -46%

Cinebench R11.5
CPU Single 64Bit
SCHENKER XMG Ultra 17 Intel Core i7-8700	2.18 Points
Intel NUC8i7BE Intel Core i7-8559U	2.17 Points
Eurocom Sky X4C Intel Core i7-8700K	2.16 Points
Aorus X9 DT Intel Core i9-8950HK	2.1 Points
SCHENKER XMG Ultra 15 Intel Core i5-8600K	2.07 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	1.99 Points
CPU Multi 64Bit
Aorus X9 DT Intel Core i9-8950HK	15.13 Points
Eurocom Sky X4C Intel Core i7-8700K	14.98 Points
SCHENKER XMG Ultra 17 Intel Core i7-8700	12.9 Points
SCHENKER XMG Ultra 15 Intel Core i5-8600K	10.76 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	9.41 Points
Intel NUC8i7BE Intel Core i7-8559U	7.32 Points

Cinebench R10
Rendering Multiple CPUs 32Bit
Aorus X9 DT Intel Core i9-8950HK	39380 Points
Eurocom Sky X4C Intel Core i7-8700K	38810 Points
SCHENKER XMG Ultra 17 Intel Core i7-8700	34532 Points
SCHENKER XMG Ultra 15 Intel Core i5-8600K	32863 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	25809 Points
Intel NUC8i7BE Intel Core i7-8559U	23215 Points
Rendering Single 32Bit
Intel NUC8i7BE Intel Core i7-8559U	7249 Points
Eurocom Sky X4C Intel Core i7-8700K	7243 Points
SCHENKER XMG Ultra 17 Intel Core i7-8700	7171 Points
Aorus X9 DT Intel Core i9-8950HK	6978 Points
SCHENKER XMG Ultra 15 Intel Core i5-8600K	6875 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	6668 Points

wPrime 2.10 - 1024m
Lenovo Legion Y520-15IKBM 80YY001APB Intel Core i5-7300HQ	348.1 s *
Intel NUC8i7BE Intel Core i7-8559U	234.6 s *
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	186.7 s *
Eurocom Sky X4C Intel Core i7-8700K	120.9 s *

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

* ... smaller is better

Cinebench R15 CPU Single 64Bit

172 Points

Cinebench R15 CPU Multi 64Bit

939 Points

Cinebench R15 OpenGL 64Bit

134.7 fps

Cinebench R15 Ref. Match 64Bit

99.6 %

Help

... in comparison

PCMark 10 | PCMark 8

PCMark 10
Score
Average of class Desktop (5331 - 10699, n=11, last 2 years)	9120 Points +107%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points +20%
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	4982 Points +13%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	4812 Points +9%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4580 Points +4%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	4411 Points
Essentials
Average of class Desktop (10652 - 12591, n=11, last 2 years)	11925 Points +72%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points +32%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	8994 Points +30%
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	8989 Points +30%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	8418 Points +21%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	6931 Points
Productivity
Average of class Desktop (7058 - 12944, n=11, last 2 years)	11470 Points +85%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points +28%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	7246 Points +17%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	7236 Points +17%
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	7057 Points +14%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	6192 Points
Digital Content Creation
Average of class Desktop (5469 - 22005, n=11, last 2 years)	15913 Points +193%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points +3%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	5430 Points
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	5290 Points -3%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	4959 Points -9%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4007 Points -26%

PCMark 8 - Home Score Accelerated v2
Average of class Desktop (last 2 years)	7163 Points +45%
Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	4939 Points
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	4833 Points -2%
Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	4674 Points -5%
Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	4148 Points -16%
Lenovo Legion Y530-15ICH GeForce GTX 1050 Ti Mobile, i5-8300H, Toshiba KBG30ZMT128G	4129 Points -16%

PCMark 8 Home Score Accelerated v2		4939 points
PCMark 10 Score		4411 points
Help

	Lenovo Legion C530-90JX003AUS Seagate Desktop HDD 1TB ST1000DM003	Panasonic Toughbook CF-54G2999VM Seagate BarraCuda Compute 1TB ST1000LM048	Lenovo IdeaPad 330-15ARR-81D2005JGE Seagate Mobile HDD 1TB ST1000LM035	HP 15-db0500ng Seagate Mobile HDD 1TB ST1000LM035	MSI GF63 8RC Seagate BarraCuda Pro Compute 1TB ST1000LM049	Asus VivoBook 15 F510UF-ES71 Seagate Mobile HDD 1TB ST1000LM035
CrystalDiskMark 5.2 / 6		-6%	-44%	-32%	2%	3%
Write 4K	0.942	1.145 22%	0.217 -77%	0.727 -23%	1.244 32%	1.283 36%
Read 4K	0.472	0.453 -4%	0.367 -22%	0.379 -20%	0.544 15%	0.493 4%
Write Seq	128.3	52.2 -59%	98.8 -23%	85.1 -34%	97.1 -24%	79.3 -38%
Read Seq	183.7	122.7 -33%	131.1 -29%	95.6 -48%	162.1 -12%	136.7 -26%
Write 4K Q32T1	1.061	2.428 129%	0.222 -79%	0.99 -7%	1.674 58%	2.266 114%
Read 4K Q32T1	1.192	1.063 -11%	0.781 -34%	0.869 -27%	0.998 -16%	1.068 -10%
Write Seq Q32T1	177.6	73.7 -59%	97 -45%	92.2 -48%	134.8 -24%	108.7 -39%
Read Seq Q32T1	174.1	120.4 -31%	93.3 -46%	91.8 -47%	154.8 -11%	143.7 -17%

HD Tune

CrystalDiskMark 5.2 / 6

Seagate Desktop HDD 1TB ST1000DM003

Transfer Rate Minimum: 96.4 MB/s

Transfer Rate Maximum: 212.2 MB/s

Transfer Rate Average: 162 MB/s

Access Time: 14.3 ms

Burst Rate: 124.7 MB/s

CPU Usage: 4.2 %

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance GPU
Nvidia GeForce GTX 1060 Founders Edition 6 GB NVIDIA GeForce GTX 1060 (Desktop), 6700K	17401 Points +89%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	14302 Points +55%
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	13388 Points +45%
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	13168 Points +43%
Lenovo Legion Y530-15ICH NVIDIA GeForce GTX 1050 Ti Mobile, i5-8300H	9909 Points +8%
Lenovo Legion C530-90JX003AUS NVIDIA GeForce GTX 1050 Ti (Desktop), i5-8400	9212 Points
Dell XPS 15 9570 Core i9 UHD NVIDIA GeForce GTX 1050 Ti Max-Q, i9-8950HK	9032 Points -2%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	4751 Points -48%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	4686 Points -49%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	3081 Points -67%
1280x720 Performance Combined
Nvidia GeForce GTX 1060 Founders Edition 6 GB NVIDIA GeForce GTX 1060 (Desktop), 6700K	11160 Points +26%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	10391 Points +17%
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	9842 Points +11%
Lenovo Legion C530-90JX003AUS NVIDIA GeForce GTX 1050 Ti (Desktop), i5-8400	8854 Points
Dell XPS 15 9570 Core i9 UHD NVIDIA GeForce GTX 1050 Ti Max-Q, i9-8950HK	8450 Points -5%
Lenovo Legion Y530-15ICH NVIDIA GeForce GTX 1050 Ti Mobile, i5-8300H	7363 Points -17%
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	6212 Points -30%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	4378 Points -51%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	4354 Points -51%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	2583 Points -71%

3DMark
1280x720 Cloud Gate Standard Graphics
Nvidia GeForce GTX 1060 Founders Edition 6 GB NVIDIA GeForce GTX 1060 (Desktop), 6700K	80879 Points
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	67779 Points
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	59162 Points
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	57208 Points
Lenovo Legion Y730-17ICH, i7-8750H NVIDIA GeForce GTX 1050 Ti Mobile, i7-8750H	50732 Points
Lenovo Legion Y530-15ICH NVIDIA GeForce GTX 1050 Ti Mobile, i5-8300H	50387 Points
Dell XPS 15 9570 Core i9 UHD NVIDIA GeForce GTX 1050 Ti Max-Q, i9-8950HK	42202 Points
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	22171 Points
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	21586 Points
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	16698 Points
1920x1080 Fire Strike Graphics
Nvidia GeForce GTX 1060 Founders Edition 6 GB NVIDIA GeForce GTX 1060 (Desktop), 6700K	12984 Points +73%
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	10338 Points +38%
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	10248 Points +37%
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	9888 Points +32%
Lenovo Legion Y730-17ICH, i7-8750H NVIDIA GeForce GTX 1050 Ti Mobile, i7-8750H	7860 Points +5%
Lenovo Legion Y530-15ICH NVIDIA GeForce GTX 1050 Ti Mobile, i5-8300H	7740 Points +3%
Lenovo Legion C530-90JX003AUS NVIDIA GeForce GTX 1050 Ti (Desktop), i5-8400	7485 Points
Dell XPS 15 9570 Core i9 UHD NVIDIA GeForce GTX 1050 Ti Max-Q, i9-8950HK	7374 Points -1%
MSI Prestige PS42 8RB-059 NVIDIA GeForce MX150, i5-8550U	3712 Points -50%
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	3585 Points -52%
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	2260 Points -70%
1920x1080 Ice Storm Extreme Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	282345 Points
Lenovo IdeaPad Y900 NVIDIA GeForce GTX 980M, 6820HK	215674 Points
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	100969 Points
Lenovo Legion Y520-15IKBM 80YY001APB NVIDIA GeForce GTX 1060 Max-Q, i5-7300HQ	71289 Points
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, i7-8809G	2908 Points
Desktop PC Intel Xeon E5 2680v4 Zotac GT 1030 NVIDIA GeForce GT 1030 (Desktop), E5-2680 v4	1088 Points
Intel NUC8i7BE Intel Iris Plus Graphics 655, i7-8559U	633 Points

3DMark 11 Performance		9151 points
3DMark Fire Strike Score		6644 points
Help

... in comparison

Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003; FPS: Ø24 (21-27)

	low	med.	high	ultra
BioShock Infinite (2013)	303.5			77.2
The Witcher 3 (2015)				24
Ashes of the Singularity (2016)		43.9	39.1

Noise Level

Idle		41.4 / 41.5 / 41.7 dB(A)
Load		42 / 43.3 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1, Arta (15 cm distance) environment noise: 28.3 dB(A)

	Lenovo Legion C530-90JX003AUS GeForce GTX 1050 Ti (Desktop), i5-8400, Seagate Desktop HDD 1TB ST1000DM003	Zotac ZBOX Magnus EK71080 GeForce GTX 1080 (Desktop), i7-7700HQ, Samsung PM961 MZVLW256HEHP	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	Lenovo Legion Y730-17ICH, i7-8750H GeForce GTX 1050 Ti Mobile, i7-8750H, Toshiba KBG30ZMT128G	Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U
Noise		1%	13%	15%	14%
off / environment *	28.3	29.9 -6%	28.7 -1%	28 1%	28.7 -1%
Idle Minimum *	41.4	38.6 7%	29 30%	28 32%	28.7 31%
Idle Average *	41.5	38.6 7%	29 30%	28 33%	29.3 29%
Idle Maximum *	41.7	39 6%	29 30%	31.3 25%	31.8 24%
Load Average *	42	40.6 3%	36 14%	33.4 20%	39 7%
Witcher 3 ultra *	42	41.7 1%	42 -0%	42.8 -2%	39 7%
Load Maximum *	43.3	47 -9%	49.4 -14%	46.2 -7%	41.4 4%

* ... smaller is better

Power Consumption

Off / Standby	0.43 / 1.01 Watt
Idle	29.9 / 30.4 / 30.8 Watt
Load	94.3 / 167.6 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo Legion C530-90JX003AUS i5-8400, GeForce GTX 1050 Ti (Desktop), Seagate Desktop HDD 1TB ST1000DM003, , x,	Intel NUC8i7BE i7-8559U, Iris Plus Graphics 655, , , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,	Lenovo Legion Y730-17ICH, i7-8750H i7-8750H, GeForce GTX 1050 Ti Mobile, Toshiba KBG30ZMT128G, IPS, 1920x1080, 17.3"	Asus GL704GM-DH74 i7-8750H, GeForce GTX 1060 Mobile, WDC PC SN520 SDAPNUW-256G, IPS, 1920x1080, 17.3"
Power Consumption		67%	21%	38%	6%
Idle Minimum *	29.9	2.7 91%	15.5 48%	6.3 79%	15.2 49%
Idle Average *	30.4	3.1 90%	16.2 47%	11 64%	20.4 33%
Idle Maximum *	30.8	6.3 80%	16.5 46%	11.5 63%	27.3 11%
Load Average *	94.3	59.7 37%	83.4 12%	89.8 5%	92.9 1%
Witcher 3 ultra *	99.5	47.2 53%	121.7 -22%	102 -3%	143 -44%
Load Maximum *	167.6	78 53%	173.5 -4%	130.7 22%	190.6 -14%

* ... smaller is better

Pros

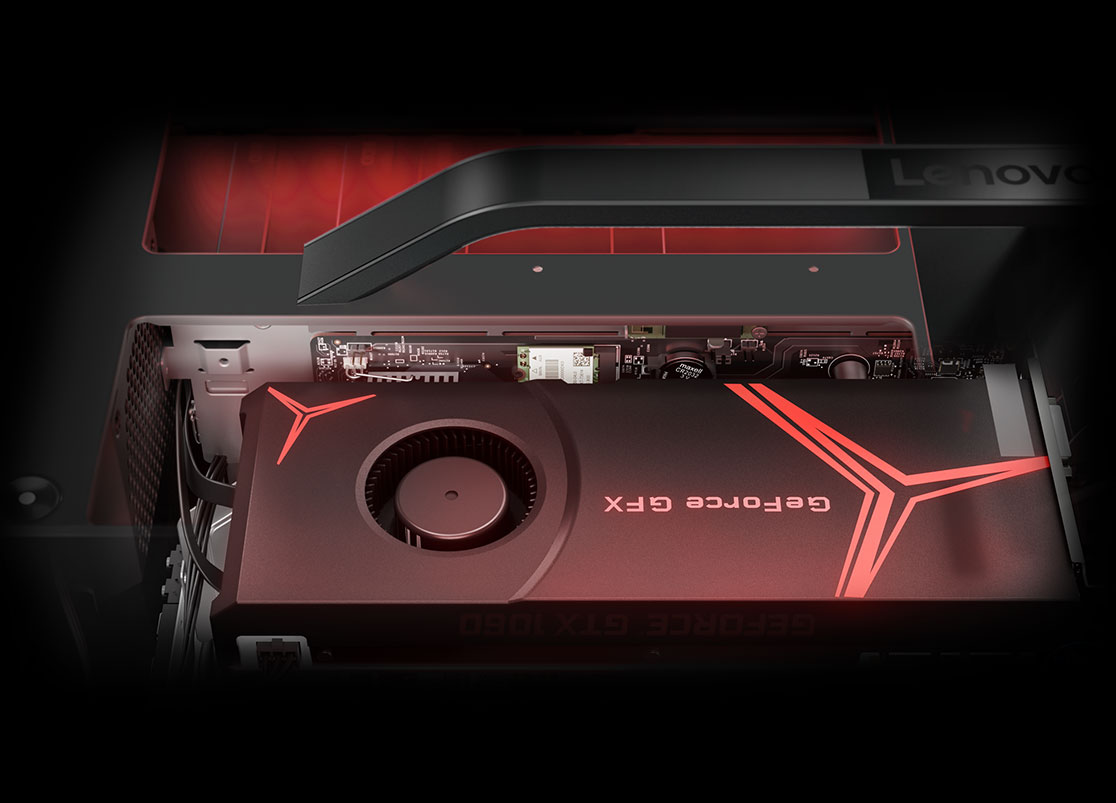

+ 支持全尺寸长显卡

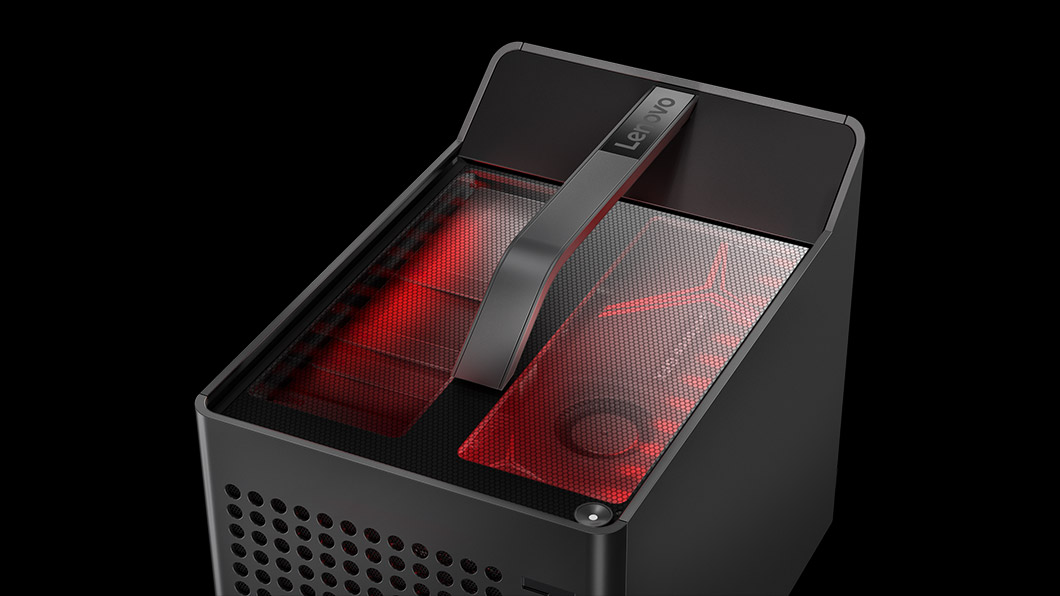

+ 实用性的设计，以及一个用于携带的把手

+ 高负载下没有降频现象

+ 4个存储插槽两个DDR4插槽

+ 支持英特尔傲腾技术

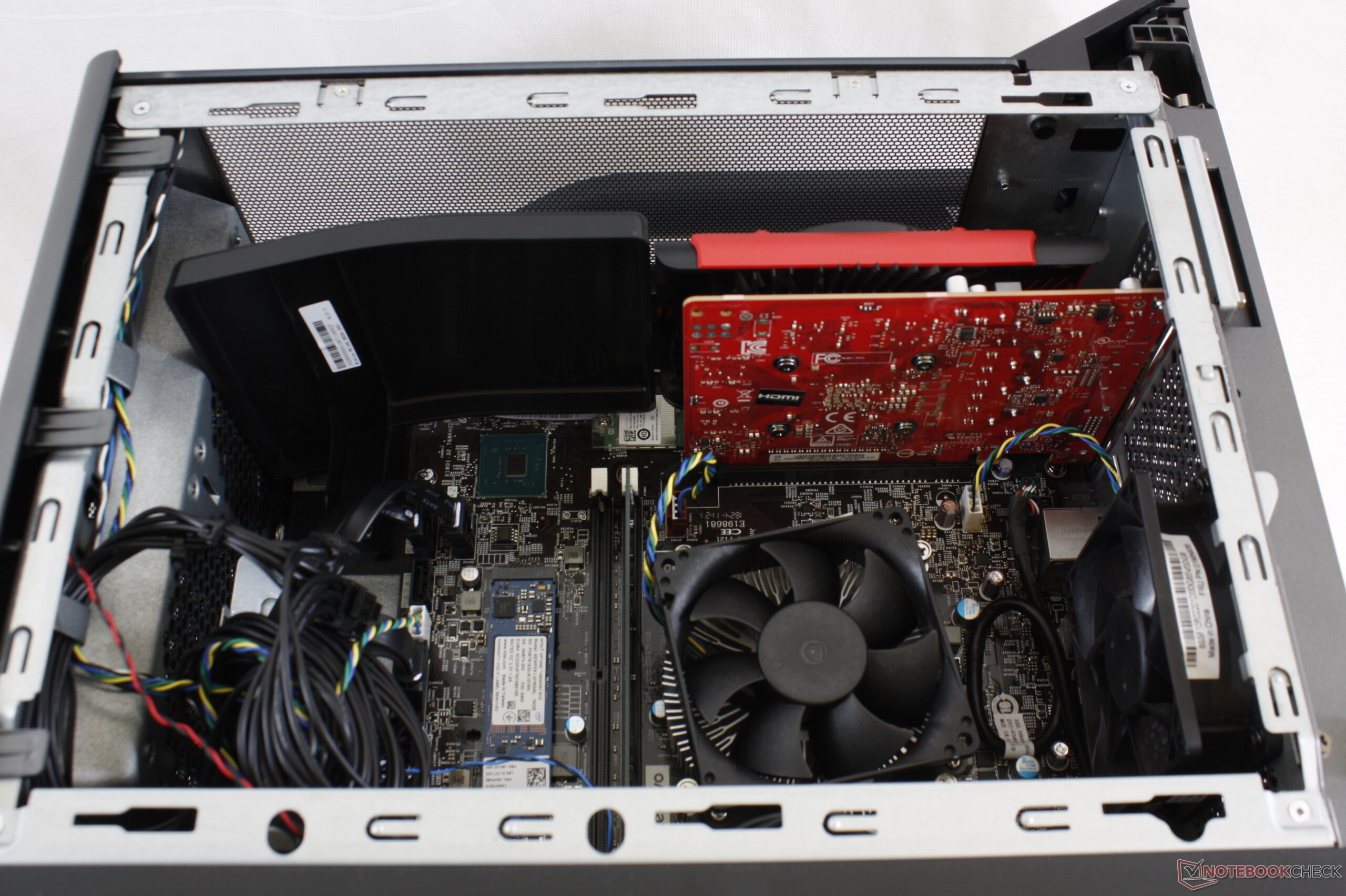

+ 可维护性高，易于升级

+ 作为入门产品性价比很高

+ 风扇安静

+ 有RAID选项

Cons

- 没有2.5或3.5英寸硬盘托架

- 方方正正的设计对于有些人来说可能过于平淡

- 把手不可拆卸

- 所有型号都只有450W的电源

- 没有SD卡读卡器和USB TypeC接口

- 没有空闲的PCIe x1/x4插槽

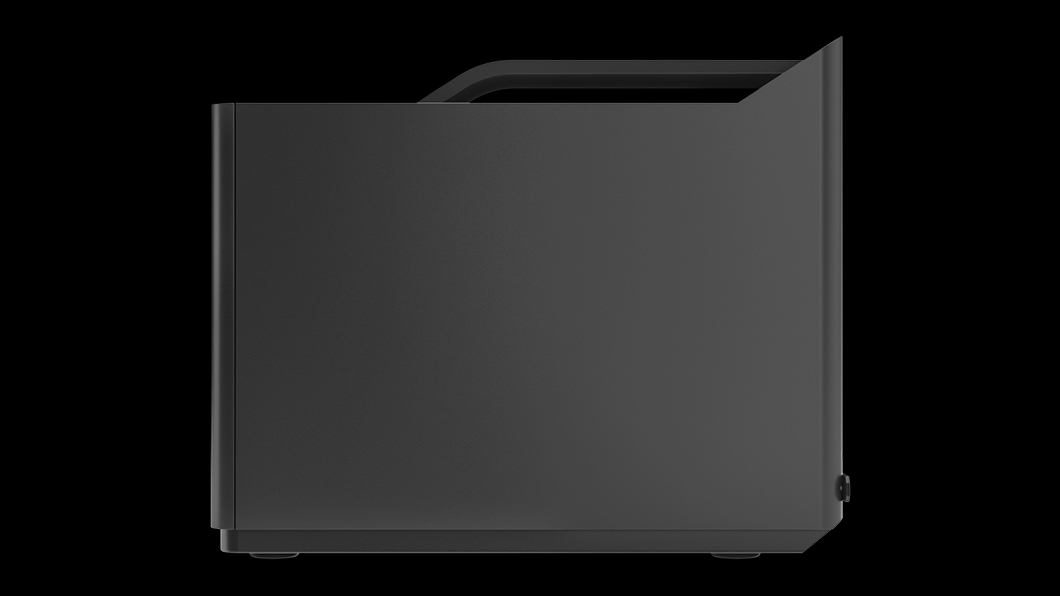

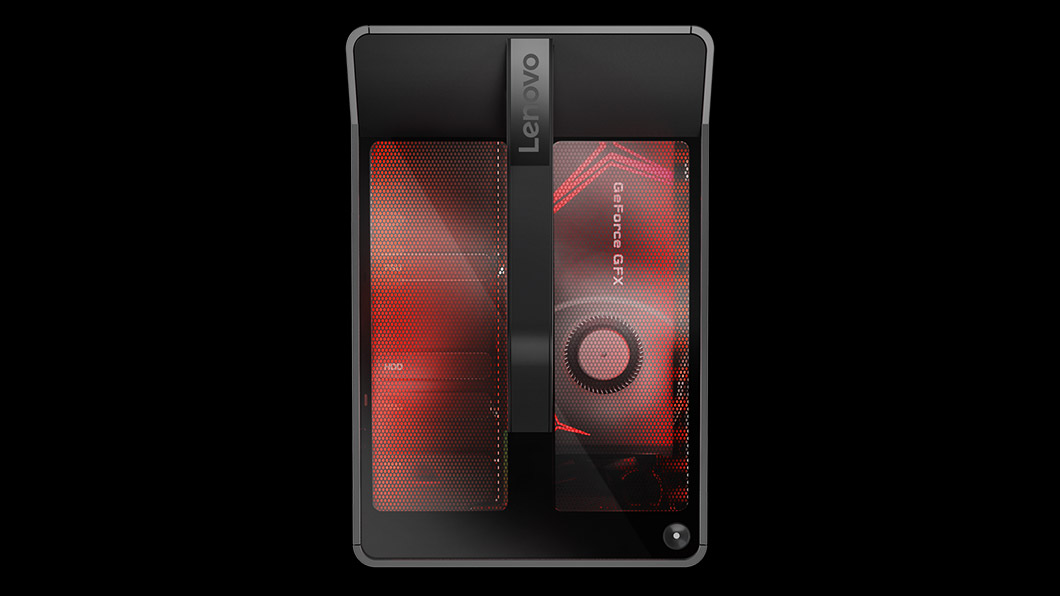

联想Legion C530 Cube 迷你PC. Test model provided by Lenovo US

这是一台经济实惠的，易于升级的游戏PC。用户可以先购买入门级配置，并随着时间的推移再去慢慢升级，而且不会影响保修。在这方面，小巧紧凑的Legion C530做得很对，特别是与较小的竞品，如MSI Trident 3，Intel Hades Canyon NUC或 Zotac ZBox Magnus相比，Legion C530更易于维修升级。

一些成本妥协上的缺陷阻碍了Legion C530成为电脑入门者的“完美”游戏PC。它缺少Thunderbolt 3，第二个PCIe插槽，10 Gbit以太网，读卡器，光驱以及现在大多数游戏PC都有的专用BIOS菜单。ATX12V / BTX PSU比普通主板主组件更难更换。我们更喜欢用SATA III M.2固态硬盘代替低端配置上强制的英特尔傲腾内存。

“电脑入门的完美出发点。联想Legion C530提供充足了的性能和扩展空间，是一款经济实惠的，适合长期使用的台式机。”

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5246 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 463597 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想Legion C530 Cube (i5-8300, GTX 1050 Ti)迷你PC

Allen Ngo, 2018-12-11 (Update: 2018-12-11)
