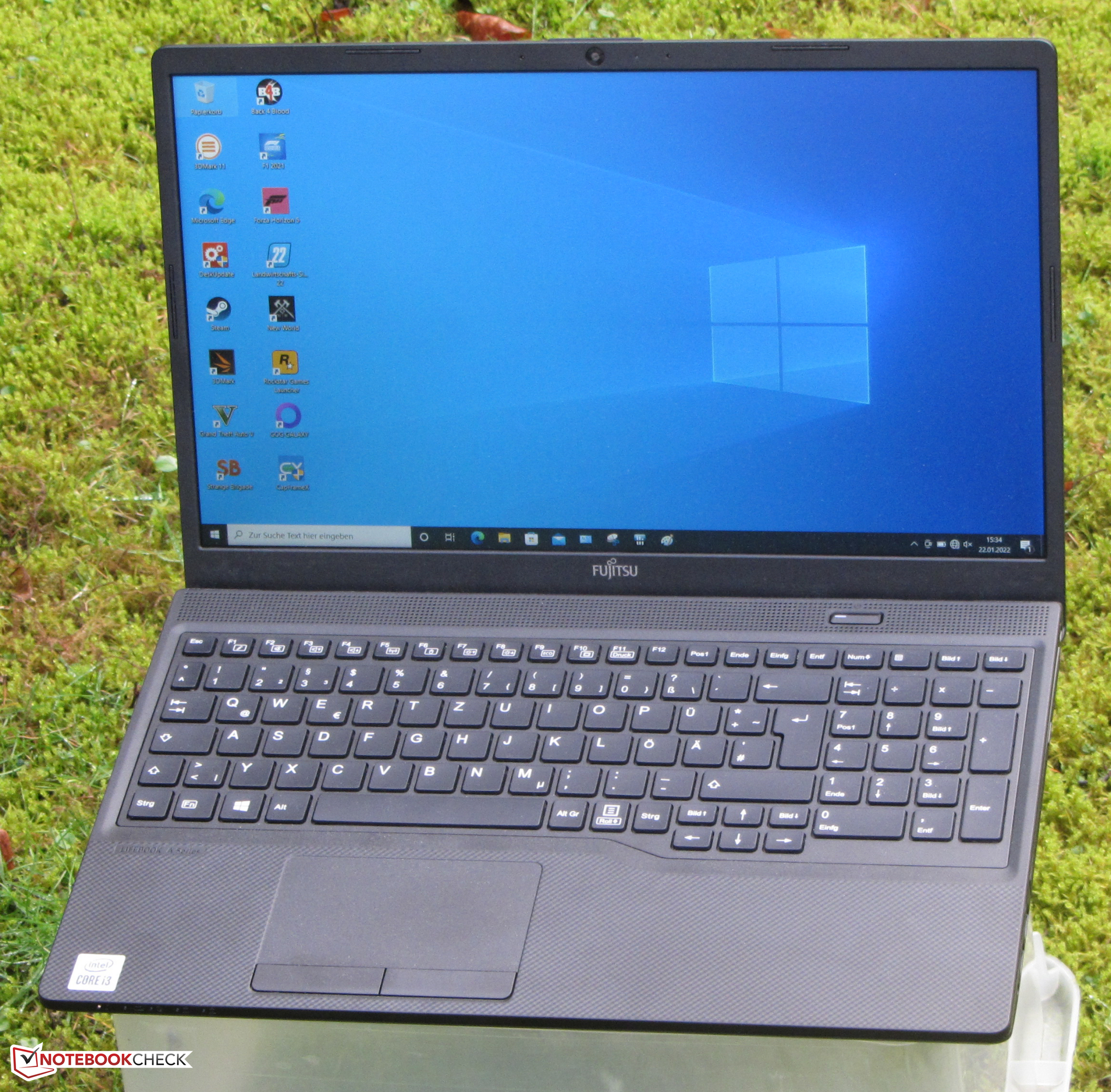

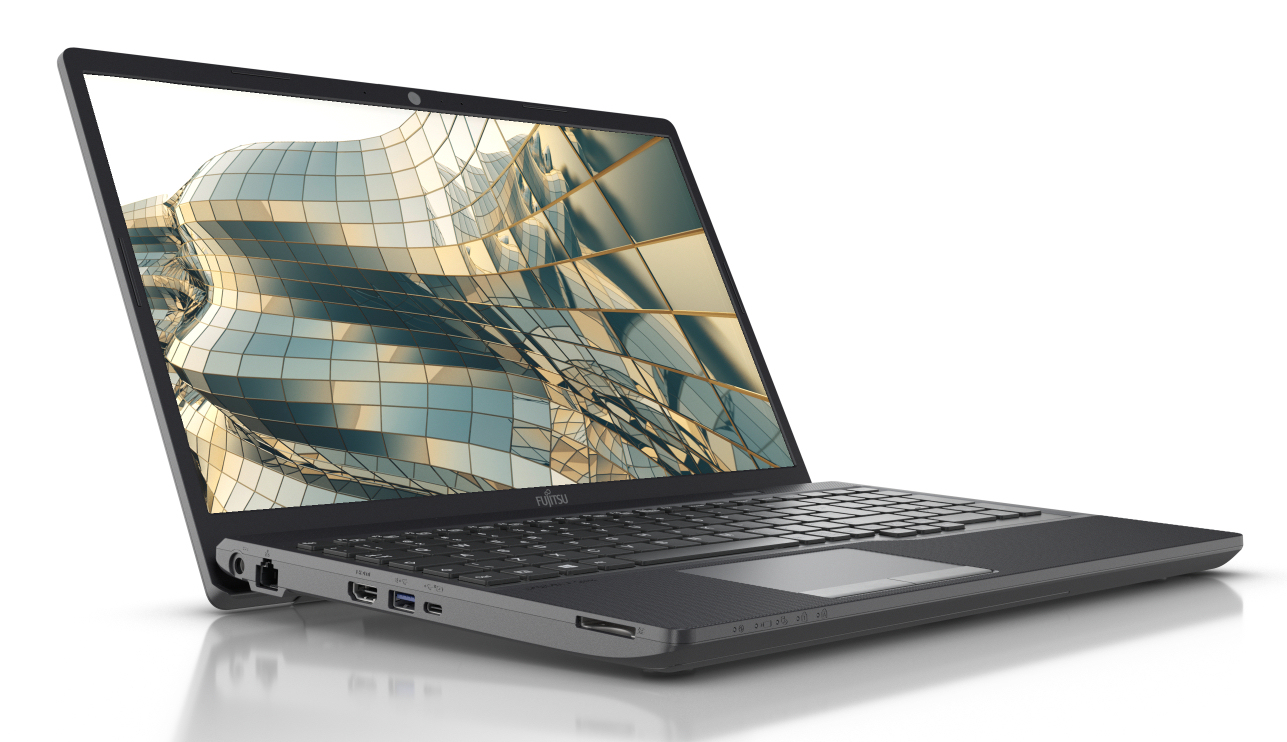

富士通Lifebook A3510回顾。一台经济实惠的办公笔记本电脑，有一个维护的挡板

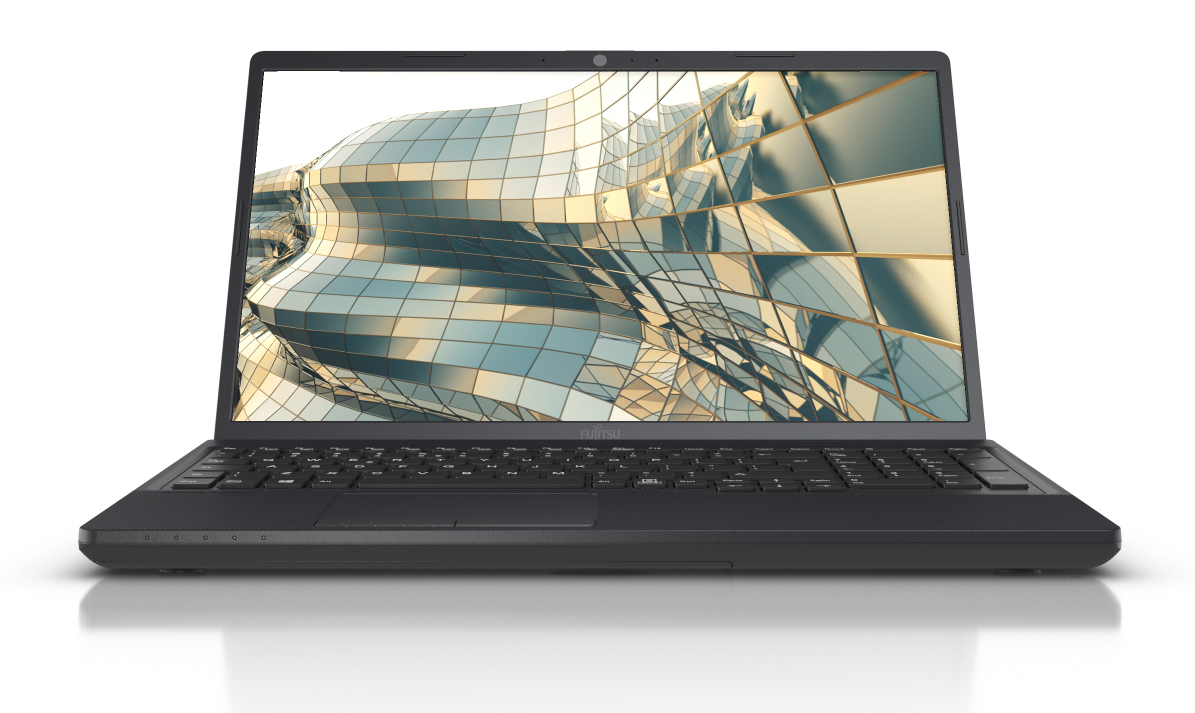

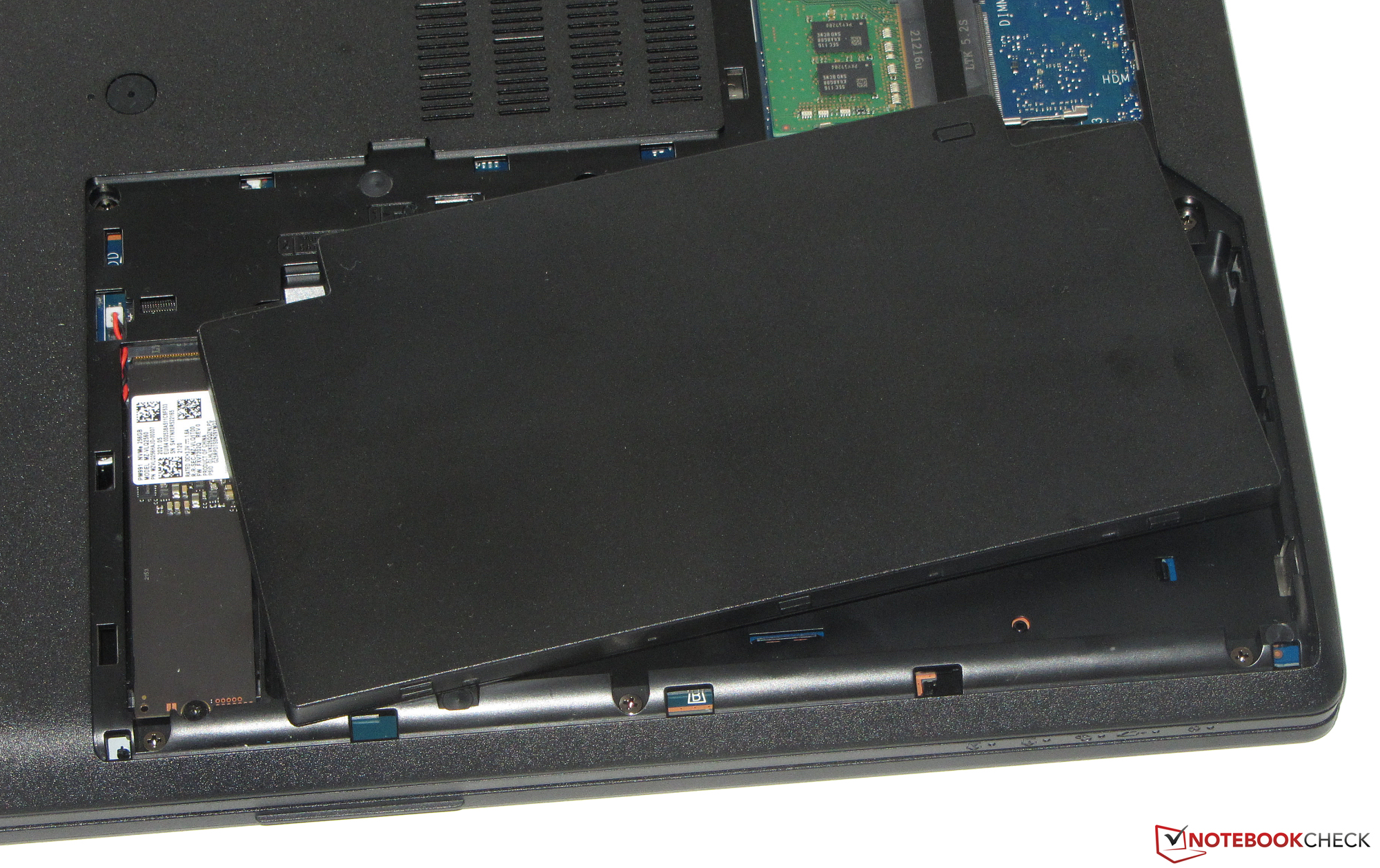

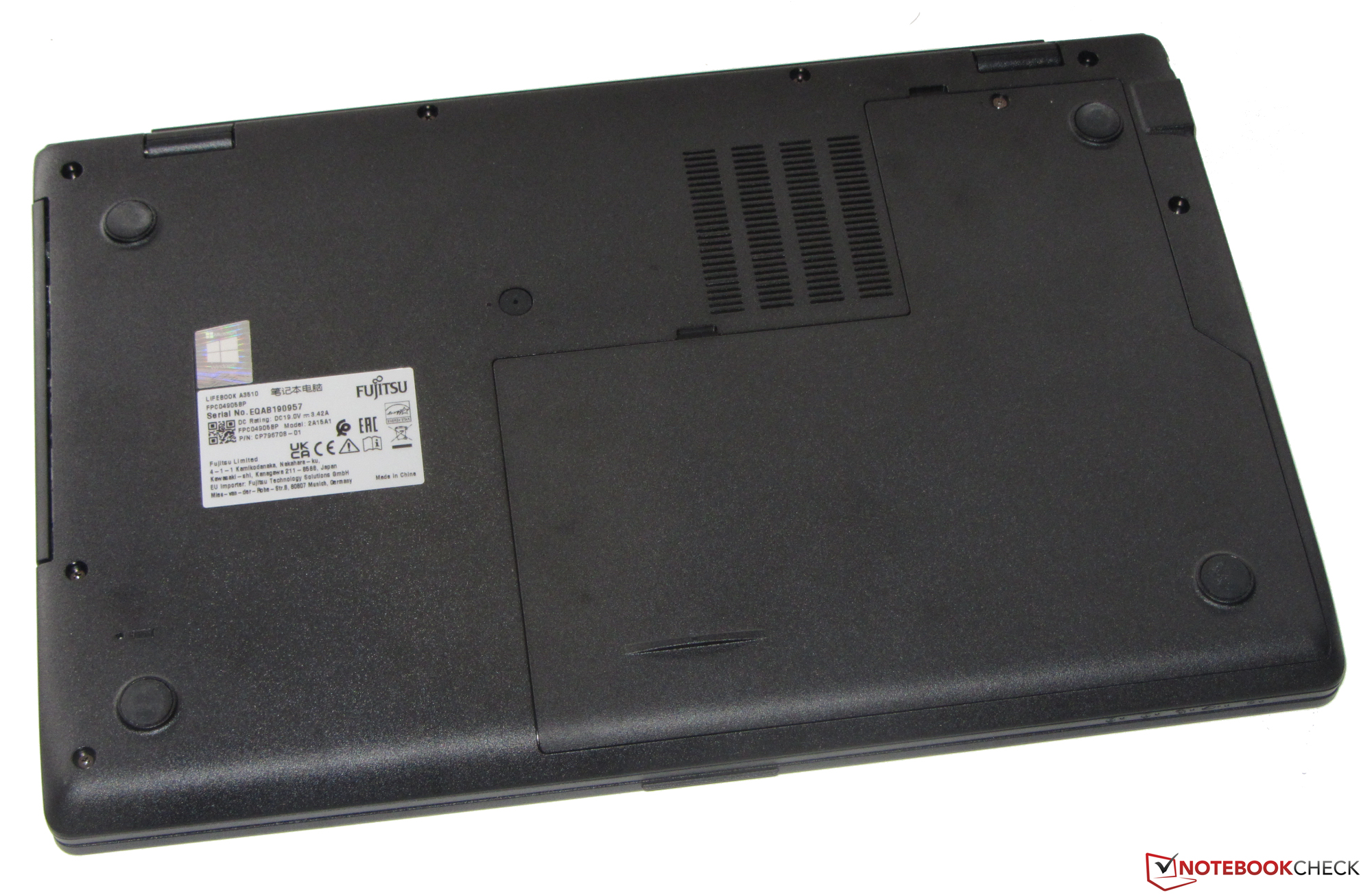

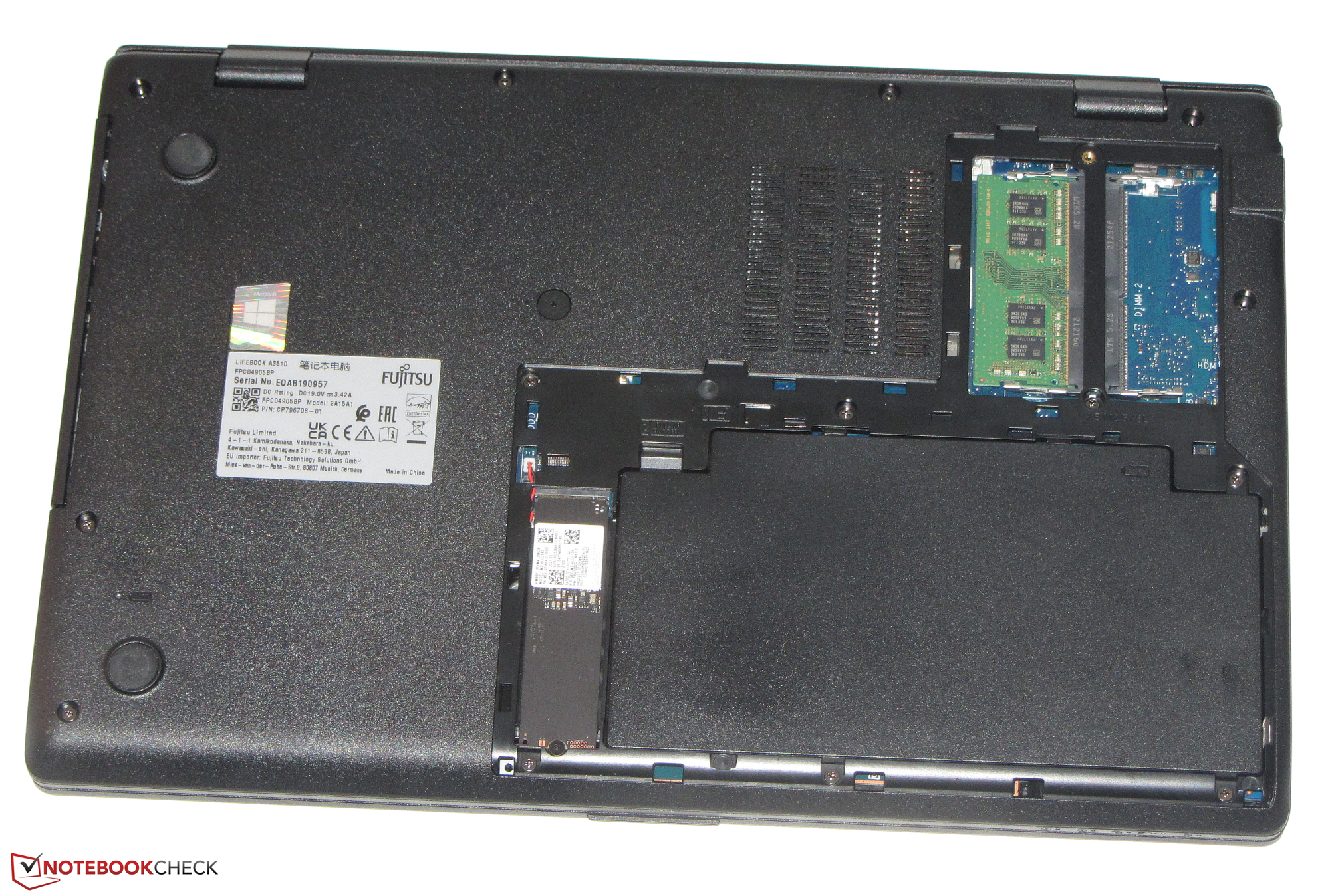

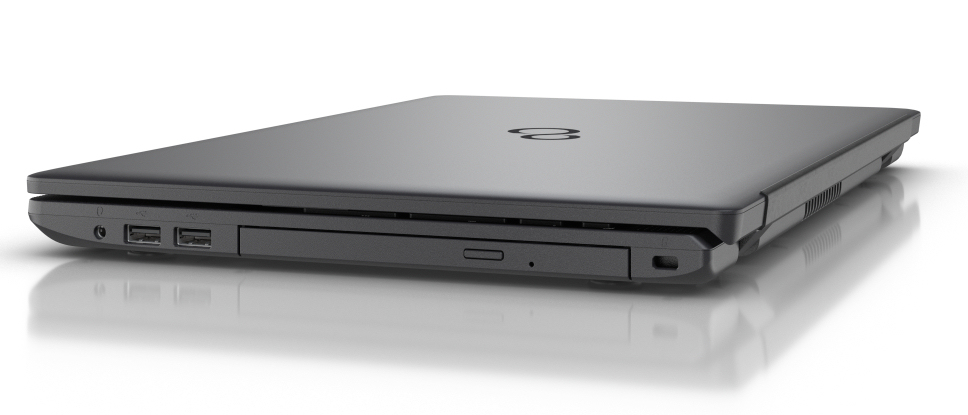

通过Lifebook A3510，富士通提供了一款入门级的15.6英寸商务笔记本电脑。它属于几乎已经绝迹的提供光驱和维修挡板的笔记本电脑类别。结合相当有吸引力的价格水平（450欧元，约合502美元，带Windows 10 Pro；350欧元，约合390美元，不带Windows操作系统），该设备也应该引起一些私人用户的兴趣。竞争对手包括以下设备 戴尔Latitude 3510，以及联想V15-ADA，以及惠普255 G7.
Fujitsu Lifebook A3510 (FPC04905BP) (LifeBook A Series)
Processor
Intel Core i3-1005G1 2 x 1.2 - 3.4 GHz, 50 W PL2 / Short Burst, 15 W PL1 / Sustained, Ice Lake-U
Graphics adapter

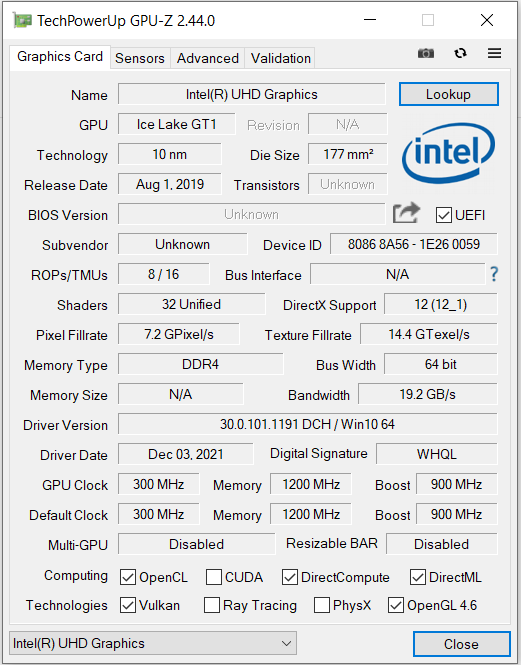

Intel UHD Graphics G1 (Ice Lake 32 EU), Core: 900 MHz, single-channel, 30.0.101.1191
Memory
8 GB

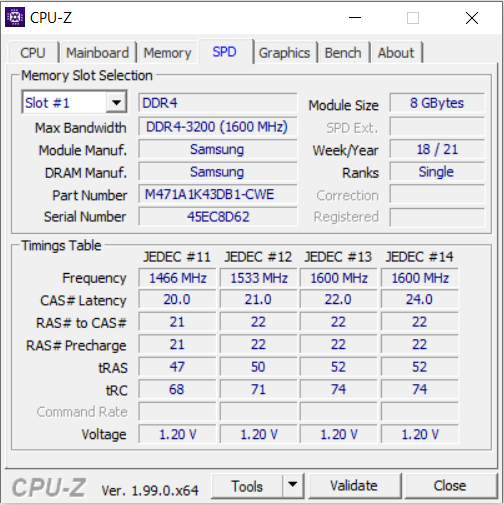

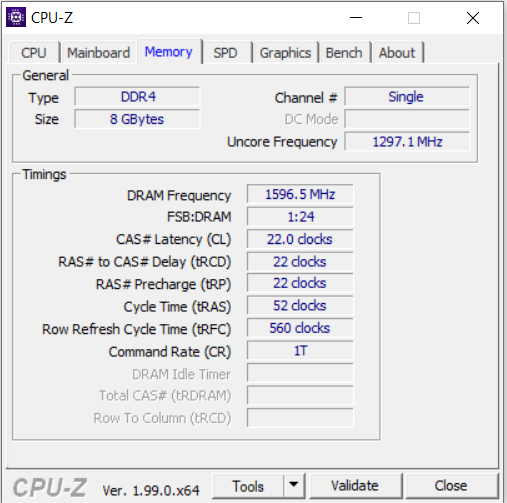

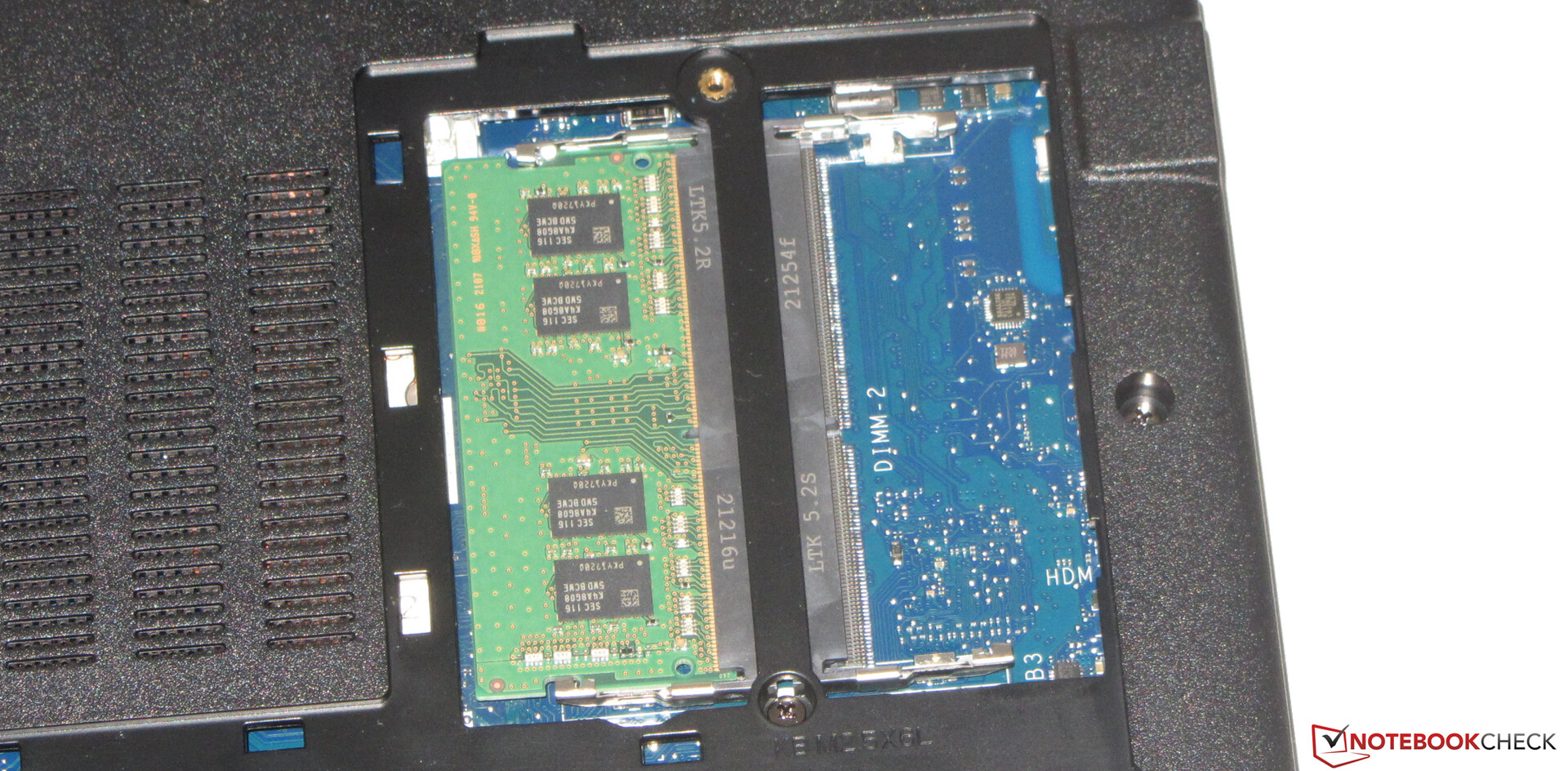

, DDR4-3200, single-channel mode, two memory slots (one in use)
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, BOE CQ NV156FHM-N48, IPS, glossy: no, 60 Hz
Mainboard

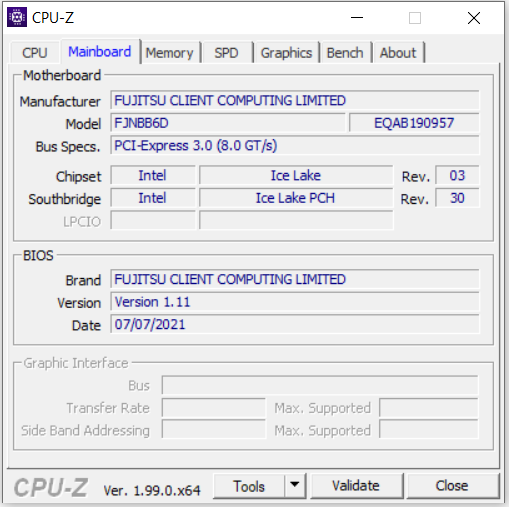

Intel 495 (Ice Lake-U PCH-LP Premium)
Storage

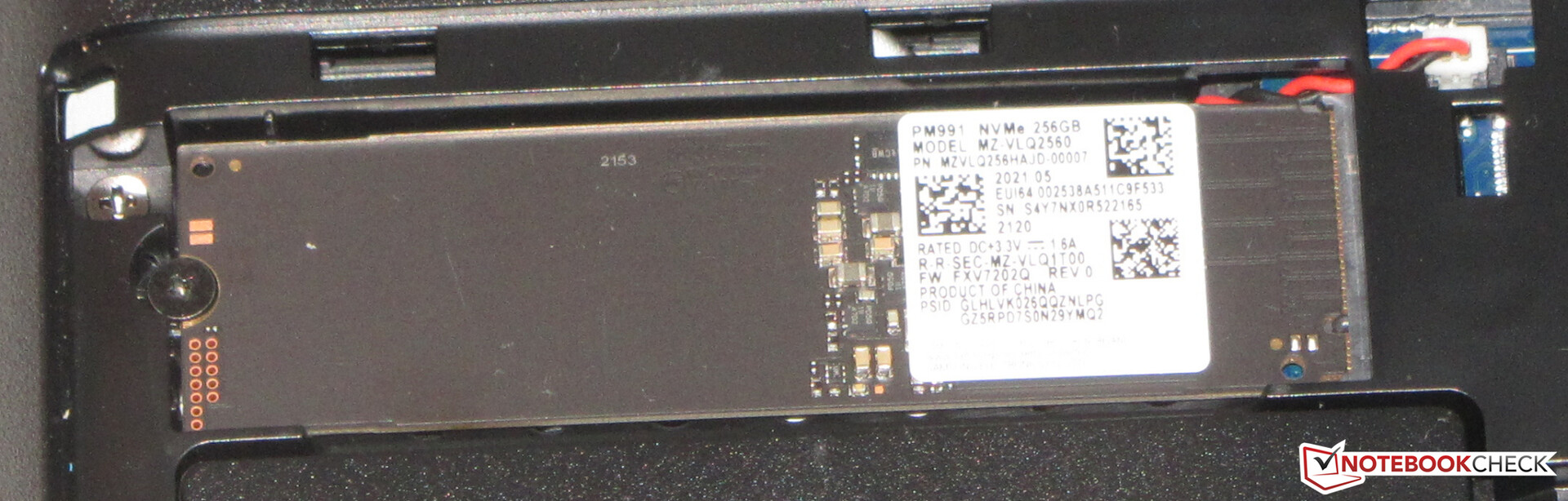

Samsung PM991 MZVLQ256HAJD, 256 GB
, M.2-2280, NVMe, 199 GB free
Weight
1.8 kg, Power Supply: 325 g
Price
499 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.
Possible Competitors for Comparison
Rating | Date | Model | Weight | Height | Size | Resolution | Price |
|---|---|---|---|---|---|---|---|
| 81.2 % v7 (old) | 02 / 2022 | Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU) | 1.8 kg | 23.9 mm | 15.60" | 1920x1080 | |
| 81 % v7 (old) | Dell Latitude 15 3510 NK2MC i3-10110U, UHD Graphics 620 | 1.9 kg | 18 mm | 15.60" | 1920x1080 | ||
| 74.6 % v7 (old) | HP 255 G7 159P1EA R3 3200U, Vega 3 | 1.8 kg | 22.5 mm | 15.60" | 1920x1080 | ||
| 76.5 % v7 (old) | Lenovo V15-ADA 82C7009SGE Athlon 3150U, Vega 3 | 1.9 kg | 20 mm | 15.60" | 1920x1080 |
机箱和设备 - Lifebook A支持电源传输

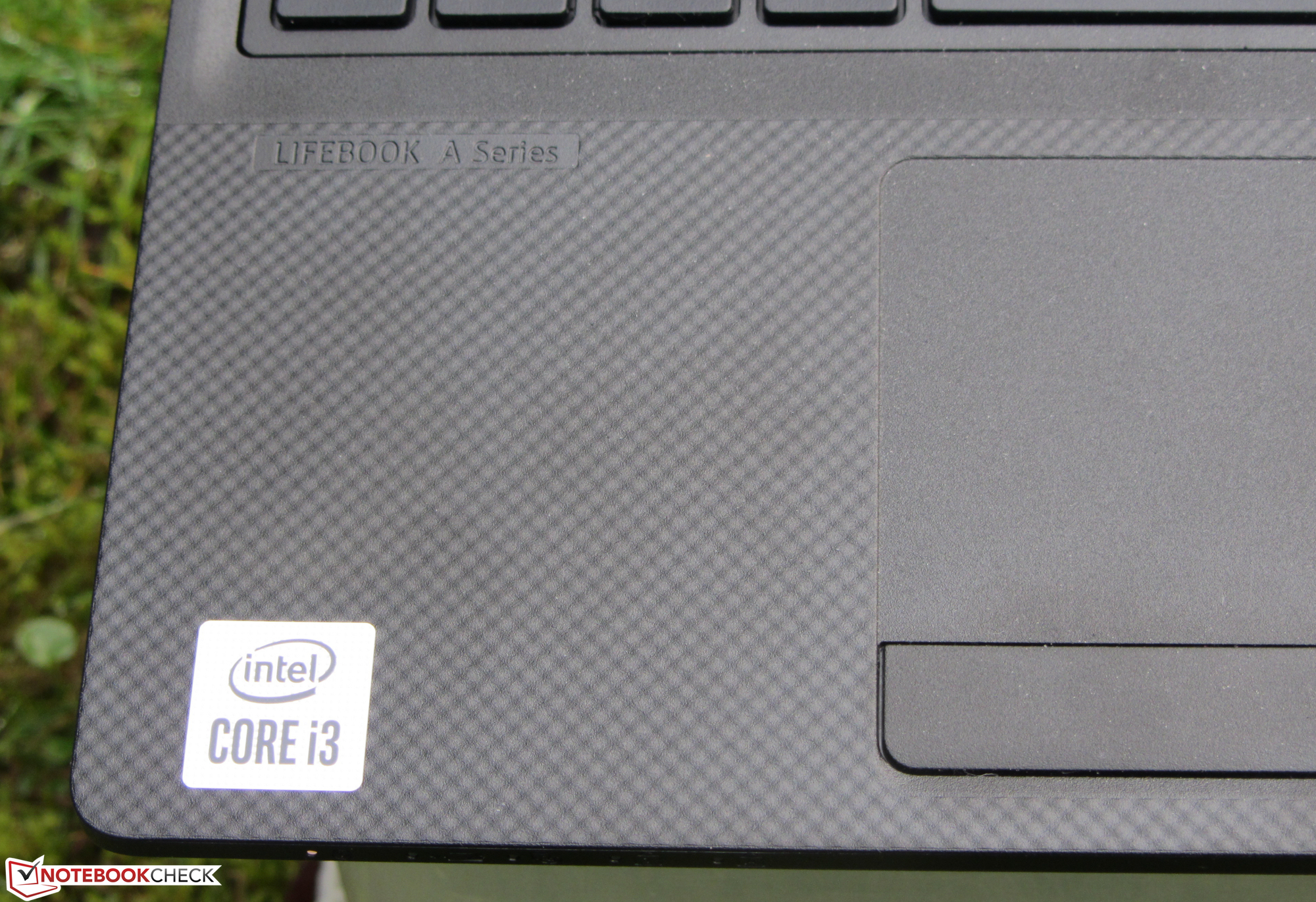

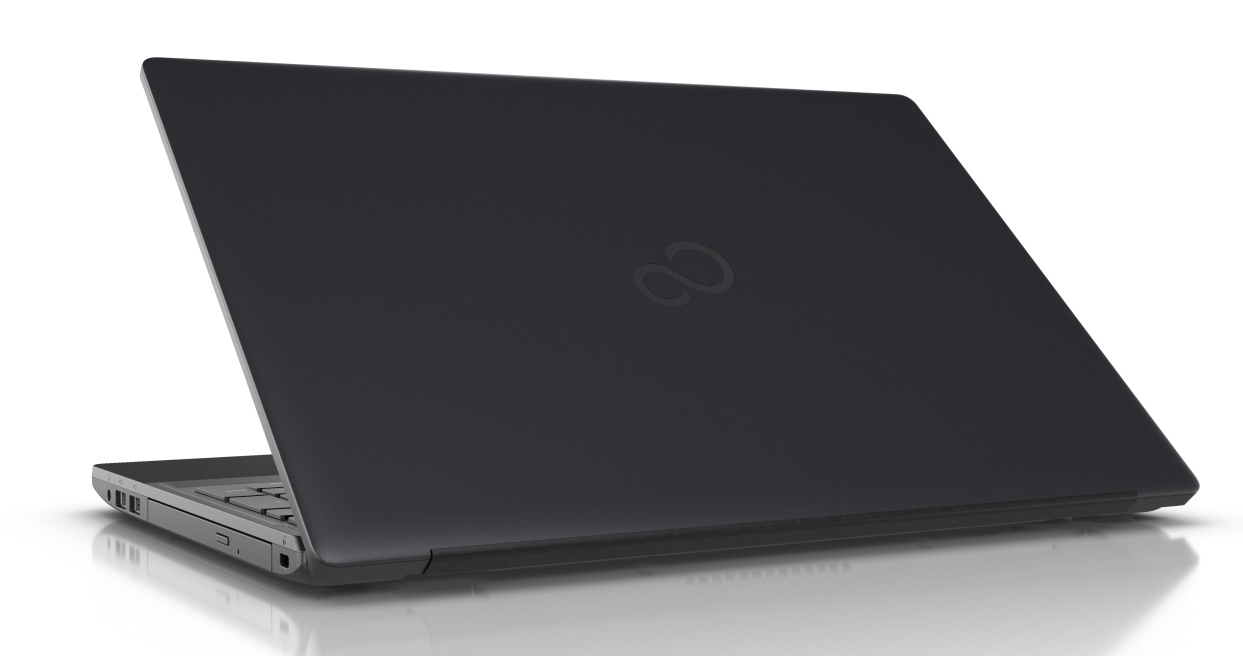

富士通使用的是黑色哑光塑料外壳。掌托有波纹状的纹理，盖子的背面和底部有粗糙的表面。总的来说，这个箱子不大容易留下指纹。缝隙很小，没有明显的尖锐边缘。然而，底座和盖子可以明显翘起。一个维护挡板让人很容易接触到电池、SSD和工作内存。
与富士通广告材料中的信息相反，Lifebook的重量并没有接近2公斤（约4.4磅），而是只有1.8公斤（约4磅；或1.67公斤，约3.7磅，不含DVD驱动器）--我们自己称了一下设备。

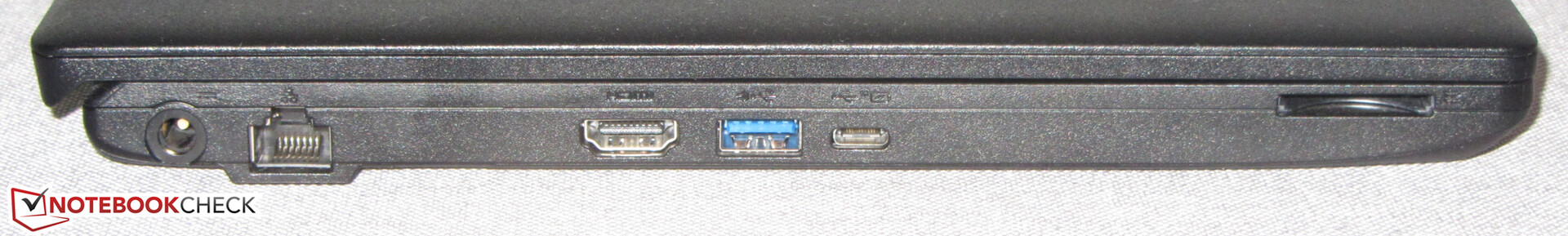

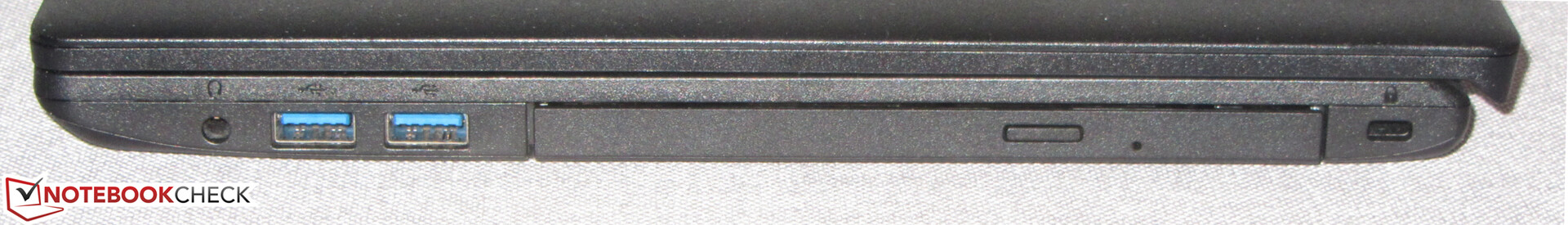

富士通笔记本电脑提供三个USB-A端口（USB 3.2 Gen 1）和一个USB-C端口（USB 3.2 Gen 2），通过USB-C支持Power Delivery和DisplayPort。因此，连同HDMI端口，A3510提供了两个视频端口。SD存储卡读卡器属于同类产品中较快的代表（参考卡：AV PRO SD 128 GB V60）。
WLAN模块包括一个英特尔芯片（Wireless-AC 9560），支持802.11a/b/g/n/ac标准。在最佳条件下测量的传输率（附近没有其他WLAN设备，笔记本电脑和服务器PC之间的距离很近）结果非常好。
注意：我们使用了富士通网站下载区提供的最新的英特尔WiFi驱动程序（版本22.70.0.6）。可从英特尔网站下载的最新驱动程序（22.100.1.1版）在我们的测试设备上并非完全没有问题，而且产生的传输速率明显更差（约1/10）。
| SD Card Reader | |
| average JPG Copy Test (av. of 3 runs) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (AV Pro SD microSD 128 GB V60) | |
| Average of class Office (22.7 - 198.5, n=33, last 2 years) | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Dell Latitude 15 3510 NK2MC (Toshiba Exceria Pro M501 microSDXC 64GB) | |
| maximum AS SSD Seq Read Test (1GB) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (AV Pro SD microSD 128 GB V60) | |
| Average of class Office (25 - 249, n=30, last 2 years) | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE (Toshiba Exceria Pro SDXC 64 GB UHS-II) | |
| Dell Latitude 15 3510 NK2MC (Toshiba Exceria Pro M501 microSDXC 64GB) | |
| Networking | |
| iperf3 transmit AX12 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Wireless-AC 9560 (309 - 1350, n=182) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| iperf3 receive AX12 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| Average Intel Wireless-AC 9560 (288 - 1390, n=183) | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560; iperf3 receive AX12; iperf 3.1.3, Speedport Pro Plus: Ø948 (917-950)
HP 255 G7 159P1EA Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter; iperf3 receive AX12; iperf 3.1.3: Ø595 (445-671)
Lenovo V15-ADA 82C7009SGE Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 receive AX12; iperf 3.1.3: Ø621 (585-651)
Fujitsu Lifebook A3510 (FPC04905BP) Intel Wireless-AC 9560; iperf3 transmit AX12; iperf 3.1.3, Speedport Pro Plus: Ø922 (909-935)
HP 255 G7 159P1EA Realtek RTL8822BE Wireless LAN 802.11ac PCIe Adapter; iperf3 transmit AX12; iperf 3.1.3: Ø659 (332-711)
Lenovo V15-ADA 82C7009SGE Realtek 8822CE Wireless LAN 802.11ac PCI-E NIC; iperf3 transmit AX12; iperf 3.1.3: Ø618 (579-655)
18.5 ∆E
21.9 ∆E
25.8 ∆E
22.4 ∆E
26.7 ∆E
18.5 ∆E
14.9 ∆E
29.1 ∆E
16.8 ∆E
14.5 ∆E
17.9 ∆E
22.5 ∆E
22 ∆E
22.5 ∆E
18.9 ∆E
14.6 ∆E
20.7 ∆E
27 ∆E
2.3 ∆E
11.8 ∆E
24.8 ∆E
22.5 ∆E
18.4 ∆E
8.1 ∆E

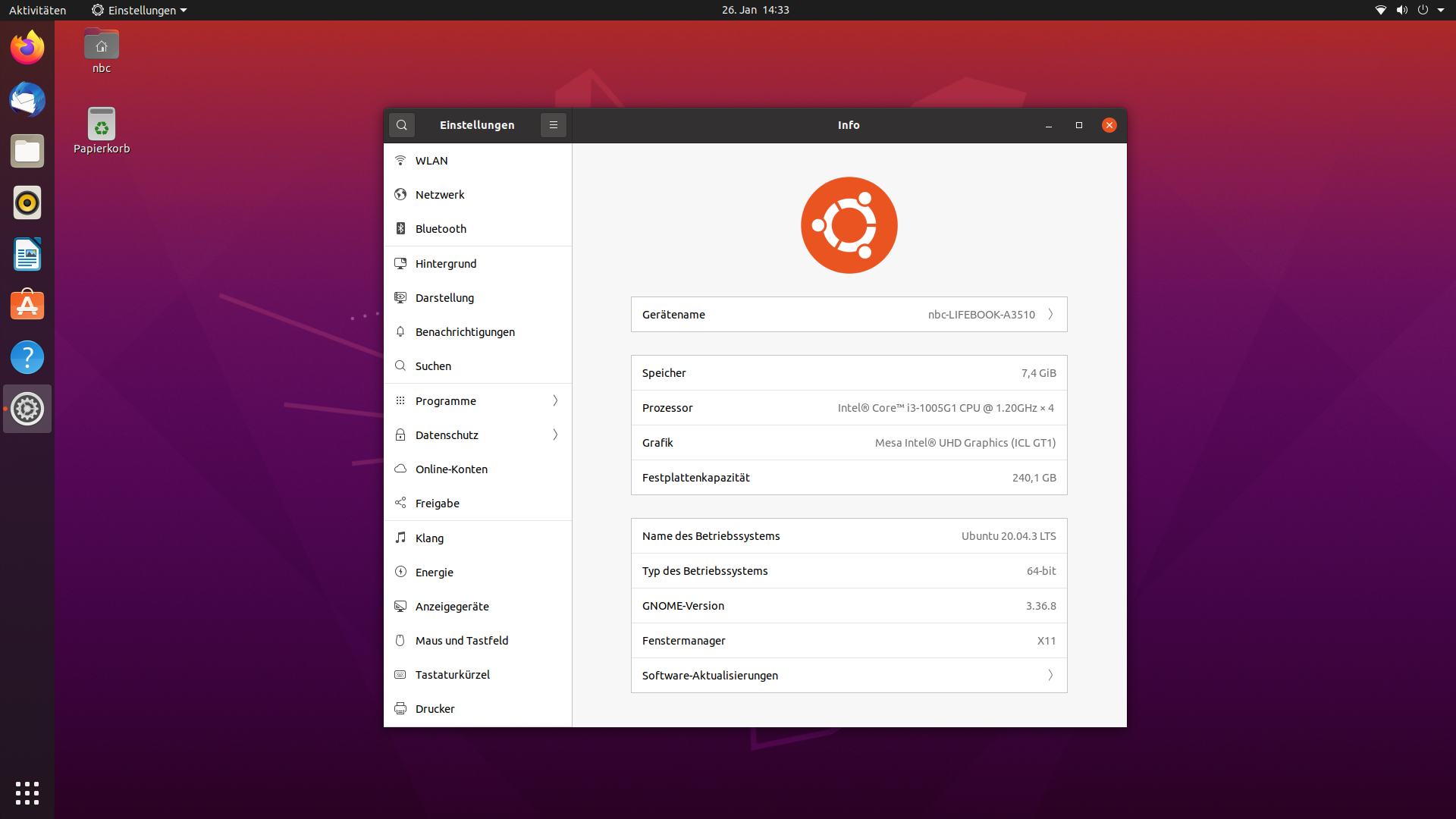

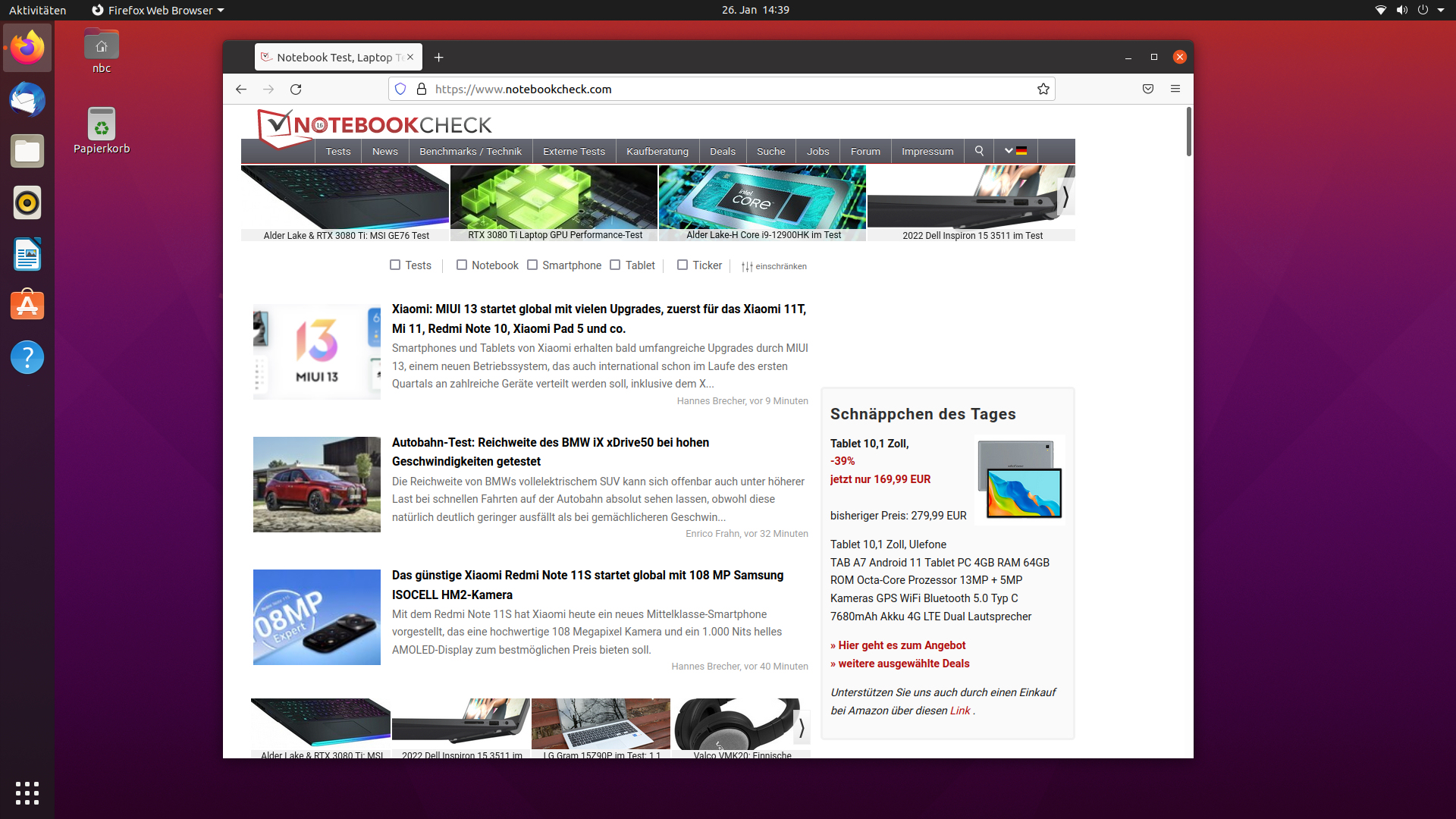

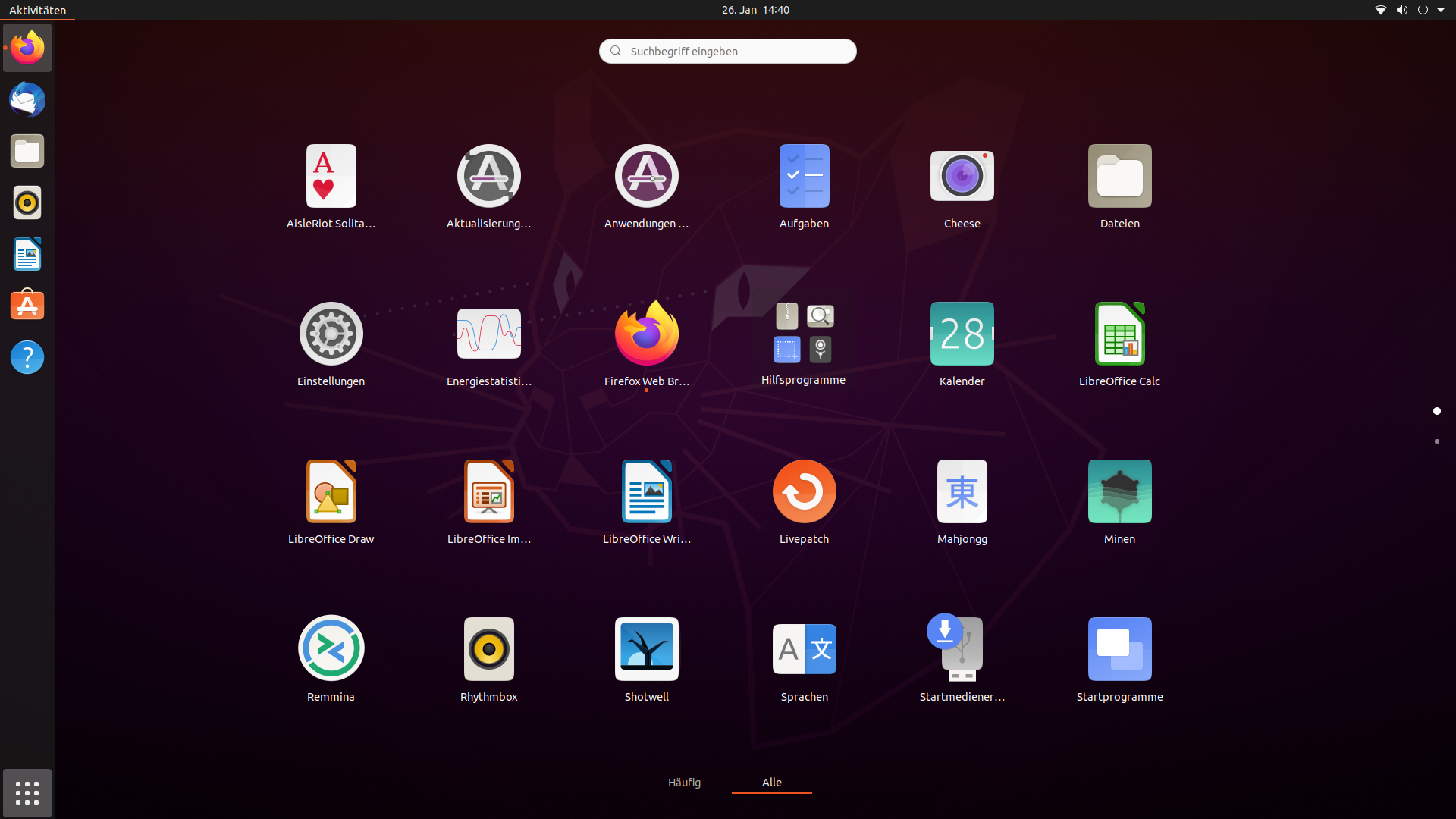

用Linux代替Windows
我们这里的A3510的设备配置也可以不使用Windows操作系统（FPC04902BP，约350欧元，~390美元）。在这种情况下，Linux会提供自己作为操作系统，Ubuntu 20.04.03 LTS（64位）可以顺利安装。除了几个功能键（如触摸板的开/关切换键）外，大部分硬件都是自动设置的。音量和亮度调节键可以工作，飞行模式键也是如此。
输入设备 - A3510没有键盘照明装置

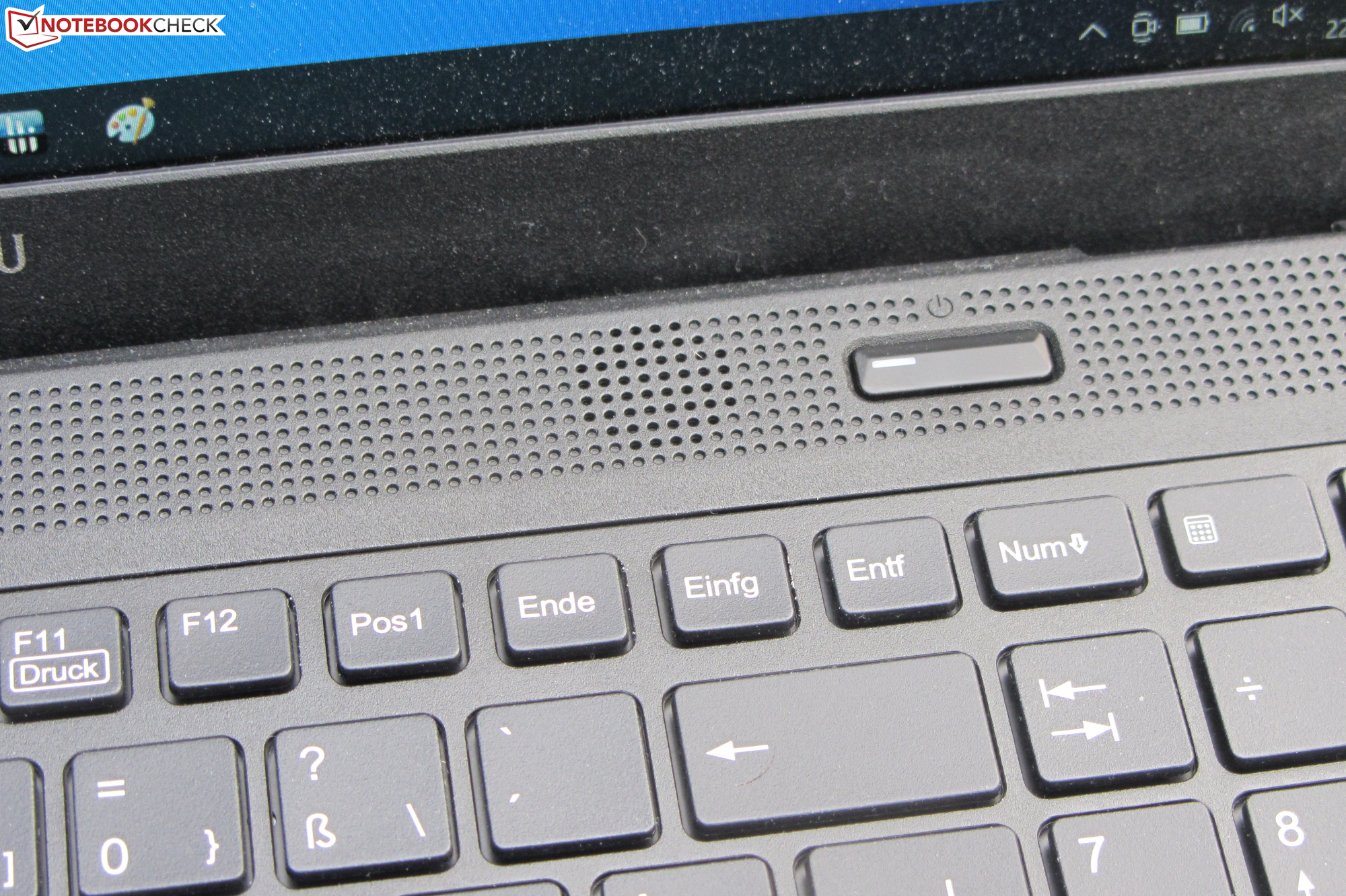

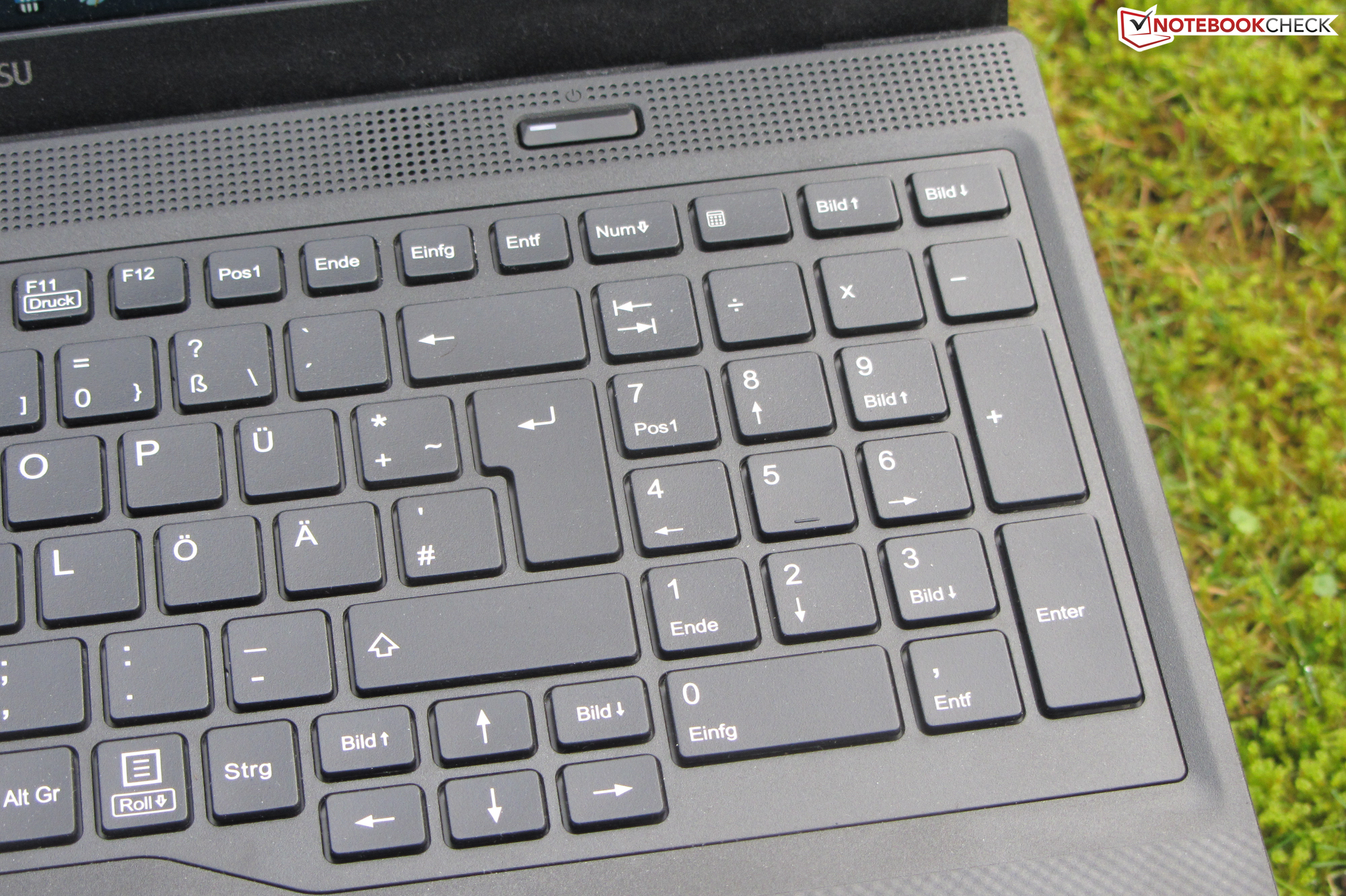

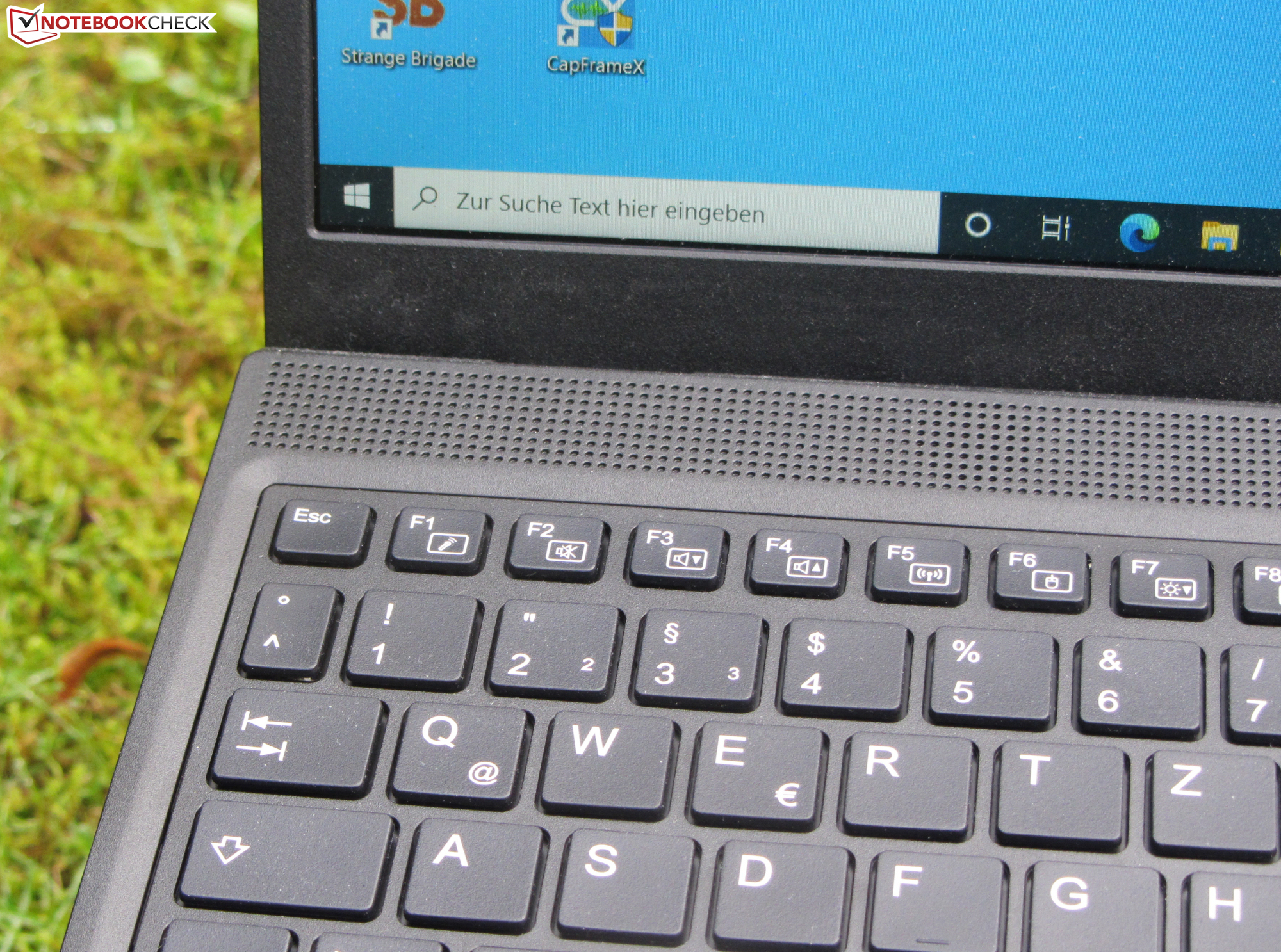

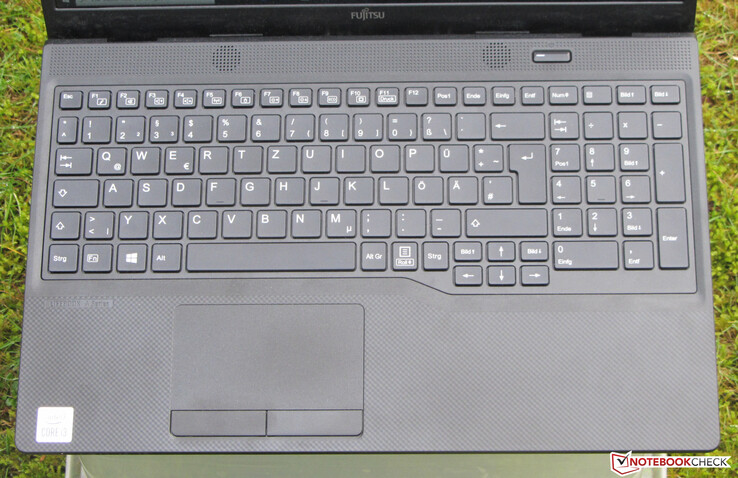

Chiclet键盘没有照明，其略微粗糙的按键行程较短，压力点清晰。在打字时，键盘有一些最小的摆动，但这并没有变成令人讨厌的东西。总的来说，富士通在这里提供了一个适合日常打字任务的键盘。
具有多点触摸功能的触摸板（约9.9 x 6.1厘米，约3.9 x 2.4英寸）的光滑表面有利于手指的滑动。触摸板对角落里的输入也有反应。 两个独立的鼠标键行程短，压力点清晰。
显示屏 - 富士通A3510只带来了一个深色的IPS面板
虽然15.6英寸的哑光显示屏（1920 x 1080像素）提供了非常好的对比度（1982:1），但亮度却太低（209.1 cd/m²）。我们认为超过300cd/m²的数值是好的。一个积极的观点是，我们没有注意到任何PWM闪烁的事实。
| |||||||||||||||||||||||||
BOE CQ NV156FHM-N48 tested with X-Rite i1Pro 2
Maximum: 248 cd/m² (Nits) Average: 209.1 cd/m² Minimum: 4.4 cd/m²Brightness Distribution: 64 %
Center on Battery: 218 cd/m²
Contrast: 1982:1 (Black: 0.11 cd/m²)
ΔE Color 4.89 | 0.5-29.43 Ø4.91, calibrated: 3.88

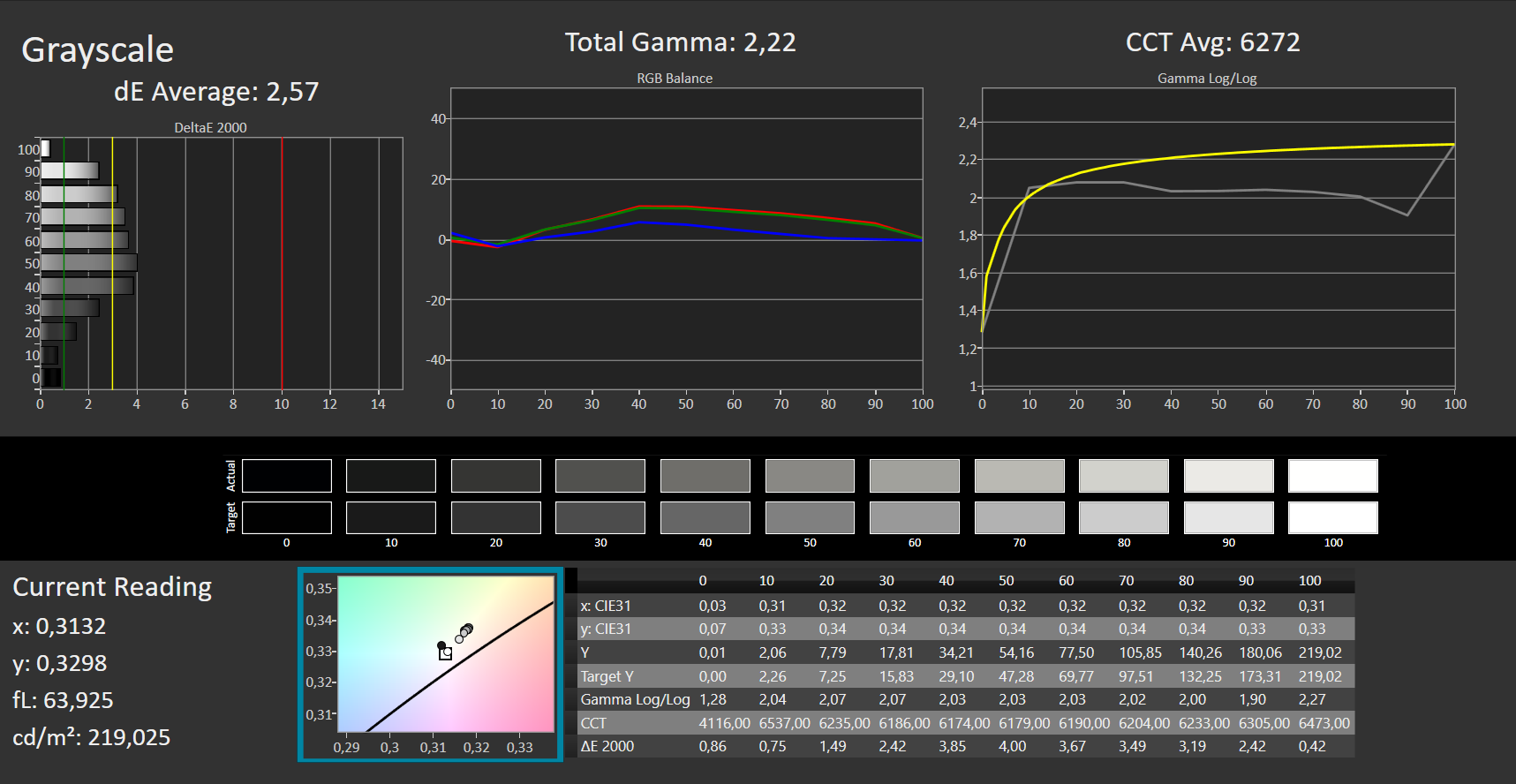

ΔE Greyscale 2.57 | 0.5-98 Ø5.2
41.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.9% sRGB (Argyll 2.2.0 3D)
39.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
| Fujitsu Lifebook A3510 (FPC04905BP) BOE CQ NV156FHM-N48, IPS, 1920x1080, 15.6" | Dell Latitude 15 3510 NK2MC Dell 156CL05, IPS, 1920x1080, 15.6" | HP 255 G7 159P1EA BOE0687, TN LED, 1920x1080, 15.6" | Lenovo V15-ADA 82C7009SGE Chi Mei CMN15F5, TN, 1920x1080, 15.6" | |
|---|---|---|---|---|
| Display | 3% | -5% | -6% | |
| Display P3 Coverage | 39.9 | 40.78 2% | 37.4 -6% | 37.13 -7% |
| sRGB Coverage | 58.9 | 61.3 4% | 56.3 -4% | 55.8 -5% |
| AdobeRGB 1998 Coverage | 41.3 | 42.15 2% | 38.64 -6% | 38.36 -7% |
| Response Times | 14% | 41% | 49% | |
| Response Time Grey 50% / Grey 80% * | 45 ? | 38 ? 16% | 38 ? 16% | 26 ? 42% |
| Response Time Black / White * | 32 ? | 28 ? 12% | 11 ? 66% | 14 ? 56% |
| PWM Frequency | 250 | 2500 ? | ||
| Screen | -35% | -135% | -88% | |
| Brightness middle | 218 | 262 20% | 199 -9% | 232 6% |
| Brightness | 209 | 236 13% | 193 -8% | 211 1% |
| Brightness Distribution | 64 | 86 34% | 91 42% | 82 28% |
| Black Level * | 0.11 | 0.31 -182% | 0.5 -355% | 0.41 -273% |
| Contrast | 1982 | 845 -57% | 398 -80% | 566 -71% |
| Colorchecker dE 2000 * | 4.89 | 4.92 -1% | 11.14 -128% | 6.83 -40% |
| Colorchecker dE 2000 max. * | 8.3 | 15.83 -91% | 19.77 -138% | 18.77 -126% |
| Colorchecker dE 2000 calibrated * | 3.88 | 4.34 -12% | ||
| Greyscale dE 2000 * | 2.57 | 3.47 -35% | 12.93 -403% | 8.52 -232% |
| Gamma | 2.22 99% | 2.4 92% | 2.69 82% | 2.45 90% |
| CCT | 6272 104% | 6680 97% | 14674 44% | 9753 67% |
| Color Space (Percent of AdobeRGB 1998) | 39 | 36 | 35 | |
| Color Space (Percent of sRGB) | 61 | 56 | 56 | |
| Total Average (Program / Settings) | -6% /
-20% | -33% /
-78% | -15% /
-48% |
* ... smaller is better

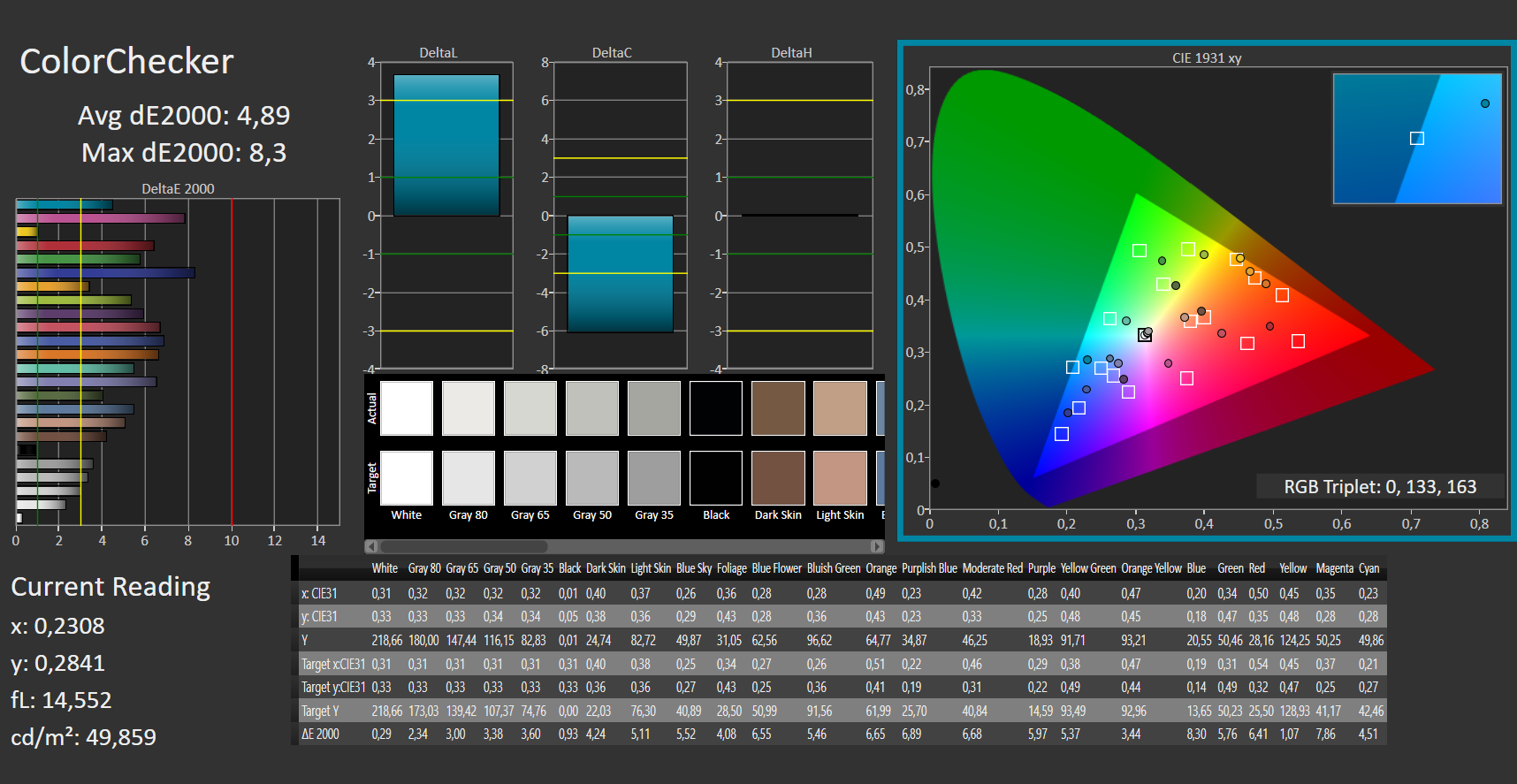

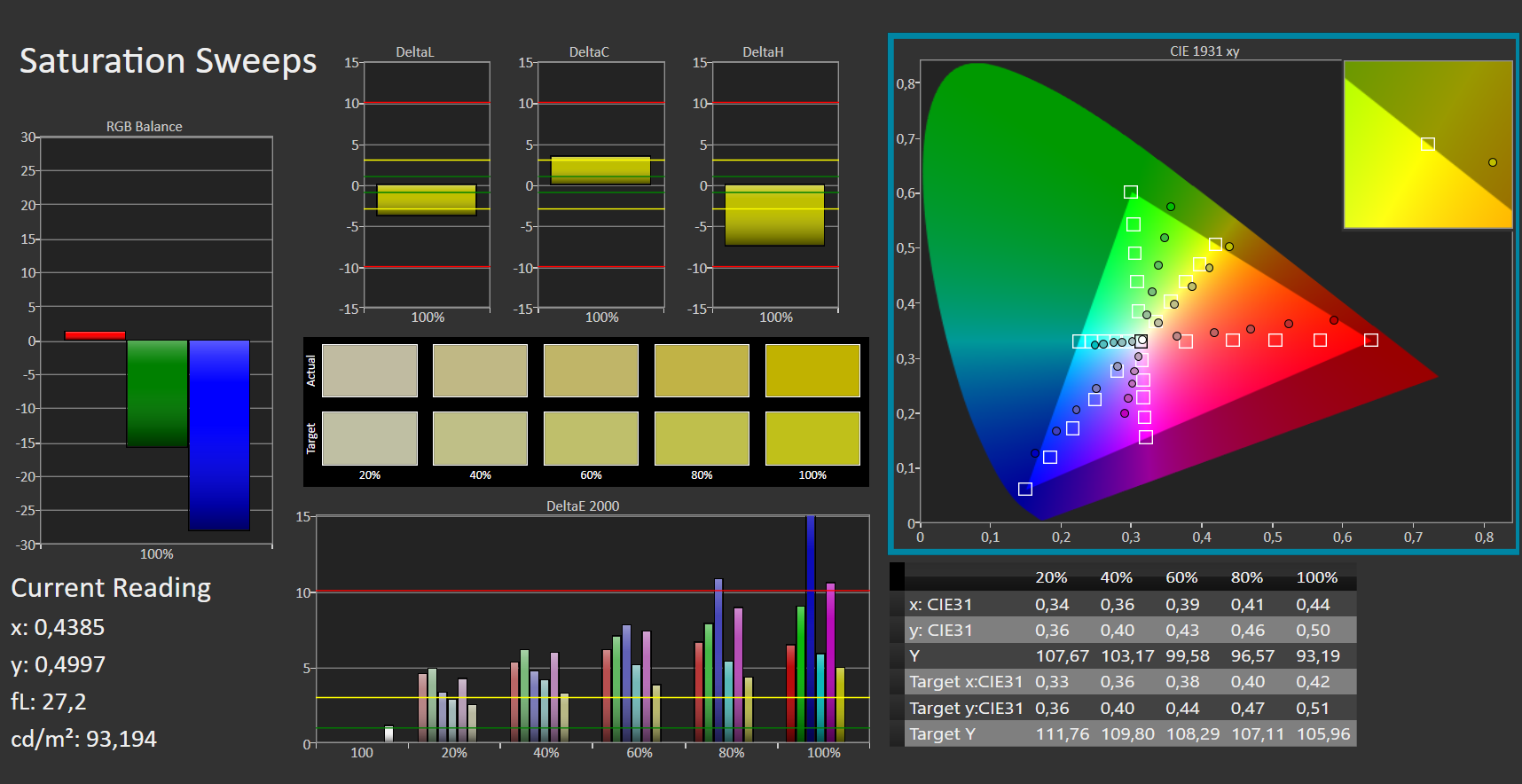

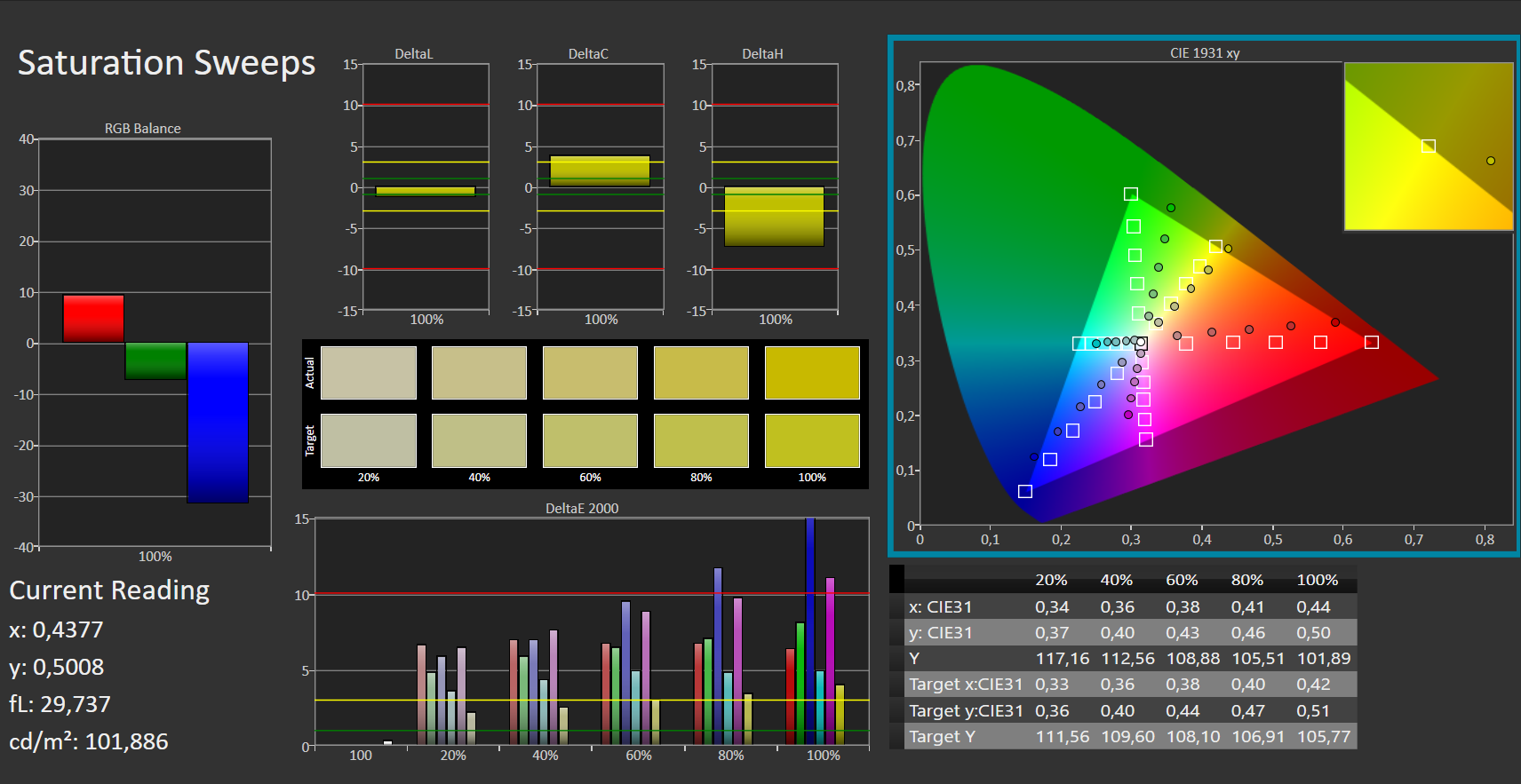

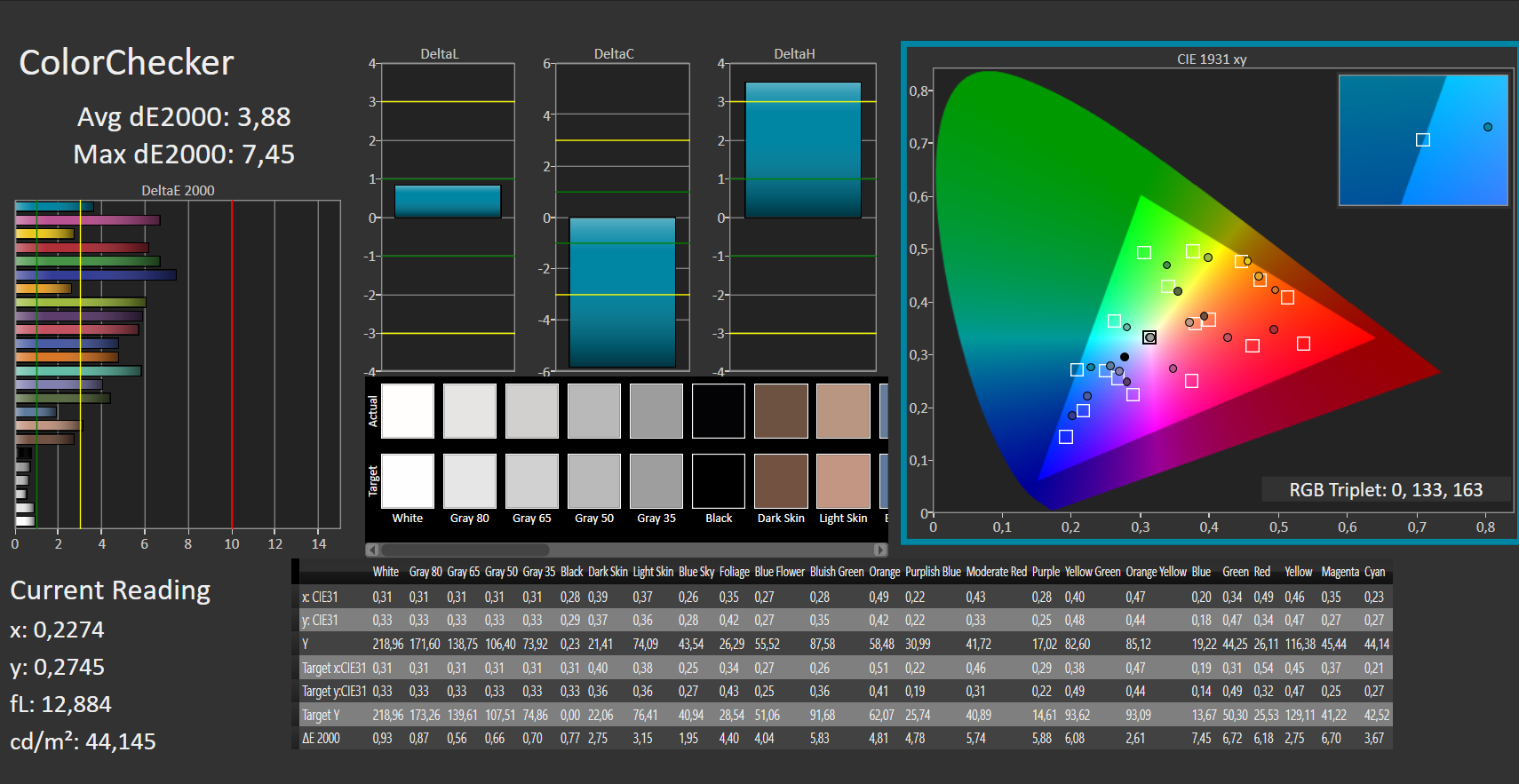

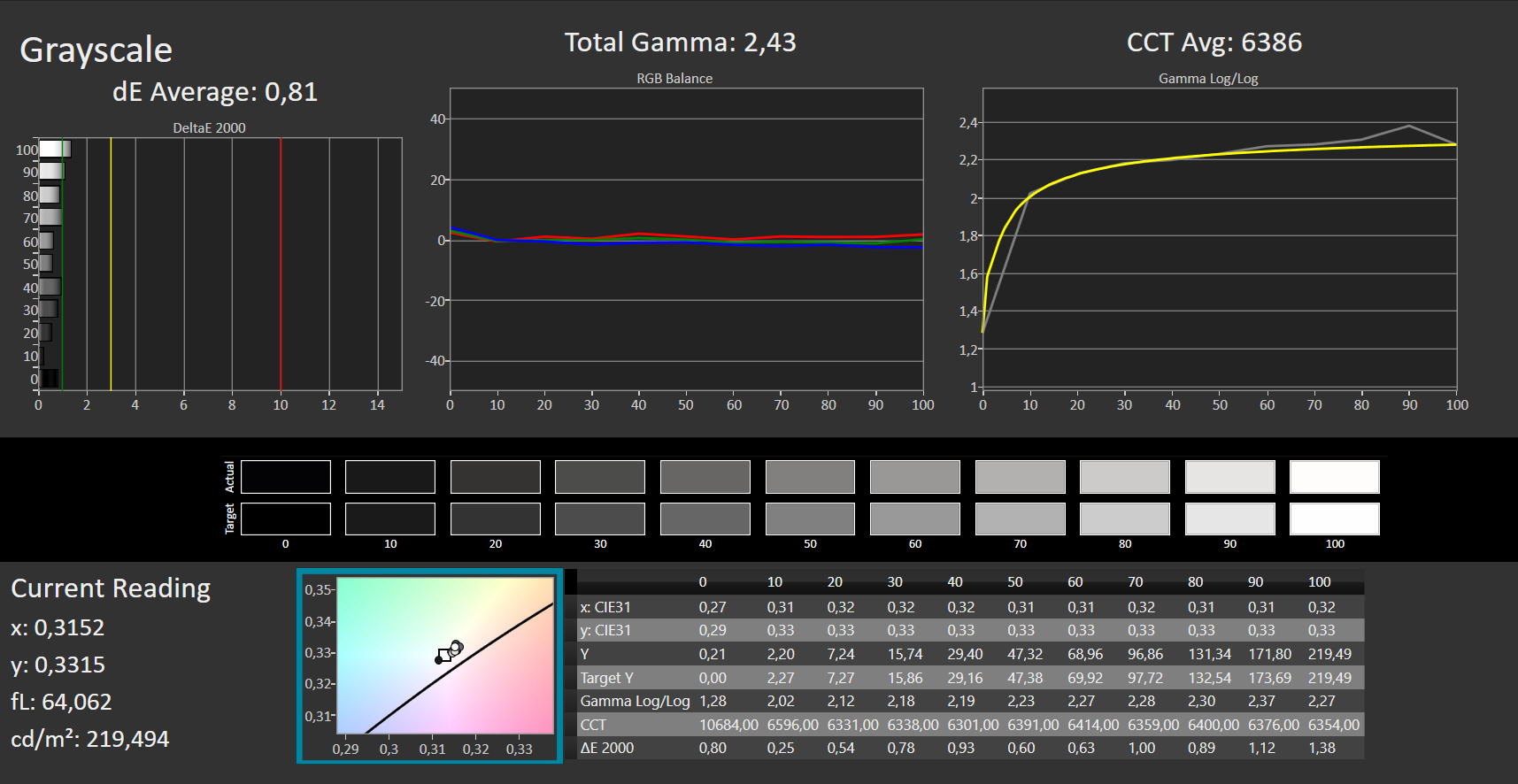

在交付状态下，该显示器提供了一个体面的色彩再现。颜色仍然与目标略有偏差，但这并不明显。校准只会带来一些小的改进。该显示器无法覆盖AdobeRGB（41%）、sRGB（59%）和DCI-P3（40%）色彩空间。

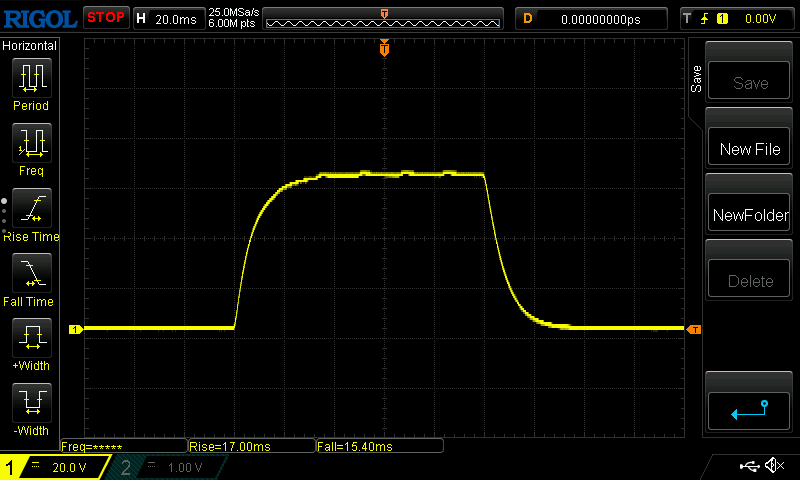

Display Response Times
ℹ
Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.| ↔ Response Time Black to White | ||
|---|---|---|
| 32 ms ... rise ↗ and fall ↘ combined | ↗ 17 ms rise |  |
| ↘ 15 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

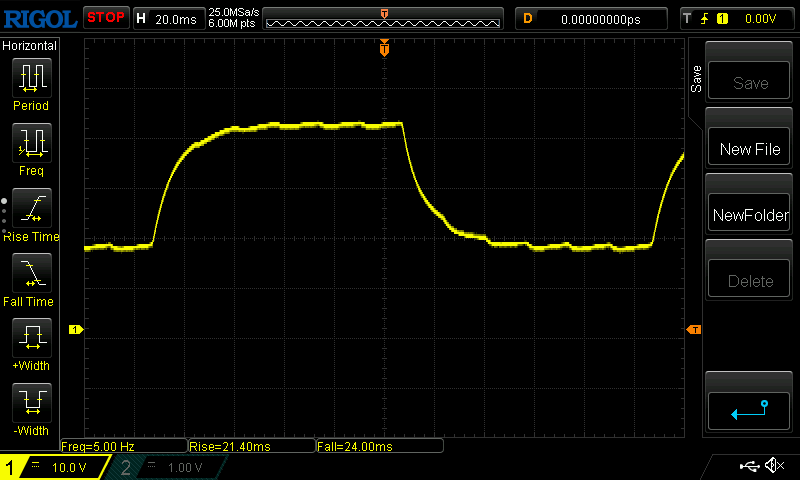

| ↔ Response Time 50% Grey to 80% Grey | ||
| 45 ms ... rise ↗ and fall ↘ combined | ↗ 21 ms rise |  |
| ↘ 24 ms fall | ||
| The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 74 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). | ||

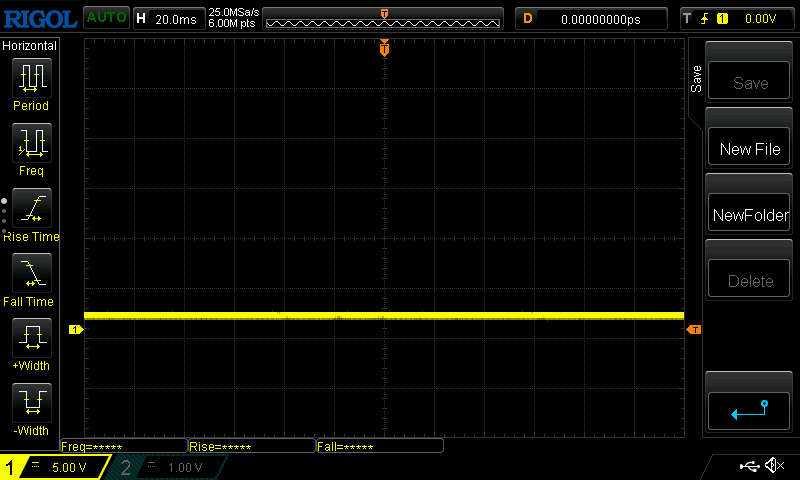

Screen Flickering / PWM (Pulse-Width Modulation)
ℹ
To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.| Screen flickering / PWM not detected |  | ||
In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. | |||

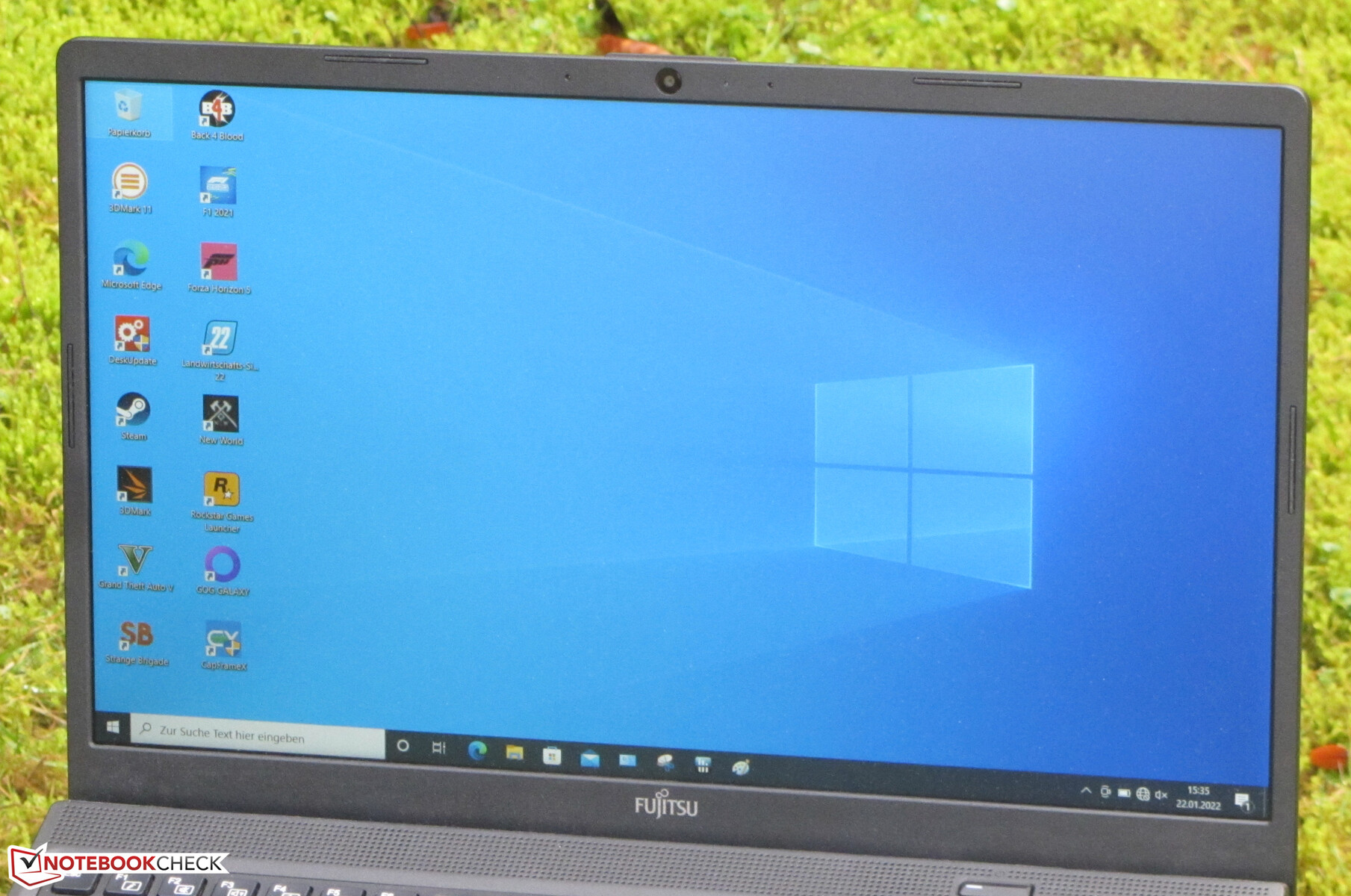

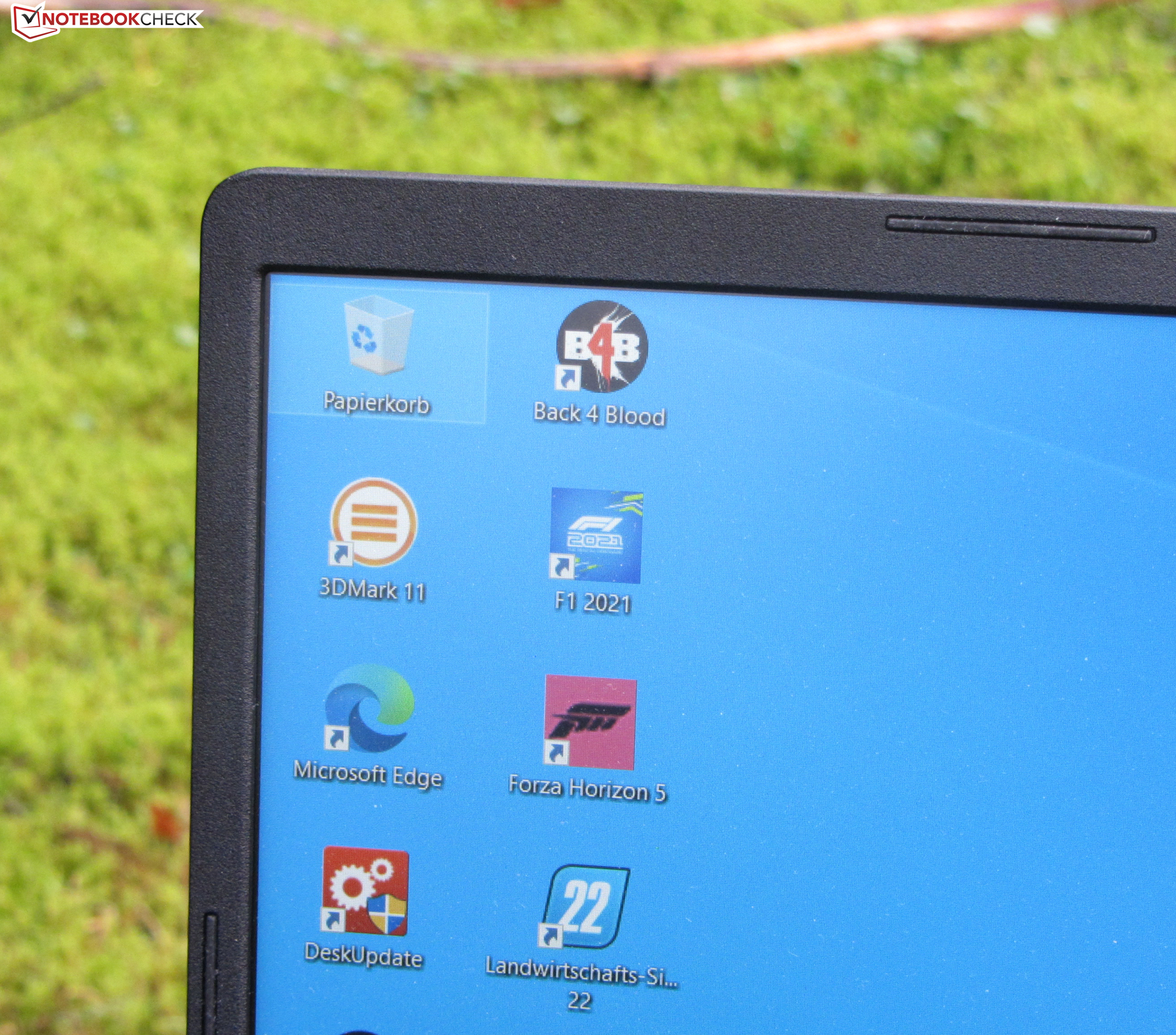

IPS面板提供稳定的视角，可以从任何位置读取。在户外，当太阳不太亮时，可以识别显示屏的内容。否则，显示屏的低亮度将使其无法识别。
性能 -Ice Lake onboard
通过Lifebook A3510，富士通提供了一台15.6英寸的商务笔记本电脑，专门用于运行办公和互联网应用。
测试条件
基准测试是使用 "最高性能 "的Windows电源配置文件运行的。CPU的功率限制是15瓦（PL1）和50瓦（PL2）。厂商专用的 "富士通生态设置 "Windows电源配置文件也是可用的，但这里没有使用。
处理器

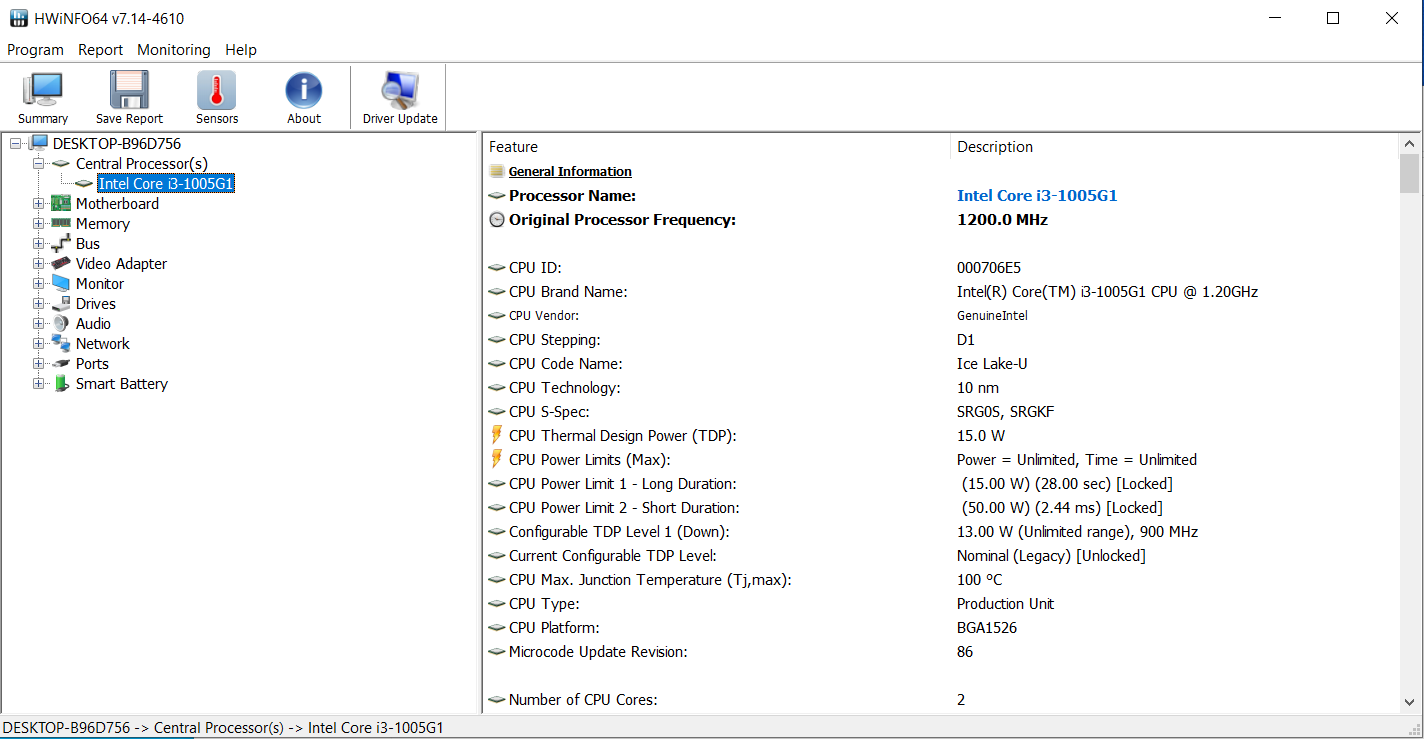

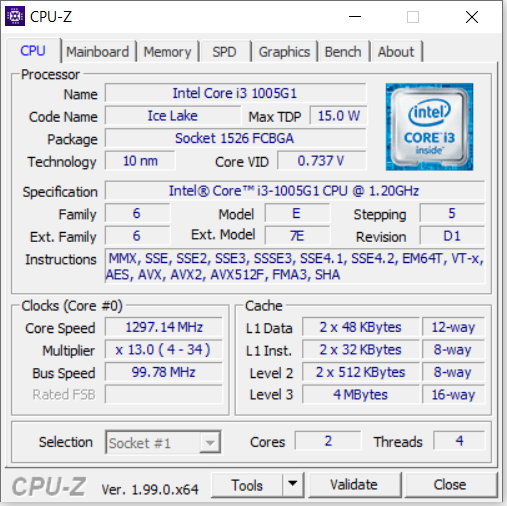

芯片酷睿i3-1005G1双核处理器（Ice Lake ）以1.2 GHz的基本时钟速度运行，可通过涡轮增压提高到3.4 GHz。支持超线程（每个核心有两个线程）。
该处理器在Cinebench R15基准测试的多线程测试中开始短暂地以3.4GHz的速度运行，然后时钟速度下降到2.9和3GHz之间。它在1.5至3.4GHz的频率下完成单线程测试。

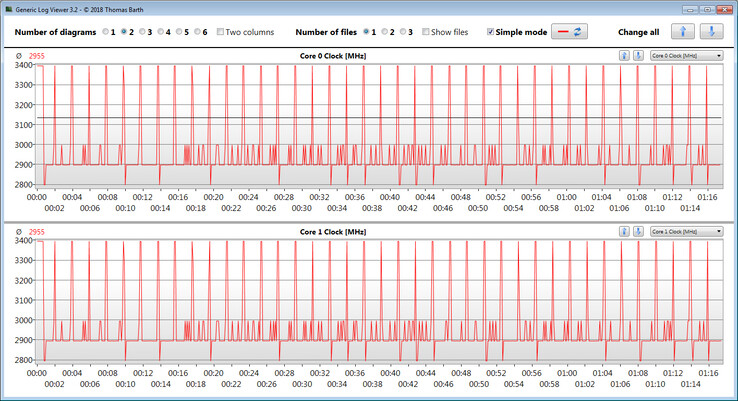

我们通过持续循环运行Cinebench R15基准测试的多线程测试至少30分钟来评估CPU Turbo在主电源运行期间是否被持续使用。Turbo不断地在高水平上运行。
Cinebench R15 Multi Constant Load Test
Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1: Ø355 (352.4-375.14)
Dell Latitude 15 3510 NK2MC Intel Core i3-10110U: Ø305 (302.1-307.61)
HP 255 G7 159P1EA AMD Ryzen 3 3200U: Ø323 (304.59-352.93)
Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U: Ø348 (332.02-352.17)
CPU Performance Rating | Cinebench R23 | Cinebench R20 | Cinebench R15 | Blender | 7-Zip 18.03 | Geekbench 5.5 | HWBOT x265 Benchmark v2.2 | LibreOffice | R Benchmark 2.5
| CPU Performance Rating - Percent | |
| Average of class Office | |
| Dell Latitude 15 3510 NK2MC | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1 | |
| Fujitsu Lifebook A3510 (FPC04905BP) -2! | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE -2! | |
| Cinebench R23 | |
| Multi Core | |
| Average of class Office (1577 - 15743, n=96, last 2 years) | |
| Dell Latitude 15 3510 NK2MC | |
| Average Intel Core i3-1005G1 (2135 - 2636, n=4) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| HP 255 G7 159P1EA | |
| Single Core | |
| Average of class Office (618 - 1995, n=96, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel Core i3-1005G1 (1046 - 1061, n=4) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Cinebench R20 | |
| CPU (Multi Core) | |
| Average of class Office (590 - 5980, n=96, last 2 years) | |
| Dell Latitude 15 3510 NK2MC | |
| Average Intel Core i3-1005G1 (820 - 1015, n=7) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| CPU (Single Core) | |
| Average of class Office (229 - 766, n=96, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Dell Latitude 15 3510 NK2MC | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1 (338 - 407, n=7) | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| Cinebench R15 | |
| CPU Multi 64Bit | |
| Average of class Office (246 - 2642, n=97, last 2 years) | |
| Average Intel Core i3-1005G1 (346 - 407, n=7) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| Dell Latitude 15 3510 NK2MC | |
| CPU Single 64Bit | |
| Average of class Office (98 - 284, n=96, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1 (99.5 - 160, n=7) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| Blender - v2.79 BMW27 CPU | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel Core i3-1005G1 (1123 - 1388, n=7) | |
| Dell Latitude 15 3510 NK2MC | |
| Average of class Office (208 - 1956, n=97, last 2 years) | |
| 7-Zip 18.03 | |
| 7z b 4 | |
| Average of class Office (7532 - 65460, n=97, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1 (9731 - 11135, n=8) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| 7z b 4 -mmt1 | |
| Average of class Office (2972 - 6687, n=97, last 2 years) | |
| Dell Latitude 15 3510 NK2MC | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel Core i3-1005G1 (3789 - 4057, n=8) | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| Geekbench 5.5 | |
| Multi-Core | |
| Average of class Office (1018 - 11980, n=96, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel Core i3-1005G1 (2153 - 2595, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| Single-Core | |
| Average of class Office (510 - 1995, n=97, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1 (1118 - 1194, n=6) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Average of class Office (1.72 - 18.7, n=95, last 2 years) | |
| Average Intel Core i3-1005G1 (2.42 - 3.59, n=7) | |
| Dell Latitude 15 3510 NK2MC | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| LibreOffice - 20 Documents To PDF | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| Average Intel Core i3-1005G1 (55.8 - 81.7, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average of class Office (31.3 - 129.6, n=95, last 2 years) | |
| Dell Latitude 15 3510 NK2MC | |
| R Benchmark 2.5 - Overall mean | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| Dell Latitude 15 3510 NK2MC | |
| Average Intel Core i3-1005G1 (0.746 - 0.763, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average of class Office (0.4244 - 1.135, n=94, last 2 years) | |
* ... smaller is better
Performance Rating: Percent
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
AIDA64: FP32 Ray-Trace | FPU Julia | CPU SHA3 | CPU Queen | FPU SinJulia | FPU Mandel | CPU AES | CPU ZLib | FP64 Ray-Trace | CPU PhotoWorxx
| Performance Rating | |
| Average of class Office | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1 | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| AIDA64 / FP32 Ray-Trace | |
| Average of class Office (763 - 24250, n=96, last 2 years) | |
| Average Intel Core i3-1005G1 (3067 - 3447, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| AIDA64 / FPU Julia | |
| Average of class Office (4113 - 102228, n=96, last 2 years) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Average Intel Core i3-1005G1 (12228 - 13778, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| AIDA64 / CPU SHA3 | |
| Average of class Office (287 - 4551, n=96, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Average Intel Core i3-1005G1 (862 - 959, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| AIDA64 / CPU Queen | |
| Average of class Office (8185 - 115197, n=96, last 2 years) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Average Intel Core i3-1005G1 (23177 - 23386, n=6) | |
| AIDA64 / FPU SinJulia | |
| Average of class Office (404 - 14288, n=96, last 2 years) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Average Intel Core i3-1005G1 (1972 - 1988, n=6) | |
| AIDA64 / FPU Mandel | |
| Average of class Office (2075 - 54365, n=96, last 2 years) | |
| Average Intel Core i3-1005G1 (7345 - 8517, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| AIDA64 / CPU AES | |
| Average of class Office (7860 - 155900, n=96, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Average Intel Core i3-1005G1 (26813 - 29702, n=6) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| AIDA64 / CPU ZLib | |
| Average of class Office (78 - 1018, n=96, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Average Intel Core i3-1005G1 (162 - 172, n=6) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| AIDA64 / FP64 Ray-Trace | |
| Average of class Office (432 - 12755, n=96, last 2 years) | |
| Average Intel Core i3-1005G1 (1549 - 1884, n=6) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| AIDA64 / CPU PhotoWorxx | |
| Average of class Office (4814 - 54971, n=96, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Average Intel Core i3-1005G1 (14875 - 28440, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
系统性能
该系统运行平稳而迅速。我们没有遇到任何问题。所用的处理器为办公和互联网应用提供了足够的性能。在PC-Mark基准测试中的结果还算不错。
由于工作存储器只在单通道模式下运行，富士通留下了部分性能潜力没有利用。然而，你可以通过在笔记本上插入第二个工作内存模块来激活双通道模式。
| PCMark 10 Score | 3386 points | |
Help | ||
PCMark 10: Score | Essentials | Productivity | Digital Content Creation
CrossMark: Overall | Productivity | Creativity | Responsiveness
CrossMark: Overall | Productivity | Creativity | Responsiveness
| PCMark 10 / Score | |
| Average of class Office (2463 - 7344, n=88, last 2 years) | |
| Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (3386 - 3562, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| PCMark 10 / Essentials | |
| Average of class Office (5575 - 20841, n=88, last 2 years) | |
| Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (7666 - 8088, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| PCMark 10 / Productivity | |
| Average of class Office (3041 - 10415, n=88, last 2 years) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (5252 - 5822, n=6) | |
| Lenovo V15-ADA 82C7009SGE | |
| PCMark 10 / Digital Content Creation | |
| Average of class Office (2126 - 9773, n=88, last 2 years) | |
| Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) (2492 - 2692, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| CrossMark / Overall | |
| Average of class Office (348 - 1891, n=90, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) () | |
| CrossMark / Productivity | |
| Average of class Office (393 - 1870, n=90, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) () | |
| CrossMark / Creativity | |
| Average of class Office (340 - 1982, n=90, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) () | |
| CrossMark / Responsiveness | |
| Average of class Office (258 - 2017, n=90, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) () | |
| AIDA64 / Memory Copy | |
| Average of class Office (7158 - 108783, n=97, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Average Intel Core i3-1005G1 (19990 - 41386, n=6) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| AIDA64 / Memory Read | |
| Average of class Office (7325 - 127282, n=97, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Average Intel Core i3-1005G1 (23614 - 41177, n=6) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| AIDA64 / Memory Write | |
| Average of class Office (7579 - 117935, n=97, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Average Intel Core i3-1005G1 (23244 - 47722, n=6) | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| AIDA64 / Memory Latency | |
| Lenovo V15-ADA 82C7009SGE (v6.25.5400) | |
| HP 255 G7 159P1EA (v6.32.5600) | |
| Average of class Office (6.9 - 185.2, n=97, last 2 years) | |
| Dell Latitude 15 3510 NK2MC (v6.30.5500) | |
| Average Intel Core i3-1005G1 (68.5 - 96, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800, Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (v6.50.5800) | |
* ... smaller is better
DPC延迟
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Dell Latitude 15 3510 NK2MC | |
| Lenovo V15-ADA 82C7009SGE | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| HP 255 G7 159P1EA | |
* ... smaller is better
存储解决方案
来自三星的NVMe固态硬盘（M.2-2280），提供256GB的总存储容量，作为系统驱动器。传输速率变的很好。
Samsung PM991 MZVLQ256HAJD
CDM 5/6 Read Seq Q32T1:
2314 MB/s
CDM 5/6 Write Seq Q32T1:
989 MB/s
CDM 5/6 Read 4K Q32T1:
486.3 MB/s
CDM 5/6 Write 4K Q32T1:
409.2 MB/s
CDM 5 Read Seq:
1639 MB/s
CDM 5 Write Seq:
946 MB/s
CDM 5/6 Read 4K:
56.4 MB/s
CDM 5/6 Write 4K:
168.3 MB/s
| Drive Performance Rating - Percent | |
| Average of class Office | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Samsung PM991 MZVLQ256HAJD | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| Dell Latitude 15 3510 NK2MC | |
* ... smaller is better
Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8
Fujitsu Lifebook A3510 (FPC04905BP) Samsung PM991 MZVLQ256HAJD: Ø1496 (1218.03-2034.03)

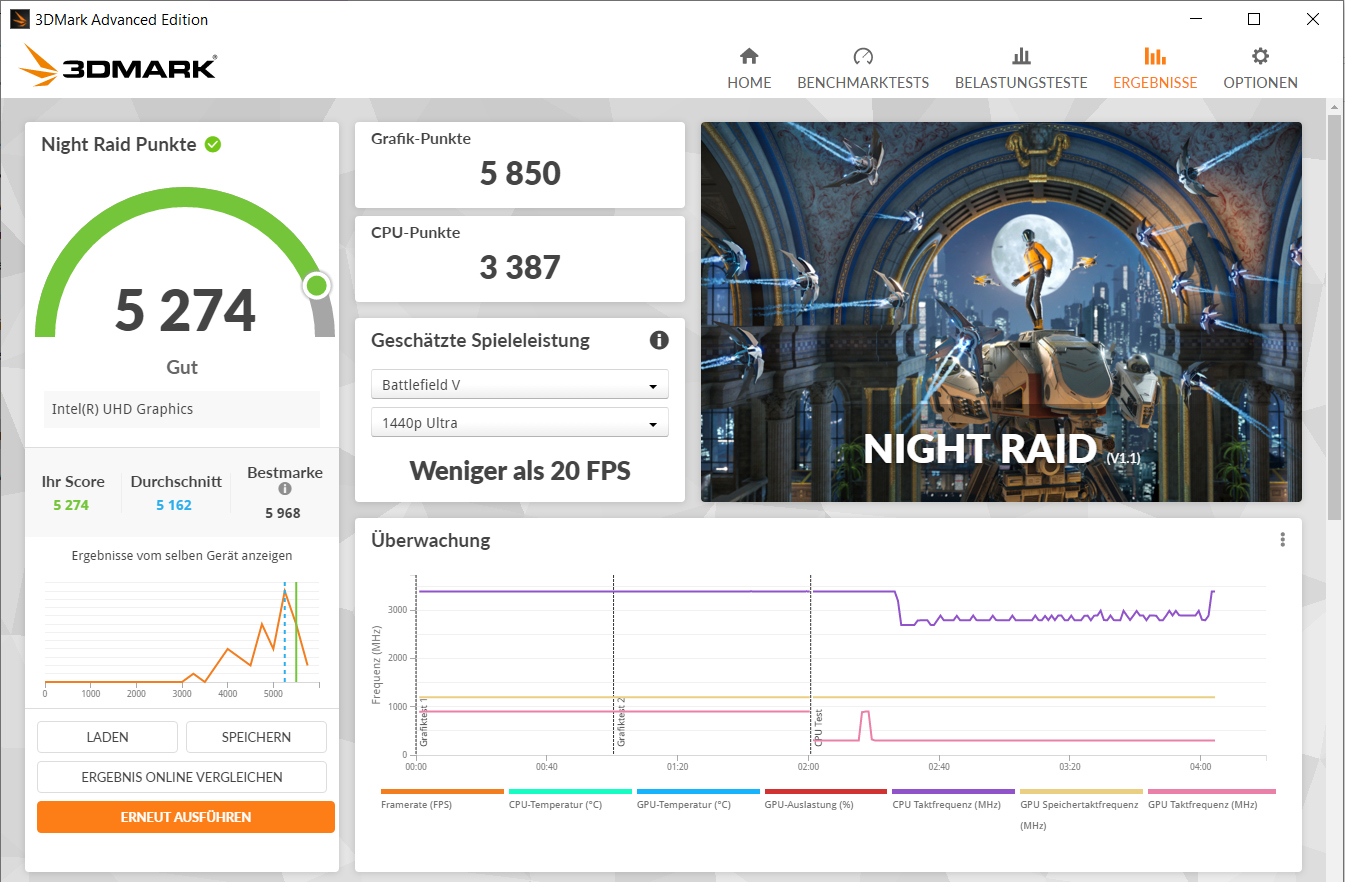

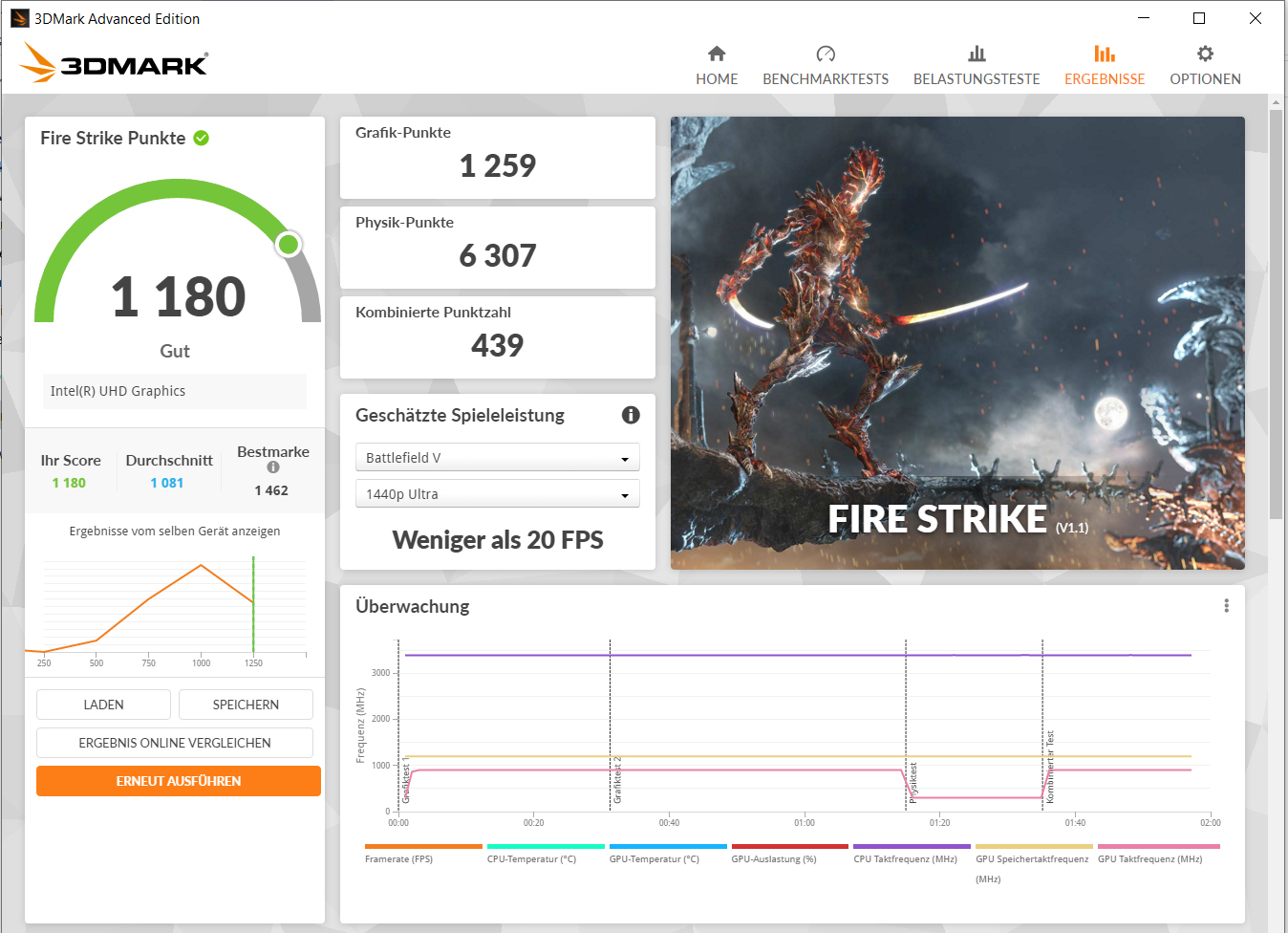

图形卡
英特尔公司的 UHD Graphics G1图形核心在GPU性能图表中处于下三分之一的位置。GPU能够持续以900MHz的最高速度运行，这一点在我们的 "TheWitcher 3"测试中得到了证明。A3510不是一台游戏笔记本电脑，但内置的硬件仍然能够流畅地再现一些游戏--在低分辨率和低质量设置下。对硬件有适度要求的游戏允许更多。
基准测试结果仍然明显低于到目前为止为这里使用的GPU测得的平均水平。这方面的原因可以很快找到：工作存储器只在单通道模式下运行。激活双通道模式（通过插入第二个工作内存模块）将导致基准测试结果以及游戏时的帧率增加。
| 3DMark 11 Performance | 2051 points | |
| 3DMark Ice Storm Standard Score | 53282 points | |
| 3DMark Cloud Gate Standard Score | 7548 points | |
| 3DMark Fire Strike Score | 1180 points | |
| 3DMark Time Spy Score | 449 points | |
Help | ||
| 3DMark Performance Rating - Percent | |
| Average of class Office | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC -1! | |
| 3DMark 11 - 1280x720 Performance GPU | |
| Average of class Office (1468 - 13132, n=92, last 2 years) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (1684 - 2578, n=15) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| HP 255 G7 159P1EA | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Lenovo V15-ADA 82C7009SGE | |
| Dell Latitude 15 3510 NK2MC | |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Average of class Office (7982 - 58068, n=66, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (7448 - 12698, n=14) | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| 1920x1080 Fire Strike Graphics | |
| Average of class Office (1089 - 21732, n=93, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (960 - 1755, n=15) | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Dell Latitude 15 3510 NK2MC | |
| 2560x1440 Time Spy Graphics | |
| Average of class Office (313 - 4109, n=93, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (320 - 476, n=10) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
The Witcher 3 | Dota 2 Reborn | X-Plane 11.11 | Final Fantasy XV Benchmark | GTA V | Strange Brigade | F1 2021
| The Witcher 3 - 1024x768 Low Graphics & Postprocessing | |
| Average of class Office (16 - 177, n=75, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (26.8 - 35, n=6) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| HP 255 G7 159P1EA | |
| Dota 2 Reborn - 1280x720 min (0/3) fastest | |
| Average of class Office (36.8 - 161.8, n=98, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (57.7 - 84.3, n=12) | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| Dell Latitude 15 3510 NK2MC | |
| X-Plane 11.11 - 1280x720 low (fps_test=1) | |
| Average of class Office (13.6 - 128.2, n=97, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (17.3 - 32.9, n=10) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Lenovo V15-ADA 82C7009SGE | |
| HP 255 G7 159P1EA | |
| Final Fantasy XV Benchmark - 1280x720 Lite Quality | |
| Average of class Office (12.1 - 103.1, n=93, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (1.3, Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (13 - 16.8, n=8) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (1.3) | |
| Lenovo V15-ADA 82C7009SGE | |
| GTA V - 1024x768 Lowest Settings possible | |
| Average of class Office (41.2 - 176.4, n=87, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (33.2 - 42.3, n=3) | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| Strange Brigade - 1280x720 lowest AF:1 | |
| Average of class Office (37.7 - 175.7, n=82, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (1.47.22.14 D3D12, Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (28.6 - 37.3, n=3) | |
| HP 255 G7 159P1EA (1.47.22.14 D3D12) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (1.47.22.14 D3D12) | |
| F1 2021 - 1280x720 Ultra Low Preset | |
| Average of class Office (73.1 - 197.8, n=14, last 2 years) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (840701, Dual-Channel) | |
| Average Intel UHD Graphics G1 (Ice Lake 32 EU) (33.9 - 39.5, n=2) | |
| Fujitsu Lifebook A3510 (FPC04905BP) (840701) | |
| low | med. | high | ultra | |
|---|---|---|---|---|
| GTA V (2015) | 33.2 | 28.6 | 7.62 | 3.03 |
| The Witcher 3 (2015) | 26.8 | 16.4 | 7.92 | 4.61 |
| Dota 2 Reborn (2015) | 75.8 | 25.2 | 19.3 | 18.2 |
| Final Fantasy XV Benchmark (2018) | 13.8 | 6.8 | ||
| X-Plane 11.11 (2018) | 24.3 | 12.6 | 12.1 | |
| Strange Brigade (2018) | 28.6 | 10.9 | 9.8 | |
| F1 2021 (2021) | 33.9 |
排放和电源管理 - 富士通笔记本电脑几乎不发热
噪声排放
在日常操作中（办公、上网），风扇经常保持关闭状态，一片寂静。在负载情况下，在压力测试以及中等负载范围内，噪音水平增加到约39 dB (A)，对于一台简单的办公笔记本电脑来说，这个数值太高了。这反映在风扇的持续呼啸声中。没有其他明显的恼人的噪音。
笔记本电脑的BIOS允许你调整风扇的行为。你可以选择 "正常 "和 "静音 "选项。默认情况下，"静音 "选项是激活的，所以在运行测试时使用了这个选项。
Noise Level
| Idle |
| 25 / 25 / 25 dB(A) |
| Load |
| 39.2 / 39 dB(A) |
 | ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min:  , med:  , max:  Earthworks M23R, Arta (15 cm distance) environment noise: 25 dB(A) | ||
| Fujitsu Lifebook A3510 (FPC04905BP) UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, Samsung PM991 MZVLQ256HAJD | Dell Latitude 15 3510 NK2MC UHD Graphics 620, i3-10110U, Toshiba KBG40ZNS256G NVMe | HP 255 G7 159P1EA Vega 3, R3 3200U, WDC PC SN530 SDBPNPZ-512G | Lenovo V15-ADA 82C7009SGE Vega 3, Athlon 3150U, WDC PC SN530 SDBPMPZ-265G | |
|---|---|---|---|---|
| Noise | 2% | -6% | 3% | |
| off / environment * | 25 | 25 -0% | 25.5 -2% | 25 -0% |
| Idle Minimum * | 25 | 25 -0% | 28.2 -13% | 25 -0% |
| Idle Average * | 25 | 25 -0% | 28.2 -13% | 25 -0% |
| Idle Maximum * | 25 | 27.8 -11% | 28.2 -13% | 26.3 -5% |
| Load Average * | 39.2 | 35.1 10% | 37 6% | 31.5 20% |
| Load Maximum * | 39 | 34.8 11% | 40.3 -3% | 38 3% |
* ... smaller is better

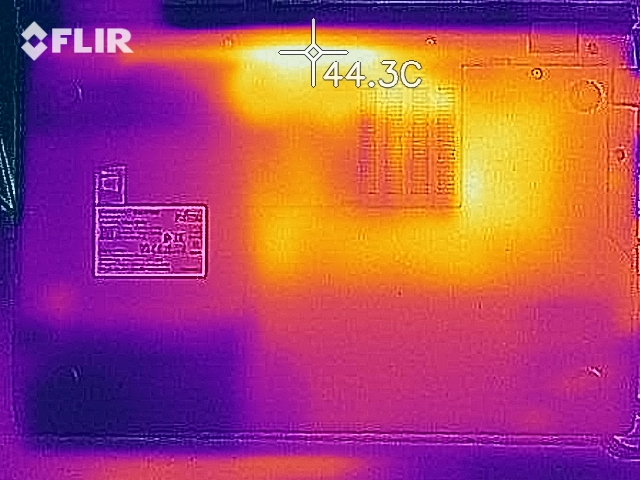

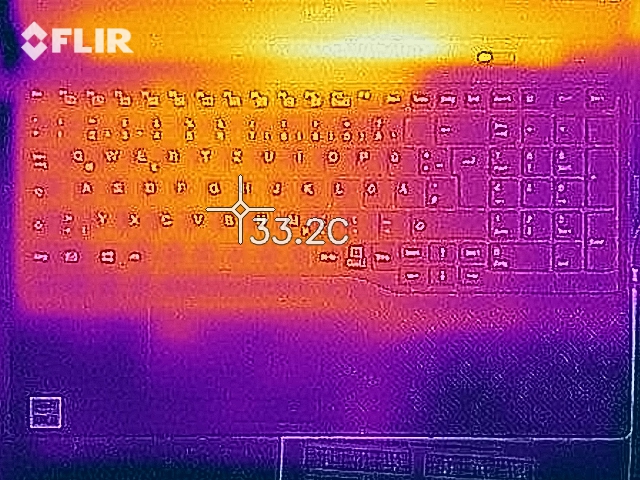

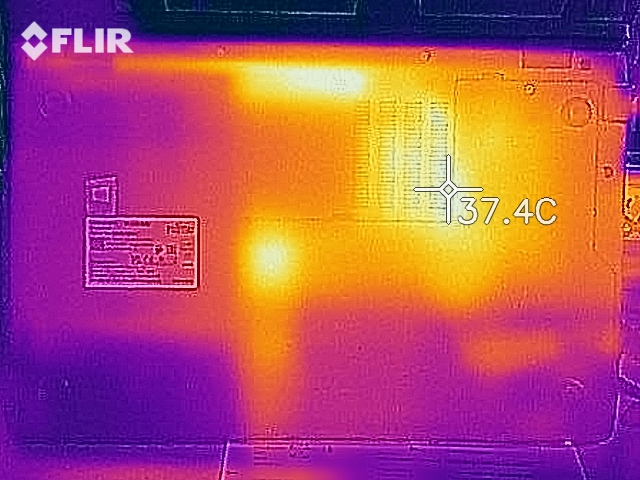

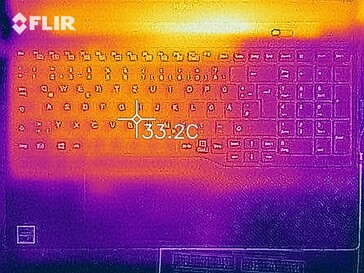

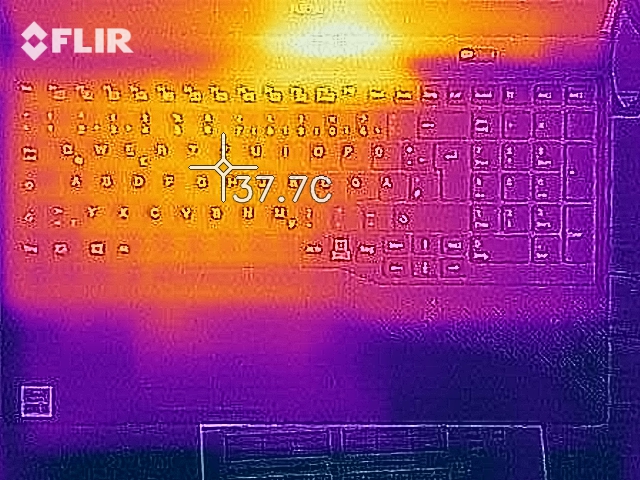

温度
我们无法真正谈及Lifebook的任何热量发展。即使在满负荷的情况下，机箱温度也保持在一个非常温和的水平。CPU的温度没有理由让人担心。

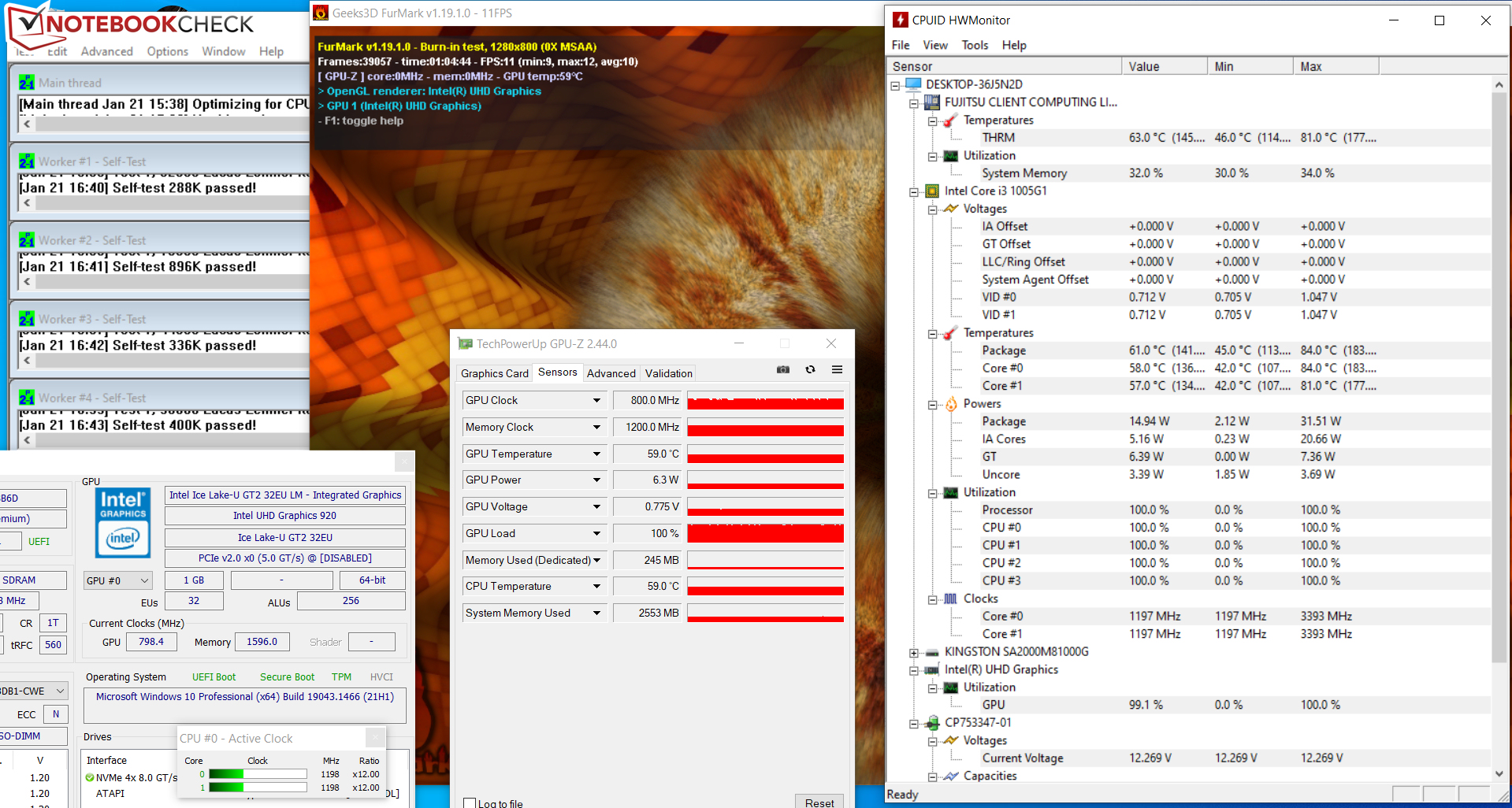

在压力测试的开始（Prime95和Furmark运行至少一个小时），CPU和GPU的时钟速度分别达到3.4 GHz和900 MHz。在这之后，时钟速度下降到1.2GHz和800MHz，在测试的剩余时间里保持在这个水平。
(+) The average temperature for the upper side under maximal load is 27.7 °C / 82 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 34.4 °C / 94 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 30.9 °C / 88 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.2 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.8 °C / 76.6 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+2.9 °C / 5.3 F).
(+) The maximum temperature on the upper side is 34.4 °C / 94 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 30.9 °C / 88 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 25.2 °C / 77 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 24.8 °C / 76.6 F and are therefore cool to the touch.
(+) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (+2.9 °C / 5.3 F).
| Fujitsu Lifebook A3510 (FPC04905BP) Intel Core i3-1005G1, Intel UHD Graphics G1 (Ice Lake 32 EU) | Dell Latitude 15 3510 NK2MC Intel Core i3-10110U, Intel UHD Graphics 620 | HP 255 G7 159P1EA AMD Ryzen 3 3200U, AMD Radeon RX Vega 3 | Lenovo V15-ADA 82C7009SGE AMD Athlon Gold 3150U, AMD Radeon RX Vega 3 | |
|---|---|---|---|---|
| Heat | -8% | 1% | 2% | |
| Maximum Upper Side * | 34.4 | 39 -13% | 32.8 5% | 32.1 7% |
| Maximum Bottom * | 30.9 | 40.6 -31% | 36.1 -17% | 31 -0% |
| Idle Upper Side * | 27.7 | 26 6% | 26 6% | 27.3 1% |
| Idle Bottom * | 29.2 | 27.8 5% | 27 8% | 29 1% |
* ... smaller is better
发言人
立体声扬声器产生了一个体面的声音，尽管它缺乏低音。
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Fujitsu Lifebook A3510 (FPC04905BP) audio analysis
(±) | speaker loudness is average but good (75.2 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 38.4% lower than median
(±) | linearity of bass is average (8.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.8% away from median
(±) | linearity of mids is average (13.5% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.7% higher than median
(+) | highs are linear (6.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (30% difference to median)
Compared to same class
» 90% of all tested devices in this class were better, 3% similar, 6% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 87% of all tested devices were better, 3% similar, 10% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP 255 G7 159P1EA audio analysis
(±) | speaker loudness is average but good (73.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 23% lower than median
(±) | linearity of bass is average (14.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.7% higher than median
(+) | mids are linear (6.8% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.8% away from median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (21.6% difference to median)
Compared to same class
» 50% of all tested devices in this class were better, 10% similar, 40% worse
» The best had a delta of 7%, average was 22%, worst was 53%
Compared to all devices tested
» 58% of all tested devices were better, 7% similar, 35% worse
» The best had a delta of 4%, average was 25%, worst was 134%
消耗功率
考虑到硬件设备，Lifebook不是非常耗电也就不奇怪了。在压力测试开始时，短暂地达到了近53瓦的最大耗电量。在测试的剩余时间里，这个数值急剧下降。这台笔记本电脑在我们的Witcher 3 测试中以恒定的功耗运行。该电源的额定功率为65瓦，足够大了。
Power Consumption
| Off / Standby | 0.2 / 0.45 Watt |
| Idle | 4.2 / 7.5 / 8.5 Watt |
| Load |
31.2 / 52.7 Watt |

| |
Key:
min: ,
med: ,
max: Metrahit Energy | |
Power Consumption The Witcher 3 / Stress Test
Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); Witcher 3 ultra: Ø30.7 (28.5-33.1)
HP 255 G7 159P1EA R3 3200U, Vega 3; Witcher 3 ultra: Ø28.7 (27.1-35)
Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); 1280x720 Prime95 28.10 and Furmark 1.25: Ø26.9 (24.7-53.1)
HP 255 G7 159P1EA R3 3200U, Vega 3; 1280x720 Prime95 28.10 and Furmark 1.25: Ø35 (34.4-35.7)
Power Consumption With an External Monitor
Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); Prime95 V2810 Stress (external Monitor): Ø26 (23.9-40.6)
HP 255 G7 159P1EA R3 3200U, Vega 3; Prime95 V2810 Stress (external Monitor): Ø17.2 (16.9-18.9)
Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); Cinebench R15 Multi (external Monitor): Ø26.4 (24-31)
HP 255 G7 159P1EA R3 3200U, Vega 3; Cinebench R15 Multi (external Monitor): Ø19.4 (15.8-36.4)
Fujitsu Lifebook A3510 (FPC04905BP) i3-1005G1, UHD Graphics G1 (Ice Lake 32 EU); 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø21.3 (19.8-33.7)
HP 255 G7 159P1EA R3 3200U, Vega 3; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø29.5 (23.8-36.7)
HP 255 G7 159P1EA R3 3200U, Vega 3; 1920x1080 The Witcher 3 ultra (external Monitor): Ø23.6 (23.1-24.9)

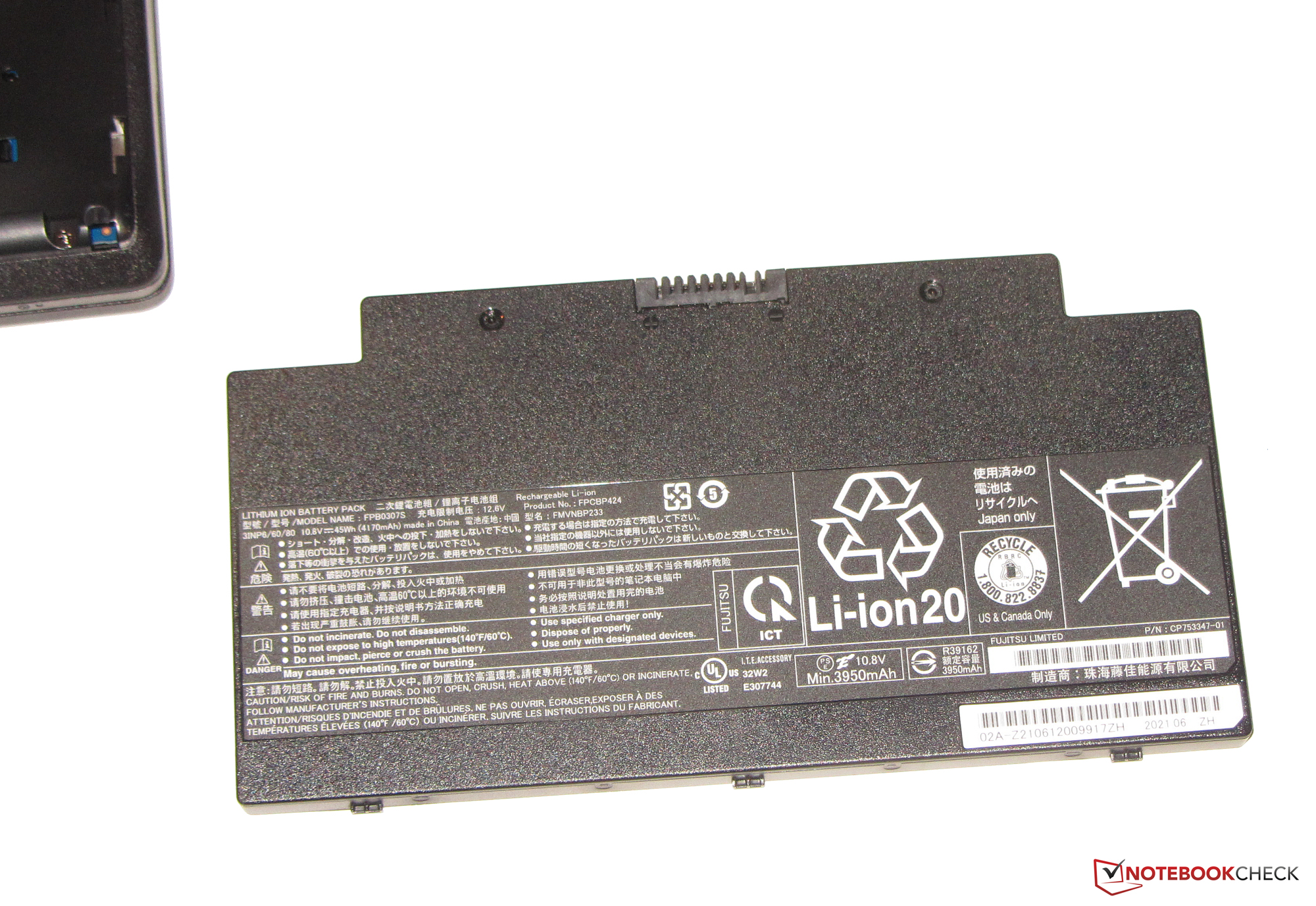

电池寿命
在我们的现实WLAN测试中，15.6英寸的笔记本电脑实现了6:30小时的电池寿命，我们通过脚本模拟了打开网站的负载。
| Battery Runtime - WiFi Websurfing | |
| Average of class Office (300 - 1349, n=94, last 2 years) | |
| Dell Latitude 15 3510 NK2MC | |
| Fujitsu Lifebook A3510 (FPC04905BP) | |
| HP 255 G7 159P1EA | |
| Lenovo V15-ADA 82C7009SGE | |
Pros
+ 哑光IPS显示屏
+ 几乎不产生任何热量
+ 维修挡板

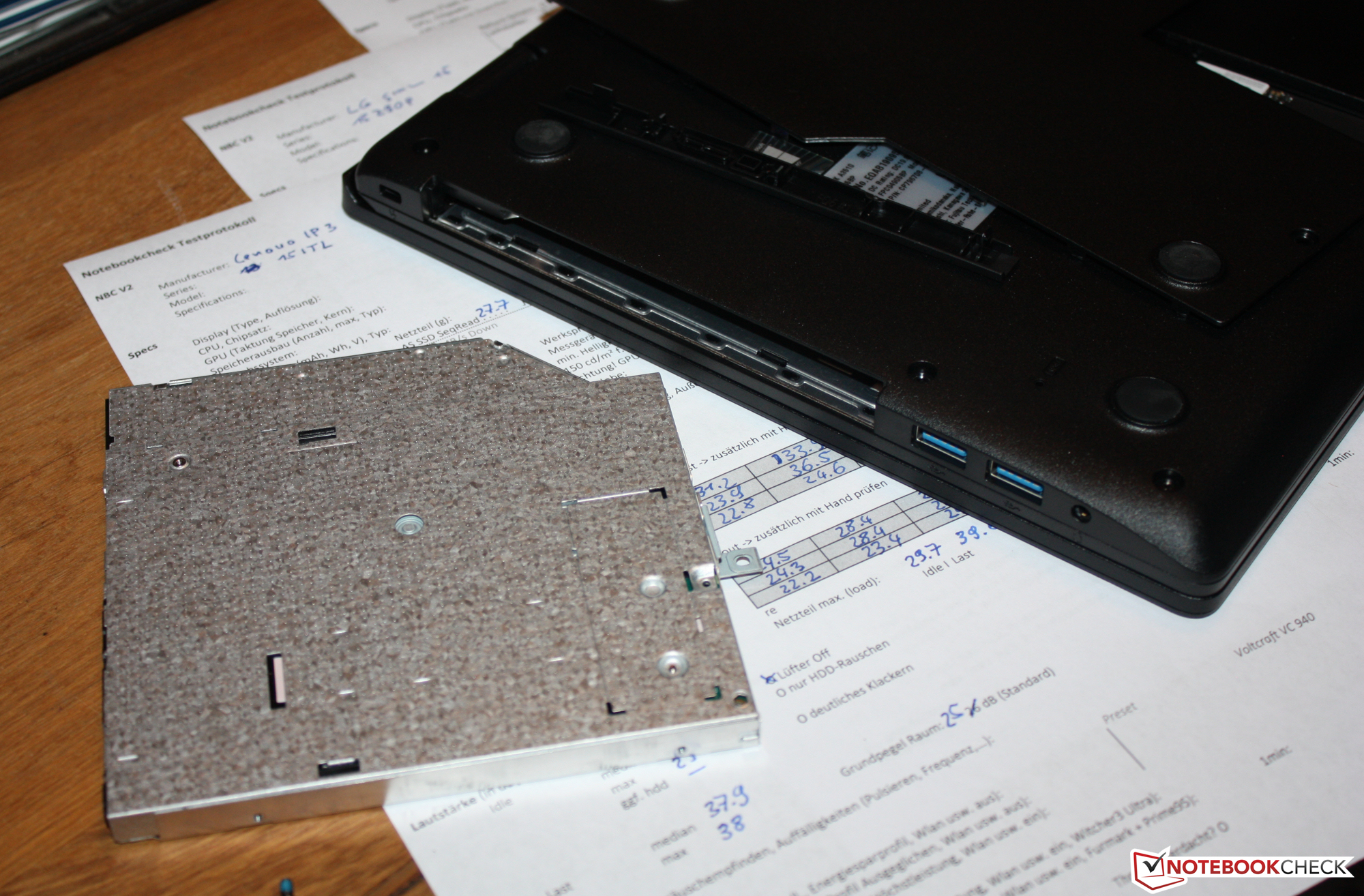

+ DVD刻录机
+ 操作系统DVD
+ 驱动器DVD
+ 快速存储卡读卡器
+ USB 3.2 Gen 2
+ 电源传输
Cons
- 显示器颜色较暗
- 外壳不容易变形
- 只有一年的保修期
结论 - 一台经济实惠的办公笔记本电脑
富士通的办公笔记本电脑重量只有1.8公斤（约4磅；或1.67公斤，约3.7磅，不含DVD驱动器），是比较轻的15.6英寸笔记本电脑之一。然而，它不是一个特别机动的设备，因为电池充电只能维持勉强6.5小时的WLAN运行时间。虽然这不是很好，但在A3510的价格水平上，它是相当正常的价值。
在低价位领域不是老生常谈。Lifebook A3510能够将自己与竞争对手区分开来。

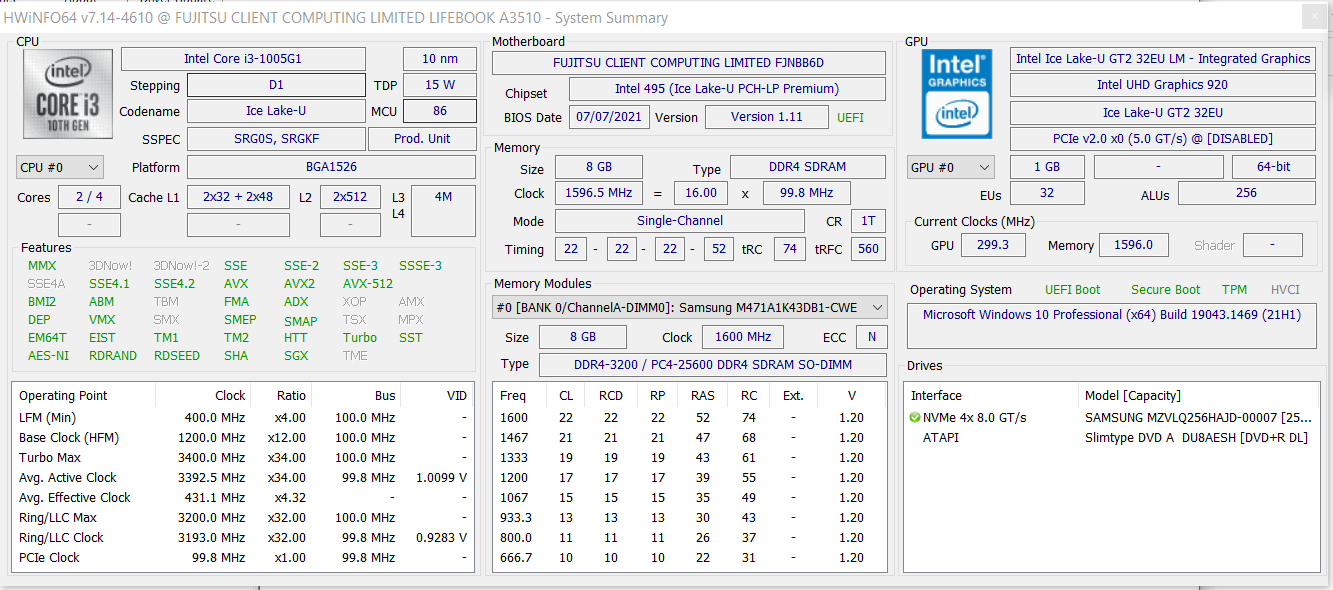

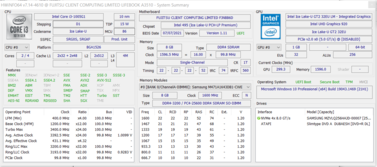

配备了酷睿i3-1005G1CPU，8GB工作内存（1x 8GB，单通道模式，可扩展），以及256GB NVMe SSD（M.2-2280），这款笔记本电脑配备了办公和互联网操作。事实上，CPU能够以高时钟速度持续运行是一个积极的特点。这台15.6英寸的笔记本电脑产生的噪音水平相对较低，几乎不发热。
虽然乍一看，Lifebook可能没有激发出多少热情，但它确实提供了一些好东西。你可以使用USB-C端口（USB 3.2 Gen 2；Power Delivery）为其充电，有一个DVD驱动器，Windows 10 Pro作为操作系统，维护盖板提供了对工作内存、SSD和电池的轻松访问。整套设备仅售450欧元（约502美元；或350欧元，约390美元，不含Windows操作系统）。
Lifebook的另一个替代品可能是 戴尔Latitude 3510它的电池寿命稍好，而且还可以选择配备LTE调制解调器。
价格和可用性
Das Fujitsu Lifebook A3510的测试配置（Core i3-1005G1, 8 GB RAM, 256 GB SSD, Windows 10 Pro）可从各种欧洲供应商处获得，如Ergo在英国，价格为422.22英镑（不含增值税）。在美国，你可以从欧洲供应商那里进口。
Fujitsu Lifebook A3510 (FPC04905BP)
- 01/28/2022 v7 (old)
Sascha Mölck
Office - Weighted Average
Price comparison
