Size Comparison
SD Card Reader | |
average JPG Copy Test (av. of 3 runs) | |
Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
Dell XPS 13 9360 FHD i5 | |
HP EliteBook 820 G4 Z2V72ET | |
Lenovo ThinkPad T460s-20FA003GGE | |
maximum AS SSD Seq Read Test (1GB) | |
Dell XPS 13 9360 FHD i5 | |
Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
HP EliteBook 820 G4 Z2V72ET | |
Lenovo ThinkPad T460s-20FA003GGE |
Networking | |
iperf3 transmit AX12 | |
Dell XPS 13 9360 FHD i5 | |
Lenovo ThinkPad T460s-20FA003GGE | |
Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
HP EliteBook 820 G4 Z2V72ET (jseb) | |
iperf3 receive AX12 | |
Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
Lenovo ThinkPad T460s-20FA003GGE | |
Dell XPS 13 9360 FHD i5 | |
HP EliteBook 820 G4 Z2V72ET (jseb) |
|
Brightness Distribution: 91 %
Center on Battery: 277 cd/m²
Contrast: 710:1 (Black: 0.39 cd/m²)
ΔE Color 3.44 | 0.5-29.43 Ø4.91
ΔE Greyscale 4.31 | 0.5-98 Ø5.2
98% sRGB (Argyll 1.6.3 3D)
63% AdobeRGB 1998 (Argyll 1.6.3 3D)
70% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.2% sRGB (Argyll 2.2.0 3D)
68% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.35
Fujitsu Lifebook S936 6600U 512GB PalmSecure Sharp SHP141B / LQ133M1JW01, , 1920x1080, 13.3" | Dell XPS 13 9360 FHD i5 Sharp SHP1449 LQ133M1, , 1920x1080, 13.3" | HP EliteBook 820 G4 Z2V72ET Chi Mei, , 1920x1080, 12.5" | Lenovo ThinkPad T460s-20FA003GGE VVX14T058J02, , 2560x1440, 14" | |
---|---|---|---|---|
Display | -27% | -34% | 1% | |
Display P3 Coverage | 68 | 48.94 -28% | 44.45 -35% | 68.7 1% |
sRGB Coverage | 98.2 | 73.3 -25% | 65.5 -33% | 98.1 0% |
AdobeRGB 1998 Coverage | 70 | 50.5 -28% | 46.04 -34% | 70.4 1% |
Response Times | 11% | 20% | 11% | |
Response Time Grey 50% / Grey 80% * | 44 ? | 32.8 ? 25% | 35 ? 20% | 35.6 ? 19% |
Response Time Black / White * | 32 ? | 33.2 ? -4% | 26 ? 19% | 29.2 ? 9% |
PWM Frequency | 211 ? | 220 ? 4% | ||
Screen | -1% | -25% | -7% | |
Brightness middle | 277 | 351.2 27% | 326 18% | 257 -7% |
Brightness | 261 | 325 25% | 304 16% | 248 -5% |
Brightness Distribution | 91 | 89 -2% | 81 -11% | 94 3% |
Black Level * | 0.39 | 0.195 50% | 0.29 26% | 0.26 33% |
Contrast | 710 | 1801 154% | 1124 58% | 988 39% |
Colorchecker dE 2000 * | 3.44 | 7.4 -115% | 6.49 -89% | 4.59 -33% |
Colorchecker dE 2000 max. * | 6.27 | 9.08 -45% | 15.95 -154% | 9.72 -55% |
Greyscale dE 2000 * | 4.31 | 6.71 -56% | 6.16 -43% | 6.38 -48% |
Gamma | 2.35 94% | 2.74 80% | 2.32 95% | 2.51 88% |
CCT | 6737 96% | 7222 90% | 7575 86% | 6238 104% |
Color Space (Percent of AdobeRGB 1998) | 63 | 50.48 -20% | 42 -33% | 65 3% |
Color Space (Percent of sRGB) | 98 | 73.31 -25% | 65 -34% | 98 0% |
Total Average (Program / Settings) | -6% /
-4% | -13% /
-21% | 2% /
-2% |
* ... smaller is better

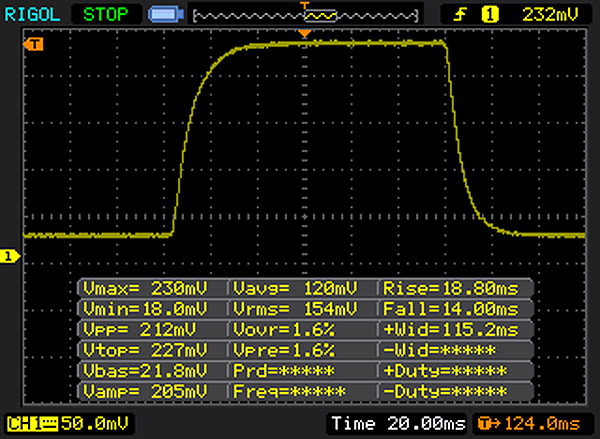

Display Response Times
↔ Response Time Black to White | ||
---|---|---|
32 ms ... rise ↗ and fall ↘ combined | ↗ 18 ms rise | |
↘ 14 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 84 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (20.9 ms). | ||

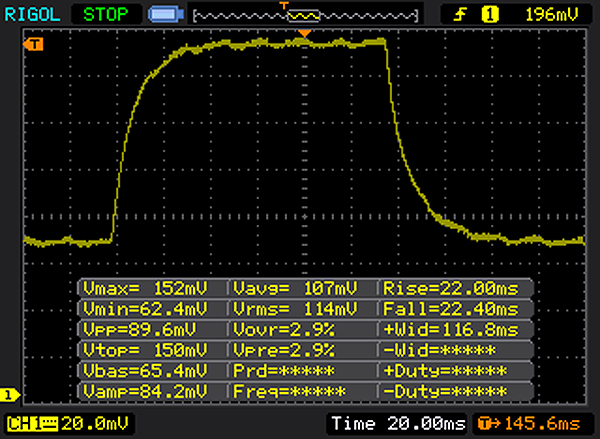

↔ Response Time 50% Grey to 80% Grey | ||
44 ms ... rise ↗ and fall ↘ combined | ↗ 22 ms rise | |
↘ 22 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 71 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.8 ms). |

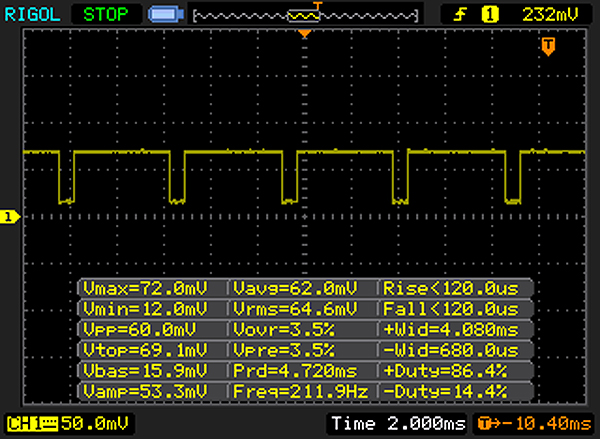

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 211 Hz | ≤ 30 % brightness setting | |
The display backlight flickers at 211 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 30 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 211 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8705 (minimum: 5 - maximum: 343500) Hz was measured. |
PCMark 8 Home Score Accelerated v2 | 3551 points | |
PCMark 8 Work Score Accelerated v2 | 4500 points | |
Help |
Fujitsu Lifebook S936 6600U 512GB PalmSecure Samsung SSD PM871 MZNLN512HCJH | Dell XPS 13 9360 FHD i5 Toshiba NVMe THNSN5256GPUK | HP EliteBook 820 G4 Z2V72ET Samsung PM951 NVMe MZVLV512 | Lenovo ThinkPad T460s-20FA003GGE Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512) | |
---|---|---|---|---|
CrystalDiskMark 3.0 | 52% | 67% | 148% | |
Read Seq | 495.8 | 1233 149% | 1315 165% | 1778 259% |
Write Seq | 405.1 | 733 81% | 594 47% | 1530 278% |
Read 512 | 409.4 | 1036 153% | 661 61% | 1339 227% |
Write 512 | 419.8 | 439.9 5% | 594 41% | 1506 259% |
Read 4k | 33.85 | 29.31 -13% | 42.87 27% | 51.3 52% |
Write 4k | 96.8 | 116.9 21% | 151.6 57% | 139.3 44% |
Read 4k QD32 | 330.4 | 479.2 45% | 568 72% | 561 70% |
Write 4k QD32 | 296.3 | 218.3 -26% | 491.7 66% | 277 -7% |
3DMark 11 - 1280x720 Performance GPU | |
Dell XPS 13 9360 FHD i5 | |
HP EliteBook 820 G4 Z2V72ET | |
Fujitsu Lifebook S936 6600U 512GB PalmSecure | |
Lenovo ThinkPad T460s-20FA003GGE |
3DMark - 1280x720 Cloud Gate Standard Graphics | |
Dell XPS 13 9360 FHD i5 | |
HP EliteBook 820 G4 Z2V72ET | |
Lenovo ThinkPad T460s-20FA003GGE | |
Fujitsu Lifebook S936 6600U 512GB PalmSecure |
3DMark 11 Performance | 1580 points | |
3DMark Cloud Gate Standard Score | 5586 points | |
Help |
low | med. | high | ultra | |
---|---|---|---|---|
The Witcher 3 (2015) | 13.5 | |||
Farming Simulator 17 (2016) | 54.5 | 39.7 | 20.1 | |
For Honor (2017) | 20.1 |
Noise Level
Idle |
| 30.6 / 30.6 / 30.6 dB(A) |
Load |
| 32.8 / 36.8 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Audix TM1, Arta (15 cm distance) environment noise: 30.6 dB(A) |
(+) The maximum temperature on the upper side is 35.8 °C / 96 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 42.3 °C / 108 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 27 °C / 81 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 30.6 °C / 87.1 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.3 °C / -4.2 F).
Fujitsu Lifebook S936 6600U 512GB PalmSecure audio analysis
(-) | not very loud speakers (71 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 36.1% lower than median
(+) | bass is linear (1.7% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 11.5% lower than median
(±) | linearity of mids is average (11.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.9% higher than median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (37.6% difference to median)
Compared to same class
» 97% of all tested devices in this class were better, 1% similar, 1% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Dell XPS 13 9360 FHD i5 audio analysis
(-) | not very loud speakers (70.3 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.9% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(±) | linearity of highs is average (10.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (18.3% difference to median)
Compared to same class
» 51% of all tested devices in this class were better, 7% similar, 43% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 36% of all tested devices were better, 8% similar, 56% worse
» The best had a delta of 4%, average was 25%, worst was 134%
HP EliteBook 820 G4 Z2V72ET audio analysis
(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.6% lower than median
(±) | linearity of bass is average (7.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.1% away from median
(+) | mids are linear (4.7% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.8% higher than median
(+) | highs are linear (5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.6% difference to median)
Compared to same class
» 45% of all tested devices in this class were better, 8% similar, 47% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 31% of all tested devices were better, 8% similar, 61% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Off / Standby | 0.19 / 0.85 Watt |
Idle | 3.9 / 8.3 / 8.5 Watt |
Load |
29 / 30.5 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Fujitsu Lifebook S936 6600U 512GB PalmSecure 6600U, HD Graphics 520, Samsung SSD PM871 MZNLN512HCJH, IPS, 1920x1080, 13.3" | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, Toshiba NVMe THNSN5256GPUK, IPS, 1920x1080, 13.3" | HP EliteBook 820 G4 Z2V72ET i7-7500U, HD Graphics 620, Samsung PM951 NVMe MZVLV512, IPS, 1920x1080, 12.5" | Lenovo ThinkPad T460s-20FA003GGE 6600U, HD Graphics 520, Samsung SSD SM951a 512GB M.2 PCIe 3.0 x4 NVMe (MZVKV512), IPS-Panel, 2560x1440, 14" | |
---|---|---|---|---|
Power Consumption | 22% | 20% | -10% | |
Idle Minimum * | 3.9 | 4.1 -5% | 2.7 31% | 3.8 3% |
Idle Average * | 8.3 | 4.2 49% | 4.8 42% | 7.1 14% |
Idle Maximum * | 8.5 | 5.1 40% | 6.6 22% | 7.8 8% |
Load Average * | 29 | 22.1 24% | 28.5 2% | 36.3 -25% |
Load Maximum * | 30.5 | 29.4 4% | 29 5% | 46 -51% |
* ... smaller is better
Fujitsu Lifebook S936 6600U 512GB PalmSecure 6600U, HD Graphics 520, 76 Wh | Dell XPS 13 9360 FHD i5 i5-7200U, HD Graphics 620, 60 Wh | HP EliteBook 820 G4 Z2V72ET i7-7500U, HD Graphics 620, 49 Wh | Lenovo ThinkPad T460s-20FA003GGE 6600U, HD Graphics 520, 49 Wh | |
---|---|---|---|---|
Battery Runtime | 3% | 8% | -47% | |
Reader / Idle | 1227 | 1295 6% | 1346 10% | 833 -32% |
WiFi v1.3 | 613 | 677 10% | 566 -8% | 340 -45% |
Load | 167 | 157 -6% | 205 23% | 62 -63% |
H.264 | 532 | 397 |
Pros
Cons
最新的富士通Lifebook S936主要面向旅行商务用户,提供了必要的坚固性、功能性和灵活性,相应地它的价位也很高。在连接性、安全性和可扩展空间等方面生产商做到了极致。我们唯一不满的是它的移动网络模组仅支持LTE Cat 3,需要在美国使用这台设备的用户可能需要考虑另外的网络模组。
使用标配的电池,Lifebook S936已经可以提供出色的续航时间,同时它还可以得到扩充,带来甚至更长的耐力。它的机身并不吸引眼球,但坚固而实用。它的键盘也可以让人满意;可惜触控版则并不完美,富士通需要在这个方面提高标准。尽管它搭配的IPS屏幕提供了稳定的可视角度范围,不过对比度并不出色,同时较低的亮度可能不适合户外使用。除此之外,这块屏幕的表现十分均衡。
我们对它比较不满的方面包括音响系统,它的效果可以说是难以想象的差,同时负载下它还会发出高频率的噪音,以及打字声响较大的键盘,这可能会不太适合商务需要(比如在飞机上使用可能会影响其他乘客)。
整体上,我们十分喜欢Lifebook S936,不过它并没有达到我们所期待的(高)标准。不过,我们仍然认为它值得考虑,它可以为需要移动办公的用户带来所需的核心功能。
注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。
Fujitsu Lifebook S936 6600U 512GB PalmSecure
- 05/11/2017 v6 (old)
Sven Kloevekorn
