迈腾 MTN-FP750 迷你 PC 评测：AMD Ryzen 7 7735HS 因拙劣的配置而迟滞不前

Name: Maxtang MTN-FP750
Brand: Maxtang

业绩比预期差！

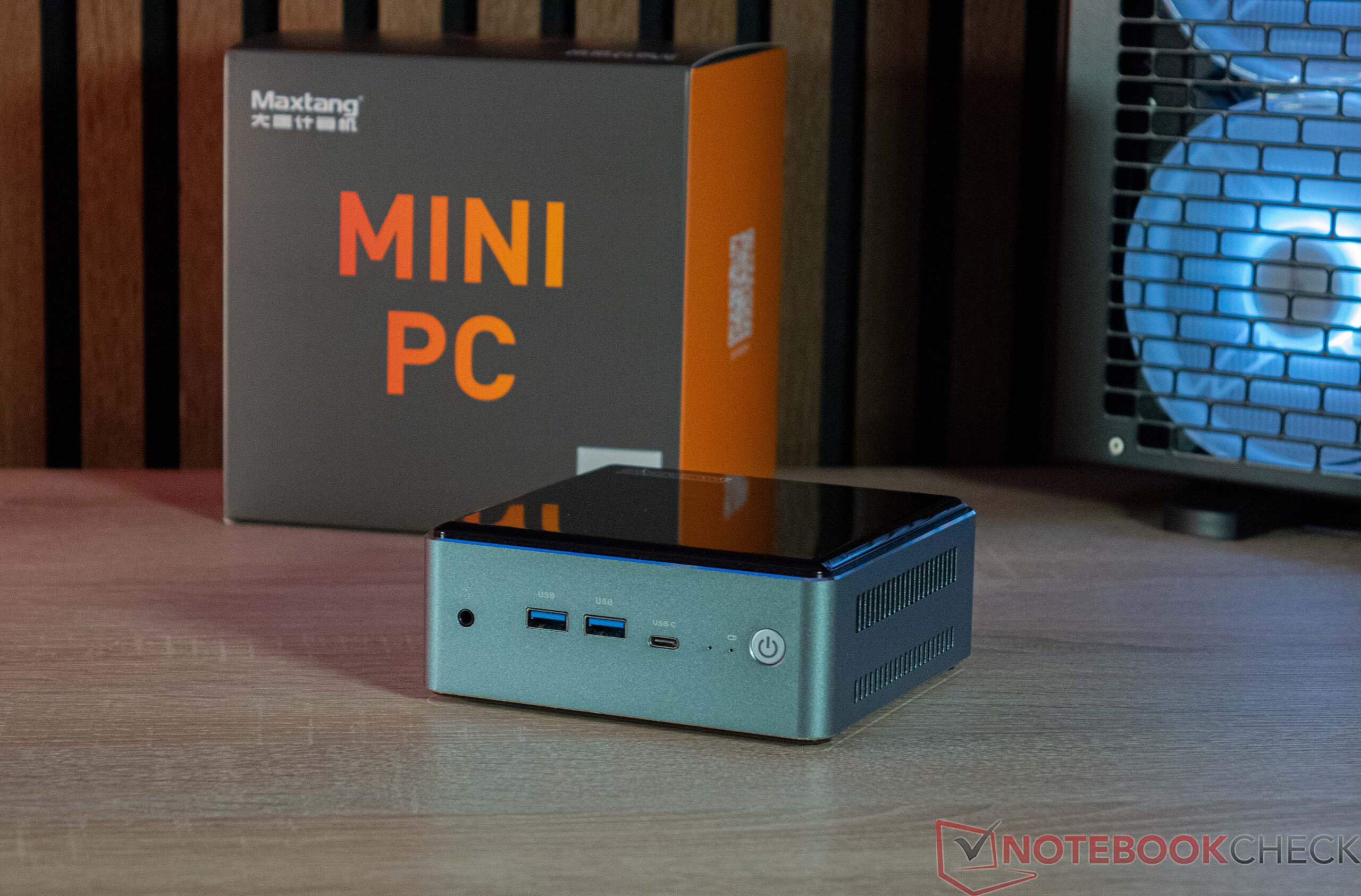

Maxtang MTN-FP750 是一款性能相对较弱的迷你 PC，它配备了 AMD Ryzen 7 7735HS。我们对这款小巧的办公电脑、16 GB 内存和 512 GB 固态硬盘进行了测试，并对其性能进行了分析。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 02/11/2024 🇺🇸 🇩🇪 ...

Mini PC Desktop AMD Zen

Maxtang 是一家中国系统制造商，主要销售嵌入式系统形式的特殊工业解决方案以及专为办公用途设计的微型 PC。在本次评测中，我们将重点介绍售价 440 美元的 Maxtang MTN-FP750。该系统由 AMD Ryzen 7 7735HS和 16 GB DDR5 内存以及 512 GB SSD。另外，还配备了 AMD Ryzen 5 6600H处理器。除此之外，该迷你电脑还可以订购额外的内存和更大的固态硬盘。Maxtang 还提供了一个裸机选项，但只配备了 AMD Ryzen 7 7735HS。

在本次评测中，Maxtang MTN-FP750 与当前的迷你 PC 进行了对比。下表汇总了本次评测中发现的对比设备的更详细列表。

Download your licensed rating image as PNG / SVG

Maxtang MTN-FP750

Processor

AMD Ryzen 7 7735HS 8 x 3.2 - 4.8 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Rembrandt-HS Refresh

Graphics adapter

AMD Radeon 680M, Adrenalin 23.12.1

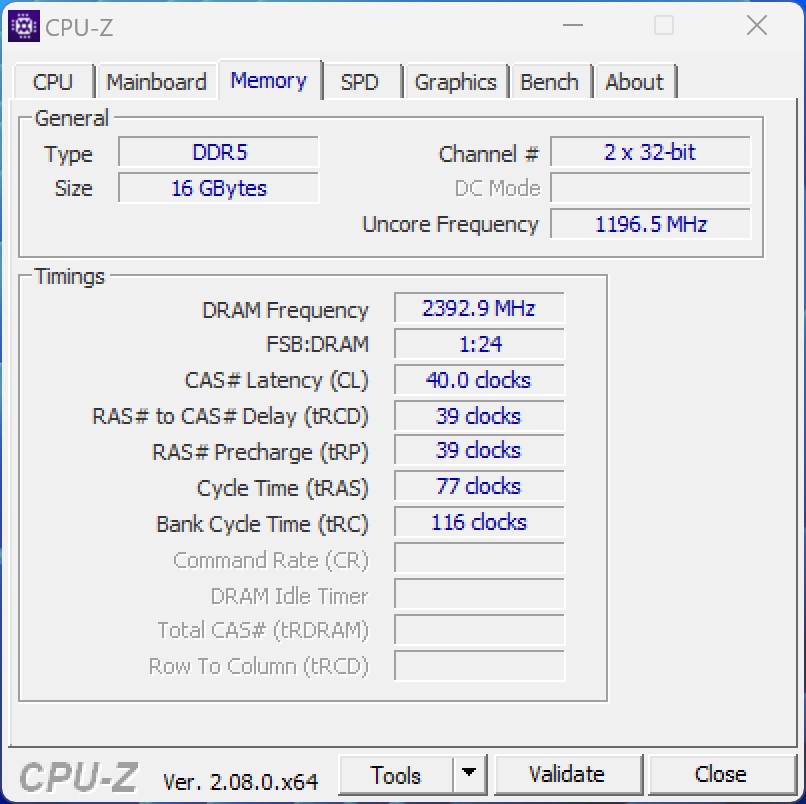

Memory

16 GB

, DDR5-4800, max. 64 GB

Mainboard

AMD Promontory/Bixby FCH

Storage

Foresee VP1000F512G, 512 GB

, 440 GB free

Soundcard

AMD Zen - Audio Processor - HD Audio Controller

Connections

1 USB 2.0, 4 USB 3.1 Gen2, 2 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3,5mm Klinke (Combo)

Networking

Realtek RTL8125 2.5GBe Family Ethernet Controller (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Size

height x width x depth (in mm): 52 x 130 x 128

Operating System

Microsoft Windows 11 Pro

Additional features

Power Adapter, VESA mount, 12 Months Warranty

Weight

601 g, Power Supply: 289 g

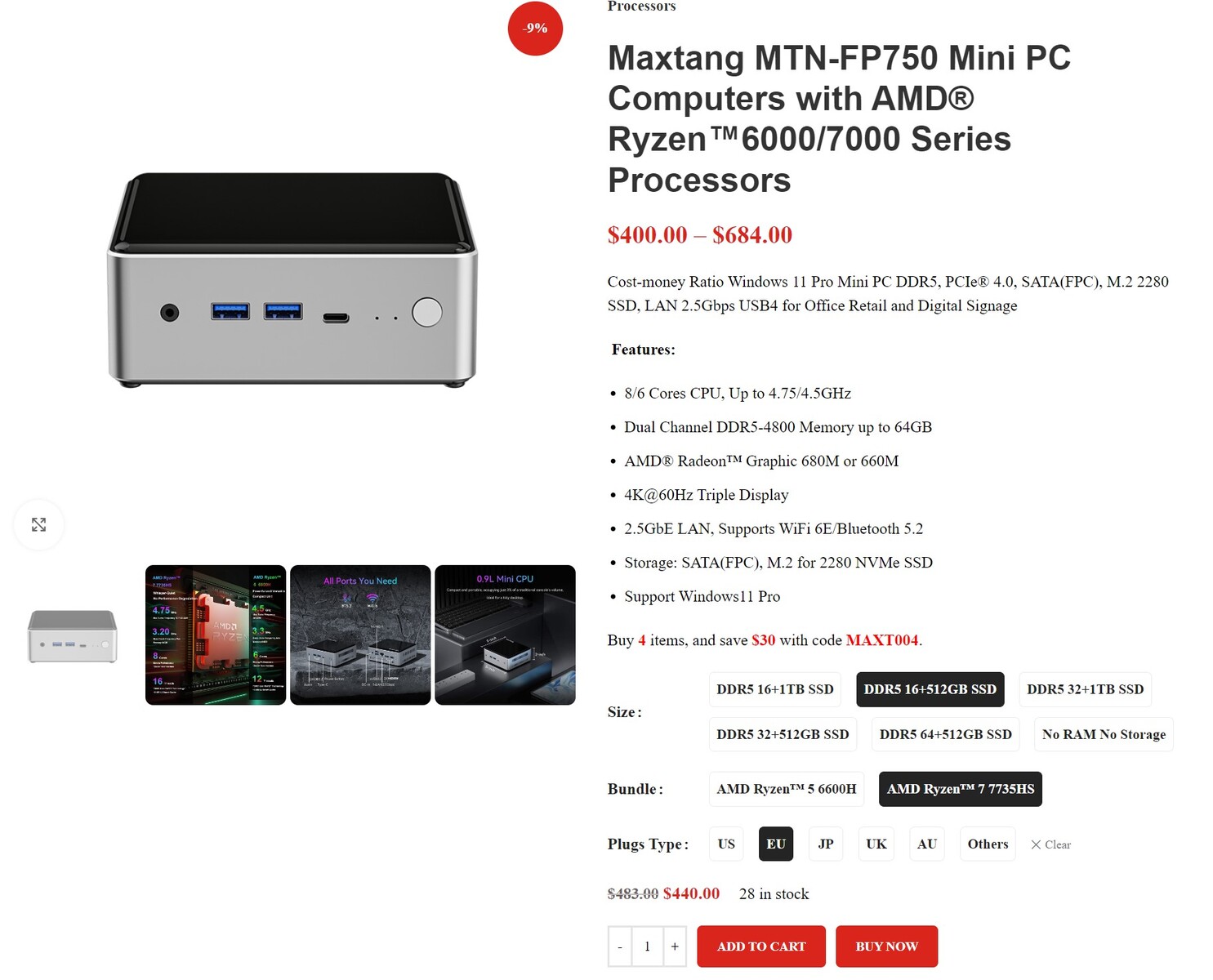

Price

440 USD

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
79.5 % v7 ^(old)	02 / 2024	Maxtang MTN-FP750 R7 7735HS, Radeon 680M	601 g	52 mm
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
82.8 % v7 ^(old)	07 / 2023	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	753 g	58 mm
82.3 % v7 ^(old)	05 / 2023	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	572 g	45.6 mm
81.2 % v7 ^(old)	10 / 2023	Geekom A5 R7 5800H, Vega 8	555 g	49.2 mm
81.9 % v7 ^(old)	05 / 2023	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	616 g	55 mm
78.4 % v7 ^(old)	01 / 2024	NiPoGi AD08 i7-12650H, UHD Graphics 64EUs	878 g	188.5 mm

迈腾 MTN-FP750 详细信息

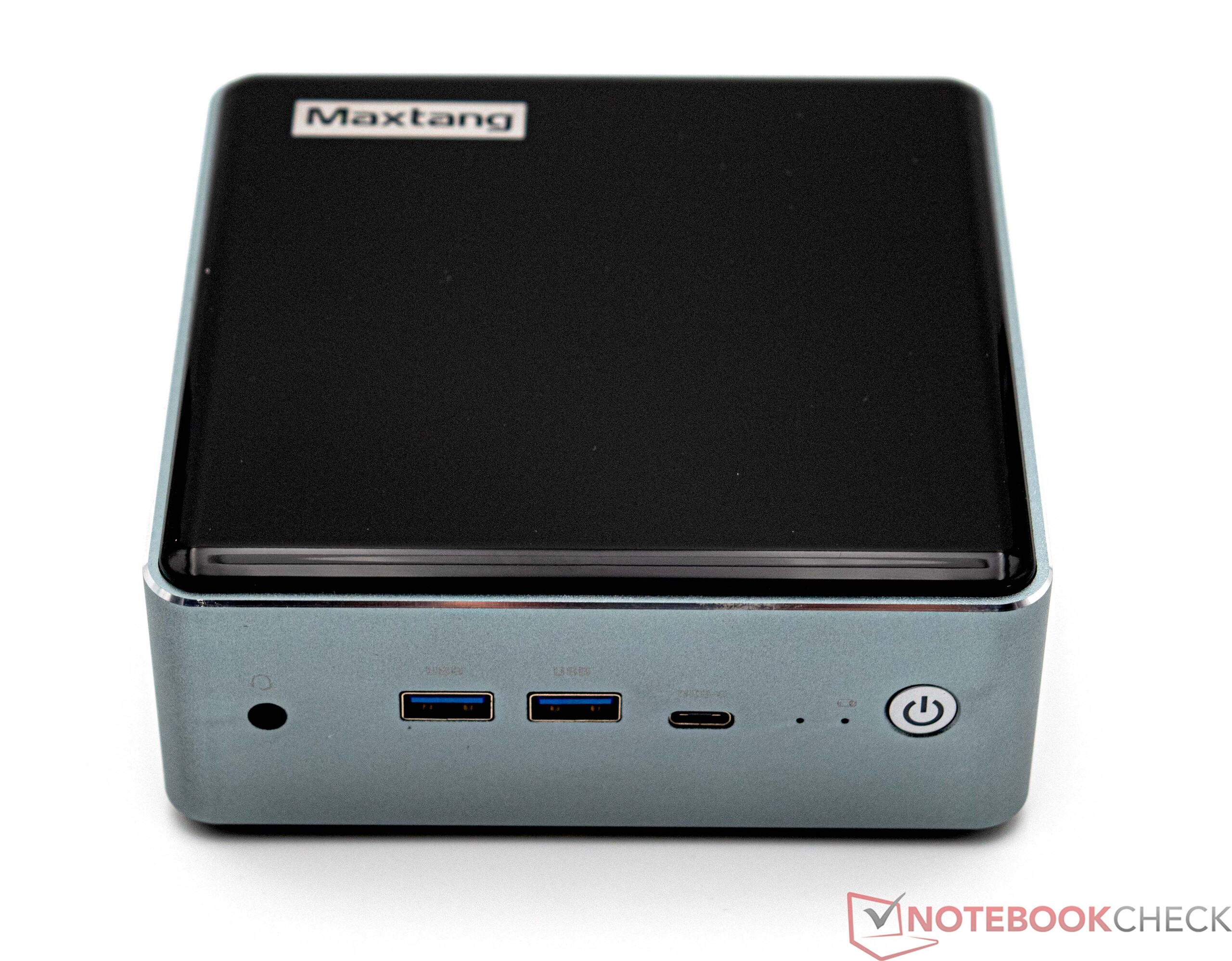

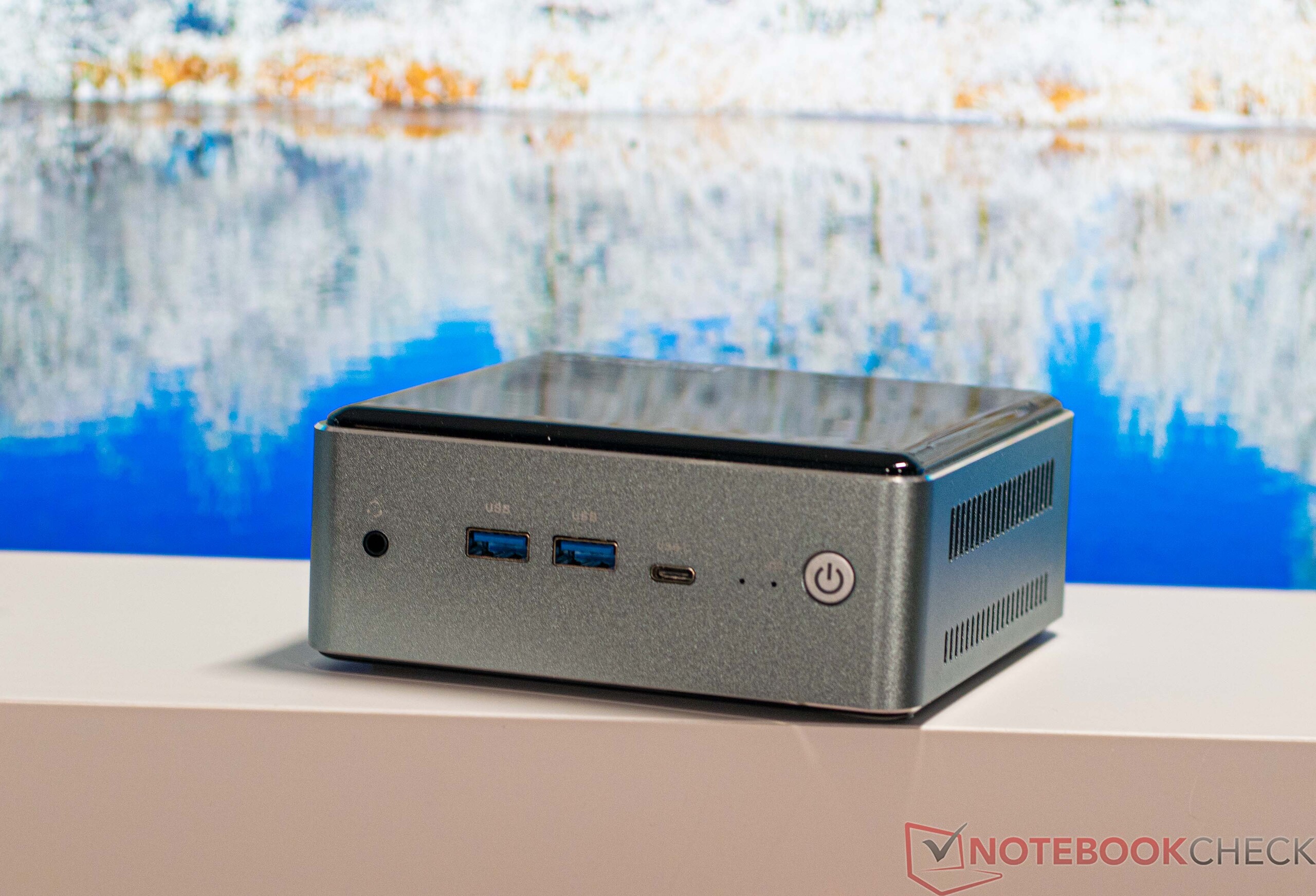

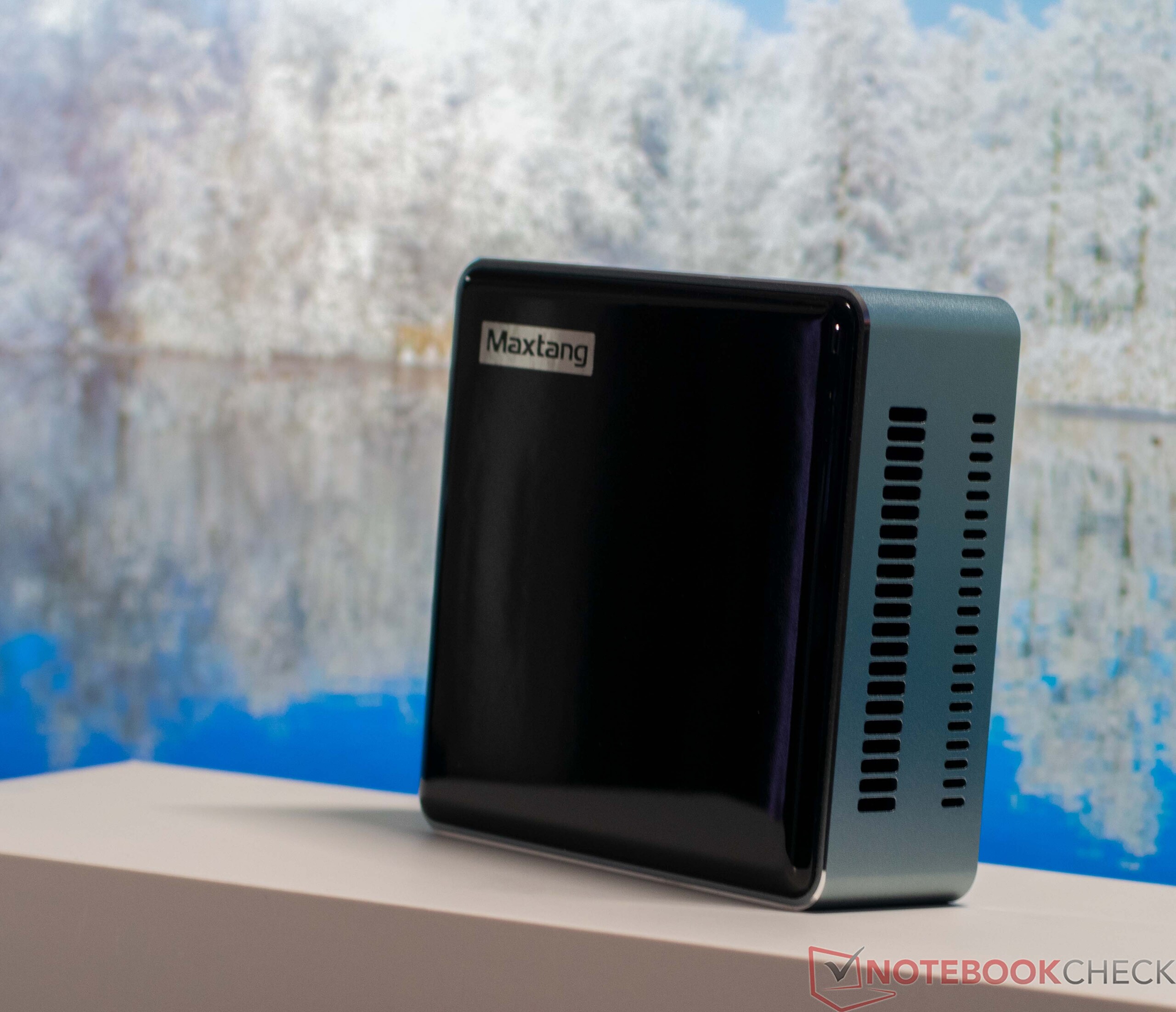

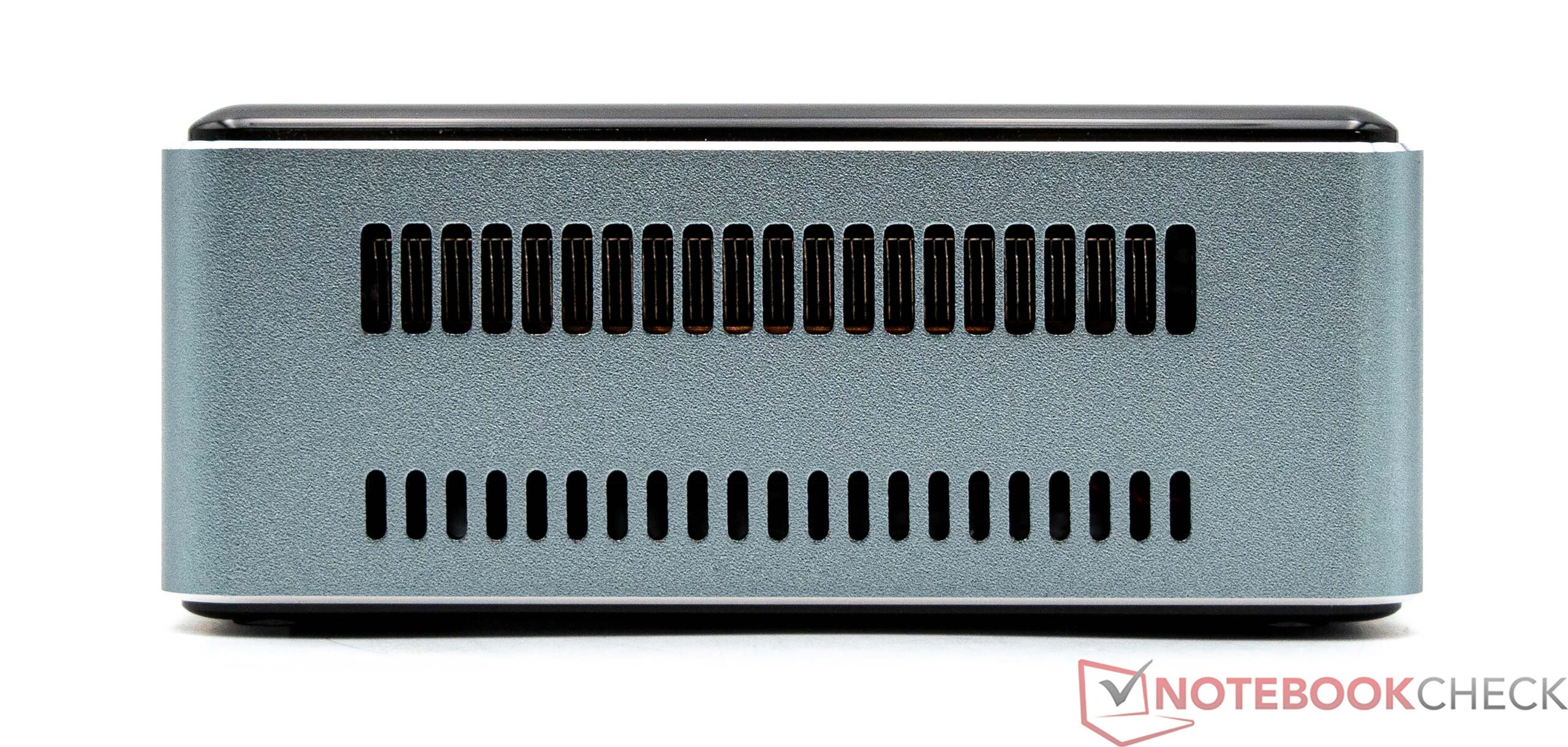

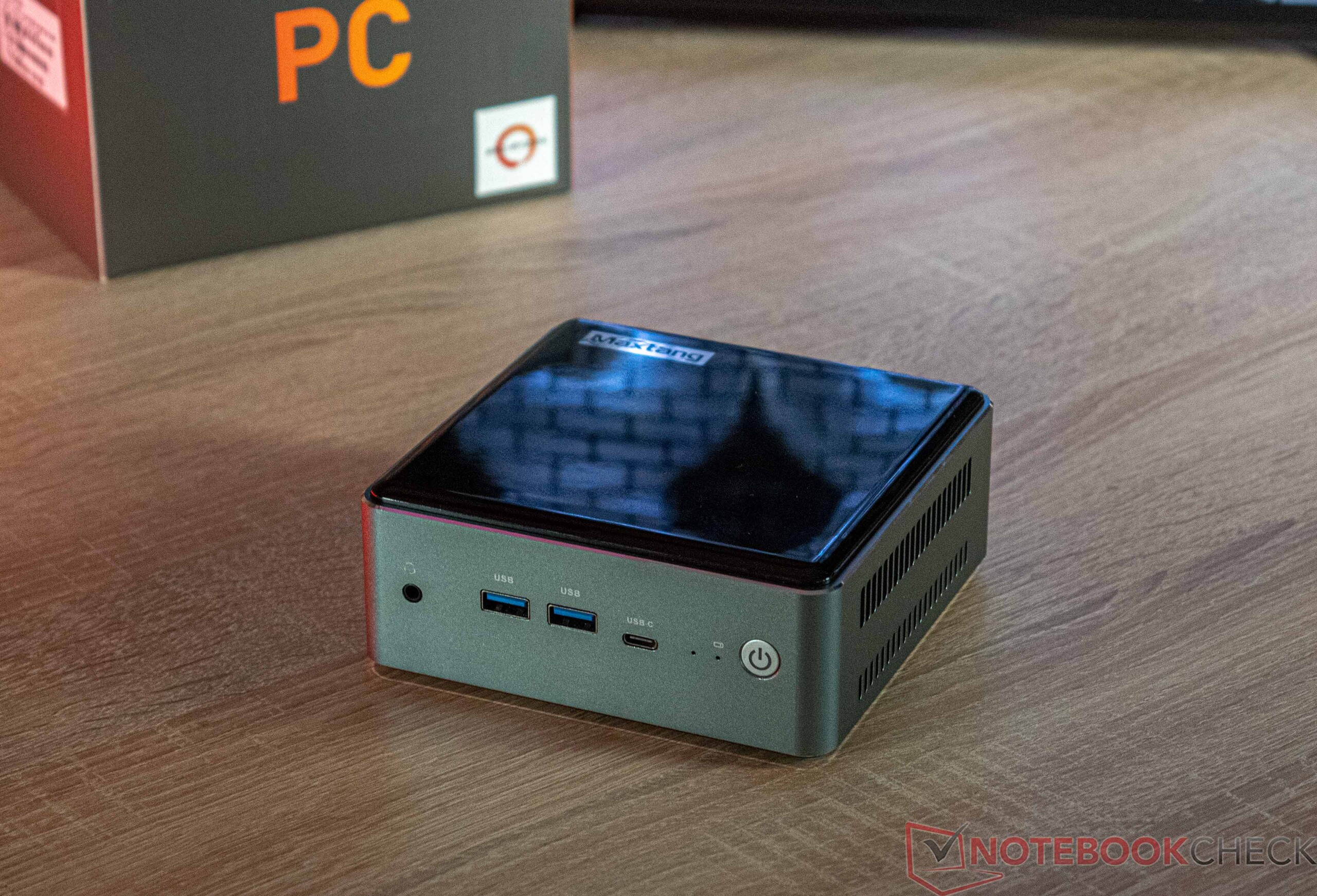

外壳 - 钢琴黑金属和塑料

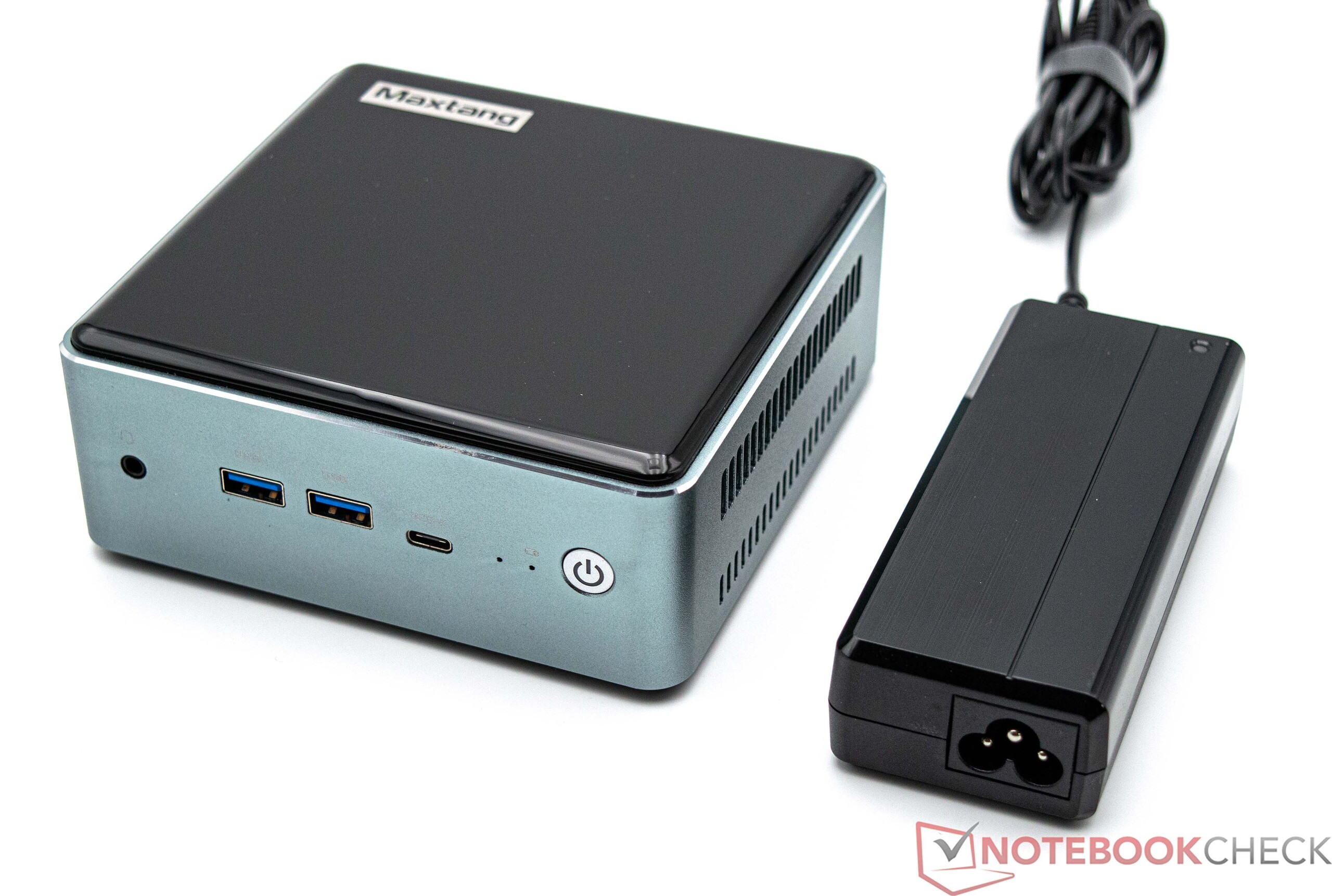

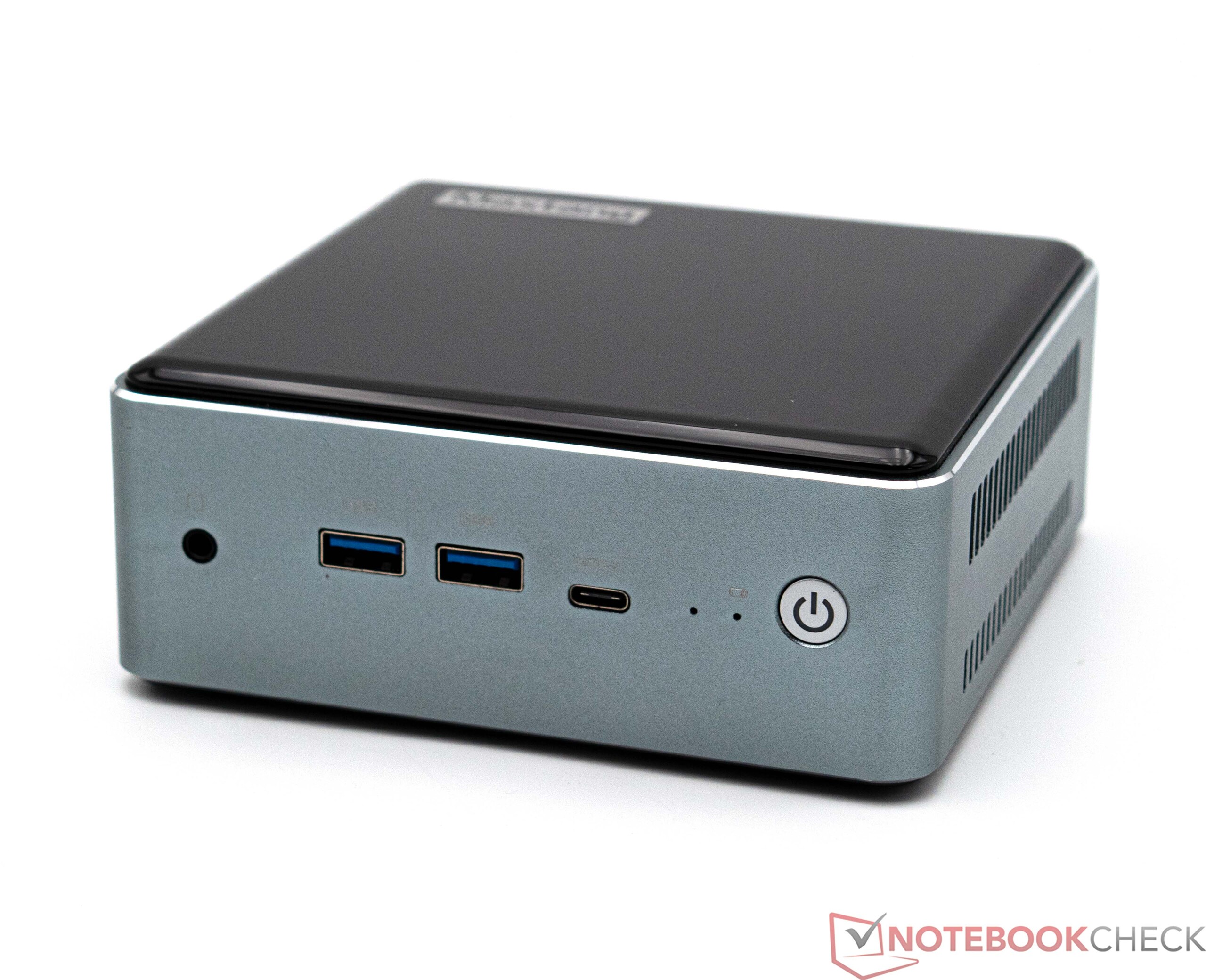

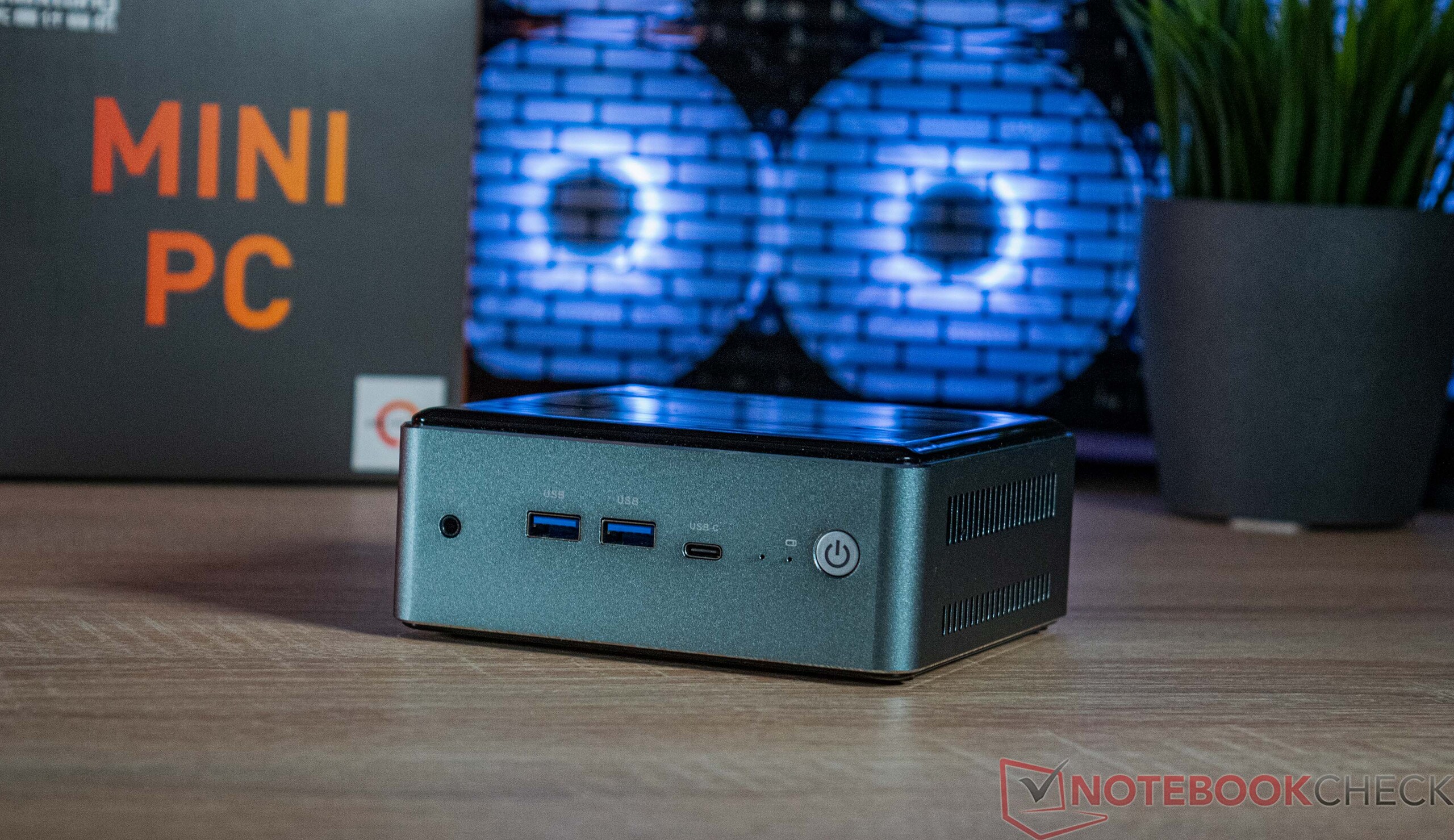

Maxtang MTN-FP750 采用坚固的金属外壳，顶部和底部采用黑色亮面塑料。很快，指纹就会变得清晰可见，划痕迟早也是不可避免的。从稳定性来看，该机似乎并没有受到塑料盖的影响。微型电脑的顶部印有 Maxtang 品牌标志。

该设备的尺寸约为 13 x 13 厘米，占用的桌面空间略大于同类产品，而 Maxtang MTN-FP750 的重量仅为 600 克，相对较轻。PSU 的重量仅为 290 克。Maxtang MTN-FP750 还可以连接到显示器上，包装盒中还附带了一个 VESA 支架。

尺寸比较

Minisforum Neptune Series NAD9 NiPoGi AD08 Geekom AS 6, R9 6900HX Maxtang MTN-FP750 Minisforum Venus Series NAB6 Geekom A5 Geekom Mini IT12 DIN A4 ❌

特点

说到端口，Maxtang MTN-FP750 提供了基本的端口。所有这些端口都位于正面和背面。共有五个 USB 端口，其中一个（USB Type C）还可用作显示器接口。加上后部的两个 HDMI 输出，这意味着总共可以同时操作三个显示器。此外，设备后部还配有 2.5G LAN 端口。

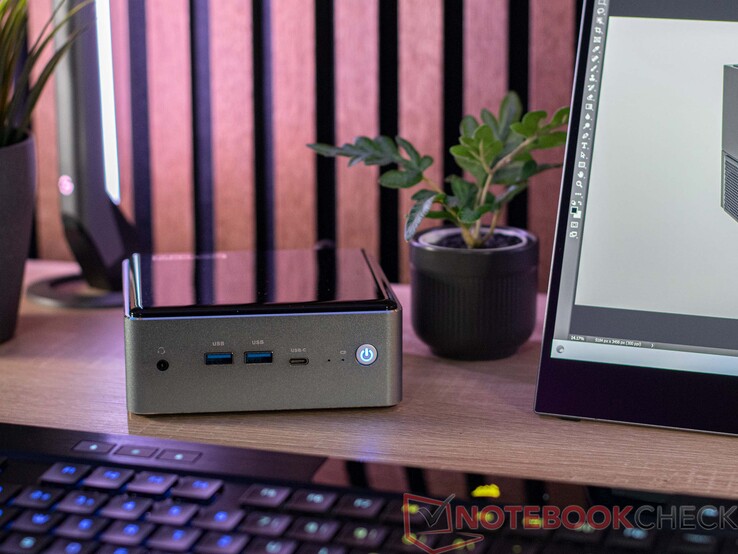

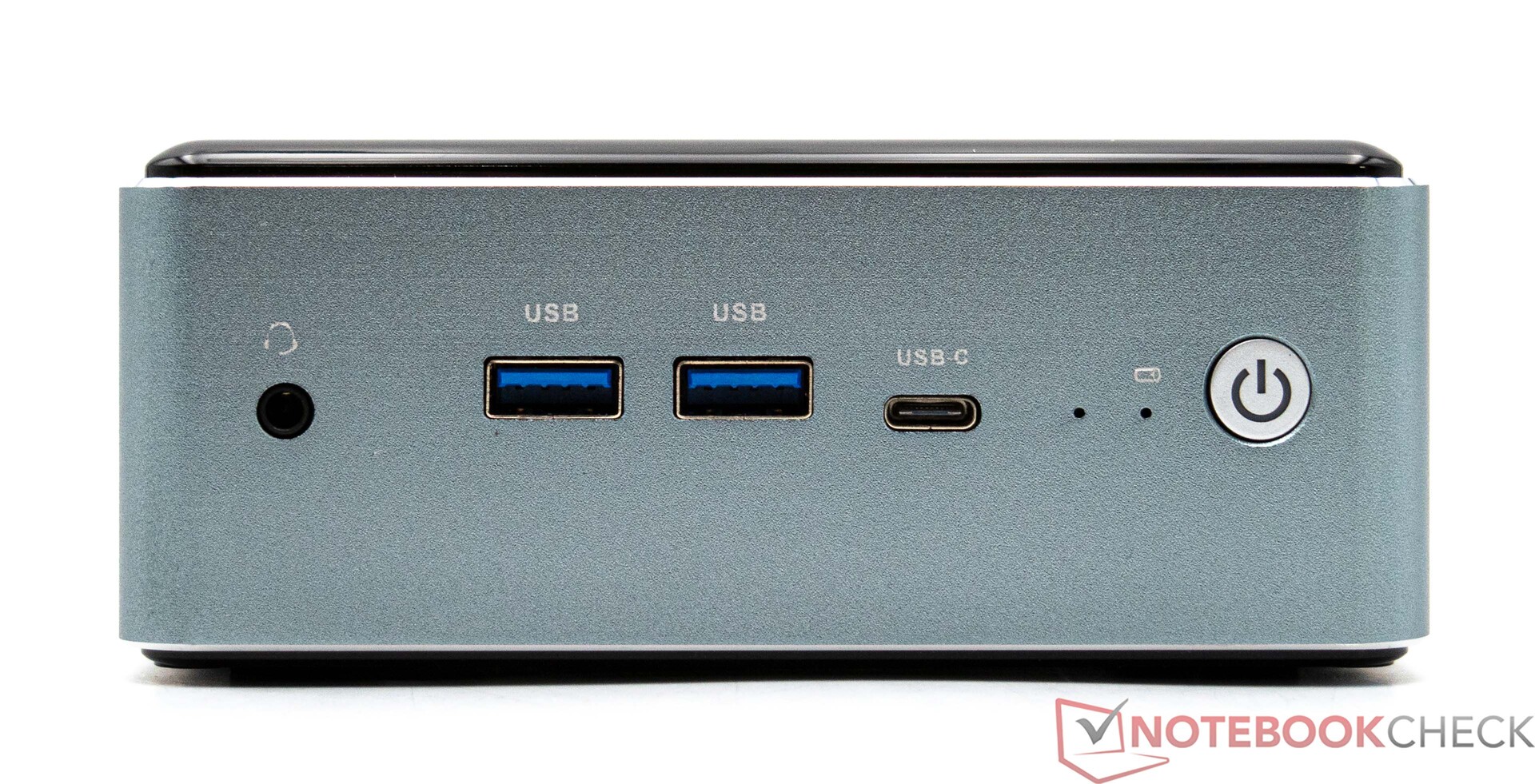

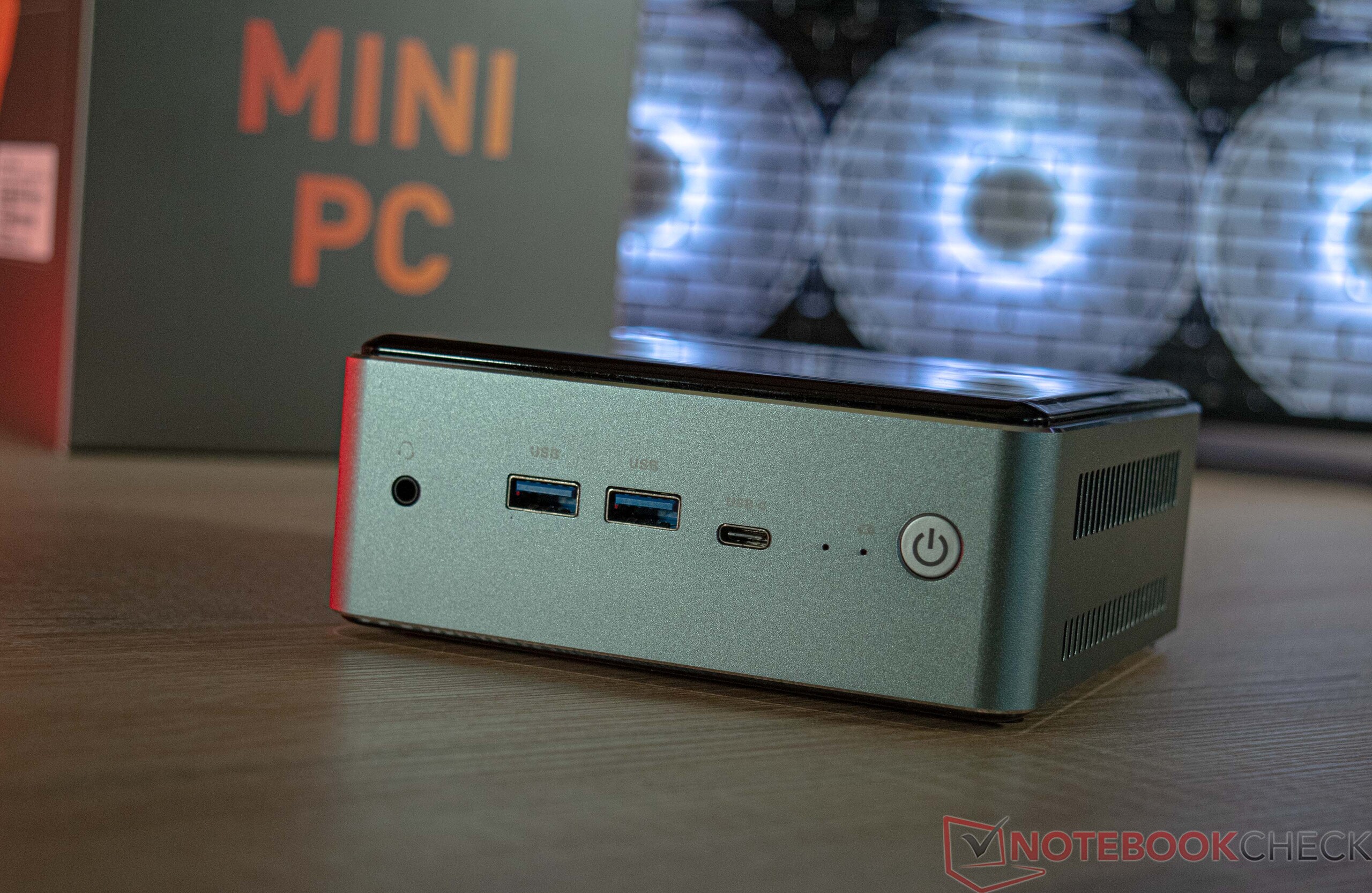

正面：3.5 毫米音频插孔（线路输出 + 麦克风输入）、2 个 USB 3.2、1 个 USB-C（3.2 Gen 2 + DisplayPort 1.4）、电源开关

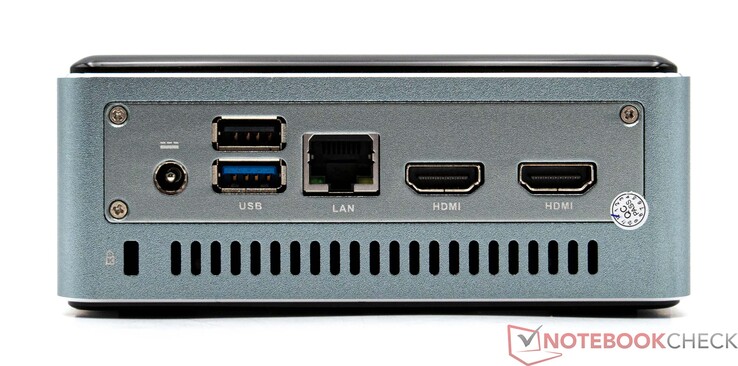

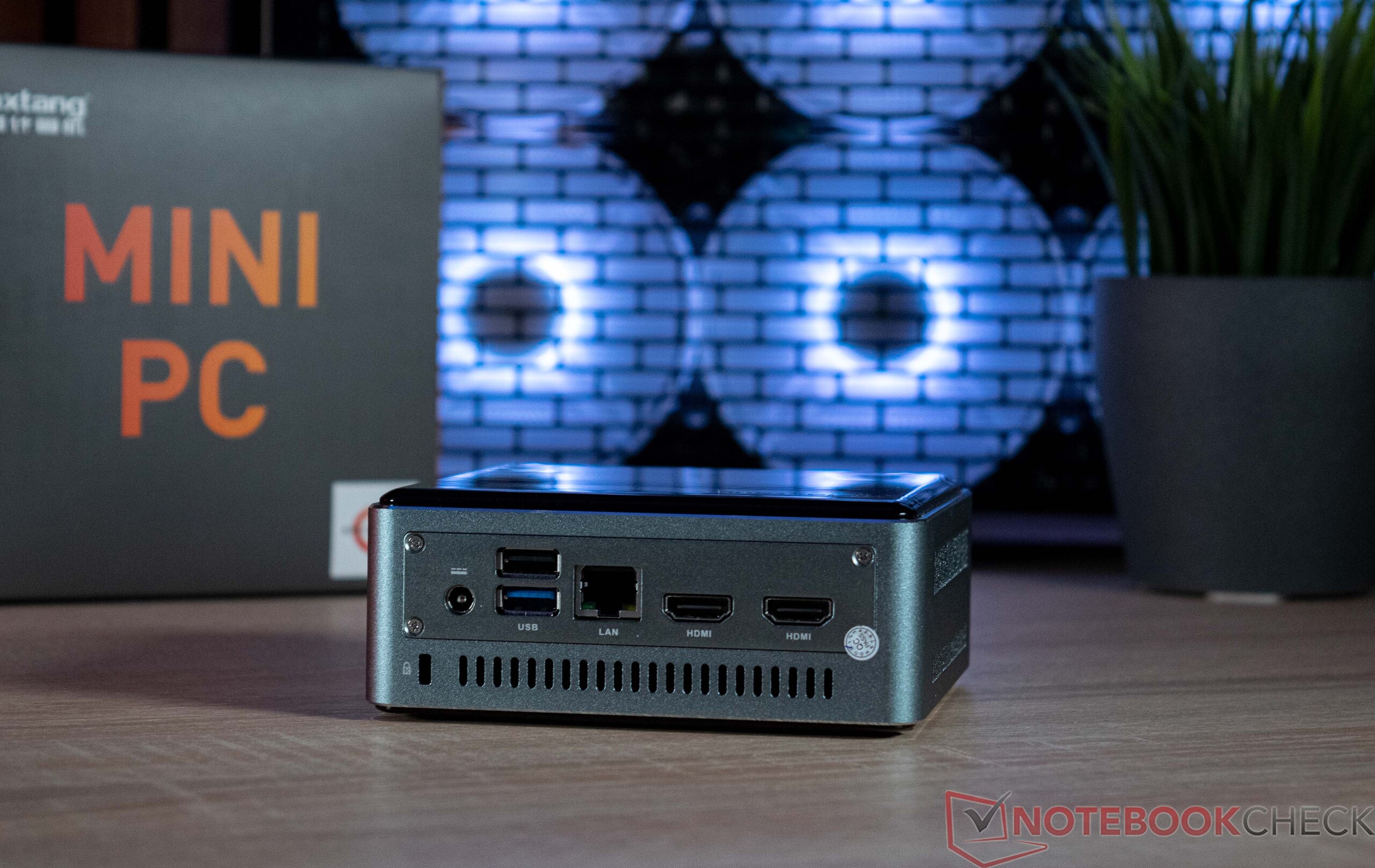

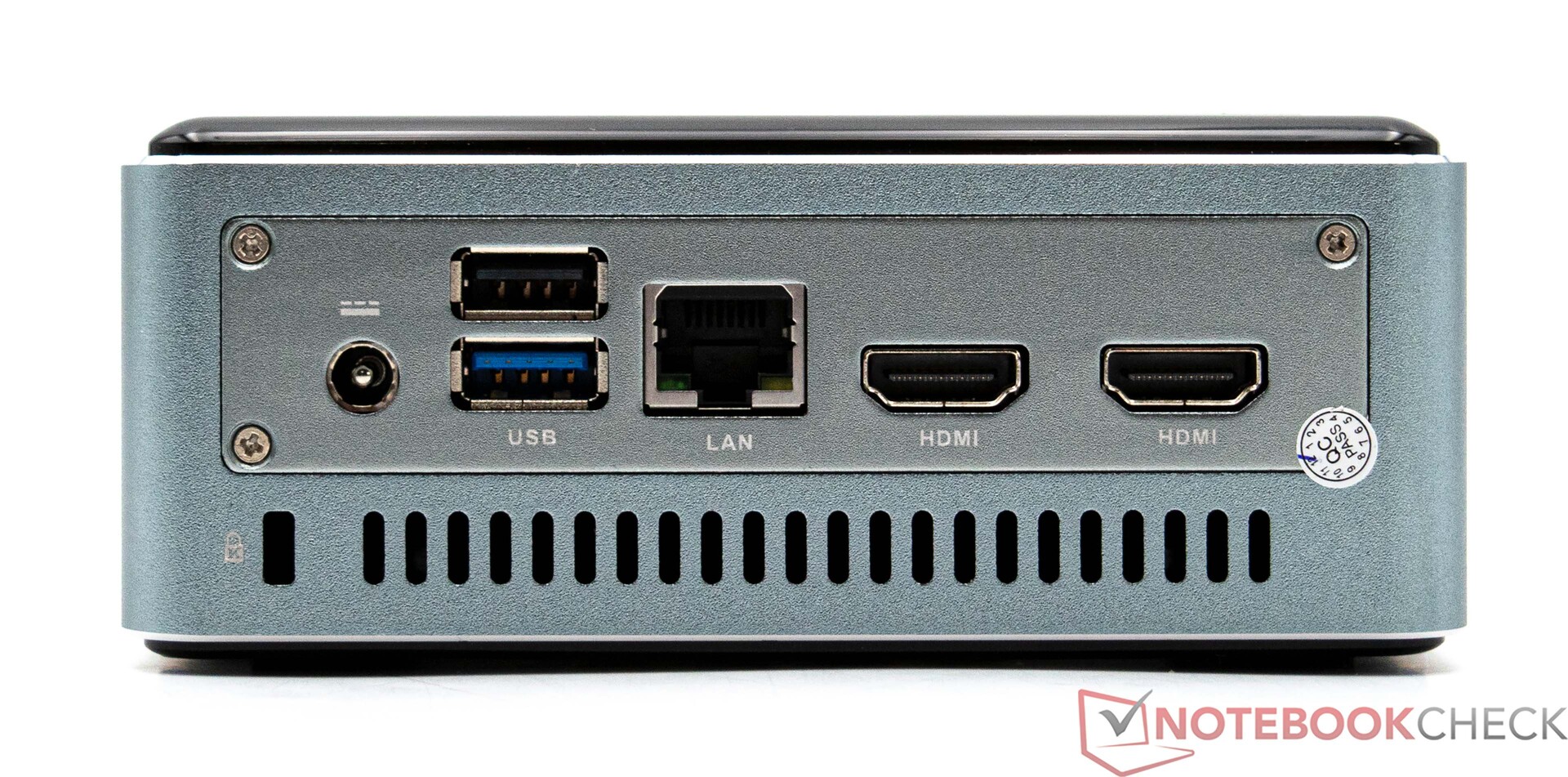

后部，网络端口（19 V；4.74 A），1 个 USB 3.2，1 个 USB 2.0，2.5G LAN，2 个 HDMI 2.0

交流

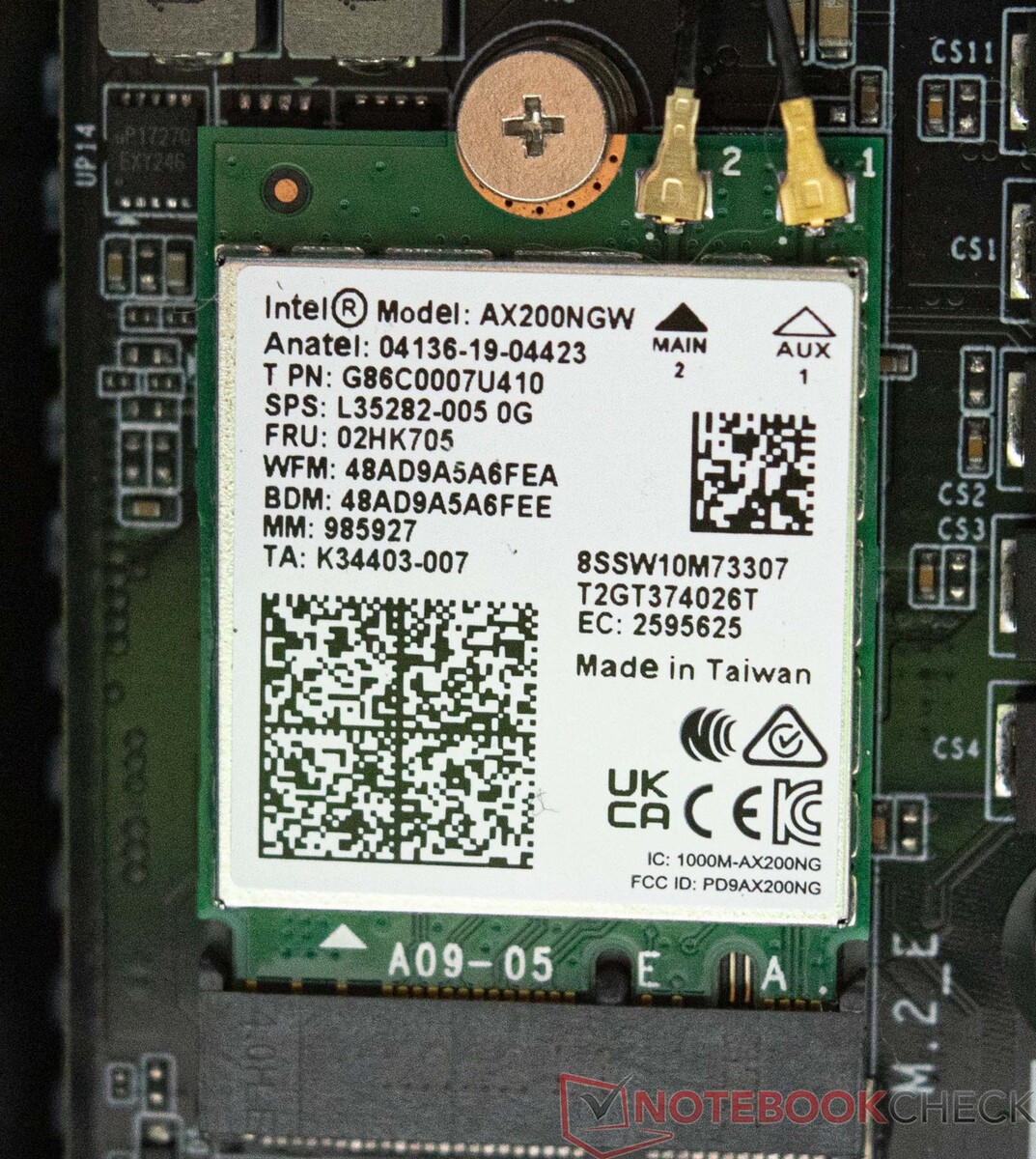

Maxtang MTN-FP750 配备了英特尔 Wi-Fi 6 AX200 无线模块，可处理 2.4 和 5 GHz 频率。在测试中，我们的评测样品并没有给我们留下深刻印象。在测试中，我们使用了华硕 ROG Rapture GT-AXE11000。您也可以通过以太网端口将 Maxtang mini PC 连接到网络。传输速度可达 2.5 Gbit/s。

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s +55%
Average Intel Wi-Fi 6 AX200 (451 - 1746, n=23)	1274 MBit/s +50%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	959 (947^min - 969^max) MBit/s +13%
Average of class Mini PC (349 - 1796, n=112, last 2 years)	951 MBit/s +12%
Geekom A5 Realtek RTL8852BE	946 (856^min - 970^max) MBit/s +11%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	943 (923^min - 960^max) MBit/s +11%
NiPoGi AD08 Realtek RTL8852BE	903 (857^min - 934^max) MBit/s +6%
Maxtang MTN-FP750 Intel Wi-Fi 6 AX200	852 (802^min - 903^max) MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	787 (752^min - 801^max) MBit/s -8%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s +59%
Average Intel Wi-Fi 6 AX200 (429 - 1748, n=23)	1164 MBit/s +41%
Geekom Mini IT12 Intel Wi-Fi 6E AX211	918 (892^min - 938^max) MBit/s +11%
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	879 MBit/s +6%
Geekom AS 6, R9 6900HX MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	834 (769^min - 893^max) MBit/s +1%
Geekom A5 Realtek RTL8852BE	834 (730^min - 861^max) MBit/s +1%
Maxtang MTN-FP750 Intel Wi-Fi 6 AX200	828 (743^min - 896^max) MBit/s
Minisforum Venus Series NAB6 MediaTek RZ608	626 (301^min - 689^max) MBit/s -24%
NiPoGi AD08 Realtek RTL8852BE	591 (322^min - 790^max) MBit/s -29%

Maxtang MTN-FP750; iperf3 receive AXE11000; iperf 3.1.3: Ø851 (802-903)

Maxtang MTN-FP750; iperf3 transmit AXE11000; iperf 3.1.3: Ø828 (743-896)

配件

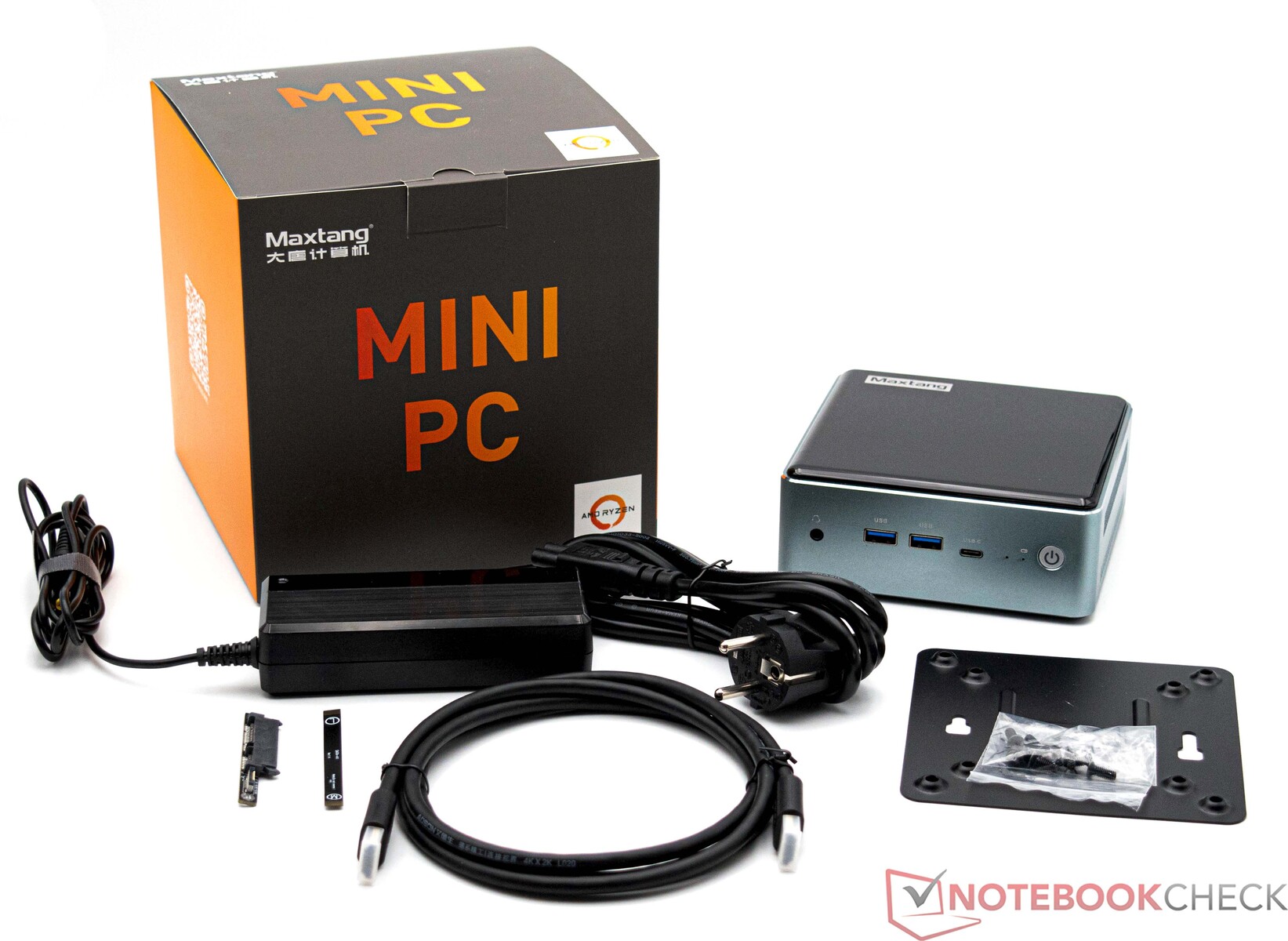

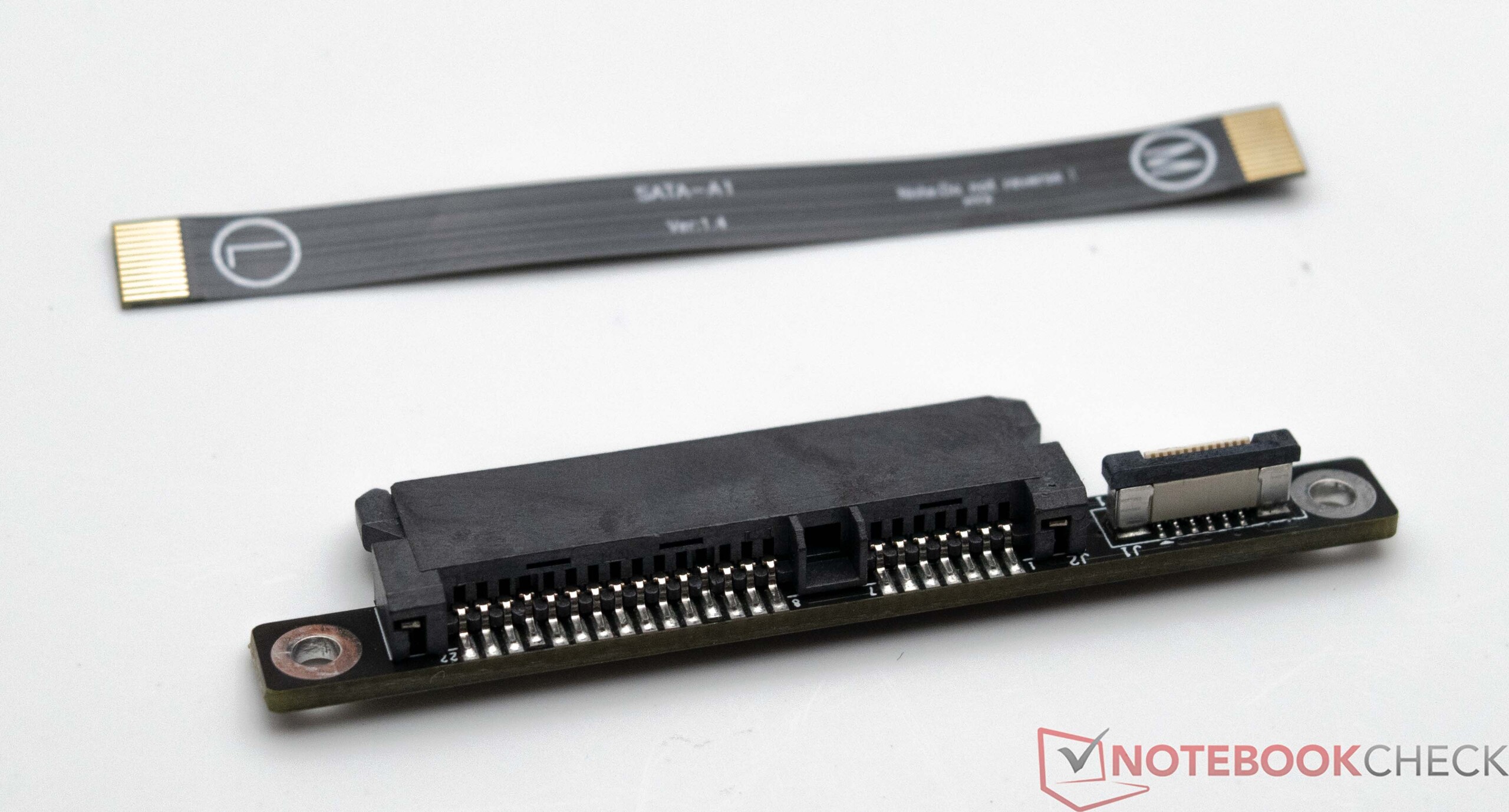

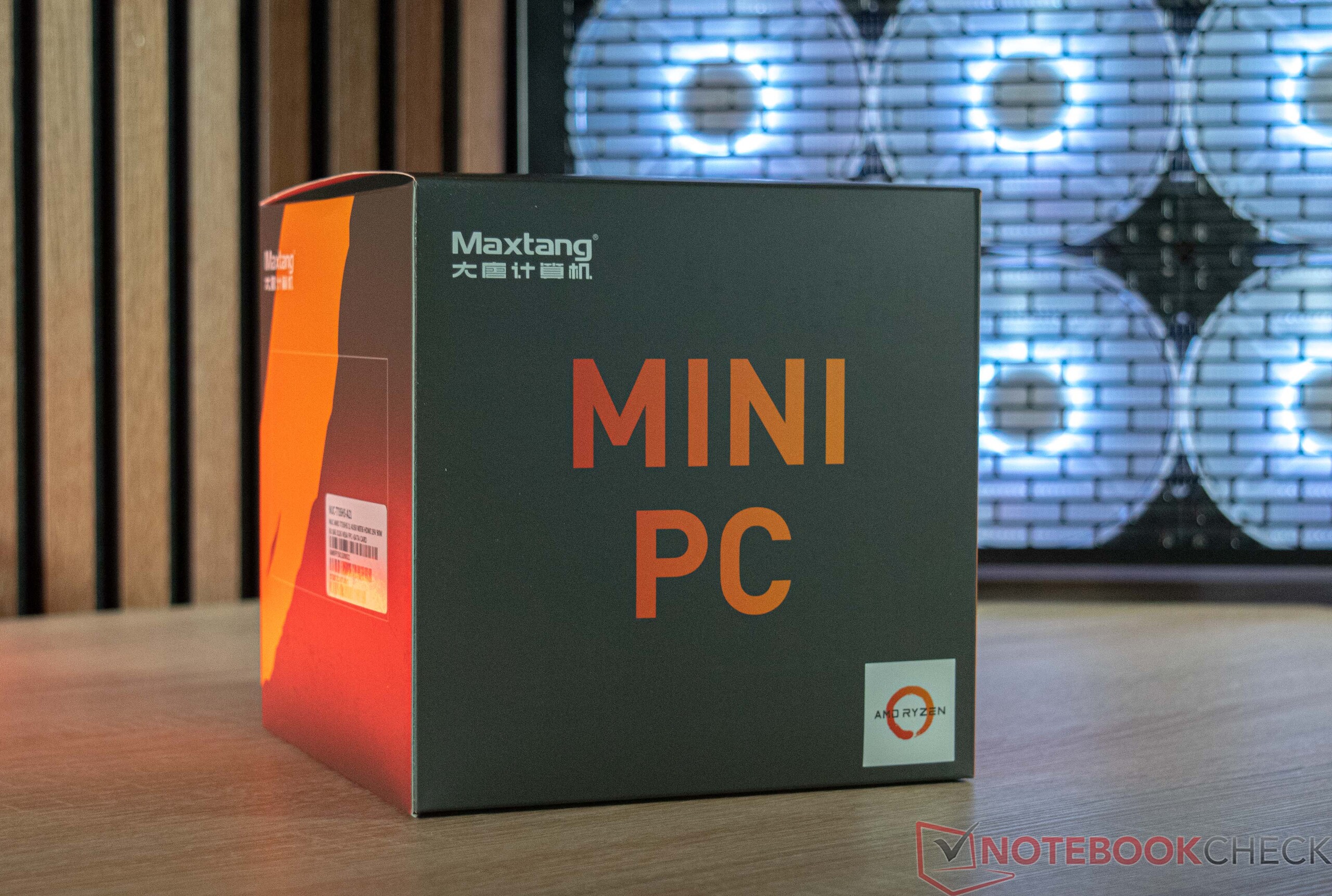

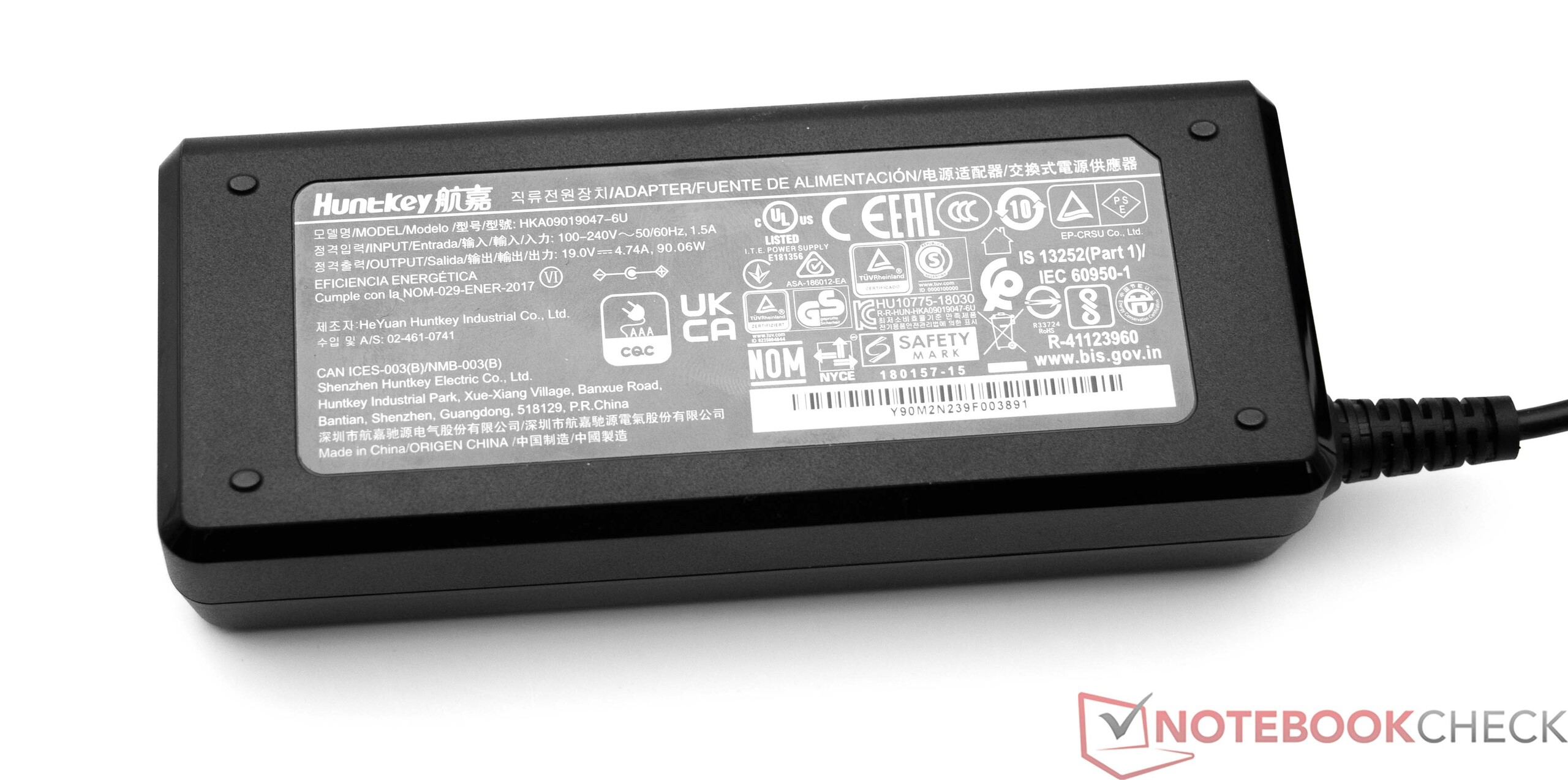

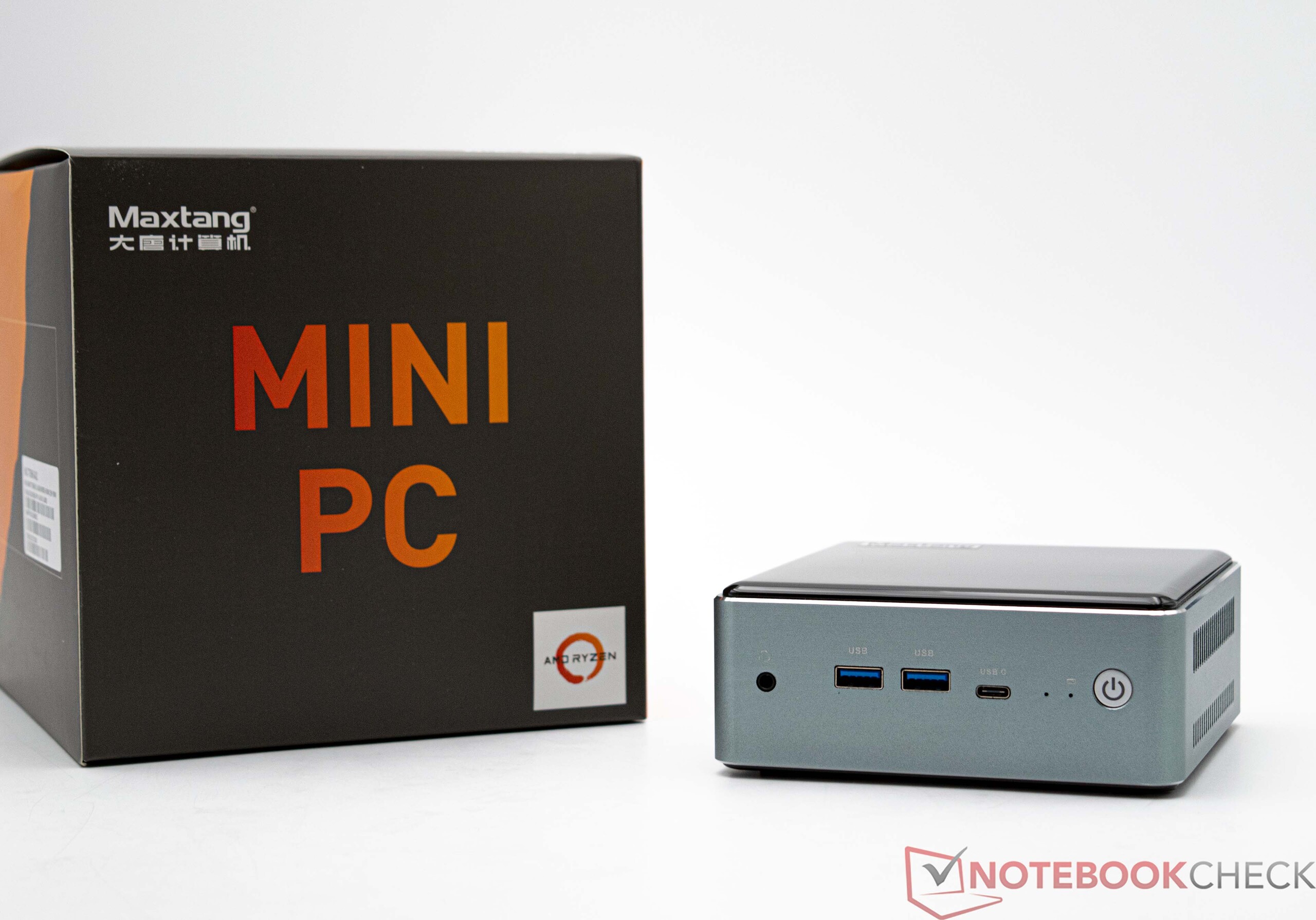

Maxtang MTN-FP750 随附了设备启动和运行所需的所有重要组件。除机器本身外，包装盒内还包括一个 90 瓦的 PSU（19 V；4.74 A）以及一个用于 VESA 安装的安装板。同样，HDMI 电缆和快速安装指南也是包装的一部分。

维护

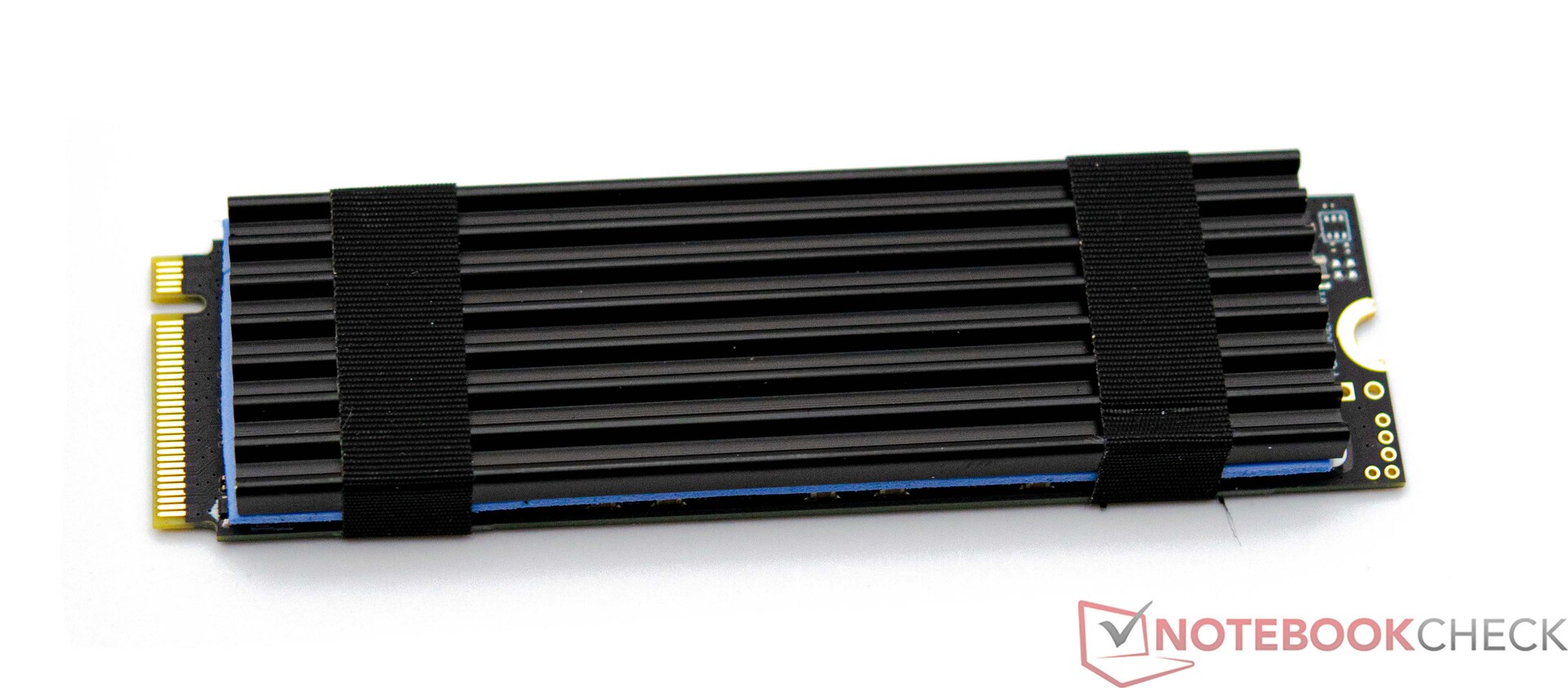

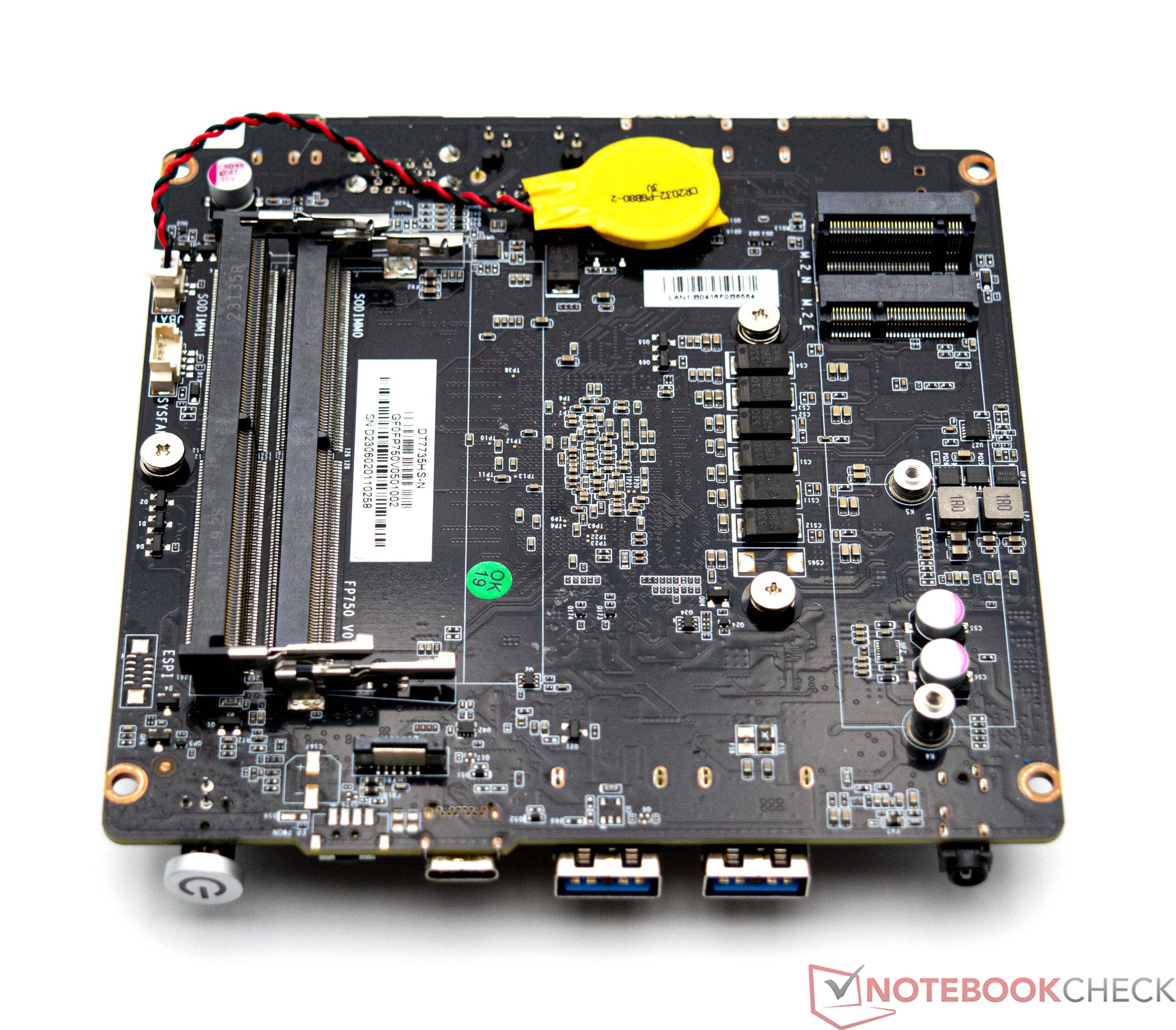

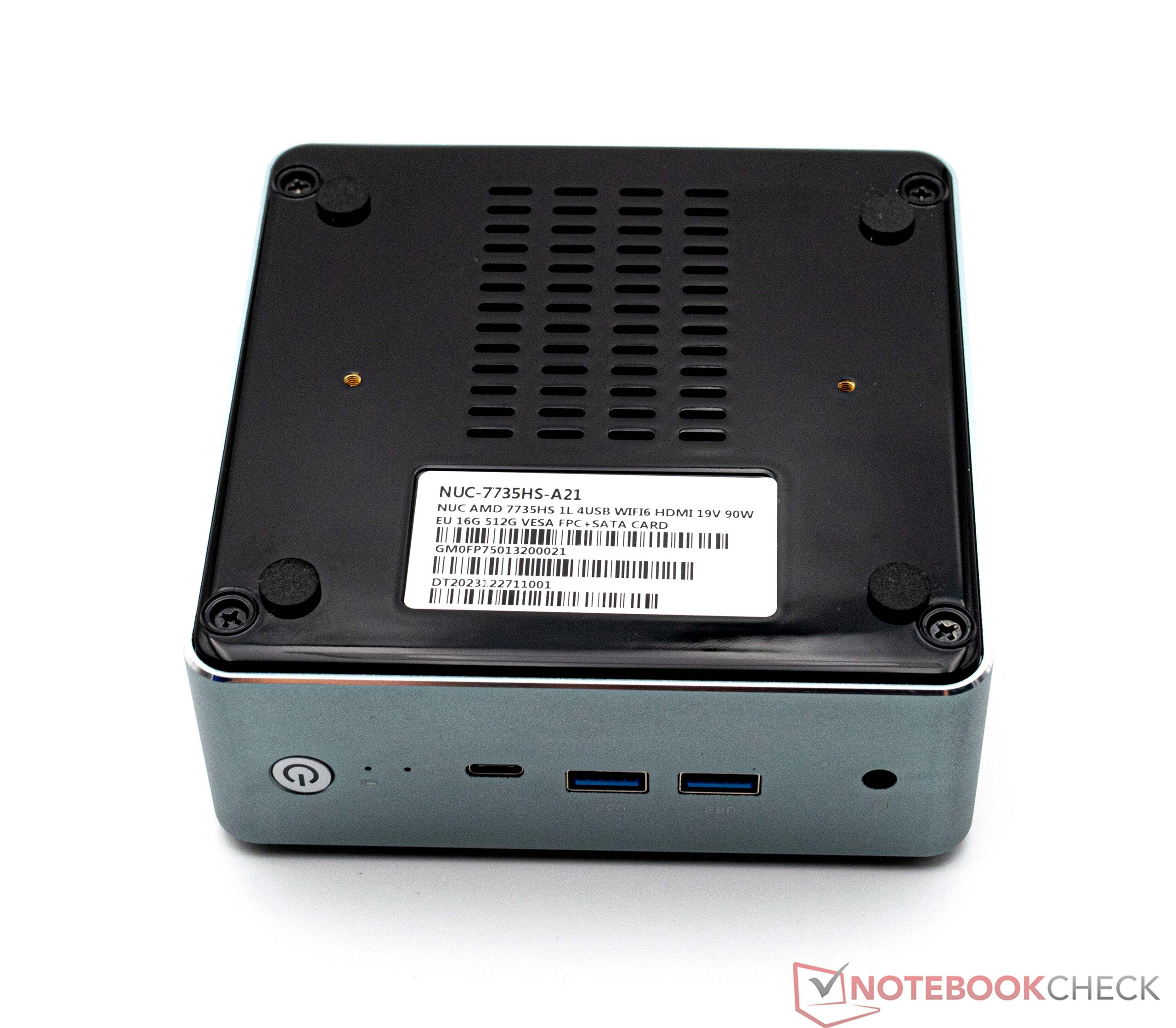

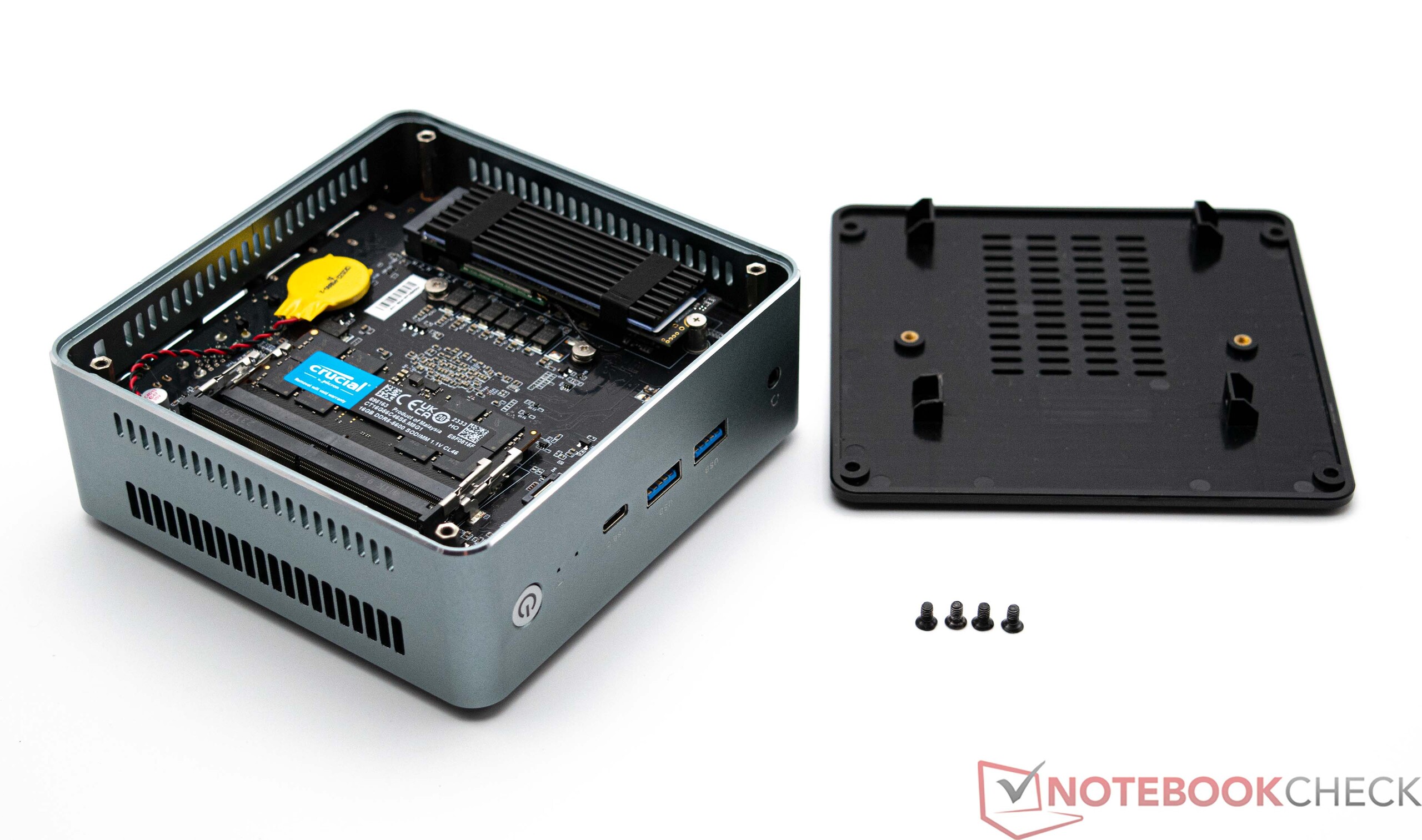

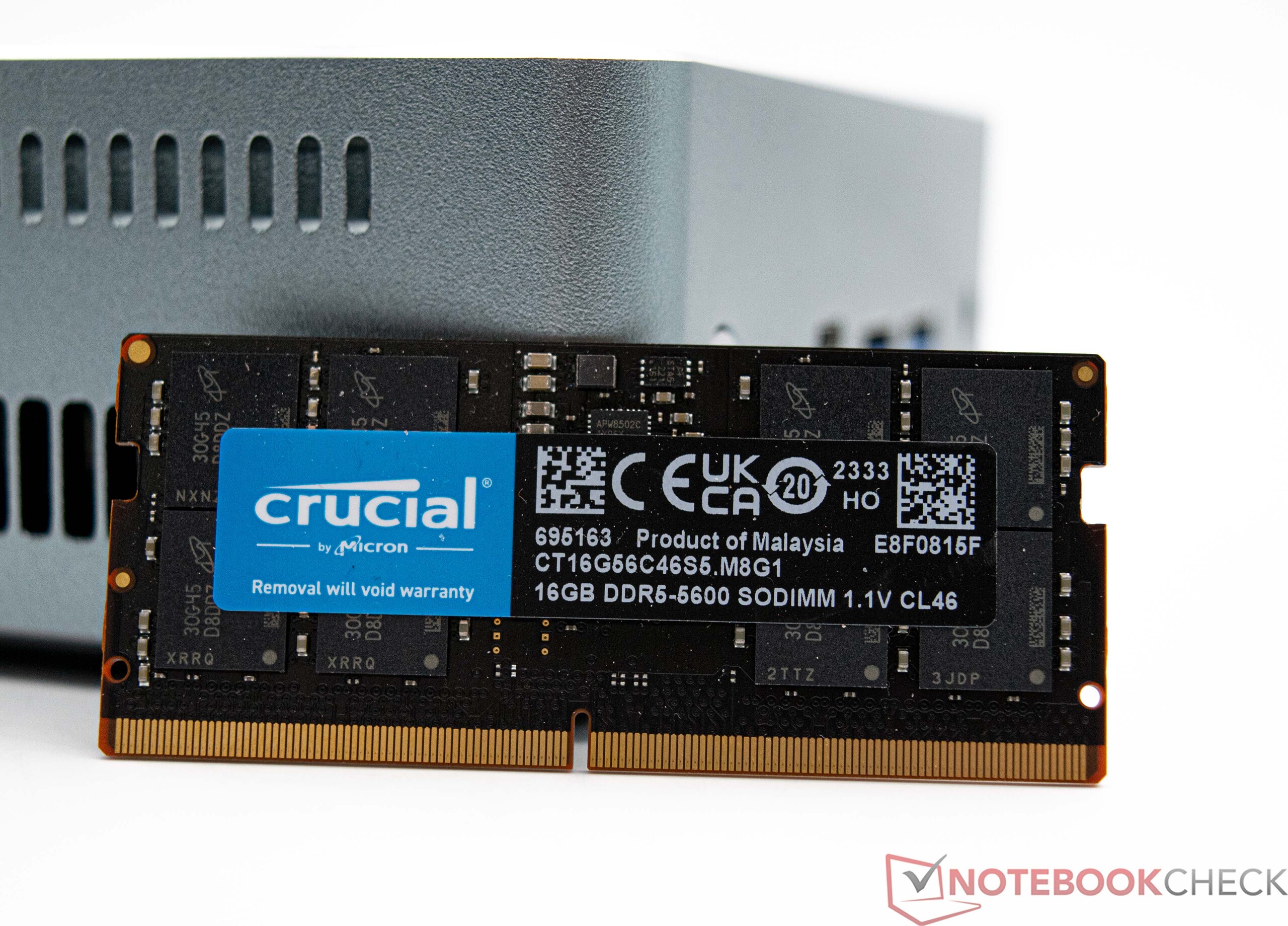

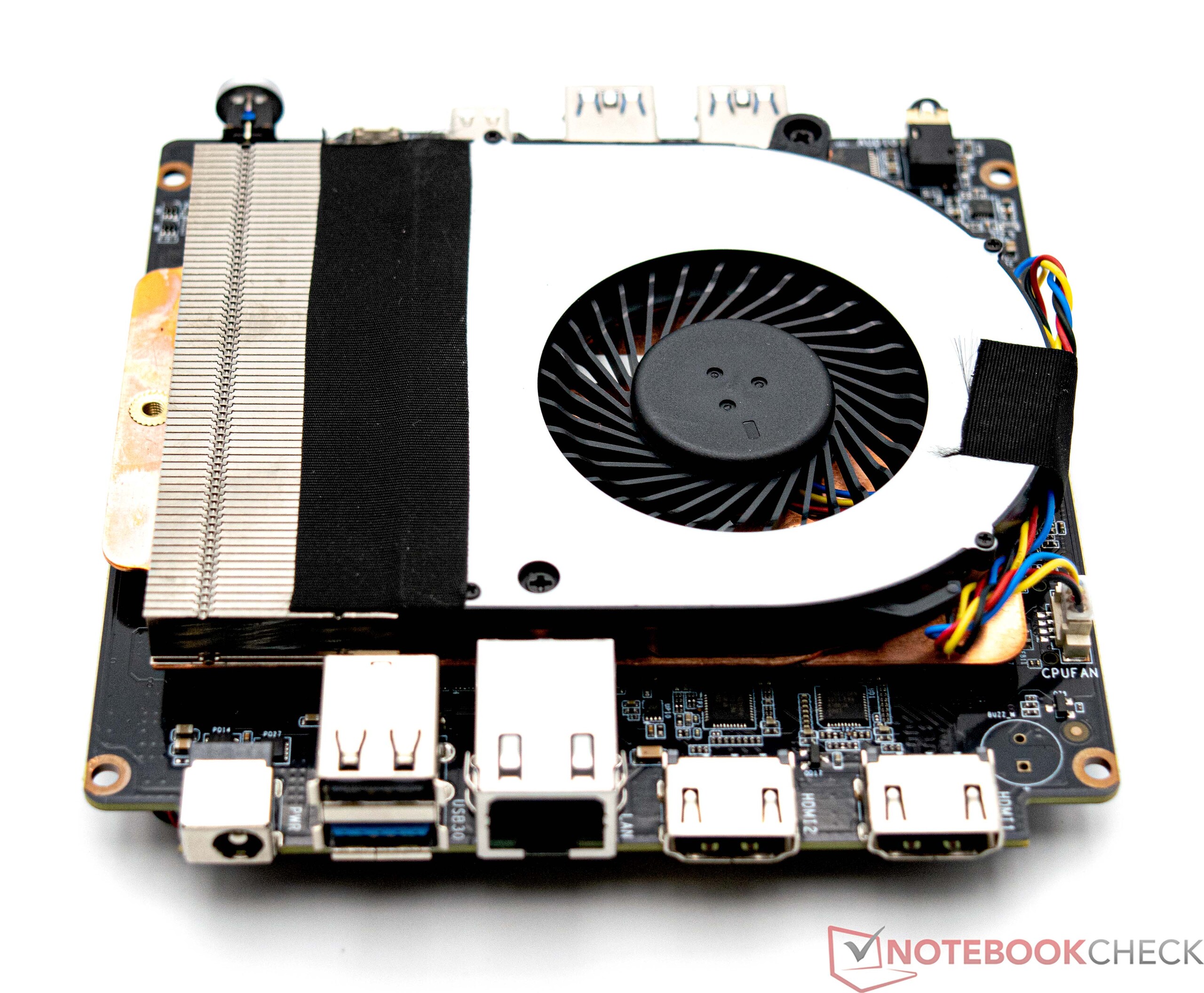

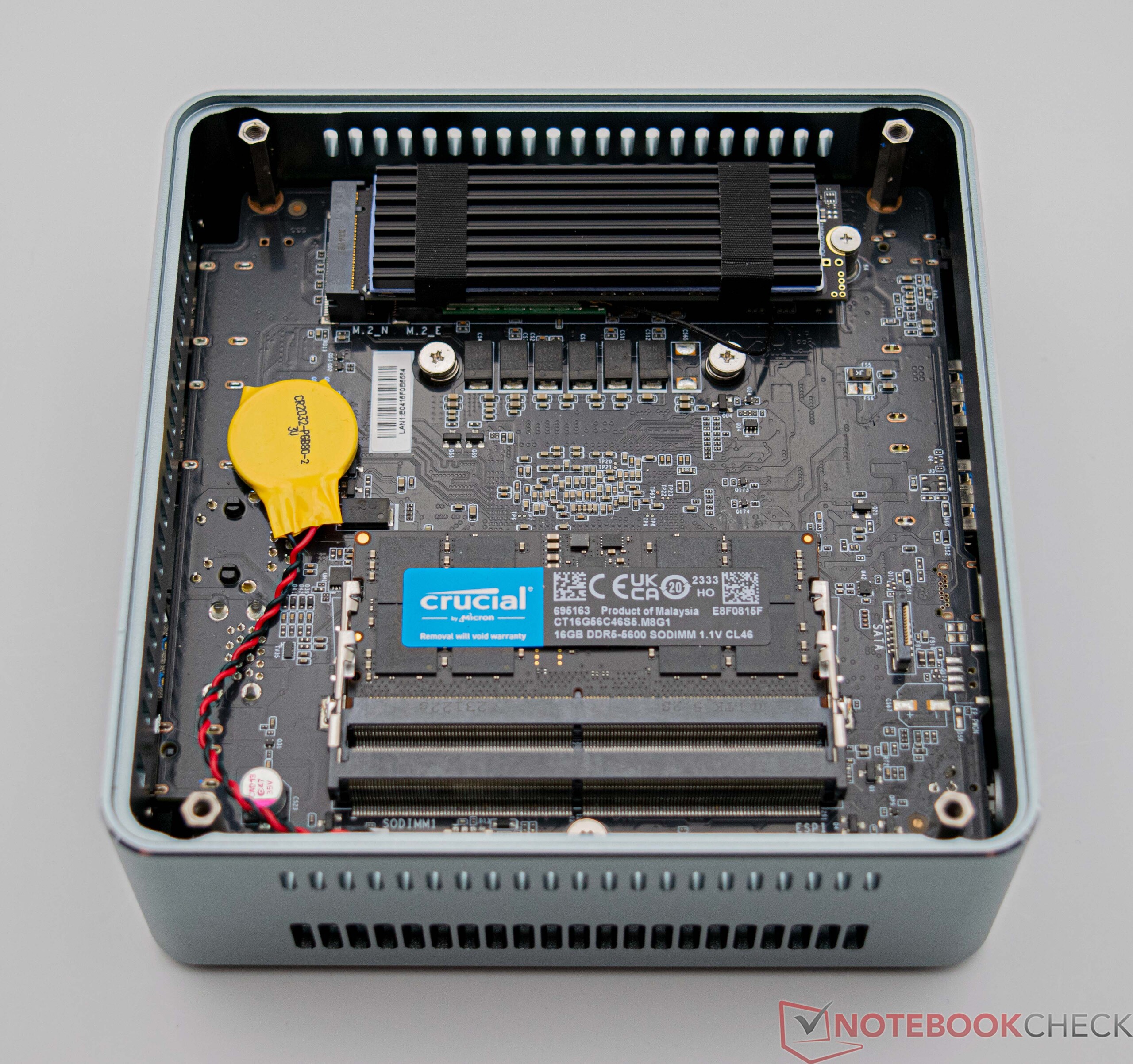

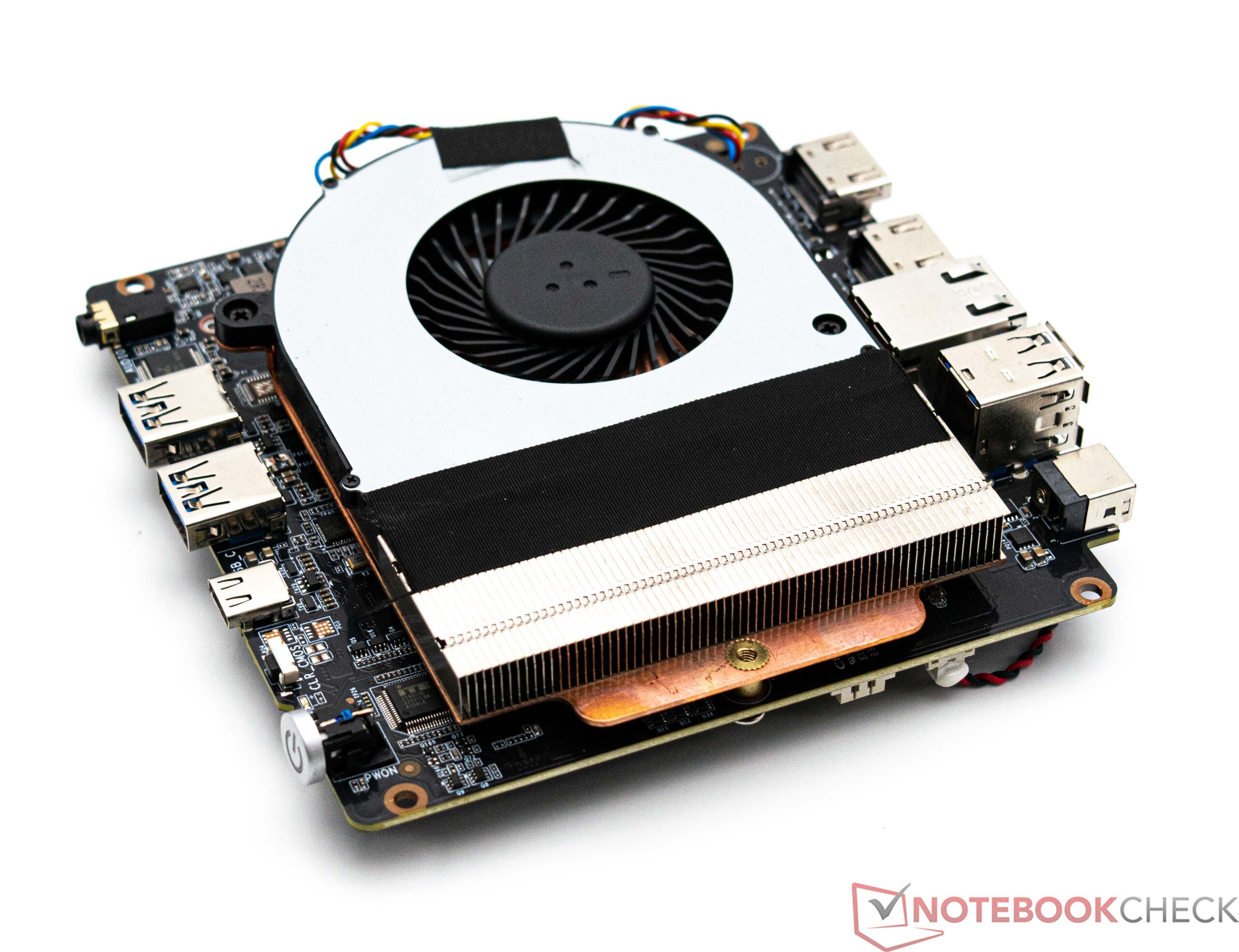

Maxtang mini PC 可以比较容易地打开。底座由四颗螺钉固定，螺钉被胶粘的橡胶脚垫遮住。在底板下面，很容易就能找到内存或 M.2 固态硬盘。在我们的案例中，还有空间安装额外的内存模块和第二个大容量存储设备（2.5 英寸格式）。要接触风扇，必须进一步拆卸设备，因此无法进行快速清洁。

性能 - AMD Ryzen 7 7735HS，8 核 16 线程

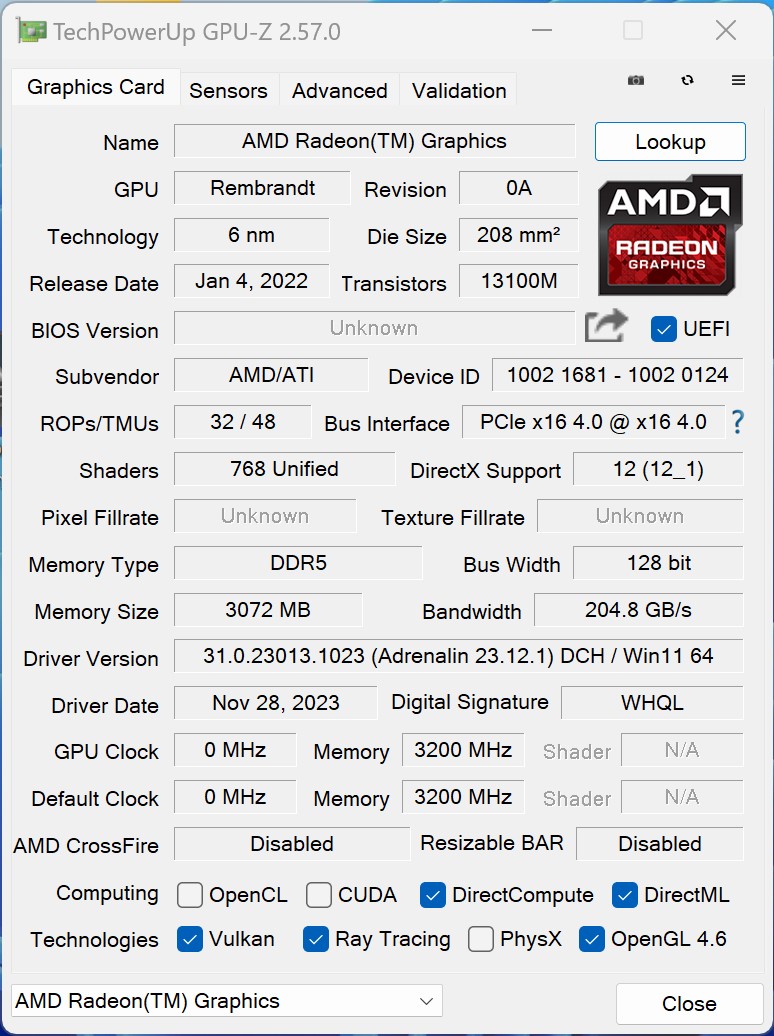

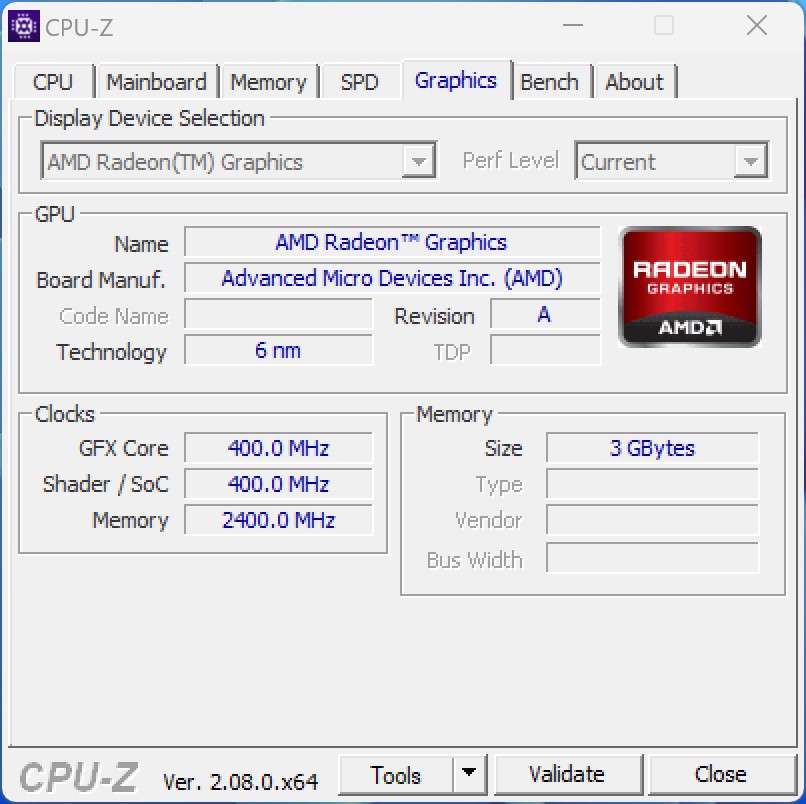

我们的 Maxtang MTN-FP750 评测设备配备了 AMD Ryzen 7 7735HS.在 AMD Radeon 680MSoC 还配备了强大的 iGPU。不过，在内存方面，制造商选择给迷你 PC 配备一个 16 GB DDR5-5600 模块，尽管实际上只能使用 DDR5-4800。

测试条件

我们使用 "最高性能 "能耗配置文件进行了所有性能测试。在 BIOS 中没有更改 SoC 的性能，设备保留了出厂设置。

处理器

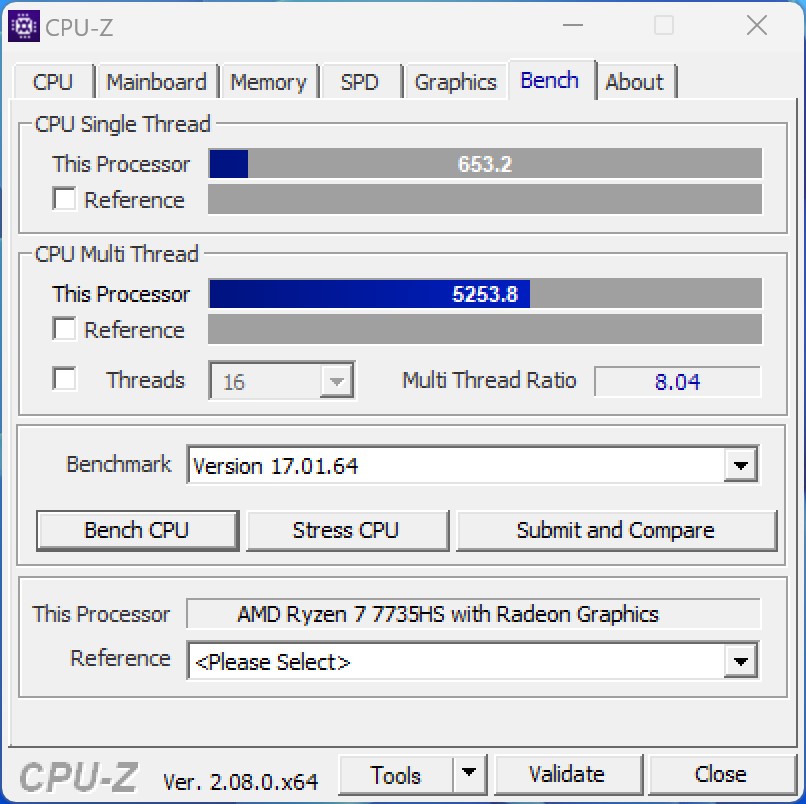

餈 AMD Ryzen 7 7735HS是伦勃朗系列中一款相对现代的 8 核处理器。不过，AMD 的 Zen3 SoC 已经不能再被视为新生力量之一。尽管如此，该处理器仍可并行处理 16 个线程，具有良好的多线程性能。在性能对比中，我们的 Maxtang MTN-FP750 只能排在倒数第二位。原因是 AMD Ryzen 7 7735HS 的功耗限制为 35 瓦。

其他处理器基准测试见这里.

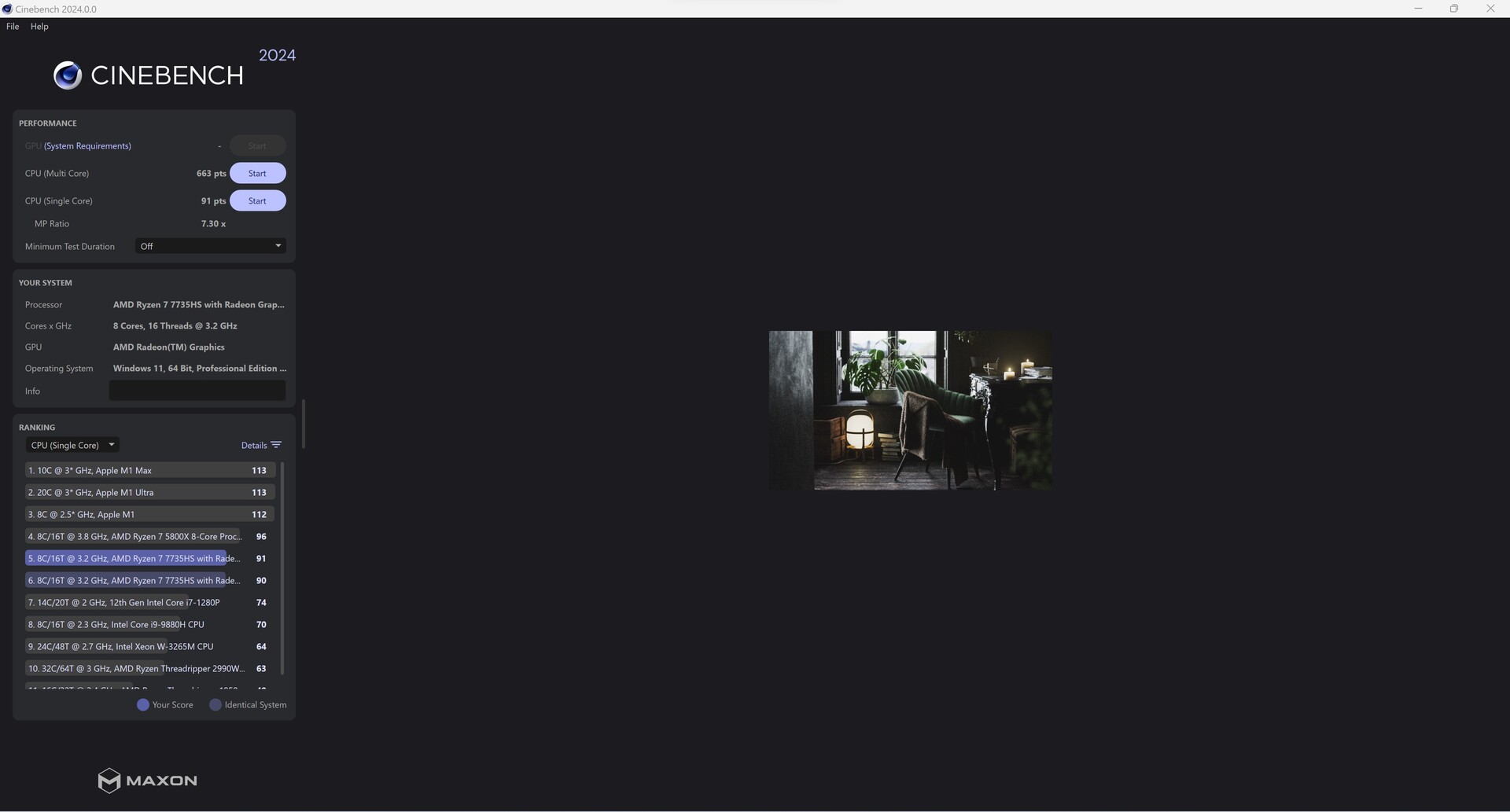

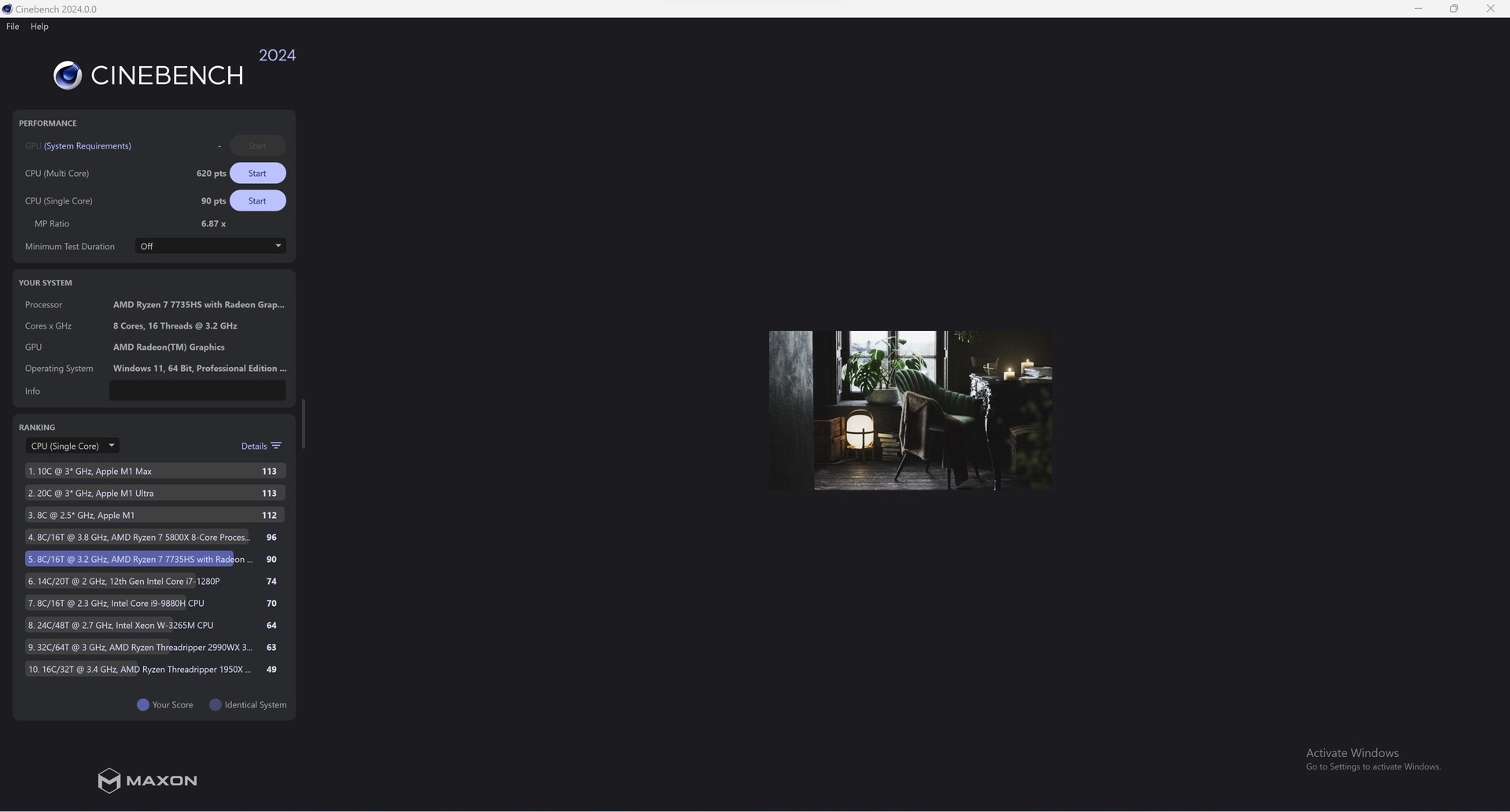

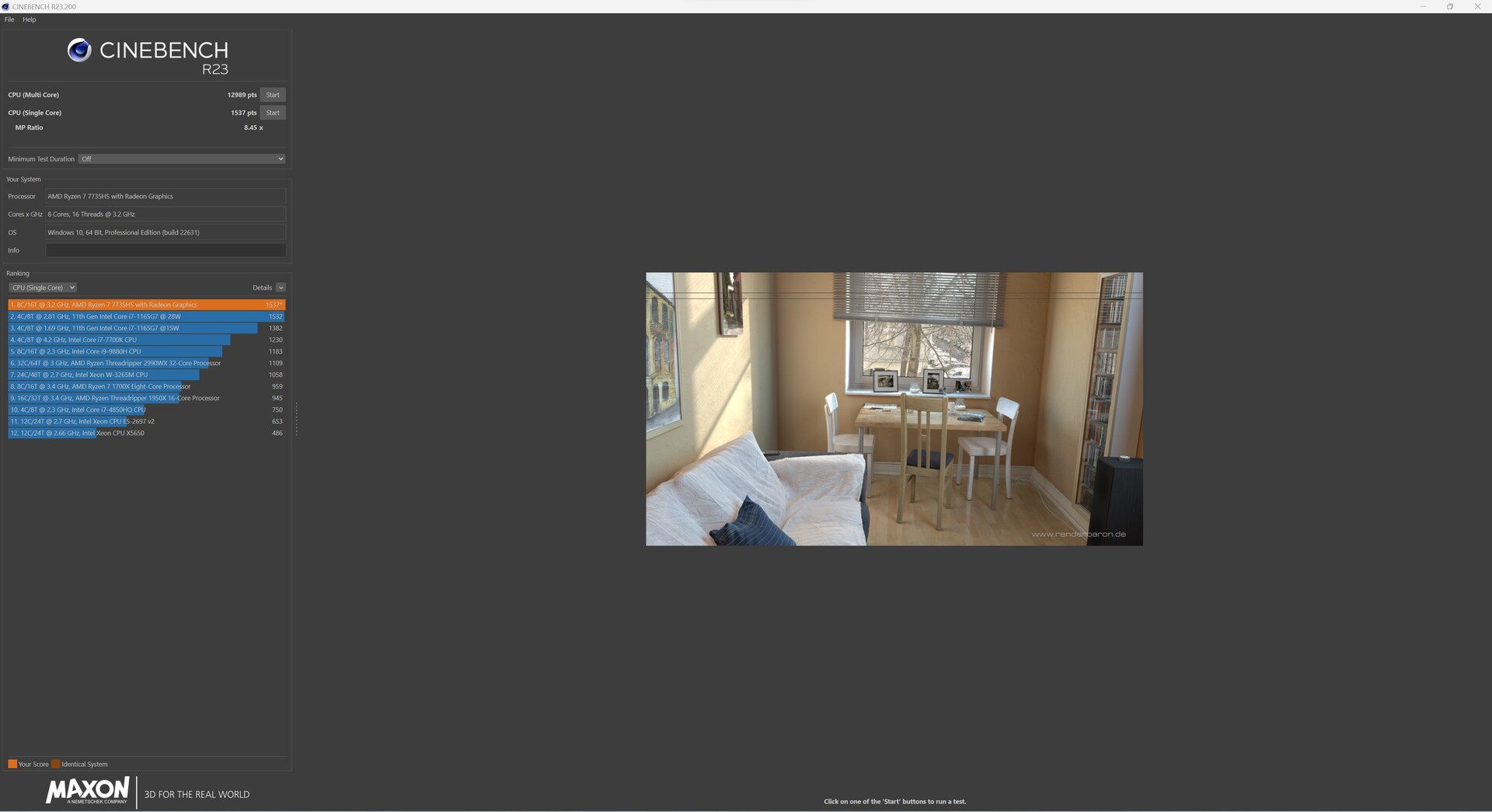

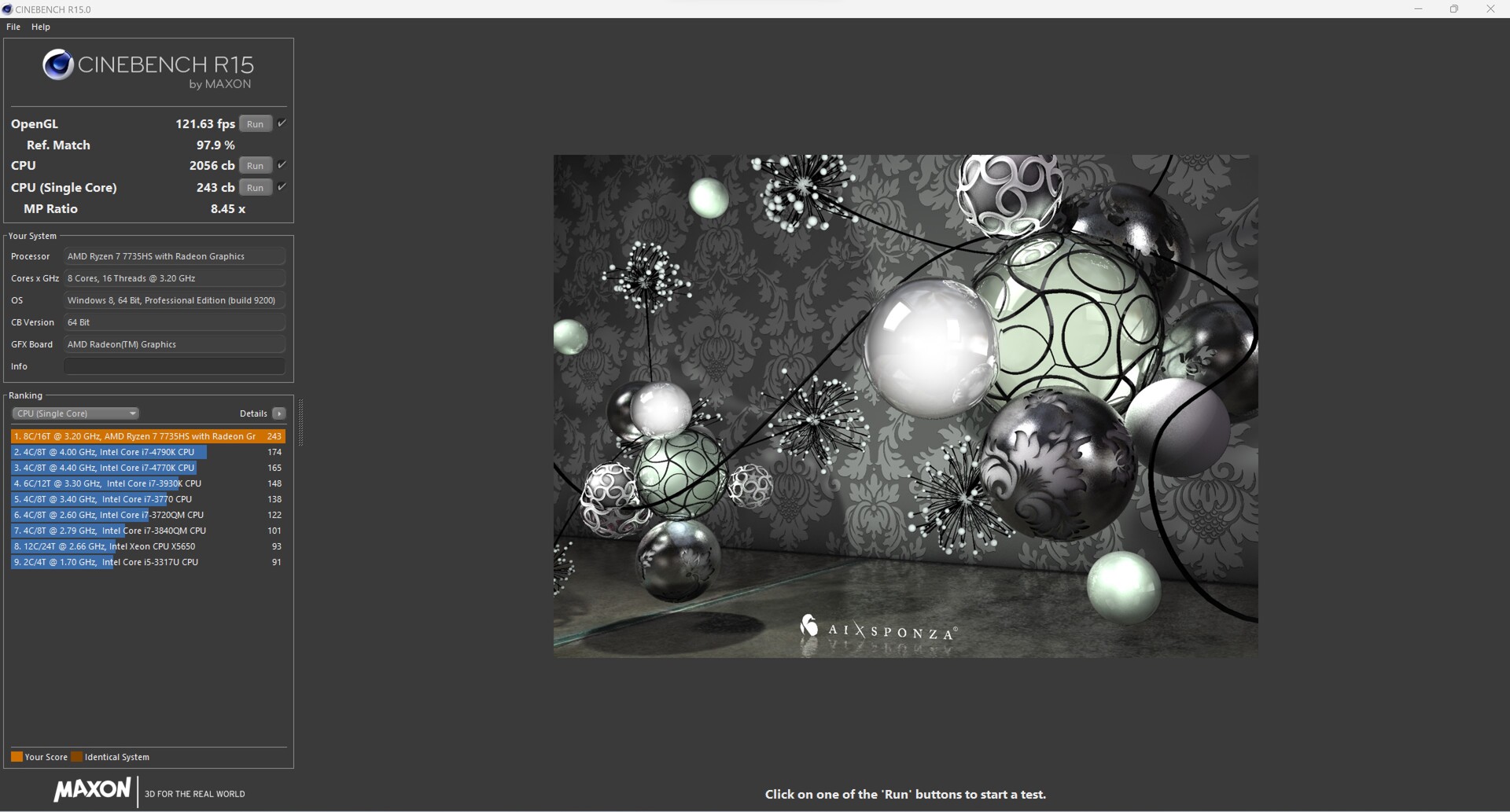

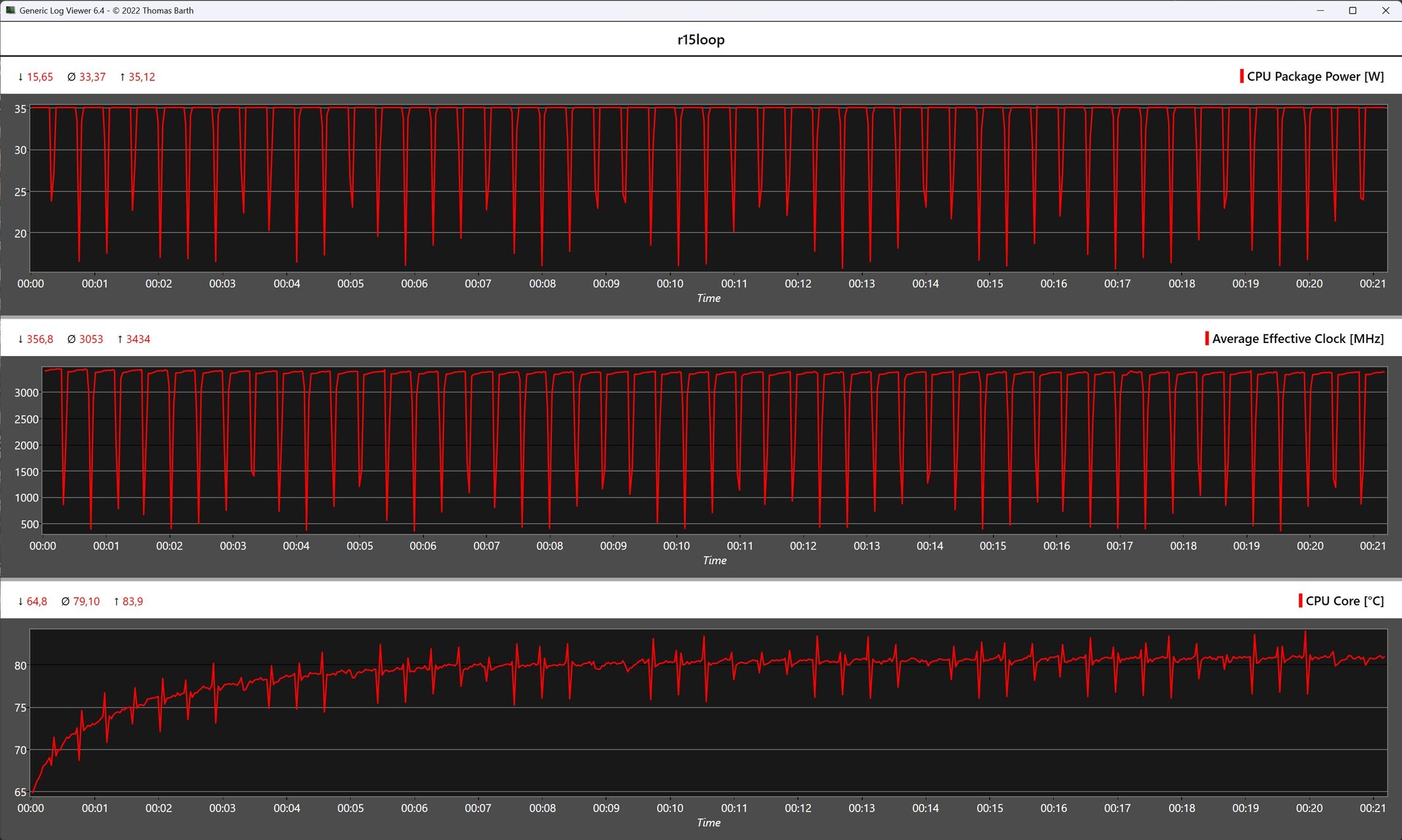

出厂设置下的 Cinebench 结果（PL1 和 PL2 = 35 瓦）

更高功率目标（PL1 = 54 瓦，PL2 = 65 瓦）下的 Cinebench 结果

Performance Rating - Percent
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	49.7 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	49.6 pt
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	48 pt
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	47.5 pt
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	45.9 pt
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	45.6 pt
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	45.5 pt

Cinebench R15
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	260 Points +6%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	251 Points +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 Points +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points +1%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	245 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	241 Points -2%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	227 Points -7%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points +15%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2028 Points +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1893 Points +5%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	1795 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	1773 Points -1%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	1670 Points -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1565 Points -13%

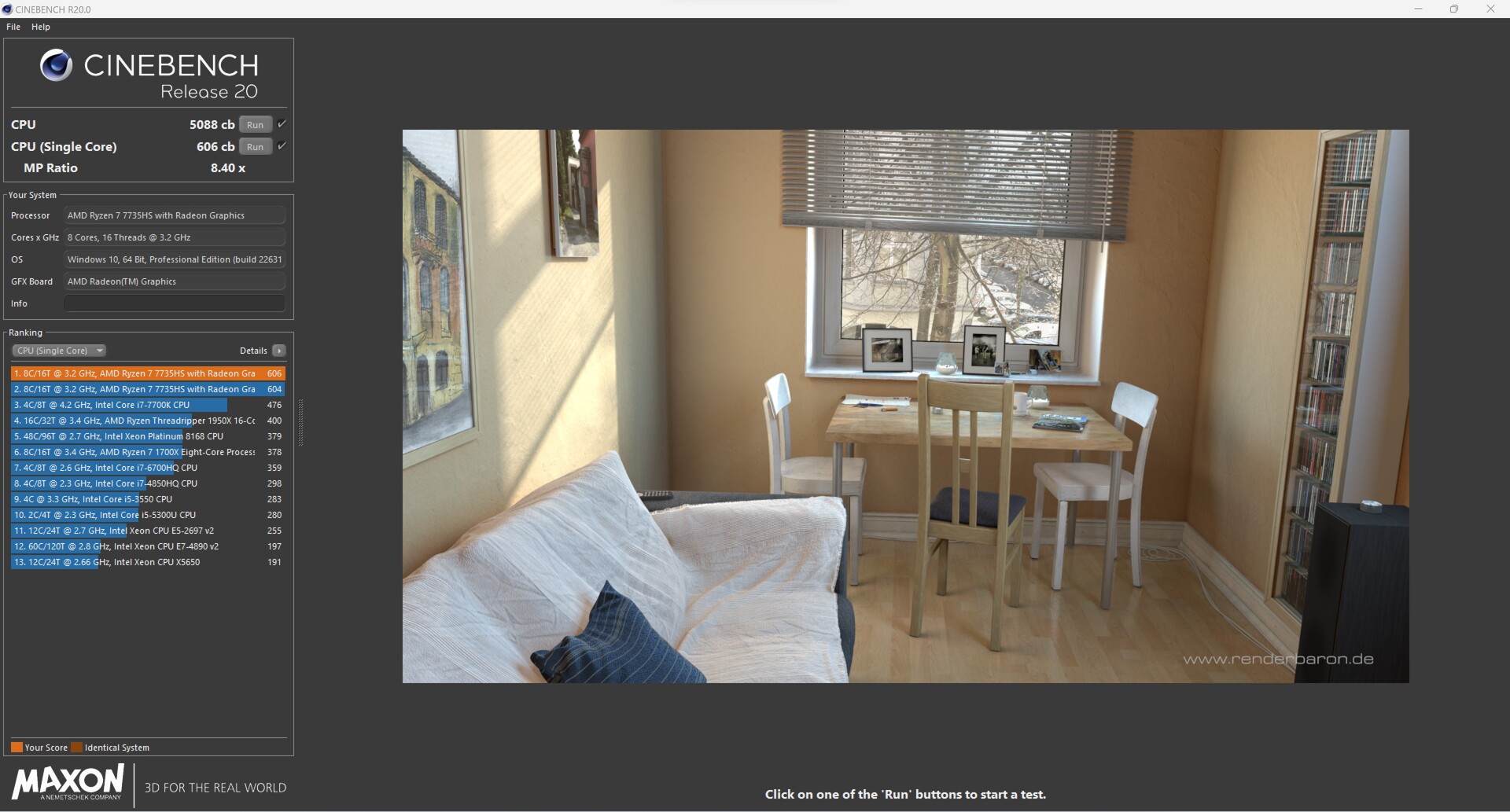

Cinebench R20
CPU (Single Core)
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	696 Points +15%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points +13%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	676 Points +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	652 Points +8%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	607 Points 0%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	604 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	551 Points -9%
CPU (Multi Core)
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	4781 Points +10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	4776 Points +10%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	4339 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	4229 Points -3%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	3951 Points -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	3427 Points -21%

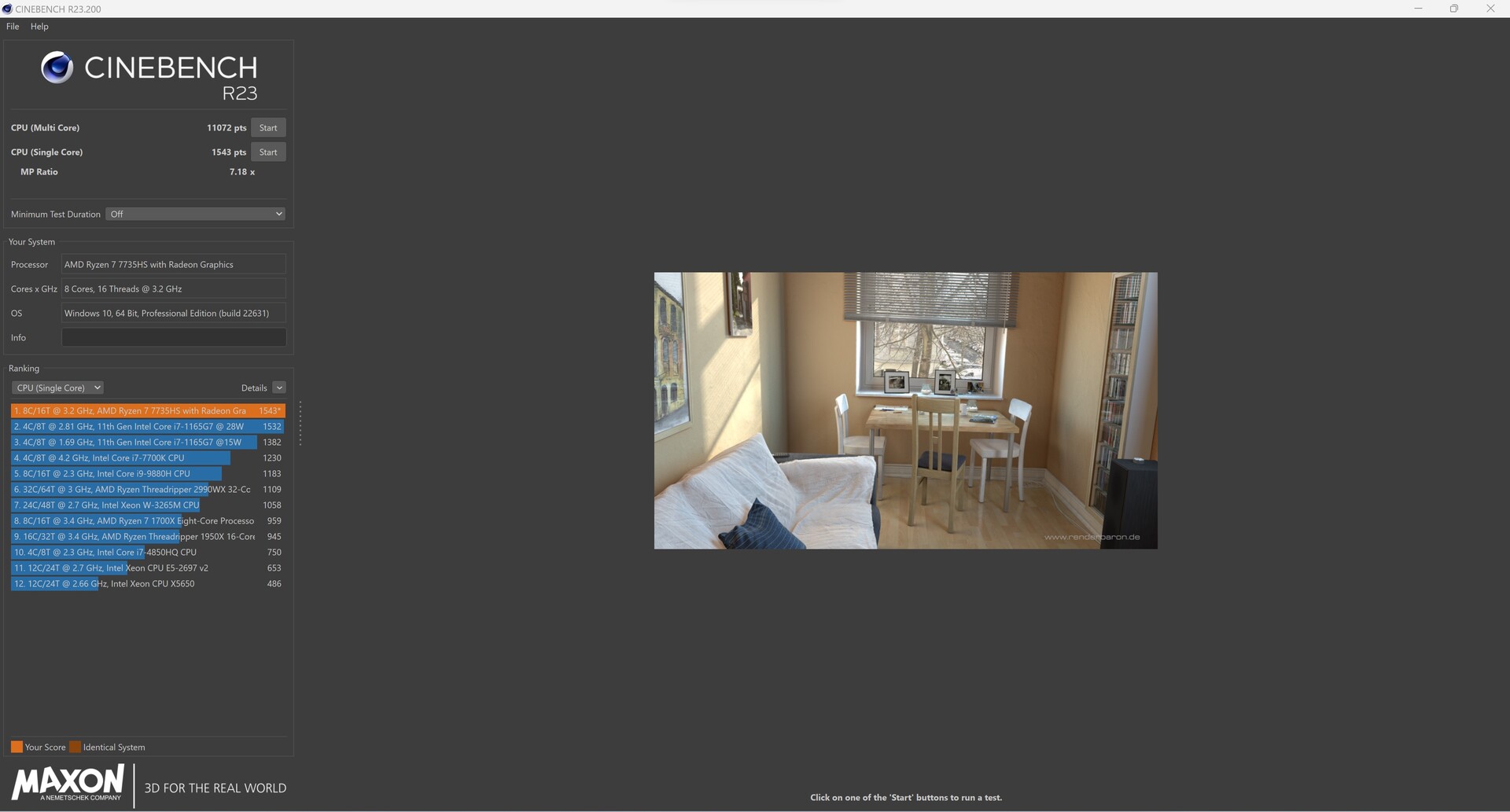

Cinebench R23
Single Core
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1804 Points +17%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	1761 Points +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1743 Points +13%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1693 Points +10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1550 Points 0%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	1543 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	1405 Points -9%
Multi Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	13320 Points +20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12486 Points +13%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	12072 Points +9%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	11072 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	10819 Points -2%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	10082 Points -9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8846 Points -20%

Cinebench R11.5
CPU Single 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.14 Points +8%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	3.06 Points +5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	2.94 Points +1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	2.93 Points 0%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	2.92 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points -2%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	2.69 Points -8%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points +22%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	23.48 Points +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22.08 Points +4%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	21.27 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	21.25 Points 0%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	20.06 Points -6%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	19.78 Points -7%

Cinebench R10
Rendering Single CPUs 64Bit
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	14533 Points +20%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13568 Points +12%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	13397 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points +6%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	12156 Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	12133 Points 0%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	11378 Points -6%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points +25%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	68516 Points +11%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	68188 Points +10%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	62312 Points +1%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	61781 Points
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	61107 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	53950 Points -13%

Blender - v2.79 BMW27 CPU
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	325 Seconds * -16%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	293 Seconds * -5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	285 Seconds * -2%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	279 Seconds * -0%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	279 Seconds *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds * +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	260 Seconds * +7%

wPrime 2.10
32m
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	4.564 s * -16%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	4.485 s * -14%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	3.934 s *
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	3.93 s * -0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	3.765 s * +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	3.705 s * +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s * +13%
1024m
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	449.815 s * -329%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	410.289 s * -292%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	237.123 s * -126%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s * -80%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	111.714 s * -7%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	104.788 s * -0%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	104.757 s *

X264 HD Benchmark 4.0
Pass 1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	311.5 (311^min - 312^max) fps +33%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	278 (253^min - 279^max) fps +19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	249 (246^min - 255^max) fps +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps +4%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	244 (242^min - 246^max) fps +4%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	234.5 (230^min - 240^max) fps
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	224 (222^min - 258^max) fps -4%
Pass 2
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps +19%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	114.45 (113.9^min - 116.5^max) fps +9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	111.1 (96.7^min - 111.7^max) fps +6%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	105.3 (105.2^min - 105.7^max) fps
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	104.65 (104.1^min - 106.9^max) fps -1%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	98.15 (83.6^min - 101.2^max) fps -7%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	77.75 (77.6^min - 113.9^max) fps -26%

WinRAR - Result
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9090 KB/s +43%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s +24%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	7363 KB/s +15%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	7042 KB/s +10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6980 KB/s +9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6559 KB/s +3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	6378 KB/s

TrueCrypt
AES Mean 100MB
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	11.8 GB/s +15%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	11.5 GB/s +12%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.4 GB/s +1%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	10.3 GB/s
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	10.1 GB/s -2%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	10 GB/s -3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s -17%
Twofish Mean 100MB
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s +33%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1.8 GB/s +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.8 GB/s +20%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.7 GB/s +13%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	1.7 GB/s +13%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	1.6 GB/s +7%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	1.5 GB/s
Serpent Mean 100MB
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1.1 GB/s +10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1.1 GB/s +10%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1 GB/s 0%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	1 GB/s 0%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	1 GB/s
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s -3%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	0.962 GB/s -4%

Geekbench 5.5
Multi-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points +32%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9363 Points +27%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9278 Points +26%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	8918 Points +21%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	8823 Points +20%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	8661 Points +18%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	7368 Points
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points +21%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1782 Points +16%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1767 Points +15%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	1749 Points +14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1586 Points +3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	1534 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	1494 Points -3%

Geekbench 5.0
5.0 Multi-Core
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10249 Points +40%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points +32%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9351 Points +28%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9099 Points +24%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	8568 Points +17%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	8564 Points +17%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	7319 Points
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points +20%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	1736 Points +14%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	1668 Points +9%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	1557 Points +2%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	1538 Points +1%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	1528 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	1421 Points -7%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points +25%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	7705 Points +20%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	7354 Points +15%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6698 Points +4%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	6648 Points +4%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	6412 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	6295 Points -2%
64 Bit Multi-Core Score
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	39852 Points +37%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	36780 Points +27%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points +26%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	34909 Points +20%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	34200 Points +18%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	33523 Points +15%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	29047 Points

3DMark 11 - 1280x720 Performance Physics
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points +40%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	18363 Points +39%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	17810 Points +35%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	16933 Points +29%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	16434 Points +25%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	13173 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	13067 Points -1%

7-Zip 18.03
7z b 4
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	56930 MIPS +18%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	53954 MIPS +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS +6%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	48327 MIPS
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	47893 MIPS -1%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	40050 MIPS -17%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	37570 MIPS -22%
7z b 4 -mmt1
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	6116 MIPS +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS +4%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	5796 MIPS
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	5785 MIPS 0%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	5721 MIPS -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	5577 MIPS -4%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	5486 MIPS -5%

HWBOT x265 Benchmark v2.2 - 4k Preset
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	15.8 fps +24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps +11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	13.6 fps +7%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	13.3 fps +5%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	12.7 fps
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	11.9 fps -6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	10.1 fps -20%

R Benchmark 2.5 - Overall mean
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	0.523 sec * -3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	0.507 sec *
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	0.4849 sec * +4%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	0.4781 sec * +6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	0.4718 sec * +7%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec * +8%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	0.462 sec * +9%

LibreOffice - 20 Documents To PDF
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	54.8 s *
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	54.3 s * +1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	48.1 s * +12%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	47.3 s * +14%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	47.1 s * +14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	39.6 s * +28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s * +31%

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points +11%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	309 Points +11%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	297 Points +6%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	287 Points +3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	279 Points
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	269 Points -4%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	268 Points -4%

Mozilla Kraken 1.1 - Total
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	653 ms * -10%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	600 ms * -1%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	593 ms *
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms * +3%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	539 ms * +9%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	536 ms * +10%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	519 ms * +12%

3DMark
3840x2160 Fire Strike Ultra Physics
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	22307 Points +5%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22237 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points +1%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	21241 Points 0%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	21206 Points
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	21001 Points -1%
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	15903 Points -25%
1920x1080 Fire Strike Physics
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	22740 Points +5%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	22433 Points +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	22346 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points +3%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	22170 Points +3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	21576 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	16568 Points -23%
2560x1440 Time Spy CPU
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points +45%
Minisforum Venus Series NAB6 Intel Core i7-12650H, 1700 MHz	9168 Points +26%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, 3300 MHz	9004 Points +24%
Geekom A5 AMD Ryzen 7 5800H, 3200 MHz	8481 Points +17%
NiPoGi AD08 Intel Core i7-12650H, 1700 MHz	8415 Points +16%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, 3200 MHz	7275 Points
Geekom Mini IT12 Intel Core i7-1260P, 1500 MHz	6487 Points -11%

* ... smaller is better

Performance Rating
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	99.9 pt
Geekom A5 AMD Ryzen 7 5800H, Vega 8	89 pt
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	84.7 pt
Average of class Mini PC	84.5 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	77 pt
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	75.4 pt
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	65.1 pt
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	61.9 pt

AIDA64 / FP32 Ray-Trace
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	14418 KRay/s +13%
Average of class Mini PC (646 - 51004, n=118, last 2 years)	12961 KRay/s +2%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	12718 KRay/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	12468 KRay/s -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s -14%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	10839 KRay/s -15%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	9713 KRay/s -24%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	7933 KRay/s -38%

AIDA64 / FPU Julia
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89540 Points +10%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	81722 Points
Geekom A5 AMD Ryzen 7 5800H, Vega 8	77847 Points -5%
Average of class Mini PC (3857 - 214250, n=118, last 2 years)	65332 Points -20%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points -32%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	54435 Points -33%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	48470 Points -41%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	40251 Points -51%

AIDA64 / CPU SHA3
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	3065 MB/s +9%
Average of class Mini PC (260 - 9399, n=118, last 2 years)	2873 MB/s +2%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	2818 MB/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	2707 MB/s -4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s -9%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	2357 MB/s -16%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	2050 MB/s -27%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	2006 MB/s -29%

AIDA64 / CPU Queen
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	93870 Points +4%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	91846 Points +2%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	90101 Points
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points -5%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	82454 Points -8%
Average of class Mini PC (8172 - 184747, n=118, last 2 years)	80506 Points -11%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	73765 Points -18%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	71577 Points -21%

AIDA64 / FPU SinJulia
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	11831 Points
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	11771 Points -1%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	10972 Points -7%
Average of class Mini PC (408 - 29064, n=118, last 2 years)	8841 Points -25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points -36%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	7444 Points -37%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	6628 Points -44%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	5567 Points -53%

AIDA64 / FPU Mandel
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	49558 Points +11%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	44756 Points
Geekom A5 AMD Ryzen 7 5800H, Vega 8	42543 Points -5%
Average of class Mini PC (1987 - 113499, n=118, last 2 years)	34078 Points -24%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points -37%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	26735 Points -40%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	24086 Points -46%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	19857 Points -56%

AIDA64 / CPU AES
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	119363 MB/s +119%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	108262 MB/s +98%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s +82%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	92530 MB/s +69%
Average of class Mini PC (3691 - 325960, n=118, last 2 years)	88896 MB/s +63%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	74716 MB/s +37%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	54623 MB/s
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	44835 MB/s -18%

AIDA64 / CPU ZLib
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	754 MB/s +12%
Average of class Mini PC (74.9 - 2039, n=118, last 2 years)	743 MB/s +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s +9%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	700 MB/s +4%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	700 MB/s +4%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	674 MB/s 0%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	674 MB/s
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	575 MB/s -15%

AIDA64 / FP64 Ray-Trace
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	7551 KRay/s +11%
Average of class Mini PC (350 - 26952, n=118, last 2 years)	6926 KRay/s +2%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	6817 KRay/s
Geekom A5 AMD Ryzen 7 5800H, Vega 8	6380 KRay/s -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s -15%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	5771 KRay/s -15%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	5235 KRay/s -23%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	4156 KRay/s -39%

AIDA64 / CPU PhotoWorxx
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	30049 MPixel/s +57%
Average of class Mini PC (4408 - 50500, n=118, last 2 years)	28399 MPixel/s +48%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	28118 MPixel/s +47%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	28010 MPixel/s +46%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	25113 MPixel/s +31%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	24589 MPixel/s +28%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s +27%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	19153 MPixel/s

Maxtang MTN-FP750 与 Cinebench R15 多回路对比

Cinebench R15 多环测试向我们展示了散热系统在负载情况下的工作性能。由于最大 TDP 较低，仅为 35 瓦，因此冷却装置并未达到极限，这也是该设备能够实现持续稳定的 CPU 性能的原因。在比较中，我们的评测样品甚至能排在第二位，仅次于 Geekom AS 6.

Maxtang MTN-FP750 AMD Ryzen 7 7735HS, AMD Ryzen 7 7735HS: Ø1772 (1721.99-1800.59)

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, AMD Ryzen 9 6900HX: Ø1878 (1825.15-2068.58)

Geekom Mini IT12 Intel Core i7-1260P, Intel Core i7-1260P: Ø1280 (1241-1619.37)

Geekom A5 AMD Ryzen 7 5800H, AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)

Minisforum Venus Series NAB6 Intel Core i7-12650H, Intel Core i7-12650H: Ø1627 (1590.71-1899.25)

NiPoGi AD08 Intel Core i7-12650H, Intel Core i7-12650H: Ø1399 (1362.4-1668.54)

系统性能

在系统性能综合测试中，我们的评测设备再次落后。在测试期间的日常任务中，从主观角度来看，只要系统不同时处理过多的任务，傲腾 MTN-FP750 就能提供良好的系统性能。内存似乎是瓶颈所在，因为一旦减去显存，16 GB 内存中只有 12 GB 可用。

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	6653 Points +16%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points +8%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	6149 Points +7%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	6057 Points +6%
NiPoGi AD08, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530	5751 Points +1%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS AMD Radeon 680M, Foresee VP1000F512G	5722 Points
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	5658 Points -1%

PCMark 10 / Essentials
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	11395 Points +15%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points +13%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	10504 Points +6%
NiPoGi AD08, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530	10408 Points +5%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	10356 Points +4%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	10139 Points +2%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS AMD Radeon 680M, Foresee VP1000F512G	9933 Points

PCMark 10 / Productivity
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	9550 Points +8%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	9311 Points +5%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS AMD Radeon 680M, Foresee VP1000F512G	8829 Points
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	8164 Points -8%
NiPoGi AD08, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530	7814 Points -11%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points -13%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	7427 Points -16%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points +37%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1875 Points +35%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1738 Points +25%
NiPoGi AD08, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530	1660 Points +20%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1476 Points +6%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1429 Points +3%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS AMD Radeon 680M, Foresee VP1000F512G	1387 Points

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points +68%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	2077 Points +64%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1734 Points +37%
NiPoGi AD08, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530	1478 Points +17%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS AMD Radeon 680M, Foresee VP1000F512G	1263 Points
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1233 Points -2%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1060 Points -16%

CrossMark / Creativity
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1811 Points +32%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points +31%
NiPoGi AD08, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530	1788 Points +30%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1749 Points +27%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1675 Points +22%
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1523 Points +11%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS AMD Radeon 680M, Foresee VP1000F512G	1376 Points

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points +33%
Minisforum Venus Series NAB6, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Kingston OM8PGP4512Q-A0	1876 Points +30%
Geekom Mini IT12, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Kingston OM8SEP4512N-A0	1729 Points +20%
NiPoGi AD08, Intel Core i7-12650H Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Netac NS512GSSD530	1601 Points +11%
Geekom AS 6, R9 6900HX, AMD Ryzen 9 6900HX AMD Radeon 680M, Kingston NV2 1000GB SNV2S/1000G	1451 Points +1%
Maxtang MTN-FP750, AMD Ryzen 7 7735HS AMD Radeon 680M, Foresee VP1000F512G	1443 Points
Geekom A5, AMD Ryzen 7 5800H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Lexar NM620 512GB	1408 Points -2%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	50714 MB/s +67%
Average of class Mini PC (6481 - 89287, n=118, last 2 years)	48494 MB/s +60%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	46936 MB/s +55%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s +52%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	44726 MB/s +47%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	43916 MB/s +45%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	43870 MB/s +45%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	30324 MB/s

AIDA64 / Memory Read
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	51580 MB/s +52%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	50120 MB/s +48%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s +46%
Average of class Mini PC (6914 - 99171, n=118, last 2 years)	49295 MB/s +45%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	47491 MB/s +40%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	47423 MB/s +40%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46241 MB/s +36%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	33938 MB/s

AIDA64 / Memory Write
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	55128 MB/s +66%
Average of class Mini PC (6862 - 98583, n=118, last 2 years)	53000 MB/s +60%
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	47383 MB/s +43%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s +41%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	46785 MB/s +41%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46407 MB/s +40%
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	45617 MB/s +38%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	33175 MB/s

AIDA64 / Memory Latency
NiPoGi AD08 Intel Core i7-12650H, UHD Graphics 64EUs	103.9 ns * -33%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns * -28%
Average of class Mini PC (44.9 - 184.8, n=118, last 2 years)	92.1 ns * -18%
Geekom AS 6, R9 6900HX AMD Ryzen 9 6900HX, Radeon 680M	89.9 ns * -15%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	81.4 ns * -4%
Geekom Mini IT12 Intel Core i7-1260P, Iris Xe G7 96EUs	80.2 ns * -3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS, Radeon 680M	78.2 ns *
Minisforum Venus Series NAB6 Intel Core i7-12650H, UHD Graphics 64EUs	71.6 ns * +8%

* ... smaller is better

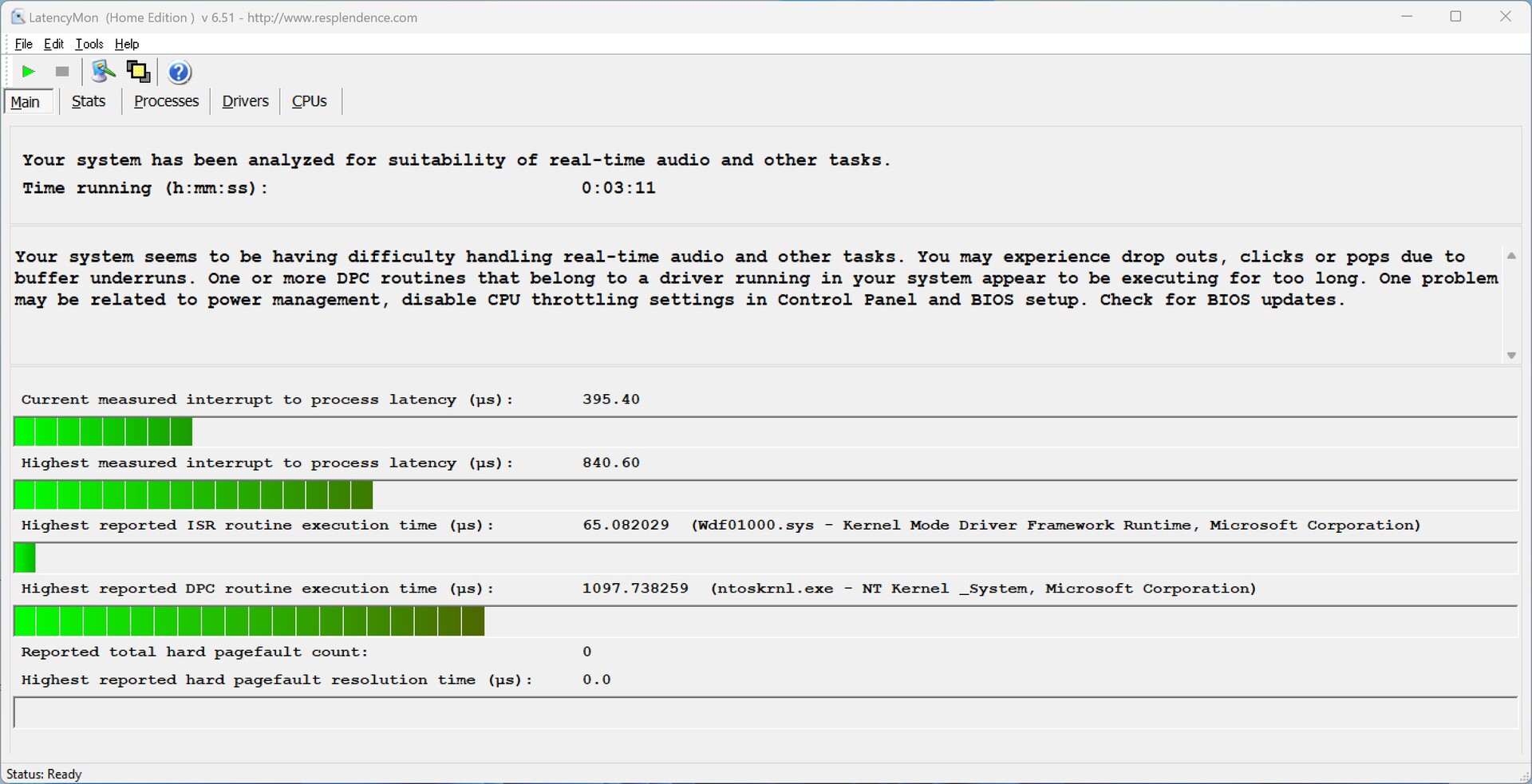

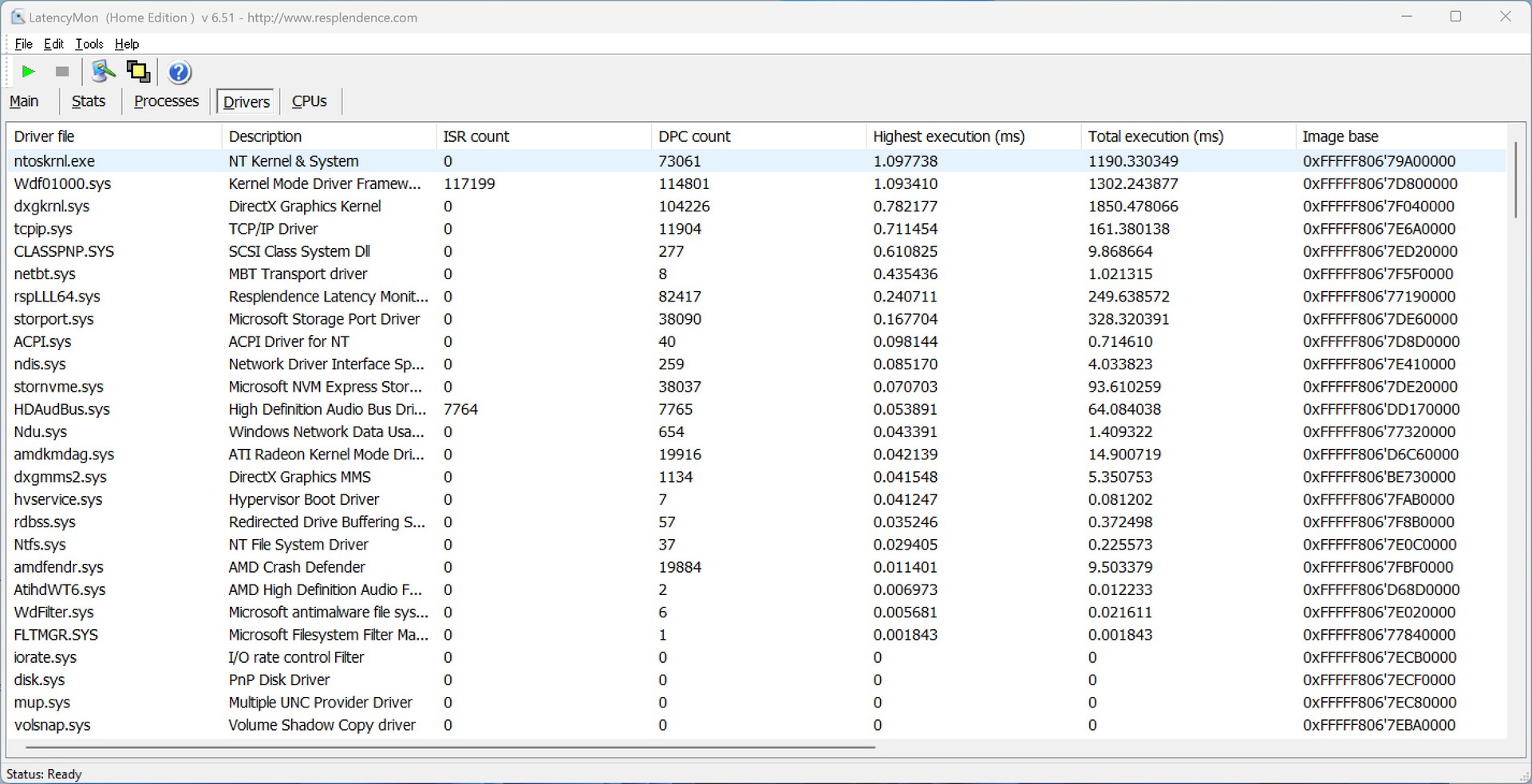

DPC 延迟

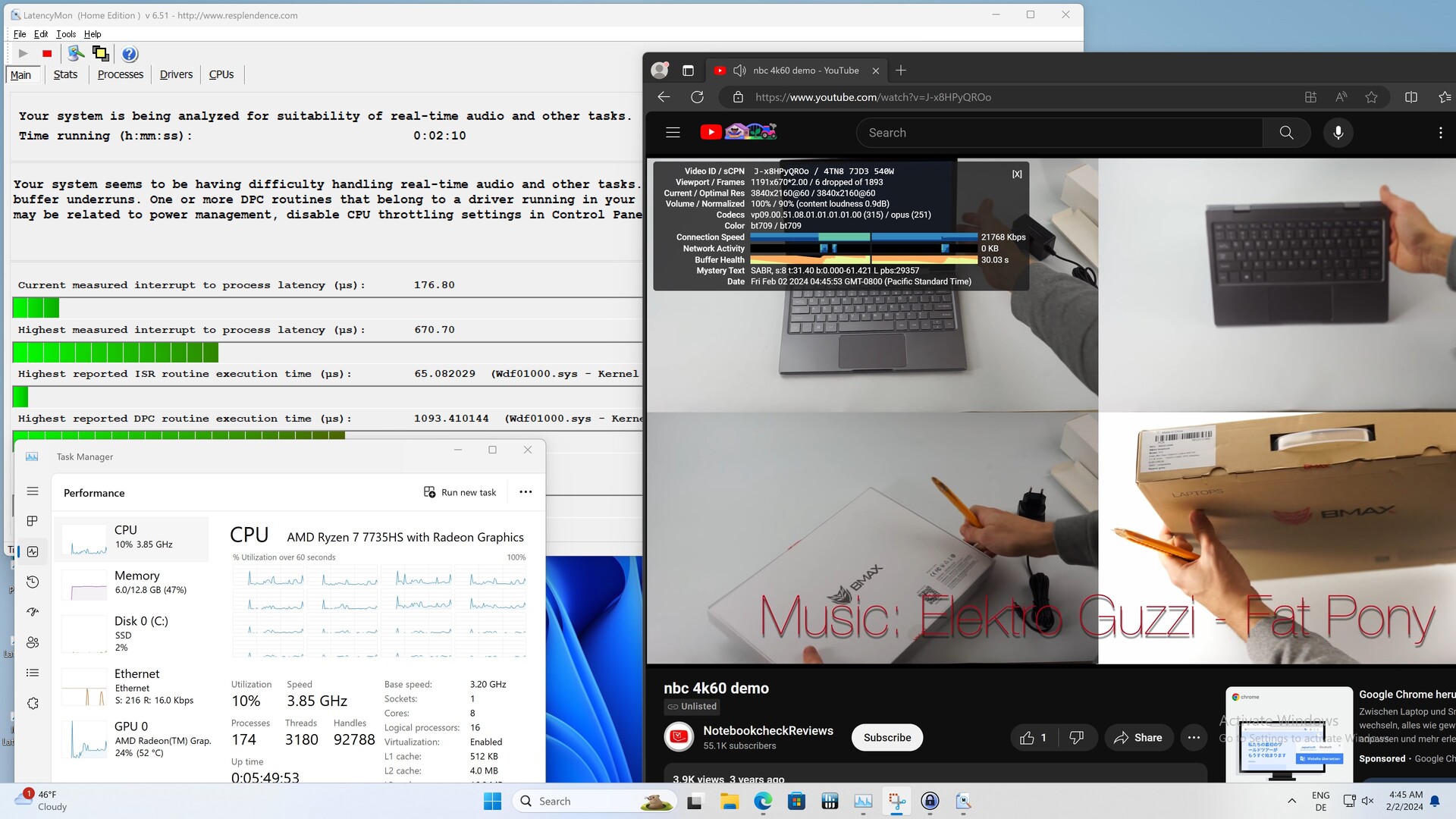

在使用 Edge 浏览器打开多个标签页时，我们已经记录到延迟略有增加。不过，随着测试的继续，延迟并没有增加。在播放 4K 测试视频时，iGPU 的压力约为其容量的 24%。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1588.3 μs * -45%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1310.5 μs * -19%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1113.9 μs * -1%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	1097.7 μs *
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	1014.6 μs * +8%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	985.8 μs * +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	795 μs * +28%

* ... smaller is better

大容量存储器

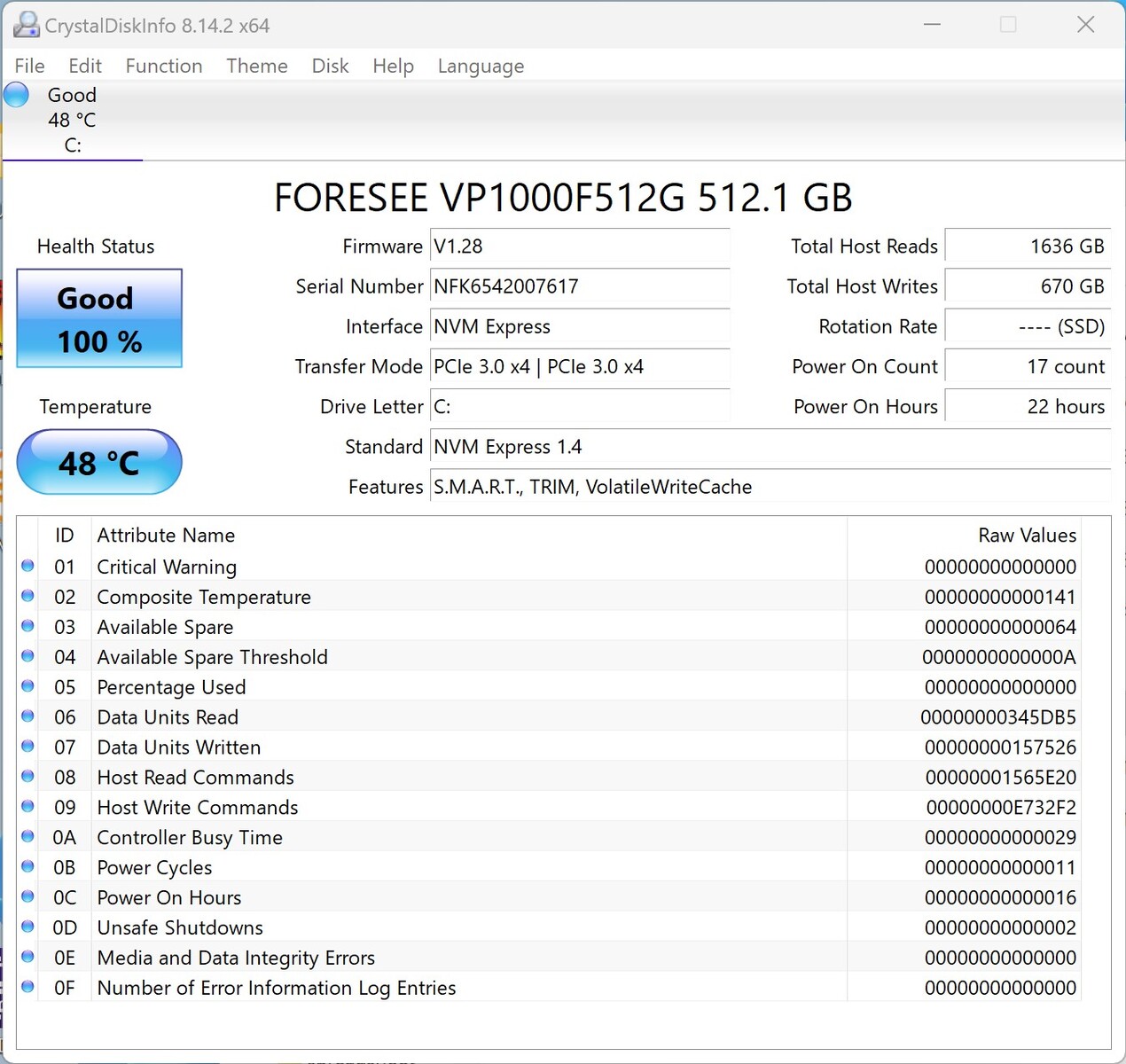

铭瑄为我们的 MTN-FP750 评测样品配备了 Foresee 512 GB 固态硬盘。这块 PCIe 3.0 固态硬盘最大限度地利用了 M.2 接口的带宽，并没有因为接口速度过慢而被人为拖后腿。尽管如此，我们的评测设备只能获得中游水平。可安装额外的 2.5 英寸存储设备。请参阅我们的对比表进一步比较和基准测试。

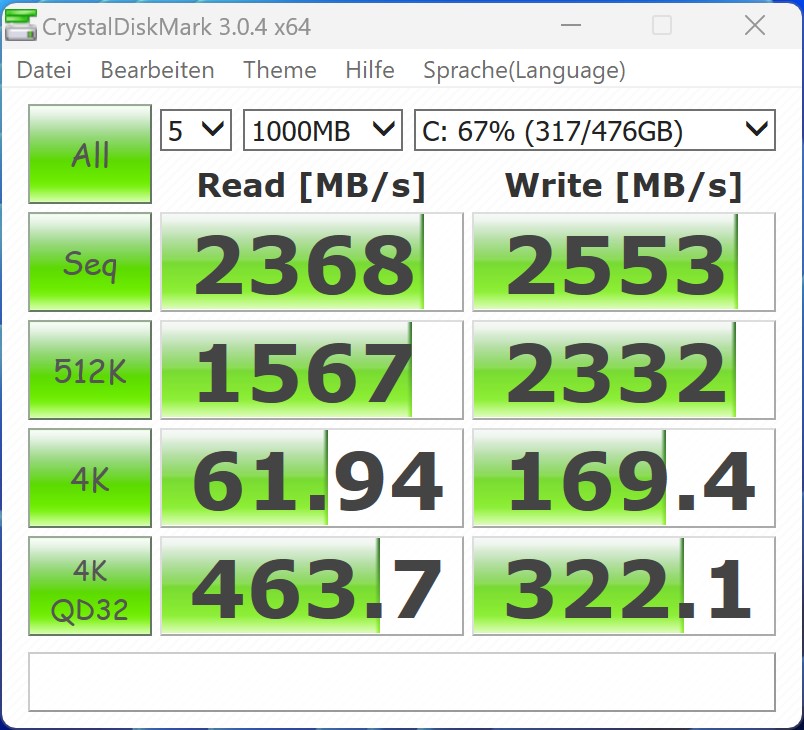

CrystalDiskMark 3.0

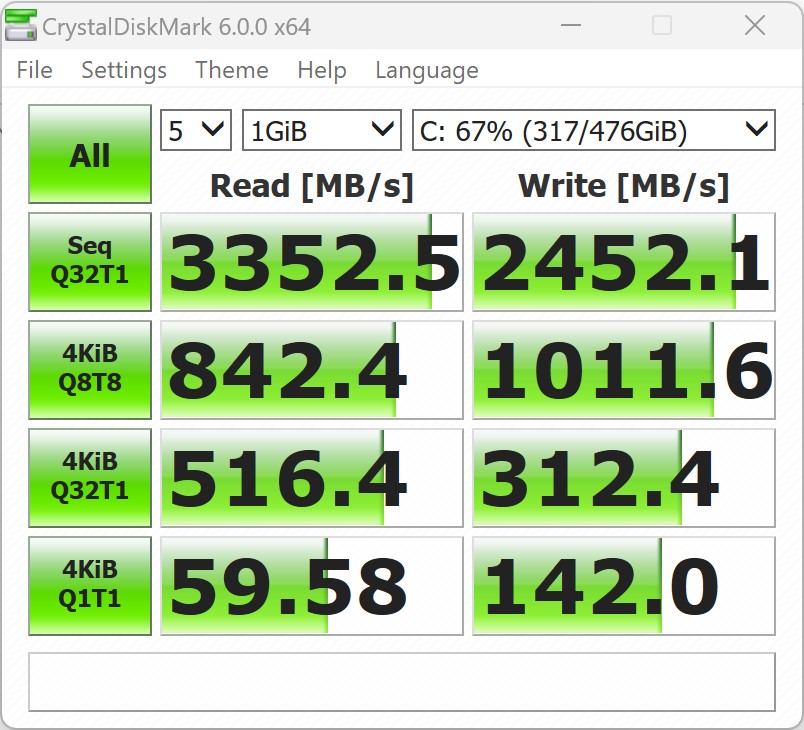

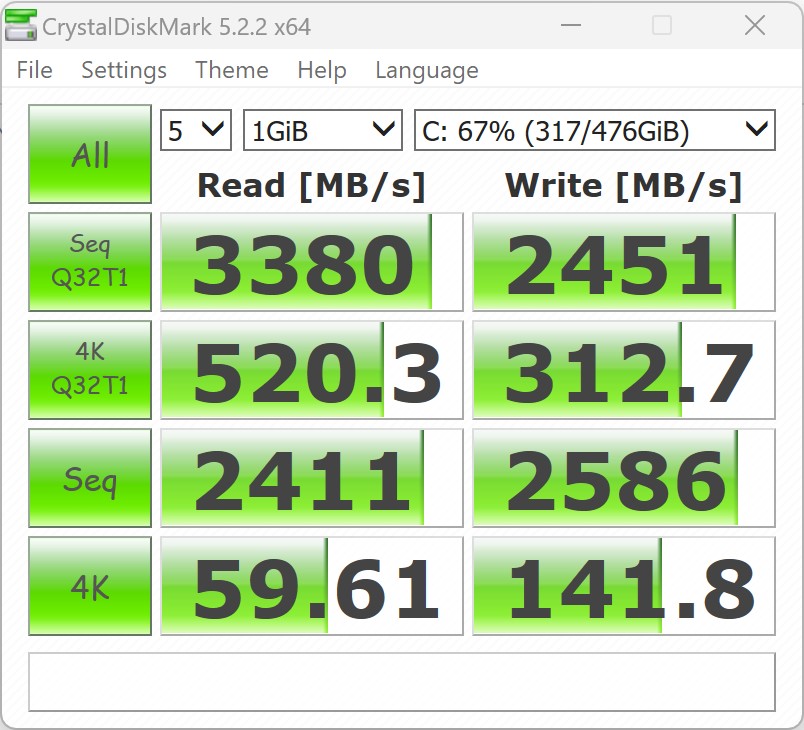

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Foresee VP1000F512G

Sequential Read: 2368 MB/s

Sequential Write: 2553 MB/s

512K Read: 1567 MB/s

512K Write: 2332 MB/s

4K Read: 61.94 MB/s

4K Write: 169.4 MB/s

4K QD32 Read: 463.7 MB/s

4K QD32 Write: 322.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	95.2 pt
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	80.8 pt
Average of class Mini PC	62.8 pt
Geekom A5 Lexar NM620 512GB	62.5 pt
NiPoGi AD08 Netac NS512GSSD530	47.2 pt
Geekom Mini IT12 Kingston OM8SEP4512N-A0	43.6 pt
Maxtang MTN-FP750 Foresee VP1000F512G	42 pt
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	24.6 pt

DiskSpd
seq read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s +70%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2689 (2681.42^min - 2688.76^max) MB/s +62%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s +43%
Average of class Mini PC (277 - 4357, n=118, last 2 years)	2337 MB/s +41%
NiPoGi AD08 Netac NS512GSSD530	1851 (1840.88^min - 1850.74^max) MB/s +12%
Maxtang MTN-FP750 Foresee VP1000F512G	1658 (1638.79^min - 1658.01^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1451 (1441.37^min - 1451.23^max) MB/s -12%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1414 (1406.14^min - 1414.43^max) MB/s -15%
seq write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3544 (3538.94^min - 3544.19^max) MB/s +406%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s +386%
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s +281%
Average of class Mini PC (229 - 5595, n=118, last 2 years)	2515 MB/s +259%
NiPoGi AD08 Netac NS512GSSD530	1672 (673.94^min - 1672.06^max) MB/s +139%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1203 (1169.58^min - 1202.51^max) MB/s +72%
Maxtang MTN-FP750 Foresee VP1000F512G	700 (690.38^min - 700.03^max) MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	259 (255.55^min - 258.69^max) MB/s -63%
seq q8 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s +54%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4797 (4271.21^min - 4796.87^max) MB/s +54%
Average of class Mini PC (236 - 8430, n=118, last 2 years)	3801 MB/s +22%
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s +11%
Maxtang MTN-FP750 Foresee VP1000F512G	3116 (2788.16^min - 3115.59^max) MB/s
NiPoGi AD08 Netac NS512GSSD530	2375 (2107.85^min - 2375.44^max) MB/s -24%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1976 (1110.86^min - 1975.52^max) MB/s -37%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1694 (1415.05^min - 1693.87^max) MB/s -46%
seq q8 t1 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3541 (3519.65^min - 3541.04^max) MB/s +247%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s +234%
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s +206%
Average of class Mini PC (239 - 6669, n=118, last 2 years)	2818 MB/s +177%
NiPoGi AD08 Netac NS512GSSD530	1667 (577.24^min - 1667.45^max) MB/s +64%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1213 (1155.74^min - 1212.78^max) MB/s +19%
Maxtang MTN-FP750 Foresee VP1000F512G	1019 (702.55^min - 1018.53^max) MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	271 (261.51^min - 270.62^max) MB/s -73%
4k q1 t1 read
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	82.8 (82.48^min - 82.75^max) MB/s +31%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s +30%
Maxtang MTN-FP750 Foresee VP1000F512G	63.1 (63.03^min - 63.11^max) MB/s
NiPoGi AD08 Netac NS512GSSD530	57.3 (56.08^min - 57.31^max) MB/s -9%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	55.6 (54.87^min - 55.6^max) MB/s -12%
Average of class Mini PC (6.85 - 86.6, n=118, last 2 years)	55.4 MB/s -12%
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s -14%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27.7 (27.3^min - 27.66^max) MB/s -56%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s +167%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	420 (417.55^min - 420.16^max) MB/s +164%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	276 (193.9^min - 275.81^max) MB/s +73%
NiPoGi AD08 Netac NS512GSSD530	224 (122.9^min - 223.95^max) MB/s +41%
Average of class Mini PC (30.4 - 435, n=118, last 2 years)	197.5 MB/s +24%
Maxtang MTN-FP750 Foresee VP1000F512G	159.1 (147.33^min - 159.12^max) MB/s
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s -7%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	88 (84.11^min - 87.99^max) MB/s -45%
4k q32 t16 read
Geekom A5 Lexar NM620 512GB	1960 MB/s +350%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s +346%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1939 (1934.48^min - 1939.25^max) MB/s +345%
Average of class Mini PC (26.1 - 4158, n=118, last 2 years)	1416 MB/s +225%
NiPoGi AD08 Netac NS512GSSD530	966 (662.38^min - 966.09^max) MB/s +122%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	740 (734.91^min - 739.88^max) MB/s +70%
Maxtang MTN-FP750 Foresee VP1000F512G	436 (434.71^min - 436.44^max) MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	420 (418.45^min - 419.54^max) MB/s -4%
4k q32 t16 write
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3388 (3373.11^min - 3387.88^max) MB/s +292%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s +177%
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s +59%
Average of class Mini PC (32.6 - 4288, n=118, last 2 years)	1336 MB/s +55%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	942 (402.72^min - 941.71^max) MB/s +9%
Maxtang MTN-FP750 Foresee VP1000F512G	864 (598.32^min - 864.46^max) MB/s
NiPoGi AD08 Netac NS512GSSD530	696 (189.46^min - 695.85^max) MB/s -19%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	210 (203.49^min - 210.22^max) MB/s -76%

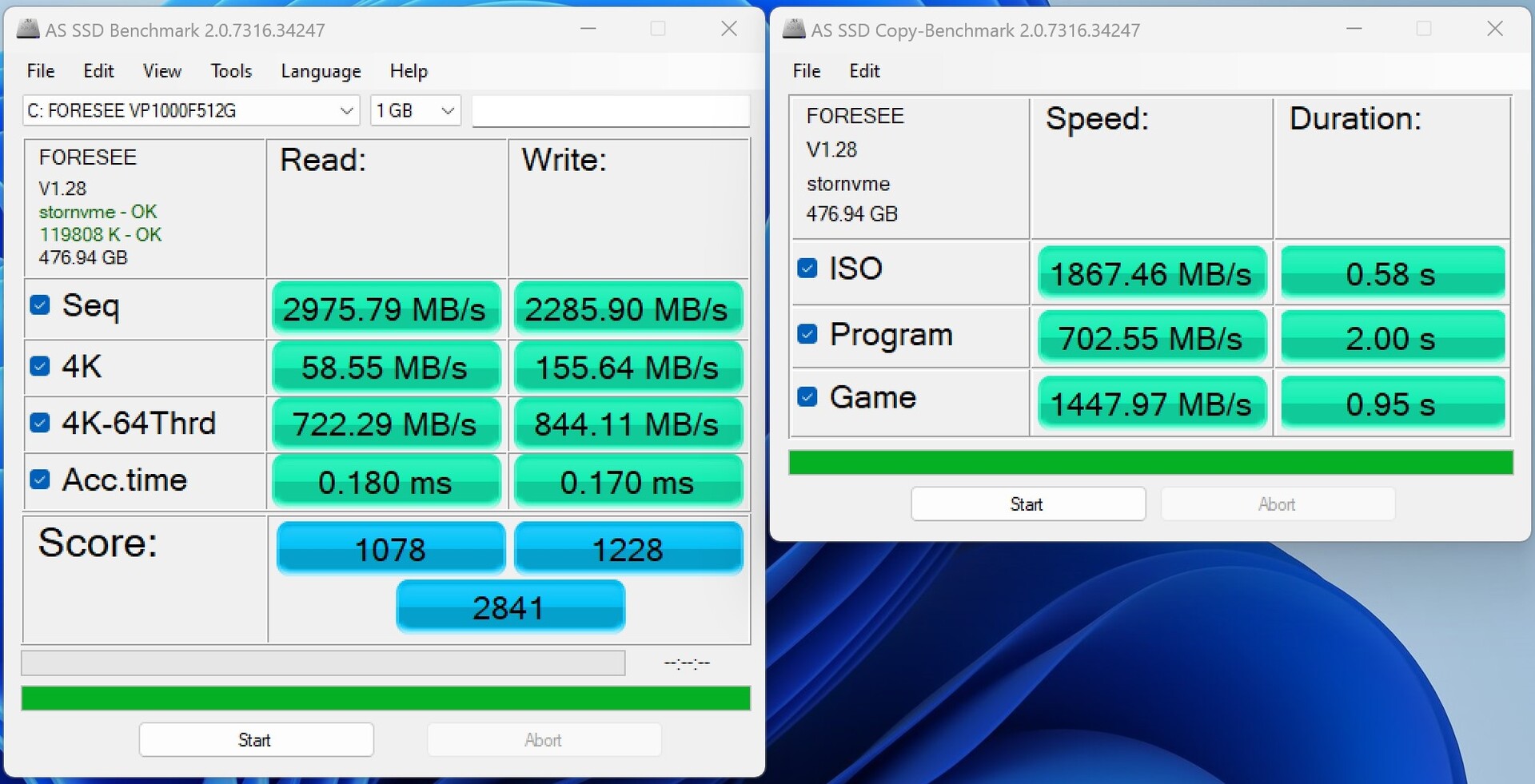

AS SSD
Score Total
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points +151%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	4744 Points +67%
Average of class Mini PC (211 - 10021, n=116, last 2 years)	4260 Points +50%
Geekom A5 Lexar NM620 512GB	4006 Points +41%
NiPoGi AD08 Netac NS512GSSD530	3032 Points +7%
Maxtang MTN-FP750 Foresee VP1000F512G	2841 Points
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2491 Points -12%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	1602 Points -44%
Score Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points +122%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	2356 Points +119%
Average of class Mini PC (76 - 3741, n=116, last 2 years)	1583 Points +47%
Geekom A5 Lexar NM620 512GB	1502 Points +39%
NiPoGi AD08 Netac NS512GSSD530	1167 Points +8%
Maxtang MTN-FP750 Foresee VP1000F512G	1078 Points
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	910 Points -16%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	725 Points -33%
Score Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points +188%
Average of class Mini PC (88 - 4371, n=116, last 2 years)	1910 Points +56%
Geekom A5 Lexar NM620 512GB	1739 Points +42%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1457 Points +19%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1308 Points +7%
NiPoGi AD08 Netac NS512GSSD530	1283 Points +4%
Maxtang MTN-FP750 Foresee VP1000F512G	1228 Points
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	325 Points -74%
Seq Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s +39%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	3874.21 MB/s +30%
Average of class Mini PC (291 - 6620, n=116, last 2 years)	3239 MB/s +9%
Geekom A5 Lexar NM620 512GB	3020 MB/s +1%
Maxtang MTN-FP750 Foresee VP1000F512G	2976 MB/s
Geekom Mini IT12 Kingston OM8SEP4512N-A0	2789 MB/s -6%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	2302 MB/s -23%
NiPoGi AD08 Netac NS512GSSD530	2282 MB/s -23%
Seq Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s +44%
Geekom A5 Lexar NM620 512GB	2714 MB/s +19%
Average of class Mini PC (242 - 5783, n=116, last 2 years)	2298 MB/s +1%
Maxtang MTN-FP750 Foresee VP1000F512G	2286 MB/s
NiPoGi AD08 Netac NS512GSSD530	1657 MB/s -28%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1232 MB/s -46%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	882.93 MB/s -61%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	277 MB/s -88%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s +77%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	102.97 MB/s +76%
Average of class Mini PC (21.4 - 104.3, n=116, last 2 years)	59.8 MB/s +2%
NiPoGi AD08 Netac NS512GSSD530	59.4 MB/s +1%
Maxtang MTN-FP750 Foresee VP1000F512G	58.6 MB/s
Geekom A5 Lexar NM620 512GB	57.7 MB/s -2%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	48.9 MB/s -17%
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	27 MB/s -54%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s +135%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	354.53 MB/s +128%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	273 MB/s +75%
Average of class Mini PC (30.9 - 366, n=116, last 2 years)	178.1 MB/s +14%
Maxtang MTN-FP750 Foresee VP1000F512G	155.6 MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	150.4 MB/s -3%
NiPoGi AD08 Netac NS512GSSD530	126.8 MB/s -19%
Geekom A5 Lexar NM620 512GB	125.5 MB/s -19%
4K-64 Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s +159%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	1865.81 MB/s +158%
Average of class Mini PC (23.4 - 3220, n=116, last 2 years)	1199 MB/s +66%
Geekom A5 Lexar NM620 512GB	1143 MB/s +58%
NiPoGi AD08 Netac NS512GSSD530	880 MB/s +22%
Maxtang MTN-FP750 Foresee VP1000F512G	722 MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	653 MB/s -10%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	397 MB/s -45%
4K-64 Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s +237%
Average of class Mini PC (32.8 - 3731, n=116, last 2 years)	1502 MB/s +78%
Geekom A5 Lexar NM620 512GB	1342 MB/s +59%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	1060 MB/s +26%
NiPoGi AD08 Netac NS512GSSD530	990 MB/s +17%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	865.27 MB/s +3%
Maxtang MTN-FP750 Foresee VP1000F512G	844 MB/s
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	146.7 MB/s -83%
Access Time Read
Maxtang MTN-FP750 Foresee VP1000F512G	0.18 ms *
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.141 ms * +22%
NiPoGi AD08 Netac NS512GSSD530	0.131 ms * +27%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.117 ms * +35%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.098 ms * +46%
Average of class Mini PC (0.022 - 0.489, n=116, last 2 years)	0.09601 ms * +47%
Geekom A5 Lexar NM620 512GB	0.08 ms * +56%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms * +59%
Access Time Write
Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G	0.263 ms * -55%
Maxtang MTN-FP750 Foresee VP1000F512G	0.17 ms *
Geekom A5 Lexar NM620 512GB	0.13 ms * +24%
Geekom Mini IT12 Kingston OM8SEP4512N-A0	0.118 ms * +31%
Average of class Mini PC (0.014 - 0.765, n=116, last 2 years)	0.1114 ms * +34%
Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0	0.11 ms * +35%
NiPoGi AD08 Netac NS512GSSD530	0.103 ms * +39%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms * +82%

* ... smaller is better

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

Maxtang MTN-FP750 Foresee VP1000F512G; diskspd 2.0.17 f: Ø3025 (2610.09-3059.95)

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Geekom AS 6, R9 6900HX Kingston NV2 1000GB SNV2S/1000G: Ø1820 (713.49-2039.48)

Geekom Mini IT12 Kingston OM8SEP4512N-A0: Ø2178 (1555.46-2595.65)

Geekom A5 Lexar NM620 512GB: Ø3437 (3126.47-3454.22)

Minisforum Venus Series NAB6 Kingston OM8PGP4512Q-A0: Ø4789 (4164.37-4807.96)

NiPoGi AD08 Netac NS512GSSD530; diskspd 2.0.17 f: Ø1365 (827.75-2529.17)

图形卡

图形输出由 AMD Radeon 680MiGPU 在大多数情况下都能提供良好的性能。不过，Maxtang MTN-FP750 的情况有些不同，原因在于安装的内存。制造商只为我们的评测设备配备了一个内存模块。在这种配置下 AMD Radeon 680M几乎没有比配备 96 个 EU 的英特尔 Iris Xe Graphics G7 更快。即使是 Geekom A5在我们的评测样品面前也只能望其项背，因为它使用的是较老的 AMD Radeon RX Vega 8。

为了弄清性能不佳的原因，我们从耗材中取出了另一个内存模块，并进行了一些基准测试。结果与 Geekom AS 6因此，Maxtang MTN-FP750 绝不逊色于其竞争对手。

更多 AMD Radeon 680M 的基准测试结果请参见这里.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Average AMD Radeon 680M	99.4 pt
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	98.6 pt
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	75.6 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	68.2 pt
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	65.8 pt
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	64.4 pt
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	56.1 pt
NiPoGi AD08 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	53.8 pt

3DMark 11 - 1280x720 Performance GPU
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	10399 Points +52%
Average AMD Radeon 680M (6858 - 11755, n=35)	10068 Points +47%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +4%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points +3%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	6858 Points
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6599 Points -4%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5462 Points -20%
NiPoGi AD08 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5047 Points -26%

3DMark
1280x720 Cloud Gate Standard Graphics
Average AMD Radeon 680M (24634 - 50120, n=28)	40899 Points +66%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	39814 Points +62%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	32875 Points +33%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points +24%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	24634 Points
NiPoGi AD08 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	23061 Points -6%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	22570 Points -8%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	21383 Points -13%
1920x1080 Fire Strike Graphics
Average AMD Radeon 680M (3791 - 7706, n=36)	6701 Points +51%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	6501 Points +47%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points +25%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4860 Points +10%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +3%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	4424 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4098 Points -7%
NiPoGi AD08 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	3905 Points -12%
2560x1440 Time Spy Graphics
Average AMD Radeon 680M (1359 - 2607, n=36)	2227 Points +59%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	2210 Points +58%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points +19%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1528 Points +9%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points +1%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	1399 Points
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1217 Points -13%
NiPoGi AD08 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1114 Points -20%
Fire Strike Extreme Graphics
Average AMD Radeon 680M (2089 - 3572, n=13)	3110 Points +49%
Geekom AS 6, R9 6900HX AMD Radeon 680M, AMD Ryzen 9 6900HX	3088 Points +48%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points +18%
Geekom Mini IT12 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2150 Points +3%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	2089 Points
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1879 Points -10%
Minisforum Venus Series NAB6 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1866 Points -11%
NiPoGi AD08 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1738 Points -17%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | Unigine Superposition

Performance Rating - Percent
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	99.3 pt
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	69.5 pt
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	65.7 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	63.2 pt
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	61.3 pt
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	53.2 pt
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	51.8 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	34.2 fps +61%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	25 fps +18%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps +10%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	22.8 fps +8%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	21.2 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21 fps -1%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	19.7 fps -7%
Extreme Preset DX11
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	32 fps +62%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps +22%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	22 fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	21.7 fps +10%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	20.4 fps +4%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	19.7 fps
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	19.1 fps -3%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	21 fps +79%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps +22%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	14.2 fps +21%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	13.2 fps +13%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.8 fps +9%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	11.8 fps +1%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	11.7 fps
1920x1080 Extreme HD Preset OpenGL AA:x8
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	22.9 fps +73%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	16.1 fps +22%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps +15%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	15.1 fps +14%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	14.7 fps +11%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	13.2 fps
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	13 fps -2%

ComputeMark v2.1
1024x600 Normal, Score
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	5602 Points +27%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	4417 Points
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	4020 Points -9%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	3308 Points -25%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	2512 Points -43%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	2370 Points -46%
1024x600 Normal, Fluid 3DTex
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	393 Points +83%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	296 Points +38%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +10%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points +9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	216 Points 0%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	215 Points
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	207 Points -4%
1024x600 Normal, Fluid 2DTexArr
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	400 Points +87%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	280 Points +31%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points +16%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	237 Points +11%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	220 Points +3%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	214 Points
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	212 Points -1%
1024x600 Normal, Mandel Vector
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1582 Points +44%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1236 Points +12%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	1100 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points -23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	827 Points -25%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	483 Points -56%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	450 Points -59%
1024x600 Normal, Mandel Scalar
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1451 Points +53%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1062 Points +12%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	948 Points
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	865 Points -9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	834 Points -12%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	770 Points -19%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	743 Points -22%
1024x600 Normal, QJuliaRayTrace
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	1941 Points
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1776 Points -9%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points -39%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1174 Points -40%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1145 Points -41%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	823 Points -58%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	759 Points -61%

Unigine Superposition
1280x720 720p Low
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	10118 Points +66%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	7952 Points +31%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	6081 Points
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	5353 Points -12%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	5162 Points -15%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	5141 Points -15%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	4088 Points -33%
1920x1080 1080p High
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	3014 Points +54%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points +7%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	1958 Points
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1949 Points 0%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	1923 Points -2%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	1659 Points -15%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	1615 Points -18%
1920x1080 1080p Extreme
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	1394 Points +42%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points +9%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	992 Points +1%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	985 Points
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	914 Points -7%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	796 Points -19%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	757 Points -23%

	Maxtang MTN-FP750, AMD Radeon 680M R7 7735HS	Minisforum Neptune Series NAD9, Intel Iris Xe Graphics G7 96EUs i9-12900H	Geekom AS 6, R9 6900HX, AMD Radeon 680M R9 6900HX	Geekom Mini IT12, Intel Iris Xe Graphics G7 96EUs i7-1260P	Geekom A5, AMD Radeon RX Vega 8 (Ryzen 4000/5000) R7 5800H	Minisforum Venus Series NAB6, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) i7-12650H	NiPoGi AD08, Intel UHD Graphics 64EUs (Alder Lake 12th Gen) i7-12650H	Average of class Mini PC
SPECviewperf 12		-26%	58%	-31%	2%	-37%	-34%	43%
1900x1060 3ds Max (3dsmax-05)	46.9	40.9 -13%	75.3 61%	38.7 -17%	51.7 10%	36.2 -23%	34.4 -27%	75.4 ?(13.6 - 295, n=63, last 2 years) 61%
1900x1060 Catia (catia-04)	51.5	41.2 -20%	70.3 37%	38.5 -25%	44.2 -14%	34.5 -33%	30.3 -41%	64.2 ?(10.9 - 251, n=63, last 2 years) 25%
1900x1060 Creo (creo-01)	33.2	9.64 -71%	45.2 36%	7.52 -77%	36.3 9%	6.44 -81%	21.1 -36%	37 ?(4.03 - 117, n=63, last 2 years) 11%
1900x1060 Energy (energy-01)		0.41	76.1	0.41		0.35	0.77	13.3 ?(0.15 - 80.4, n=57, last 2 years)
1900x1060 Maya (maya-04)	45.2	39.9 -12%	58.3 29%	36.5 -19%	40.3 -11%	33.4 -26%	32.5 -28%	64 ?(11.4 - 226, n=63, last 2 years) 42%
1900x1060 Medical (medical-01)	17.9	12.3 -31%	44 146%	11.2 -37%	18.2 2%	9.12 -49%	8.41 -53%	28.5 ?(2.53 - 136, n=60, last 2 years) 59%
1900x1060 Showcase (showcase-01)	17.5	17.9 2%	30.1 72%	16.7 -5%	21.7 24%	15.9 -9%	15.2 -13%	35.3 ?(5.71 - 133, n=63, last 2 years) 102%
1900x1060 Solidworks (sw-03)	72.1	47.2 -35%	88.8 23%	43.7 -39%	68.3 -5%	44.5 -38%	43.4 -40%	72.4 ?(20.9 - 243, n=63, last 2 years) 0%
SPECviewperf 13		-27%	51%	-30%	2%	-37%	-40%	48%
3ds Max (3dsmax-06)	48.3	40.5 -16%	76.7 59%	37.9 -22%	51.6 7%	36 -25%	34.1 -29%	74.8 ?(13.4 - 294, n=63, last 2 years) 55%
Catia (catia-05)	73.9	59.4 -20%	105 42%	56.3 -24%	62.1 -16%	49.6 -33%	43.2 -42%	91.4 ?(15.6 - 381, n=62, last 2 years) 24%
Creo (creo-02)	44.9	38.8 -14%	78.4 75%	36.8 -18%	50.6 13%	33 -27%	33.1 -26%	73 ?(11.6 - 275, n=63, last 2 years) 63%
Energy (energy-02)	11.4	4.27 -63%	13.9 22%	4.29 -62%	10.6 -7%	2.82 -75%	2.62 -77%	17.7 ?(0.92 - 310, n=60, last 2 years) 55%
Maya (maya-05)	58.3	44.2 -24%	99 70%	42.9 -26%	56.5 -3%	38.2 -34%	41.3 -29%	97.5 ?(15.9 - 340, n=63, last 2 years) 67%
Medical (medical-02)	32.8	14.5 -56%	44.9 37%	14 -57%	31 -5%	10.9 -67%	8.63 -74%	37.6 ?(2.28 - 198, n=63, last 2 years) 15%
Showcase (showcase-02)	17.4	17.9 3%	30.4 75%	16.8 -3%	21.5 24%	15.7 -10%	15.1 -13%	35 ?(5.69 - 133, n=63, last 2 years) 101%
Solidworks (sw-04)	72.9	55.8 -23%	95 30%	54.1 -26%	72.4 -1%	53.9 -26%	51.9 -29%	76.6 ?(27.4 - 223, n=63, last 2 years) 5%
SPECviewperf 2020		-35%	84%	-24%	2%	-43%		73%
3840x2160 Medical (medical-03)	4.72	2.57 -46%	8.59 82%	3.37 -29%	4.82 2%	2.54 -46%		7.85 ?(0.78 - 30.8, n=66, last 2 years) 66%
3840x2160 Energy (energy-03)	6.6	3.02 -54%	16.9 156%	7.39 12%	5.33 -19%	1.9 -71%		11.3 ?(0.52 - 47.9, n=66, last 2 years) 71%
3840x2160 Creo (creo-03)	17.5	15.3 -13%	28.9 65%	15.1 -14%	19.1 9%	12.7 -27%		30.7 ?(7.73 - 97.5, n=66, last 2 years) 75%
3840x2160 CATIA (catia-06)	13.1	8.2 -37%	20.4 56%	8.23 -37%	13.1 0%	7.63 -42%		18.6 ?(4.61 - 64.1, n=65, last 2 years) 42%
3840x2160 3ds Max (3dsmax-07)	9.26	9.67 4%	17.5 89%	9.65 4%	11.3 22%	8.65 -7%		22.5 ?(5.53 - 87.5, n=66, last 2 years) 143%
3840x2160 Siemens NX (snx-04)	33	6.69 -80%	58.5 77%	6.23 -81%	38 15%	6.61 -80%		37.2 ?(2.25 - 224, n=64, last 2 years) 13%
3840x2160 Maya (maya-06)	29.5	24 -19%	47.4 61%	23.7 -20%	25.8 -13%	21.2 -28%		58.9 ?(12.2 - 223, n=66, last 2 years) 100%
Total Average (Program / Settings)		-29% / -29%	64% / 64%	-28% / -28%	2% / 2%	-39% / -39%	-37% / -37%	55% / 54%

3DMark 06 Score 1366x768		25274 points
3DMark Vantage P Result		24874 points
3DMark 11 Performance		6723 points
3DMark Ice Storm Standard Score		127954 points
3DMark Cloud Gate Standard Score		21960 points
3DMark Fire Strike Score		4002 points
3DMark Fire Strike Extreme Score		2090 points
3DMark Time Spy Score		1591 points
Help

... in comparison

游戏性能

我们的评测规格 Maxtang MTN-FP750 在游戏方面的适用性有限。性能相对较强的 AMD Radeon 680M 并不能充分发挥其威力。因此，我们建议安装两个内存模块以获得最佳性能。有关游戏性能的粗略指南可参见 Geekom AS 6.

如需进一步比较和基准测试，请查看我们的 GPU 游戏列表.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	107.7 fps +48%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps +33%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	86.9 fps +19%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	85.6 (16^min, 36.2^P0.1, 60.2^P1) fps +17%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	80.8 fps +11%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	74 (26^min, 29.9^P0.1, 42.4^P1) fps +1%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	73 (13.3^min, 24.8^P0.1, 40.9^P1) fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	39.3 fps +66%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps +35%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	30.2 (5.17^min, 14.7^P0.1, 16.3^P1) fps +27%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	28.9 fps +22%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	26.2 fps +11%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	26 (20.8^min, 21.4^P0.1, 22.6^P1) fps +10%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	23.7 (12.8^min, 13.7^P0.1, 19^P1) fps

Borderlands 3
1280x720 Very Low Overall Quality (DX11)
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	68 fps +17%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	66.4 fps +14%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	59.1 fps +2%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	58.2 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	51.8 fps -11%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	46 fps -21%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	42.2 fps -27%
1920x1080 High Overall Quality (DX11)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	26.2 fps +67%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	16.4 fps +4%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	16.2 fps +3%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	15.7 fps
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	14.8 fps -6%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	12.1 fps -23%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	11.2 fps -29%

GTA V
1024x768 Lowest Settings possible
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	140.1 (17.4^min, 90.9^P1) fps +47%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	135.3 (26.7^min, 90.9^P1) fps +42%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	129.9 (16.1^min, 83.3^P1) fps +36%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	125.5 (11.9^min, 83.3^P1) fps +31%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	119.3 (25.1^min, 76.9^P1) fps +25%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	118.3 (10.2^min, 76.9^P1) fps +24%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	95.5 (8.24^min, 62.5^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	49.2 (13.3^min, 33.3^P1) fps +74%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	35.1 (10.8^min, 25.6^P1) fps +24%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	28.2 (4.09^min, 18.5^P1) fps
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	21 (8.15^min, 16.1^P1) fps -26%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	18.6 (8^min, 14.3^P1) fps -34%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	18.5 (6.9^min, 14.3^P1) fps -34%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	16.9 (5.82^min, 13^P1) fps -40%

Far Cry 5
1280x720 Low Preset AA:T
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	68 (58^min) fps +48%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	62 (56^min) fps +35%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	57 (49^min) fps +24%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	50 (41^min) fps +9%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	50 (44^min) fps +9%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	46 (38^min) fps 0%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	46 (37^min) fps
1920x1080 High Preset AA:T
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	38 (32^min) fps +73%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	27 (24^min) fps +23%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	27 (24^min) fps +23%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (22^min) fps +14%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	22 (19^min) fps 0%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	22 (19^min) fps
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	21 (18^min) fps -5%

Far Cry New Dawn
1280x720 Low Preset
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	58 (46^min) fps +45%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	56 (43^min) fps +40%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	52 (31^min) fps +30%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	48 (32^min) fps +20%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	46 (28^min) fps +15%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	45 (29^min) fps +13%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	40 (23^min) fps
1920x1080 High Preset
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	36 (29^min) fps +71%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	28 (21^min) fps +33%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	27 (22^min) fps +29%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	25 (19^min) fps +19%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	23 (17^min) fps +10%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	22 (16^min) fps +5%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	21 (8^min) fps

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	136.9 (106.8^min) fps +18%
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	134.7 (102.1^min) fps +16%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	129.5 (112.6^min) fps +12%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	115.8 (101.2^min) fps
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	112.4 (89^min) fps -3%
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	110.5 (93.1^min) fps -5%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	108.1 (86.6^min) fps -7%
1920x1080 high (2/3)
Geekom AS 6, R9 6900HX Radeon 680M, R9 6900HX, Kingston NV2 1000GB SNV2S/1000G	69.6 (59.3^min) fps +15%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	68 (62.7^min) fps +12%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	67.7 (59.9^min) fps +12%
Geekom Mini IT12 Iris Xe G7 96EUs, i7-1260P, Kingston OM8SEP4512N-A0	60.9 (55.7^min) fps +1%
Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G	60.5 (53.8^min) fps
Minisforum Venus Series NAB6 UHD Graphics 64EUs, i7-12650H, Kingston OM8PGP4512Q-A0	57.8 (54.5^min) fps -4%
NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530	55 (51.6^min) fps -9%

	low	med.	high	ultra
GTA V (2015)	95.5	85.7	28.2	12.7
The Witcher 3 (2015)	73	46.7	23.7	14.9
Dota 2 Reborn (2015)	115.8	87.4	60.5	53.1
Final Fantasy XV Benchmark (2018)	39.2	20.5	14.6
X-Plane 11.11 (2018)	49.8	39.8	33.8
Far Cry 5 (2018)	46	25	22	21
Strange Brigade (2018)	78.4	31.4	26.7	23.1
Shadow of the Tomb Raider (2018)	53.3	21.8	19.8	16.4
Far Cry New Dawn (2019)	40	23	21	20
Metro Exodus (2019)	43.1	17.6	13.8	11.7
Borderlands 3 (2019)	58.2	24.8	15.7	12.5
F1 2020 (2020)	96.9	49.8	39.1	27.5
F1 2021 (2021)	97	49.8	36.4	16.7
God of War (2022)	19.5	15.9	11.7
GRID Legends (2022)	58.2	45	34.2	26.6
Tiny Tina's Wonderlands (2022)	37.7	28.2	20.2	16.2
F1 22 (2022)	45.6	40.6	32.1	9.25
F1 23 (2023)	45.3	40.1	29.1
Total War Pharaoh (2023)	43.3	33.3	21.6	16.9
Prince of Persia The Lost Crown (2024)		89.3	58.8	58.4

排放 - 经济但不刺耳

噪音排放

在没有压力的情况下，Maxtang MTN-FP750 大部分时间都是静音的。不过，在负载情况下，我们的噪音很快就达到了 45 dB(A)，而且我们只能分辨出中等负载和满载时的微小差异。不过，我们可以将其归结为在测量误差范围之内。遗憾的是，似乎只有两种风扇级别。从表中可以看出 Geekom A5和 NiPoGi AD08在相同情况下噪音更大。

Noise Level

Idle		25.3 / 25.3 / 25.4 dB(A)
Load		45.1 / 45.3 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R (15 cm distance) environment noise: 25 dB(A)

	Maxtang MTN-FP750 R7 7735HS, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Geekom A5 R7 5800H, Vega 8	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	NiPoGi AD08 i7-12650H, UHD Graphics 64EUs
Noise		-3%	-14%	-3%	-7%	-4%	-14%
off / environment *	25	30.2 -21%	30 -20%	29.8 -19%	25 -0%	29.4 -18%	25 -0%
Idle Minimum *	25.3	30.5 -21%	33.2 -31%	29.9 -18%	28.2 -11%	29.4 -16%	31.1 -23%
Idle Average *	25.3	30.5 -21%	33.6 -33%	30.1 -19%	28.2 -11%	29.5 -17%	31.2 -23%
Idle Maximum *	25.4	30.5 -20%	33.6 -32%	30.2 -19%	28.2 -11%	29.7 -17%	31.3 -23%
Load Average *	45.1	30.5 32%	36.8 18%	32.1 29%	47.8 -6%	34.6 23%	51.7 -15%
Load Maximum *	45.3	30.5 33%	39.8 12%	32.5 28%	47.4 -5%	36.1 20%	45.8 -1%

* ... smaller is better

温度

Maxtang MTN-FP750 的外壳在空闲或负载运行时的发热量都很小。我们在设备顶部观察到一个热点，温度仅略低于 40 °C，而设备底部甚至没有达到 35 °C。不过，SoC 的温度会明显升高，虽然温度接近 80 °C，但我们仍处于绿色区域。此外，制造商在 BIOS 中设置的最高温度为 90 °C。在预设的 35 瓦功率限制下，我们仍然无法达到这一温度。

Max. Load

Idle


31.8 °C	31.5 °C	32.6 °C
28.8 °C	33.8 °C	39.7 °C
34.9 °C	35.5 °C	36.4 °C

Maximum: 39.7 °C
Average: 33.9 °C


31.3 °C	29.9 °C	31 °C
34.3 °C	31.2 °C	31.6 °C
34.2 °C	33.8 °C	33 °C

Maximum: 34.3 °C
Average: 32.3 °C

Power Supply (max.) 38.2 °C | Room Temperature 21.9 °C | Fluke t3000FC (calibrated)

(±) The average temperature for the upper side under maximal load is 33.9 °C / 93 F, compared to the average of 32.3 °C / 90 F for the devices in the class Mini PC.
(+) The maximum temperature on the upper side is 39.7 °C / 103 F, compared to the average of 35.8 °C / 96 F, ranging from 24 to 69.5 °C for the class Mini PC.
(+) The bottom heats up to a maximum of 34.3 °C / 94 F, compared to the average of 36.1 °C / 97 F
(+) In idle usage, the average temperature for the upper side is 29.4 °C / 85 F, compared to the device average of 32.3 °C / 90 F.

耗电量

在我们的比较中，Maxtang MTN-FP750 属于最经济的设备。空闲运行时，我们已经记录到了非常低的功耗，仅为 7 至 8.4 瓦。只有 Geekom A5 和 Geekom Mini IT12 能达到类似的低耗电水平。在负载情况下，我们的评测样本继续保持相对经济的状态，我们的测量设备记录到的峰值功耗仅为 61.4 瓦。考虑到处理器的功耗限制，负载情况下的能耗要求并不特别令人惊讶。

这意味着 90 瓦的 PSU 在为迷你 PC 可靠地提供足够的能量方面从未遇到过任何问题。PSU 甚至可以轻松应对手动功耗调节。

Power Consumption

Off / Standby	0.95 / 0.75 Watt
Idle	7 / 8.1 / 8.4 Watt
Load	54.2 / 61.4 Watt


Key: min: , med: , max: Metrahit Energy

	Maxtang MTN-FP750 R7 7735HS, Radeon 680M	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Geekom AS 6, R9 6900HX R9 6900HX, Radeon 680M	Geekom Mini IT12 i7-1260P, Iris Xe G7 96EUs	Geekom A5 R7 5800H, Vega 8	Minisforum Venus Series NAB6 i7-12650H, UHD Graphics 64EUs	NiPoGi AD08 i7-12650H, UHD Graphics 64EUs	Average AMD Radeon 680M	Average of class Mini PC
Power Consumption		-73%	-23%	-2%	-12%	-50%	-107%	-10%	-48%
Idle Minimum *	7	12.1 -73%	6.8 3%	5 29%	6.9 1%	10.4 -49%	14.2 -103%	6.94 ?(2.2 - 14.6, n=33) 1%	9.68 ?(1.9 - 45.7, n=120, last 2 years) -38%
Idle Average *	8.1	13 -60%	9.4 -16%	7 14%	7.9 2%	12.3 -52%	15.1 -86%	8.92 ?(4.4 - 15, n=33) -10%	11.8 ?(1.9 - 47.5, n=118, last 2 years) -46%
Idle Maximum *	8.4	18.2 -117%	13.7 -63%	10.7 -27%	8.9 -6%	12.4 -48%	28.7 -242%	10.5 ?(5.1 - 18.6, n=33) -25%	15.2 ?(2.6 - 57.1, n=120, last 2 years) -81%
Load Average *	54.2	70.6 -30%	45.3 16%	50.3 7%	60.8 -12%	72.9 -35%	76.9 -42%	53.9 ?(20 - 80.4, n=33) 1%	59.2 ?(11.3 - 170.6, n=120, last 2 years) -9%
Load Maximum *	61.4	113 -84%	94.8 -54%	82 -34%	89.7 -46%	101.2 -65%	100.2 -63%	70.8 ?(48 - 103.2, n=33) -15%	100.9 ?(18.1 - 423, n=120, last 2 years) -64%

* ... smaller is better

Power consumption with an external monitor

Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Prime95 V2810 Stress (external Monitor): Ø60.8 (60.4-61.4)

NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Prime95 V2810 Stress (external Monitor): Ø76.4 (66.8-99.1)

Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Cinebench R15 Multi (external Monitor): Ø55.8 (54.7-56.4)

NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Cinebench R15 Multi (external Monitor): Ø91.3 (90.8-91.9)

Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø57.3 (55.4-61)

NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø59.8 (56.9-71.5)

Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Idle 1min (external Monitor): Ø8.48 (2.87-15.8)

NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Idle 1min (external Monitor): Ø22.3 (12.4-25.4)

Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Cinebench R23 Single (external Monitor): Ø34.2 (31.9-51.8)

NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Cinebench R23 Single (external Monitor): Ø58.1 (55.9-85.1)

Maxtang MTN-FP750 Radeon 680M, R7 7735HS, Foresee VP1000F512G; Cinebench R23 Multi (external Monitor): Ø56.2 (54.9-57)

NiPoGi AD08 UHD Graphics 64EUs, i7-12650H, Netac NS512GSSD530; Cinebench R23 Multi (external Monitor): Ø79.7 (26.6-92.6)

Pros

+ 坚固的金属机箱

+ AMD Ryzen 7，8 核 16 线程

+ AMD Radeon 680M

+ 2.5G 局域网

+ VESA 安装选项

+ 易于打开

+ 低能耗要求

Cons

- 只有一个内存模块

- SoC 缺乏涡轮增压（35 瓦 PL1 和 PL2）

- 在负载情况下有声音

- 无 USB4 端口

结论：性能更佳，但需经过优化

Maxtang MTN-FP750 是一款相对简单的迷你 PC，适合家庭或工作场所办公使用。AMD Ryzen 7 7735HS 提供充足的动力，能够处理大多数任务。它的 8 个内核和 16 个线程使这款迷你电脑适用于对性能要求较高的应用。安装的内存为 16 GB，暂时不会造成任何问题。不过，尽管傲腾 MTN-FP750 允许安装 SO-DIMM 模块，但使用单个内存模块还是得到了回报。这意味着，在测试中，傲腾 MTN-FP750 并没有达到我们预期的性能。最明显的性能差异出现在 3D 基准测试中。这个问题可以通过安装额外的内存模块来避免，毫无疑问，这是客户应该注意的问题。

根据数据表，Maxtang MTN-FP750 性能卓越。然而，在测试中，这款迷你电脑未能达到其承诺的功率。

Maxtang MTN-FP750 的最大优势是价格低廉，与我们比较的其他竞争产品相比，它的性能略逊一筹。除非你亲自动手，否则性能会稍差一些，而且无法调整 SoC 的功率限制。我们认为，规定的 35 瓦功率限制有点过于保守。如果是 45 瓦，制造商本可以达成一个很好的折衷方案。内存也是如此，它可以通过第二个模块进行扩展。如果考虑到这两点，从性能上看，Maxtang MTN-FP750 与我们测试过的那台完全不同。

在端口选择方面，这款产品可以说是稳扎稳打。所有重要的端口都有，但仅此而已。没有 Thunderbolt 或 USB4，这略微限制了使用案例的数量。CPU 性能受限的一个积极副作用是 Maxtang MTN-FP750 的能耗要求。在测试中，这款设备的能耗明显低于竞争对手。遗憾的是，这并没有对相对较大的风扇噪音产生积极影响。如果散热概念稍好一些，这方面的成绩会更好。

价格和供应情况

在我们的评测配置中，Maxtang MTN-FP750 可直接从制造商处购买，价格为 440 美元。.

Maxtang MTN-FP750 - 02/27/2024 v7 ^(old)
Sebastian Bade

Chassis

74 / 98 → 76%

Connectivity

56 / 81 → 70%

Weight

82%

Games Performance

64%

Application Performance

93%

Workstation

67%

Temperature

91%

Noise

84%

Average

76%

80%

Mini PC - Weighted Average

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was given to the author by the manufacturer free of charge for the purposes of review. There was no third-party influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

潜在的竞争对手比较

迈腾 MTN-FP750 详细信息

外壳 - 钢琴黑金属和塑料

尺寸比较

特点

交流

配件

维护

性能 - AMD Ryzen 7 7735HS，8 核 16 线程

测试条件

处理器

出厂设置下的 Cinebench 结果（PL1 和 PL2 = 35 瓦）

更高功率目标（PL1 = 54 瓦，PL2 = 65 瓦）下的 Cinebench 结果

Maxtang MTN-FP750 与 Cinebench R15 多回路对比

系统性能

DPC 延迟

大容量存储器

Continuous Performance Read: DiskSpd Read Loop, Queue Depth 8

图形卡

游戏性能

排放 - 经济但不刺耳

噪音排放

温度

耗电量

Power consumption with an external monitor

Pros

Cons

结论：性能更佳，但需经过优化

价格和供应情况

Transparency

More articles related to this device
