Size Comparison
|
Brightness Distribution: 88 %
Center on Battery: 502 cd/m²
Contrast: 1148:1 (Black: 0.48 cd/m²)
ΔE Color 0.8 | 0.5-29.43 Ø4.92
ΔE Greyscale 1 | 0.5-98 Ø5.2
86.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
98.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.16
Apple MacBook Pro 13 2017 Touchbar i5 APPA034, , 2560x1600, 13.3" | Apple MacBook Pro 13 2016 (2.9 GHz) APPA033, , 2560x1600, 13.3" | Apple MacBook Pro 13 2016 APPA034, , 2560x1600, 13.3" | Dell XPS 13 9360 QHD+ i5 Sharp SHP144A, , 3200x1800, 13.3" | Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 B140HAN03_1, , 1920x1080, 14" | |
---|---|---|---|---|---|
Display | 1% | -1% | -22% | -27% | |
Display P3 Coverage | 98.6 | 99.2 1% | 97.1 -2% | 64.6 -34% | 61.4 -38% |
sRGB Coverage | 100 | 99.9 0% | 99.8 0% | 91.6 -8% | 85.9 -14% |
AdobeRGB 1998 Coverage | 86.5 | 87.6 1% | 86.7 0% | 66.5 -23% | 62.4 -28% |
Response Times | -28% | -26% | 21% | 10% | |
Response Time Grey 50% / Grey 80% * | 48 ? | 47.2 ? 2% | 47.2 ? 2% | 31 ? 35% | 41.6 ? 13% |
Response Time Black / White * | 33.6 ? | 53 ? -58% | 51.6 ? -54% | 31.2 ? 7% | 31.6 ? 6% |
PWM Frequency | 119000 ? | ||||
Screen | -35% | -38% | -129% | -210% | |
Brightness middle | 551 | 569 3% | 600 9% | 444 -19% | 311 -44% |
Brightness | 514 | 542 5% | 564 10% | 393 -24% | 288 -44% |
Brightness Distribution | 88 | 90 2% | 89 1% | 82 -7% | 85 -3% |
Black Level * | 0.48 | 0.56 -17% | 0.57 -19% | 0.33 31% | 0.24 50% |
Contrast | 1148 | 1016 -11% | 1053 -8% | 1345 17% | 1296 13% |
Colorchecker dE 2000 * | 0.8 | 1.4 -75% | 1.5 -88% | 4 -400% | 5.5 -588% |
Colorchecker dE 2000 max. * | 1.4 | 2.9 -107% | 2.9 -107% | 7.7 -450% | 9 -543% |
Greyscale dE 2000 * | 1 | 1.8 -80% | 2 -100% | 2.83 -183% | 6.2 -520% |
Gamma | 2.16 102% | 2.16 102% | 2.27 97% | 2.05 107% | 2.02 109% |
CCT | 6672 97% | 6877 95% | 6855 95% | 6963 93% | 5950 109% |
Color Space (Percent of AdobeRGB 1998) | 78.4 | 77 | 59.3 | 55.96 | |
Color Space (Percent of sRGB) | 99.3 | 92 | 91.4 | 85.77 | |
Total Average (Program / Settings) | -21% /
-26% | -22% /
-27% | -43% /
-81% | -76% /
-134% |
* ... smaller is better
Display Response Times

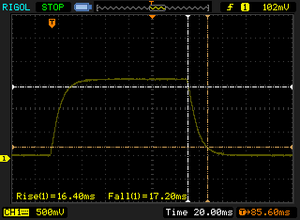

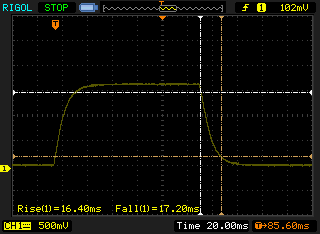

↔ Response Time Black to White | ||
---|---|---|
33.6 ms ... rise ↗ and fall ↘ combined | ↗ 16.4 ms rise | |
↘ 17.2 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 89 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms). | ||

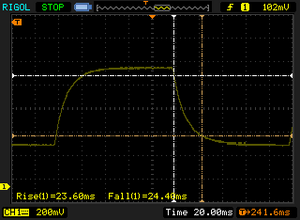

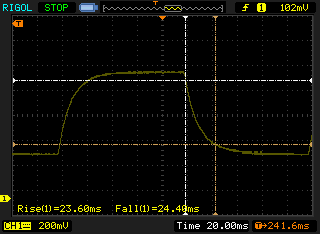

↔ Response Time 50% Grey to 80% Grey | ||
48 ms ... rise ↗ and fall ↘ combined | ↗ 23.6 ms rise | |
↘ 24.4 ms fall | ||
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 81 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms). |

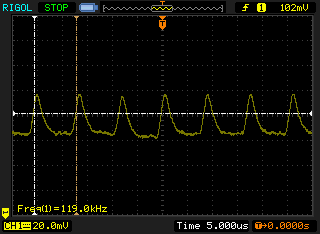

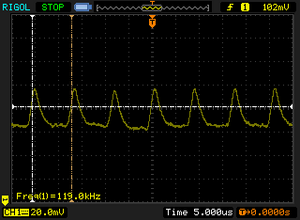

Screen Flickering / PWM (Pulse-Width Modulation)
Screen flickering / PWM detected | 119000 Hz | ≤ 80 % brightness setting | |
The display backlight flickers at 119000 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 80 % and below. There should be no flickering or PWM above this brightness setting. The frequency of 119000 Hz is quite high, so most users sensitive to PWM should not notice any flickering. In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8747 (minimum: 5 - maximum: 343500) Hz was measured. |
Cinebench R15 | |
CPU Single 64Bit | |
Acer Predator 17 G9-793-70PJ | |
Dell XPS 13 9360 FHD i7 Iris | |
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 | |
Apple MacBook Pro 13 2017 Touchbar i5 | |
Apple MacBook Pro 13 2016 (2.9 GHz) | |
CPU Multi 64Bit | |
Acer Predator 17 G9-793-70PJ | |
Apple MacBook Pro 13 2017 Touchbar i5 | |
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 | |
Apple MacBook Pro 13 2016 (2.9 GHz) | |
Dell XPS 13 9360 FHD i7 Iris |
PCMark 8 | |
Home Score Accelerated v2 | |
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 | |
Dell XPS 13 9360 FHD i7 Iris | |
Apple MacBook Pro 13 2017 Touchbar i5 | |
Apple MacBook Pro 13 2016 (2.9 GHz) | |
Apple MacBook Pro 13 2016 | |
Work Score Accelerated v2 | |
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 | |
Dell XPS 13 9360 FHD i7 Iris | |
Apple MacBook Pro 13 2016 (2.9 GHz) | |
Apple MacBook Pro 13 2017 Touchbar i5 | |
Apple MacBook Pro 13 2016 |
PCMark 8 Home Score Accelerated v2 | 3829 points | |
PCMark 8 Creative Score Accelerated v2 | 5188 points | |
PCMark 8 Work Score Accelerated v2 | 4081 points | |
PCMark 10 Score | 3427 points | |
Help |
Apple MacBook Pro 13 2017 Touchbar i5 Apple SSD AP0256 | Apple MacBook Pro 13 2016 (2.9 GHz) Apple SSD AP0256 | Apple MacBook Pro 13 2016 Apple SSD AP0256 | Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 Samsung PM961 NVMe MZVLW512HMJP | Dell XPS 13 9360 QHD+ i5 Toshiba NVMe THNSN5256GPUK | |
---|---|---|---|---|---|
CrystalDiskMark 3.0 | 42% | 36% | 263% | 148% | |
Read Seq | 1540 | 1662 8% | 1345 -13% | 1827 19% | 1168 -24% |
Write Seq | 1353 | 1336 -1% | 1320 -2% | 1383 2% | 329 -76% |
Read 512 | 926 | 1183 28% | 831 -10% | 814 -12% | 1015 10% |
Write 512 | 698 | 1481 112% | 1486 113% | 1098 57% | 307 -56% |
Read 4k | 9.92 | 16.1 62% | 31.68 219% | 61 515% | 33 233% |
Write 4k | 10.74 | 23.5 119% | 11.02 3% | 172.2 1503% | 132 1129% |
Read 4k QD32 | 618 | 657 6% | 533 -14% | 601 -3% | 525 -15% |
Write 4k QD32 | 403.8 | 419 4% | 362 -10% | 495.6 23% | 325 -20% |
AS SSD | 21% | -2% | 181% | -68% | |
Seq Read | 2327 | 2405 3% | 2275 -2% | 2434 5% | 1412 -39% |
Seq Write | 1364 | 1499 10% | 1435 5% | 1506 10% | 46 -97% |
4K Read | 12.7 | 18.8 48% | 13.3 5% | 56.8 347% | |
4K Write | 19.3 | 26.1 35% | 15.4 -20% | 151.1 683% | |
4K-64 Read | 852 | 894 5% | 904 6% | 1022 20% | |
4K-64 Write | 419 | 448 7% | 417 0% | 905 116% | |
Access Time Read * | 0.26 | 0.156 40% | 0.288 -11% | 0.028 89% | |
Access Time Write * | 0.027 | ||||
Total Average (Program / Settings) | 32% /
32% | 17% /
18% | 222% /
225% | 40% /
105% |
* ... smaller is better
3DMark 11 - 1280x720 Performance GPU | |
Apple MacBook Pro 15 2016 (2.6 GHz, 450) | |
Apple MacBook Pro 13 2017 Touchbar i5 | |
Apple MacBook Pro 13 2016 (2.9 GHz) | |
Apple MacBook Pro 13 2016 | |
Dell XPS 13 9360 FHD i7 Iris | |
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 |
3DMark | |
1280x720 Cloud Gate Standard Graphics | |
Apple MacBook Pro 15 2016 (2.6 GHz, 450) | |
Apple MacBook Pro 13 2016 (2.9 GHz) | |
Apple MacBook Pro 13 2017 Touchbar i5 | |
Dell XPS 13 9360 FHD i7 Iris | |
Apple MacBook Pro 13 2016 | |
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 | |
1920x1080 Fire Strike Graphics | |
Apple MacBook Pro 15 2016 (2.6 GHz, 450) | |
Apple MacBook Pro 13 2017 Touchbar i5 | |
Apple MacBook Pro 13 2016 (2.9 GHz) | |
Apple MacBook Pro 13 2016 | |
Dell XPS 13 9360 FHD i7 Iris | |
Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 |
3DMark 06 Standard Score | 15175 points | |
3DMark 11 Performance | 2924 points | |
3DMark Cloud Gate Standard Score | 8403 points | |
3DMark Fire Strike Score | 1586 points | |
3DMark Time Spy Score | 623 points | |
Help |
low | med. | high | ultra | |
---|---|---|---|---|
BioShock Infinite (2013) | 84 | 54.4 | 46.5 | 13.3 |
GTA V (2015) | 56.5 | 49.9 | 11.6 | 5 |
The Witcher 3 (2015) | 21.4 | |||
Dota 2 Reborn (2015) | 95 | 64 | 29.7 | 25 |
Rainbow Six Siege (2015) | 54.2 | 35.6 | 20.8 | |
Rise of the Tomb Raider (2016) | 25.9 | 18.3 | ||
Far Cry Primal (2016) | 32 | 15 | ||
The Division (2016) | 30 | |||
Overwatch (2016) | 79.2 | 57.4 | 25.6 | 21.4 |
Deus Ex Mankind Divided (2016) | 19.2 | 14.6 | 8.2 | |
Battlefield 1 (2016) | 46.1 | 29.5 | ||
Civilization VI (2016) | 42.2 | 20.2 | ||
Farming Simulator 17 (2016) | 36.8 | 19.9 | ||
Titanfall 2 (2016) | 54.1 | 37.9 | ||
Call of Duty Infinite Warfare (2016) | 32.4 | |||
Dishonored 2 (2016) | 15 | |||
For Honor (2017) | 39.7 | 15.2 | ||
Ghost Recon Wildlands (2017) | 17.6 | |||
Mass Effect Andromeda (2017) | 25.8 | 10.5 | ||
Prey (2017) | 51.4 | 20.2 | ||
Rocket League (2017) | 113 | 56.8 | 38.9 | |
Dirt 4 (2017) | 64 | 21.3 | 14.2 |
Noise Level
Idle |
| 30.6 / 30.6 / 30.6 dB(A) |
HDD |
| 30.6 dB(A) |
Load |
| 41.8 / 41.8 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Audix TM1, Arta (15 cm distance) environment noise: 30.6 dB(A) |
(±) The maximum temperature on the upper side is 43 °C / 109 F, compared to the average of 36.1 °C / 97 F, ranging from 21.4 to 281 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 39 °C / 102 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.7 °C / 75 F, compared to the device average of 30.8 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 35.6 °C / 96 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-2.7 °C / -4.9 F).
Apple MacBook Pro 13 2017 Touchbar i5 Iris Plus Graphics 650, i5-7267U, Apple SSD AP0256 | Apple MacBook Pro 13 2016 (2.9 GHz) Iris Graphics 550, 6267U, Apple SSD AP0256 | Apple MacBook Pro 13 2016 Iris Graphics 540, 6360U, Apple SSD AP0256 | Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP | Dell XPS 13 9360 QHD+ i5 HD Graphics 620, i5-7200U, Toshiba NVMe THNSN5256GPUK | |
---|---|---|---|---|---|
Heat | -2% | -4% | -5% | -11% | |
Maximum Upper Side * | 43 | 45 -5% | 42 2% | 48 -12% | 40 7% |
Maximum Bottom * | 39 | 39 -0% | 41 -5% | 47.2 -21% | 42 -8% |
Idle Upper Side * | 25 | 26 -4% | 26 -4% | 23.5 6% | 28 -12% |
Idle Bottom * | 24 | 24 -0% | 26 -8% | 22.6 6% | 31 -29% |
* ... smaller is better
Apple MacBook Pro 13 2017 Touchbar i5 audio analysis
(+) | speakers can play relatively loud (86.2 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.5% lower than median
(±) | linearity of bass is average (10.8% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.2% higher than median
(+) | mids are linear (6.4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (5.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (11.9% difference to median)
Compared to same class
» 12% of all tested devices in this class were better, 4% similar, 84% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 7% of all tested devices were better, 2% similar, 91% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis
(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%
Off / Standby | 0.17 / 0.5 Watt |
Idle | 2.8 / 10.9 / 11.4 Watt |
Load |
55.4 / 57.5 Watt |
Key:
min: ,
med: ,
max: Metrahit Energy |
Power Consumption - 1920x1080 The Witcher 3 ultra (external Monitor) | |
Apple MacBook Pro 15 2017 (2.8 GHz, 555) (13 fps, Idle: 13.2 W) | |
Apple MacBook Pro 13 2017 Touchbar i5 (4.8 fps, Idle: 7.5 W) |
* ... smaller is better
Apple MacBook Pro 13 2017 Touchbar i5 i5-7267U, Iris Plus Graphics 650, 2560x1600, 13.3" | Apple MacBook Pro 13 2016 (2.9 GHz) 6267U, Iris Graphics 550, 2560x1600, 13.3" | Apple MacBook Pro 13 2016 6360U, Iris Graphics 540, 2560x1600, 13.3" | Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 i7-7500U, HD Graphics 620, 1920x1080, 14" | Dell XPS 13 9360 QHD+ i5 i5-7200U, HD Graphics 620, 3200x1800, 13.3" | Apple MacBook Pro 15 2016 (2.6 GHz, 450) 6700HQ, Radeon Pro 450, 2880x1800, 15.4" | |
---|---|---|---|---|---|---|
Power Consumption | 15% | 16% | 14% | 29% | -11% | |
Idle Minimum * | 2.8 | 2.1 25% | 3 -7% | 3.84 -37% | 3.7 -32% | 2.9 -4% |
Idle Average * | 10.9 | 7.6 30% | 8.9 18% | 6.3 42% | 6.1 44% | 9.7 11% |
Idle Maximum * | 11.4 | 8.2 28% | 8.9 22% | 8.6 25% | 6.5 43% | 10.1 11% |
Load Average * | 55.4 | 56.4 -2% | 43.4 22% | 41.9 24% | 29.5 47% | 65 -17% |
Load Maximum * | 57.5 | 59.8 -4% | 42.1 27% | 48.7 15% | 33 43% | 89.5 -56% |
* ... smaller is better
Apple MacBook Pro 13 2017 Touchbar i5 i5-7267U, Iris Plus Graphics 650, 49.2 Wh | Apple MacBook Pro 13 2016 (2.9 GHz) 6267U, Iris Graphics 550, 49.2 Wh | Apple MacBook Pro 13 2016 6360U, Iris Graphics 540, 54 Wh | Lenovo ThinkPad X1 Carbon 2017-20HQS03P00 i7-7500U, HD Graphics 620, 57 Wh | Dell XPS 13 9360 QHD+ i5 i5-7200U, HD Graphics 620, 60 Wh | |
---|---|---|---|---|---|
Battery Runtime | 6% | 42% | 41% | 43% | |
H.264 | 415 | 483 16% | 620 49% | 711 71% | 547 32% |
WiFi v1.3 | 519 | 566 9% | 686 32% | 496 -4% | 526 1% |
Load | 70 | 66 -6% | 101 44% | 110 57% | 137 96% |
我们初步测试结果表明这相对来说是一个小更新。新的Intel Kaby Lake处理器相较于前代产品要快一些并且可以长期保持这样的性能,但这不足以让拥有2016版的用户来更新它们的产品。
这块屏幕再次给我们留下了很好的印象,苹果兑现了它提供市场上最好的屏幕的承诺。
我们将会在接下来的几天中完成这份评测同时看看苹果是否解决了前代所留下来的问题(当连USB-C设备是WLAN会出现问题)。敬请期待!
注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。
