华硕 Memo Pad HD 7 ME176C 平板电脑简短评测

新鲜部件。 Memo Pad HD 7 ME176C是Memo Pad HD 7的新一代产品。华硕为这款售价200欧元的7寸平板电脑配备了性能更强的四核处理器和最新版安卓系统。接下来我们将会测试它的改进是否成功。
Android Tablet
220 mm 141.5 mm 9.9 mm 451 g216.8 mm 126.5 mm 8.3 mm 338 g200 mm 114 mm 8.65 mm 290 g196.6 mm 120 mm 10.8 mm 302 g189.3 mm 113.7 mm 9.6 mm 295 g188 mm 111.1 mm 9.9 mm 300 g210 mm 148 mm 1 mm 2.9 g
354
cd/m²
359
cd/m²
330
cd/m²
365
cd/m²
376
cd/m²
339
cd/m²
373
cd/m²
344
cd/m²
341
cd/m²
Distribution of brightness
LED Backlight tested with X-Rite i1Pro 2
Maximum: 376 cd/m² (Nits) Average: 353.4 cd/m²
Brightness Distribution: 88 %
Center on Battery: 376 cd/m²
Contrast: 637:1 (Black: 0.59 cd/m²)
ΔE Color 5.07 | 0.5-29.43 Ø4.93
ΔE Greyscale 5.58 | 0.5-98 Ø5.2
Gamma: 2.14
PassMark PerformanceTest Mobile V1 - System (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
4266 Points
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
2181 Points -49%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
3636 Points -15%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
4071 Points -5%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
3178 Points -26%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
1488 Points -65%
Epic Citadel - High Quality (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
59.5 fps
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
52.4 fps -12%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
58.1 fps -2%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
59.4 fps 0%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
57.2 fps -4%
3DMark - 1920x1080 Ice Storm Extreme Score (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
5593 Points
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
1572 Points -72%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
7245 Points +30%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
9596 Points +72%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
6178 Points +10%
Linpack Android / IOS - Multi Thread (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
326.9 MFLOPS
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
89.7 MFLOPS -73%
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
89.7 MFLOPS -73%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
253.6 MFLOPS -22%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
532 MFLOPS +63%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
517 MFLOPS +58%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
75.3 MFLOPS -77%
Peacekeeper - --- (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
1005 Points
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
523 Points -48%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
611 Points -39%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
1174 Points +17%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
574 Points -43%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
458 Points -54%
Octane V1 - Total Score (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
5217 Points
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
1484 Points -72%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
2283 Points -56%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
5590 Points +7%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
2774 Points -47%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
1338 Points -74%
WebXPRT 2013 - Overall (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
382 Points
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
149 Points -61%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
267 Points -30%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
243 Points -36%
AndroBench 3-5
Sequential Read 256KB (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
93.3 MB/s
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
48.25 MB/s -48%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
59.7 MB/s -36%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
71.2 MB/s -24%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
60.1 MB/s -36%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
38.08 MB/s -59%
Sequential Write 256KB (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
18.29 MB/s
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
11.76 MB/s -36%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
13.97 MB/s -24%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
9.79 MB/s -46%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
10.45 MB/s -43%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
14.9 MB/s -19%
Random Read 4KB (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
16 MB/s
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
12.07 MB/s -25%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
11.99 MB/s -25%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
5.74 MB/s -64%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
11.34 MB/s -29%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
10.56 MB/s -34%
Random Write 4KB (sort by value)
Asus Memo Pad HD 7 ME176C
HD Graphics (Bay Trail), Z3745, 16 GB eMMC Flash
1.17 MB/s
Asus Memo Pad HD 7
SGX544, MT8125, 16 GB eMMC Flash
0.71 MB/s -39%
Google Nexus 7 2013
Adreno 320, S4 Pro APQ8064A, 16 GB SSD
0.82 MB/s -30%
HP Slate 8 Pro 7600eg
GeForce Tegra 4, 4, 16 GB eMMC Flash
0.77 MB/s -34%
LG G Pad 8.3
Adreno 320, 600 APQ8064T, 16 GB eMMC Flash
1.08 MB/s -8%
Samsung Galaxy Tab 3 7.0 inch
Vivante GC1000+ Dual-Core, PXA986, 8 GB SSD
0.99 MB/s -15%
Max. Load
 35.6 °C29.4 °C29.1 °C
 37.6 °C29.6 °C30 °C
 34.1 °C28.5 °C29 °C
Maximum: 37.6 °C
Average: 31.4 °C
29.1 °C29.8 °C39.7 °C
28.3 °C29.2 °C40.5 °C
28 °C29.4 °C38.9 °C
Maximum: 40.5 °C
Average: 32.5 °C
Power Supply (max.)  45.4 °C | Room Temperature 23 °C | Voltcraft IR-350
(+) The average temperature for the upper side under maximal load is 31.4 °C / 89 F, compared to the average of 30 °C / 86 F for the devices in the class Tablet.
(+) The maximum temperature on the upper side is 37.6 °C / 100 F, compared to the average of 33.7 °C / 93 F, ranging from 20.7 to 53.2 °C for the class Tablet.
(±) The bottom heats up to a maximum of 40.5 °C / 105 F, compared to the average of 33.2 °C / 92 F
(+) In idle usage, the average temperature for the upper side is 29.7 °C / 85 F, compared to the device average of 30 °C / 86 F.
Power Consumption
Off / Standbydarklight 0 / 0.1 Watt
Idledarkmidlight 0.9 / 1.9 / 2.2 Watt
Load midlight 3.3 / 3.7 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
10h 36min
WiFi Surfing
6h 38min
Load (maximum brightness)
4h 43min

新版本的华硕Memo Pad HD 7再一次向我们证明了它是一款很好的产品。尽管Memo Pad HD 7 ME176C仅售200欧元,得力于强大的Intel Atom Z3745四核处理器,它仍然为安卓4.4.2下最新的应用和游戏提供了足够的性能。因此如果你是需要一个实惠的安卓系统第二设备或是一个实惠的设备来进入平板世界,新的Memo Pad HD 7都是个不错的选择,无论是选择8GB闪存的版本或者我们测试的16GB闪存的版本。华硕这次又在运行内存容量上节省了成本——搭配1GB的内存,它可能需要更多的时间来载入程序和游戏。另外一个缺点是它平庸的相机模组照片拍摄质量。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

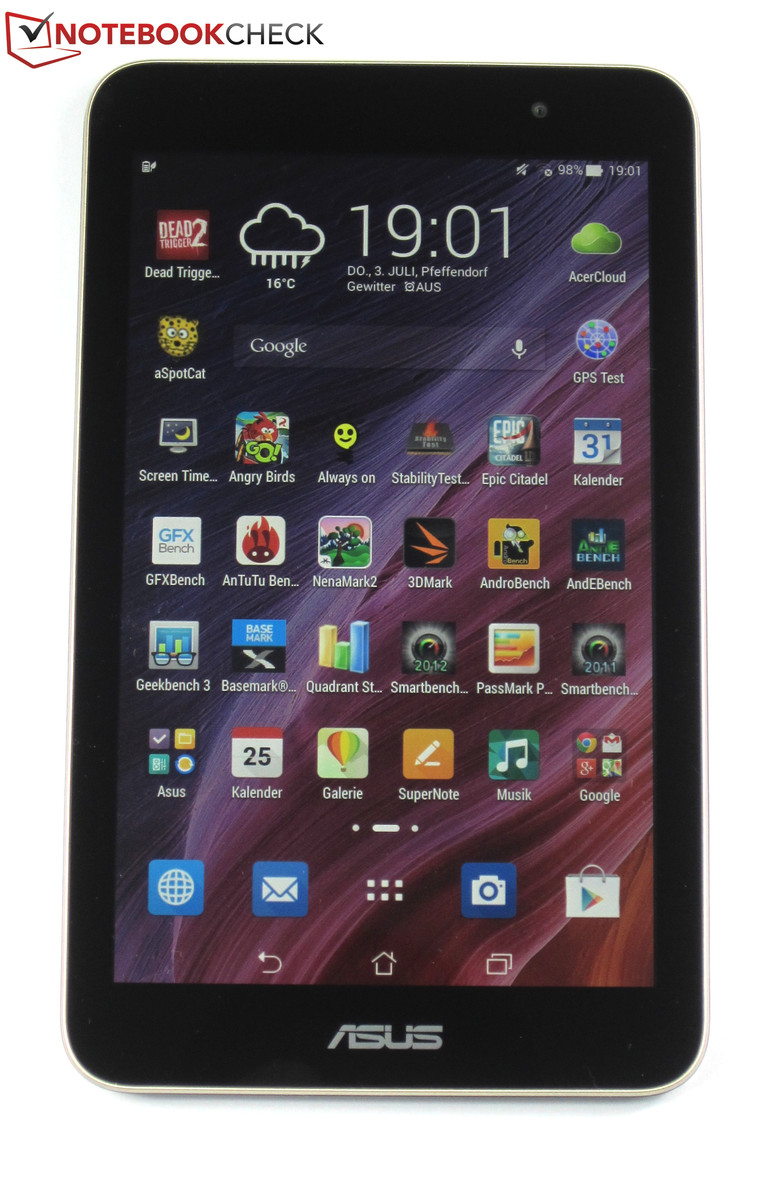

7寸, 四核整合芯片组, 200欧元售价: Asus Memo Pad HD 7 ME176C。
7寸, 四核整合芯片组, 200欧元售价: Asus Memo Pad HD 7 ME176C。
华硕 Memo Pad HD 7 ME176C的屏幕有1280x800像素的分辨率。
华硕 Memo Pad HD 7 ME176C的屏幕有1280x800像素的分辨率。
除了黑色还有白色、黄色、红色和蓝色的机型可选。
除了黑色还有白色、黄色、红色和蓝色的机型可选。

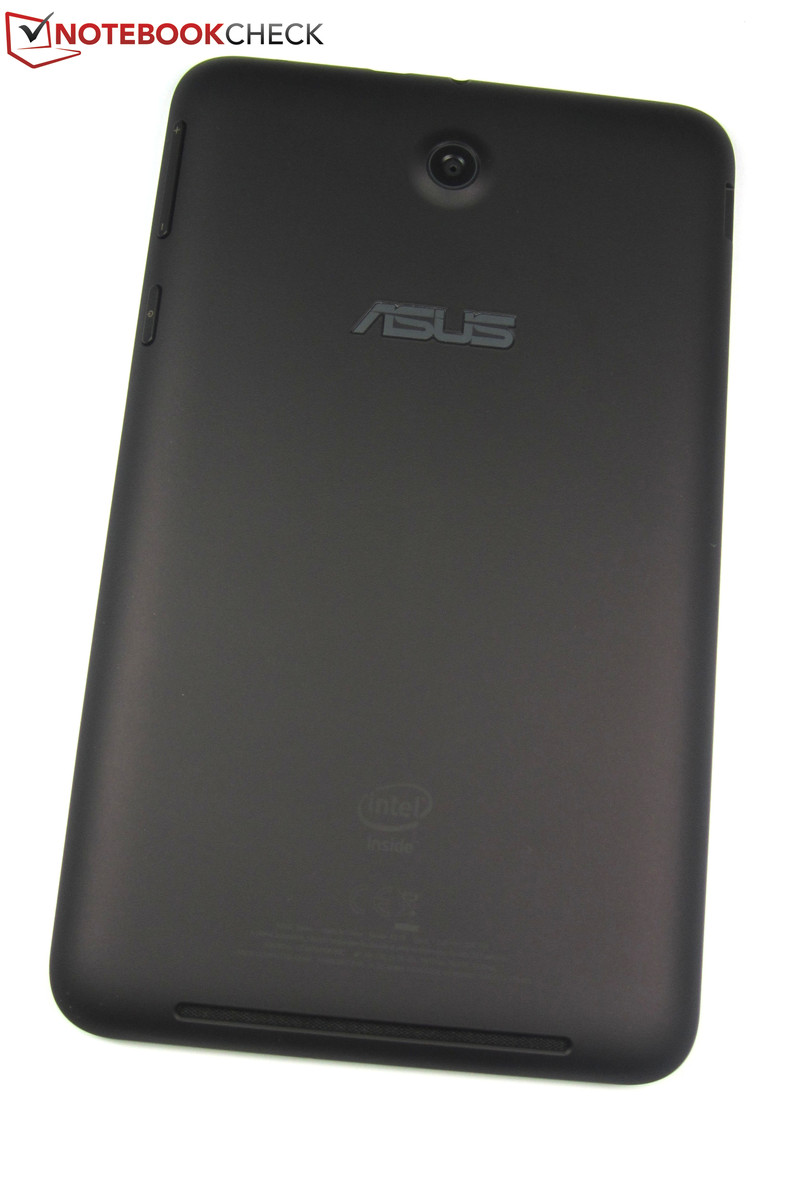

这款华硕平板的背面采用了磨砂和橡胶质感的塑料材料。
这款华硕平板的背面采用了磨砂和橡胶质感的塑料材料。

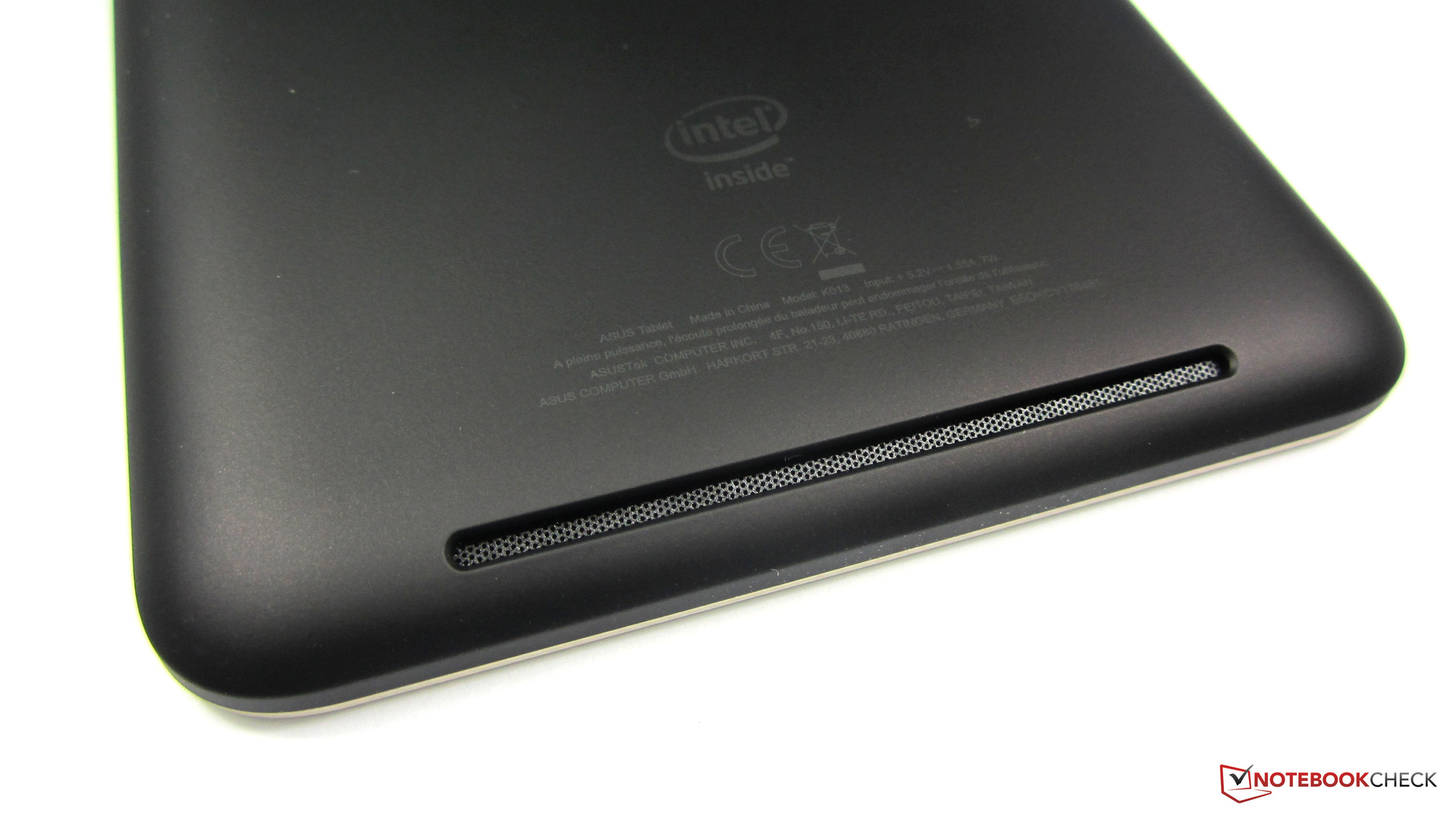

立体声扬声器同样在机背。
立体声扬声器同样在机背。

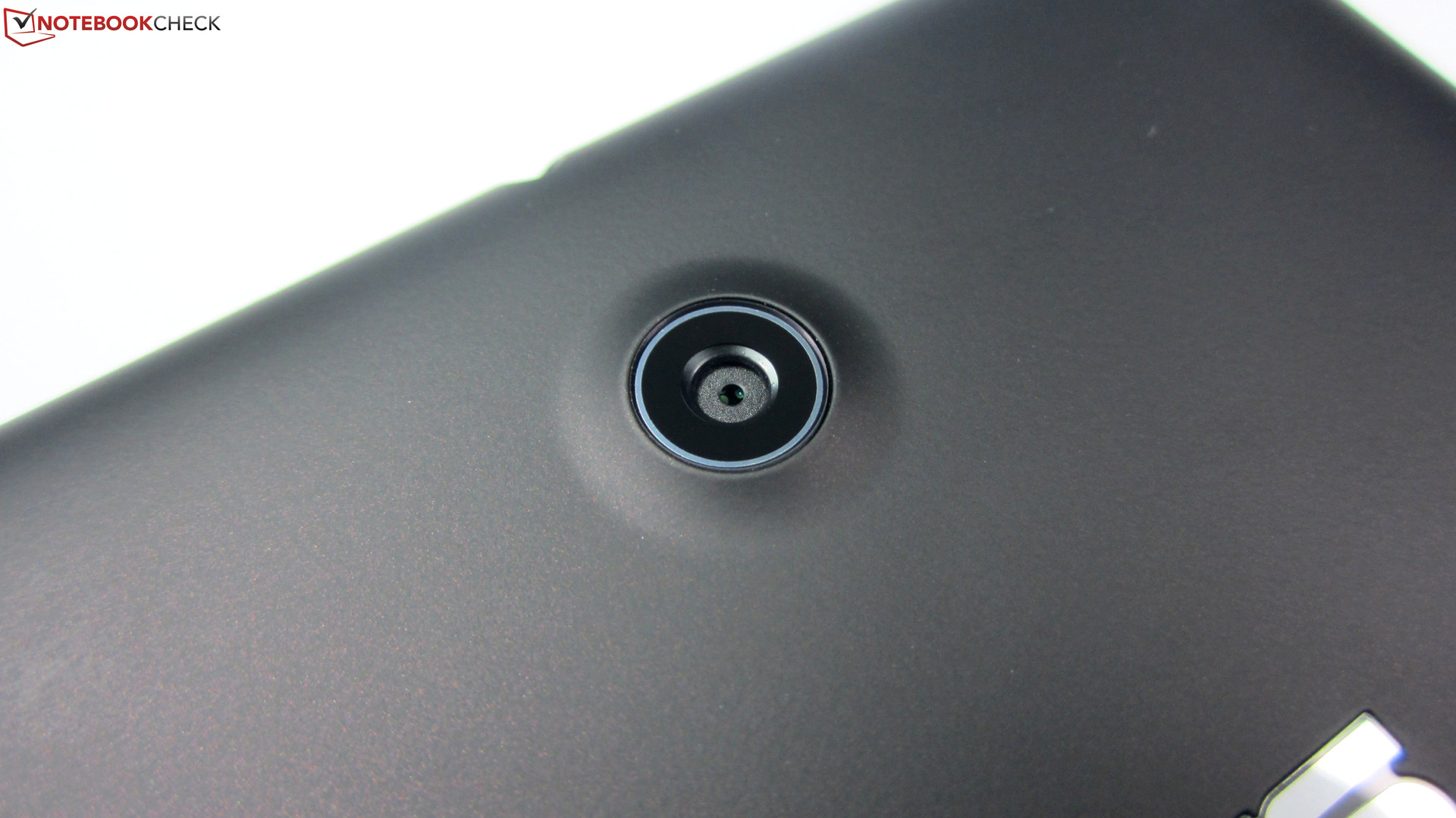

500万像素的相机最大可以拍摄2560x1920像素的照片。
500万像素的相机最大可以拍摄2560x1920像素的照片。

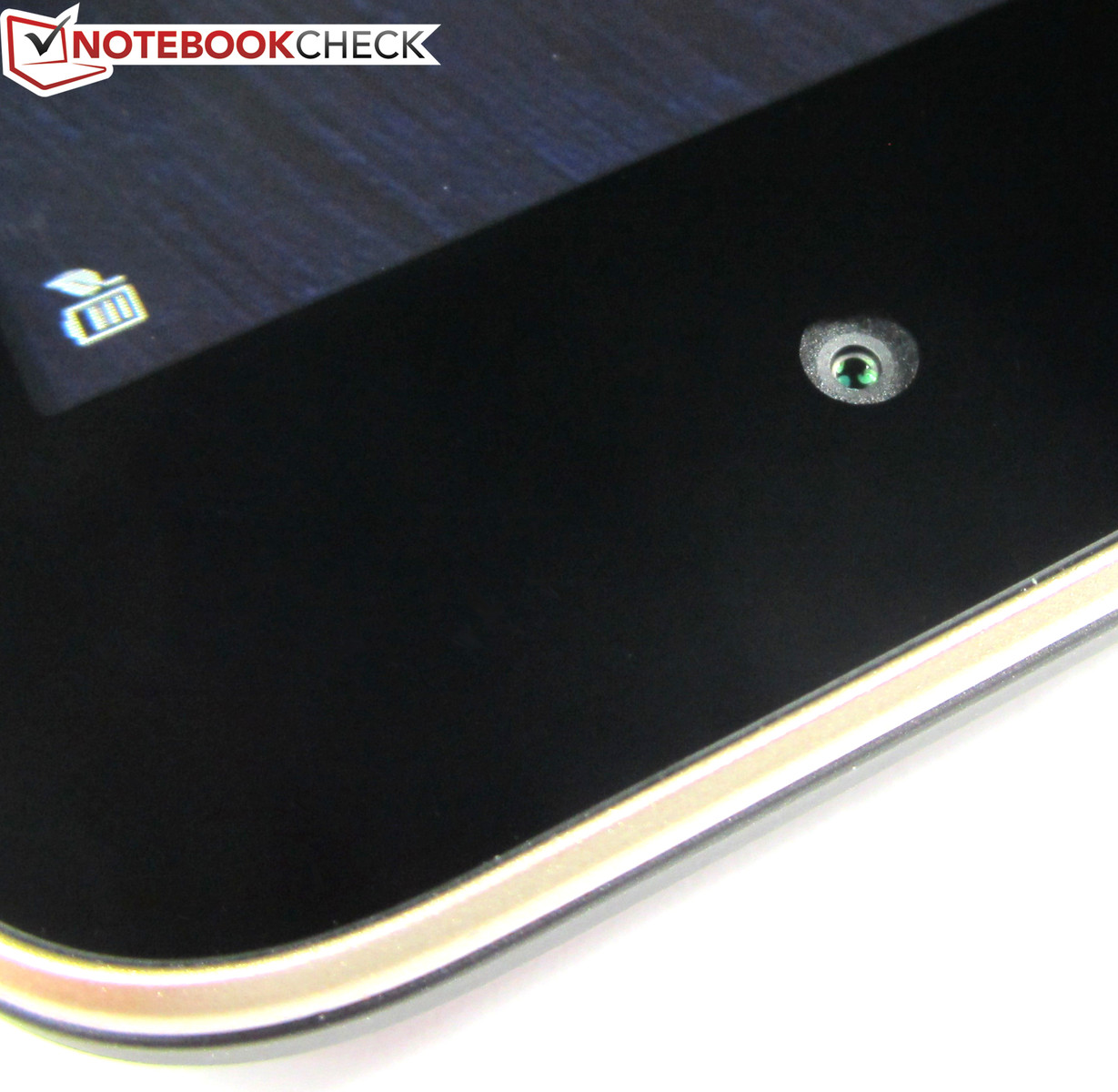

前置摄像头有200万像素的分辨率 (1600x1200 像素)。
前置摄像头有200万像素的分辨率 (1600x1200 像素)。

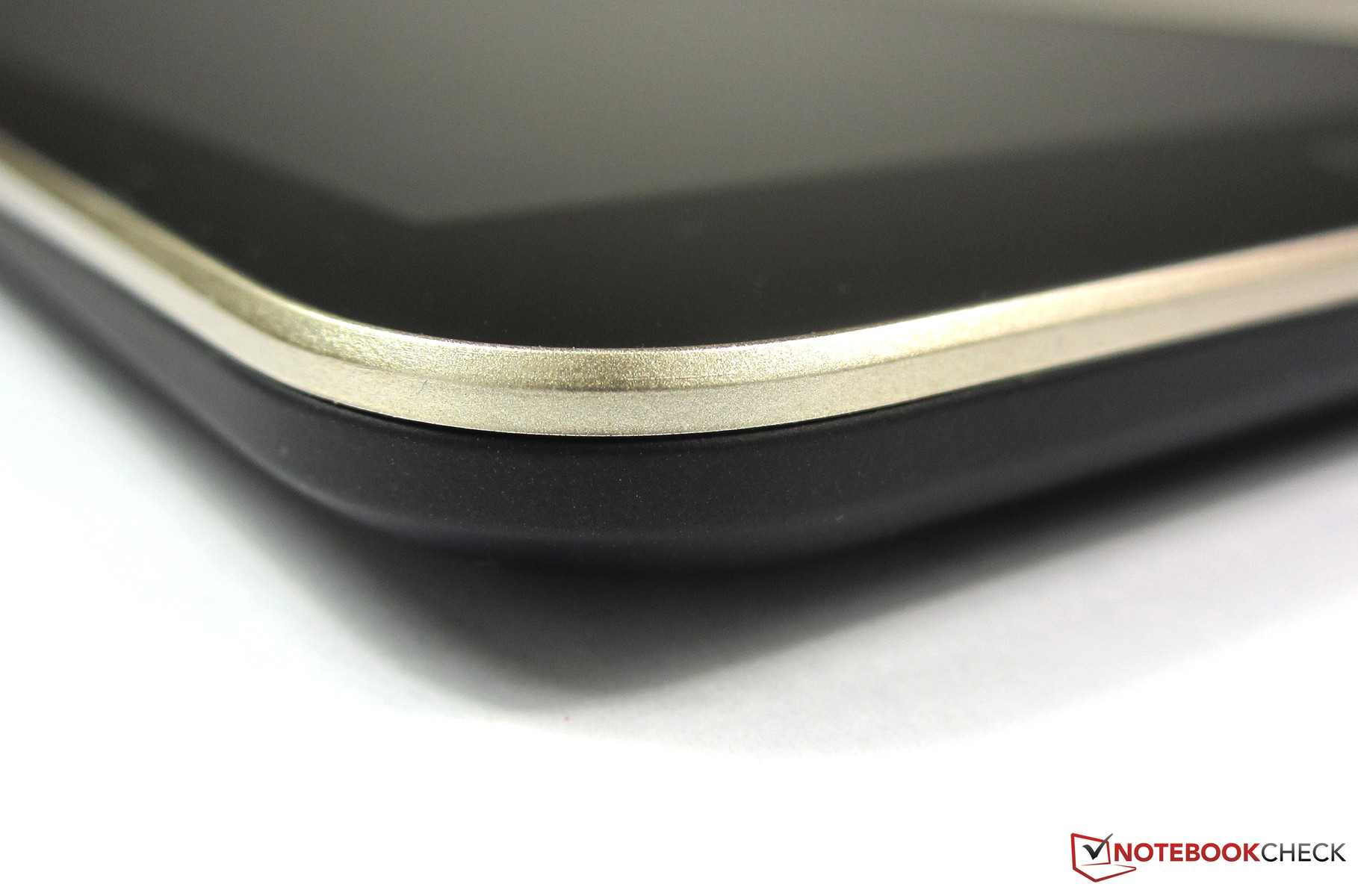

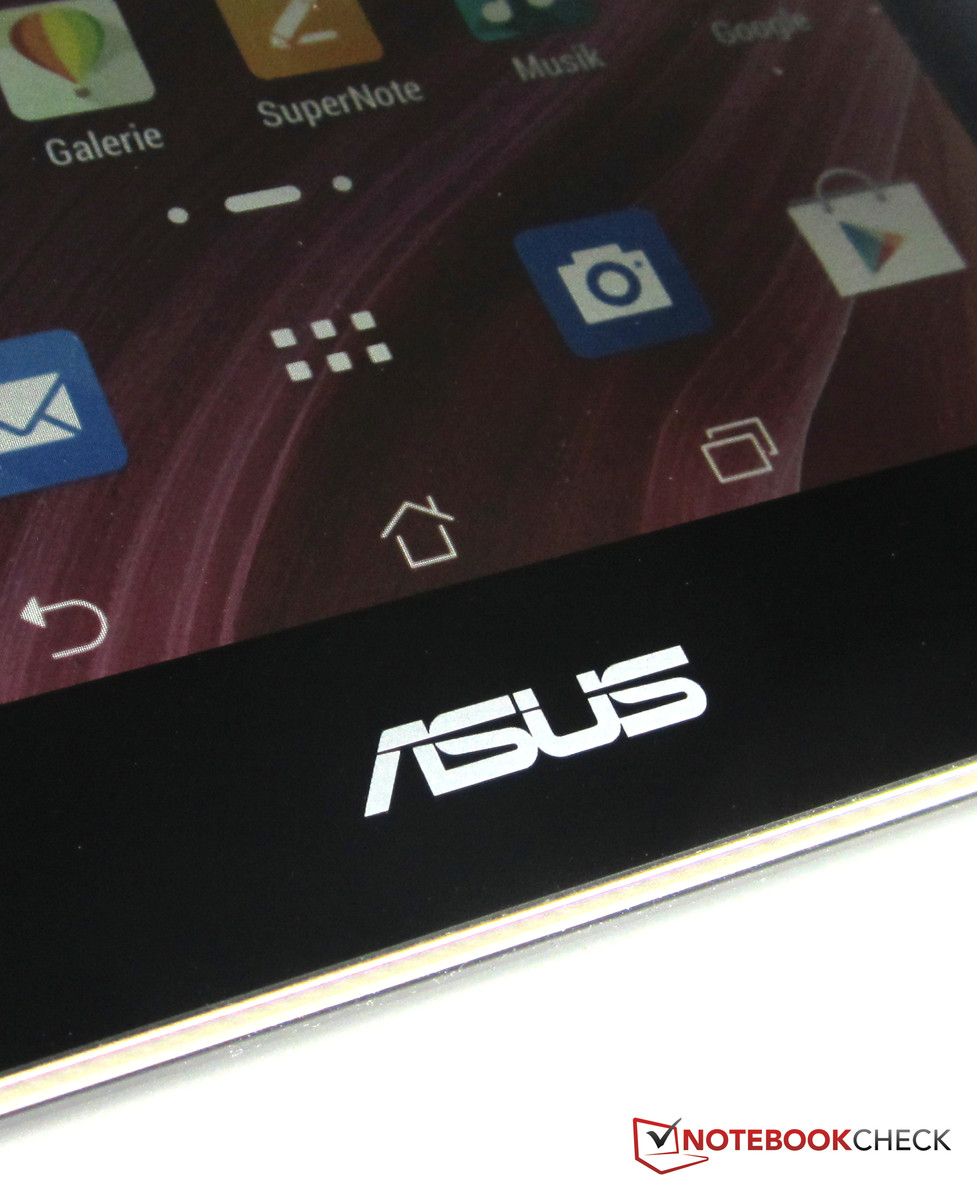

一个金属质感设计的塑料边框包围着这台7寸的平板。
一个金属质感设计的塑料边框包围着这台7寸的平板。

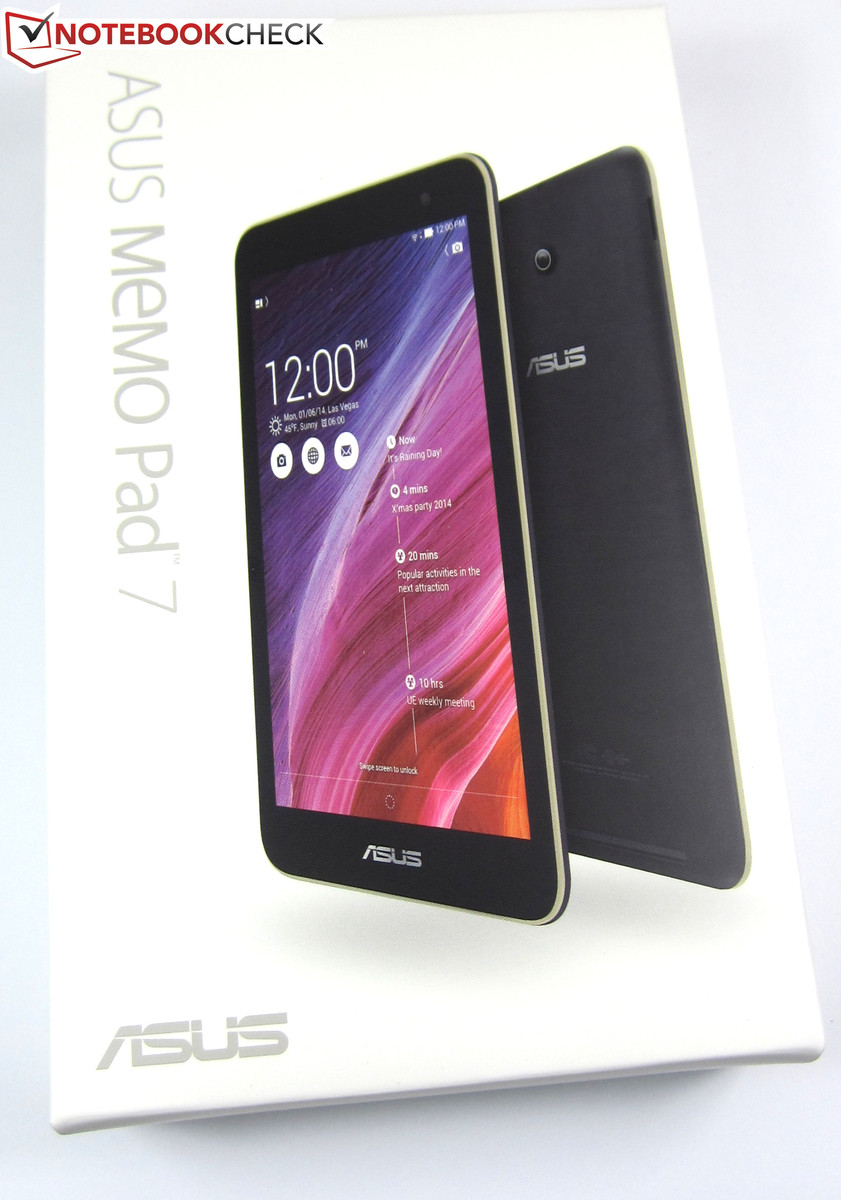

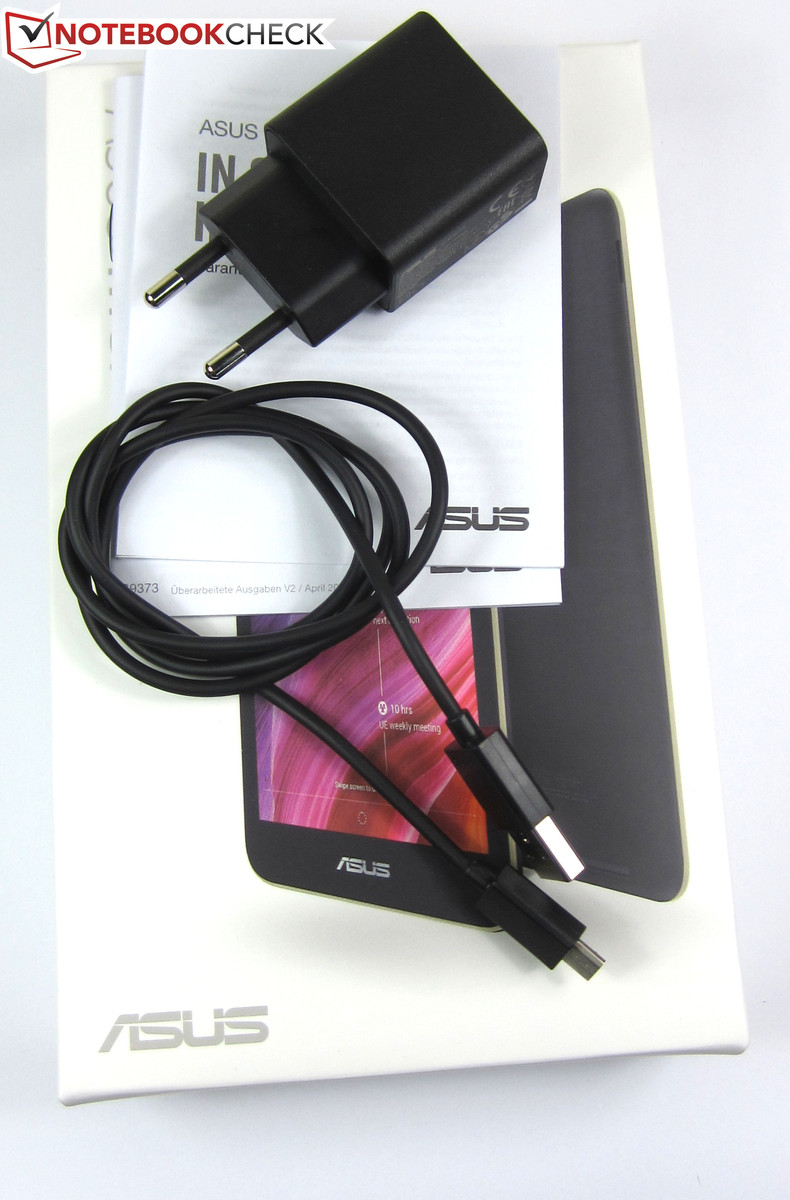

包装盒中包括了 ...
包装盒中包括了 ...
... 一根micro USB线, 一个电源适配器模组和快速开始指南。
... 一根micro USB线, 一个电源适配器模组和快速开始指南。

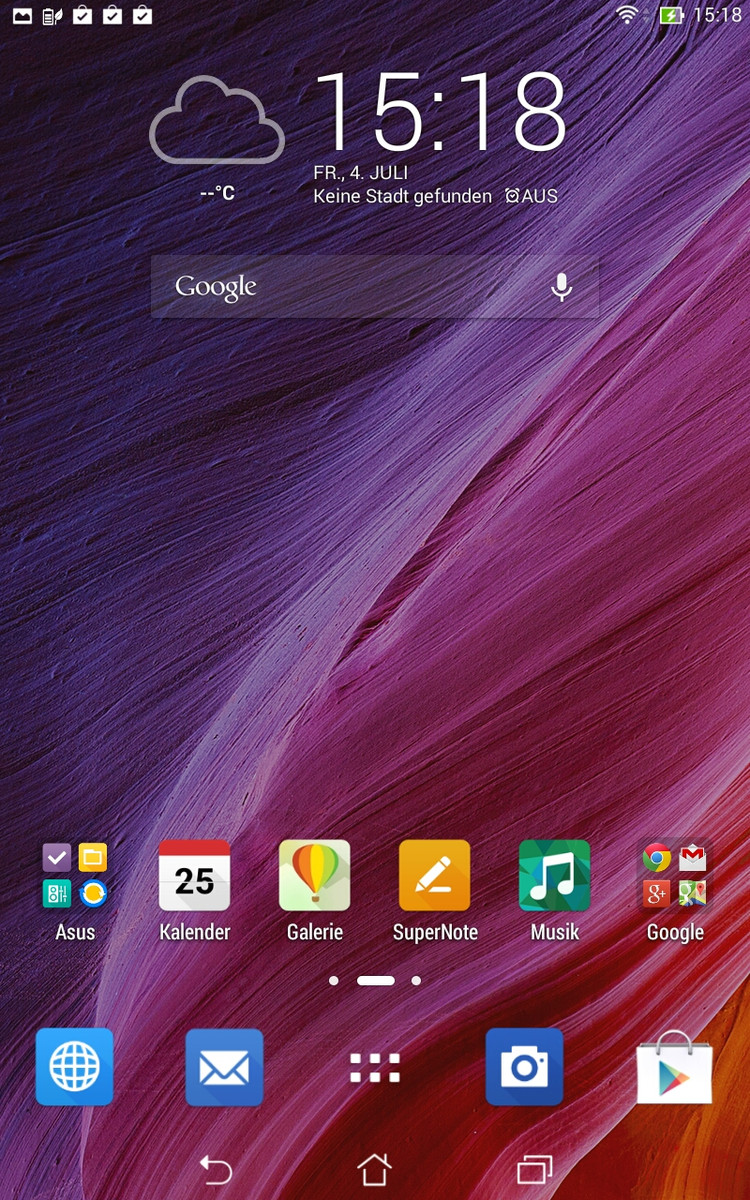

华硕为这款安卓平板配备了他们的ZenUI界面。
华硕为这款安卓平板配备了他们的ZenUI界面。

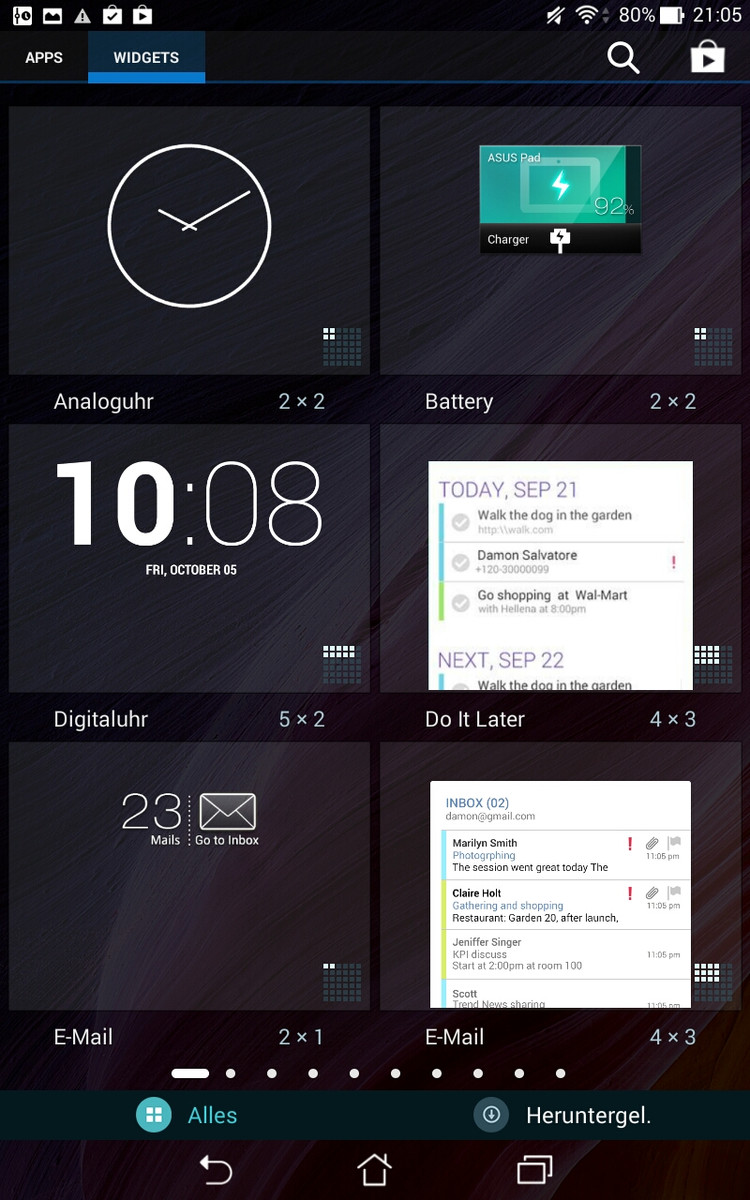

很多插件可以添加到桌面上。
很多插件可以添加到桌面上。

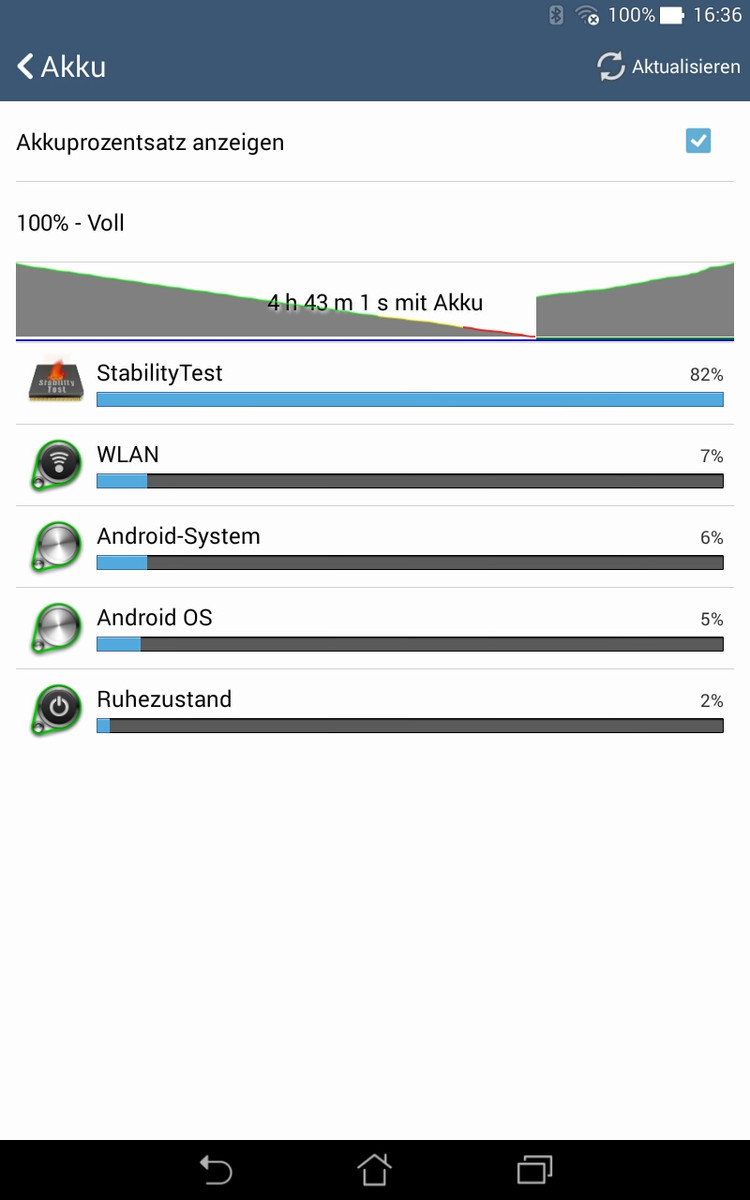

这款平板的电池在负载下可以运行4小时43分钟。
这款平板的电池在负载下可以运行4小时43分钟。

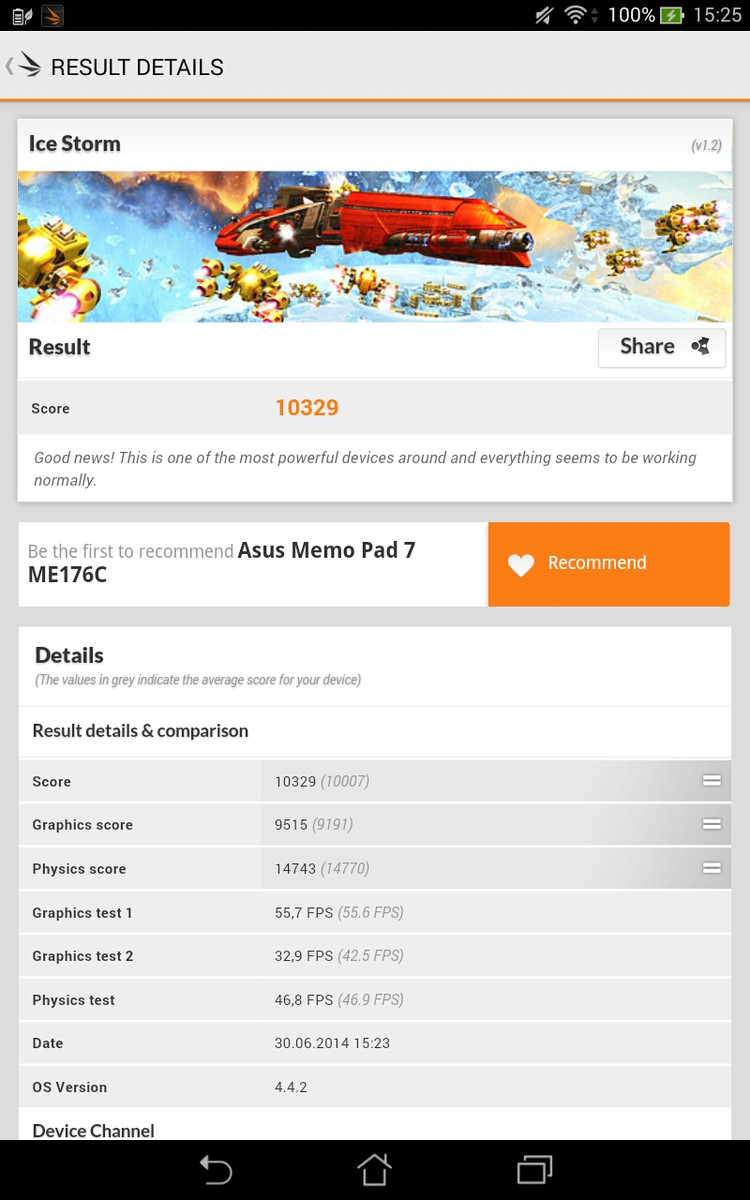

模拟测试像是3DMark 2013的成绩显示这款华硕平板的性能很高。
模拟测试像是3DMark 2013的成绩显示这款华硕平板的性能很高。

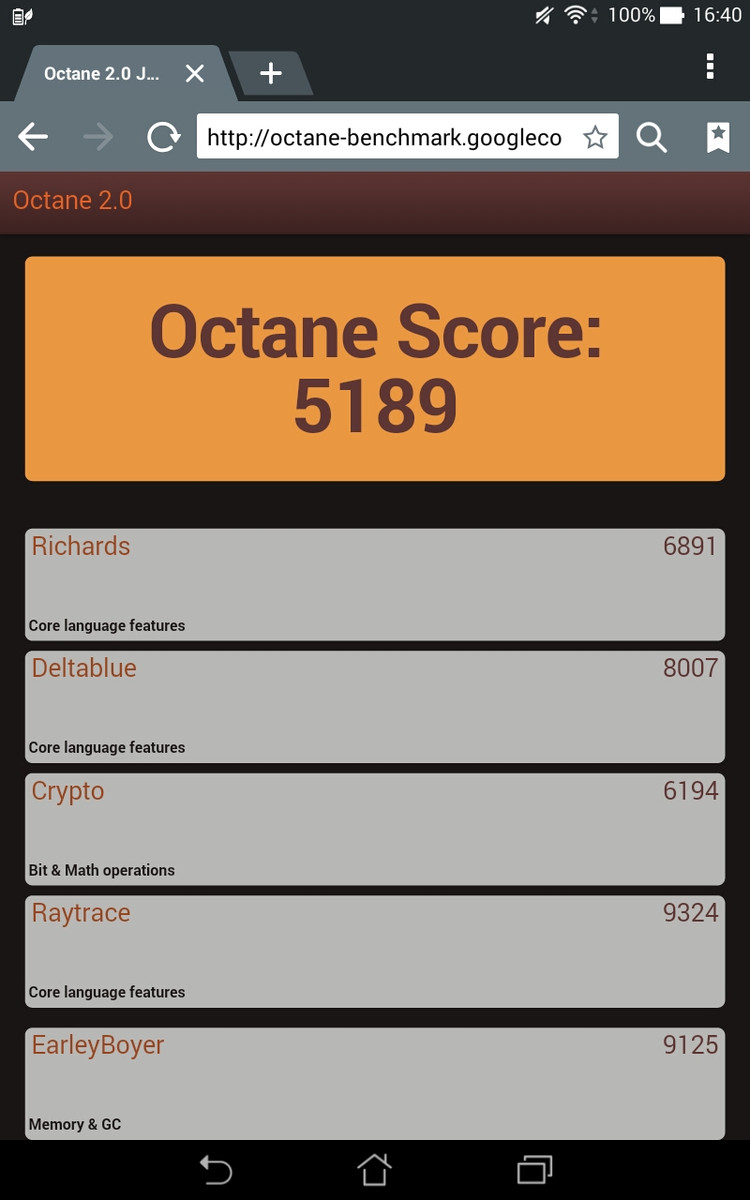

同样的结论来自于浏览器性能测试(图为Octane 2.0成绩)。
同样的结论来自于浏览器性能测试(图为Octane 2.0成绩)。

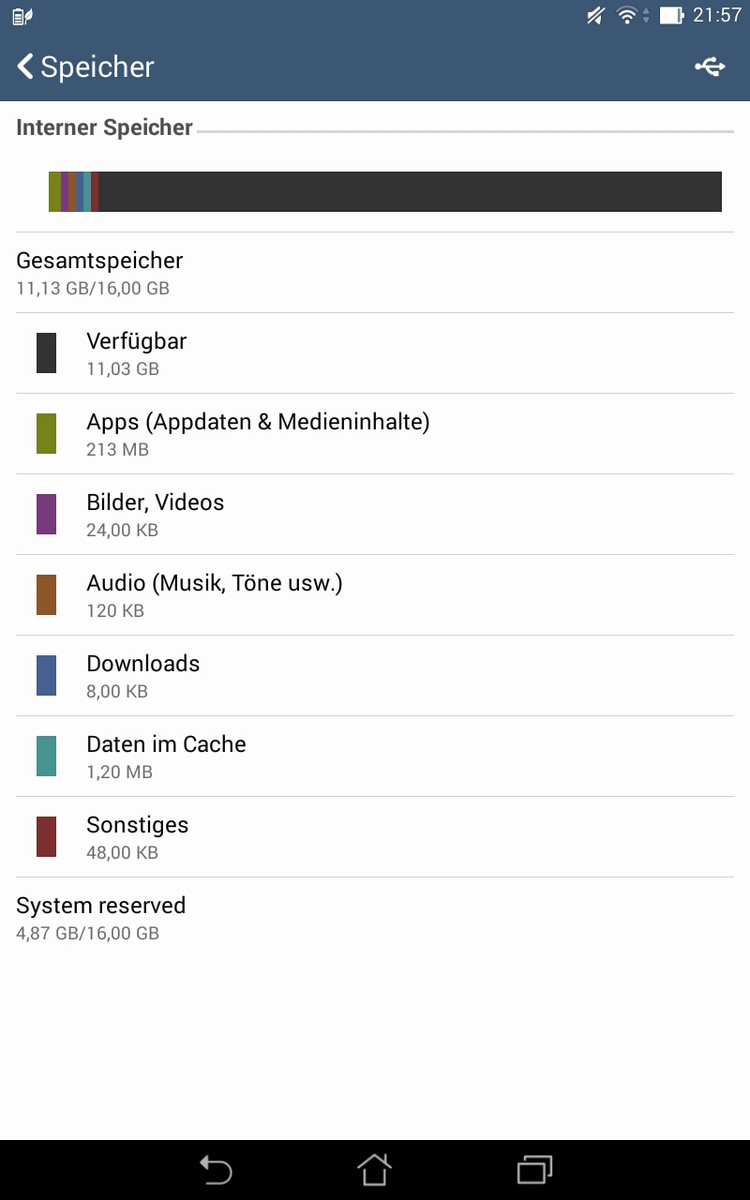

用户可以从16GB的闪存中获得11GB的可用空间。
用户可以从16GB的闪存中获得11GB的可用空间。

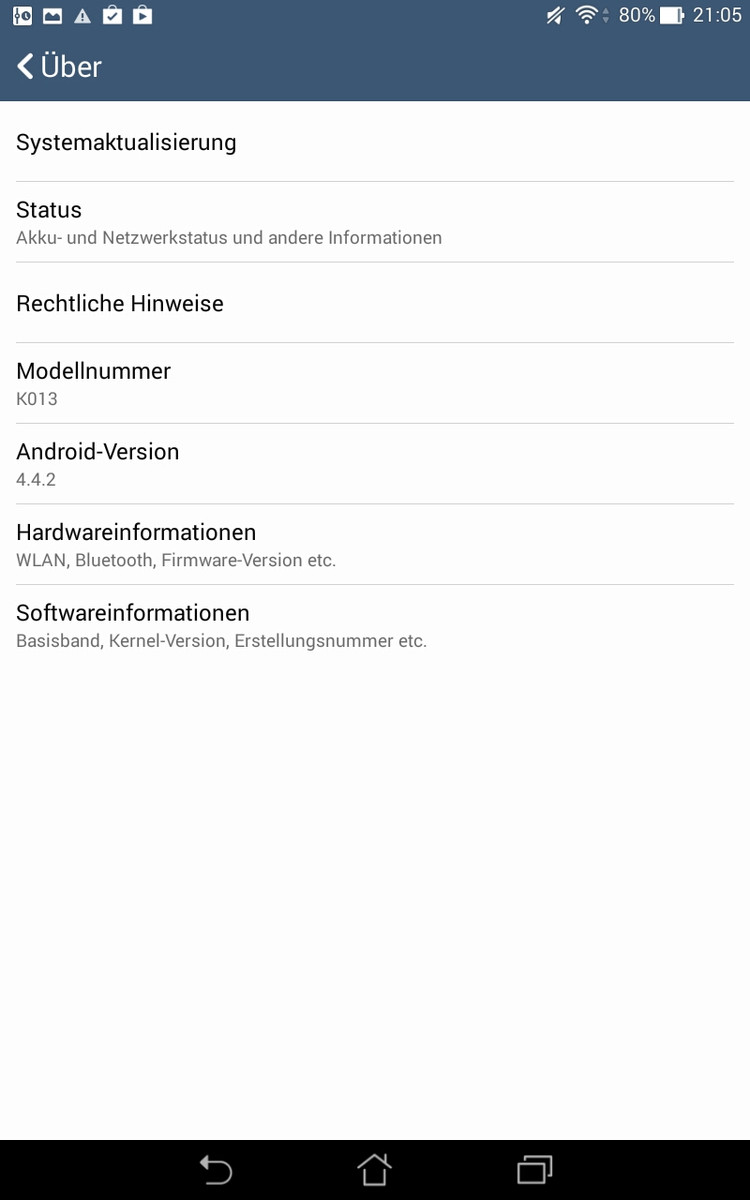

华硕Memo Pad HD 7 ME176C搭载了Android 4.4.2。
华硕Memo Pad HD 7 ME176C搭载了Android 4.4.2。



Please share our article, every link counts!

Specifications

Asus Memo Pad HD 7 ME176C (Memo Pad Series)
Processor
Intel Atom Z3745 4 x 1.3 - 1.9 GHz, Bay Trail-T
Graphics adapter
Intel HD Graphics (Bay Trail)
Memory
1024 MB
Display
7.00 inch 16:10, 1280 x 800 pixel, 10点触控, LED Backlight , IPS, WXGA, glossy: yes
Storage
16 GB eMMC Flash, 16 GB
, 11.1 GB free
Connections
1 USB 2.0, Audio Connections: 3.5毫米立体声耳机接口, Card Reader: microSD卡槽,最大支持64GB, Sensors: 加速传感器, 陀螺仪, GPS, GLONASS
Networking
802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 9.6 x 189.3 x 113.7
Battery
15 Wh Lithium-Polymer
Operating System
Android 4.4 KitKat
Camera
Webcam: 主相机 500万像素 (2560 x 1920 像素, 全高清视频录制), 前置摄像头 200万像素 (1600 x 1200 像素)
Additional features
Speakers: 后置立体声扬声器, Keyboard: 触控, Keyboard Light: no, MicroUSB线, 电源适配器, 快速开始手册, 24 Months Warranty
Weight
295 g, Power Supply: 30 g



Devices from a different Manufacturer and/or with a different CPU

惠普 Stream 7 5700ng 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3735G

Devices with the same GPU

富士通 Stylistic V535 (Z3795,128 GB, LTE) 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3795, 8.30", 0.55 kg
Acer Iconia Tab 10 A3-A30 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3735F, 10.10", 0.54 kg
戴尔 Venue 11 Pro 5130-9356 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3795, 10.80", 0.77 kg
惠普 Stream 8 5900ng 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3735G, 8.00", 0.41 kg
惠普 Pavilion 10-k000ng x2 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3736F, 10.10", 0.59 kg
联想 Yoga Tablet 2 Pro 平板电脑简短评测
HD Graphics (Bay Trail), Atom Z3745, 13.30", 0.95 kg

Pros

+ 低价
+ 优质屏幕
+ 11 GB可用存储空间
+ Android 4.4.2
+ 方便的触控键盘
+ 高性能
+ 低发热量
+ 长电池续航

Cons

- 电池无法更换
- 较差的相机模组
- 不支持2G/3G/LTE移动网络
- 仅1 GB内存

Asus Memo Pad HD 7 ME176C - 07/08/2014 v4 (old)
Manuel Masiero

Chassis
85%
Keyboard
75 / 80 → 94%
Pointing Device
89%
Connectivity
36 / 65 → 55%
Weight
86 / 40-88 → 96%
Battery
90%
Display
82%
Games Performance
57 / 68 → 84%
Application Performance
46 / 76 → 61%
Temperature
89%
Noise
100%
Audio
55 / 91 → 60%
Camera
58 / 85 → 68%
Average
73%
85%
Tablet - Weighted Average
