Minisforum海王星系列NAD9台式电脑评论。配备英特尔酷睿i9-12900H的紧凑型动力源

Name: Minisforum Neptune Series NAD9
Brand: Minisforum

完美的办公电脑？

总部设在中国的计算机制造商MINISFORUM为各种应用提供了广泛的紧凑型迷你电脑。NAD9是一个相当强大的机器，采用英特尔酷睿i9-12900H。我们的评论有大量的基准和测量结果，以帮助你了解这种SoC在这么小的PC中能做什么，以及这台机器有什么优点和缺点。

Sebastian Bade (translated by DeepL / Ninh Duy), Published 01/25/2023 🇺🇸 🇩🇪 ...

Mini PC Intel Alder Lake Desktop

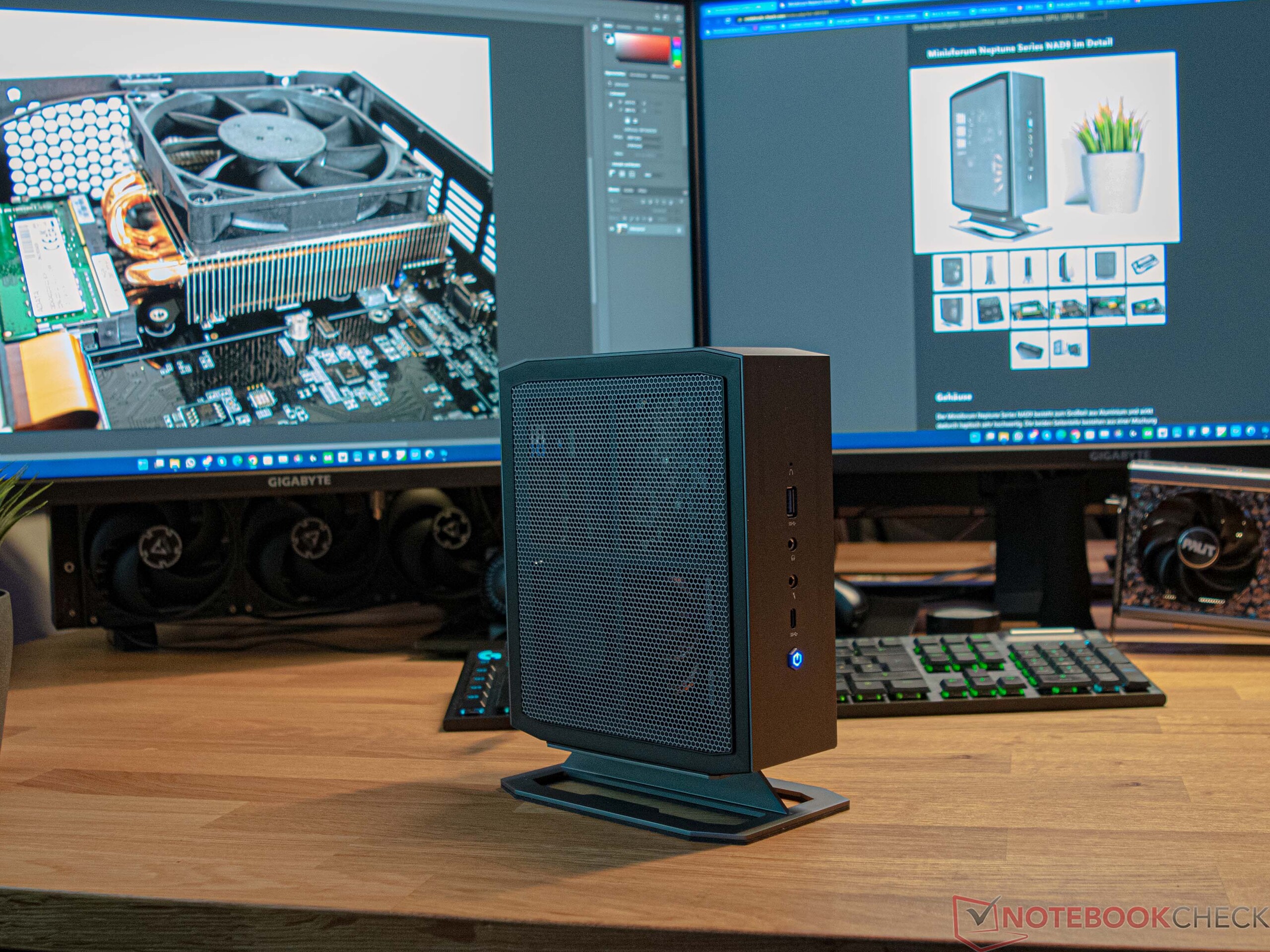

Minisforum更新了其产品阵容，推出了Neptune系列NAD9，这是一款高性能的紧凑型办公电脑。NAD9主要针对需要大量动力的办公用户，并设法实现这一目标，这要归功于其现代的英特尔酷睿i9-12900H处理器，具有14个内核和20个线程。不幸的是，该机没有配备专用显卡。也就是说，英特尔Iris Xe是一个可以接受的替代方案，对于系统的预期目的来说绝对足够好。

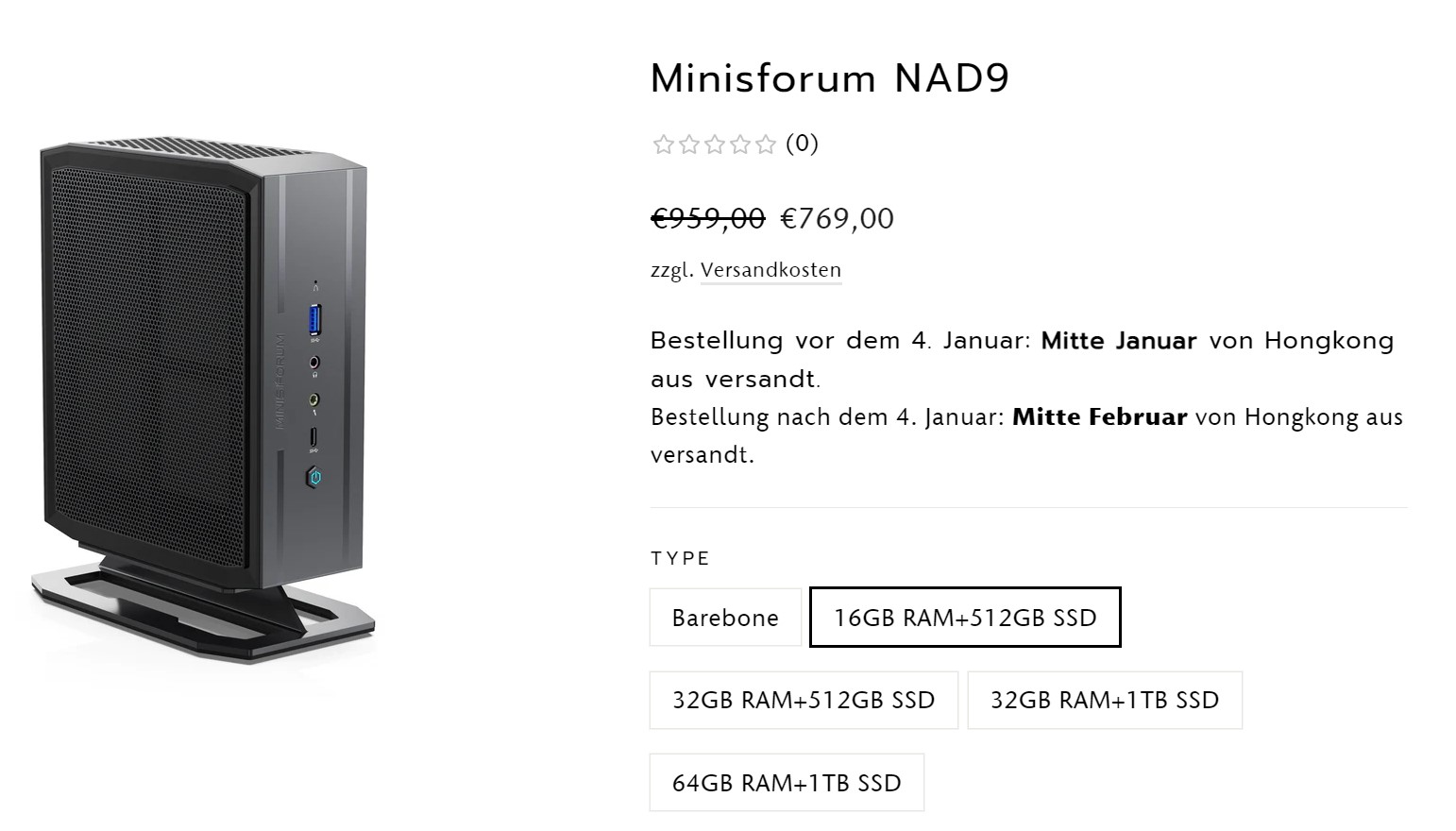

一如既往，Minicforum NAD9可以从该公司的在线商店订购。有许多配置可供选择。最便宜的选择是没有任何内存和固态硬盘的裸机版本（目前为639欧元，或569美元）。你还必须单独购买Windows 11专业版许可。最高端的配置价格为989欧元（1,019美元），配备64GB内存和1TB固态硬盘。我们的评测单元采用16GB内存和512GB固态硬盘，现在将为你提供769欧元（719美元）。

在这篇评论中，我们将把NAD9与其他紧凑型台式电脑进行比较。你可以在下面的表格中找到这些设备的概述。

Minisforum Neptune Series NAD9

Processor

Intel Core i9-12900H 14 x 1.8 - 5 GHz, Alder Lake-H

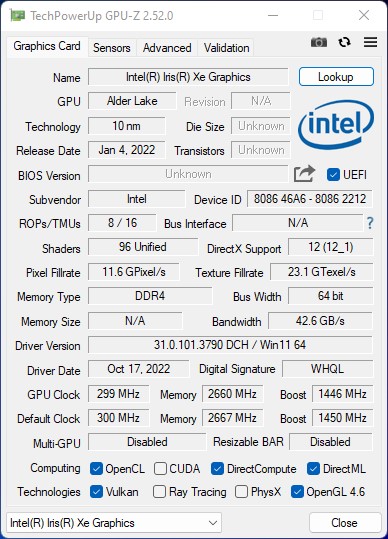

Graphics adapter

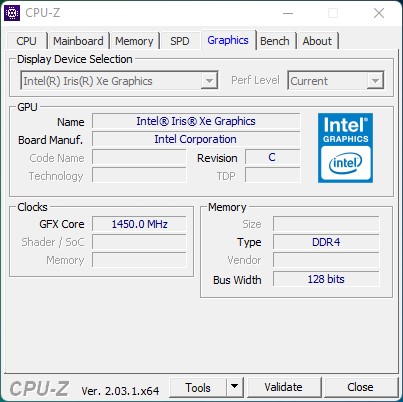

Intel Iris Xe Graphics G7 96EUs, Core: 1450 MHz, RAM: 2600 MHz, 31.0.101.3790 DCH

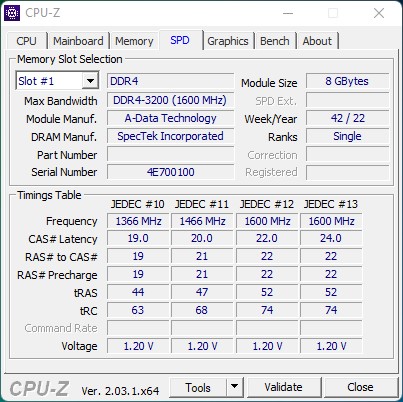

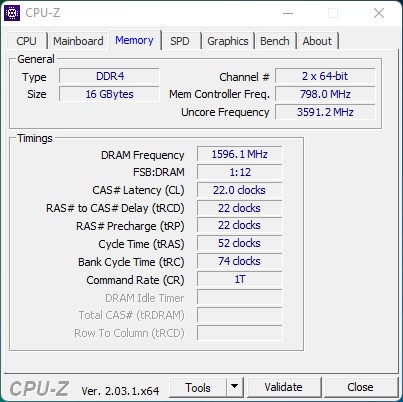

Memory

16 GB

, DDR4-3200, 2 of 2 in use, max. 64 GB

Mainboard

Intel Alder Lake-P PCH

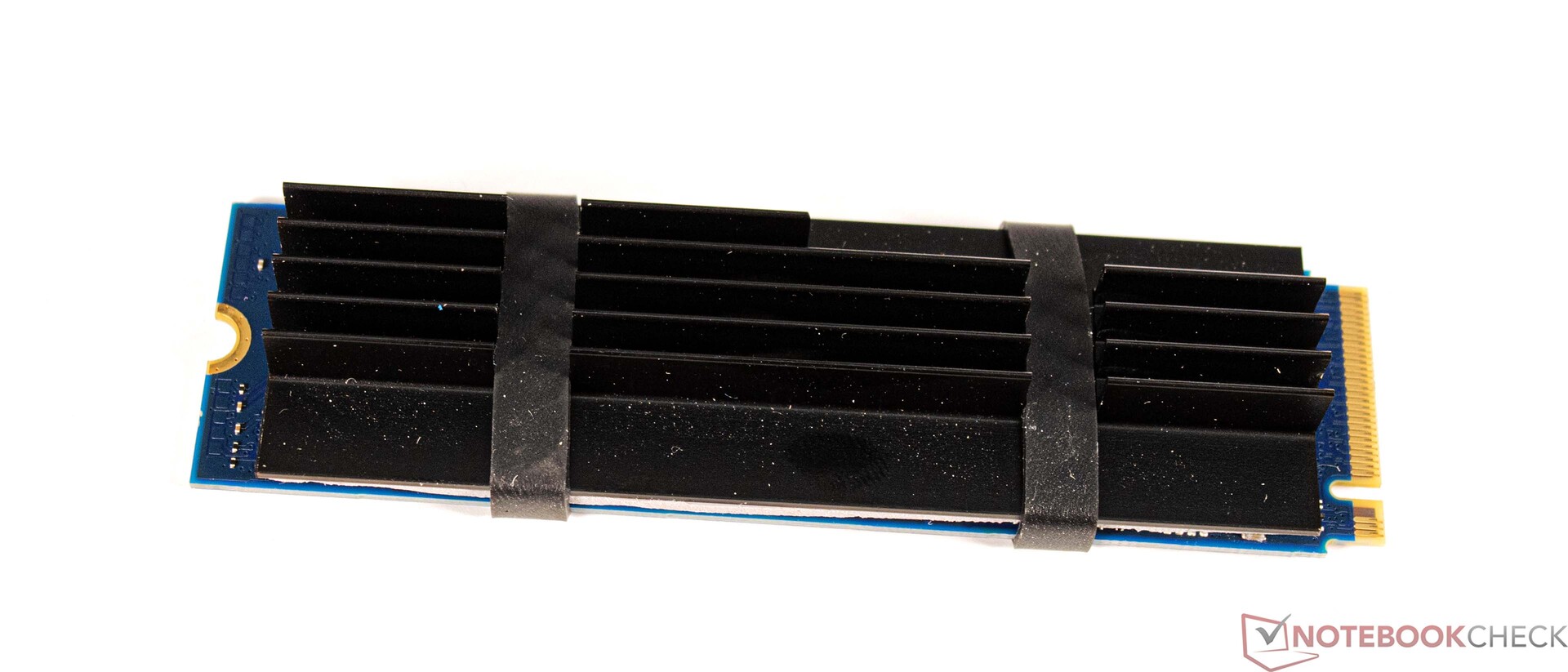

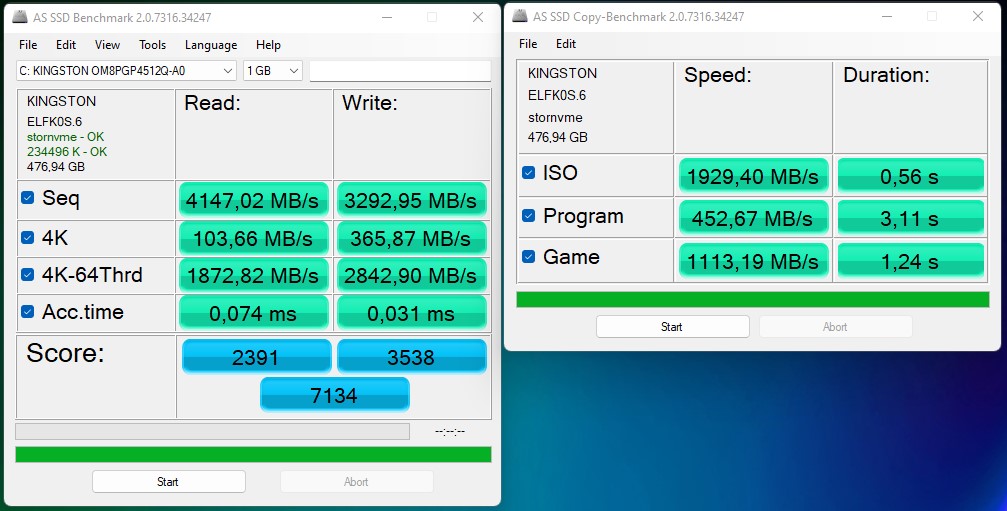

Storage

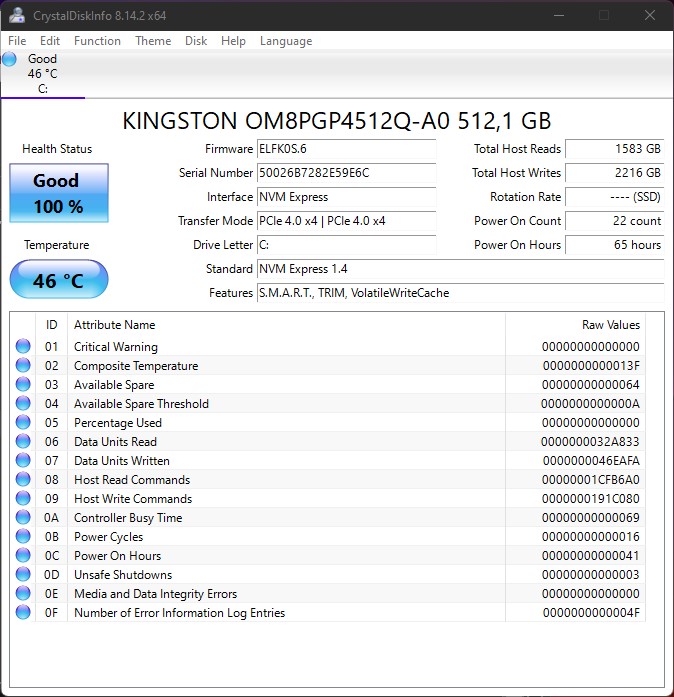

Kingston OM8PGP4512Q-A0, 512 GB

, M.2-2280 NVMe, 450 GB free

Soundcard

Realtek Audio

Connections

2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 4 USB 3.1 Gen2, 2 HDMI, 2 DisplayPort, Audio Connections: microphone jack, headphone jack

Networking

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6E AX210 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.3

Size

height x width x depth (in mm): 66 x 208 x 180

Operating System

Microsoft Windows 11 Pro

Additional features

Power adapter with cable, HDMI cable, computer stand, manual, 24 Months Warranty

Weight

1.167 kg, Power Supply: 446 g

Price

769 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

潜在的竞争对手比较

Rating	Date	Model	Weight	Height
85.1 % v7 ^(old)	01 / 2023	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	1.2 kg	66 mm
v ^(old)	01 / 2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
v ^(old)	01 / 2022	Morefine S500+ R9 5900HX, Vega 8	697 g	40 mm
v ^(old)	06 / 2022	Minisforum EliteMini B550 R7 5700G, Vega 8	1.1 kg	67 mm
v ^(old)	02 / 2022	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	763 g	55.5 mm
v ^(old)	12 / 2021	Minisforum HM90 R9 4900H, Vega 8		55.5 mm
v7 ^(old)	09 / 2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v7 ^(old)	10 / 2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 g	63.5 mm

详细了解Minisforum海王星系列NAD9

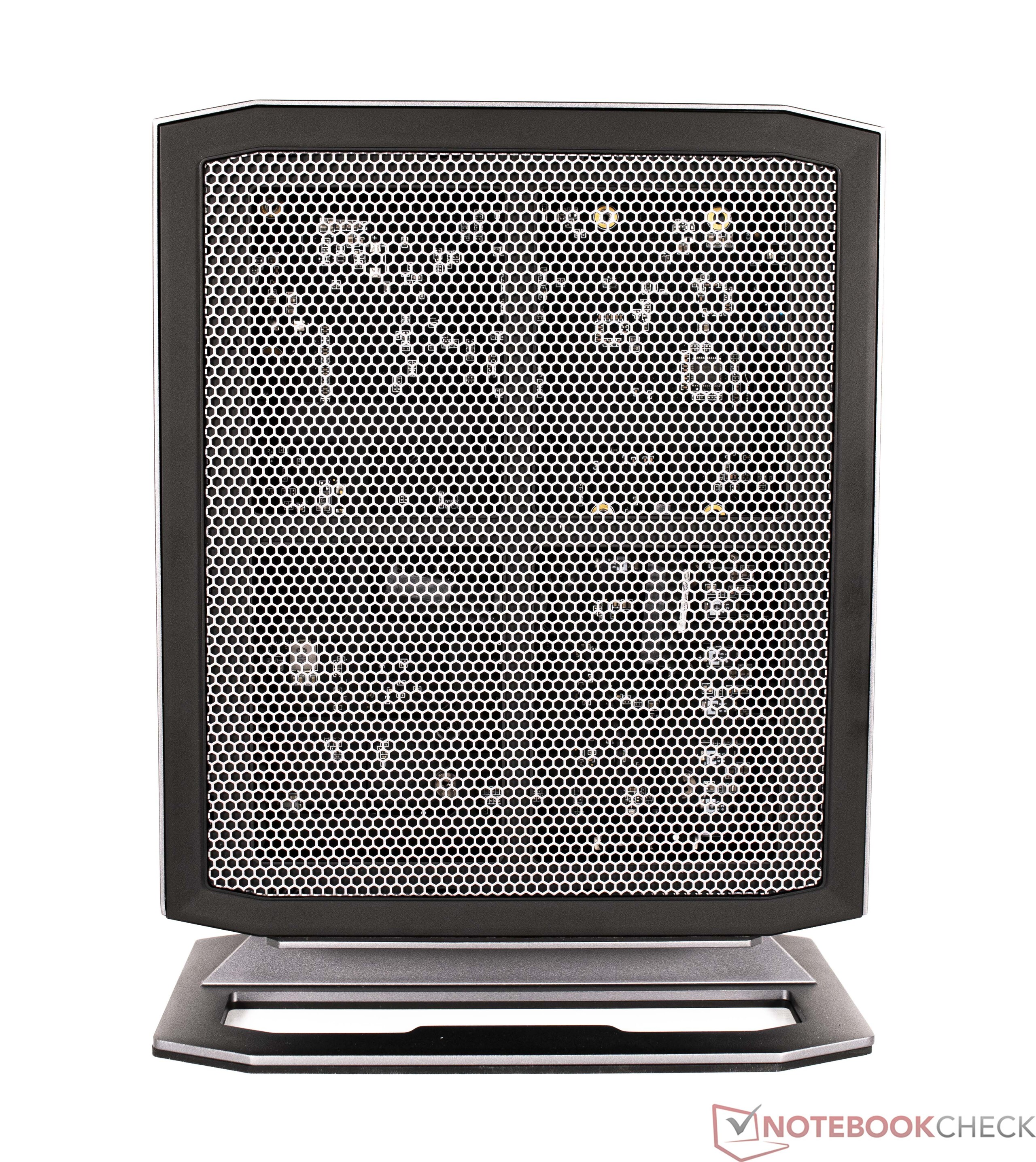

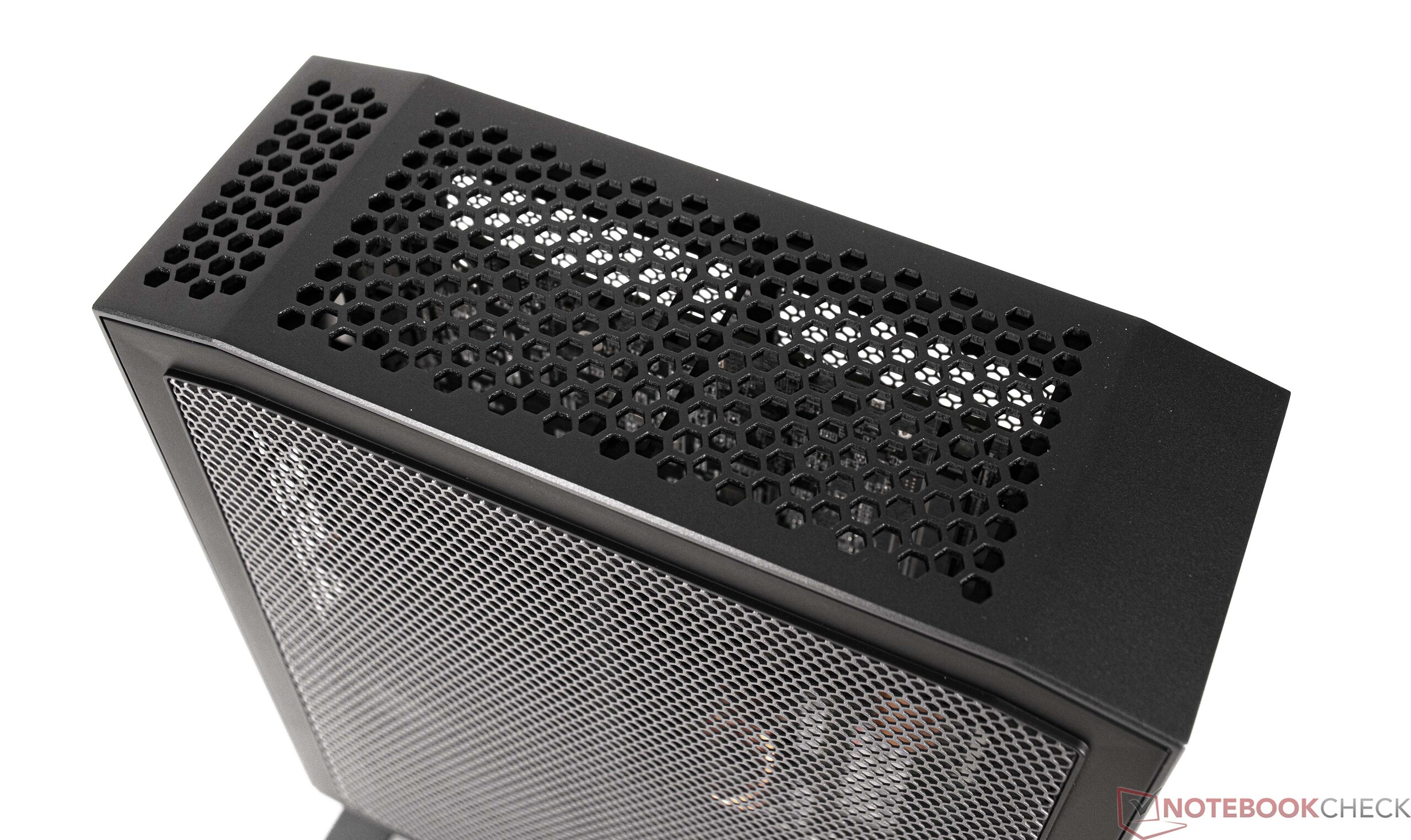

案例

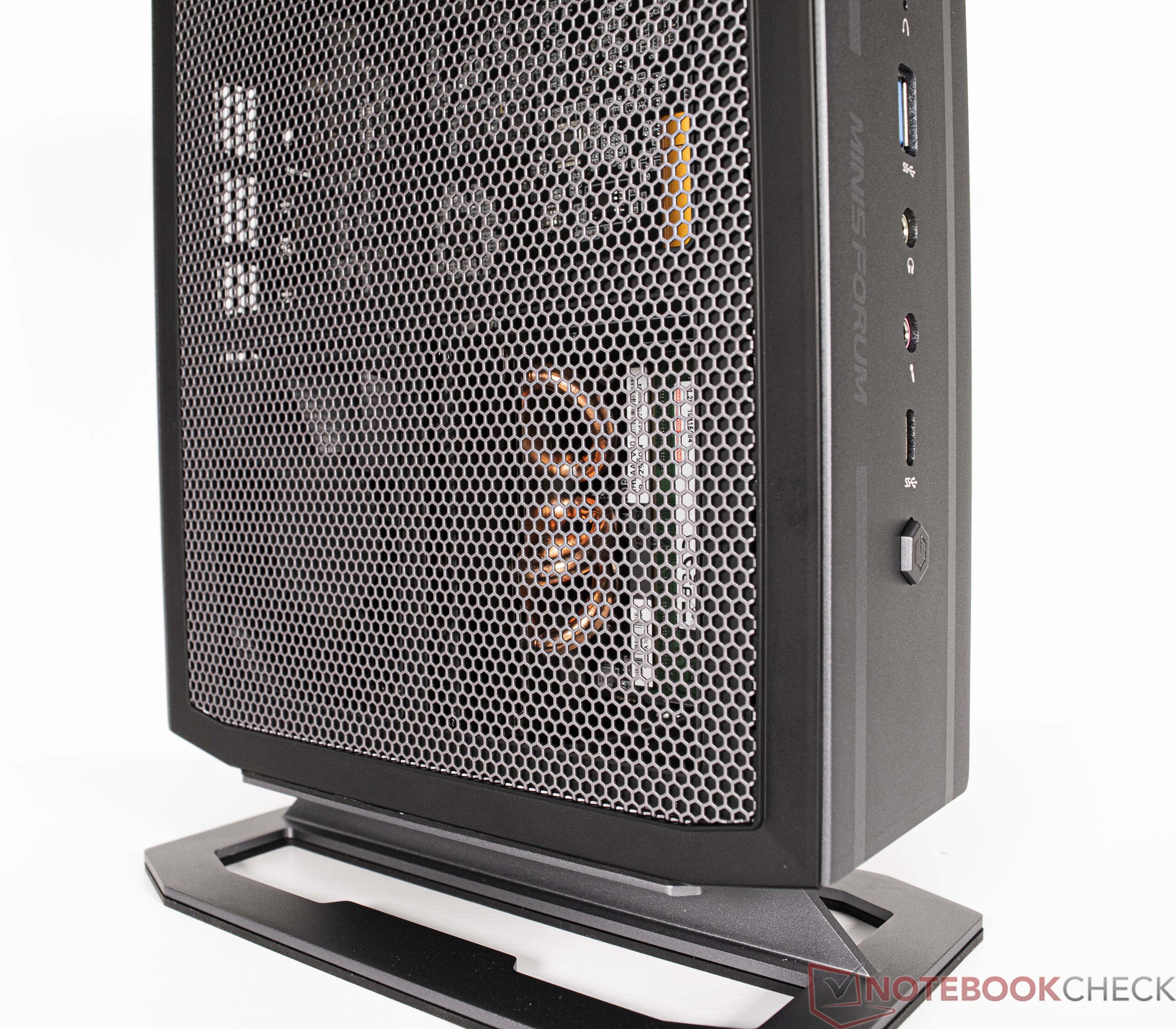

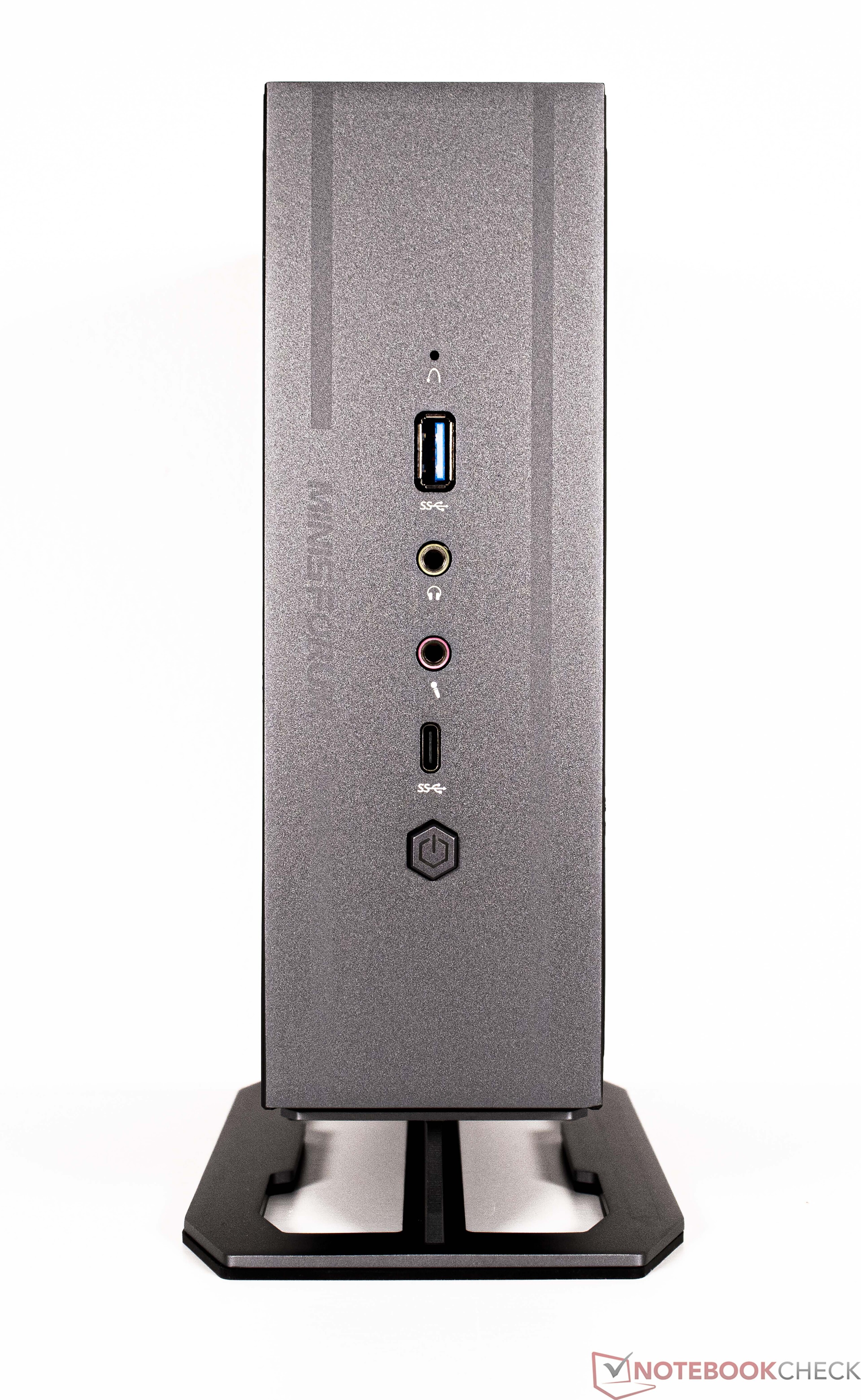

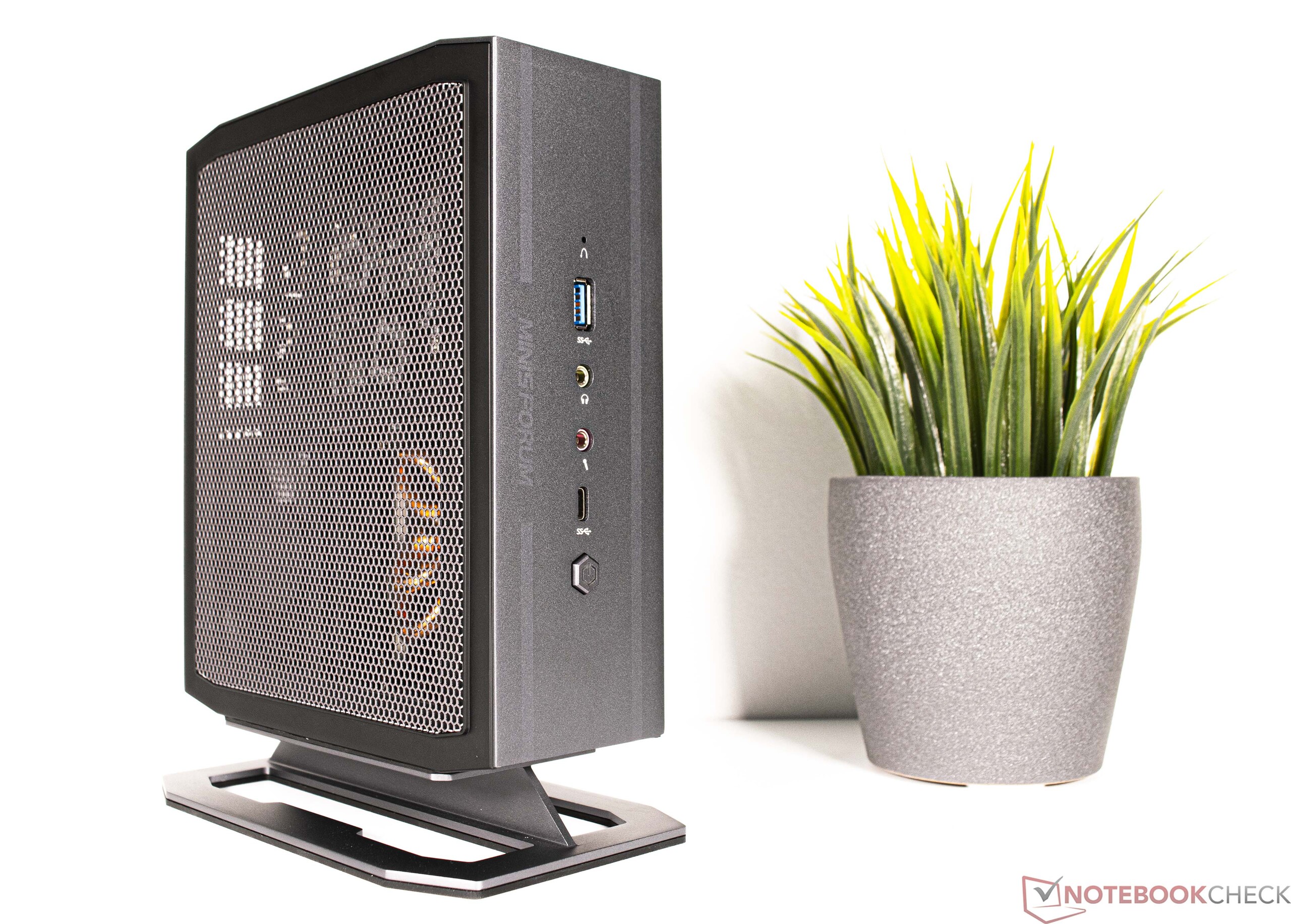

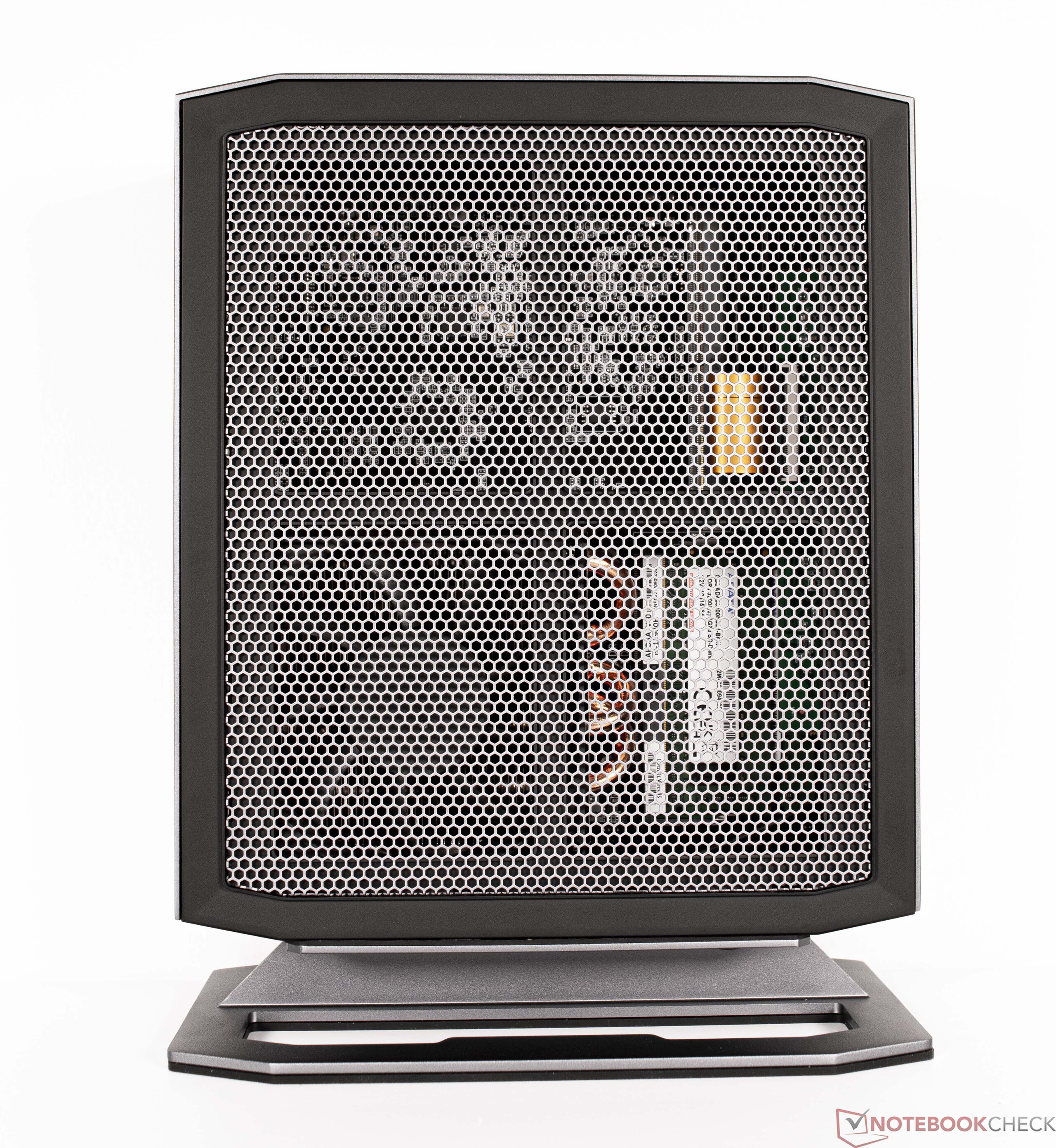

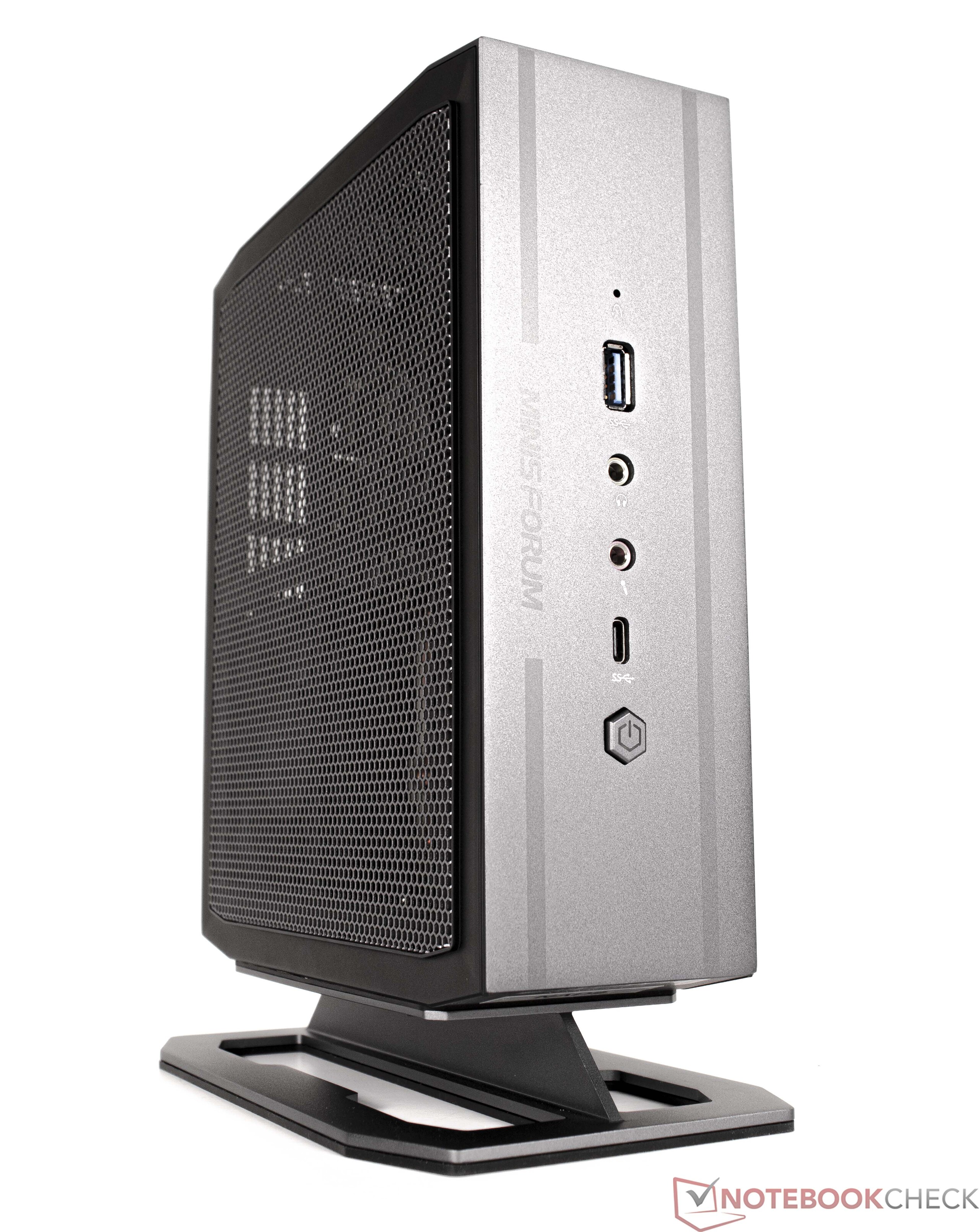

Minisforum Neptune系列NAD9大部分由铝制成，因此感觉特别高档。两个侧板是铝和塑料的混合体，做工非常精细。覆盖侧板很大一部分的蜂窝状结构是为了让足够的新鲜空气进入机箱。这个大约2.4升的机箱看起来也非常好，深灰色的配色方案与整体设计完美契合。附带的支架同样是由金属制成，并提供了巨大的稳定性。

包括支架在内只有1.1公斤（2.4磅），MINISFORUM NAD9非常轻。外部电源适配器在整体重量上又增加了450克（1磅）。

尺寸比较

Minisforum Neptune Series NAD9 Minisforum EliteMini B550 Morefine S600-Apex Engineer Minisforum EliteMini TH50 Minipc Union Ace Magician TK11-A0 Morefine S500+ DIN A4 ❌

规格

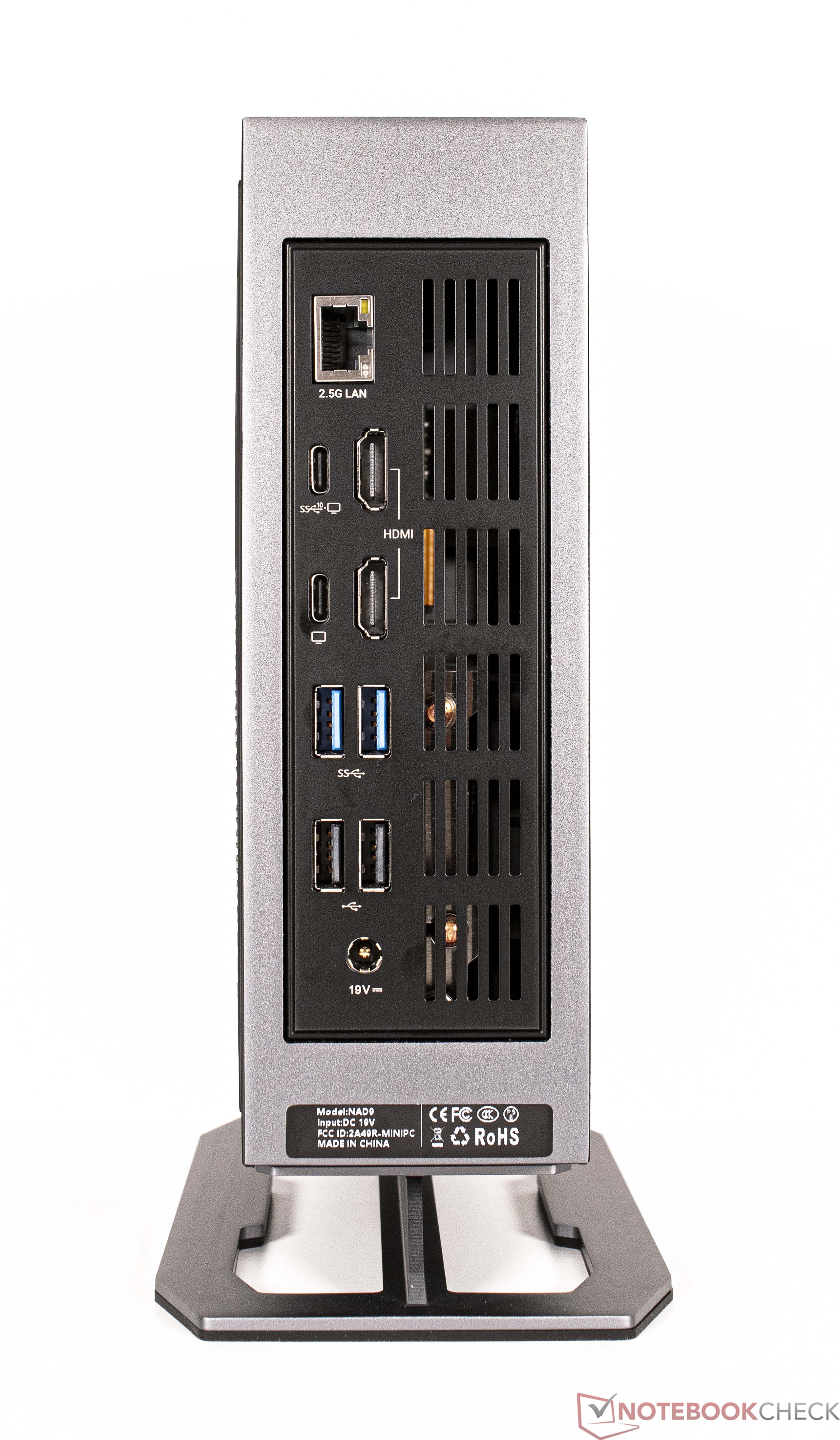

乍一看，MINISFORUM Neptune系列NAD9提供了一个出色的外部接口选择。它比其竞争对手拥有更多的USB端口（共8个）。虽然其中三个是USB-C接口，但仍有五个A型接口可用。背面的USB-C连接也具有向外部显示器输出视频的能力。这意味着，与两个HDMI端口一起，NAD9能够同时驱动多达四个显示器。尽管如此，值得一提的是，4K@60Hz是该设备支持的最大分辨率和刷新率。NAD9上的接口分布在前面和后面，很容易获得。太糟糕了，它不支持Thunderbolt。

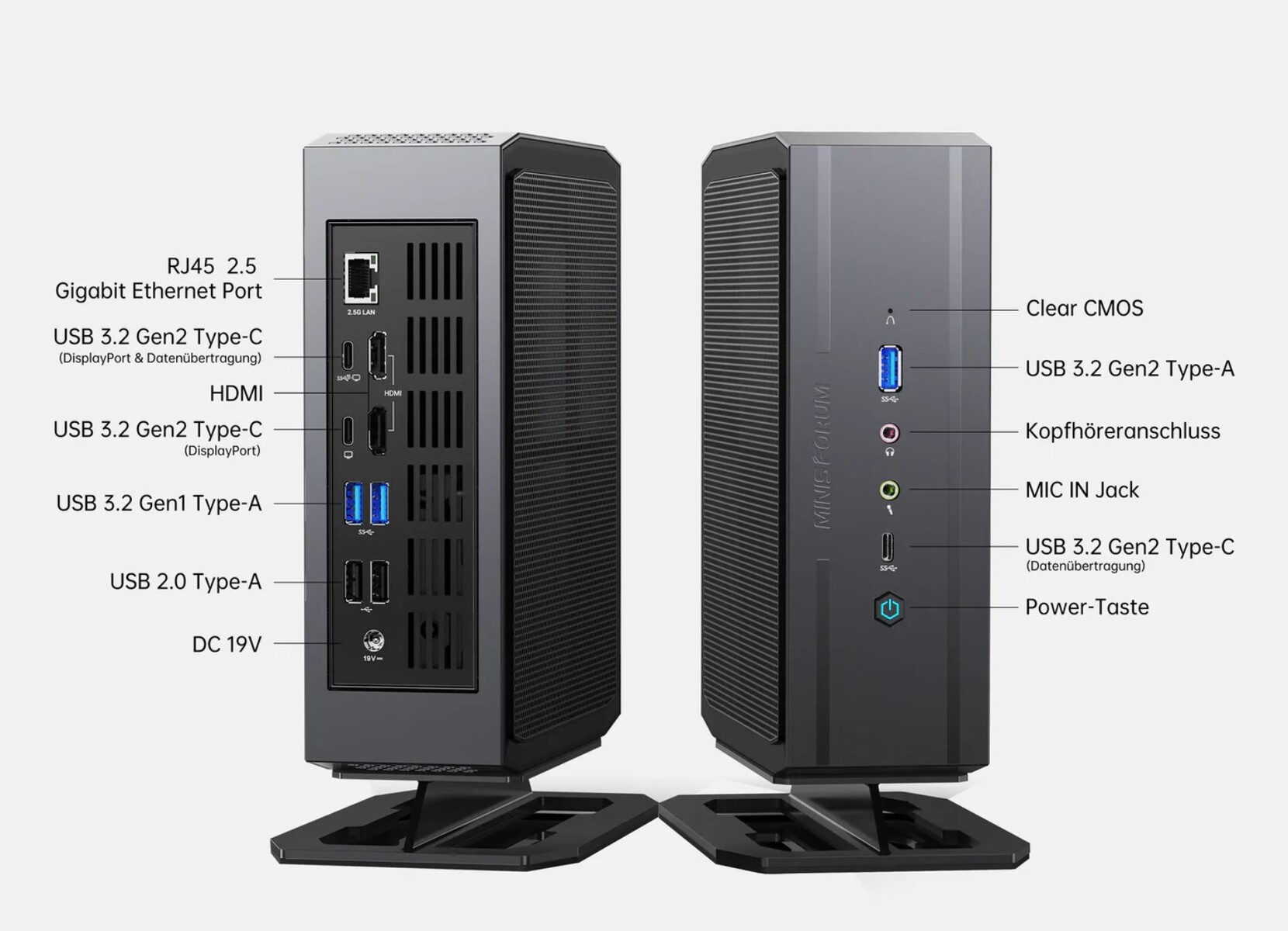

Minisforum海王星系列NAD9的外部接口（来源：MINISFORUM）。

连接性

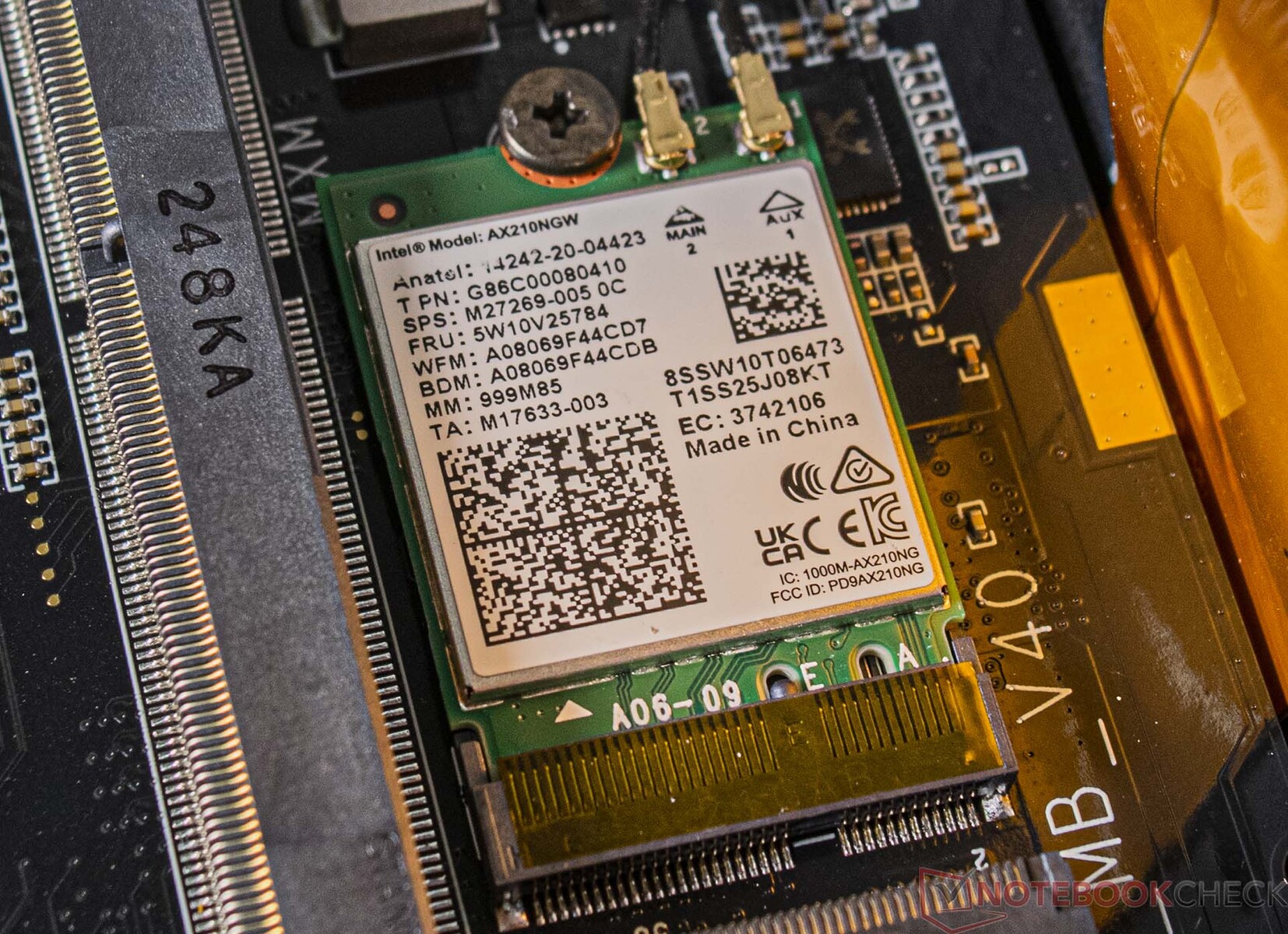

Minisforum将英特尔Wi-Fi 6E模块装入NAD9。当我们用我们的参考路由器（华硕ROG Rapture GT-AXE11000）进行测试时，Minicforum NAD9取得了出色的传输速率。我们的评测装置在传输和接收速率方面都设法超过了其竞争对手。虽然Wi-Fi模块支持最新的Wi-Fi标准，但它无法建立与6GHz网络的连接。集成的LAN端口为连接网络提供了一个很好的选择，支持高达2.5Gbit/s的速度。

Networking
iperf3 receive AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1318 (663^min - 1363^max) MBit/s
Average Intel Wi-Fi 6E AX210 (715 - 1711, n=24)	1220 MBit/s -7%
Average of class Mini PC (192.9 - 1796, n=112, last 2 years)	933 MBit/s -29%
Minisforum EliteMini TH50 MediaTek MT7921	776 MBit/s -41%
Minisforum EliteMini B550 MediaTek RZ608	430 MBit/s -67%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 MBit/s -70%
iperf3 transmit AXE11000
Minisforum Neptune Series NAD9 Intel Wi-Fi 6E AX210	1320 (1165^min - 1353^max) MBit/s
Average Intel Wi-Fi 6E AX210 (565 - 1670, n=24)	1107 MBit/s -16%
Minisforum EliteMini TH50 MediaTek MT7921	866 MBit/s -34%
Average of class Mini PC (184.1 - 1776, n=112, last 2 years)	866 MBit/s -34%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 MBit/s -44%
Minisforum EliteMini B550 MediaTek RZ608	572 MBit/s -57%

Minisforum Neptune Series NAD9; iperf3 receive AXE11000; iperf 3.1.3: Ø1296 (663-1363)

Minisforum Neptune Series NAD9; iperf3 transmit AXE11000; iperf 3.1.3: Ø1320 (1165-1353)

辅料

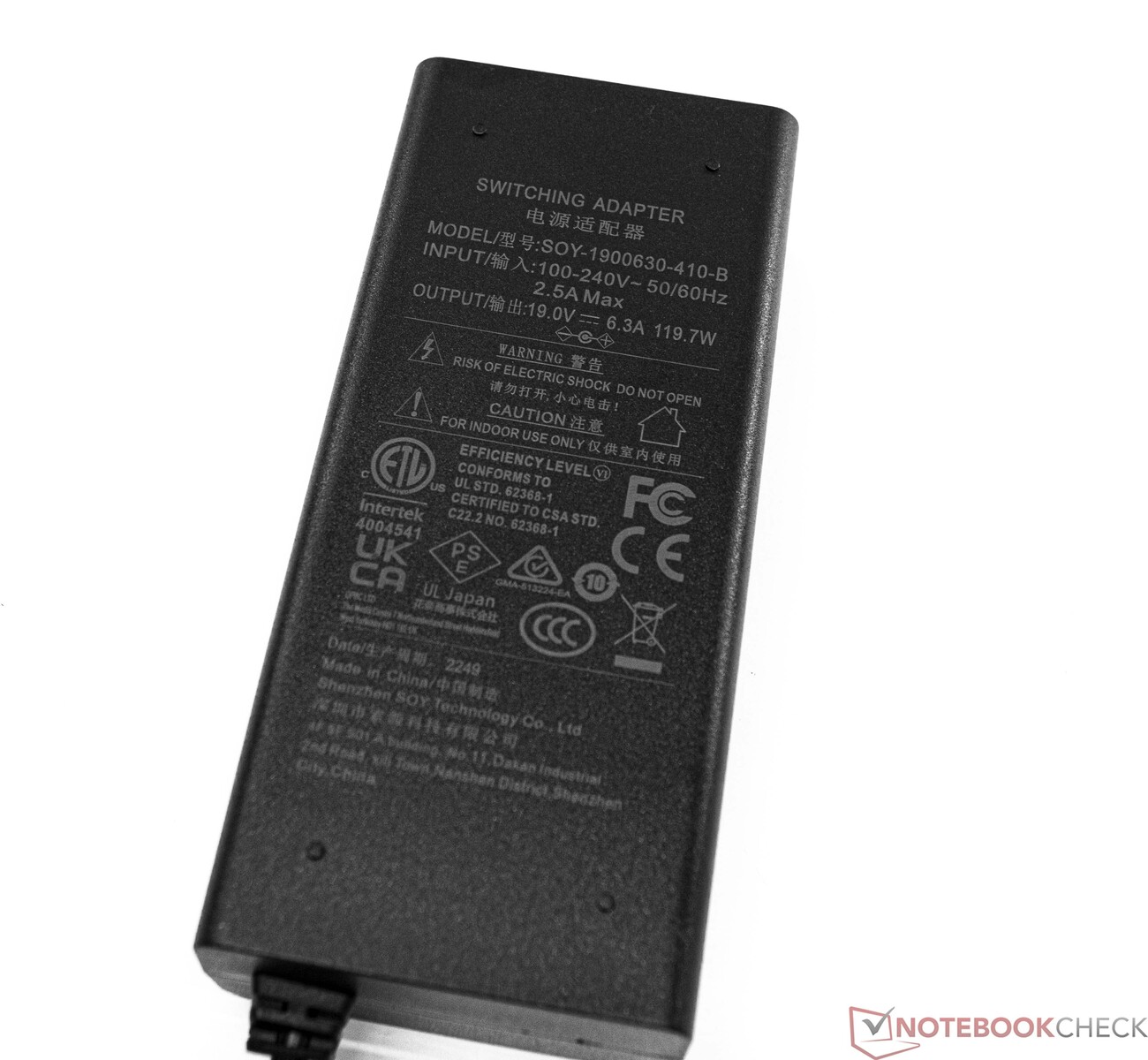

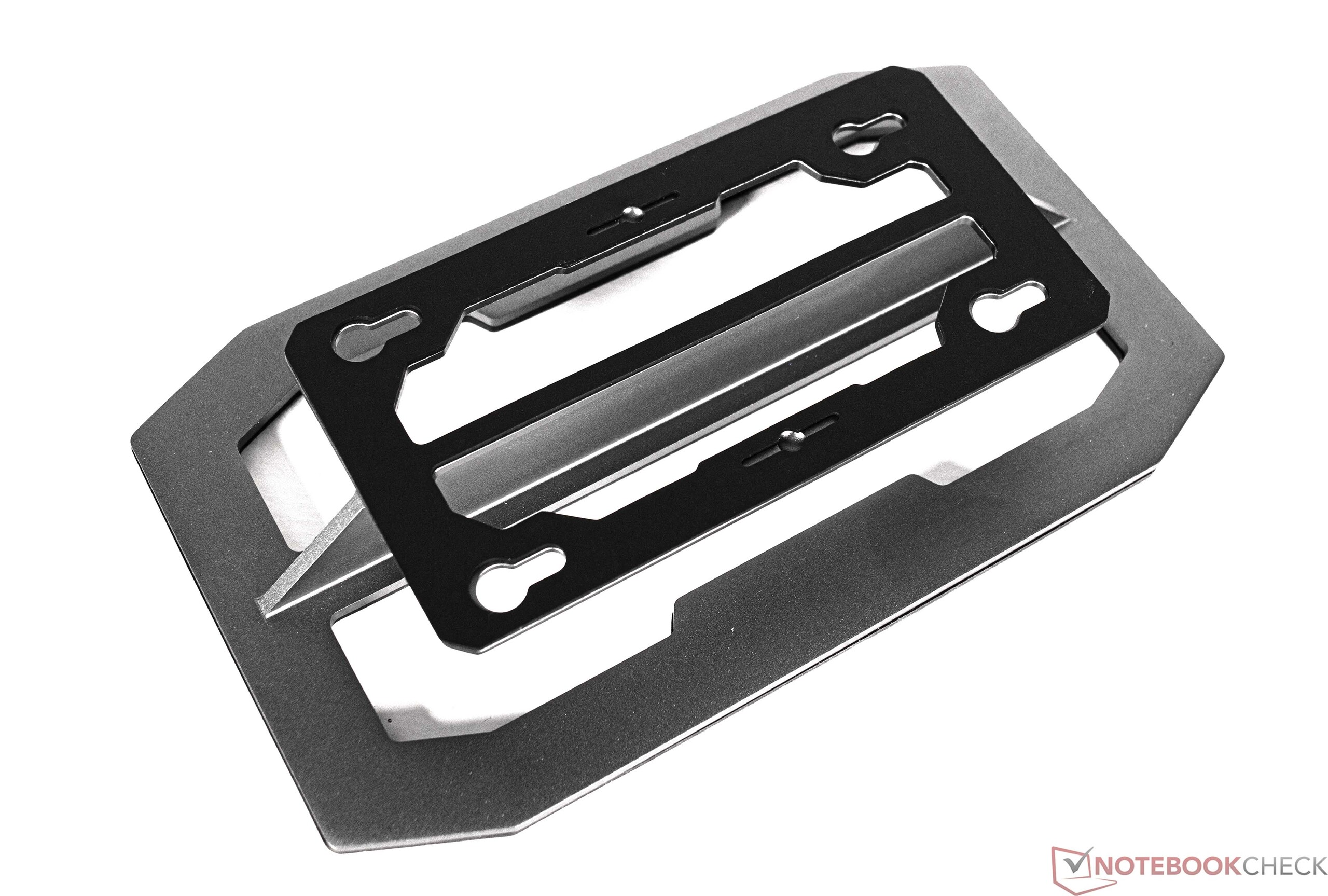

除了设备本身，你会发现一个坚固的支架（包括紧固螺丝），一个120瓦的电源和一条HDMI线在盒子里。

维护

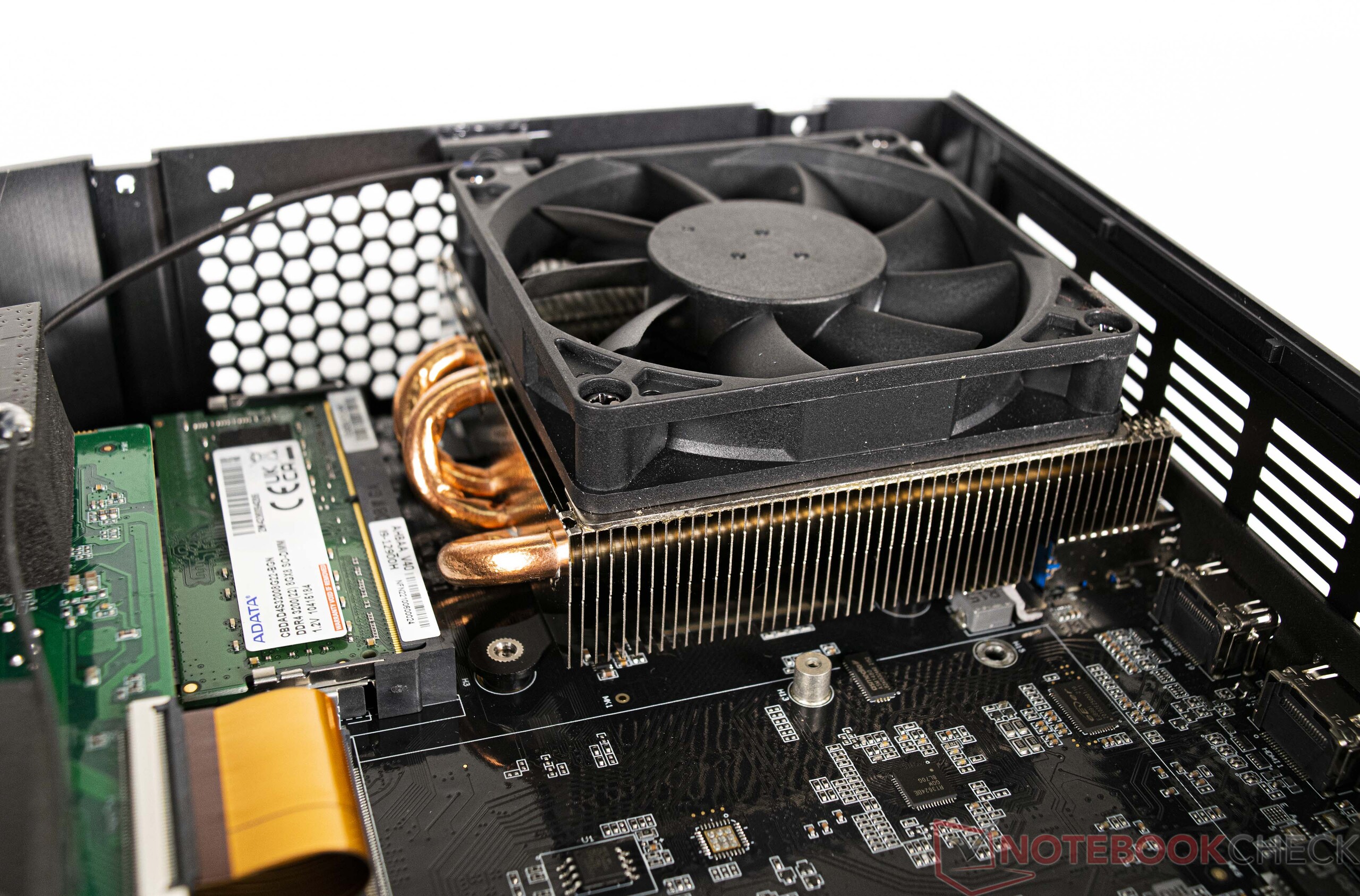

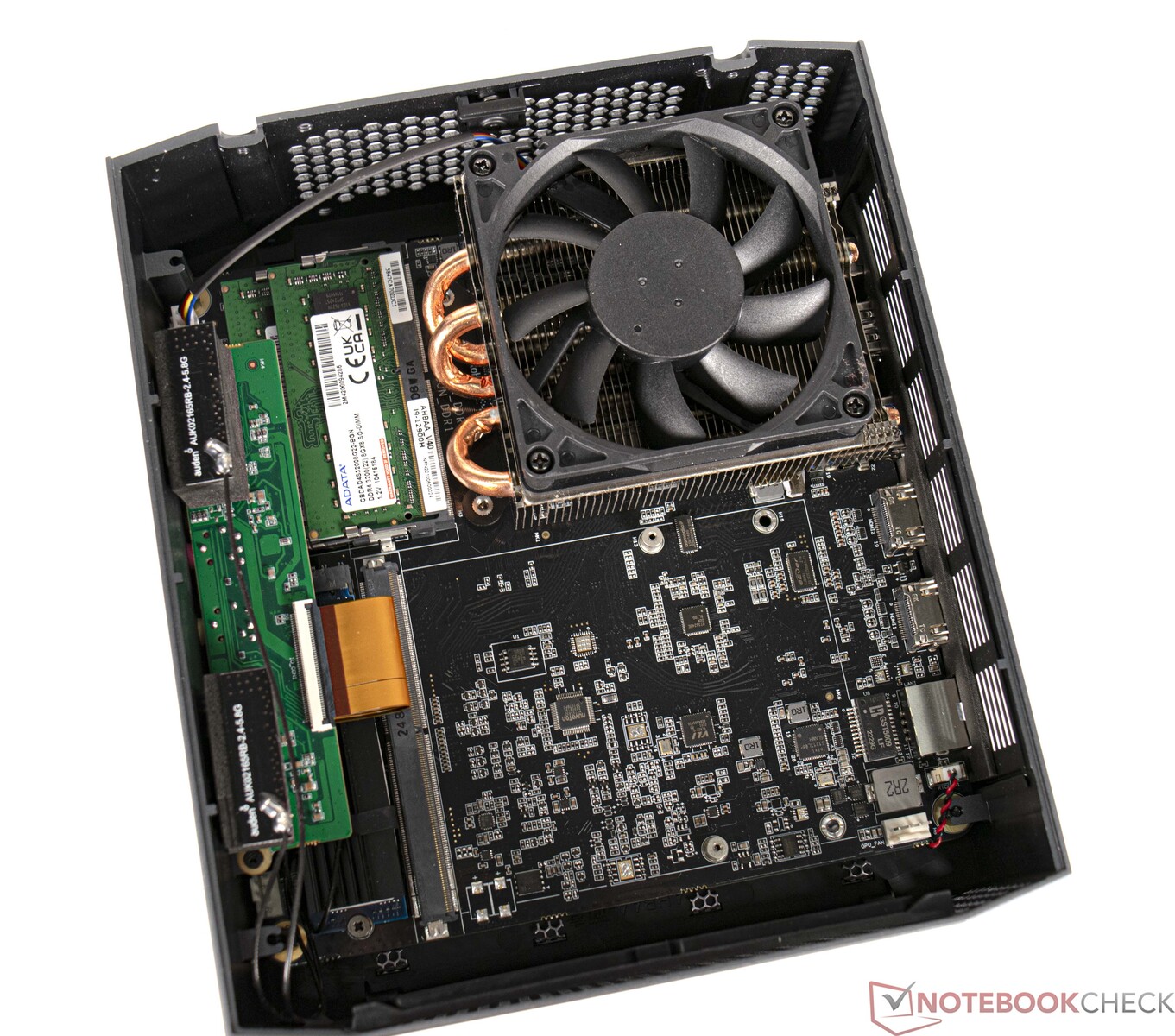

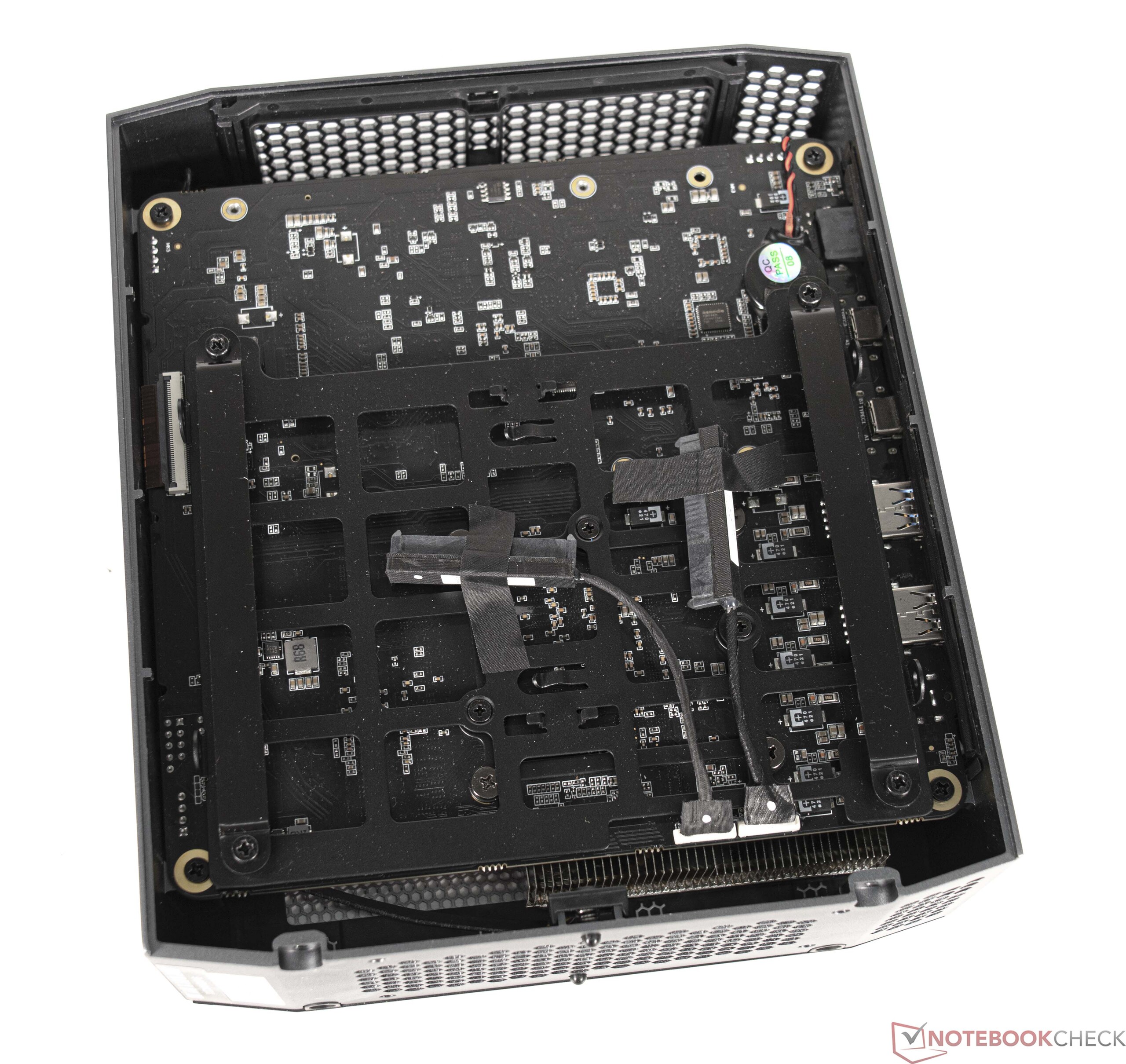

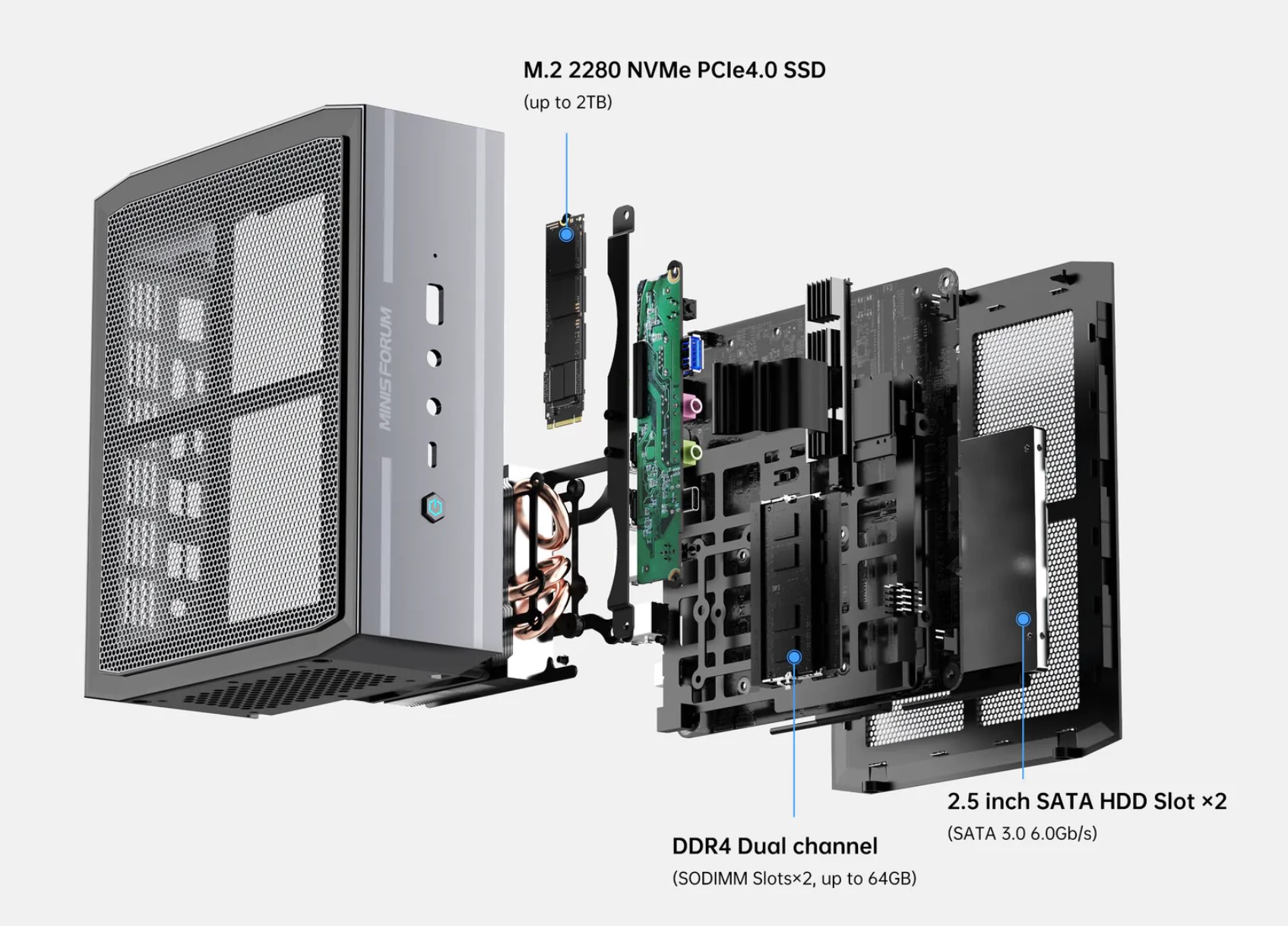

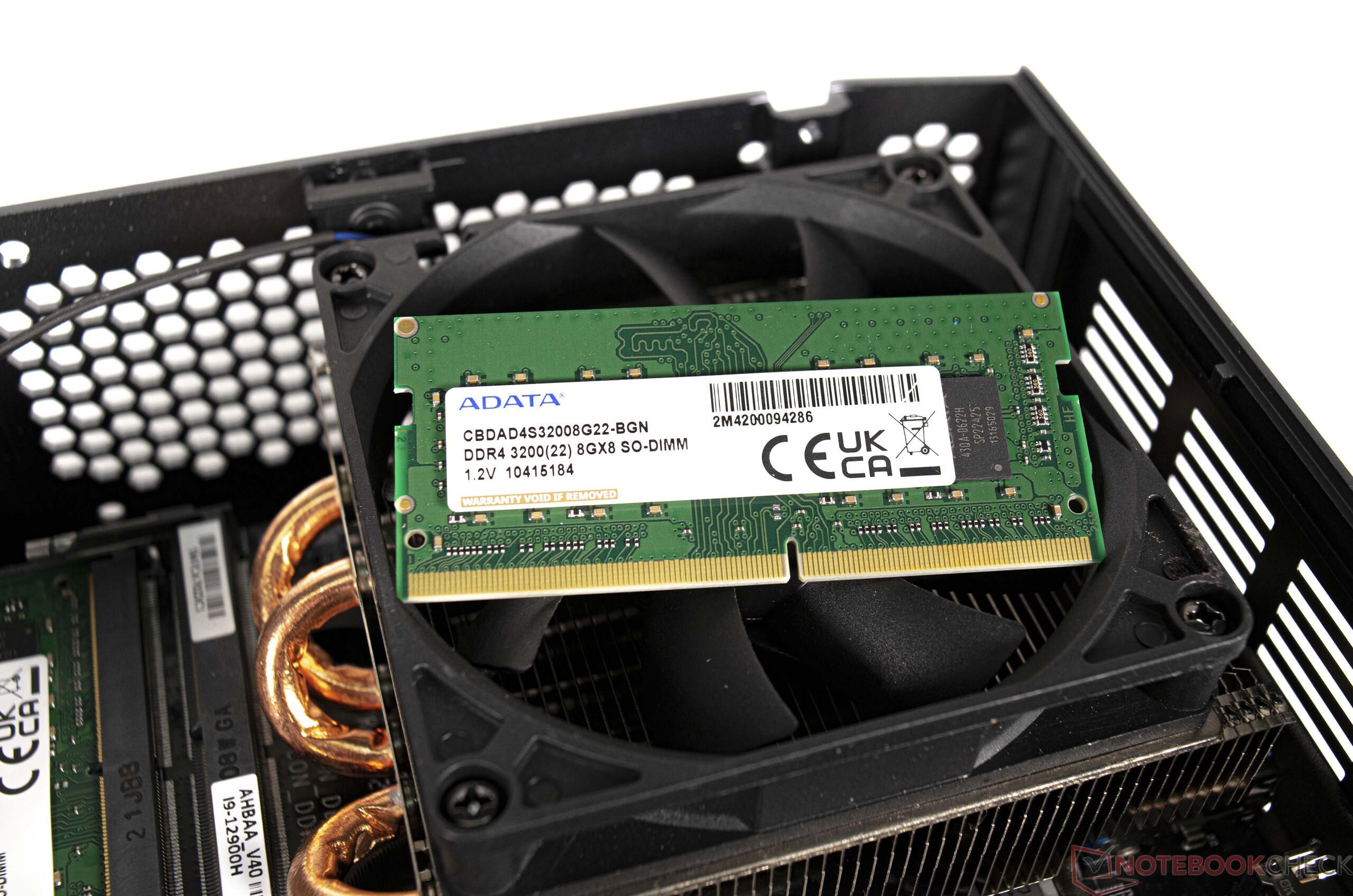

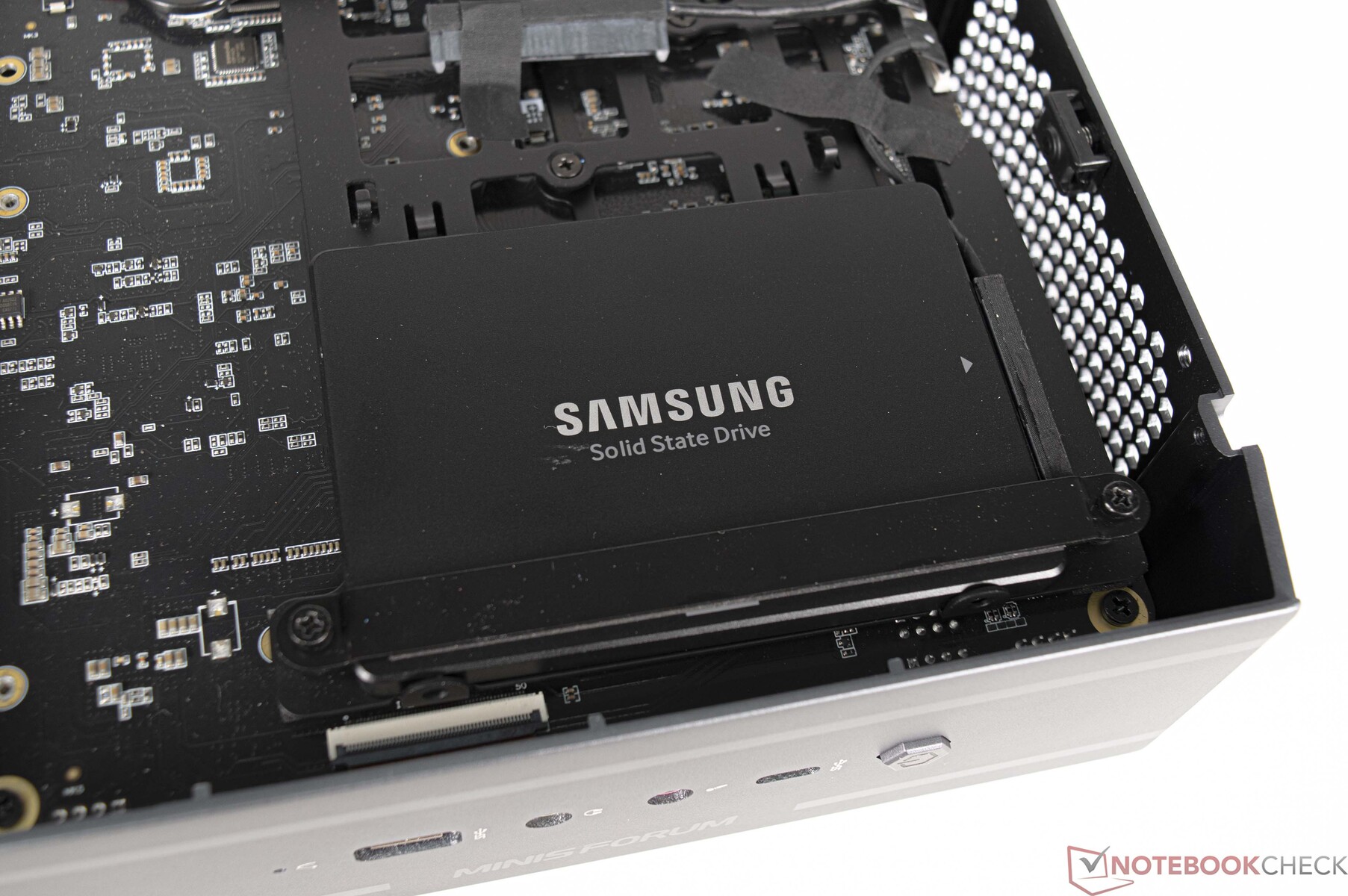

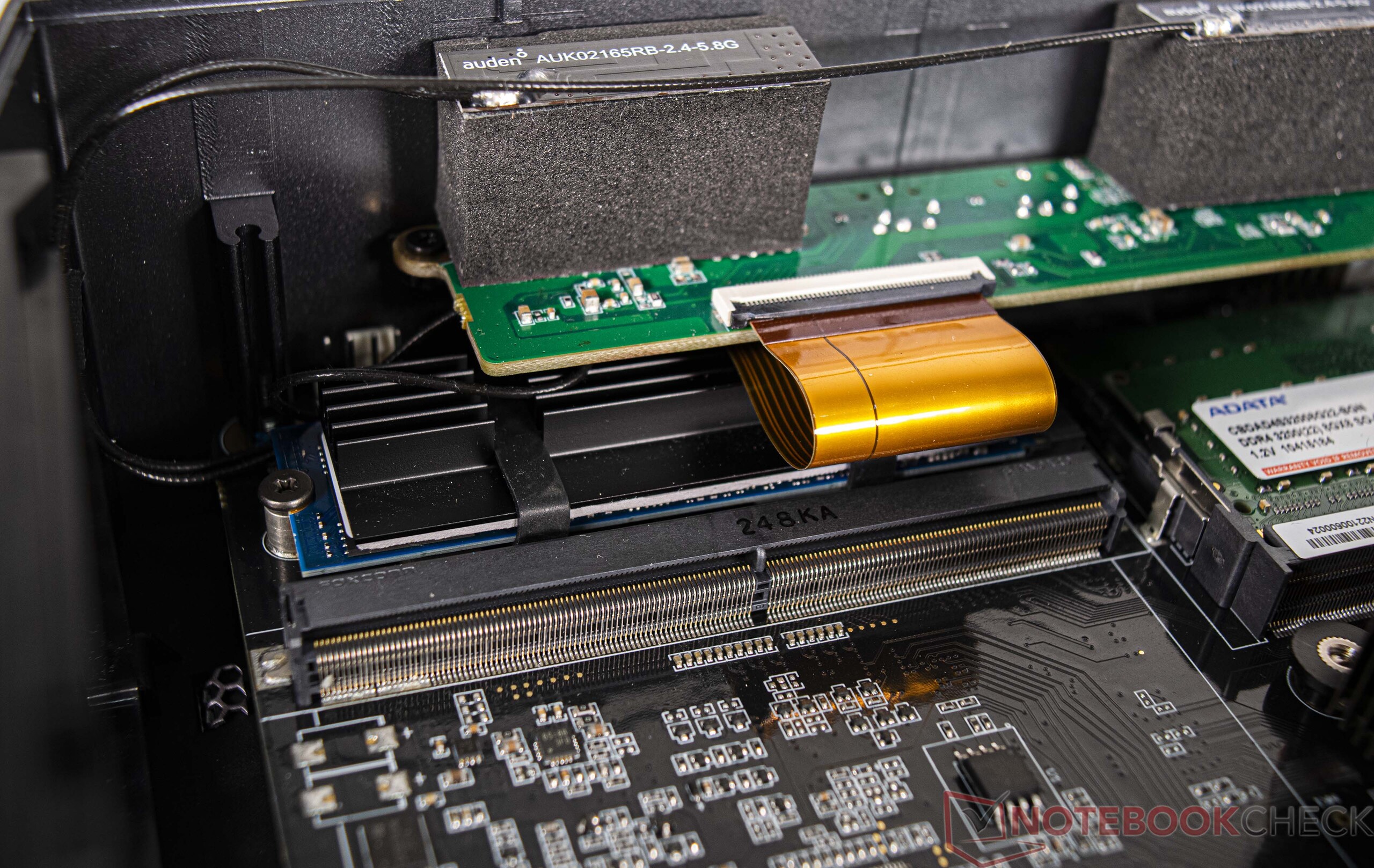

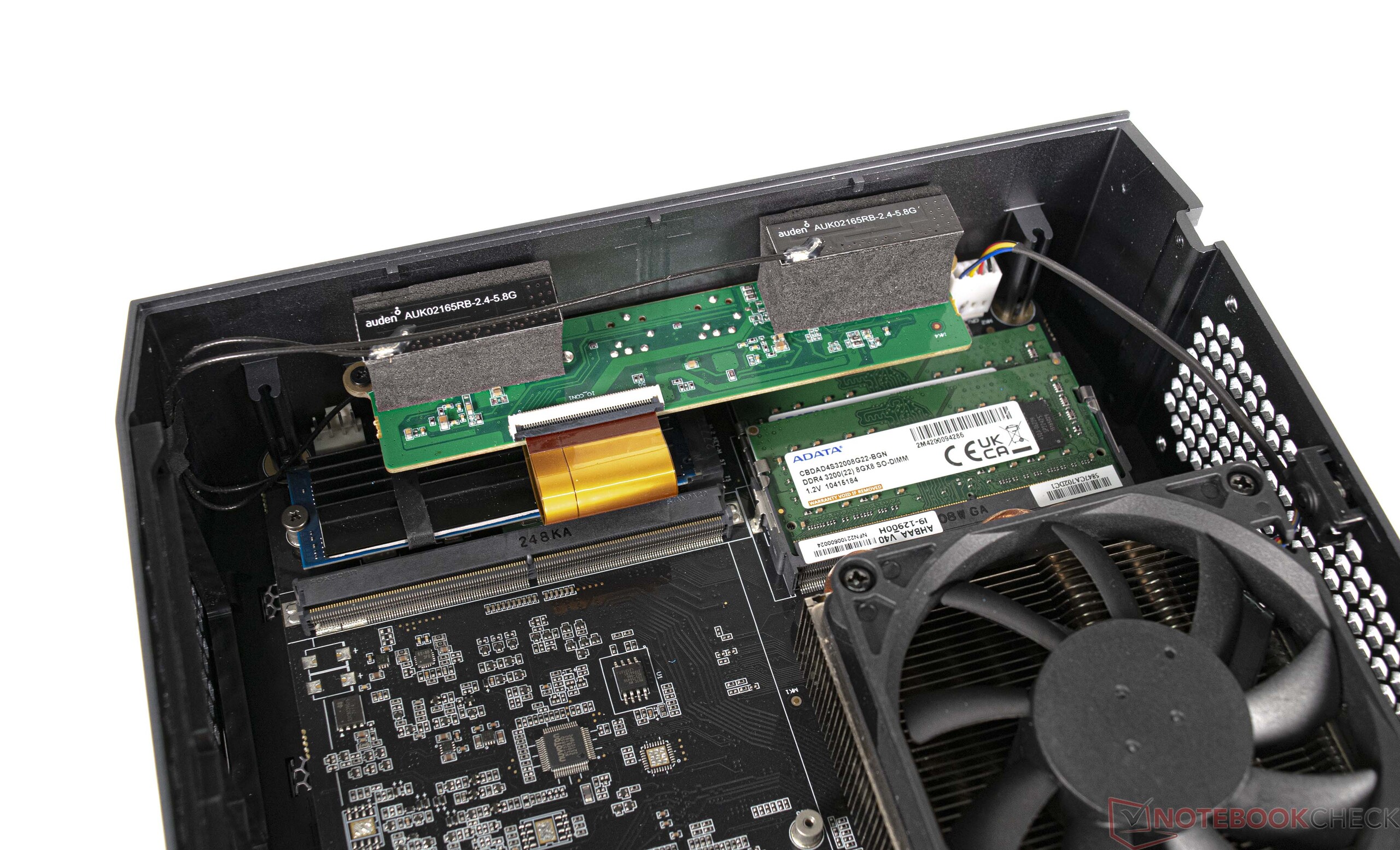

Minisforum Neptune系列NAD9的侧板可以非常容易地拆下来。所有的螺丝都很容易接触到，而且没有隐藏在任何用于吸收振动的橡胶脚下。该设备的内部非常整洁。但它很快就会发现，里面还有很多空间。你还会发现一个MXM插槽，有可能容纳一个专用显卡。我们的猜测是，NAD9和即将推出的NAG6共享相同的平台。进入M.2固态硬盘需要多拧一点，但也不算太糟。总的来说，NAD9有一个易于维护的机箱，CPU风扇也很直接，可以快速清洁。

性能--面向未来，有14个核心和20个线程

测试条件

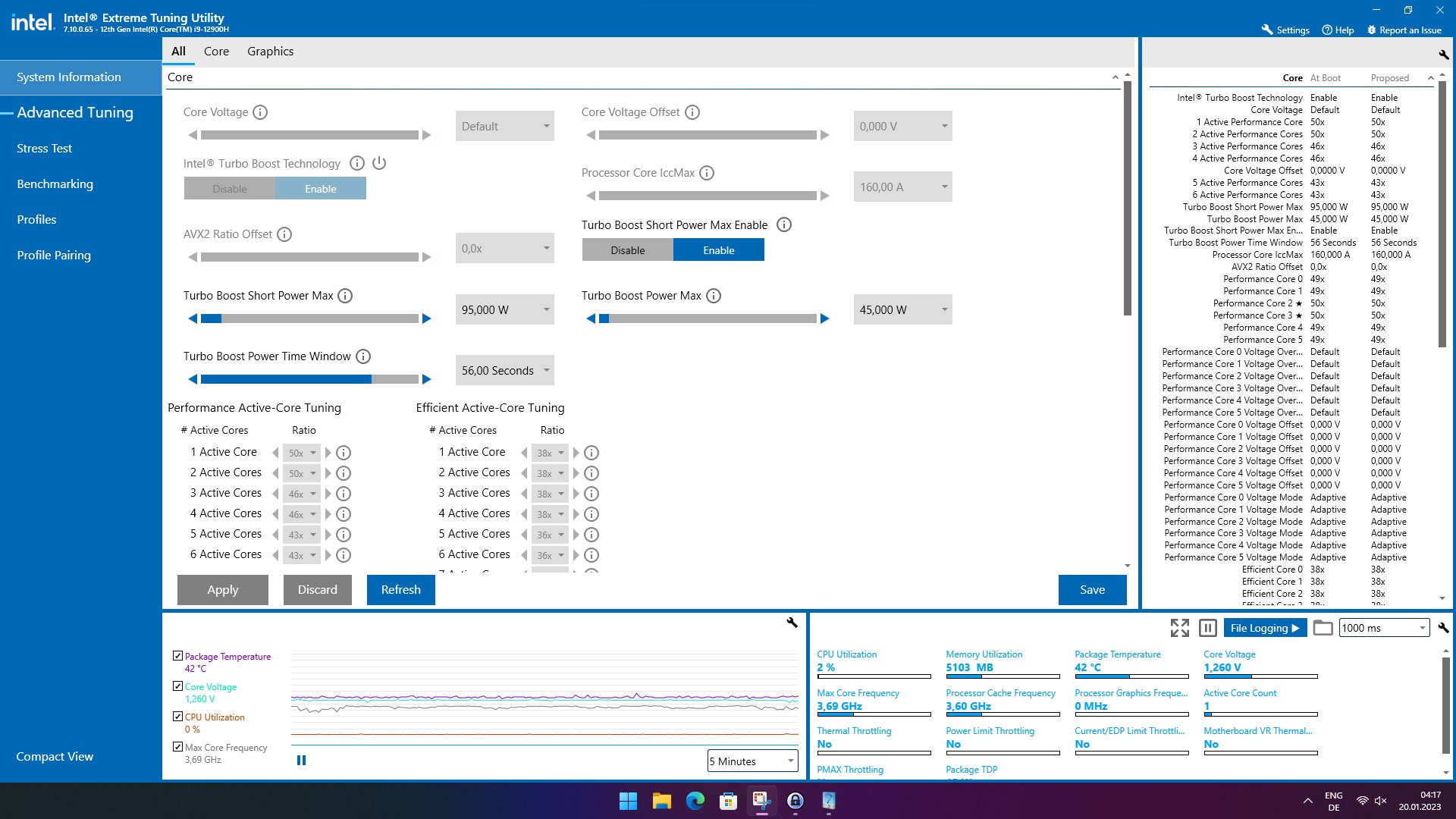

所有的性能测试都是在Minisforum Neptune系列NAD9的功率曲线设置为 "高性能 "的情况下进行的。根据我们的测试标准，我们只在测量功耗和噪音时使用不同的电源配置文件。在BIOS中，CPU的功率和冷却都没有改变。

处理器

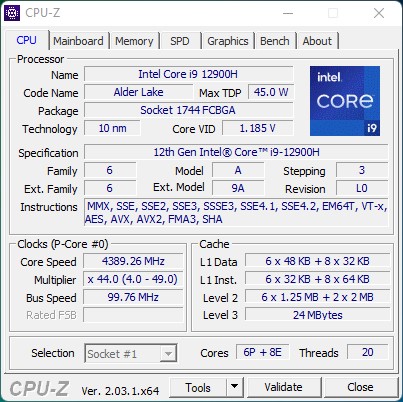

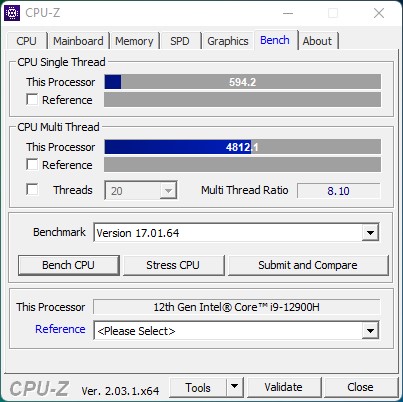

英特尔酷睿i9-12900H 是一款基于Alder Lake架构的高端移动SoC。混合架构结合了性能和效率核心，可以同时运行多达20个线程。在测试过程中，由于其快速的处理器，我们的评测单元能够在我们的比较中获得一个优秀的位置。该CPU甚至超过了Morefine S600 Apex Engineer 中使用的Core i9-12900HK 。原因是NAD9有一个稍大的热余量，可以在短期内获得更多的性能。也就是说，MINISFORUM海王星系列NAD9并不能从英特尔酷睿i9-12900H中获得最大收益。我们看到负载下的最大功率使用为85瓦，但PL2开箱后的功率上限为95瓦。

点击这里https://www.notebookcheck.net/Mobile-Processors-Benchmark-List.2436.0.html查看更多处理器基准测试。

Performance Rating - Percent
Morefine S600-Apex Engineer ^-6! Intel Core i9-12900HK, 1800 MHz	51.9 pt
Average Intel Core i9-12900H	51.3 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	50.1 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.8 pt
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	47.6 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	47.3 pt
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	43.2 pt
Minisforum EliteMini TH50 ^-2! Intel Core i5-11320H, 3200 MHz	40 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt

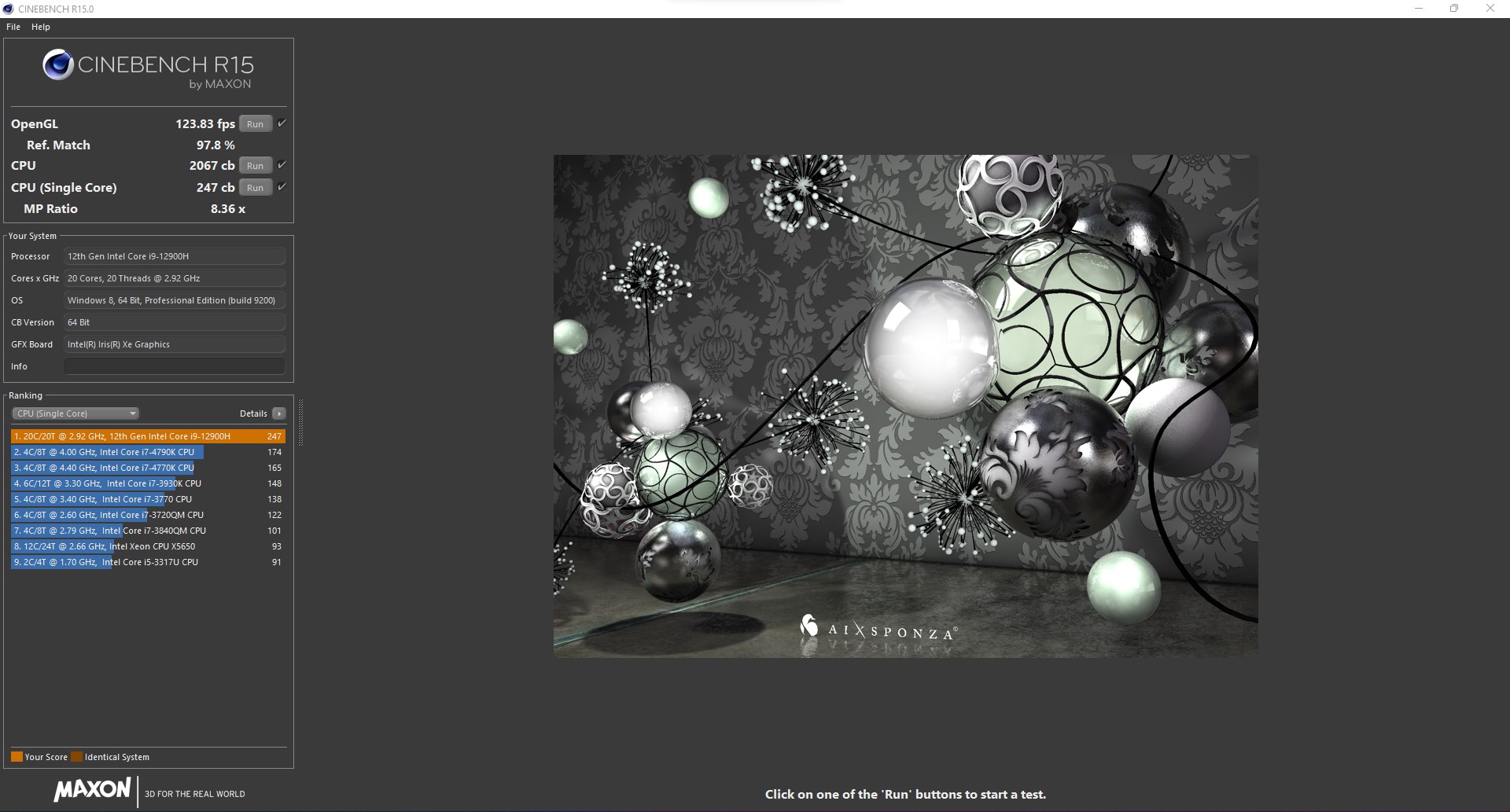

Cinebench R15
CPU Single 64Bit
Average Intel Core i9-12900H (235 - 277, n=29)	262 Points +6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	247 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	243 Points -2%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points -2%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	240 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	212 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -20%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	194 Points -21%
CPU Multi 64Bit
Average Intel Core i9-12900H (1395 - 3077, n=28)	2454 Points +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2067 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1980 Points -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points -4%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1967 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1919 (1862.02^min - 1893.4^max) Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	950 Points -54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -73%

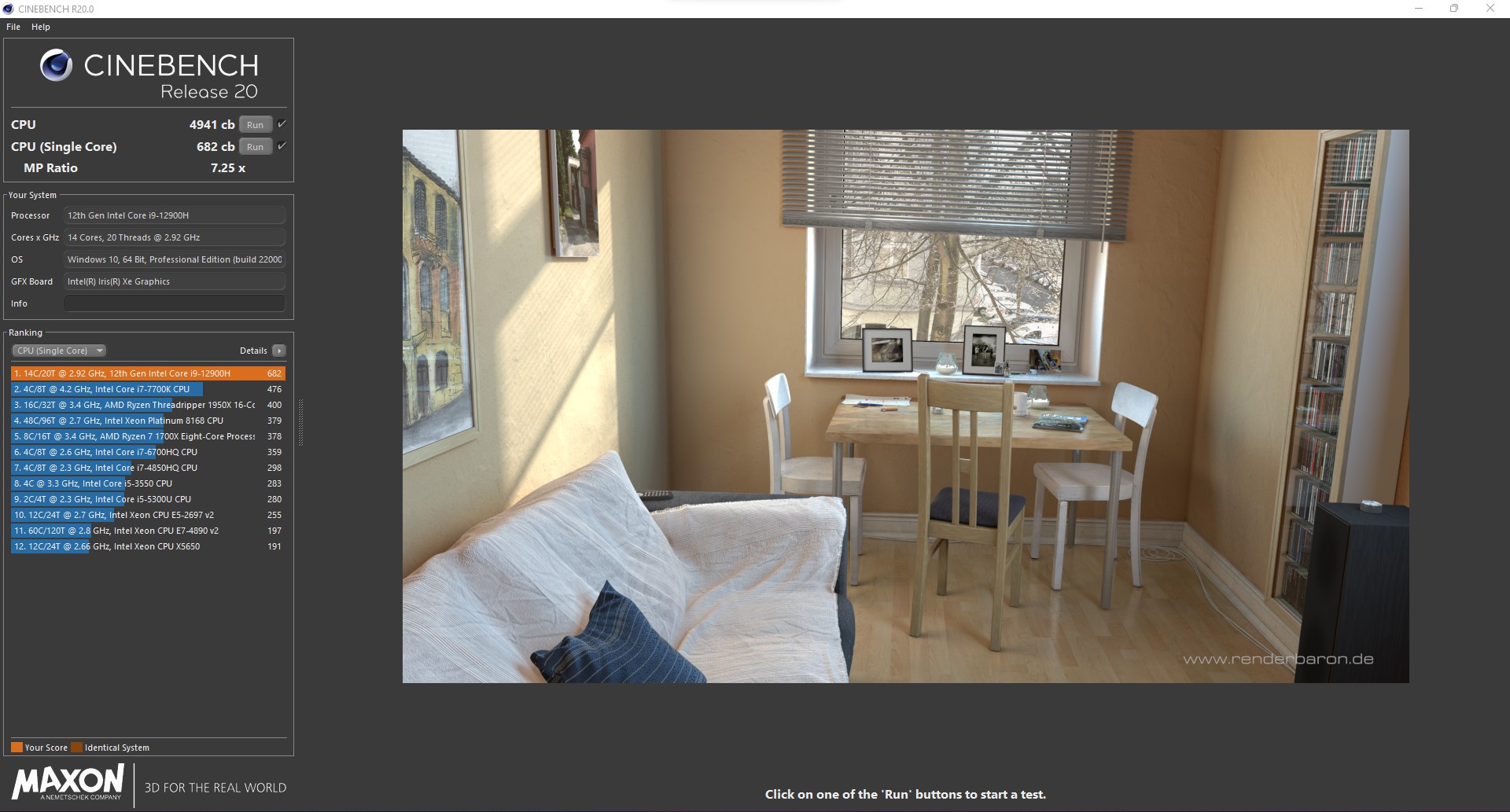

Cinebench R20
CPU (Single Core)
Average Intel Core i9-12900H (624 - 738, n=28)	706 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	682 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	585 Points -14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points -15%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	567 Points -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	560 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -24%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	505 Points -26%
CPU (Multi Core)
Average Intel Core i9-12900H (2681 - 7471, n=28)	5717 Points +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	4941 Points
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	4660 Points -6%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4585 Points -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4495 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2319 Points -53%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -71%

Cinebench R11.5
CPU Single 64Bit
Average Intel Core i9-12900H (2.83 - 3.3, n=7)	3 Points +5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	2.87 Points 0%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2.86 Points
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	2.8 Points -2%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points -6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	2.51 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2.24 Points -22%
CPU Multi 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	25.96 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points -1%
Average Intel Core i9-12900H (12.1 - 32.8, n=7)	23.6 Points -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points -10%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	23.03 Points -11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	22.79 Points -12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	22 Points -15%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	10.78 Points -58%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -75%

Cinebench R10
Rendering Single CPUs 64Bit
Average Intel Core i9-12900H (12846 - 14567, n=6)	13385 Points +4%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	12846 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points -5%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	12113 Points -6%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	11811 Points -8%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11457 Points -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	10173 Points -21%
Rendering Multiple CPUs 64Bit
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	77409 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points -6%
Average Intel Core i9-12900H (48178 - 77409, n=6)	66910 Points -14%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	66237 Points -14%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	65380 Points -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	64320 Points -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	42350 Points -45%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -68%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -175%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	516 Seconds * -89%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	273 Seconds *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	265 Seconds * +3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	252.1 Seconds * +8%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	247.3 Seconds * +9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * +15%
Average Intel Core i9-12900H (160 - 451, n=28)	231 Seconds * +15%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +16%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -99%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5.895 s * -72%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	4.4 s * -29%
Average Intel Core i9-12900H (3.42 - 5.06, n=6)	4.08 s * -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	3.595 s * -5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	3.421 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * +1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +3%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	3.194 s * +7%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -52%
Average Intel Core i9-12900H (187.2 - 265, n=6)	207 s * -9%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * -6%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	191.4 s * -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	189.07 s *
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	106.7 s * +44%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	98.635 s * +48%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +52%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	82.9 s * +56%

X264 HD Benchmark 4.0
Pass 1
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	276.5 (274^min - 278^max) fps +13%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +11%
Average Intel Core i9-12900H (225 - 317, n=6)	267 fps +9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	263.5 (262^min - 266^max) fps +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	245 (239^min - 261^max) fps
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	215 (213^min - 217^max) fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -32%
Pass 2
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	125.25 (105.2^min - 130^max) fps
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	116.8 (116.8^min - 117.3^max) fps -7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps -9%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	112 (112^min - 112^max) fps -11%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	111 (111^min - 112^max) fps -11%
Average Intel Core i9-12900H (67.5 - 126.7, n=6)	105.8 fps -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -71%

WinRAR - Result
Average Intel Core i9-12900H (7620 - 9328, n=7)	8202 KB/s +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	7937 KB/s
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7722 KB/s -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s -7%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6960 KB/s -12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5481 KB/s -31%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4297 KB/s -46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -47%

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s +64%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	10.8 GB/s +26%
Average Intel Core i9-12900H (8.6 - 12.8, n=7)	10.5 GB/s +22%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8.6 GB/s
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7.6 GB/s -12%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7.4 GB/s -14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -14%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6.1 GB/s -29%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -38%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s +15%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	2 GB/s 0%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	2 GB/s
Average Intel Core i9-12900H (1.5 - 2.1, n=7)	1.843 GB/s -8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.6 GB/s -20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.5 GB/s -25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.919 GB/s -54%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -62%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s +33%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1.2 GB/s +23%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +23%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1.1 GB/s +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1.1 GB/s +13%
Average Intel Core i9-12900H (0.864 - 1.4, n=7)	1.077 GB/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.974 GB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.525 GB/s -46%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -54%

Geekbench 5.5
Multi-Core
Average Intel Core i9-12900H (8519 - 14376, n=31)	11913 Points +23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points -25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -49%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points
Average Intel Core i9-12900H (1631 - 1897, n=31)	1800 Points -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points -17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points -34%

Geekbench 5.0
5.0 Multi-Core
Average Intel Core i9-12900H (8374 - 12717, n=11)	10525 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points -21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -50%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points
Average Intel Core i9-12900H (1553 - 1838, n=11)	1695 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points -33%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points
Average Intel Core i9-12900H (7191 - 8015, n=8)	7533 Points -6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points -21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -26%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points -34%
64 Bit Multi-Core Score
Average Intel Core i9-12900H (30682 - 41134, n=8)	36787 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -14%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -47%

3DMark 11 - 1280x720 Performance Physics
Average Intel Core i9-12900H (10552 - 26126, n=33)	21276 Points +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	18382 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	16783 Points -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14277 Points -22%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points -24%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12199 Points -34%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	11662 Points -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -58%

7-Zip 18.03
7z b 4
Average Intel Core i9-12900H (34684 - 76677, n=28)	60849 MIPS +19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS +10%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	55046 MIPS +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	54998 MIPS +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	51151 MIPS
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	48976 MIPS -4%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	26858 MIPS -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -66%
7z b 4 -mmt1
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	6019 MIPS
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	5905 MIPS -2%
Average Intel Core i9-12900H (5302 - 6289, n=28)	5843 MIPS -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	5809 MIPS -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS -5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	4945 MIPS -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -20%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	4727 MIPS -21%

HWBOT x265 Benchmark v2.2 - 4k Preset
Average Intel Core i9-12900H (8.05 - 22.5, n=28)	17.1 fps +21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +13%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps +11%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	14.8 fps +5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	14.5 fps +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	14.1 fps
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	12.9 fps -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	7.86 fps -44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -63%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -38%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	0.622 sec * -34%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	0.572 sec * -23%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	0.4975 sec * -7%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * -7%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	0.493 sec * -6%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	0.4641 sec *
Average Intel Core i9-12900H (0.4218 - 0.506, n=28)	0.454 sec * +2%

LibreOffice - 20 Documents To PDF
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	66 s * -74%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -37%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	50.7 s * -33%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	50.4 s * -33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * -30%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	48.7 s * -28%
Average Intel Core i9-12900H (36.8 - 59.8, n=28)	42.4 s * -12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * -10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	38 s *

WebXPRT 3 - Overall
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	311 Points
Average Intel Core i9-12900H (263 - 332, n=25)	297 Points -5%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	284 Points -9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points -11%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	274 Points -12%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	257 Points -17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -24%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	227 Points -27%

Mozilla Kraken 1.1 - Total
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	767 ms * -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	670 ms * -16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	604 ms * -5%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	602 ms * -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * -1%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	577 ms *
Average Intel Core i9-12900H (490 - 608, n=27)	520 ms * +10%

3DMark
3840x2160 Fire Strike Ultra Physics
Average Intel Core i9-12900H (19179 - 31787, n=19)	26136 Points +22%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	23939 Points +12%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23269 Points +9%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	21422 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	18986 Points -11%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13773 Points -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -55%
1920x1080 Fire Strike Physics
Average Intel Core i9-12900H (9703 - 31176, n=32)	25492 Points +15%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	25160 Points +13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +8%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	23903 Points +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points +5%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	22244 Points
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	20613 Points -7%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	13763 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -58%
2560x1440 Time Spy CPU
Average Intel Core i9-12900H (5062 - 14424, n=32)	11544 Points +10%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	10539 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points -10%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	8191 Points -22%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7087 Points -33%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points -34%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	6523 Points -38%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5210 Points -51%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -73%

* ... smaller is better

Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4

Geekbench 5.5
Multi-Core
Average Intel Core i9-12900H (8519 - 14376, n=31)	11913 Points +23%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9695 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7855 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7818 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7224 Points -25%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5657 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -49%
Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1861 Points
Average Intel Core i9-12900H (1631 - 1897, n=31)	1800 Points -3%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1560 Points -16%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1552 Points -17%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points -17%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1233 Points -34%

Geekbench 5.0
5.0 Multi-Core
Average Intel Core i9-12900H (8374 - 12717, n=11)	10525 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	9663 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	7847 Points -19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	7806 Points -19%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	7624 Points -21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	5606 Points -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -50%
5.0 Single-Core
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	1838 Points
Average Intel Core i9-12900H (1553 - 1838, n=11)	1695 Points -8%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	1518 Points -17%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	1504 Points -18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points -18%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	1453 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -25%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	1237 Points -33%

Geekbench 4.4
64 Bit Single-Core Score
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	8015 Points
Average Intel Core i9-12900H (7191 - 8015, n=8)	7533 Points -6%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	6517 Points -19%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	6434 Points -20%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points -21%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	6238 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -26%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	5287 Points -34%
64 Bit Multi-Core Score
Average Intel Core i9-12900H (30682 - 41134, n=8)	36787 Points 0%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, 1800 MHz	36692 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, 3800 MHz	31835 Points -13%
Morefine S500+ AMD Ryzen 9 5900HX, 3300 MHz	31724 Points -14%
Minisforum HM90 AMD Ryzen 9 4900H, 3300 MHz	28402 Points -23%
Minisforum EliteMini TH50 Intel Core i5-11320H, 3200 MHz	22045 Points -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -47%

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	93.7 pt
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	84 pt
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	83.4 pt
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	83.3 pt
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	74.1 pt
Average of class Mini PC	72.3 pt
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	68.8 pt
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	51 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40.4 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +44%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	15061 KRay/s +38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	13631 KRay/s +24%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	13460 KRay/s +23%
Average of class Mini PC (561 - 51004, n=118, last 2 years)	12276 KRay/s +12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	10952 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	7489 KRay/s -32%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -49%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +82%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	86825 Points +57%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	85294 Points +54%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	80302 Points +45%
Average of class Mini PC (3604 - 214250, n=118, last 2 years)	62123 Points +12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points +12%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	55221 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	31637 Points -43%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -56%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +35%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	2953 MB/s +15%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	2924 MB/s +14%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s +11%
Average of class Mini PC (225 - 9399, n=118, last 2 years)	2738 MB/s +7%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	2631 MB/s +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	2558 MB/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	2099 MB/s -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -36%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +23%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	101697 Points +19%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	97720 Points +15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points +12%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	94655 Points +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	85240 Points
Average of class Mini PC (8172 - 184747, n=118, last 2 years)	77819 Points -9%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	52477 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -45%

AIDA64 / FPU SinJulia
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	14477 Points +92%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +69%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	12202 Points +62%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	11929 Points +58%
Average of class Mini PC (408 - 29064, n=118, last 2 years)	8454 Points +12%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	7548 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	5011 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -47%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +97%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	47597 Points +69%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	47010 Points +67%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	42220 Points +50%
Average of class Mini PC (1958 - 113499, n=118, last 2 years)	32406 Points +15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points +9%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	28159 Points
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	18770 Points -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -47%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +36%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	119844 MB/s +20%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	115382 MB/s +16%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	99521 MB/s
Average of class Mini PC (3691 - 325960, n=118, last 2 years)	85412 MB/s -14%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	76500 MB/s -23%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	75234 MB/s -24%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -41%

AIDA64 / CPU ZLib
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +19%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	851 MB/s +16%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s +13%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	774 MB/s +6%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	747 MB/s +2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	732 MB/s
Average of class Mini PC (74.8 - 2039, n=118, last 2 years)	709 MB/s -3%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	410 MB/s -44%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -64%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +46%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	8242 KRay/s +43%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	7193 KRay/s +25%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	7184 KRay/s +24%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s +14%
Average of class Mini PC (308 - 26952, n=118, last 2 years)	6564 KRay/s +14%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	5777 KRay/s
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	4021 KRay/s -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -48%

AIDA64 / CPU PhotoWorxx
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	30647 MPixel/s +26%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s +24%
Average of class Mini PC (4408 - 50500, n=118, last 2 years)	27624 MPixel/s +14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s +11%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	24323 MPixel/s
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	19885 MPixel/s -18%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	19718 MPixel/s -19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -38%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	14810 MPixel/s -39%

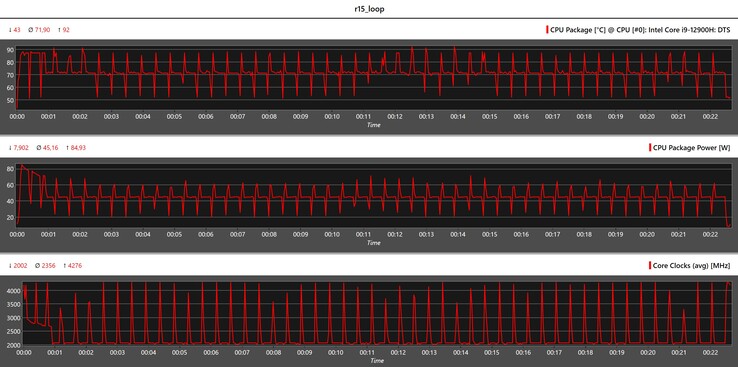

Minisforum海王星系列NAD9运行Cinebench R15多回路

在Cinebench R15的循环测试中，我们很好地看到了所含冷却解决方案的效率。在最初的几次运行中，系统的性能急剧下降，SoC只运行在PL1（45瓦）。在50次运行结束时，NAD9获得了1703分的平均分。

Minisforum Neptune Series NAD9 Intel Core i9-12900H, Intel Core i9-12900H: Ø1703 (1657.14-2261.04)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Morefine S500+ AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø1892 (1879.35-1907.49)

Minisforum EliteMini TH50 Intel Core i5-11320H, Intel Core i5-11320H: Ø896 (837.78-960.71)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

系统性能

在系统基准测试中，MINISFORUM海王星系列NAD9绝对能够在CPU基准测试中的出色表现的基础上更进一步。这些结果与我们在审查期间对该设备的主观体验相一致。系统很敏捷，不会让你等很久。内含的内存没有提供最好的延迟，但在日常使用中几乎看不出来。在我们的测试中，传输率还是不错的，大多比竞争设备的能力要强。

Performance Rating | PCMark 10

Performance Rating - Percent
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	97.3 pt
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	94.5 pt
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	94.4 pt
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	90.1 pt
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	83.8 pt
Minisforum HM90, AMD Ryzen 9 4900H AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	82.4 pt
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	77 pt
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	70.4 pt

PCMark 10
Score
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +5%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	6290 Points +2%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	6214 Points 0%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	6187 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points -9%
Minisforum HM90, AMD Ryzen 9 4900H AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	5565 Points -10%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	5130 Points -17%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -27%
Essentials
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	11217 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points -5%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -8%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	10148 Points -10%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	10087 Points -10%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	9556 Points -15%
Minisforum HM90, AMD Ryzen 9 4900H AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	9026 Points -20%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -21%
Productivity
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +33%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Ryzen 7 5700G, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	9941 Points +30%
Morefine S500+, AMD Ryzen 9 5900HX AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	9856 Points +28%
Minisforum HM90, AMD Ryzen 9 4900H AMD Ryzen 9 4900H, AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	8277 Points +8%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Core i9-12900H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	7673 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points -8%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	6832 Points -11%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -17%

CrossMark: Overall | Productivity | Creativity | Responsiveness

CrossMark / Overall
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1894 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points -5%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1424 Points -25%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1300 Points -31%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -34%

CrossMark / Productivity
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1921 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1740 Points -9%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1453 Points -24%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1376 Points -28%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -32%

CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1867 Points +4%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1800 Points
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1448 Points -20%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1241 Points -31%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -34%

CrossMark / Responsiveness
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	2116 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1811 Points -14%
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1271 Points -40%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	1260 Points -40%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -42%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average Intel Core i9-12900H (34438 - 74264, n=28)	58945 MB/s +28%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	48650 MB/s +6%
Average of class Mini PC (6481 - 89287, n=118, last 2 years)	47240 MB/s +3%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	45941 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44965 MB/s -2%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41969 MB/s -9%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	37840 MB/s -18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -23%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	31638 MB/s -31%

AIDA64 / Memory Read
Average Intel Core i9-12900H (36365 - 74642, n=28)	61718 MB/s +25%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	49559 MB/s
Average of class Mini PC (6914 - 98398, n=118, last 2 years)	47897 MB/s -3%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	46906 MB/s -5%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	46701 MB/s -6%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44775 MB/s -10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s -12%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	42996 MB/s -13%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -19%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	38036 MB/s -23%

AIDA64 / Memory Write
Average Intel Core i9-12900H (32276 - 67858, n=28)	59318 MB/s +27%
Average of class Mini PC (6862 - 98583, n=118, last 2 years)	51663 MB/s +10%
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	50353 MB/s +8%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	46815 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	46454 MB/s -1%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	41806 MB/s -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -16%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	35371 MB/s -24%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	35158 MB/s -25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -25%

AIDA64 / Memory Latency
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	101.5 ns * -2%
Minisforum Neptune Series NAD9 Intel Core i9-12900H, Iris Xe G7 96EUs	100 ns *
Minisforum EliteMini TH50 Intel Core i5-11320H, Iris Xe G7 96EUs	95.7 ns * +4%
Average of class Mini PC (44.9 - 184.8, n=118, last 2 years)	91.8 ns * +8%
Minisforum HM90 AMD Ryzen 9 4900H, Vega 8	90.6 ns * +9%
Average Intel Core i9-12900H (74.7 - 118.1, n=27)	85.7 ns * +14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +20%
Minisforum EliteMini B550 AMD Ryzen 7 5700G, Vega 8	74.2 ns * +26%
Morefine S500+ AMD Ryzen 9 5900HX, Vega 8	73.5 ns * +26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +31%

* ... smaller is better

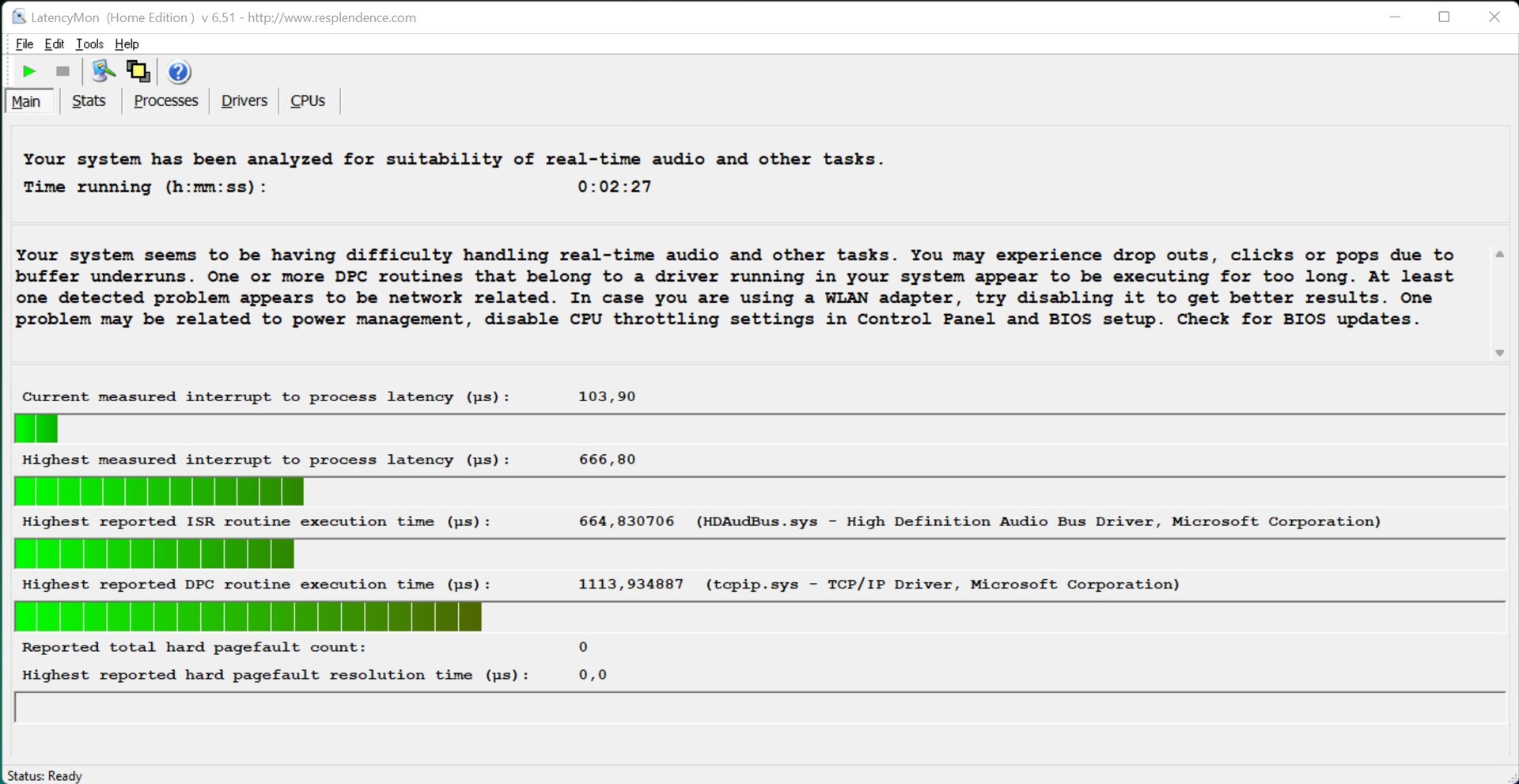

DPC延时

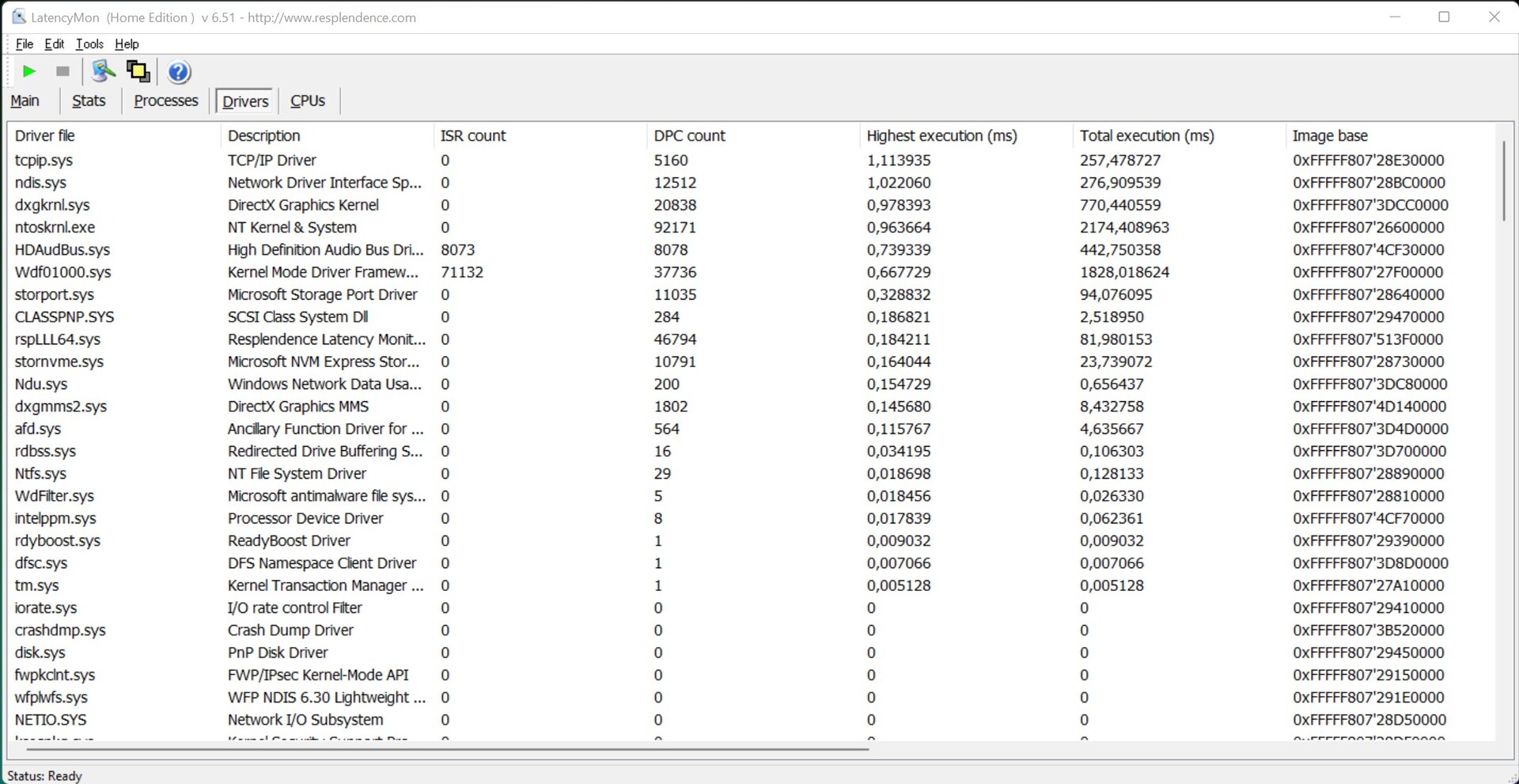

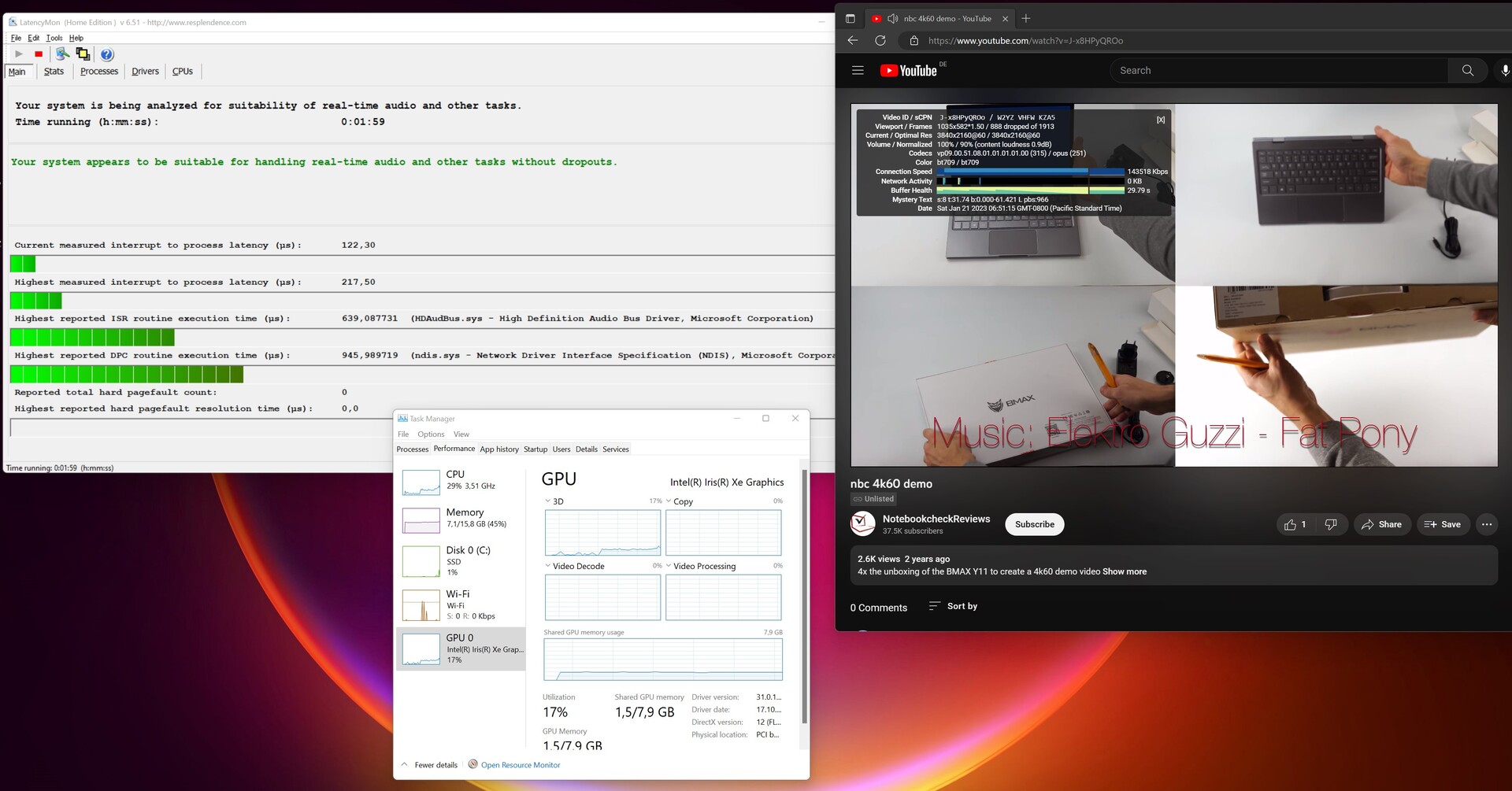

使用LatencyMon工具，我们没有检测到任何延迟的增加，即使在Microsoft Edge中保持几个标签打开，并播放我们的4K测试视频。在4K视频播放过程中，iGPU的使用率约为20%。只有在我们开始Prime95时，延迟才略有增加。

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini B550, AMD Ryzen 7 5700G AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3512B-AI1	1867 μs * -68%
Morefine S500+, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), ADATA XPG Gammix S11L 1024GB	1625 μs * -46%
Minisforum Neptune Series NAD9, Intel Core i9-12900H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PGP4512Q-A0	1113.9 μs *
Minisforum HM90, AMD Ryzen 9 4900H AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PDP3256B	1106 μs * +1%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	1106 μs * +1%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	961.5 μs * +14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	659.1 μs * +41%
Minisforum EliteMini TH50, Intel Core i5-11320H Intel Iris Xe Graphics G7 96EUs, Kingston OM8PDP3512B-AI1	349.5 μs * +69%

* ... smaller is better

大容量存储

我们对MINISFORUM NAD9的评测配置配备了一块M.2 2280金士顿固态硬盘，拥有512GB的存储空间。在审查过程中，该固态硬盘提供了非常高的传输速度。4K读取速度非常高，超过100MB/s。我们只注意到SSD的持续读取性能的小问题。NAD9最多可以安装三个存储驱动器。在主板的背面有一个支架，可以安装两个2.5英寸的驱动器。必要的连接线已经存在于设备中。

请参阅我们的存储驱动器比较表了解更多信息和基准。

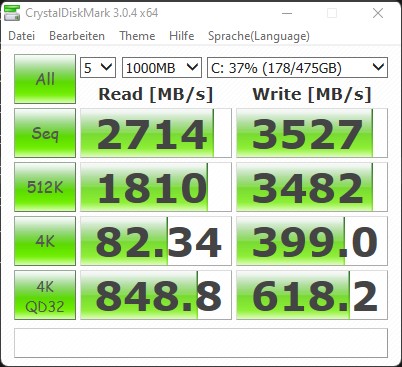

CrystalDiskMark 3.0

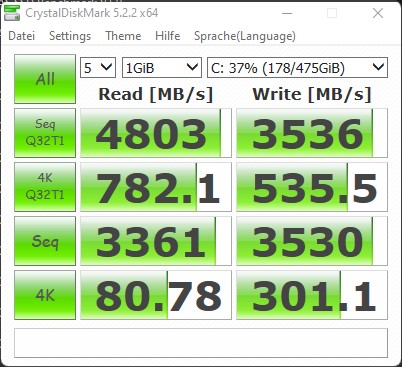

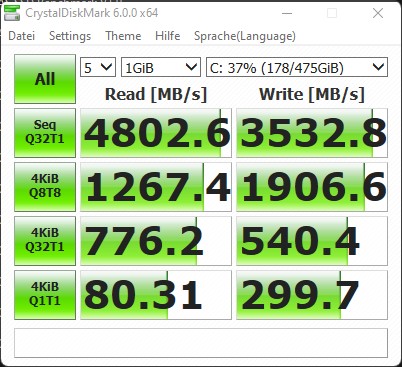

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston OM8PGP4512Q-A0

Sequential Read: 2714 MB/s

Sequential Write: 3527 MB/s

512K Read: 1810 MB/s

512K Write: 3482 MB/s

4K Read: 82.34 MB/s

4K Write: 399 MB/s

4K QD32 Read: 848.8 MB/s

4K QD32 Write: 618.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	96.1 pt
Average of class Mini PC	58.8 pt
Morefine S600-Apex Engineer ^-8! Crucial P1 SSD CT1000P1SSD8	54.8 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	46.4 pt
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.2 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	38.9 pt
Morefine S500+ ADATA XPG Gammix S11L 1024GB	35.1 pt

DiskSpd
seq read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2815 (2802.79^min - 2814.97^max) MB/s
Average of class Mini PC (233 - 4357, n=118, last 2 years)	2284 MB/s -19%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s -22%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2034 (2023.33^min - 2033.61^max) MB/s -28%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1713 (1703.57^min - 1712.81^max) MB/s -39%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -53%
seq write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3372.67^min - 3402.21^max) MB/s
Average of class Mini PC (222 - 5595, n=118, last 2 years)	2438 MB/s -28%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s -47%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1277 (1270.04^min - 1277.38^max) MB/s -62%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1185 (1181.38^min - 1184.95^max) MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -71%
seq q8 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4801 (4506.78^min - 4800.59^max) MB/s
Average of class Mini PC (236 - 8430, n=118, last 2 years)	3694 MB/s -23%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s -47%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2378 (2126.78^min - 2378.31^max) MB/s -50%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2167 (2086.44^min - 2166.57^max) MB/s -55%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -59%
seq q8 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3402 (3374.28^min - 3401.67^max) MB/s
Average of class Mini PC (228 - 6669, n=118, last 2 years)	2736 MB/s -20%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s -47%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1316 (1309.25^min - 1315.54^max) MB/s -61%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1200 (1191.05^min - 1200.08^max) MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -71%
4k q1 t1 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	82.1 (81.4^min - 82.09^max) MB/s
Average of class Mini PC (5.67 - 86.6, n=118, last 2 years)	55.1 MB/s -33%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -42%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -45%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	44.4 (44.23^min - 44.37^max) MB/s -46%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	29.5 (29.27^min - 29.48^max) MB/s -64%
4k q1 t1 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	425 (415.92^min - 425.01^max) MB/s
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -54%
Average of class Mini PC (30.4 - 435, n=118, last 2 years)	195.6 MB/s -54%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -61%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	160 (158.59^min - 159.95^max) MB/s -62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	138 (136.12^min - 137.6^max) MB/s -68%
4k q32 t16 read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1944 (1936.89^min - 1943.53^max) MB/s
Average of class Mini PC (26.1 - 4158, n=118, last 2 years)	1349 MB/s -31%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1063 (1053.81^min - 1062.87^max) MB/s -45%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s -48%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	803 (785.8^min - 802.75^max) MB/s -59%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -84%
4k q32 t16 write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2396 (2376.28^min - 2396.46^max) MB/s
Average of class Mini PC (30.2 - 4288, n=118, last 2 years)	1282 MB/s -46%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1032 (1014.5^min - 1032.27^max) MB/s -57%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s -59%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	890 (860.72^min - 889.72^max) MB/s -63%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s -68%

AS SSD
Score Total
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	7134 Points
Average of class Mini PC (181.5 - 10021, n=116, last 2 years)	4101 Points -43%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	4023 Points -44%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points -60%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2722 Points -62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2248 Points -68%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points -69%
Score Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2391 Points
Average of class Mini PC (61 - 3741, n=116, last 2 years)	1527 Points -36%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1365 Points -43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points -52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1000 Points -58%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	855 Points -64%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points -71%
Score Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3538 Points
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1959 Points -45%
Average of class Mini PC (88 - 4371, n=116, last 2 years)	1841 Points -48%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1251 Points -65%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points -67%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points -67%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	992 Points -72%
Seq Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	4147 MB/s
Average of class Mini PC (291 - 6620, n=116, last 2 years)	3157 MB/s -24%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	2303.9 MB/s -44%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -47%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	2133 MB/s -49%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	2048 MB/s -51%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -57%
Seq Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	3292 MB/s
Average of class Mini PC (240 - 5783, n=116, last 2 years)	2202 MB/s -33%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1699 MB/s -48%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s -51%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	1254 MB/s -62%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	1145 MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -72%
4K Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	103.66 MB/s
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	77.46 MB/s -25%
Average of class Mini PC (6.08 - 104.3, n=116, last 2 years)	58.8 MB/s -43%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	57.87 MB/s -44%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s -47%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s -62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	27.6 MB/s -73%
4K Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	365.87 MB/s
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	247.2 MB/s -32%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s -49%
Average of class Mini PC (30.9 - 366, n=116, last 2 years)	175.9 MB/s -52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	152.35 MB/s -58%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s -61%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	121.3 MB/s -67%
4K-64 Read
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	1872.82 MB/s
Average of class Mini PC (23.4 - 3220, n=116, last 2 years)	1153 MB/s -38%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1073.73 MB/s -43%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s -52%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	711.88 MB/s -62%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	622 MB/s -67%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s -75%
4K-64 Write
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	2842.9 MB/s
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	1541.66 MB/s -46%
Average of class Mini PC (32.8 - 3731, n=116, last 2 years)	1444 MB/s -49%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	984.11 MB/s -65%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s -68%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s -71%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	745 MB/s -74%
Access Time Read
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.154 ms * -108%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	0.154 ms * -108%
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.105 ms * -42%
Average of class Mini PC (0.022 - 0.489, n=116, last 2 years)	0.09752 ms * -32%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * -9%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.074 ms *
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +19%
Access Time Write
Average of class Mini PC (0.014 - 0.765, n=116, last 2 years)	0.116 ms * -274%
Morefine S500+ ADATA XPG Gammix S11L 1024GB	0.103 ms * -232%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -232%
Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0	0.031 ms *
Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1	0.029 ms * +6%
Morefine S600-Apex Engineer Crucial P1 SSD CT1000P1SSD8	0.026 ms * +16%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +23%

* ... smaller is better

Sustained read: DiskSpd Read Loop, Queue Depth 8

Minisforum Neptune Series NAD9 Kingston OM8PGP4512Q-A0: Ø3302 (1830.49-4799.45)

Morefine S500+ ADATA XPG Gammix S11L 1024GB: Ø2165 (2034.95-2173.28)

Minisforum EliteMini B550 Kingston OM8PDP3512B-AI1: Ø2353 (2170.7-2362.34)

Minisforum EliteMini TH50 Kingston OM8PDP3512B-AI1: Ø1905 (1097.76-2359.4)

Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G: Ø2219 (1791.18-2464.68)

图形

芯片英特尔Iris Xe Graphics G7酷睿i9-12900H上的iGPU负责图形处理，因为MINISFORUM海王星系列NAD9没有专用的GPU。在未来，MINISFORUM将发布海王星系列NAG6，配备 AMD Radeon RX 6600M作为NAD6的替代品。Notebookcheck将为您提供关于NAG6的最新信息。但是，回到主题：英特尔Iris Xe图形G7拥有1450兆赫的最大时钟速度和96个EUs，从而使Minicforum NAD9在我们的比较中提供了一个相对稳定的性能。在某些情况下，其性能甚至超过了 Radeon RX Vega 8在AMD APU上发现的。

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	97.9 pt
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	97 pt
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	87.4 pt
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	86.3 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	76.6 pt
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	70.3 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	68.8 pt
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	67.1 pt

3DMark 11 - 1280x720 Performance GPU
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7122 Points +1%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	7057 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6687 Points -5%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6518 Points -8%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points -11%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	5777 Points -18%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	5567 Points -21%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -21%

3DMark
1280x720 Cloud Gate Standard Graphics
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	32899 Points +8%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30434 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	30433 Points 0%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points -5%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	26183 Points -14%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	23739 Points -22%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	23589 Points -22%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -33%
1920x1080 Fire Strike Graphics
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5543 Points 0%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5526 Points
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4730 Points -14%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4369 Points -21%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points -32%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -33%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	3414 Points -38%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	3379 Points -39%
2560x1440 Time Spy Graphics
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1658 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1633 Points -2%
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1592 Points -4%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1412 Points -15%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points -25%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1150 Points -31%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -33%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	1088 Points -34%
Fire Strike Extreme Graphics
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2498 Points +2%
Minisforum Neptune Series NAD9 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	2455 Points
Minisforum EliteMini TH50 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	2167 Points -12%
Morefine S500+ AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1823 Points -26%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -29%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1578 Points -36%
Minisforum EliteMini B550 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700G	1509 Points -39%
Minisforum HM90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 4900H	1447 Points -41%

Performance Rating - Percent
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	94.1 pt
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	92.4 pt
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	89.9 pt
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	86.2 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	72.2 pt
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	71 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	68.5 pt
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	67.6 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.1 fps +3%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	23.3 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.2 fps 0%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	19.6 fps -16%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -30%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	14.9 fps -36%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	13.5 fps -42%
Extreme Preset DX11
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.7 fps +3%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	24 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	23.3 fps -3%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	21.4 fps -11%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps -25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -26%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	16.8 fps -30%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	15.4 fps -36%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	15.5 fps +8%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	14.9 fps +4%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	14.3 fps
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	14.2 fps -1%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps -19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps -20%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	10.6 fps -26%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	10 fps -30%
1920x1080 Extreme HD Preset OpenGL AA:x8
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	16.4 fps +8%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	15.9 fps +5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	15.2 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps -10%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	12.8 fps -16%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -30%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	9.2 fps -39%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	8.8 fps -42%

Unigine Superposition
1920x1080 1080p High
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	2191 Points +5%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2095 Points
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1995 Points -5%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1926 Points -8%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1702 Points -19%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1579 Points -25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1530 Points -27%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1487 Points -29%
1920x1080 1080p Extreme
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1076 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1041 Points -3%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	992 Points -8%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	868 Points -19%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	776 Points -28%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	762 Points -29%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	736 Points -32%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	695 Points -35%

ComputeMark v2.1
1024x600 Normal, Score
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	4148 Points +22%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	3843 Points +13%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	3499 Points +3%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3499 Points +3%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	3414 Points +1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	3390 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	3343 Points -1%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -21%
1024x600 Normal, Fluid 3DTex
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	306 Points +31%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	298 Points +27%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	276 Points +18%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	235 Points 0%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	235 Points 0%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	235 Points 0%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	234 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -21%
1024x600 Normal, Fluid 2DTexArr
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	292 Points +17%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	286 Points +15%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	272 Points +9%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	249 Points
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	231 Points -7%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	231 Points -7%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	220 Points -12%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -18%
1024x600 Normal, Mandel Vector
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1280 Points +50%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1217 Points +43%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1066 Points +25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1066 Points +25%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	851 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	808 Points -5%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	763 Points -10%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -34%
1024x600 Normal, QJuliaRayTrace
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1205 Points +1%
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	1200 Points +1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	1191 Points
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	1123 Points -6%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1115 Points -6%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	1002 Points -16%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1002 Points -16%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points -17%

LuxMark v2.0 64Bit
Room GPUs-only
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	693 Samples/s +15%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	655 Samples/s +9%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	603 Samples/s
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	547 Samples/s -9%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	451 Samples/s -25%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	451 Samples/s -25%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	415 Samples/s -31%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	392 Samples/s -35%
Sala GPUs-only
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	2494 Samples/s +1%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	2470 Samples/s
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	2320 Samples/s -6%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1640 Samples/s -34%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	1287 Samples/s -48%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	948 Samples/s -62%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	939 Samples/s -62%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	939 Samples/s -62%

3DMark 05 Standard		39854 points
3DMark 06 Standard Score		32907 points
3DMark Vantage P Result		26658 points
3DMark 11 Performance		7673 points
3DMark Ice Storm Standard Score		126522 points
3DMark Cloud Gate Standard Score		25668 points
3DMark Fire Strike Score		5157 points
3DMark Fire Strike Extreme Score		2448 points
3DMark Time Spy Score		1897 points
Help

... in comparison

游戏性能

芯片 Intel Iris Xe Graphics G7完全被高要求的游戏所淹没。即使是较老的游戏，也只能在720p和最低设置下顺利运行。充其量，只有最简单的休闲游戏可以在iGPU上以原生分辨率玩。那些需要更多3D性能的人可以看看Minisforum HX90G。同样，即将推出的NAG6也会有相当多的3D性能，这要归功于它的 AMD Radeon RX 6600M.

请参考我们的游戏列表的GPU获取更多信息和基准测试。

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	97.6 (8.8^min, 27.5^P0.1, 58.5^P1) fps 0%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	97.2 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	89.8 (38.5^min, 43^P0.1, 53.7^P1) fps -8%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	84.5 (18.4^min, 24^P0.1, 61.8^P1) fps -13%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps -26%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	69 (13.2^min, 36.3^P0.1, 41.6^P1) fps -29%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -32%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	61.6 (30.7^min, 37.2^P0.1, 46.5^P1) fps -37%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	32.1 (3.28^min, 14.8^P0.1, 18.7^P1) fps 0%
Minisforum Neptune Series NAD9 Iris Xe G7 96EUs, i9-12900H, Kingston OM8PGP4512Q-A0	32 fps
Minisforum EliteMini TH50 Iris Xe G7 96EUs, i5-11320H, Kingston OM8PDP3512B-AI1	29.5 (11.7^min, 15.1^P0.1, 17.6^P1) fps -8%
Morefine S500+ Vega 8, R9 5900HX, ADATA XPG Gammix S11L 1024GB	25.6 (19.1^min, 20^P0.1, 22.1^P1) fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps -26%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	21.9 (8.18^min, 17.5^P0.1, 19^P1) fps -32%
Minisforum HM90 Vega 8, R9 4900H, Kingston OM8PDP3256B	19.6 (15.7^min, 15.8^P0.1, 16.8^P1) fps -39%
Minisforum EliteMini B550 Vega 8, R7 5700G, Kingston OM8PDP3512B-AI1	19.3 (2.25^min, 2.26^P0.1, 2.92^P1) fps -40%

	low	med.	high	ultra
GTA V (2015)	135.3		21	8.89
The Witcher 3 (2015)	97.2		32	15.7
Dota 2 Reborn (2015)	136.9	105	68	61.9
Final Fantasy XV Benchmark (2018)	45.7	24.8	24.8
X-Plane 11.11 (2018)	66.1	47.3	42.3
Far Cry 5 (2018)	57	29	27	25
Strange Brigade (2018)	96.3	40.2	32.5	26.3
Far Cry New Dawn (2019)	52	29	28	25
Metro Exodus (2019)	40.4	19.8	14.6	11.6
Borderlands 3 (2019)	59.1	26.4	16.2	12.1
F1 2020 (2020)	95.2	48.2	37	23.6
F1 2021 (2021)	97.2	52.2	40.4	28.2
Tiny Tina's Wonderlands (2022)	33.1	25.5	15.7	12.3
F1 22 (2022)	46.4	42.1	29.9	23.4
The Witcher 3 v4.00 (2023)	31.4	24.9	21	17.2

排放--尽管是主动冷却，但几乎无声无息

噪声排放

Minisforum Neptune系列NAD9是迄今为止我们测试的最安静的迷你PC之一。考虑到以下因素，这一点尤其令人印象深刻英特尔酷睿i9-12900H是一个原生的14核处理器。该设备在满负荷时和空闲时一样安静。只有 Minisforum EliteMini HX90能与NAD9在这个部门保持一致。它比NAD9的噪音大一点，但在压力测试中，33.4dB(A)的噪音并不明显。

Noise Level

Idle		30.5 / 30.5 / 30.5 dB(A)
Load		30.5 / 30.5 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Earthworks M23R, Arta (15 cm distance) environment noise: 30.2 dB(A)

	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Morefine S500+ R9 5900HX, Vega 8	Minisforum EliteMini B550 R7 5700G, Vega 8	Minisforum EliteMini TH50 i5-11320H, Iris Xe G7 96EUs	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs
Noise		-5%	-15%	-3%	-10%	-10%	-25%
off / environment *	30.2	30.8 -2%	30.1 -0%	30.2 -0%	30.2 -0%	30.28 -0%	29.6 2%
Idle Minimum *	30.5			30.5 -0%	30.8 -1%	31.82 -4%	36.1 -18%
Idle Average *	30.5	31.6 -4%	33.15 -9%	30.5 -0%	32.1 -5%	32.27 -6%	37.6 -23%
Idle Maximum *	30.5			30.5 -0%	32.9 -8%	33.17 -9%	39.2 -29%
Load Average *	30.5			31.2 -2%	33.9 -11%	35.82 -17%	42.6 -40%
Load Maximum *	30.5	33.4 -10%	41.63 -36%	35.1 -15%	41.4 -36%	37.1 -22%	42.4 -39%

* ... smaller is better

温度

NAD9的机箱上有许多开口，用于将新鲜空气吸入并将热空气推出机箱。此外，该设备有一个相对较大的冷却器，有三个热管，以保持英特尔酷睿i9-12900H在规定的功率限制范围内保持良好的冷却效果。在Cinebench R15多循环测试中，我们已经看到该SoC无法在很长一段时间内保持其最大涡轮频率，导致功耗下降到只有45瓦。此外，BIOS将SoC的最高温度限制在87°C（188.6°F），开箱即用。这反过来意味着，当达到这个阈值时，热节流就会启动。在我们的测试中，PC一直在冲击这个温度限制。我们注意到在使用FurMark进行负载测试时，温度短暂地达到了90°C（194°F）的峰值。

制造商本可以通过给它一个更大的冷却器来更好地利用SoC的潜力。在任何情况下，机箱有足够的空间，因为MXM插槽没有被占用。

消耗功率

从性能上讲，MINISFORUM海王星系列NAD9与MOREFINE S600的性能不相上下。莫里芬S600 Apex工程师.但MINISFORUM展示了它在耗电方面可以做得与众不同。Morefine S600在空闲功耗方面有一个很大的问题，从而使我们的评测单元比它有优势。NAD9仅有12至18瓦，在显示2D窗口时，空闲时需要的电量非常小。尽管如此，适配器必须提供高达113瓦的功率，而附带的120瓦电源适配器处理起来没有问题。在这次审查中，我们也没有遇到任何电源问题。

Power Consumption

Off / Standby	2.6 / 2.8 Watt
Idle	12.1 / 13 / 18.2 Watt
Load	70.6 / 113 Watt


Key: min: , med: , max: Metrahit Energy

	Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	Minisforum EliteMini B550 R7 5700G, Vega 8	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	Average Intel Iris Xe Graphics G7 96EUs	Average of class Mini PC
Power Consumption		11%	56%	-185%	41%	17%
Idle Minimum *	12.1	8.9 26%	3.4 72%	46.5 -284%	5.34 ?(2.2 - 46.5, n=193) 56%	9.48 ?(1.9 - 45.7, n=119, last 2 years) 22%
Idle Average *	13	9.6 26%	5.7 56%	63 -385%	8.55 ?(3.8 - 63, n=193) 34%	11.5 ?(1.9 - 47.5, n=117, last 2 years) 12%
Idle Maximum *	18.2	11.8 35%	7 62%	68.9 -279%	10.8 ?(5.8 - 68.9, n=193) 41%	14.9 ?(2.6 - 57.1, n=119, last 2 years) 18%
Load Average *	70.6	98.9 -40%	36.5 48%	73.9 -5%	45.3 ?(12.5 - 87.3, n=193) 36%	57.4 ?(11.3 - 170.6, n=119, last 2 years) 19%
Load Maximum *	113	101.8 10%	68 40%	80.8 28%	67.5 ?(30.1 - 123.3, n=193) 40%	97.5 ?(18.1 - 423, n=119, last 2 years) 14%

* ... smaller is better

Power consumption with external monitor

Minisforum Neptune Series NAD9; Prime95 V2810 Stress (external Monitor): Ø59.9 (56.3-106.4)

Minisforum Neptune Series NAD9; Cinebench R15 Multi (external Monitor): Ø94.4 (90.9-99.5)

Minisforum Neptune Series NAD9; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø69.8 (64.2-111.4)

Minisforum Neptune Series NAD9; Idle 1min (external Monitor): Ø13 (12.1-18.2)

Pros

+ 非常高的系统性能

+ 现代设计

+ 迅捷的Wi-Fi

+ 坚固的底盘

+ 坚固的金属支架

+ 优质材料

+ 负载时非常安静

+ 最多可以容纳三个存储驱动器的空间

+ 能够同时驱动四个显示器

+ 大量的USB端口

Cons

- 没有SD卡读卡器

- 显示器连接只支持4K@60Hz

- 不支持Thunderbolt

评语 - 极其安静，但功能强大

紧凑型PC的功能越来越强大。效率是此类设备的一个主要优势，因为它们利用了原本只在笔记本电脑中发现的组件。Minisforum认识到了这一点，并在相当长的一段时间内一直在发布针对特定使用情况的紧凑型设备。随着海王星系列NAD9的推出，现在有了一款非常高性能的迷你电脑，配备了英特尔酷睿i9-12900H，它有14个原生核心。在我们的审查中，NAD9已经证明它绝对有能力对摩尔芬S600 Apex工程师.

我们认为Minicforum在材料方面做了一个很好的选择：除了看起来很有吸引力，铝制底盘提供了很大的硬度。该设备的手感也非常好，而且有大量的外部接口可供选择。NAD9有大量的USB接口，甚至可以同时驱动四个显示器。但不幸的是，该设备并没有为适应未来而配备Thunderbolt端口，而且你需要一个适配器来使用SD卡。如果你能做到没有这些功能，Minisforum Neptune系列NAD9是一个强大的迷你PC，也能处理挑战性的任务。

Minisforum Neptune系列NAD9是我们到目前为止评测过的最安静的迷你电脑之一。更重要的是，这款配备酷睿i9-12900H的紧凑型工作母机甚至可以为苛刻的任务提供出色的性能。

内置冷却解决方案是该设备的一个缺点。虽然考虑到它产生的噪音量，它确实很好，但制造商可以更好地利用设备中的空间，以便将SoC的长期功率限制保持在一个较高的水平。

价格和可用性

你可以在Minisforum Neptune Series NAD9直接从MINISFORUM商店订购。目前有诱人的预售折扣，而且价格中已经包含了税收。例如，你可以预计只需支付769欧元（679美元）就可以买到评测配置。折扣前的原价是959欧元（799美元）。最便宜的裸机型号起价为639欧元（569美元）。

NAD9目前正在从香港发货，通常需要2-3周时间才能到达。今后，该设备还将在德语区上市，这意味着有关国家的交货时间将大大缩短。使用代码 "NOTEBOOKCHECK "可以享受15欧元的购买折扣（有效期至2023年2月18日）。

审查样本是由制造商免费借给作者用于审查的。该公司对这篇评论没有影响，在发表前也没有收到任何版本。没有义务发表关于该产品的任何文章。

Minisforum Neptune Series NAD9 - 09/08/2023 v7 ^(old)
Sebastian Bade

Chassis

86 / 98 → 88%

Connectivity

58 / 81 → 72%

Weight

73%

Games Performance

70%

Application Performance

97%

Workstation

59%

Noise

95%

Average

77%

85%

Mini PC - Weighted Average

潜在的竞争对手比较

详细了解Minisforum海王星系列NAD9

案例

尺寸比较

规格

连接性

辅料

维护

性能--面向未来，有14个核心和20个线程

测试条件

处理器

Minisforum海王星系列NAD9运行Cinebench R15多回路

系统性能

DPC延时

大容量存储

Sustained read: DiskSpd Read Loop, Queue Depth 8

图形

游戏性能

排放--尽管是主动冷却，但几乎无声无息

噪声排放

温度

消耗功率

Power consumption with external monitor

Pros

Cons

评语 - 极其安静，但功能强大

价格和可用性

More articles related to this device
