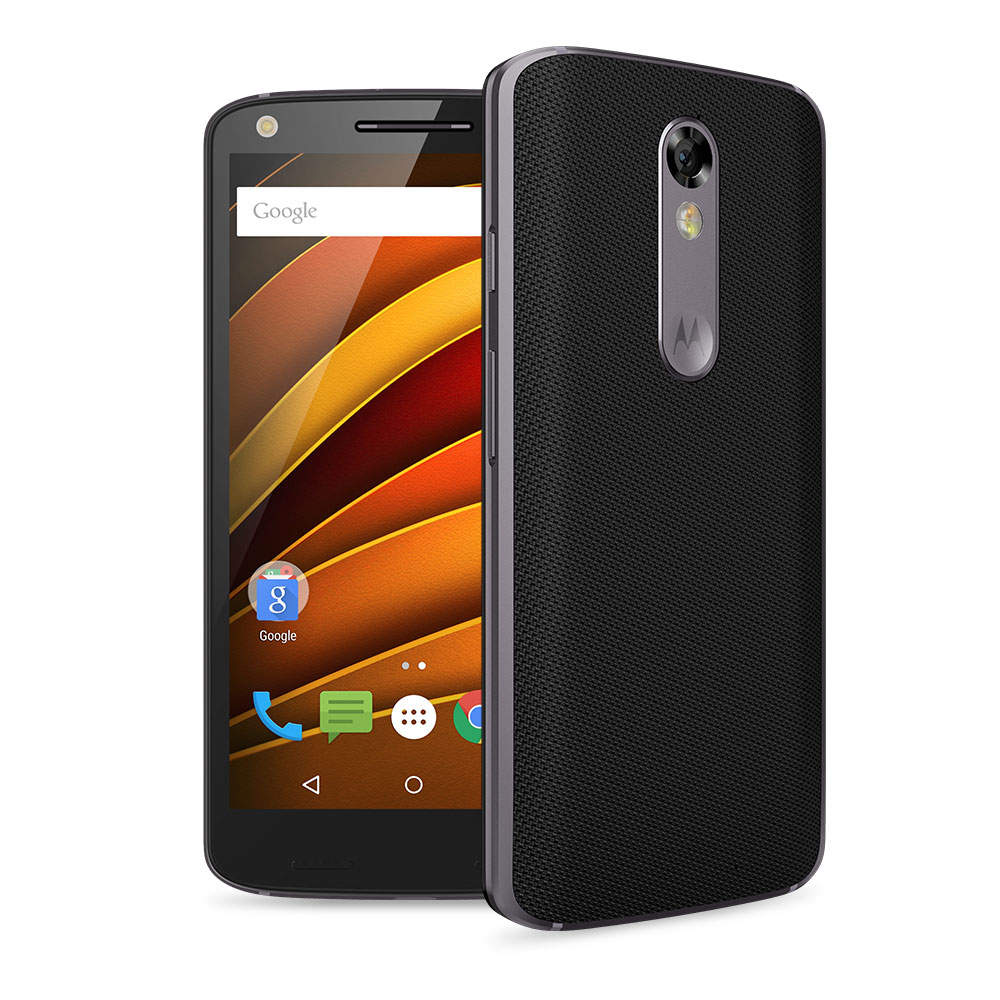

摩托罗拉 Moto X Force 智能手机简短评测

Name: Motorola Moto X Force
Brand: Motorola

硬朗。根据摩托罗拉的说法，这台Moto X是世界上第一款具备坚不可摧的屏幕的智能手机。不过，我们的测试表明这款5.4寸设备不只有优秀的坚固性，在其他的功能上也表现一流。

Manuel Masiero, ✓ Tanja Hinum (translated by Yuchen Wang), Published 03/28/2016 🇺🇸 🇩🇪 ...

Android Smartphone

Test device courtesy of Lenovo Deutschland

Download your licensed rating image as PNG / SVG

Motorola Moto X Force (Moto Series)

Processor

Qualcomm Snapdragon 810 MSM8994 8 x 2 GHz, Cortex-A57/-A53

Graphics adapter

Qualcomm Adreno 430

Memory

3 GB

, LPDDR4

Display

5.40 inch 16:9, 2560 x 1440 pixel, 电容式触控屏幕, 540 ppi, AMOLED, 1440p quad-HD, ShatterShield, glossy: yes

Storage

32 GB eMMC Flash, 32 GB

, 23.2 GB free

Connections

1 USB 2.0, Audio Connections: 3.5毫米耳机插口, Card Reader: micro-SD最大支持2 TB, NFC, Brightness Sensor, Sensors: 加速传感器，陀螺仪，霍尔传感器，磁感仪，近距传感器, 支持Qi无线充电, 红外传输, OTG, Miracast, Wi-Fi Direct, DLNA

Networking

802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1 LE, GSM (850, 900, 1800, 1900 MHz), UMTS (850, 900, 1700, 1900, 2100 MHz), LTE (频段 B1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 25, 28, 40), nano-SIM, 头部辐射值 0.549 W/kg, 身体辐射值 0.781 W/kg, Dual SIM, LTE, GPS

Size

height x width x depth (in mm): 9.2 x 149.8 x 78

Battery

3760 mAh Lithium-Ion, Battery runtime (according to manufacturer): 48 h

Operating System

Android 6.0 Marshmallow

Camera

Primary Camera: 21 MPix 最大分辨率: 5344x4008 像素, 双LED闪光灯, 1080p 高清视频拍摄 (30 FPS), 4K视频拍摄 (30 FPS), HDR视频拍摄 (1080p和4K)
Secondary Camera: 5 MPix 最大分辨率: 2592x1944 像素, 广角镜头, 闪光灯

Additional features

Speakers: 立体声扬声器, Keyboard: 触控, Keyboard Light: yes, 电源适配器，快速开始说明, 24 Months Warranty, ruggedized

Weight

169 g, Power Supply: 30 g

Price

700 Euro

Links

Motorola homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1 Scene 2 Scene 3

click to load images

Motorola Moto X Force

Canon EOS 70D

Samsung Galaxy S7

Apple iPhone 6s Plus

click to load images

Motorola Moto X Force

Canon EOS 70D

Samsung Galaxy S7

Apple iPhone 6s Plus

click to load images

Motorola Moto X Force

Canon EOS 70D

Samsung Galaxy S7

Apple iPhone 6s Plus


323 cd/m²	333 cd/m²	350 cd/m²
320 cd/m²	337 cd/m²	349 cd/m²
320 cd/m²	336 cd/m²	352 cd/m²

Distribution of brightness

540 ppi tested with X-Rite i1Pro 2

Maximum: 352 cd/m² (Nits) Average: 335.6 cd/m² Minimum: 5.42 cd/m²
Brightness Distribution: 91 %
Center on Battery: 337 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 3.99 | 0.5-29.43 Ø4.91
ΔE Greyscale 1.66 | 0.5-98 Ø5.2
Gamma: 2.32

	Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	Apple iPhone 6S A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)	LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	Microsoft Lumia 950 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash
Screen		-3%	-41%	-1%	20%	-96%
Brightness middle	337	552 64%	566 68%	292 -13%	350 4%	669 99%
Brightness	336	549 63%	536 60%	298 -11%	351 4%	624 86%
Brightness Distribution	91	87 -4%	90 -1%	92 1%	98 8%	85 -7%
Black Level *		0.39	0.47			0.68
Colorchecker dE 2000 *	3.99	3.4 15%	6.17 -55%	2.48 38%	2.04 49%	7.96 -99%
Colorchecker dE 2000 max. *	7.07				3.25 54%
Greyscale dE 2000 *	1.66	4.16 -151%	6.26 -277%	1.97 -19%	1.63 2%	10.95 -560%
Gamma	2.32 ^95%	2.21 ^100%	2.48 ^89%	2.06 ^107%	2.07 ^106%	2.61 ^84%
CCT	6584 ^99%	7288 ^89%	8171 ^80%	6640 ^98%	6391 ^102%	7402 ^88%
Contrast		1415	1204			984
Color Space (Percent of AdobeRGB 1998)		62.18	65.48		86.86
Color Space (Percent of sRGB)		95.93	98.63		99.35

* ... smaller is better

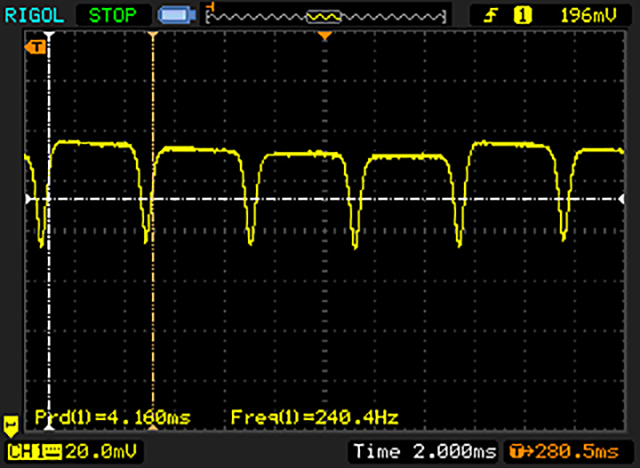

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM detected

240.4 Hz

The display backlight flickers at 240.4 Hz (worst case, e.g., utilizing PWM) .

The frequency of 240.4 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8706 (minimum: 5 - maximum: 343500) Hz was measured.

3DMark - 1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Motorola Moto X Force	25751 Points
Apple iPhone 6S	28419 Points +10%
LG G4	18821 Points -27%
Sony Xperia Z5	24980 Points -3%
Samsung Galaxy S7	29015 Points +13%

Geekbench 3
32 Bit Single-Core Score (sort by value)
LG G4	1022 Points
32 Bit Multi-Core Score (sort by value)
LG G4	2952 Points

GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Motorola Moto X Force	42 fps
Apple iPhone 6S	59.1 fps +41%
LG G4	24.9 fps -41%
Microsoft Lumia 950	13.73 fps -67%
Sony Xperia Z5	49 fps +17%
Samsung Galaxy S7	53 fps +26%
1920x1080 T-Rex Offscreen (sort by value)
Motorola Moto X Force	58 fps
Apple iPhone 6S	79.6 fps +37%
LG G4	33.7 fps -42%
Microsoft Lumia 950	21.82 fps -62%
Sony Xperia Z5	49 fps -16%
Samsung Galaxy S7	84 fps +45%

GFXBench 3.0
1920x1080 1080p Manhattan Offscreen (sort by value)
Motorola Moto X Force	27 fps
Apple iPhone 6S	39.5 fps +46%
LG G4	15 fps -44%
Microsoft Lumia 950	12.3 fps -54%
Sony Xperia Z5	24 fps -11%
Samsung Galaxy S7	40 fps +48%
on screen Manhattan Onscreen OGL (sort by value)
Motorola Moto X Force	17 fps
Apple iPhone 6S	56 fps +229%
LG G4	9.5 fps -44%
Microsoft Lumia 950	6.76 fps -60%
Sony Xperia Z5	26 fps +53%
Samsung Galaxy S7	27 fps +59%

AnTuTu v6 - Total Score (sort by value)
Motorola Moto X Force	89911 Points
Samsung Galaxy S7	127902 Points +42%

BaseMark OS II
Overall (sort by value)
Motorola Moto X Force	1774 Points
Apple iPhone 6S	2194 Points +24%
LG G4	1596 Points -10%
Microsoft Lumia 950	1140 Points -36%
Sony Xperia Z5	1437 Points -19%
Samsung Galaxy S7	1987 Points +12%
System (sort by value)
Motorola Moto X Force	2878 Points
Apple iPhone 6S	3466 Points +20%
LG G4	2368 Points -18%
Microsoft Lumia 950	1096 Points -62%
Sony Xperia Z5	2360 Points -18%
Samsung Galaxy S7	4217 Points +47%
Memory (sort by value)
Motorola Moto X Force	1085 Points
Apple iPhone 6S	1281 Points +18%
LG G4	1558 Points +44%
Microsoft Lumia 950	1640 Points +51%
Sony Xperia Z5	865 Points -20%
Samsung Galaxy S7	2244 Points +107%
Graphics (sort by value)
Motorola Moto X Force	3376 Points
Apple iPhone 6S	4323 Points +28%
LG G4	1995 Points -41%
Microsoft Lumia 950	1437 Points -57%
Sony Xperia Z5	3095 Points -8%
Samsung Galaxy S7	1723 Points -49%
Web (sort by value)
Motorola Moto X Force	939 Points
Apple iPhone 6S	1207 Points +29%
LG G4	881 Points -6%
Microsoft Lumia 950	655 Points -30%
Sony Xperia Z5	675 Points -28%
Samsung Galaxy S7	957 Points +2%

PCMark for Android - Work performance score (sort by value)
Motorola Moto X Force	5365 Points
LG G4	4579 Points -15%
Sony Xperia Z5	5184 Points -3%
Samsung Galaxy S7	4826 Points -10%

Legend

Motorola Moto X Force Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Apple iPhone 6S Apple A9, Apple A9 / PowerVR GT7600, Apple AP0064K (iPhone NVMe)

LG G4 Qualcomm Snapdragon 808 MSM8992, Qualcomm Adreno 418, 32 GB eMMC Flash

Microsoft Lumia 950 Qualcomm Snapdragon 808 MSM8992, Qualcomm Adreno 418, 32 GB eMMC Flash

Sony Xperia Z5 Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Samsung Galaxy S7 Samsung Exynos 8890 Octa, ARM Mali-T880 MP12, 32 GB UFS 2.0 Flash

Octane V2 | Mozilla Kraken 1.1 | WebXPRT 2015 | JetStream 1.1

Octane V2 - Total Score (sort by value)
Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	8699 Points
Apple iPhone 6S A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)	16200 Points +86%
LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	7832 (6791^min) Points -10%
Microsoft Lumia 950 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	6990 Points -20%
Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash	8627 Points -1%
Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	13161 Points +51%

Mozilla Kraken 1.1 - Total (sort by value)
Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	4080 ms *
Apple iPhone 6S A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)	1715 ms * +58%
LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	4771 ms * -17%
Microsoft Lumia 950 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	6914 ms * -69%
Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash	5693 ms * -40%
Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	2562 ms * +37%

WebXPRT 2015 - Overall (sort by value)
Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	103 Points
Apple iPhone 6S A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)	187 Points +82%
LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	82 Points -20%
Microsoft Lumia 950 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	64 Points -38%
Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash	73 Points -29%
Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	166 Points +61%

JetStream 1.1 - Total Score (sort by value)
Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	49.37 Points
Apple iPhone 6S A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)	118.6 Points +140%
LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	43.12 Points -13%
Microsoft Lumia 950 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	24.52 Points -50%
Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash	37 Points -25%
Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	74 Points +50%

* ... smaller is better

AndroBench 3-5
Sequential Read 256KB (sort by value)
Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	252 MB/s
LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	251 MB/s 0%
Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash	219.8 MB/s -13%
Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	483.8 MB/s +92%
Sequential Write 256KB (sort by value)
Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	47.99 MB/s
LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	153 MB/s +219%
Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash	115.5 MB/s +141%
Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	145.7 MB/s +204%
Random Read 4KB (sort by value)
Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	22.55 MB/s
LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	31.5 MB/s +40%
Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash	3.59 MB/s -84%
Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	85.9 MB/s +281%
Random Write 4KB (sort by value)
Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	19.78 MB/s
LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	15 MB/s -24%
Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash	11.46 MB/s -42%
Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	16.01 MB/s -19%

Max. Load

Idle


38.1 °C	37.8 °C	38.1 °C
38.5 °C	39.3 °C	38.6 °C
39.8 °C	39.4 °C	38.8 °C

Maximum: 39.8 °C
Average: 38.7 °C


38.3 °C	38.1 °C	37.8 °C
38.6 °C	39.9 °C	36.4 °C
38.4 °C	40.4 °C	38.3 °C

Maximum: 40.4 °C
Average: 38.5 °C

Power Supply (max.) 29.2 °C | Room Temperature 21.9 °C | Voltcraft IR-260

(-) The average temperature for the upper side under maximal load is 38.7 °C / 102 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.7 °C for the class Smartphone.
(±) The bottom heats up to a maximum of 40.4 °C / 105 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 30.8 °C / 87 F, compared to the device average of 32.8 °C / 91 F.

Power Consumption

Off / Standby	0.11 / 0.37 Watt
Idle	0.96 / 1.35 / 1.4 Watt
Load	6.11 / 9.43 Watt


Key: min: , med: , max: Gossen Metrahit Energy

Battery Runtime

Idle (without WLAN, min brightness)		26h 50min
WiFi Websurfing		7h 06min
Big Buck Bunny H.264 1080p		11h 50min
Load (maximum brightness)		5h 30min

	Motorola Moto X Force Adreno 430, 810 MSM8994, 32 GB eMMC Flash	Apple iPhone 6S A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)	LG G4 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	Microsoft Lumia 950 Adreno 418, 808 MSM8992, 32 GB eMMC Flash	Samsung Galaxy S7 Mali-T880 MP12, Exynos 8890, 32 GB UFS 2.0 Flash	Sony Xperia Z5 Adreno 430, 810 MSM8994, 32 GB eMMC Flash
Battery Runtime		-13%	-29%	-28%	5%	-11%
Reader / Idle	1610	1510 -6%	1654 3%	1500 -7%	1810 12%	1669 4%
H.264	710	699 -2%	501 -29%	570 -20%	892 26%	600 -15%
WiFi v1.3	426	492 15%	326 -23%	250 -41%	456 7%	438 3%
Load	330	137 -58%	114 -65%	187 -43%	242 -27%	213 -35%

Pros

+ 安卓6.0

+ 高速处理器

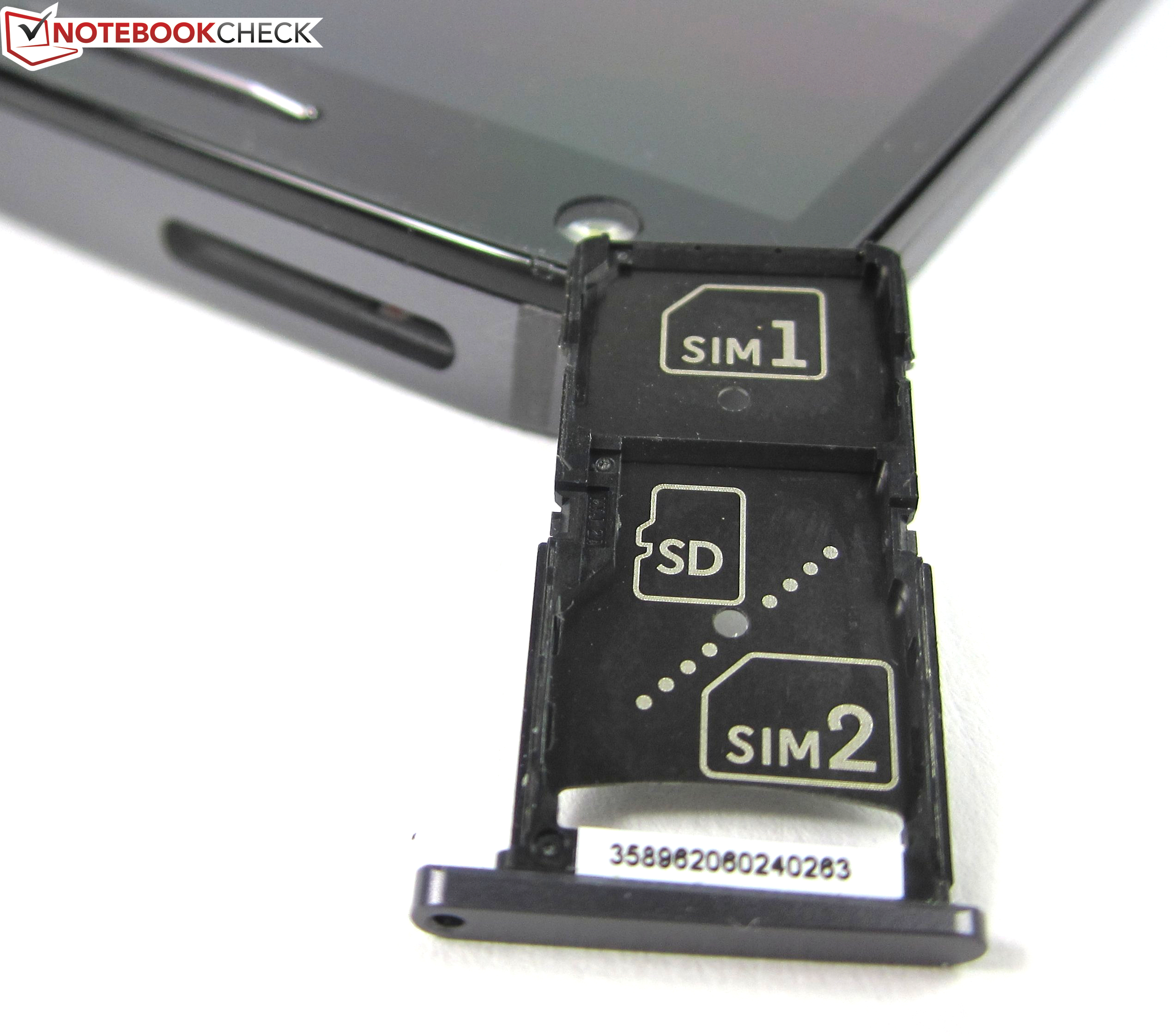

+ 双SIM卡槽

+ 不可摧玻璃屏幕

+ 异常坚固

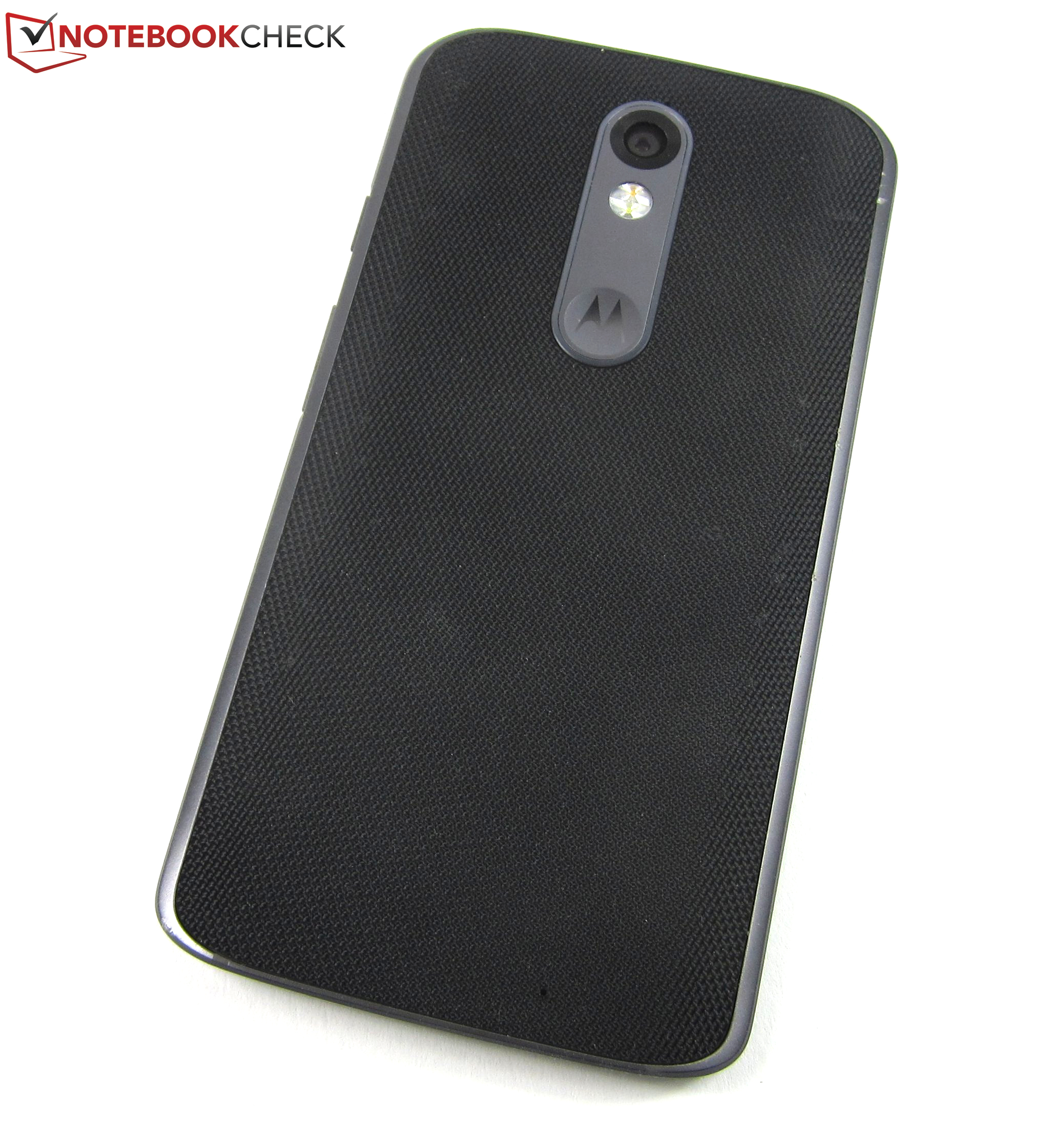

+ 高品质机身

+ 四年屏幕质保

+ 2560 x 1440像素分辨率

+ 非常优秀的2100万像素相机

+ 电池续航长

+ 充电时间短

Cons

- 只有单声道扬声器

- 整合插槽有缺点

- 不防水

- 处理器在高温下降频

- 不附赠耳机

In review Motorola Moto X Force. Review sample courtesy of Lenovo Germany.

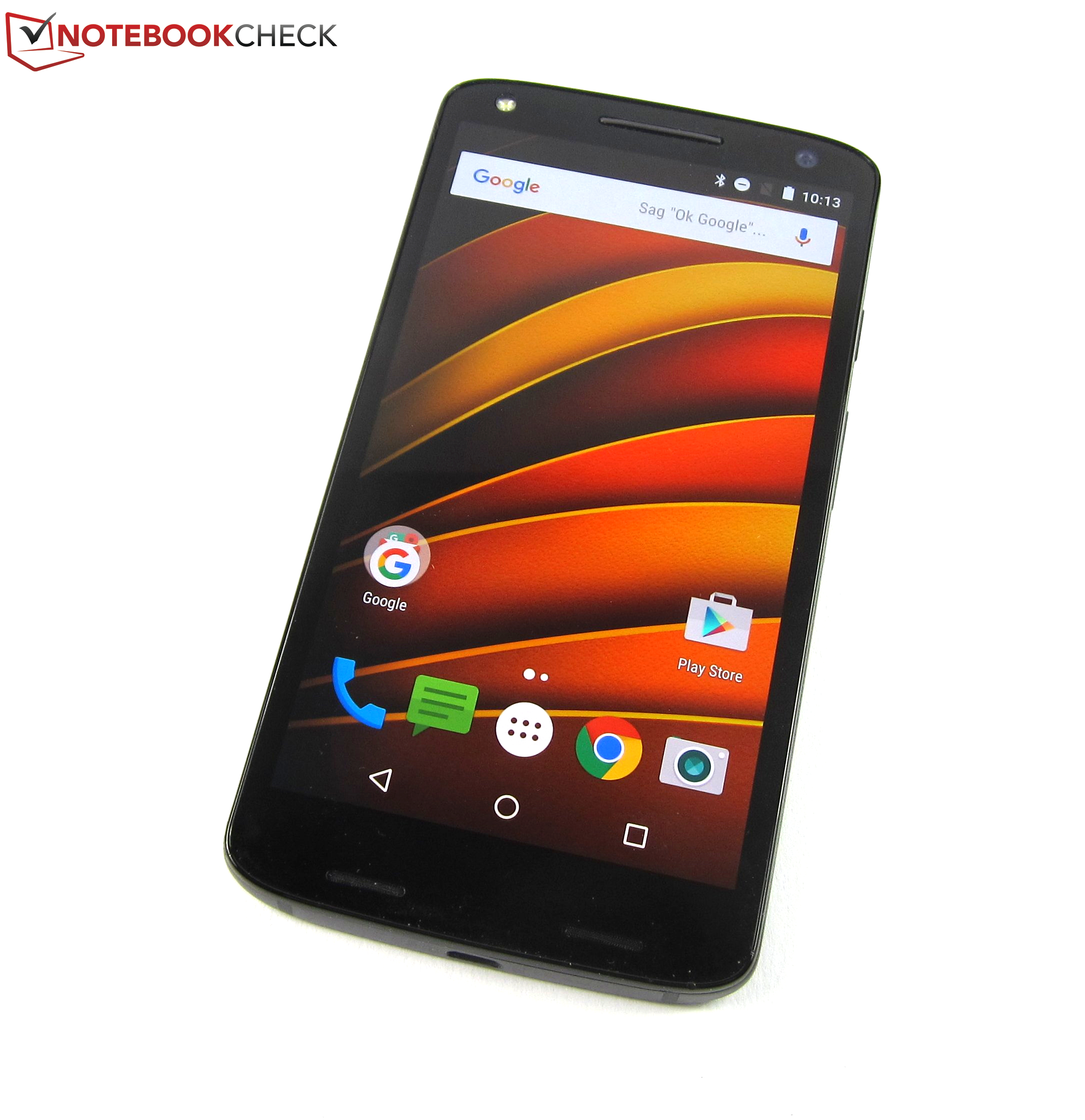

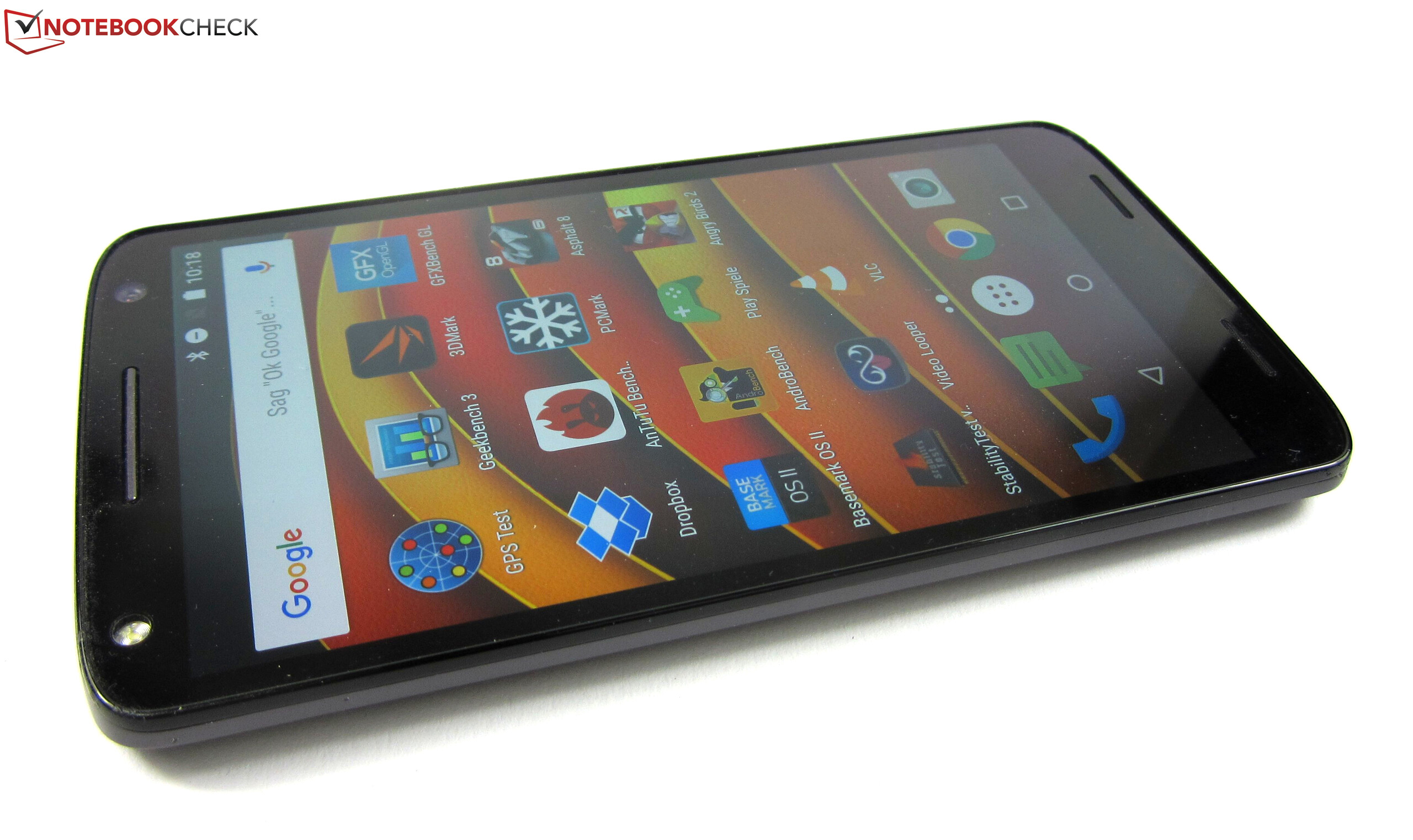

摩托罗拉的Moto X Force打出了一棒本垒打。这句话完全可以从字面意思理解，因为这台5.4寸的安卓智能手机搭配了一块坚不可摧的屏幕。不过，Moto X Force除坚固之外在其他方面也不容小觑。这款高端智能手机表现优秀而全面。它的AMOLED屏幕非常明亮，可视角度宽广，同时2560x1440分辨率、540PPI的像素密度让图像显示锐利清晰。它的亮点还有强劲的Snapdragon 810 MSM8994八核处理器，支持Wi-Fi 802.11ac、LTE、NFC和双SIM卡的完备通信模组。其它加分项包括了：典雅的金属机身，最新安卓6.0，出色的2100万像素相机，长续航时间和快速充电功能。

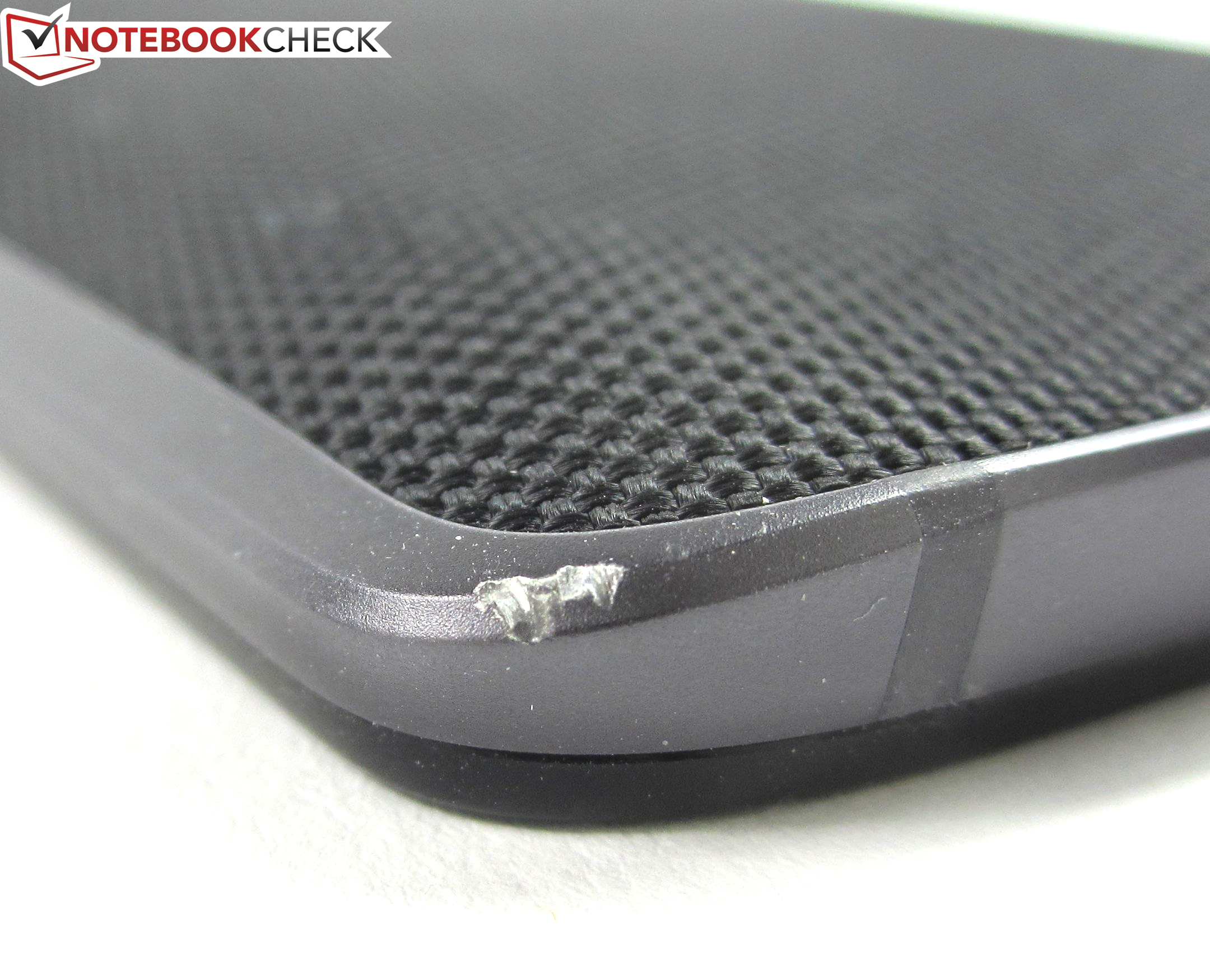

Moto X Force为用户带来了很多功能：无坚可摧的屏幕保证了在手机落在石板地面上也不会受损。

尽管摩托罗拉为这台智能手机定价近700欧元（约5086人民币），它却不附赠耳机，需要单独购买。Moto X Force的单声道扬声器也限制了音响效果。最后，摩托罗拉需要重新考虑对处理器的选择。这块芯片在升到一定温度后就会降频。不过，即使频率有所下降，它的性能仍然可以轻松满足目前所有安卓应用和游戏的需要。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Motorola Moto X Force - 04/21/2016 v5.1 ^(old)
Manuel Masiero

Chassis

92%

Keyboard

68 / 75 → 91%

Pointing Device

94%

Connectivity

47 / 60 → 78%

Weight

91%
