雷克沙NM800 Pro显示了对PCIe4 x4 SSD使用散热器的重要性

雷克沙NM800 Pro显示了对PCIe4 x4 SSD使用散热器的重要性
雷克沙NM800 Pro显示了对PCIe4 x4 SSD使用散热器的重要性
虽然固态硬盘的散热器一直是可选的,但如果你想最大限度地利用PCIe4 x4的速度,这一代的散热器已经成为必需品。雷克沙NM800 Pro包括一个选项,它也可以装在PS5里面。
Accessory Laptop / Notebook Desktop Storage

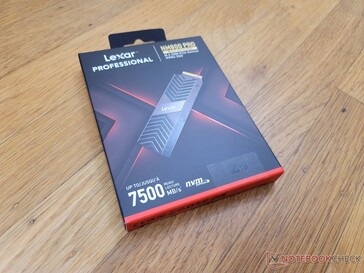

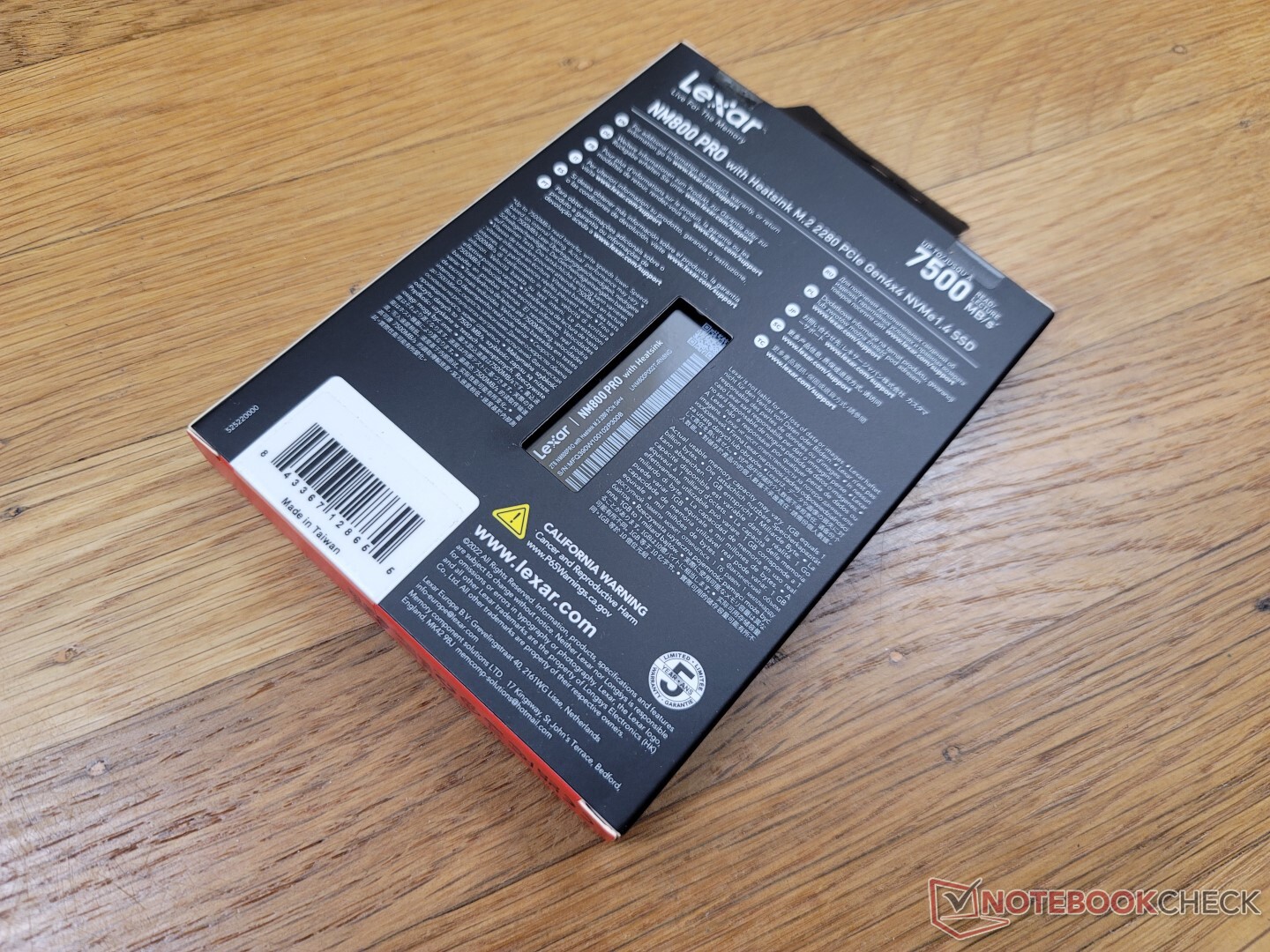

Lexar Professional 2TB NM800 Pro现在正在亚马逊上发货,价格为180美元或220美元。制造商给我们寄来了一个带散热片的样品,供我们做基准测试和印象。对于这项测试,我们特别感兴趣的是温度,以及该硬盘在保持7500MB/s的最大宣传读取率方面的能力。

我们测试NM800 Pro的主机是英特尔NUC11,配备11代酷睿i7-1165G7处理器。它支持PCIe4 x4传输速率,它甚至包括一个用于任何安装的固态硬盘的内置散热器,但我们已经在英特尔迷你电脑内移除这个散热器,以便测试雷克沙固态硬盘和散热器。

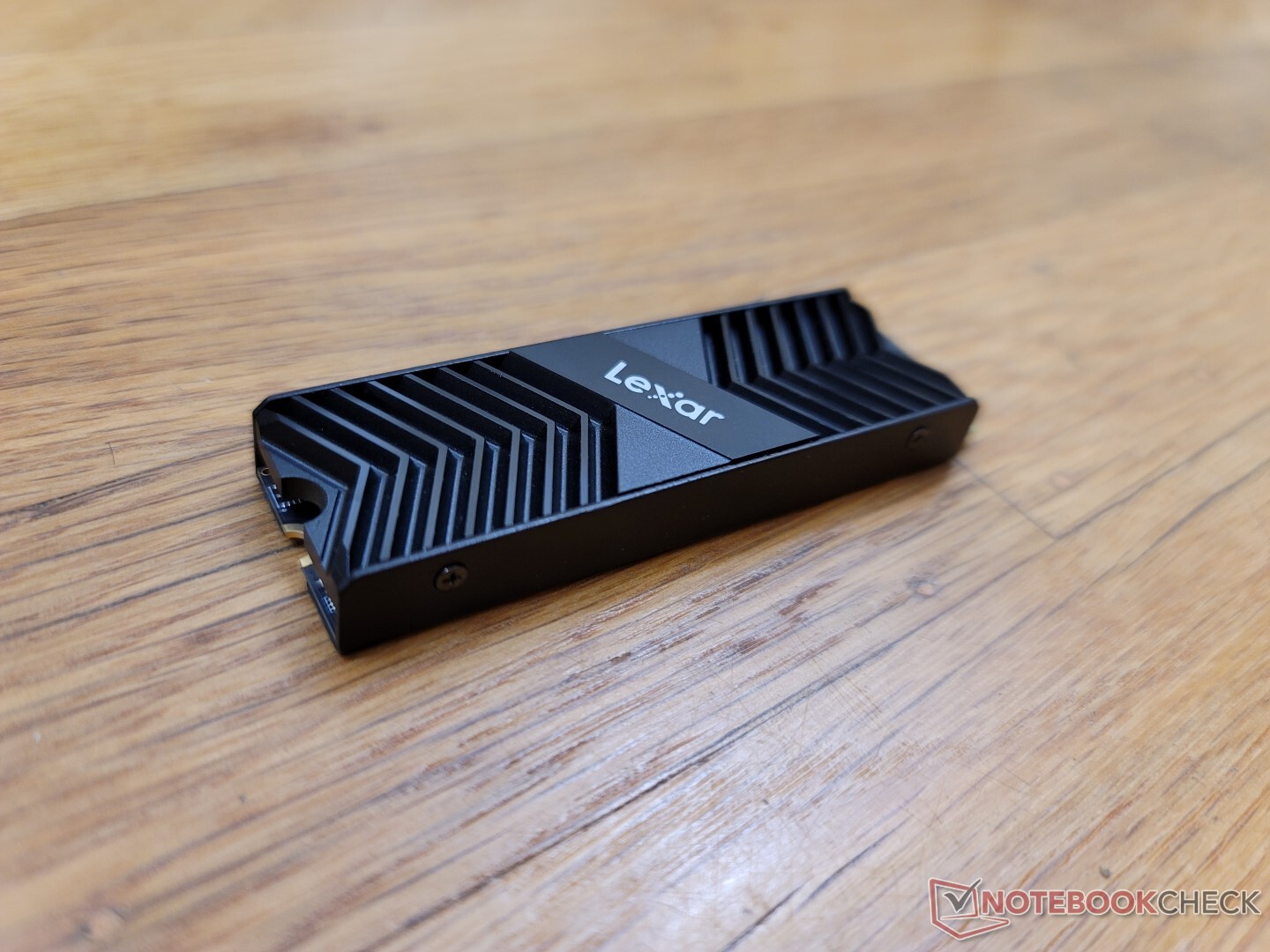

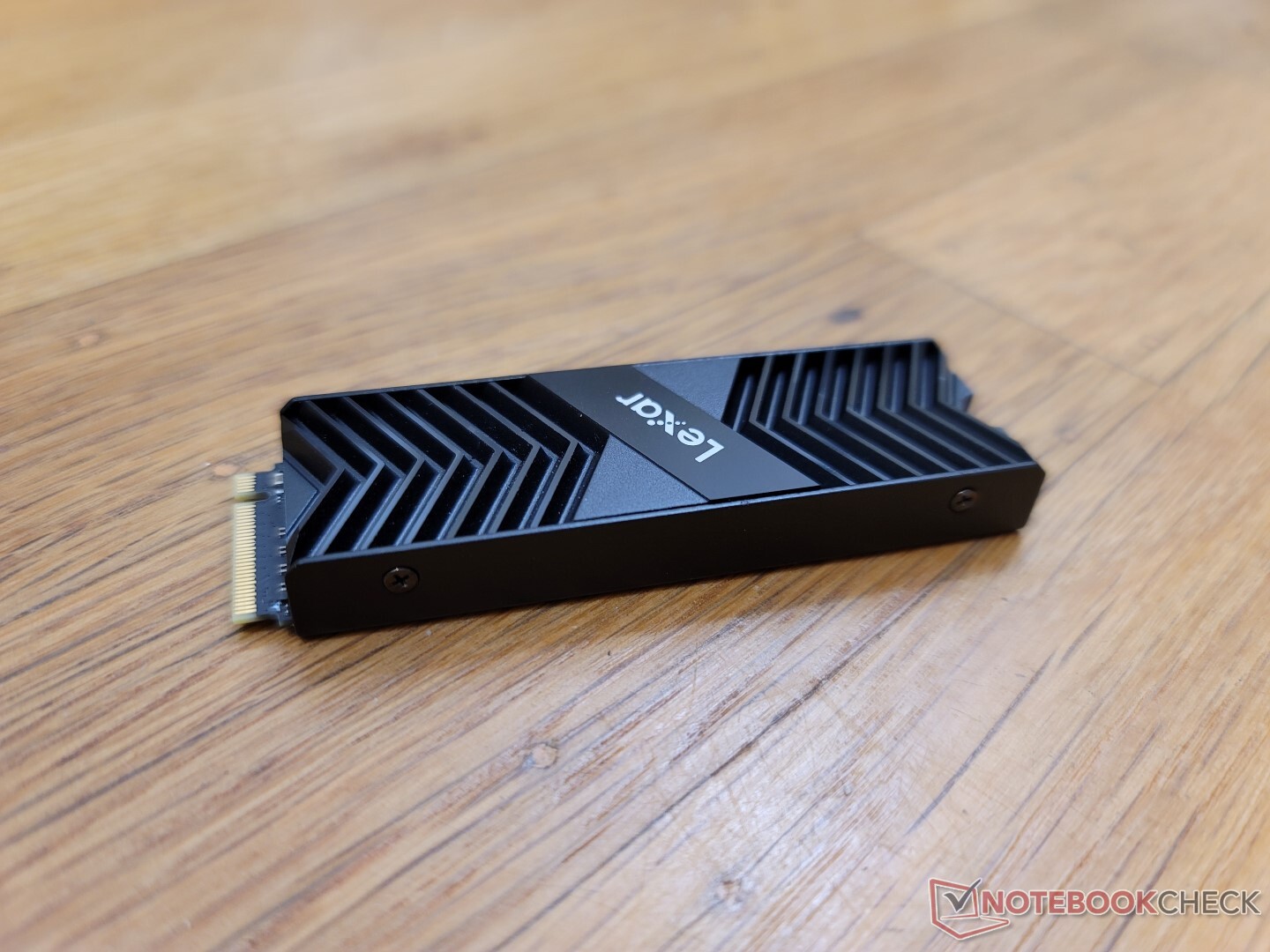

散热片已经安装好,保证适合PS5内部。
散热片已经安装好,保证适合PS5内部。
如果你想拆除散热器,需要飞利浦螺丝刀。
如果你想拆除散热器,需要飞利浦螺丝刀。

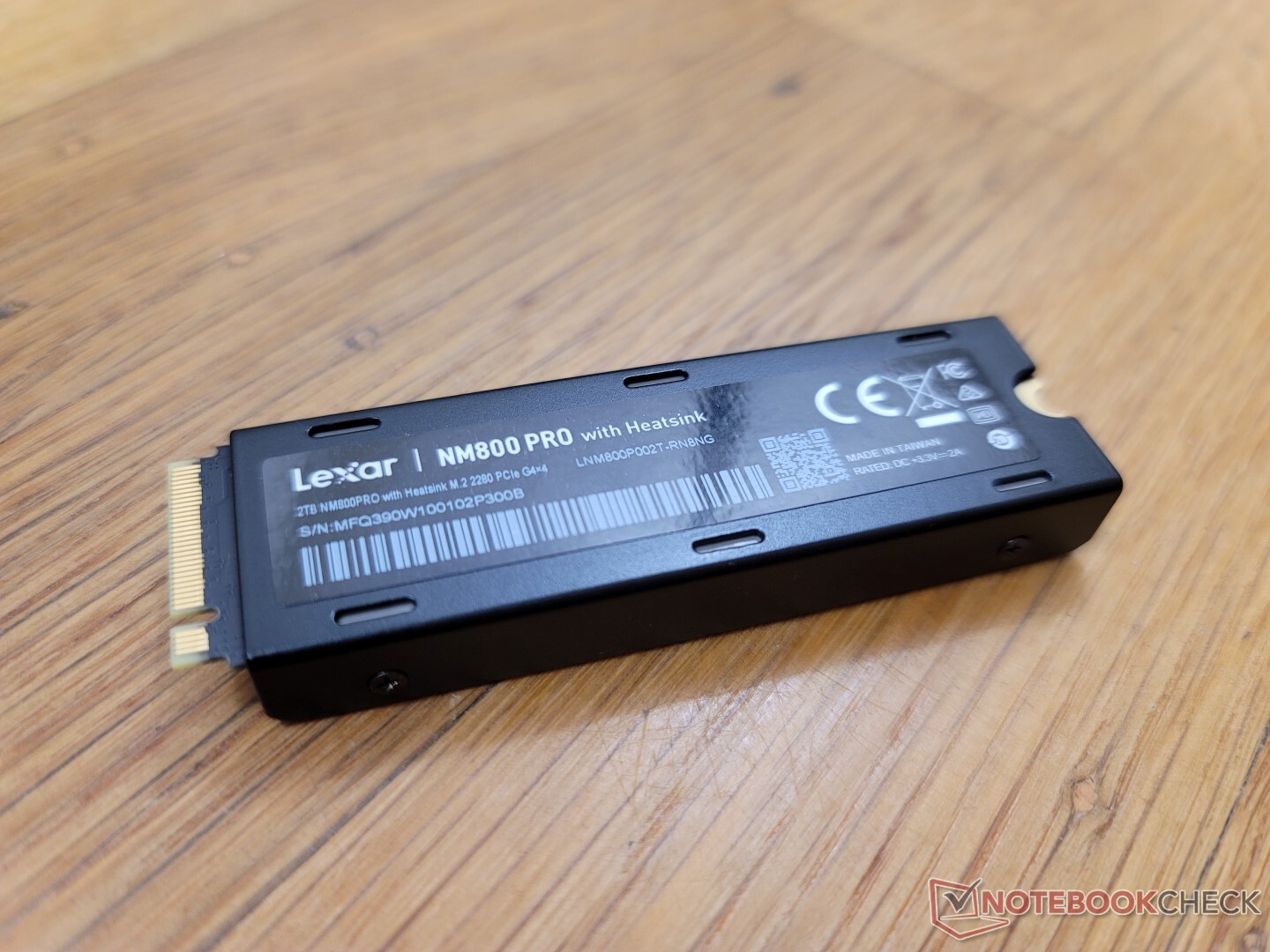

SSD的背面
SSD的背面

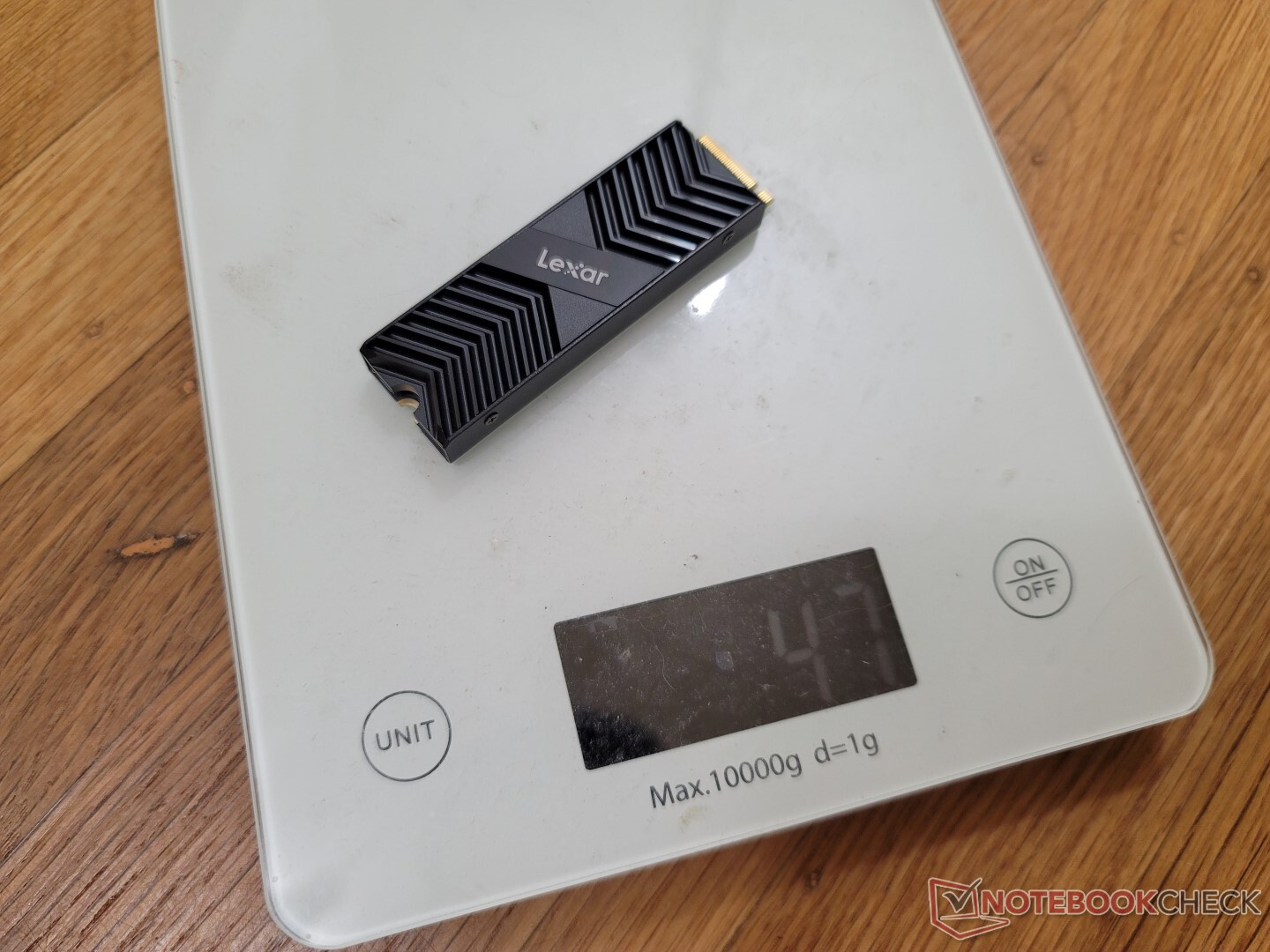

带散热器的驱动器相对较重,为47克。
带散热器的驱动器相对较重,为47克。

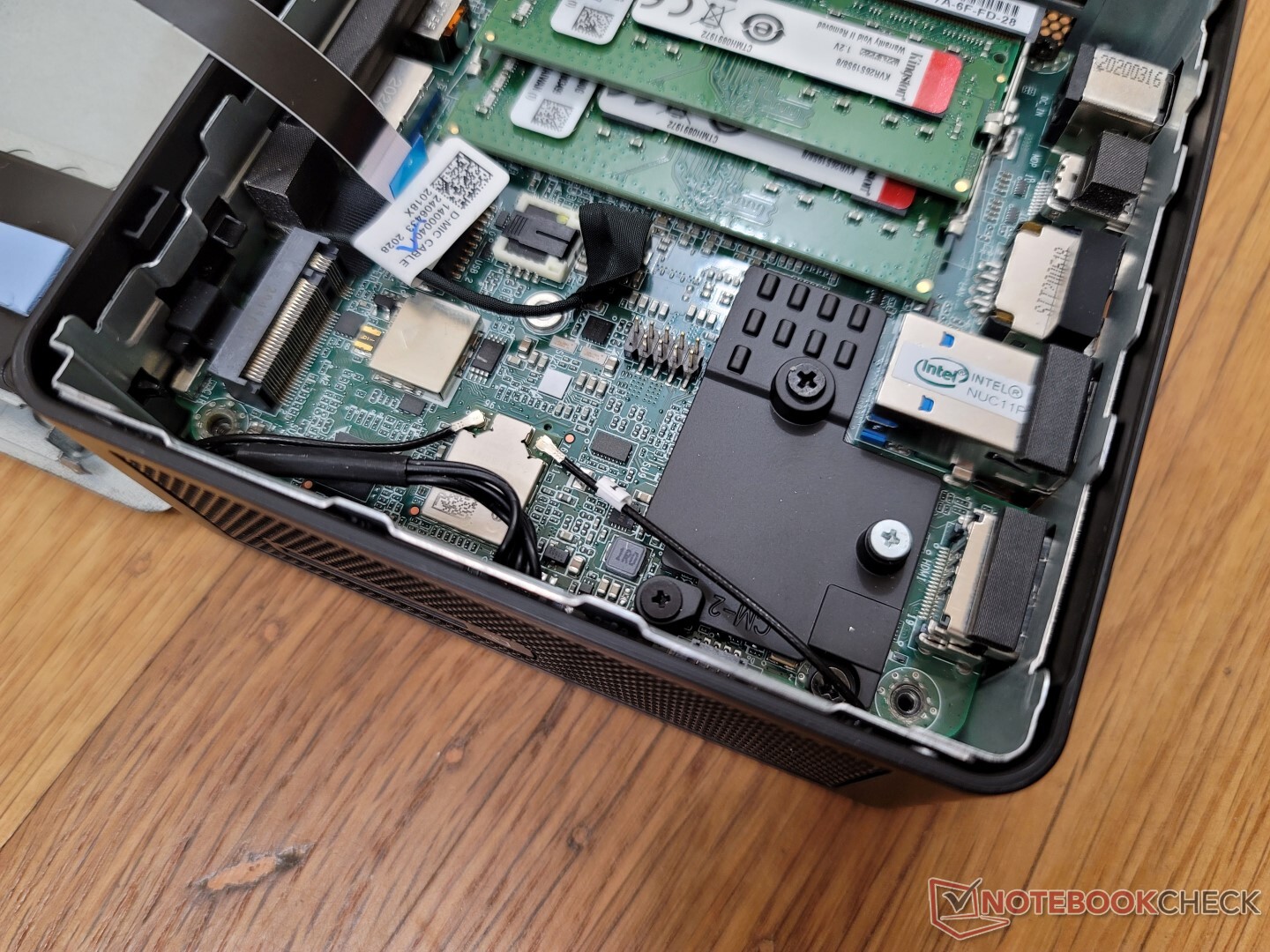

未安装驱动器的英特尔NUC迷你PC主机
未安装驱动器的英特尔NUC迷你PC主机

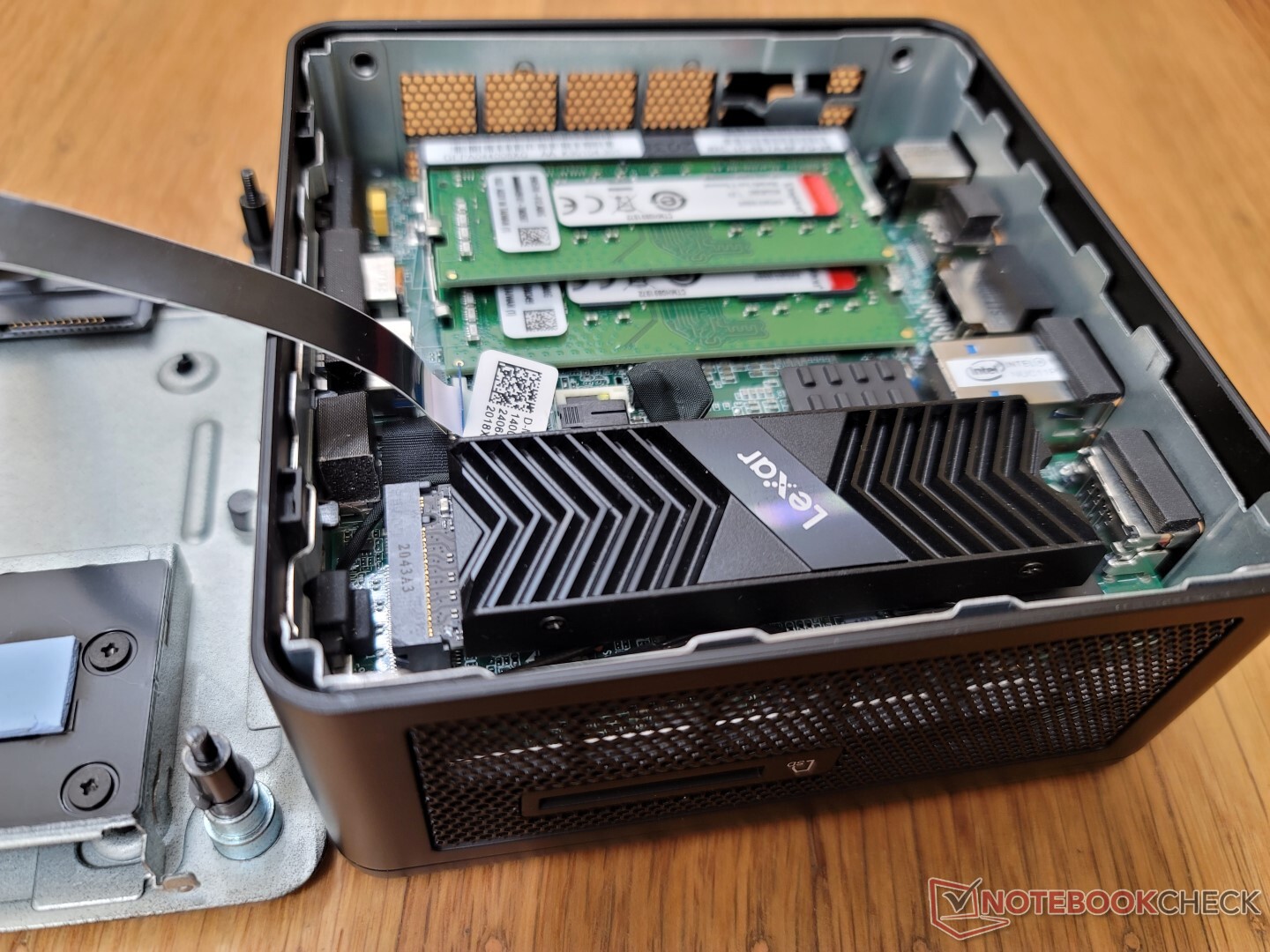

主机英特尔NUC迷你电脑,安装了Lexar NM800驱动器
主机英特尔NUC迷你电脑,安装了Lexar NM800驱动器

请记住,零售盒中不包括用于将硬盘固定在M.2插槽上的螺丝。相比之下,其他SSD制造商往往包括一个。希望你的主机设备已经包含了一个螺丝。

安装完毕后,我们将DiskSpd循环运行了半个小时,看看硬盘会变得多热,传输率是否需要节流。幸运的是,我们下面的图表和截图显示,该硬盘稳定在7100MB/s和合理的66C。尽管如此,看到NM800和散热器没有出现重大的温度或节流问题,这让人松了一口气。

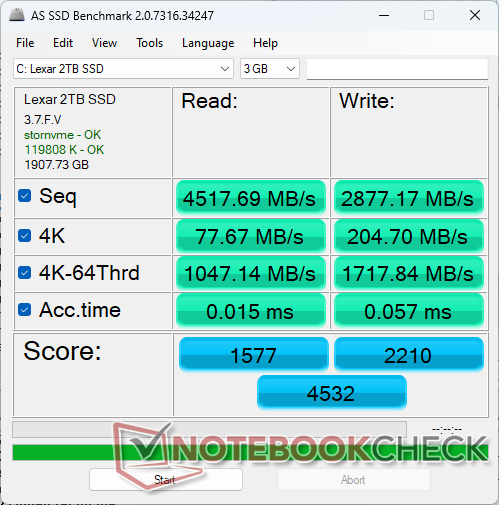

AS SSD
AS SSD

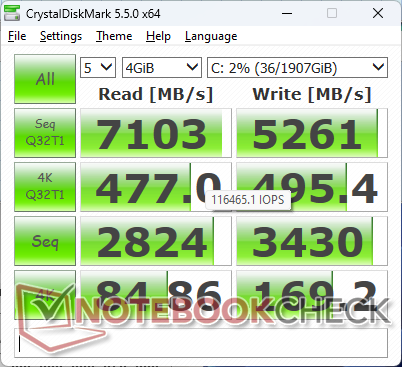

CDM 5
CDM 5

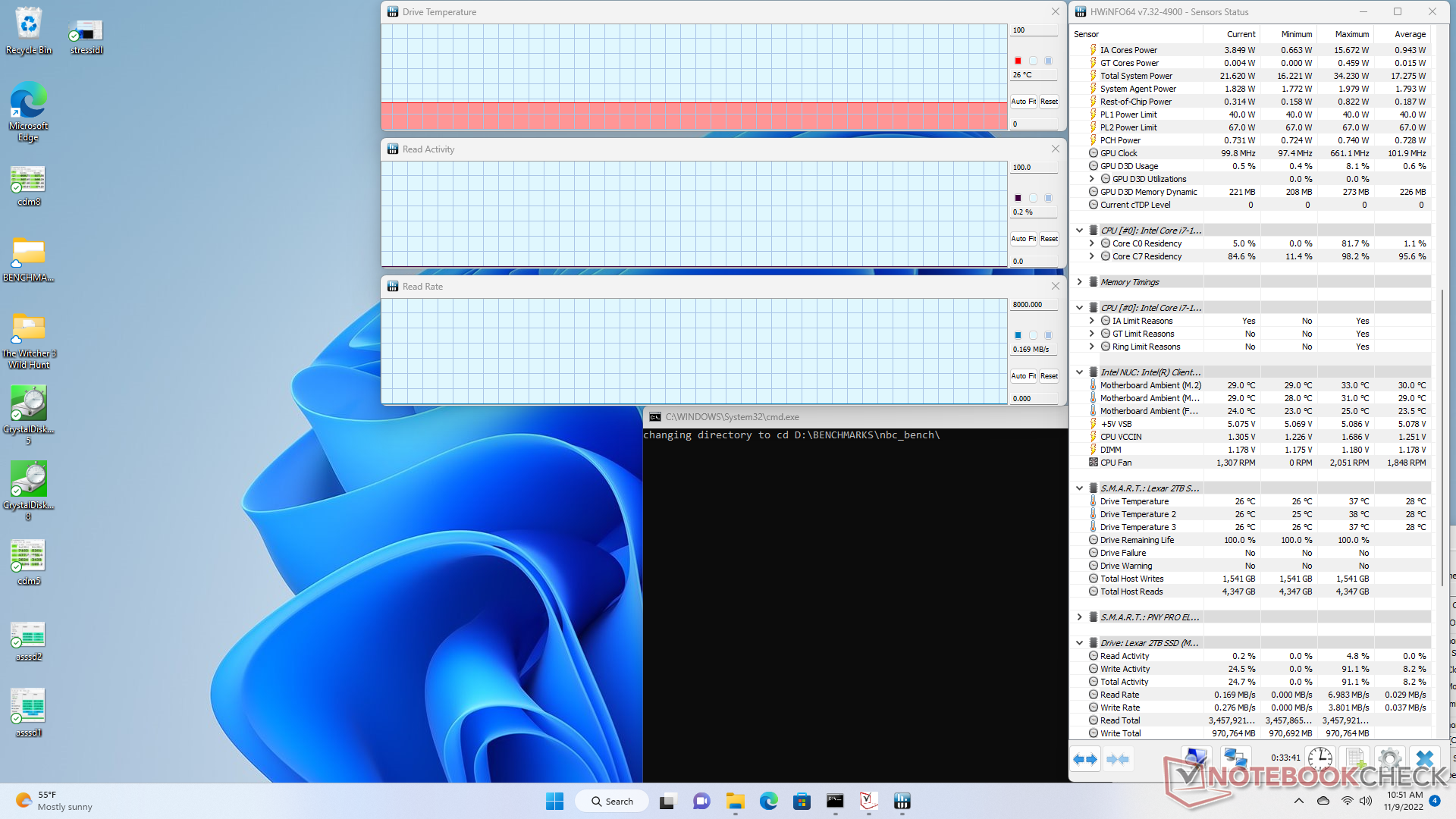

闲置时HWiNFO SSD
闲置时HWiNFO SSD

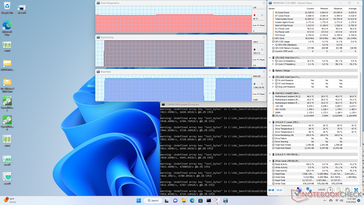

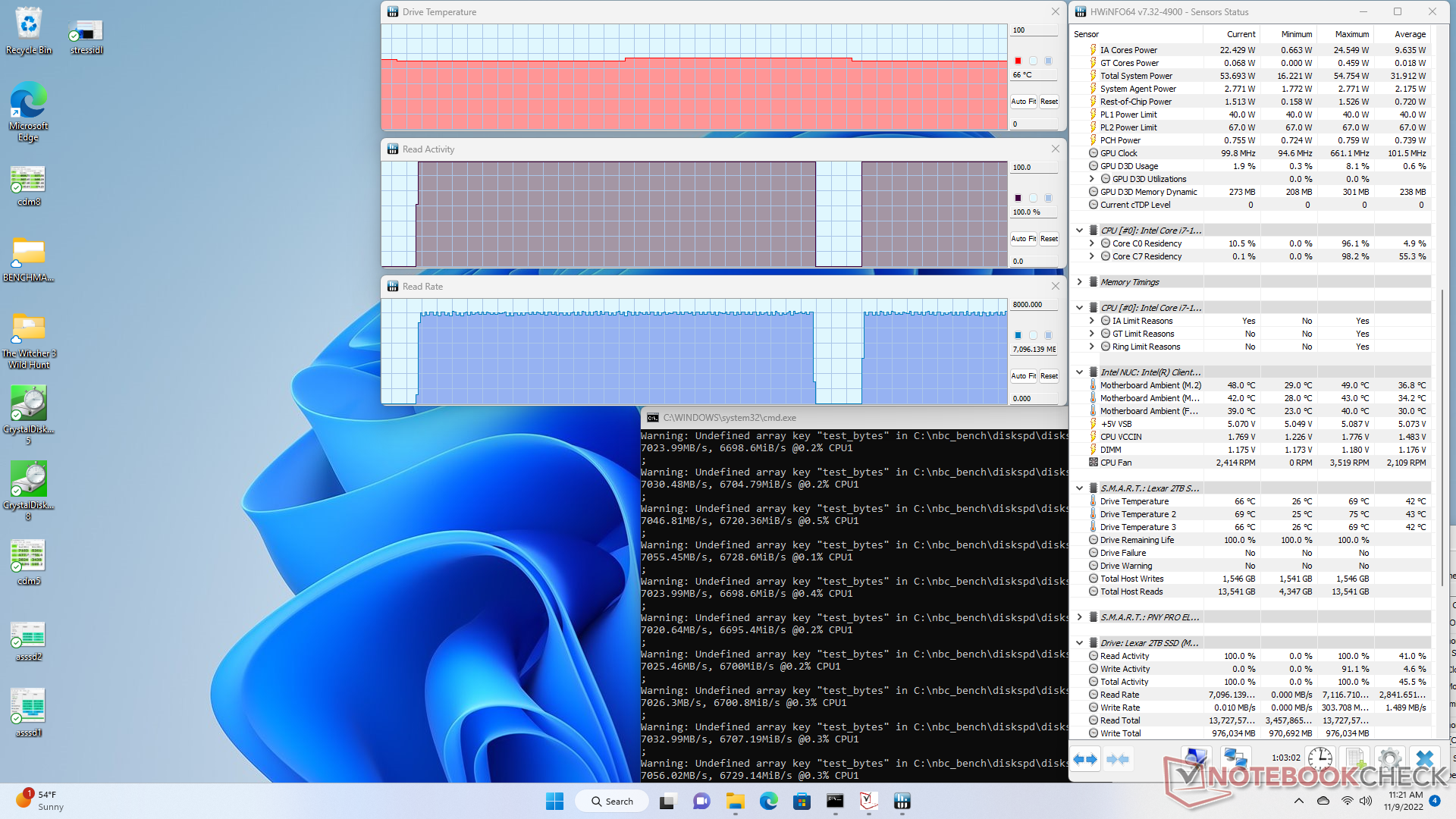

HWiNFO SSD在受压时的情况。注意稳定的温度和连续读取率
HWiNFO SSD在受压时的情况。注意稳定的温度和连续读取率

为了说明SSD的散热片有多重要,我们用一块没有安装散热片的2TB SK Hynix P41 PCIe4 x4 NVMe SSD重复了上述测试。温度会达到93摄氏度,这就需要将性能节流到3500MB/s以下。简而言之,如果没有散热器,PCIe4驱动器的表现会更像PCIe3驱动器。

当然,用户仍然可以购买没有散热器的莱克赛尔NM800,以节省一些现金,但温度和性能的差异足以让我们尽可能地推荐使用散热器。

CDM 5/6 Read Seq Q32T1: 7103 MB/s
CDM 5/6 Write Seq Q32T1: 5261 MB/s
CDM 5/6 Read 4K Q32T1: 477 MB/s
CDM 5/6 Write 4K Q32T1: 495.4 MB/s
CDM 5 Read Seq: 2824 MB/s
CDM 5 Write Seq: 3430 MB/s
CDM 5/6 Read 4K: 84.86 MB/s
CDM 5/6 Write 4K: 169.2 MB/s

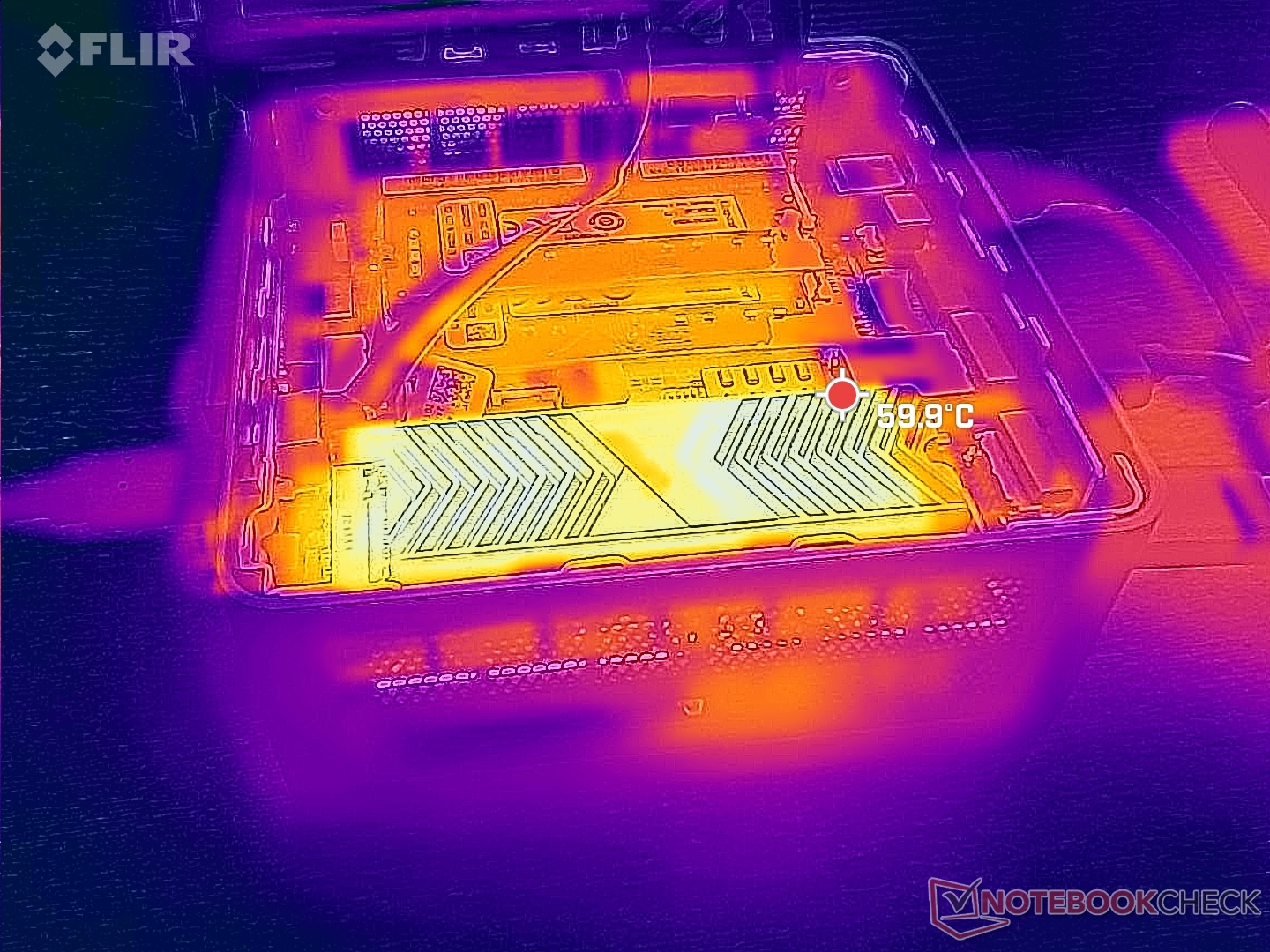

雷克沙NM800散热器在60摄氏度下受压时出现热斑
雷克沙NM800散热器在60摄氏度下受压时出现热斑

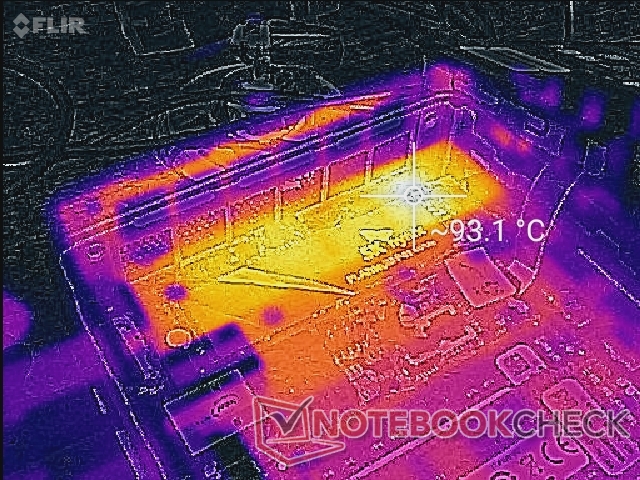

SK Hynix P41没有热罪的热点在受压时温度高得多,为93℃。
SK Hynix P41没有热罪的热点在受压时温度高得多,为93℃。

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

035571010651420177521302485284031953550390542604615497053255680603563906745Tooltip
Lexar NM800 Pro 2 TB  : Ø7044 (6476.06-7085.23)
SK Hynix Platinum P41 2 TB  : Ø4820 (3473.07-6916.41)
Drive Performance Rating - Percent
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
92.8 pt
Lexar NM800 Pro 2 TB

75.4 pt
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
72.8 pt
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
70.2 pt
SK Hynix Platinum P41 2 TB

65.2 pt
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
41.4 pt
DiskSpd
seq read
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
4191 (4183.82min - 4190.96max) MB/s +52%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
3747 (3711.67min - 3747.4max) MB/s +36%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
3502 (3461.77min - 3502.37max) MB/s +27%
Lexar NM800 Pro 2 TB

2762 (2741.82min - 2762.09max) MB/s
SK Hynix Platinum P41 2 TB

2726 (2710.39min - 2725.88max) MB/s -1%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1770 (1735.81min - 1770.42max) MB/s -36%
seq write
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
4158 (4124.82min - 4157.89max) MB/s +17%
Lexar NM800 Pro 2 TB

3553 (3226.47min - 3553.02max) MB/s
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
3495 (3351.26min - 3494.69max) MB/s -2%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
3470 (3416.05min - 3470.37max) MB/s -2%
SK Hynix Platinum P41 2 TB

2303 (2258.1min - 2303.1max) MB/s -35%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1324 (1199.03min - 1323.72max) MB/s -63%
seq q8 t1 read
Lexar NM800 Pro 2 TB

7056 (6103.55min - 7056.44max) MB/s
SK Hynix Platinum P41 2 TB

6835 (6096.6min - 6835max) MB/s -3%
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
6719 (6417.91min - 6718.86max) MB/s -5%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
6680 (5632.95min - 6680.12max) MB/s -5%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
6656 (5809.03min - 6655.73max) MB/s -6%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
2260 (1924min - 2259.89max) MB/s -68%
seq q8 t1 write
Lexar NM800 Pro 2 TB

5290 (5252.49min - 5289.55max) MB/s
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
4914 (4664.7min - 4914.05max) MB/s -7%
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
4910 (4880.17min - 4910.06max) MB/s -7%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
4468 (4431.23min - 4467.85max) MB/s -16%
SK Hynix Platinum P41 2 TB

4278 (4242.54min - 4277.6max) MB/s -19%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1588 (1424.3min - 1588.17max) MB/s -70%
4k q1 t1 read
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
88 (87.7min - 87.99max) MB/s +14%
Lexar NM800 Pro 2 TB

77 (76.58min - 77max) MB/s
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
67.5 (65.71min - 67.48max) MB/s -12%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
55.7 (54.81min - 55.71max) MB/s -28%
SK Hynix Platinum P41 2 TB

50 (49.75min - 50.01max) MB/s -35%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
44.4 (36.52min - 44.39max) MB/s -42%
4k q1 t1 write
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
223 (222.73min - 223.36max) MB/s +41%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
170.9 (165.47min - 170.92max) MB/s +8%
Lexar NM800 Pro 2 TB

157.8 (143.9min - 157.8max) MB/s
SK Hynix Platinum P41 2 TB

155.7 (138.58min - 155.74max) MB/s -1%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
150.2 (146.12min - 150.2max) MB/s -5%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
139 (135.15min - 138.9max) MB/s -12%
4k q32 t16 read
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
2191 (917.05min - 2191.02max) MB/s +106%
SK Hynix Platinum P41 2 TB

1175 (1165.82min - 1174.98max) MB/s +10%
Lexar NM800 Pro 2 TB

1065 (986.8min - 1065.42max) MB/s
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
1045 (950.02min - 1044.68max) MB/s -2%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
805 (800.4min - 804.86max) MB/s -24%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
540 (532.43min - 540.23max) MB/s -49%
4k q32 t16 write
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
1403 (710.77min - 1403.25max) MB/s +171%
SK Hynix Platinum P41 2 TB

584 (569.81min - 583.72max) MB/s +13%
Lexar NM800 Pro 2 TB

517 (461.2min - 517.09max) MB/s
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
507 (497.24min - 507.37max) MB/s -2%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
416 (398.57min - 416.29max) MB/s -20%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
384 (378.78min - 383.65max) MB/s -26%
AS SSD
Score Total
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
5792 Points +28%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
5114 Points +13%
SK Hynix Platinum P41 2 TB

4976 Points +10%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
4672 Points +3%
Lexar NM800 Pro 2 TB

4532 Points
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
2566 Points -43%
Score Read
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
2307 Points +46%
SK Hynix Platinum P41 2 TB

1719 Points +9%
Lexar NM800 Pro 2 TB

1577 Points
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
1521 Points -4%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
1451 Points -8%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1184 Points -25%
Score Write
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
3046 Points +38%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
2507 Points +13%
SK Hynix Platinum P41 2 TB

2499 Points +13%
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
2371 Points +7%
Lexar NM800 Pro 2 TB

2210 Points
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
818 Points -63%
Seq Read
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
5411.56 MB/s +20%
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
5403 MB/s +20%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
4851.77 MB/s +7%
SK Hynix Platinum P41 2 TB

4633.49 MB/s +3%
Lexar NM800 Pro 2 TB

4517.69 MB/s
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
1972 MB/s -56%
Seq Write
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
3792 MB/s +32%
Lexar NM800 Pro 2 TB

2877.17 MB/s
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
2530.01 MB/s -12%
SK Hynix Platinum P41 2 TB

2186.99 MB/s -24%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
1910.85 MB/s -34%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
856 MB/s -70%
4K Read
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
80.4 MB/s +4%
Lexar NM800 Pro 2 TB

77.67 MB/s
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
70.31 MB/s -9%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
61.75 MB/s -20%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
56.7 MB/s -27%
SK Hynix Platinum P41 2 TB

43.25 MB/s -44%
4K Write
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
232.86 MB/s +14%
Lexar NM800 Pro 2 TB

204.7 MB/s
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
195.1 MB/s -5%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
176.4 MB/s -14%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
164.04 MB/s -20%
SK Hynix Platinum P41 2 TB

83.97 MB/s -59%
4K-64 Read
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
1687 MB/s +61%
SK Hynix Platinum P41 2 TB

1212.13 MB/s +16%
Lexar NM800 Pro 2 TB

1047.14 MB/s
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
974.07 MB/s -7%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
930 MB/s -11%
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
839.87 MB/s -20%
4K-64 Write
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
2560.31 MB/s +49%
SK Hynix Platinum P41 2 TB

2196.1 MB/s +28%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
2151.98 MB/s +25%
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
1797 MB/s +5%
Lexar NM800 Pro 2 TB

1717.84 MB/s
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
557 MB/s -68%
Access Time Read
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
0.082 ms * -447%
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
0.036 ms * -140%
SK Hynix Platinum P41 2 TB

0.036 ms * -140%
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
0.035 ms * -133%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
0.031 ms * -107%
Lexar NM800 Pro 2 TB

0.015 ms *
Access Time Write
Microsoft Surface Pro 8, i7-1185G7
Toshiba KBG40ZNS256G NVMe
0.156 ms * -174%
SK Hynix Platinum P41 2 TB

0.11 ms * -93%
HP Spectre x360 13.5 14t-ef000
Micron 3400 1TB MTFDKBA1T0TFH
0.066 ms * -16%
Lexar NM800 Pro 2 TB

0.057 ms *
Dell XPS 13 Plus 9320 i7-1280P OLED
WDC PC SN810 512GB
0.049 ms * +14%
Lenovo ThinkBook Plus Gen2 Core i5
Samsung PM9A1 MZVL2512HCJQ
0.021 ms * +63%

* ... smaller is better

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 新闻 > 新闻档案 > 新闻档案 2022 11 > 雷克沙NM800 Pro显示了对PCIe4 x4 SSD使用散热器的重要性
Allen Ngo, 2022-11-11 (Update: 2022-11-11)
