与传统的英特尔NUC系统（有时是没有内存和固态硬盘的裸机版本）不同，英特尔NUC专业机箱元件的基本配置中没有配备SoC。它被安装在一个单独的计算元件上，并作为系统中的一个额外插件卡安装。
NUC专业机箱元件目前的价格约为340欧元，考虑到计算元件和大容量存储的额外费用，这并不便宜。在我们测试的最小版本中，你必须考虑到约850欧元，该模型结合了 英特尔酷睿i7-1265U可以轻松地花费1250欧元。英特尔在英特尔NUC P14E笔记本电脑上也采取了类似的做法，它也可以配备相应的计算元件。据英特尔称，底座的寿命是一个很大的优势，无论是笔记本电脑还是桌面版。然而，目前不可能知道未来对较新模块的支持会是怎样的。下表显示了所使用的计算元素的概况。

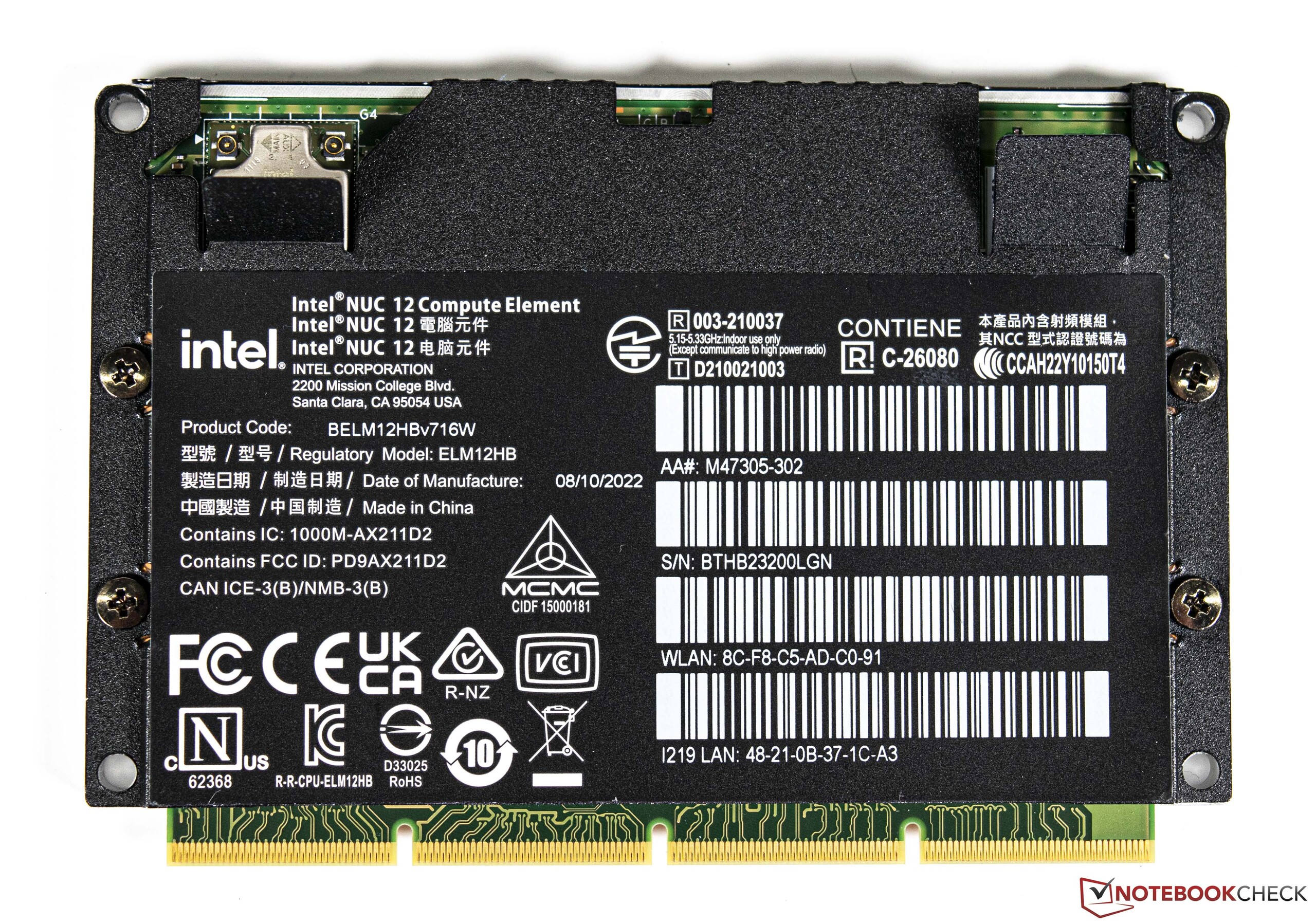

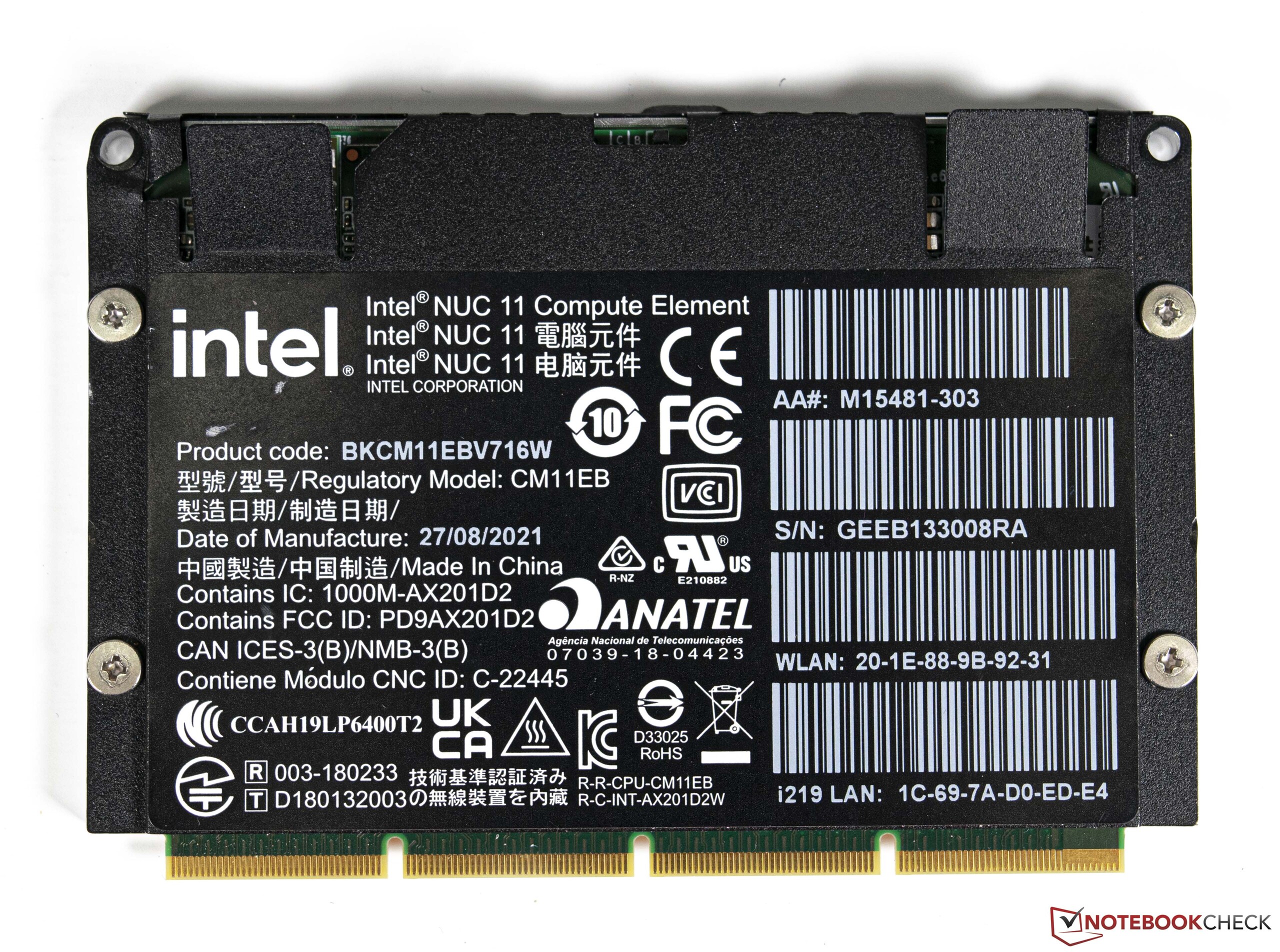

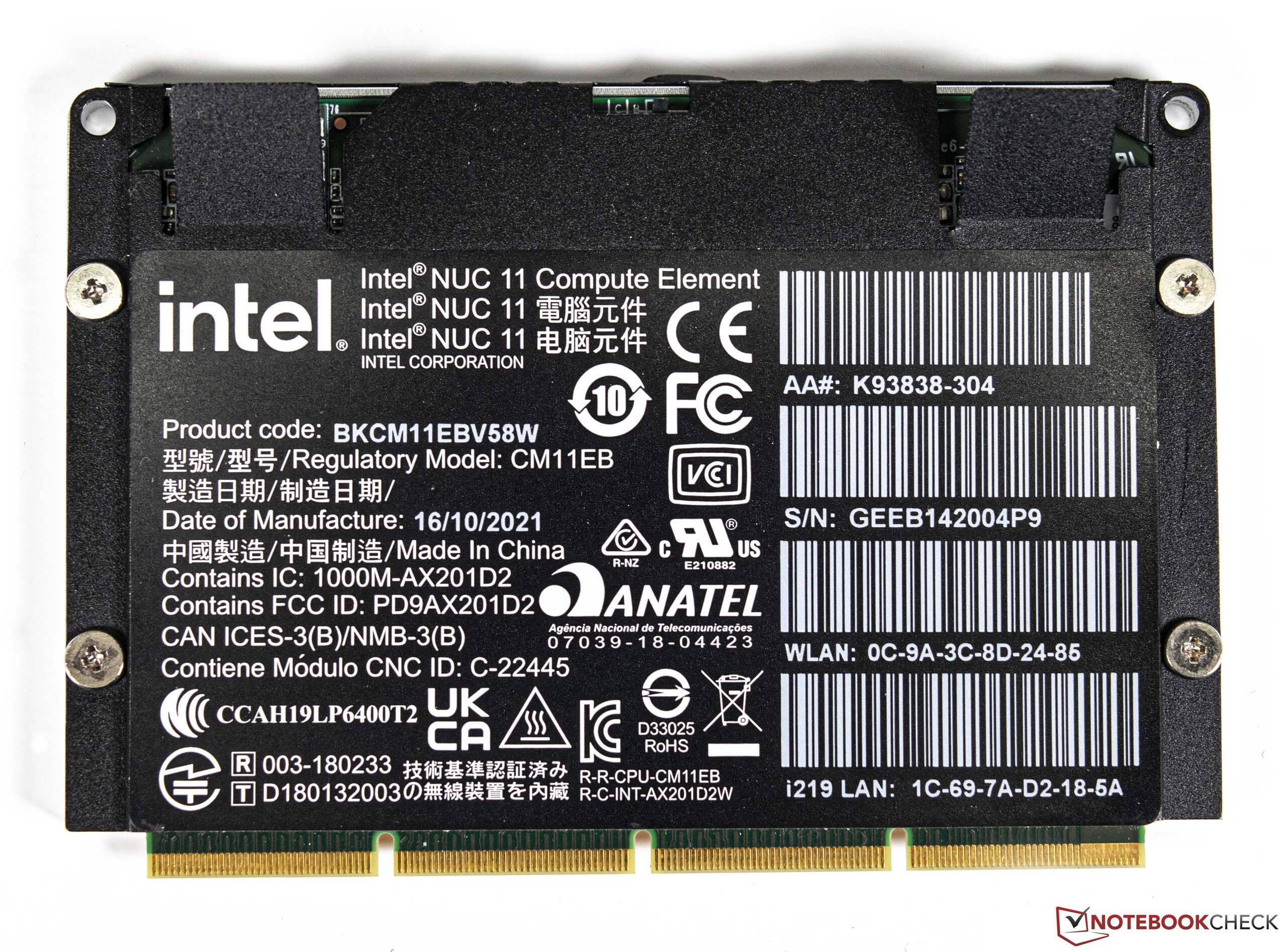

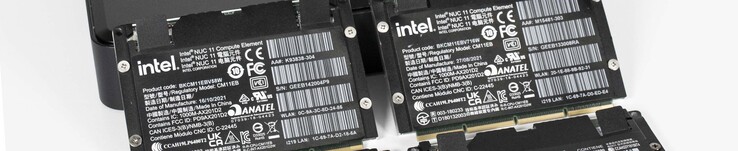

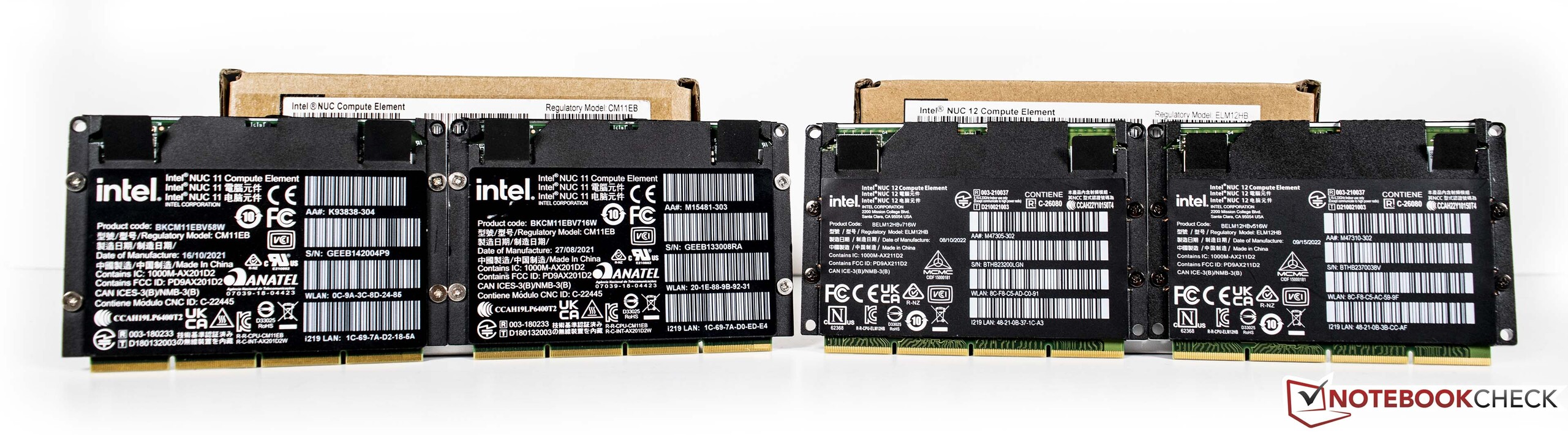

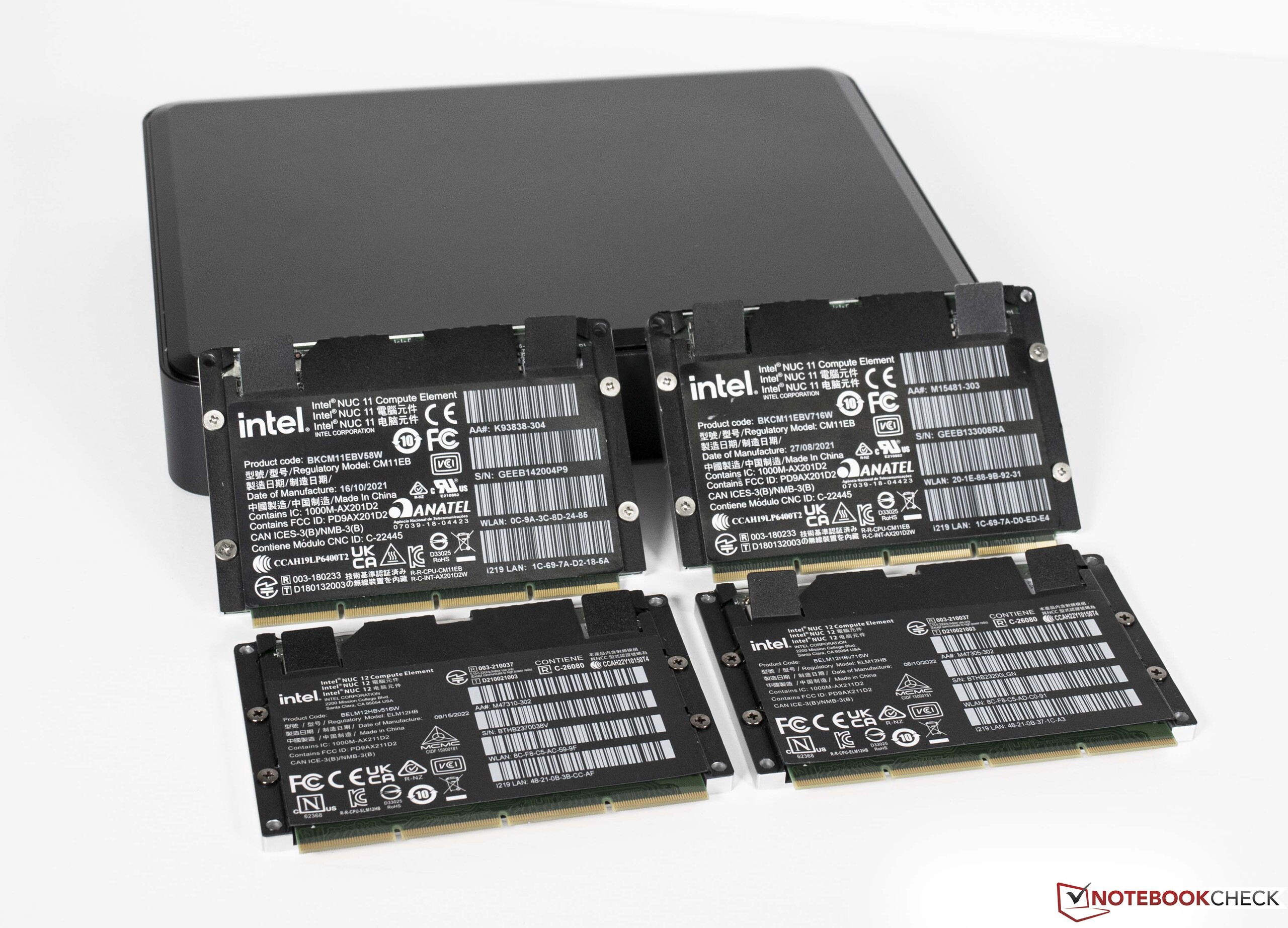

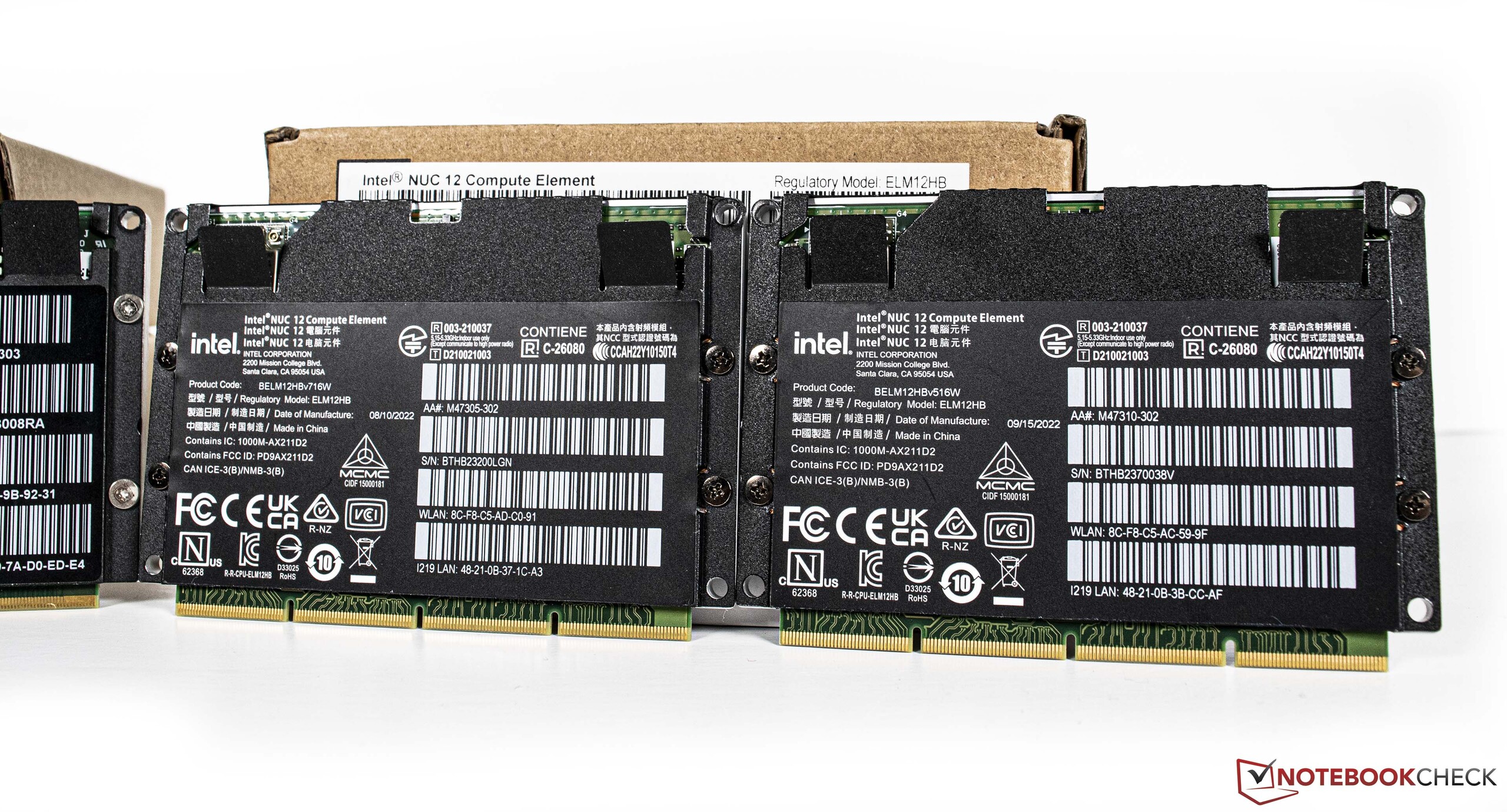

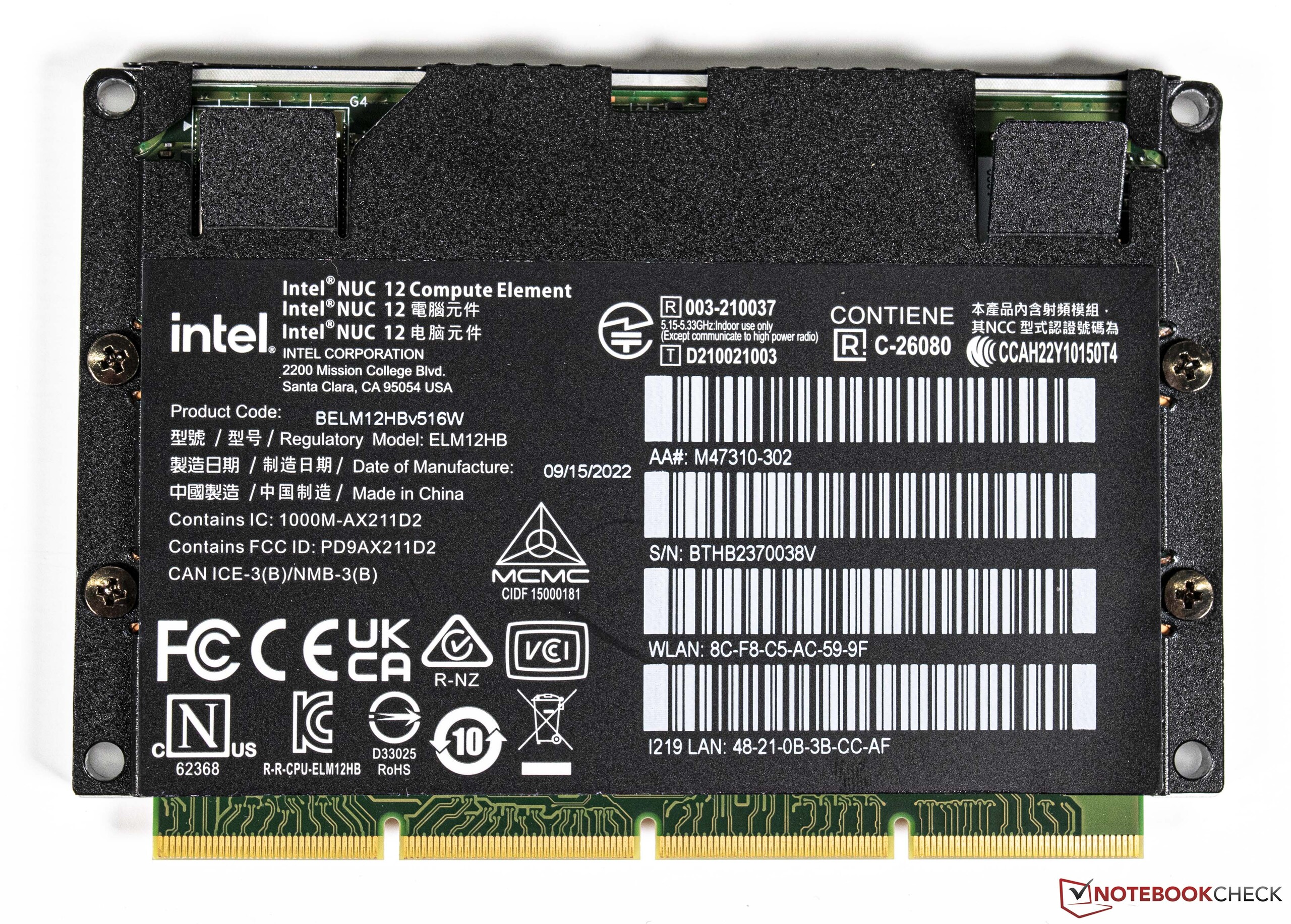

本测试中使用的计算元素的详细情况
| 型号 | 英特尔NUC 11计算元件（CM11EBv58W） | 英特尔NUC 11计算元件（CM11EBv716W） | 英特尔NUC 12计算元件（ELM12HBv5） | 英特尔NUC 12计算元件（ELM12HBv7） |
|---|---|---|---|---|
| SoC | Intel Core i5-1145G7 | Intel Core i7-1185G7 | Intel Core i5-1245U | Intel Core i7-1265U |
| 核心/线程 | 4 / 8 | 4 / 8 | 10 / 12 | 10 / 12 |
| 内存 | 8GB（LPDDR4x-4266） | 16GB（LPDDR4x-4266） | 8GB、16GB（LPDDR5-5200） | 16GB、32GB（LPDDR5-5200） |
| WiFi | Intel Wi-Fi 6 AX201 | Intel Wi-Fi 6 AX201 | Intel Wi-Fi 6E AX211 | Intel Wi-Fi 6E AX211 |
| 价格（美元） | 447 | 669 | 508 | 765 - 885 |
案例

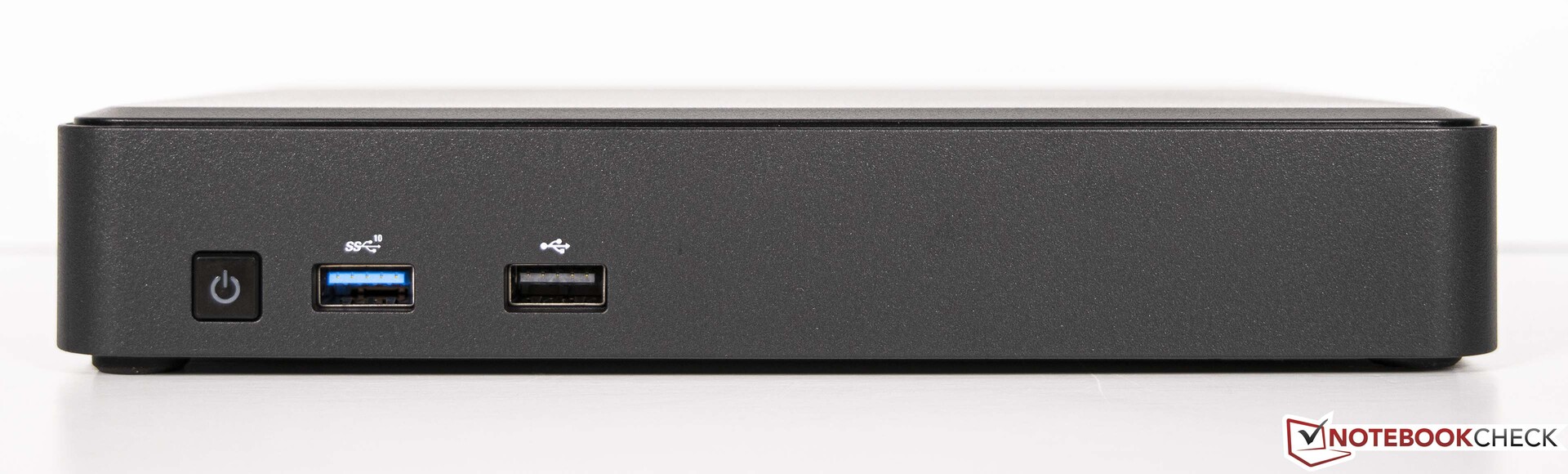

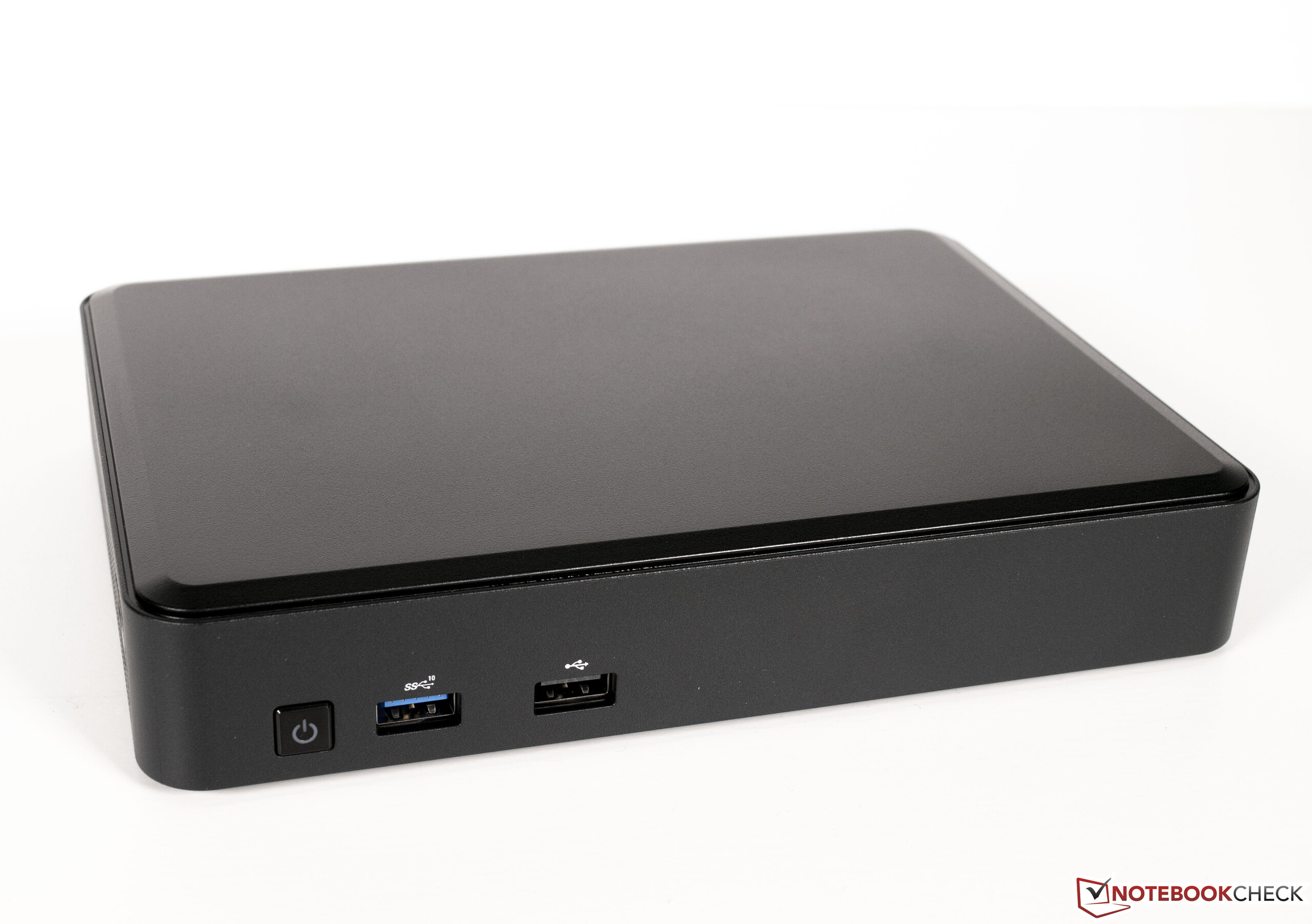

英特尔NUC Pro的机箱元素是完全黑色的，因此看起来相对不引人注目，甚至可以说相当无聊。然而，建造质量是高水平的，正如我们从英特尔的NUC系统中知道的那样。所有东西都是由塑料制成的，内部有一个坚固的金属框架，这给了设备必要的稳定性。
设备

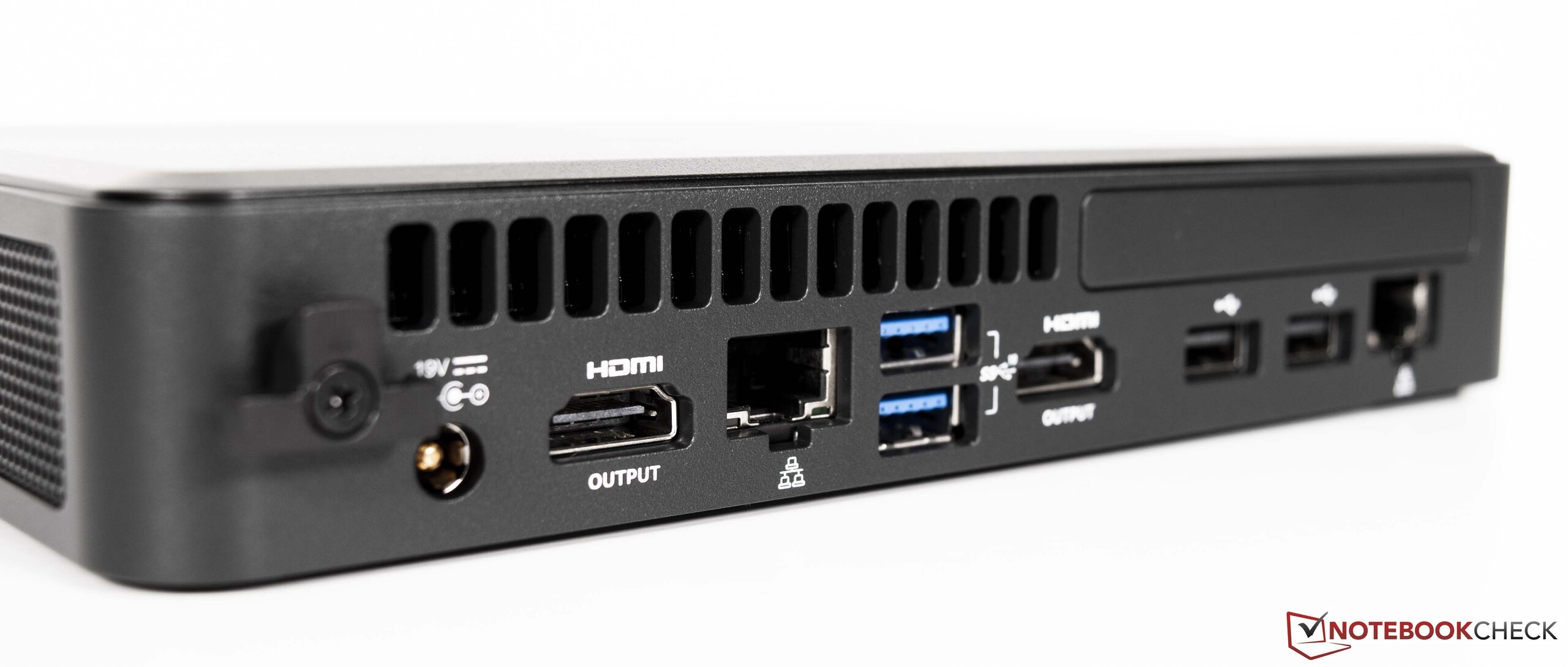

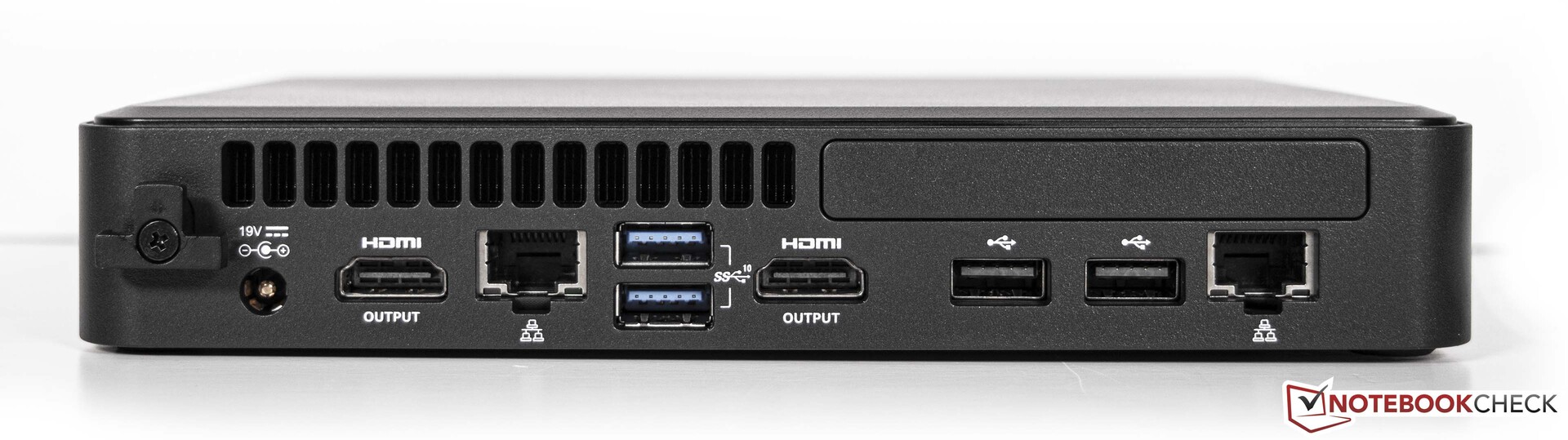

乍一看，在连接性方面有很多值得发现的地方。然而，仔细一看，却发现了相当大的幻觉。3x USB 2.0根本不是你在2022年所期望的。当鼠标和键盘通过它进行操作时，这仍然可以被容忍。尽管如此，我们还是希望看到更多的现代接口--特别是包括Thunderbolt在内的USB-C接口。两个HDMI输出很好，可以为双显示器的设置提供动力，但LAN端口的速度只有1GBit，显得有些不足。在这里，至少有一个2.5GBit的LAN端口才是你目前应该期待的。
沟通
在所使用的Wi-Fi模块方面，英特尔为基于老虎湖的计算元件采用了英特尔Wi-Fi 6 AX201，而桤木湖的SoC则搭配了稍微现代一些的英特尔Wi-Fi 6 AX211。所有测试配置的性能都很好，只相差几个百分点。我们的测试路由器华硕ROG Rapture GT-AXE11000被用于这项测试。
| Networking | |
| iperf3 receive AXE11000 6GHz | |
| Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211 |
1713 (1694min - 1728max) MBit/s |
| Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211 |
1701 (854min - 1715max) MBit/s |
| iperf3 transmit AXE11000 6GHz | |
| Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211 |
1093 (570min - 1168max) MBit/s |
| Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211 |
1062 (1009min - 1098max) MBit/s |
| iperf3 receive AXE11000 | |
| Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201 |
1688 (1377min - 1732max) MBit/s |
| Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201 |
1685 (841min - 1722max) MBit/s 0% |
| iperf3 transmit AXE11000 | |
| Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201 |
1060 (544min - 1101max) MBit/s |
| Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201 |
1011 (529min - 1068max) MBit/s -5% |
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1062 (1009-1098)
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1074 (570-1168)
Intel NUC Pro Chassis_i5_1245U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1671 (854-1715)
Intel NUC Pro Chassis_i7_1265U Intel Wi-Fi 6E AX211; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1712 (1694-1728)
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1687 (1377-1732)
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 receive AXE11000; iperf 3.1.3: Ø1657 (841-1722)
Intel NUC Pro Chassis_i5_1145G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø1042 (544-1101)
Intel NUC Pro Chassis_i7_1185G7 Intel Wi-Fi 6 AX201; iperf3 transmit AXE11000; iperf 3.1.3: Ø993 (529-1068)
维护

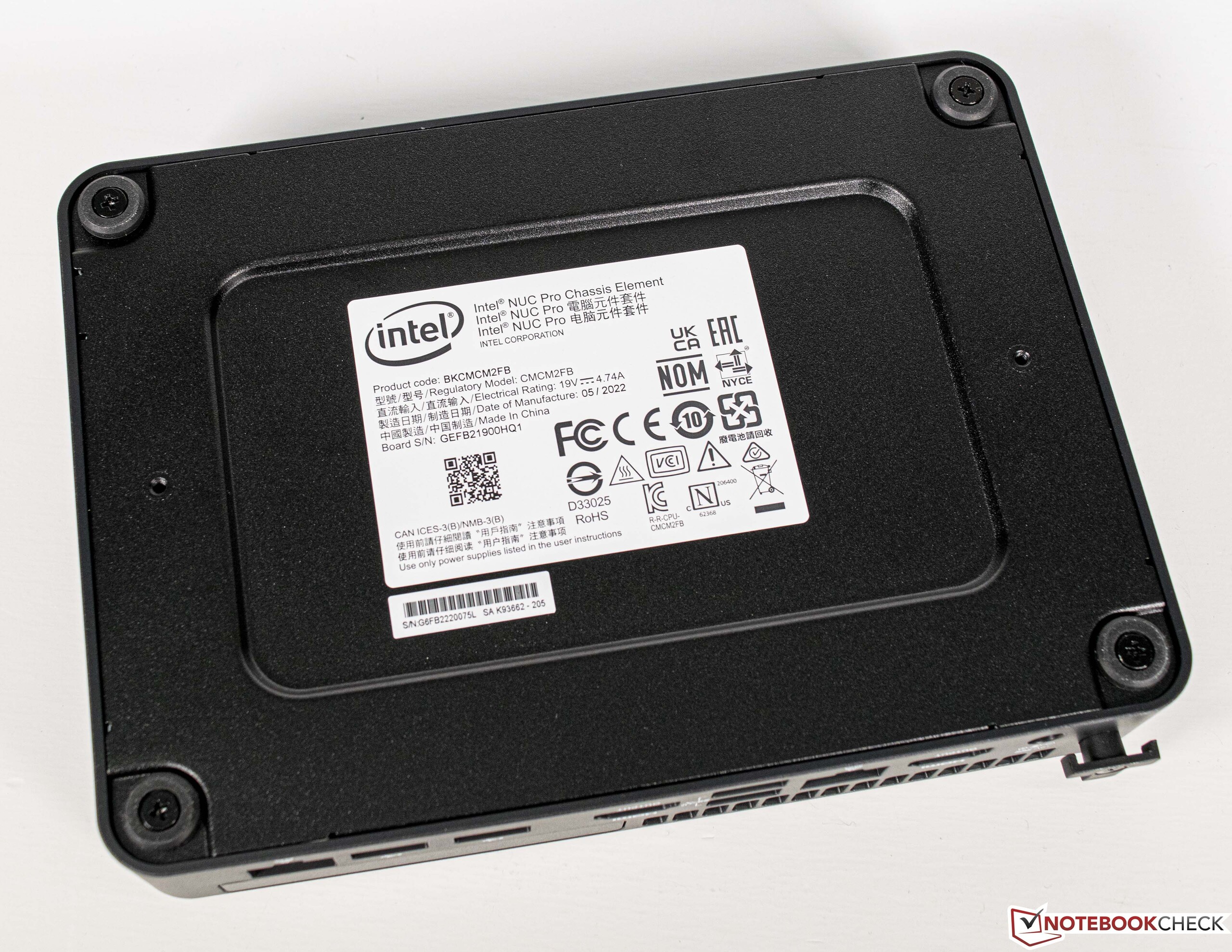

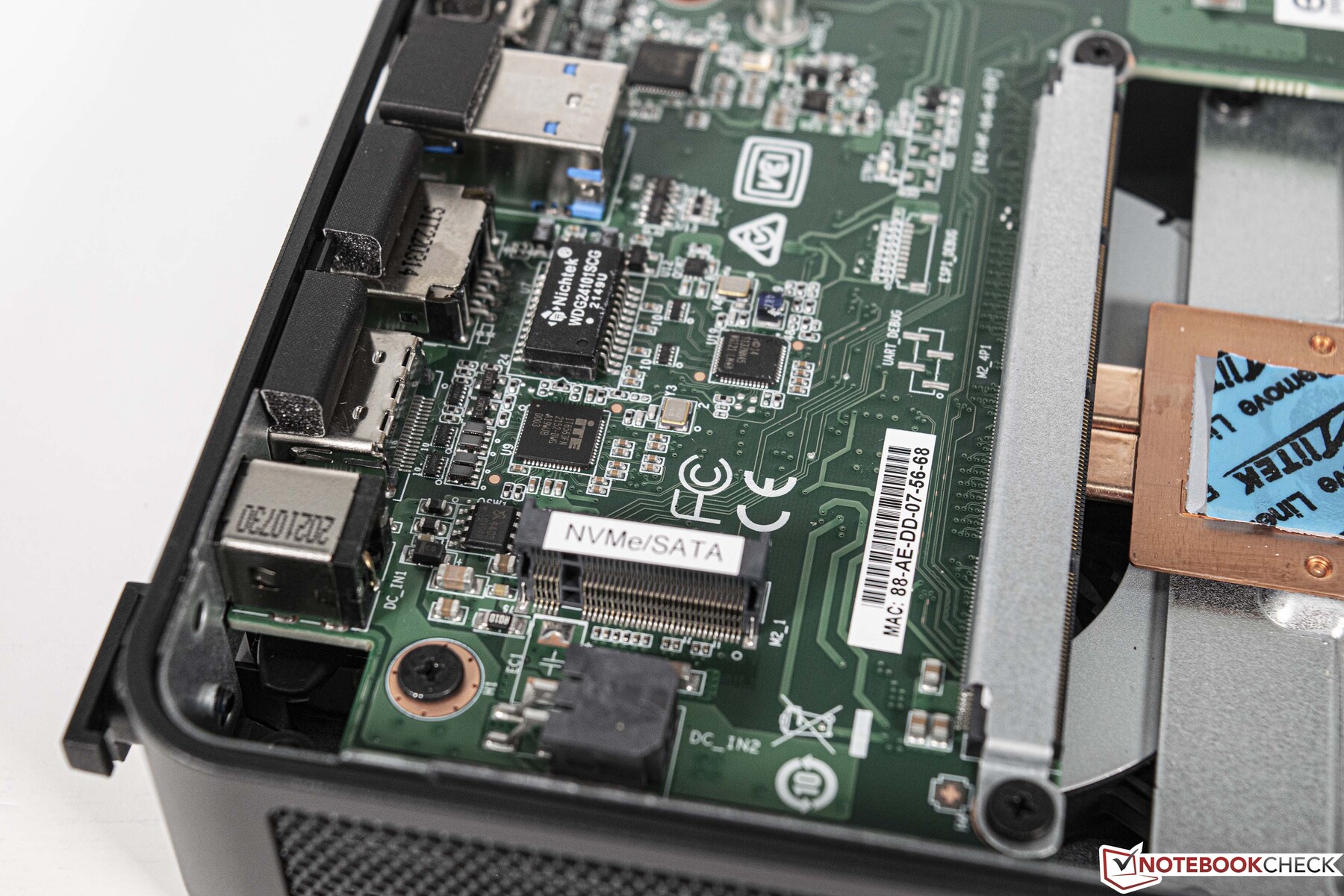

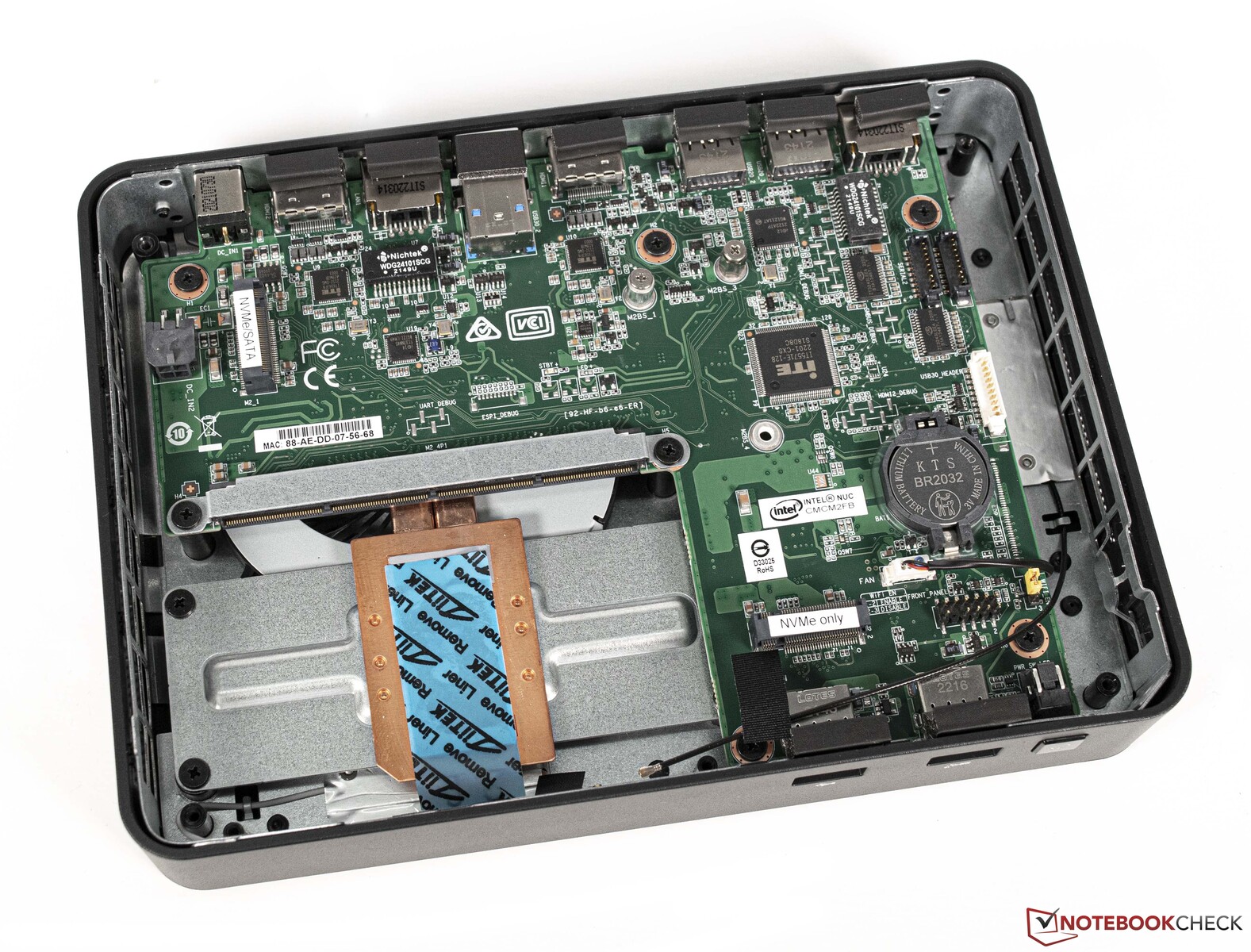

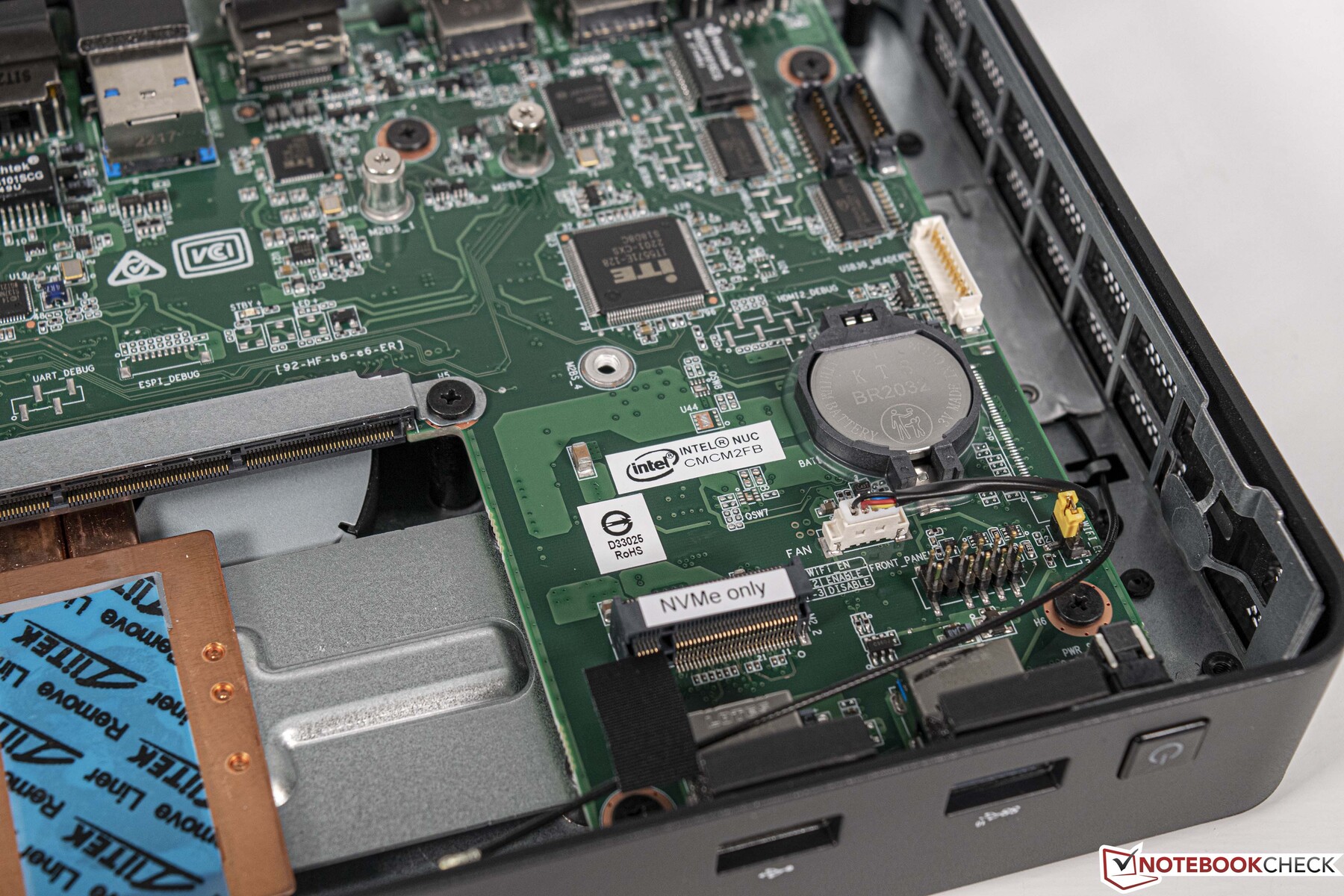

裸机选项使英特尔NUC Pro机箱元件很容易打开。底板用四个螺丝固定。在里面，你可以很容易地访问必要的接口，为设备配备最基本的东西。计算元件在前面的区域有它的位置。此外，已经应用了一个导热垫以确保散热。此外，两个WLAN天线必须连接，这也是预装的。最多可以安装两块M.2固态硬盘用于大容量存储。
业绩
在性能方面，每个人都可以自己决定需要多少。由于采用了模块化设计，英特尔NUC Pro机箱元件可以根据使用情况和预算来配备。
处理器基准测试
不同计算元素的CPU性能如预期的那样相互区别。大约20%的差异是在 英特尔酷睿i5-1145G7和 英特尔酷睿i7-1265U.然而，这两款Alder Lake SoC之间的性能差异是微不足道的。由于核心和线程数量相同，它们的性能几乎相同。为了更好地评估性能，我们还测试了 PrimeBook Circular.这款产品也配备了一个计算元件，并在最佳设备中名列前茅，基于 英特尔酷睿i7-1165G7，这使它直接落后于 英特尔酷睿i7-1185G7在排名中。相比于 AMD Ryzen 5 5600U相比，我们在 王牌魔术师AMR5英特尔NUC Pro机箱元素与Alder-Lake SoCs可以很容易地使自己与众不同。
对于进一步的比较和基准，我们参考了我们的CPU比较表.
Performance Rating | Cinebench R15 | Cinebench R20 | Cinebench R23 | Cinebench R11.5 | Cinebench R10 | Blender | wPrime 2.10 | X264 HD Benchmark 4.0 | WinRAR | TrueCrypt | Geekbench 5.5 | Geekbench 5.0 | Geekbench 4.4 | 3DMark 11 | 7-Zip 18.03 | HWBOT x265 Benchmark v2.2 | R Benchmark 2.5 | LibreOffice | WebXPRT 3 | Mozilla Kraken 1.1 | 3DMark
| Performance Rating - Percent | |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
45.5 pt |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
45 pt |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
41.3 pt |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
38.6 pt |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
37.9 pt |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
37.7 pt |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
35.5 pt |
| Blender - v2.79 BMW27 CPU | |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
759 Seconds * -26% |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
750 Seconds * -25% |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
601 Seconds * |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
590 Seconds * +2% |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
399 Seconds * +34% |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
388 Seconds * +35% |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
380 Seconds * +37% |
| WinRAR - Result | |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
6877 KB/s +32% |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
6154 KB/s +18% |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
6045 KB/s +16% |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
5960 KB/s +14% |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
5717 KB/s +9% |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
5223 KB/s |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
4185 KB/s -20% |
| 3DMark 11 - 1280x720 Performance Physics | |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
16005 Points +39% |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
15485 Points +34% |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
12608 Points +9% |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
11536 Points |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
11284 Points -2% |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
7797 Points -32% |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
7792 Points -32% |
| HWBOT x265 Benchmark v2.2 - 4k Preset | |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
10.1 fps +53% |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
9.7 fps +47% |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
9.47 fps +43% |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
6.6 fps |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
6.55 fps -1% |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
5.26 fps -20% |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
4.74 fps -28% |
| R Benchmark 2.5 - Overall mean | |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
0.639 sec * -1% |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
0.63 sec * |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
0.609 sec * +3% |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
0.599 sec * +5% |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
0.537 sec * +15% |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
0.511 sec * +19% |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
0.4856 sec * +23% |
| LibreOffice - 20 Documents To PDF | |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
52 s * -11% |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
51.8 s * -10% |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
51.1 s * -9% |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
49.4 s * -5% |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
48.9 s * -4% |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
46.9 s * |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
46.1 s * +2% |
| WebXPRT 3 - Overall | |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
271 Points +16% |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
263 Points +12% |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
255 Points +9% |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
252 Points +8% |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
245 Points +5% |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
236 Points +1% |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
234 Points |
| Mozilla Kraken 1.1 - Total | |
| Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 i5-1135G7, 2400 MHz |
724 ms * -0% |
| Intel NUC Pro Chassis_i5_1145G7, Intel Core i5-1145G7 i5-1145G7, 2600 MHz |
722 ms * |
| Intel NUC Pro Chassis_i7_1185G7, Intel Core i7-1185G7 i7-1185G7, 3000 MHz |
695 ms * +4% |
| Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U R5 5600U, 2300 MHz |
646 ms * +11% |
| Prime Computer PrimeBook Circular-i7-1165G7, Intel Core i7-1165G7 i7-1165G7, 2800 MHz |
643 ms * +11% |
| Intel NUC Pro Chassis_i7_1265U, Intel Core i7-1265U i7-1265U, 1300 MHz |
597 ms * +17% |
| Intel NUC Pro Chassis_i5_1245U, Intel Core i5-1245U i5-1245U, 1200 MHz |
575 ms * +20% |
* ... smaller is better
Cinebench R15多环路中的不同计算元素

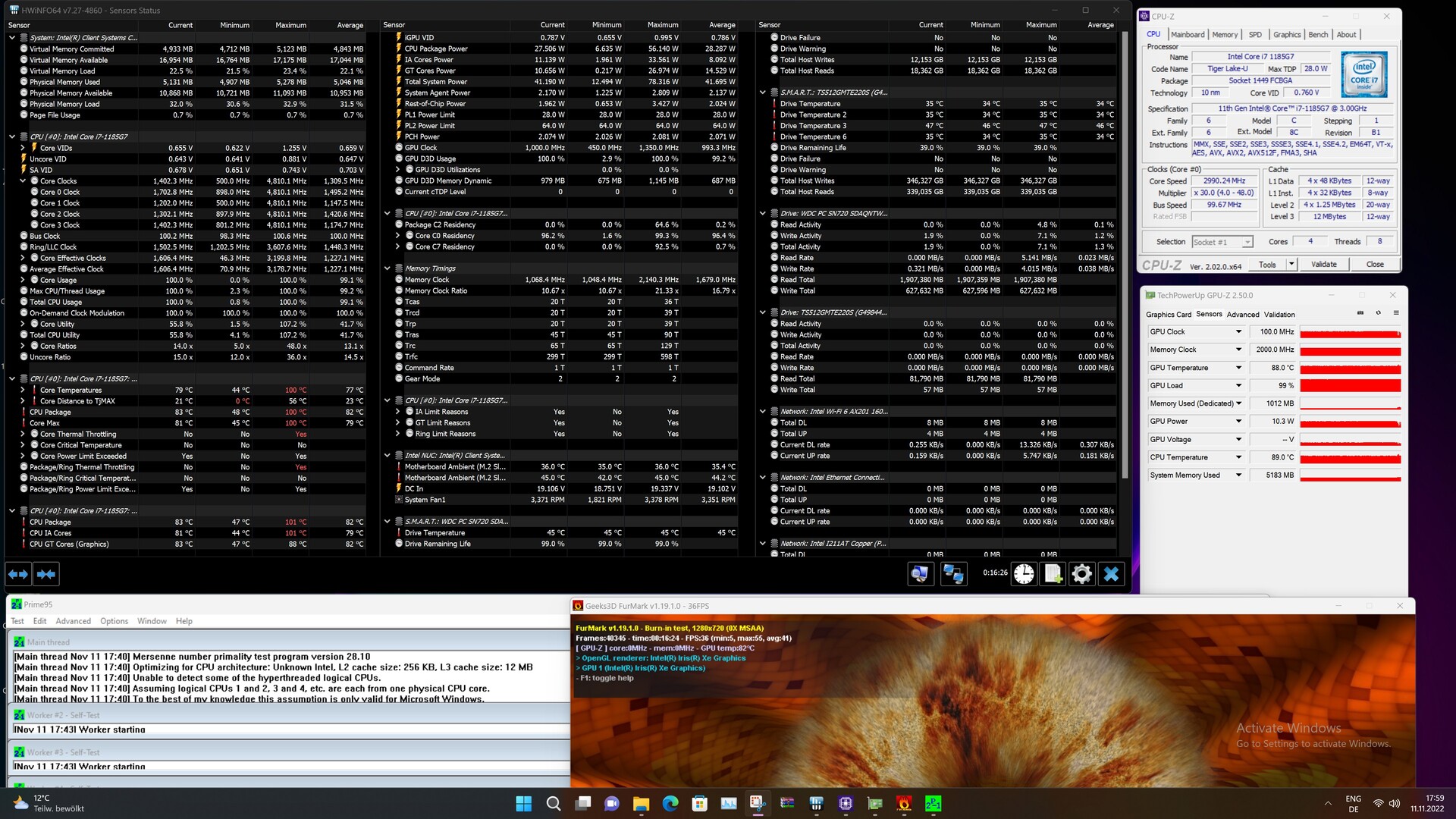

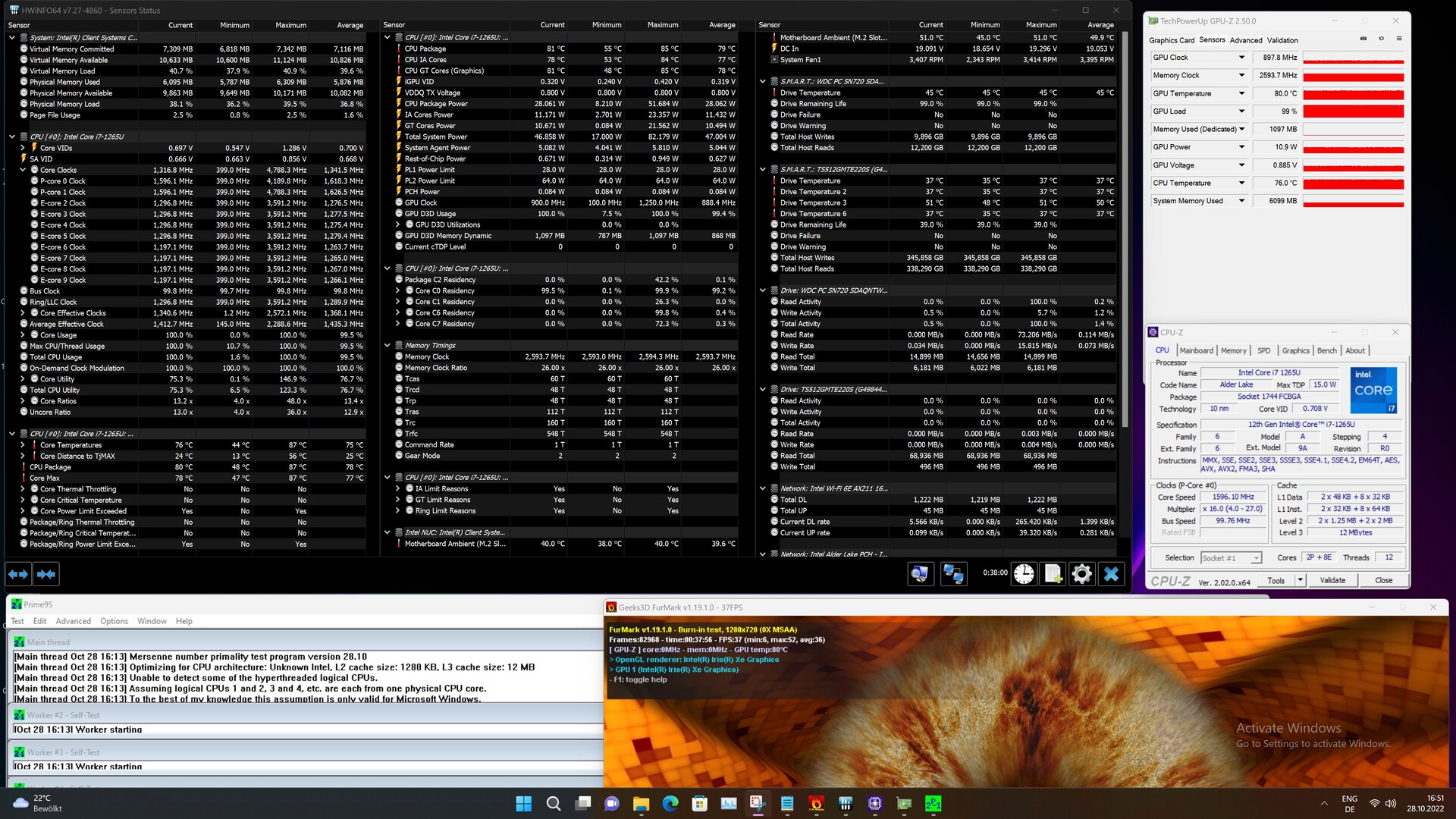

在所有四个星座中都可以看到类似的行为。由于温度的原因，CPU的性能在第一次运行后明显下降。在较新的Alder Lake SoC中，性能下降明显更高。然而，在进一步的过程中，性能基本上保持稳定。
Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7: Ø757 (739.28-828.86)
Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7: Ø757 (738.48-856.13)
Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U: Ø1222 (1193.03-1456.4)
Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U: Ø1254 (1145.71-1444.46)
合成基准和应用性能
在合成基准测试中，我们看到与之前的纯CPU测试几乎相同的结果。这一次，第一名和第二名以相反的顺序被两个Alder Lake SoC获得。因此，它再次表明， 酷睿i7-1265U并不总是更好的选择。基于老虎湖的计算元件也同样接近，所以 酷睿i7-1185G7在这里也没有更明显的胜利。
| Performance Rating - Percent | |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
98.3 pt |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
97.9 pt |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
90 pt |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
78.6 pt |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
76 pt |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs |
64.6 pt |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
60.4 pt |
| PCMark 10 - Score | |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
5761 Points +20% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
5510 Points +15% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
5387 Points +12% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
5160 Points +8% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs |
4892 Points +2% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
4792 Points |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
4521 Points -6% |
| 3DMark | |
| 1920x1080 Fire Strike Physics | |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
18467 Points +38% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
18108 Points +35% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
18076 Points +35% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
13413 Points |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
12768 Points -5% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
9354 Points -30% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs |
8668 Points -35% |
| 2560x1440 Time Spy CPU | |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
6307 Points +41% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
6185 Points +38% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
5443 Points +21% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
4487 Points |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
4426 Points -1% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs |
3070 Points -32% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
2867 Points -36% |
| 3DMark 11 - 1280x720 Performance Physics | |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
16005 Points +39% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
15485 Points +34% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
12608 Points +9% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
11536 Points |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
11284 Points -2% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs |
7797 Points -32% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
7792 Points -32% |
| CrossMark - Overall | |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
1577 Points +23% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
1559 Points +22% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs |
1477 Points +15% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
1474 Points +15% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
1373 Points +7% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
1279 Points |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
1245 Points -3% |
| AIDA64 / Memory Copy | |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs |
70620 MB/s +18% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs |
69882 MB/s +17% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs |
65021 MB/s +9% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs |
62171 MB/s +4% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs |
59767 MB/s |
| Average of class Mini PC (8377 - 89287, n=114, last 2 years) |
50681 MB/s -15% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs |
35423 MB/s -41% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7 |
35051 MB/s -41% |
| AIDA64 / Memory Read | |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs |
65856 MB/s +7% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs |
65177 MB/s +6% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs |
63583 MB/s +3% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs |
61758 MB/s |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs |
59634 MB/s -3% |
| Average of class Mini PC (8974 - 100086, n=114, last 2 years) |
51664 MB/s -16% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs |
40348 MB/s -35% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7 |
38400 MB/s -38% |
| AIDA64 / Memory Write | |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs |
66791 MB/s +1% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs |
66047 MB/s |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs |
63908 MB/s -3% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs |
63385 MB/s -4% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs |
63277 MB/s -4% |
| Average of class Mini PC (8762 - 100538, n=114, last 2 years) |
55802 MB/s -16% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs |
39154 MB/s -41% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7 |
37475 MB/s -43% |
| AIDA64 / Memory Latency | |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Iris Xe G7 96EUs |
100 ns * -16% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Iris Xe G7 80EUs |
99.9 ns * -16% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Iris Xe G7 96EUs |
98.1 ns * -14% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7, Iris Xe G7 96EUs |
92.3 ns * -7% |
| Average of class Mini PC (44.9 - 184.8, n=114, last 2 years) |
91.8 ns * -6% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7 |
91.3 ns * -6% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Iris Xe G7 80EUs |
86.4 ns * |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs |
69 ns * +20% |
* ... smaller is better
DPC延迟
只有与 英特尔酷睿i7-1265U在DPC延迟方面有点突出。重复测试显示了同样的结果。根据LatancyMon，其他三个星座都没有问题。在播放4K YouTube视频时，iGPU的利用率为30%-40%。
| DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95 | |
| Prime Computer PrimeBook Circular-i7-1165G7 Iris Xe G7 96EUs, i7-1165G7, Samsung SSD 980 500GB (MZ-V8V500BW) |
4415 μs * -698% |
| Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G |
1151 μs * -108% |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
765 μs * -38% |
| Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G |
740 μs * -34% |
| Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G |
738 μs * -33% |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
659.1 μs * -19% |
| Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G |
553.1 μs * |
* ... smaller is better
大容量存储
英特尔NUC Pro机箱元件最多支持两个M.2格式的大容量存储设备。然而，那些使用SATA速度的M.2固态硬盘的人，必须注意正确选择M.2接口。只有一个插槽支持稍慢的格式。我们用我们的WDC PC SN720与512GB进行了测试。尽管是相同的固态硬盘，但在测试中存在明显的差异，这在访问时间以及4K读写率方面都很明显。在永久负载期间没有任何问题。两个SSD插槽底板上的散热垫确保了良好的散热。
WDC PC SN720 SDAQNTW-512G
Sequential Read:
2451 MB/s
Sequential Write:
2512 MB/s
512K Read:
1521 MB/s
512K Write:
1490 MB/s
4K Read:
41.97 MB/s
4K Write:
212.4 MB/s
4K QD32 Read:
683.2 MB/s
4K QD32 Write:
435.2 MB/s
WDC PC SN720 SDAQNTW-512G
CDM 5/6 Read Seq Q32T1:
3467 MB/s
CDM 5/6 Write Seq Q32T1:
2543.5 MB/s
CDM 5/6 Read 4K Q32T1:
717.1 MB/s
CDM 5/6 Write 4K Q32T1:
405.3 MB/s
CDM 5 Read Seq:
1871 MB/s
CDM 5 Write Seq:
2086 MB/s
CDM 5/6 Read 4K:
50.43 MB/s
CDM 5/6 Write 4K:
215.5 MB/s
CDM 6 Write 4K Q8T8:
1212.6 MB/s
CDM 6 Read 4K Q8T8:
1394.7 MB/s
WDC PC SN720 SDAQNTW-512G
Sequential Read:
3039MB/s
Sequential Write:
2273MB/s
4K Read:
46.54MB/s
4K Write:
195.91MB/s
4K-64 Read:
1305.92MB/s
4K-64 Write:
1464.88MB/s
Access Time Read:
0.128ms
Access Time Write:
0.021ms
Copy ISO:
1136.85MB/s
Copy Program:
322.5MB/s
Copy Game:
943.49MB/s
Score Read:
1656Points
Score Write:
1888Points
Score Total:
4358Points
WDC PC SN720 SDAQNTW-512G
DiskSpd seq_q8t1_read:
3479MB/s
DiskSpd seq_q8t1_write:
2561MB/s
DiskSpd seq_read:
1810MB/s
DiskSpd seq_write:
1739MB/s
DiskSpd 4k_q32t16_read:
963MB/s
DiskSpd 4k_q32t16_write:
412MB/s
DiskSpd 4k_q1t1_read:
42.2MB/s
DiskSpd 4k_q1t1_write:
150.5MB/s
DiskSpd Loop seq_q8t1_read:
3473MB/s
| Drive Performance Rating - Percent | |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
90.2 pt |
| Average of class Mini PC |
88.9 pt |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
79.7 pt |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
75.7 pt |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
72.6 pt |
| DiskSpd | |
| seq read | |
| Average of class Mini PC (413 - 4357, n=113, last 2 years) |
2385 MB/s +32% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
2228 (1938.09min - 2228.38max) MB/s +23% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
2058 (1847.09min - 2057.65max) MB/s +14% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
1811 (1731.93min - 1810.83max) MB/s 0% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
1810 (1705.56min - 1810.26max) MB/s |
| seq write | |
| Average of class Mini PC (259 - 5595, n=113, last 2 years) |
2626 MB/s +51% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
2249 (2126.93min - 2248.57max) MB/s +29% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
2198 (2143.62min - 2198.23max) MB/s +26% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
2149 (2077.61min - 2148.85max) MB/s +24% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
1739 (1663.04min - 1739.25max) MB/s |
| seq q8 t1 read | |
| Average of class Mini PC (397 - 8430, n=113, last 2 years) |
3935 MB/s +13% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
3497 (2944.82min - 3496.65max) MB/s +1% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
3487 (2948.62min - 3486.57max) MB/s 0% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
3485 (3116.01min - 3485max) MB/s 0% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
3479 (2889.34min - 3478.93max) MB/s |
| seq q8 t1 write | |
| Average of class Mini PC (271 - 6669, n=113, last 2 years) |
2949 MB/s +15% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
2573 (2526.46min - 2573.42max) MB/s 0% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
2573 (2547.29min - 2572.88max) MB/s 0% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
2564 (2533.74min - 2564.49max) MB/s 0% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
2561 MB/s |
| 4k q1 t1 read | |
| Average of class Mini PC (6.85 - 87.3, n=113, last 2 years) |
56.2 MB/s +33% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
46.8 (46.64min - 46.84max) MB/s +11% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
44.7 (43.85min - 44.67max) MB/s +6% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
43.2 (42.7min - 43.23max) MB/s +2% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
42.2 (41.96min - 42.19max) MB/s |
| 4k q1 t1 write | |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
232 (230.89min - 232.39max) MB/s +54% |
| Average of class Mini PC (40.4 - 435, n=113, last 2 years) |
197.7 MB/s +31% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
155.6 (152.79min - 155.57max) MB/s +3% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
150.5 (149.1min - 150.47max) MB/s |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
127.3 (125.68min - 127.3max) MB/s -15% |
| 4k q32 t16 read | |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
1750 (1724.46min - 1749.88max) MB/s +82% |
| Average of class Mini PC (102.3 - 4158, n=113, last 2 years) |
1454 MB/s +51% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
963 (935.31min - 963.3max) MB/s |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
926 (896.56min - 926.49max) MB/s -4% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
643 (632.31min - 643.46max) MB/s -33% |
| 4k q32 t16 write | |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
1380 (935.1min - 1380.02max) MB/s +235% |
| Average of class Mini PC (70.3 - 4288, n=113, last 2 years) |
1374 MB/s +233% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
423 (402.45min - 423.18max) MB/s +3% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
412 (397.32min - 412.23max) MB/s |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
328 (314.14min - 327.95max) MB/s -20% |
| AS SSD | |
| Score Total | |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
4415 Points +1% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
4358 Points |
| Average of class Mini PC (507 - 10021, n=111, last 2 years) |
4290 Points -2% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
3536 Points -19% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
3526 Points -19% |
| Score Read | |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
1657 Points 0% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
1656 Points |
| Average of class Mini PC (172 - 3741, n=111, last 2 years) |
1576 Points -5% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
1269 Points -23% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
1042 Points -37% |
| Score Write | |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
1997 Points +6% |
| Average of class Mini PC (210 - 4371, n=111, last 2 years) |
1949 Points +3% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
1936 Points +3% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
1888 Points |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
1652 Points -12% |
| Seq Read | |
| Average of class Mini PC (483 - 6620, n=111, last 2 years) |
3277 MB/s +8% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
3039 MB/s |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
3030 MB/s 0% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
2881 MB/s -5% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
2854 MB/s -6% |
| Seq Write | |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
2390 MB/s +5% |
| Average of class Mini PC (277 - 5783, n=111, last 2 years) |
2379 MB/s +5% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
2273 MB/s |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
1960 MB/s -14% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
1846 MB/s -19% |
| 4K Read | |
| Average of class Mini PC (18.2 - 104.3, n=111, last 2 years) |
59.4 MB/s +28% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
49.78 MB/s +7% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
46.54 MB/s |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
45.38 MB/s -2% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
43.07 MB/s -7% |
| 4K Write | |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
205.06 MB/s +5% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
201.42 MB/s +3% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
195.91 MB/s |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
182.89 MB/s -7% |
| Average of class Mini PC (40.8 - 366, n=111, last 2 years) |
178.1 MB/s -9% |
| 4K-64 Read | |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
1305.92 MB/s |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
1304.51 MB/s 0% |
| Average of class Mini PC (94.3 - 3220, n=111, last 2 years) |
1189 MB/s -9% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
940.13 MB/s -28% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
708.14 MB/s -46% |
| 4K-64 Write | |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
1617.56 MB/s +10% |
| Average of class Mini PC (96.3 - 3731, n=111, last 2 years) |
1533 MB/s +5% |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
1495.31 MB/s +2% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
1464.88 MB/s |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
1262.16 MB/s -14% |
| Access Time Read | |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
0.237 ms * -85% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
0.128 ms * |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
0.124 ms * +3% |
| Average of class Mini PC (0.025 - 0.288, n=111, last 2 years) |
0.09575 ms * +25% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
0.053 ms * +59% |
| Access Time Write | |
| Average of class Mini PC (0.014 - 0.706, n=111, last 2 years) |
0.1101 ms * -424% |
| Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G |
0.022 ms * -5% |
| Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G |
0.021 ms * |
| Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G |
0.02 ms * +5% |
| Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G |
0.019 ms * +10% |
* ... smaller is better
Continuous Read: DiskSpd Read Loop, Queue Depth 8
Intel NUC Pro Chassis_i5_1145G7 WDC PC SN720 SDAQNTW-512G: Ø3473 (3163.1-3486.1)
Intel NUC Pro Chassis_i7_1185G7 WDC PC SN720 SDAQNTW-512G: Ø3480 (2916.51-3492.11)
Intel NUC Pro Chassis_i5_1245U WDC PC SN720 SDAQNTW-512G: Ø3482 (3157.08-3490.29)
Intel NUC Pro Chassis_i7_1265U WDC PC SN720 SDAQNTW-512G: Ø3481 (3067.45-3492.18)
图形卡
一个 英特尔Iris Xe Graphics G7具有80或96个EUs，被用作计算元件的集成GPU。由于这个原因，在性能上有小的差异。带有96个EUs的型号大约快15%，但这在主观上是不明显的。的性能。 AMD Radeon RX Vega 7在这里的比较中几乎都能被超越。
| 3DMark Performance Rating - Percent | |
| Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS |
99.7 pt |
| SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H |
88.3 pt |
| Average of class Mini PC |
31 pt |
| Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7 |
19 pt |
| Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U |
18 pt |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7 |
16.7 pt |
| Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7 |
16.4 pt |
| Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U |
15.6 pt |
| Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U |
15.5 pt |
| Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7 |
14.7 pt |
| 3DMark 11 - 1280x720 Performance GPU | |
| Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS |
32662 Points +471% |
| SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H |
27741 Points +385% |
| Average of class Mini PC (1349 - 47892, n=114, last 2 years) |
10951 Points +92% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7 |
6676 Points +17% |
| Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U |
6210 Points +9% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7 |
6091 Points +7% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7 |
5718 Points |
| Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U |
5610 Points -2% |
| Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7 |
5565 Points -3% |
| Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U |
5378 Points -6% |
| 3DMark | |
| 1280x720 Cloud Gate Standard Graphics | |
| Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS |
153853 Points +569% |
| SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H |
130964 Points +470% |
| Average of class Mini PC (7218 - 168736, n=107, last 2 years) |
41247 Points +79% |
| Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U |
26247 Points +14% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7 |
25485 Points +11% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7 |
22983 Points |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7 |
22735 Points -1% |
| Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U |
21602 Points -6% |
| Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U |
21276 Points -7% |
| Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7 |
20432 Points -11% |
| 1920x1080 Fire Strike Graphics | |
| Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS |
24135 Points +472% |
| SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H |
20081 Points +376% |
| Average of class Mini PC (1106 - 34047, n=113, last 2 years) |
7539 Points +79% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7 |
4959 Points +18% |
| Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U |
4902 Points +16% |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7 |
4360 Points +3% |
| Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U |
4249 Points +1% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7 |
4217 Points |
| Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7 |
3725 Points -12% |
| Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U |
3586 Points -15% |
| 2560x1440 Time Spy Graphics | |
| SCHENKER XMG Core 15 Ampere NVIDIA GeForce RTX 3060 Laptop GPU, AMD Ryzen 7 4800H |
8425 Points +536% |
| Asus ROG Zephyrus G14 GA402RJ AMD Radeon RX 6700S, AMD Ryzen 7 6800HS |
8316 Points +528% |
| Average of class Mini PC (304 - 13961, n=112, last 2 years) |
2725 Points +106% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1185G7 |
1570 Points +19% |
| Intel NUC Pro Chassis_i7_1265U Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1265U |
1556 Points +18% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1145G7 |
1324 Points |
| Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7 |
1287 Points -3% |
| Intel NUC Pro Chassis_i5_1245U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1245U |
1234 Points -7% |
| Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7 |
1109 Points -16% |
| Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U |
1102 Points -17% |
游戏性能
SoC的iGPU只在有限的范围内适合作为游戏解决方案。在低分辨率和最低细节下，可玩的帧率通常是可能的。在更高的分辨率下，记录的帧率急剧下降。尽管如此，英特尔NUC Pro机箱元件中的计算元件的iGPU表现相当好，从平均性能可以看出。
GTA V | The Witcher 3 | Far Cry 5 | Far Cry New Dawn | F1 2020 | Strange Brigade | Borderlands 3 | Metro Exodus | F1 2021
| GTA V | |
| 1024x768 Lowest Settings possible | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
179.6 (3.66min, 142.9P1) fps +90% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (164 - 186.8, n=38) |
179.5 fps +90% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
116 (17min, 76.9P1) fps +23% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
114.3 (8.54min, 76.9P1) fps +21% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
105.8 (17.8min, 71.4P1) fps +12% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
102.1 (19.6min, 58.8P1) fps +8% |
| Average Intel Iris Xe Graphics G7 96EUs (52 - 166.4, n=166) |
99 fps +5% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
97.6 (17.8min, 62.5P1) fps +3% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
94.4 (6.11min, 50P1) fps |
| Average Intel Iris Xe Graphics G7 80EUs (36.5 - 144.6, n=82) |
83.6 fps -11% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
68.3 (18.7min, 45.5P1) fps -28% |
| 1366x768 Normal/Off AF:4x | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (152 - 183.4, n=36) |
174.1 fps +117% |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
172.2 (4.2min, 125P1) fps +114% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
104 (13.4min, 71.4P1) fps +30% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
95.2 (17.8min, 58.8P1) fps +19% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
94.3 (5.72min, 62.5P1) fps +17% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
89.4 (9.45min, 55.6P1) fps +11% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
87.4 (20.5min, 50P1) fps +9% |
| Average Intel Iris Xe Graphics G7 96EUs (24.1 - 152.7, n=167) |
83.6 fps +4% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
80.3 (13.6min, 47.6P1) fps |
| Average Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=85) |
71 fps -12% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
54.8 (16.1min, 37P1) fps -32% |
| The Witcher 3 | |
| 1024x768 Low Graphics & Postprocessing | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
367 (5.67min, 43.9P0.1, 264P1) fps +352% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (221 - 449, n=35) |
324 fps +299% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
90.7 (3.4min, 21.9P0.1, 53.7P1) fps +12% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
89 (38.4min, 43.3P0.1, 52.8P1) fps +10% |
| Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=187) |
83.9 fps +3% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
81.4 (31.8min, 35.9P0.1, 47.9P1) fps 0% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
81.2 (4.78min, 20.4P0.1, 42.9P1) fps |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
72.2 (21.1min, 40.1P0.1, 51.4P1) fps -11% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
65.9 (1.678min, 12.6P0.1, 39.7P1) fps -19% |
| Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101) |
65.4 fps -19% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
61.8 (16.1min, 20.6P0.1, 34.6P1) fps -24% |
| 1366x768 Medium Graphics & Postprocessing | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
260 (41.7min, 170.3P0.1, 202P1) fps +400% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (204 - 296, n=33) |
237 fps +356% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
59.9 (15.7min, 28.4P0.1, 34P1) fps +15% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
57.9 (25.7min, 27.5P0.1, 33P1) fps +11% |
| Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=185) |
53.6 fps +3% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
52.3 (22.4min, 24.9P0.1, 29.9P1) fps +1% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
52 (3.24min, 25.2P0.1, 29.7P1) fps |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
44.5 (31min, 32.6P0.1, 36.6P1) fps -14% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
42.6 (10.6min, 28.7P0.1, 33.9P1) fps -18% |
| Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103) |
41.9 fps -19% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
39.4 (20.2min, 22.2P0.1, 30.4P1) fps -24% |
| Far Cry 5 | |
| 1280x720 Low Preset AA:T | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (102 - 168, n=23) |
141.4 fps +195% |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
137 (108min) fps +185% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
52 (46min) fps +8% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
52 (41min) fps +8% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
51 (46min) fps +6% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
48 (44min) fps 0% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
48 (28min) fps |
| Average Intel Iris Xe Graphics G7 96EUs (23 - 75, n=93) |
46.8 fps -2% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
44 (38min) fps -8% |
| Average Intel Iris Xe Graphics G7 80EUs (14 - 63, n=50) |
38.8 fps -19% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
25 (19min) fps -48% |
| 1920x1080 Medium Preset AA:T | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
122 (97min) fps +352% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (88 - 135, n=25) |
114.2 fps +323% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
30 (26min) fps +11% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
28 (24min) fps +4% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
27 (24min) fps |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
27 (23min) fps 0% |
| Average Intel Iris Xe Graphics G7 96EUs (14 - 39, n=91) |
25.7 fps -5% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
21 (19min) fps -22% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
21 (19min) fps -22% |
| Average Intel Iris Xe Graphics G7 80EUs (9 - 31, n=47) |
20.1 fps -26% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
17 (14min) fps -37% |
| Far Cry New Dawn | |
| 1280x720 Low Preset | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
114 (90min) fps +165% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (107 - 115, n=2) |
111 fps +158% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
50 (39min) fps +16% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
48 (34min) fps +12% |
| Average Intel Iris Xe Graphics G7 96EUs (29 - 69, n=19) |
47.2 fps +10% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
47 (28min) fps +9% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
44 (34min) fps +2% |
| Average Intel Iris Xe Graphics G7 80EUs (29 - 59, n=5) |
44 fps +2% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
43 (28min) fps |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
40 (31min) fps -7% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
29 (19min) fps -33% |
| 1920x1080 Medium Preset | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
102 (81min) fps +278% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (91 - 96, n=2) |
93.5 fps +246% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
30 (23min) fps +11% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
29 (23min) fps +7% |
| Average Intel Iris Xe Graphics G7 96EUs (16 - 38, n=19) |
27.2 fps +1% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
27 (21min) fps |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
27 (20min) fps 0% |
| Average Intel Iris Xe Graphics G7 80EUs (15 - 32, n=6) |
25.5 fps -6% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
22 (18min) fps -19% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
20 (17min) fps -26% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
16 (12min) fps -41% |
| F1 2020 | |
| 1280x720 Ultra Low Preset | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
325 (264min) fps +418% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (215 - 260, n=6) |
242 fps +285% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
94.7 (78min) fps +51% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
92.6 (77min) fps +47% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
90.4 (73min) fps +44% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
89.9 (79min) fps +43% |
| Average Intel Iris Xe Graphics G7 96EUs (49 - 109.6, n=34) |
82 fps +31% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
66.1 (58min) fps +5% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
62.8 (58min) fps |
| Average Intel Iris Xe Graphics G7 80EUs (45 - 76.6, n=10) |
62.5 fps 0% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
60.4 (2min) fps -4% |
| 1920x1080 Medium Preset AF:16x | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
242 (200min) fps +478% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (150 - 204, n=6) |
173.8 fps +315% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
48 (39min) fps +15% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
47.1 (40min) fps +12% |
| Average Intel Iris Xe Graphics G7 96EUs (23.1 - 57.5, n=34) |
42.8 fps +2% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
41.9 (34min) fps |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
41.2 (34min) fps -2% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
32.6 (2min) fps -22% |
| Average Intel Iris Xe Graphics G7 80EUs (24.8 - 42, n=12) |
32.3 fps -23% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
31.6 (26min) fps -25% |
| Strange Brigade | |
| 1280x720 lowest AF:1 | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
447 (227min, 334P1) fps +424% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (253 - 471, n=37) |
347 fps +307% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
89.9 (20min, 32.7P1) fps +5% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
87.7 (45min, 75.6P1) fps +3% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
87.6 (11.7min, 31P1) fps +3% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
85.3 (18.6min, 27.1P1) fps |
| Average Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=170) |
85 fps 0% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
80.1 (48.8min, 67.5P1) fps -6% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
72.9 (14.8min, 24.2P1) fps -15% |
| Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=82) |
67.8 fps -21% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
66.1 (9.6min, 21.1P1) fps -23% |
| 1920x1080 medium AA:medium AF:4 | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
216 (163.8min, 183.9P1) fps +497% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (154.9 - 242, n=38) |
193.8 fps +435% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
38.3 (10.4min, 17.6P1) fps +6% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
38.1 (8.7min, 14.5P1) fps +5% |
| Average Intel Iris Xe Graphics G7 96EUs (18.2 - 51.4, n=168) |
36.6 fps +1% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
36.2 (12.6min, 20.5P1) fps |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
33.5 (28.7min, 29.8P1) fps -7% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
30.2 (23.5min, 26.3P1) fps -17% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
29.6 (9.5min, 16P1) fps -18% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
28.3 (6.5min, 7.43P1) fps -22% |
| Average Intel Iris Xe Graphics G7 80EUs (6 - 48.8, n=84) |
28.3 fps -22% |
| Borderlands 3 | |
| 1920x1080 Medium Overall Quality (DX11) | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
111.2 fps +420% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (102 - 107.4, n=2) |
104.7 fps +389% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
25.7 fps +20% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
25.1 fps +17% |
| Average Intel Iris Xe Graphics G7 96EUs (15.8 - 30.9, n=20) |
24.3 fps +14% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
23.1 fps +8% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
21.9 fps +2% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
21.4 fps |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
21.2 fps -1% |
| Average Intel Iris Xe Graphics G7 80EUs (16.5 - 25.8, n=5) |
21.2 fps -1% |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
15.8 fps -26% |
| 1280x720 Very Low Overall Quality (DX11) | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
127.5 fps +173% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (116 - 133.7, n=2) |
124.9 fps +167% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
60.1 fps +29% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
53.4 fps +14% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
52.7 fps +13% |
| Average Intel Iris Xe Graphics G7 96EUs (33.9 - 67.2, n=20) |
51.6 fps +10% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
51.3 fps +10% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
47.8 fps +2% |
| Average Intel Iris Xe Graphics G7 80EUs (37.9 - 57.6, n=5) |
47.3 fps +1% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
46.7 fps |
| Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs |
33.9 fps -27% |
| Metro Exodus | |
| 1280x720 Low Quality AF:4x | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
198.4 (107.04min) fps +456% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (151 - 154.3, n=2) |
152.7 fps +328% |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
39.2 (25.3min) fps +10% |
| Average Intel Iris Xe Graphics G7 96EUs (28.2 - 45.8, n=17) |
39.2 fps +10% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
37.9 (22.1min) fps +6% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
37.8 (20.62min) fps +6% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
36.6 (21.07min) fps +3% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
35.7 (20.6min) fps |
| Average Intel Iris Xe Graphics G7 80EUs (28 - 39.4, n=4) |
34.2 fps -4% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
33.6 (18.95min) fps -6% |
| 1920x1080 Medium Quality AF:4x | |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (96.3 - 104, n=2) |
100.2 fps +493% |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
98.8 (51.07min) fps +485% |
| Average Intel Iris Xe Graphics G7 96EUs (15 - 32.2, n=17) |
20.2 fps +20% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
19.3 (10.26min) fps +14% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
17.5 (10.13min) fps +4% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
16.9 (9.18min) fps |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
16.4 (7.91min) fps -3% |
| Average Intel Iris Xe Graphics G7 80EUs (13.7 - 18.8, n=4) |
16.2 fps -4% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
15.9 (8.1min) fps -6% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
15.4 (8.13min) fps -9% |
| F1 2021 | |
| 1280x720 Ultra Low Preset | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
326 (232min, 231P1) fps +222% |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (130 - 360, n=9) |
266 fps +163% |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
108.1 (81min, 77P1) fps +7% |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
107.4 (80min, 79P1) fps +6% |
| Intel NUC Pro Chassis_i5_1145G7 Intel Core i5-1145G7, Intel Iris Xe Graphics G7 80EUs |
101.1 (74min, 72P1) fps |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
98.3 (74min, 75P1) fps -3% |
| Average Intel Iris Xe Graphics G7 96EUs (59.4 - 129.9, n=46) |
95.7 fps -5% |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
94.7 (75min, 75P1) fps -6% |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
80.9 (62min, 62P1) fps -20% |
| Average Intel Iris Xe Graphics G7 80EUs (15.6 - 102, n=18) |
67.4 fps -33% |
| 1920x1080 Medium Preset AA:T AF:16x | |
| Minisforum Neptune Series HX90G AMD Ryzen 9 5900HX, AMD Radeon RX 6600M |
283 (213min, 204P1) fps |
| Average NVIDIA GeForce RTX 3060 Laptop GPU (120 - 287, n=9) |
195 fps |
| Intel NUC Pro Chassis_i7_1185G7 Intel Core i7-1185G7, Intel Iris Xe Graphics G7 96EUs |
51.8 (41min, 41P1) fps |
| Intel NUC Pro Chassis_i7_1265U Intel Core i7-1265U, Intel Iris Xe Graphics G7 96EUs |
51.8 (32min, 41P1) fps |
| Average Intel Iris Xe Graphics G7 96EUs (29.4 - 64.9, n=45) |
46.5 fps |
| Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000) |
42.5 (34min, 34P1) fps |
| Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7 |
39.9 (32min, 32P1) fps |
| Intel NUC Pro Chassis_i5_1245U Intel Core i5-1245U, Intel Iris Xe Graphics G7 80EUs |
36.4 (30min, 28P1) fps |
| Average Intel Iris Xe Graphics G7 80EUs (20.1 - 42.9, n=12) |
33 fps |
排放
噪声排放
无论安装何种计算元件，英特尔NUC Pro机箱元件在噪音排放方面的表现都是一样的。有时可以测量到最大音量的小波动。然而，即使在平均负载下，噪音水平也已经远远超过40 dB(A)。此外，还有一个相对高频的风扇噪音，这更增加了噪音的主观感受。
| Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G | Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G | Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G | Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G | |
|---|---|---|---|---|
| Noise | -1% | 1% | 0% | |
| off / environment * | 30.5 | 30.2 1% | 30.5 -0% | 30.5 -0% |
| Idle Minimum * | 31.4 | 31.6 -1% | 31.3 -0% | 31.4 -0% |
| Idle Average * | 31.4 | 31.6 -1% | 31.3 -0% | 31.4 -0% |
| Idle Maximum * | 31.4 | 31.6 -1% | 31.3 -0% | 31.4 -0% |
| Load Average * | 44.2 | 44.5 -1% | 42.9 3% | 43.8 1% |
| Load Maximum * | 44.3 | 45.3 -2% | 44.5 -0% | 44 1% |
* ... smaller is better
温度
在英特尔NUC Pro机箱元件中，机箱温度并不明显。然而，对于计算元件的SoC来说，它看起来有点不同。这些SoC都被定义为有一个最大64瓦的功率限制（PL2）。然而，我们在测试中无法达到这一目标。芯片内部的温度上升得太快了。与主要使用直接芯片冷却的笔记本电脑不同，计算元件中产生的热量首先通过金属背板散出，然后可以反过来将热量散到英特尔NUC Pro机箱元件中的热管。因此，我们有另一个必须克服的热传递问题。
能源消耗
与传统的台式电脑相比，基于成熟的笔记本技术的紧凑型迷你电脑在能源消耗方面有很大的优势。我们在压力测试中记录到平均55瓦，尽管我们在开始时也有短时间突破了100瓦的大关。这使电源短时间内过载，因为它最多可以提供90瓦的功率。我们假设制造商已经允许了一个小的缓冲区，因为系统在测试中没有因为电源不足而崩溃。
Power Consumption: Prime95 V2810 Stress (external Monitor) | Cinebench R15 Multi (external Monitor) | 1280x720 Prime95 28.10 and Furmark 1.25 | Idle 1min (external Monitor)
: Idle Minimum
: Idle Minimum
| Power Consumption / Prime95 V2810 Stress (external Monitor) | |
| Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G |
55.4 (48.7min, 51P1 - 100.1max) Watt * -17% |
| Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G |
52.5 (48.2min, 48.4P1 - 88.8max) Watt * -11% |
| Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G |
47.5 (42.4min, 43.5P1 - 84.2max) Watt * |
| Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G |
46.8 (39.4min, 40.6P1 - 81.7max) Watt * +1% |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
42.1 (36.8min, 36.9P1 - 52.4max) Watt * +11% |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
31.4 (27.8min, 27.9P1 - 68.7max) Watt * +34% |
| Power Consumption / Cinebench R15 Multi (external Monitor) | |
| Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G |
83.7 (80.7min, 80.8P1 - 97max) Watt * -51% |
| Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G |
72.3 (48.3min, 48.3P1 - 87max) Watt * -30% |
| Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G |
55.5 (42.5min, 42.5P1 - 73.7max) Watt * |
| Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G |
55.4 (38.4min, 40.2P1 - 77.3max) Watt * -0% |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
44.8 (36.1min, 38.4P1 - 47.8max) Watt * +19% |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
32.9 (23.9min, 24.6P1 - 55.3max) Watt * +41% |
| Power Consumption / Prime95 28.10 and Furmark 1.25 | |
| Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G |
53.3 (49.6min, 50.2P1 - 86.1max) Watt * -12% |
| Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G |
52.2 (40.4min, 48.1P1 - 97.5max) Watt * -10% |
| Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G |
47.4 (44.2min, 45.5P1 - 91.3max) Watt * |
| Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G |
46.9 (44.1min, 44.8P1 - 87.4max) Watt * +1% |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
43.6 (41.6min, 41.7P1 - 51max) Watt * +8% |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
30.6 (11min, 27.7P1 - 68.5max) Watt * +35% |
| Power Consumption / Idle 1min (external Monitor) | |
| Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G |
12.9 (11.6min, 11.6P1 - 21.8max) Watt * -18% |
| Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G |
12.7 (11.1min, 11.3P1 - 16.2max) Watt * -17% |
| Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G |
10.9 (7.54min, 9.51P1 - 16.4max) Watt * |
| Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G |
10.6 (5.92min, 7.36P1 - 21.2max) Watt * +3% |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
9.27 (8.82min, 8.91P1 - 10.3max) Watt * +15% |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
7.02 (6.54min, 6.57P1 - 9.28max) Watt * +36% |
| Power Consumption | |
| Idle Minimum | |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
3.4 Watt * |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
8.4 Watt * |
| Idle Average | |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
5.7 Watt * |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
8.7 Watt * |
| Idle Maximum | |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
7 Watt * |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
9.3 Watt * |
| Load Average | |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
36.5 Watt * |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
46.4 Watt * |
| Load Maximum | |
| Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G |
68 Watt * |
| Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G |
52 Watt * |
* ... smaller is better
Power consumption with external monitor
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G; Prime95 V2810 Stress (external Monitor): Ø47.5 (42.4-84.2)
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G; Prime95 V2810 Stress (external Monitor): Ø46.8 (39.4-81.7)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G; Prime95 V2810 Stress (external Monitor): Ø55.4 (48.7-100.1)
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G; Prime95 V2810 Stress (external Monitor): Ø52.5 (48.2-88.8)
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G; Cinebench R15 Multi (external Monitor): Ø55.5 (42.5-73.7)
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G; Cinebench R15 Multi (external Monitor): Ø55.4 (38.4-77.3)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G; Cinebench R15 Multi (external Monitor): Ø83.7 (80.7-97)
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G; Cinebench R15 Multi (external Monitor): Ø72.3 (48.3-87)
Intel NUC Pro Chassis_i5_1145G7 Iris Xe G7 80EUs, i5-1145G7, WDC PC SN720 SDAQNTW-512G; Idle 1min (external Monitor): Ø10.9 (7.54-16.4)
Intel NUC Pro Chassis_i7_1185G7 Iris Xe G7 96EUs, i7-1185G7, WDC PC SN720 SDAQNTW-512G; Idle 1min (external Monitor): Ø10.6 (5.92-21.2)
Intel NUC Pro Chassis_i5_1245U Iris Xe G7 80EUs, i5-1245U, WDC PC SN720 SDAQNTW-512G; Idle 1min (external Monitor): Ø12.9 (11.6-21.8)
Intel NUC Pro Chassis_i7_1265U Iris Xe G7 96EUs, i7-1265U, WDC PC SN720 SDAQNTW-512G; Idle 1min (external Monitor): Ø12.7 (11.1-16.2)
Pros
+ 稳定、紧凑的外壳
+ 模块化设计
+ 可升级的SoC
+ 支持最新的移动处理器
+ 易于打开
+ 在所有测试的计算元素中都有良好的系统性能
Cons
- 薄弱的冷却装置
- 负载下的高频率风扇噪音
- 没有Thunderbolt
- 只有GBit LAN
结论 - 具有可持续发展方式的迷你PC
英特尔NUC Pro机箱元件并不是传统意义上的迷你PC，因为没有计算元件就无法工作。如果这款价格约为340欧元的设备在你的愿望清单上名列前茅，那就必须清楚。然而，模块化的结构确保该设备可以根据你的愿望自由配置性能。目前有英特尔最新的Alder Lake SoC，共有10个内核和12个线程，在测试中表现良好。单纯从价格上看，计算元素与 英特尔酷睿i5-1245U是最有趣的，因为它也有12个线程，还配备了快速的16GB DDR5工作内存。然而，那些依赖32GB工作内存的人目前无法绕过基于英特尔酷睿i7-1265U的计算元件（ELM12HBv7）。 英特尔酷睿i7-1265U.
对于希望长期使用现有基础的有意识的客户来说，英特尔NUC Pro机箱元素是一种有趣的方法。由于有不同的计算元素，该系统也可以与最新的SoC搭配。
从视觉上看，英特尔NUC Pro机箱元素并不是一场视觉盛宴，英特尔还可以在这里将设备提高到技术水平。在连接方面，没有Thunderbolt支持，网络接口只提供最大1GBit。然而，端口的数量，至少在双包中可用，是足够的。WLAN的性能仅限于各自的计算元件。因此，最新的6GHz标准只适用于英特尔的NUC 12计算元件。然而，老式英特尔NUC 11计算元件的Wi-Fi性能与新一代的计算元件相当，仍然比有线连接快。
可持续发展的想法是好的，在当前时代相当合适。然而，我们目前还不能说未来的新计算元件会是什么样子。
仅考虑到性能，英特尔NUC Pro机箱元件与目前的Alder Lake SoCs提供了体面的结果，但价格相对较高。另一方面，两个对比设备--Ace Magician AMR5和Ace Magician TK11-A0- 在价格方面更有吸引力。
价格和可用性
英特尔NUC Pro机箱元件目前在亚马逊上市，价格为340欧元（约合人民币340元）。上市。测试中使用的计算元件(CM11EBv58W,CM11EBv716W,ELM12HBv516W,ELM12HBv732W)也可以在那里买到，目前价格在511到1100欧元之间。
Editor of the original article: Ninh Ngoc Duy - Editorial Assistant - 525467 articles published on Notebookcheck since 2008
contact me via:
Facebook
Please share our article, every link counts!
