Newsmay AC8迷你电脑回顾。采用奔腾N6005的静音办公电脑

稳定的办公电脑。

我们仔细观察了基于Jasper Lake的Newsmay AC8，以便揭示你可以从这个紧凑的无风扇迷你PC中期待什么。作为一款小型办公电脑，Newsmay AC8的身材很好，我们可以提前告诉你这一点。

Sebastian Bade, 👁 Sebastian Bade (translated by DeepL / Ninh Duy), Published 02/04/2022 🇺🇸 🇩🇪 ...

Desktop Jasper Lake Mini PC

Newsmay Technology是一家中国系统制造商，专门生产小型办公电脑。我们已经能够看看他们的极小的迷你电脑，即讯飞AC6-M.Newsmay AC8并没有那么小，但这台迷你电脑仍然相当紧凑，尺寸为127 x 127毫米。幸运的是，这个只有约5厘米高的计算中心是被动冷却的。

随着英特尔奔腾银N6005这台小型办公电脑提供了一个原生的四核SoC，绝对有能力处理日常办公任务。由于采用了Jasper-Lake系列，该SoC采用10纳米工艺制造，其管理的TDP高达10瓦。另外，Newsmay AC8也可以订购更节俭的6瓦SoC。说到内存，这台裸机可以配备高达32GB的内存。在大容量存储方面，你将不得不选择一个M.2-2280 SDD。

Newsmay科技公司为这次审查为AC8配备了4GB内存和128GB SSD。基于英特尔奔腾银N6005的裸机版Newsmay AC8的价格是140美元，当购买300台时。我们使用预装的Windows 11专业版作为操作系统。

Newsmay AC8 N6005

Processor

Intel Pentium Silver N6005 4 x 2 - 3.3 GHz, 10 W PL2 / Short Burst, 10 W PL1 / Sustained, Jasper Lake

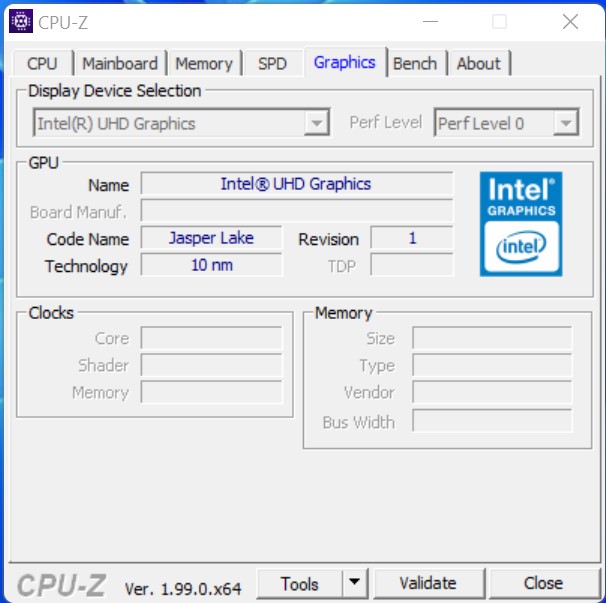

Graphics adapter

Intel UHD Graphics (Jasper Lake 32 EU), Core: 850 MHz, 27.20.100.8681 DCH

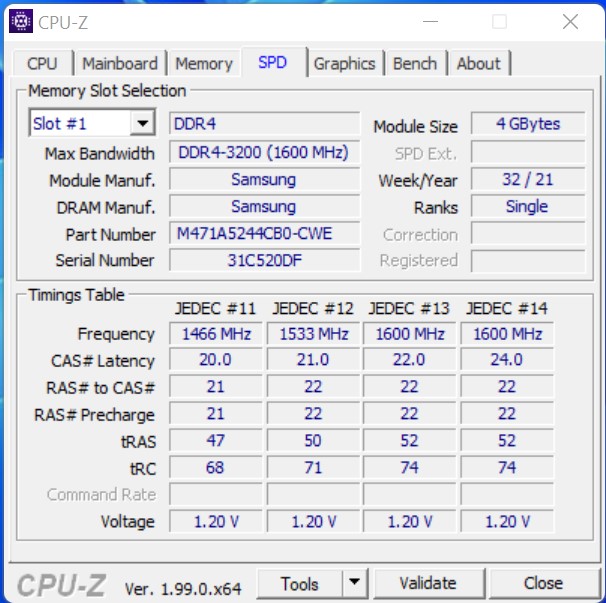

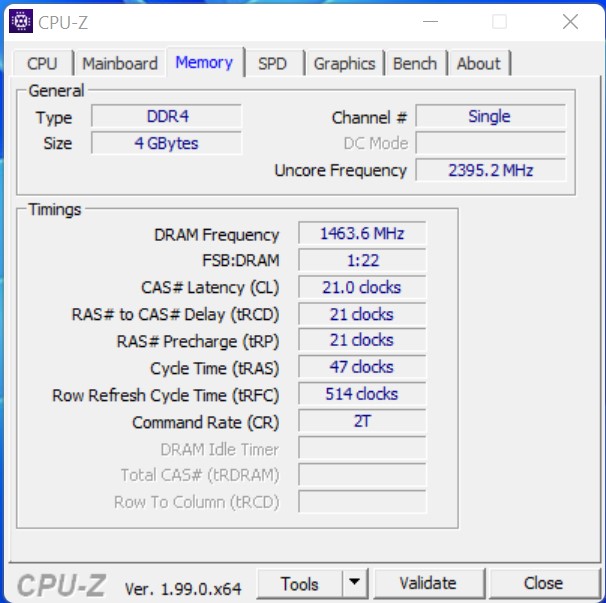

Memory

4 GB

, DDR4-3200 (2x SODIMM DDR4 slots, max 32 GB)

Storage

Lexar 128GB SSD, 128 GB

, 80 GB free

Connections

2 USB 2.0, 4 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 1x mic in, 1x line out, Card Reader: microSD

Networking

Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3168 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/)

Size

height x width x depth (in mm): 48 x 127 x 127

Operating System

Microsoft Windows 11 Pro

Additional features

fanless

Weight

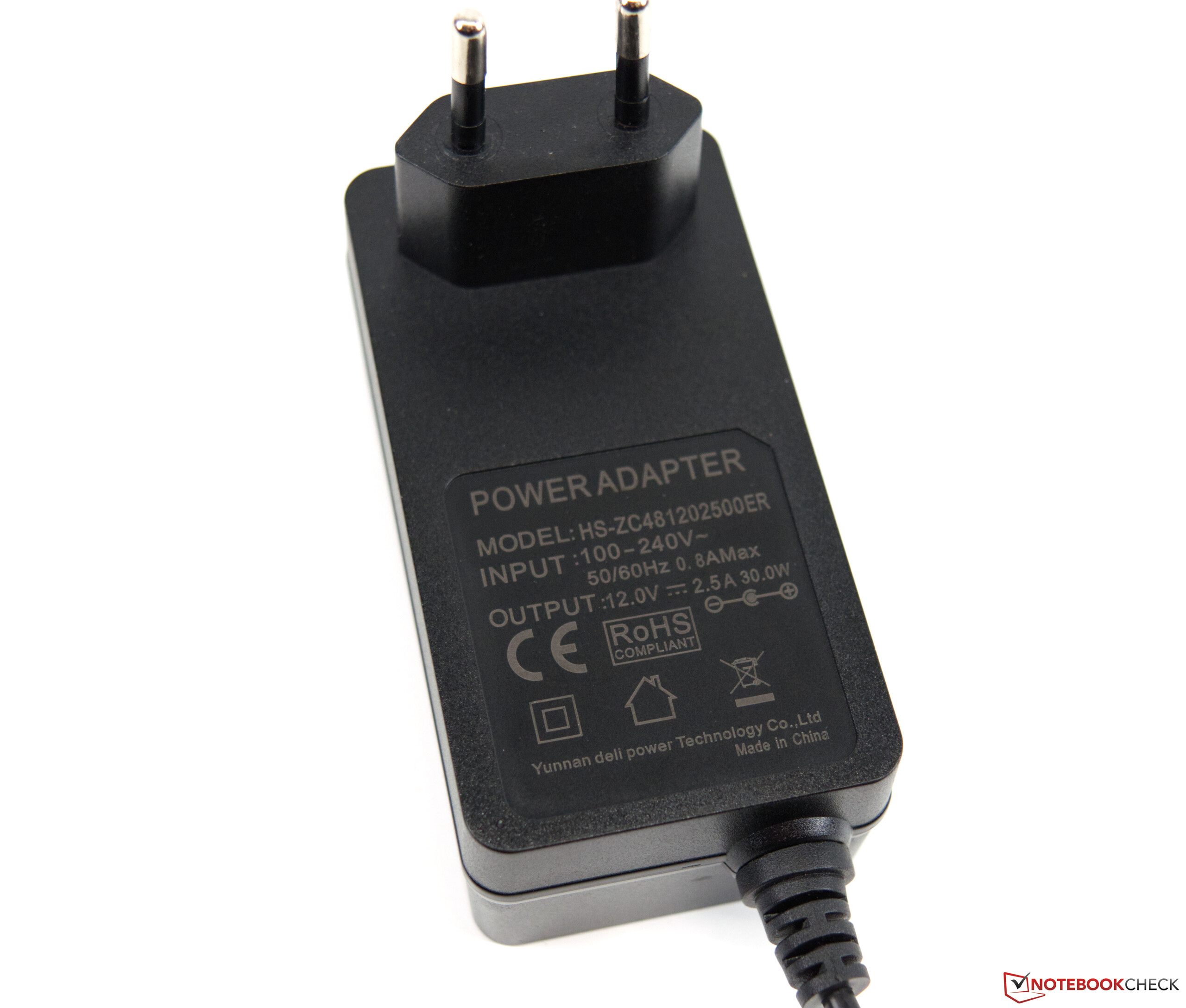

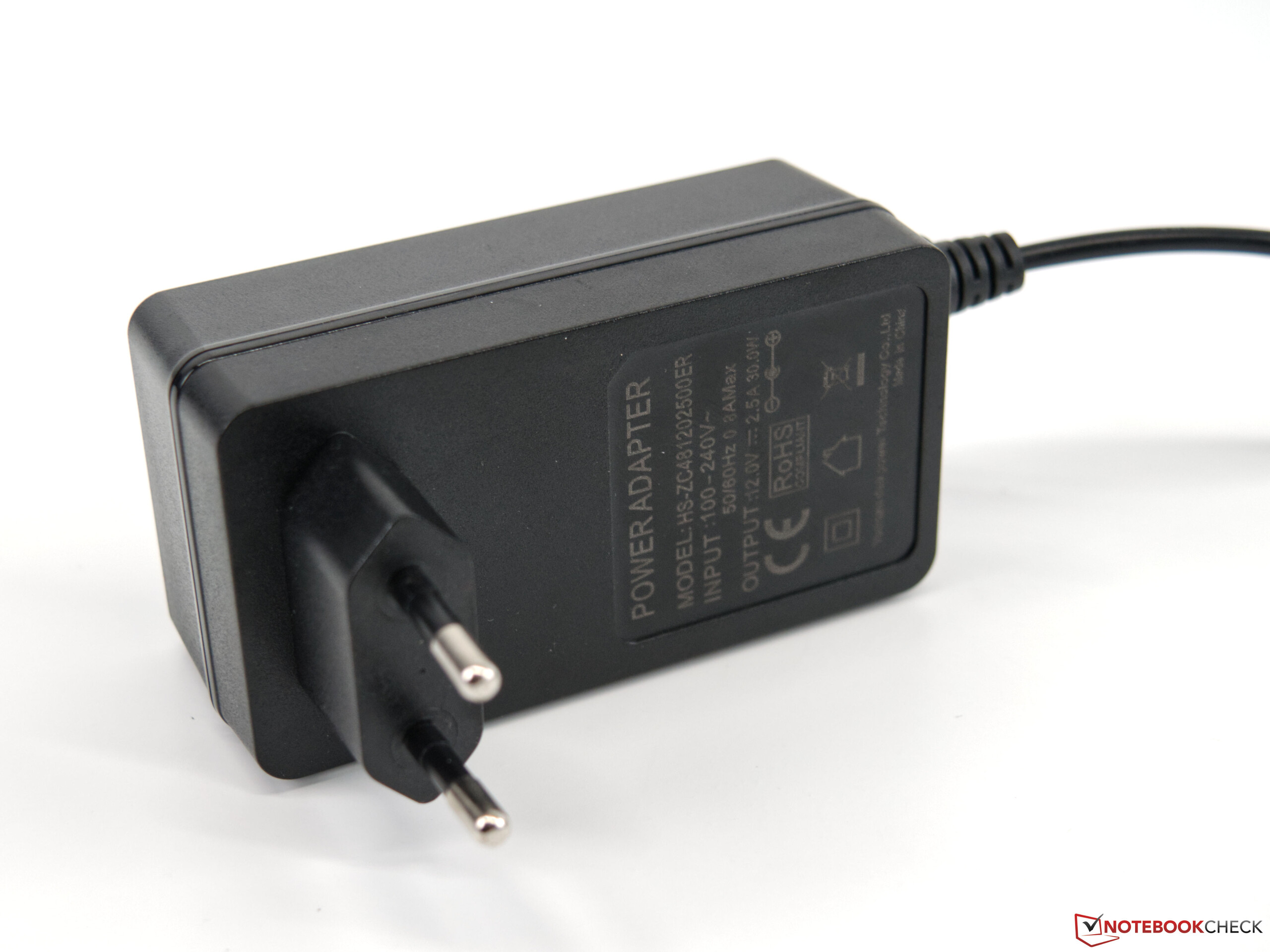

534 g, Power Supply: 139 g

Price

140 EUR

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

外壳和连接

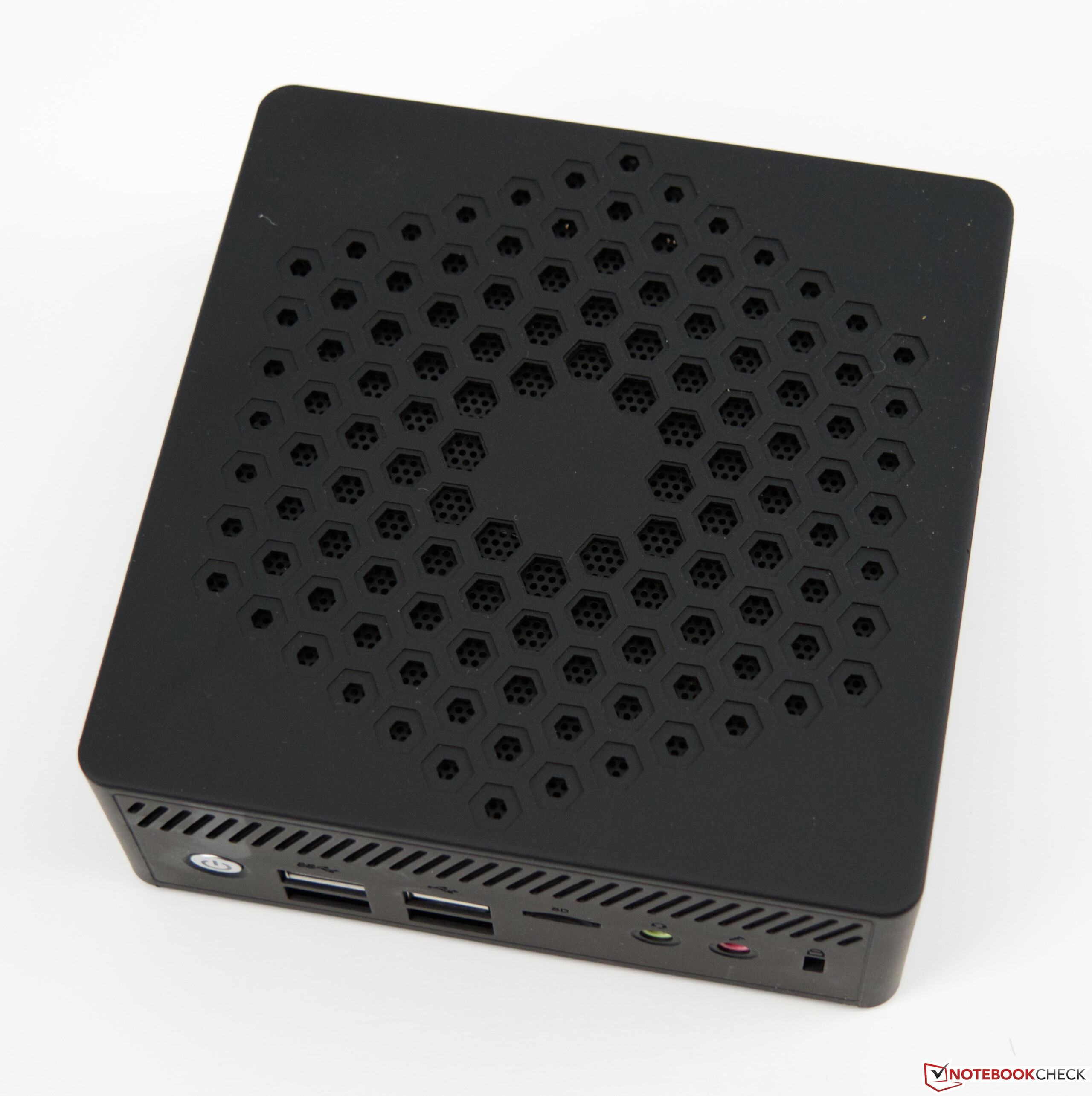

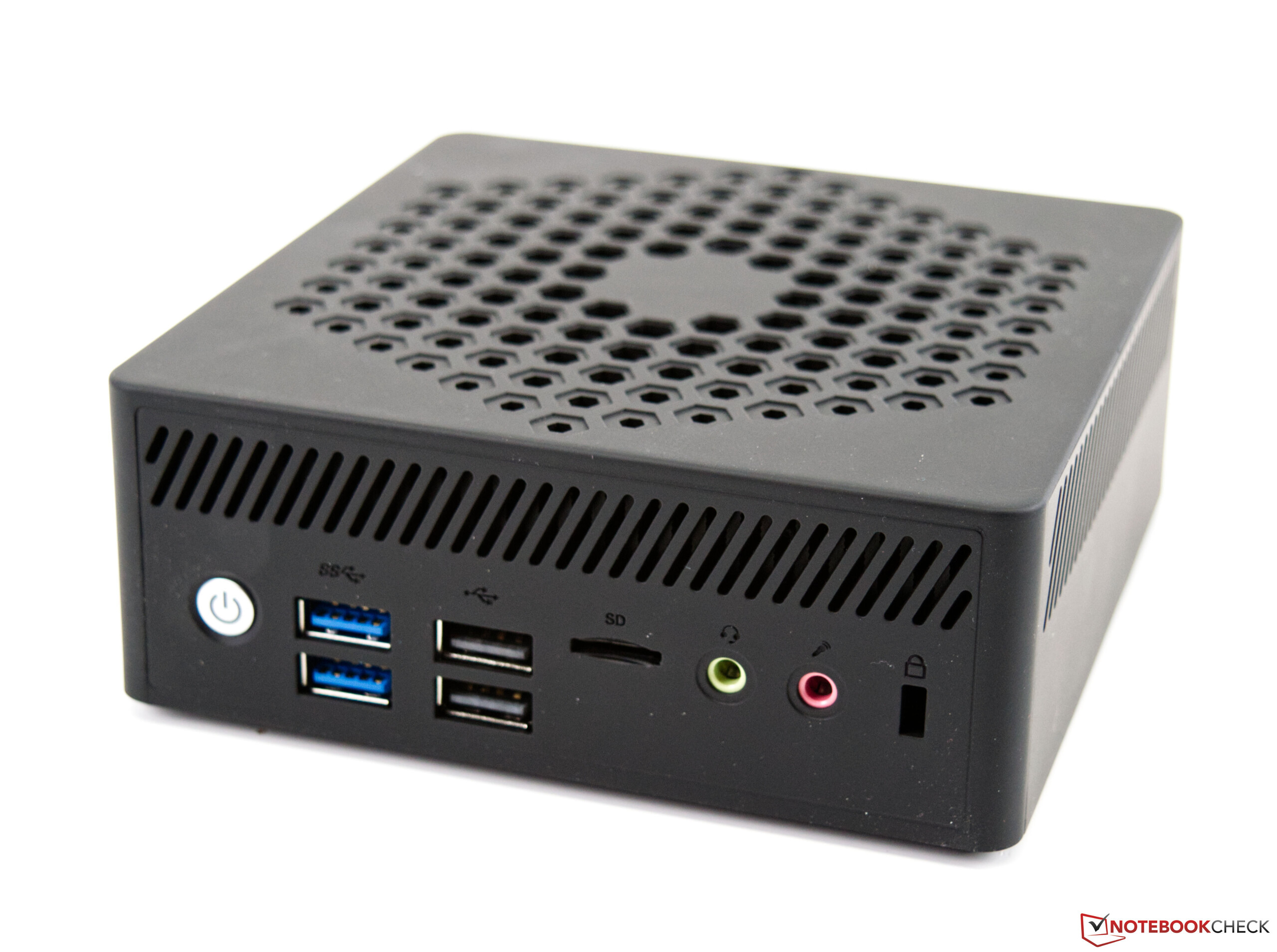

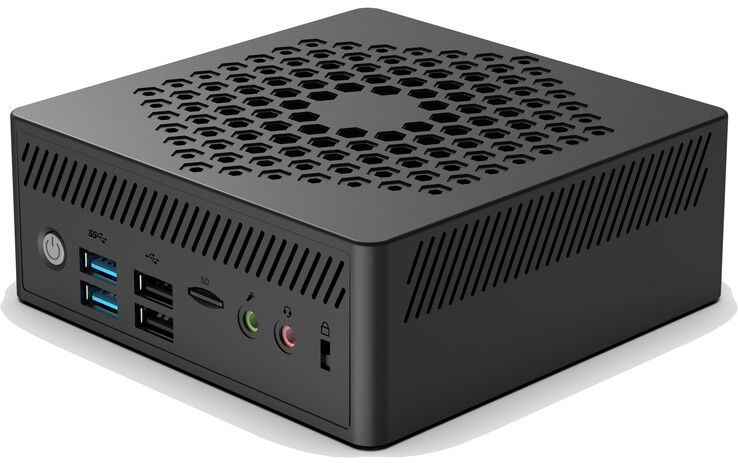

迷你电脑的尺寸为127 x 127毫米，在办公桌上并不占用太多空间。全黑的外壳由塑料制成，非常结实。触感柔软的表面给人以很高的品质。然而，由于表面确实会吸引灰尘颗粒，所以仍有一种苦涩的回味。粗糙的质地也使它们难以清除。

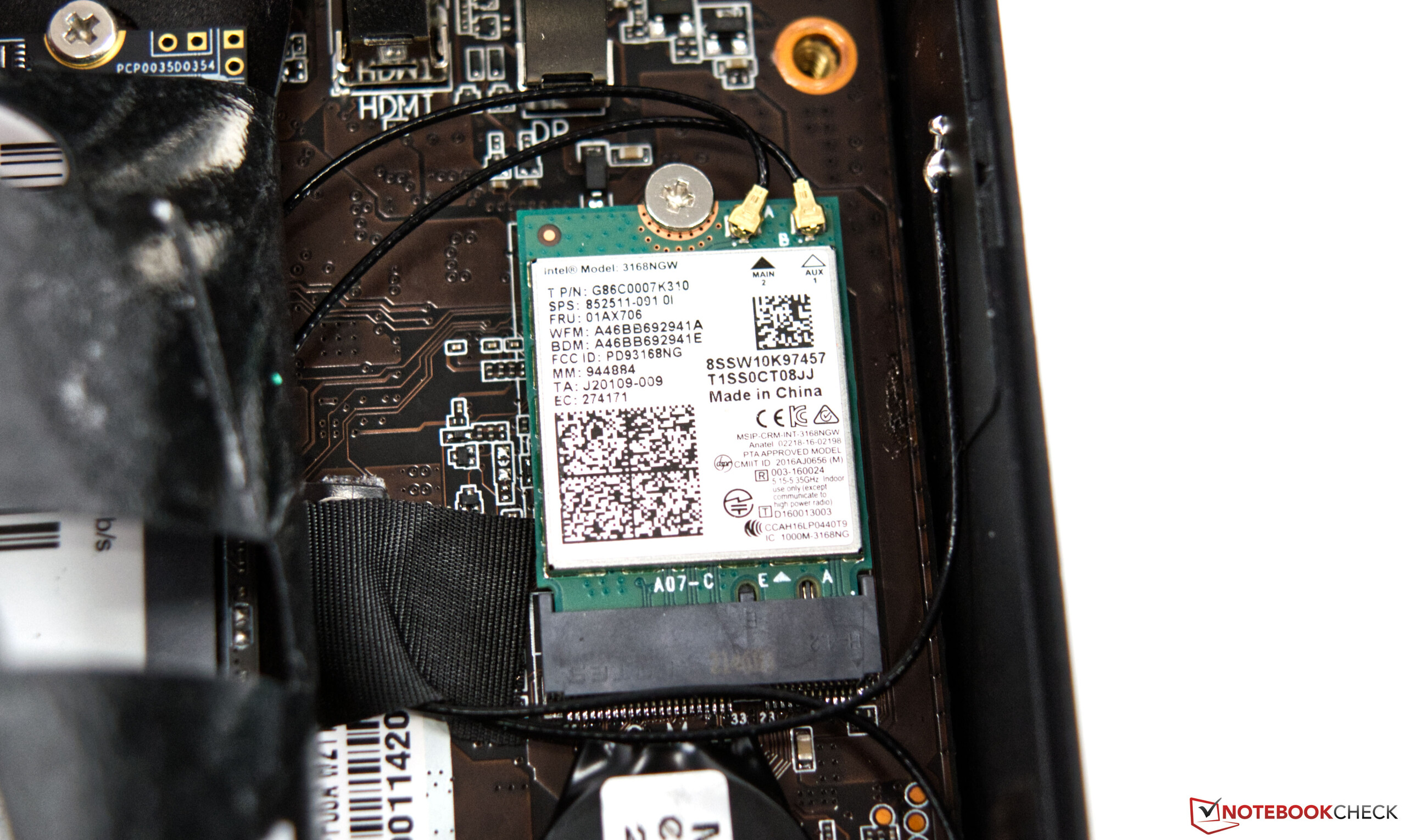

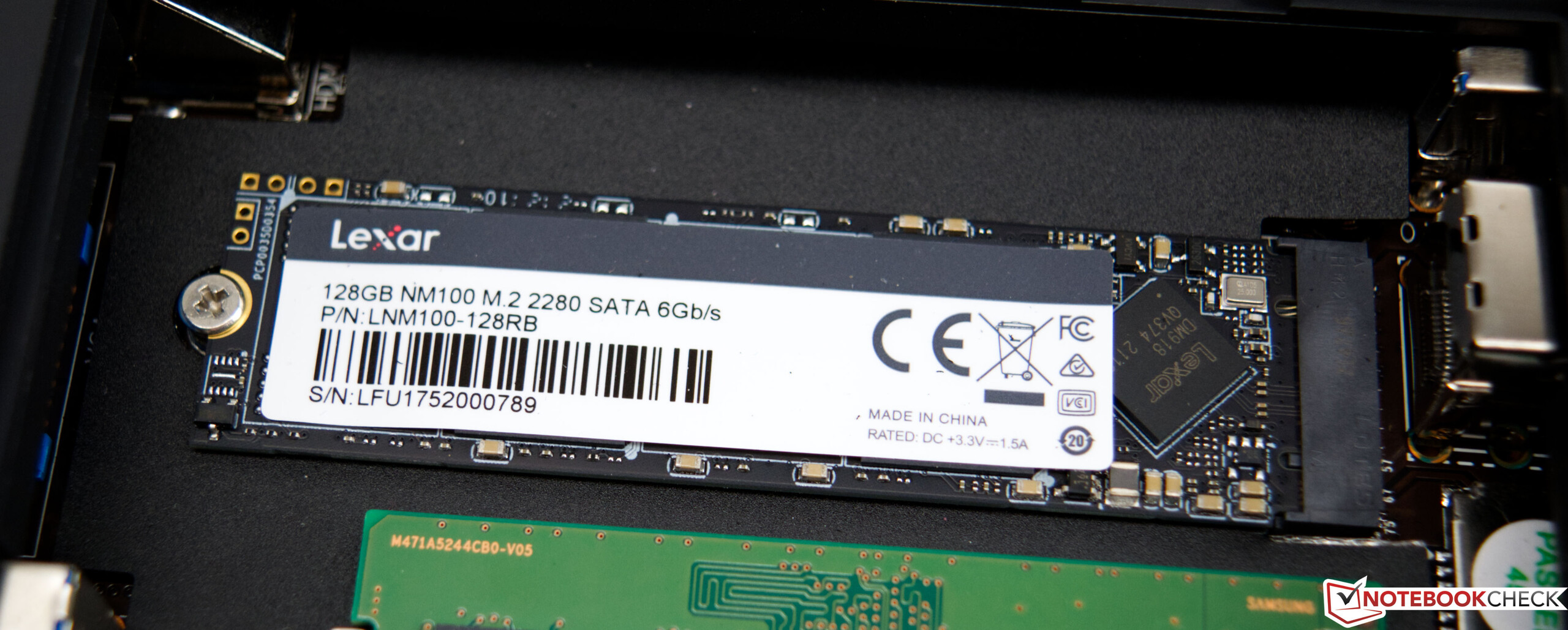

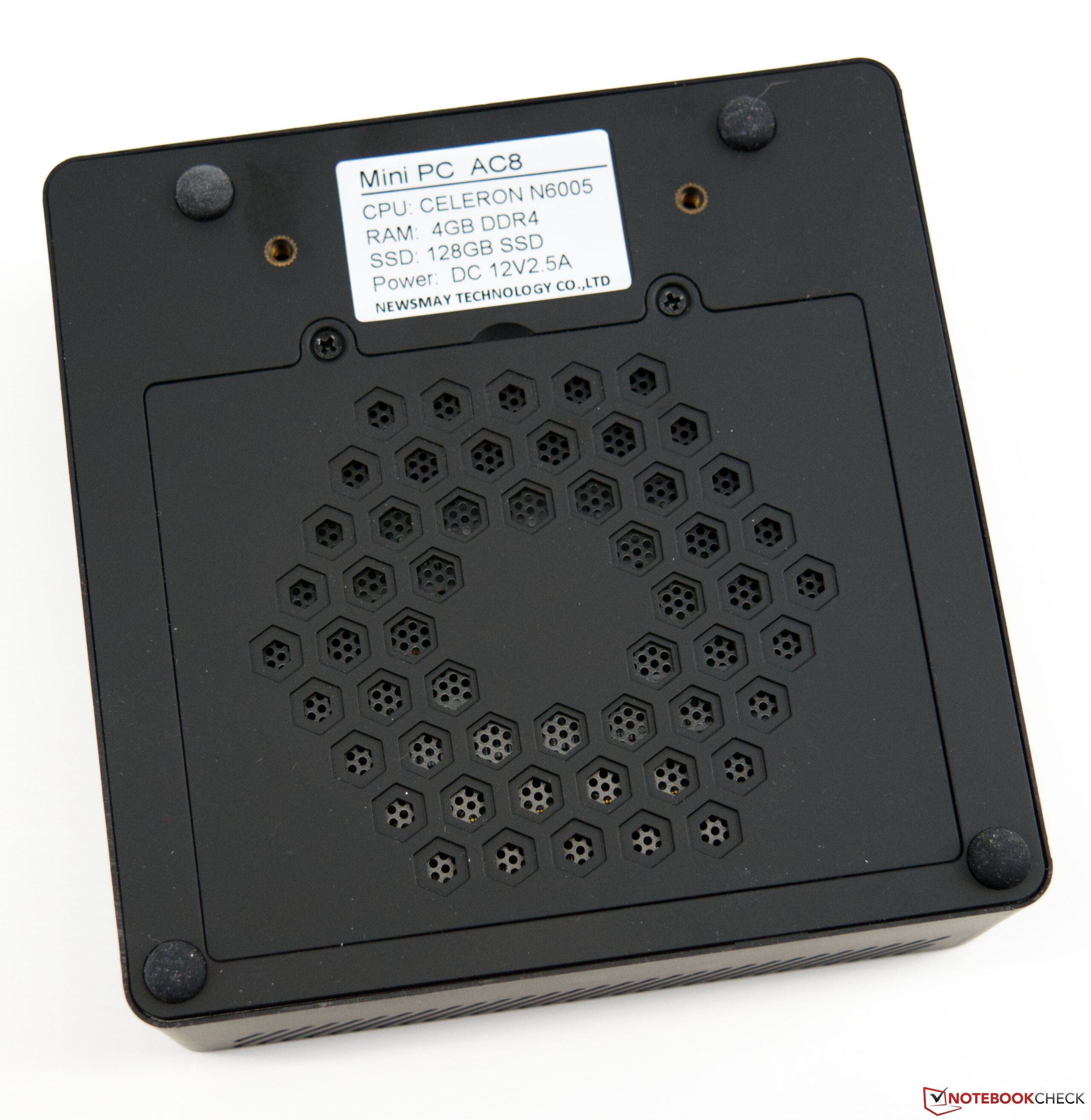

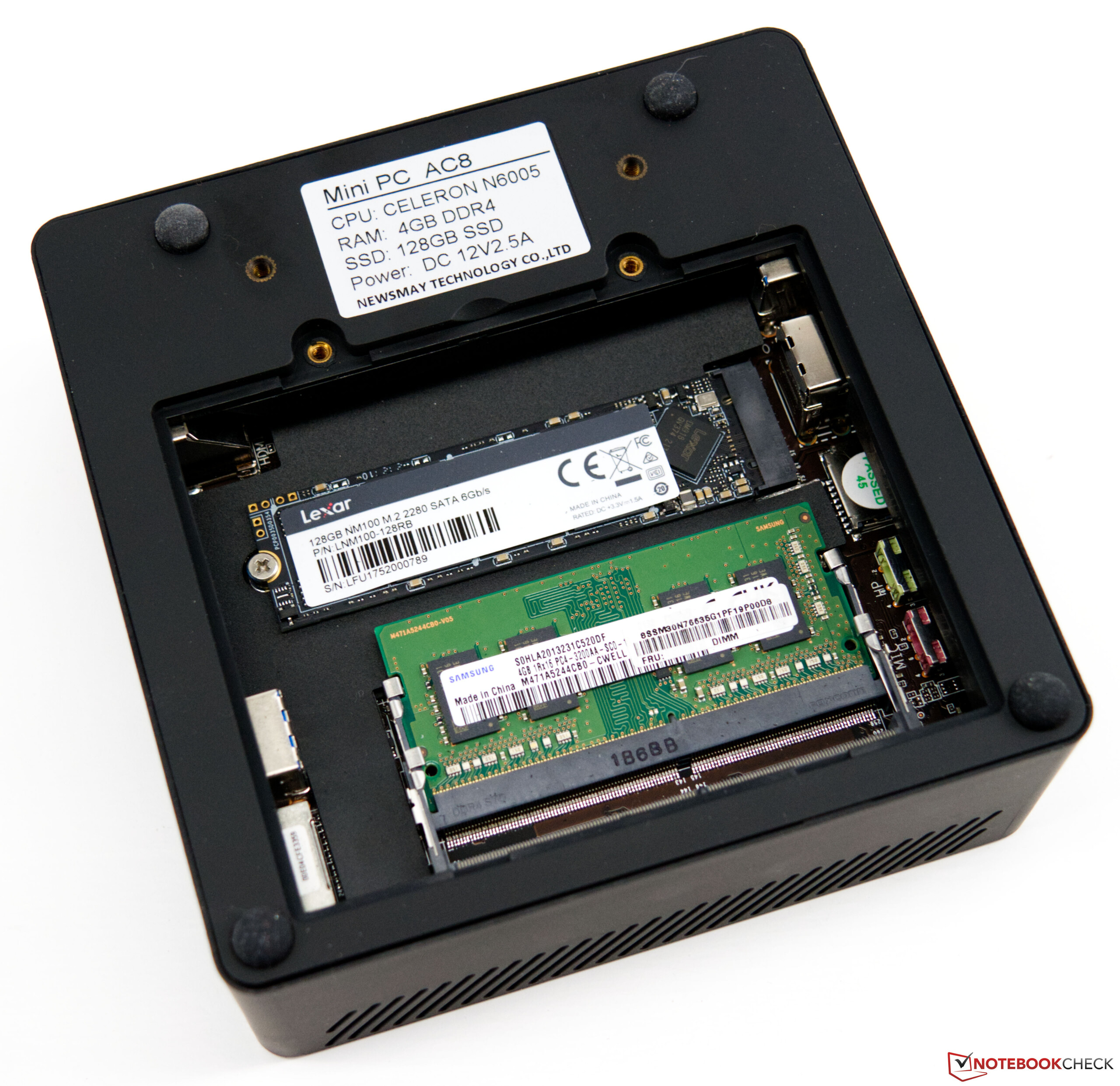

Newsmay给AC8配备了一个被动冷却装置。侧面和顶部有许多通风口，供废热从机箱中排出。底部有一个小的维护舱口。在它后面可以快速接触到已安装的组件，必要时可以更换或升级它们。WLAN模块也可以更换，因为这是一个M.2模块。此外，两个SO-DIMM模块和一个M.2 SSD也位于这里。不幸的是，不可能在该设备中安装第二个大容量存储驱动器。

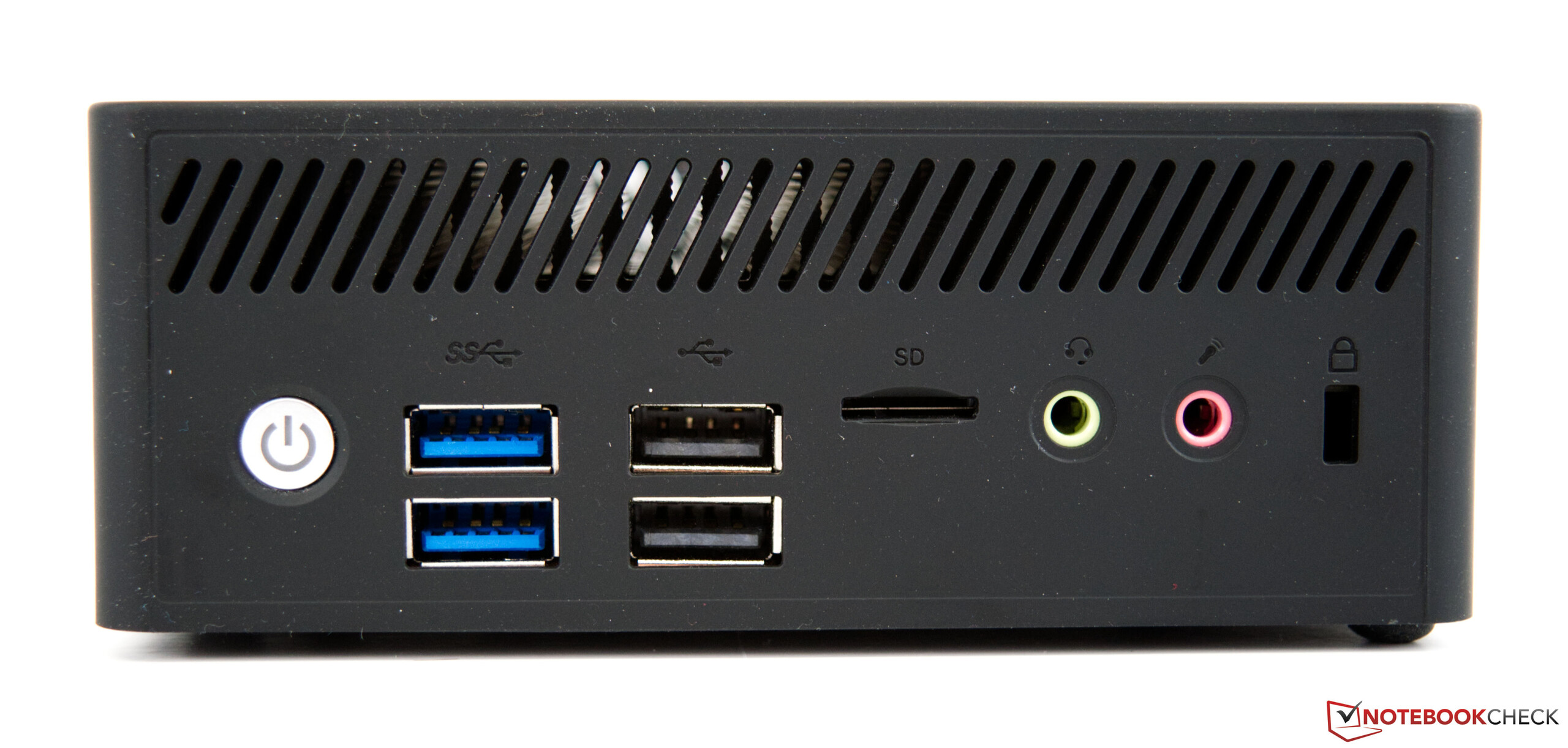

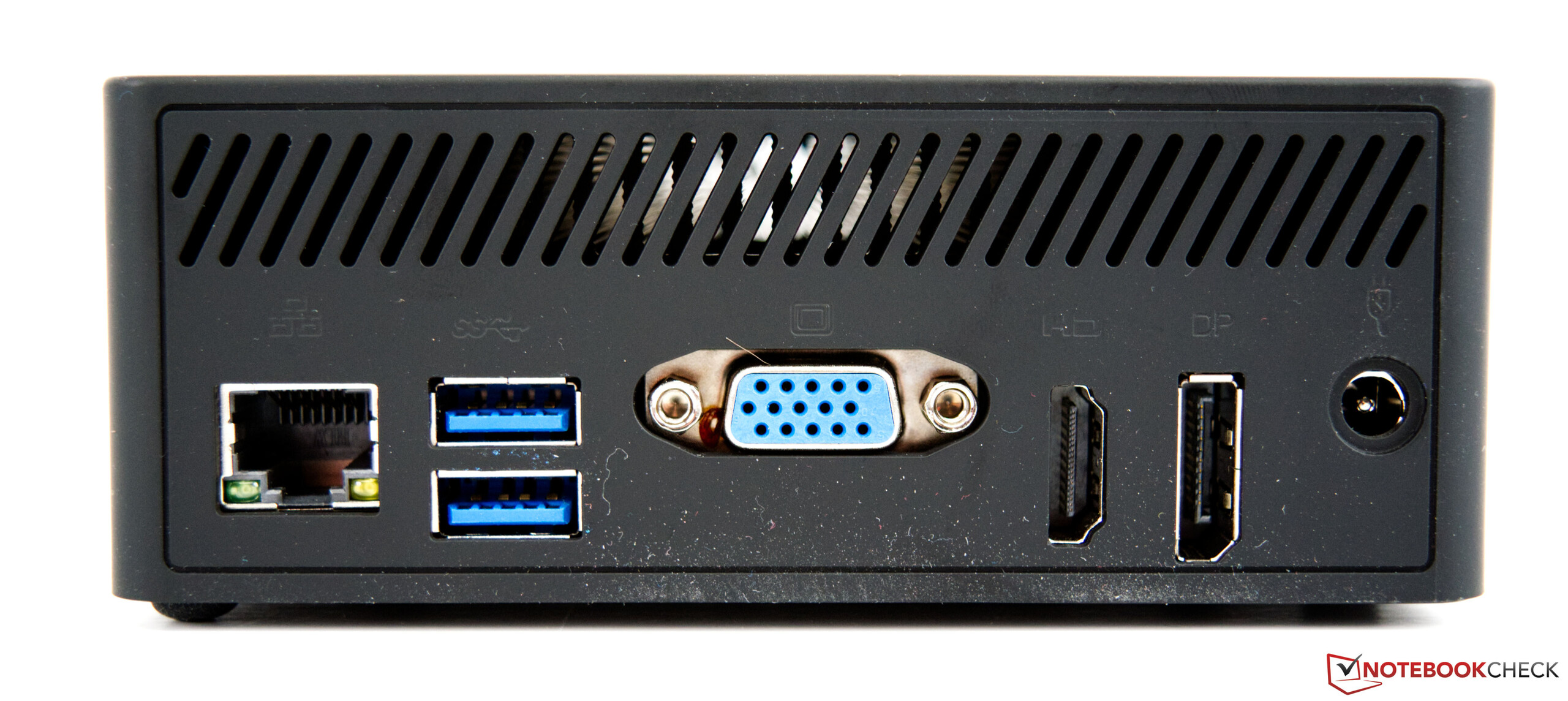

Newsmay AC8为连接外部设备提供了许多选择。这些端口位于前面和后面。我们总共有六个USB-A端口，其中四个提供USB 3.0速度。此外，还有一个microSD读卡器，但其性能不是很好。在我们看来，它也应该使用USB 3.0接口。一个亮点是模拟VGA输出，这在现在几乎是不存在的。尽管如此，现在仍有许多工业领域的设备使用这种接口。但现代技术也有用武之地，因为它包括一个HDMI和一个DisplayPort连接，允许多达三个显示器连接到Newsmay AC8。

AC8的CPU性能详解

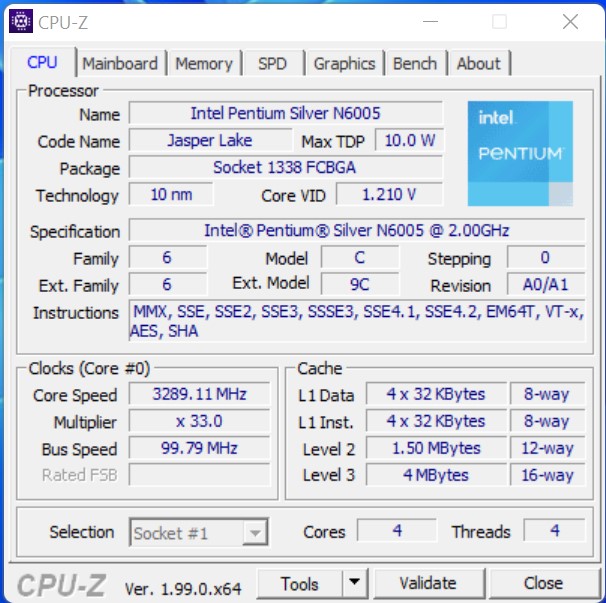

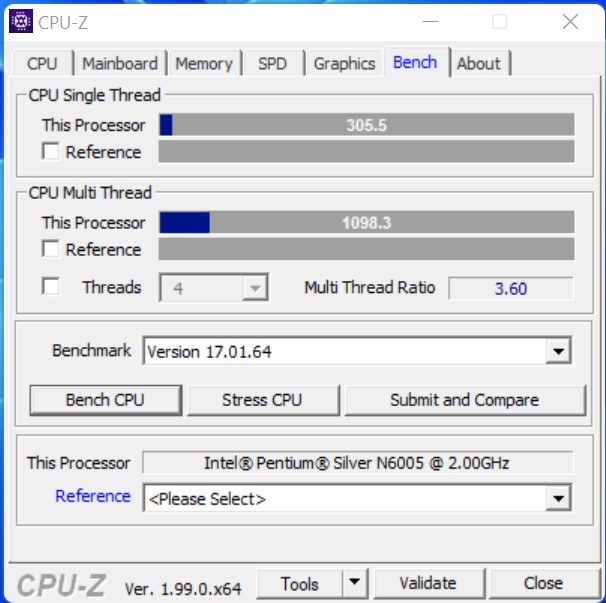

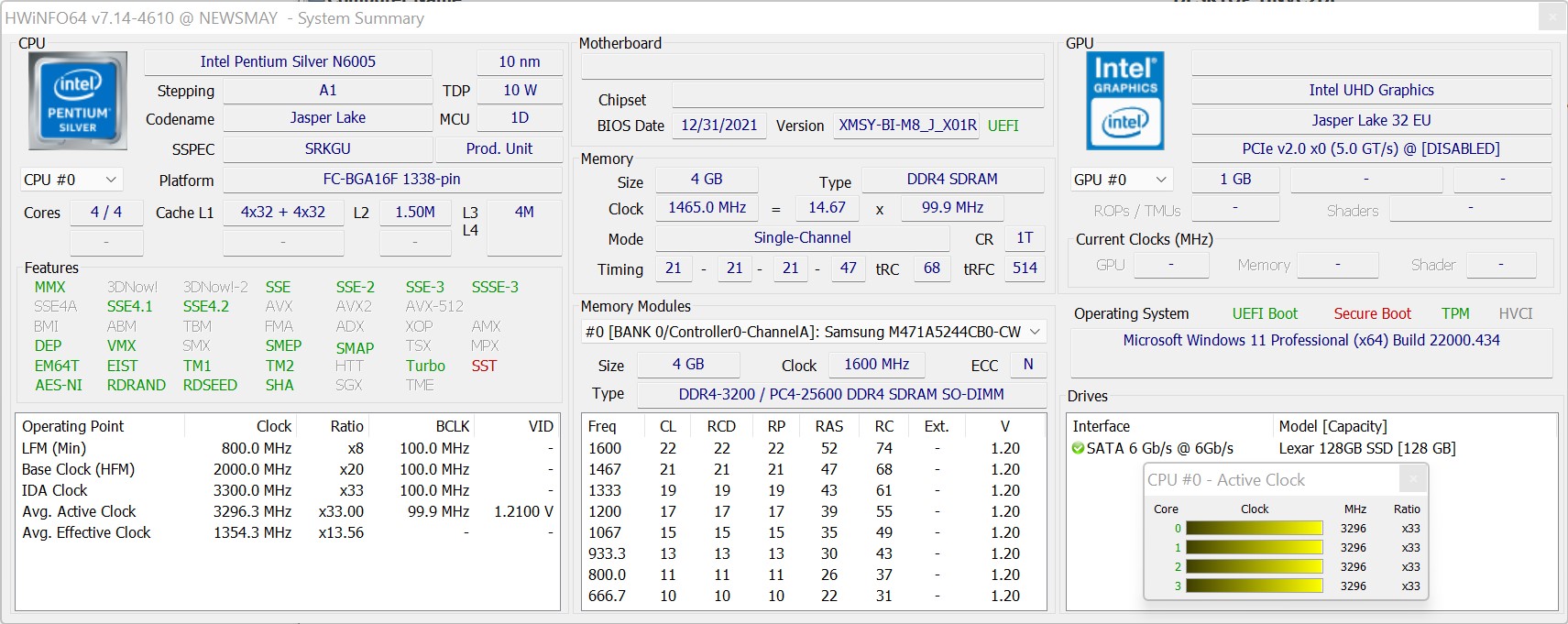

Newsmay科技为我们提供了基于英特尔奔腾银N6005的AC8版本。这款10瓦的节俭型SoC的基本时钟速度为2GHz，在Turbo模式下最高可达3.3GHz。总共四个原生处理核心提供了一个坚实的性能，足以满足简单的办公任务。在我们看来，4GB的内存有点有限，这一点在工作时可以偶尔注意到。AC8最多可配备32GB。

我们的审查表明，我们的测试样品的性能比 AC6-M的性能，后者也是来自Newsmay Technology。该Beelink GK Mini和GMK NucBox K1也配备了较弱的SoC，所以它们无法跟上Newsmay AC8的步伐。然而，我们的测试样品在与基于英特尔酷睿i5-10210U的英特尔NUC10的竞争中没有胜算。

进一步的比较和基准测试，请参考我们的 CPU基准测试文章.

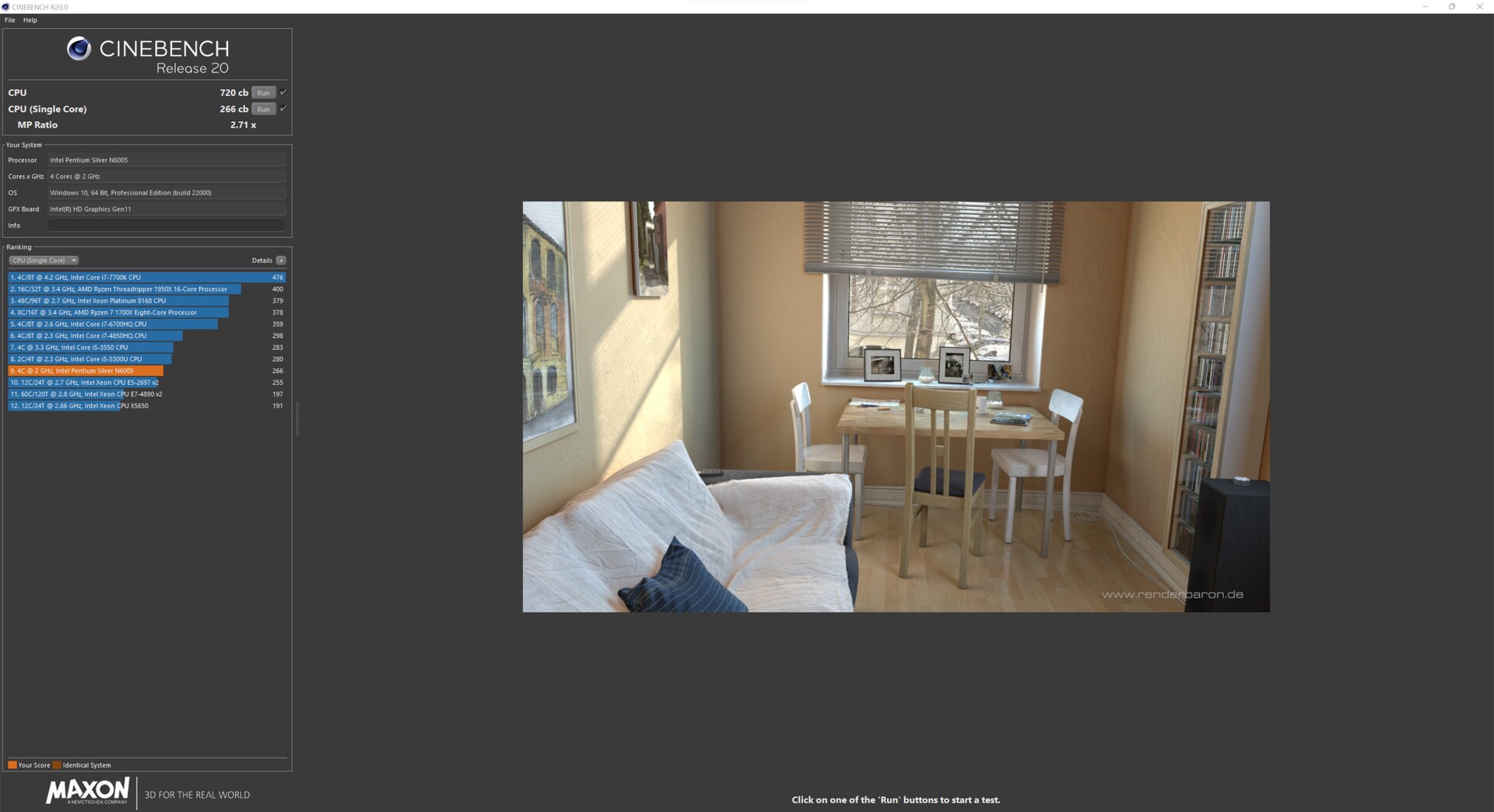

Cinebench R20
CPU (Single Core)
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	428 Points +61%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	266 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	200 Points -25%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	174 Points -35%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	171 Points -36%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	161 Points -39%
CPU (Multi Core)
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1820 Points +153%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	720 Points
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	610 Points -15%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	556 Points -23%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	491 Points -32%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	304 Points -58%

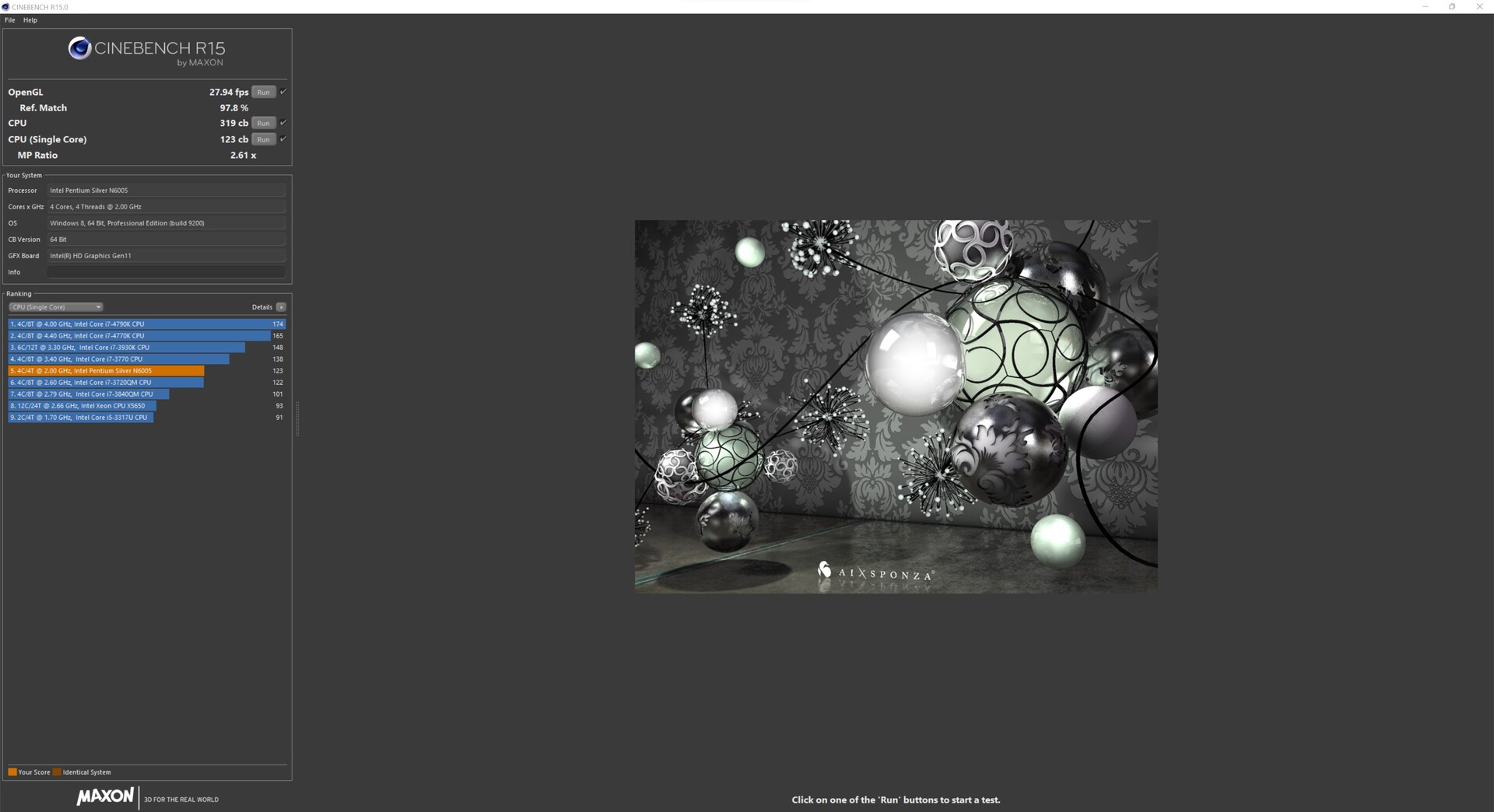

Cinebench R15
CPU Single 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	168 Points +37%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	123 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	117 Points -5%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	108 Points -12%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	84 Points -32%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	79.1 Points -36%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	77 Points -37%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	75.3 Points -39%
CPU Multi 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	790 Points +148%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	319 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	298 Points -7%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	271 (263.32^min - 271.42^max) Points -15%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	261 Points -18%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	248 Points -22%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	243 (199.13^min - 242.53^max) Points -24%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	220 Points -31%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	211 (209.9^min - 211.39^max) Points -34%

Cinebench R11.5
CPU Single 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	1.91 Points +30%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.47 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.33 Points -10%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.28 Points -13%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.92 Points -37%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.84 Points -43%
CPU Multi 64Bit
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	8.66 Points +109%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	4.14 Points
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	3.26 Points -21%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3.09 Points -25%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3.06 Points -26%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	2.86 Points -31%

Blender - v2.79 BMW27 CPU
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2391 Seconds * -32%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2379 Seconds * -32%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2198 Seconds * -22%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1805 Seconds *
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	585 Seconds * +68%

wPrime 2.10
1024m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	732 s * -19%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	620 s * -1%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	615 s *
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	603 s * +2%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	566 s * +8%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	558 s * +9%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	217.8 s * +65%
32m
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	23.1 s * -35%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	19.5 s * -14%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	19.42 s * -14%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	18 s * -5%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	17.37 s * -2%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.09 s *
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.78 s * +60%

X264 HD Benchmark 4.0
Pass 2
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	49.35 (49.1^min - 51.6^max) fps +128%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21.6 (21.5^min - 22.1^max) fps
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	19.3 fps -11%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	16.75 (16.7^min - 16.9^max) fps -22%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	16.46 fps -24%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	13.75 fps -36%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	11.31 fps -48%
Pass 1
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	184.5 (184^min - 186^max) fps +81%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	105 fps +3%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	102 (100^min - 118^max) fps
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	88.5 fps -13%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	78.9 (77.1^min - 81.7^max) fps -23%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	74 fps -27%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	52.6 fps -48%

TrueCrypt
Serpent Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.48 GB/s +109%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.23 GB/s
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.182 GB/s -21%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.178 GB/s -23%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.166 GB/s -28%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.142 GB/s -38%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.133 GB/s -42%
Twofish Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	0.79 GB/s +96%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	0.403 GB/s
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	0.283 GB/s -30%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.266 GB/s -34%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	0.262 GB/s -35%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	0.245 GB/s -39%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0.199 GB/s -51%
AES Mean 100MB
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4.7 GB/s +81%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2.6 GB/s
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.9 GB/s -27%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.8 GB/s -31%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1.7 GB/s -35%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1.5 GB/s -42%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1.3 GB/s -50%

Geekbench 4.4
64 Bit Multi-Core Score
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	13949 Points +158%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	5761 Points +7%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	5468 Points +1%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	5399 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	5066 Points -6%
64 Bit Single-Core Score
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	3680 Points +44%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2613 Points +2%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2555 Points
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1997 Points -22%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1922 Points -25%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6.28 fps +281%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1.65 fps
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.61 fps -2%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.48 fps -10%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1.46 fps -12%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	0 fps -100%

* ... smaller is better

Cinebench R15多循环

这里用Cinebench R15多循环模拟的负载测试表明，被动冷却系统在保持英特尔奔腾银色N6005的冷却方面有很大的作用。最后，Newsmay AC8与Beelink GK Mini处于同一水平。Beelink GK Mini处于同一水平，平均分数为273分。

Newsmay AC8 N6005 Intel Pentium Silver N6005, Intel Pentium Silver N6005: Ø273 (225.33-307.03)

GMK NucBox K1 Intel Celeron J4125, Intel Celeron J4125: Ø238 (199.13-242.53)

Beelink GK Mini Intel Celeron J4125, Intel Celeron J4125: Ø268 (263.32-271.42)

AC6-M Mini-PC Intel Celeron J4125, Intel Celeron J4125: Ø247 (245.01-250.05)

系统性能

在PCMark 10合成基准测试中，Newsmay AC8的性能比讯飞AC6-M由于更快的SoC。然而，它的性能明显落后于普遍的Core i5型号。Newsmay AC8在播放4K内容时也有问题。在这方面，我们不得不从一开始就与明显升高的延迟作斗争。在播放4K测试视频时，iGPU的平均负荷约为50%。在播放过程中积累了许多掉帧。这表明4GB的内存实在是太少了。在打开几个浏览器标签时，系统不时地需要一些时间来响应，这使得它很难顺利工作。不幸的是，固态硬盘无法弥补这一点。此外，如果你想用microSD存储卡扩展存储空间，你应该知道，大约17MB/s的传输速率并不完全快。我们用UHS-II Angelbird AV Pro V60 microSD卡测试了这一点。

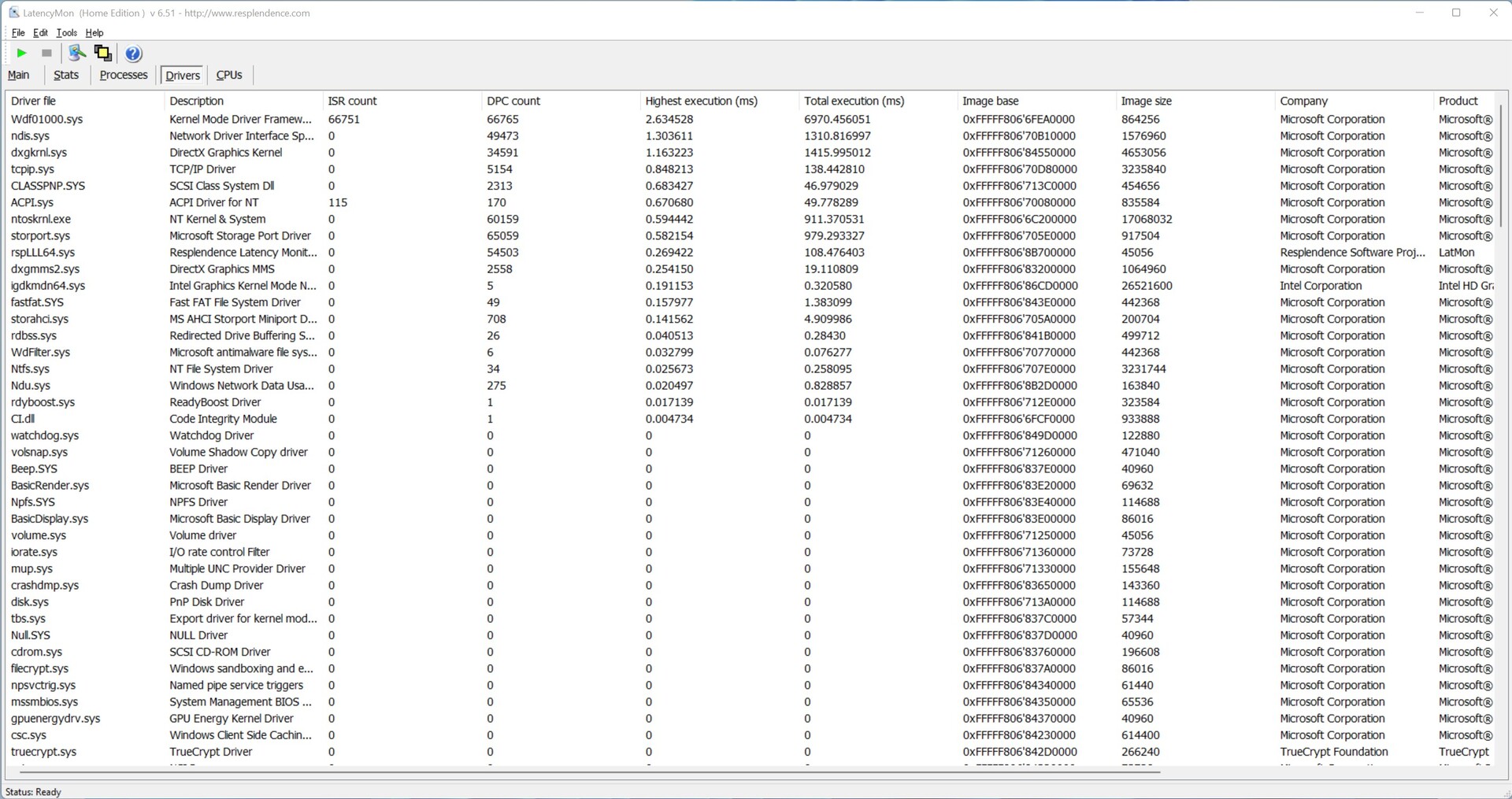

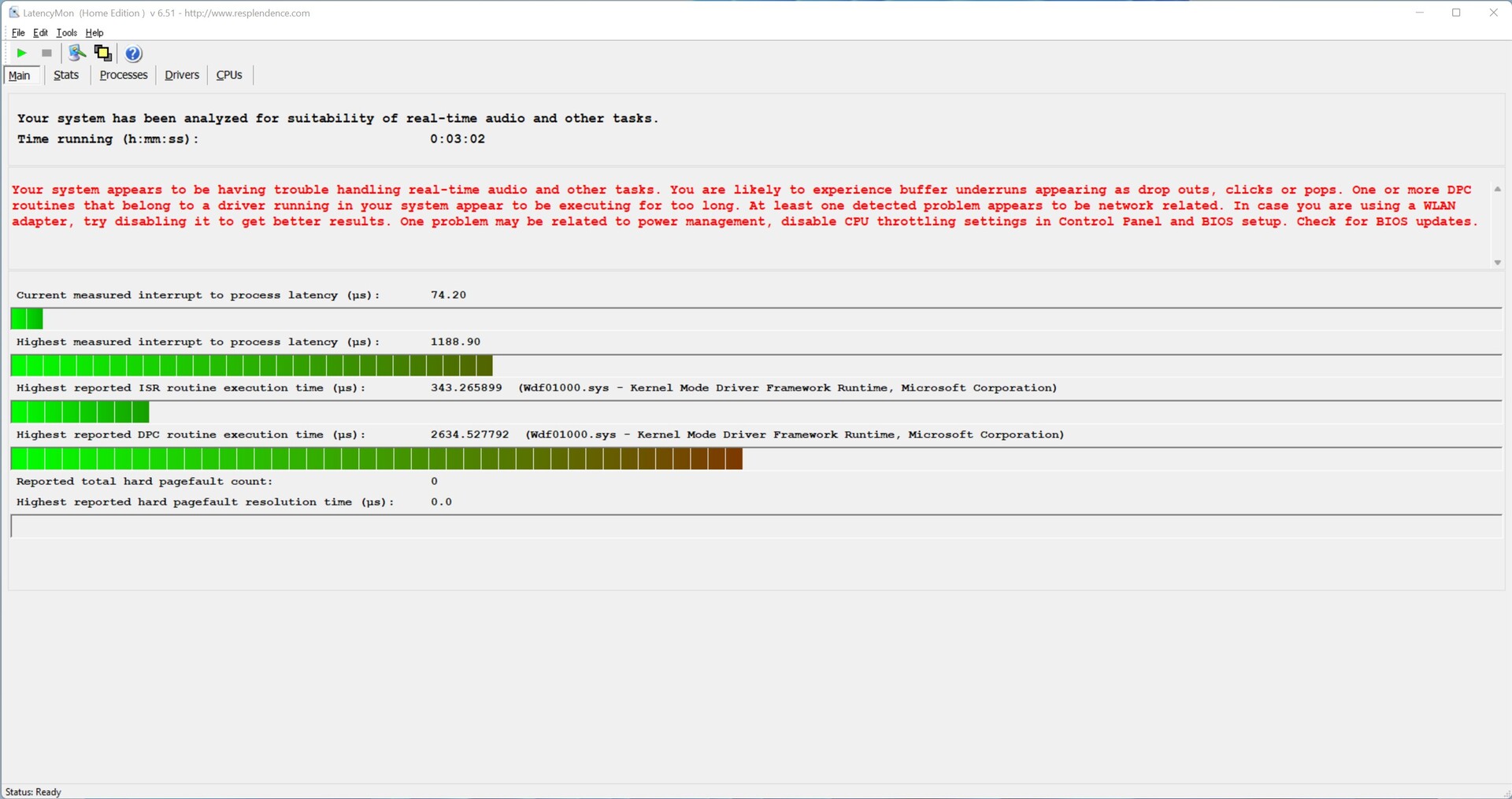

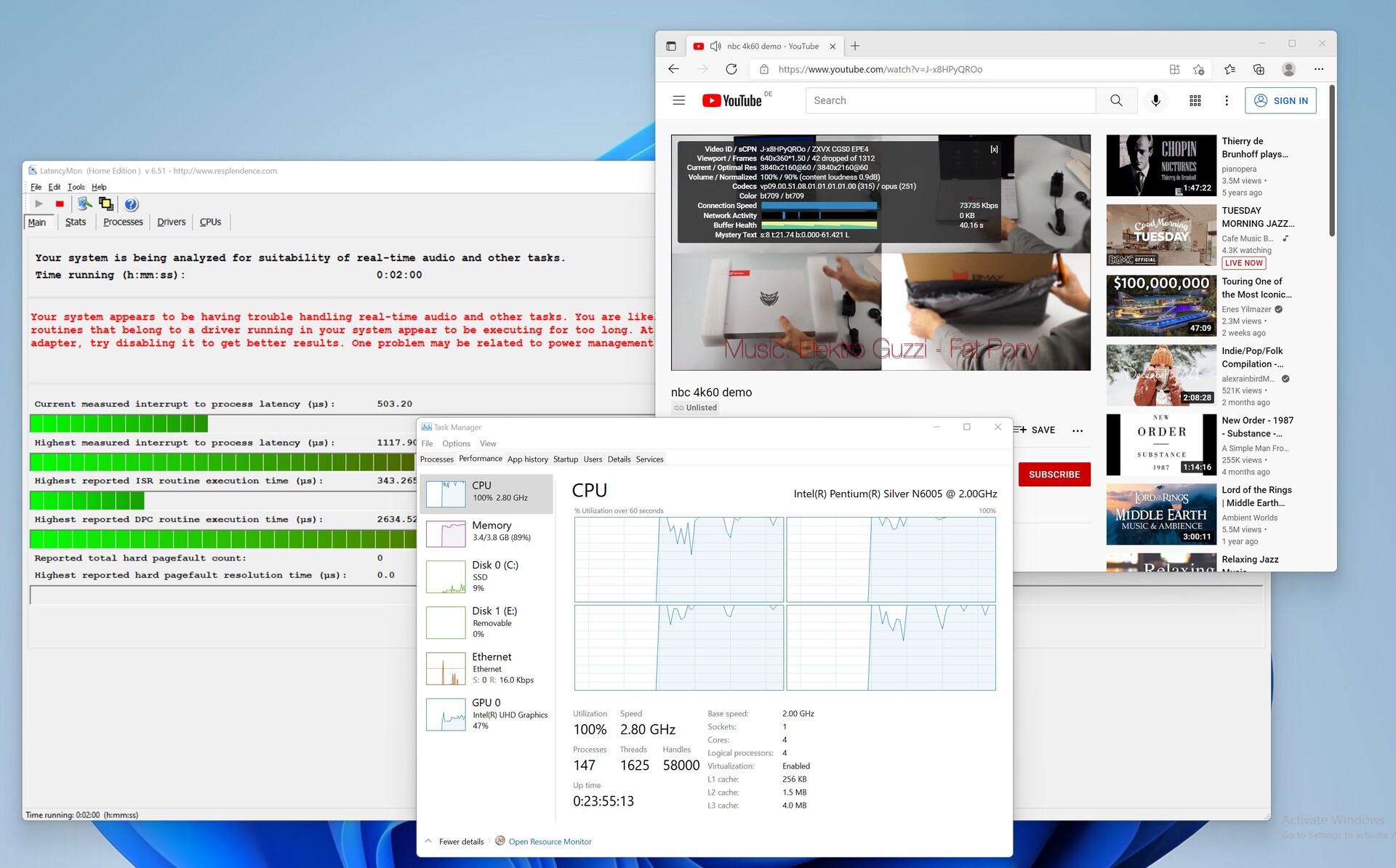

PCMark 10 | SD Card Reader | DPC Latencies / LatencyMon

PCMark 10
Score
Average Intel Core i5-10210U (3448 - 4742, n=33)	4046 Points +59%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	4019 Points +58%
Average Intel Core i5-8265U (2247 - 4192, n=36)	3744 Points +47%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2548 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	2391 Points -6%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1898 Points -26%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1831 Points -28%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1806 Points -29%
Productivity
Average Intel Core i5-10210U (5980 - 7332, n=33)	6717 Points +74%
Intel NUC10i5FNK, Intel Core i5-10210U 1600 MHz, Intel UHD Graphics 620	6494 Points +69%
Average Intel Core i5-8265U (2941 - 6755, n=36)	6114 Points +59%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	4084 Points +6%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	3854 Points
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3050 Points -21%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2948 Points -24%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	2928 Points -24%

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average Intel Core i5-8265U (16.1 - 184, n=27)	69.6 MB/s +309%
Average Intel Core i5-10210U (26.7 - 82.4, n=25)	63.7 MB/s +274%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	47.1 MB/s +177%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	18.46 MB/s +8%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.02 MB/s
maximum AS SSD Seq Read Test (1GB)
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	84.3 MB/s +376%
Average Intel Core i5-8265U (23.5 - 192.6, n=27)	79 MB/s +346%
Average Intel Core i5-10210U (27.1 - 88.6, n=23)	73.3 MB/s +314%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	21.03 MB/s +19%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	17.7 MB/s

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	3767 μs * -43%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	2635 μs *
Average Intel Core i5-10210U (466 - 5702, n=17)	1904 μs * +28%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1717 μs * +35%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	1318 μs * +50%
Average Intel Core i5-8265U (561 - 915, n=3)	748 μs * +72%

* ... smaller is better

储存

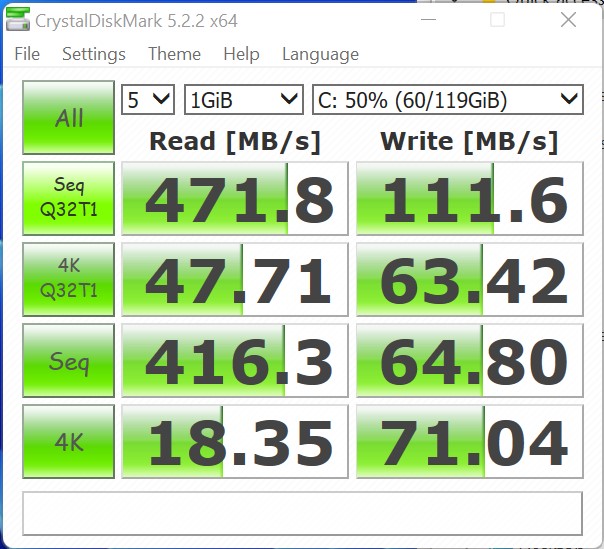

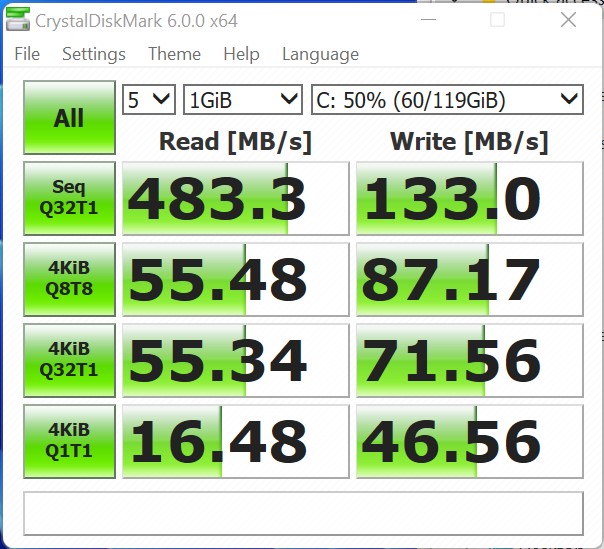

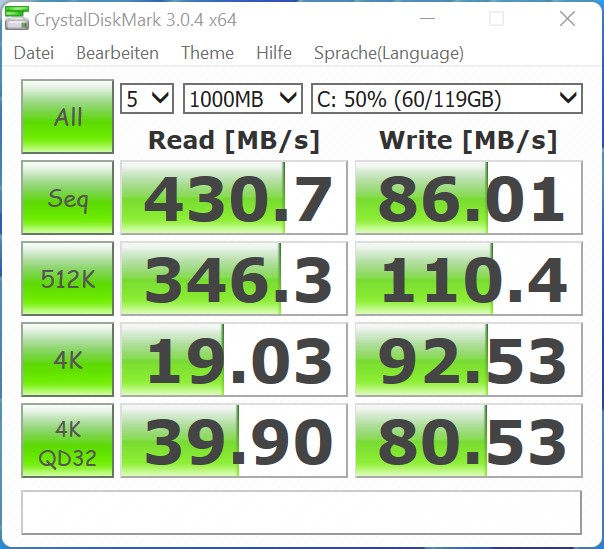

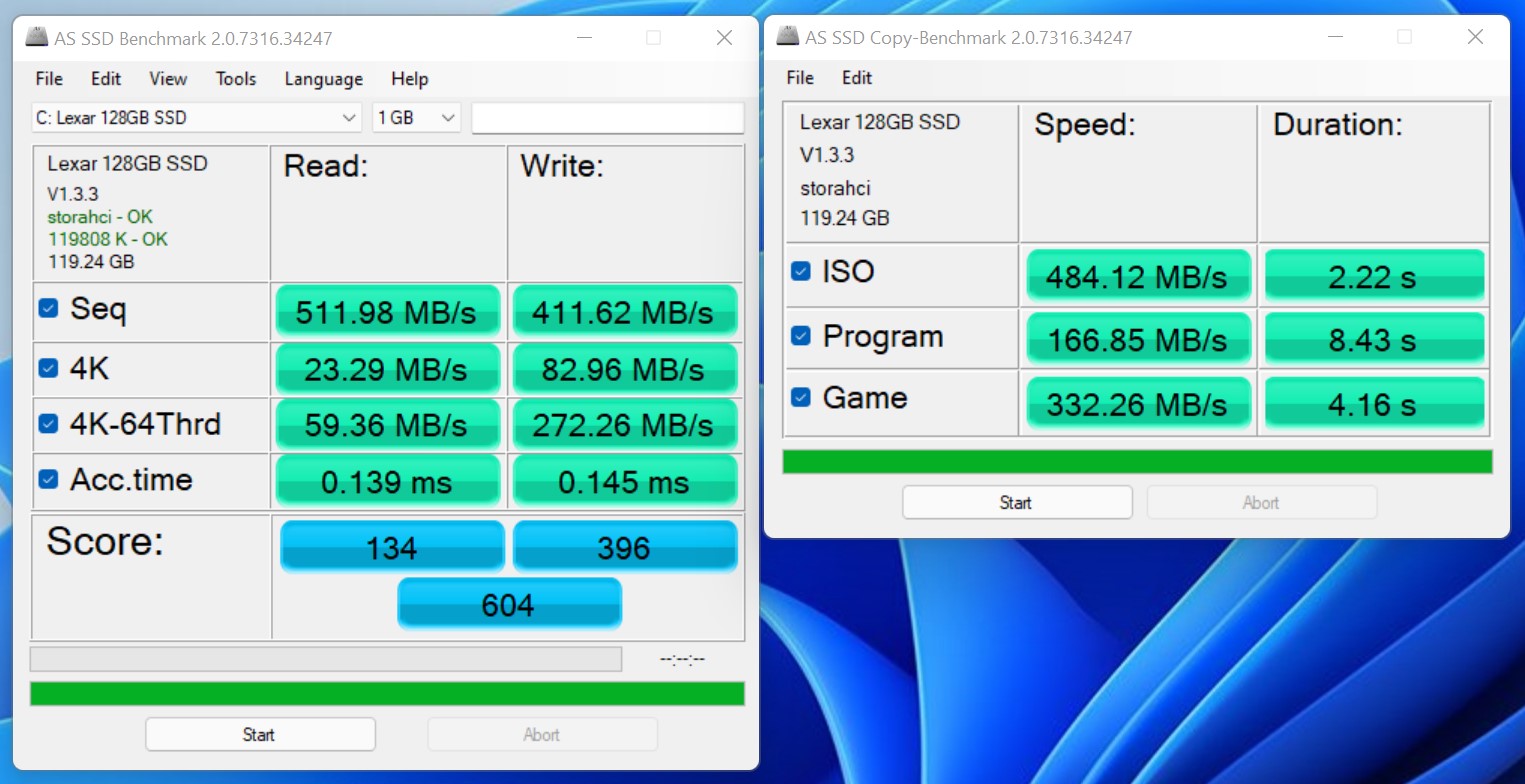

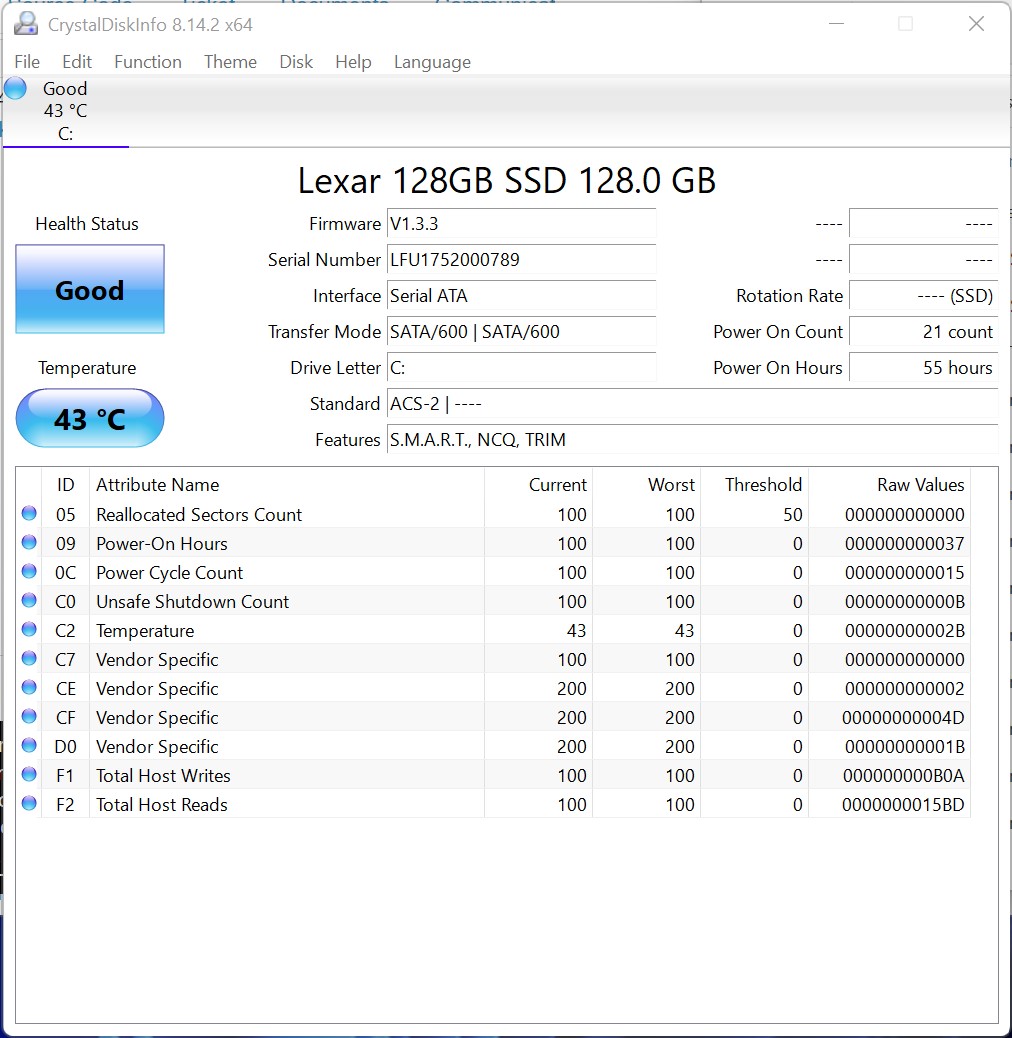

由于Newsmay AC8是作为裸机版本提供的，所以大容量存储配置由买方决定。然而，Newsmay科技为我们的审查配备了一个128GB的固态硬盘。这使得系统的运行没有任何问题，而且一些程序仍然可以与操作系统一起运行。内置的SSD是Lexar的M.2-2280型号，只提供SATA速度。这一点也被连续的写入和读取速度所证实。不幸的是，Newsmay AC8只能配备一个大容量存储单元。考虑到这种设计，容纳两个固态硬盘实际上应该是没有问题的。在我们的模型中，我们没有观察到任何温度问题。

图形卡

Newsmay AC8的集成图形单元是我们熟悉的英特尔UHD Graphics 600.然而，32个EU和高达850MHz的芯片时钟速度，它甚至无法跟上最新的英特尔Iris Xe iGPU。英特尔UHD Graphics 600并不意味着可以用于更多的办公应用。

你可以找到更多关于英特尔UHD Graphics 600的基准测试这里.

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU
Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=109)	5179 Points +226%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	2322 Points +46%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	1589 Points
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1458 Points -8%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	1175 Points -26%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	613 Points -61%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	602 Points -62%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	589 Points -63%
Average Intel UHD Graphics 600 (410 - 854, n=27)	558 Points -65%

3DMark
1280x720 Ice Storm Standard Graphics
Average Intel Iris Xe Graphics G7 80EUs (25199 - 142022, n=23)	83387 Points +288%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	61979 Points +189%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	25631 Points +19%
Average Intel UHD Graphics 600 (14412 - 35101, n=10)	23582 Points +10%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	21465 Points
1920x1080 Ice Storm Extreme Graphics
Average Intel Iris Xe Graphics G7 80EUs (27687 - 96826, n=13)	56325 Points +173%
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	40670 Points +97%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	20602 Points
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	14600 Points -29%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	14360 Points -30%
Average Intel UHD Graphics 600 (8277 - 19919, n=12)	13725 Points -33%
1920x1080 Fire Strike Graphics
Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=111)	3794 Points +331%
Intel NUC6i5SYH, Intel Core i5-6260U 1800 MHz, Intel Iris Graphics 540	1479 Points +68%
Intel NUC5i5RYH, Intel Core i5-5250U 1600 MHz, Intel HD Graphics 6000	1033 Points +17%
Newsmay AC8 N6005, Intel Pentium Silver N6005 2000 MHz, Intel UHD Graphics (Jasper Lake 32 EU)	881 Points
Intel NUC5i3RYK, Intel Core i3-5010U 2100 MHz, Intel HD Graphics 5500	770 Points -13%
Beelink GK Mini, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	455 Points -48%
AC6-M Mini-PC, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	446 Points -49%
GMK NucBox K1, Intel Celeron J4125 2000 MHz, Intel UHD Graphics 600	433 Points -51%
Average Intel UHD Graphics 600 (307 - 637, n=21)	421 Points -52%

3DMark 05 Standard		8291 points
3DMark 06 Standard Score		5416 points
3DMark Vantage P Result		5185 points
3DMark 11 Performance		1652 points
3DMark Ice Storm Standard Score		22209 points
3DMark Cloud Gate Standard Score		4821 points
3DMark Fire Strike Score		797 points
Help

... in comparison

	low	med.	high	ultra
Dota 2 Reborn (2015)	54	22.4	12.8	11.5
Final Fantasy XV Benchmark (2018)	10.7	4.96	0.84
X-Plane 11.11 (2018)	15.2	11.4	10.5

排放

温度

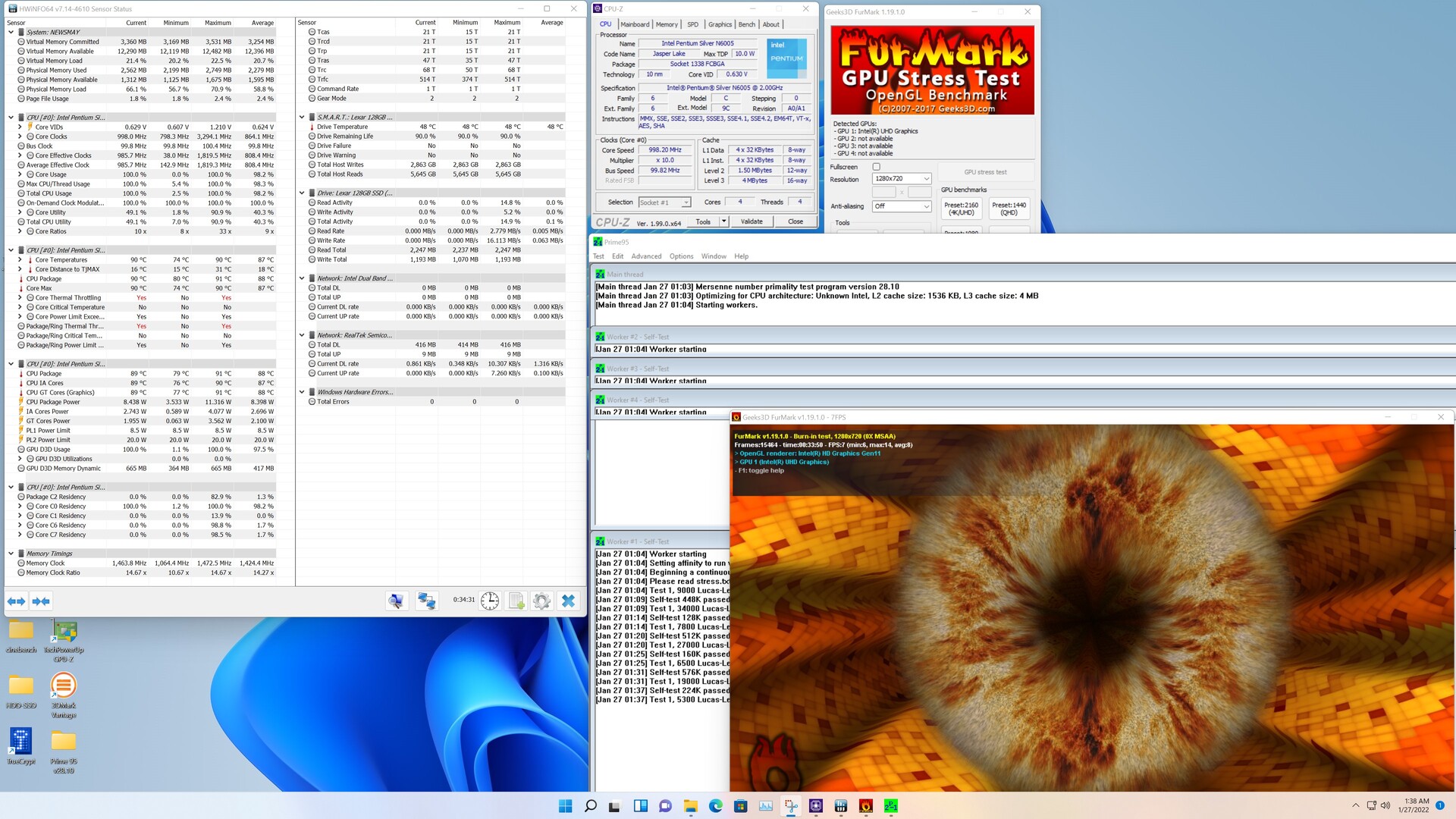

根据第一次负载测试，我们已经很清楚，Newsmay AC8很快就达到了英特尔Pentium Silver N6005被动冷却系统的热极限。因此，我们在压力测试中登记的最高温度为91℃（约196°F）。然而，离英特尔规定的官方最高温度105℃（约221°F）还有一小段距离。尽管如此，仍然有一点热节流，我们在Cinebench R15多循环中也看到了这一点。Newsmay似乎已经将极限定义为90°C（约196°F）。

这款机箱在负载下明显发热，应该放在通风良好的地方，让废热适当地散去。

噪声排放

由于没有风扇，Newsmay AC8不会产生任何噪音。因此，这台迷你电脑在任何时候都能安静地运行。我们也没有注意到在空闲使用或负载下有任何其他干扰性的噪音。

能源消耗

对能源费用很谨慎的用户可以放心地选择Newsmay AC8。这款小型迷你电脑非常节俭，在负载下甚至不超过20瓦的大关。这个紧凑的电源并没有达到它的容量极限，因为它最多可以提供30瓦的功率。

Power Consumption
Idle 1min (external Monitor)
Newsmay AC8 N6005	8.21 (7.75^min, 7.76^P1 - 11.1^max) Watt *
Cinebench R15 Multi Efficiency (external Monitor)
GMK NucBox K1	19.8 Points per Watt +12%
Newsmay AC8 N6005	17.7 Points per Watt
Intel NUC5i3RYK	12.6 Points per Watt -29%
1280x720 Prime95 28.10 and Furmark 1.25
AC6-M Mini-PC	19.4 (19^min, 19.1^P1 - 20^max) Watt * -2%
Newsmay AC8 N6005	19.1 (17^min, 18.4^P1 - 24.4^max) Watt *
Prime95 V2810 Stress (external Monitor)
Intel NUC10i5FNK (Idle: 15.7 W)	58.5 (56^min - 69^max) Watt * -210%
Intel NUC5i3RYK (Idle: 7.8 W)	24.1 (23.3^min - 26^max) Watt * -28%
Newsmay AC8 N6005	18.9 (17.5^min, 18.2^P1 - 27.9^max) Watt *
AC6-M Mini-PC	17.4 (15.8^min, 16.8^P1 - 18^max) Watt * +8%
GMK NucBox K1	14.3 Watt * +24%
Cinebench R15 Multi (external Monitor)
Newsmay AC8 N6005	18 (9.62^min, 14.9^P1 - 27.1^max) Watt *
Intel NUC5i3RYK (Idle: 7.8 W)	17.4 (15.9^min - 19.9^max) Watt * +3%
GMK NucBox K1	12.3 Watt * +32%
1280x720 FurMark 1.19 GPU Stress Test (external Monitor)
Intel NUC10i5FNK (Idle: 15.7 W)	37.8 (35^min - 63^max) Watt * -101%
Intel NUC5i3RYK	28.3 (27.1^min - 36.8^max) Watt * -51%
Newsmay AC8 N6005	18.8 (17^min, 17.8^P1 - 28.3^max) Watt *
1920x1080 The Witcher 3 ultra (external Monitor)
Intel NUC5i3RYK (2.7 fps, Idle: 7.8 W)	26.5 (24.5^min - 28.1^max) Watt *

* ... smaller is better

Pros

+ 结构紧凑

+ 设计简单

+ 所有必要的端口都有

+ 价格低廉

+ 高效节能

+ 无声运行

Cons

- 冷却装置在负载下达到极限

- 只能安装一个存储驱动器

- SD卡读卡器速度慢

结论 - 紧凑和安静的办公电脑

Newsmay AC8是一款紧凑而安静的迷你电脑。基于英特尔奔腾银N6005，它提供了一个坚实的性能，这足以满足简单的办公任务或浏览互联网。在我们看来，非常有限的4GB内存变成了它的弱点。这妨碍了整体上更好的主观表现。我们反复经历了短暂的延迟，这是由过度使用内存造成的。然而，这种情况不应该过多地影响总体评价，因为Newsmay将AC8作为一个没有内存和SSD的裸机系统出售。因此，购买者在决定在系统中构建什么时将会被宠坏。

想购买Newsmay AC8的用户肯定应该考虑选择奔腾变体。其他配置提供了更节俭的SoC，但也因此而降低了性能。然而，一个小型办公系统需要不低的性能才能很好地工作。

Newsmay AC8提供了一个良好的端口配置，由于其紧凑的尺寸，它很容易放在桌子上。

AC8的连接性很好，所有必要的外部接口都有。还有一个读卡器，但它只支持microSD格式。不过，我们希望在这里至少能看到USB 3.0的速度。

这款小型办公电脑的价格非常便宜，约为140美元（税前）。然而，这个报价相当针对B2B客户，因为这个价格是指300台的购买量。

Newsmay AC8的最大缺点是冷却装置，它很难在负载下有效地冷却SoC。然而，冷却装置完全无声的事实是一个优点，我们想在此再次强调。

Editor of the original article: Stephanie Chamberlain - Translator - 571 articles published on Notebookcheck since 2020

contact me via: LinkedIn

Translator: Ninh Ngoc Duy - Editorial Assistant - 459156 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Newsmay AC8迷你电脑回顾。采用奔腾N6005的静音办公电脑

Sebastian Bade, 2022-02- 4 (Update: 2022-02- 4)
