Oukitel U16 Max 智能手机简短评测

Name: Oukitel U16 Max
Brand: Oukitel

中国黄金标准。这台来自远东的巨型智能手机不仅尺寸和重量惊人，同时也具备不错的功能，售价130欧元（约145美元）。我们好奇的是这台中国设备这次在哪里走了捷径。

Florian Schaar, 👁 Daniel Schmidt, ✓ Sven Kloevekorn (translated by Yuchen Wang), Published 06/10/2017 🇺🇸 🇩🇪 ...

Android ARM Phablet Smartphone Touchscreen

Test device courtesy of Oukitel

Download your licensed rating image as PNG / SVG

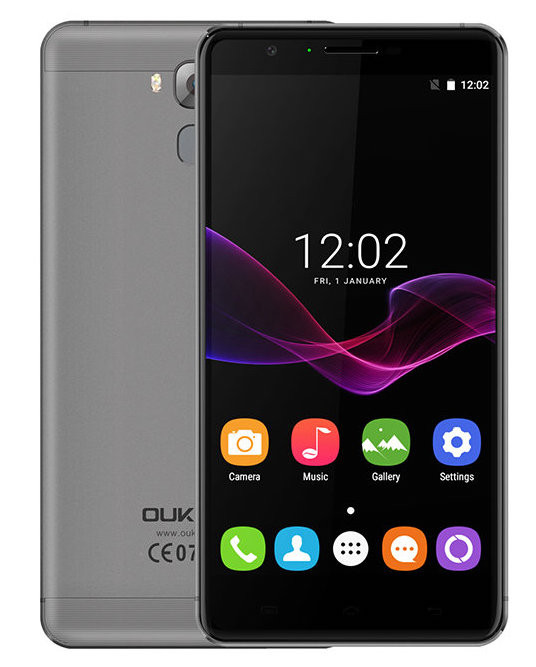

Oukitel U16 Max (U Series)

Processor

Mediatek MT6753 8 x 1.3 GHz, Cortex-A53

Graphics adapter

ARM Mali-T720 MP2, Core: 1300 MHz

Memory

3 GB

Display

6.00 inch 16:9, 1280 x 720 pixel 245 PPI, 5点触控, IPS, glossy: yes

Storage

32 GB eMMC Flash, 32 GB

, 24 GB free

Connections

1 USB 2.0, Audio Connections: 3.5毫米耳机接口, Card Reader: microSD 最高支持 128GB, 1 Fingerprint Reader, Brightness Sensor, Sensors: 加速感应器，近距感应器, OTG

Networking

802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0, 4G: 800/900/1800/2100/2600MHz, 3G: WCDMA 900/2100MHz, 2G: GSM 850/900/1800/1900MHz , Dual SIM, LTE, GPS

Size

height x width x depth (in mm): 9 x 165 x 83

Battery

4000 mAh Lithium-Ion

Operating System

Android 7.0 Nougat

Camera

Primary Camera: 13 MPix
Secondary Camera: 8 MPix

Additional features

Speakers: 单声道扬声器, Keyboard: 触控, Keyboard Light: yes, 保护壳，数据线，电源适配器, 12 Months Warranty, fanless

Weight

223 g, Power Supply: 52 g

Price

110 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Size Comparison

Networking
iperf3 transmit AX12
Oukitel U16 Max Mali-T720 MP2, MT6753, 32 GB eMMC Flash	99.7 MBit/s
Acer Liquid Z6 Plus Mali-T720 MP2, MT6753, 32 GB eMMC Flash	48.6 MBit/s -51%
iperf3 receive AX12
Oukitel U16 Max Mali-T720 MP2, MT6753, 32 GB eMMC Flash	99.1 MBit/s
Acer Liquid Z6 Plus Mali-T720 MP2, MT6753, 32 GB eMMC Flash	47.2 MBit/s -52%

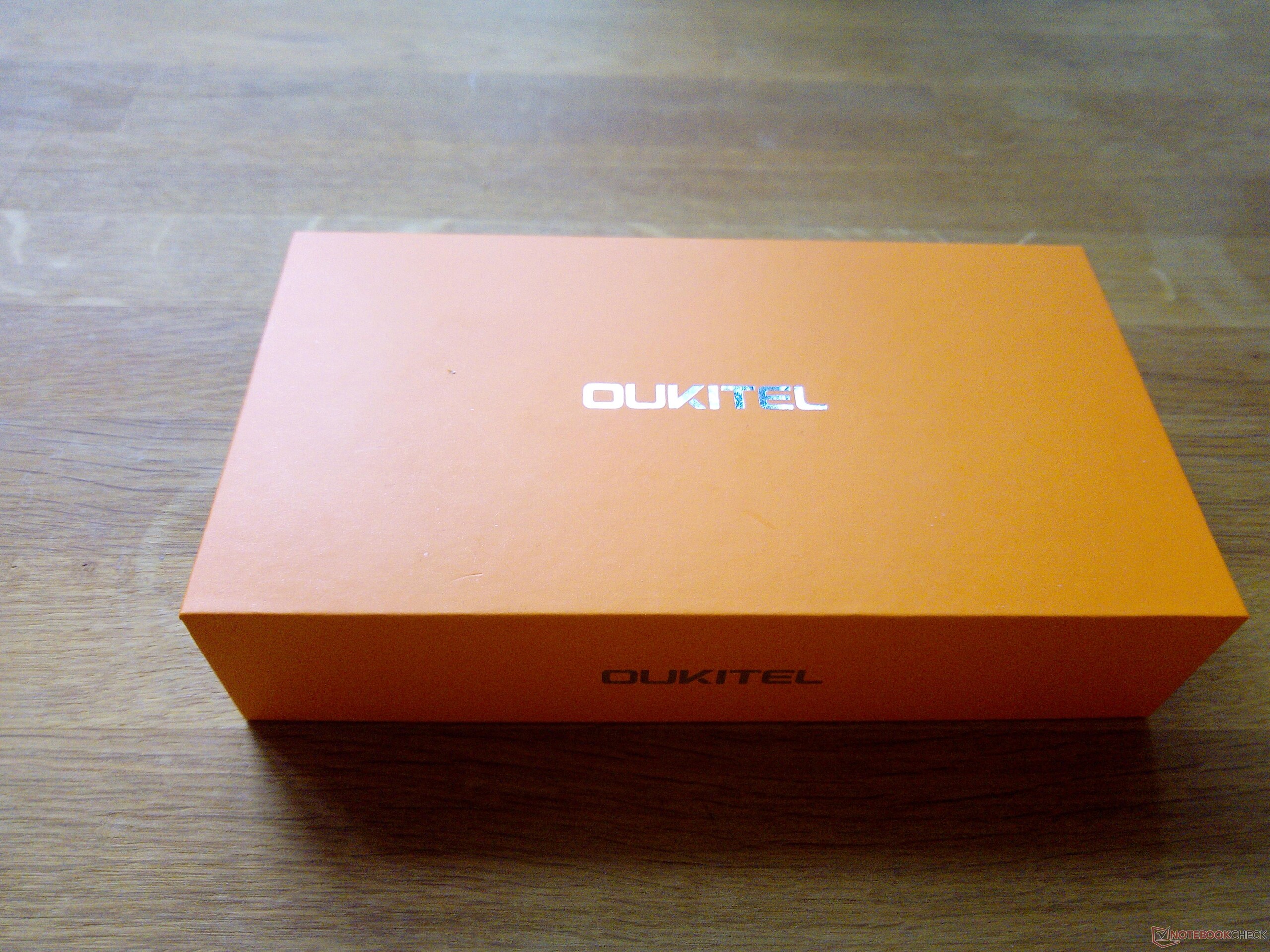

Front camera: The colors are pale but at least it is orange!

Back camera: In fall, the yellow tint would be fitting.

Back camera: The sky is more gray than blue.

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1 Scene 2 Scene 3

click to load images

Oukitel U16 Max

Huawei Mate 9

Samsung Galaxy S8 Plus

Cannon EOS 70D

click to load images

Oukitel U16 Max

Huawei Mate 9

Samsung Galaxy S8 Plus

Cannon EOS 70D

click to load images

Oukitel U16 Max

Huawei Mate 9

Samsung Galaxy S8 Plus

Cannon EOS 70D

On the edges the sharpness becomes visibly less.

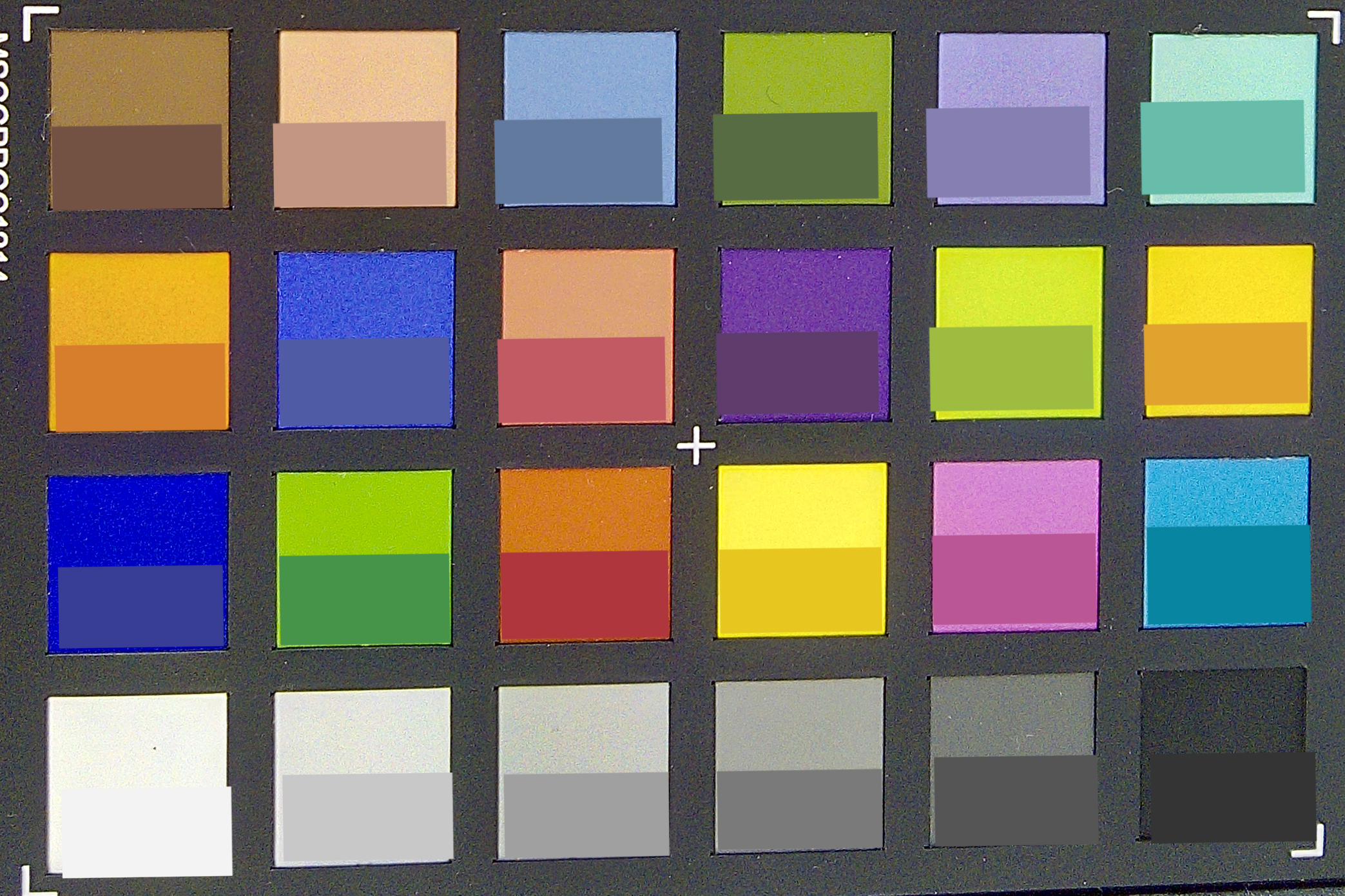

The color deviations are significant in some cases.

In bright lighting, the color noise is not so strong and many details are still recognizable.


399 cd/m²	415 cd/m²	404 cd/m²
403 cd/m²	417 cd/m²	405 cd/m²
400 cd/m²	408 cd/m²	393 cd/m²

Distribution of brightness

IPS tested with X-Rite i1Pro 2

Maximum: 417 cd/m² (Nits) Average: 404.9 cd/m² Minimum: 18.16 cd/m²
Brightness Distribution: 94 %
Center on Battery: 417 cd/m²
Contrast: 1986:1 (Black: 0.21 cd/m²)
ΔE Color 11.9 | 0.5-29.43 Ø4.93
ΔE Greyscale 14.4 | 0.5-98 Ø5.2
Gamma: 2.19

	Oukitel U16 Max 1280x720, 6"	Ulefone Metal IPS, 1280x720, 5"	Elephone P8000 IPS, 1920x1080, 5.5"	Acer Liquid Z6 Plus IPS, 1920x1080, 5.5"	LG Stylus 2 IPS, 1280x720, 5.7"
Screen		-21%	-16%	2%	7%
Brightness middle	417	312 -25%	338 -19%	419 0%	370 -11%
Brightness	405	315 -22%	329 -19%	408 1%	374 -8%
Brightness Distribution	94	87 -7%	95 1%	83 -12%	92 -2%
Black Level *	0.21	0.56 -167%	0.36 -71%	0.35 -67%	0.25 -19%
Contrast	1986	557 -72%	939 -53%	1197 -40%	1480 -25%
Colorchecker dE 2000 *	11.9	6.8 43%	9.38 21%	6.6 45%	6.1 49%
Colorchecker dE 2000 max. *	21.5	14 35%		12.6 41%	16.5 23%
Greyscale dE 2000 *	14.4	7.1 51%	10.33 28%	7.9 45%	7 51%
Gamma	2.19 ^100%	2.77 ^79%	2.3 ^96%	2.08 ^106%	2.25 ^98%
CCT	12820 ^51%	7402 ^88%	10118 ^64%	8576 ^76%	8350 ^78%

* ... smaller is better

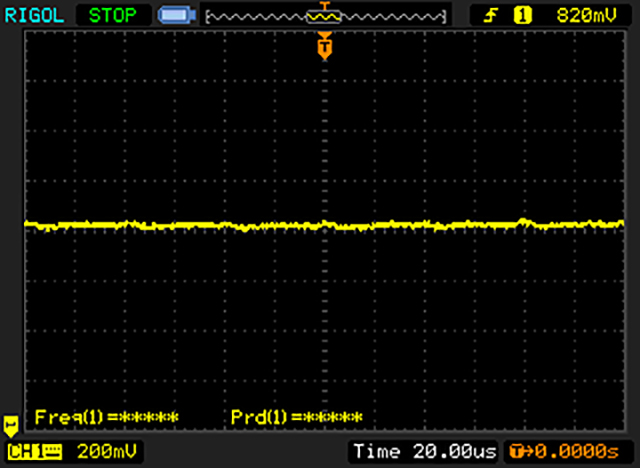

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

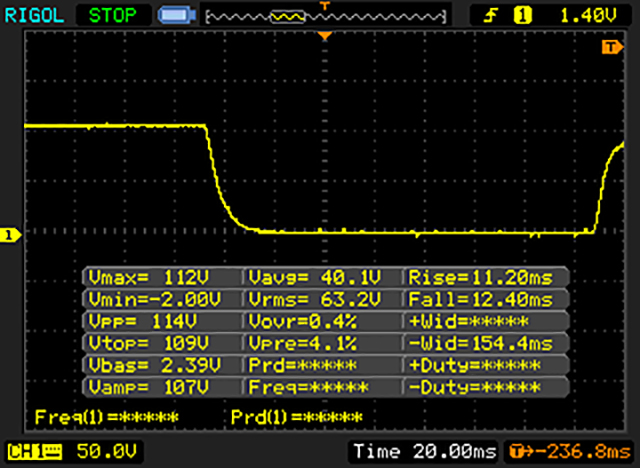

↔ Response Time Black to White
23.6 ms ... rise ↗ and fall ↘ combined	↗ 11.2 ms rise
23.6 ms ... rise ↗ and fall ↘ combined	↘ 12.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 49 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

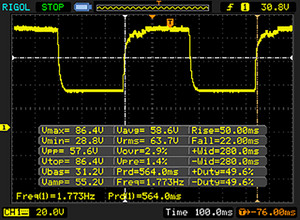

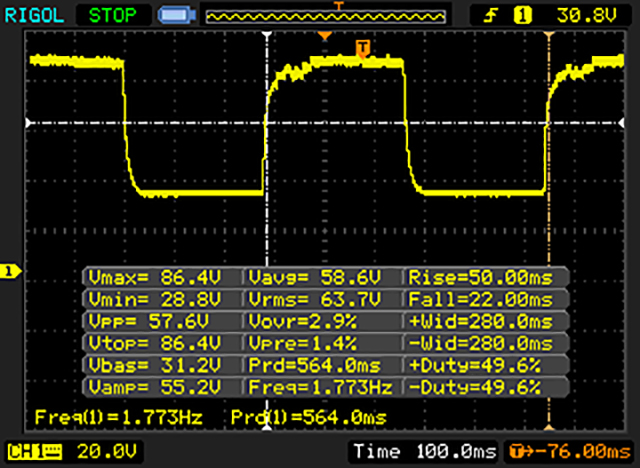

↔ Response Time 50% Grey to 80% Grey
72 ms ... rise ↗ and fall ↘ combined	↗ 50 ms rise
72 ms ... rise ↗ and fall ↘ combined	↘ 22 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 99 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

AnTuTu v6 - Total Score (sort by value)
Oukitel U16 Max	38295 Points
Ulefone Metal	37103 Points -3%
Acer Liquid Z6 Plus	37286 Points -3%
LG Stylus 2	28232 Points -26%
Asus Zenfone 3 Max ZC520TL	30365 Points -21%

Geekbench 4.0
64 Bit Single-Core Score (sort by value)
Ulefone Metal	609 Points
Acer Liquid Z6 Plus	608 Points
Asus Zenfone 3 Max ZC520TL	569 Points
64 Bit Multi-Core Score (sort by value)
Ulefone Metal	2458 Points
Acer Liquid Z6 Plus	2442 Points
Asus Zenfone 3 Max ZC520TL	1362 Points

3DMark
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
Oukitel U16 Max	Points
Ulefone Metal	7059 Points
Elephone P8000	6892 Points
Acer Liquid Z6 Plus	7045 Points
LG Stylus 2	4307 Points
Asus Zenfone 3 Max ZC520TL	3827 Points
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
Oukitel U16 Max	Points
Ulefone Metal	6469 Points
Elephone P8000	6283 Points
Acer Liquid Z6 Plus	6456 Points
LG Stylus 2	3744 Points
Asus Zenfone 3 Max ZC520TL	3369 Points
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
Oukitel U16 Max	10549 Points
Ulefone Metal	10371 Points -2%
Elephone P8000	10433 Points -1%
Acer Liquid Z6 Plus	10347 Points -2%
LG Stylus 2	9085 Points -14%
Asus Zenfone 3 Max ZC520TL	7298 Points -31%
2560x1440 Sling Shot OpenGL ES 3.0 (sort by value)
Oukitel U16 Max	300 Points
Ulefone Metal	293 Points -2%
Elephone P8000	286 Points -5%
Acer Liquid Z6 Plus	291 Points -3%
LG Stylus 2	53 Points -82%
Asus Zenfone 3 Max ZC520TL	157 Points -48%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics (sort by value)
Oukitel U16 Max	248 Points
Ulefone Metal	243 Points -2%
Elephone P8000	236 Points -5%
Acer Liquid Z6 Plus	241 Points -3%
LG Stylus 2	42 Points -83%
Asus Zenfone 3 Max ZC520TL	128 Points -48%
2560x1440 Sling Shot OpenGL ES 3.0 Physics (sort by value)
Oukitel U16 Max	1098 Points
Ulefone Metal	1057 Points -4%
Elephone P8000	1077 Points -2%
Acer Liquid Z6 Plus	1090 Points -1%
LG Stylus 2	728 Points -34%
Asus Zenfone 3 Max ZC520TL	741 Points -33%
2560x1440 Sling Shot Extreme (ES 3.1) (sort by value)
Oukitel U16 Max	208 Points
Ulefone Metal	195 Points -6%
Elephone P8000	183 Points -12%
Acer Liquid Z6 Plus	197 Points -5%
Asus Zenfone 3 Max ZC520TL	103 Points -50%
2560x1440 Sling Shot Extreme (ES 3.1) Graphics (sort by value)
Oukitel U16 Max	169 Points
Ulefone Metal	158 Points -7%
Elephone P8000	148 Points -12%
Acer Liquid Z6 Plus	160 Points -5%
Asus Zenfone 3 Max ZC520TL	83 Points -51%
2560x1440 Sling Shot Extreme (ES 3.1) Physics (sort by value)
Oukitel U16 Max	1104 Points
Ulefone Metal	1084 Points -2%
Elephone P8000	1072 Points -3%
Acer Liquid Z6 Plus	1076 Points -3%
Asus Zenfone 3 Max ZC520TL	699 Points -37%

GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen (sort by value)
Oukitel U16 Max	20 fps
Ulefone Metal	12 fps -40%
Elephone P8000	12 fps -40%
Acer Liquid Z6 Plus	13 fps -35%
LG Stylus 2	4.9 fps -75%
Asus Zenfone 3 Max ZC520TL	10 fps -50%
1920x1080 T-Rex Offscreen (sort by value)
Oukitel U16 Max	12 fps
Ulefone Metal	19 fps +58%
Elephone P8000	12 fps 0%
Acer Liquid Z6 Plus	12 fps 0%
LG Stylus 2	5.1 fps -57%
Asus Zenfone 3 Max ZC520TL	5.9 fps -51%

GFXBench 3.0
on screen Manhattan Onscreen OGL (sort by value)
Oukitel U16 Max	9.2 fps
Ulefone Metal	6.4 fps -30%
Elephone P8000	4.2 fps -54%
Acer Liquid Z6 Plus	4.7 fps -49%
LG Stylus 2	1.8 fps -80%
Asus Zenfone 3 Max ZC520TL	4.7 fps -49%
1920x1080 1080p Manhattan Offscreen (sort by value)
Oukitel U16 Max	2.9 fps
Ulefone Metal	2.9 fps 0%
Elephone P8000	4.2 fps +45%
Acer Liquid Z6 Plus	4.5 fps +55%
LG Stylus 2	3.9 fps +34%
Asus Zenfone 3 Max ZC520TL	2.2 fps -24%

GFXBench 3.1
on screen Manhattan ES 3.1 Onscreen (sort by value)
Oukitel U16 Max	6.5 fps
Ulefone Metal	4.5 fps -31%
Acer Liquid Z6 Plus	2.9 fps -55%
LG Stylus 2	fps -100%
Asus Zenfone 3 Max ZC520TL	3.4 fps -48%
1920x1080 Manhattan ES 3.1 Offscreen (sort by value)
Oukitel U16 Max	2.9 fps
Ulefone Metal	8.9 fps +207%
Acer Liquid Z6 Plus	3.1 fps +7%
LG Stylus 2	fps -100%
Asus Zenfone 3 Max ZC520TL	1.4 fps -52%

PCMark for Android - Work performance score (sort by value)
Oukitel U16 Max	4040 Points
Ulefone Metal	4079 Points +1%
Acer Liquid Z6 Plus	2979 Points -26%
LG Stylus 2	4030 Points 0%
Asus Zenfone 3 Max ZC520TL	2517 Points -38%

Mozilla Kraken 1.1 - Total (sort by value)
Oukitel U16 Max	21899 ms *
Ulefone Metal	13397 ms * +39%
Elephone P8000	23047 ms * -5%
Acer Liquid Z6 Plus	14218 ms * +35%
LG Stylus 2	12713 ms * +42%
Asus Zenfone 3 Max ZC520TL	14983 ms * +32%

JetStream 1.1 - Total Score (sort by value)
Oukitel U16 Max	16.72 Points
Ulefone Metal	17.83 Points +7%
Elephone P8000	20.7 Points +24%
Acer Liquid Z6 Plus	18.05 Points +8%
LG Stylus 2	17.8 Points +6%
Asus Zenfone 3 Max ZC520TL	16.47 Points -1%

Octane V2 - Total Score (sort by value)
Oukitel U16 Max	2734 Points
Ulefone Metal	2738 Points 0%
Elephone P8000	3256 Points +19%
Acer Liquid Z6 Plus	2892 Points +6%
LG Stylus 2	2742 Points 0%
Asus Zenfone 3 Max ZC520TL	2534 Points -7%

AndroBench 3-5
Sequential Write 256KB SDCard (sort by value)
Oukitel U16 Max	24.56 MB/s
Ulefone Metal	27.6 MB/s +12%
Acer Liquid Z6 Plus	27.97 MB/s +14%
LG Stylus 2	49.73 MB/s +102%
Asus Zenfone 3 Max ZC520TL	29.59 MB/s +20%
Sequential Read 256KB SDCard (sort by value)
Oukitel U16 Max	36.27 MB/s
Ulefone Metal	49.6 MB/s +37%
Acer Liquid Z6 Plus	42.76 MB/s +18%
LG Stylus 2	74.9 MB/s +107%
Asus Zenfone 3 Max ZC520TL	47.67 MB/s +31%
Random Write 4KB (sort by value)
Oukitel U16 Max	11.24 MB/s
Ulefone Metal	7.87 MB/s -30%
Elephone P8000	12.6 MB/s +12%
Acer Liquid Z6 Plus	10.4 MB/s -7%
LG Stylus 2	7.3 MB/s -35%
Asus Zenfone 3 Max ZC520TL	9.1 MB/s -19%
Random Read 4KB (sort by value)
Oukitel U16 Max	18.5 MB/s
Ulefone Metal	22.18 MB/s +20%
Elephone P8000	23.5 MB/s +27%
Acer Liquid Z6 Plus	22.2 MB/s +20%
LG Stylus 2	9.8 MB/s -47%
Asus Zenfone 3 Max ZC520TL	20.9 MB/s +13%
Sequential Write 256KB (sort by value)
Oukitel U16 Max	69.9 MB/s
Ulefone Metal	39.91 MB/s -43%
Elephone P8000	72 MB/s +3%
Acer Liquid Z6 Plus	70.1 MB/s 0%
LG Stylus 2	75.9 MB/s +9%
Asus Zenfone 3 Max ZC520TL	65.2 MB/s -7%
Sequential Read 256KB (sort by value)
Oukitel U16 Max	231.1 MB/s
Ulefone Metal	228.8 MB/s -1%
Elephone P8000	233 MB/s +1%
Acer Liquid Z6 Plus	209.4 MB/s -9%
LG Stylus 2	130.3 MB/s -44%
Asus Zenfone 3 Max ZC520TL	174.2 MB/s -25%

Legend

Oukitel U16 Max Mediatek MT6753, ARM Mali-T720 MP2, 32 GB eMMC Flash

Ulefone Metal Mediatek MT6753, ARM Mali-T720, 16 GB eMMC Flash

Elephone P8000 Mediatek MT6753, ARM Mali-T720 MP4, 16 GB eMMC Flash

Acer Liquid Z6 Plus Mediatek MT6753, ARM Mali-T720 MP2, 32 GB eMMC Flash

LG Stylus 2 Qualcomm Snapdragon 410 MSM8916, Qualcomm Adreno 306, 16 GB eMMC Flash

Asus Zenfone 3 Max ZC520TL Mediatek MT6737, ARM Mali-T720 MP2, 32 GB eMMC Flash

* ... smaller is better

Max. Load

Idle


35 °C	34.6 °C	32.8 °C
34.3 °C	35 °C	33.4 °C
34.1 °C	33.2 °C	32.8 °C

Maximum: 35 °C
Average: 33.9 °C


30.9 °C	31.1 °C	31.9 °C
30.9 °C	31 °C	32.2 °C
30.2 °C	30.9 °C	31.9 °C

Maximum: 32.2 °C
Average: 31.2 °C

Power Supply (max.) 28.8 °C | Room Temperature 21.3 °C | Voltcraft IR-260

(±) The average temperature for the upper side under maximal load is 33.9 °C / 93 F, compared to the average of 32.8 °C / 91 F for the devices in the class Smartphone.
(+) The maximum temperature on the upper side is 35 °C / 95 F, compared to the average of 35.1 °C / 95 F, ranging from 21.9 to 63.2 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 32.2 °C / 90 F, compared to the average of 33.9 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 31.2 °C / 88 F, compared to the device average of 32.8 °C / 91 F.

Oukitel U16 Max audio analysis

(+) | speakers can play relatively loud (82.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.7% lower than median
(±) | linearity of bass is average (12% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 9.1% higher than median
(±) | linearity of mids is average (9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 9.2% higher than median
(±) | linearity of highs is average (10.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (38% difference to median)
Compared to same class
» 84% of all tested devices in this class were better, 1% similar, 15% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple iPhone 7 Plus audio analysis

(±) | speaker loudness is average but good (81.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.1% lower than median
(±) | linearity of bass is average (7.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(±) | linearity of mids is average (7.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 4.3% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22% difference to median)
Compared to same class
» 40% of all tested devices in this class were better, 7% similar, 52% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 60% of all tested devices were better, 7% similar, 34% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Ulefone Metal audio analysis

(±) | speaker loudness is average but good (76.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 25.6% lower than median
(-) | bass is not linear (15.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(±) | linearity of mids is average (8.2% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.6% higher than median
(+) | highs are linear (6.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (24.4% difference to median)
Compared to same class
» 54% of all tested devices in this class were better, 8% similar, 39% worse
» The best had a delta of 12%, average was 37%, worst was 134%
Compared to all devices tested
» 71% of all tested devices were better, 6% similar, 23% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	0.06 / 0.08 Watt
Idle	0.93 / 2.23 / 2.31 Watt
Load	5.61 / 8.26 Watt


Key: min: , med: , max: Metrahit Energy

Battery Runtime

Idle (without WLAN, min brightness)		26h 13min
WiFi Websurfing		12h 11min
Load (maximum brightness)		5h 46min

	Oukitel U16 Max 4000 mAh	Ulefone Metal 3050 mAh	Elephone P8000 mAh	Acer Liquid Z6 Plus 4080 mAh	LG Stylus 2 3000 mAh
Battery Runtime		-45%	-36%	25%	-19%
Reader / Idle	1573				1225 -22%
WiFi v1.3	731	403 -45%	637 -13%	1087 49%	663 -9%
Load	346		146 -58%	351 1%	258 -25%
H.264					697

Pros

+ 实惠的价位

+ 指纹感应器

+ 大尺寸屏幕

+ 坚固的金属机身

+ 非常优秀的电池续航

+ 双SIM卡

+ 存储空间可扩展到最大128GB

+ 3GB内存

+ 低发热量

+ 最新安卓系统

+ 优秀的通话音质

+ 充足的存储空间

Cons

- 相机品质一般

- 重量高

- 功耗高

- 一般的处理器

如果我们想象有这样一个用户群体，他们希望得到一台大屏幕设备，而不在意较高的机身重量，同时相对较低的价位则会平衡其他方面的弱点。从这个角度来看，我们必须承认Oukitel设计了一台十分引人注目的设备。

这是一台优秀而平衡的设备，可惜相机品质有待改进。

这款智能手机整体表现优秀，搭配了大尺寸屏幕和大容量电池。它的运行速度并不算出色，不过在这个价位上我们也无法要求太高。屏幕的分辨率也有些过时，不过如果不仔细看配置表的话，也不容易察觉到太大的区别。而它的相机中存在的问题则相对较大。很遗憾，它们只能够满足在光线较好的环境下拍摄的需要。如果它们能够有更好的成像质量，而不仅是高分辨率的话，这台设备应该可以更值得推荐。不过作为一台低价位设备，这台设备仍然值得考虑。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Oukitel U16 Max - 2017-05-26 05/26/2017 v6 ^(old)
Florian Schaar

Chassis

74%

Keyboard

66 / 75 → 88%

Pointing Device

87%

Connectivity

33 / 60 → 54%

Weight

88%

Battery

100%

Display

79%

Games Performance

21 / 63 → 33%

Application Performance

34 / 70 → 49%

Temperature

92%

Noise

100%

Audio

56 / 91 → 61%

Camera

51%

Average

68%

78%

Smartphone - Weighted Average

Price comparison

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > Oukitel U16 Max 智能手机简短评测

Florian Schaar, 2017-06-10 (Update: 2017-06-10)

Size Comparison

Screen Flickering / PWM (Pulse-Width Modulation)

Display Response Times

Oukitel U16 Max audio analysis

Apple iPhone 7 Plus audio analysis

Ulefone Metal audio analysis

Pros

Cons

More articles related to this device

Price comparison
