微星 PE70 2QE 笔记本电脑简短评测

Name: MSI PE70-2QEi581
Brand: MSI

多媒体精英？ 根据微星的描述，这款来自Prestige系列的最新产品是面向高要求的生活方式和商务用户设计的。不过17.3寸的PE70可以做到吗？

Andreas Osthoff (translated by Yuchen Wang), Published 07/11/2015 🇺🇸 🇩🇪 ...

Geforce Gaming Haswell Laptop / Notebook

Test device courtesy of cyberport.de

Download your licensed rating image as PNG / SVG

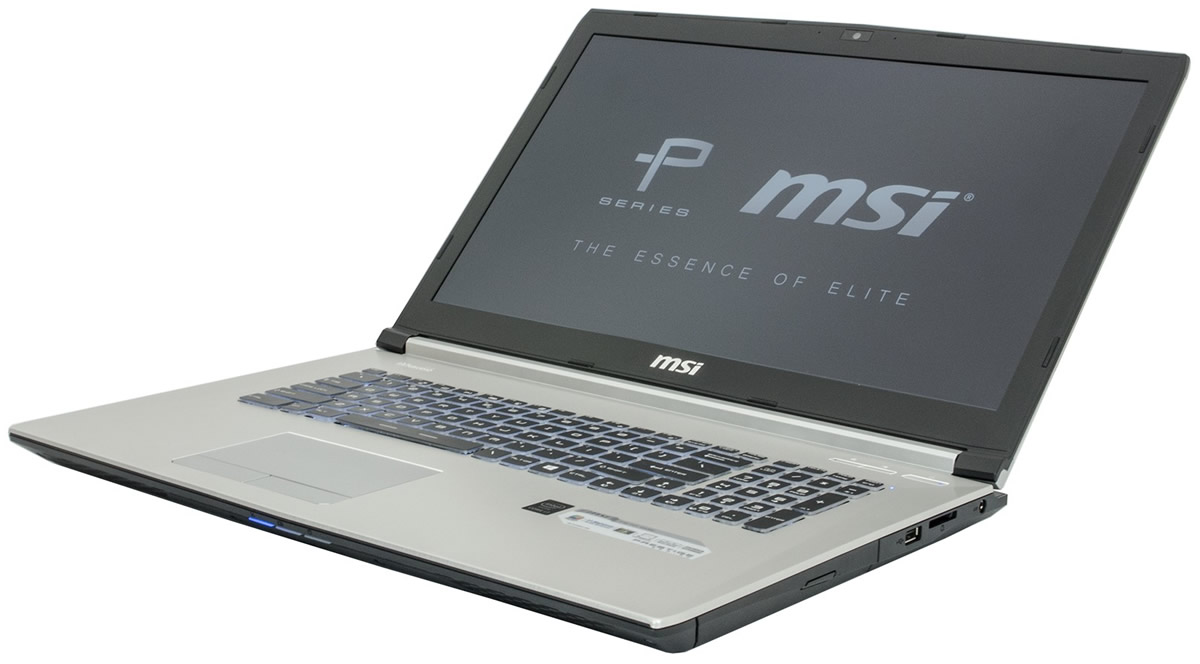

MSI PE70-2QEi581 (PE70 Series)

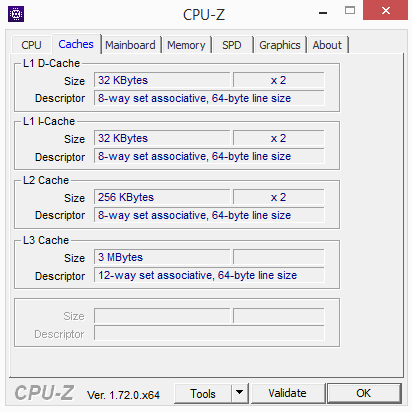

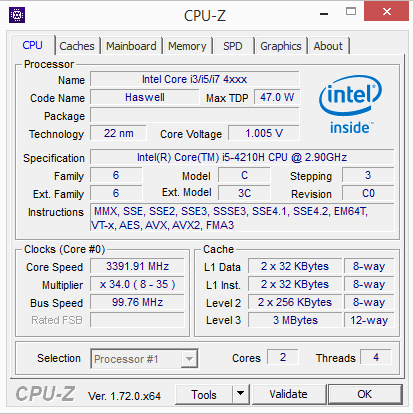

Processor

Intel Core i5-4210H 2 x 2.9 - 3.5 GHz, Haswell

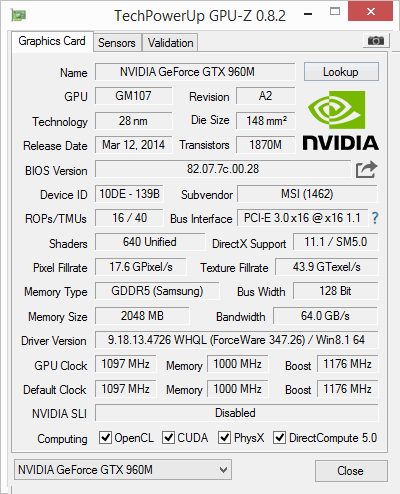

Graphics adapter

NVIDIA GeForce GTX 960M - 2048 MB VRAM, Core: 1097 MHz, RAM: 1000 MHz, GDDR5, 347.26, Optimus HD Graphics 4600

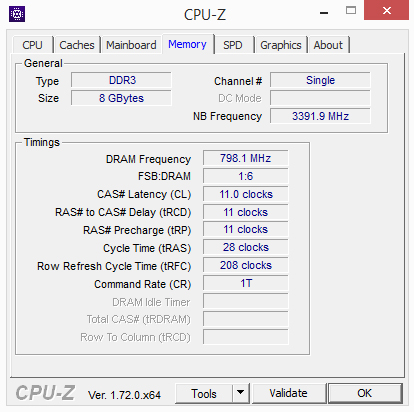

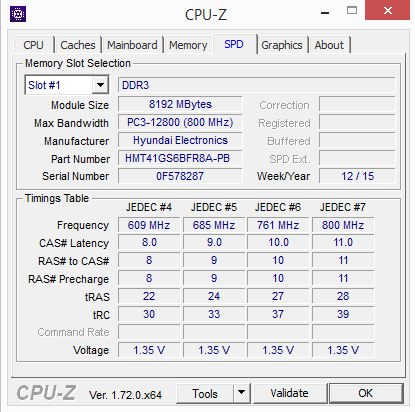

Memory

8 GB

, 单通道

Display

17.30 inch 16:9, 1920 x 1080 pixel, LP173WF4-SPF1, IPS, glossy: no

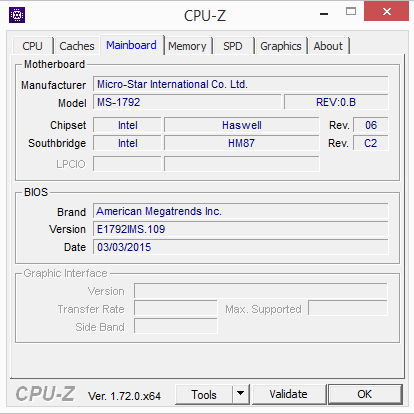

Mainboard

Intel HM87 (Lynx Point)

Storage

Toshiba HG5d THNSNH256GMCT, 256 GB

Soundcard

Intel Lynx Point PCH - High Definition Audio Controller

Connections

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: 3.5毫米耳机插槽，3.5毫米麦克风插槽, Card Reader: SD (XC/HC), Sensors: 光线传感器

Networking

Qualcomm Killer e2200 PCI-E Gigabit Ethernet Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Optical drive

HL-DT-ST DVDRAM GUB0N

Size

height x width x depth (in mm): 29 x 419 x 280

Battery

41 Wh Lithium-Ion, 6 芯

Operating System

Microsoft Windows 8.1 64 Bit

Camera

Webcam: 高清130万像素，视频拍摄最大支持30fps

Additional features

Speakers: Dynaudio 4.1, Keyboard: 孤岛式, Keyboard Light: yes, 120瓦电源适配器，说明书，质保信息, Norton Internet Security (30天试用), Microsoft Office 365 (1个月试用), Power DVD, Shortcut Manager, MSI True Color, MSI Shift, Killer Network Manager, System Control Manager, 24 Months Warranty

Weight

2.6 kg, Power Supply: 560 g

Price

1299 Euro

Links

MSI homepage
MSI notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications


245 cd/m²	242 cd/m²	244 cd/m²
245 cd/m²	305 cd/m²	243 cd/m²
288 cd/m²	294 cd/m²	283 cd/m²

Distribution of brightness

LP173WF4-SPF1 tested with X-Rite i1Pro 2

Maximum: 305 cd/m² (Nits) Average: 265.4 cd/m²
Brightness Distribution: 79 %
Center on Battery: 245 cd/m²
Contrast: 610:1 (Black: 0.5 cd/m²)
ΔE Color 4.83 | 0.5-29.43 Ø4.91
ΔE Greyscale 3.29 | 0.5-98 Ø5.2
84% sRGB (Argyll 1.6.3 3D)
56% AdobeRGB 1998 (Argyll 1.6.3 3D)
61.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
84.6% sRGB (Argyll 2.2.0 3D)
66.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.39

Download ICC File (X-Rite i1Pro 2)

	MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD
Display		4%	15%	4%	6%
Display P3 Coverage	66.6	70.1 5%	76.8 15%	69.2 4%	71.8 8%
sRGB Coverage	84.6	87.5 3%	97.6 15%	87.8 4%	88.7 5%
AdobeRGB 1998 Coverage	61.9	63.9 3%	71.4 15%	64.4 4%	64.8 5%
Screen		-7%	-0%	15%	-1%
Brightness middle	305	347 14%	337 10%	329.5 8%	336 10%
Brightness	265	326 23%	312 18%	325 23%	309 17%
Brightness Distribution	79	90 14%	86 9%	91 15%	84 6%
Black Level *	0.5	0.409 18%	0.61 -22%	0.381 24%	0.41 18%
Contrast	610	848 39%	552 -10%	865 42%	820 34%
Colorchecker dE 2000 *	4.83	6.81 -41%	5.84 -21%	4.45 8%	7.21 -49%
Greyscale dE 2000 *	3.29	7.27 -121%	3.86 -17%	3.45 -5%	4.96 -51%
Gamma	2.39 ^92%	2.4 ^92%	2.59 ^85%	2.03 ^108%	2.98 ^74%
CCT	7080 ^92%	7546 ^86%	6859 ^95%	6623 ^98%	6572 ^99%
Color Space (Percent of AdobeRGB 1998)	56	57 2%	64 14%	57.81 3%	58 4%
Color Space (Percent of sRGB)	84		97 15%
Total Average (Program / Settings)		-2% / -4%	8% / 3%	10% / 12%	3% / 1%

* ... smaller is better

Cinebench R11.5 | Cinebench R15

Cinebench R11.5
CPU Single 64Bit (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	1.48 Points
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	1.13 Points -24%
Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	1.57 Points +6%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	1.45 Points -2%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	1.52 Points +3%
CPU Multi 64Bit (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	3.65 Points
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	7.03 Points +93%
Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	6.9 Points +89%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	5.44 Points +49%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	6.98 Points +91%

Cinebench R15
CPU Single 64Bit (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	127 Points
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	133 Points +5%
Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	139 Points +9%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	132 Points +4%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	134 Points +6%
CPU Multi 64Bit (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	330 Points
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	643 Points +95%
Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	633 Points +92%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	508 Points +54%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	643 Points +95%

Cinebench R10 Shading 64Bit

6521 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

13912 Points

Cinebench R10 Rendering Single CPUs 64Bit

6682 Points

Cinebench R10 Shading 32Bit

6741

Cinebench R10 Rendering Multiple CPUs 32Bit

11036

Cinebench R10 Rendering Single 32Bit

5019

Cinebench R11.5 OpenGL 64Bit

54 fps

Cinebench R11.5 CPU Multi 64Bit

3.65 Points

Cinebench R11.5 CPU Single 64Bit

1.48 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

81.5 fps

Cinebench R15 CPU Multi 64Bit

330 Points

Cinebench R15 CPU Single 64Bit

127 Points

Help

... in comparison

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	3126 Points
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	5669 Points +81%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	3496 Points +12%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	5322 Points +70%

PCMark 8
Home Score Accelerated v2 (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	3194 Points
Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	3241 Points +1%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	3096 Points -3%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	3401 Points +6%
Work Score Accelerated v2 (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	4407 Points
Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	3521 Points -20%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	4076 Points -8%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	4317 Points -2%

PCMark 7 Score		3126 points
PCMark 8 Home Score Accelerated v2		3194 points
PCMark 8 Work Score Accelerated v2		4407 points
Help

... in comparison

HD Tune

Toshiba HG5d THNSNH256GMCT

Transfer Rate Minimum: 40.9 MB/s

Transfer Rate Maximum: 150.6 MB/s

Transfer Rate Average: 109.7 MB/s

Access Time: 16.4 ms

Burst Rate: 234.5 MB/s

CPU Usage: 2.6 %

3DMark 11 - 1280x720 Performance (sort by value)
MSI PE70-2QEi581	4880 Points
Acer Aspire V Nitro 7-791G-70TW	5410 Points +11%
Asus N751JX-T4056H	4575 Points -6%
Lenovo Y70 DU004HUS	5081 Points +4%
Asus GL771JM	5078 Points +4%

3DMark - 1920x1080 Fire Strike Score (sort by value)
MSI PE70-2QEi581	3661 Points
Acer Aspire V Nitro 7-791G-70TW	3974 Points +9%
Asus N751JX-T4056H	2863 Points -22%
Lenovo Y70 DU004HUS	3518 Points -4%
Asus GL771JM	3634 Points -1%

Legend

MSI PE70-2QEi581 Intel Core i5-4210H, NVIDIA GeForce GTX 960M, Toshiba HG5d THNSNH256GMCT

Acer Aspire V Nitro 7-791G-70TW Intel Core i7-4720HQ, NVIDIA GeForce GTX 960M, Kingston RBU-SNS8100S3256GD

Asus N751JX-T4056H Intel Core i7-4720HQ, NVIDIA GeForce GTX 950M, Toshiba MQ01ABD100

Lenovo Y70 DU004HUS Intel Core i7-4710HQ, NVIDIA GeForce GTX 860M, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache

Asus GL771JM Intel Core i7-4710HQ, NVIDIA GeForce GTX 860M, Kingston RBU-SC100S37128GD

3DMark 06 Standard Score		20363 points
3DMark 11 Performance		4880 points
3DMark Ice Storm Standard Score		47288 points
3DMark Cloud Gate Standard Score		10548 points
3DMark Fire Strike Score		3661 points
Help

... in comparison

Tomb Raider | BioShock Infinite

Tomb Raider
1366x768 High Preset AA:FX AF:8x (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	104.5 fps
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	111.4 fps +7%
Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	70 fps -33%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	97 fps -7%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	97 fps -7%
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	48.4 fps
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	49.1 fps +1%
Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	33.1 fps -32%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	44 fps -9%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	44.4 fps -8%

BioShock Infinite
1366x768 High Preset (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	96.4 fps
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	115.7 fps +20%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	102 fps +6%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	109.7 fps +14%
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	37.7 fps
Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	44.8 fps +19%
Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	41 fps +9%
Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD	42.14 fps +12%

	low	med.	high	ultra
Tomb Raider (2013)	178.4	158	104.5	48.4
BioShock Infinite (2013)	115.8	109.1	96.4	37.7
Dirt Rally (2015)	98.7	69.3	40.5	29.3

	MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD
Noise		-1%	3%	8%	7%
Idle Minimum *	33	29.6 10%	33.2 -1%	29.1 12%	29.8 10%
Idle Average *	34	32.1 6%	33.3 2%	30.8 9%	32.4 5%
Idle Maximum *	36.2	35.4 2%	33.6 7%	31.2 14%	33.2 8%
Load Average *	39.1	47.3 -21%	40.4 -3%	39.1 -0%	39.6 -1%
Load Maximum *	48.1	48.1 -0%	42.4 12%	46.5 3%	41.6 14%

* ... smaller is better

Noise Level

Idle		33 / 34 / 36.2 dB(A)
HDD		33.3 dB(A)
DVD		37.4 / dB(A)
Load		39.1 / 48.1 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft sl-320 (15 cm distance)

Max. Load

Idle


41.4 °C	45 °C	40.8 °C
41.3 °C	46 °C	35 °C
32 °C	36 °C	29 °C

Maximum: 46 °C
Average: 38.5 °C


42.3 °C	35.7 °C	37.5 °C
25.4 °C	27.8 °C	35 °C
25.8 °C	26.3 °C	34.8 °C

Maximum: 42.3 °C
Average: 32.3 °C

Power Supply (max.) 47.1 °C | Room Temperature 23.9 °C | Voltcraft IR-360

(-) The average temperature for the upper side under maximal load is 38.5 °C / 101 F, compared to the average of 31.3 °C / 88 F for the devices in the class Multimedia.
(-) The maximum temperature on the upper side is 46 °C / 115 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 42.3 °C / 108 F, compared to the average of 39.2 °C / 103 F
(±) In idle usage, the average temperature for the upper side is 32.4 °C / 90 F, compared to the device average of 31.3 °C / 88 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 36 °C / 96.8 F.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-7.2 °C / -13 F).

	MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	Asus N751JX-T4056H GeForce GTX 950M, 4720HQ, Toshiba MQ01ABD100	Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD
Power Consumption		34%	31%	27%
Idle Minimum *	19.1	5.8 70%	9.1 52%	7.2 62%
Idle Average *	24.3	13.1 46%	13.8 43%	14.2 42%
Idle Maximum *	29.2	14.5 50%	17.8 39%	23.5 20%
Load Average *	88.6	98 -11%	89.7 -1%	85.6 3%
Load Maximum *	122	104.9 14%	92.3 24%	111.4 9%

* ... smaller is better

Power Consumption

Off / Standby	0.4 / 0.6 Watt
Idle	19.1 / 24.3 / 29.2 Watt
Load	88.6 / 122 Watt


Key: min: , med: , max: Voltcraft VC 940

	MSI PE70-2QEi581 GeForce GTX 960M, 4210H, Toshiba HG5d THNSNH256GMCT	Acer Aspire V Nitro 7-791G-70TW GeForce GTX 960M, 4720HQ, Kingston RBU-SNS8100S3256GD	Asus N751JK-T4144H GeForce GTX 850M, 4710HQ, SanDisk X300s SD7SB3Q-128G	Lenovo Y70 DU004HUS GeForce GTX 860M, 4710HQ, Western Digital WD10S21X SSHD 1TB + 8GB SSD-Cache	Asus GL771JM GeForce GTX 860M, 4710HQ, Kingston RBU-SC100S37128GD
Battery Runtime		29%	-14%	39%	39%
Reader / Idle	345		356 3%	438 27%	574 66%
WiFi v1.3	158	204 29%			251 59%
Load	61		42 -31%	92 51%	56 -8%
WiFi			298	218

Battery Runtime

Idle (without WLAN, min brightness)		5h 45min
WiFi Websurfing		2h 38min
Big Buck Bunny H.264 1080p		2h 19min
Load (maximum brightness)		1h 01min

Pros

+ 高贵设计

+ 优质全高清屏幕

+ 高品质键盘，搭配数字键盘区

+ 无降频问题的强劲性能表现

+ 优秀的配套软件

+ 高质量扬声器

+ 独立的耳机放大器

+ 空余M.2插槽

Cons

- 机身底座的稳定性

- 触控板按键较吵

- 性价比

- 电池续航时间短

- 无固态硬盘

- 较差的摄像头

In review: MSI PE70. Test model courtesy of Cyberport.

微星为他们全新的Prestige系列采取了非常主动的营销方式，同时也搭配了很多的功能，不过并没有在测试中完全说服我们。它的铝合金机身给人非常高贵的第一印象，不过机身底座和键盘的稳定性很难与之相配。我们十分喜欢键盘带来的输入体验，不过触控板的按键很难达到Prestige所宣称的水平。它的小容量电池带来的较短续航时间则影响了设备的便携性。

当然PE70也有很多优势。磨砂的全高清IPS屏幕提供了不错的显示效果，不过微星为尺寸更小的PE60搭配了更加优秀的屏幕面板。它的硬件性能可以得到完全释放，同时扬声器与Nahimic软件相结合提供了很好的音响效果。

微星PE70是一款不错的多媒体笔记本电脑，不过它没能达到所宣称的高品质。

之后的问题就是价位了。PE70的入门机型建议零售价为1299欧元（约8736人民币），不过你只能得到一颗双核处理器和传统硬盘。同价位的竞争对手则通常搭配了四核处理器和固态硬盘，如果你需要它可以更好的运行未来的软件的话，四核处理器会十分重要。我们建议在选购之前也参考一下同类产品，因为PE70的性价比并不出众。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

MSI PE70-2QEi581 - 03/10/2016 v5 ^(old)
Andreas Osthoff

Chassis

78 / 98 → 79%

Keyboard

83%

Pointing Device

72%

Connectivity

55 / 81 → 67%

Weight

59 / 20-67 → 83%
