惠普 Pavilion x2 10-n013dx 变形本简短评测

物美价廉…… Pavilion x2 10-n013dx是惠普多产的变形本产品线中的一款新设备,搭配了常见的可分离式设计和性能一般的Intel芯片组以满足日常使用需要。结合它的多模式设计和不错的部件品质,它可能会是高性价比产品中的一颗新星。
Bay Trail Convertible / 2-in-1 Laptop / Notebook Tablet Touchscreen Windows
HP Pavilion x2 10-n013dx (Pavilion x2 Series)
Processor
Intel Atom Z3736F 4 x 1.3 - 2.2 GHz, Bay Trail-T
Graphics adapter
Intel HD Graphics (Bay Trail), Core: 646 MHz, 10.18.10.4252
Memory
2048 MB
, DDR3 1333 MHz
Display
10.10 inch 16:10, 1280 x 800 pixel, 是, HP Display MS_9001, IPS, glossy: yes
Mainboard
Bay Trail Host Bridge
Storage
Hynix HBG4e (32 GB eMMC)
Soundcard
Intel SST Audio Device

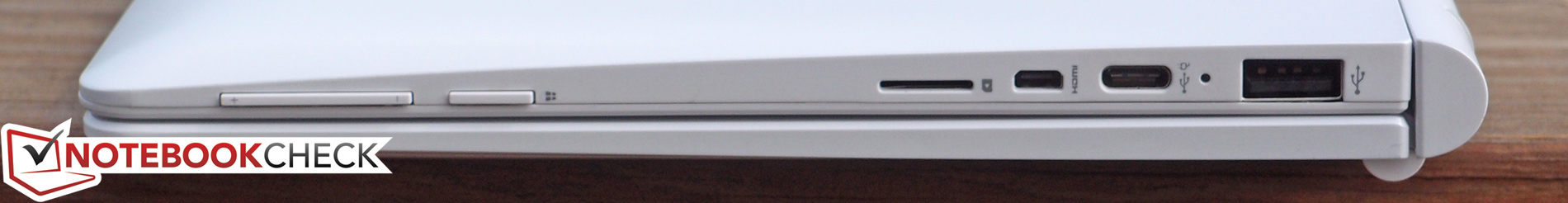

Connections
2 USB 2.0, 1 HDMI, Audio Connections: 3.5毫米整合耳机插口, Card Reader: microSD, Sensors: 加速传感器; 陀螺仪; 环境光传感器; 电子指南针; 霍尔效应传感器; 温度传感器
Networking
Realtek RTL8723BS (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Battery
33 Wh Lithium-Polymer, 2芯
Operating System
Microsoft Windows 10 Home 32 Bit
Camera
Webcam: HP TrueVision HD
Additional features
Speakers: 2.0, 前置, Keyboard: 孤岛式, Keyboard Light: no, 12 Months Warranty
Weight
1.16 kg, Power Supply: 128 g
Price
300 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



271.4
cd/m²
291.6
cd/m²
269.8
cd/m²
292.1
cd/m²
316.1
cd/m²
288.2
cd/m²
298.3
cd/m²
312.6
cd/m²
301.8
cd/m²
Distribution of brightness
HP Display MS_9001 tested with X-Rite i1Basic Pro 2
Maximum: 316.1 cd/m² (Nits) Average: 293.5 cd/m²
Brightness Distribution: 85 %
Center on Battery: 316.1 cd/m²
Contrast: 967:1 (Black: 0.327 cd/m²)
ΔE Color 6.18 | 0.5-29.43 Ø4.91
ΔE Greyscale 5.51 | 0.5-98 Ø5.2
64% sRGB (Argyll 1.6.3 3D)
40% AdobeRGB 1998 (Argyll 1.6.3 3D)
44.13% AdobeRGB 1998 (Argyll 2.2.0 3D)
64.1% sRGB (Argyll 2.2.0 3D)
42.71% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.01
HP Pavilion x2 10-n013dx
HD Graphics (Bay Trail), Z3736F
Asus Transformer Book T300 Chi
HD Graphics 5300, 5Y71, SanDisk SSD i110 128GB
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Dell Venue 10 Pro 5055
HD Graphics (Bay Trail), Z3735F, Hynix HCG8E 64 GB
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
Display
68%
46%
58%
Display P3 Coverage
42.71
77.4
81%
63.6
49%
68.8
61%
sRGB Coverage
64.1
97.5
52%
88.8
39%
98.7
54%
AdobeRGB 1998 Coverage
44.13
75.8
72%
65.6
49%
70.4
60%
Screen
18%
12%
26%
3%
25%
Brightness middle
316.1
368.1
16%
355.3
12%
399
26%
436
38%
423
34%
Brightness
294
375
28%
338
15%
380
29%
418
42%
427
45%
Brightness Distribution
85
92
8%
91
7%
90
6%
92
8%
92
8%
Black Level *
0.327
0.458
-40%
0.33
-1%
0.49
-50%
0.58
-77%
0.61
-87%
Contrast
967
804
-17%
1077
11%
814
-16%
752
-22%
693
-28%
Colorchecker dE 2000 *
6.18
4.36
29%
4.72
24%
1.66
73%
5.17
16%
2.86
54%
Greyscale dE 2000 *
5.51
2.63
52%
6.53
-19%
2.75
50%
4.68
15%
2.37
57%
Gamma
2.01 109%
2.08 106%
2.17 101%
2.22 99%
2.31 95%
2.43 91%
CCT
6510 100%
6743 96%
6707 97%
6358 102%
6652 98%
6941 94%
Color Space (Percent of AdobeRGB 1998)
40
66.94
67%
59.37
48%
64.4
61%
88
120%
Color Space (Percent of sRGB)
64
98.8
54%
Colorchecker dE 2000 max. *
3.24
Total Average (Program / Settings)
43% / 32%
29% / 21%
42% / 34%
3% / 3%
25% / 25%

* ... smaller is better

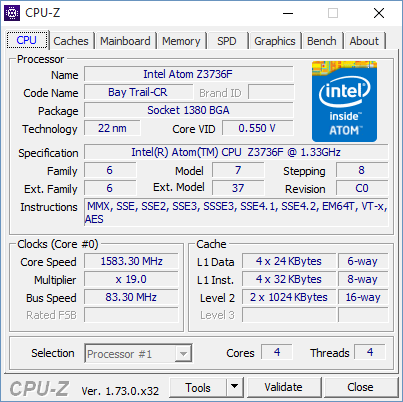

CPU-Z CPU
CPU-Z CPU

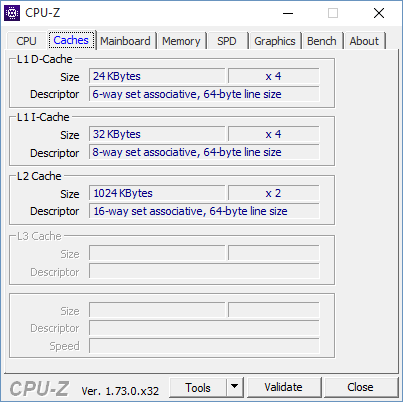

CPU-Z Caches
CPU-Z Caches

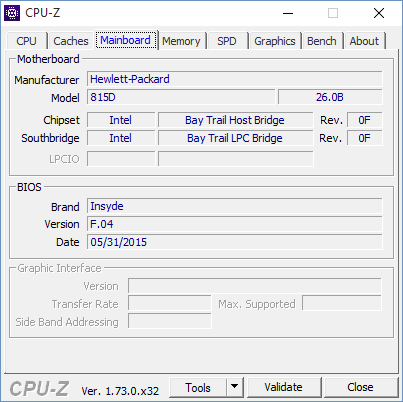

CPU-Z Mainboard
CPU-Z Mainboard

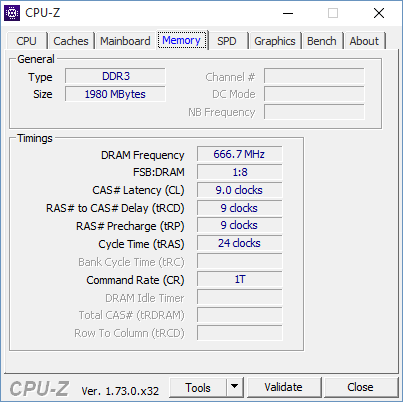

CPU-Z Memory
CPU-Z Memory

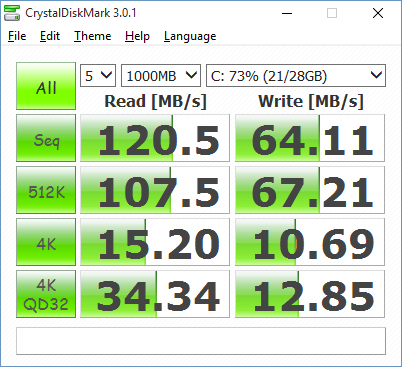

CrystalDiskMark 3.0
CrystalDiskMark 3.0

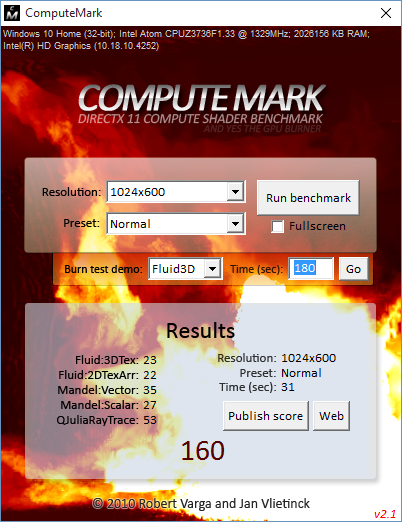

ComputeMark
ComputeMark

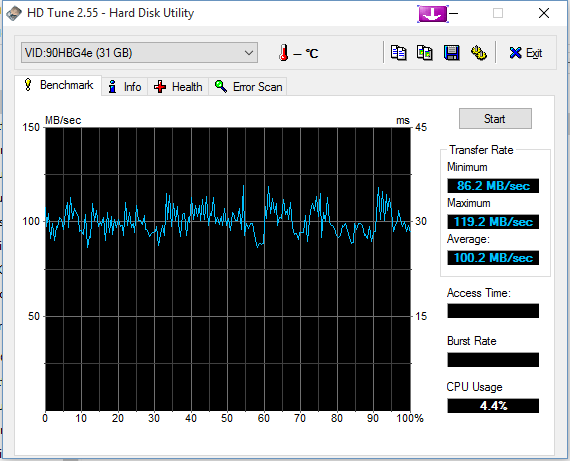

HD Tune
HD Tune

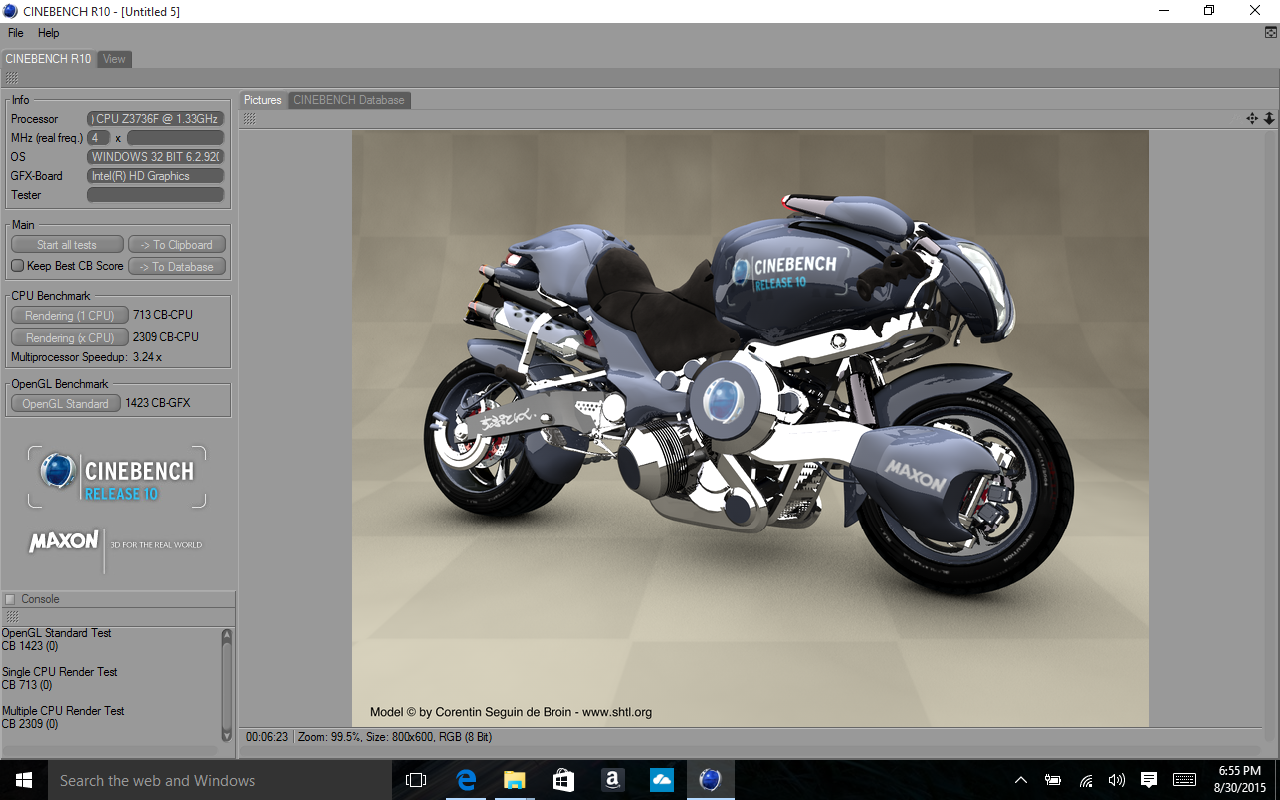

Cinebench R10 32-bit
Cinebench R10 32-bit
Cinebench R10 Rendering Single 32Bit
713
Cinebench R10 Rendering Multiple CPUs 32Bit
2309
Cinebench R10 Shading 32Bit
1423
Help
PCMark 7 Score
2348 points
Help
Transfer Rate Minimum: 86.2 MB/s
Transfer Rate Maximum: 119.2 MB/s
Transfer Rate Average: 100.2 MB/s
Access Time:
Burst Rate:
CPU Usage: 4.4 %
3DMark 11 Performance
210 points
Help
Max. Load
 30 °C34.2 °C41.4 °C
 30.4 °C33.8 °C44.2 °C
 33.6 °C36.8 °C44.6 °C
Maximum: 44.6 °C
Average: 36.6 °C
40.6 °C34.6 °C30.4 °C
45.4 °C31.2 °C29.8 °C
42 °C33.4 °C30.6 °C
Maximum: 45.4 °C
Average: 35.3 °C
Power Supply (max.)  38.2 °C | Room Temperature 23.5 °C | Raytek Raynger ST
(±) The average temperature for the upper side under maximal load is 36.6 °C / 98 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 44.6 °C / 112 F, compared to the average of 35.4 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(-) The bottom heats up to a maximum of 45.4 °C / 114 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 31.8 °C / 89 F, compared to the device average of 30.3 °C / 87 F.
(-) The palmrests and touchpad can get very hot to the touch with a maximum of 44.6 °C / 112.3 F.
(-) The average temperature of the palmrest area of similar devices was 28 °C / 82.4 F (-16.6 °C / -29.9 F).
Battery Runtime
Idle (without WLAN, min brightness)
8h 29min
WiFi Websurfing
7h 40min
Load (maximum brightness)
3h 39min

Pros

+ 运行完整Windows的实惠型设备
+ 巧妙的多模式变形设计,可完全分离的平板电脑
+ IPS触控屏幕提供了优秀的对比度和亮度
+ 键盘比预想的更好
+ 性能可以达到同类设备水平

Cons

- 机身材质和工艺并不出众
- 有限的存储空间,特别对于Windows系统设备来说
- 有限的接口配备
- 性能难以应付复杂程序的需要
- 触控板的集成按键不便于使用
- 对于它的用途,一些用户可能会更喜欢Chromebook的简单和便捷

在一个有着大量低价Chromebook和低端平板电脑的市场中,Windows变形本设备终于开始占领了一些市场空间。惠普Pavilion x2 10-n013dx所带给我们的实体设备相比它的售价(建议零售价约1909人民币 )可以说货真价实。首先,可能也是最重要的是,它做到了你可能期待一台同价位Chromebook所能做到的一切,这要归功于Windows 10在复合设备领域所作出的改进。

不过Windows 10升级只是等式中的一部分。Pavilion x2 10同时提供了十分吸引人的IPS LED触控屏幕,尽管分辨率较低但提供了优秀的亮度和对比度,和它相搭配的是提供了清晰音效的实用扬声器。它的键盘相比同价位设备品质更高(尽管尺寸较小)。它的性能与所采用的Intel芯片组和eMMC闪存相匹配,不过电池续航依旧保持在了出色的水平上。它同时提供了对高速802.11ac无线网络的支持,而变形设计可以满足各种情境的需求,可分离式的键盘也让它可以作为纯正的平板电脑使用。而经常被忽视的一点是,它相比竞争对手的一大区别是可以运行完整的Windows系统。

需要非常简单的多模式设备,而对Windows操作系统的全面功能无所谓的用户,也同样可以把它列入参考名单,假如可以接受它的一些缺点的话。

当然,它也有一些缺点。x2的塑料机身品质可以用脆弱来形容,相比很多最新的Chromebook都不算优秀。它的接口数量十分有限,除了常见的micro-HDMI和耳机接口外只提供了一个USB 2.0接口。而有限的存储空间让安装大型软件变得很难甚至完全不可能,这也会随着时间推移变的更加严重,一个额外的microSD卡槽可以稍微缓解这个窘境。

同时,尽管它的配置可以满足基本用途的需要,但超过这个层次的硬件需求的程序将会告诉用户,尽管搭载了完整的Windows操作系统,但并不是所有事情它都能够做到。Chrome OS相比之下的优势在于简洁所带来的灵活性,而尽管Windows 10在这方面有所改进,但依然对低价便携本来说有些力不从心,这可以在屏幕旋转速度和开机/系统恢复的速度看出来。

不论如何,Pavilion x2 10-n013dx帮助扩展了由Chromebook和安卓平板所占据的入门级设备市场。需要简单而全能(搭载Windows操作系统)的多模式设备的用户如果能接受我们所提到的一些缺点的话,值得考虑一下这款产品。

 注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

HP Pavilion x2 10-n013dx - 09/16/2015 v4 (old)
Steve Schardein

Chassis
63 / 98 → 64%
Keyboard
73%
Pointing Device
69%
Connectivity
47 / 80 → 59%
Weight
73 / 35-78 → 88%
Battery
90%
Display
80%
Games Performance
21 / 68 → 31%
Application Performance
50 / 87 → 57%
Temperature
82%
Noise
100%
Audio
50 / 91 → 55%
Camera
68 / 85 → 80%
Average
67%
75%
Convertible - Weighted Average
