东芝 Portégé Z10t-A2111 变形本简短评测

商务变形本。 起售价约1500美元的东芝Z10t在平板的机身内配备了高端硬件,直接与微软Surface系列竞争。这款更新机型主要更换了最新的内部组件,我们将会重新在最新的市场环境下分析它的性能水平。
Windows Touchscreen Tablet Haswell Convertible / 2-in-1
348.8
cd/m²
354.9
cd/m²
303.1
cd/m²
347.1
cd/m²
331.1
cd/m²
269.2
cd/m²
332.6
cd/m²
298.6
cd/m²
247.6
cd/m²
Distribution of brightness
Toshiba TOS508F tested with X-Rite i1Basic Pro 2
Maximum: 354.9 cd/m² (Nits) Average: 314.8 cd/m²
Brightness Distribution: 70 %
Center on Battery: 274.9 cd/m²
Contrast: 648:1 (Black: 0.511 cd/m²)
ΔE Color 14.29 | 0.5-29.43 Ø4.92
ΔE Greyscale 3.03 | 0.5-98 Ø5.2
44% AdobeRGB 1998 (Argyll 1.6.3 3D)
48% AdobeRGB 1998 (Argyll 2.2.0 3D)
65.2% sRGB (Argyll 2.2.0 3D)
46.17% Display P3 (Argyll 2.2.0 3D)
Gamma: 1.96
Cinebench R10 Shading 64Bit
5822 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
8659 Points
Cinebench R10 Rendering Single CPUs 64Bit
4968 Points
Cinebench R10 Shading 32Bit
6367
Cinebench R10 Rendering Multiple CPUs 32Bit
6762
Cinebench R10 Rendering Single 32Bit
4140
Cinebench R11.5 OpenGL 64Bit
19.67 fps
Cinebench R11.5 CPU Multi 64Bit
2.15 Points
Cinebench R11.5 CPU Single 64Bit
1.24 Points
Cinebench R15 Ref. Match 64Bit
63.3 %
Cinebench R15 CPU Multi 64Bit
192 Points
Cinebench R15 CPU Single 64Bit
107 Points
Help
Cinebench R15
CPU Multi 64Bit (sort by value)
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
192 Points
HP ElitePad 1000 G2
HD Graphics (Bay Trail), Z3795, 128 GB eMMC Flash
134 Points
Asus Transformer Book Trio TX201LA
HD Graphics 4400, 4500U, Hitachi Travelstar Z5K500 HTS545050A7E680
258 Points
CPU Single 64Bit (sort by value)
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
107 Points
HP ElitePad 1000 G2
HD Graphics (Bay Trail), Z3795, 128 GB eMMC Flash
36 Points
Asus Transformer Book Trio TX201LA
HD Graphics 4400, 4500U, Hitachi Travelstar Z5K500 HTS545050A7E680
114 Points
Cinebench R11.5
CPU Multi 64Bit (sort by value)
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
2.15 Points
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
2.77 Points
Microsoft Surface Pro 2
HD Graphics 4400, 4200U, Hynix HFS128G3MNM
2.51 Points
HP ElitePad 1000 G2
HD Graphics (Bay Trail), Z3795, 128 GB eMMC Flash
1.64 Points
Asus Transformer Book Trio TX201LA
HD Graphics 4400, 4500U, Hitachi Travelstar Z5K500 HTS545050A7E680
2.71 Points
CPU Single 64Bit (sort by value)
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
1.24 Points
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
1.12 Points
Microsoft Surface Pro 2
HD Graphics 4400, 4200U, Hynix HFS128G3MNM
1.14 Points
HP ElitePad 1000 G2
HD Graphics (Bay Trail), Z3795, 128 GB eMMC Flash
0.44 Points
Asus Transformer Book Trio TX201LA
HD Graphics 4400, 4500U, Hitachi Travelstar Z5K500 HTS545050A7E680
1.3 Points
wPrime 2.10 - 1024m (sort by value)
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
752 s *
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
746 s *
Microsoft Surface Pro 2
HD Graphics 4400, 4200U, Hynix HFS128G3MNM
661 s *
Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Toshiba Portege Z10t-A2111
HD Graphics 4200, 4610Y, Samsung PM851 Series MZMTE256HMHP
677 s *
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
674 s *
Microsoft Surface Pro 2
HD Graphics 4400, 4200U, Hynix HFS128G3MNM
722 s *
HP ElitePad 1000 G2
HD Graphics (Bay Trail), Z3795, 128 GB eMMC Flash
1737 s *
Asus Transformer Book Trio TX201LA
HD Graphics 4400, 4500U, Hitachi Travelstar Z5K500 HTS545050A7E680
653 s *

* ... smaller is better

5.2
Windows 8 Experience Index
Processor
Calculations per second
7.2
Memory (RAM)
Memory operations per second
7.6
Graphics
Desktop performance for Windows Aero
5.8
Gaming graphics
3D business and gaming graphics
5.2
Primary hard disk
Disk data transfer rate
8.1
PCMark 7 Score
4973 points
PCMark 8 Home Score Accelerated v2
2282 points
PCMark 8 Creative Score Accelerated v2
2400 points
PCMark 8 Work Score Accelerated v2
3441 points
Help
Samsung PM851 Series MZMTE256HMHP
Transfer Rate Minimum: 54.6 MB/s
Transfer Rate Maximum: 438.5 MB/s
Transfer Rate Average: 373.9 MB/s
Access Time: 0.1 ms
Burst Rate: 131.9 MB/s
CPU Usage: 3.1 %
lowmed.highultra
Guild Wars 2 (2012) 41 10 4
StarCraft II: Heart of the Swarm (2013) 95 31 20 7
3DMark 06 Standard Score
5020 points
3DMark 11 Performance
784 points
3DMark Ice Storm Standard Score
32971 points
3DMark Cloud Gate Standard Score
3754 points
3DMark Fire Strike Score
495 points
3DMark Fire Strike Extreme Score
224 points
Help

Noise Level

Idle
29.2 / 29.3 / 29.5 dB(A)
Load
35.1 / 41.3 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   BK Precision 732A (15 cm distance)
Max. Load
 30.8 °C34.2 °C39.8 °C
 31.4 °C36.4 °C39.4 °C
 33.6 °C37.4 °C38.2 °C
Maximum: 39.8 °C
Average: 35.7 °C
39.4 °C31.6 °C30.8 °C
39 °C31.6 °C30.8 °C
34.4 °C32.2 °C31.2 °C
Maximum: 39.4 °C
Average: 33.4 °C
Power Supply (max.)  42.2 °C | Room Temperature 27 °C | Fluke 62 Mini IR Thermometer
(±) The average temperature for the upper side under maximal load is 35.7 °C / 96 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 39.8 °C / 104 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(+) The bottom heats up to a maximum of 39.4 °C / 103 F, compared to the average of 36.8 °C / 98 F
(±) In idle usage, the average temperature for the upper side is 34.6 °C / 94 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 38.6 °C / 101.5 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-10.5 °C / -18.9 F).
Battery Runtime
Idle (without WLAN, min brightness)
10h 44min
WiFi Surfing
4h 53min
Load (maximum brightness)
2h 08min
Toshiba Portege Z10t-A2111
Toshiba Portege Z10t-A2111

东芝Z10t是现在市场上性能最强大的平板电脑之一。想要找到一款配备Core i7处理器的windows 8平板并不容易,特别是配备Atom处理器的机型像是ElitePad 1000 G2有更长的续航和被动式的散热。需要性能强大的平板的用户在愿意考虑超极本或变形本的同时应该会对Portege Z10t应对较复杂的日常程序的能力感到满意

获得它的性能也需要付出风扇噪音和高售价的代价。在使用中偶尔运转的风扇并不奇怪,不过它1500美元的售价将它置于其他很多能够提供更大尺寸高分辨率屏幕而不需要牺牲重量的高端超极本之间。说到分辨率,我们希望Z10t的后续型号能够提供2K或3K分辨率屏幕的选项,这对于这个价位的设备来说已经变成了标配。

尽管我们很喜欢Z10t内部的强大硬件,不过它恐怕会在这个价位和其他商务平板之间的竞争中处于劣势,除非它的售价有所下降或者提供更高分辨率屏幕的选项。不过,它在硬件上的强大性能磨砂的屏幕,和丰富的接口配备都给东芝带来了优势,方便需要这些功能的用户选择。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

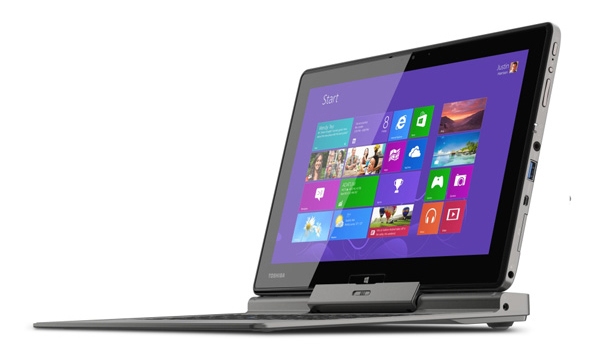

Portege Z10t 在2013机型之上有了内部组件升级
Portege Z10t 在2013机型之上有了内部组件升级

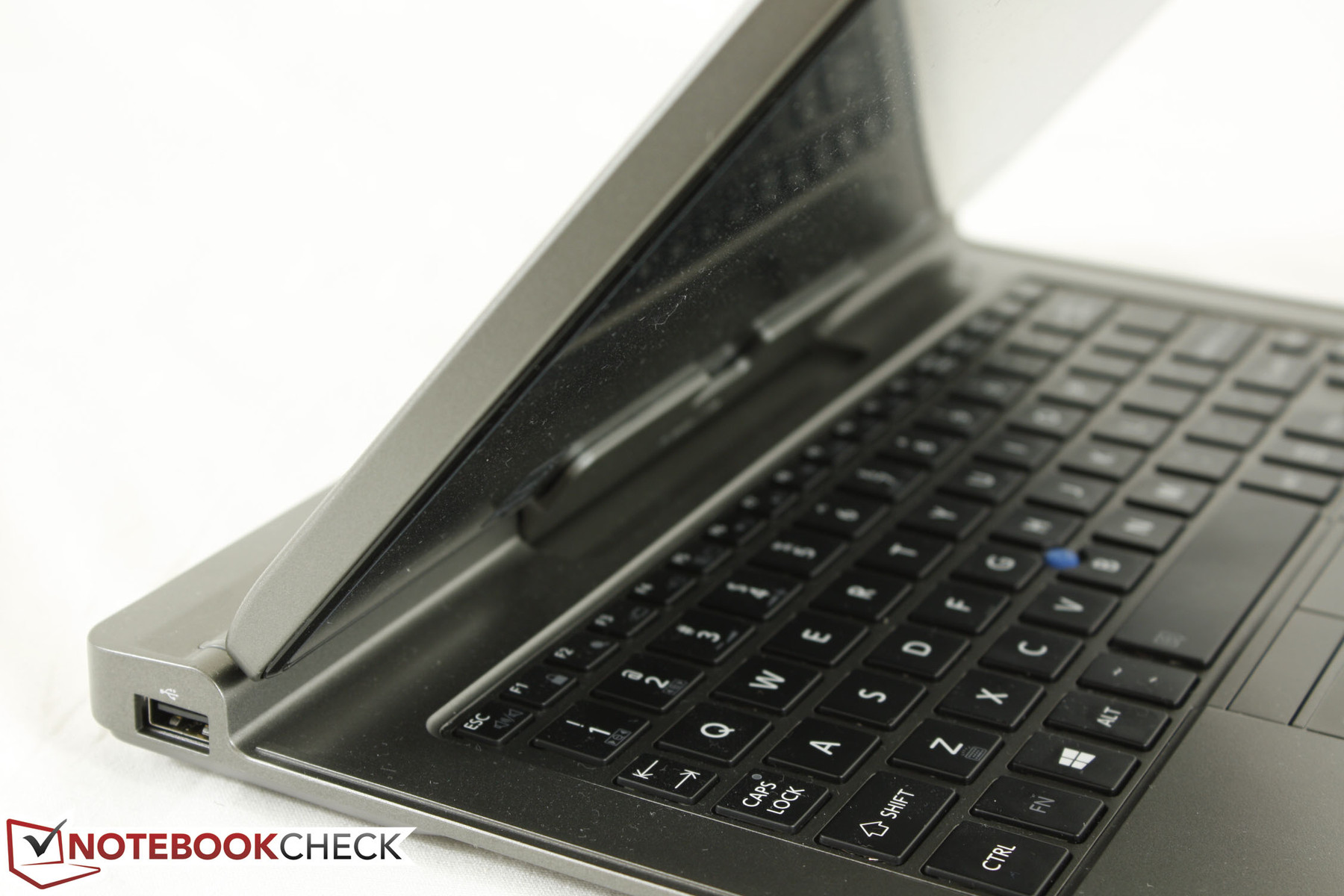

有背光和防水功能的键盘底座
有背光和防水功能的键盘底座
和大多数可分离式设备一样, 它有些头重脚轻,需要小心挪动
和大多数可分离式设备一样, 它有些头重脚轻,需要小心挪动
可分离底座提供了一个USB 2.0接口, 充电接口, 以太网口, VGA和HDMI输出接口
可分离底座提供了一个USB 2.0接口, 充电接口, 以太网口, VGA和HDMI输出接口

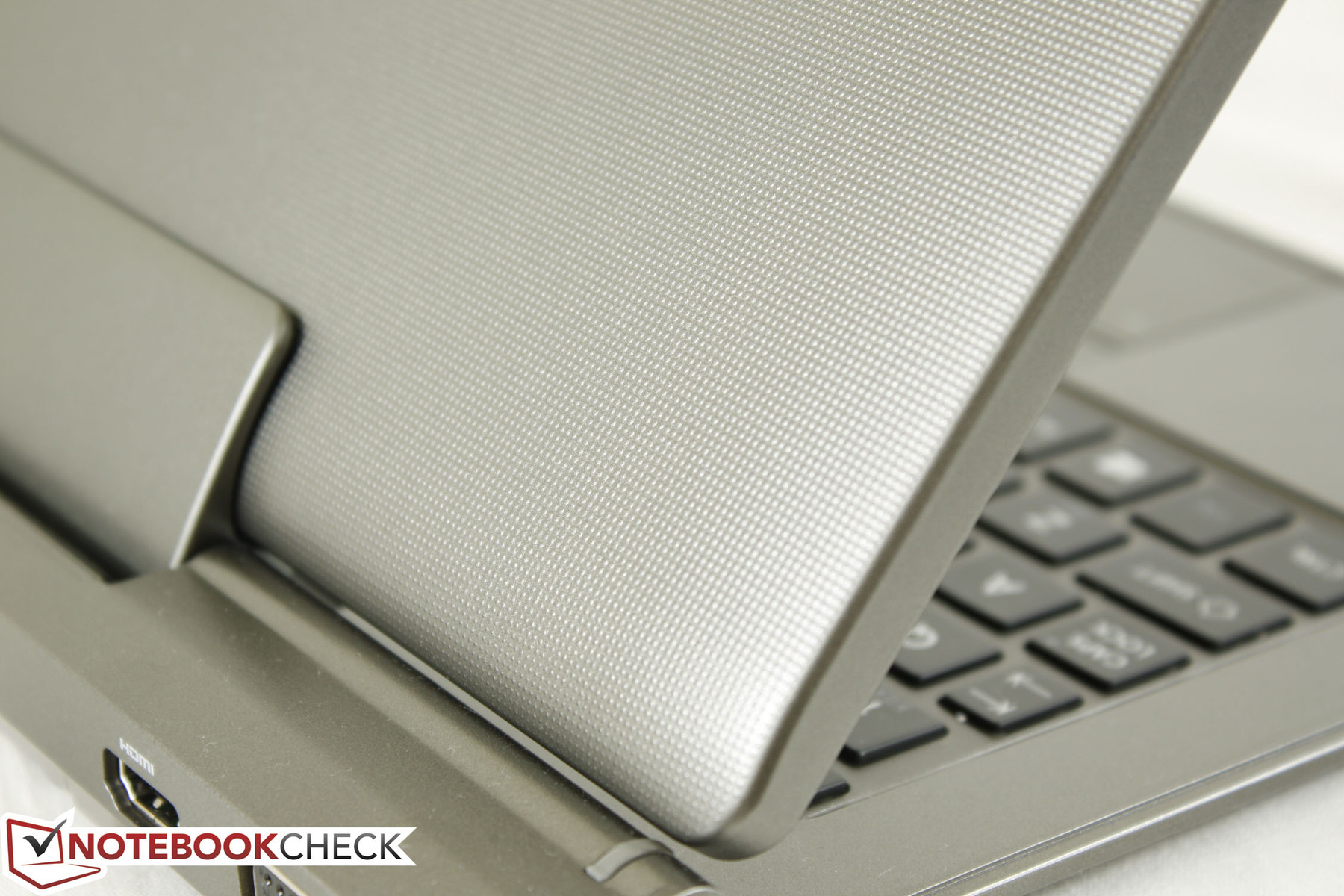

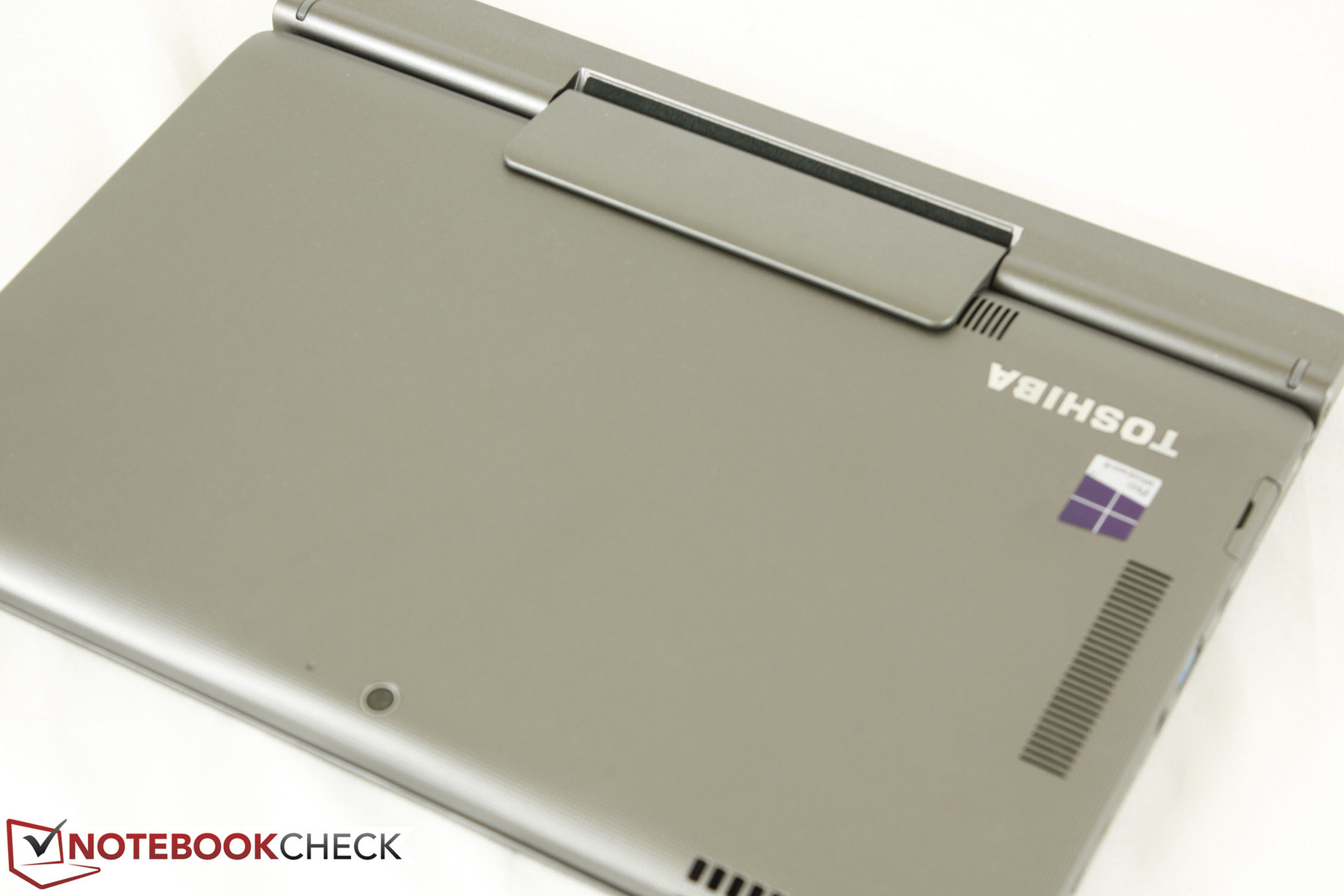

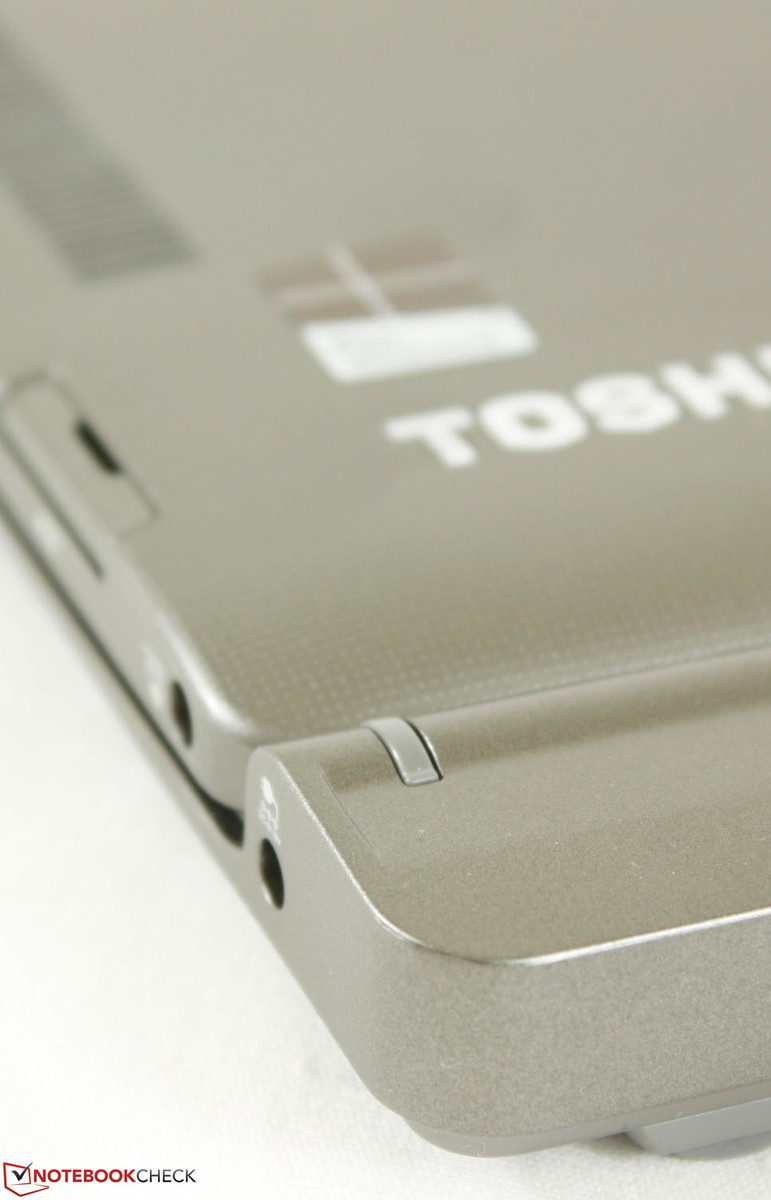

有纹理的塑料材质机背
有纹理的塑料材质机背
最新的有磨砂屏幕的平板之一
最新的有磨砂屏幕的平板之一

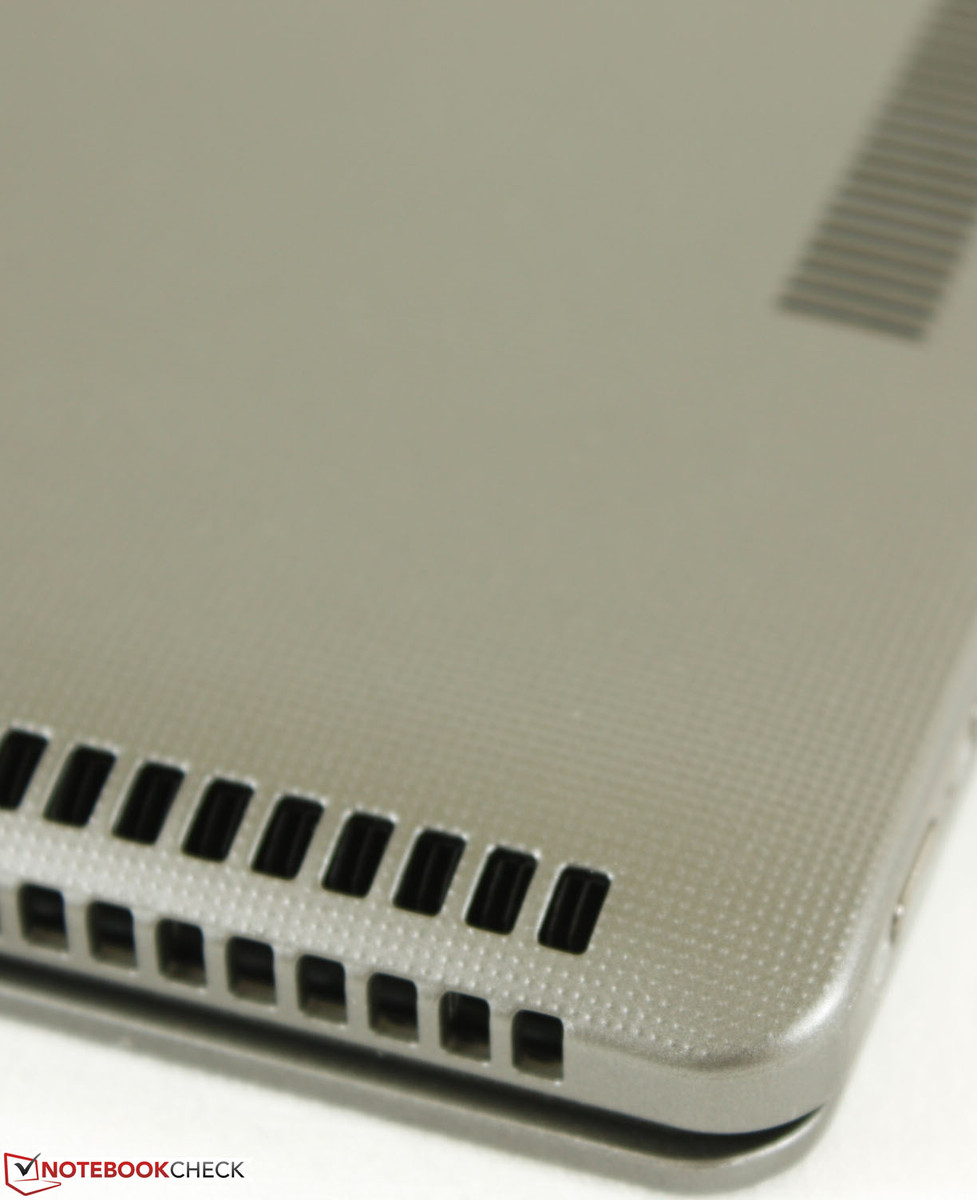

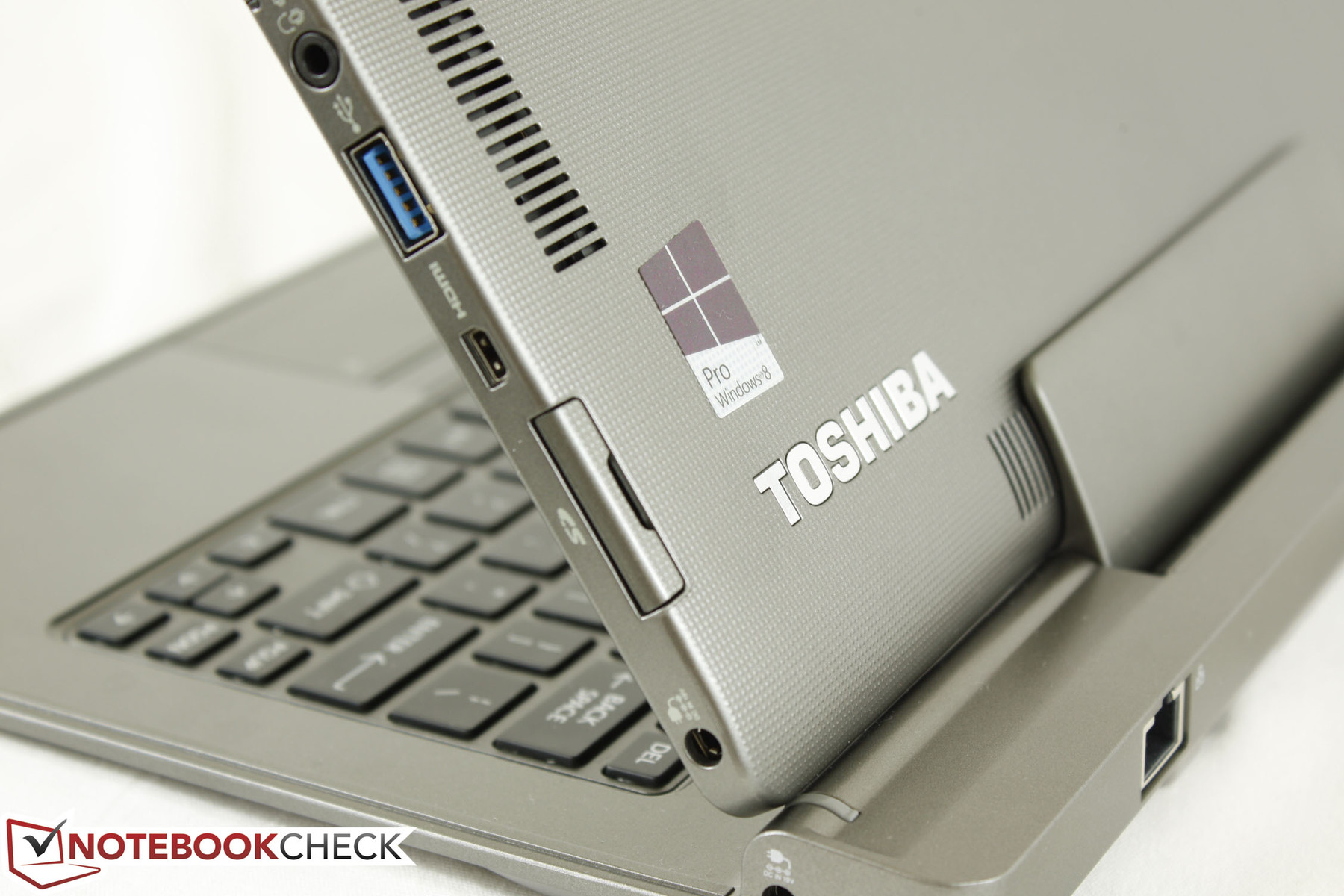

在边缘和转角处的巨大排风口,这在平板中并不常见
在边缘和转角处的巨大排风口,这在平板中并不常见

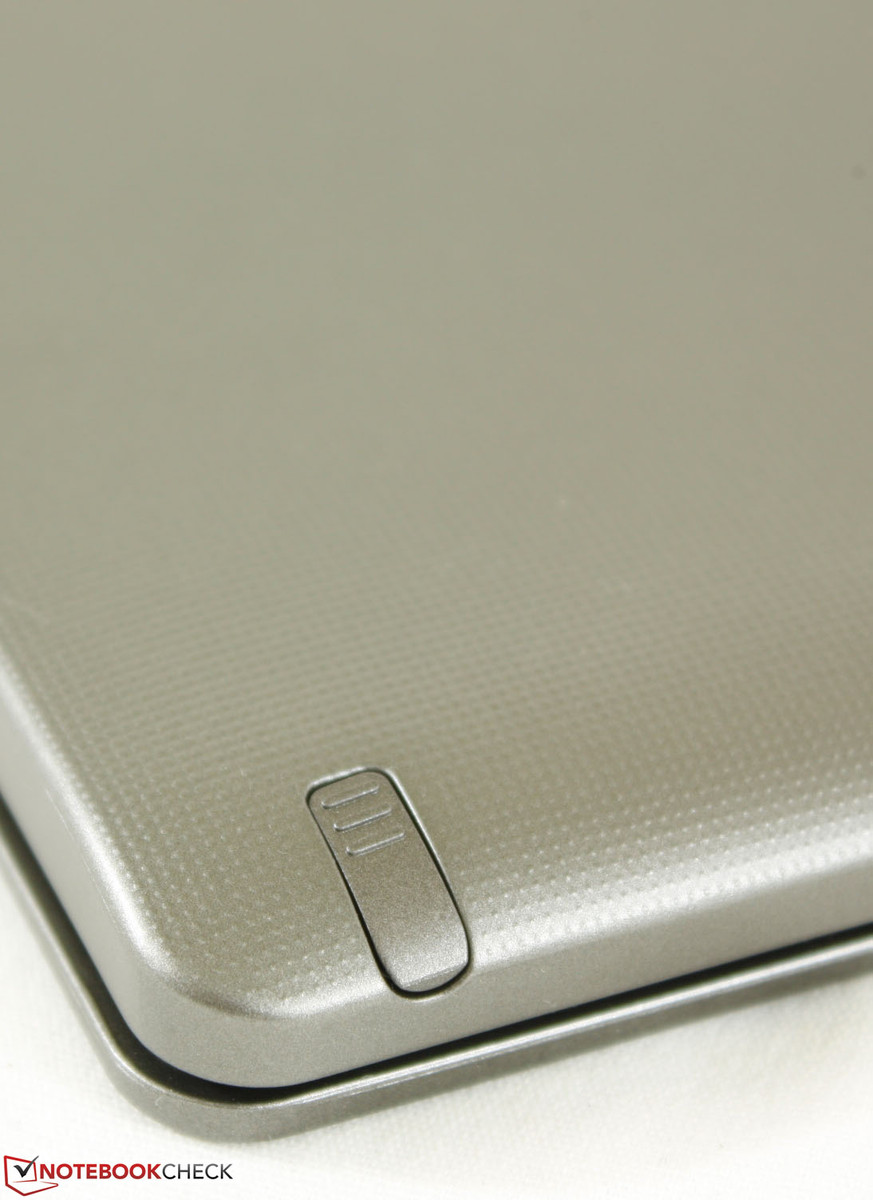

10.5 cm的手写笔位于平板背后
10.5 cm的手写笔位于平板背后

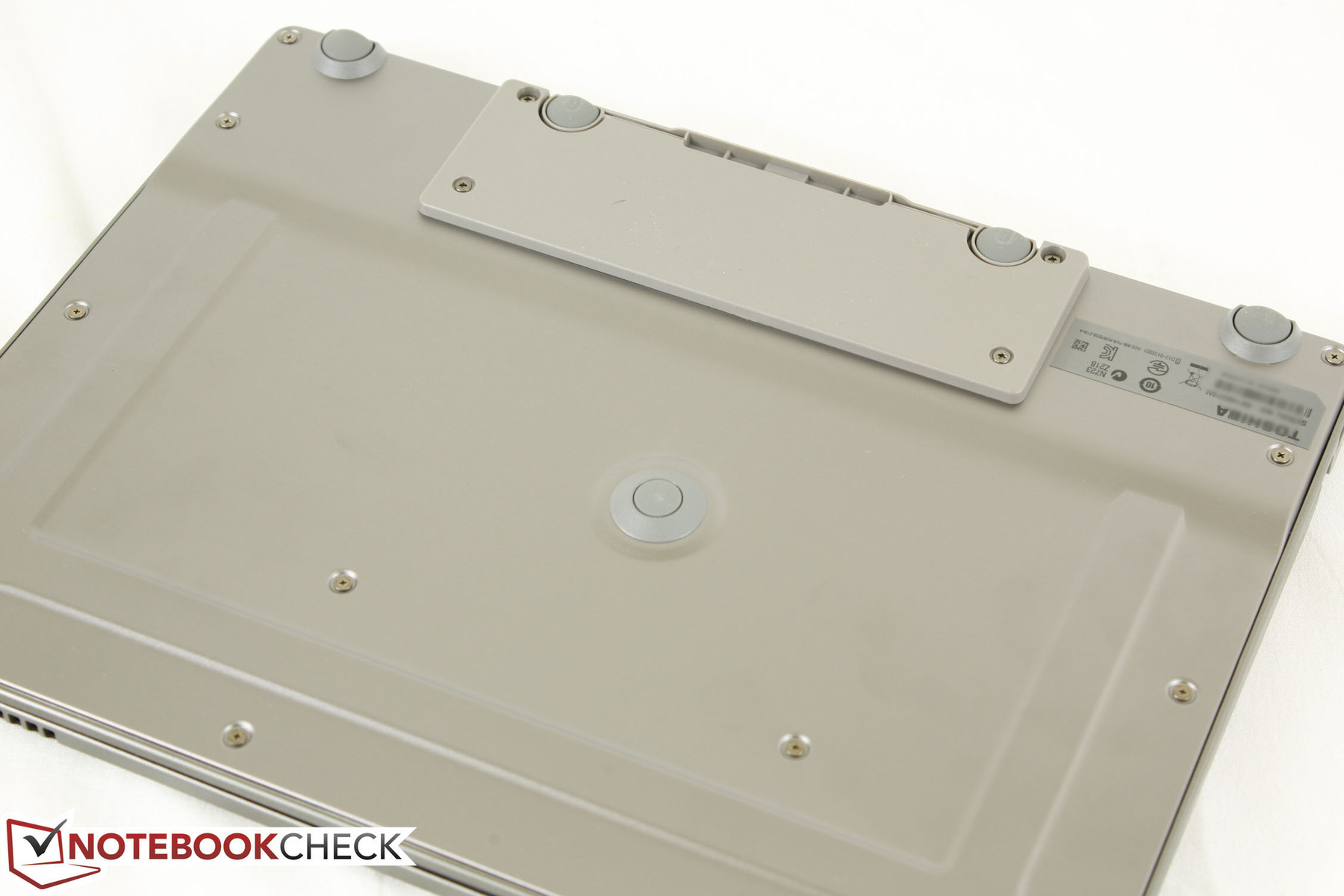

底座中没有能够帮助加长续航时间的电池
底座中没有能够帮助加长续航时间的电池
它的接口数量很多,特别是对于平板来说。不过,没有提供SIM卡槽。
它的接口数量很多,特别是对于平板来说。不过,没有提供SIM卡槽。

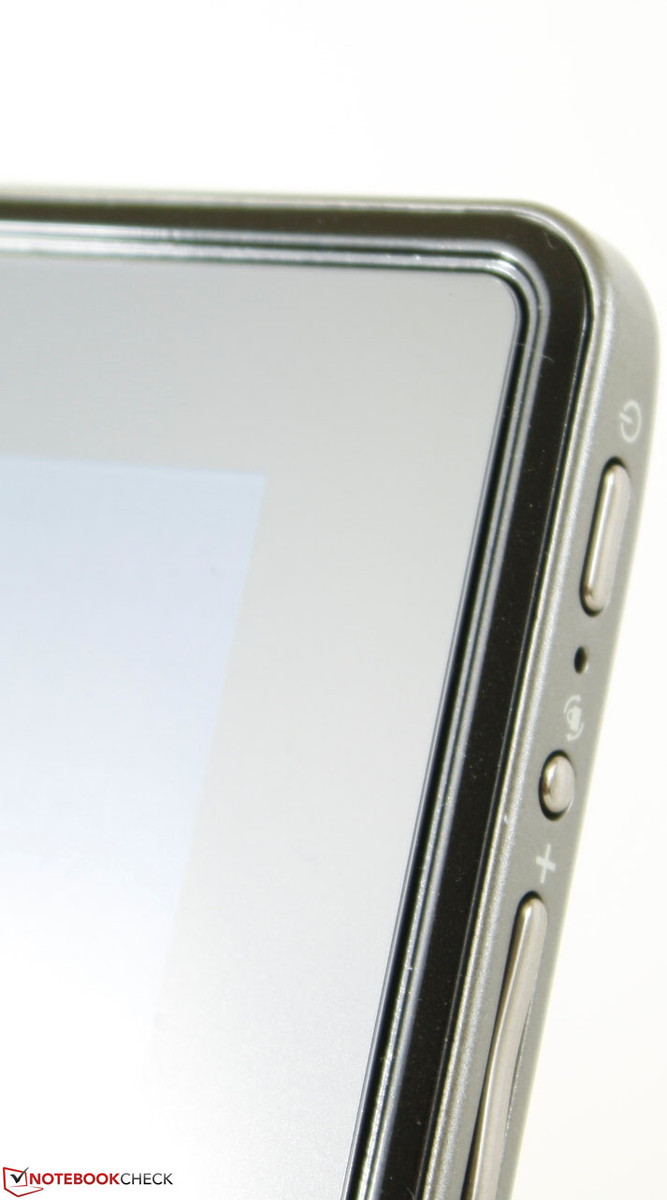

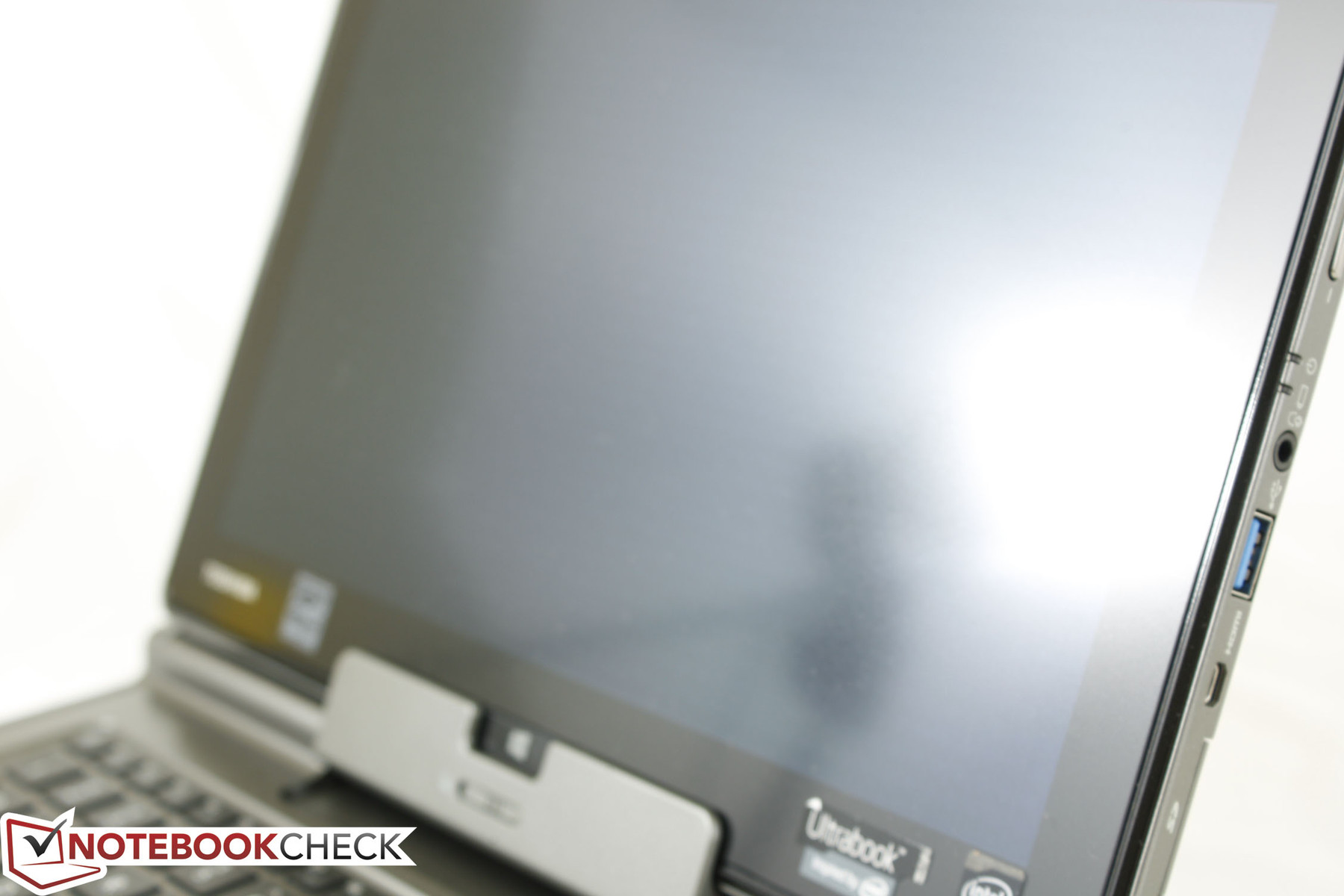

无边框的IOX玻璃屏幕和磨砂涂层
无边框的IOX玻璃屏幕和磨砂涂层

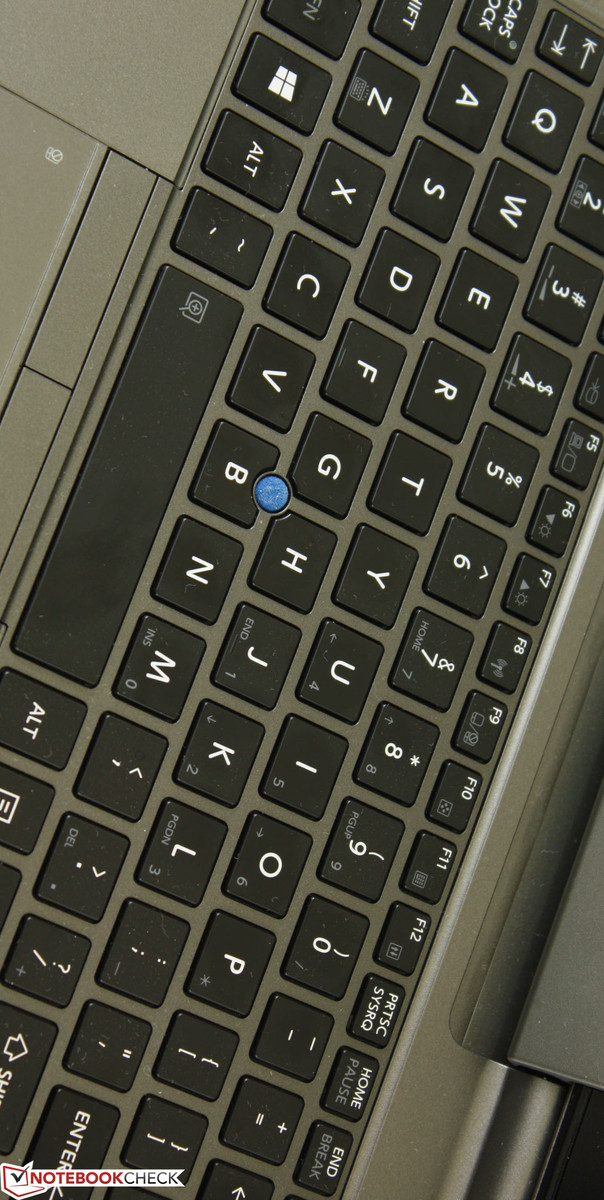

背光的孤岛式键盘的反馈较弱,键程较短
背光的孤岛式键盘的反馈较弱,键程较短

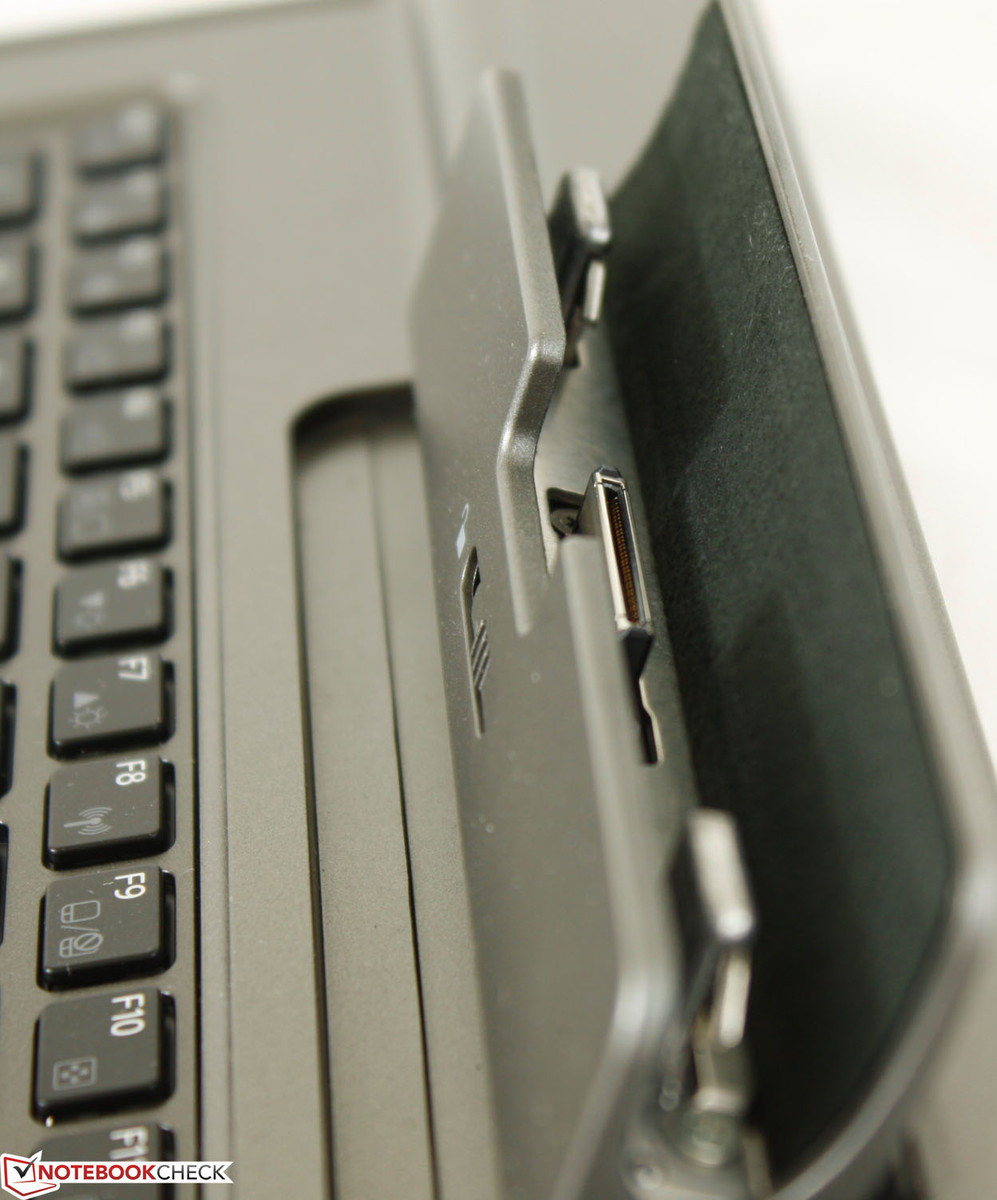

连接口的设计给人感觉很安全也很稳固
连接口的设计给人感觉很安全也很稳固

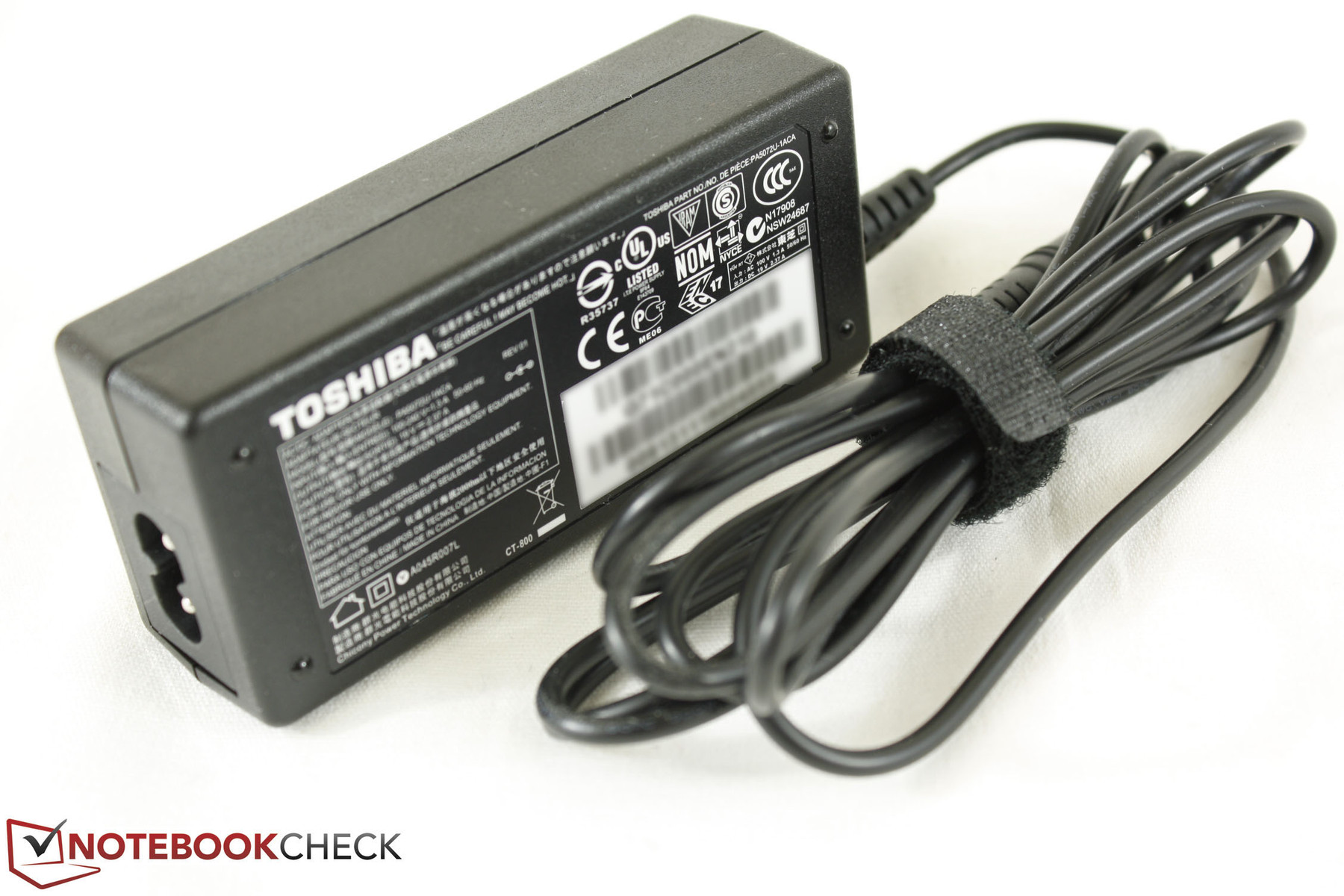

电源适配器很小 (9 x 4 x 3 cm) ,提供了19 V的输出
电源适配器很小 (9 x 4 x 3 cm) ,提供了19 V的输出


Please share our article, every link counts!

Specifications

Toshiba Portege Z10t-A2111 (Portege Z10 Series)
Processor
Intel Core i7-4610Y 2 x 1.7 - 2.9 GHz, Haswell
Graphics adapter
Intel HD Graphics 4200, Core: 850 MHz, RAM: 800 MHz, 10.18.10.3345
Memory
7.9 GB
, 11-11-11-28 800 MHz 双通道
Display
11.60 inch 16:9, 1920 x 1080 pixel, 10点触控, Toshiba TOS508F, IPS, glossy: no
Mainboard
Intel Lynx Point-LP
Storage
Samsung PM851 Series MZMTE256HMHP, 256 GB
Connections
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 VGA, 2 HDMI, 1 Docking Station Port, Audio Connections: 3,5-mm-Kombi-Port, Card Reader: SDHC, SDXC, Sensors: 加速传感器
Networking
Intel I218-LM (Clarkville ULT) Network Adapter (10/100/1000MBit/s), Intel Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 28 x 299 x 221
Battery
38 Wh Lithium-Ion
Operating System
Microsoft Windows 8.1 Pro 64 Bit
Camera
Webcam: 后置: 2048 x 1536 支持自动对焦, 前置: 1280 x 800
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, 东芝媒体播放器, Toshiba Registration, Norton Internet Security, 面部识别软件, 系统还原创建软件, 12 Months Warranty
Weight
1.435 kg, Power Supply: 254 g
Price
1300 Euro



Devices from a different Manufacturer and/or with a different CPU

联想 Miix 2 11 多模式平板简短评测
HD Graphics 4200, Core i3 4012Y
惠普 Pro X2 410 G1 变形本简短评测
HD Graphics 4200, Core i5 4202Y

Devices with the same GPU

惠普 Split x2 13-m210eg 变形本简短评测
HD Graphics 4200, Core i5 4210Y, 13.30", 2.2 kg

Devices with Same Screen Size and/or Weight

东芝 Portégé X20W (7600U, 512 GB) 变形本简短评测
HD Graphics 620, Kaby Lake i7-7600U, 12.50", 1.024 kg
东芝 Satellite Radius 15 P50W-C 笔记本电脑简短评测
HD Graphics 5500, Core i5 5200U, 15.60", 2.159 kg
东芝 Portege Z20t-B 变形本简短评测
HD Graphics 5300, Core M 5Y71, 12.50", 1.493 kg

Pros

+ 作为平板硬件强劲
+ 磨砂IPS玻璃表面屏幕
+ 明亮,高对比度的屏幕
+ 高容量256 GB固态硬盘
+ 丰富的接口和显示输出选项
+ 长电池续航

Cons

- 需要主动散热
- 无高于1080p的分辨率可选
- 扬声器较差
- 不便于用户维护
- 底座不提供第二硬盘或电池
- 高售价

Toshiba Portege Z10t-A2111 - 10/15/2014 v4 (old)
Allen Ngo

Chassis
60 / 98 → 61%
Keyboard
77%
Pointing Device
88%
Connectivity
78 / 80 → 98%
Weight
70 / 35-78 → 81%
Battery
87%
Display
82%
Games Performance
62 / 68 → 91%
Application Performance
72 / 87 → 83%
Temperature
84%
Noise
92%
Audio
20 / 91 → 22%
Camera
74 / 85 → 87%
Average
73%
79%
Convertible - Weighted Average
