戴尔 Precision 5510 移动工作站简短评测

Name: Dell Precision 5510
Brand: Dell

XPS 15 专业版。 戴尔的Precision 5510移动工作站是XPS 15的衍生产品，主要为专业用户的需要而设计。它们的主要区别在于英伟达Quadro M1000M显卡，在工程软件和得到认证的软件中将会具有巨大的优势。我们将着重测试Precision 5510是否真的适合专业用户。

Tobias Winkler (translated by Yuchen Wang), Published 01/13/2016 🇺🇸 🇩🇪 ...

Business Haswell Laptop / Notebook Touchscreen Windows Workstation

Test device courtesy of Dell Deutschland

Download your licensed rating image as PNG / SVG

Dell Precision 5510 (Precision 5000 Series)

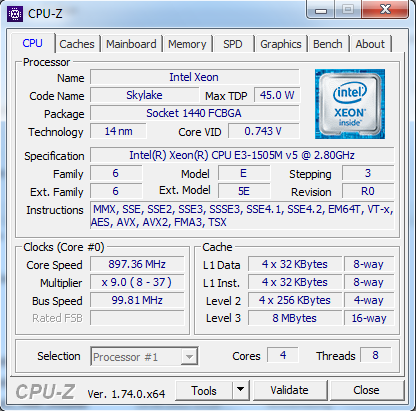

Processor

Intel Xeon E3-1505M v5 4 x 2.8 - 3.7 GHz, Skylake

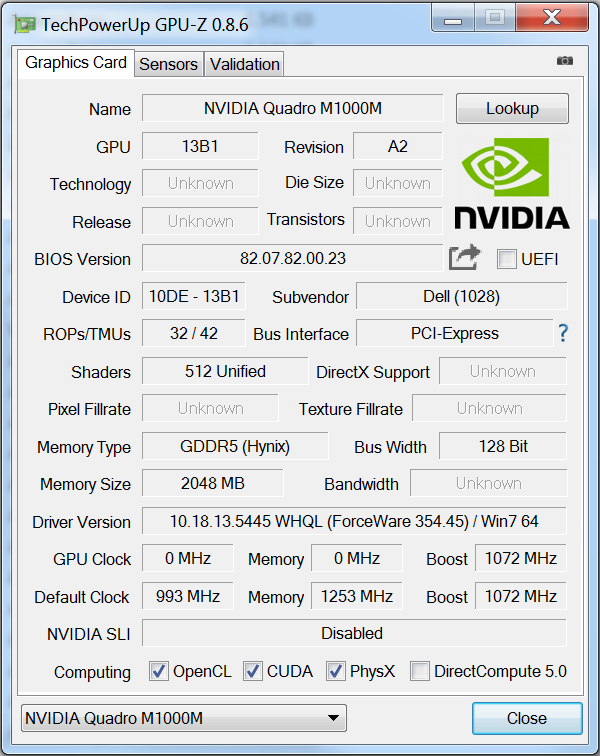

Graphics adapter

NVIDIA Quadro M1000M - 2048 MB VRAM, Core: 993 MHz, RAM: 1253 MHz, GPU Boost 1072 MHz, Forceware 354.56, Nvidia Optimus mit Intel HD Graphics P530

Memory

16 GB

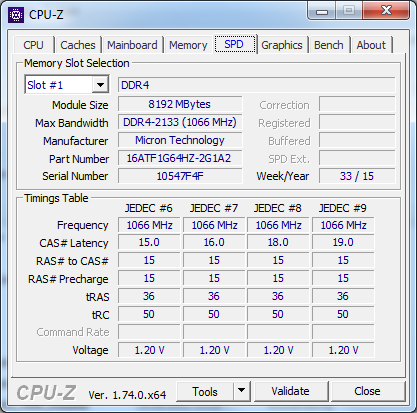

, DDR4-2133 Micron, 两个内存槽各8 GB

Display

15.60 inch 16:9, 3840 x 2160 pixel, 多点触控, SHP143E, 7PHPT_LQ156D1, IGZO LED, glossy: yes

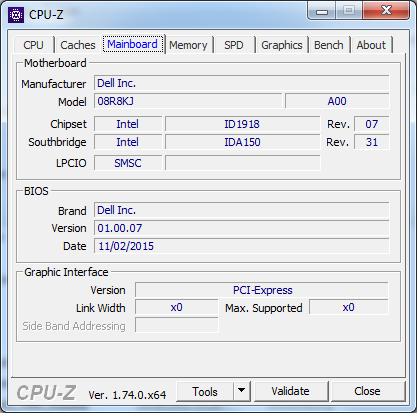

Mainboard

Intel HM170 (Skylake PCH-H)

Storage

SK hynix SC920 512 GB, 512 GB

Soundcard

Realtek High Definition Audio

Connections

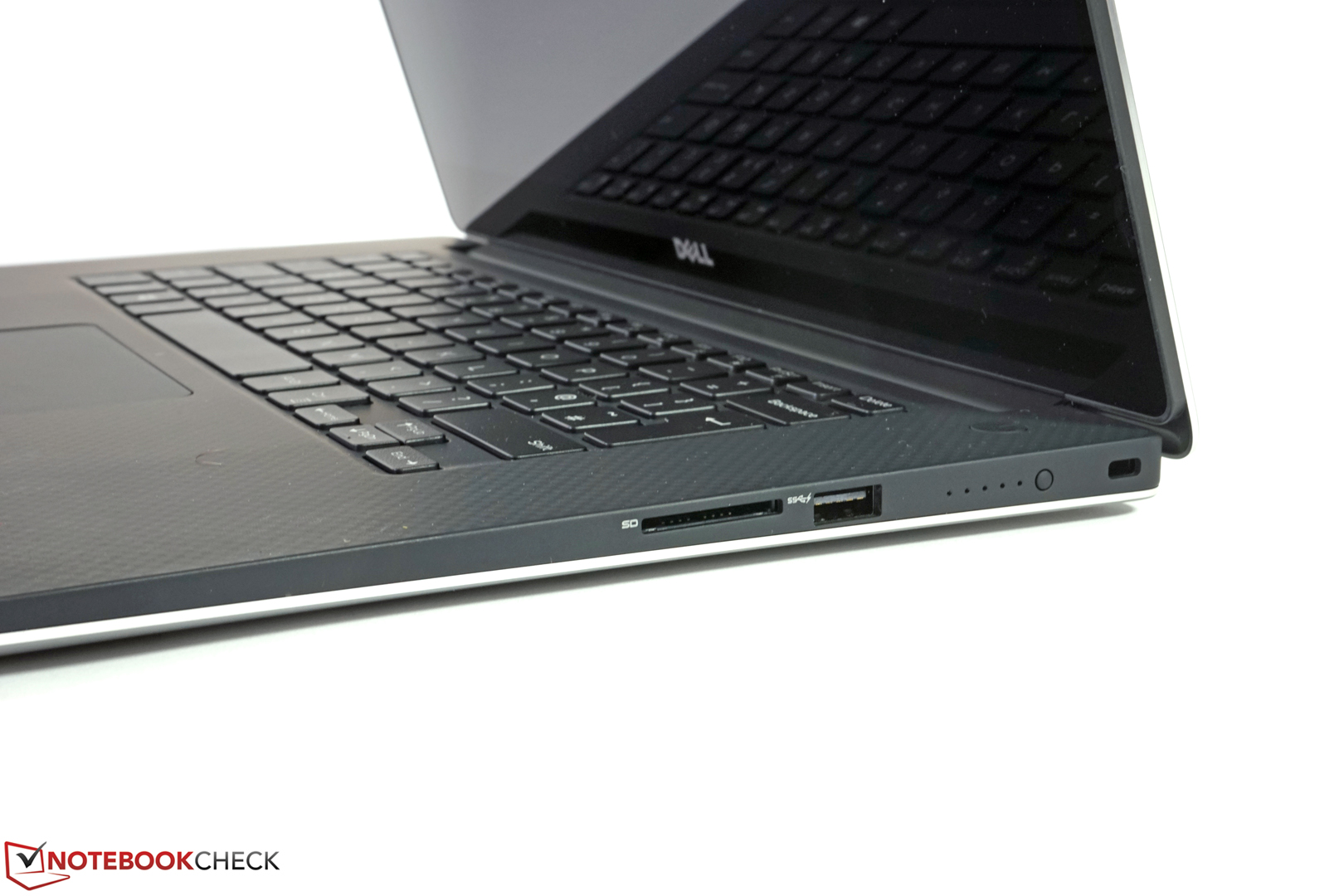

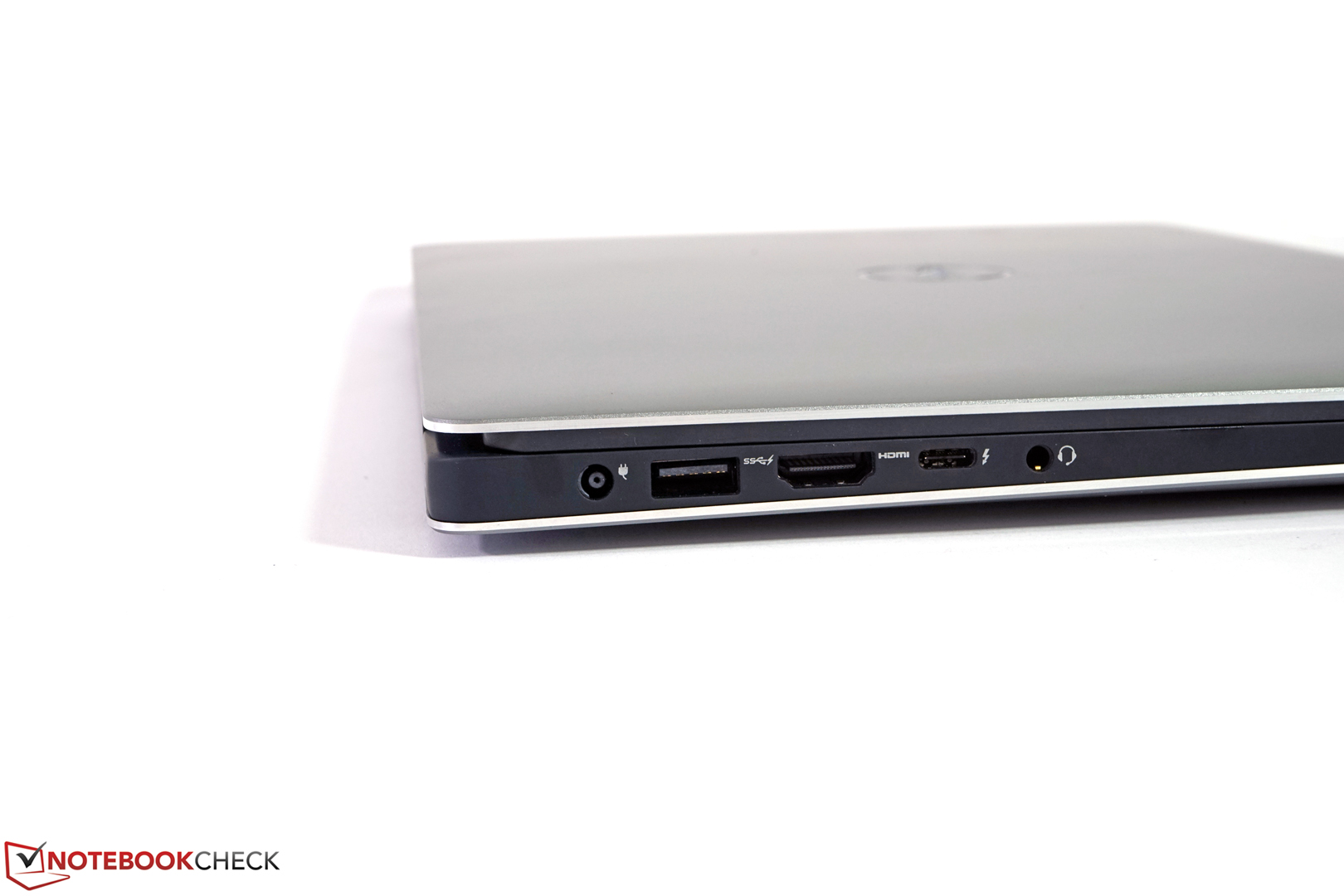

2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 HDMI, 1 Kensington Lock, Audio Connections: 整合音频输入输出接口, Card Reader: SD, SDXC, SDHC, UHS-11

Networking

Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Size

height x width x depth (in mm): 11.5 x 357 x 235

Battery

56 Wh Lithium-Ion

Operating System

Microsoft Windows 7 Professional (64 Bit) + Windows 8 Pro (64 Bit)

Camera

Webcam: 720p

Additional features

Keyboard: 孤岛式, Keyboard Light: yes, 36 Months Warranty

Weight

2.02 kg, Power Supply: 440 g

Price

3200 Euro

Links

Dell homepage
Dell notebook section

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

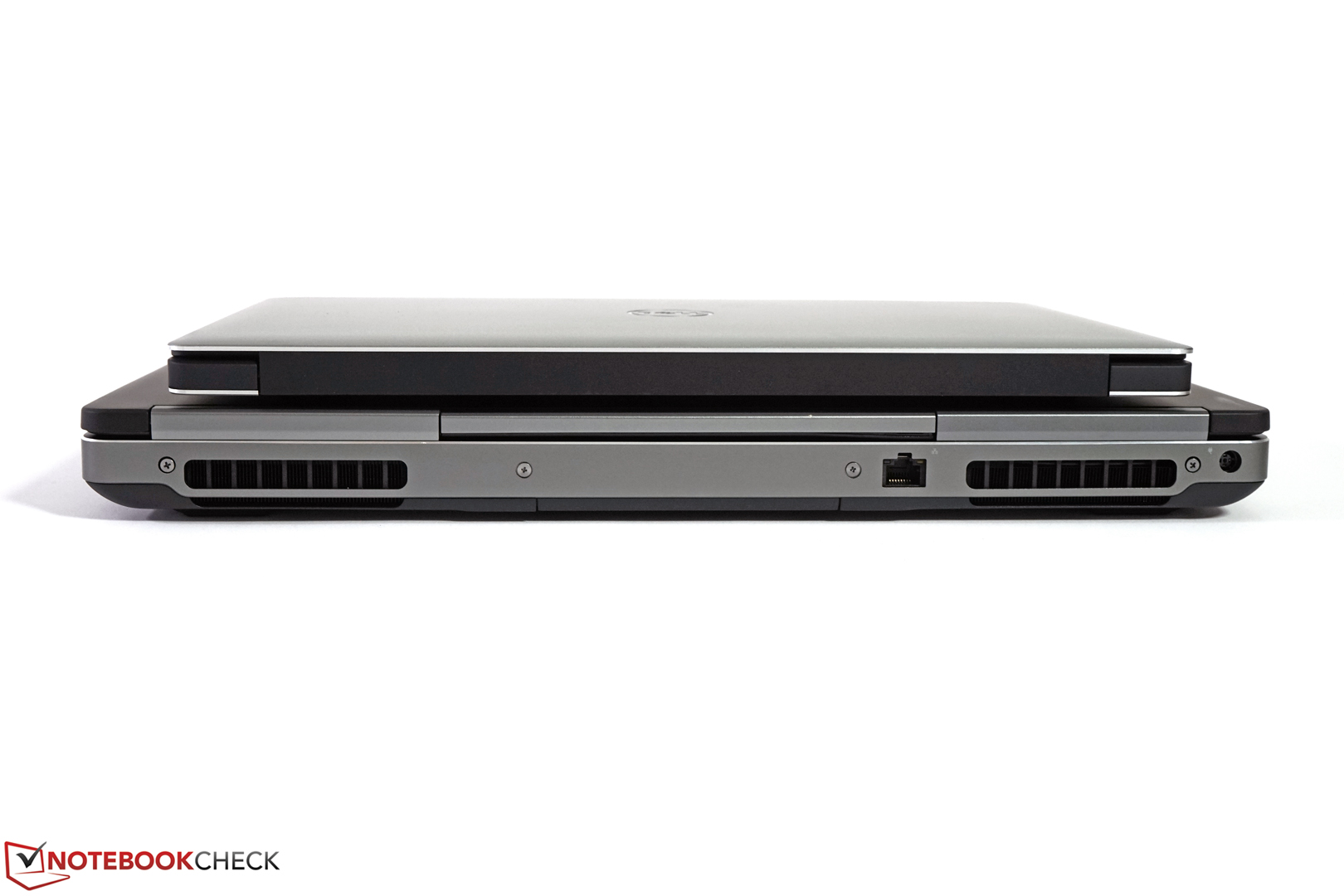

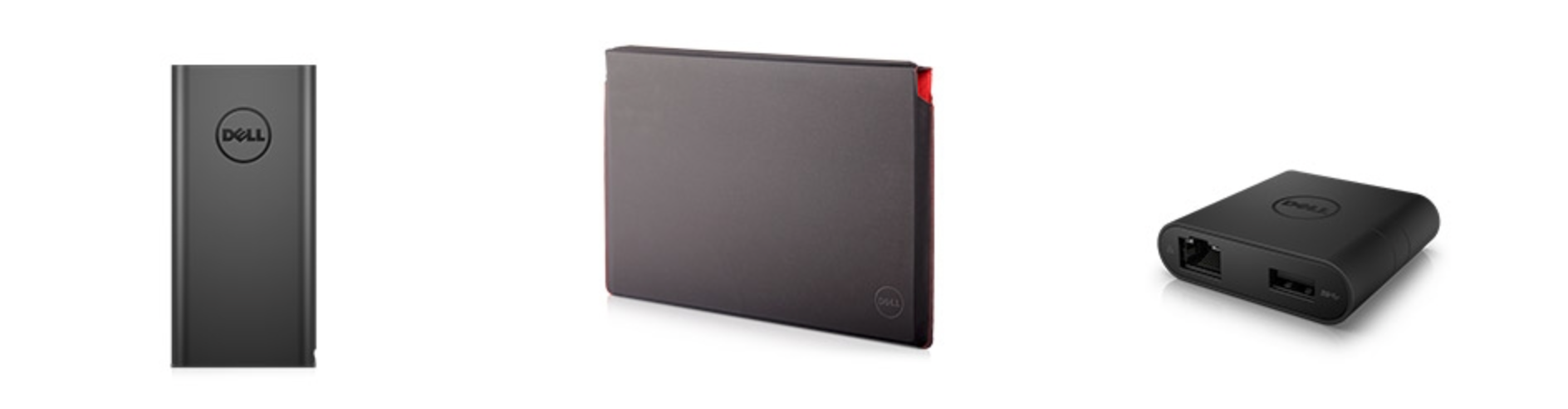

Picture Dell (left to right).: Dell Power Companion (external battery), Dell Premier case, Dell USB Type-C adapter


377 cd/m²	370 cd/m²	361 cd/m²
344 cd/m²	391 cd/m²	350 cd/m²
339 cd/m²	367 cd/m²	348 cd/m²

Distribution of brightness

SHP143E, 7PHPT_LQ156D1 tested with X-Rite i1Pro 2

Maximum: 391 cd/m² (Nits) Average: 360.8 cd/m²
Brightness Distribution: 87 %
Center on Battery: 387 cd/m²
Contrast: 978:1 (Black: 0.4 cd/m²)
ΔE Color 4.85 | 0.5-29.43 Ø4.92
ΔE Greyscale 4.01 | 0.5-98 Ø5.2
100% sRGB (Argyll 1.6.3 3D)
96% AdobeRGB 1998 (Argyll 1.6.3 3D)
99.5% AdobeRGB 1998 (Argyll 2.2.0 3D)
100% sRGB (Argyll 2.2.0 3D)
88.4% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.18

Download ICC File (X-Rite i1Pro 2)

Cinebench R10 Shading 32Bit

6845

Cinebench R10 Rendering Multiple CPUs 32Bit

21436

Cinebench R10 Rendering Single 32Bit

5367

Cinebench R10 Shading 64Bit

6845 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

28057 Points

Cinebench R10 Rendering Single CPUs 64Bit

6890 Points

Cinebench R11.5 CPU Multi 64Bit

7.93 Points

Cinebench R11.5 OpenGL 64Bit

85.9 fps

Cinebench R11.5 CPU Single 64Bit

1.6 Points

Cinebench R15 CPU Multi 64Bit

732 Points

Cinebench R15 CPU Single 64Bit

142 Points

Cinebench R15 Ref. Match 64Bit

99.6 %

Cinebench R15 OpenGL 64Bit

98.1 fps

Help

... in comparison

PCMark Vantage Result		19915 points
PCMark 7 Score		5317 points
PCMark 8 Home Score Accelerated v2		3941 points
PCMark 8 Creative Score Accelerated v2		4429 points
PCMark 8 Work Score Accelerated v2		5100 points
Help

... in comparison

AS SSD

SK hynix SC920 512 GB

Sequential Read: 474MB/s

Sequential Write: 389MB/s

4K Read: 17.95MB/s

4K Write: 82.2MB/s

4K-64 Read: 327MB/s

4K-64 Write: 257MB/s

Access Time Read: 0.111ms

Access Time Write: 0.74ms

Copy ISO: 387MB/s

Copy Program: 221MB/s

Copy Game: 349MB/s

Score Read: 392Points

Score Write: 378Points

Score Total: 972Points

SPECviewperf 11
1920x1080 Siemens NX (sort by value)
Dell Precision 5510	41 fps
Fujitsu Celsius H730	23.1 fps -44%
Lenovo ThinkPad W541 20EF000SGE	30.87 fps -25%
HP ZBook 15 G2	26.63 fps -35%
MSI GE62 2QC-468XPL	5.31 fps -87%
1920x1080 Tcvis (sort by value)
Dell Precision 5510	40 fps
Fujitsu Celsius H730	27.3 fps -32%
Lenovo ThinkPad W541 20EF000SGE	34.34 fps -14%
HP ZBook 15 G2	21.43 fps -46%
MSI GE62 2QC-468XPL	1.75 fps -96%
1920x1080 SolidWorks (sort by value)
Dell Precision 5510	51 fps
Fujitsu Celsius H730	38.2 fps -25%
Lenovo ThinkPad W541 20EF000SGE	41.64 fps -18%
HP ZBook 15 G2	56.1 fps +10%
MSI GE62 2QC-468XPL	12.26 fps -76%
1920x1080 Pro/ENGINEER (sort by value)
Dell Precision 5510	21 fps
Fujitsu Celsius H730	17.3 fps -18%
Lenovo ThinkPad W541 20EF000SGE	15.96 fps -24%
HP ZBook 15 G2	10.64 fps -49%
MSI GE62 2QC-468XPL	2.52 fps -88%
1920x1080 Maya (sort by value)
Dell Precision 5510	56 fps
Fujitsu Celsius H730	46.6 fps -17%
Lenovo ThinkPad W541 20EF000SGE	52 fps -7%
HP ZBook 15 G2	60.3 fps +8%
MSI GE62 2QC-468XPL	18.87 fps -66%
1920x1080 Lightwave (sort by value)
Dell Precision 5510	54 fps
Fujitsu Celsius H730	50 fps -7%
Lenovo ThinkPad W541 20EF000SGE	47.6 fps -12%
HP ZBook 15 G2	75.8 fps +40%
MSI GE62 2QC-468XPL	21.87 fps -59%
1920x1080 Ensight (sort by value)
Dell Precision 5510	39 fps
Fujitsu Celsius H730	17.4 fps -55%
Lenovo ThinkPad W541 20EF000SGE	24.64 fps -37%
HP ZBook 15 G2	25.07 fps -36%
MSI GE62 2QC-468XPL	35.12 fps -10%
1920x1080 Catia (sort by value)
Dell Precision 5510	54 fps
Fujitsu Celsius H730	34.5 fps -36%
Lenovo ThinkPad W541 20EF000SGE	39.12 fps -28%
HP ZBook 15 G2	35.61 fps -34%
MSI GE62 2QC-468XPL	18.49 fps -66%

Legend

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

MSI GE62 2QC-468XPL Intel Core i7-5700HQ, NVIDIA GeForce GTX 960M, Samsung SSD PM851 256 GB MZNTE256HMHP

SPECviewperf 12
1900x1060 Solidworks (sw-03) (sort by value)
Dell Precision 5510	62 fps
Fujitsu Celsius H730	32.9 fps -47%
Lenovo ThinkPad W541 20EF000SGE	22.41 fps -64%
HP ZBook 15 G2	39.72 fps -36%
Dell XPS 15 2016 9550	22.03 fps -64%
1900x1060 Siemens NX (snx-02) (sort by value)
Dell Precision 5510	31 fps
Fujitsu Celsius H730	15.5 fps -50%
Lenovo ThinkPad W541 20EF000SGE	21.35 fps -31%
HP ZBook 15 G2	29.69 fps -4%
Dell XPS 15 2016 9550	2.39 fps -92%
1900x1060 Showcase (showcase-01) (sort by value)
Dell Precision 5510	20 fps
Fujitsu Celsius H730	9.1 fps -54%
Lenovo ThinkPad W541 20EF000SGE	11.23 fps -44%
HP ZBook 15 G2	16.36 fps -18%
Dell XPS 15 2016 9550	21.73 fps +9%
1900x1060 Medical (medical-01) (sort by value)
Dell Precision 5510	12 fps
Fujitsu Celsius H730	4.9 fps -59%
Lenovo ThinkPad W541 20EF000SGE	2.16 fps -82%
HP ZBook 15 G2	7.82 fps -35%
Dell XPS 15 2016 9550	12.3 fps +3%
1900x1060 Maya (maya-04) (sort by value)
Dell Precision 5510	30 fps
Fujitsu Celsius H730	14.2 fps -53%
Lenovo ThinkPad W541 20EF000SGE	15.82 fps -47%
HP ZBook 15 G2	24.92 fps -17%
Dell XPS 15 2016 9550	15.37 fps -49%
1900x1060 Energy (energy-01) (sort by value)
Dell Precision 5510	0.69 fps
Fujitsu Celsius H730	0.33 fps -52%
Lenovo ThinkPad W541 20EF000SGE	0.17 fps -75%
HP ZBook 15 G2	0.44 fps -36%
Dell XPS 15 2016 9550	0.74 fps +7%
1900x1060 Creo (creo-01) (sort by value)
Dell Precision 5510	34 fps
Fujitsu Celsius H730	16.2 fps -52%
Lenovo ThinkPad W541 20EF000SGE	19.14 fps -44%
HP ZBook 15 G2	19.64 fps -42%
Dell XPS 15 2016 9550	10.72 fps -68%
1900x1060 Catia (catia-04) (sort by value)
Dell Precision 5510	37 fps
Fujitsu Celsius H730	16.6 fps -55%
Lenovo ThinkPad W541 20EF000SGE	19.6 fps -47%
HP ZBook 15 G2	23.62 fps -36%
Dell XPS 15 2016 9550	15.76 fps -57%

Legend

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

Dell XPS 15 2016 9550 Intel Core i5-6300HQ, NVIDIA GeForce GTX 960M, WDC WD10SPCX-75KHST0 + LiteON CS1-SP32-11 M.2 2242 32GB

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Dell Precision 5510	534 Samples/s
Fujitsu Celsius H730	108 Samples/s -80%
HP Z1 G2 G1X47EA	74 Samples/s -86%
Lenovo ThinkPad W541 20EF000SGE	68 Samples/s -87%
HP ZBook 15 G2	375 Samples/s -30%
Entry Workstation AMD FirePro W4100	262 Samples/s -51%
Entry Workstation AMD FirePro W2100	137 Samples/s -74%
Sala GPUs-only (sort by value)
Dell Precision 5510	889 Samples/s
Fujitsu Celsius H730	221 Samples/s -75%
HP Z1 G2 G1X47EA	158 Samples/s -82%
Lenovo ThinkPad W541 20EF000SGE	146 Samples/s -84%
HP ZBook 15 G2	675 Samples/s -24%
Entry Workstation AMD FirePro W4100	478 Samples/s -46%
Entry Workstation AMD FirePro W2100	243 Samples/s -73%

SiSoft Sandra 2016
Image Processing (sort by value)
Dell Precision 5510	127.5 MPix/s
HP Z1 G2 G1X47EA	44.47 MPix/s -65%
Entry Workstation AMD FirePro W2100	37.08 MPix/s -71%
GP Cryptography (Higher Security AES256+SHA2-512) (sort by value)
Dell Precision 5510	7.38 GB/s
HP Z1 G2 G1X47EA	1.77 GB/s -76%
Entry Workstation AMD FirePro W2100	0.82 GB/s -89%
GP Financial Analysis (FP High/Double Precision) (sort by value)
Dell Precision 5510	17 KOPT/s
HP Z1 G2 G1X47EA	14.49 KOPT/s -15%
Entry Workstation AMD FirePro W2100	4.07 KOPT/s -76%

Legend

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

Fujitsu Celsius H730 Intel Core i7-4710MQ, NVIDIA Quadro K1100M, Samsung SSD PM851 256 GB MZ7TE256HMHP

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Lenovo ThinkPad W541 20EF000SGE Intel Core i7-4910MQ, NVIDIA Quadro K2100M, Samsung SSD PM851 512 GB MZ7TE512HMHP

HP ZBook 15 G2 Intel Core i7-4910MQ, AMD FirePro M5100, SanDisk A110 SD6PP4M-256G-1006

Entry Workstation AMD FirePro W4100 Intel Core i5-4430, AMD FirePro W4100, Intel SSD 320 Series SSDSA2CW120G3

Entry Workstation AMD FirePro W2100 Intel Core i5-4430, AMD FirePro W2100, Intel SSD 320 Series SSDSA2CW120G3

3DMark 06 Standard Score		24573 points
3DMark 11 Performance		4648 points
3DMark Ice Storm Standard Score		41248 points
3DMark Cloud Gate Standard Score		16180 points
3DMark Fire Strike Score		3344 points
Help

... in comparison

Unigine Heaven 3.0
1920x1080 OpenGL, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 5510	43.4 fps
HP Z1 G2 G1X47EA	20.4 fps -53%
Entry Workstation AMD FirePro W4100	16.5 fps -62%
1920x1080 DX 11, Normal Tessellation, High Shaders AA:Off AF:Off (sort by value)
Dell Precision 5510	44.9 fps
HP Z1 G2 G1X47EA	22.5 fps -50%
Entry Workstation AMD FirePro W4100	20.1 fps -55%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8 (sort by value)
Dell Precision 5510	18.7 fps
1920x1080 Extreme HD Preset OpenGL AA:x8 (sort by value)
Dell Precision 5510	16.2 fps
Entry Workstation AMD FirePro W4100	7.1 fps -56%

Legend

Dell Precision 5510 Intel Xeon E3-1505M v5, NVIDIA Quadro M1000M, SK hynix SC920 512 GB

HP Z1 G2 G1X47EA Intel Xeon E3-1226 v3, NVIDIA Quadro K2100M, Micron M600 MTFDDAT256MBF mSATA

Entry Workstation AMD FirePro W4100 Intel Core i5-4430, AMD FirePro W4100, Intel SSD 320 Series SSDSA2CW120G3

	low	med.	high	ultra	4K
Tomb Raider (2013)	279	144	98	43
BioShock Infinite (2013)	195	111	100	38
Metro: Last Light (2013)		83	49	25
GRID 2 (2013)	195	153	136	43
Company of Heroes 2 (2013)	54	48	34	12
Total War: Rome II (2013)	166	126	107	20
Thief (2014)	78	53	45	23
GRID: Autosport (2014)	248	143	82	43
Middle-earth: Shadow of Mordor (2014)	169	131	34	26
Ryse: Son of Rome (2014)	76	52	23	21
F1 2014 (2014)	133	128	123	84
Dirt Rally (2015)	261	115	62	29	20
The Witcher 3 (2015)	54	38	17	11	7
Anno 2205 (2015)	121	65	30	14	12

The Witcher 3
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Dell Precision 5510	7 fps
1920x1080 Ultra Graphics & Postprocessing (HBAO+) (sort by value)
Dell Precision 5510	11 fps
Nexoc G515 II	14.4 fps +31%
Acer Aspire V5-591G-71K2	11.2 fps +2%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off) (sort by value)
Dell Precision 5510	17 fps
HP Z1 G2 G1X47EA	9 fps -47%
Nexoc G515 II	26.6 fps +56%
Acer Aspire V5-591G-71K2	19.7 fps +16%
1366x768 Medium Graphics & Postprocessing (sort by value)
Dell Precision 5510	38 fps
HP Z1 G2 G1X47EA	18 fps -53%
Nexoc G515 II	50.7 fps +33%
Acer Aspire V5-591G-71K2	37.6 fps -1%
1024x768 Low Graphics & Postprocessing (sort by value)
Dell Precision 5510	54 fps
HP Z1 G2 G1X47EA	26 fps -52%
Acer Aspire V5-591G-71K2	60.9 fps +13%

Dirt Rally
3840x2160 High Preset (sort by value)
Dell Precision 5510	20 fps
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510	29 fps
Nexoc G515 II	33.9 fps +17%
Acer Aspire V5-591G-71K2	24.6 fps -15%
1920x1080 High Preset (sort by value)
Dell Precision 5510	62 fps
HP Z1 G2 G1X47EA	25 fps -60%
Nexoc G515 II	74.8 fps +21%
Acer Aspire V5-591G-71K2	60.2 fps -3%
1366x768 Medium Preset (sort by value)
Dell Precision 5510	115 fps
HP Z1 G2 G1X47EA	60 fps -48%
Acer Aspire V5-591G-71K2	102.9 fps -11%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510	261 fps
HP Z1 G2 G1X47EA	225 fps -14%
Acer Aspire V5-591G-71K2	225.9 fps -13%

Anno 2205
3840x2160 High Preset AA:4x (sort by value)
Dell Precision 5510	12 fps
1920x1080 Ultra High Preset AA:8x (sort by value)
Dell Precision 5510	14 fps
Acer Aspire V5-591G-71K2	8.8 fps -37%
1920x1080 High Preset AA:4x (sort by value)
Dell Precision 5510	30 fps
HP Z1 G2 G1X47EA	14 fps -53%
Acer Aspire V5-591G-71K2	21.9 fps -27%
1366x768 Medium Preset AA:2x (sort by value)
Dell Precision 5510	65 fps
HP Z1 G2 G1X47EA	33 fps -49%
Acer Aspire V5-591G-71K2	48.9 fps -25%
1024x768 Low Preset (sort by value)
Dell Precision 5510	121 fps
HP Z1 G2 G1X47EA	54 fps -55%
Acer Aspire V5-591G-71K2	89.8 fps -26%

Metro: Last Light
1920x1080 Very High (DX11) AF:16x (sort by value)
Dell Precision 5510	25 fps
SCHENKER M505	22.4 fps -10%
1366x768 High (DX11) AF:16x (sort by value)
Dell Precision 5510	49 fps
SCHENKER M505	42.1 fps -14%
1366x768 Medium (DX10) AF:4x (sort by value)
Dell Precision 5510	83 fps
SCHENKER M505	59.2 fps -29%
1024x768 Low (DX10) AF:4x (sort by value)
SCHENKER M505	61 fps

Middle-earth: Shadow of Mordor
1920x1080 Ultra Preset (HD Package) (sort by value)
Dell Precision 5510	26 fps
HP Z1 G2 G1X47EA	16 fps -38%
SCHENKER M505	17 fps -35%
1920x1080 High Preset (sort by value)
Dell Precision 5510	34 fps
HP Z1 G2 G1X47EA	17 fps -50%
SCHENKER M505	27.9 fps -18%
1344x756 Medium Preset (sort by value)
Dell Precision 5510	131 fps
HP Z1 G2 G1X47EA	34 fps -74%
SCHENKER M505	54.1 fps -59%
1280x720 Lowest Preset (sort by value)
Dell Precision 5510	169 fps
HP Z1 G2 G1X47EA	67 fps -60%
SCHENKER M505	85.4 fps -49%

Tomb Raider
1920x1080 Ultra Preset AA:FX AF:16x (sort by value)
Dell Precision 5510	43 fps
Acer Aspire V5-591G-71K2	34.6 fps -20%
SCHENKER M505	33.7 fps -22%
1366x768 High Preset AA:FX AF:8x (sort by value)
Dell Precision 5510	98 fps
Acer Aspire V5-591G-71K2	71.8 fps -27%
SCHENKER M505	71.9 fps -27%
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Dell Precision 5510	144 fps
Acer Aspire V5-591G-71K2	130.2 fps -10%
SCHENKER M505	131.4 fps -9%
1024x768 Low Preset (sort by value)
Dell Precision 5510	279 fps
Acer Aspire V5-591G-71K2	272.1 fps -2%
SCHENKER M505	226.7 fps -19%

Ryse: Son of Rome
1920x1080 Very High Texture Res. + High Graphics Quality (Motion Blur & Temporal AA On, Rest Off/Disabled) AF:8x (sort by value)
Dell Precision 5510	21 fps
SCHENKER M505	19.8 fps -6%
1920x1080 High Texture Res. + High Graphics Quality (Rest Off/Disabled) AF:8x (sort by value)
Dell Precision 5510	23 fps
SCHENKER M505	21.1 fps -8%
1366x768 Medium Texture Res. + Normal Graphics Quality (Rest Off/Disabled) AF:4x (sort by value)
Dell Precision 5510	52 fps
SCHENKER M505	42.5 fps -18%
1024x768 Low Texture Res. + Low Graphics Quality (Rest Off/Disabled) AF:2x (sort by value)
Dell Precision 5510	76 fps
SCHENKER M505	52.2 fps -31%

GRID: Autosport
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510	43 fps
HP Z1 G2 G1X47EA	21 fps -51%
Acer Aspire V5-591G-71K2	27.1 fps -37%
SCHENKER M505	35.2 fps -18%
1920x1080 High Preset (sort by value)
Dell Precision 5510	82 fps
HP Z1 G2 G1X47EA	40 fps -51%
Acer Aspire V5-591G-71K2	81.7 fps 0%
SCHENKER M505	63.6 fps -22%
1366x768 Medium Preset (sort by value)
Dell Precision 5510	143 fps
HP Z1 G2 G1X47EA	102 fps -29%
Acer Aspire V5-591G-71K2	123.9 fps -13%
SCHENKER M505	97.6 fps -32%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510	248 fps
HP Z1 G2 G1X47EA	268 fps +8%
Acer Aspire V5-591G-71K2	210 fps -15%
SCHENKER M505	158.6 fps -36%

Thief
1920x1080 Very High Preset AA:FXAA & High SS AF:8x (sort by value)
Dell Precision 5510	23 fps
SCHENKER M505	19.3 fps -16%
1366x768 High Preset AA:FXAA & Low SS AF:4x (sort by value)
Dell Precision 5510	45 fps
SCHENKER M505	40.4 fps -10%
1366x768 Normal Preset AA:FX (sort by value)
Dell Precision 5510	53 fps
SCHENKER M505	49.4 fps -7%
1024x768 Very Low Preset (sort by value)
Dell Precision 5510	78 fps
SCHENKER M505	64.1 fps -18%

F1 2014
1920x1080 Ultra Preset AA:4x MS (sort by value)
Dell Precision 5510	84 fps
SCHENKER M505	69 fps -18%
1920x1080 High Preset (sort by value)
Dell Precision 5510	123 fps
SCHENKER M505	82 fps -33%
1366x768 Medium Preset (sort by value)
Dell Precision 5510	128 fps
SCHENKER M505	89 fps -30%
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510	133 fps
SCHENKER M505	116 fps -13%

Total War: Rome II
1920x1080 Extreme Preset (sort by value)
Dell Precision 5510	20 fps
1366x768 High Preset (sort by value)
Dell Precision 5510	107 fps
1366x768 Medium Preset (sort by value)
Dell Precision 5510	126 fps
1024x768 Low Preset (sort by value)
Dell Precision 5510	166 fps

Company of Heroes 2
1920x1080 Maximum / Higher / High AA:High (sort by value)
Dell Precision 5510	12 fps
1366x768 High AA:Medium (sort by value)
Dell Precision 5510	34 fps
1366x768 Medium AA:Off (sort by value)
Dell Precision 5510	48 fps
1024x768 Minimum / Low / Off AA:Off (sort by value)
Dell Precision 5510	54 fps

GRID 2
1920x1080 Ultra Preset AA:4xMS (sort by value)
Dell Precision 5510	43 fps
1366x768 High Preset AA:2xMS (sort by value)
Dell Precision 5510	136 fps
1366x768 Medium Preset (sort by value)
Dell Precision 5510	153 fps
1024x768 Ultra Low Preset (sort by value)
Dell Precision 5510	195 fps

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Dell Precision 5510	38 fps
SCHENKER M505	29.6 fps -22%
1366x768 High Preset (sort by value)
Dell Precision 5510	100 fps
SCHENKER M505	86.1 fps -14%
1366x768 Medium Preset (sort by value)
Dell Precision 5510	111 fps
SCHENKER M505	99.9 fps -10%
1280x720 Very Low Preset (sort by value)
Dell Precision 5510	195 fps
SCHENKER M505	134.4 fps -31%

Noise Level

Idle		30 / 30 / 30 dB(A)
Load		42.08 / 46.78 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Audix TM1 Arta (15 cm distance)

Max. Load

Idle


38.7 °C	45.8 °C	32.1 °C
39.5 °C	45.6 °C	30.6 °C
30.6 °C	31 °C	28.7 °C

Maximum: 45.8 °C
Average: 35.8 °C


33.6 °C	46.7 °C	38.8 °C
33.5 °C	35.7 °C	37.5 °C
32.9 °C	36.1 °C	35 °C

Maximum: 46.7 °C
Average: 36.6 °C

Power Supply (max.) 60.2 °C | Room Temperature 20 °C | Fennel FIRT 550-Pocket

(±) The average temperature for the upper side under maximal load is 35.8 °C / 96 F, compared to the average of 32 °C / 90 F for the devices in the class Workstation.
(-) The maximum temperature on the upper side is 45.8 °C / 114 F, compared to the average of 38.2 °C / 101 F, ranging from 22.2 to 69.8 °C for the class Workstation.
(-) The bottom heats up to a maximum of 46.7 °C / 116 F, compared to the average of 41.2 °C / 106 F
(+) In idle usage, the average temperature for the upper side is 29 °C / 84 F, compared to the device average of 32 °C / 90 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31 °C / 87.8 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.9 °C / 82.2 F (-3.1 °C / -5.6 F).

Power Consumption

Off / Standby	0.36 / 1.4 Watt
Idle	8.6 / 16.2 / 16.7 Watt
Load	82.6 / 131.8 Watt


Key: min: , med: , max: Metrahit Energy

Battery Runtime

Idle (without WLAN, min brightness)		7h 08min
WiFi Surfing		4h 58min
WiFi Websurfing		4h 46min
Big Buck Bunny H.264 1080p		3h 17min
Load (maximum brightness)		1h 49min

Pros

+ 机身

+ 稳定性

+ 系统性能

+ CAD性能

+ 连接性

+ 屏幕

+ 多点触控功能

+ 输入设备

+ 低负载运行噪音控制

+ 温度控制

+ 接口布局

+ 配置选项

+ 36个月质保

Cons

- 负载运行噪音控制

- 电源适配器的功率有限

- 电池模式下的性能下降

- 处理器在满负荷下有降频问题

- 戴尔Premier Color

- 售价

Dell Precision 5510: Slim, light and high-performance

戴尔创造了一台极具魅力的办公设备，Precision 5510。除了吸引眼球的纤薄机身和高品质材料等特性外，它的工艺水平和机身稳定性也让我们十分惊叹。

整体上，这台测试机的性能十分优秀，不过用户需要接受它的性能在极端情况下相比同类设备有些降低。但是，我们在普通的使用中没有发现它有性能损失，即使是在长时间使用后。

戴尔Precision 5510的一个亮点是非常出色的UHD IGZO屏幕面板。它的色域覆盖宽广，对比度优秀，亮度不错，在校对后色彩的准确性出色。不过唯一的缺点是它相对较高的功耗，这也造成这款笔记本电脑的电池续航时间只是一般。不论如何，根据用途设定得当的情况下，它可以达到三到四个半小时的电池续航。再加上它2.02千克的相对低重量，相比其它同类产品提供了十分不错的便携性。

尽管它的连接性对于移动工作站来说不算理想，但也提供了十分实用的Thunderbolt 3接口。它可以同时满足多个传输标准，因此可以很方便地取代专用的拓展坞。

一些商务功能在这个XPS 15的后裔上没能得到实现。它缺少指纹识别器，SmartCard读卡器，和独立DisplayPort以及移动网络模组。

选择购买的用户将可以得到一台全能而美观的移动工作站，但3200欧元（约22925人民币）的售价不菲。它是否可以成为合适的商务设备，则需要根据个人的需要，喜好来判断了。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Dell Precision 5510 - 2016-03-17 03/17/2016 v5 ^(old)
Tobias Winkler

Chassis

95 / 98 → 97%

Keyboard

88%

Pointing Device

94%

Connectivity

52 / 81 → 64%

Weight

63 / 10-66 → 95%

Battery

83%

Display

87%

Games Performance

92%

Application Performance

95%

Workstation

64%

Temperature

88 / 95 → 93%

Noise

84 / 90 → 93%

Audio

69%

Camera

56 / 85 → 66%

Average

79%

83%

Workstation - Weighted Average

Read about the changes in the new rating version 5

Price comparison

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 戴尔 Precision 5510 移动工作站简短评测

Tobias Winkler, 2016-01-13 (Update: 2016-01-16)
