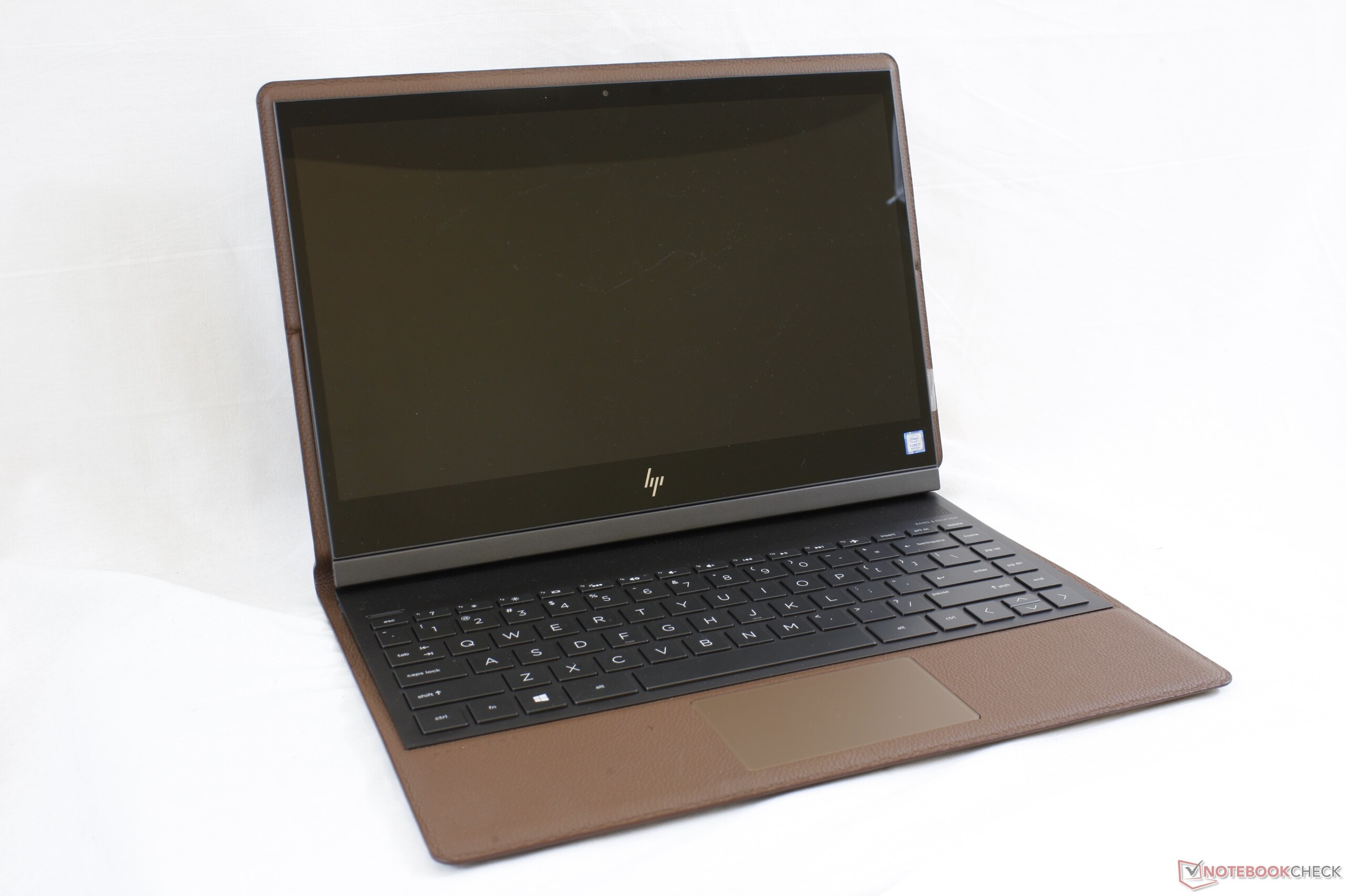

惠普Spectre Folio 13 (i7-8500Y)二合一笔记本电脑评测

Name: HP Spectre Folio 13t-ak000
Brand: HP

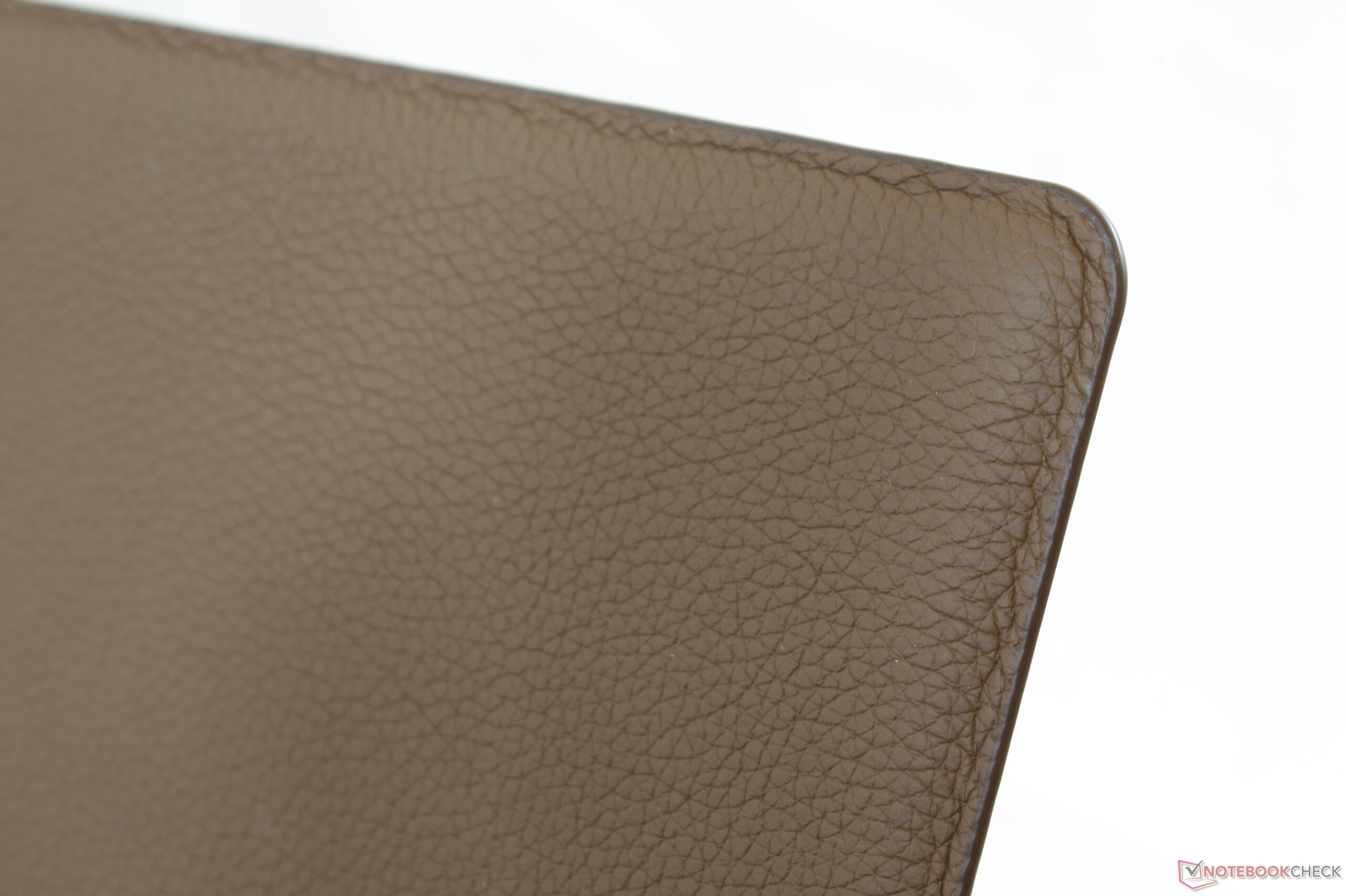

皮革恒久远。

惠普为二合一笔记本电脑带来了受到复古相机和腕表所启发的灵感。这台独一无二的笔记本电脑既高档，又经典，但是与现代的金属超极本相比，它在尺寸，重量和功能方面都有所欠缺。

Allen Ngo (translated by Zewei Shen), Published 12/05/2018 🇺🇸 🇵🇹 ...

Business Convertible / 2-in-1 Laptop / Notebook Thunderbolt Touchscreen Ultrabook

Test device courtesy of HP US

Download your licensed rating image as PNG / SVG

HP Spectre Folio 13t-ak000 (Spectre Folio 13 Series)

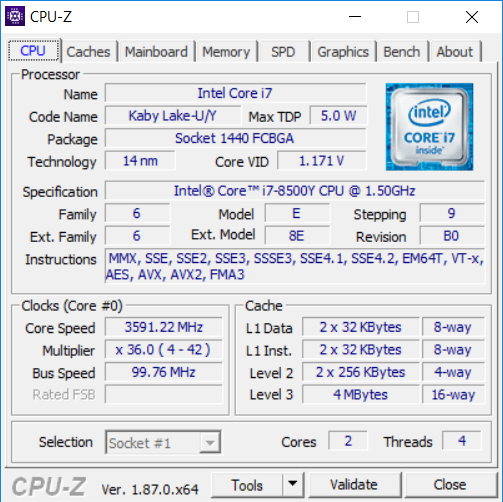

Processor

Intel Core i7-8500Y 2 x 1.5 - 4.2 GHz, Amber Lake-Y

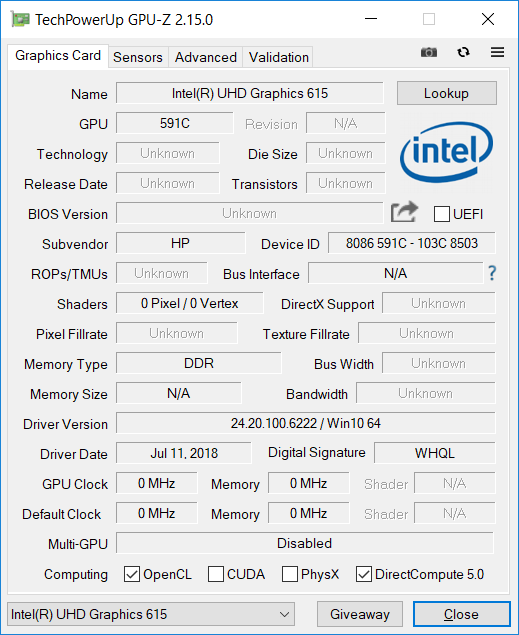

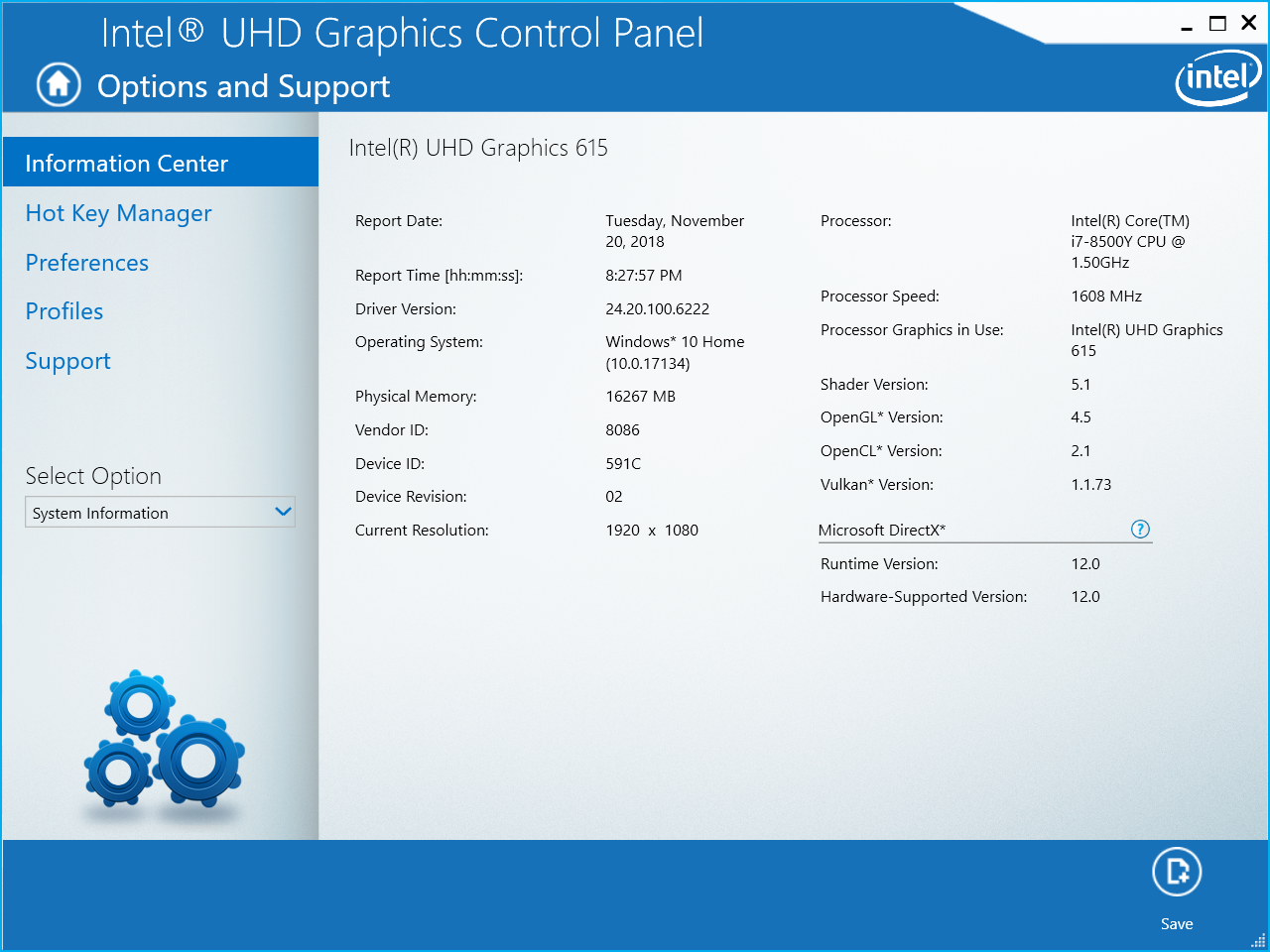

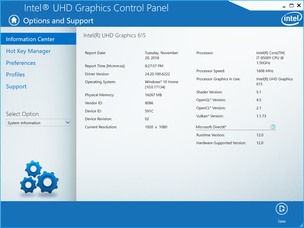

Graphics adapter

Intel UHD Graphics 615, 24.20.100.6222

Memory

16 GB

, 板载, 933.3 MHz, 14-17-17-40, LPDDR3, 双通道

Display

13.30 inch 16:9, 1920 x 1080 pixel 166 PPI, 10点触控, native pen support, AU Optronics AUO572D, IPS, glossy: yes

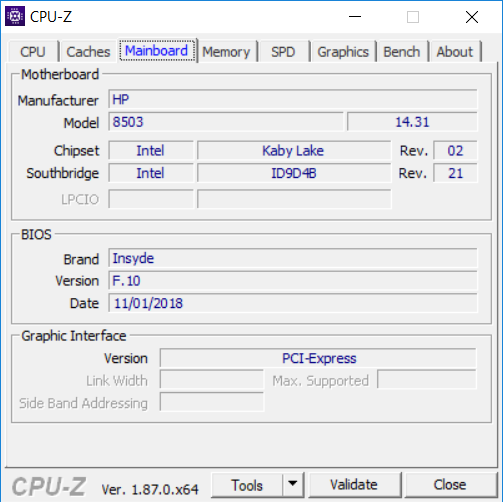

Mainboard

Intel Kaby Lake-Y Premium PCH

Storage

Samsung PM961 MZVLW256HEHP, 256 GB

Soundcard

Intel Kaby Lake-U/Y PCH - High Definition Audio

Connections

1 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 DisplayPort, Audio Connections: 3.5 mm combo

Networking

Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2, Cat. 16 eSIM, LTE

Size

height x width x depth (in mm): 15.4 x 320 x 235

Battery

54.28 Wh Lithium-Polymer

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 1080p摄像头，红外

Additional features

Speakers: Bang & Olufsen四扬声器, Keyboard: 巧克力, Keyboard Light: yes, WACOM手写笔, USB Type-C转Type-A适配器, 可拆卸皮革笔托, McAfee, 12 Months Warranty, fanless

Weight

1.49 kg, Power Supply: 292 g

Price

14888 USD

Links

HP homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Lenovo Yoga C930-13IKB HP Spectre Folio 13t-ak000 HP EliteBook x360 1030 G3 45X96UT HP Spectre x360 13t-ae000 Apple MacBook Air 2018 Microsoft Surface Pro 6, Core i5, 128 GB DIN A4 ❌

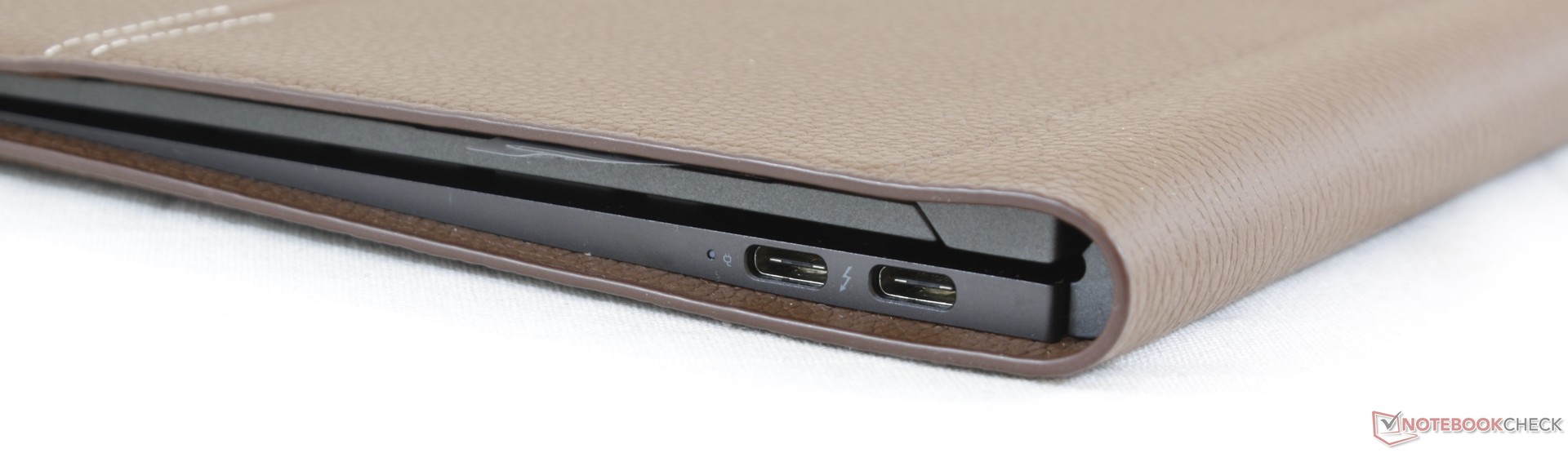

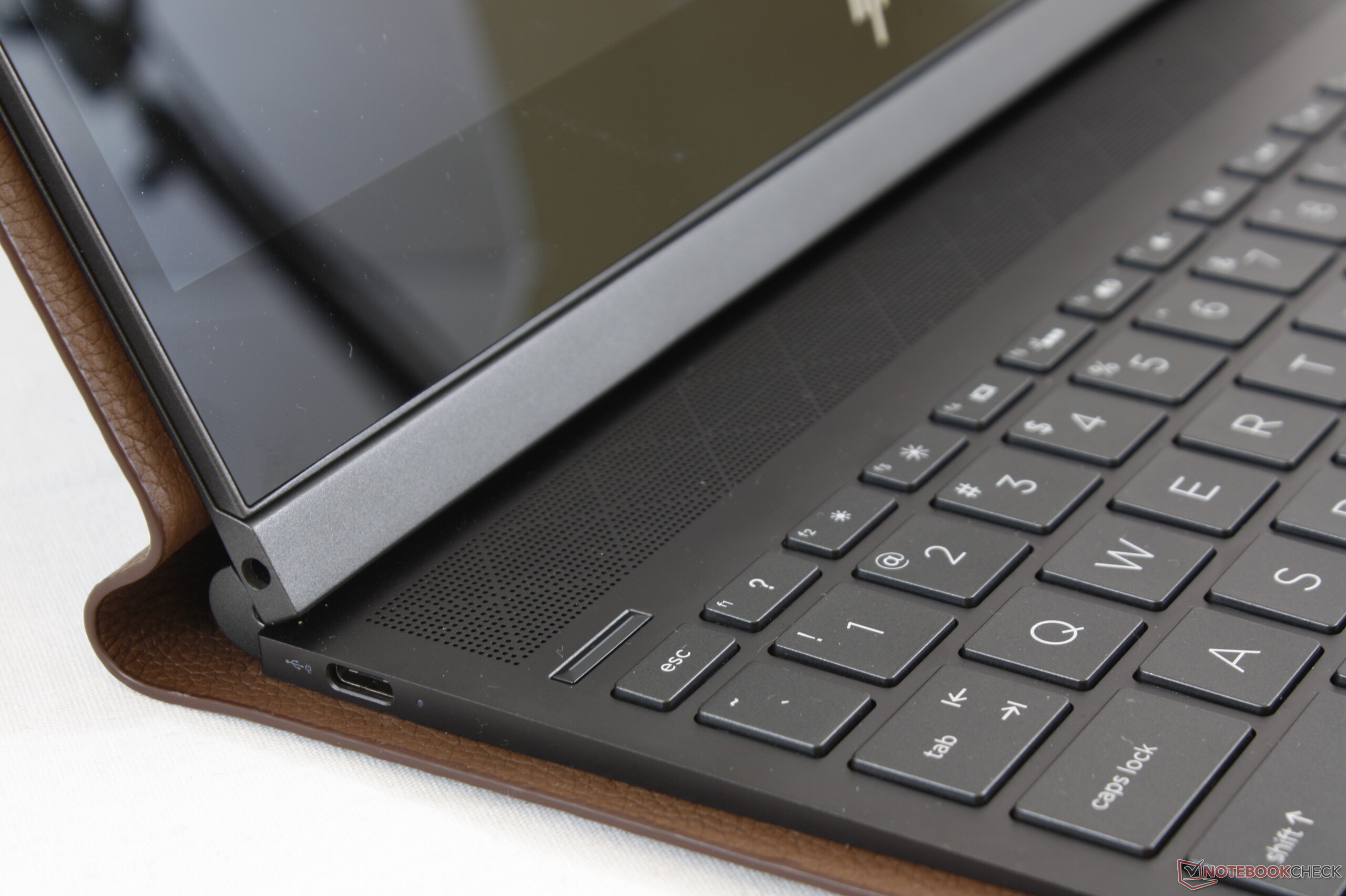

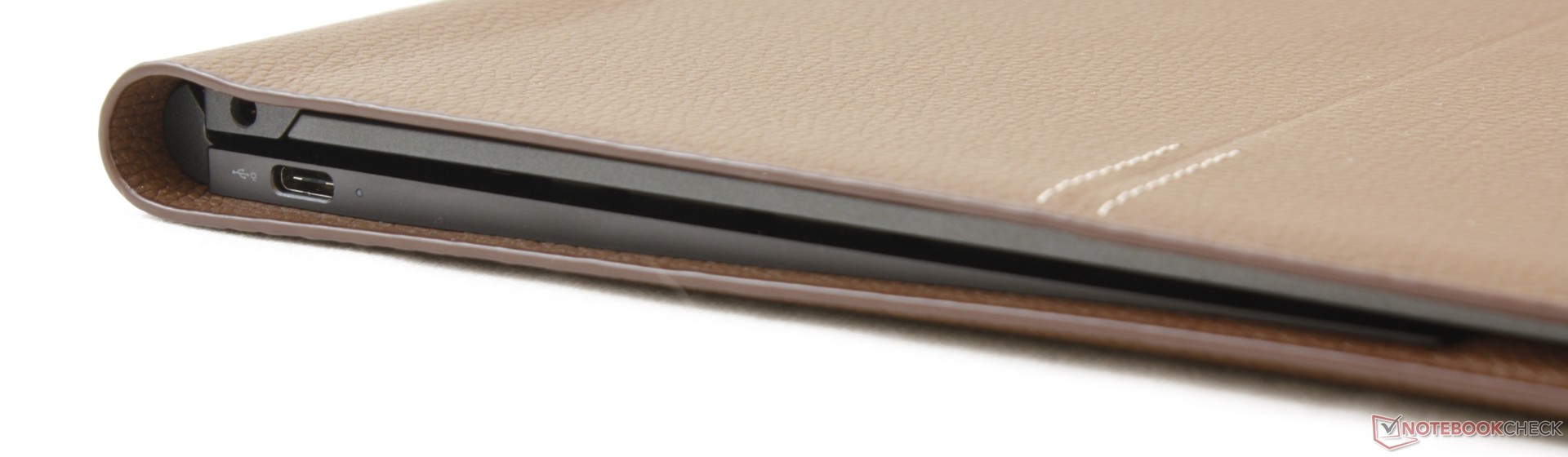

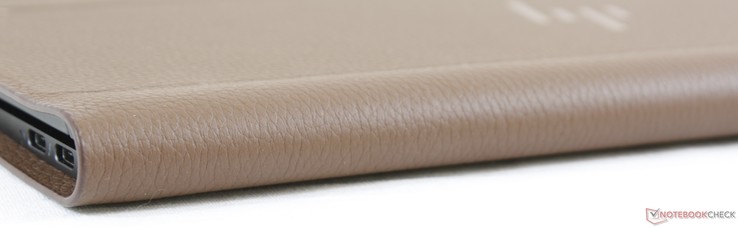

Left: USB Type-C Gen. 1 w/ DisplayPort 1.2, 3.5 mm combo audio

Networking
iperf3 transmit AX12
Lenovo Yoga C930-13IKB 81C4 Intel Wireless-AC 9260	640 MBit/s +20%
HP Spectre Folio 13t-ak000 Intel Dual Band Wireless-AC 8265	532 MBit/s
Microsoft Surface Pro 6, Core i5, 128 GB Marvell AVASTAR Wireless-AC Network Controller	517 (437^min - 572^max) MBit/s -3%
HP Spectre x360 13t-ae000 Intel Dual Band Wireless-AC 8265	478 MBit/s -10%
iperf3 receive AX12
Lenovo Yoga C930-13IKB 81C4 Intel Wireless-AC 9260	617 MBit/s 0%
HP Spectre Folio 13t-ak000 Intel Dual Band Wireless-AC 8265	616 MBit/s
HP Spectre x360 13t-ae000 Intel Dual Band Wireless-AC 8265	580 MBit/s -6%
Microsoft Surface Pro 6, Core i5, 128 GB Marvell AVASTAR Wireless-AC Network Controller	577 (517^min - 605^max) MBit/s -6%


405.7 cd/m²	391.8 cd/m²	422.4 cd/m²
389.1 cd/m²	389.8 cd/m²	405.7 cd/m²
371.1 cd/m²	394.2 cd/m²	391 cd/m²

Distribution of brightness

AU Optronics AUO572D tested with X-Rite i1Pro 2

Maximum: 422.4 cd/m² (Nits) Average: 395.6 cd/m² Minimum: 21.71 cd/m²
Brightness Distribution: 88 %
Center on Battery: 389.8 cd/m²
Contrast: 1444:1 (Black: 0.27 cd/m²)
ΔE Color 2.72 | 0.5-29.43 Ø4.93, calibrated: 1.25
ΔE Greyscale 4.2 | 0.5-98 Ø5.2
98.2% sRGB (Argyll 1.6.3 3D)
62.2% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.4% sRGB (Argyll 2.2.0 3D)
66.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.1

Download ICC File (X-Rite i1Pro 2)

	HP Spectre Folio 13t-ak000 AU Optronics AUO572D, IPS, 13.3", 1920x1080	HP Spectre x360 13t-ae000 LGD0588, IPS, 13.3", 3840x2160	HP EliteBook x360 1030 G3 45X96UT Chi Mei CMN1380, IPS, 13.3", 1920x1080	Microsoft Surface Pro 6, Core i5, 128 GB LGPhilips LP123WQ112604, IPS, 12.3", 2736x1834	Apple MacBook Air 2018 APPA039, IPS, 13.3", 2560x1600	Lenovo Yoga C930-13IKB B139HAN03_0, IPS, 13.9", 1920x1080
Display		6%	1%	-4%	1%	-3%
Display P3 Coverage	66.2	71.9 9%	66.7 1%	65.5 -1%	67.8 2%	64.3 -3%
sRGB Coverage	97.4	98.1 1%	98.6 1%	90.4 -7%	96.1 -1%	94.6 -3%
AdobeRGB 1998 Coverage	68.1	73.1 7%	68.7 1%	65.6 -4%	69.8 2%	66.2 -3%
Response Times		7%	26%	26%	25%	24%
Response Time Grey 50% / Grey 80% *	52 ?(24.4, 27.6)	51.6 ?(25.6, 26) 1%	39.6 ?(20.8, 18.8) 24%	42 ?(22, 20) 19%	39.6 ?(20.8, 18.8) 24%	40.8 ?(20.4, 20.4) 22%
Response Time Black / White *	37.2 ?(21.2, 16)	32.4 ?(16.4, 16) 13%	27.2 ?(14.8, 12.4) 27%	25 ?(14, 11) 33%	28 ?(15.6, 12.4) 25%	27.6 ?(15.6, 12) 26%
PWM Frequency			26040 ?(62)	20800 ?(50)	113600 ?(75)
Screen		3%	-1%	-15%	16%	-45%
Brightness middle	389.8	329.8 -15%	467.2 20%	463 19%	320 -18%	316 -19%
Brightness	396	318 -20%	445 12%	450 14%	315 -20%	291 -27%
Brightness Distribution	88	74 -16%	91 3%	83 -6%	95 8%	83 -6%
Black Level *	0.27	0.25 7%	0.4 -48%	0.32 -19%	0.29 -7%	0.36 -33%
Contrast	1444	1319 -9%	1168 -19%	1447 0%	1103 -24%	878 -39%
Colorchecker dE 2000 *	2.72	2.37 13%	2.41 11%	3.76 -38%	1.2 56%	5.9 -117%
Colorchecker dE 2000 max. *	5.49	4.08 26%	5.58 -2%	7.35 -34%	3.2 42%	12.9 -135%
Colorchecker dE 2000 calibrated *	1.25		1.33 -6%	2.68 -114%	0.5 60%	1.3 -4%
Greyscale dE 2000 *	4.2	2.8 33%	3.7 12%	3.18 24%	0.8 81%	8.6 -105%
Gamma	2.1 ^105%	2.145 ^103%	2.37 ^93%	2.53 ^87%	2.2 ^100%	2.1 ^105%
CCT	7470 ^87%	6441 ^101%	7158 ^91%	6994 ^93%	6548 ^99%	6854 ^95%
Color Space (Percent of AdobeRGB 1998)	62.2	67 8%	62.5 0%	59 -5%	62.1 0%	60.7 -2%
Color Space (Percent of sRGB)	98.2	98 0%	99.6 1%	90 -8%	96 -2%	94.5 -4%
Total Average (Program / Settings)		5% / 4%	9% / 2%	2% / -8%	14% / 14%	-8% / -28%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

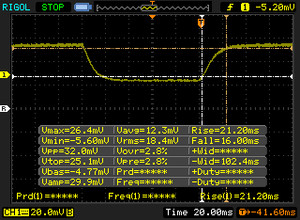

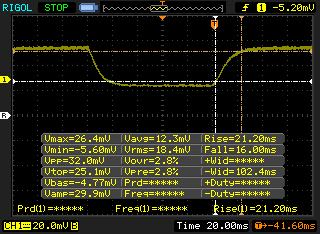

↔ Response Time Black to White
37.2 ms ... rise ↗ and fall ↘ combined	↗ 21.2 ms rise
37.2 ms ... rise ↗ and fall ↘ combined	↘ 16 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 95 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

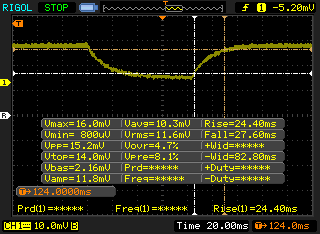

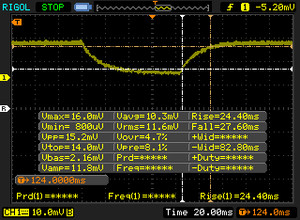

↔ Response Time 50% Grey to 80% Grey
52 ms ... rise ↗ and fall ↘ combined	↗ 24.4 ms rise
52 ms ... rise ↗ and fall ↘ combined	↘ 27.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 87 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

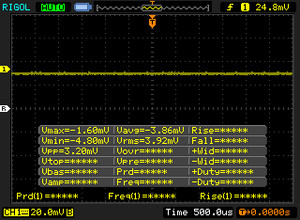

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

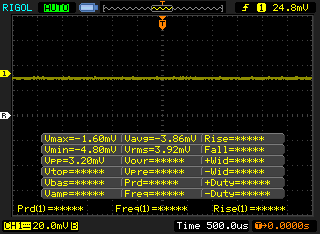

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8774 (minimum: 5 - maximum: 343500) Hz was measured.

HP Spectre Folio 13t-ak000 UHD Graphics 615, i7-8500Y, Samsung PM961 MZVLW256HEHP; CPU Multi 64Bit: Ø220 (212.35-271)

Microsoft Surface Go MHN-00003 UHD Graphics 615, Pentium 4415Y, 64 GB eMMC Flash; CPU Multi 64Bit: Ø162.9 (162.13-163.67)

Asus Transformer Book T102HA-GR022T HD Graphics 400 (Braswell), Z8350, 128 GB eMMC Flash; CPU Multi 64Bit: Ø99.3 (96.12-100.08)

Dell XPS 13 9365-4537 2-in-1 HD Graphics 615, i5-7Y54, Toshiba NVMe THNSN5256GPUK; CPU Multi 64Bit: Ø202 (196.49-249.97)

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

Cinebench R15
CPU Single 64Bit
HP EliteBook x360 1030 G3 45X96UT Intel Core i7-8650U	163 Points +23%
HP Spectre x360 15-ch011nr Intel Core i7-8550U	149 Points +13%
HP Spectre x360 13-ac033dx Intel Core i7-7500U	143 Points +8%
Microsoft Surface Pro 6, Core i5, 128 GB Intel Core i5-8250U	143 Points +8%
HP Envy x360 15-bq102ng AMD Ryzen 5 2500U	142 Points +8%
Apple MacBook Air 2018 Intel Core i5-8210Y	132 Points 0%
HP Spectre Folio 13t-ak000 Intel Core i7-8500Y	132 Points
Dell XPS 13-9365 2-in-1 Intel Core i7-7Y75	130 Points -2%
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	65 Points -51%
HP ProBook x360 11 G1 EE Z3A47EA Intel Pentium N4200	53 Points -60%
HP Stream 14-ax002ng Intel Celeron N3060	36 Points -73%
Asus Transformer Book T102HA-GR022T Intel Atom x5-Z8350	31 Points -77%
CPU Multi 64Bit
HP Envy x360 15-bq102ng AMD Ryzen 5 2500U	618 Points +128%
Microsoft Surface Pro 6, Core i5, 128 GB Intel Core i5-8250U	585 Points +116%
HP Spectre x360 15-ch011nr Intel Core i7-8550U	542 Points +100%
HP EliteBook x360 1030 G3 45X96UT Intel Core i7-8650U	494 Points +82%
HP Spectre x360 13-ac033dx Intel Core i7-7500U	317 Points +17%
Apple MacBook Air 2018 Intel Core i5-8210Y	285 Points +5%
HP Spectre Folio 13t-ak000 Intel Core i7-8500Y	271 Points
Dell XPS 13-9365 2-in-1 Intel Core i7-7Y75	258 Points -5%
HP ProBook x360 11 G1 EE Z3A47EA Intel Pentium N4200	174 Points -36%
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	164 Points -39%
Asus Transformer Book T102HA-GR022T Intel Atom x5-Z8350	100 Points -63%
HP Stream 14-ax002ng Intel Celeron N3060	72 Points -73%

Cinebench R11.5
CPU Single 64Bit
HP Spectre x360 13-ac033dx Intel Core i7-7500U	1.65 Points +15%
HP Envy x360 15-bq102ng AMD Ryzen 5 2500U	1.61 Points +13%
Dell XPS 13-9365 2-in-1 Intel Core i7-7Y75	1.54 Points +8%
HP Spectre Folio 13t-ak000 Intel Core i7-8500Y	1.43 Points
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	0.75 Points -48%
HP ProBook x360 11 G1 EE Z3A47EA Intel Pentium N4200	0.64 Points -55%
CPU Multi 64Bit
HP Envy x360 15-bq102ng AMD Ryzen 5 2500U	6.91 Points +182%
HP Spectre x360 13-ac033dx Intel Core i7-7500U	3.53 Points +44%
Dell XPS 13-9365 2-in-1 Intel Core i7-7Y75	2.98 Points +22%
HP Spectre Folio 13t-ak000 Intel Core i7-8500Y	2.45 Points
HP ProBook x360 11 G1 EE Z3A47EA Intel Pentium N4200	2.02 Points -18%
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	1.8 Points -27%

Cinebench R10
Rendering Multiple CPUs 32Bit
HP Envy x360 15-bq102ng AMD Ryzen 5 2500U	16466 Points +94%
HP Spectre x360 13-ac033dx Intel Core i7-7500U	11366 Points +34%
Dell XPS 13-9365 2-in-1 Intel Core i7-7Y75	9392 Points +11%
HP Spectre Folio 13t-ak000 Intel Core i7-8500Y	8493 Points
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	5586 Points -34%
HP ProBook x360 11 G1 EE Z3A47EA Intel Pentium N4200	4844 Points -43%
Rendering Single 32Bit
HP Spectre x360 13-ac033dx Intel Core i7-7500U	5614 Points +15%
Dell XPS 13-9365 2-in-1 Intel Core i7-7Y75	5496 Points +12%
HP Spectre Folio 13t-ak000 Intel Core i7-8500Y	4898 Points
HP Envy x360 15-bq102ng AMD Ryzen 5 2500U	4473 Points -9%
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	2521 Points -49%
HP ProBook x360 11 G1 EE Z3A47EA Intel Pentium N4200	1668 Points -66%

wPrime 2.10 - 1024m
Microsoft Surface Go MHN-00003 Intel Pentium Gold 4415Y	982 s * -46%
HP Spectre Folio 13t-ak000 Intel Core i7-8500Y	673 s *
Dell XPS 13-9365 2-in-1 Intel Core i7-7Y75	619 s * +8%
HP Spectre x360 13-ac033dx Intel Core i7-7500U	480.1 s * +29%
HP Envy x360 15-bq102ng AMD Ryzen 5 2500U	375.9 s * +44%

Cinebench R15 | Cinebench R11.5 | Cinebench R10 | wPrime 2.10

* ... smaller is better

Cinebench R10 Shading 32Bit

8347

Cinebench R10 Rendering Multiple CPUs 32Bit

8493

Cinebench R10 Rendering Single 32Bit

4898

Cinebench R11.5 CPU Single 64Bit

1.43 Points

Cinebench R11.5 CPU Multi 64Bit

2.45 Points

Cinebench R11.5 OpenGL 64Bit

24.24 fps

Cinebench R15 CPU Single 64Bit

132 Points

Cinebench R15 CPU Multi 64Bit

271 Points

Cinebench R15 OpenGL 64Bit

44.49 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Help

... in comparison

PCMark 10 | PCMark 8

PCMark 10
Score
Average of class Convertible (1486 - 7963, n=56, last 2 years)	5855 Points +99%
HP EliteBook x360 1030 G3 45X96UT UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ	3901 Points +32%
HP Spectre x360 13t-ae000 UHD Graphics 620, i5-8550U, Lite-On CA1-8D256-HP	3313 Points +12%
Microsoft Surface Pro 6, Core i5, 128 GB UHD Graphics 620, i5-8250U, Toshiba KBG30ZPZ128G	3076 Points +4%
HP Spectre Folio 13t-ak000 UHD Graphics 615, i7-8500Y, Samsung PM961 MZVLW256HEHP	2945 Points
Apple MacBook Air 2018 UHD Graphics 617, i5-8210Y, Apple SSD AP0256	2174 Points -26%
HP ProBook x360 11 G1 EE Z3A47EA HD Graphics 505, Pentium N4200, SanDisk SD8SN8U256G1006	1577 Points -46%
Essentials
Average of class Convertible (3975 - 12059, n=56, last 2 years)	10538 Points +56%
HP EliteBook x360 1030 G3 45X96UT UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ	8733 Points +30%
HP Spectre x360 13t-ae000 UHD Graphics 620, i5-8550U, Lite-On CA1-8D256-HP	7376 Points +9%
HP Spectre Folio 13t-ak000 UHD Graphics 615, i7-8500Y, Samsung PM961 MZVLW256HEHP	6741 Points
Microsoft Surface Pro 6, Core i5, 128 GB UHD Graphics 620, i5-8250U, Toshiba KBG30ZPZ128G	6714 Points 0%
Apple MacBook Air 2018 UHD Graphics 617, i5-8210Y, Apple SSD AP0256	4504 Points -33%
HP ProBook x360 11 G1 EE Z3A47EA HD Graphics 505, Pentium N4200, SanDisk SD8SN8U256G1006	4115 Points -39%
Productivity
Average of class Convertible (2764 - 10800, n=56, last 2 years)	7820 Points +36%
HP EliteBook x360 1030 G3 45X96UT UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ	6694 Points +17%
HP Spectre Folio 13t-ak000 UHD Graphics 615, i7-8500Y, Samsung PM961 MZVLW256HEHP	5745 Points
HP Spectre x360 13t-ae000 UHD Graphics 620, i5-8550U, Lite-On CA1-8D256-HP	5253 Points -9%
Microsoft Surface Pro 6, Core i5, 128 GB UHD Graphics 620, i5-8250U, Toshiba KBG30ZPZ128G	4520 Points -21%
Apple MacBook Air 2018 UHD Graphics 617, i5-8210Y, Apple SSD AP0256	3902 Points -32%
HP ProBook x360 11 G1 EE Z3A47EA HD Graphics 505, Pentium N4200, SanDisk SD8SN8U256G1006	2535 Points -56%
Digital Content Creation
Average of class Convertible (811 - 12360, n=56, last 2 years)	6762 Points +278%
HP EliteBook x360 1030 G3 45X96UT UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ	2758 Points +54%
Microsoft Surface Pro 6, Core i5, 128 GB UHD Graphics 620, i5-8250U, Toshiba KBG30ZPZ128G	2604 Points +45%
HP Spectre x360 13t-ae000 UHD Graphics 620, i5-8550U, Lite-On CA1-8D256-HP	2548 Points +42%
HP Spectre Folio 13t-ak000 UHD Graphics 615, i7-8500Y, Samsung PM961 MZVLW256HEHP	1791 Points
Apple MacBook Air 2018 UHD Graphics 617, i5-8210Y, Apple SSD AP0256	1609 Points -10%
HP ProBook x360 11 G1 EE Z3A47EA HD Graphics 505, Pentium N4200, SanDisk SD8SN8U256G1006	1021 Points -43%

PCMark 8
Home Score Accelerated v2
Average of class Convertible (4435 - 5830, n=3, last 2 years)	5108 Points +87%
HP EliteBook x360 1030 G3 45X96UT UHD Graphics 620, i7-8650U, Samsung SSD PM981 MZVLB512HAJQ	4103 Points +50%
HP Spectre x360 13t-ae000 UHD Graphics 620, i5-8550U, Lite-On CA1-8D256-HP	3306 Points +21%
Microsoft Surface Pro 6, Core i5, 128 GB UHD Graphics 620, i5-8250U, Toshiba KBG30ZPZ128G	3088 Points +13%
HP Spectre x360 13-ac033dx HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	3023 Points +10%
HP Spectre Folio 13t-ak000 UHD Graphics 615, i7-8500Y, Samsung PM961 MZVLW256HEHP	2737 Points
Apple MacBook Air 2018 UHD Graphics 617, i5-8210Y, Apple SSD AP0256	2484 Points -9%
HP ProBook x360 11 G1 EE Z3A47EA HD Graphics 505, Pentium N4200, SanDisk SD8SN8U256G1006	2140 Points -22%
HP Stream 14-ax002ng HD Graphics 400 (Braswell), N3060, SanDisk DF4032	1760 Points -36%
Microsoft Surface Go MHN-00003 UHD Graphics 615, Pentium 4415Y, 64 GB eMMC Flash	741 Points -73%
Work Score Accelerated v2
Average of class Convertible (2921 - 6089, n=3, last 2 years)	4810 Points +9%
HP Spectre Folio 13t-ak000 UHD Graphics 615, i7-8500Y, Samsung PM961 MZVLW256HEHP	4406 Points
HP Spectre x360 13t-ae000 UHD Graphics 620, i5-8550U, Lite-On CA1-8D256-HP	4149 Points -6%
Microsoft Surface Pro 6, Core i5, 128 GB UHD Graphics 620, i5-8250U, Toshiba KBG30ZPZ128G	3970 Points -10%
HP Spectre x360 13-ac033dx HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	3706 Points -16%
Apple MacBook Air 2018 UHD Graphics 617, i5-8210Y, Apple SSD AP0256	3209 Points -27%
HP ProBook x360 11 G1 EE Z3A47EA HD Graphics 505, Pentium N4200, SanDisk SD8SN8U256G1006	2981 Points -32%
Creative Score Accelerated v2
HP Spectre x360 13t-ae000 UHD Graphics 620, i5-8550U, Lite-On CA1-8D256-HP	4885 Points
HP Spectre x360 13-ac033dx HD Graphics 620, i7-7500U, Samsung PM961 NVMe MZVLW512HMJP	4432 Points
Microsoft Surface Pro 6, Core i5, 128 GB UHD Graphics 620, i5-8250U, Toshiba KBG30ZPZ128G	4227 Points
Apple MacBook Air 2018 UHD Graphics 617, i5-8210Y, Apple SSD AP0256	3285 Points
HP ProBook x360 11 G1 EE Z3A47EA HD Graphics 505, Pentium N4200, SanDisk SD8SN8U256G1006	2512 Points

PCMark 8 Home Score Accelerated v2		2737 points
PCMark 8 Work Score Accelerated v2		4406 points
PCMark 10 Score		2945 points
Help

	HP Spectre Folio 13t-ak000 Samsung PM961 MZVLW256HEHP	HP EliteBook x360 1030 G3 45X96UT Samsung SSD PM981 MZVLB512HAJQ	Microsoft Surface Pro 6, Core i5, 128 GB Toshiba KBG30ZPZ128G	Microsoft Surface Go MHN-00003 64 GB eMMC Flash	HP Stream 14-ax002ng SanDisk DF4032
AS SSD		8%	-227%	-126%	-346%
Seq Read	1693	1798 6%	1114 -34%	289.8 -83%	144.8 -91%
Seq Write	1214	1374 13%	340 -72%	126.7 -90%	89.2 -93%
4K Read	42.69	46.05 8%	40.46 -5%	18.29 -57%	12.01 -72%
4K Write	95.9	104.3 9%	80.6 -16%	35.07 -63%	9.2 -90%
4K-64 Read	1621	1408 -13%	277.9 -83%	40.27 -98%	29.14 -98%
4K-64 Write	605	790 31%	129.3 -79%	44.48 -93%	6.93 -99%
Access Time Read *	0.051	0.041 20%	0.913 -1690%	0.151 -196%	0.332 -551%
Access Time Write *	0.037	0.036 3%	0.301 -714%	0.233 -530%	0.932 -2419%
Score Read	1833	1634 -11%	430 -77%	88 -95%	56 -97%
Score Write	823	1032 25%	244 -70%	92 -89%	25 -97%
Score Total	3569	3484 -2%	870 -76%	225 -94%	112 -97%
Copy ISO MB/s	1374	1947 42%	128.1 -91%	99.1 -93%
Copy Program MB/s	631	453.9 -28%	94 -85%	44.34 -93%
Copy Game MB/s	971	990 2%	124.4 -87%	76.5 -92%
CrystalDiskMark 5.2 / 6		41%	-56%	-80%	-91%
Write 4K	140	120 -14%	68.1 -51%	26.91 -81%	7.611 -95%
Read 4K	52.4	43.42 -17%	30.64 -42%	19.72 -62%	13.21 -75%
Write Seq	948	1814 91%	133.8 -86%	126.2 -87%	65.8 -93%
Read Seq	922	2227 142%	705 -24%	268 -71%	120.6 -87%
Write 4K Q32T1	227.8	391.8 72%	104.4 -54%	62.9 -72%	7.547 -97%
Read 4K Q32T1	299.2	288.7 -4%	196.3 -34%	39.82 -87%	35.25 -88%
Write Seq Q32T1	1259	1860 48%	135.5 -89%	131.3 -90%	61.5 -95%
Read Seq Q32T1	3112	3376 8%	1124 -64%	259.3 -92%	122 -96%
Total Average (Program / Settings)		25% / 20%	-142% / -165%	-103% / -109%	-219% / -238%

* ... smaller is better

CrystalDiskMark 5.2 / 6

AS SSD

Samsung PM961 MZVLW256HEHP

CDM 5/6 Read Seq Q32T1: 3112 MB/s

CDM 5/6 Write Seq Q32T1: 1259 MB/s

CDM 5/6 Read 4K Q32T1: 299.2 MB/s

CDM 5/6 Write 4K Q32T1: 227.8 MB/s

CDM 5 Read Seq: 922 MB/s

CDM 5 Write Seq: 948 MB/s

CDM 5/6 Read 4K: 52.4 MB/s

CDM 5/6 Write 4K: 140 MB/s

3DMark 11 | 3DMark

3DMark 11
1280x720 Performance GPU
HP Spectre x360 15-ch011nr NVIDIA GeForce MX150, i5-8550U	4708 Points +333%
HP Envy x360 15-bq102ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	3549 Points +226%
Lenovo IdeaPad Flex-1570 81CA000RUS NVIDIA GeForce MX130, i5-8550U	2592 Points +138%
Microsoft Surface Pro 6, Core i5, 128 GB Intel UHD Graphics 620, i5-8250U	1881 Points +73%
HP Spectre x360 13t-ae000 Intel UHD Graphics 620, i5-8550U	1577 Points +45%
Apple MacBook Air 2018 Intel UHD Graphics 617, i5-8210Y	1572 Points +44%
HP Spectre x360 13-ac033dx Intel HD Graphics 620, i7-7500U	1569 Points +44%
Microsoft Surface Go MHN-00003 Intel UHD Graphics 615, Pentium 4415Y	1257 Points +16%
Average Intel UHD Graphics 615 (821 - 1378, n=10)	1175 Points +8%
HP Spectre Folio 13t-ak000 Intel UHD Graphics 615, i7-8500Y	1088 Points
HP ProBook x360 11 G1 EE Z3A47EA Intel HD Graphics 505, Pentium N4200	725 Points -33%
HP Stream 14-ax002ng Intel HD Graphics 400 (Braswell), N3060	381 Points -65%
Asus Transformer Book T102HA-GR022T Intel HD Graphics 400 (Braswell), Z8350	349 Points -68%
1280x720 Performance Combined
HP Spectre x360 15-ch011nr NVIDIA GeForce MX150, i5-8550U	4296 Points +393%
Lenovo IdeaPad Flex-1570 81CA000RUS NVIDIA GeForce MX130, i5-8550U	2831 Points +225%
HP Envy x360 15-bq102ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	2683 Points +208%
HP Spectre x360 13t-ae000 Intel UHD Graphics 620, i5-8550U	1586 Points +82%
HP Spectre x360 13-ac033dx Intel HD Graphics 620, i7-7500U	1555 Points +78%
Microsoft Surface Pro 6, Core i5, 128 GB Intel UHD Graphics 620, i5-8250U	1509 Points +73%
Apple MacBook Air 2018 Intel UHD Graphics 617, i5-8210Y	1472 Points +69%
Microsoft Surface Go MHN-00003 Intel UHD Graphics 615, Pentium 4415Y	1134 Points +30%
Average Intel UHD Graphics 615 (734 - 1294, n=10)	1039 Points +19%
HP Spectre Folio 13t-ak000 Intel UHD Graphics 615, i7-8500Y	872 Points
HP ProBook x360 11 G1 EE Z3A47EA Intel HD Graphics 505, Pentium N4200	592 Points -32%
HP Stream 14-ax002ng Intel HD Graphics 400 (Braswell), N3060	395 Points -55%
Asus Transformer Book T102HA-GR022T Intel HD Graphics 400 (Braswell), Z8350	392 Points -55%

3DMark
1280x720 Cloud Gate Standard Graphics
HP Spectre x360 15-ch011nr NVIDIA GeForce MX150, i5-8550U	19900 Points +197%
HP Envy x360 15-bq102ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	15186 Points +127%
Lenovo IdeaPad Flex-1570 81CA000RUS NVIDIA GeForce MX130, i5-8550U	12942 Points +93%
Microsoft Surface Pro 6, Core i5, 128 GB Intel UHD Graphics 620, i5-8250U	9769 Points +46%
HP Spectre x360 13t-ae000 Intel UHD Graphics 620, i5-8550U	8112 Points +21%
HP Spectre x360 13-ac033dx Intel HD Graphics 620, i7-7500U	7636 Points +14%
Apple MacBook Air 2018 Intel UHD Graphics 617, i5-8210Y	7231 Points +8%
HP Spectre Folio 13t-ak000 Intel UHD Graphics 615, i7-8500Y	6692 Points
Microsoft Surface Go MHN-00003 Intel UHD Graphics 615, Pentium 4415Y	6602 Points -1%
Average Intel UHD Graphics 615 (4521 - 7568, n=10)	6316 Points -6%
HP ProBook x360 11 G1 EE Z3A47EA Intel HD Graphics 505, Pentium N4200	3598 Points -46%
Asus Transformer Book T102HA-GR022T Intel HD Graphics 400 (Braswell), Z8350	2000 Points -70%
1920x1080 Fire Strike Graphics
HP Spectre x360 15-ch011nr NVIDIA GeForce MX150, i5-8550U	3622 Points +394%
HP Envy x360 15-bq102ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	2310 Points +215%
Lenovo IdeaPad Flex-1570 81CA000RUS NVIDIA GeForce MX130, i5-8550U	2149 Points +193%
HP Spectre x360 13t-ae000 Intel UHD Graphics 620, i5-8550U	1064 Points +45%
HP Spectre x360 13-ac033dx Intel HD Graphics 620, i7-7500U	1029 Points +40%
Apple MacBook Air 2018 Intel UHD Graphics 617, i5-8210Y	947 Points +29%
Microsoft Surface Go MHN-00003 Intel UHD Graphics 615, Pentium 4415Y	819 Points +12%
Average Intel UHD Graphics 615 (563 - 976, n=11)	816 Points +11%
HP Spectre Folio 13t-ak000 Intel UHD Graphics 615, i7-8500Y	733 Points
HP ProBook x360 11 G1 EE Z3A47EA Intel HD Graphics 505, Pentium N4200	482 Points -34%
1920x1080 Ice Storm Extreme Graphics
HP Envy x360 15-bq102ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	68150 Points
HP Spectre x360 13-ac033dx Intel HD Graphics 620, i7-7500U	37394 Points
Microsoft Surface Go MHN-00003 Intel UHD Graphics 615, Pentium 4415Y	35452 Points
Average Intel UHD Graphics 615 (23099 - 35452, n=6)	26792 Points
HP ProBook x360 11 G1 EE Z3A47EA Intel HD Graphics 505, Pentium N4200	20939 Points
2560x1440 Time Spy Graphics
HP Envy x360 15-bq102ng AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 2500U	649 Points +187%
Apple MacBook Air 2018 Intel UHD Graphics 617, i5-8210Y	286 Points +27%
Average Intel UHD Graphics 615 (205 - 289, n=6)	245 Points +8%
HP Spectre Folio 13t-ak000 Intel UHD Graphics 615, i7-8500Y	226 Points
HP ProBook x360 11 G1 EE Z3A47EA Intel HD Graphics 505, Pentium N4200	85 Points -62%

3DMark 11 | 3DMark

3DMark 06 Standard Score		6386 points
3DMark Vantage P Result		3813 points
3DMark 11 Performance		1169 points
3DMark Ice Storm Standard Score		36523 points
3DMark Cloud Gate Standard Score		4660 points
3DMark Fire Strike Score		648 points
3DMark Time Spy Score		257 points
Help

... in comparison

	low	med.	high	ultra
BioShock Infinite (2013)	39.2	19.8	18.1	5.7
Rise of the Tomb Raider (2016)	10.6
Rocket League (2017)	33.2	16	10.3

Max. Load

Idle


40 °C	44.2 °C	35 °C
32 °C	31.8 °C	28.6 °C
28.8 °C	26 °C	27.6 °C

Maximum: 44.2 °C
Average: 32.7 °C


34.8 °C	48.2 °C	39 °C
32 °C	35 °C	35.2 °C
30.2 °C	31.2 °C	31.6 °C

Maximum: 48.2 °C
Average: 35.2 °C

Power Supply (max.) 29.2 °C | Room Temperature 20 °C | Fluke 62 Mini IR Thermometer

(±) The average temperature for the upper side under maximal load is 32.7 °C / 91 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(±) The maximum temperature on the upper side is 44.2 °C / 112 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(-) The bottom heats up to a maximum of 48.2 °C / 119 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 30.2 °C / 86 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28.8 °C / 83.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-0.7 °C / -1.2 F).

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

HP Spectre Folio 13t-ak000 audio analysis

(-) | not very loud speakers (68.3 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.7% lower than median
(±) | linearity of bass is average (11.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4% away from median
(±) | linearity of mids is average (8.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.6% away from median
(±) | linearity of highs is average (8.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (27.2% difference to median)
Compared to same class
» 81% of all tested devices in this class were better, 4% similar, 14% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 81% of all tested devices were better, 4% similar, 15% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption

Off / Standby	0.23 / 0.54 Watt
Idle	1.8 / 3.8 / 7.7 Watt
Load	26.9 / 38.5 Watt


Key: min: , med: , max: Metrahit Energy

	HP Spectre Folio 13t-ak000 i7-8500Y, UHD Graphics 615, Samsung PM961 MZVLW256HEHP, IPS, 1920x1080, 13.3"	Microsoft Surface Go MHN-00003 Pentium 4415Y, UHD Graphics 615, 64 GB eMMC Flash, IPS, 1800x1200, 10"	HP Spectre x360 13-ac033dx i7-7500U, HD Graphics 620, Samsung PM961 NVMe MZVLW512HMJP, IPS, 3840x2160, 13.3"	Microsoft Surface Pro 6, Core i5, 128 GB i5-8250U, UHD Graphics 620, Toshiba KBG30ZPZ128G, IPS, 2736x1834, 12.3"	Apple MacBook Air 2018 i5-8210Y, UHD Graphics 617, Apple SSD AP0256, IPS, 2560x1600, 13.3"	Huawei Matebook X Pro i5 i5-8250U, GeForce MX150, Samsung PM961 MZVLW256HEHP, IPS, 3000x2000, 13.9"
Power Consumption		-2%	-79%	-55%	-16%	-85%
Idle Minimum *	1.8	2.88 -60%	5.3 -194%	4.3 -139%	2.2 -22%	3.5 -94%
Idle Average *	3.8	4.8 -26%	9.6 -153%	8.7 -129%	5.7 -50%	8.9 -134%
Idle Maximum *	7.7	7.5 3%	10.1 -31%	9.4 -22%	10.3 -34%	12.3 -60%
Load Average *	26.9	16.9 37%	34.4 -28%	24.5 9%	25.6 5%	54.2 -101%
Load Maximum *	38.5	23.8 38%	34.8 10%	36 6%	30.6 21%	52.1 -35%
Witcher 3 ultra *						42.4

* ... smaller is better

Battery Runtime

Idle (without WLAN, min brightness)		31h 22min
WiFi Websurfing		14h 12min
Load (maximum brightness)		3h 32min

	HP Spectre Folio 13t-ak000 i7-8500Y, UHD Graphics 615, 54.28 Wh	Microsoft Surface Go MHN-00003 Pentium 4415Y, UHD Graphics 615, 28 Wh	HP Spectre x360 13-ac033dx i7-7500U, HD Graphics 620, 57.8 Wh	Microsoft Surface Pro 6, Core i5, 128 GB i5-8250U, UHD Graphics 620, 45 Wh	Apple MacBook Air 2018 i5-8210Y, UHD Graphics 617, 50.3 Wh	Huawei Matebook X Pro i5 i5-8250U, GeForce MX150, 57.4 Wh
Battery Runtime		-40%	-47%	-41%	-30%	-35%
Reader / Idle	1882	771 -59%	792 -58%	1066 -43%		1243 -34%
WiFi v1.3	852	448 -47%	537 -37%	545 -36%	668 -22%	557 -35%
Load	212	180 -15%	114 -46%	118 -44%	131 -38%	133 -37%

Pros

+ 独特的皮革设计以及二合一外观有着优秀的握持感

+ 屏幕素质优秀，大于95%的sRGB色域覆盖，对比度高

+ 屏幕比Spectre x360 13更出色

+ eSIM和nanoSIM混合双卡，千兆LTE模块

+ 完全静音，没有任何电子噪声

+ 外壳不会留指纹

+ 三星SSD速度很快

+ 不用接电源即可性能全开

+ 双雷电3接口

+ 价格包括手写笔

+ 续航时间长

Cons

- 只提供5W的CPU，没有Kaby LakeR或Whiskey LakeU选项

- 屏幕响应速度慢，拖影明显

- 无可维护性，用户自行设计基本不可能

- 比Spectre x360 13更重更大

- 没有USB TypeA, HDMI, RJ45接口，也没有SD卡读卡器

- 没有防盗锁扣和指纹识别器

- 触摸板比Spectre x360 13小

- 性能价格比低

- 键盘不放泼溅

In review: HP Spectre Folio 13t-ak000. Test model provided by HP US

惠普为Spectre Folio打造了一个细分市场。与Surface Go或Surface Pro 6相比，这台HP二合一笔记本提供4G LTE模块，雷电3，更长的电池续航时间以及更大的屏幕，吸引着经常在路上的商务用户。魁梧的皮革外观既美观又实用，并且适合抓握和携带。

虽然看起来和感觉都非常不错，但Spectre Folio的最大竞争对手其实是Spectre x360 13，因为两者都是13英寸二合一，价格相差也不大。公认的优雅皮革外观是以尺寸，重量和维修保养成本作为代价的，而Spectre x360 13则更小，更轻，更薄，并且更容易维修或升级。由于采用了Kaby Lake-R处理器，Spectre x360 13性能比Spectre Folio更强，并且集成了USB Type-A接口和SD读卡器。

会考虑真皮HP二合一的用户应该在乎的都是其设计和手感，以及集成的4G LTE模块。不然的话，Spectre x360 13还是更值得购买，因为它提供比Spectre Folio更好的性能和功能。

“全新的设计最适合咖啡厅和教室环境的使用。Spectre Folio将复古的外观与最新的Intel Amber Lake-Y处理器以及4G LTE eSIM技术相结合，以延长电池寿命并始终保持网络连接。但是，如果您没有被独特的外观吸引，那么其他超极本往往会提供更多的功能和更小的尺寸。”

HP Spectre Folio 13t-ak000 - 2018-11-23 11/23/2018 v6 ^(old)
Allen Ngo

Chassis

84 / 98 → 86%

Keyboard

87%

Pointing Device

83%

Connectivity

51 / 80 → 64%

Weight

69 / 35-78 → 79%

Battery

97%

Display

85%

Games Performance

54 / 68 → 79%

Application Performance

77 / 87 → 89%

Temperature

89%

Noise

100%

Audio

69 / 91 → 76%

Camera

66 / 85 → 77%

Average

78%

86%

Convertible - Weighted Average

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5238 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 452583 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 惠普Spectre Folio 13 (i7-8500Y)二合一笔记本电脑评测

Allen Ngo, 2018-12- 5 (Update: 2018-12- 5)

Display Response Times

Screen Flickering / PWM (Pulse-Width Modulation)

HP Spectre Folio 13t-ak000 audio analysis

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

Pros

Cons

More articles related to this device

Price comparison
