微软 Surface 3 平板/变形本简短评测

“笔记本杀手”第三部 ——继Surface Pro 3在去年秋天发布之后,微软现在又推出了它的轻量版Surface 3。我们已经拿到了一台测试机,将会发布一部分测试数据。 05/07/2015更新:应用程序性能,噪音散热和评分
Convertible / 2-in-1 Laptop / Notebook Tablet Touchscreen Windows

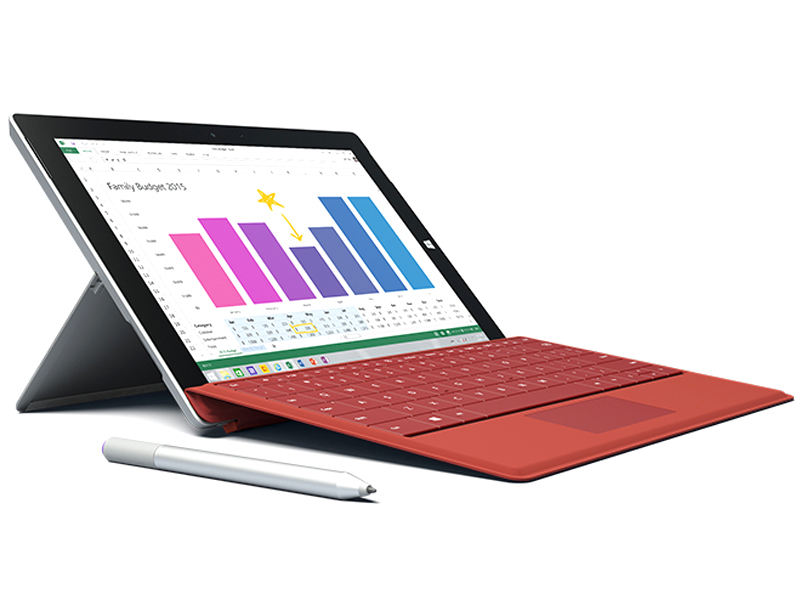

Microsoft Surface 3 (Surface Series)
Processor
Intel Atom x7-Z8700 4 x 1.6 - 2.4 GHz, Cherry Trail
Graphics adapter
Intel HD Graphics (Cherry Trail)
Memory
4 GB
Display
10.80 inch 3:2, 1920 x 1280 pixel, 10点触控, native pen support, Panasonic MEI9001, IPS, glossy: yes, detachable screen
Storage
128 GB eMMC Flash, 128 GB
, 93.2 GB free
Connections
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, 1 DisplayPort, Audio Connections: 3.5毫米整合耳机接口, Card Reader: MicroSD读卡器, Brightness Sensor, Sensors: 环境光传感器,近距传感器,加速传感器,陀螺仪,磁感仪, Micro-USB充电接口
Networking
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Size
height x width x depth (in mm): 8.7 x 267 x 187
Battery
28 Wh, Battery runtime (according to manufacturer): 10 h
Operating System
Microsoft Windows 8.1 64 Bit
Camera

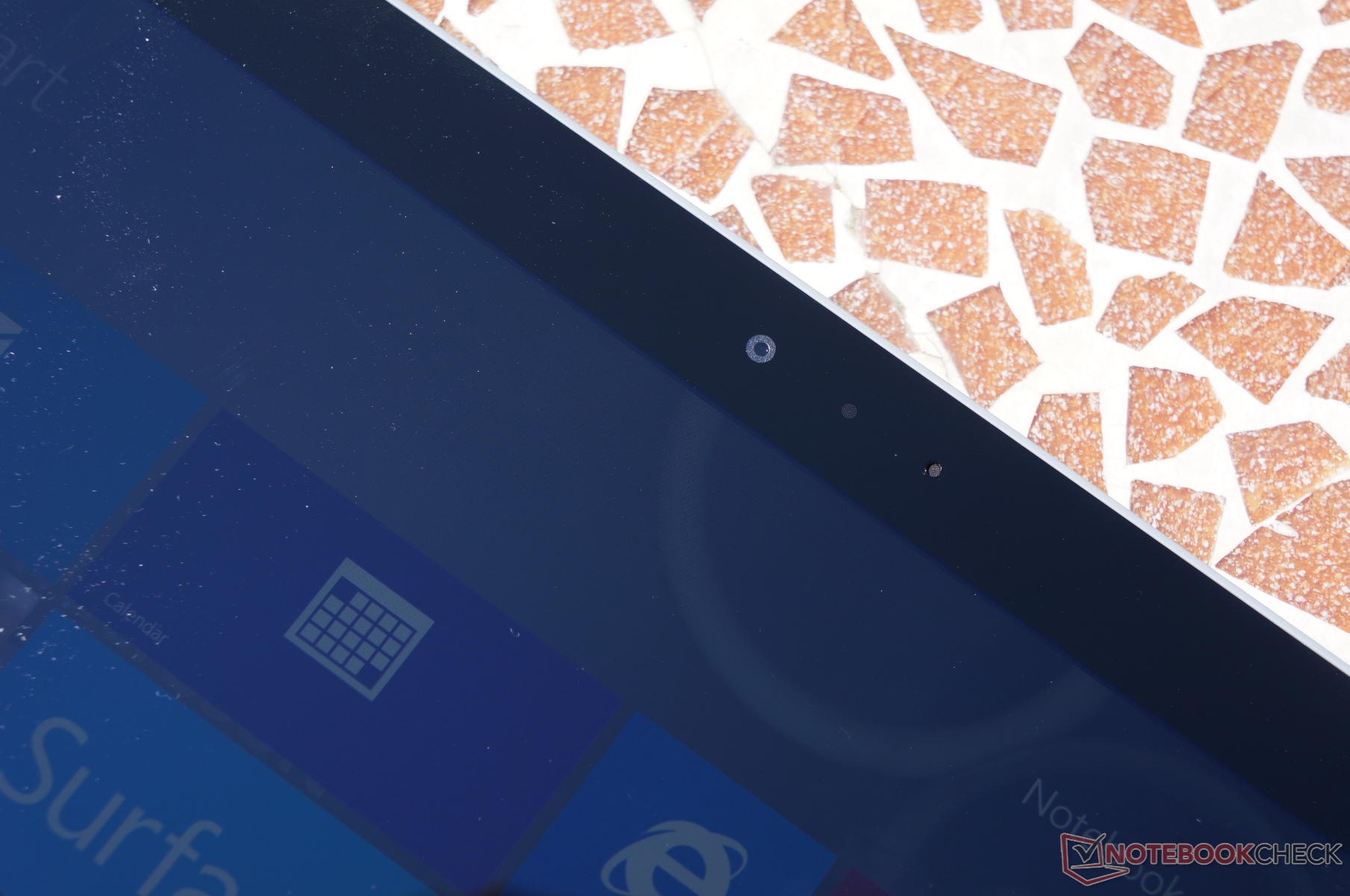

Webcam: 350万像素摄像头,800万像素后置相机
Primary Camera: 8 MPix
Secondary Camera: 3.5 MPix
Additional features

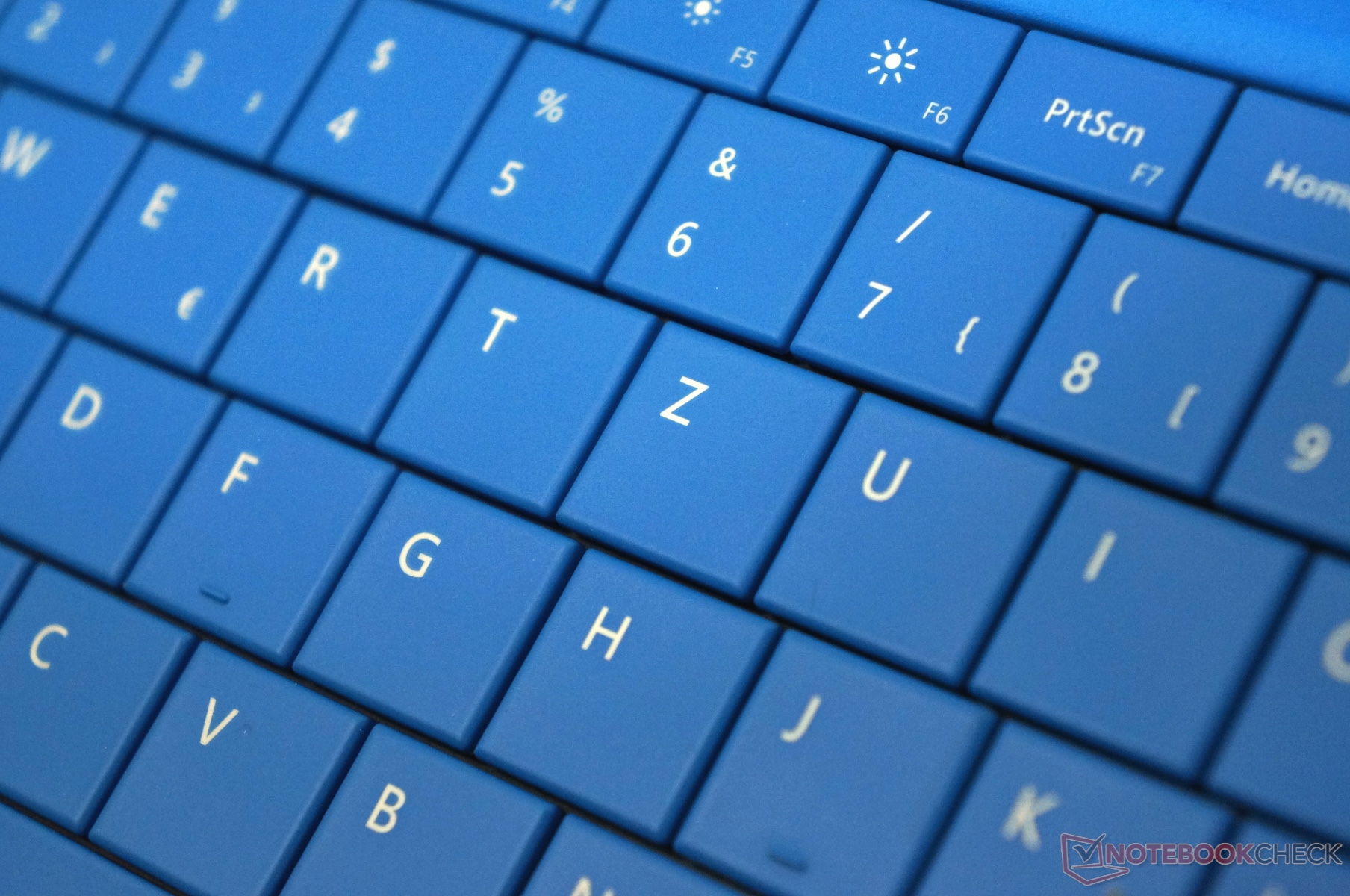

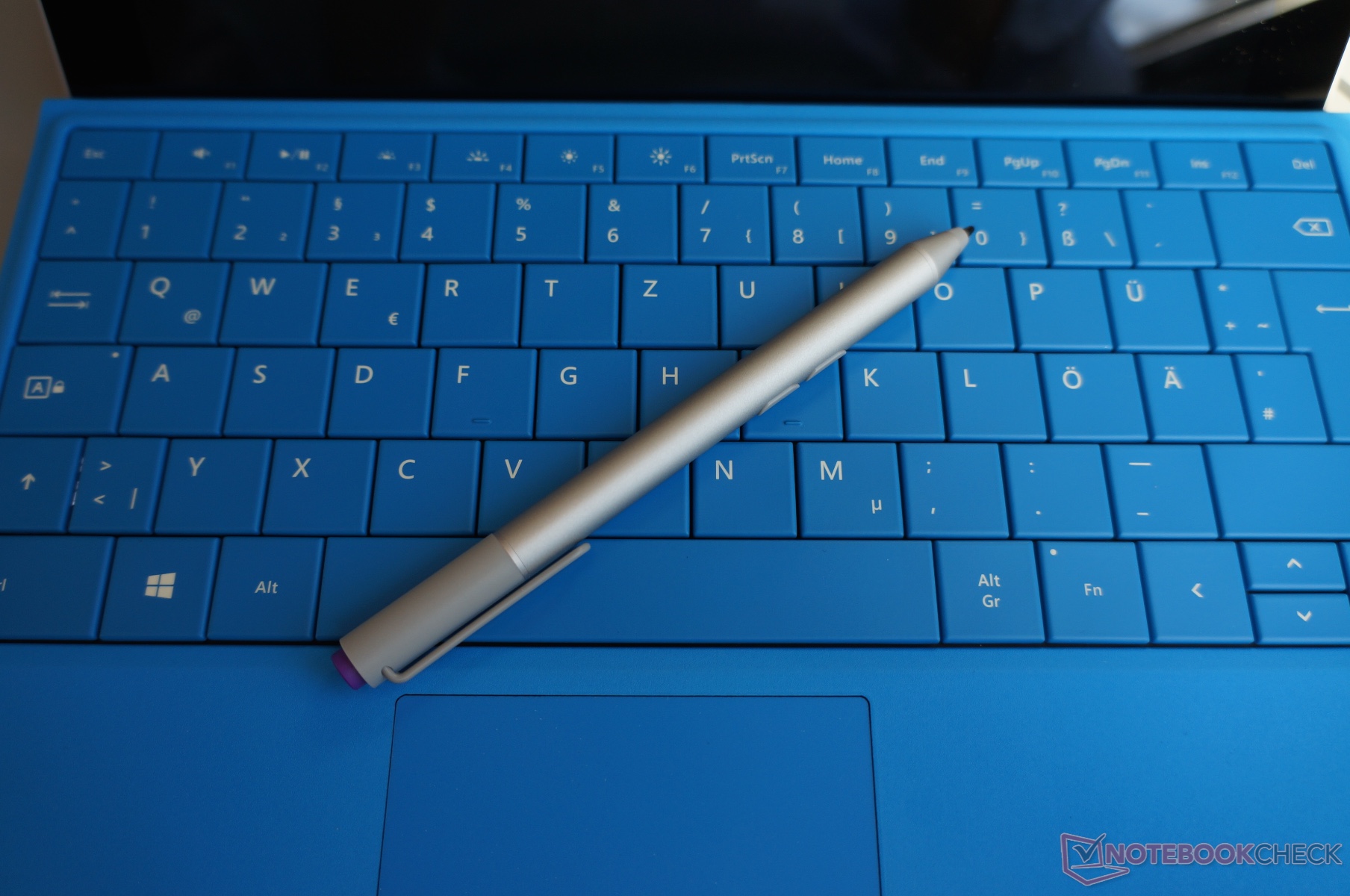

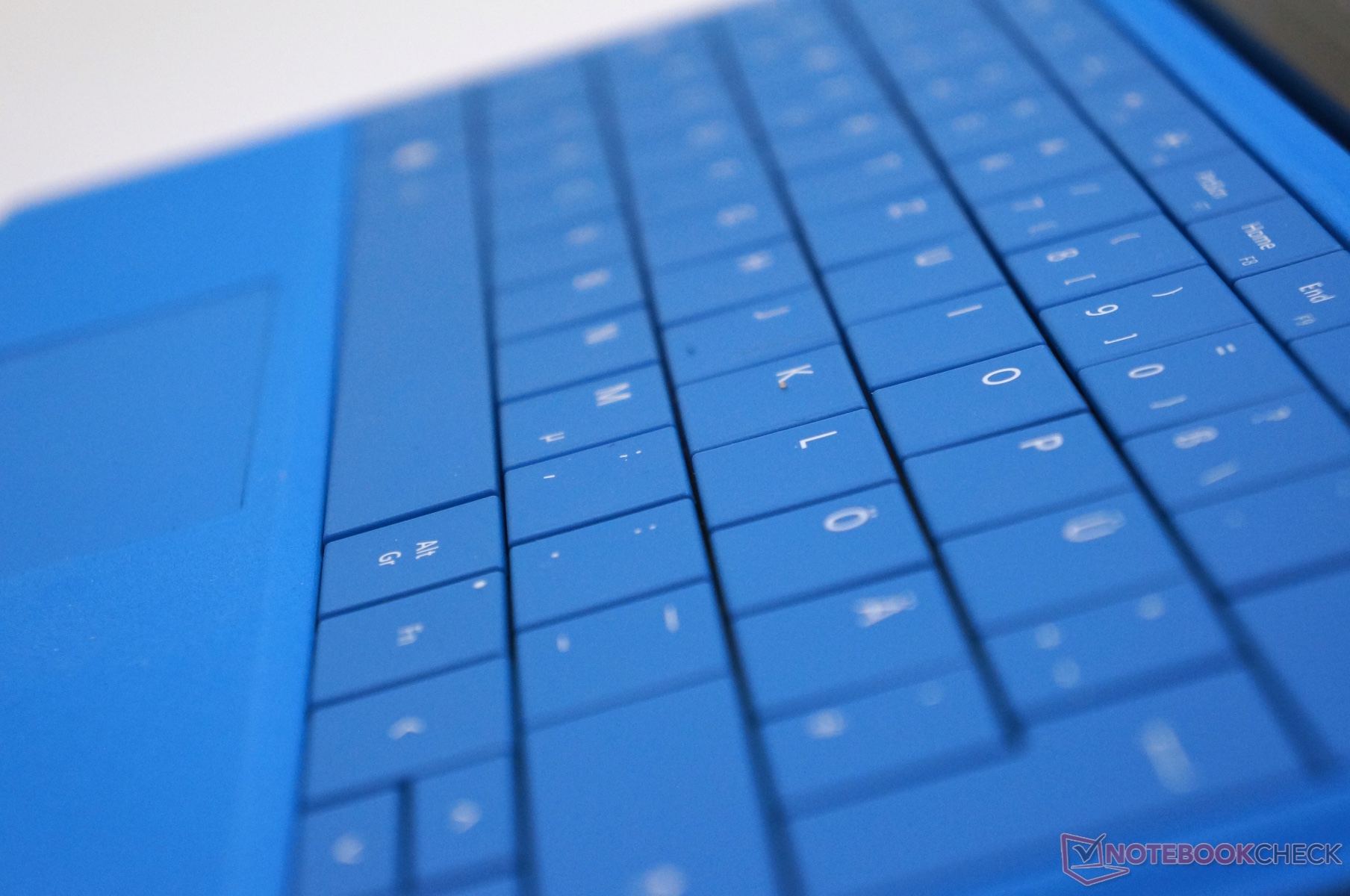

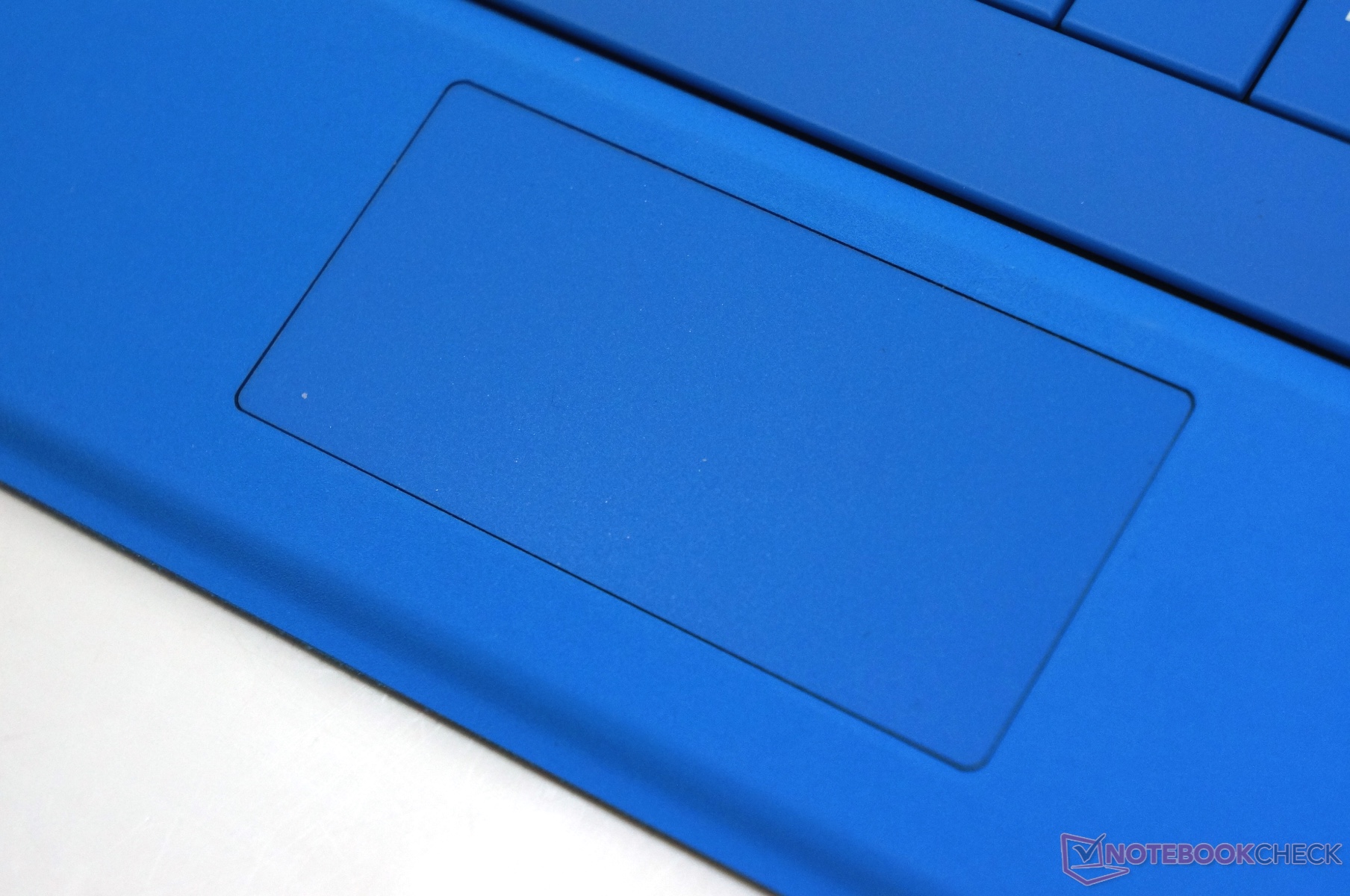

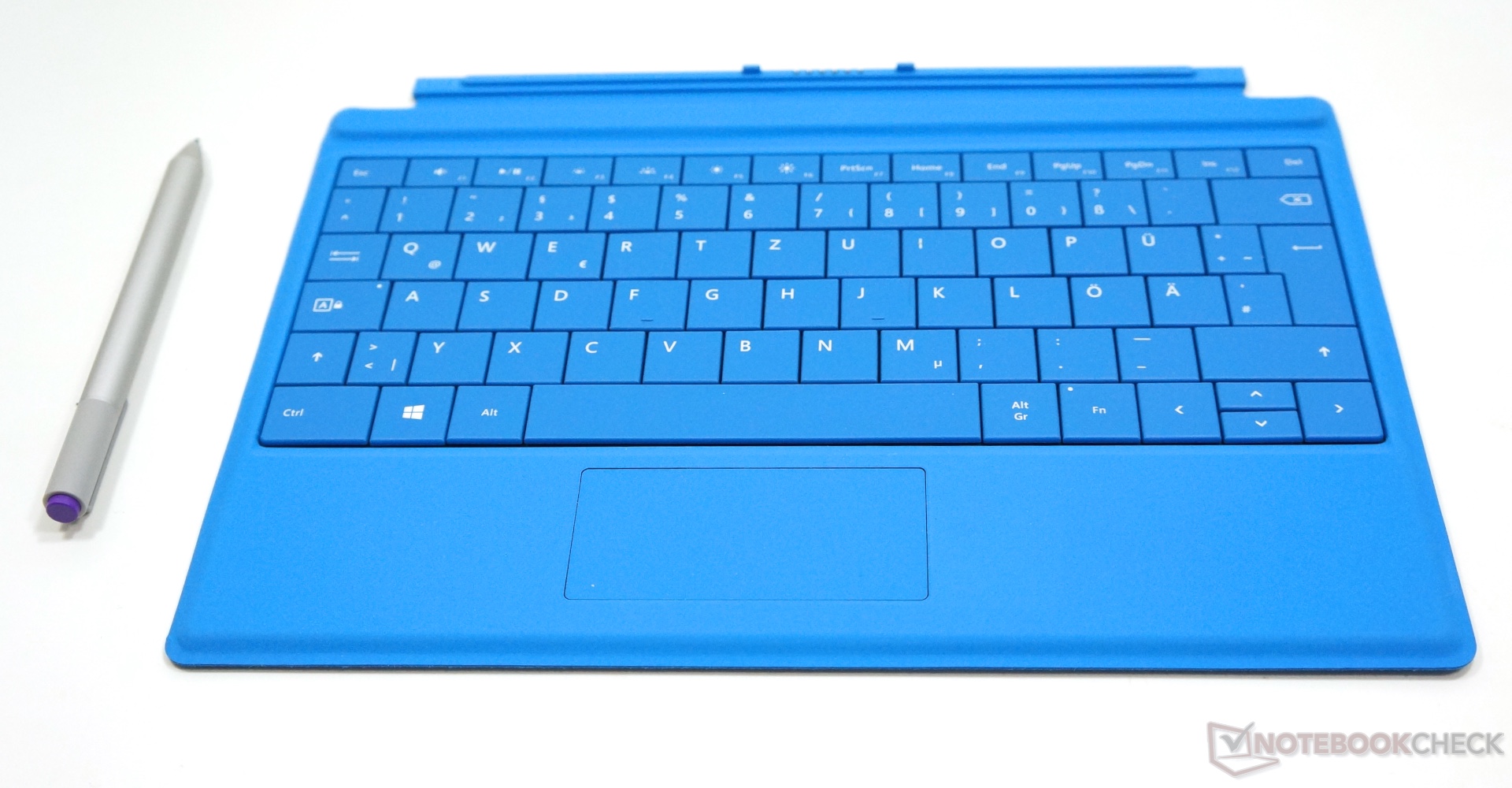

Speakers: 立体声,支持 Dolby Audio, Keyboard: 可选键盘保护盖, Keyboard Light: no, Office 365 个人版(1 年), 24 Months Warranty, fanless
Weight

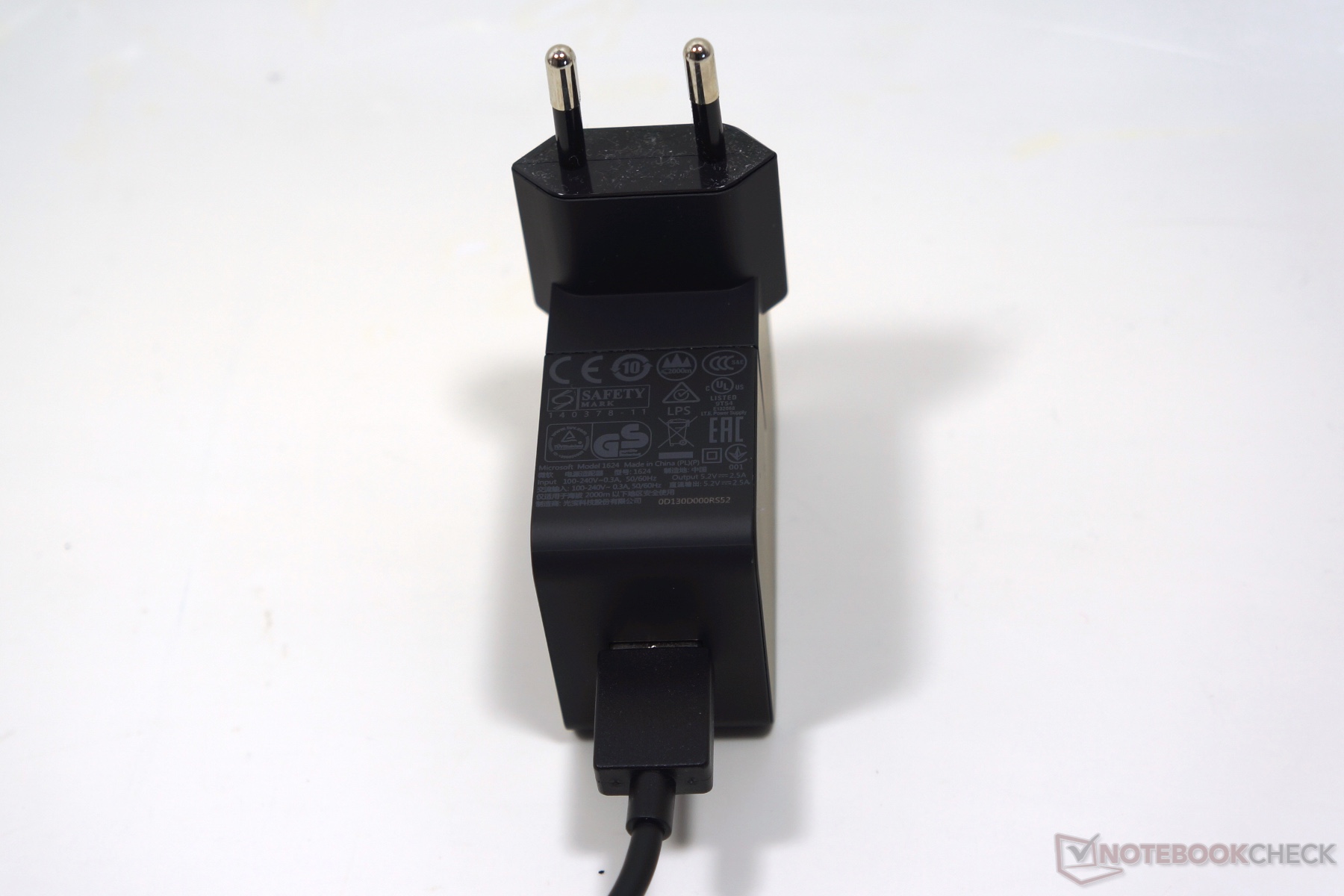

917 g, Power Supply: 168 g
Price
719 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



In Comparison

292 mm 201 mm 9 mm 810 g275 mm 173 mm 8.9 mm 643 g267 mm 187 mm 8.7 mm 917 g240 mm 169.5 mm 6.1 mm 444 g297 mm 210 mm 1 mm 5.7 g
Webcam indoors
Webcam indoors
Webcam indoors
Webcam indoors
Rear camera indoors
Rear camera indoors
Rear camera indoors
Rear camera indoors
Rear camera outdoors
Rear camera outdoors
Rear camera indoors low-light
Rear camera indoors low-light
366
cd/m²
404
cd/m²
390
cd/m²
373
cd/m²
399
cd/m²
373
cd/m²
363
cd/m²
374
cd/m²
374
cd/m²
Distribution of brightness
Panasonic MEI9001 tested with X-Rite i1Pro 2
Maximum: 404 cd/m² (Nits) Average: 379.6 cd/m²
Brightness Distribution: 90 %
Center on Battery: 399 cd/m²
Contrast: 814:1 (Black: 0.49 cd/m²)
ΔE Color 1.66 | 0.5-29.43 Ø4.92
ΔE Greyscale 2.75 | 0.5-98 Ø5.2
98.8% sRGB (Argyll 1.6.3 3D)
64.4% AdobeRGB 1998 (Argyll 1.6.3 3D)
70.4% AdobeRGB 1998 (Argyll 2.2.0 3D)
98.7% sRGB (Argyll 2.2.0 3D)
68.8% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.22
Microsoft Surface 3
HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash
Microsoft Surface Pro 3
HD Graphics 4400, 4300U, Hynix HFS128G3MNM
Microsoft Surface 2
GeForce Tegra 4, 4, 32 GB eMMC Flash
Apple iPad Air 2 2014
PowerVR GXA6850, A8X, 128 GB eMMC Flash
Screen
-36%
-22%
-5%
Brightness middle
399
355.3
-11%
357
-11%
423
6%
Brightness
380
338
-11%
369
-3%
427
12%
Brightness Distribution
90
91
1%
89
-1%
92
2%
Black Level *
0.49
0.33
33%
0.51
-4%
0.61
-24%
Contrast
814
1077
32%
700
-14%
693
-15%
Colorchecker dE 2000 *
1.66
4.72
-184%
3.86
-133%
2.86
-72%
Colorchecker dE 2000 max. *
3.24
Greyscale dE 2000 *
2.75
6.53
-137%
2.4
13%
2.37
14%
Gamma
2.22 99%
2.17 101%
2.46 89%
2.43 91%
CCT
6358 102%
6707 97%
6740 96%
6941 94%
Color Space (Percent of AdobeRGB 1998)
64.4
59.37
-8%
88
37%
Color Space (Percent of sRGB)
98.8

* ... smaller is better

Cinebench R11.5
CPU Single 64Bit (sort by value)
Microsoft Surface 3, Z8700
0.46 Points
HP ElitePad 1000 G2, Z3795
0.44 Points -4%
Toshiba Satellite W30t-A-101, 4020Y
0.67 Points +46%
Microsoft Surface Pro 3, 4300U
1.12 Points +143%
CPU Multi 64Bit (sort by value)
Microsoft Surface 3, Z8700
1.79 Points
HP ElitePad 1000 G2, Z3795
1.64 Points -8%
Toshiba Satellite W30t-A-101, 4020Y
1.63 Points -9%
Microsoft Surface Pro 3, 4300U
2.77 Points +55%
Cinebench R15
CPU Single 64Bit (sort by value)
Microsoft Surface 3, Z8700
38 Points
HP ElitePad 1000 G2, Z3795
36 Points -5%
Toshiba Satellite W30t-A-101, 4020Y
60 Points +58%
CPU Multi 64Bit (sort by value)
Microsoft Surface 3, Z8700
134 Points
HP ElitePad 1000 G2, Z3795
134 Points 0%
Toshiba Satellite W30t-A-101, 4020Y
152 Points +13%
Cinebench R10
Rendering Single 32Bit (sort by value)
Microsoft Surface 3, Z8700
1225 Points
Fujitsu Stylistic Q584, Z3770
997 Points -19%
HP Omni 10 5600eg (F4W59EA), Z3770
1230 Points 0%
HP ElitePad 1000 G2, Z3795
1234 Points +1%
Toshiba Satellite W30t-A-101, 4020Y
2241 Points +83%
Microsoft Surface Pro 3, 4300U
3675 Points +200%
Rendering Multiple CPUs 32Bit (sort by value)
Microsoft Surface 3, Z8700
4356 Points
Fujitsu Stylistic Q584, Z3770
2848 Points -35%
HP Omni 10 5600eg (F4W59EA), Z3770
3939 Points -10%
HP ElitePad 1000 G2, Z3795
4106 Points -6%
Toshiba Satellite W30t-A-101, 4020Y
5004 Points +15%
Microsoft Surface Pro 3, 4300U
7067 Points +62%
X264 HD Benchmark 4.0
Pass 1 (sort by value)
Microsoft Surface 3, Z8700
50.8 fps
HP ElitePad 1000 G2, Z3795
47.13 fps -7%
Toshiba Satellite W30t-A-101, 4020Y
52.2 fps +3%
Microsoft Surface Pro 3, 4300U
75.5 fps +49%
Pass 2 (sort by value)
Microsoft Surface 3, Z8700
10.28 fps
HP ElitePad 1000 G2, Z3795
9.5 fps -8%
Toshiba Satellite W30t-A-101, 4020Y
9.6 fps -7%
Microsoft Surface Pro 3, 4300U
13.47 fps +31%
Super Pi mod 1.5 XS 1M - 1M (sort by value)
Microsoft Surface 3, Z8700
49.78 s *
HP Omni 10 5600eg (F4W59EA), Z3770
27 s * +46%
HP ElitePad 1000 G2, Z3795
36.26 s * +27%
Toshiba Satellite W30t-A-101, 4020Y
24.81 s * +50%
Microsoft Surface Pro 3, 4300U
13 s * +74%
Super Pi mod 1.5 XS 2M - 2M (sort by value)
Microsoft Surface 3, Z8700
96.7 s *
HP Omni 10 5600eg (F4W59EA), Z3770
61 s * +37%
HP ElitePad 1000 G2, Z3795
79.6 s * +18%
Toshiba Satellite W30t-A-101, 4020Y
54.9 s * +43%
Microsoft Surface Pro 3, 4300U
30 s * +69%
wPrime 2.10 - 32m (sort by value)
Microsoft Surface 3, Z8700
24.51 s *
HP Omni 10 5600eg (F4W59EA), Z3770
24 s * +2%
HP ElitePad 1000 G2, Z3795
25.93 s * -6%
Toshiba Satellite W30t-A-101, 4020Y
35.31 s * -44%
Microsoft Surface Pro 3, 4300U
19.9 s * +19%

Legend


Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Fujitsu Stylistic Q584 Intel Atom Z3770, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

HP Omni 10 5600eg (F4W59EA) Intel Atom Z3770, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

HP ElitePad 1000 G2 Intel Atom Z3795, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

Toshiba Satellite W30t-A-101 Intel Core i3-4020Y, Intel HD Graphics 4200, WD Blue UltraSlim WD5000MPCK-22AWHT0

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM

* ... smaller is better

Microsoft Surface 3
128 GB eMMC Flash
Microsoft Surface Pro 3
Hynix HFS128G3MNM
Dell Venue 11 Pro 7140
Sandisk X110 M.2 SD6SP1M-128G
Lenovo ThinkPad Helix 2
Toshiba THNSFJ256GDNU 256 GB
Acer Aspire Switch 11 SW5-171-31U3
Lite-On IT L8T-64L9G
Acer Aspire Switch 10 SW5-012-13DP
32 GB eMMC Flash
Lenovo ThinkPad Yoga 12
Seagate ST500LM000 Solid State Hybrid Drive
CrystalDiskMark 3.0
765%
417%
447%
409%
14%
-49%
Read Seq
149.3
501
236%
395.6
165%
422.7
183%
504
238%
169.3
13%
33.57
-78%
Write Seq
47.99
324
575%
221.9
362%
247.4
416%
167.2
248%
72.8
52%
107.6
124%
Read 512
133.7
357.8
168%
209.1
56%
333.7
150%
378.7
183%
151.1
13%
29.68
-78%
Write 512
39.9
324.6
714%
153.5
285%
164.9
313%
167.2
319%
72.7
82%
47.23
18%
Read 4k
12.64
20.81
65%
22.9
81%
19.44
54%
29.46
133%
18.31
45%
0.351
-97%
Write 4k
9.52
76.2
700%
35.29
271%
43.08
353%
57.6
505%
5.603
-41%
0.64
-93%
Read 4k QD32
27.94
345
1135%
256.4
818%
295.9
959%
195
598%
26.66
-5%
0.706
-97%
Write 4k QD32
11.2
294.4
2529%
156.1
1294%
139.3
1144%
128.1
1044%
5.642
-50%
0.665
-94%
3DMark 11 - 1280x720 Performance (sort by value)
Microsoft Surface 3, Z8700, HD Graphics (Cherry Trail)
562 Points
Fujitsu Stylistic Q584, Z3770, HD Graphics (Bay Trail)
207 Points -63%
HP Omni 10 5600eg (F4W59EA), Z3770, HD Graphics (Bay Trail)
202 Points -64%
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
233 Points -59%
Toshiba Satellite W30t-A-101, 4020Y, HD Graphics 4200
828 Points +47%
Microsoft Surface Pro 3, 4300U, HD Graphics 4400
877 Points +56%
Cinebench R11.5 - OpenGL 64Bit (sort by value)
Microsoft Surface 3, Z8700, HD Graphics (Cherry Trail)
11.71 fps
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
6.74 fps -42%
Toshiba Satellite W30t-A-101, 4020Y, HD Graphics 4200
18.78 fps +60%
Microsoft Surface Pro 3, 4300U, HD Graphics 4400
19.48 fps +66%
Cinebench R15
OpenGL 64Bit (sort by value)
Microsoft Surface 3, Z8700, HD Graphics (Cherry Trail)
14.71 fps
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
5.1 fps -65%
Ref. Match 64Bit (sort by value)
Microsoft Surface 3, Z8700, HD Graphics (Cherry Trail)
98 %
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
97.8 % 0%
Cinebench R10 - Shading 64Bit (sort by value)
HP ElitePad 1000 G2, Z3795, HD Graphics (Bay Trail)
2304 Points
Toshiba Satellite W30t-A-101, 4020Y, HD Graphics 4200
4471 Points
Microsoft Surface Pro 3, 4300U, HD Graphics 4400
7154 Points

Legend


Microsoft Surface 3 Intel Atom x7-Z8700, Intel HD Graphics (Cherry Trail), 128 GB eMMC Flash

Fujitsu Stylistic Q584 Intel Atom Z3770, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

HP Omni 10 5600eg (F4W59EA) Intel Atom Z3770, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash

HP ElitePad 1000 G2 Intel Atom Z3795, Intel HD Graphics (Bay Trail), 128 GB eMMC Flash

Toshiba Satellite W30t-A-101 Intel Core i3-4020Y, Intel HD Graphics 4200, WD Blue UltraSlim WD5000MPCK-22AWHT0

Microsoft Surface Pro 3 Intel Core i5-4300U, Intel HD Graphics 4400, Hynix HFS128G3MNM
Battery Runtime
Idle (without WLAN, min brightness)
13h 48min
WiFi Surfing
7h 05min
WiFi Websurfing
7h 17min
Load (maximum brightness)
2h 53min
Microsoft Surface 3
Z8700, 28 Wh
Microsoft Surface Pro 3
4300U, 42 Wh
Dell Venue 11 Pro 7140
5Y10a, 38 Wh
Lenovo ThinkPad Helix 2
5Y71, 35 Wh
Acer Aspire Switch 11 SW5-171-31U3
4012Y, 32 Wh
Acer Aspire Switch 10 SW5-012-13DP
Z3735F, 24 Wh
Lenovo ThinkPad Yoga 12
5200U, 47 Wh
MSI S100
Z3740D, 27 Wh
Lenovo ThinkPad Yoga 11e 20D9000QGE
N2930, 34 Wh
Battery Runtime
8%
22%
8%
-22%
7%
-12%
-17%
-32%
Reader / Idle
828
1096
32%
777
-6%
964
16%
788
-5%
720
-13%
WiFi
425
504
19%
562
32%
396
-7%
331
-22%
453
7%
433
2%
340
-20%
WiFi v1.3
437
297
-32%
Load
173
124
-28%
244
41%
197
14%
117
-32%
H.264
360
330
Surface 3: Job done right?
Surface 3: Job done right?

我们已经提到过微软Surface 3是一款方便的产品,第一眼看上去没有任何严重的问题。它的机身和制造工艺保持在了和前作一样的较高水准上,Type Cover也可以适合长时间打字使用,它的屏幕优秀的亮度和色彩准确度都十分让人满意,新的3:2屏幕比例对于工作用途来说会是个小优势。它的性能也十分不错。

Surface 3将平板和笔记本的代沟缩小到了前所未有的程度。我们迫不及待地想要看看Surface系列产品在未来几年中会如何发展。

我们将会继续进行测试,对于Surface 3的基准测试和测量结果将会一步步地添加到这篇评测中。

05/02/2015更新:与估计的一样,对它存储设备(eMMC)的分析体现出了相比标准固态硬盘所存在的较大问题。这不仅在拷贝文件时比较明显,在应用程序中打开和保存文件时也可以感觉到。

Surface 3的电池续航时间在无线上网测试中超过了7个小时。而Surface 3的一个缺点则是充电时间。如果想要将它在3-4小时内充满电则无法同时使用。在使用的同时从低电量充满则需要多达8个小时的时间。这将会对在移动中使用造成很大的问题。



注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里

Microsoft Surface 3 vs Nvidia Shield Tablet LTE
3rd party accessory bags
13-watt USB power adaptor
USB charging cable
Surface 2 vs Surface 3

Price comparison

Please share our article, every link counts!
> Notebookcheck中文版(NBC中国) > 评测 > 微软 Surface 3 平板/变形本简短评测
J. Simon Leitner, Klaus A. Hinum, 2015-05- 8 (Update: 2024-11- 4)
