对抗: 微软 Surface Pro 4 酷睿 i7 vs. Surface Pro 4 酷睿 i5 vs. Surface Pro 4 酷睿 m3

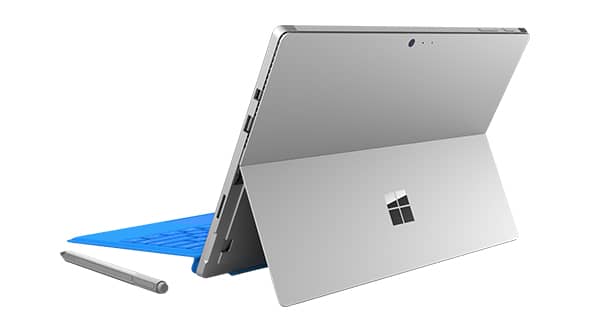

Name: Microsoft Surface Pro 4 Core i7
Brand: Microsoft

同样的面孔，更快的配置。 最高端的Surface Pro 4真的值得投资吗？我们将会提供它们的测试结果，交给你自行判断。

Allen Ngo (translated by Yuchen Wang), Published 12/30/2015 🇺🇸 🇩🇪 ...

Surface Pro 4 Windows Tablet Convertible / 2-in-1 Skylake

Download your licensed rating image as PNG / SVG

Microsoft CQ9-00003 (Surface Series)

Processor

Intel Core i7-6650U 2 x 2.2 - 3.4 GHz, Skylake

Graphics adapter

Intel Iris Graphics 540

Memory

8 GB

, 双通道 1866 MHz

Display

12.30 inch 3:2, 2736 x 1824 pixel, 10点触控, Samsung 123YL01-001 ID: SDC3853, IPS, glossy: yes

Mainboard

Intel Skylake-U Premium PCH

Storage

Samsung MZFLV256 NVMe, 256 GB

, 87 GB free

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

1 USB 3.0 / 3.1 Gen1, 1 DisplayPort, Audio Connections: 3.5毫米整合耳机插口, Card Reader: microSD, Sensors: 环境光，陀螺仪

Networking

Marvell AVASTAR Wireless-AC Network Controller (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0

Size

height x width x depth (in mm): 8.4 x 292.1 x 201.4

Battery

38 Wh Lithium-Ion, 集成, Battery runtime (according to manufacturer): 9 h

Operating System

Microsoft Windows 10 Home 64 Bit

Camera

Webcam: 后置：800万像素，前置：500万像素

Additional features

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: yes, Surface Pen, Type Cover, Office 365, 12 Months Warranty

Weight

1.092 kg, Power Supply: 204 g

Price

1249 Euro

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications


449.3 cd/m²	474.6 cd/m²	441.2 cd/m²
422.8 cd/m²	436.7 cd/m²	417.2 cd/m²
413.8 cd/m²	430.1 cd/m²	413.5 cd/m²

Distribution of brightness

Samsung 123YL01-001 ID: SDC3853 tested with X-Rite i1Pro Basic 2

Maximum: 474.6 cd/m² (Nits) Average: 433.2 cd/m²
Brightness Distribution: 87 %
Center on Battery: 436.7 cd/m²
Contrast: 1340:1 (Black: 0.326 cd/m²)
ΔE Color 1.82 | 0.5-29.43 Ø4.92
ΔE Greyscale 1.44 | 0.5-98 Ø5.2
97.5% sRGB (Argyll 1.6.3 3D)
62.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
68.6% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.5% sRGB (Argyll 2.2.0 3D)
66.9% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.1

Download ICC File (X-Rite i1Pro Basic 2)

	Microsoft Surface Pro 4 Core i7 12.3", 2736x1824	Microsoft Surface Pro 4, Core i5, 128GB 12.3", 2736x1824	Microsoft Surface Pro 4, Core m3 12.3", 2736x1824	Microsoft Surface Pro 3 12", 2160x1440	Microsoft Surface 3 10.8", 1920x1280
Display		-2%	0%	-6%	2%
Display P3 Coverage	66.9	65 -3%	67.5 1%	63.6 -5%	68.8 3%
sRGB Coverage	97.5	96.5 -1%	96.6 -1%	88.8 -9%	98.7 1%
AdobeRGB 1998 Coverage	68.6	67 -2%	69 1%	65.6 -4%	70.4 3%
Response Times		-28%	-27%
Response Time Grey 50% / Grey 80% *	48.4 ?(20.4, 28)	46 ?(17.2, 28.8, plateau, spikes in between) 5%	46 ?(17.2, 28.8) 5%
Response Time Black / White *	35.6 ?(8, 27.6)	31.2 ?(6, 25.2, Spikes in between) 12%	31 ?(6, 25.2) 13%
PWM Frequency	10420	50 ?(50) -100%	50 ?(50) -100%
Screen		-31%	-28%	-72%	-21%
Brightness middle	436.7	413 -5%	389.2 -11%	355.3 -19%	399 -9%
Brightness	433	396 -9%	392 -9%	338 -22%	380 -12%
Brightness Distribution	87	87 0%	92 6%	91 5%	90 3%
Black Level *	0.326	0.36 -10%	0.27 17%	0.33 -1%	0.49 -50%
Contrast	1340	1147 -14%	1441 8%	1077 -20%	814 -39%
Colorchecker dE 2000 *	1.82	3.09 -70%	3.61 -98%	4.72 -159%	1.66 9%
Greyscale dE 2000 *	1.44	3.92 -172%	3.8 -164%	6.53 -353%	2.75 -91%
Gamma	2.1 ^105%	2.3 ^96%	2.16 ^102%	2.17 ^101%	2.22 ^99%
CCT	6560 ^99%	7333 ^89%	5969 ^109%	6707 ^97%	6358 ^102%
Color Space (Percent of AdobeRGB 1998)	62.3	61 -2%	63 1%	59.37 -5%	64.4 3%
Color Space (Percent of sRGB)	97.5	97 -1%	97 -1%		98.8 1%
Colorchecker dE 2000 max. *					3.24
Total Average (Program / Settings)		-20% / -25%	-18% / -22%	-39% / -54%	-10% / -15%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

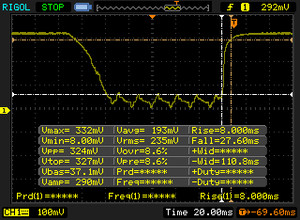

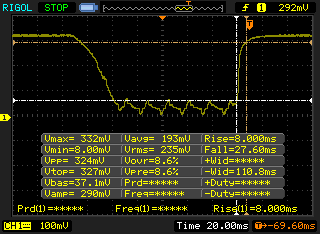

↔ Response Time Black to White
35.6 ms ... rise ↗ and fall ↘ combined	↗ 8 ms rise
35.6 ms ... rise ↗ and fall ↘ combined	↘ 27.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 93 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

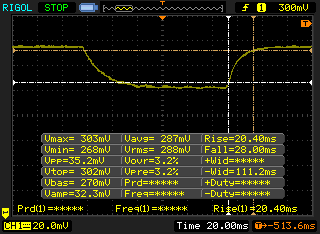

↔ Response Time 50% Grey to 80% Grey
48.4 ms ... rise ↗ and fall ↘ combined	↗ 20.4 ms rise
48.4 ms ... rise ↗ and fall ↘ combined	↘ 28 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 82 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Cinebench R11.5
CPU Single 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	1.51 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	1.4 Points -7%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	1.12 Points -26%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	0.98 Points -35%
CPU Multi 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	3.8 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	3.4 Points -11%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	2.77 Points -27%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	2.27 Points -40%
OpenGL 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	47.51 fps
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	27.43 fps -42%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	19.48 fps -59%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	26.43 fps -44%

Cinebench R15
CPU Single 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	132 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	122 Points -8%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	88 Points -33%
CPU Multi 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	342 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	306 Points -11%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	206 Points -40%
OpenGL 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	60.1 fps
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	36.87 fps -39%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	33.48 fps -44%

Cinebench R10
Rendering Single CPUs 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	6787 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	6050 Points -11%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	5619 Points -17%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	4297 Points -37%
Rendering Multiple CPUs 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	14833 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	13382 Points -10%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	10262 Points -31%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	8886 Points -40%
Shading 64Bit (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	8183 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	7574 Points -7%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	7154 Points -13%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	6386 Points -22%

wPrime 2.10 - 1024m (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	445.6 s *
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	746 s * -67%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	788 s * -77%

Super Pi Mod 1.5 XS 32M - 32M (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	613 s *
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	674 s * -10%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	898 s * -46%

TrueCrypt
Serpent Mean 100MB (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	0.201 GB/s
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	0.139 GB/s -31%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	0.128 GB/s -36%
Twofish Mean 100MB (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	0.344 GB/s
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	0.247 GB/s -28%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	0.205 GB/s -40%
AES Mean 100MB (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	2 GB/s
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	1.5 GB/s -25%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	1.2 GB/s -40%

* ... smaller is better

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	5799 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	5229 Points -10%
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	5135 Points -11%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	5066 Points -13%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	4274 Points -26%
Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash	3029 Points -48%

PCMark 8
Home Score Accelerated v2 (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	3394 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	2770 Points -18%
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	2814 Points -17%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	2426 Points -29%
Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash	1677 Points -51%
Work Score Accelerated v2 (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	4052 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	3697 Points -9%
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	3644 Points -10%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	3186 Points -21%
Creative Score Accelerated v2 (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	4431 Points
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	3736 Points -16%
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	3694 Points -17%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	2968 Points -33%

	Microsoft Surface Pro 4 Core i7	Microsoft Surface Pro 4, Core i5, 128GB	Microsoft Surface Pro 4, Core m3	Microsoft Surface Pro 3	Microsoft Surface 3
CrystalDiskMark 3.0		-30%	-36%	-16%	-84%
Write 4k QD32	292.3	153.6 -47%	149.2 -49%	294.4 1%	11.2 -96%
Read 4k QD32	393.1	368.3 -6%	243.7 -38%	345 -12%	27.94 -93%
Write 4k	106.3	101.5 -5%	68 -36%	76.2 -28%	9.52 -91%
Read 4k	40.75	28.51 -30%	30.14 -26%	20.81 -49%	12.64 -69%
Write 512	304.3	154.2 -49%	158.2 -48%	324.6 7%	39.9 -87%
Read 512	396.7	266.3 -33%	313.1 -21%	357.8 -10%	133.7 -66%
Write Seq	304	154.2 -49%	158.2 -48%	324 7%	47.99 -84%
Read Seq	834	666 -20%	663 -21%	501 -40%	149.3 -82%
AS SSD		-44%	-44%	-49%
Copy Game MB/s	273.9	105.6 -61%	101.3 -63%
Copy Program MB/s	209.8	63.5 -70%	65.8 -69%
Copy ISO MB/s	409.9	121.9 -70%	120.9 -71%
Score Total	2518	1190 -53%	1759 -30%	965 -62%
Score Write	385	239 -38%	189 -51%	319 -17%
Score Read	1445	645 -55%	1060 -27%	430 -70%
Access Time Write *	0.036	0.037 -3%	0.043 -19%	0.075 -108%
Access Time Read *	0.047	0.079 -68%	0.083 -77%	0.087 -85%
4K-64 Write	268.7	138.5 -48%	112 -58%	215 -20%
4K-64 Read	1280	528 -59%	944 -26%	358.3 -72%
4K Write	89.2	86.5 -3%	63.2 -29%	73.7 -17%
4K Read	33.47	34.24 2%	31.39 -6%	22 -34%
Seq Write	274.8	142.5 -48%	138.1 -50%	303 10%
Seq Read	1312	832 -37%	845 -36%	493.7 -62%
Total Average (Program / Settings)		-37% / -39%	-40% / -41%	-33% / -35%	-84% / -84%

* ... smaller is better

3DMark 11 | 3DMark | ComputeMark v2.1 | LuxMark v2.0 64Bit

3DMark 11
1280x720 Performance (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	2624 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	2711 Points +3%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	1565 Points -40%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	1344 Points -49%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	877 Points -67%
Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash	562 Points -79%
1280x720 Performance Physics (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	4919 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	4199 Points -15%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	3984 Points -19%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	3067 Points -38%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	2635 Points -46%
Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash	1879 Points -62%
1280x720 Performance GPU (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	2450 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	2548 Points +4%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	1402 Points -43%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	1206 Points -51%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	791 Points -68%
Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash	494 Points -80%
1280x720 Performance Combined (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	2255 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	2580 Points +14%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	1509 Points -33%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	1370 Points -39%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	746 Points -67%
Microsoft Surface 3 HD Graphics (Cherry Trail), Z8700, 128 GB eMMC Flash	554 Points -75%

3DMark
1920x1080 Fire Strike Score (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	1395 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	1886 Points +35%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	844 Points -39%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	740 Points -47%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	483 Points -65%
1280x720 Cloud Gate Standard Score (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	7822 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	7424 Points -5%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	5853 Points -25%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	4604 Points -41%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	4146 Points -47%
1920x1080 Fire Strike Combined (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	553 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	772 Points +40%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	309 Points -44%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	265 Points -52%
1920x1080 Fire Strike Physics (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	5372 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	4778 Points -11%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	4750 Points -12%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	3140 Points -42%
1920x1080 Fire Strike Graphics (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	1477 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	2031 Points +38%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	905 Points -39%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	810 Points -45%
1280x720 Cloud Gate Standard Physics (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	3639 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	3362 Points -8%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	3342 Points -8%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	2238 Points -38%
1280x720 Cloud Gate Standard Graphics (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	11650 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	11340 Points -3%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	7455 Points -36%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	6597 Points -43%
1280x720 Ice Storm Standard Physics (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	44259 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	38206 Points -14%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	38764 Points -12%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	25720 Points -42%
1280x720 Ice Storm Standard Graphics (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	91565 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	54088 Points -41%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	56071 Points -39%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	51362 Points -44%
1280x720 Ice Storm Standard Score (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	73990 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	49514 Points -33%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	51010 Points -31%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	42046 Points -43%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	29229 Points -60%

ComputeMark v2.1 - 1024x600 Normal, Score (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	1625 Points
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	1676 Points +3%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	741 Points -54%

LuxMark v2.0 64Bit
Room GPUs-only (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	305 Samples/s
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	513 Samples/s +68%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	193 Samples/s -37%
Sala GPUs-only (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	762 Samples/s
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	1065 Samples/s +40%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	427 Samples/s -44%

3DMark 11 Performance		2624 points
3DMark Ice Storm Standard Score		73990 points
3DMark Cloud Gate Standard Score		7822 points
3DMark Fire Strike Score		1395 points
3DMark Fire Strike Extreme Score		598 points
Help

... in comparison

BioShock Infinite
1920x1080 Ultra Preset, DX11 (DDOF) (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	11.5 fps
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	20.8 fps +81%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	7 fps -39%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	4.34 fps -62%
1366x768 High Preset (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	41.2 fps
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	56.5 fps +37%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	22.7 fps -45%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	22.66 fps -45%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	16.07 fps -61%
1366x768 Medium Preset (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	49.1 fps
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	64.8 fps +32%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	30 fps -39%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	26.93 fps -45%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	19.46 fps -60%
1280x720 Very Low Preset (sort by value)
Microsoft Surface Pro 4 Core i7 Iris Graphics 540, 6650U, Samsung MZFLV256 NVMe	86.8 fps
Microsoft Surface Book Core i5 Maxwell GPU (940M, GDDR5), 6300U, Samsung MZFLV256 NVMe	94.2 fps +9%
Microsoft Surface Pro 4, Core i5, 128GB HD Graphics 520, 6300U, Samsung MZFLV128 NVMe	58.1 fps -33%
Microsoft Surface Pro 4, Core m3 HD Graphics 515, 6Y30, Samsung MZFLV128 NVMe	52.4 fps -40%
Microsoft Surface Pro 3 HD Graphics 4400, 4300U, Hynix HFS128G3MNM	38.73 fps -55%

	Microsoft Surface Pro 4 Core i7	Microsoft Surface Pro 4, Core i5, 128GB	Microsoft Surface Pro 3	Microsoft Surface Book Core i5
Noise		-6%	-1%	-0%
Idle Minimum *	28.4	31.5 -11%	30.1 -6%	29.5 -4%
Idle Average *	28.6	31.5 -10%	30.2 -6%	29.6 -3%
Idle Maximum *	28.7	31.5 -10%	30.4 -6%	29.7 -3%
Load Average *	40.8	40.5 1%	31.9 22%	37.5 8%
Load Maximum *	41.4	40.7 2%	44.4 -7%	40.9 1%

* ... smaller is better

Noise Level

Idle		28.4 / 28.6 / 28.7 dB(A)
Load		40.8 / 41.4 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Fluke 62 Mini IR Thermometer (15 cm distance)

Max. Load

Idle


43.8 °C	45.4 °C	43.2 °C
39.4 °C	43.6 °C	38.6 °C
36 °C	39.8 °C	36 °C

Maximum: 45.4 °C
Average: 40.6 °C


40.8 °C	43.2 °C	41.8 °C
37 °C	42.2 °C	39.8 °C
35.8 °C	37.4 °C	37.4 °C

Maximum: 43.2 °C
Average: 39.5 °C

Power Supply (max.) 44 °C | Room Temperature 19 °C | Fluke 62 Mini IR Thermometer

(-) The average temperature for the upper side under maximal load is 40.6 °C / 105 F, compared to the average of 30.2 °C / 86 F for the devices in the class Convertible.
(-) The maximum temperature on the upper side is 45.4 °C / 114 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 55.7 °C for the class Convertible.
(±) The bottom heats up to a maximum of 43.2 °C / 110 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 23.5 °C / 74 F, compared to the device average of 30.2 °C / 86 F.
(±) The palmrests and touchpad can get very hot to the touch with a maximum of 39.8 °C / 103.6 F.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-11.7 °C / -21 F).

	Microsoft Surface Pro 4 Core i7 38 Wh	Microsoft Surface Pro 4, Core i5, 128GB 38 Wh	Microsoft Surface Pro 4, Core m3 38 Wh	Microsoft Surface Pro 3 42 Wh	Microsoft Surface 3 28 Wh
Battery Runtime		41%	54%	63%	65%
Reader / Idle	654	899 37%	791 21%	1096 68%	828 27%
WiFi v1.3	293	427 46%	488 67%		437 49%
Load	79	111 41%	138 75%	124 57%	173 119%
WiFi				504	425

Battery Runtime

Idle (without WLAN, min brightness)		10h 54min
WiFi Websurfing		4h 53min
Load (maximum brightness)		1h 19min

Pros

+ 无明显降频问题

+ 较强的显卡性能

+ 准确的屏幕

+ 更快的固态硬盘速度

Cons

- 相比酷睿i5版本性能仅仅略有提高

- 更短的电池续航

- 主动式散热系统

- 屏幕略微漏光

In review: Microsoft Surface Pro 4 Core i7.

Surface Pro 4 酷睿i7机型相比酷睿i5机型在处理器性能上仅仅略微领先。对于文字处理和上网浏览，它们的性能区别将会很难察觉。

另一方面，由于Iris 540相比HD 520的优势，酷睿i7配置将会对更需要显卡性能的用户更有吸引力。它的较高图形性能将可以在低分辨率下流畅运行最新游戏，同时也将会对Photoshop以及视频剪辑有所帮助。出厂前已经校对过的屏幕和相比酷睿i5与酷睿m3机型更快的256 GB固态硬盘，让酷睿i7机型不仅仅是简单的处理器升级。

更准确的屏幕，更快的固态硬盘，和相比售价更低机型更好的散热，都对需要强劲性能的用户必不可少；同时这也意味着它对只需要轻量办公以及PowerPoint的用户来说用处不大。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Microsoft Surface Pro 4 Core i7 - 2016-04-18 04/18/2016 v5.1 ^(old)
Allen Ngo

Chassis

86 / 98 → 88%

Keyboard

87%

Pointing Device

92%

Connectivity

49 / 80 → 61%

Weight

78 / 35-78 → 100%

Battery

83%

Display

89%

Games Performance

64 / 68 → 93%

Application Performance

85 / 87 → 98%

Temperature

82%

Noise

87%

Audio

60 / 91 → 66%

Camera

77 / 85 → 91%

Average

78%

88%

Convertible - Weighted Average

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5240 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 对抗: 微软 Surface Pro 4 酷睿 i7 vs. Surface Pro 4 酷睿 i5 vs. Surface Pro 4 酷睿 m3

Allen Ngo, 2015-12-30 (Update: 2024-11- 4)
