宏碁 Switch V 10 SW5 (x5-Z8350) 变形本简短评测

续航持久。 宏碁的这款10.1寸Windows变形本售价约360欧元。它运行安静且续航时间很长。同时这台设备还提供了一个USB-C接口(USB 3.1第一代)。
Convertible / 2-in-1 Touchscreen Windows

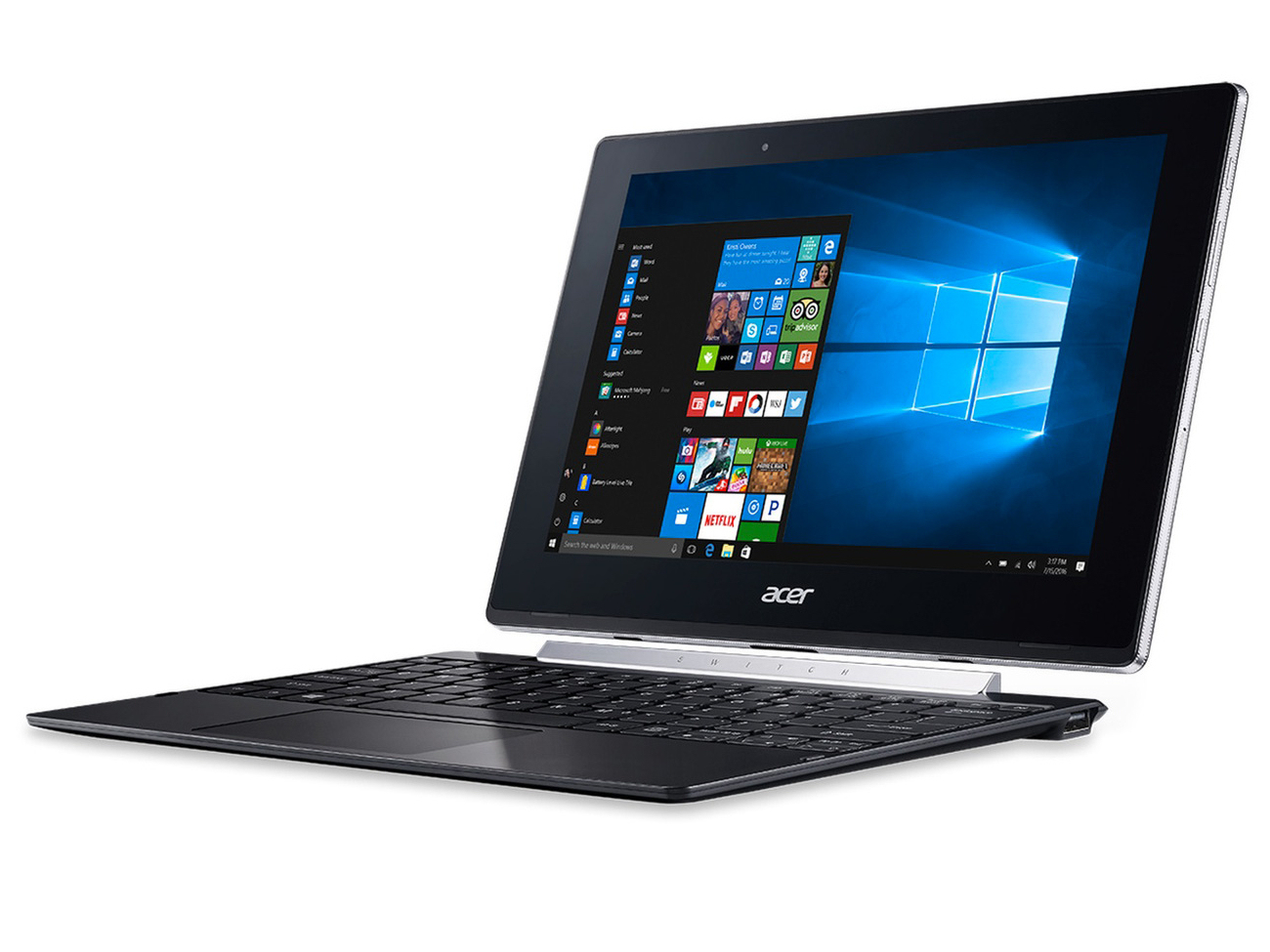

Acer Switch V 10 SW5-017-196Q (Aspire Switch Series)
Processor
Intel Atom x5-Z8350 4 x 1.4 - 1.9 GHz, Cherry Trail
Graphics adapter
Intel HD Graphics (Cherry Trail), Core: 500 MHz, 单通道, 20.19.15.4364
Memory
4 GB
, DDR3-1600, 单通道,板载
Display
10.10 inch 16:10, 1280 x 800 pixel 149 PPI, 电容式,10点触控,支持主动式手写笔,, ChiMei, IPS, glossy: yes, detachable screen
Storage
64 GB eMMC Flash, 64 GB
, 43 GB free
Connections
1 USB 2.0, 1 USB 3.0 / 3.1 Gen1, Audio Connections: 整合音频接口, Card Reader: MicroSD, 1 Fingerprint Reader, Brightness Sensor, Sensors: 加速感应器, TPM 2.0
Networking
Atheros/Qualcomm QCA6174 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.1
Size
height x width x depth (in mm): 19.2 x 262 x 188
Battery
28.2 Wh Lithium-Ion, Battery runtime (according to manufacturer): 10 h
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: 高清
Primary Camera: 5 MPix 摄像头
Secondary Camera: 2 MPix 无闪光点
Additional features
Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no, McAfee LiveSafe (试用版), 12 Months Warranty, fanless
Weight
1.2 kg, Power Supply: 94 g
Price
359 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Connectivity

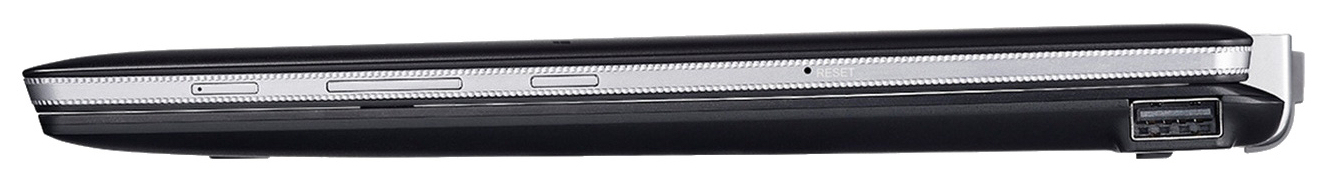

Right side: Power button, Volume rocker, Windows key, USB 2.0 (Type-A)
Right side: Power button, Volume rocker, Windows key, USB 2.0 (Type-A)

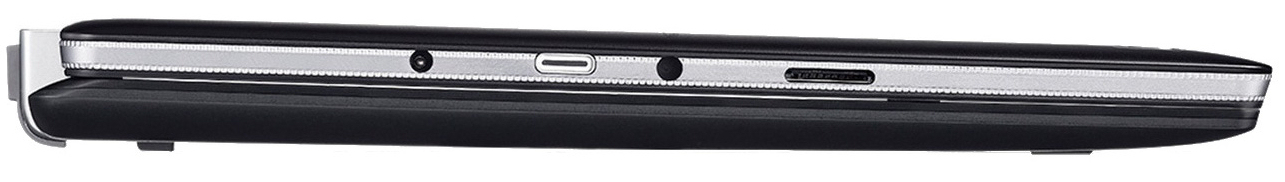

Left side: Power connection, USB 3.1 Gen 1 (Type-C), Audio combo, Memory card reader (MicroSD)
Left side: Power connection, USB 3.1 Gen 1 (Type-C), Audio combo, Memory card reader (MicroSD)
Networking
iperf Server (receive) TCP 1 m
HP x2 210 G1
Intel Dual Band Wireless-AC 3165
80 MBit/s
Lenovo IdeaPad MIIX 310-10ICR
Realtek RTL8723BS
34.95 MBit/s
iperf Client (transmit) TCP 1 m
HP x2 210 G1
Intel Dual Band Wireless-AC 3165
71 MBit/s
Lenovo IdeaPad MIIX 310-10ICR
Realtek RTL8723BS
37.44 MBit/s
iperf3 transmit AX12
Acer Switch V 10 SW5-017-196Q
Atheros/Qualcomm QCA6174
374 MBit/s
iperf3 receive AX12
Acer Switch V 10 SW5-017-196Q
Atheros/Qualcomm QCA6174
247 MBit/s
238
cd/m²
241
cd/m²
229
cd/m²
232
cd/m²
270
cd/m²
227
cd/m²
242
cd/m²
247
cd/m²
221
cd/m²
Distribution of brightness
ChiMei tested with X-Rite i1Pro 2
Maximum: 270 cd/m² (Nits) Average: 238.6 cd/m² Minimum: 19 cd/m²
Brightness Distribution: 82 %
Center on Battery: 270 cd/m²
Contrast: 1286:1 (Black: 0.21 cd/m²)
ΔE Color 3.01 | 0.5-29.43 Ø4.92
ΔE Greyscale 7.66 | 0.5-98 Ø5.2
76% sRGB (Argyll 1.6.3 3D)
49% AdobeRGB 1998 (Argyll 1.6.3 3D)
54.1% AdobeRGB 1998 (Argyll 2.2.0 3D)
76.3% sRGB (Argyll 2.2.0 3D)
52.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 1.45
Acer Switch V 10 SW5-017-196Q
IPS, 1280x800, 10.1"
Acer Aspire Switch 10V SW5-014-1742
IPS, 1920x1200, 10.1"
Lenovo IdeaPad MIIX 310-10ICR
IPS, 1280x800, 10.1"
HP x2 210 G1
IPS, 1280x800, 10.1"
Display
-13%
-2%
-18%
Display P3 Coverage
52.5
45.37
-14%
51.1
-3%
42.77
-19%
sRGB Coverage
76.3
67.5
-12%
75.2
-1%
63.7
-17%
AdobeRGB 1998 Coverage
54.1
46.88
-13%
52.7
-3%
44.22
-18%
Response Times
-10%
-33%
-47%
Response Time Grey 50% / Grey 80% *
29 ?(8, 21)
37 ?(12, 25)
-28%
31.6 ?(13.6, 18)
-9%
43 ?(21, 22)
-48%
Response Time Black / White *
25 ?(9, 16)
23 ?(7, 16)
8%
24.8 ?(6, 28.8)
1%
25 ?(10, 15)
-0%
PWM Frequency
877 ?(90)
69.4
-92%
50 ?(60)
-94%
Screen
0%
-40%
-30%
Brightness middle
270
451
67%
251.9
-7%
313
16%
Brightness
239
440
84%
233
-3%
295
23%
Brightness Distribution
82
85
4%
83
1%
84
2%
Black Level *
0.21
0.48
-129%
0.348
-66%
0.21
-0%
Contrast
1286
940
-27%
724
-44%
1490
16%
Colorchecker dE 2000 *
3.01
3.03
-1%
6.35
-111%
6.79
-126%
Colorchecker dE 2000 max. *
4.63
6.45
-39%
11.15
-141%
14.11
-205%
Greyscale dE 2000 *
7.66
1.74
77%
7.09
7%
6.78
11%
Gamma
1.45 152%
2.37 93%
2.02 109%
2.26 97%
CCT
6665 98%
6568 99%
8590 76%
6708 97%
Color Space (Percent of AdobeRGB 1998)
49
43
-12%
52.69
8%
41
-16%
Color Space (Percent of sRGB)
76
59
-22%
63
-17%
Total Average (Program / Settings)
-8% / -4%
-25% / -31%
-32% / -31%

* ... smaller is better

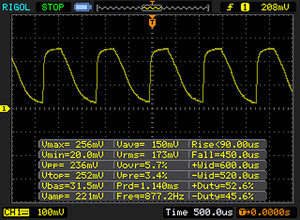

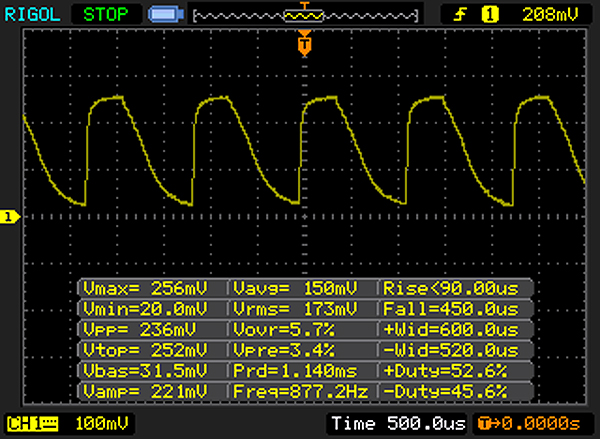

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 877 Hz ≤ 90 % brightness setting

The display backlight flickers at 877 Hz (worst case, e.g., utilizing PWM) Flickering detected at a brightness setting of 90 % and below. There should be no flickering or PWM above this brightness setting.

The frequency of 877 Hz is quite high, so most users sensitive to PWM should not notice any flickering.

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

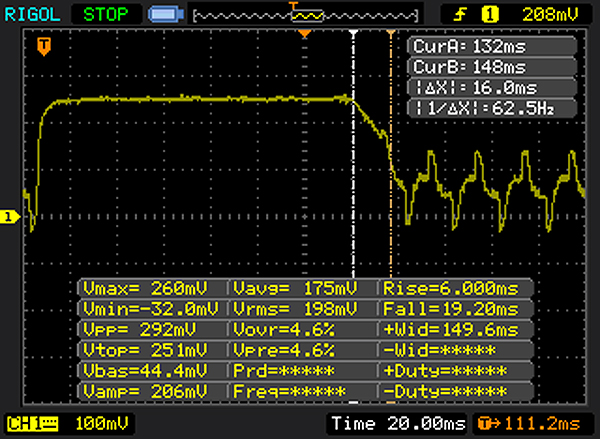

       Response Time Black to White
25 ms ... rise ↗ and fall ↘ combined↗ 9 ms rise
↘ 16 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 55 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

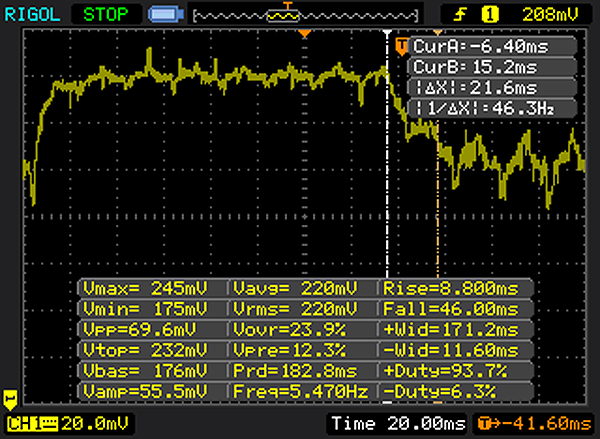

       Response Time 50% Grey to 80% Grey
29 ms ... rise ↗ and fall ↘ combined↗ 8 ms rise
↘ 21 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 35 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (32.9 ms).
Cinebench R10 Rendering Single 32Bit
999
Cinebench R10 Rendering Multiple CPUs 32Bit
3130
Cinebench R10 Shading 32Bit
1984
Cinebench R15 CPU Single 64Bit
29 Points
Cinebench R15 CPU Multi 64Bit
100 Points
Cinebench R15 OpenGL 64Bit
11.16 fps
Cinebench R15 Ref. Match 64Bit
98 %
Help
Cinebench R15
CPU Single 64Bit
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
29 Points 0%
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
29 Points
Acer Aspire Switch 10V SW5-014-1742
Intel Atom x5-Z8300
27 Points -7%
HP x2 210 G1
Intel Atom x5-Z8300
26 Points -10%
CPU Multi 64Bit
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
100 Points
Acer Aspire Switch 10V SW5-014-1742
Intel Atom x5-Z8300
96 Points -4%
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
94 Points -6%
HP x2 210 G1
Intel Atom x5-Z8300
93 Points -7%
Cinebench R10
Rendering Multiple CPUs 32Bit
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
3130 Points
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
2575 Points -18%
HP x2 210 G1
Intel Atom x5-Z8300
2135 Points -32%
Rendering Single 32Bit
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
999 Points
Lenovo IdeaPad MIIX 310-10ICR
Intel Atom x5-Z8350
884 Points -12%
HP x2 210 G1
Intel Atom x5-Z8300
855 Points -14%
Geekbench 3
32 Bit Single-Core Score
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
796 Points
32 Bit Multi-Core Score
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
2332 Points
Geekbench 4.0
64 Bit Single-Core Score
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
934 Points
64 Bit Multi-Core Score
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
2399 Points
JetStream 1.1 - Total Score
Acer Switch V 10 SW5-017-196Q
Intel Atom x5-Z8350
45.77 Points
HP x2 210 G1
Intel Atom x5-Z8300
44.02 Points -4%
Acer Aspire Switch 10V SW5-014-1742
Intel Atom x5-Z8300
33.52 Points -27%
PCMark 8 Home Score Accelerated v2
1520 points
Help
PCMark 8 - Home Score Accelerated v2
Acer Switch V 10 SW5-017-196Q
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1520 Points
Lenovo IdeaPad MIIX 310-10ICR
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1419 Points -7%
HP x2 210 G1
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1391 Points -8%
64 GB eMMC Flash
Sequential Read: 153.9 MB/s
Sequential Write: 101.1 MB/s
512K Read: 136.2 MB/s
512K Write: 91.5 MB/s
4K Read: 12.58 MB/s
4K Write: 12.38 MB/s
4K QD32 Read: 23.81 MB/s
4K QD32 Write: 33.93 MB/s
Acer Switch V 10 SW5-017-196Q
64 GB eMMC Flash
Acer Aspire Switch 10V SW5-014-1742
Seagate Momentus Thin ST500LT012-1DG142
Lenovo IdeaPad MIIX 310-10ICR
64 GB eMMC Flash
HP x2 210 G1
64 GB eMMC Flash
CrystalDiskMark 3.0
-2%
-14%
-14%
Read Seq
153.9
167
9%
151.9
-1%
134.1
-13%
Write Seq
101.1
94.9
-6%
87.3
-14%
66.1
-35%
Read 512
136.2
149.9
10%
144.5
6%
112.9
-17%
Write 512
91.5
26.35
-71%
58
-37%
57.7
-37%
Read 4k
12.58
17.26
37%
9.35
-26%
15.79
26%
Write 4k
12.38
13.85
12%
12.26
-1%
10.06
-19%
Read 4k QD32
23.81
33.39
40%
29
22%
35.31
48%
Write 4k QD32
33.93
17.38
-49%
13.18
-61%
11.84
-65%
3DMark 11 Performance
410 points
Help
3DMark 11 - 1280x720 Performance GPU
Acer Switch V 10 SW5-017-196Q
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350
358 Points
Lenovo IdeaPad MIIX 310-10ICR
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8350
298 Points -17%
Acer Aspire Switch 10V SW5-014-1742
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8300
297 Points -17%
HP x2 210 G1
Intel HD Graphics (Cherry Trail), Intel Atom x5-Z8300
291 Points -19%
lowmed.highultra
Trackmania Nations Forever (2008) 97.8 25
Max. Load
 38 °C29.5 °C26.6 °C
 36.6 °C29.4 °C30.4 °C
 33.5 °C29.2 °C27.4 °C
Maximum: 38 °C
Average: 31.2 °C
26.5 °C30.5 °C37.7 °C
26.7 °C31.2 °C37.4 °C
26.6 °C30.6 °C33.6 °C
Maximum: 37.7 °C
Average: 31.2 °C
Power Supply (max.)  35.4 °C | Room Temperature 21.3 °C | FIRT 550-Pocket
(+) The average temperature for the upper side under maximal load is 31.2 °C / 88 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 38 °C / 100 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 37.7 °C / 100 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.2 °C / 79 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (33.5 °C / 92.3 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-5.4 °C / -9.7 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.831.632.82537.830.737.83133.831.833.84029.830.729.85033.629.633.66328.627.528.6802726.52710026.425.926.412529.724.829.71603123.73120030.922.830.92502722.32731536.221.136.240051.620.451.650053.219.753.263059.41959.480058.818.858.8100063.418.463.4125062.117.562.1160061.617.661.6200063.517.563.5250065.717.765.7315065.117.965.1400065.21865.250006718.367630067.618.267.6800062.718.362.71000052.218.352.2125004418.2441600041.218.241.2SPL75.930.575.9N34.81.434.8median 58.8median 18.3median 58.8Delta13.11.313.135.335.132.931.831.83236.535.132.428.93328.936.328.848.32761.52752.924.860.92462.822.763.32269.521.267.82174.82075.919.472.718.97117.770.117.86917.671.817.668.117.671.417.673.717.670.417.571.617.671.617.669.617.459.717.583.630.662.51.5median 69.6median 17.84.72.4hearing rangehide median Pink NoiseAcer Switch V 10 SW5-017-196QApple MacBook 12 (Early 2016) 1.1 GHz
Acer Switch V 10 SW5-017-196Q audio analysis

(-) | not very loud speakers (66 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 28.6% lower than median
(±) | linearity of bass is average (7.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.6% away from median
(±) | linearity of mids is average (9.9% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 6.7% higher than median
(±) | linearity of highs is average (7.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (31.7% difference to median)
Compared to same class
» 90% of all tested devices in this class were better, 2% similar, 8% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 89% of all tested devices were better, 2% similar, 9% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook 12 (Early 2016) 1.1 GHz audio analysis

(+) | speakers can play relatively loud (83.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.3% lower than median
(±) | linearity of bass is average (14.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.4% away from median
(+) | mids are linear (5.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(+) | highs are linear (4.5% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (10.2% difference to median)
Compared to same class
» 6% of all tested devices in this class were better, 2% similar, 92% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 4% of all tested devices were better, 1% similar, 95% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.25 / 1.24 Watt
Idledarkmidlight 2.9 / 5.3 / 5.6 Watt
Load midlight 10.9 / 12 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Battery Runtime
WiFi Websurfing (Edge 38)
8h 13min
Battery Runtime - WiFi Websurfing
Lenovo IdeaPad MIIX 310-10ICR
Z8350, HD Graphics (Cherry Trail), 33 Wh
643 min +30%
HP x2 210 G1
Z8300, HD Graphics (Cherry Trail), 33 Wh
550 min +12%
Acer Switch V 10 SW5-017-196Q
Z8350, HD Graphics (Cherry Trail), 28.2 Wh
493 min
Acer Aspire Switch 10V SW5-014-1742
Z8300, HD Graphics (Cherry Trail), 29 Wh
382 min -23%

Pros

+ IPS屏幕
+ 运行安静
+ USB-C接口(3.1第一代)
+ 优秀的电池续航
+ 无线AC标准

Cons

- 接口较少
- 不太稳定的键盘底座
- 仅一年质保

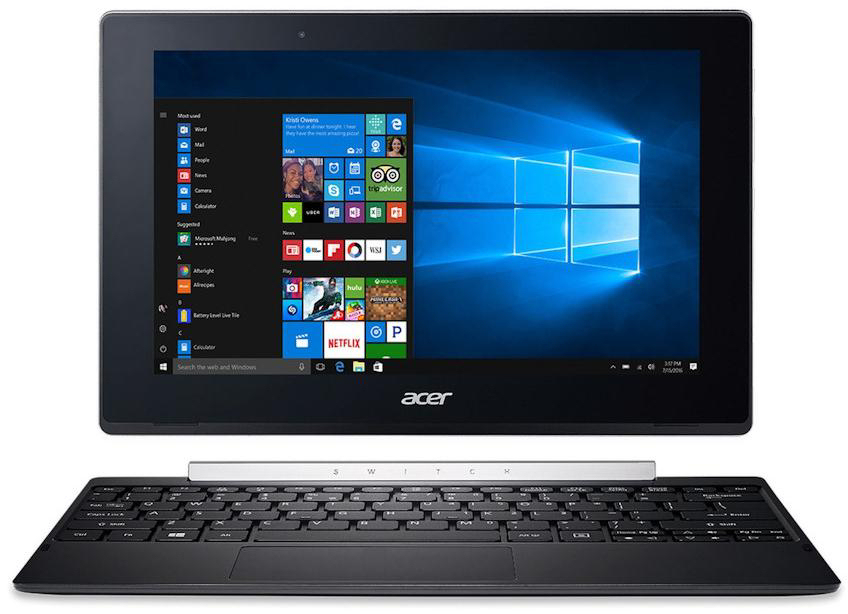

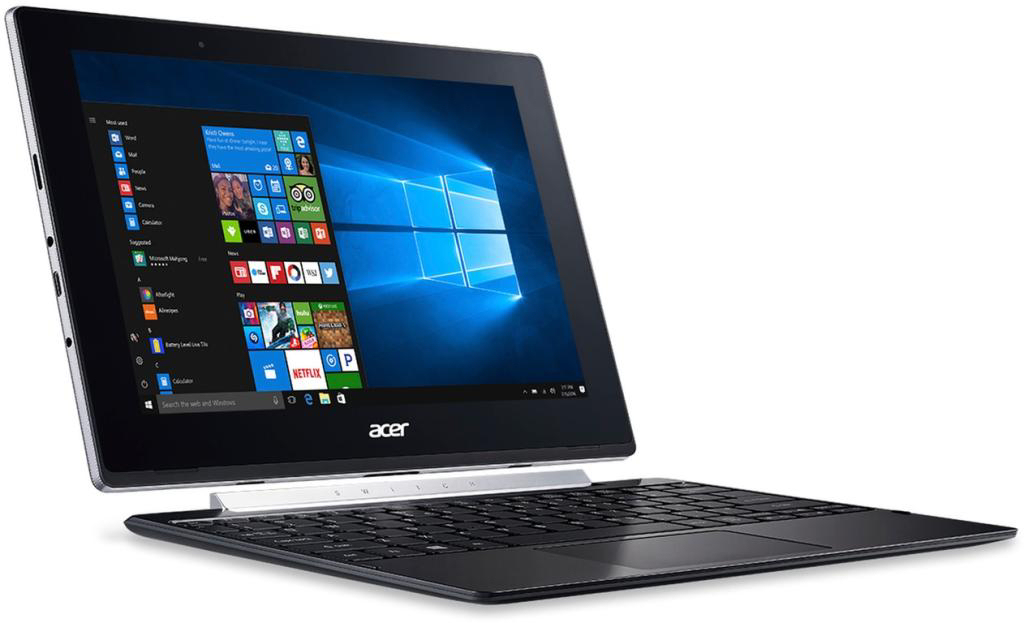

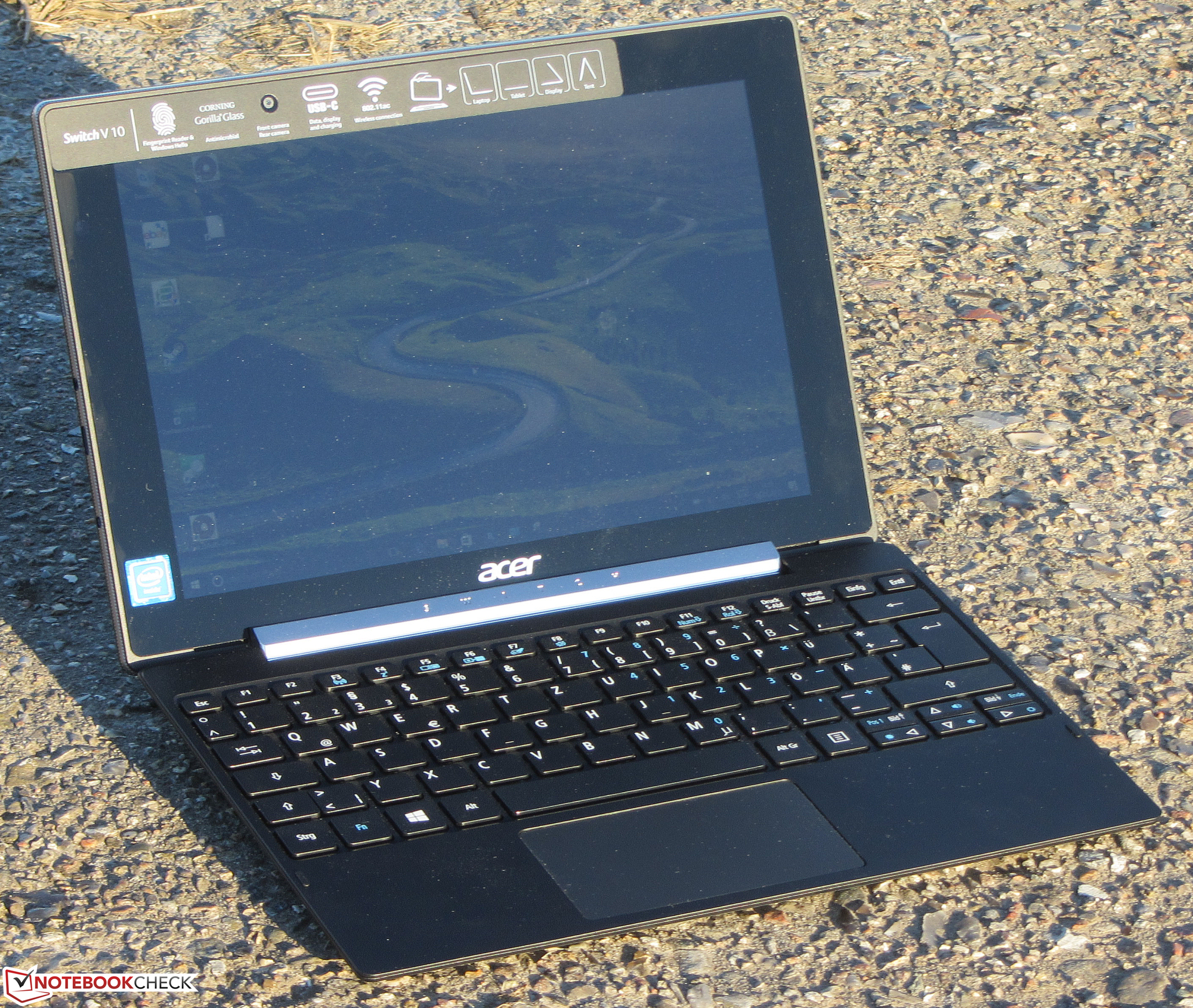

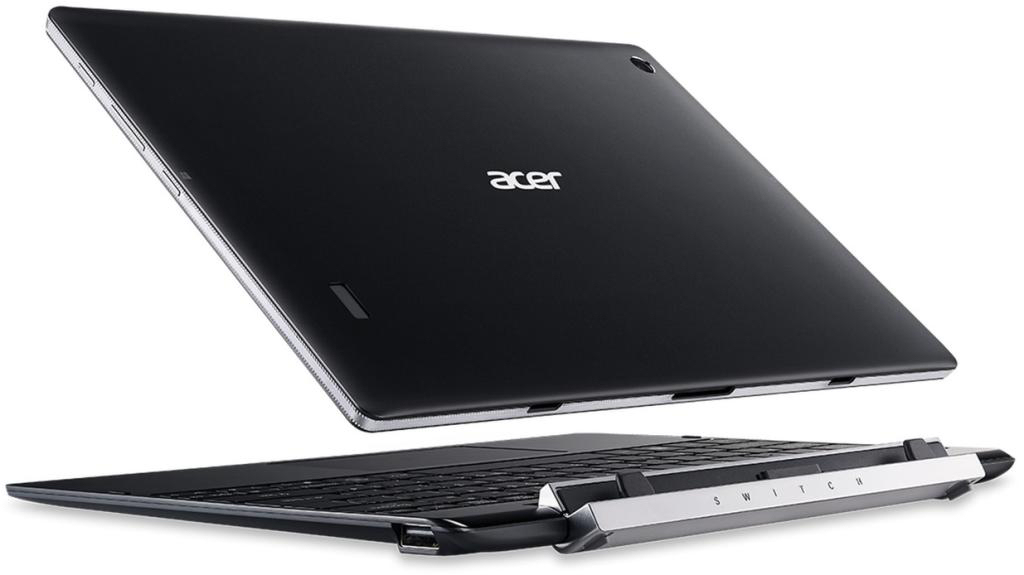

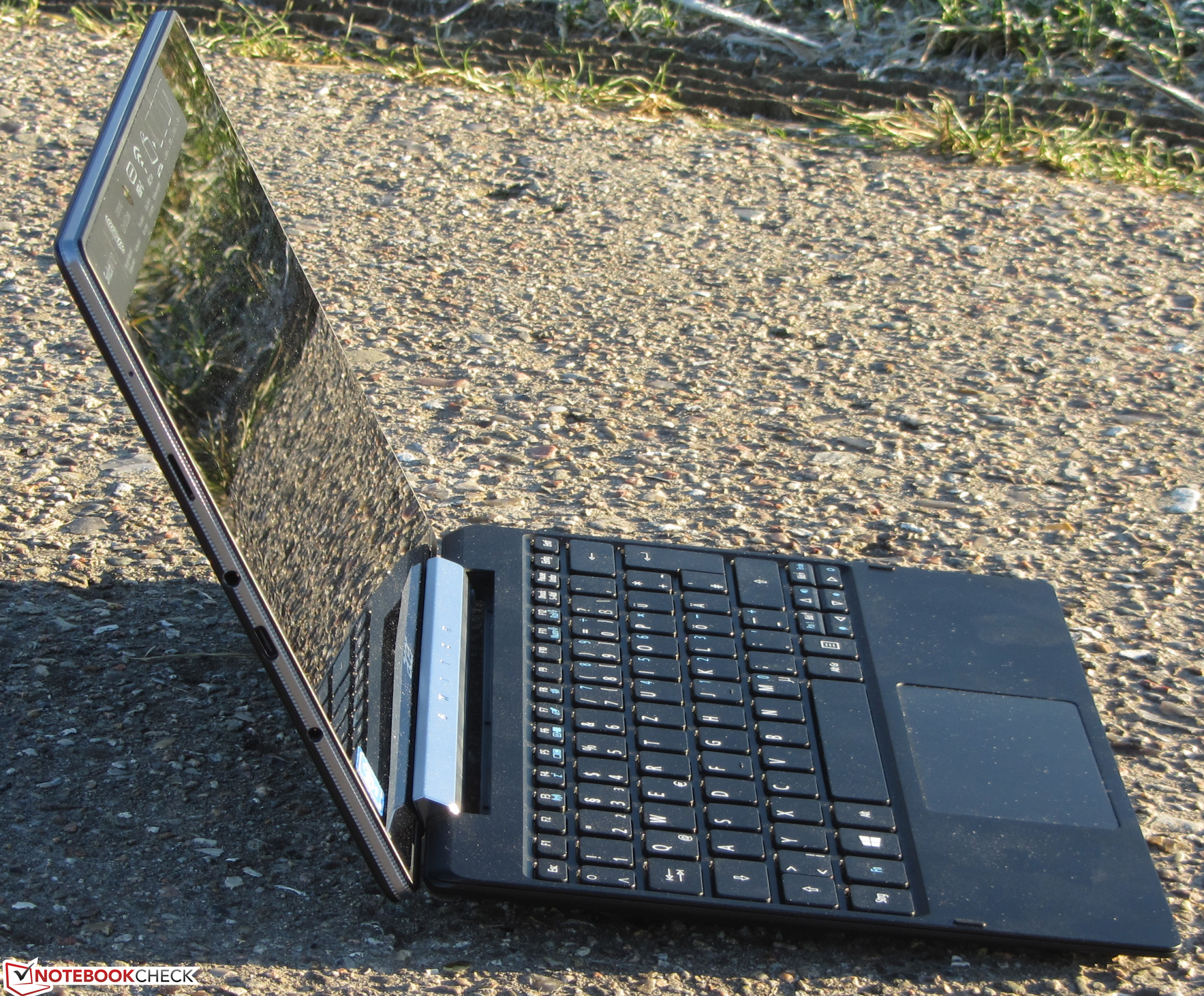

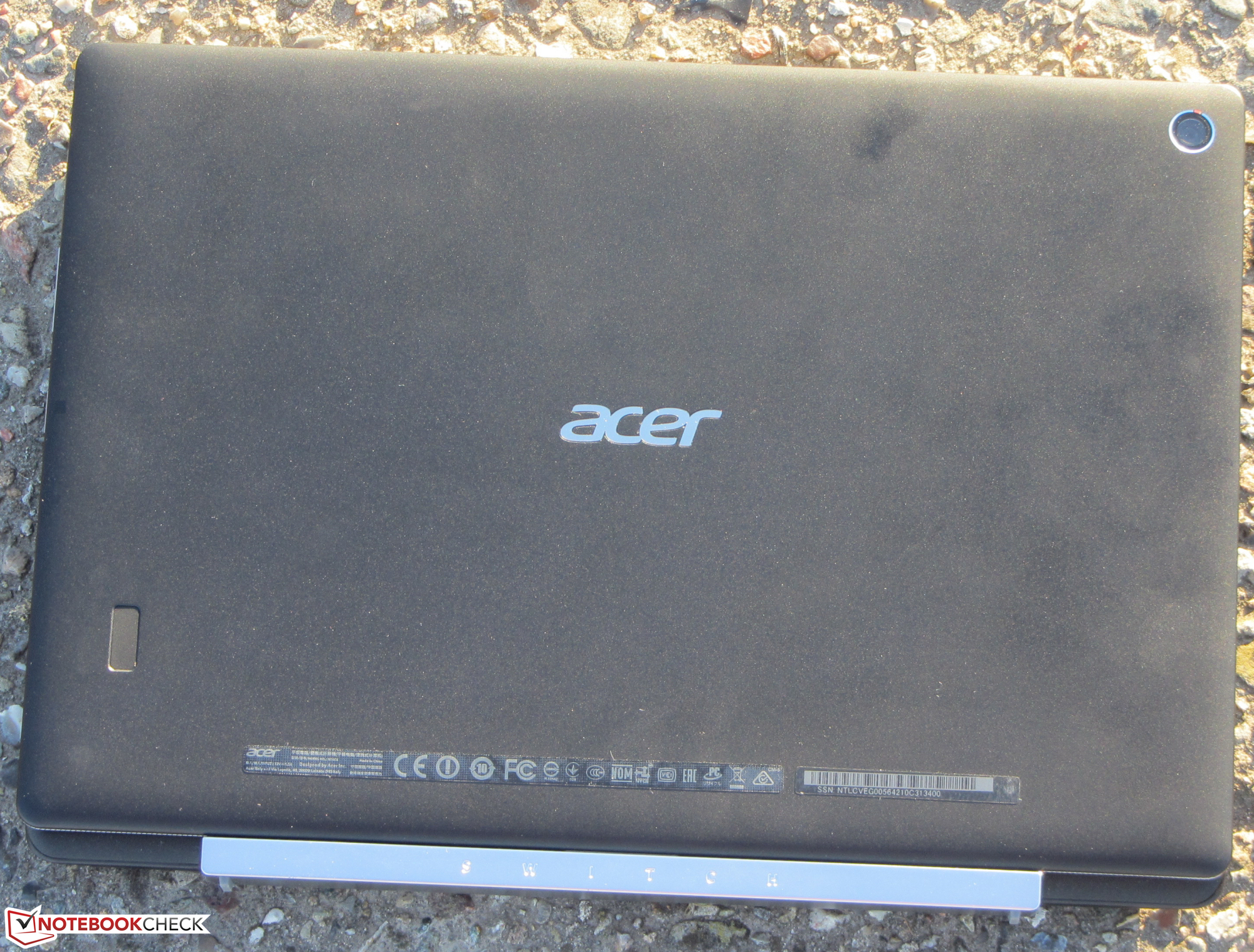

In review: Acer Switch V 10 SW5-017-196Q. Test model courtesy of Acer Germany.
In review: Acer Switch V 10 SW5-017-196Q. Test model courtesy of Acer Germany.

Switch V 10是一台来自宏碁的全新Windows笔记本电脑。它搭配了可以适合网络浏览和简单办公的凌动处理器。而显卡提供的硬件视频解码则可以帮助处理器缓解常见视频格式播放中带来的负载。这台设备运行安静,且几乎不会变烫。64GB的闪存空间中用户有43GB可以自由支配。需要更大空间的用户可以通过microSD卡拓展。它的键盘对于家庭用途来说绰绰有余,不过可能不太适合手掌尺寸较大的用户。它的IPS屏幕对比度高且可视角度稳定,十分养眼——不过亮度还有待改进。

宏碁Switch V 10是一台十分全面的Windows变形本。

不过,宏碁在它的连接性设计上还需要多下些功夫。如果它能够搭配第二个USB-C接口或在键盘底座上提供一个USB-A 3.0接口将会让它更易于使用。除此之外,宏碁仅仅为它提供一年的质保。我们已经习惯了这家生产商带来的更好用户服务,甚至是更低价位的设备也提供了两年质保,这让我们很难接受。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Acer Switch V 10 SW5-017-196Q - 01/10/2017 v6 (old)
Sascha Mölck

Chassis
73 / 98 → 74%
Keyboard
68%
Pointing Device
86%
Connectivity
38 / 80 → 47%
Weight
73 / 35-78 → 87%
Battery
91%
Display
82%
Games Performance
37 / 68 → 55%
Application Performance
42 / 87 → 49%
Temperature
93%
Noise
100%
Audio
38 / 91 → 41%
Camera
42 / 85 → 49%
Average
66%
79%
Convertible - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 宏碁 Switch V 10 SW5 (x5-Z8350) 变形本简短评测
Sascha Mölck, 2017-04- 1 (Update: 2017-04- 1)
