Teclast Tbook 10s (x5-Z8350, 全高清) 变形本简短评测

双系统变形本。 在Chuwi的Hi10 Pro刚刚评测结束后,我们又开始了对来自Teclast名为Tbook 10s的另外一台低售价双启动平板电脑的测试。请阅读我们的评测了解这两款设备孰强孰弱。
Windows Android Convertible / 2-in-1 Chinese Tech
Teclast Tbook 10s (Tbook Series)
Processor
Intel Atom x5-Z8350 4 x 1.4 - 1.9 GHz, Cherry Trail
Graphics adapter
Intel HD Graphics (Cherry Trail)
Memory
4 GB
Display
10.10 inch 16:10, 1920 x 1200 pixel 224 PPI, 电容式, LCD, IPS, glossy: yes
Storage
64 GB eMMC Flash, 64 GB
, 15.7 GB free
Connections
1 USB 2.0, 1 HDMI, Audio Connections: 3.5毫米耳机接口, Card Reader: micro-SD, Sensors: 位置感应器
Networking
802.11 b/g/n (b/g/n = Wi-Fi 4/), Bluetooth 4.0
Size
height x width x depth (in mm): 8 x 247 x 166
Battery
6000 mAh Lithium-Polymer, Battery runtime (according to manufacturer): 6 h
Operating System
Android 5.1 Lollipop
Camera
Secondary Camera: 2 MPix
Additional features
Speakers: 立体声扬声器, Keyboard: 触控,键盘底座, Keyboard Light: no, 电源适配器, USB数据线, Windows 10, Tecla Android UI, 12 Months Warranty, fanless
Weight
574 g, Power Supply: 63 g
Price
150 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Networking
iperf3 transmit AX12
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
246 MBit/s +528%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
41.6 MBit/s +6%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
39.2 MBit/s
iperf3 receive AX12
Asus ZenPad 3s 10 Z500M
PowerVR GX6250, MT8176, 64 GB eMMC Flash
254 MBit/s +563%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
40.6 MBit/s +6%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
38.3 MBit/s
iperf Server (receive) TCP 1 m
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
90.2 MBit/s
iperf Client (transmit) TCP 1 m
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
91.2 MBit/s
252
cd/m²
279
cd/m²
308
cd/m²
262
cd/m²
279
cd/m²
305
cd/m²
252
cd/m²
278
cd/m²
302
cd/m²
Distribution of brightness
LCD tested with X-Rite i1Pro 2
Maximum: 308 cd/m² (Nits) Average: 279.7 cd/m² Minimum: 35.53 cd/m²
Brightness Distribution: 82 %
Center on Battery: 279 cd/m²
Contrast: 962:1 (Black: 0.29 cd/m²)
ΔE Color 6.7 | 0.5-29.43 Ø4.92
ΔE Greyscale 6.8 | 0.5-98 Ø5.2
Gamma: 2.27
Teclast Tbook 10s
IPS, 1920x1200, 10.1"
Chuwi Hi10 Pro
IPS, 1920x1200, 10.1"
Xiaomi MiPad 2
IPS, 2048x1536, 7.9"
Haier Pad 971
IPS, 2048x1536, 9.7"
Asus ZenPad 10.0 Z300M-6A039A
IPS, 1280x800, 10.1"
Asus ZenPad 3s 10 Z500M
IPS, 2048x1536, 9.7"
Screen
5%
21%
15%
9%
15%
Brightness middle
279
379
36%
425
52%
294
5%
370
33%
489
75%
Brightness
280
356
27%
402
44%
294
5%
351
25%
443
58%
Brightness Distribution
82
87
6%
91
11%
90
10%
89
9%
86
5%
Black Level *
0.29
0.42
-45%
0.4
-38%
0.37
-28%
0.4
-38%
0.43
-48%
Contrast
962
902
-6%
1063
10%
795
-17%
925
-4%
1137
18%
Colorchecker dE 2000 *
6.7
4.8
28%
4.98
26%
3.2
52%
4.6
31%
5.5
18%
Colorchecker dE 2000 max. *
10.8
11.2
-4%
6.61
39%
6.5
40%
9.5
12%
11.6
-7%
Greyscale dE 2000 *
6.8
6.7
1%
5.2
24%
3
56%
6.5
4%
6.7
1%
Gamma
2.27 97%
2.23 99%
2.65 83%
2.3 96%
2.17 101%
2.06 107%
CCT
8466 77%
6988 93%
7249 90%
6882 94%
6354 102%
7457 87%

* ... smaller is better

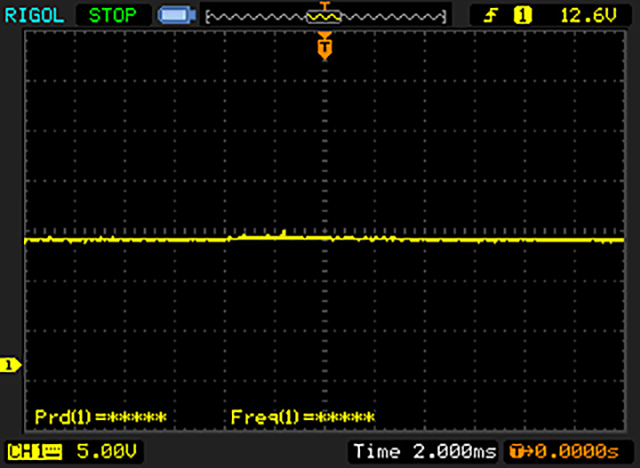

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8746 (minimum: 5 - maximum: 343500) Hz was measured.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

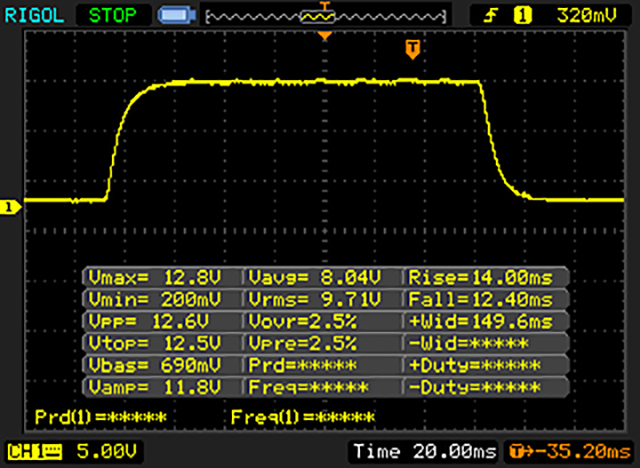

       Response Time Black to White
26.4 ms ... rise ↗ and fall ↘ combined↗ 14 ms rise
↘ 12.4 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 62 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (21 ms).

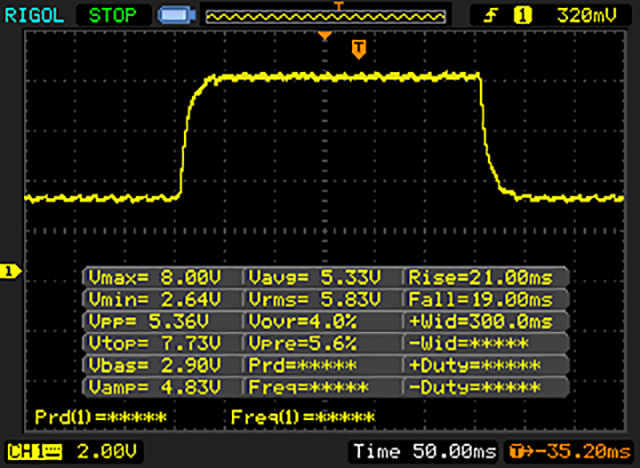

       Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined↗ 21 ms rise
↘ 19 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.9 ms).
Geekbench 4.0
64 Bit Multi-Core Score
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1980 Points
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1971 Points 0%
64 Bit Single-Core Score
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
879 Points
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
867 Points -1%
AndroBench 3-5
Sequential Write 256KB SDCard
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
24.7 MB/s
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
MB/s
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
MB/s
Sequential Read 256KB SDCard
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
37 MB/s
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
MB/s
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
MB/s
Random Write 4KB
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
13.96 MB/s +311%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
7.36 MB/s +116%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
6.79 MB/s +100%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
5.37 MB/s +58%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
3.4 MB/s
Random Read 4KB
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
25.79 MB/s +125%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
24.42 MB/s +113%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
18.7 MB/s +63%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
15.34 MB/s +34%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
11.44 MB/s
Sequential Write 256KB
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
121.2 MB/s +82%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
66.5 MB/s
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
56.4 MB/s -15%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
39.97 MB/s -40%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
14.57 MB/s -78%
Sequential Read 256KB
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
163.5 MB/s +43%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
147.9 MB/s +29%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
136.1 MB/s +19%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
114.7 MB/s
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
56.9 MB/s -50%
AnTuTu v6 - Total Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
73083 Points +25%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
58565 Points
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
57914 Points -1%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
47100 Points -20%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
36602 Points -38%
Geekbench 3
64 Bit Single-Core Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
990 Points
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
659 Points
64 Bit Multi-Core Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
3170 Points
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
1972 Points
3DMark
1280x720 offscreen Ice Storm Unlimited Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
25460 Points +45%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
17556 Points 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
17549 Points
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
10121 Points -42%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
6165 Points -65%
1280x720 offscreen Ice Storm Unlimited Graphics Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
27537 Points +48%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
18589 Points 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
18563 Points
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
9208 Points -50%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
5490 Points -70%
1280x720 offscreen Ice Storm Unlimited Physics
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
20142 Points +33%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
15496 Points +2%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
15195 Points
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
14564 Points -4%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
10816 Points -29%
2560x1440 Sling Shot OpenGL ES 3.0
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1415 Points
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1398 Points -1%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1353 Points -4%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
610 Points -57%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
245 Points -83%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1537 Points 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1530 Points
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1300 Points -15%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
540 Points -65%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
203 Points -87%
2560x1440 Sling Shot OpenGL ES 3.0 Physics
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1580 Points +41%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1119 Points
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
1111 Points -1%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1061 Points -5%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
916 Points -18%
GFXBench (DX / GLBenchmark) 2.7
T-Rex Onscreen
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
23 fps 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
23 fps
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
16 fps -30%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
13 fps -43%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
12 fps -48%
1920x1080 T-Rex Offscreen
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
32 fps +19%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
27 fps 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
27 fps
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
16 fps -41%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
10 fps -63%
GFXBench 3.0
on screen Manhattan Onscreen OGL
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
11 fps 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
11 fps
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
7 fps -36%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
6.3 fps -43%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
5.3 fps -52%
1920x1080 1080p Manhattan Offscreen
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
12 fps 0%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
12 fps
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
8.4 fps -30%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
7.1 fps -41%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
3.5 fps -71%
GFXBench 3.1
on screen Manhattan ES 3.1 Onscreen
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
8.5 fps
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
7.3 fps -14%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
6.3 fps -26%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
5 fps -41%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
3.3 fps -61%
1920x1080 Manhattan ES 3.1 Offscreen
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
13 fps +38%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
9.4 fps
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
9.2 fps -2%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
4.9 fps -48%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
2.3 fps -76%
GFXBench
1920x1080 Car Chase Offscreen
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
8.4 fps +33%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
6.4 fps +2%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
6.3 fps
on screen Car Chase Onscreen
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
5.9 fps
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
5.7 fps -3%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
5.6 fps -5%
PCMark for Android - Work performance score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
5279 Points +13%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
4885 Points +5%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
4671 Points
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
4246 Points -9%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
3888 Points -17%
BaseMark OS II
Overall
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1419 Points +78%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
874 Points +10%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
827 Points +4%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
798 Points
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
749 Points -6%
System
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
2088 Points +55%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1921 Points +43%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1346 Points
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1333 Points -1%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
1277 Points -5%
Memory
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1379 Points +339%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
910 Points +190%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
444 Points +41%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
342 Points +9%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
314 Points
Graphics
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
1609 Points +35%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
1277 Points +7%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
1191 Points
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
685 Points -42%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
339 Points -72%
Web
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
1011 Points +26%
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
952 Points +18%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
805 Points
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
773 Points -4%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
762 Points -5%
Mozilla Kraken 1.1 - Total
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
12840 ms * -154%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
6884 ms * -36%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
5089 ms * -1%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
5047 ms *
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
4420 ms * +12%
JetStream 1.1 - Total Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
43.04 Points +22%
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
35.72 Points +1%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
35.36 Points
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
33.13 Points -6%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
21.2 Points -40%
Octane V2 - Total Score
Xiaomi MiPad 2
HD Graphics (Cherry Trail), Z8500, 16 GB eMMC Flash
7994 Points +23%
Teclast Tbook 10s
HD Graphics (Cherry Trail), Z8350, 64 GB eMMC Flash
6494 Points
Chuwi Hi10 Pro
HD Graphics (Cherry Trail), Z8300, 64 GB eMMC Flash
6365 Points -2%
Haier Pad 971
Mali-T760 MP4, RK3288, 16 GB eMMC Flash
5967 Points -8%
Asus ZenPad 10.0 Z300M-6A039A
Mali-T720 MP2, MT8163 V/B 1.3 GHz, 32 GB eMMC Flash
3320 Points -49%

* ... smaller is better

Cinebench R15
OpenGL 64Bit (sort by value)
Teclast Tbook 10s
8.43 fps
Chuwi Hi10 Pro
8.8 fps +4%
Chuwi Hi12
9.82 fps +16%
Acer Switch V 10 SW5-017-196Q
11.16 fps +32%
Toshiba Satellite Click 10 LX0W-C-104
10.71 fps +27%
Microsoft Surface Pro 4 Core i7
60.1 fps +613%
CPU Multi 64Bit (sort by value)
Teclast Tbook 10s
101 Points
Chuwi Hi10 Pro
85 Points -16%
Chuwi Hi12
99 Points -2%
Acer Switch V 10 SW5-017-196Q
100 Points -1%
Toshiba Satellite Click 10 LX0W-C-104
94 Points -7%
Microsoft Surface Pro 4 Core i7
342 Points +239%
PCMark 8
Home Score Accelerated v2 (sort by value)
Teclast Tbook 10s
1088 Points
Chuwi Hi12
1039 Points -5%
Acer Switch V 10 SW5-017-196Q
1520 Points +40%
Toshiba Satellite Click 10 LX0W-C-104
1294 Points +19%
Microsoft Surface Pro 4 Core i7
3394 Points +212%
Creative Score Accelerated v2 (sort by value)
Teclast Tbook 10s
914 Points
Toshiba Satellite Click 10 LX0W-C-104
1410 Points +54%
Microsoft Surface Pro 4 Core i7
4431 Points +385%
Work Score Accelerated v2 (sort by value)
Teclast Tbook 10s
1329 Points
Chuwi Hi12
1008 Points -24%
Toshiba Satellite Click 10 LX0W-C-104
1044 Points -21%
Microsoft Surface Pro 4 Core i7
4052 Points +205%

Legend


Teclast Tbook 10s Intel Atom x5-Z8350, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Chuwi Hi10 Pro Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Chuwi Hi12 Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), Hynix HCG8E 64 GB

Acer Switch V 10 SW5-017-196Q Intel Atom x5-Z8350, Intel HD Graphics (Cherry Trail), 64 GB eMMC Flash

Toshiba Satellite Click 10 LX0W-C-104 Intel Atom x5-Z8300, Intel HD Graphics (Cherry Trail), 32 GB eMMC Flash

Microsoft Surface Pro 4 Core i7 Intel Core i7-6650U, Intel Iris Graphics 540, Samsung MZFLV256 NVMe
Max. Load
 35.5 °C28.8 °C31.9 °C
 34.2 °C29.1 °C33.1 °C
 30.8 °C28.5 °C31.9 °C
Maximum: 35.5 °C
Average: 31.5 °C
31.4 °C30.8 °C29.1 °C
31.7 °C31 °C29.5 °C
29 °C29.1 °C28.8 °C
Maximum: 31.7 °C
Average: 30 °C
Power Supply (max.)  40.5 °C | Room Temperature 21.3 °C | Voltcraft IR-260
(+) The average temperature for the upper side under maximal load is 31.5 °C / 89 F, compared to the average of 30.3 °C / 87 F for the devices in the class Convertible.
(+) The maximum temperature on the upper side is 35.5 °C / 96 F, compared to the average of 35.3 °C / 96 F, ranging from 19.6 to 60 °C for the class Convertible.
(+) The bottom heats up to a maximum of 31.7 °C / 89 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 28.4 °C / 83 F, compared to the device average of 30.3 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.9 °C / 89.4 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.1 °C / 82.6 F (-3.8 °C / -6.8 F).
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.642.52525.437.83125.337.84032.935.25033.631.56331.633.48028.4261002727.512520.828.31602226.120021.32725020.827.531521.230.140019.435.250019.54363017.75180017.958.2100017.863.9125017.356.7160017.456.6200016.755.9250017.256.7315018.259.6400017.968.4500017.668.3630017.764.6800017.853.41000017.947.41250018.152.11600018.245.1SPL3074.4N1.328.6median 17.9median 52.1Delta1.412.831.636.525.431.425.333.632.930.233.644.231.636.828.431.92725.320.825.32228.121.329.920.835.221.239.919.448.119.554.717.760.717.967.117.870.417.370.117.469.716.767.817.269.418.273.317.978.217.678.217.770.117.86017.954.518.157.818.255.63084.41.352.1median 17.9median 601.413.140.735.335.240.739.430.137.839.443.33028.443.346.727.733.846.747.535.639.547.545.426.934.345.445.524.627.345.544.626.330.844.64731.226.24752.943.623.852.956.552.122.956.560.452.122.460.463.854.519.963.866.557.120.466.572.163.818.772.174.667.517.774.677.86917.977.878.9701878.980.47117.880.483.873.51783.885.175.816.985.183.473.317.483.483.473.117.883.483.974.417.583.983.473.517.383.48575.617.38586.6771886.684.674.518.384.681.571.817.981.572.261.217.972.295.185.430.195.1110.763.21.4110.7median 80.4median 70median 17.9median 80.48.69.51.58.6hearing rangehide median Pink NoiseTeclast Tbook 10sChuwi Hi10 ProXiaomi MiPad 2
Teclast Tbook 10s audio analysis

(±) | speaker loudness is average but good (74.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 24.4% lower than median
(+) | bass is linear (4.1% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.2% higher than median
(-) | mids are not linear (15.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 9% higher than median
(±) | linearity of highs is average (14% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (37.4% difference to median)
Compared to same class
» 95% of all tested devices in this class were better, 2% similar, 3% worse
» The best had a delta of 6%, average was 21%, worst was 57%
Compared to all devices tested
» 94% of all tested devices were better, 1% similar, 6% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Chuwi Hi10 Pro audio analysis

(+) | speakers can play relatively loud (84.4 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 29.4% lower than median
(±) | linearity of bass is average (8.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 7.8% higher than median
(±) | linearity of mids is average (9.8% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 10.7% higher than median
(±) | linearity of highs is average (11.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(-) | overall sound is not linear (33.5% difference to median)
Compared to same class
» 91% of all tested devices in this class were better, 2% similar, 6% worse
» The best had a delta of 7%, average was 22%, worst was 129%
Compared to all devices tested
» 91% of all tested devices were better, 1% similar, 7% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Xiaomi MiPad 2 audio analysis

(+) | speakers can play relatively loud (95.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 26.3% lower than median
(+) | bass is linear (5.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | reduced mids - on average 5% lower than median
(+) | mids are linear (4.2% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.9% away from median
(+) | highs are linear (1.8% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (17.9% difference to median)
Compared to same class
» 39% of all tested devices in this class were better, 7% similar, 54% worse
» The best had a delta of 7%, average was 22%, worst was 129%
Compared to all devices tested
» 33% of all tested devices were better, 8% similar, 59% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.13 / 0.32 Watt
Idledarkmidlight 1.46 / 5 / 5.08 Watt
Load midlight 9.57 / 10.77 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Teclast Tbook 10s
6000 mAh
Chuwi Hi10 Pro
6500 mAh
Xiaomi MiPad 2
6190 mAh
Haier Pad 971
7800 mAh
Asus ZenPad 10.0 Z300M-6A039A
4680 mAh
Power Consumption
-7%
-21%
45%
39%
Idle Minimum *
1.46
1.4
4%
3.33
-128%
1.38
5%
1.22
16%
Idle Average *
5
4.82
4%
5.01
-0%
1.46
71%
3.15
37%
Idle Maximum *
5.08
5.43
-7%
5.19
-2%
1.6
69%
3.39
33%
Load Average *
9.57
11.61
-21%
8.32
13%
5.06
47%
3.95
59%
Load Maximum *
10.77
12.48
-16%
9.33
13%
6.95
35%
5.64
48%

* ... smaller is better

Battery Runtime
WiFi Websurfing
3h 48min
Teclast Tbook 10s
6000 mAh
Chuwi Hi10 Pro
6500 mAh
Xiaomi MiPad 2
6190 mAh
Haier Pad 971
7800 mAh
Asus ZenPad 10.0 Z300M-6A039A
4680 mAh
Battery Runtime
WiFi v1.3
228
364
60%
421
85%
423
86%
435
91%

Pros

+ 4 GB内存
+ 配件(键盘底座,手写笔)
+ 系统选择:Windows+安卓
+ 锐利的IPS屏幕
+ 低发热量

Cons

- 电池续航较短
- 配件价值较低
- eMMC闪存速度迟缓
- 无线网络模组速度慢
- 安卓5.1
- 性能(Windows)

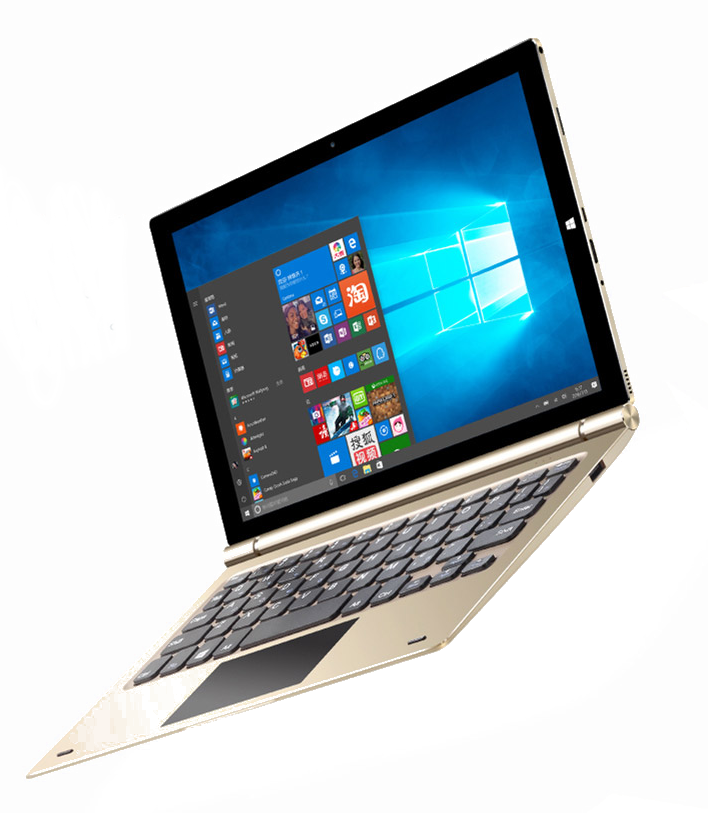

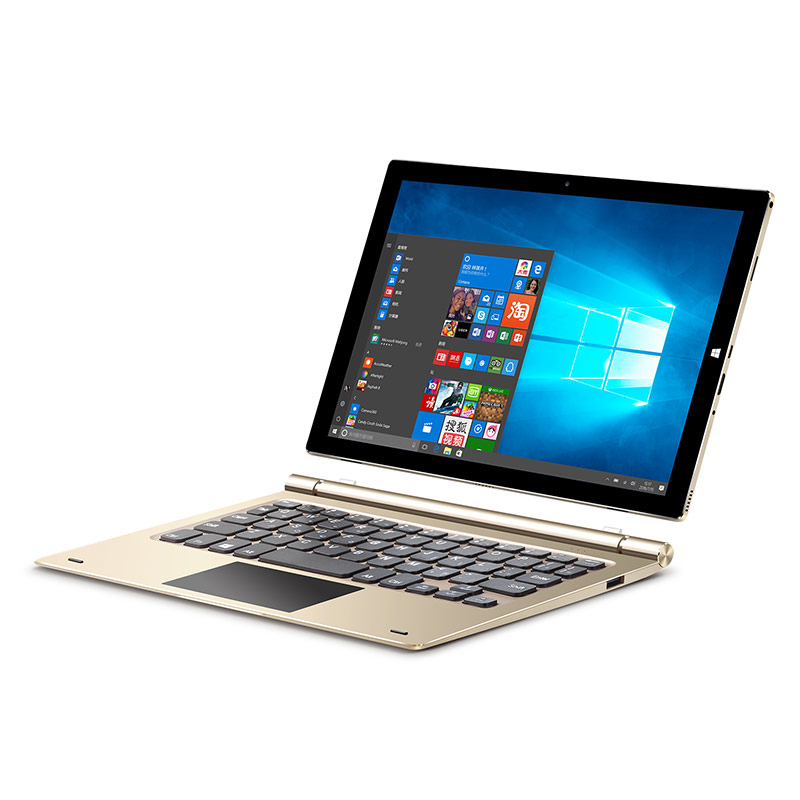

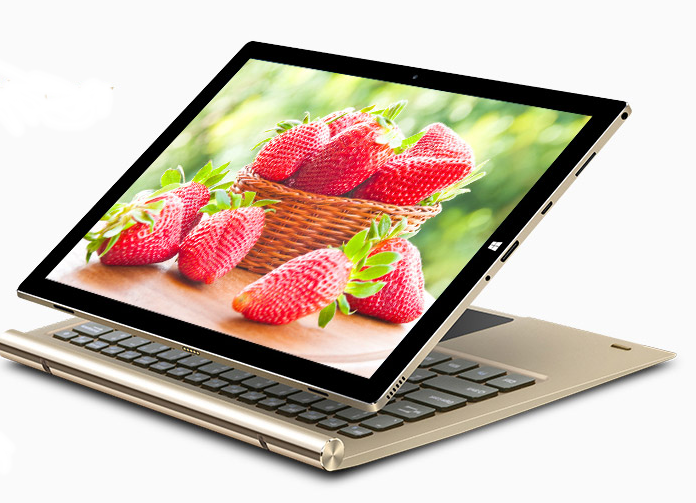

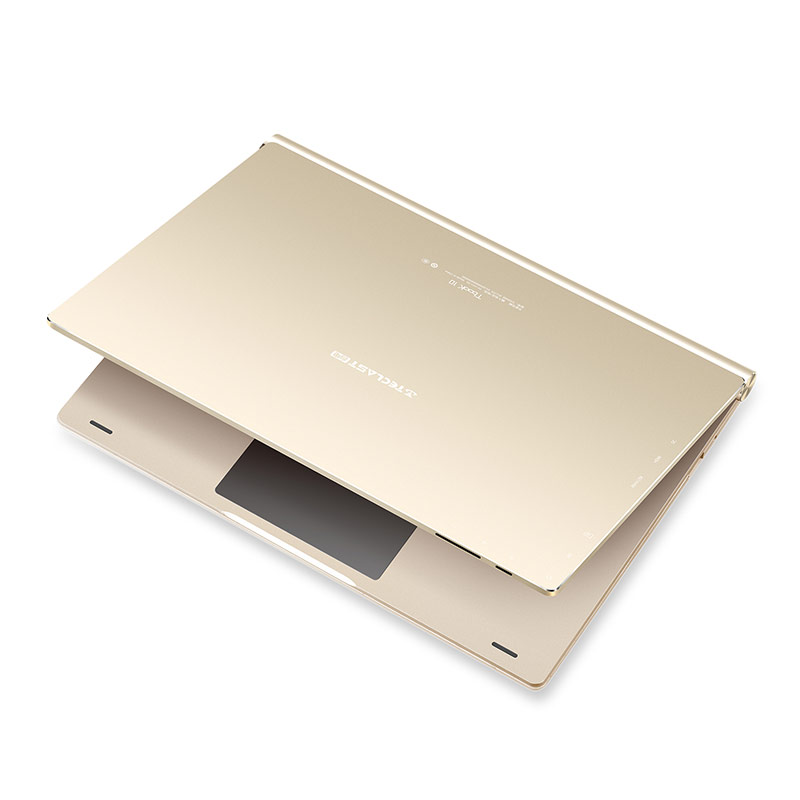

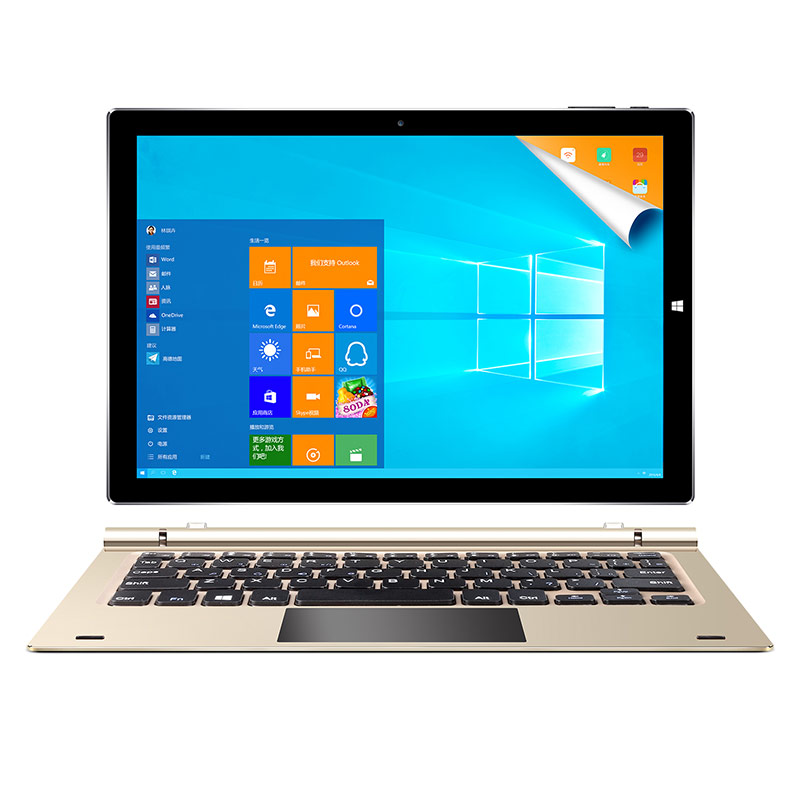

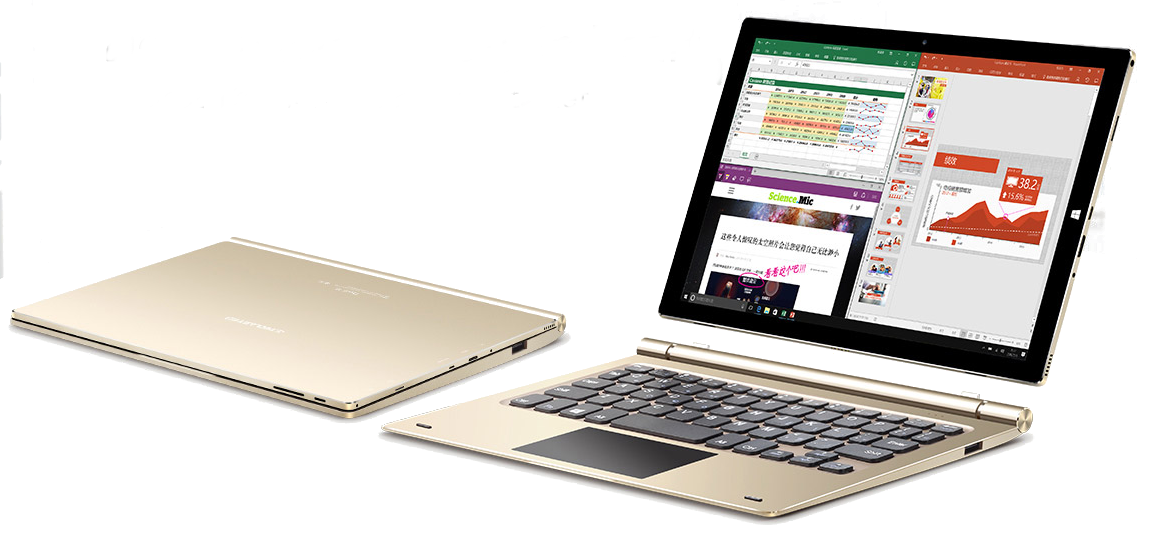

In review: Teclast Tbook 10s. Review sample courtesy of Teclast

类似于Chuwi Hi10 ProTeclast Tbook 10s的时尚机身设计和高品质铝合金机身十分诱人。而安卓或Windows的双操作系统也带来了一些亮点。不过,生产商仅为它预装了过时的安卓5.1。这两台设备都在相机和扬声器方面节省了成本。基本上,这两款平板设备的外观和质感都十分接近。

我们并不是很满意Teclast Tbook 10s的可选配件。由于它搭配的低亮度屏幕,未优化的安卓用户界面和电池续航,我们认为其他一些同类设备相比更加完善。不过,正在寻找一台价格实惠,机身品质优秀,搭配高性能英特尔处理器,但不需要超长续航的用户可以考虑Teclast Tbook 10s。

Teclast Tbook 10s是一台优秀的低价平板电脑,不过它相比竞争机型没有太多的独特之处。

注:本文是基于完整评测的缩减版本,阅读完整的英文评测,请点击这里。

Teclast Tbook 10s - 03/23/2017 v6 (old)
Marcus Herbrich

Chassis
86 / 98 → 88%
Keyboard
72%
Pointing Device
86%
Connectivity
33 / 80 → 41%
Weight
82 / 35-78 → 100%
Battery
74%
Display
80%
Games Performance
42 / 68 → 61%
Application Performance
36 / 87 → 41%
Temperature
93%
Noise
100%
Audio
51 / 91 → 56%
Camera
32 / 85 → 38%
Average
67%
80%
Convertible - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > Teclast Tbook 10s (x5-Z8350, 全高清) 变形本简短评测
Marcus Herbrich, 2017-04- 1 (Update: 2017-05-23)
