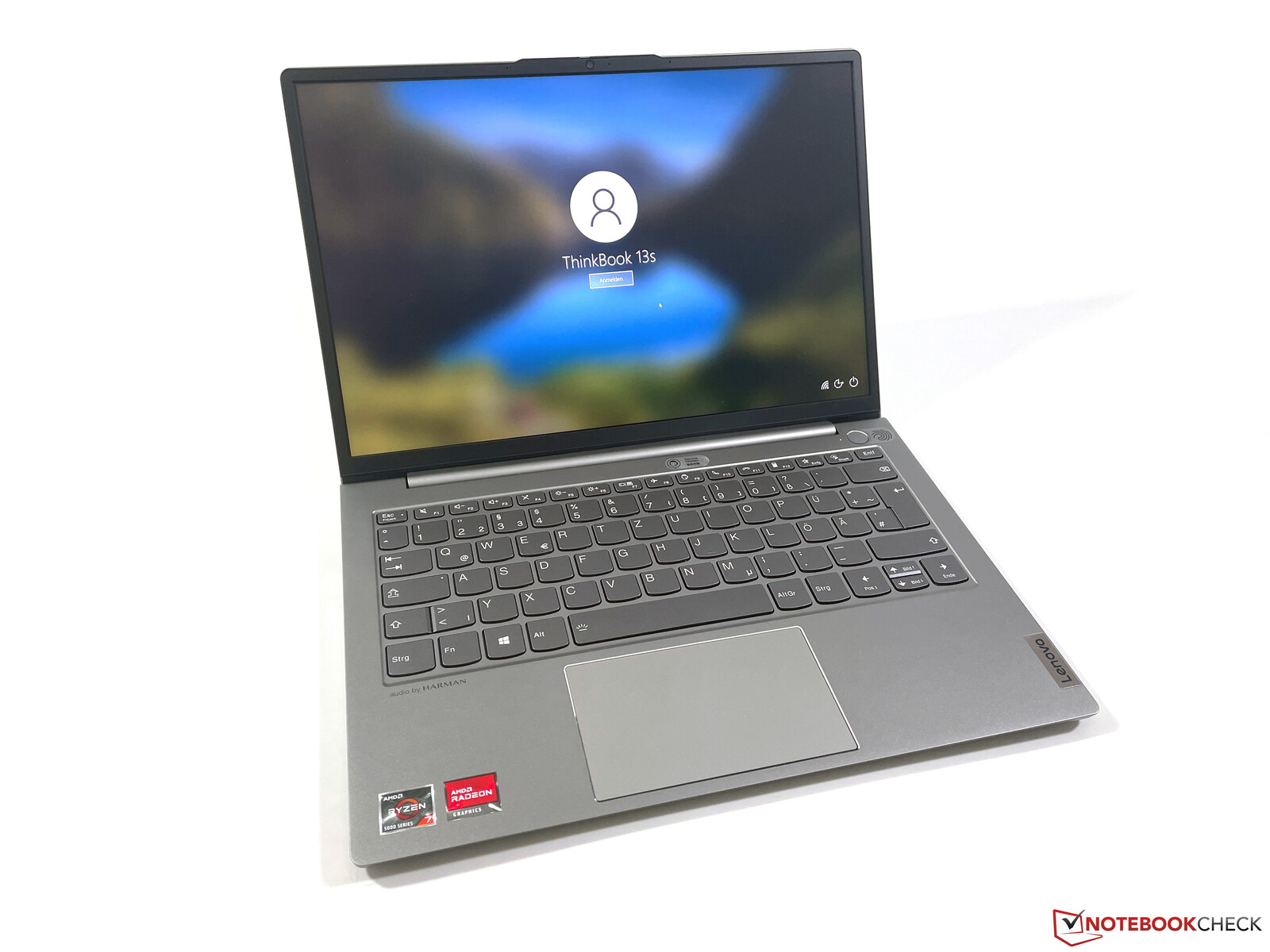

联想ThinkBook 13s G3 AMD笔记本电脑回顾。带有快速Ryzen CPU的副笔记本

Ryzen 7和16:10。

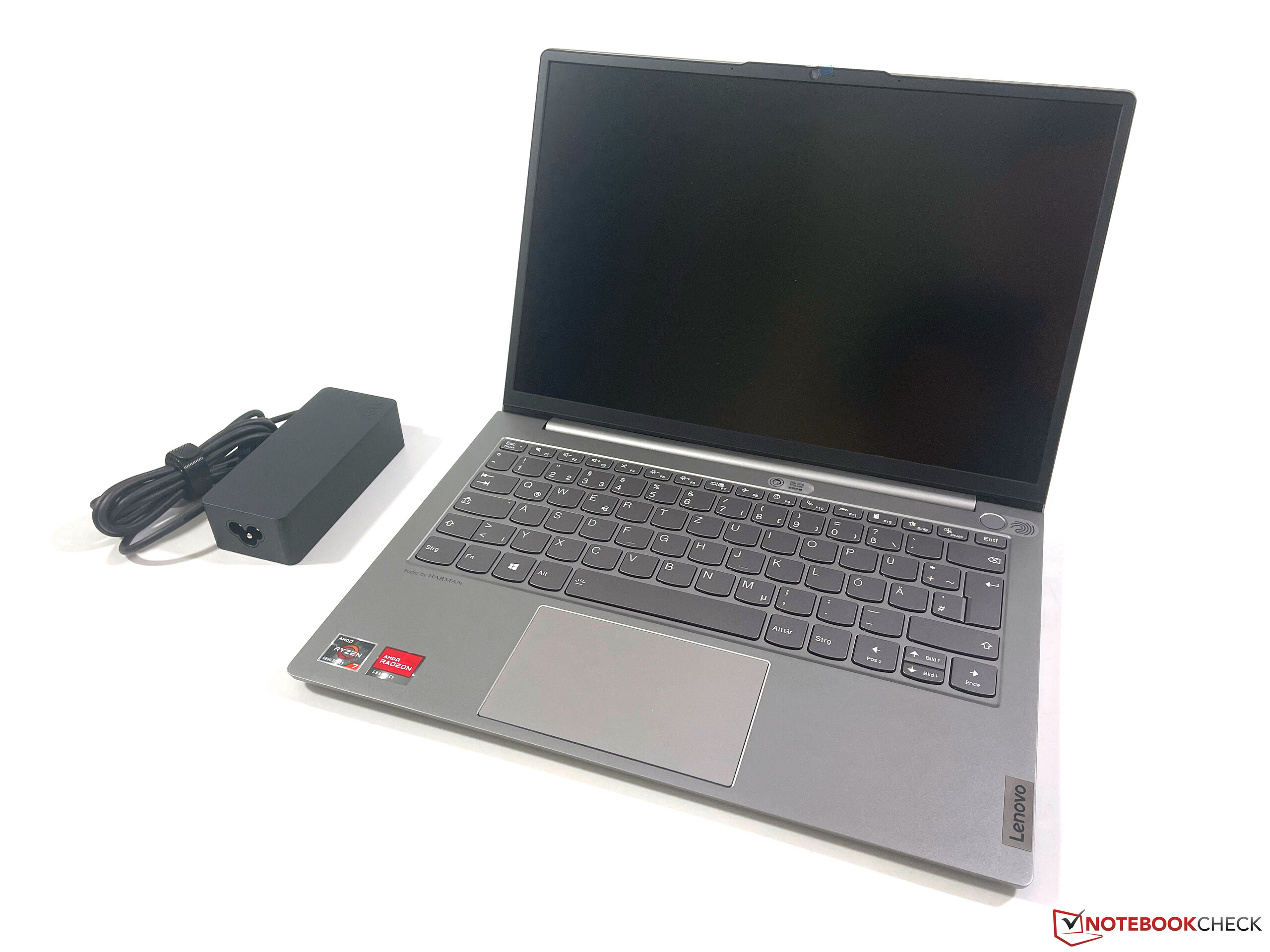

联想为紧凑的ThinkBook 13s G3配备了AMD的移动Ryzen处理器(Zen 3),它的性能非常好。再加上16:10的显示屏,你可以以大约1000欧元的价格获得一个令人兴奋的包。
AMD Cezanne (Zen 3) Business Laptop / Notebook Ultrabook Windows Ryzen (Zen)

去年,我们曾对 联想ThinkBook 13s G2配备英特尔Tiger Lake 处理器。现在,我们来看一下G3型号,它配备了AMD Ryzen CPU。然而,联想只改变了处理器,而两个版本的外壳、端口、输入设备,甚至显示器都是相同的。

我们审查的ThinkBook 13s G3 SKU配备了 AMD Ryzen 7 5800U16GB内存,512GB SSD存储,以及哑光全高清面板(16:10),售价约为1,000欧元(约合1,000美元)。我们的测试设备(20YA005YGE)继续提供Windows 10。联想最近推出了与Windows 11相同的20YA002YGE机型,据推测,从1月中旬/下旬开始,该机型也将以1000欧元(校园版,930欧元)出售。

Lenovo ThinkBook 13s G3 20YA0005GE
Processor
AMD Ryzen 7 5800U 8 x 1.9 - 4.4 GHz, 30 W PL2 / Short Burst, 25 W PL1 / Sustained, Cezanne-U (Zen 3)
Graphics adapter
Memory
16 GB
, LPDDR4X-4266, Dual-Channel, onboard
Display
13.30 inch 16:10, 1920 x 1200 pixel 170 PPI, M133NW4JR0, IPS, glossy: no, 60 Hz
Mainboard
AMD Promontory/Bixby FCH
Storage
WDC PC SN530 SDBPNPZ-512G, 512 GB
, 436 GB free
Soundcard
AMD Raven/Renoir/Van Gogh/Cezanne/Rembrandt/Raphael - HD Audio Controller
Connections
2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, Audio Connections: 3.5 mm Audio, 1 Fingerprint Reader
Networking
Intel Wi-Fi 6 AX200 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.1
Size
height x width x depth (in mm): 14.9 x 299 x 210
Battery
56 Wh Lithium-Polymer
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: 720p
Primary Camera: 0.9 MPix
Additional features
Speakers: Stereo (2x2W), Keyboard: Chiclet, Keyboard Light: yes, 65W PSU (USB-C), 12 Months Warranty
Weight
1.264 kg, Power Supply: 362 g
Price
1070 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible competitors in comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Price
87.8 %
v7 (old)
01 / 2022
Lenovo ThinkBook 13s G3 20YA0005GE
R7 5800U, Vega 8
1.3 kg14.9 mm13.30"1920x1200
88.5 %
v7 (old)
06 / 2021
Asus ZenBook 13 UM325S
R7 5800U, Vega 8
1.2 kg13.9 mm13.30"1920x1080
88.9 %
v7 (old)
06 / 2021
Asus ZenBook 13 UX325EA
i7-1165G7, Iris Xe G7 96EUs
1.2 kg13.9 mm13.30"1920x1080
84.4 %
v7 (old)
08 / 2021
HP Pavilion Aero 13 be0097nr
R7 5800U, Vega 8
953 g17 mm13.30"1920x1200
91.1 %
v7 (old)
12 / 2020
Apple MacBook Air 2020 M1 Entry
M1, M1 7-Core GPU
1.3 kg16.1 mm13.30"2560x1600

外壳、设备和输入装置

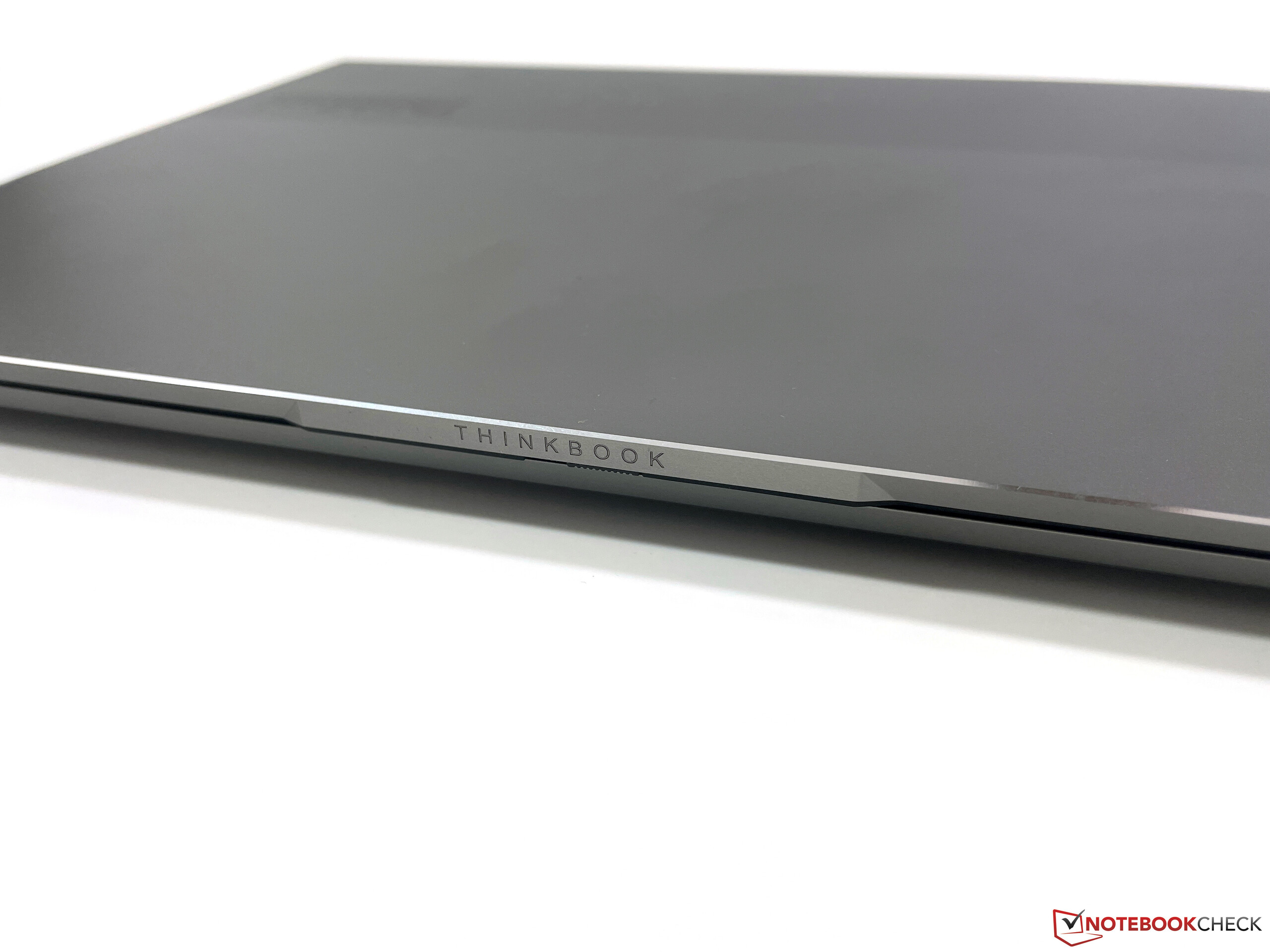

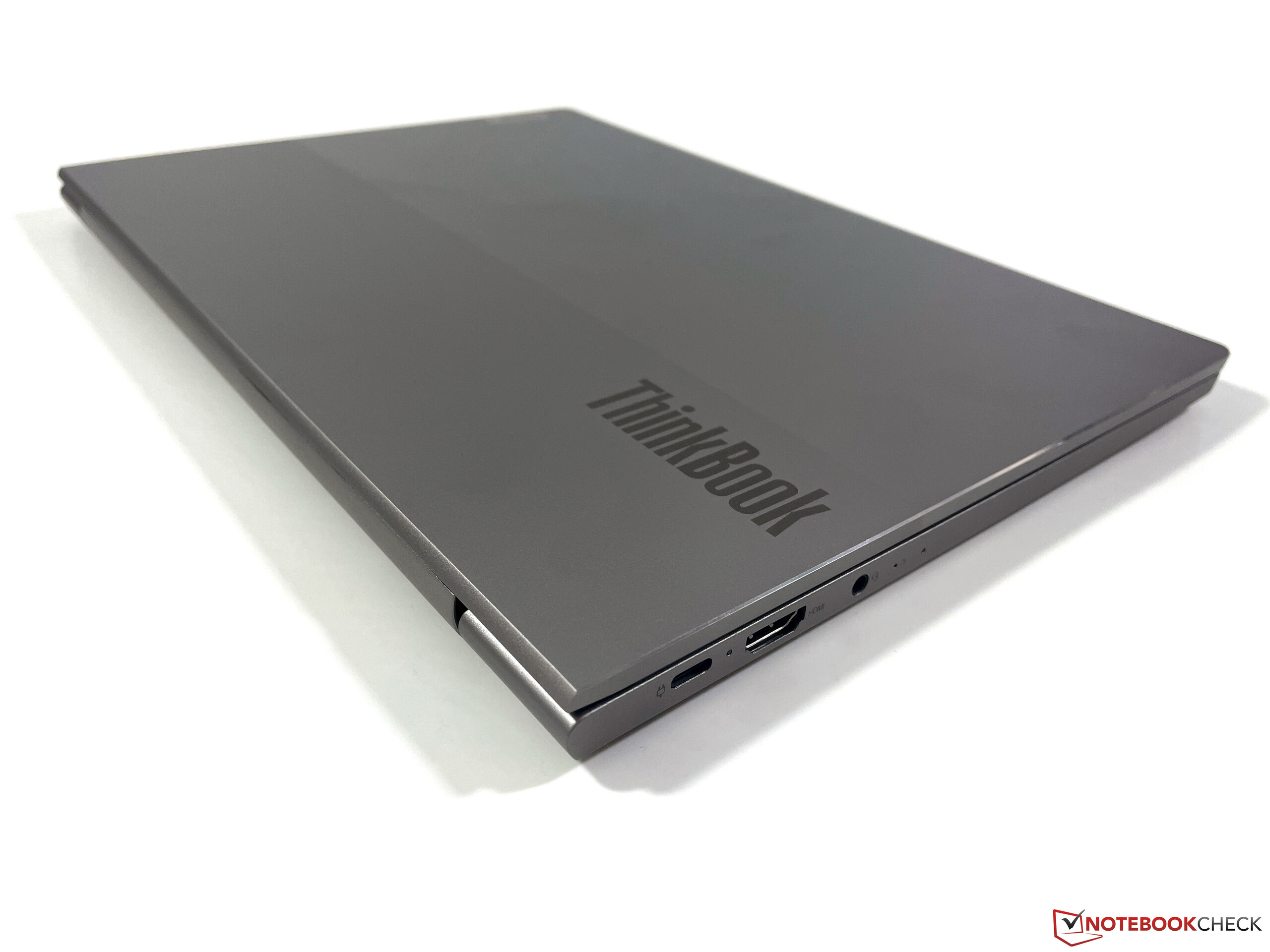

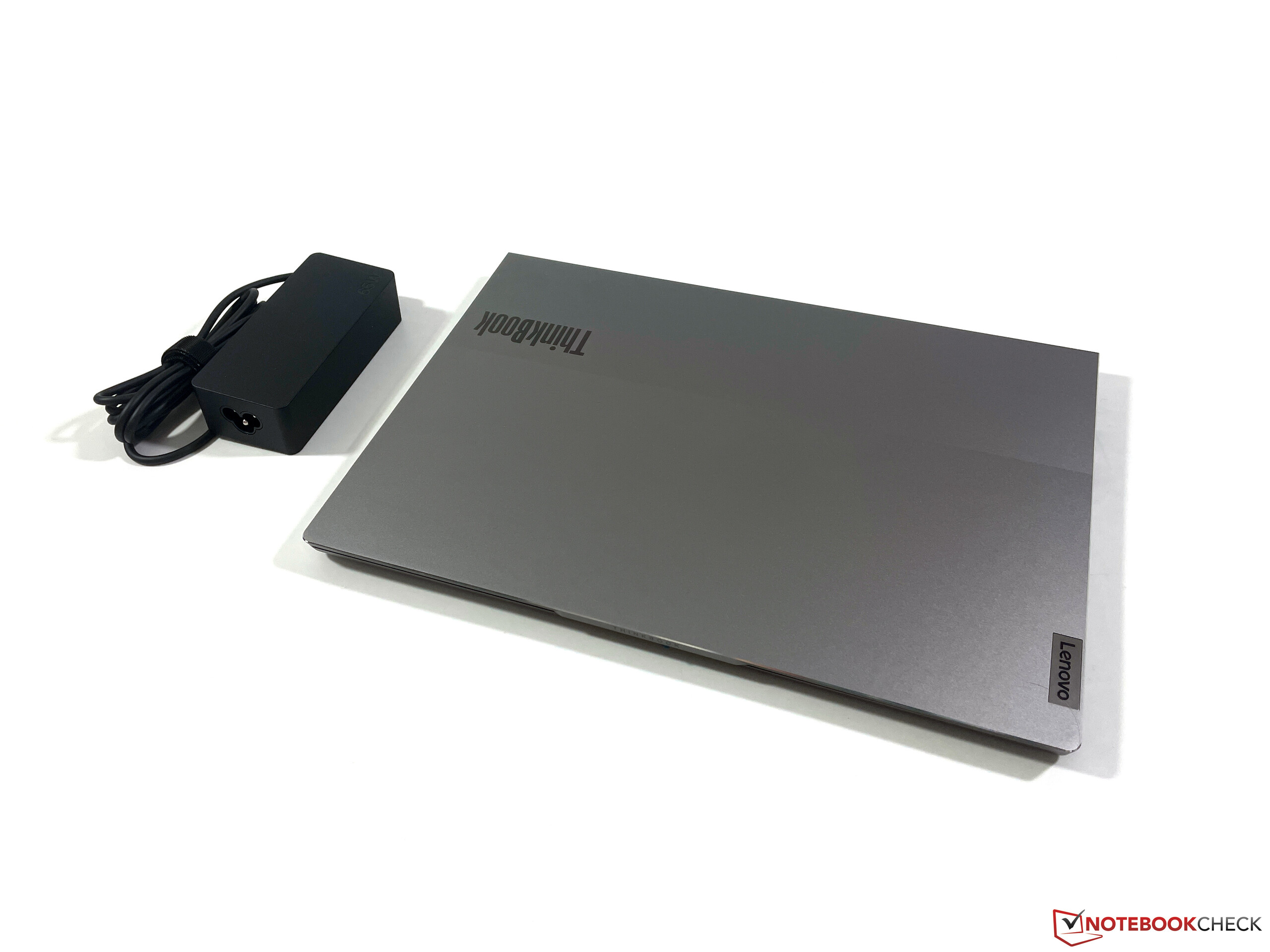

我们已经知道,ThinkBook 13s的银色铝制外壳来自于 G2型号.这款ThinkBook 13s G3副笔记本的重量不到1.3公斤,高度不到15毫米,非常紧凑。由于四面的屏幕边缘很窄,该设备看起来很现代。对于这个价格范围来说,制造质量和稳定性都是完全可以接受的,我们没有发现任何值得注意的问题。

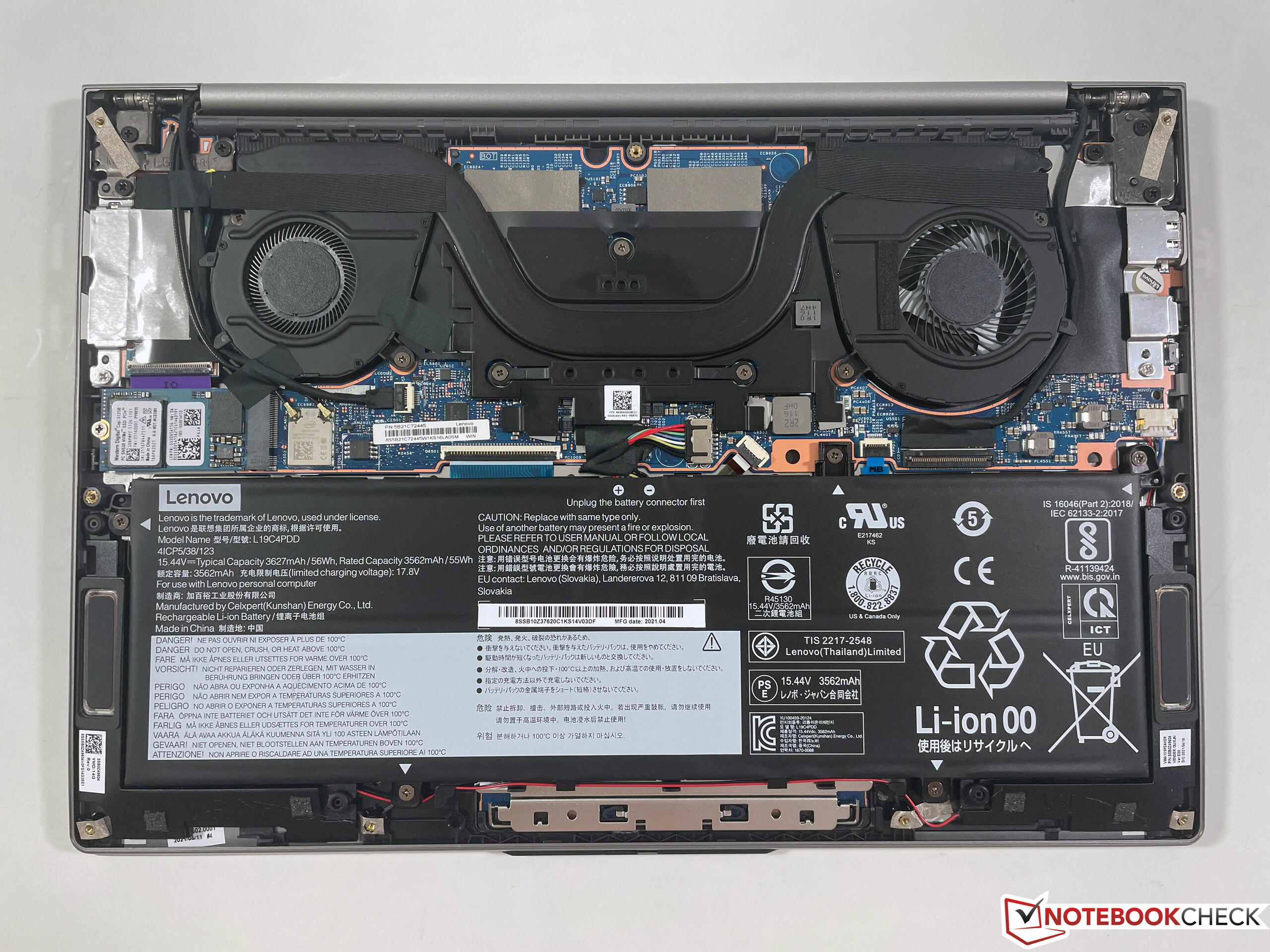

箱子的底部用Torx螺丝(T5)固定,可以很容易地取出。然而,里面只有紧凑的M.2 2242固态硬盘可以更换,而所有其他组件,如工作内存和WLAN模块都是焊接的。

在端口方面,英特尔和AMD型号之间只有一个区别,那就是AMD的变体必须没有雷电4。尽管如此,内置的USB-C端口仍然支持充电和视频输出。然而,联想仍然没有提供SD卡读卡器。Wi-Fi模块(英特尔AX200)支持Wi-Fi 6标准,它在我们的测试中取得了良好的传输速率。

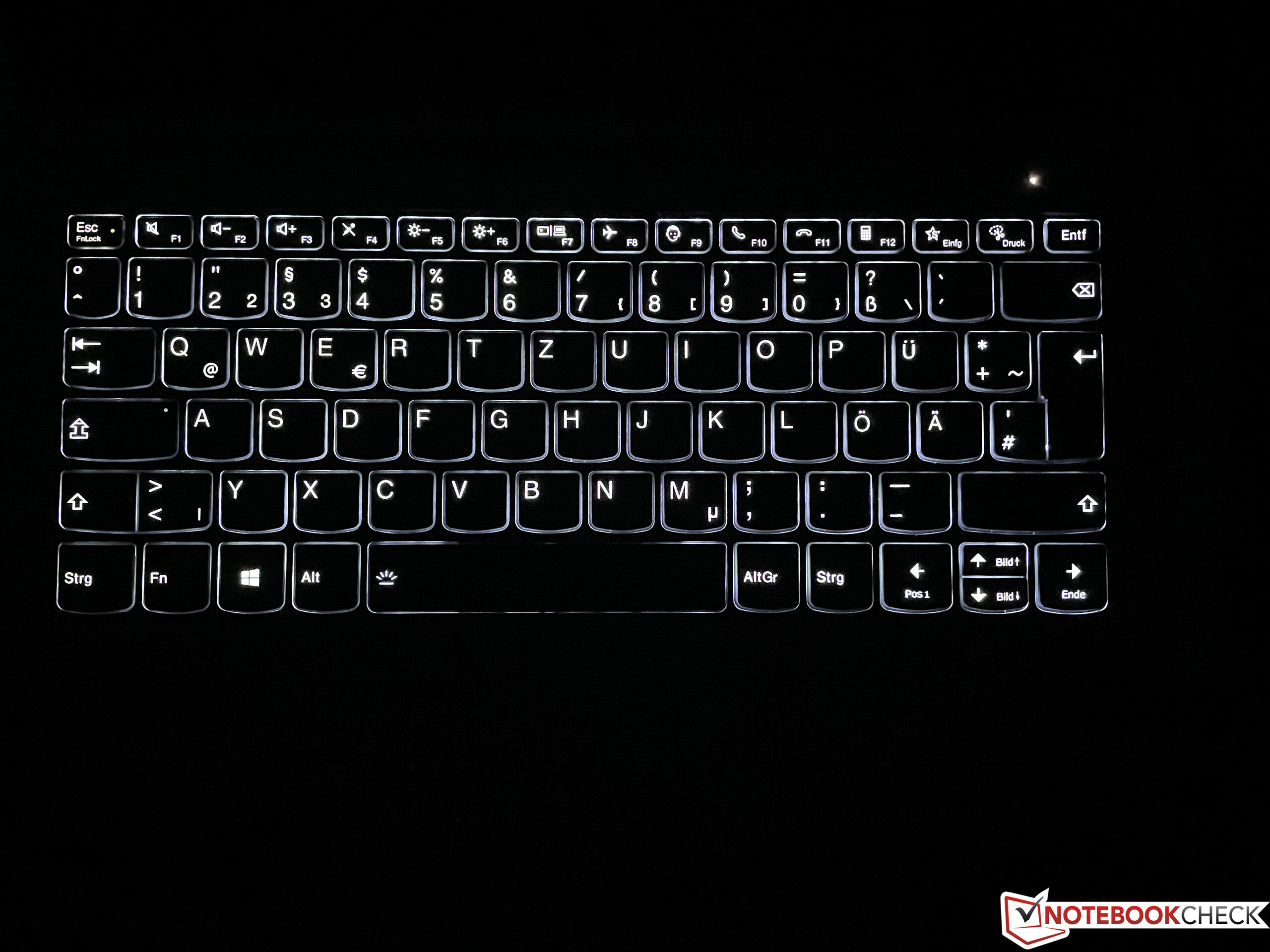

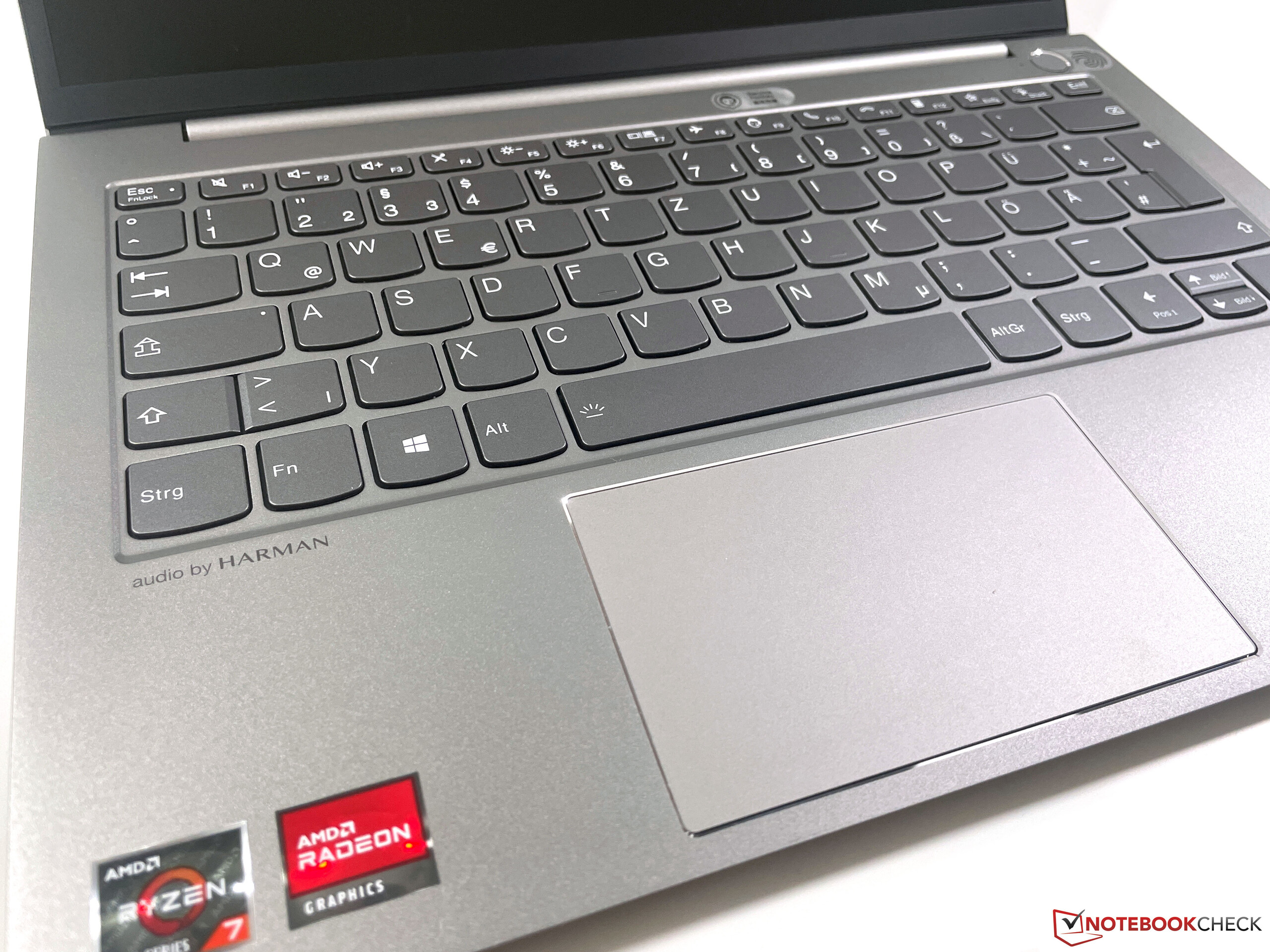

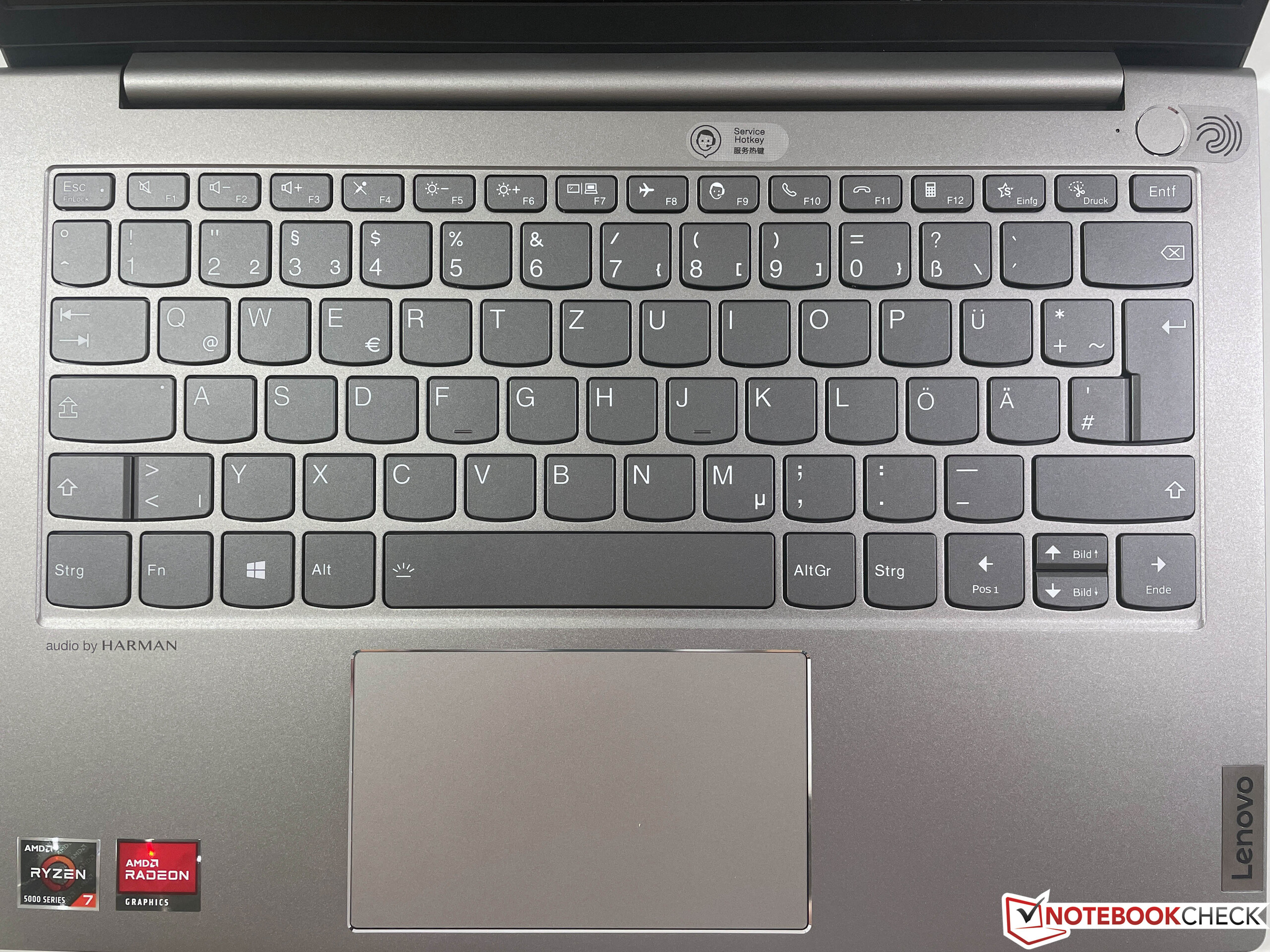

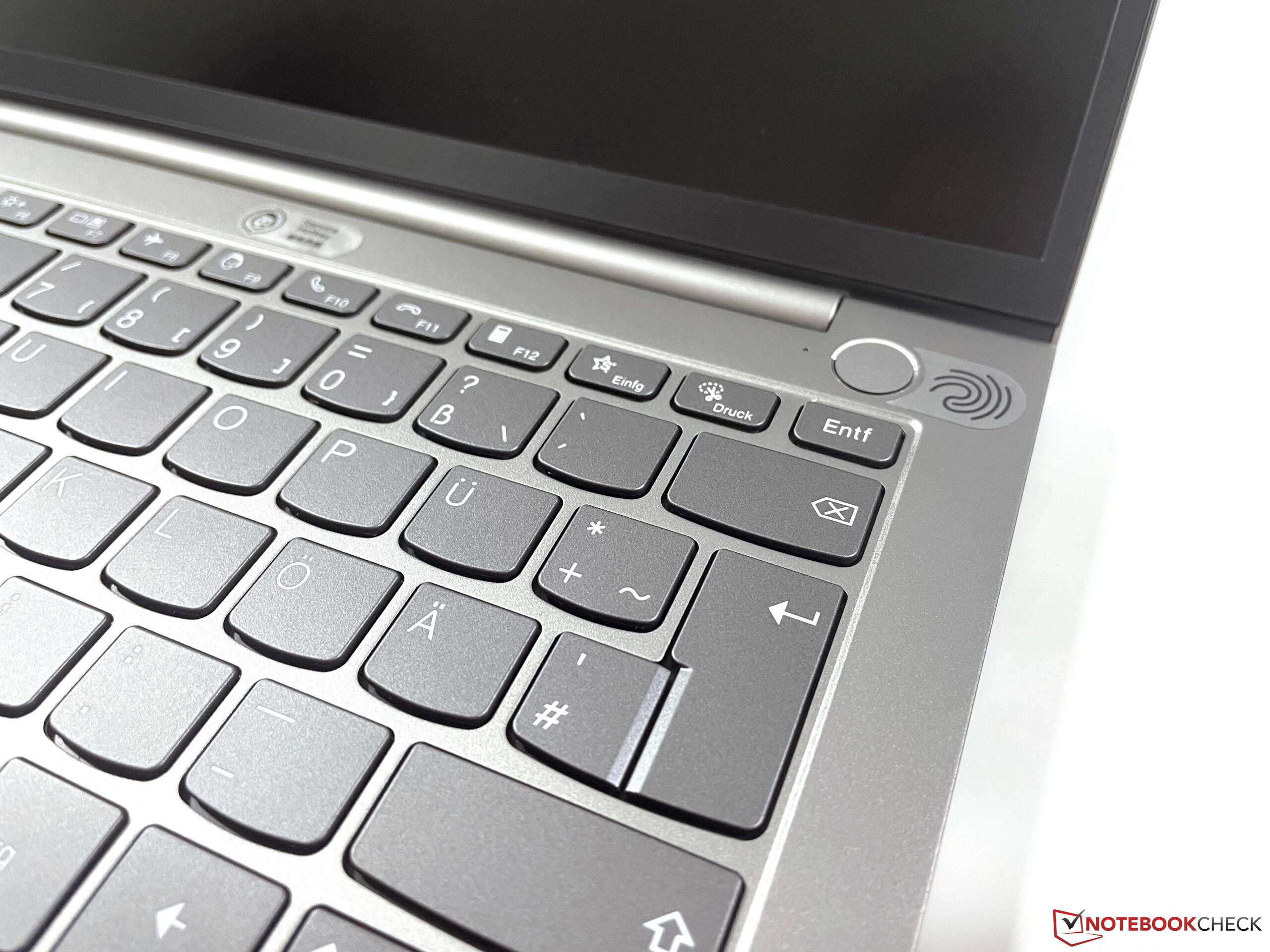

指纹扫描仪位于电源按钮中,工作相当可靠。由于键程有限,键盘的质量显然比ThinkPads低一个档次。它与普通的IdeaPads相对应,但由于有两级照明,它仍然很适合日常工作。在日常使用中,ClickPad的功能也不明显,没有什么问题;但是,没有像ThinkPads上的TrackPoint。

Size comparison

304.1 mm 212.4 mm 16.1 mm 1.3 kg304.2 mm 203 mm 13.9 mm 1.2 kg304 mm 203 mm 13.9 mm 1.2 kg298 mm 209 mm 17 mm 953 g299 mm 210 mm 14.9 mm 1.3 kg297 mm 210 mm 1 mm 5.7 g

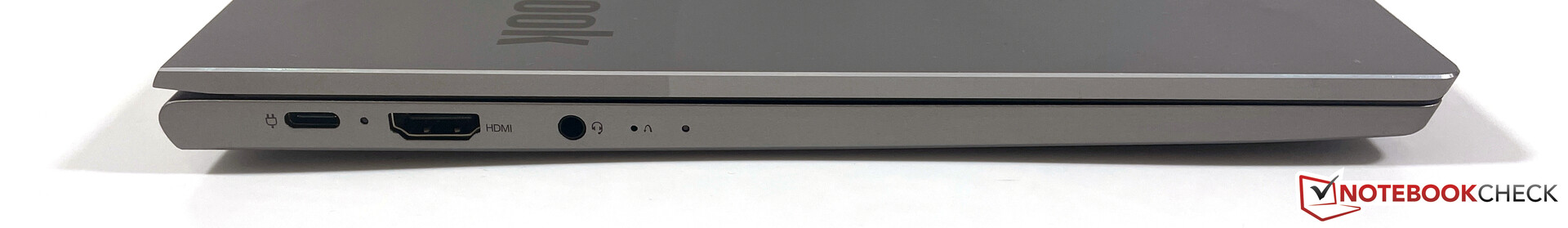

左边:USB-C 3.2(第2代,10GBit/s,DisplayPort ALT模式1.4,Power Delivery),HDMI 2.0b,3.5毫米音频
左边:USB-C 3.2(第2代,10GBit/s,DisplayPort ALT模式1.4,Power Delivery),HDMI 2.0b,3.5毫米音频

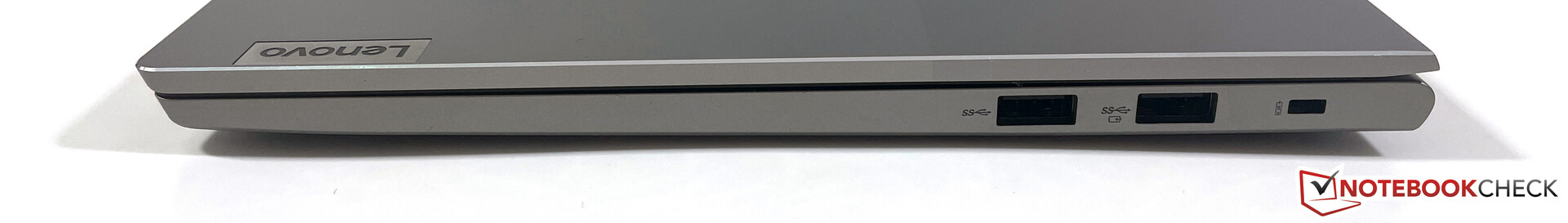

右边:2个USB-A 3.2 (Gen.1, 5 GBit/s, 1x Powered), 安全锁的插槽
右边:2个USB-A 3.2 (Gen.1, 5 GBit/s, 1x Powered), 安全锁的插槽
Networking
iperf3 transmit AX12
Lenovo ThinkBook 13s-ITL-20V90003GE
Intel Wi-Fi 6 AX201
1383 (1298min - 1426max) MBit/s +5%
Lenovo ThinkBook 13s G3 20YA0005GE
Intel Wi-Fi 6 AX200
1317 (1123min - 1404max) MBit/s
Average Intel Wi-Fi 6 AX200
  (447 - 1645, n=127)
1104 MBit/s -16%
Asus ZenBook 13 UX325EA
Intel Wi-Fi 6 AX201
940 (858min - 985max) MBit/s -29%
HP Pavilion Aero 13 be0097nr
RealTek Semiconductor RTL8852AE
661 (550min - 752max) MBit/s -50%
Apple MacBook Air 2020 M1 Entry
Apple AirPort Extreme M1
552 (257min - 620max) MBit/s -58%
iperf3 receive AX12
Asus ZenBook 13 UX325EA
Intel Wi-Fi 6 AX201
1542 (1352min - 1664max) MBit/s +24%
Lenovo ThinkBook 13s G3 20YA0005GE
Intel Wi-Fi 6 AX200
1248 (680min - 1346max) MBit/s
Average Intel Wi-Fi 6 AX200
  (523 - 1684, n=128)
1191 MBit/s -5%
Lenovo ThinkBook 13s-ITL-20V90003GE
Intel Wi-Fi 6 AX201
932 (921min - 944max) MBit/s -25%
HP Pavilion Aero 13 be0097nr
RealTek Semiconductor RTL8852AE
849 (770min - 905max) MBit/s -32%
Apple MacBook Air 2020 M1 Entry
Apple AirPort Extreme M1
672 (614min - 682max) MBit/s -46%
050100150200250300350400450500550600650700750800850900950100010501100115012001250130013501400Tooltip
Lenovo ThinkBook 13s G3 20YA0005GE; iperf3 receive AX12; iperf 3.1.3: Ø1225 (680-1346)
Lenovo ThinkBook 13s G3 20YA0005GE; iperf3 transmit AX12; iperf 3.1.3: Ø1317 (1123-1404)
ColorChecker
14.8 ∆E
13.4 ∆E
19.2 ∆E
20.7 ∆E
15.9 ∆E
11.4 ∆E
12.1 ∆E
19.6 ∆E
19 ∆E
11.4 ∆E
11.1 ∆E
10 ∆E
9.4 ∆E
11.2 ∆E
20.5 ∆E
5.7 ∆E
15.5 ∆E
14.1 ∆E
4.2 ∆E
2.5 ∆E
8.2 ∆E
8.5 ∆E
5.5 ∆E
4.2 ∆E
ColorChecker Lenovo ThinkBook 13s G3 20YA0005GE: 12.01 ∆E min: 2.49 - max: 20.7 ∆E

显示屏--ThinkBook的16:10哑光面板

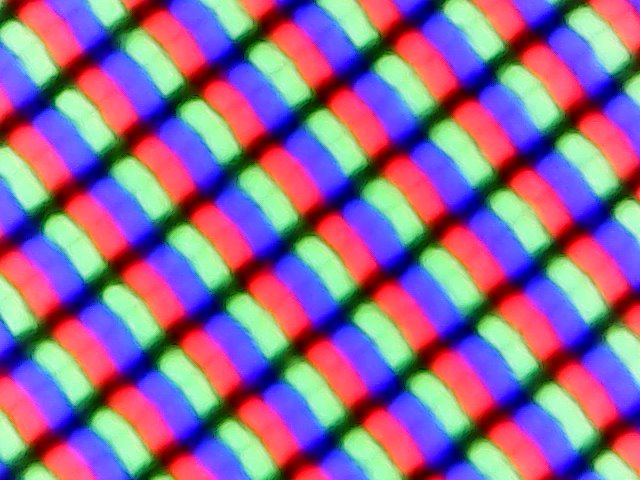

子像素排列
子像素排列

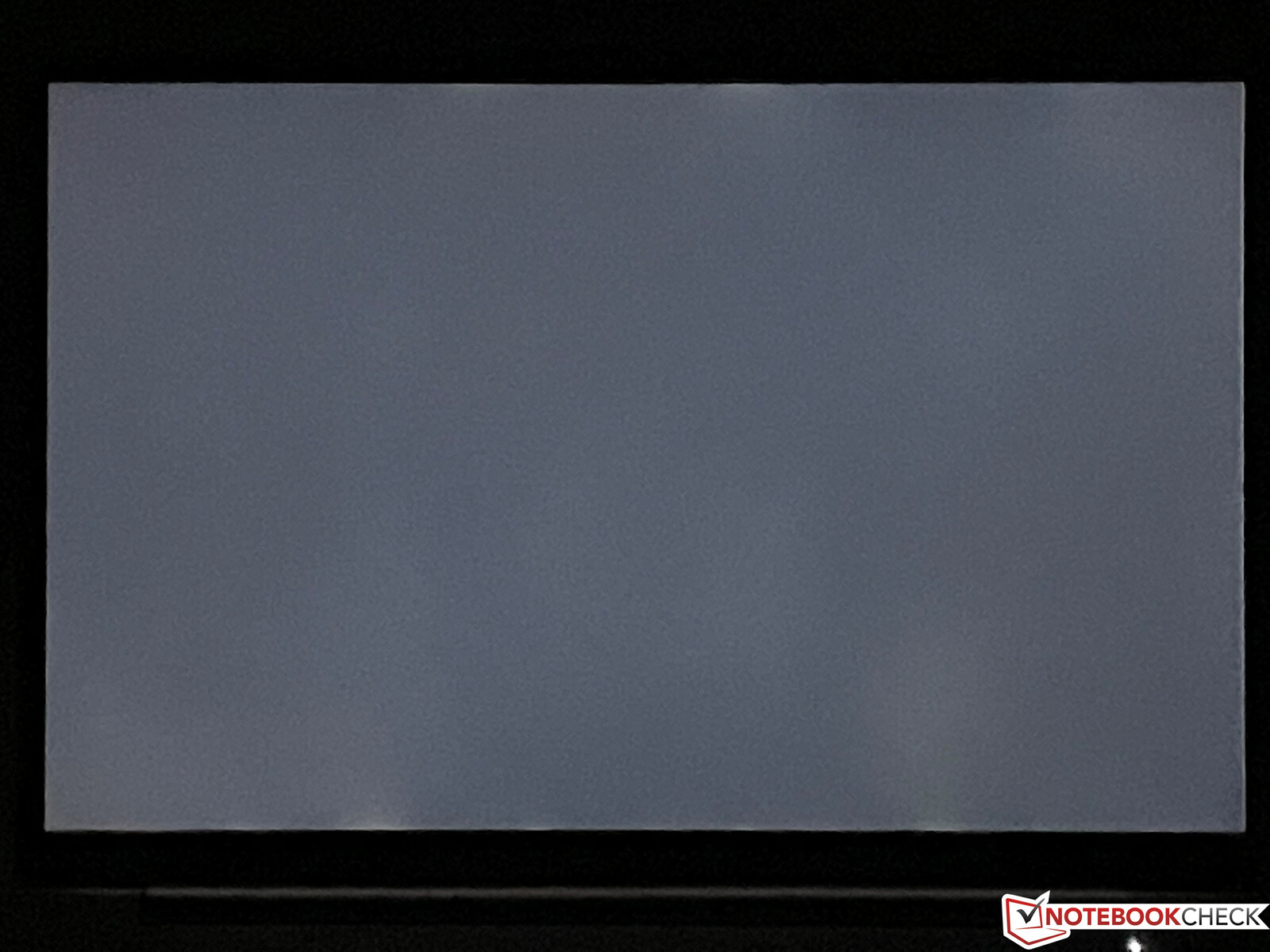

最小的光晕
最小的光晕

我们的测试设备使用标准的FHD面板,分辨率为1,920 x 1,200像素(16:10)。哑光IPS面板的主观图像印象很好,即使是明亮的区域也只有很小的颗粒感。然而,颜色并不像许多光面显示器那样鲜艳夺目,例如在 MacBook Air等。

InfoVision的面板显然超过了制造商规定的300cd/m²的亮度规格,因为我们测量的最大亮度略低于380cd/m²。黑值也很低,因此对比度非常好,超过了1,600:1。在全亮度下,光晕只在很小的范围内可见,在日常使用中不是一个问题。响应时间不是最快的,你可以看到轻微的重影,但我们无法测量到任何PWM的闪烁。

356
cd/m²
362
cd/m²
362
cd/m²
356
cd/m²
379
cd/m²
339
cd/m²
351
cd/m²
369
cd/m²
333
cd/m²
Distribution of brightness
M133NW4JR0 tested with X-Rite i1Pro 2
Maximum: 379 cd/m² (Nits) Average: 356.3 cd/m² Minimum: 3.6 cd/m²
Brightness Distribution: 88 %
Center on Battery: 377 cd/m²
Contrast: 1648:1 (Black: 0.23 cd/m²)
ΔE Color 1.6 | 0.5-29.43 Ø4.91, calibrated: 1
ΔE Greyscale 2 | 0.5-98 Ø5.2
68.8% AdobeRGB 1998 (Argyll 2.2.0 3D)
97.1% sRGB (Argyll 2.2.0 3D)
67.5% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.25
Lenovo ThinkBook 13s G3 20YA0005GE
M133NW4JR0, IPS, 1920x1200, 13.3"
Asus ZenBook 13 UM325S
Samsung (SDC4158), OLED, 1920x1080, 13.3"
Asus ZenBook 13 UX325EA
Samsung SDC4155 (ATNA33XC09-0), OLED, 1920x1080, 13.3"
HP Pavilion Aero 13 be0097nr
AU Optronics AUO6496, IPS, 1920x1200, 13.3"
Apple MacBook Air 2020 M1 Entry
IPS, 2560x1600, 13.3"
Lenovo ThinkBook 13s-ITL-20V90003GE
InfoVision M133NW4J R0, IPS, 1920x1080, 13.3"
Display
32%
31%
7%
25%
1%
Display P3 Coverage
67.5
99.9
48%
99.9
48%
73.4
9%
98.6
46%
68.1
1%
sRGB Coverage
97.1
100
3%
100
3%
99.8
3%
100
3%
97.2
0%
AdobeRGB 1998 Coverage
68.8
99.7
45%
97.5
42%
74.8
9%
85.9
25%
69.2
1%
Response Times
90%
95%
12%
31%
19%
Response Time Grey 50% / Grey 80% *
53.2 ?(25.6, 27.6)
4 ?(2.4, 1.6)
92%
2 ?(1, 1)
96%
42.4 ?(22.4, 20)
20%
31 ?(14, 17)
42%
43 ?(19, 24)
19%
Response Time Black / White *
32.8 ?(16.4, 16.4)
4 ?(2, 2)
88%
2 ?(1, 1)
94%
31.6 ?(17.6, 14)
4%
26.1 ?(14.9, 11.2)
20%
27 ?(13, 14)
18%
PWM Frequency
60 ?(100)
60 ?(90)
118000 ?(49, 155)
Screen
-17%
-34%
-31%
-1%
2%
Brightness middle
379
370
-2%
390
3%
473.9
25%
417
10%
369
-3%
Brightness
356
378
6%
368
3%
458
29%
395
11%
334
-6%
Brightness Distribution
88
96
9%
66
-25%
91
3%
91
3%
83
-6%
Black Level *
0.23
0.05
78%
0.36
-57%
0.39
-70%
0.14
39%
Contrast
1648
7400
349%
1316
-20%
1069
-35%
2636
60%
Colorchecker dE 2000 *
1.6
4.33
-171%
2.03
-27%
2.99
-87%
1.12
30%
2.02
-26%
Colorchecker dE 2000 max. *
2.7
7.04
-161%
3.14
-16%
4.35
-61%
2.71
-0%
3.05
-13%
Colorchecker dE 2000 calibrated *
1
4.14
-314%
3.1
-210%
1.1
-10%
0.77
23%
1.08
-8%
Greyscale dE 2000 *
2
0.92
54%
1.28
36%
4
-100%
1.7
15%
2.34
-17%
Gamma
2.25 98%
2.38 92%
2.4 92%
2.35 94%
2207 0%
2.44 90%
CCT
6835 95%
6394 102%
6359 102%
6269 104%
6870 95%
6552 99%
Color Space (Percent of AdobeRGB 1998)
89.4
87
63
Color Space (Percent of sRGB)
100
100
97
Total Average (Program / Settings)
35% / 9%
31% / 4%
-4% / -17%
18% / 9%
7% / 4%

* ... smaller is better

我们用专业的CalMAN软件(X-Rite i1 Pro 2)进行的测量表明,该面板在出厂状态下已经得到了很好的校准,而且也只有极少的蓝色偏移,用肉眼很难看到。不过,我们可以通过校准进一步略微改善显示效果(ICC色彩配置文件可在上面免费下载),但这其实是没有必要的。该面板几乎完全覆盖了sRGB色彩空间,因此你也可以编辑图片/视频(sRGB),即使有微小的色彩偏差也没有问题。

CalMAN灰度
CalMAN灰度

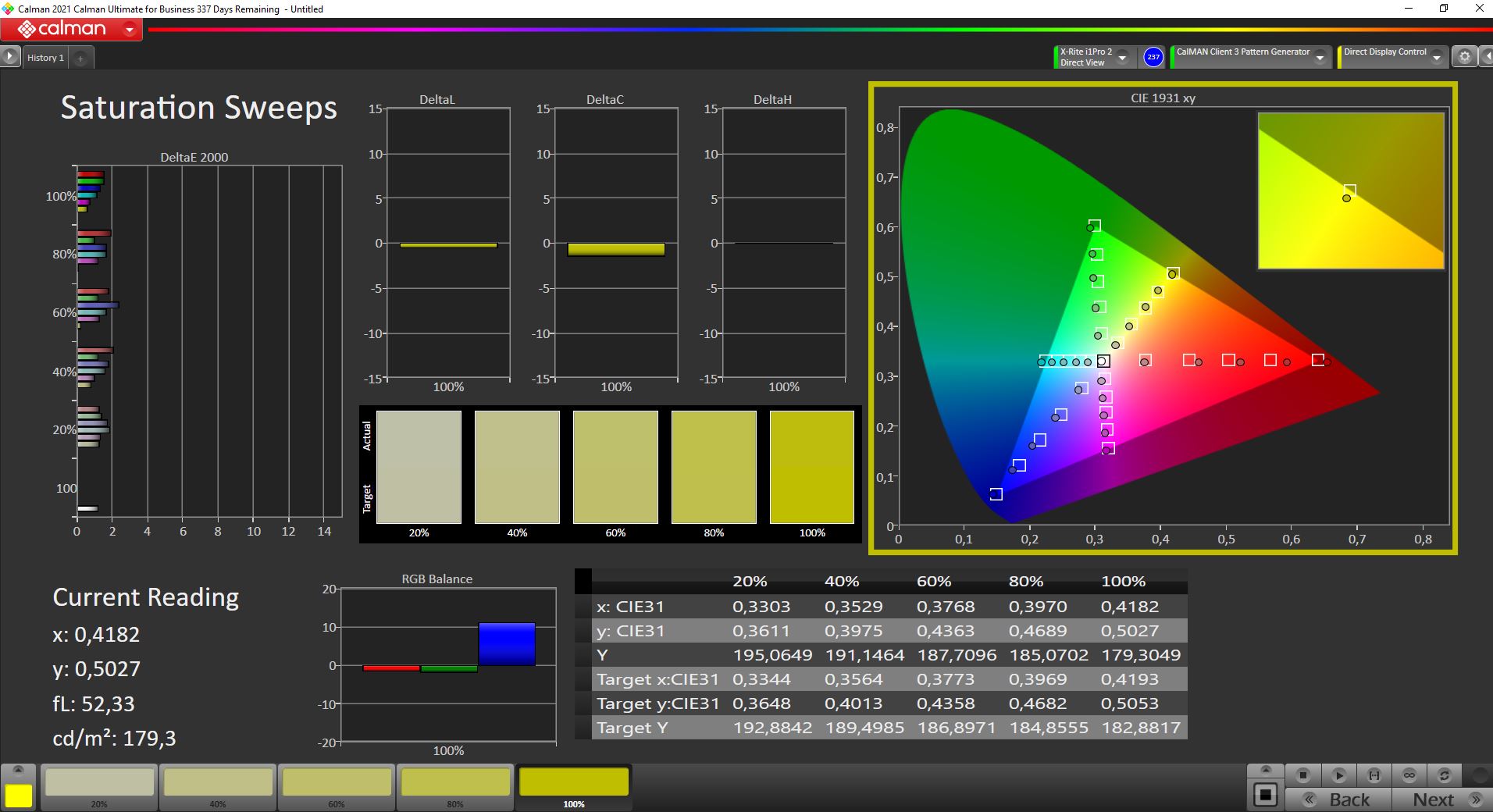

CalMAN饱和度
CalMAN饱和度

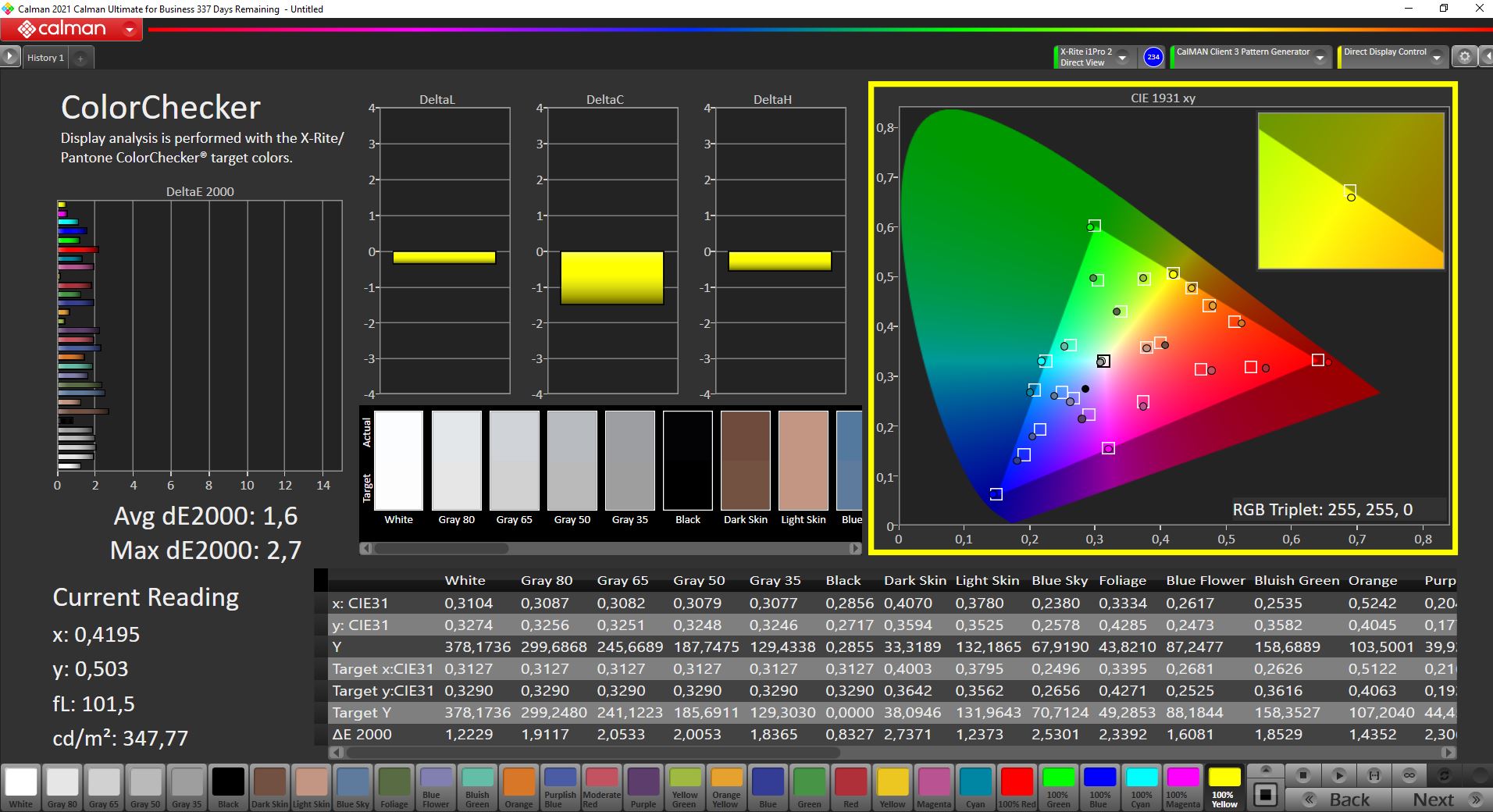

CalMAN ColorChecker
CalMAN ColorChecker
CalMAN 灰度标定
CalMAN 灰度标定
CalMAN 饱和度已校准
CalMAN 饱和度已校准

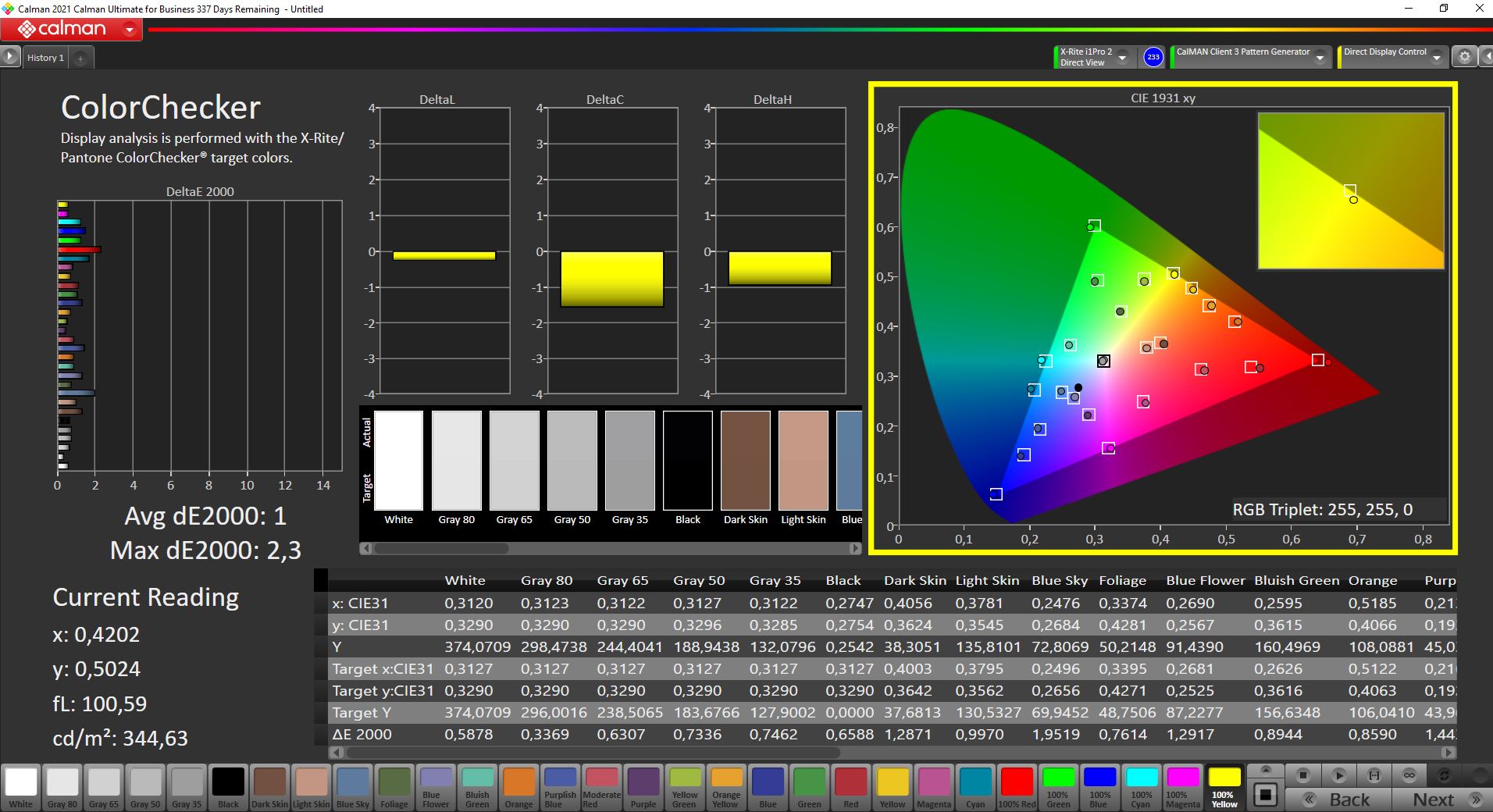

CalMAN ColorChecker已校准
CalMAN ColorChecker已校准

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

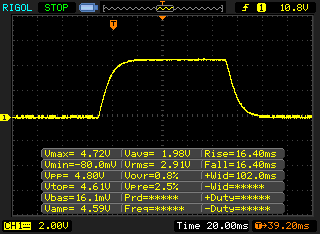

       Response Time Black to White
32.8 ms ... rise ↗ and fall ↘ combined↗ 16.4 ms rise
↘ 16.4 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 87 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (20.9 ms).

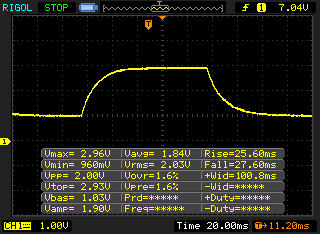

       Response Time 50% Grey to 80% Grey
53.2 ms ... rise ↗ and fall ↘ combined↗ 25.6 ms rise
↘ 27.6 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 89 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (32.8 ms).

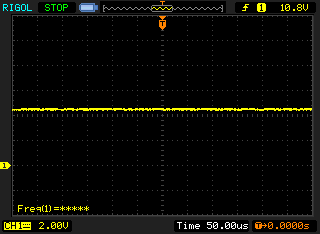

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8710 (minimum: 5 - maximum: 343500) Hz was measured.

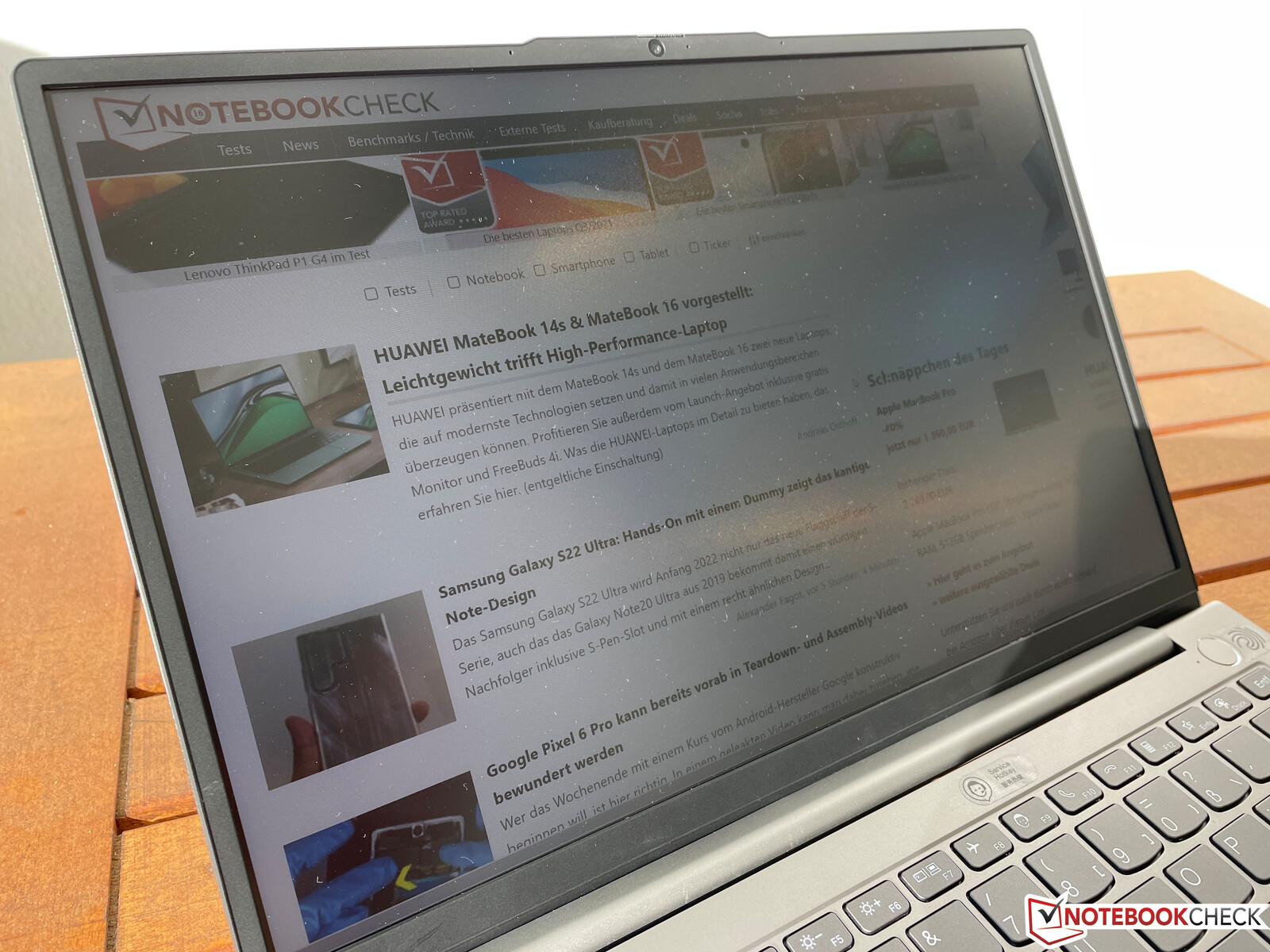

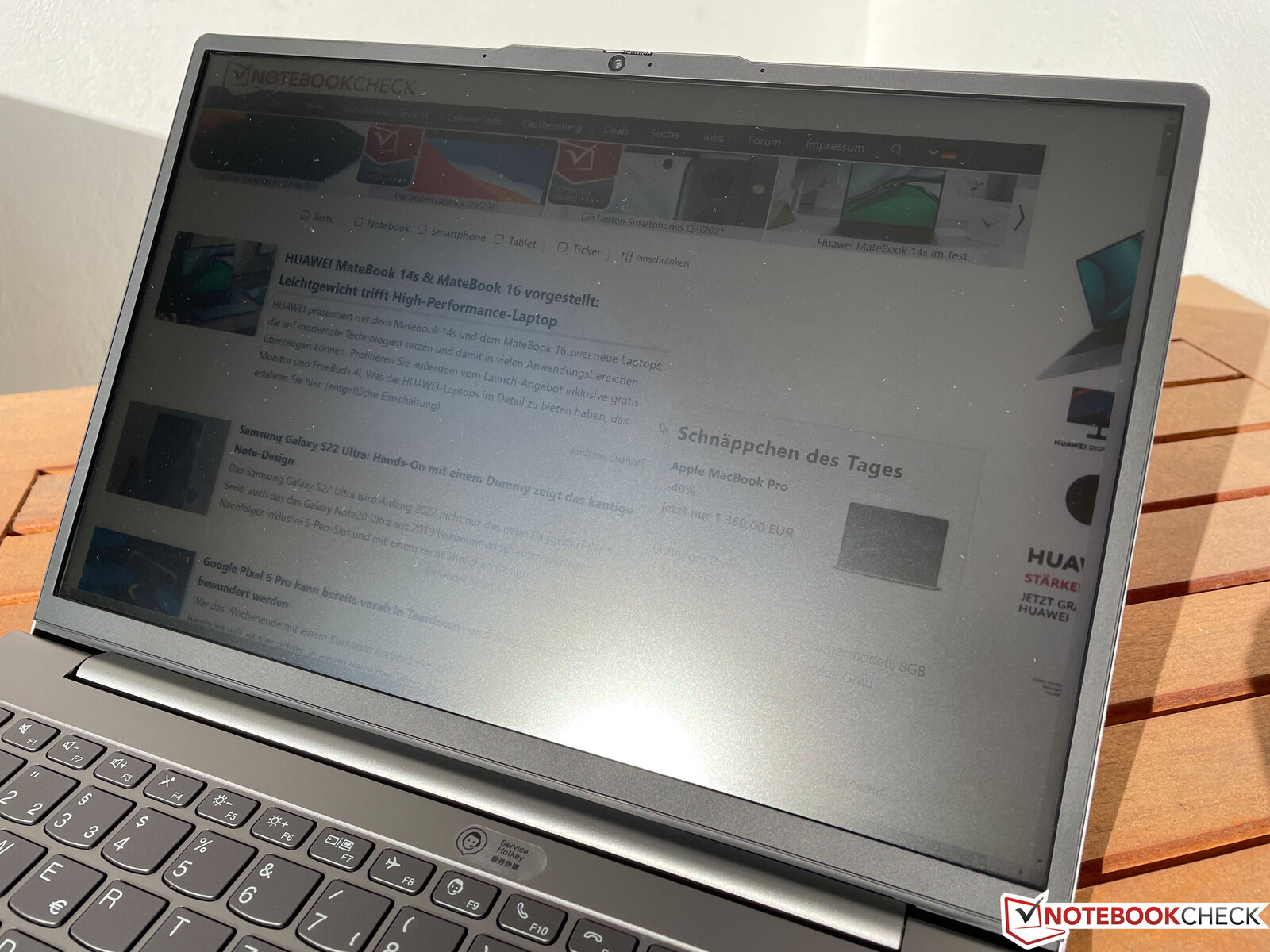

由于采用了磨砂表面,ThinkBook 13s G3也可以在户外相当合理地使用。IPS面板的视角稳定性不值得多加批评。

在阳光下
在阳光下
在阳光下
在阳光下

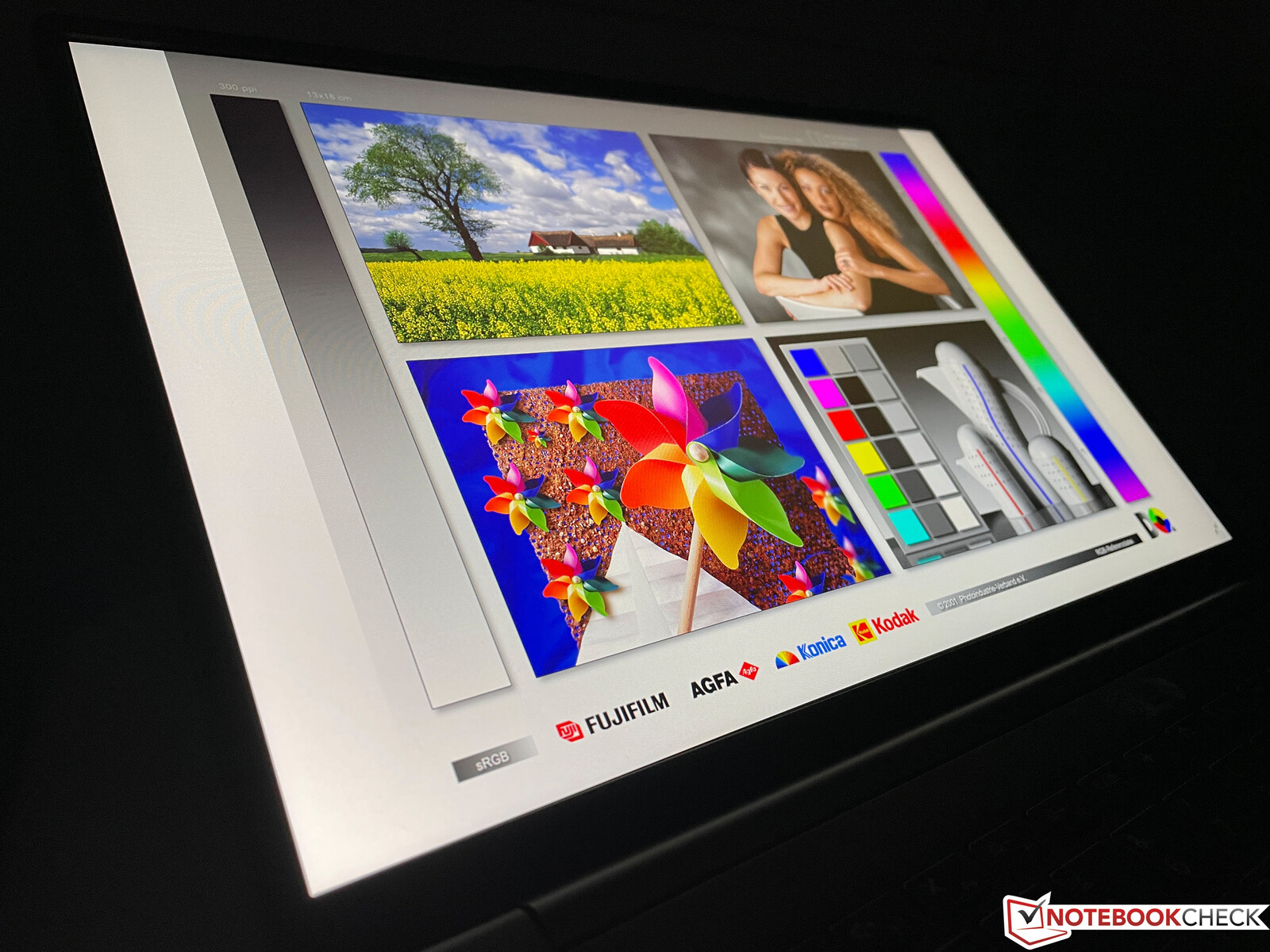

视角稳定
视角稳定

性能、排放和电池寿命

虽然 笔记本13s G2依靠英特尔的Tiger Lake CPU,联想为G3机型配备了当前的AMD Ryzen芯片。我们的测试设备配备的是快速的 Ryzen 7 5800U(Zen 3),但也可以选择 Ryzen 5600U(较少的CPU核心和较慢的iGPU)。在预装的联想Vantage应用程序中还有其他性能设置,但我们在随后的测试和测量中使用了智能冷却预设。

在我们的Cinebench循环中,这个数值可以保持5分钟左右,之后功耗降低到只有14W,整体表现非常好,因为允许处理器短时间内消耗30W,然后稳定在25W。CPU的性能,特别是在多核测试中,明显高于 英特尔Tiger Lake ,ThinkBook 13s的变体。.

你可以使用可选的最大性能模式,以获得更多的性能。在这里,TDP增加到48W,但几分钟后就被限制到19W。至少在短时间内,ThinkBook 13s G3可以提供英特尔45W CPU的成熟移动工作站的CPU性能。

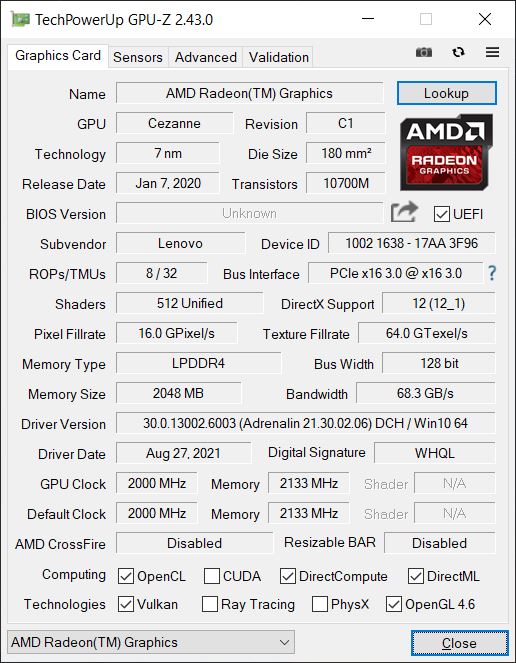

集成的Vega-8 GPU的图形性能也很好,但在较长时间的负载下,性能会略有下降。因此,你将不得不面对几分钟的游戏后约10-15%的性能下降。在电池模式下,其行为是相同的。

由于采用了固态硬盘,主观性能印象也非常好。所有的输入都能快速实现,在我们的测试中没有出现延迟的问题。

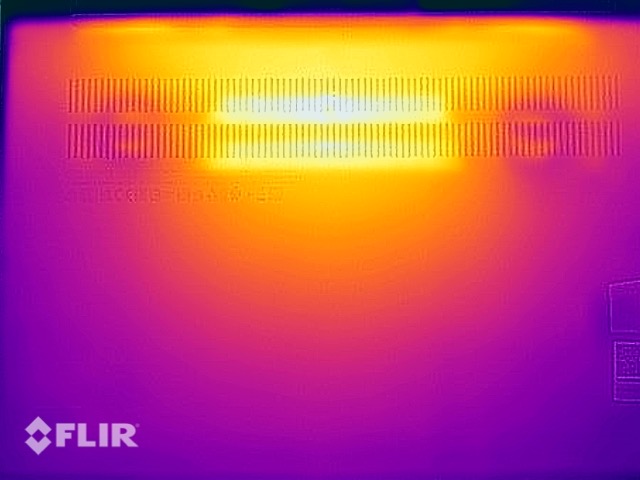

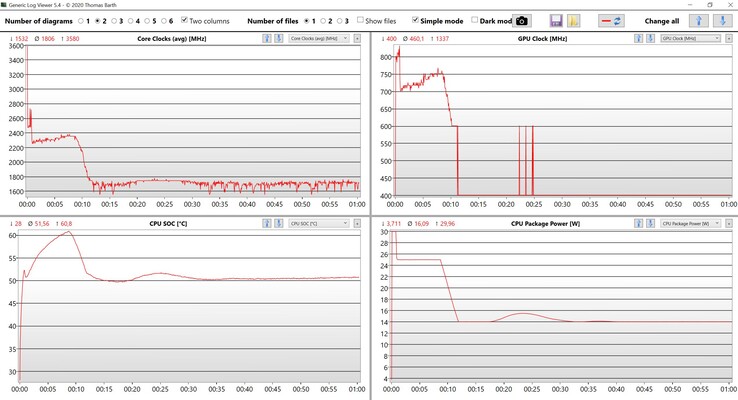

由于几分钟后的性能下降,即使在压力测试中,表面温度也完全无害。我们测量的底部温度略高于40℃,所以在大腿上使用该设备是可以的,没有什么问题。

风扇在负载情况下可以清楚地听到42 dB(A)。然而,令人讨厌的是,即使在低负荷时,风扇也会时不时地启动,这使它们看起来有点不安分。不过,没有其他电子噪音。

Cinebench R15 Multi endurance test

01002003004005006007008009001000110012001300140015001600170018001900Tooltip
Lenovo ThinkBook 13s G3 20YA0005GE AMD Ryzen 7 5800U; max. Performance: Ø1583 (1402.03-1924.93)
Lenovo ThinkBook 13s G3 20YA0005GE AMD Ryzen 7 5800U: Ø1501 (1244.94-1690.47)
Asus ZenBook 13 UM325S AMD Ryzen 7 5800U: Ø1209 (1163.3-1526.78)
Asus ZenBook 13 UX325EA Intel Core i7-1165G7: Ø644 (604.98-860.99)
HP Pavilion Aero 13 be0097nr AMD Ryzen 7 5800U: Ø1313 (1297.77-1389.66)
Apple MacBook Air 2020 M1 Entry Apple M1; Rosetta 2: Ø843 (817.01-1020.12)
Lenovo ThinkBook 13s-ITL-20V90003GE Intel Core i5-1135G7: Ø738 (638.72-894.73)

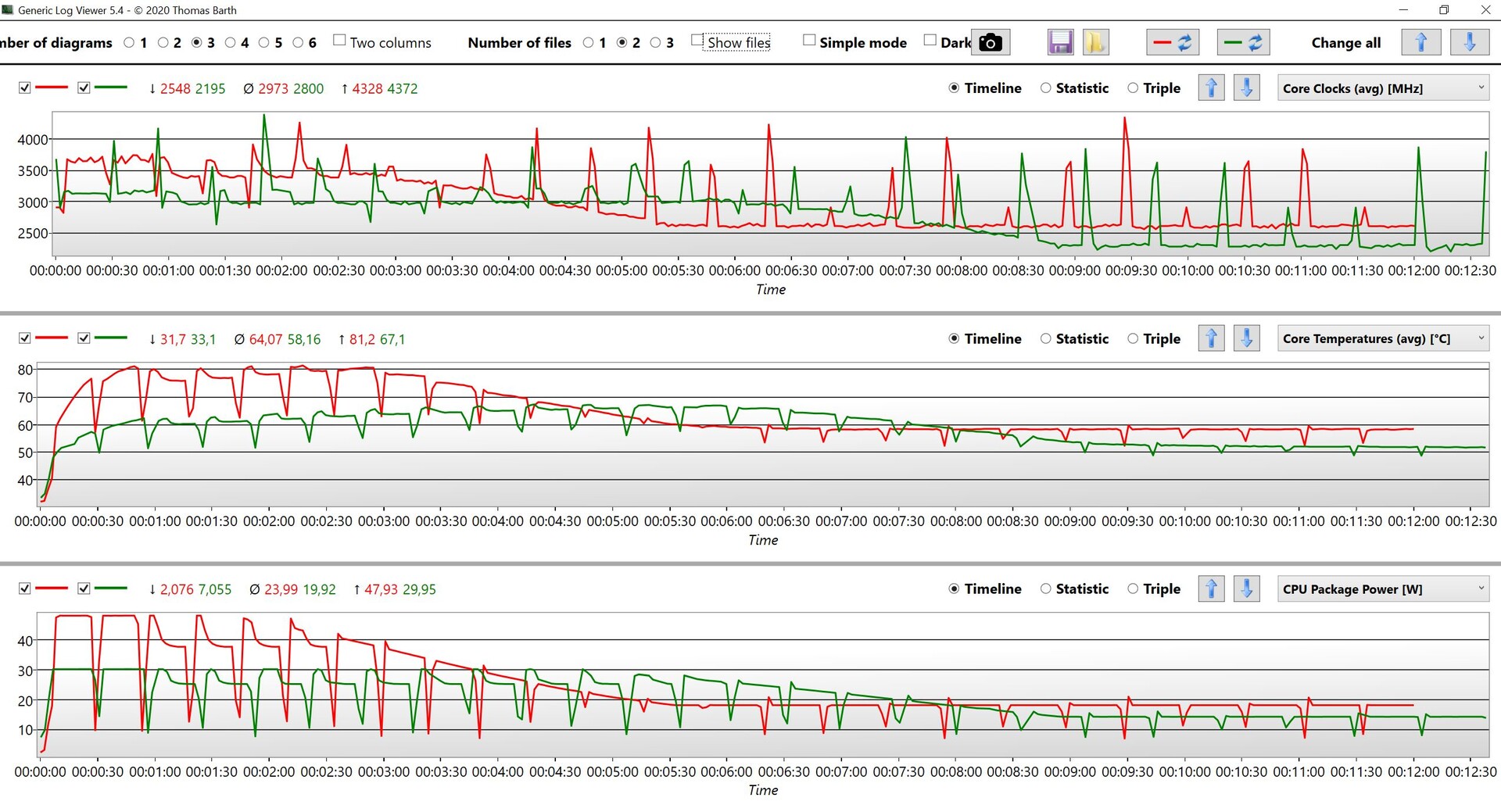

CPU数据Cinebench R15多循环(红色:最高性能,绿色:智能冷却)。
CPU数据Cinebench R15多循环(红色:最高性能,绿色:智能冷却)。
CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean
CPU Performance Rating
Average of class Subnotebook

84.4 pt
Average AMD Ryzen 7 5800U

70.4 pt
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
69.6 pt
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
69.5 pt
HP Pavilion Aero 13 be0097nr -2!
AMD Ryzen 7 5800U
68.6 pt
Apple MacBook Air 2020 M1 Entry -1!
Apple M1
62.6 pt
Lenovo ThinkBook 13s-ITL-20V90003GE -12!
Intel Core i5-1135G7
59.5 pt
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
50.7 pt
Cinebench R23 / Multi Core
Average of class Subnotebook
  (1555 - 21812, n=63, last 2 years)
11681 Points +45%
Average AMD Ryzen 7 5800U
  (7872 - 10624, n=5)
8851 Points +10%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
8154 Points +1%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
8068 Points
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
7872 (7780.83min - 7871.73max) Points -2%
Apple MacBook Air 2020 M1 Entry
Apple M1
7409 (6401.39min - 7409.31max) Points -8%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
4143 Points -49%
Cinebench R23 / Single Core
Average of class Subnotebook
  (358 - 2001, n=63, last 2 years)
1670 Points +17%
Apple MacBook Air 2020 M1 Entry
Apple M1
1496 Points +5%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
1430 Points
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
1427 Points 0%
Average AMD Ryzen 7 5800U
  (1415 - 1430, n=5)
1425 Points 0%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
1419 Points -1%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
1415 Points -1%
Cinebench R20 / CPU (Multi Core)
Average of class Subnotebook
  (579 - 8541, n=59, last 2 years)
4542 Points +52%
Average AMD Ryzen 7 5800U
  (2995 - 3691, n=5)
3347 Points +12%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
3303 Points +10%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
3092 Points +3%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
2995 Points
Apple MacBook Air 2020 M1 Entry
Apple M1
1863 Points -38%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
1595 Points -47%
Cinebench R20 / CPU (Single Core)
Average of class Subnotebook
  (128 - 790, n=59, last 2 years)
636 Points +14%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
560 Points
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
555 Points -1%
Average AMD Ryzen 7 5800U
  (551 - 560, n=5)
555 Points -1%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
552 Points -1%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
529 Points -6%
Apple MacBook Air 2020 M1 Entry
Apple M1
401 Points -28%
Cinebench R15 / CPU Multi 64Bit
Average of class Subnotebook
  (327 - 3345, n=65, last 2 years)
1983 Points +3%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
1925 Points
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
1691 Points -12%
Average AMD Ryzen 7 5800U
  (1390 - 1925, n=5)
1628 Points -15%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
1522 Points -21%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
1390 (1297.77min - 1389.66max) Points -28%
Apple MacBook Air 2020 M1 Entry
Apple M1
1020 (817min - 1020max) Points -47%
Lenovo ThinkBook 13s-ITL-20V90003GE
Intel Core i5-1135G7
908 Points -53%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
860 Points -55%
Cinebench R15 / CPU Single 64Bit
Average of class Subnotebook
  (72.4 - 307, n=60, last 2 years)
250 Points +9%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
229 Points 0%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
229 Points
Average AMD Ryzen 7 5800U
  (227 - 229, n=4)
229 Points 0%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
227 Points -1%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
214 Points -7%
Apple MacBook Air 2020 M1 Entry
Apple M1
208 Points -9%
Lenovo ThinkBook 13s-ITL-20V90003GE
Intel Core i5-1135G7
183 Points -20%
Blender / v2.79 BMW27 CPU
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
732 Seconds * -87%
Apple MacBook Air 2020 M1 Entry
Apple M1
710 Seconds * -82%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
391 Seconds *
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
372.7 Seconds * +5%
Average of class Subnotebook
  (159 - 2271, n=63, last 2 years)
360 Seconds * +8%
Average AMD Ryzen 7 5800U
  (319 - 391, n=4)
353 Seconds * +10%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
331 Seconds * +15%
7-Zip 18.03 / 7z b 4
Average of class Subnotebook
  (11775 - 77867, n=56, last 2 years)
48300 MIPS +22%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
43633 MIPS +10%
Average AMD Ryzen 7 5800U
  (39618 - 45985, n=4)
42703 MIPS +8%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
41574 MIPS +5%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
39618 MIPS
Apple MacBook Air 2020 M1 Entry
Apple M1
34614 MIPS -13%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
20077 MIPS -49%
7-Zip 18.03 / 7z b 4 -mmt1
Average of class Subnotebook
  (2669 - 6403, n=58, last 2 years)
5478 MIPS +4%
Apple MacBook Air 2020 M1 Entry
Apple M1
5441 MIPS +3%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
5405 MIPS +2%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
5359 MIPS +1%
Average AMD Ryzen 7 5800U
  (5285 - 5405, n=4)
5354 MIPS +1%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
5285 MIPS
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
5222 MIPS -1%
Geekbench 5.5 / Multi-Core
Average of class Subnotebook
  (2557 - 14728, n=58, last 2 years)
10135 Points +45%
Apple MacBook Air 2020 M1 Entry
Apple M1
7578 Points +8%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
7026 Points 0%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
6995 Points
Average AMD Ryzen 7 5800U
  (6093 - 7026, n=4)
6641 Points -5%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
5548 Points -21%
Geekbench 5.5 / Single-Core
Average of class Subnotebook
  (621 - 2350, n=58, last 2 years)
1795 Points +25%
Apple MacBook Air 2020 M1 Entry
Apple M1
1727 Points +20%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
1566 Points +9%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
1450 Points +1%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
1436 Points
Average AMD Ryzen 7 5800U
  (1411 - 1450, n=4)
1430 Points 0%
HWBOT x265 Benchmark v2.2 / 4k Preset
Average of class Subnotebook
  (0.97 - 25.1, n=58, last 2 years)
12.9 fps +33%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
10.4 fps +7%
Average AMD Ryzen 7 5800U
  (9.68 - 11, n=4)
10.3 fps +6%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
10.2 fps +5%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
9.68 fps
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
5.26 fps -46%
LibreOffice / 20 Documents To PDF
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
55.8 s * -10%
Average AMD Ryzen 7 5800U
  (50.9 - 60.2, n=4)
55 s * -8%
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
54.8 s * -8%
Average of class Subnotebook
  (38.5 - 220, n=57, last 2 years)
54.4 s * -7%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
53.9 s * -6%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
50.9 s *
Apple MacBook Air 2020 M1 Entry
Apple M1
12.88 s * +75%
R Benchmark 2.5 / Overall mean
Apple MacBook Air 2020 M1 Entry
Apple M1
0.732 sec * -34%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7
0.57 sec * -4%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U
0.546 sec *
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U
0.544 sec * -0%
Average AMD Ryzen 7 5800U
  (0.54 - 0.546, n=4)
0.543 sec * +1%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U
0.54 sec * +1%
Average of class Subnotebook
  (0.413 - 1.456, n=58, last 2 years)
0.52 sec * +5%

* ... smaller is better

Cinebench R15 OpenGL 64Bit
80.3 fps
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 CPU Single 64Bit
229 Points
Cinebench R15 CPU Multi 64Bit
1925 Points
Cinebench R20 CPU (Multi Core)
2995 Points
Cinebench R20 CPU (Single Core)
560 Points
Cinebench R23 Single Core
1430 Points
Cinebench R23 Multi Core
8068 Points
Help
Performance Rating
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
89 pt
Average of class Subnotebook

87.5 pt
Average AMD Ryzen 7 5800U

81.2 pt
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
79.3 pt
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
52.6 pt
AIDA64 / FP32 Ray-Trace
Average of class Subnotebook
  (1141 - 32888, n=58, last 2 years)
12741 KRay/s +11%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
11518 KRay/s
Average AMD Ryzen 7 5800U
  (9627 - 11518, n=3)
10417 KRay/s -10%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
9627 KRay/s -16%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
5689 KRay/s -51%
AIDA64 / FPU Julia
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
72406 Points
Average AMD Ryzen 7 5800U
  (63569 - 72406, n=3)
67252 Points -7%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
63569 Points -12%
Average of class Subnotebook
  (6838 - 123315, n=58, last 2 years)
60264 Points -17%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
25642 Points -65%
AIDA64 / CPU SHA3
Average of class Subnotebook
  (444 - 5287, n=58, last 2 years)
2898 MB/s +17%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
2484 MB/s
Average AMD Ryzen 7 5800U
  (2192 - 2484, n=3)
2296 MB/s -8%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
2192 MB/s -12%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
1793 MB/s -28%
AIDA64 / CPU Queen
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
85454 Points +2%
Average AMD Ryzen 7 5800U
  (83872 - 85454, n=3)
84602 Points +1%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
83872 Points
Average of class Subnotebook
  (11579 - 115682, n=58, last 2 years)
79022 Points -6%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
48843 Points -42%
AIDA64 / FPU SinJulia
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
10938 Points
Average AMD Ryzen 7 5800U
  (9832 - 10938, n=3)
10259 Points -6%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
9832 Points -10%
Average of class Subnotebook
  (744 - 18418, n=58, last 2 years)
7916 Points -28%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
4078 Points -63%
AIDA64 / FPU Mandel
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
40544 Points
Average AMD Ryzen 7 5800U
  (34526 - 40544, n=3)
36967 Points -9%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
34526 Points -15%
Average of class Subnotebook
  (3366 - 65433, n=58, last 2 years)
31330 Points -23%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
15634 Points -61%
AIDA64 / CPU AES
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
101120 MB/s
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
90419 MB/s -11%
Average AMD Ryzen 7 5800U
  (39773 - 101120, n=3)
77104 MB/s -24%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
60784 MB/s -40%
Average of class Subnotebook
  (638 - 161430, n=58, last 2 years)
60058 MB/s -41%
AIDA64 / CPU ZLib
Average of class Subnotebook
  (166.9 - 1379, n=58, last 2 years)
742 MB/s +12%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
665 MB/s
Average AMD Ryzen 7 5800U
  (584 - 665, n=3)
618 MB/s -7%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
584 MB/s -12%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
334 MB/s -50%
AIDA64 / FP64 Ray-Trace
Average of class Subnotebook
  (610 - 17495, n=58, last 2 years)
6601 KRay/s +11%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
5939 KRay/s
Average AMD Ryzen 7 5800U
  (5180 - 5939, n=3)
5473 KRay/s -8%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
5180 KRay/s -13%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
3059 KRay/s -48%
AIDA64 / CPU PhotoWorxx
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
45136 MPixel/s +175%
Average of class Subnotebook
  (6569 - 54881, n=58, last 2 years)
40710 MPixel/s +148%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
16417 MPixel/s
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
14430 MPixel/s -12%
Average AMD Ryzen 7 5800U
  (12258 - 16417, n=3)
14368 MPixel/s -12%
PCMark 10 / Score
Average of class Subnotebook
  (4993 - 7788, n=50, last 2 years)
6454 Points +6%
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
6090 Points
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
5890 Points -3%
HP Pavilion Aero 13 be0097nr
Vega 8, R7 5800U, Intel SSD 660p SSDPEKNW512G8
5872 Points -4%
Average AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (5334 - 6090, n=4)
5797 Points -5%
Asus ZenBook 13 UX325EA
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFM001TD3JX013N
4839 Points -21%
Lenovo ThinkBook 13s-ITL-20V90003GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ256HAJD
4641 Points -24%
PCMark 10 / Essentials
Average of class Subnotebook
  (9476 - 11331, n=50, last 2 years)
10490 Points +3%
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
10182 Points
HP Pavilion Aero 13 be0097nr
Vega 8, R7 5800U, Intel SSD 660p SSDPEKNW512G8
10046 Points -1%
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
9917 Points -3%
Average AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (9476 - 10182, n=4)
9905 Points -3%
Asus ZenBook 13 UX325EA
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFM001TD3JX013N
9899 Points -3%
Lenovo ThinkBook 13s-ITL-20V90003GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ256HAJD
9360 Points -8%
PCMark 10 / Productivity
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
9657 Points
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
9410 Points -3%
Average AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (8336 - 9657, n=4)
9123 Points -6%
HP Pavilion Aero 13 be0097nr
Vega 8, R7 5800U, Intel SSD 660p SSDPEKNW512G8
9089 Points -6%
Average of class Subnotebook
  (6440 - 10623, n=50, last 2 years)
8635 Points -11%
Asus ZenBook 13 UX325EA
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFM001TD3JX013N
6710 Points -31%
Lenovo ThinkBook 13s-ITL-20V90003GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ256HAJD
6276 Points -35%
PCMark 10 / Digital Content Creation
Average of class Subnotebook
  (5305 - 10983, n=50, last 2 years)
8143 Points +31%
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
6235 Points
HP Pavilion Aero 13 be0097nr
Vega 8, R7 5800U, Intel SSD 660p SSDPEKNW512G8
6020 Points -3%
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
5945 Points -5%
Average AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (5214 - 6235, n=4)
5854 Points -6%
Asus ZenBook 13 UX325EA
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFM001TD3JX013N
4632 Points -26%
Lenovo ThinkBook 13s-ITL-20V90003GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ256HAJD
4617 Points -26%
CrossMark / Overall
Average of class Subnotebook
  (365 - 1971, n=56, last 2 years)
1581 Points +18%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
1355 Points +1%
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
1335 Points
Average AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  ()
1335 Points 0%
CrossMark / Productivity
Average of class Subnotebook
  (364 - 1875, n=56, last 2 years)
1521 Points +12%
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
1355 Points
Average AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  ()
1355 Points 0%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
1274 Points -6%
CrossMark / Creativity
Average of class Subnotebook
  (385 - 2210, n=56, last 2 years)
1737 Points +25%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
1593 Points +14%
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
1395 Points
Average AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  ()
1395 Points 0%
CrossMark / Responsiveness
Average of class Subnotebook
  (312 - 1899, n=56, last 2 years)
1347 Points +20%
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
1118 Points
Average AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  ()
1118 Points 0%
Apple MacBook Air 2020 M1 Entry
M1 7-Core GPU, M1, Apple SSD AP0256Q
1004 Points -10%
PCMark 10 Score
6090 points
Help
AIDA64 / Memory Copy
Average of class Subnotebook
  (14916 - 108756, n=58, last 2 years)
71859 MB/s +99%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
64946 MB/s +80%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
36070 MB/s
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
34408 MB/s -5%
Average AMD Ryzen 7 5800U
  (21599 - 36070, n=3)
30692 MB/s -15%
AIDA64 / Memory Read
Average of class Subnotebook
  (15948 - 122210, n=58, last 2 years)
69350 MB/s +91%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
61304 MB/s +69%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
39360 MB/s +8%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
36377 MB/s
Average AMD Ryzen 7 5800U
  (24057 - 39360, n=3)
33265 MB/s -9%
AIDA64 / Memory Write
Average of class Subnotebook
  (16513 - 117898, n=58, last 2 years)
74703 MB/s +110%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
66716 MB/s +87%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
35606 MB/s
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
31683 MB/s -11%
Average AMD Ryzen 7 5800U
  (24125 - 35606, n=3)
30471 MB/s -14%
AIDA64 / Memory Latency
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, Vega 8
107 ns *
Average of class Subnotebook
  (7.2 - 187.8, n=58, last 2 years)
105.3 ns * +2%
Average AMD Ryzen 7 5800U
  (89.3 - 107, n=3)
96.1 ns * +10%
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, Vega 8
92.1 ns * +14%
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Iris Xe G7 96EUs
86.1 ns * +20%

* ... smaller is better

DPC延迟

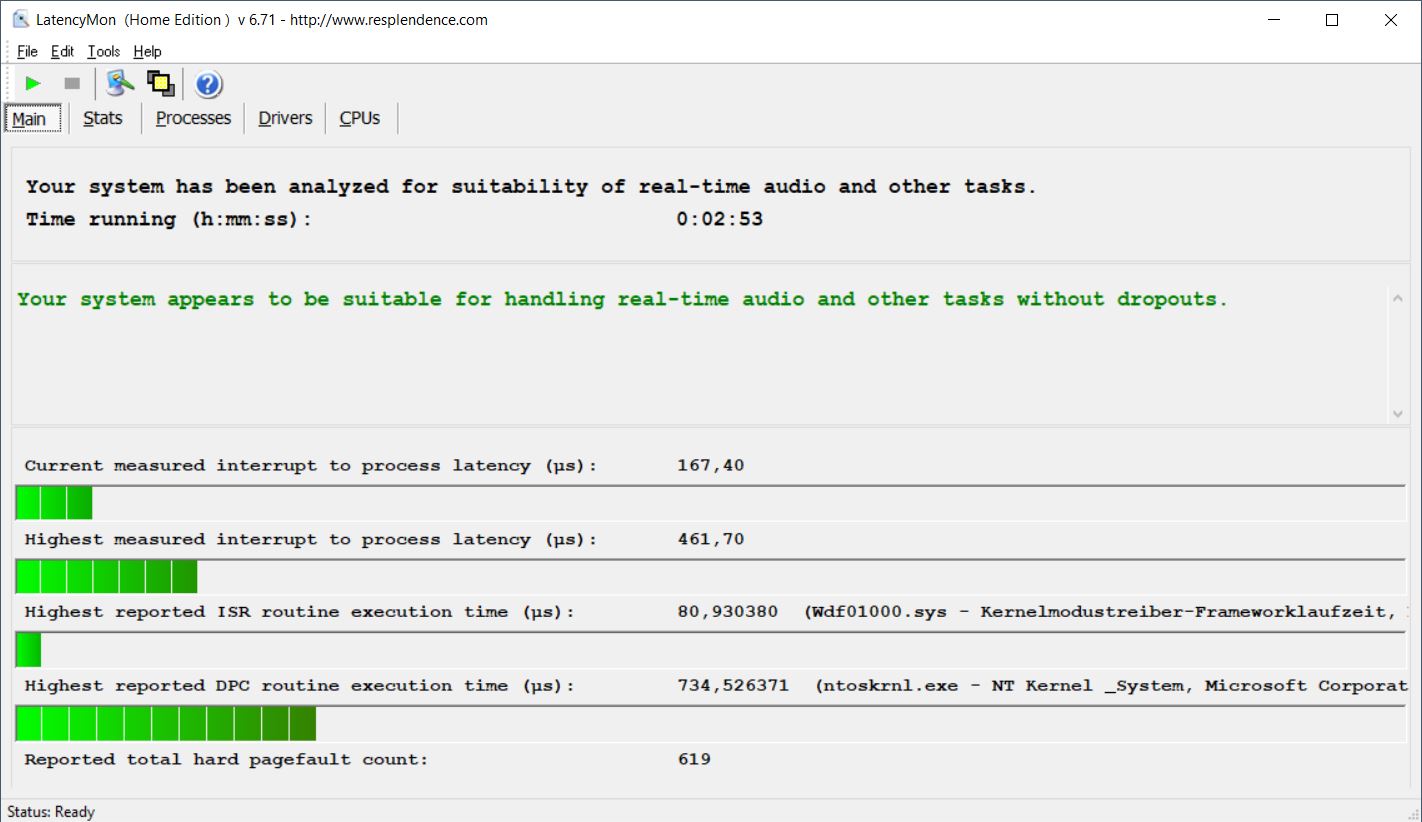

LatencyMon - 概述
LatencyMon - 概述

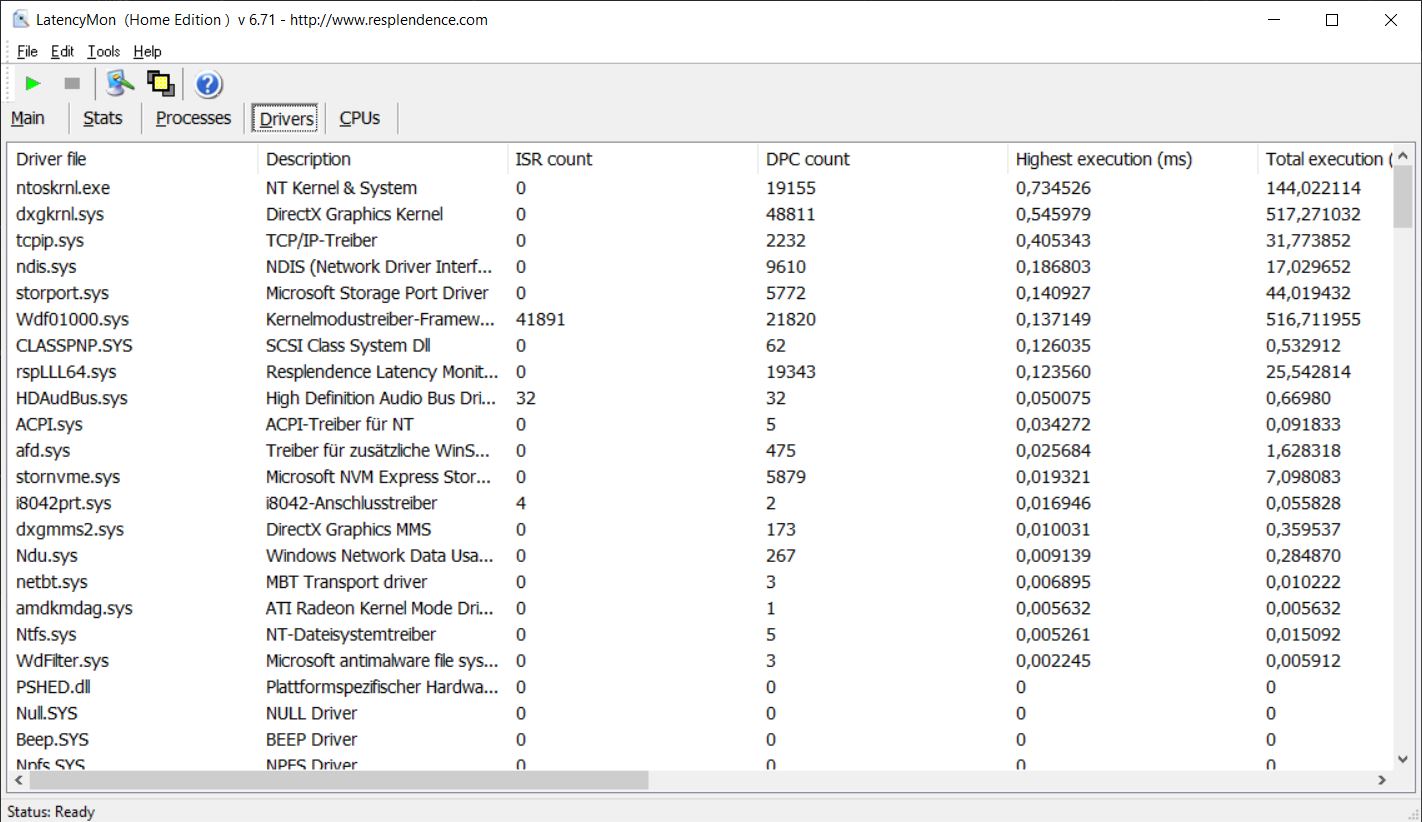

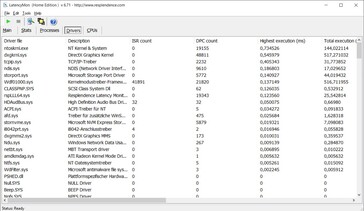

LatencyMon - 驱动程序
LatencyMon - 驱动程序
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Asus ZenBook 13 UX325EA
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFM001TD3JX013N
909 μs * -97%
HP Pavilion Aero 13 be0097nr
Vega 8, R7 5800U, Intel SSD 660p SSDPEKNW512G8
903 μs * -96%
Lenovo ThinkBook 13s-ITL-20V90003GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ256HAJD
819 μs * -77%
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
461.7 μs *
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
395.4 μs * +14%

* ... smaller is better

WDC PC SN530 SDBPNPZ-512G
CDM 5/6 Read Seq Q32T1: 2481 MB/s
CDM 5/6 Write Seq Q32T1: 1827 MB/s
CDM 5/6 Read 4K Q32T1: 432.1 MB/s
CDM 5/6 Write 4K Q32T1: 504 MB/s
CDM 5 Read Seq: 1777 MB/s
CDM 5 Write Seq: 1789 MB/s
CDM 5/6 Read 4K: 44.71 MB/s
CDM 5/6 Write 4K: 134.8 MB/s
Drive Performance Rating - Percent
Average of class Subnotebook

93.2 pt
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
83.9 pt
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
71.6 pt
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
65.3 pt
Average WDC PC SN530 SDBPNPZ-512G

63.7 pt
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
44.1 pt
Lenovo ThinkBook 13s-ITL-20V90003GE -8!
Samsung PM991 MZALQ256HAJD
30 pt
DiskSpd
seq read
Average of class Subnotebook
  (38.2 - 4852, n=58, last 2 years)
2970 MB/s +67%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2076 (2064.65min - 2075.93max) MB/s +17%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
1968 (1951.69min - 1968.23max) MB/s +11%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
1778 (1754.32min - 1778.18max) MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (1116 - 1862, n=12)
1637 MB/s -8%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
1484 (1454.17min - 1483.56max) MB/s -17%
seq write
Average of class Subnotebook
  (38.2 - 5344, n=58, last 2 years)
2941 MB/s +66%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2359 (2323.61min - 2359.19max) MB/s +33%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
1961 (1938.09min - 1961.05max) MB/s +11%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
1774 (1761.65min - 1773.58max) MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (1356 - 1791, n=12)
1693 MB/s -5%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
971 (967.04min - 970.83max) MB/s -45%
seq q8 t1 read
Average of class Subnotebook
  (38.5 - 13544, n=58, last 2 years)
5300 MB/s +113%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
3607 (3276.17min - 3606.89max) MB/s +45%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
3527 (3315.39min - 3527.49max) MB/s +42%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
2488 (1890.16min - 2487.91max) MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (1359 - 2488, n=12)
2248 MB/s -10%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
1709 (1558.6min - 1708.76max) MB/s -31%
seq q8 t1 write
Average of class Subnotebook
  (38.2 - 9702, n=58, last 2 years)
4134 MB/s +129%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
3004 (2758.74min - 3003.96max) MB/s +66%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2955 (2654.16min - 2955.1max) MB/s +63%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
1808 (1789.49min - 1808.32max) MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (1486 - 1838, n=12)
1780 MB/s -2%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
983 (965.28min - 982.52max) MB/s -46%
4k q1 t1 read
Average of class Subnotebook
  (8.27 - 87.4, n=58, last 2 years)
61.4 MB/s +44%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
60.2 (60.01min - 60.16max) MB/s +41%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
50.2 (49.55min - 50.24max) MB/s +18%
Average WDC PC SN530 SDBPNPZ-512G
  (27.3 - 52.8, n=12)
43.3 MB/s +2%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
42.6 (32.27min - 42.56max) MB/s
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
42.1 (41.92min - 42.07max) MB/s -1%
4k q1 t1 write
Average WDC PC SN530 SDBPNPZ-512G
  (111 - 277, n=12)
167.1 MB/s +30%
Average of class Subnotebook
  (12 - 360, n=58, last 2 years)
158.9 MB/s +23%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
142 (139.45min - 142.06max) MB/s +10%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
129 (111.96min - 129.32max) MB/s
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
119 (118.33min - 119.3max) MB/s -8%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
81.2 (74.11min - 81.21max) MB/s -37%
4k q32 t16 read
Average of class Subnotebook
  (11.1 - 4286, n=58, last 2 years)
1259 MB/s +33%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
1120 (1057.46min - 1120.06max) MB/s +18%
Average WDC PC SN530 SDBPNPZ-512G
  (681 - 1315, n=12)
1034 MB/s +9%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
947 (920.05min - 946.5max) MB/s
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
718 (502.74min - 718.12max) MB/s -24%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
347 (337.78min - 347.14max) MB/s -63%
4k q32 t16 write
Average WDC PC SN530 SDBPNPZ-512G
  (448 - 1306, n=12)
898 MB/s +100%
Average of class Subnotebook
  (14.2 - 4189, n=58, last 2 years)
872 MB/s +95%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
503 (493.05min - 503.32max) MB/s +12%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
480 (468.99min - 479.72max) MB/s +7%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
448 (435.32min - 448.22max) MB/s
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
427 (354.53min - 427.41max) MB/s -5%
AS SSD
Score Total
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
4451 Points +27%
Average of class Subnotebook
  (515 - 8892, n=57, last 2 years)
4331 Points +23%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
3615 Points +3%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
3507 Points
Average WDC PC SN530 SDBPNPZ-512G
  (1795 - 3507, n=12)
2738 Points -22%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
1798 Points -49%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
834 Points -76%
Score Read
Average of class Subnotebook
  (246 - 3307, n=57, last 2 years)
1363 Points +6%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
1359 Points +6%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
1336 Points +4%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
1282 Points
Average WDC PC SN530 SDBPNPZ-512G
  (581 - 1322, n=12)
1041 Points -19%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
533 Points -58%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
418 Points -67%
Score Write
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2452 Points +51%
Average of class Subnotebook
  (153 - 4469, n=57, last 2 years)
2330 Points +43%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
1638 Points +1%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
1624 Points
Average WDC PC SN530 SDBPNPZ-512G
  (684 - 1654, n=12)
1179 Points -27%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
1018 Points -37%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
254 Points -84%
Seq Read
Average of class Subnotebook
  (448 - 8075, n=57, last 2 years)
4079 MB/s +92%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2916 MB/s +37%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
2635 MB/s +24%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
2128 MB/s
Average WDC PC SN530 SDBPNPZ-512G
  (1007 - 2228, n=12)
1862 MB/s -12%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
1616 MB/s -24%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
1425 MB/s -33%
Seq Write
Average of class Subnotebook
  (99 - 5120, n=57, last 2 years)
2633 MB/s +175%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
1566 MB/s +64%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
1524 MB/s +59%
Average WDC PC SN530 SDBPNPZ-512G
  (956 - 1755, n=12)
1392 MB/s +46%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
956 MB/s
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
761 MB/s -20%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
114 MB/s -88%
4K Read
Average of class Subnotebook
  (19.8 - 96.2, n=57, last 2 years)
58.6 MB/s +46%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
58 MB/s +45%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
56 MB/s +40%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
46.87 MB/s +17%
Average WDC PC SN530 SDBPNPZ-512G
  (27.8 - 48.8, n=12)
42.1 MB/s +5%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
40.01 MB/s
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
36.8 MB/s -8%
4K Write
Average of class Subnotebook
  (37.4 - 256, n=57, last 2 years)
176.8 MB/s +24%
Average WDC PC SN530 SDBPNPZ-512G
  (102.9 - 239, n=12)
163.8 MB/s +15%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
159.8 MB/s +12%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
143.8 MB/s +1%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
142.7 MB/s
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
126.6 MB/s -11%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
117.1 MB/s -18%
4K-64 Read
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
1029 MB/s
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
1014 MB/s -1%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
1011 MB/s -2%
Average of class Subnotebook
  (181.8 - 2682, n=57, last 2 years)
897 MB/s -13%
Average WDC PC SN530 SDBPNPZ-512G
  (406 - 1067, n=12)
813 MB/s -21%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
324.6 MB/s -68%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
238.5 MB/s -77%
4K-64 Write
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
2136 MB/s +54%
Average of class Subnotebook
  (105.9 - 3905, n=57, last 2 years)
1886 MB/s +36%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
1385 MB/s
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
1342 MB/s -3%
Average WDC PC SN530 SDBPNPZ-512G
  (396 - 1385, n=12)
876 MB/s -37%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
815 MB/s -41%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
125.7 MB/s -91%
Access Time Read
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
0.159 ms * -253%
Average WDC PC SN530 SDBPNPZ-512G
  (0.045 - 0.132, n=12)
0.07875 ms * -75%
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
0.074 ms * -64%
Average of class Subnotebook
  (0.02 - 0.167, n=57, last 2 years)
0.05558 ms * -24%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
0.045 ms *
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
0.038 ms * +16%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
0.028 ms * +38%
Access Time Write
HP Pavilion Aero 13 be0097nr
Intel SSD 660p SSDPEKNW512G8
0.135 ms * -80%
Average WDC PC SN530 SDBPNPZ-512G
  (0.04 - 0.167, n=12)
0.08225 ms * -10%
Lenovo ThinkBook 13s G3 20YA0005GE
WDC PC SN530 SDBPNPZ-512G
0.075 ms *
Average of class Subnotebook
  (0.017 - 0.352, n=57, last 2 years)
0.07407 ms * +1%
Lenovo ThinkBook 13s-ITL-20V90003GE
Samsung PM991 MZALQ256HAJD
0.037 ms * +51%
Asus ZenBook 13 UM325S
SK Hynix HFM001TD3JX013N
0.028 ms * +63%
Asus ZenBook 13 UX325EA
SK Hynix HFM001TD3JX013N
0.028 ms * +63%

* ... smaller is better

Continuous load read: DiskSpd Read Loop, Queue Depth 8

0125250375500625750875100011251250137515001625175018752000212522502375Tooltip
Lenovo ThinkBook 13s G3 20YA0005GE WDC PC SN530 SDBPNPZ-512G: Ø2481 (2298.5-2491.16)
3DMark Performance Rating - Percent
Average of class Subnotebook

100 pt
Asus ZenBook 13 UX325EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
68.2 pt
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
58.8 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)

57.9 pt
Lenovo ThinkBook 13s-ITL-20V90003GE -2!
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
57.8 pt
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
57.5 pt
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
56.6 pt
3DMark 11 - 1280x720 Performance GPU
Average of class Subnotebook
  (968 - 16296, n=55, last 2 years)
9537 Points +54%
Asus ZenBook 13 UX325EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
6642 Points +8%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
6174 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (3459 - 7591, n=54)
5910 Points -4%
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
5870 Points -5%
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
5842 Points -5%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Subnotebook
  (5577 - 58319, n=29, last 2 years)
37257 Points +32%
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
28491 Points +1%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
28311 Points
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
27008 Points -5%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (13941 - 36134, n=46)
26903 Points -5%
Asus ZenBook 13 UX325EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
25164 Points -11%
1920x1080 Fire Strike Graphics
Average of class Subnotebook
  (832 - 11887, n=59, last 2 years)
6977 Points +109%
Asus ZenBook 13 UX325EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
5358 Points +61%
Lenovo ThinkBook 13s-ITL-20V90003GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
4555 Points +37%
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
3861 Points +16%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (1694 - 5041, n=54)
3676 Points +10%
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
3399 Points +2%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
3335 Points
2560x1440 Time Spy Graphics
Average of class Subnotebook
  (804 - 4501, n=60, last 2 years)
2577 Points +142%
Asus ZenBook 13 UX325EA
Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7
1512 Points +42%
Lenovo ThinkBook 13s-ITL-20V90003GE
Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7
1298 Points +22%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)
  (540 - 1557, n=54)
1156 Points +8%
HP Pavilion Aero 13 be0097nr
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
1128 Points +6%
Asus ZenBook 13 UM325S
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
1082 Points +2%
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800U
1066 Points
3DMark 11 Performance
6377 points
3DMark Cloud Gate Standard Score
22949 points
3DMark Fire Strike Score
3087 points
3DMark Time Spy Score
1212 points
Help

Witcher 3 FPS-Diagramm

012345678910111213141516Tooltip
Lenovo ThinkBook 13s G3 20YA0005GE R7 5800U, Vega 8: Ø14.3 (13-17)
lowmed.highultra
The Witcher 3 (2015) 75 23 14.3
Dota 2 Reborn (2015) 113 88.4 51.1 47.5
Final Fantasy XV Benchmark (2018) 39.1 18.8 12.7
X-Plane 11.11 (2018) 44.1 34.1 29.5

Noise Level

Idle
24.7 / 27 / 29.8 dB(A)
Load
42.4 / 42.4 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Earthworks M23R, Arta (15 cm distance)   environment noise: 24.7 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.233.73231.931.22529.832.530.529.629.83126.329.227.426.926.34033.332.526.727.633.35027.32526.323.527.36325.526.325.223.425.58023.729.427.422.223.710021.72225.920.621.712522.621.824.120.222.616018.520.522.319.318.520021.120.623.219.921.125018.719.424.216.618.731518.418.324.916.718.440019.619.126.116.919.650018.11628.113.318.163017.21527.812.217.280018.515.528.911.118.5100018.816.628.712.918.8125018.816.330.511.118.8160020.415.531.812.320.4200019.714.432.811.519.7250016.612.83211.516.6315015.913.631.211.715.940001814.132.311.818500016.113.330.712.216.1630013.812.829.412.413.8800013.313.327.412.613.310000131322.512.5131250013.213.518.612.413.21600013.313.715.612.213.3SPL29.82742.424.729.8N1.20.940.61.2median 18.4median 15.5median 27.8median 12.4median 18.4Delta2.62.73.72.52.6hearing rangehide median Fan NoiseLenovo ThinkBook 13s G3 20YA0005GE
Lenovo ThinkBook 13s G3 20YA0005GE
Vega 8, R7 5800U, WDC PC SN530 SDBPNPZ-512G
Asus ZenBook 13 UM325S
Vega 8, R7 5800U, SK Hynix HFM001TD3JX013N
Asus ZenBook 13 UX325EA
Iris Xe G7 96EUs, i7-1165G7, SK Hynix HFM001TD3JX013N
HP Pavilion Aero 13 be0097nr
Vega 8, R7 5800U, Intel SSD 660p SSDPEKNW512G8
Lenovo ThinkBook 13s-ITL-20V90003GE
Iris Xe G7 80EUs, i5-1135G7, Samsung PM991 MZALQ256HAJD
Noise
-5%
-3%
14%
1%
off / environment *
24.7
29.6
-20%
26
-5%
23.9
3%
24.9
-1%
Idle Minimum *
24.7
30.5
-23%
26
-5%
23.9
3%
24.9
-1%
Idle Average *
27
30.5
-13%
26
4%
23.9
11%
24.9
8%
Idle Maximum *
29.8
30.5
-2%
30.5
-2%
23.9
20%
30.4
-2%
Load Average *
42.4
35.7
16%
43.9
-4%
32.2
24%
40.8
4%
Witcher 3 ultra *
42.4
34.7
18%
42
1%
Load Maximum *
42.4
37.2
12%
43.9
-4%
34.8
18%
43
-1%

* ... smaller is better

温度

CPU和iGPU数据压力测试
CPU和iGPU数据压力测试
Max. Load
 32.3 °C36.5 °C33.3 °C
 32 °C36.2 °C33.1 °C
 25.5 °C25.2 °C25.8 °C
Maximum: 36.5 °C
Average: 31.1 °C
36.7 °C39.6 °C35.9 °C
31.2 °C35.3 °C28 °C
27.6 °C28.5 °C27.8 °C
Maximum: 39.6 °C
Average: 32.3 °C
Power Supply (max.)  31.8 °C | Room Temperature 19.9 °C | Fluke t3000FC (calibrated), Voltcraft IR-900
(+) The average temperature for the upper side under maximal load is 31.1 °C / 88 F, compared to the average of 30.8 °C / 87 F for the devices in the class Subnotebook.
(+) The maximum temperature on the upper side is 36.5 °C / 98 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(+) The bottom heats up to a maximum of 39.6 °C / 103 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 30.8 °C / 87 F.
(±) Playing The Witcher 3, the average temperature for the upper side is 33 °C / 91 F, compared to the device average of 30.8 °C / 87 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 27.1 °C / 80.8 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (+1.2 °C / 2.1 F).
表面温度应力测试(顶面)
表面温度应力测试(顶面)
表面温度应力测试(底面)
表面温度应力测试(底面)
Lenovo ThinkBook 13s G3 20YA0005GE
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Asus ZenBook 13 UM325S
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Asus ZenBook 13 UX325EA
Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs
HP Pavilion Aero 13 be0097nr
AMD Ryzen 7 5800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)
Apple MacBook Air 2020 M1 Entry
Apple M1, Apple M1 7-Core GPU
Lenovo ThinkBook 13s-ITL-20V90003GE
Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs
Heat
-26%
-11%
-8%
-13%
2%
Maximum Upper Side *
36.5
42.6
-17%
39.3
-8%
35.6
2%
44
-21%
32.8
10%
Maximum Bottom *
39.6
43.6
-10%
47.3
-19%
38.6
3%
44
-11%
36.1
9%
Idle Upper Side *
24.5
36
-47%
25.9
-6%
29.6
-21%
27
-10%
26
-6%
Idle Bottom *
25
32.8
-31%
27.8
-11%
29
-16%
27
-8%
26.3
-5%

* ... smaller is better

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.931.62529.632.23126.929.74027.6285023.527.46323.428.88022.231.610020.636.212520.239.716019.342.220019.945.925016.65331516.760.840016.964.750013.363.663012.263.980011.165.1100012.965.7125011.161.5160012.368.4200011.567.9250011.571.6315011.764.8400011.861.5500012.266.3630012.470.1800012.673.61000012.564.91250012.460.41600012.265SPL24.779.8N0.647.2median 12.4median 64.7Delta2.55.333.436.621.721.82020.62223.522.434.225.730.422.435.717.747.122.457.921.161.615.859.7156213.462.416.168.113.169.211.463.110.766.910.165.510.468.31168.71167.111.266.811.567.511.670.611.967.111.968.711.965.512.162.811.862.41160.623.979.60.547.3median 11.9median 65.523.5hearing rangehide median Pink NoiseLenovo ThinkBook 13s G3 20YA0005GEApple MacBook Air 2020 M1 Entry
Frequency diagram (checkboxes can be checked and unchecked to compare devices)
Lenovo ThinkBook 13s G3 20YA0005GE audio analysis

(±) | speaker loudness is average but good (79.8 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 18.4% lower than median
(±) | linearity of bass is average (9.3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.7% away from median
(+) | mids are linear (4.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 3.7% away from median
(±) | linearity of highs is average (9.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.3% difference to median)
Compared to same class
» 25% of all tested devices in this class were better, 7% similar, 69% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 15% of all tested devices were better, 4% similar, 81% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Apple MacBook Air 2020 M1 Entry audio analysis

(±) | speaker loudness is average but good (79.6 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 7.1% lower than median
(±) | linearity of bass is average (9.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 2.2% away from median
(+) | mids are linear (5.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.3% away from median
(+) | highs are linear (4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (8.7% difference to median)
Compared to same class
» 2% of all tested devices in this class were better, 1% similar, 97% worse
» The best had a delta of 5%, average was 19%, worst was 53%
Compared to all devices tested
» 2% of all tested devices were better, 1% similar, 97% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Power Consumption
Off / Standbydarklight 0.34 / 0.58 Watt
Idledarkmidlight 5 / 8.2 / 9 Watt
Load midlight 45 / 51.2 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Power consumption Witcher 3 / Stress test

05101520253035404550Tooltip
Lenovo ThinkBook 13s G3 20YA0005GE; Witcher 3 ultra: Ø45.1 (44.3-46.7)
Lenovo ThinkBook 13s G3 20YA0005GE; 1280x720 Prime95 28.10 and Furmark 1.25: Ø45.6 (43.8-51.2)

Power consumption with external monitor

05101520253035404550Tooltip
Lenovo ThinkBook 13s G3 20YA0005GE; Prime95 V2810 Stress (external Monitor): Ø28.7 (26-32)
Lenovo ThinkBook 13s G3 20YA0005GE; Cinebench R15 Multi (external Monitor): Ø42.9 (42-44.5)
Lenovo ThinkBook 13s G3 20YA0005GE; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.5 (40.4-50.3)
Lenovo ThinkBook 13s G3 20YA0005GE; 1920x1080 The Witcher 3 ultra (external Monitor): Ø42.4 (41.7-43.8)

电池寿命

电池运行时间与56瓦时的电池结合在一起,结果是很好的。在我们的WLAN测试中,调整亮度为150cd/m²(相当于测试设备最大亮度的81%),我们记录的电池运行时间略低于11小时,这甚至比 英特尔变体.在最大亮度下,电池运行时间略长于8小时。

ThinkBook 13s G3在对比组中处于领先地位,至少在Windows设备中是如此。而 Apple MacBook Air M1在150cd/m²亮度下的续航时间明显更长,为16小时,但在最大亮度下的续航时间方面,两者基本持平。

Battery Runtime
WiFi Websurfing (Edge 96)
10h 57min
WiFi Websurfing max. Brightness (Edge 96)
8h 12min
Lenovo ThinkBook 13s G3 20YA0005GE
R7 5800U, Vega 8, 56 Wh
Asus ZenBook 13 UM325S
R7 5800U, Vega 8, 67 Wh
Asus ZenBook 13 UX325EA
i7-1165G7, Iris Xe G7 96EUs, 67 Wh
HP Pavilion Aero 13 be0097nr
R7 5800U, Vega 8, 43 Wh
Apple MacBook Air 2020 M1 Entry
M1, M1 7-Core GPU, 49.9 Wh
Lenovo ThinkBook 13s-ITL-20V90003GE
i5-1135G7, Iris Xe G7 80EUs, 55 Wh
Average of class Subnotebook

Battery Runtime
-16%
-3%
-18%
46%
-2%
11%
WiFi v1.3
657
551
-16%
640
-3%
539
-18%
960
46%
645
-2%
Witcher 3 ultra
190

Pros

+ 高质量的铝制外壳
+ 哑光、明亮的LCD,几乎100%sRGB
+ 较低的机箱温度
+ 非常好的电池寿命
+ 非常高的CPU性能

Cons

- 内存、板载Wi-Fi,不可升级
- 缺少商业功能
- 保修期短
- 没有TB4的AMD变体

结论--ThinkBook 13s G3是一款不错的副笔记本

在审查中。联想ThinkBook 13s G3 AMD。测试设备由:
在审查中。联想ThinkBook 13s G3 AMD。测试设备由:

无论你是在G3型号中选择AMD Ryzen处理器,还是在相同的G2版本中选择英特尔Tiger Lake 芯片,联想的ThinkBook 13s都是一款高质量和紧凑的副笔记本,有足够的端口、快速的Wi-Fi、良好的16:10 IPS显示屏和哑光表面,以及体面的输入设备。电池运行时间也大致相同,在WLAN模式下,根据亮度的不同,你可以期待8到11小时的备份时间。唯一的区别是,AMD型号中没有雷电4端口。

Ryzen处理器提供了更高的多核CPU性能,但你必须通过适当的应用程序专门利用这些性能。用户不会真正注意到这两款CPU在日常任务中的区别,比如写邮件、上网或看YouTube视频。在这方面,配备Ryzen 5600U的ThinkBook 13s G3变体也是一个有趣的前景。虽然它提供的内核较少,但也更便宜一些。

ThinkBook 13s G3再次是一款引人注目的副笔记本。AMD Ryzen 5000处理器提供了大量的多核性能,在电池寿命方面,AMD和英特尔之间没有明显的区别。然而,只有英特尔的变体提供了一个Thunderbolt 4端口。

唯一真正的缺点是冷却,因为即使在你不做任何要求的事情时,风扇也往往会启动。这一点特别明显,当你还考虑到,比如说 MacBook Air它是完全被动冷却的,而且还提供了一个更好的(尽管是反射式)屏幕。华硕ZenBook 13的可选OLED屏幕 华硕ZenBook 13主观上提供了更好的图像质量。另一方面,那些喜欢更安静和明显更轻的设备的人应该看一下 惠普Pavilion Aero 13它的Ryzen 7 5800U也提供了足够的性能,可以在路上使用。

Download your licensed rating image as SVG / PNG

价格和可用性

我们的测试设备采用Windows 10,在零售店仍偶尔有售(例如在Cyberport),但相同型号的Windows 11和型号20YA002YGE在Campuspoint以999欧元(校园型号为929欧元)出售。在Campuspoint可以买到,在Cyberport可以买到大约1,060欧元。(可立即供货)。

Lenovo ThinkBook 13s G3 20YA0005GE - 01/10/2022 v7 (old)
Andreas Osthoff

Chassis
90 / 98 → 92%
Keyboard
83%
Pointing Device
90%
Connectivity
57 / 75 → 76%
Weight
72 / 20-75 → 94%
Battery
89%
Display
92%
Games Performance
62 / 78 → 79%
Application Performance
91 / 85 → 100%
Temperature
92%
Noise
86%
Audio
78 / 91 → 86%
Camera
29 / 85 → 34%
Average
78%
88%
Subnotebook - Weighted Average

Price comparison

Please share our article, every link counts!
Mail Logo
> Notebookcheck中文版(NBC中国) > 评测 > 联想ThinkBook 13s G3 AMD笔记本电脑回顾。带有快速Ryzen CPU的副笔记本
Andreas Osthoff, 2022-01-12 (Update: 2022-01-12)
