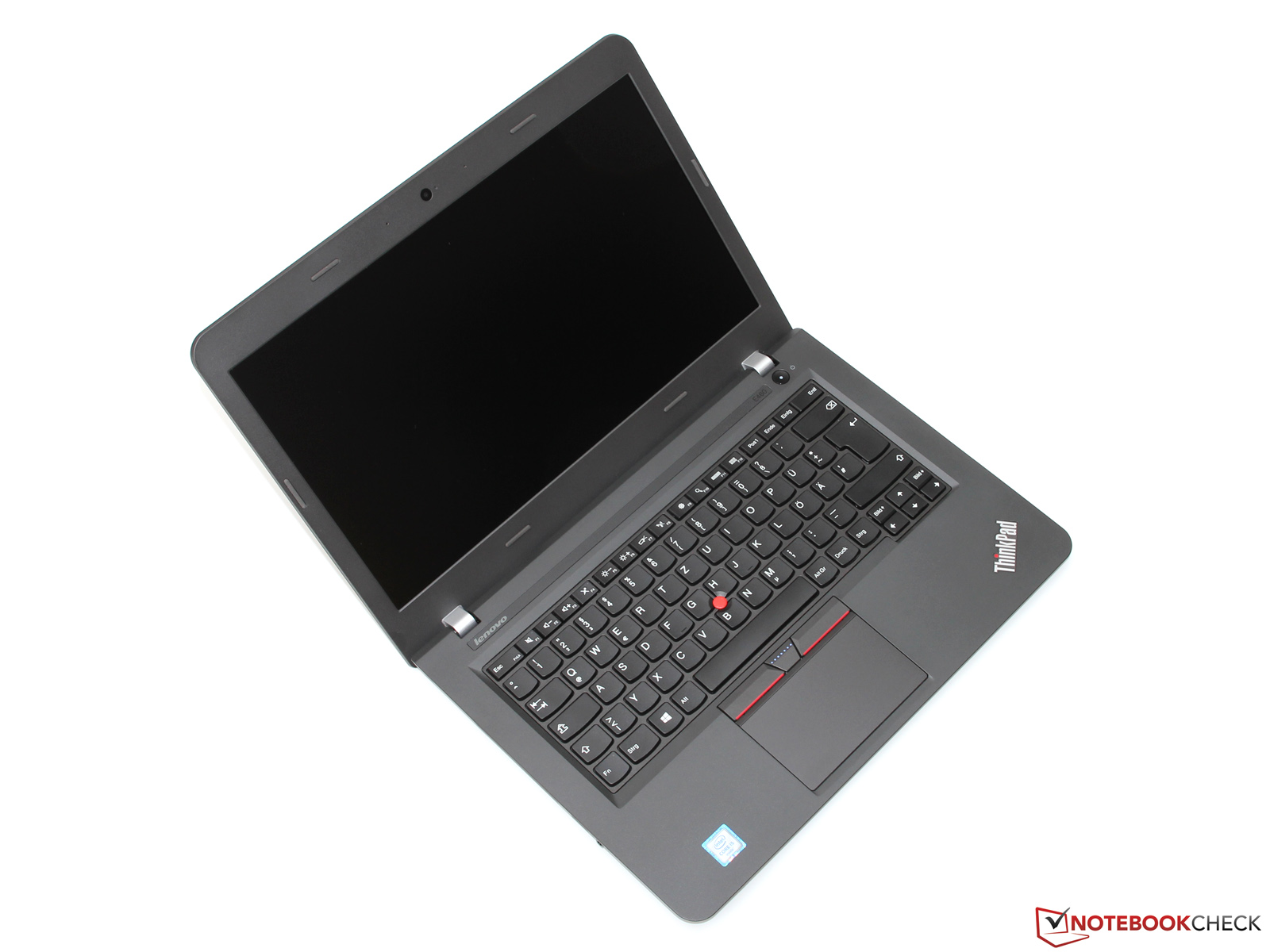

联想 ThinkPad E460 (Core i5, Radeon R7 M360) 笔记本电脑简短评测

Name: Lenovo ThinkPad E460-20EUS00000
Brand: Lenovo

新一代。 联想首次为他们的入门级ThinkPad机型搭配了高品质的IPS屏幕面板。它出色的输入设备，高速固态硬盘和英特尔的最新处理器都让E460成为了注重性价比的学生用户的最佳选择。

Till Schönborn, ✓ Stefanie Voigt (translated by Yuchen Wang), Published 12/20/2015 🇺🇸 🇩🇪 ...

Laptop / Notebook Business Skylake Windows AMD

Test device courtesy of campuspoint.de

Download your licensed rating image as PNG / SVG

Lenovo ThinkPad E460-20EUS00000

Processor

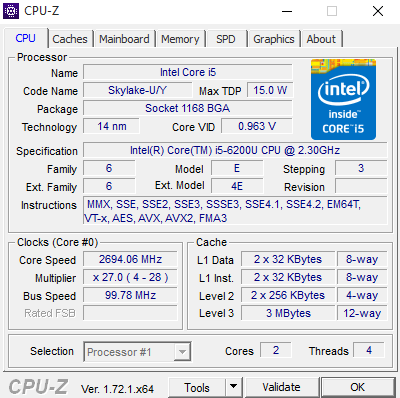

Intel Core i5-6200U 2 x 2.3 - 2.8 GHz, Skylake

Graphics adapter

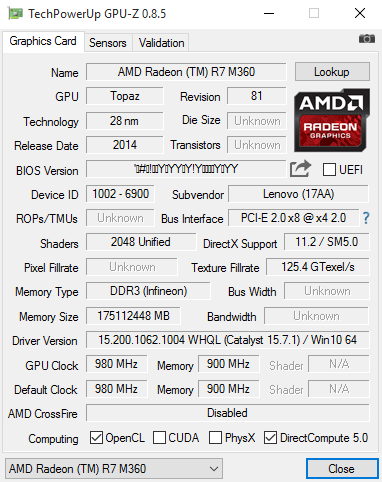

AMD Radeon R7 M360 - 2048 MB VRAM, Core: 980 MHz, RAM: 900 MHz, DDR3, Catalyst 15.7.1, Enduro

Memory

8 GB

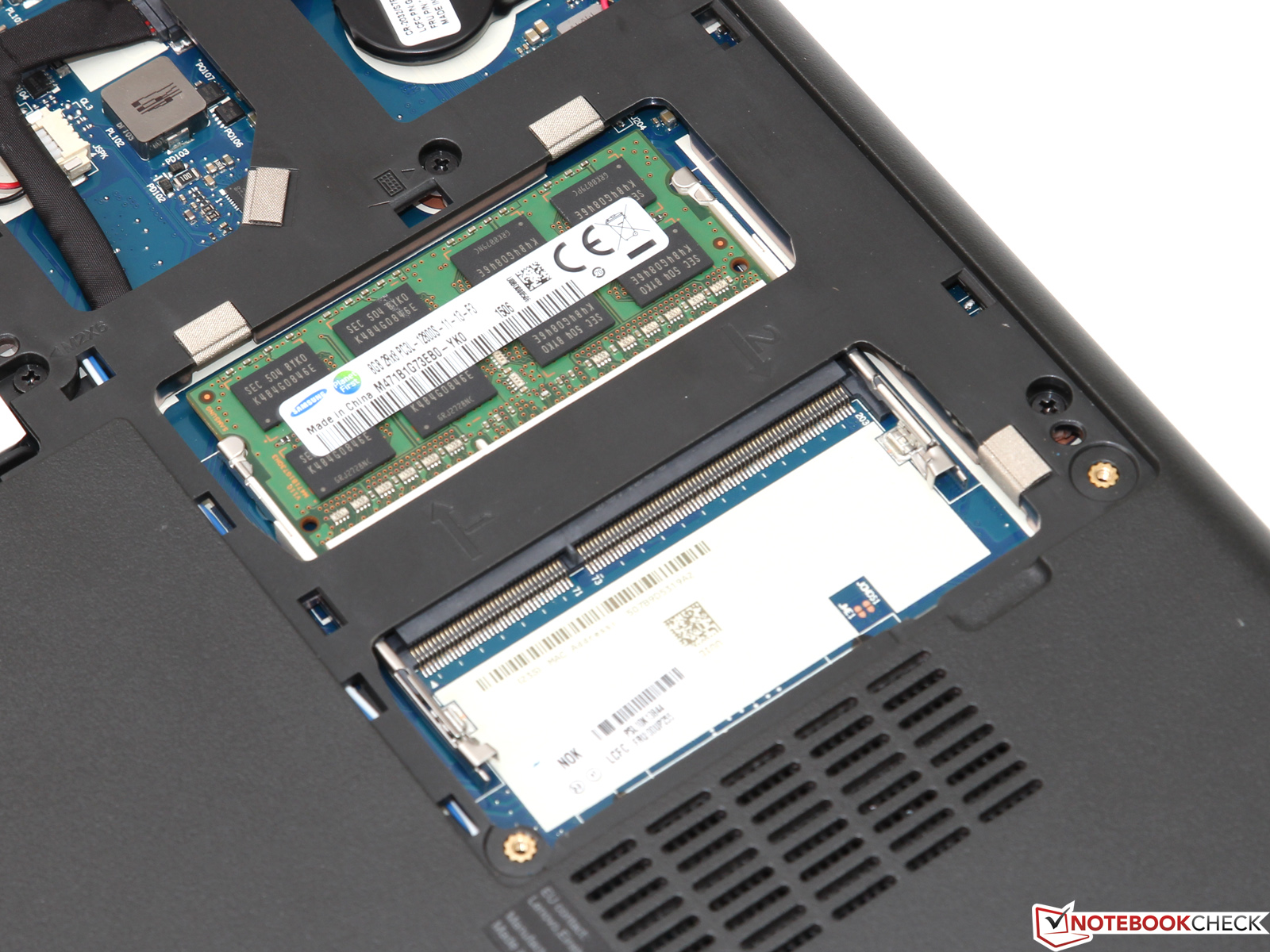

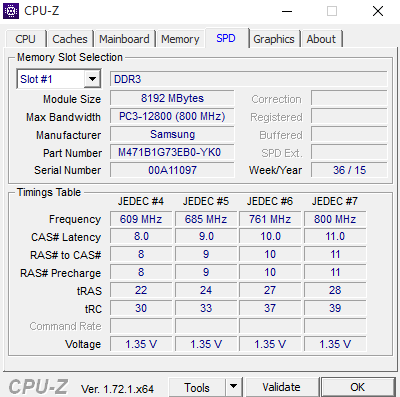

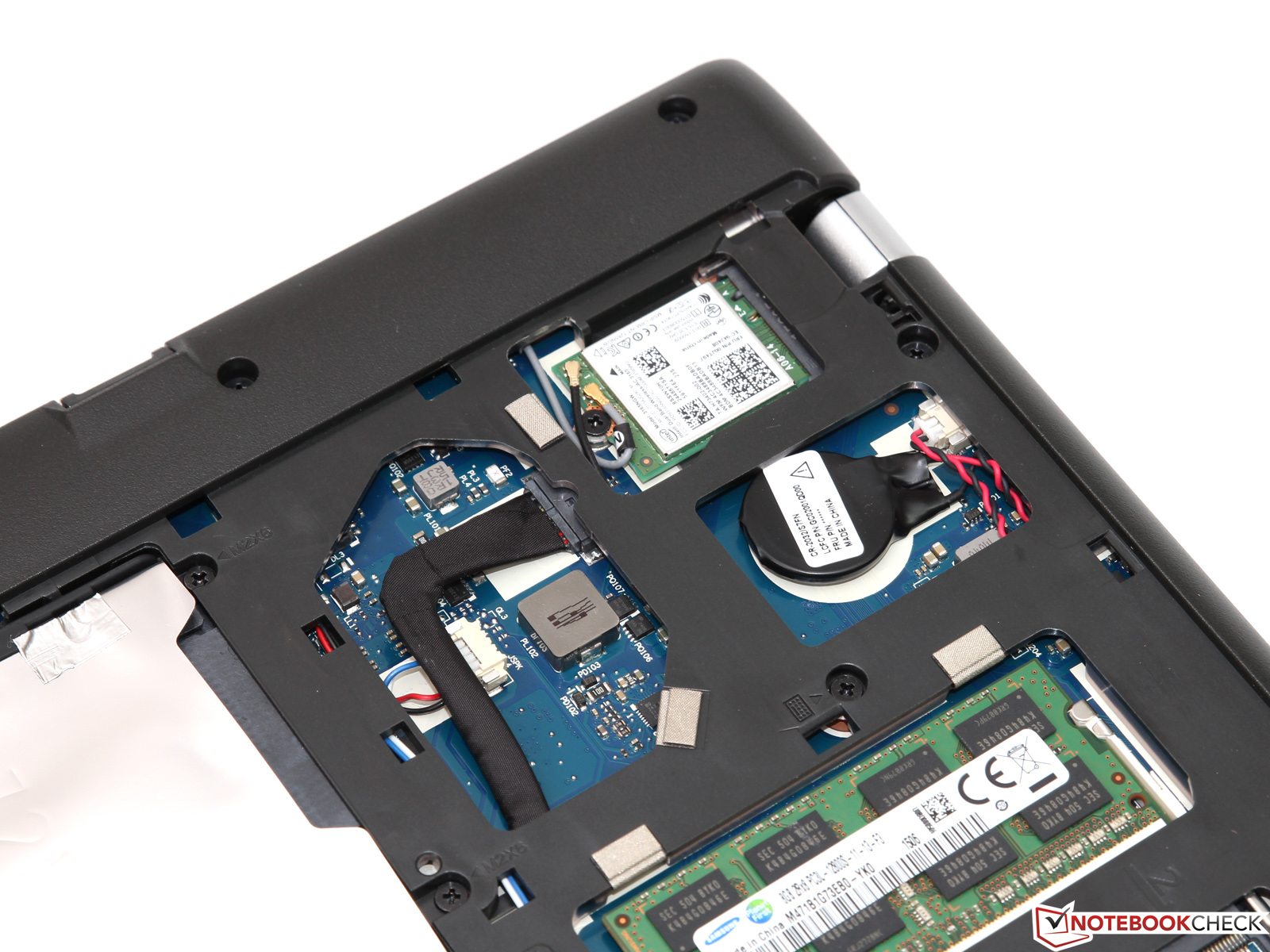

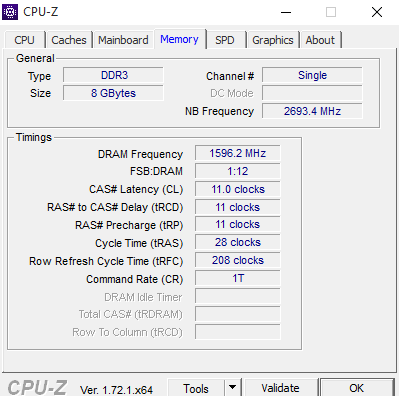

, 1x 8 GB DDR3L-1600, 两个内存槽一个已占用

Display

14.00 inch 16:9, 1920 x 1080 pixel, LG LP140WF6-SPB2, IPS屏幕面板, LED 背光, glossy: no

Mainboard

Intel Skylake-U Premium PCH

Storage

Samsung CM871 MZ7LF192HCGS, 192 GB

, 158 GB free

Soundcard

Intel Skylake-U/Y PCH - High Definition Audio

Connections

3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5毫米整合耳机插口, Card Reader: SD/MMC

Networking

Intel Ethernet Connection I219-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3165 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Size

height x width x depth (in mm): 24 x 339 x 239

Battery

47 Wh Lithium-Ion, 6 芯

Operating System

FreeDos

Camera

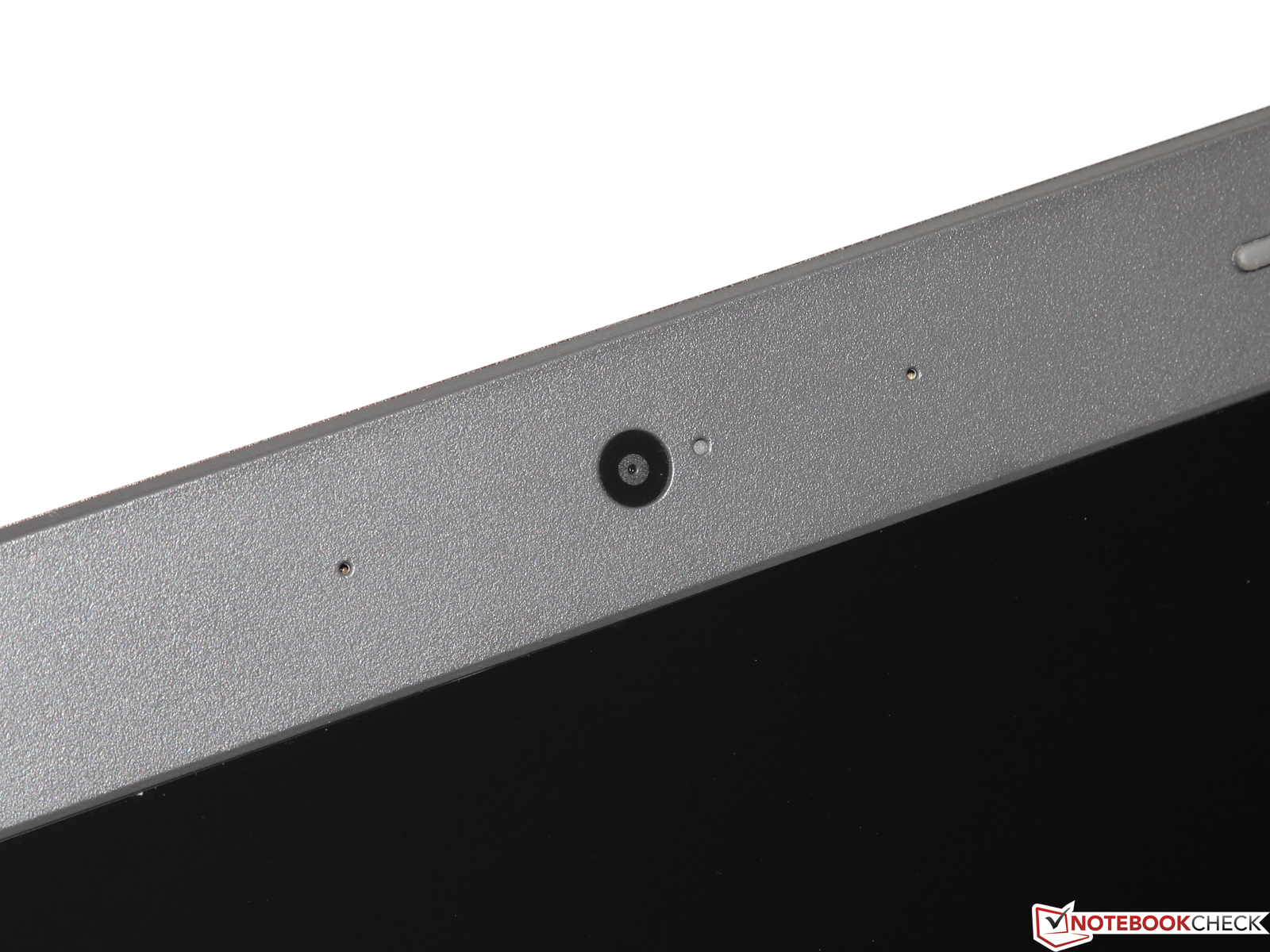

Webcam: 90万像素

Additional features

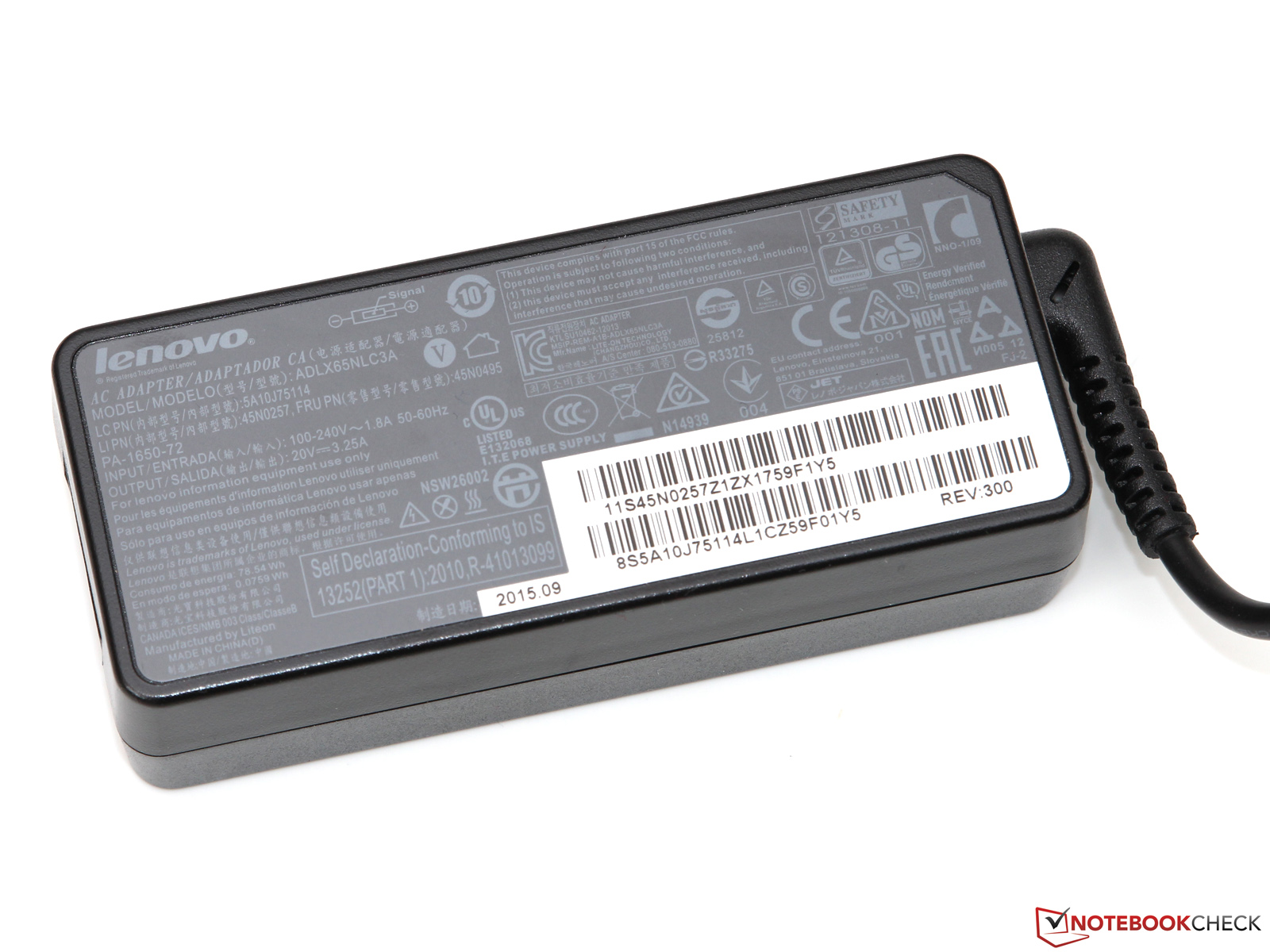

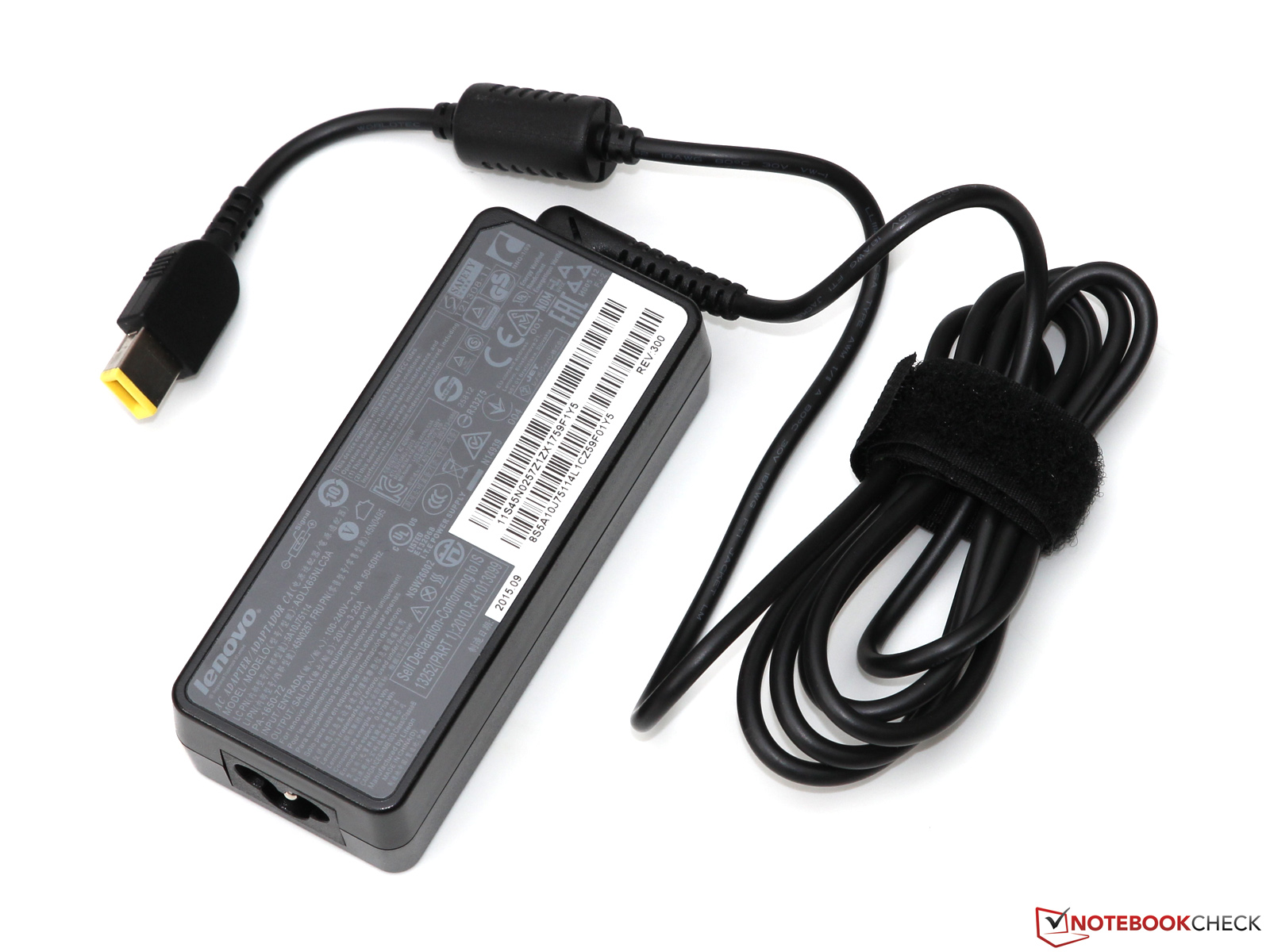

Speakers: 立体声, Keyboard: 孤岛式, Keyboard Light: no, 65瓦电源适配器

Weight

1.82 kg

Price

730 Euro

Links

Lenovo homepage

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

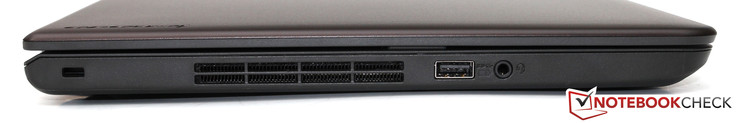

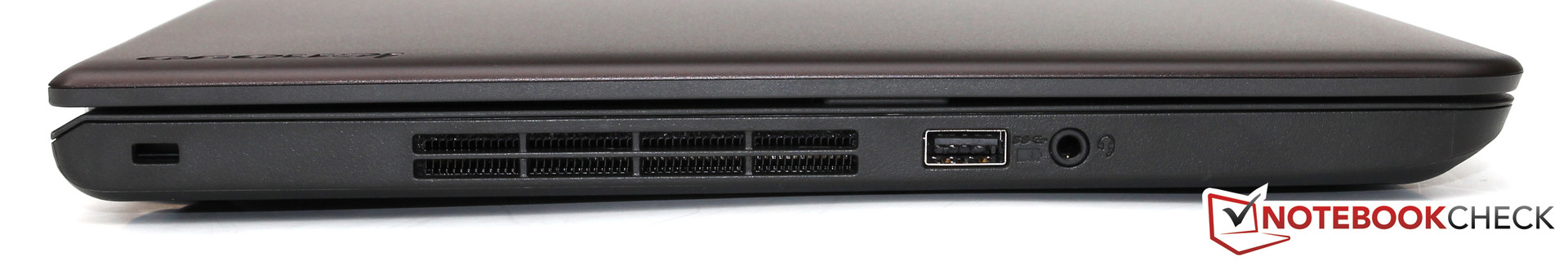

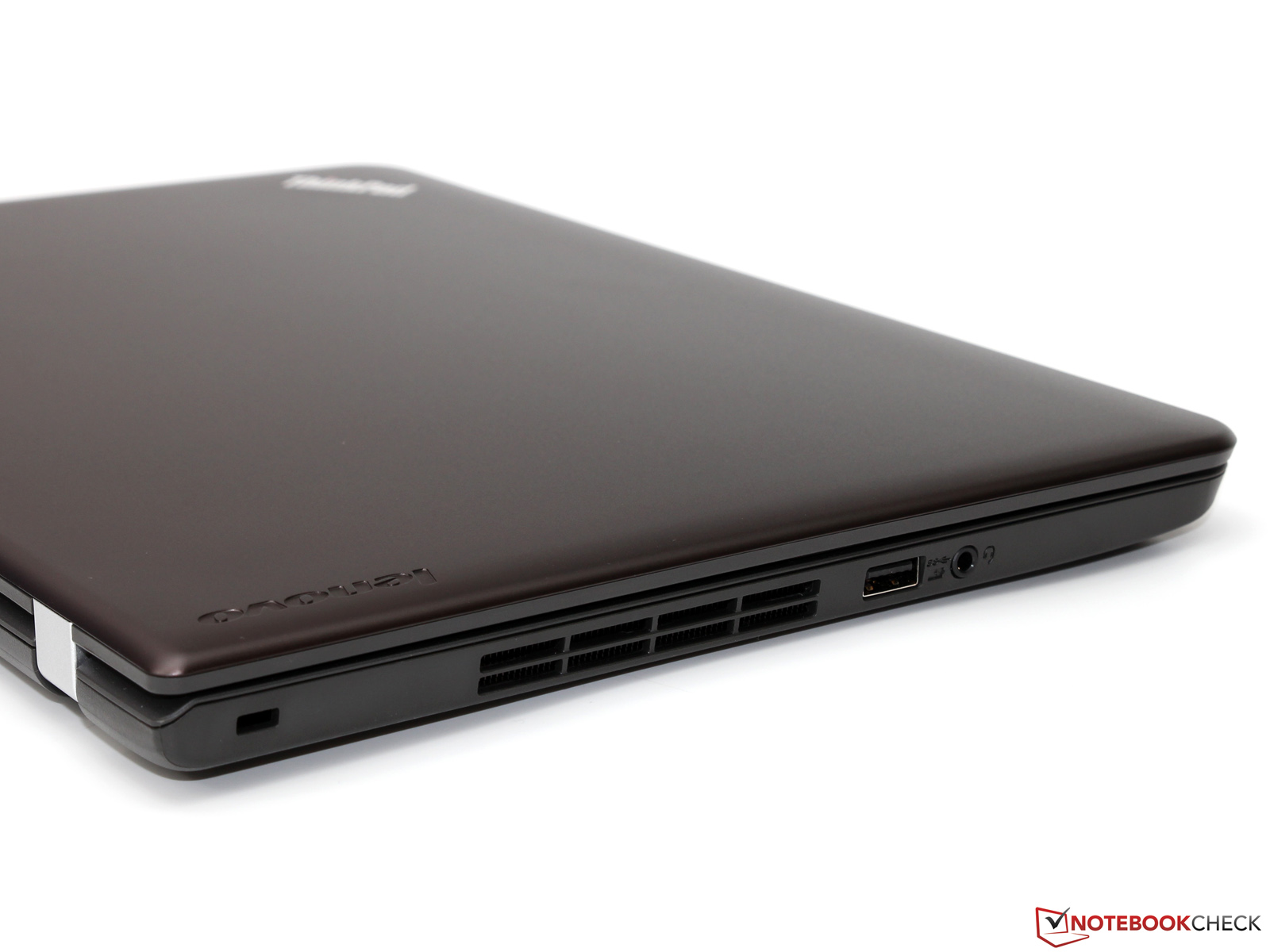

Left: Kensington lock, vent, USB 3.0, headset jack

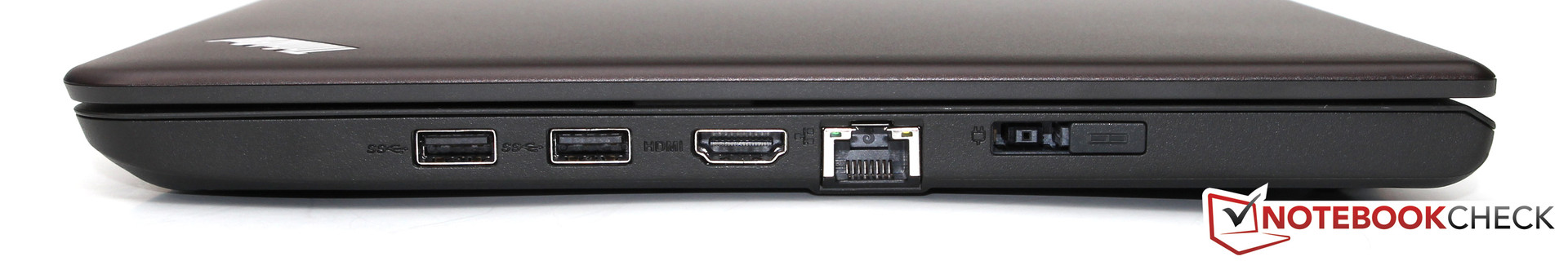

Right: 2x USB 3.0, HDMI, GBit LAN, power socket/OneLink

Screen Flickering / PWM (Pulse-Width Modulation)

ℹ

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8747 (minimum: 5 - maximum: 343500) Hz was measured.


234 cd/m²	227 cd/m²	226 cd/m²
220 cd/m²	233 cd/m²	220 cd/m²
213 cd/m²	205 cd/m²	207 cd/m²

Distribution of brightness

LG LP140WF6-SPB2 tested with X-Rite i1Pro 2

Maximum: 234 cd/m² (Nits) Average: 220.6 cd/m²
Brightness Distribution: 88 %
Center on Battery: 234 cd/m²
Contrast: 777:1 (Black: 0.3 cd/m²)
ΔE Color 4.43 | 0.5-29.43 Ø4.92
ΔE Greyscale 3.78 | 0.5-98 Ø5.2
58.7% sRGB (Argyll 1.6.3 3D)
37.3% AdobeRGB 1998 (Argyll 1.6.3 3D)
40.41% AdobeRGB 1998 (Argyll 2.2.0 3D)
58.8% sRGB (Argyll 2.2.0 3D)
39.1% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.31

Download ICC File (X-Rite i1Pro 2)

	Lenovo ThinkPad E460-20EUS00000 1.920 x 1.080 IPS-Panel	Dell Latitude 3450-9723 1.920 x 1.080 IPS-Panel	Acer TravelMate P246-M-598B 1.366 x 768 TN-Panel	Lenovo ThinkPad E450 20DDS01E00 1.920 x 1.080 TN-Panel	Lenovo ThinkPad T450s-20BWS1UT00 1.920 x 1.080 IPS-Panel
Display		66%	2%	3%	53%
Display P3 Coverage	39.1	66.3 70%	39.9 2%	40.37 3%	64.8 66%
sRGB Coverage	58.8	93.4 59%	59.9 2%	60.8 3%	83.8 43%
AdobeRGB 1998 Coverage	40.41	67.9 68%	41.24 2%	41.71 3%	61.2 51%
Response Times
Response Time Grey 50% / Grey 80% *	40 ?(17, 23)
Response Time Black / White *	23.2 ?(6.8, 16.4)
PWM Frequency
Screen		-2%	-64%	-58%	18%
Brightness middle	233	303 30%	238 2%	218 -6%	288 24%
Brightness	221	273 24%	222 0%	211 -5%	281 27%
Brightness Distribution	88	83 -6%	83 -6%	76 -14%	94 7%
Black Level *	0.3	0.445 -48%	0.56 -87%	0.53 -77%	0.286 5%
Contrast	777	681 -12%	425 -45%	411 -47%	1007 30%
Colorchecker dE 2000 *	4.43	3.94 11%	11.33 -156%	11.16 -152%	4.35 2%
Greyscale dE 2000 *	3.78	4.28 -13%	12.13 -221%	12.58 -233%	3.7 2%
Gamma	2.31 ^95%	2.5 ^88%	2.37 ^93%	2.34 ^94%	2.68 ^82%
CCT	7171 ^91%	7325 ^89%	15853 ^41%	14940 ^44%	6076 ^107%
Color Space (Percent of AdobeRGB 1998)	37.3		38 2%	39 5%	54.7 47%
Color Space (Percent of sRGB)	58.7			61 4%
Total Average (Program / Settings)		32% / 18%	-31% / -46%	-28% / -43%	36% / 28%

* ... smaller is better

Display Response Times

ℹ

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

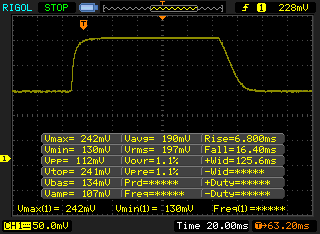

↔ Response Time Black to White
23.2 ms ... rise ↗ and fall ↘ combined	↗ 6.8 ms rise
23.2 ms ... rise ↗ and fall ↘ combined	↘ 16.4 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers. In comparison, all tested devices range from 0.1 (minimum) to 240 (maximum) ms. » 49 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (21 ms).

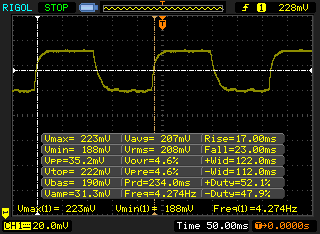

↔ Response Time 50% Grey to 80% Grey
40 ms ... rise ↗ and fall ↘ combined	↗ 17 ms rise
40 ms ... rise ↗ and fall ↘ combined	↘ 23 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers. In comparison, all tested devices range from 0.165 (minimum) to 636 (maximum) ms. » 57 % of all devices are better. This means that the measured response time is worse than the average of all tested devices (32.9 ms).

Cinebench R15 | Cinebench R11.5 | X264 HD Benchmark 4.0

Cinebench R15
CPU Single 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	114 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	122 Points +7%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	130 Points +14%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	123 Points +8%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	108 Points -5%
Dell Latitude 3450-9723 Intel Core i5-5200U	105 Points -8%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	290 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	305 Points +5%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	302 Points +4%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	282 Points -3%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	258 Points -11%
Dell Latitude 3450-9723 Intel Core i5-5200U	260 Points -10%

Cinebench R11.5
CPU Single 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	1.3 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	1.41 Points +8%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	1.51 Points +16%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	1.42 Points +9%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	1.24 Points -5%
Dell Latitude 3450-9723 Intel Core i5-5200U	1.23 Points -5%
CPU Multi 64Bit (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	3.23 Points
Microsoft Surface Book Core i5 Intel Core i5-6300U	3.42 Points +6%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	3.31 Points +2%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	3.13 Points -3%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	2.83 Points -12%
Dell Latitude 3450-9723 Intel Core i5-5200U	2.74 Points -15%

X264 HD Benchmark 4.0
Pass 1 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	97.6 fps
Microsoft Surface Book Core i5 Intel Core i5-6300U	107.5 fps +10%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	102.4 fps +5%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	89.6 fps -8%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	83 fps -15%
Pass 2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U	18.97 fps
Microsoft Surface Book Core i5 Intel Core i5-6300U	20.38 fps +7%
Lenovo ThinkPad T450s-20BWS03F00 Intel Core i7-5600U	18.72 fps -1%
Lenovo ThinkPad E550-20DF00CNGE Intel Core i7-5500U	17.31 fps -9%
Lenovo ThinkPad E450 20DCW048PB Intel Core i5-5200U	16 fps -16%

Cinebench R10 Shading 32Bit

7326

Cinebench R10 Rendering Multiple CPUs 32Bit

9926

Cinebench R10 Rendering Single 32Bit

4396

Cinebench R10 Shading 64Bit

7215 Points

Cinebench R10 Rendering Multiple CPUs 64Bit

12637 Points

Cinebench R10 Rendering Single CPUs 64Bit

5665 Points

Cinebench R11.5 CPU Single 64Bit

1.3 Points

Cinebench R11.5 OpenGL 64Bit

25.39 fps

Cinebench R11.5 CPU Multi 64Bit

3.23 Points

Cinebench R15 OpenGL 64Bit

34.29 fps

Cinebench R15 CPU Multi 64Bit

290 Points

Cinebench R15 CPU Single 64Bit

114 Points

Cinebench R15 Ref. Match 64Bit

98 %

Help

... in comparison

	Lenovo ThinkPad E460-20EUS00000 Samsung CM871 MZ7LF192HCGS	Acer TravelMate P645-S-58HK Kingston RBU-SNS8100S3256GD	Lenovo ThinkPad T450 20BVG733PB Samsung SSD 850 EVO 250GB	Lenovo ThinkPad X1 Carbon 2015 Samsung SSD SM951 512 GB MZHPV512HDGL	HP ProBook 470 G2 K9W25EA Samsung SSD 840 EVO 250GB
AS SSD		128%	269%	441%	269%
Seq Read	496.4	502 1%	513 3%	1339 170%	513 3%
Seq Write	172.8	324.6 88%	490.9 184%	1209 600%	497.8 188%
4K Read	17.47	31.82 82%	45.81 162%	39.9 128%	44.14 153%
4K Write	35.37	58 64%	121.8 244%	91.3 158%	120.6 241%
4K-64 Read	83.3	194.7 134%	374.8 350%	510 512%	374.6 350%
4K-64 Write	34.09	169.2 396%	262.9 671%	402.2 1080%	265.3 678%

HD Tune

CrystalDiskMark 3.0

AS SSD

Samsung CM871 MZ7LF192HCGS

Transfer Rate Minimum: 364 MB/s

Transfer Rate Maximum: 394.9 MB/s

Transfer Rate Average: 389.9 MB/s

Access Time: 0.1 ms

Burst Rate: 127 MB/s

CPU Usage: 3.6 %

PCMark 7 | PCMark 8

PCMark 7 - Score (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4852 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4797 Points -1%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	4797 Points -1%
Dell Latitude 3450-9723 HD Graphics 5500, 5200U, Toshiba MQ01ABD100	2856 Points -41%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	2819 Points -42%

PCMark 8
Home Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	3415 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3270 Points -4%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	3299 Points -3%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	3960 Points +16%
Creative Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4098 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	3613 Points -12%
Work Score Accelerated v2 (sort by value)
Lenovo ThinkPad E460-20EUS00000 Radeon R7 M360, 6200U, Samsung CM871 MZ7LF192HCGS	4415 Points
Lenovo ThinkPad T450s-20BWS03F00 HD Graphics 5500, 5600U, Intel SSD Pro 2500 Series SSDSC2BF360A5L	4394 Points 0%
Lenovo ThinkPad E450 20DDS01E00 Radeon R7 M260, 5200U, Samsung CM871 MZ7LF192HCGS	4186 Points -5%
Lenovo ThinkPad E550-20DF00CNGE Radeon R7 M265, 5500U, WDC Slim WD10SPCX-22HWST0	4020 Points -9%

PCMark 7 Score		4852 points
PCMark 8 Home Score Accelerated v2		3415 points
PCMark 8 Creative Score Accelerated v2		4098 points
PCMark 8 Work Score Accelerated v2		4415 points
Help

... in comparison

3DMark 11 | 3DMark

3DMark 11 - 1280x720 Performance GPU (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	1989 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	2313 Points +16%
Lenovo ThinkPad E450 20DDS01E00 Intel Core i5-5200U, AMD Radeon R7 M260	1956 Points -2%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	1961 Points -1%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	1318 Points -34%
Dell Latitude 3450-9723 Intel Core i5-5200U, Intel HD Graphics 5500	983 Points -51%

3DMark - 1920x1080 Fire Strike Graphics (sort by value)
Lenovo ThinkPad E460-20EUS00000 Intel Core i5-6200U, AMD Radeon R7 M360	1109 Points
Lenovo ThinkPad T450s-20BWS1UT00 Intel Core i5-5200U, NVIDIA GeForce 940M	1627 Points +47%
Lenovo ThinkPad E450 20DDS01E00 Intel Core i5-5200U, AMD Radeon R7 M260	1164 Points +5%
Dell Latitude 15 3550-0123 Intel Core i7-5500U, NVIDIA GeForce 830M	1360 Points +23%
HP ProBook 430 G3 P5T00ES Intel Core i5-6200U, Intel HD Graphics 520	861 Points -22%
Dell Latitude 3450-9723 Intel Core i5-5200U, Intel HD Graphics 5500	748 Points -33%

3DMark 06 Standard Score		8225 points
3DMark 11 Performance		2091 points
3DMark Ice Storm Standard Score		30550 points
3DMark Cloud Gate Standard Score		4583 points
3DMark Fire Strike Score		1003 points
Help

... in comparison

	low	med.	high	ultra
Tomb Raider (2013)	73.2	38.7	29.7	14.8
Dirt Rally (2015)	91.8	34	18.4	12.5
World of Warships (2015)	46.5	36.7	17.2	12.6
Call of Duty: Black Ops 3 (2015)	33.9	20.6	8.5
Fallout 4 (2015)	21.4	14.5	7.5
Star Wars Battlefront (2015)	23.5	16.5	8.9	8.2
Assassin's Creed Syndicate (2015)	12	10	5.9

Noise Level

Idle		29 / 29 / 29 dB(A)
Load		33.1 / 35.6 dB(A)

	30 dB silent 40 dB(A) audible 50 dB(A) loud
min: , med: , max: Voltcraft SL-451 (15 cm distance)

Max. Load

Idle


27.6 °C	28.1 °C	27.1 °C
28.6 °C	27.4 °C	26.7 °C
24.9 °C	25.2 °C	25.4 °C

Maximum: 28.6 °C
Average: 26.8 °C


28.2 °C	30.6 °C	30.1 °C
27.3 °C	29.9 °C	30.2 °C
26.5 °C	26.4 °C	26.1 °C

Maximum: 30.6 °C
Average: 28.4 °C

Power Supply (max.) 33.2 °C | Room Temperature 21 °C | Fluke 62 Max

(±) The average temperature for the upper side under maximal load is 35.7 °C / 96 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(-) The maximum temperature on the upper side is 47.8 °C / 118 F, compared to the average of 34.3 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(-) The bottom heats up to a maximum of 48.3 °C / 119 F, compared to the average of 36.8 °C / 98 F
(+) In idle usage, the average temperature for the upper side is 26.8 °C / 80 F, compared to the device average of 29.5 °C / 85 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 28 °C / 82.4 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-0.3 °C / -0.5 F).

Power Consumption

Off / Standby	0.2 / 0.5 Watt
Idle	4.1 / 8 / 8.9 Watt
Load	39.3 / 52.2 Watt


Key: min: , med: , max: Metrahit Energy

	Lenovo ThinkPad E460-20EUS00000 47 Wh	Lenovo ThinkPad E450 20DDS01E00 47 Wh	Dell Latitude 3450-9723 58 Wh	Lenovo ThinkPad T450s-20BWS03F00 48 Wh	Acer TravelMate P645-S-58HK 54 Wh
Battery Runtime		26%	66%	-11%	41%
Reader / Idle	736	999 36%		774 5%	1143 55%
H.264	425			322 -24%	525 24%
WiFi v1.3	292	409 40%	484 66%	276 -5%	535 83%
Load	112	115 3%		88 -21%	113 1%
WiFi				336

Battery Runtime

Idle (without WLAN, min brightness)		12h 16min
WiFi Websurfing		4h 52min
Big Buck Bunny H.264 1080p		7h 05min
Load (maximum brightness)		1h 52min

Pros

+ 不错的机身品质

+ 出色的键盘

+ 可选的拓展坞

+ 可视角度范围稳定、高对比度、高分辨率的IPS屏幕

+ 应用程序性能高

+ 噪音较低

+ 出色的性价比

Cons

- 屏幕的亮度一般

- 不可更换的电池

- 有限的升级维护空间

- 仅12个月质保

很久以来都没有过像联想新ThinkPad E460这样让我们满意的实惠型办公笔记本电脑了：消费者不仅可以得到一台搭配出色输入设备坚固的办公笔记本电脑，同时它也可以胜任各种不同的任务，而仅需700欧元（约4925人民币）的预算。得力于固态硬盘和Skylake架构处理器，这台ThinkPad有足够应付需求较高的大型应用程序和多任务处理的性能——同时，如果用户可以接受较低的设置，它甚至可以运行最新的游戏。不过，生产商在一些细节上没能付出足够的努力。除了告诉802.11ac无线模组，我们也需要再一次提到它所搭配的在这个价位上并不常见的出色IPS屏幕。

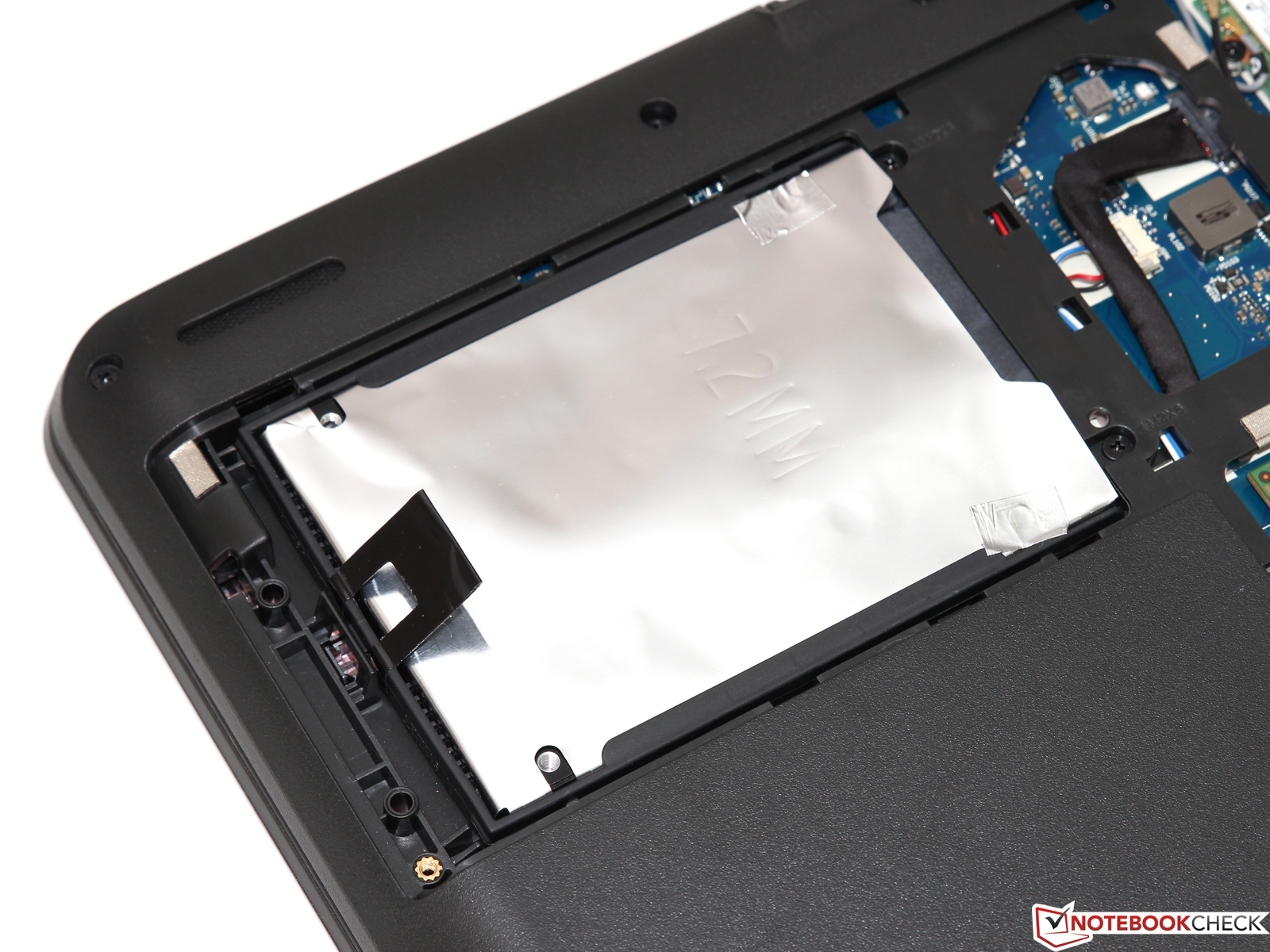

当然，E460也有一些缺点，幸运的是，它们中的大部分都不太严重。它的升级维护相对复杂，而电池续航也较短，12个月的质保也相对不足（在同类产品中属于普通水平）。不过：

几乎没有任何竞争对手可以提供同样的性价比——唯一的缺点的是这款出色的机型特供学生和教师用户。

注：本文是基于完整评测的缩减版本，阅读完整的英文评测，请点击这里。

Lenovo ThinkPad E460-20EUS00000 - 2015-11-22 11/22/2015 v4 ^(old)
Till Schönborn

Chassis

79 / 98 → 81%

Keyboard

87%

Pointing Device

83%

Connectivity

64 / 80 → 80%

Weight

65 / 20-67 → 96%

Battery

87%

Display

86%

Games Performance

74 / 68 → 100%

Application Performance

86 / 92 → 93%

Temperature

86%

Noise

95%

Audio

69%

Camera

58 / 85 → 68%

Average

78%

85%

Office - Weighted Average

Price comparison

Please share our article, every link counts!

> Notebookcheck中文版（NBC中国） > 评测 > 联想 ThinkPad E460 (Core i5, Radeon R7 M360) 笔记本电脑简短评测

Till Schönborn, 2015-12-20 (Update: 2015-12-21)
